Mineralogical and Geochemical Features of Cretaceous Bauxite from San Giovanni Rotondo (Apulia, Southern Italy): A Provenance Tool

Abstract

In this study, the mineralogical and chemical compositions of bauxite from San Giovanni Rotondo (SGR) on the Gargano Promontory (northern Apulia, Italy) are presented and discussed with the aim of assessing the nature of its source material. Bauxite from the SGR, which is known as the “Montecatini mine”, was exploited intensively until the 1970s to recover alumina. As with most of the autochthonous peri-Mediterranean bauxites, the studied deposit is a karst bauxite with a massive, matrix-supported texture and an oolitic structure. Boehmite and hematite are the main mineral phases, and anatase, rutile, and kaolinite are present in lesser amounts along with detrital zircons and monazite grains. Calcite is abundant only in the deposit’s lower portion, triggering a significant dilution effect on trace element concentrations. However, with respect to the average crust and chondrite compositions, strong enrichments of trace metals (up to 10X Upper Continental Crust’s (UCC)) and rare earth elements (REEs, up to 800X chondrite) exist throughout the studied deposit. The distribution of REEs, the (La/Yb)_N and Eu/Eu* ratios, and an Eu/Eu* versus Sm/Nd diagram have been used for determining the bauxite’s provenance. These geochemical proxies point to a parental material consisting of a mixture of distant magmatic and siliciclastic components.

1. Introduction

Bauxites are residual deposits that are formed as the result of intense weathering of alumosilicate-rich parent rocks, mainly in humid tropical to sub-tropical climates [1]. According to the geological features of bedrock, bauxite deposits can be grouped into two categories: karst bauxite and lateritic bauxite. Karst bauxites include deposits developed on and hosted by carbonate rocks; lateritic bauxites consist of deposits formed on alumosilicate rocks. Regardless of their parent rock, bauxites have great economic significance mainly because of the high concentrations of Al-bearing mineral phases. Moreover, bauxite deposits represent an important potential alternative (re)source of critical metals, including rare earth elements, as was recently stated in the latest European Union report on critical raw materials [2,3,4].

Worldwide, karst bauxite deposits have been the subject of numerous geological, petrographical, mineralogical, and geochemical investigations aimed at tracing their possible source rocks and revealing the ore-forming process [5,6,7,8,9,10,11,12]. However, the lack of sediment and/or rock representing a bauxite deposit’s parental material makes the achievement of these goals more difficult, and commonly different findings are suggested for the same deposit.

In the peri-Mediterranean regions, a number of karst bauxite deposits have occurred, mainly in association with the exhumed carbonate platforms of the Tethys Ocean, which have been affected by intense karstification and weathering during several emersion events that occurred during the Upper Paleozoic era to the Mesozoic era [13]. The southern Italian karst bauxites were formed during a late Cretaceous (late Aptian to early Coniacian) hiatus on a Bahamian-type platform that is largely exposed within the southern Apennines [14]. These deposits are located in the Abruzzi Mountains and in the Apulia (the Gargano Peninsula and the Murge district) and Campania (the Matese and Caserta Mountains) regions.

Several paleogeographic scenarios, including those based on elemental proxies as well as on zircon ages, have been proposed to explain the provenance of karst bauxites in southern Italy [15,16]. Recently, [3] stated that during the Cretaceous period, the Apulia Carbonate Platform (ACP) was part of a larger carbonate platform, the Adria platform, that was linked to a continental margin of the southern Tethys. Such a continental margin (likely belonging to the North Africa craton) was repeatedly affected by sea level fluctuations that produced the emersion of the platform and the consequent formation of autochthonous and allochthonous bauxite deposits. However, uncertainties remain regarding the relationship between the Adria and African plates because a different paleogeographic model exists as an alternative realm of the Cretaceous-period Tethys. In this model proposed by Stampfli, et al. [17], Adria is considered to be an independent microplate that is separated from the African plate by a Neo-Tethys oceanic domain. Therefore, to better constrain the paleotectonic setting of the western Mediterranean, additional information is needed, and, in this sense, the study of the Apulian bauxites could provide useful information.

The present paper focuses on the most representative bauxite deposit of the Gargano Peninsula (northern Apulia), which is located at the San Giovanni Rotondo site, for which only few data are actually available in the literature. The main aim of the paper is to furnish new data on, and a more detailed description of, the mineralogy and geochemistry of the bauxite from San Giovanni Rotondo, while paying particular attention to the distribution of conservative elements suitable for provenance studies and paleogeographical reconstructions. Rare earth elements and some elemental ratios, namely Eu/Eu* and (La/Yb)_N, have been particularly useful for the purpose of providing suggestions on the possible source material of the studied bauxite, and, consequently, on the paleogeography of the examined area.

2. Geological Framework

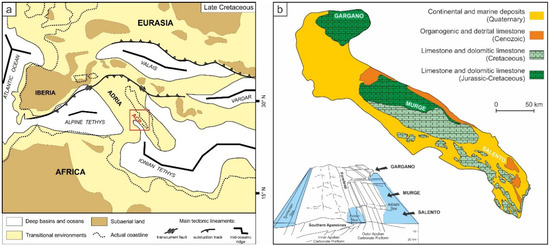

The studied area is located on the Gargano Promontory, which is the northern portion of the exposed Apulian Carbonate Platform (ACP, Central Mediterranean) that, during the Mesozoic era, represented one of the paleogeographic elements of the southernmost Tethys (Figure 1a). The formation and evolution of the ACP occurred during the Triassic to early Cretaceous period [18], when the Apulian platform acted as a passive continental margin. Its tectonic evolution was controlled mainly by the convergence of the African and Eurasian cratons, in the middle–late Cretaceous period, during the early phases of the Alpine Orogeny [19]. At present, the Apulian platform is part of the stable and relatively undeformed foreland of the Apennine thrust and fold belt. It is tectonically divided into three main structural blocks, namely the Gargano Promontory, the Murge area, and the Salento Peninsula [20], by the NW–SE-trending Apenninic fault and the NE– SW-trending anti-Apenninic fault (Figure 1b).

The Gargano Promontory is the only region of the ACP in which Late Jurassic–middle Eocene carbonates of platform-to-basin transition are exposed: shallow-water Apulia Platform carbonate rocks in the promontory’s western portion; and slope and basin deposits in its eastern portion. Specifically, the promontory consists of a buried 3000–3500-m-thick sequence of Jurassic and Cretaceous shallow-water carbonates that are covered by Upper Jurassic to Eocene carbonates representing platform-to-basin settings [21], and, with a minor extension, by Miocene carbonates and siliciclastic sediments [22] (Figure 2a). In the Gargano district, similarly to the Murge area and the Salento Peninsula, regional intra-Cretaceous unconformities locally occur in the ACP rocks, providing evidence of a wide depositional hiatus and long-lasting subaerial exposure to events that resulted in widespread karstification and bauxite formation. According to Esu and Girotti [23] and Mongelli, et al. [24], the autochthonous bauxite deposits of the Murge and Gargano districts were formed during Late Cretaceous (Cenomanian–Turonian) exposure events, while the reworked allochthonous Salento-type bauxite was deposited during the Campanian period.

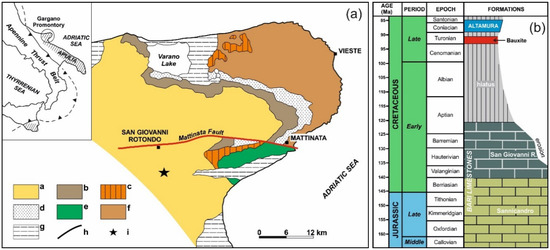

The bauxite from Gargano consists of the sedimentary infill of both canyon-like cavities and irregular 3–10-m-thick lenses lying between the karstified San Giovanni Rotondo limestone (Valanginian–Aptian) [25] at the bottom, and the transgressive Altamura limestone (Coniacian– Santonian) [26] at the top [27,28] (Figure 2b). At the San Giovanni Rotondo site, the bauxite under study is part of an underground mine (usually named the “Montecatini mine”), which was exploited intensively until the 1970s. According to Mongelli, [29], the deposit is a typical Mediterranean-type karst bauxite (sensu [5]) deriving from in situ bauxitization of primitive clays and the late formation of pedogenetic iron-rich concretions.

3. Sampling and Analytical Procedures

Fifteen samples of bauxite ore from the San Giovanni Rotondo (hereafter SGR) deposit were collected from (up to −11 m of depth) the disused, underground Montecatini mine (Figure 2). Eight samples (SGR1 to SGR10) are representative of the upper portion of the deposit, which is mainly composed of brownish-reddish sediments with millimetre-sized ooidal concretions widespread in a clay-grained matrix. Seven samples (SGR11 to SGR20) are from the lower portion of the deposit, which consists of dark-red, massive sediments in which millimeter to centimeter-sized ooids are dispersed in a very fine matrix of clays and carbonates.

Different types of analysis were performed on the bulk rock samples in order to characterize the SGR bauxite from a mineralogical, textural, and chemical point of view. The mineralogical composition was identified by X-ray diffraction (XRD) analysis of randomly oriented samples, previously powdered by hand in an agate jar, using a Siemens (Munich, Germany) D5000 diffractometer equipped with a Cu tube and a graphite monochromator. The XRD analysis was performed from 5° to 70° 2θ with 0.01° 2θ/step and a 2 s counting time. The textural and microchemical features were studied by scanning electron microscopy (SEM) using a XL30 Philips LaB6 ESEM equipped with an energy dispersive X-ray spectrometer (EDS) (FEI, Munich, Germany) at the Department of Sciences, University of Basilicata (Italy). Concentrations of major and trace elements (including rare earth elements, REE) were determined by inductively coupled plasma-mass spectroscopy (ICP-MS) at Activation Laboratories Ltd., Canada. Analytical uncertainties were less than ±5%, except for elements at a concentration of 10 ppm or lower, for which uncertainties were ±5% to ±10%. Total loss on ignition (LOI) was determined gravimetrically after heating overnight at 950 °C.

For the purpose of discussion, the REE concentrations were normalized to a Chondrite standard [31]. The Ce and Eu anomalies were calculated as Ce/Ce* = Ce_N/√(La_N*Pr_N) and Eu/Eu* = Eu_N/√(Sm_N*Gd_N), respectively [32], where the subscript “N” refers to normalized values for chondrite.

4. Results

4.1. Mineralogical Composition and Textural Features

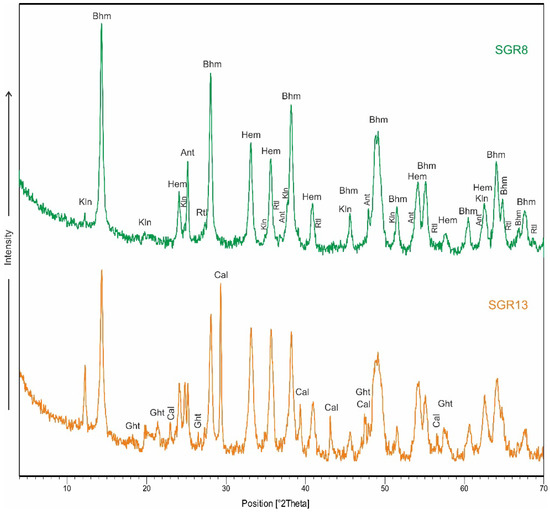

The XRPD patterns representative of the upper (SGR8) and lower (SGR13) portions of the SGR deposit are displayed in Figure 3. These show that, throughout the deposit, boehmite (γ-AlO(OH)) and hematite (α-Fe₂O₃) are the principal mineral phases, and that Ti oxides (mainly anatase and scarce rutile, TiO₂) and kaolinite (Al₂Si₂O₅(OH)₄) are accessory phases. In addition to these minerals, calcite (CaCO₃) was detected in two samples from the upper part of the deposit (SGR5 and SGR10), and in all samples from its lower part.

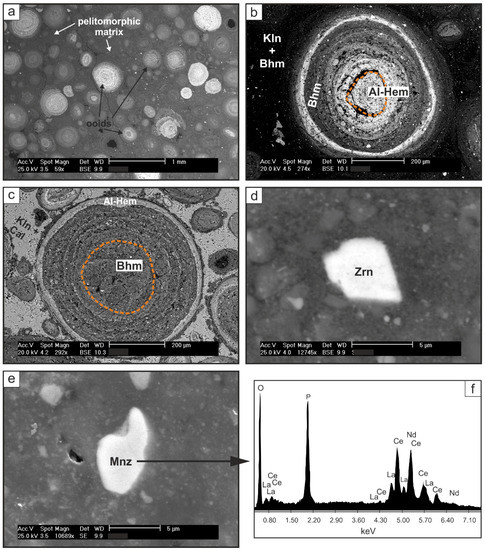

ESEM observations and the SEM–EDS analysis showed that the SGR bauxite is characterized by a matrix-supported texture with an oolitic structure similar to that described by previous authors for the other Apulia autochthonous bauxites (e.g., bauxite from the Murge) [16,29,33,34]. The ooidal concretions, which are embedded in a pelitomorphic matrix (Figure 4a), have variable sizes (50–500 µm) and concentric structures that are formed by the alternation of Al-hematitic and boehmitic shells that surround a central nucleus composed of authigenic boehmite (Figure 4b) and authigenic hematite (Figure 4c). The matrix containing the concretions usually consists of boehmite, although hematite, kaolinite, and anatase are common in it. Detrital zircon (general formula ZrSiO₄) and monazite (general formula CePO₄) grains, usually 10–20 μm in size (Figure 4d,e), are present in ooids and the matrix as well. All of the analyzed monazites contain significant amounts of Nd and La, in addition to Ce, as documented by the EDS microanalysis results shown in Figure 4f.

Al and Fe mineral phases only appear in the samples from the lower part of the SGR deposit; locally, the matrix is made up of calcite, which replaces the Al and Fe mineral phases.

4.2. Geochemistry

Table 1. Chemical composition of the San Giovanni Rotondo (SGR) bauxite.

Elements	SGR 1	SGR 3	SGR 4	SGR 5	SGR 6	SGR 7	SGR 9	SGR 10	SGR 11	SGR 12	SGR 13	SGR 15	SGR 17	SGR 19	SGR 20
Major Elements (wt.%)
SiO2	2.1	2.04	1.94	3.83	2.21	1.15	1.06	2.58	2.82	3.42	4.58	3.76	4.46	4.05	3.61
Al2O3	56.85	56.25	57.39	52.04	56.1	54.75	55.67	51.51	38.71	44.69	41.29	40.33	27.51	38.86	36.23
Fe2O3(T)	21.08	21.47	19.81	18.07	21.29	24.52	23.66	21.13	12.27	15.75	15.1	20.65	11.91	15.41	20.3
MnO	0.124	0.123	0.126	0.108	0.135	0.165	0.163	0.144	0.073	0.075	0.064	0.086	0.102	0.087	0.104
MgO	0.11	0.11	0.08	0.12	0.09	0.06	0.06	0.11	0.2	0.16	0.18	0.16	0.23	0.18	0.17
CaO	0.32	0.32	0.27	4.34	0.36	0.18	0.14	4.25	18.84	11.81	14.44	13.1	25.81	15.91	14.75
Na2O	0.08	0.08	0.07	0.06	0.1	0.03	0.02	0.02	0.01	0.01	0.04	0.02	0.02	0.02	0.02
K2O	0.04	0.04	0.03	0.06	0.05	0.01	0.005	0.03	0.03	0.03	0.05	0.03	0.05	0.04	0.04
TiO2	5.286	5.196	5.267	4.168	5.033	5.403	5.449	4.519	2.49	2.787	2.598	2.456	1.81	2.422	2.387
P2O5	0.09	0.06	0.06	0.06	0.07	0.07	0.08	0.06	0.04	0.07	0.05	0.07	0.03	0.05	0.06
LOI	13.59	13.39	13.5	15.75	13.79	12.5	12.46	14.58	23.06	20.39	20.21	19.32	26.91	21.8	20.99
Total	99.67	99.08	98.56	98.6	99.22	98.84	98.76	98.92	98.55	99.2	98.61	99.97	98.84	98.83	98.65
Trace Elements (ppm)
Sc	68	67	65	61	73	68	65	62	43	47	45	55	35.00	47	51
V	382	390	384	323	401	499	485	405	232	301	284	331	193	260	332
Ba	39	30	39	28	43	41	29	28	21	25	48	20	33	24	23
Sr	39	18	17	22	17	15	14	21	29	21	52	26	61	30	32
Y	46	46	45	55	47	35	35	47	54	53	57	52	70	64	63
Cr	540	580	540	420	510	650	630	500	350	420	370	400	320	360	440
Co	26	26	27	24	30	32	31	49	17	19	17	21	12	17	20
Ni	200	200	210	190	210	230	240	240	170	200	180	180	150	180	180
Ga	69	69	70	61	68	68	68	61	43	53	45	47	31	44	46
Nb	100	96	100	83	102	107	102	97	61	73	67	68	46	61	64
La	93.8	103	85.3	104	92.5	85.6	81.7	94.8	73.5	96.9	90.5	102	97.6	109	117
Rare Earth Elements (ppm)
Ce	232	239	405	333	276	634	556	353	210	351	225	273	259	295	296
Pr	23.3	26.3	20.7	27.2	22.3	18.1	17	21.5	19.8	25.8	23.1	25.8	25	29.2	30
Nd	85.8	96.8	74.3	102	82.1	61.2	58.3	77	74.2	92.8	84.6	96.2	92.8	108	111
Sm	17.2	19	14.8	20.2	16.8	12.1	11.4	14.9	15.7	19.7	17.2	19.3	19.4	22.4	22.4
Eu	4.08	4.56	3.52	4.91	3.99	2.83	2.63	3.58	3.87	4.57	4.12	4.58	4.8	5.24	5.39
Gd	12.8	14.2	11.7	16.9	13.1	9	8.9	12.2	13.4	15.7	14.4	16	17.1	18.2	19.1
Tb	2.1	2.4	2	2.5	2.2	1.6	1.5	1.9	2.1	2.3	2.2	2.4	2.5	2.7	2.8
Dy	12.9	13.8	11.7	14.6	13.1	9.5	9.2	10.9	12.1	13.6	12.5	13.5	14	14.4	15.6
Ho	2.4	2.6	2.3	2.7	2.5	1.9	1.8	2.1	2.3	2.5	2.3	2.5	2.6	2.7	2.9
Er	7.3	7.7	6.9	7.8	7.6	5.6	5.5	6	6.7	7.2	6.6	7	7	7.6	8.1
Tm	1.11	1.15	1.07	1.17	1.13	0.88	0.85	0.92	0.98	1.06	0.95	1.05	1.01	1.09	1.17
Yb	8	8.3	7.3	7.8	8.1	6	5.8	6.1	6.5	7.2	6.4	6.5	6.2	7.2	7.3
Lu	1.18	1.26	1.11	1.13	1.23	0.92	0.9	0.87	0.97	1.09	0.95	0.97	0.9	1.05	1.15
ΣREEs	504	540.07	647.7	645.9	542.7	849.2	761.5	605.77	442.12	641.42	490.82	570.8	549.91	623.78	639.91
Ce/Ce*	1.16	1.08	2.26	1.47	1.42	3.77	3.50	1.83	1.29	1.64	1.15	1.25	1.23	1.23	1.17
Eu/Eu*	0.84	0.85	0.82	0.81	0.82	0.83	0.80	0.81	0.82	0.79	0.80	0.80	0.81	0.79	0.80
(La/Yb)N	7.92	8.39	7.90	9.01	7.72	9.64	9.52	10.50	7.64	9.09	9.56	10.60	10.64	10.23	10.83

shows the chemical compositions and elemental ratios of the examined bauxite samples.

Al₂O₃ (51.51–57.39 wt.%) and Fe₂O₃ (18.07–24.52 wt.%) are the main oxides of the upper portion of the deposit; Al₂O₃ (36.23–44.69 wt.%), Fe₂O₃ (12.27–20.65 wt.%), and CaO (11.81–25.81 wt.%) are the main oxides of its lower part. Scarce contents of SiO₂ and TiO₂, ranging between 1.06 and 4.58 wt.% and between 1.81 and 5.45 wt.%, respectively, are also present across the analyzed bauxite. The other major elemental oxides (MnO, MgO, Na₂O, K₂O, and P₂O₅) have concentrations that are systematically below 1 wt.%.

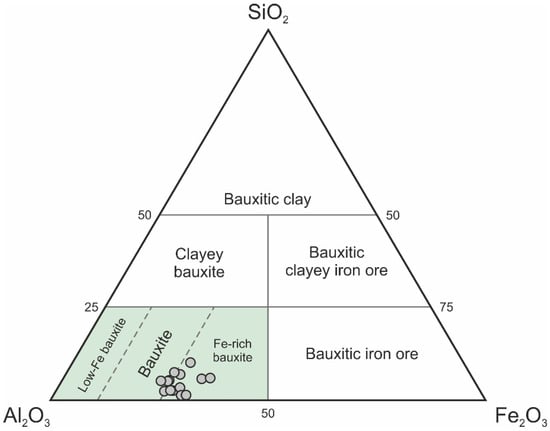

According to the bauxite classification of Bárdossy, [5], the SGR deposit mainly consists of an Fe-rich bauxite, as suggested by the sample distribution in the Al₂O₃–SiO₂–Fe₂O₃ ternary diagram shown in Figure 5.

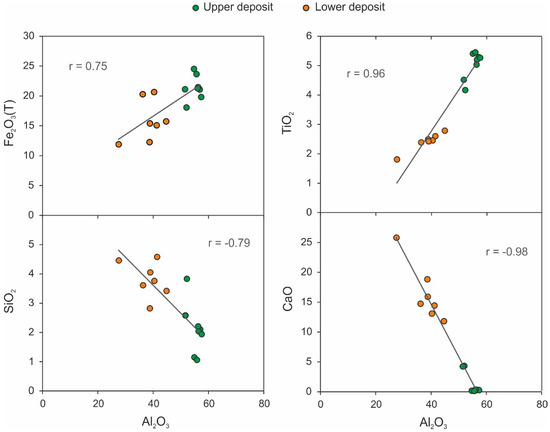

Binary plots among the major elemental oxides (Figure 6) indicate that, in the studied deposit, positive correlations exist between Al₂O₃ and TiO₂, and between Al₂O₃ and Fe₂O₃, whereas negative correlations exist between Al₂O₃ and SiO₂ and Al₂O₃ and CaO. These correlations are typical of strongly weathered deposits where immobile elements accumulate and mobile elements are leached out [35]. This is also confirmed by the low contents of alkali and alkali earth elements, which are highly mobile during chemical weathering [36,37].

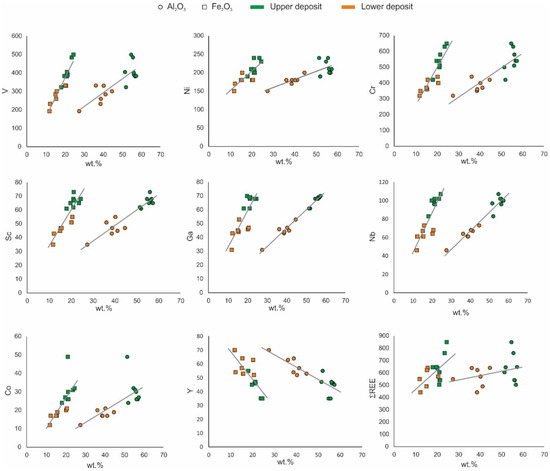

Highly positive correlations of Al₂O₃ and Fe₂O₃ with V (r_Al2O3-V = 0.82, r_Fe2O3-V = 0.95), Ni (r_Al2O3-Ni = 0.80, r_Fe2O3-Ni = 0.79), Cr (r_Al2O3-Cr = 0.84, r_Fe2O3-Cr = 0.89), Sc (r_Al2O3-Sc = 0.93, r_Fe2O3-Sc = 0.88), Ga (r_Al2O3-Ga = 0.99, r_Fe2O3-Ga = 0.80), Nb (r_Al2O3-Nb = 0.96, r_Fe2O3-Nb = 0.84), and Co (r_Al2O3-Co = 0.69, r_Fe2O3-Co = 0.71) characterize the studied deposit (Figure 7a–g), indicating that Al and Fe oxides and oxi-hydroxides mineral phases exercise significant control over trace metals. Conversely, Y and rare earth elements (REEs) are negatively or not correlated with Al and Fe oxide concentrations (Figure 7h,i), supporting their preferential inclusion into the detrital minerals (i.e., monazite and zircon) that were detected in the matrix. Moreover, throughout the deposit, only a weak negative correlation was found to exist between REEs and CaO contents (r_ΣREEs-CaO = −0.4), proving that carbonate minerals have a negligible role in the retention of REEs.

The binary plots shown in Figure 7 also highlight a clear subdivision of the trace element concentrations between the upper and lower portions of the analyzed deposit. Specifically, samples from the upper part have higher trace element contents than those from the lower part. This feature, which is associated with the high concentrations of CaO only in the lower part of the deposit, indicates that a significant dilution effect by carbonate minerals affects the chemistry of the SGR bauxite, resulting in a relative decrease in the trace element contents. The negative correlations between CaO concentrations and all trace metals (r_CaO-V = −0.88, r_CaO-Ni = −0.83, r_CaO-Cr = −0.88, r_CaO-Sc = −0.97, r_CaO-Ga = −0.99, r_CaO-Nb = −0.98, and r_CaO-Co = −0.72) support this finding.

A wide range of total rare earth element (ΣREE) concentrations also characterizes SGR bauxite. The ΣREE values vary between 442.12 and 849.23 ppm, and are inside the typical REEs content range for southern Italy’s bauxite deposits (min_ΣREE = 56, max_ΣREE = 2888, median_ΣREE = 446, std_ΣREE = 343 [4]). The light REEs (LREEs, La to Sm) and heavy REEs (HREEs, Eu to Lu) are moderately fractionated in all samples, causing the (La/Yb)_N ratio to have high values (7.64–10.83). Moreover, the samples analyzed in this study have uniformly negative Eu anomalies (0.79 < Eu/Eu* < 0.84), and variable positive Ce anomalies. The Ce/Ce* ratios range between 1.07 and 1.83 in all samples, except for the SGR4 (Ce/Ce* = 2.26), SGR7 (Ce/Ce* = 3.77), and SGR9 (Ce/Ce* = 3.49) samples, which are characterized by higher Ce/Ce* values.

In order to both (a) evaluate the chemical differentiation of the studied ore with respect to the average crustal composition and (b) compare the SGR deposit’s chemistry to those of the other Apulian karst bauxites (the Spinazzola and Otranto bauxites), normalization patterns were used. Major and trace element concentrations were normalized to the Upper Continental Crust’s (UCC, [38]) composition, and the REEs contents normalized to the Chondrite values [31]. The resulting distribution patterns are displayed in Figure 8.

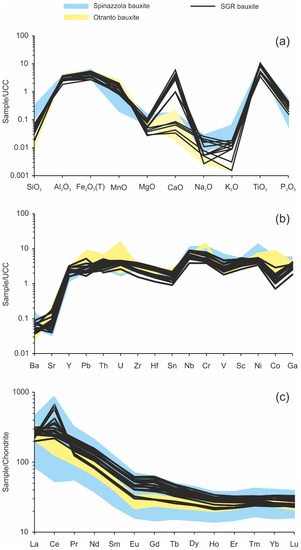

Regarding the major elements (Figure 8a), the normalization diagrams show analogous paths and concentrations for all the three Apulian deposits. CaO is the only exception because of its strong variability and high concentration in the SGR bauxite.

As for the trace elements (Figure 8b), the three Apulian deposits show LILE (Large Ione Lithophile Elements, mainly Ba and Sr) depletion, and HFSE (High Field Strength Elements, such as Zr, Hf, Y, Sn, Nb, Th, and U) and transition metals (mainly Cr, V, Sc, Ni, Co) enrichment, relative to the UCC’s composition. Although their trace element distribution patterns are similar, the SGR deposit shows lower enrichments of Pb, U, Cr, and Co relative to bauxite from Otranto and Cr and Ni from Spinazzola ore.

Finally, as displayed in Figure 8c, the SGR samples and the bauxite from Spinazzola and Otranto show similar paths of REEs distributions, although a wider range of total REEs concentrations and Ce anomaly values characterizes the Spinazzola deposit. However, regardless of the ΣREE contents, significant REEs enrichments (up to 600X in the SGR samples, up to 800X in the Spinazzola deposit, and up to 350X in the bauxite from Otranto) relative to the Chondrite composition were found in all of the considered Apulian bauxites.

5. Discussion

Similarly to the bauxite from Spinazzola, the SGR deposit represents an accumulation of Al- and Fe-rich minerals formed by in situ sedimentary processes [24].

As suggested by Mongelli, [29], the formation of autochthonous bauxites includes three stages, in which clayey material deposition at the bottom of karst cavities, bauxitization (i.e., intense weathering), and late formation of ooidal concretions in a pedogenic environment occur. In such a natural environment, where dry and wet conditions alternate frequently, Fe- and Al-rich ooids may form and coexist [39]. Dry climate conditions promote the formation of boehmite, whereas wetter conditions favor the stability of Al-hematite [29,34]. As a consequence, the ooids observed in the SGR bauxite suggest that the bauxitization of pristine sediments occurred under alternating wet and dry conditions.

During bauxite formation, climate conditions also control the distribution of chemical elements between textural components [24]. In general, SiO₂ is concentrated mostly in the clayey matrix, whereas Al₂O₃, TiO₂, Fe₂O₃, and most trace metals are associated mainly with the ooids [14,16,29,33,34]. According to SEM observations and EDS microchemical analyses, this elemental distribution takes place in the SGR bauxite as well. As the chemical correlations suggest, in this deposit, the Al and Fe oxides and the oxihydroxide mineral phases exercise significant control over the distribution and mobility of most of the trace elements with the notable exception of Y and REEs, the presence of which seems to be due to the detrital component of the deposit. In fact, the negative correlation that exists between REEs and CaO also excludes the carbonate minerals in REEs retention processes.

During bauxitization, pH is the dominant controlling parameter for the mobility of REEs, causing the leaching of REEs in acidic conditions and their accumulation in alkaline conditions [40]. As a consequence, an enrichment of REEs in bauxite is indicative of the prevalence of alkaline conditions during its evolution [41]. Measuring variations in the La/Y ratio is a useful geochemical tool for determining changes in pH during bauxitization [42]. Values of La/Y <1 imply the prevalence of acidic conditions, whereas values of La/Y >1 indicate basic conditions. Throughout the SGR deposit, the La/Y ratio was found to have values above 1, suggesting that basic conditions constantly occurred during the SGR bauxite’s formation, likely promoting the retention of REEs in the primary minerals as much as in the secondary mineral scavengers or authigenic phases. Several authors [33,35,43,44,45,46] have suggested that authigenic REEs-bearing minerals are common in karst bauxites worldwide, and can be responsible for REEs enrichments in bauxite. Therefore, despite the lack of microscopic evidence, we cannot exclude the presence of these minerals in the SGR deposit. However, this is not relevant for the present study, because secondary and authigenic minerals are generally not used to obtain information about a bauxite deposit’s source material.

The chemical composition of sedimentary rocks is an important record of the geological evolution of the continental crust through time because some elements are quantitatively transported in the terrigeneous fine fraction of a sediment [47]. However, the chemical composition of clastic sediments depends on several factors, including source-area composition, paleoweathering, sorting, and recycling [48,49]. Thus, in using a terrigenous sediment to retrieve provenance insights, one is faced with the nontrivial problem of evaluating and minimizing the effects of the other factors. Such a problem certainly arises during the study of bauxite deposits, as their formation is associated with intense chemical alteration of the source material that in some cases may hide or modify the provenance signatures. For this reason, much attention should be paid to trace elements when making provenance inferences.

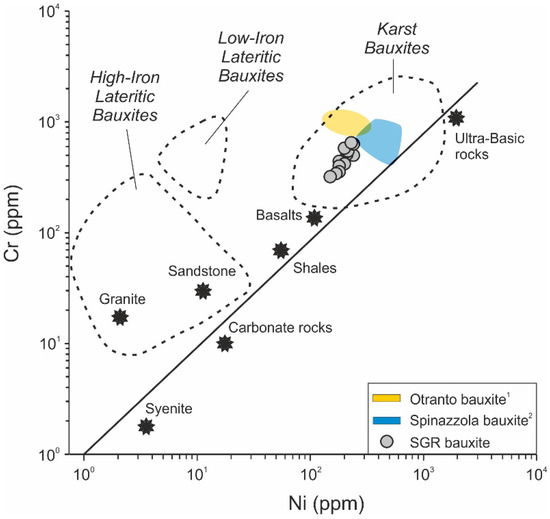

For example, the abundance of Cr and Ni as well as their ratio (Ni/Cr) in siliciclastic sediments [50,51], and also in bauxites [13,15,35], are considered to be useful indicators in provenance studies, and an Ni versus Cr binary plot is commonly used as a graphical support. In Figure 9, the distribution of the SGR samples in an Ni versus Cr diagram is displayed along with the compositional fields of the other Apulian karst bauxites.

All three deposits fall within the field of karst bauxites, although each of them clusters in a well-defined area of the diagram. Such a distribution could be due to the geochemical behavior of Ni during weathering. It is well-known that, although the concentration of Ni within a bauxite may be affected by adsorption mechanisms that are associated with the presence of iron oxi-hydroxides, it is largely soluble as Ni²⁺ ions during intense weathering [53]. In addition, Buccione, et al. [54] demonstrated a significant relationship between the textural features of bauxite ores and their Ni contents, suggesting that Ni is preferentially retained in ores that are not affected by tectonic stress. Deformative events, in fact, can be responsible for enhanced fluid circulation that, in turn, induces greater Ni mobilization. This means that Ni/Cr ratios do not necessarily reflect the protolith of the bauxite and need to be carefully interpreted.

In order to constrain the nature of a bauxite deposit’s parent rocks, Torró, et al. [46] recently proposed the use of Cr/Zr, Ti/Cr, and Zr/TiO₂ ratios. However, because of the relatively high TiO₂ contents of the studied bauxite ore, these ratios resulted in contrasting conclusions. The SGR bauxite, in fact, has low Zr/TiO₂ (average value = 0.01) values, which are consistent with a mafic parent material, and high Ti/Cr (average value = 47.6) and low Cr/Zr (average value = 0.85) ratios that, conversely, point to felsic source rocks, thus proving that more reliable elements and elemental ratios must be used to assess the parental affinities of bauxite deposits.

It is generally accepted that, among trace elements, REEs are the most useful geochemical tools to assess the provenance of a sedimentary rock in general [47,55,56,57] and of a bauxite deposit in particular [3,9,10,16]. The REEs are thought to be conservative elements (i.e., elements relatively immobile during the weathering processes), because secondary processes do not affect their distribution as much as their elemental ratios [58,59,60]. Cerium, however, may fractionate with respect to the other rare earth elements because its geochemical behavior during weathering may be strongly affected by changes in redox state. Consequently, the weathered material can be enriched or depleted in Ce, and accordingly shows positive or negative Ce anomalies. Several authors [33,61] have demonstrated that positive Ce anomalies in lateritic profiles and bauxites are mineralogically related to the precipitation of cerianite (CeO₂) due to the Ce³⁺ to Ce⁴⁺ redox change. Such a process is likely to be responsible for the positive Ce anomalies observed throughout the SGR deposit and indicates that oxidizing conditions persisted during the bauxitization process.

The REE pattern and some elemental ratios, especially Eu/Eu* and (La/Yb)_N, mirror the exposed crustal abundances in the source area [55,58,62,63,64]. As was previously shown (Figure 8c), the chondrite-normalized REE patterns of SGR samples have paths typical of Apulian autochthonous karst bauxites and of sediments derived from the upper continental crust, with LREE and HREE fractionation indices values (the mean (La/Yb)_N value for SGR samples = 9.3) comparable to that of PAAS (Post-Archean Australian Shale, [47]) and UCC ((La/Yb)_N = 9.2). According to Mongelli, et al. [24], the REE distribution patterns of the Otranto ore slightly differ from those of the other Apulian deposits likely because of its allochthonous nature.

The Eu anomaly is an index of chemical differentiation, and, more often than other provenance proxies, reflects the proportion of exposed crust in the source area(s) [58,59,63,65] during bauxitization [10,13]. Negative Eu/Eu* anomalies are a geochemical feature of post-Archean cratonic sediments [66] and are usually associated with mafic source rocks. As was previously stated, in the SGR bauxite the Eu/Eu* values were uniform, signifying that bauxitisation has not affected the Eu anomaly values within the study area. The SGR bauxite has Eu anomalies that are significantly higher (0.79 <Eu/Eu* < 0.85) than the Eu anomaly of the upper continental crust standards (Eu/Eu*_PAAS = 0.61, Eu/Eu*_UCC = 0.66), meaning that the studied bauxite has a more “mafic” geochemical signature.

In this study, the relationships between the Eu anomaly and the Sm/Nd ratio were also used to determine parental affinities for the SGR karst bauxite. Similarly to Eu anomalies, the Sm/Nd ratio is an index of chemical differentiation, since only a minor fractionation of Sm and Nd occurs during intense tropical weathering [67].

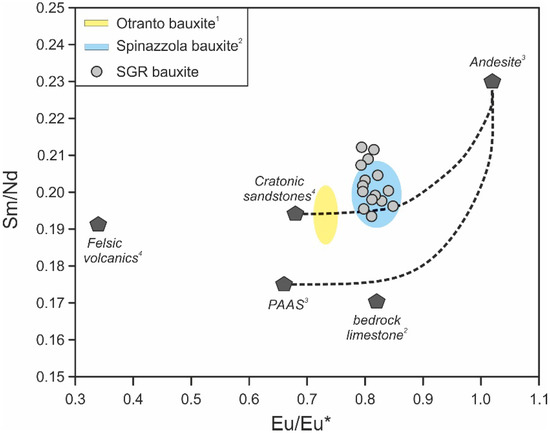

Figure 10 displays the distribution of the studied samples, the other Apulian karst bauxites, and the average standard lithologies representative of siliciclastic sediments (cratonic sandstones and PAAS), volcanic rocks (felsic and basaltic andesites), and early Cretaceous limestone from the ACP (bedrock limestone) Within the binary Eu/Eu* versus Sm/Nd diagram. The SGR samples plot close a mixing curve that links the cratonic sandstones and basaltic andesites’ end-members, along which the samples of bauxites from Spinazzola and Otranto are also distributed. Specifically, the samples here examined overlap those of the Spinazzola bauxite, suggesting a strong compositional affinity between the two autochthonous deposits. Consequently, a common provenance for the Spinazzola and SGR deposits may be supposed. According to Mongelli, et al. [16], therefore, the SGR karst bauxite can be thought of as a mixture of windborne magmatic material, likely deriving from a distant volcanic source (such as the subduction-related magmatism of the Dinaric and Carpatho–Balkan Orogenic Belts active during the late Cretaceous period [15]), and dominant clastic material that is derived from a close continental margin (the North Africa craton?).

6. Conclusions

Bauxitization is a complex weathering process that involves intense chemical alteration of the source rock and/or sediments. Such a process commonly causes mineral transformations and chemical changes that may hide the provenance signatures. To avoid mistakes in provenance determinations, the use of conservative elements, such as rare earth elements, is recommended. Distribution patterns of chondrite-normalized REE concentrations, along with LREE to HREE fractionation indices, show that the SGR deposit has REE paths typical of siliciclastic sediments, with (La/Yb)_N ratios comparable to those of PAAS and UCC. La/Y values constantly above 1, positive Ce anomalies, and negative Eu anomalies are present throughout the SGR deposit, suggesting that (1) it formed under relatively stable basic (high pH) and oxidizing (high Eh) conditions, and (2) the bauxite’s parental material has an evident mafic component. This is also supported by the Eu/Eu* versus Sm/Nd plot, in which the SGR samples were distributed along the andesite–cratonic sandstone mixing curve.

Based on the presented data, it is also supposed that the SGR bauxite deposit shares its source material with the other autochthonous bauxites of the Apulia region, which consist of a combination of magmatic (distant windborne volcanic particles) and siliciclastic (of cratonic origin) material. As a result, a direct connection between the ACP and the African promontory seems to be possible, supporting the inferences that were previously disclosed by Mongelli, et al. [16].
