Semi-Smelting Reduction and Magnetic Separation for the Recovery of Iron and Alumina Slag from Iron Rich Bauxite

Abstract

This work presents a semi-smelting reduction and magnetic separation process for the recovery of iron and alumina slag from iron rich bauxite ore. The effect of the process parameters on the recovery rate of iron, maximum particle size of the iron nugget, and the Al₂O₃ content of the alumina slag was investigated and optimized. The results show that the iron nuggets and alumina slag can be obtained in a short time through a semi-smelting reduction and magnetic separation process. The maximum particle size of iron nugget is about 15 mm, and the recovery rate of the iron and Al₂O₃ grade of the alumina slag are 96.84 wt % and 43.98 wt %, respectively. The alumina slag consisted mainly of alumina (α-Al₂O₃), calcium hexaluminate (CaAl₁₂O₁₉), gehlenite (Ca₂Al₂SiO₇), and small amounts of hercynite (FeAl₄O₇), and metallic iron (M.Fe).

1. Introduction

At present, more than 0.5 billion tons of iron rich bauxite in western Guangxi, China, have been explored [1,2,3]. However, large quantities of iron rich bauxite are discarded as waste, and more than 30% of iron rich bauxite resources have not been effectively developed and utilized in China. Acid treatments are used to extract alumina from non-bauxite raw materials and silica-rich bauxite or lateritic ore. Valeev et al. [4] and Zhao et al. [5] used the hydrochloric acid to autoclave the decomposition of bauxites, and analyzed the mechanism of the bauxites’ dissolution. In addition, hydrochloric acid leaching was used to remove the dolomite impurity from the flotation concentrate of a low-grade bauxite ore, improve its Al₂O₃ grade and Al₂O₃/SiO₂ (A/S) ratio [6]. However, the extraction results of the acid treatments are influenced by the composition, mineralogy, and location of each ore [7]. Numerous studies show that the synchronous extraction of Al and Fe is difficult to achieve using acid treatments, which can only be used for the selective chemical dissolution of goethite (FeOOH) and gibbsite (Al(OH)₃) [8,9]. Therefore, the precise location and content of aluminum in laterites must be determined in order to predict whether this element can be economically extracted from lateritic bauxite deposits. The iron rich bauxite contains high iron oxide, but its recovery rate has not been predicted because of the large quantities of Al₂O₃ and SiO₂, as well as the complexity of the chemical and mineralogical characteristics [10].

At present, there are few reports about the gas-based reduction of iron rich bauxite. Parhi et al. [11] reported the application of hydrogen for the reduction of the bauxite mineral, and found that only the iron oxide present in bauxite was reduced to iron, while other oxides remain unreduced. Samouhos et al. [12] reported the reduction of red mud by H₂, and found that the maximum conversion degree of hematite to magnetite that was achieved was above 87% at 480 °C. However, the formation amount of metallic iron is very insignificant (≤3 wt %). It is worth noting that natural gas is very scarce in China, and a gas-based direct reduction process (such as MIDREX, HYL-III, FINMET) is not likely to be the main direct reduced process in China [13,14].

However, non-coking coal resources are very rich in China, and coal-based direct reduction processes are short processes that have extensive attention in China [15]. This technique uses non-coking coal to reduce iron ores and to produce high quality direct reduced iron (DRI) [16]. In addition, DRI is an excellent feedstock for the electric furnaces or basic oxygen furnace, and can be used to produce higher grades of steel [17,18]. Thus, this method is considered to be an effective method for the treatment of complex iron ore and low-grade iron ore resources [19,20]. Chu et al. [21] used the coal-based direct reduction and magnetic separation process to recover iron from red mud, the results showed that the iron recovery rate and total iron content in the magnetic product could be up to 98.37% and 82.52%, respectively. Zhang et al. [22] reported a semi-smelting reduction and magnetic separation process to recover the iron nuggets from bauxite under a higher basicity condition. They found that the highest recovery rate of the iron nuggets was 92.79 wt %, and the high quality iron nugget consisted of iron (96 wt %–97 wt %) and carbon (2.5 wt %–3.0 wt %) with a low gangue content. In addition, the pig iron nugget is excellent for its ease of shipping, handling, and storage. Imanasa et al. [23] studied the characteristics of calcium aluminate slags and pig iron produced from the smelting reduction of low-grade bauxites. The studied results show that the recovery rate of iron can reach from 94.8 wt % to 99.9 wt %, the amount of slag reached 70%–85%, and the unreacted coke particles can float over the molten slag phase at elevated temperatures. However, this kind of thick slag operation process is against to the separation of slag and iron, while greatly increasing the smelting energy consumption. Therefore, a semi-smelting reduction and magnetic separation process is an effective method for iron recovery from solid wastes and low-grade iron ore.

In this study, semi-smelting reduction and magnetic separation technology was employed to recover iron and alumina slag from iron rich bauxite under a lower basicity condition. The effect of the process parameters on the recovery of the iron nugget and Al₂O₃ was investigated and optimized. The properties of the iron nugget and the phase composition of the alumina slag were also investigated.

2. Experimental

2.1. Materials and Analysis

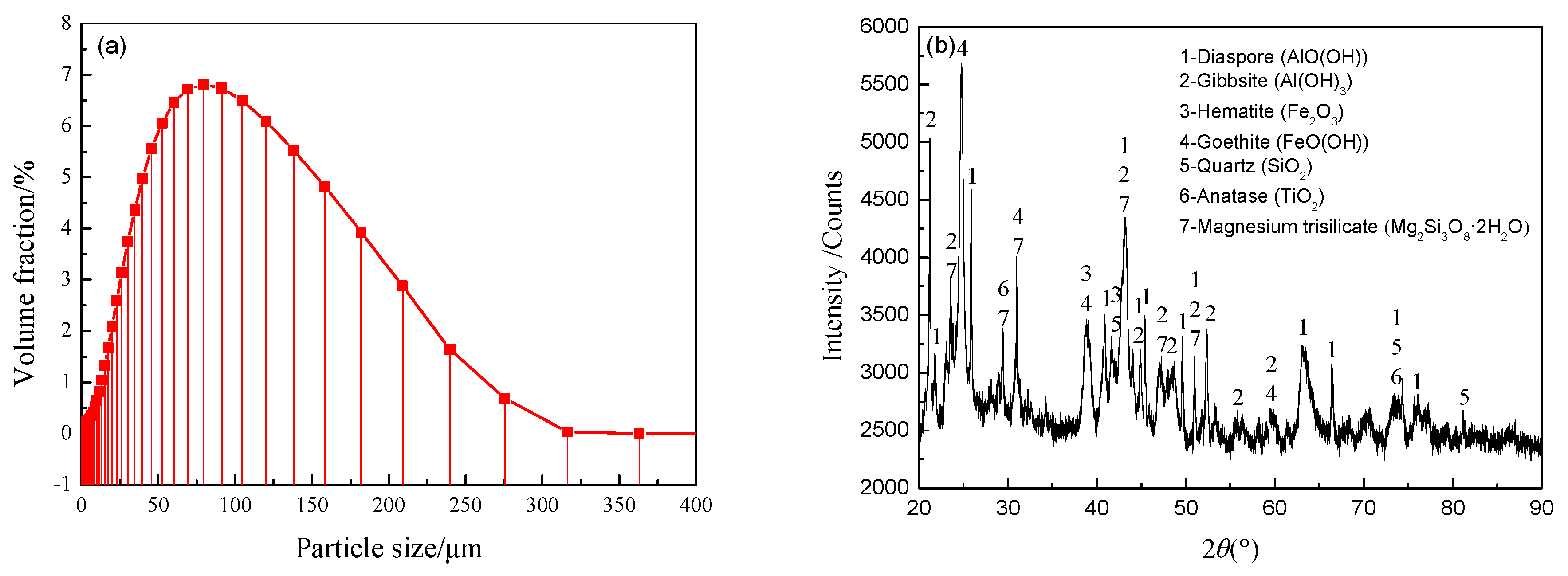

Iron rich bauxite, Ca(OH)₂, anthracite, and CaF₂ were thoroughly mixed and crushed by the Pulverisette 5 type high-energy ball milling analyzer. The particle size distribution of the mixtures is presented in Figure 1a, which was obtained by the Malvern Mastersizer 2000 laser particle size analyzer (Malvern Panalytical Inc., Westborough, MA, USA). The analysis results show that the average particle diameter and specific surface area of mixtures are 88.431 μm and 0.149 m²/g, respectively.

The chemical composition of iron rich bauxite was determined using a chemical analysis method, and is shown in

Table 1. Major element compositions of the iron rich bauxite samples.

Raw Materials	Fetot	Fe2O3	FeO	SiO2	Al2O3	TiO2	MnO	MgO	CaO	LOI
Bauxite	28.29	40.42	0.20	11.77	26.53	1.57	1.21	0.48	1.38	16.42

. It was found that the iron rich bauxite mainly consisted of 40.42 wt % Fe₂O₃, 11.70 wt % SiO₂, and 26.53 wt % Al₂O₃. The mineral phase composition of the iron rich bauxite was identified by a X–ray diffractometer (D8ADVANCE, Bruker, Billerica, MA, USA) with CuKα (λ = 1.5406 Å), and is shown in Figure 1b. We found that the gibbsite (Al(OH)₃), diaspore (AlO(OH)), goethite (FeO(OH)), hematite (Fe₂O₃), and magnesium trisilicate (Mg₂Si₃O₈·2H₂O) are the major minerals in the bauxite ore, and anatase (TiO₂) and quartz (SiO₂) are minor components.

The anthracite was from Yangquan in Shanxi province, it was used to reduce the iron rich bauxite in this work, and its major element compositions are shown in

Table 2. Major element compositions of anthracite from Yangquan in Shanxi province.

Anthracite Composition	Moisture	Ash	Volatiles	Fixed Carbon	Sulfur	Phosphorus
Content (wt %)	2.56	10.16	8.55	78.73	0.28	0.023

. Fixed carbon (78.73 wt %) was the main reducing reagent in the semi-smelting reduction process. Analytical-grade Ca(OH)₂) and CaF₂ fluxes were used as the fluxing agents.

2.2. Semi-Smelting Reduction and Magnetic Separation

In this work, the effect of the reduction temperature, reduction time, anthracite ratio, CaF₂ ratio and w(CaO)/w(SiO₂) ratio on the semi-smelting reduction behavior will be investigated. The anthracite ratio and CaF₂ ratio refer to the mass percentages in the bauxite–coal composite briquettes, and the basicity refers to the ratio from w(CaO) to w(SiO₂). The reduction experimental requirement is shown in Figure 2.

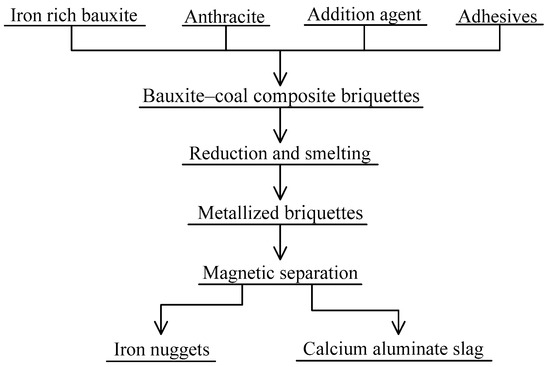

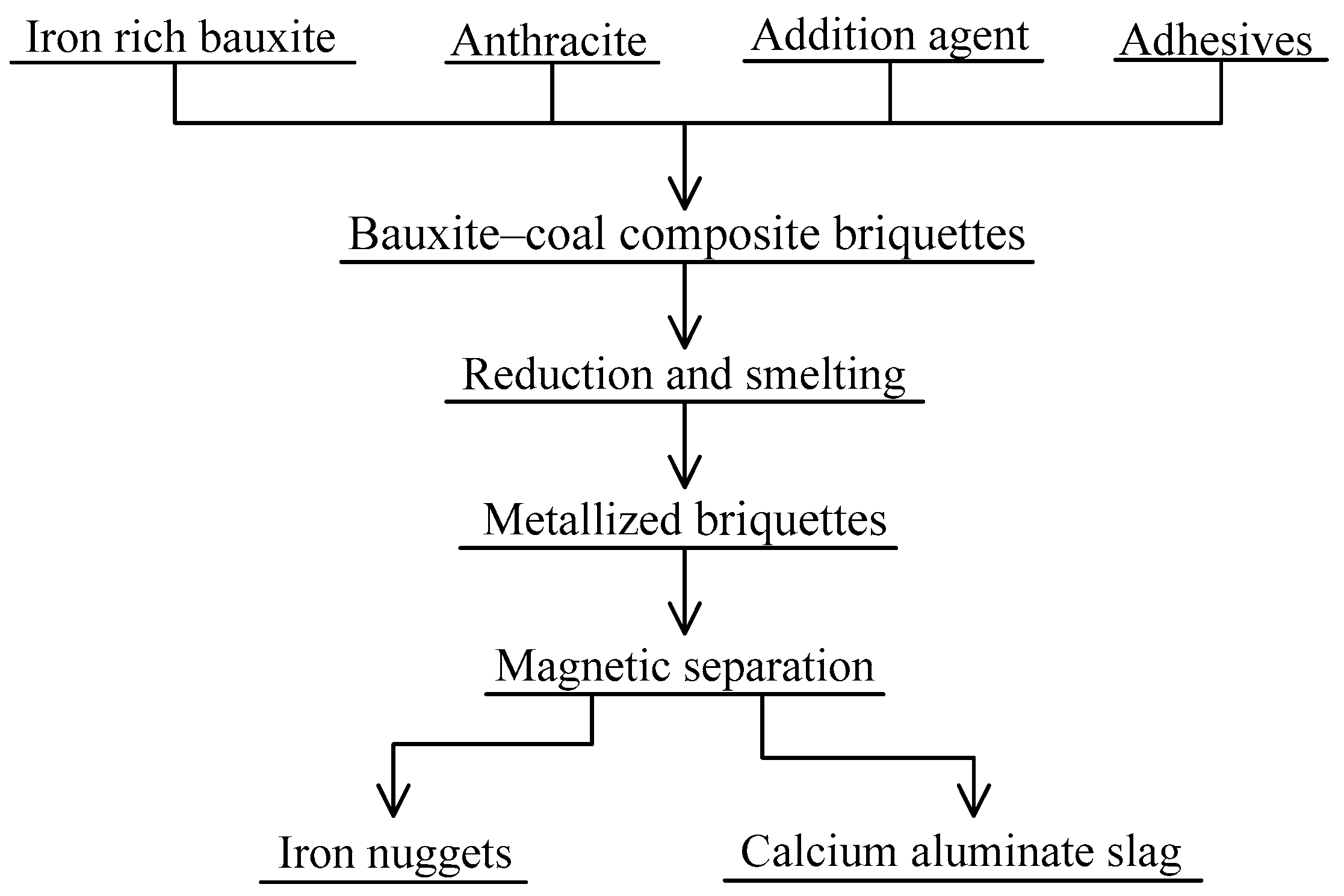

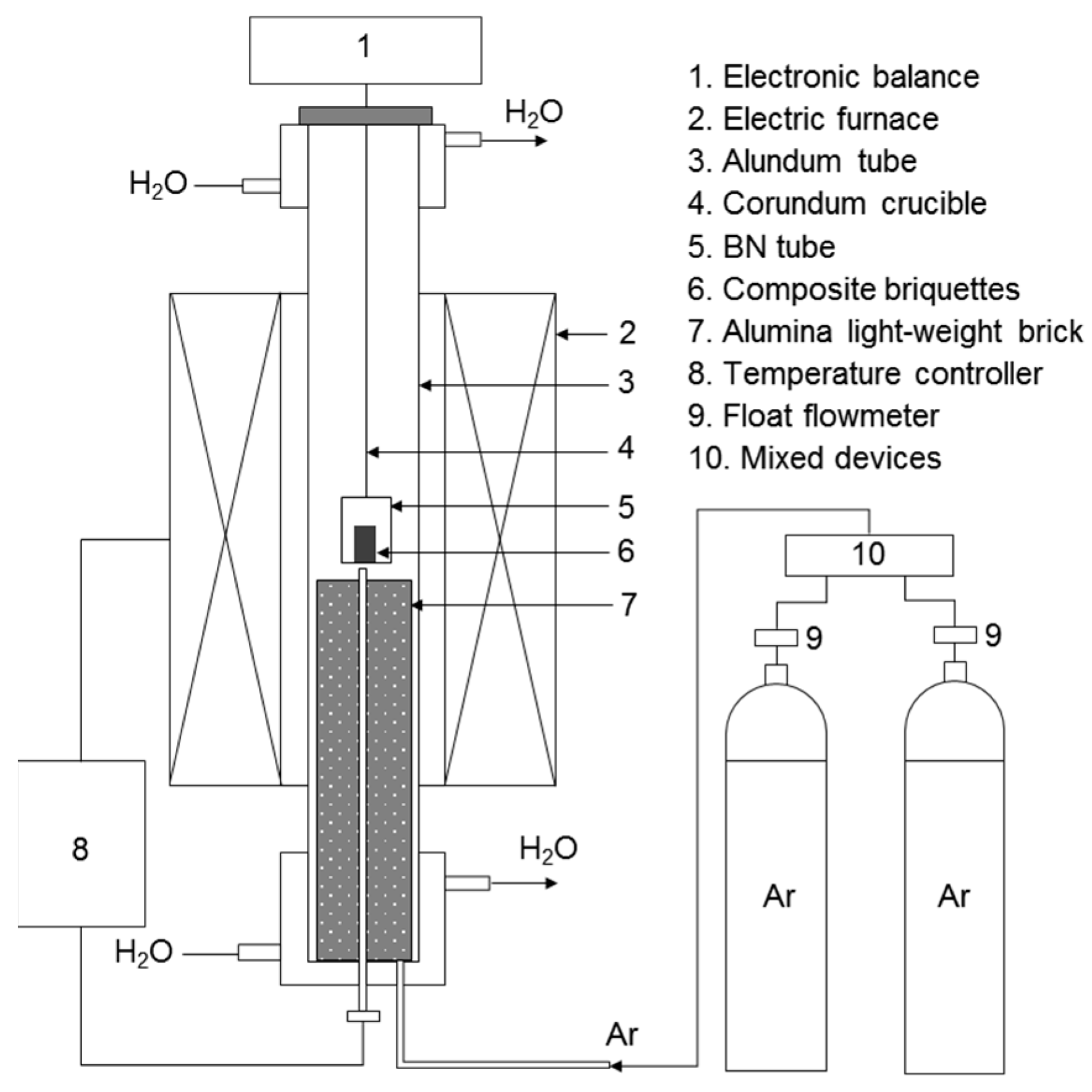

The experimental procedure of the semi-smelting reduction and magnetic separation process is shown in Figure 3. Firstly, the iron rich bauxite, anthracite, Ca(OH)₂, and CaF₂ fluxes were thoroughly blended at different ratios when the water mass percentage was 10 wt %. Second, the mixtures were placed in a roller press and squeezed into bauxite–coal composite briquettes with a 20 mm diameter by 25 mm length, then placed in an electric heating blast drying cabin at 200 °C for 3 h. At last, the composite briquettes were placed in a corundum crucible and introduced into the high temperature electric furnace, then reduced at a semi-smelting state with an Ar flow rate of 1.5 L/min, which was repeated three times.

After the semi-smelting reduction, the reduced briquettes were crushed to 1–10 mm by the jaw crusher, then the iron nugget and alumina slag were magnetically separated by the high strength roller dry magnetic separator (LONGi, Zhengzhou, China) with a magnetic intensity of 4000 Gs. These products were characterized by XRD, SEM, and energy dispersive X-ray spectroscope (EDS) so as to study the phase composition, microstructure, and smelting mechanism. The microstructure and element dissemination characteristics were characterized by scanning electron microscopy (SEM; FEI-Quanta 600, Munich, Germany) attached with a backscatter electron imaging (BSE) and energy dispersive X-ray spectroscope (EDS; BRUKER Nano, Berlin, Germany).

The ion recovery rate and Al₂O₃ grade were used to evaluate the results of the semi-smelting reduction and magnetic separation. The iron recovery rate (${\eta }_{\mathrm{Fe}}$), the total alumina content of the briquettes (T.Al₂O₃), and the Al₂O₃ grade of alumina slag (${\eta }_{{\mathrm{Al}}_2{\mathrm{O}}_3}^{\prime }$) can be mathematically expressed as follows:

$${\eta }_{\mathrm{Fe}}= \frac{M_{\mathrm{Fe}}}{M_{T.\mathrm{Fe}}}\times 100\%$$

(1)

$$T.{\mathrm{Al}}_2{\mathrm{O}}_3\left(\mathrm{in}\mathrm{briquette}\right) = \frac{M_{\mathrm{briquete} \times {\eta }_{\mathrm{bauxite}} \times {\eta }_{{\mathrm{Al}}_2{\mathrm{O}}_3}^o}^o}{M_{\mathrm{briquette}}^{\prime }}\times 100\%$$

(2)

$${\eta }_{{\mathrm{Al}}_2{\mathrm{O}}_3}^{\prime } \left(\mathrm{in}\mathrm{slag}\right) = \frac{T.{\mathrm{Al}}_2{\mathrm{O}}_3}{M_{\mathrm{briquette}}^{\prime } - M_{\mathrm{Fe}}} \times 100\%$$

(3)

where (${\eta }_{{\mathrm{F}}_{\mathrm{e}}}$) is the recovery rate of the iron, $M_{\mathrm{Fe}}$ is the mass of iron in the nugget, $M_{T.\mathrm{Fe}}$ is the mass of the total iron in the composite briquettes, $M_{\mathrm{briquete}}^o$ is the initial mass of the briquette, $M_{\mathrm{briquette}}^{\prime }$ is the end mass of the reduced briquette, is the mass fraction of bauxite in the composite briquettes, ${\eta }_{{\mathrm{Al}}_2{\mathrm{O}}_3}^o$ is the mass fraction of Al₂O₃ in the bauxite, ${\eta }_{{\mathrm{Al}}_2{\mathrm{O}}_3}^{\prime }$ is the Al₂O₃ grade of the alumina slag, and $T.{\mathrm{Al}}_2{\mathrm{O}}_3$ is the mass of the total alumina in the composite briquette.

2.3. Thermodynamic Mechanism

2.3.1. Thermodynamic Mechanism of Reduction Reaction

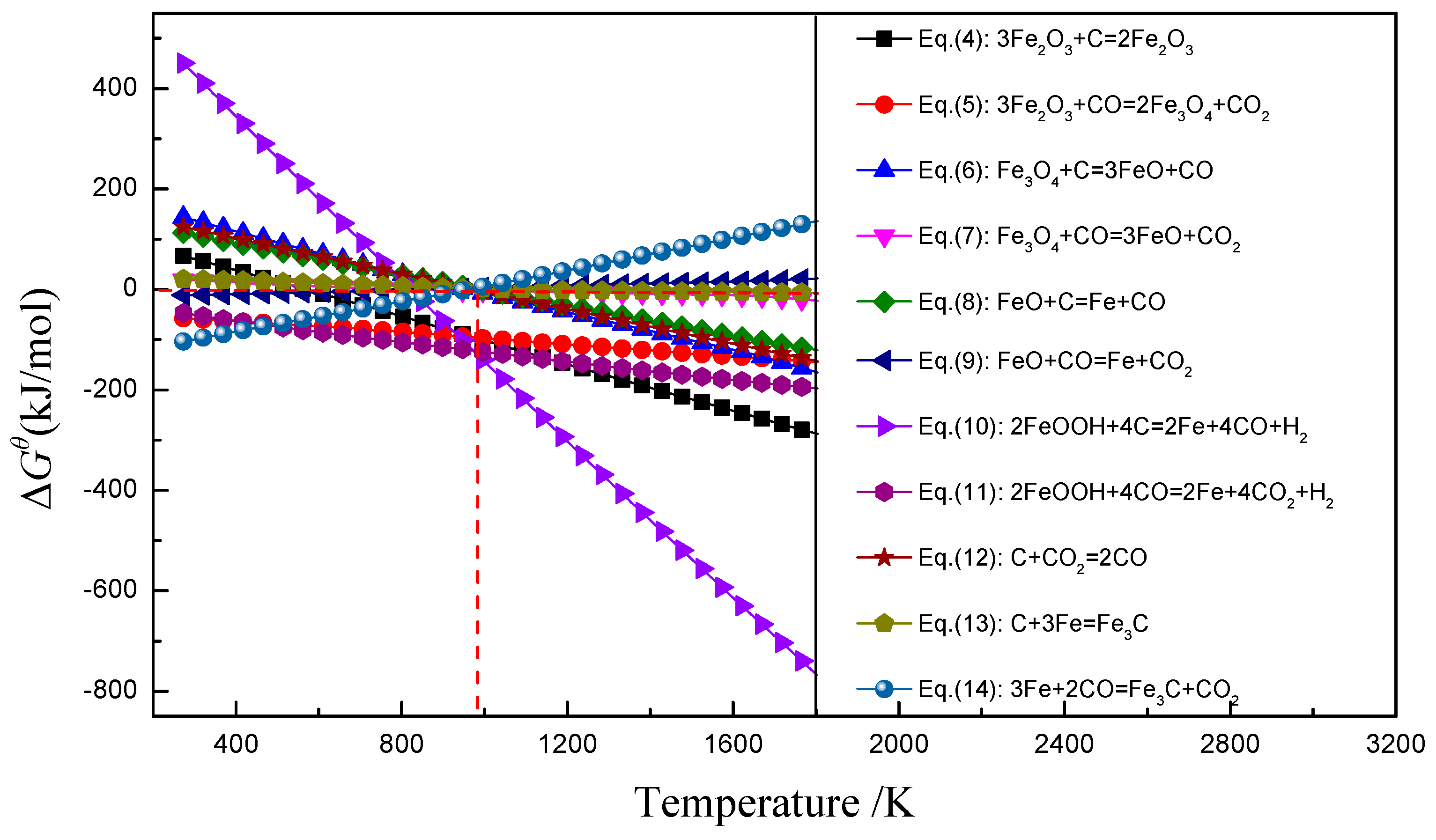

The reduction reaction equations and the Gibbs free energy that varies with the temperature were calculated using Factsage 7.0 (Thermfact/CRCT & GTT-Technologies) and are presented in Figure 4. The reduction of the iron oxides involves direct (Equations (4), (6), (8), and (10)) and indirect (Equations (5), (7), (9), and (11)) methods. The gas phase carburization reaction (Equation (14)) and indirect reduction (Equations (5), (9), and (11)) are predominant at temperatures below 973 K. On the contrary, the initial reaction temperatures of the direct reduction (Equations (4), (6), (8), and (10)), carbon gasification reaction (Equation (12)), and solid-state carburization reaction (Equation (13)) are above 973 K. The standard free energies of the direct reduction increase sharply with the increasing temperature, and their standard free energies are more negative than the indirect reduction. Therefore, the direct reduction (Equations (4), (6), (8), and (10)) reaction is predominant when the temperatures are above 973 K.

2.3.2. Thermodynamic Mechanism of Calcium Aluminate Slag

As is well known, within the reaction temperature ranges, the Slaked lime (Ca(OH)₂), diaspore (AlOOH), gibbsite (Al(OH)₃), goethite (FeOOH), and kaolinite (Al₂Si₂O₅(OH)₄·2H₂O) are decomposed to CaO, Al₂O₃, Fe₂O₃, SiO₂, and H₂O(g), and the Fe₂O₃ is almost completely reduced to metallic iron (M.Fe). The slag mainly consists of Al₂O₃, SiO₂, and CaO. In this work, the effect of the CaF₂ ratio on the recovery rate of the iron and alumina slag from iron rich bauxite was investigated. The phase diagrams of the Al₂O₃–SiO₂–CaO and Al₂O₃–SiO₂–CaO–CaF₂ systems are calculated using FactSage 7.0, and are presented in Figure 5. We can find that when the slag basicity (R = w(CaO)/w(SiO₂)) is 0.5, the slag mainly consists of liquid slag, aluminum oxide (Al₂O₃), and anorthite (CaAl₂Si₂O₈). When the slag basicity is 1.0–1.25, the slag mainly consists of liquid slag, Al₂O₃, calcium dialuminate (CaAl₄O₇), and calcium hexaluminate (CaAl₁₂O₁₉). When the slag basicity is 1.5–2.0, the slag mainly consists of liquid slag, melilite (CaAl₂SiO₇), CaAl₄O₇, and CaAl₁₂O₁₉. In addition, FeO may react with SiO₂ and Al₂O₃ to generate fayalite (Fe₂SiO₄) and hercynite (FeAl₂O₄). From Figure 4b, we can find that the CaF₂ has little influence on the slag composition. However, the CaF₂ can significantly reduce the slag viscosity and melt temperature. Stamboulis et al. [24] investigated the CaO–CaF₂–Al₂O₃–SiO₂ glasses and found that F can take part in the formation of the species (AlO_xF_y)ⁿ⁻ (where x = 3–6, y = 6 − x, and n is the charge of the total complex with the ^IVAl, ^VAl, and ^VIAl coordinate states). The ^IVAl, ^VAl, and ^VIAl species act as network breakers, and the O and F atoms are randomly distributed around the Al atoms [25].

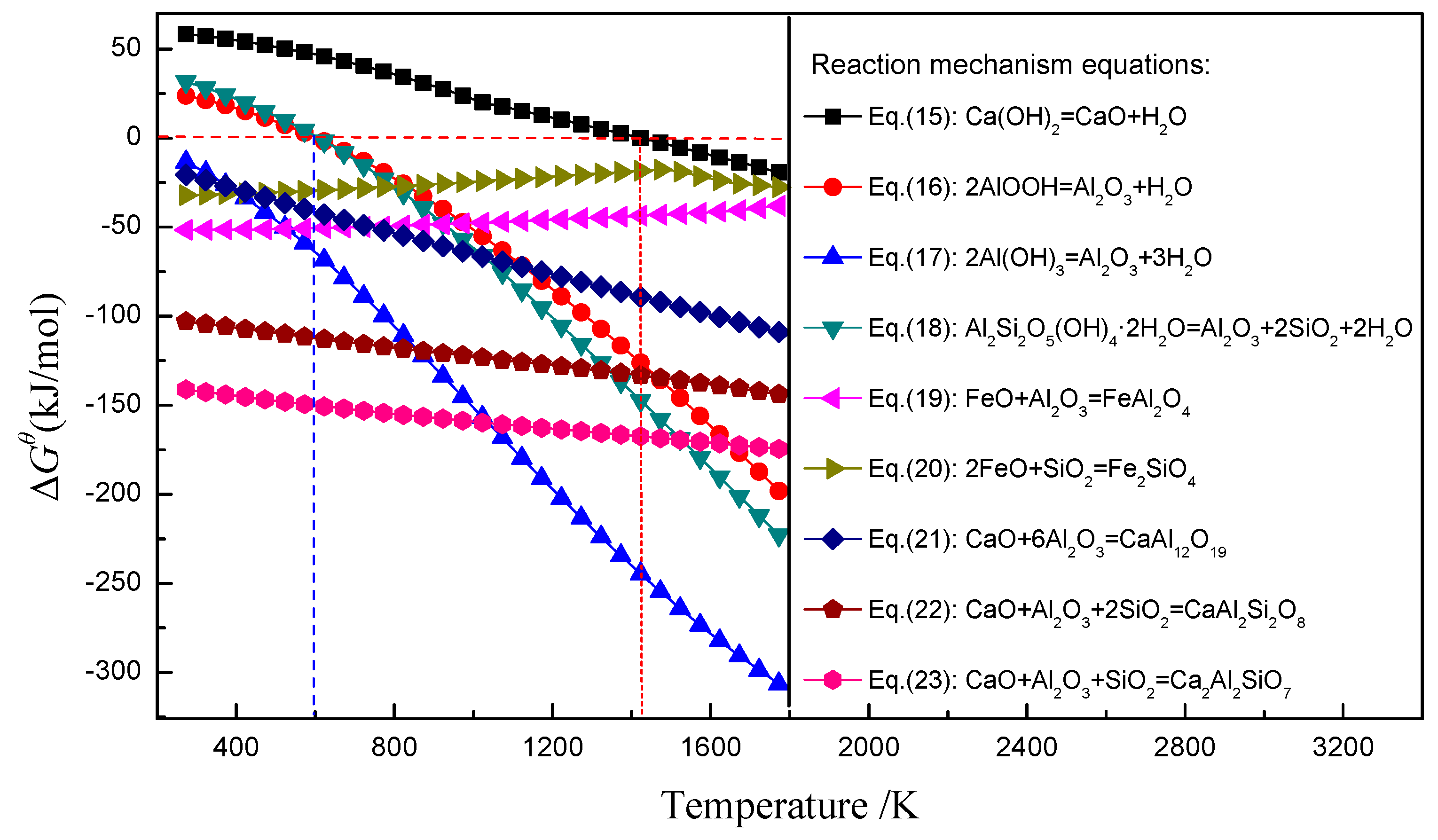

The reaction equations and the Gibbs free energy that varies with the temperature are calculated using Factsage 7.0, and are presented in Figure 6. It can be seen that the diaspore (AlOOH) and gibbsite (Al(OH)₃) are easily decomposed into alumina (Al₂O₃) and water (H₂O) at low temperatures (Equations (16) and (17)). The kaolinite (Al₂Si₂O₅(OH)₄·2H₂O) is decomposed into quartz (SiO₂), alumina (Al₂O₃), and water (H₂O) (Equation (18)) at temperatures over 623 K. Initially, the slaked lime (Ca(OH)₂) gets decomposed into calcium oxide (CaO) and water (H₂O) at temperatures over 1423 K. It can be seen that the reactions of Equations (18), (21), (22), and (23) are predominant at the indicated experimental temperature range, whereas the reactions of Equations (19) and (20) are negative. The standard free energies of Equations (18), (21), (22), and (23) are more negative than that of Equations (19) and (20). Therefore, the alumina slag is mainly composed of gehlenite (Ca₂Al₂Si₂O₇), anorthite (CaAl₂Si₂O₈), and calcium hexaluminate (CaAl₁₂O₁₉), and a small amount of fayalite (Fe₂SiO₄) and hercynite (FeAl₂O₄).

3. Results and Discussion

3.1. Recovery of Iron and Alumina Slag

3.1.1. Effect of Basicity

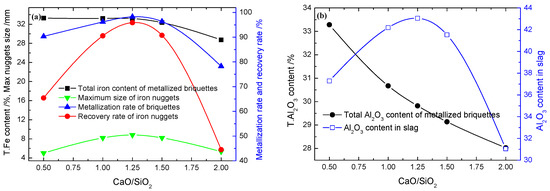

The briquettes basicity (w(CaO)/w(SiO₂)) has an important influence on the slag melting point and phase composition. In order to obtain the optimal basicity, various basicities (0.5–2.0) were investigated with a constant process parameter, and the reduction temperature and time are 1400 °C and 20 min, respectively. The effect of the basicity on the recovery of the iron and alumina slag are presented in Figure 7a,b, respectively.

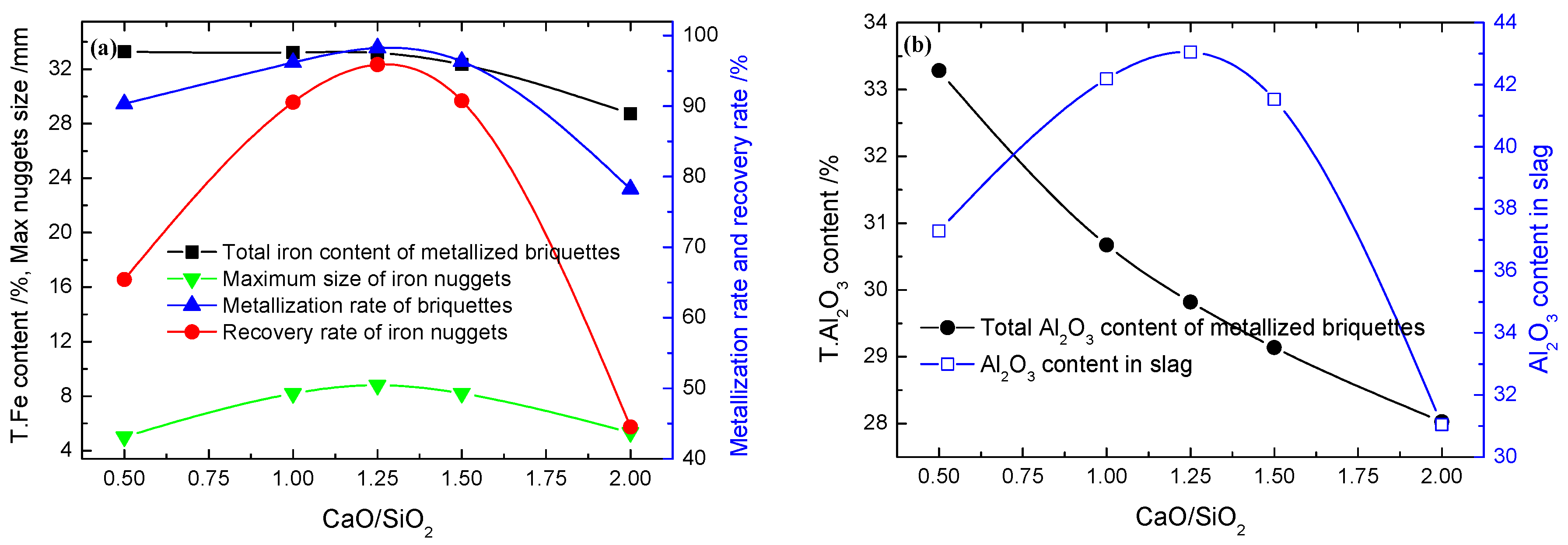

It was found that the total iron content and Al₂O₃ grade of the metallized briquettes decreases gradually with the increasing w(CaO)/w(SiO₂) ratio. However, the maximum size of the iron nuggets, the metallization rate of briquettes, the iron recovery rate, and the Al₂O₃ grade of the slag show a trend of first increasing and then decreasing, and the highest values are obtained at a w(CaO)/w(SiO₂) ratio of 1.25. The CaO content of the metallized briquettes increases sharply with the increasing w(CaO)/w(SiO₂) ratio, which leads to a decrease in the Al₂O₃ grade of the metallized briquettes. In addition, a reasonable basicity can reduce the slag melting point and viscosity; promote the effective separation of slag and iron; and improve the metallization rate, iron recovery rate, and Al₂O₃ grade in the slag.

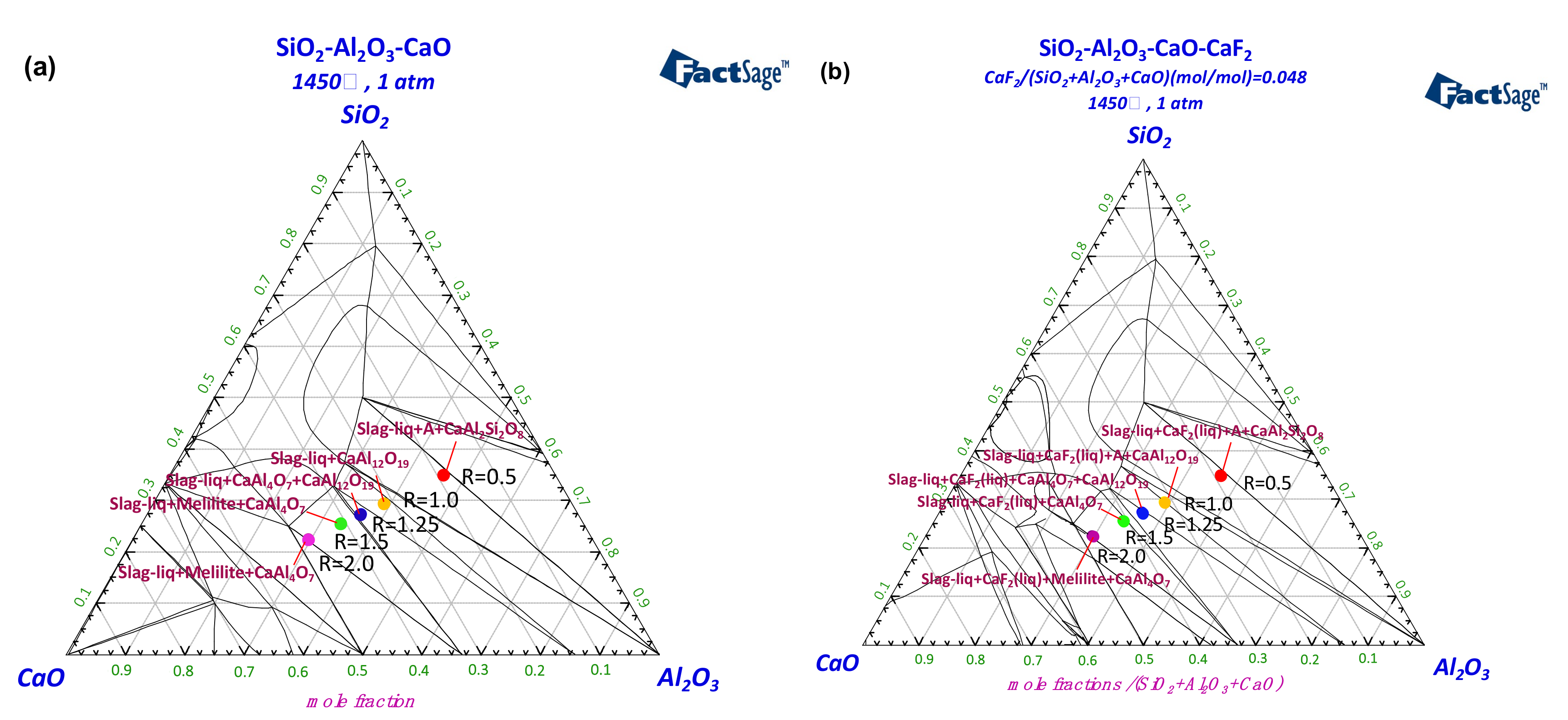

The above phenomena can be explained by the thermodynamic data of Figure 4. It can be seen that the w(CaO)/w(SiO₂) ratio has an important effect on the growing up of iron nugget and the separation of the iron and slag. As shown in Figure 4, when the basicity is between 1.0 to 1.5, the alumina slag mainly consisted of low temperature eutectic mixtures (Al₂O₃–CaAl₂Si₂O₈–Ca₂Al₂Si₂O₇), the amount of liquid phase of alumina slag is relatively high, and the highest amount of liquid phase is obtained at a w(CaO)/w(SiO₂) ratio of 1.25. However, if excessive CaO is added into the bauxite–coal composite briquettes, the amount of liquid phase of the alumina slag will decrease, and the metallization rate of the briquettes and the recovery rate of the iron also will decrease. Therefore, the optimal w(CaO)/w(SiO₂) ratio is 1.25 when the reduction temperature and time are 1400 °C and 20 min, respectively. Compared with the high basicity process [22], the amount of slag of this low basicity semi-molten reduction process decreased to about 27.9 wt %–36.6 wt %, which will significantly reduce the smelting energy consumption.

3.1.2. Effect of Reducing Time

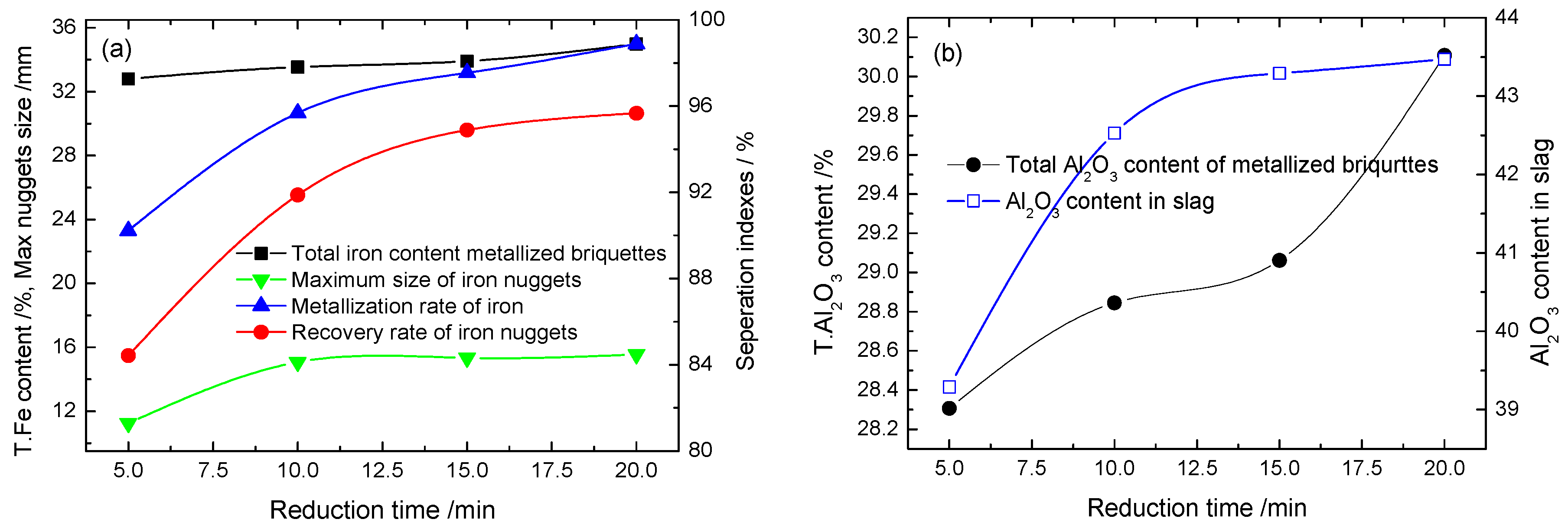

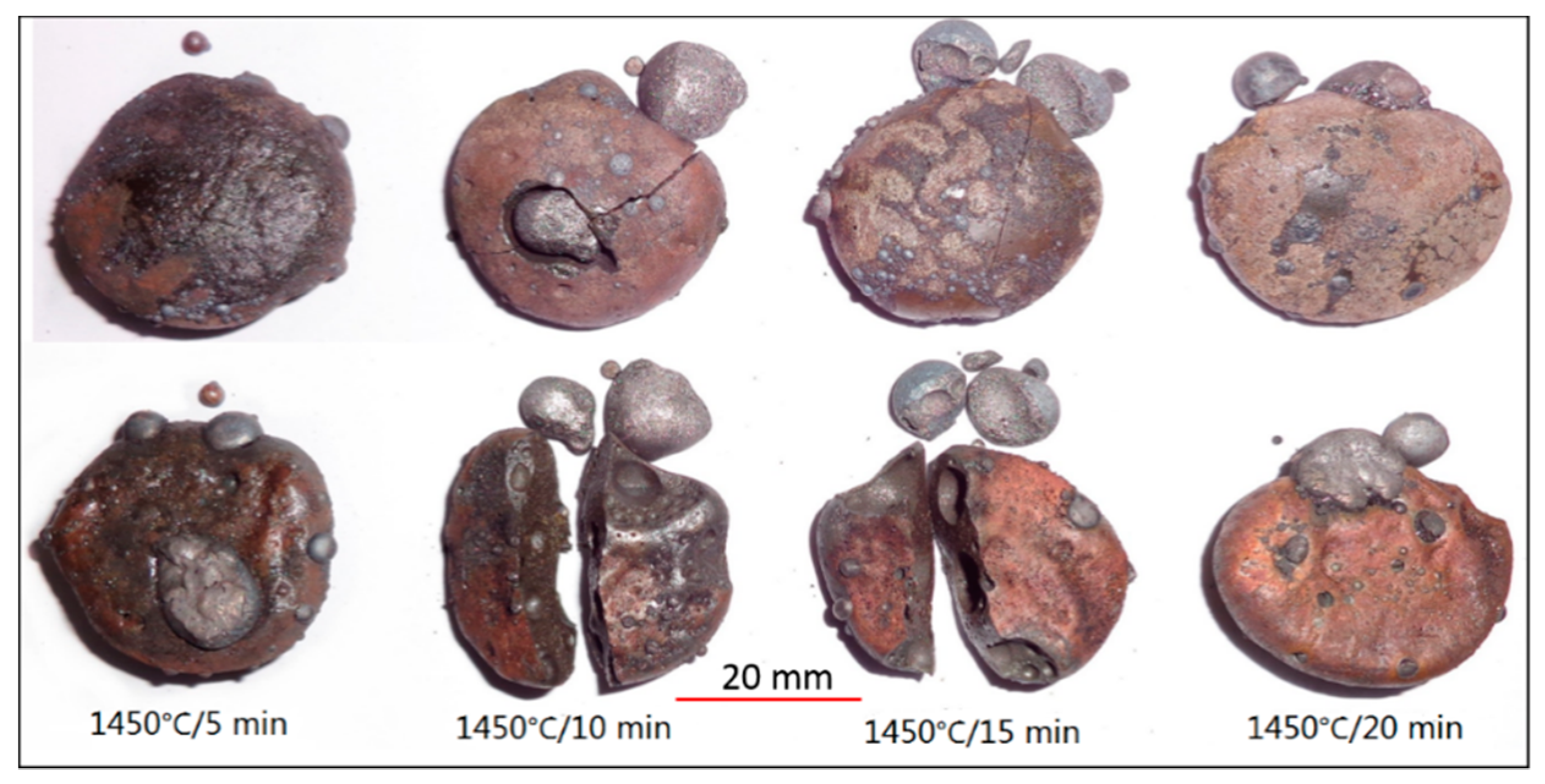

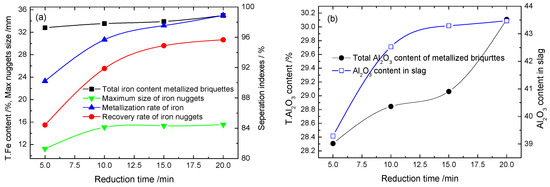

The reduction time has an important influence on the metallization rate of the briquettes and the iron recovery rate. In order to obtain an optimal reduction time, the various reduction times (5–20 min) were investigated with a constant process parameter, and the basicity and temperature are 1.25 and 1400 °C, respectively. The effect of the reduction time on the recovery of the iron and alumina slag are presented in Figure 8a,b, respectively.

It was found that the total iron content and Al₂O₃ grade of the metallized briquettes, the maximum size of iron nuggets, and the Al₂O₃ grade of the slag increases slightly with the increasing reduction time. The maximum size of the iron nuggets and the highest Al₂O₃ grade of slag are 15.55 mm and 43.47 wt %, respectively. However, the metallization rate of the briquettes and the iron recovery rate increased markedly, and when the time was over 15 min, the metallization rate of the briquettes and the iron recovery rate increased slightly. When the reduction time reaches 20 min, the highest metallization rate of the briquettes and the iron recovery rate are 98.9% and 94.7%, respectively.

3.1.3. Effect of Reduction Temperature

Chu et al. [21] investigated the effect of the direct reduction temperature on the recovery of iron from red mud, and found that increasing the temperature can significantly increase the iron recovery rate and total iron content in the magnetic product. Therefore, the reduction temperature has an important influence on the slag melting point, metallization rate of the briquettes, and the iron recovery rate. In order to obtain the optimal reduction temperature, various reduction temperatures (1375–1450 °C) were investigated with a constant process parameter, and the basicity and time are 1.25 and 15 min, respectively. The effect of the reduction temperature on the recovery of the iron and alumina slag are presented in Figure 9a,b, respectively.

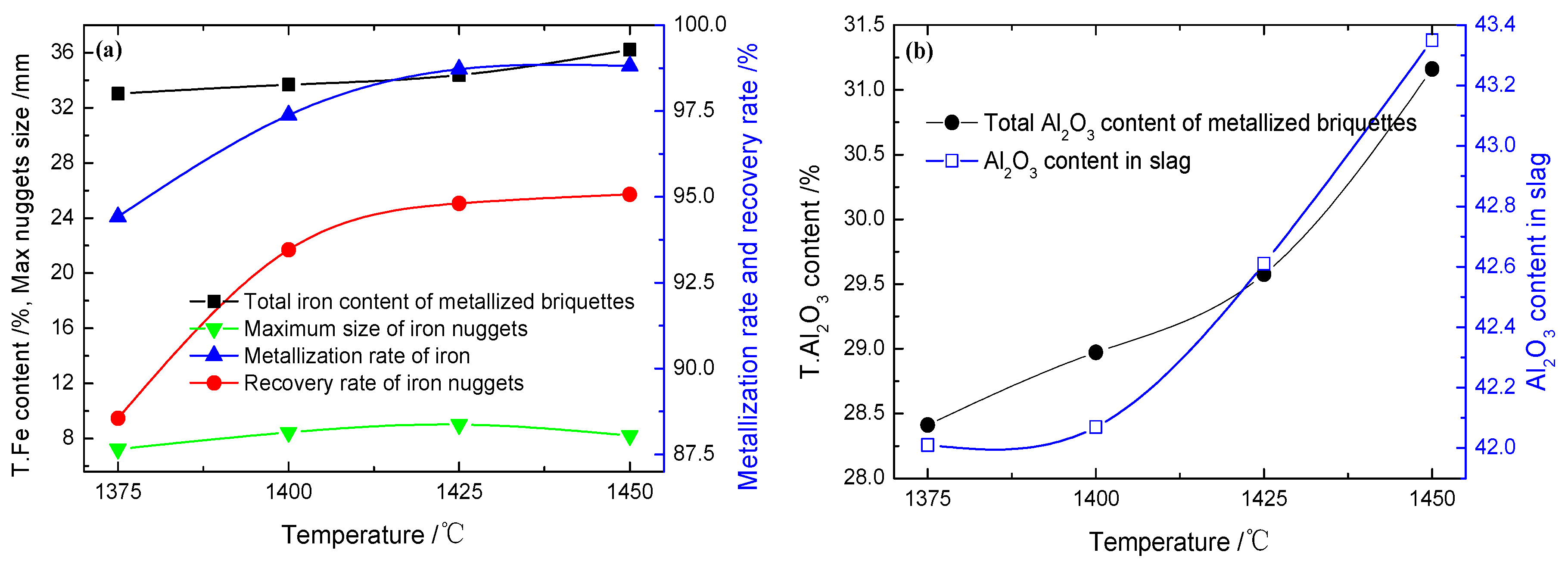

It was found that the total iron content and Al₂O₃ grade of the metallized briquettes, the metallization rate of briquettes, and Al₂O₃ grade of the slag increases slightly with the increasing reduction temperature. The highest metallization rate of the briquettes maximum and Al₂O₃ grade of slag are 98.81% and 43.35 wt %, respectively. However, the iron recovery rate increases markedly, and when the reduction temperature is over 1425 °C, the iron recovery rate increases slightly. In addition, the maximum iron nugget size follows a parabolic law with the increasing reduction temperature, and the maximum iron nugget size is about 9.1 mm, which is obtained at a temperature of 1425 °C.

3.1.4. Effect of the Anthracite Ratio

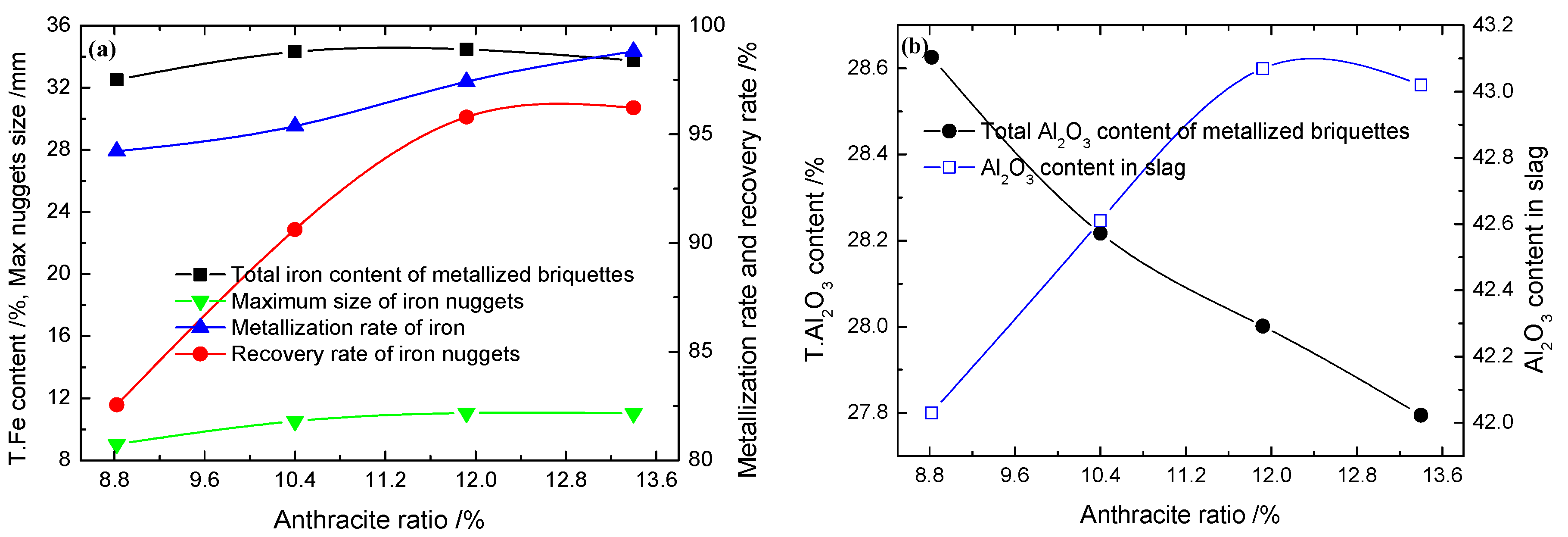

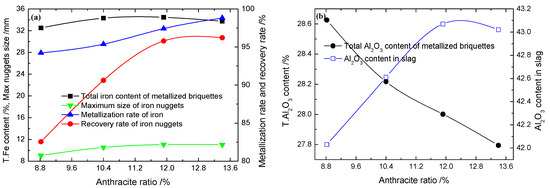

The anthracite ratio has an important influence on the direct reduction, carbon gasification reaction, and solid-state carburization reaction. In order to obtain the optimal anthracite ratio, the various anthracite ratios (from 8.82 wt % to 13.40 wt %) were investigated with a constant process parameter, and the basicity, temperature, and time are 1.25, 1425 °C, and 15 min, respectively. The effect of the anthracite ratio on the recovery of the iron and alumina slag are presented in Figure 10a,b, respectively.

It was found that the metallization rate of the briquettes, the maximum size of the iron nugget, and the Al₂O₃ grade of the slag increases slightly with the increasing anthracite ratio. The total iron content and total Al₂O₃ content and of the metallized briquettes varies slightly with the increasing anthracite ratio. The maximum size of the iron nuggets is 10.12 mm, and the highest Al₂O₃ grade of the slag is 43.07 wt %, which increased by 16.61 wt % compared with the Al₂O₃ in the bauxite ore. When the anthracite ratio further increases, the Al₂O₃ grade of the alumina slag decreases slightly. This observation is caused by the rapid increase in the carbon content with the increasing anthracite ratio, which leads to a decrease of Al₂O₃ grade in the metallized briquettes. However, the iron recovery rate increases markedly with increasing the anthracite ratio, and when the anthracite ratio is over 11.92 wt %, the iron recovery rate has almost no increases, and the highest iron recovery rate is 96.22%. Therefore, the appropriate increase in the anthracite ratio is beneficial to the growth of the iron nugget and the effective separation of the slag and iron. The optimal anthracite ratio is 11.92 wt % at the w(CaO)/w(SiO₂) ratio, reduction time, and temperature, of 1.25, 15 min, and 1425 °C, respectively. Compared with the smelting reduction of the low-grade bauxites and red mud, the utilization rate of the pulverized coal of the semi-molten reduction process is very high, and the unreacted carbon content in the slag is only about 0.6 wt %–1.2 wt %, which is much lower than that of the unreacted coke of the smelting reduction process [23,26].

3.1.5. Effect of the CaF₂ Ratio

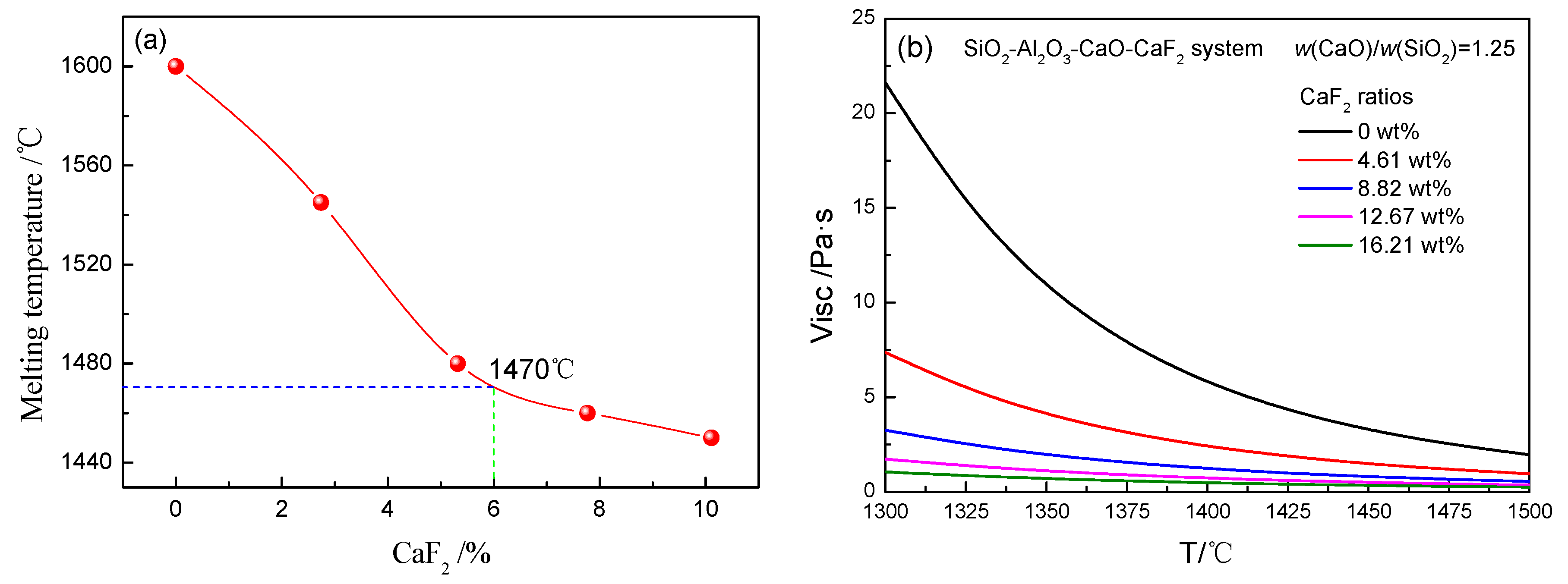

Recent semi-smelting reduction experimental studies show that increasing the content of CaF₂ can significantly reduce the slag viscosity, and promote the separation of slag and iron [27,28]. However, the melting point of the alumina slag system is very high (shown in Figure 11a). When the basicity is 1.25 and the CaF₂ ratios range from 0 wt % to 5.67 wt %, the melting points of the high alumina slag (CaO–Al₂O₃–CaF₂–SiO₂) are over 1470 °C, and the slag cannot be completely melted in the range of the experimental temperature (1375–1450 °C). So, it is impossible to obtain the true viscosity of the alumina slag using the experimental method. In order to investigate the effect of the CaF₂ ratios (0 wt %–5.67 wt %) and the viscosity changeless on the semi-molten reduction, FactSage 7.0 thermodynamic software was used to simulate the viscosity of the CaO–Al₂O₃–CaF₂–SiO₂ system, and is presented in Figure 11b. It was found that the temperature and CaF₂ ratio have an obvious effect on the slag viscosity. The higher the temperature and CaF₂ ratio, the lower the slag viscosity. However, when the temperature is more than 1450 °C and the CaF₂ ratio is over the 4.61 wt %, with the increasing CaF₂ ratio and temperature, the slag viscosity decreased slightly. Therefore, it is necessary to further optimize the CaF₂ ratio.

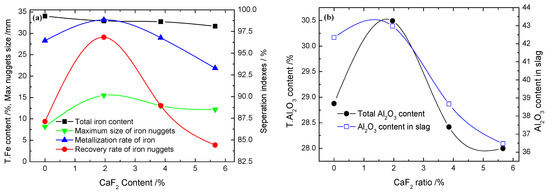

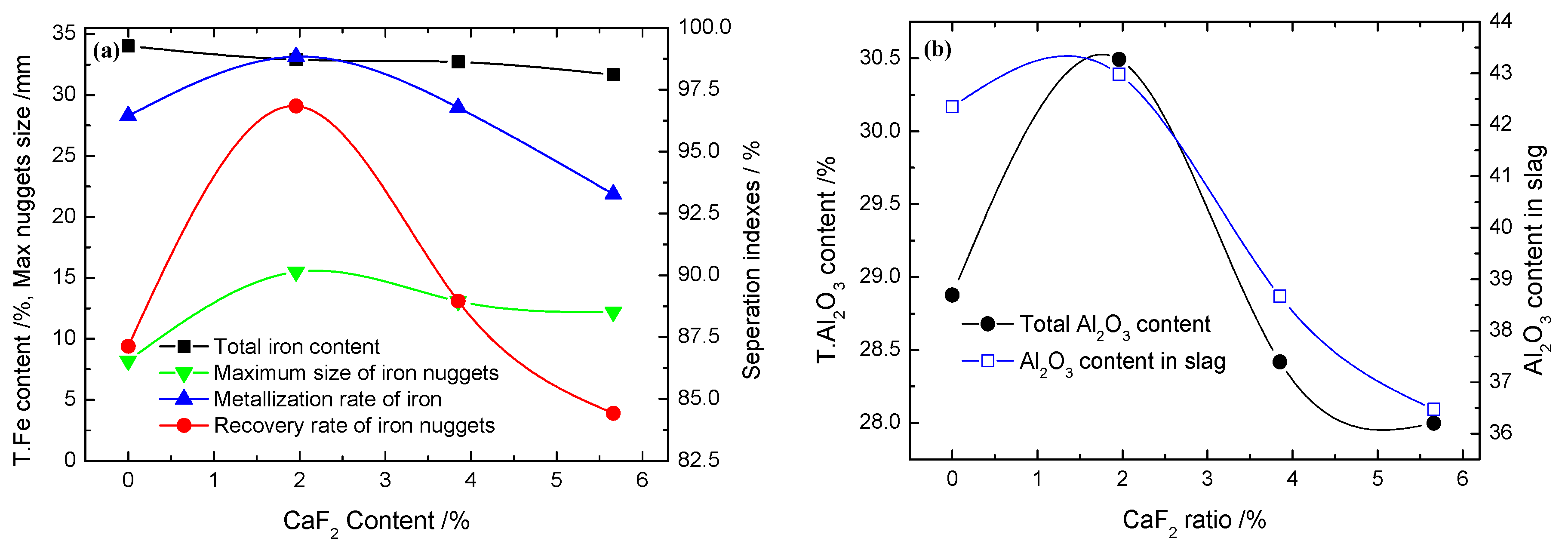

In order to obtain the optimal CaF₂ ratio, the various CaF₂ ratios (0 wt %–5.67 wt %) were investigated with a constant process parameter, and the basicity, anthracite ratio, temperature, time are 1.25, 11.92 wt %, 1425 °C, and 15 min, respectively. The effect of the CaF₂ ratios on the recovery of the iron and alumina slag are presented in Figure 12a,b, respectively.

It was found that the total iron content of the metallized briquettes decreases slightly with the increasing CaF₂ ratio. The maximum size of the iron nuggets, the metallization rate of the briquettes, the iron recovery rate, and the Al₂O₃ grade of the slag show a trend of first increasing and then decreasing, and the highest values are obtained at a CaF₂ ratio of 1.96 wt %. The maximum size of the iron nuggets is 15.5 mm, the highest metallization rate of the briquettes, the iron recovery rate, and the Al₂O₃ grade of the slag are 98.84%, 96.84%, and 42.98%, respectively. When the CaF₂ ratio further increases, the metallization rate of the briquettes and the iron recovery rate decrease rapidly, whereas the maximum particles size of the iron nugget decrease gradually. The Al₂O₃ grade of the metallized briquettes and alumina slag increase sharply with the increasing anthracite ratio. The highest Al₂O₃ grade of the metallized briquettes and the alumina slag are observed at an anthracite ratio of 1.96 wt %. When the CaF₂ ratio further increases, the Al₂O₃ grade of the metallized briquettes and the alumina slag decrease sharply.

Therefore, increasing the CaF₂ ratio by 1.96 wt % is beneficial to the growth of the iron nugget and for the effective separation of the slag and iron. However, if excessive CaF₂ is added into bauxite–coal composite briquettes, the CaO content of the alumina slag will increase, and the metallization rate of the briquettes and the iron recovery rate will decrease. Therefore, the optimal CaF₂ addition is 1.96 wt % when the w(CaO)/w(SiO₂) ratio, reduction time, and temperature are 1.25, 15 min, and 1425 °C, respectively.

3.2. Properties Characterization of Reduction Products

According to the above studies, the optimum process parameters should be a w(CaO)/w(SiO₂) ratio of 1.25, reduction temperature of 1425 °C, time of 15 min, anthracite ratio of 11.92 wt %, and CaF₂ ratio of 1.96 wt %. Under optimal conditions, the reduced briquettes were crushed to 1–10 mm by the jaw crusher, then the iron nugget and alumina slag were magnetic separated by the high strength roller dry magnetic separator, with a magnetic intensity of 4000 Gs. The iron nugget and alumina slag are obtained by a semi-smelting reduction and magnetic separation process, and are presented in Figure 13. The maximum particle size of the iron nuggets is about 15.5 mm, and the recovery rate of iron and Al₂O₃ content of alumina slag are 96.84 wt % and 43.98 wt %, respectively.

3.2.1. X-Ray Diffraction Analysis

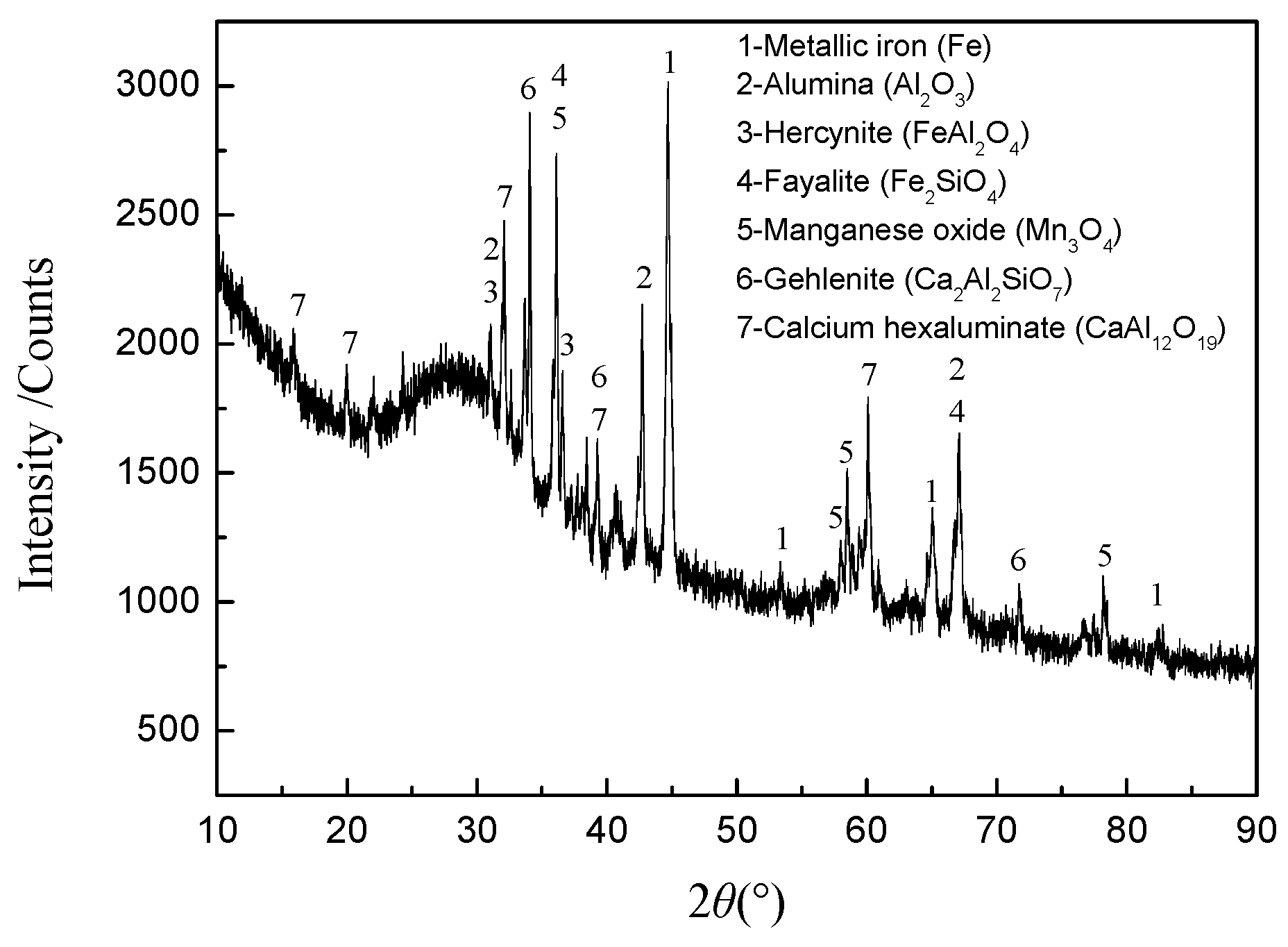

After magnetic separation, the alumina slag obtained at the optimal process were crushed to a particle size of 80% lower than 74 μm, then the phase composition of the alumina slag was investigated using XRD (Figure 14). It was found that the peaks of Fe₂O₃ disappear completely, and most of the metallic iron is separated through magnetic separation. A small number of intermediate products are observed in the XRD pattern, such as hercynite (FeAl₄O₇) and fayalite (Fe₂SiO₄). The alumina slag is mainly composed of gehlenite (Ca₂Al₂SiO₇) and calcium hexaluminate (CaAl₁₂O₁₉), with small amounts of Fe₂SiO₄, FeAl₂O₄, manganese oxide (Mn₃O₄), and metallic iron. These results can be explained by the thermodynamic analysis of Figure 5, beecause the standard free energy changes of Equations (21), (22), and (23) are more negative than that of Equations (19) and (20).

3.2.2. SEM–EDS Analysis

The SEM micrographs and EDS analyses of the iron nugget obtained at the optimal condition are shown in Figure 15 and

Table 3. Energy dispersive X-ray spectroscope (EDS) results of the iron nuggets obtained at the optimal condition.

Fe	C	Si	Mn	S	P
94.48	3.94	0.10	1.42	0.002	0.058

, respectively. We found that the iron nugget had numerous cracks and holes, and almost no micro inclusions. The iron nugget is mainly composed of Fe, C, and Mn, and the concentration of harmful elements such as S and P is very low. The concentration of Fe, C, and Mn are 94.48 wt %, 3.94 wt %, and 1.42 wt %, respectively. The concentrations of Si and P are 0.1 wt % and 0.06 wt %, respectively. Compared with the magnetic products obtained by coal-based direct reduction and magnetic separation technology, the iron nugget products have higher Fe and C contents, which have similar properties to the blast furnace pig iron and white cast iron [29,30,31].

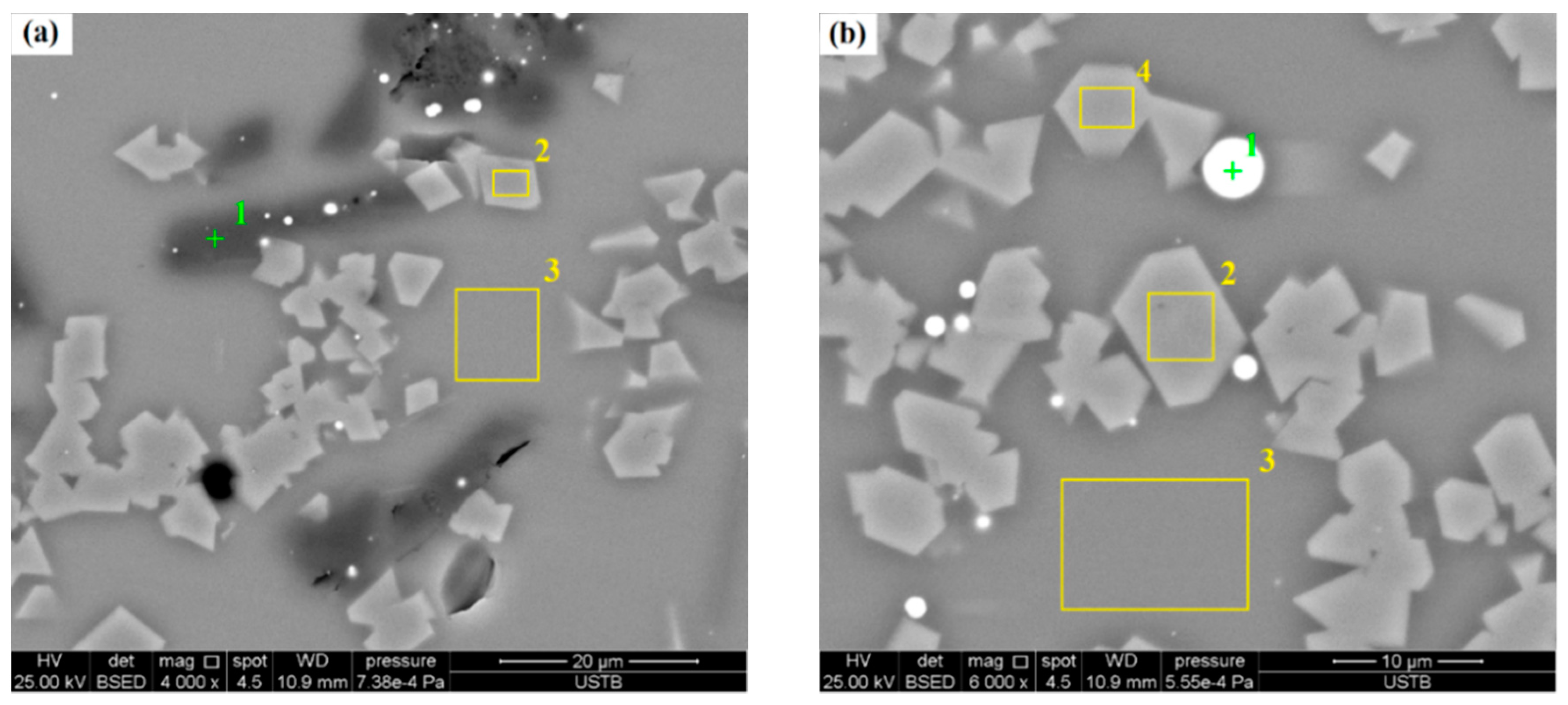

The SEM micrographs of the alumina slag are shown in Figure 15, and the EDS results are shown in

Table 4. EDS results of the alumina slag obtained at the optimal condition.

Test Positions	Analysis Result/at %										Mineral Names/Chemical Structural Formula
	Fe	C	Si	Al	Ca	O	Mn	Ti	Co	Ni
Figure 16a-spot 1	-	-	-	49.62	-	50.38	-	-	-	-	Alumina/α-Al2O3
Figure 16a-area 2	12.60	-	-	35.26	0.82	45.74	1.73	-	-	-	Hercynite/FeAl4O7
Figure 16a-area 3	2.91	-	9.72	18.01	15.25	51.61	0.64	1.22	-	-	Gehlenite/Ca2Al2SiO7
Figure 16b-spot 1	90.41	-	-	-	0.63	-	-	-	1.18	2.51	Metallic iron/Fe
Figure 16b-area 2	15.13	-	-	34.34	0.36	46.05	1.42	-	-	-	Hercynite/FeAl4O7
Figure 16b-area 3	2.93	-	9.57	17.78	15.01	52.43	0.44	1.20	-	-	Gehlenite/Ca2Al2SiO7
Figure 16b-area 4	3.70	-	0.72	38.76	4.97	51.85	-	-	-	-	Calcium hexaluminate/CaAl12O19

. The SEM–EDS analysis indicates that the alumina (α-Al₂O₃), calcium hexaluminate (CaAl₁₂O₁₉), and gehlenite (Ca₂Al₂SiO₇) are major minerals in the alumina slag. However, the contents of hercynite (FeAl₄O₇) and metallic iron (M.Fe) are lower in the slag, as confirmed by the previous XRD pattern (Figure 13). Most alumina (α-Al₂O₃) is needle shaped with a black color (Figure 16a-spot 1); furthermore, the crystal shape of hercynite (FeAl₄O₇) is rhombic or an irregular hexagon (Figure 16a,b-area 2), and the crystal shape of calcium hexaluminate (CaAl₁₂O₁₉) is a regular hexagon (Figure 16b-area 4).

3.2.3. Chemical Composition Analysis

The major elements of the iron nuggets are listed in

Table 5. Major element compositions of iron nuggets.

Fe	C	Si	S	P	Mn
94.31	3.86	0.13	0.005	0.065	1.63

. It can be seen that the Fe, C, and Mn are the major elements in the iron nuggets, and the S and P are minor components. The total iron content is very high over 94.31 wt %, and the carbon and manganese contents are 3.86 wt % and 1.63 wt %, respectively. Almost no harmful elements were found in the nugget, such as S and P. The major element compositions of the alumina slag are presented in

Table 6. Major element compositions of alumina slag.

FeO	Al2O3	SiO2	CaO	MnO	TiO2	V2O5
2.26	43.36	21.75	27.11	2.56	2.65	0.31

. We found that the slag basicity (w(CaO)/w(SiO₂)) is about 1.25, and the alumina slag mainly consisted of 43.36 wt % Al₂O₃, 21.61 wt % SiO₂, and 21.77 wt % CaO. According to the analysis results in Figure 4, the slag is mainly composed of liquid slag, Al₂O₃, calcium dialuminate (CaAl₄O₇), and calcium hexaluminate (CaAl₁₂O₁₉). As for the application of the alumina slag, we mainly use it to synthesize the CaAl₂Si₂O₈–Al₂O₃–CaAl₁₂O₁₉ composites, and the related research results are shown in previous research literature [32].

4. Conclusions

(1) The semi-smelting reduction and magnetic separation technology provides the possibility of the comprehensive utilization of iron rich bauxite. Although the laboratory results are very good, there are still some problems that need to be solved in the industrial popularization and application of this technology. The precise control of the temperature and atmosphere temperature of industrial furnaces are the key technologies for its industrial application.

(2) The optimum process of the parameters of the semi-smelting reduction and magnetic separation process should be w(CaO)/w(SiO₂) ratio of 1.25, temperature of 1425 °C, time of 15 min, anthracite ratio of 11.92 wt %, CaF₂ ratio of 1.96 wt %, and magnetic intensity of 4000 Gs.

(3) High quality iron nugget and high-grade alumina slag can be obtained by a semi-melting reduction and magnetic separation process. The highest iron recovery rate and Al₂O₃ grade of alumina slag are 96.84 wt % and 43.98 wt %, respectively.
