Geochronology of Magmatism and Mineralization in the Dongbulage Mo-Polymetallic Deposit, Northeast China: Implications for the Timing of Mineralization and Ore Genesis

Abstract

The recently discovered Dongbulage Mo-polymetallic deposit is located in the southern part of the Great Xing’an Range, northeast China. Mineralization is closely related to the emplacement of Middle–Late Jurassic granitoids. In order to understand the petrogenetic link between mineralization and host granitoids, this study presents new zircon U–Pb ages, bulk-rock geochemistry, and molybdenite Re–Os ages for the Dongbulage deposits. LA-ICP-MS zircon U–Pb dating of the monzogranite and syenogranite intrusions yielded two weighted mean ²⁰⁶Pb/²³⁸U ages: of 164 ± 2 Ma and 165 ± 3 Ma, respectively. The subvolcanic rocks (red porphyritic granite and rhyolite) yielded a time interval between 161 ± 2 and 162 ± 3 Ma. In addition, molybdenite from the Dongbulage deposit gave a Re–Os isochron age of 162.6 ± 1.5 Ma, which was interpreted as the age of the mineralization. The new geochronology has established the close temporal and genetic relationships between the mineralization event and the emplacement of the Middle–Late Jurassic granitoids. Bulk-rock geochemistry shows that the Dongbulage granitoids are characterized by high SiO₂, K₂O, and A/CNK [Al₂O₃/(CaO + Na₂O + K₂O)(molar ratio)] values, and low TiO₂, CaO, and MgO values, indicating a metaluminous to peraluminous, high-K calc-alkaline affinity. The granitoids also featured enrichments of large ion lithophile elements and light rare earth elements (LREE), and a relative depletion of high field strength elements (HFSE), along with an increasing negative δEu anomaly. The high differentiation index (DI), ranging from 81.75 to 94.76, and obvious fractionation between LREE and HREE, indicate that the Dongbulage granitoids are highly fractionated, metaluminous–peraluminous, and high-K calc-alkaline I-type granites. Combined with the regional geology, the Dongbulage granitoids may have formed during post-orogenic extension that followed the Mongol–Okhotsk Ocean closure coeval with subduction of the paleo-Pacific plate.

1. Introduction

Porphyry Mo-polymetallic deposits are the world’s most important source of Mo on account of their large tonnages, and currently account for <95% of the global Mo production [1]. The Great Xing’an Range mineral province with a Mo reservoir of >4 million tonnes (Mt), which is located at the eastern segment of the Central Asia Orogenic Belt (CAOB), and ranks as the second greatest Mo source in China. This region is characterized by abundant highly evolved Mesozoic igneous rocks [2], and contains large-scale Ag-, Sn-, Mo-, and Cu-polymetallic vein deposits (Figure 1a) [3,4]. In this region, seven large base metal (≥0.5 Mt) and rare metal (≥0.2 Mt) deposits, and 25 smaller (0.1–0.5 Mt) base metal deposits have been discovered [5]. Three newly recognized metallogenic belts are located within the Great Xing’an Range and its adjacent areas. These are: the northern Mo ± Cu ore-forming belt; the middle Sn ± W ± Ag metallogenic belt; and the southern Mo ore-forming belt (Figure 1b) [6]. The recently discovered Dongbulage deposit is located where the northern Mo ± Cu and middle Sn ± W ± Ag mineralization belts come together (Figure 1b). The deposit represents an unusual example of Mo-polymetallic mineralization dominated by abundant Mo–Pb–Zn with minor Ag–Cu mineralization. The polymetallic features of the Dongbulage deposit represent a change in the style of mineralization characteristics between the Sn ± W ± Ag and northern Mo ± Cu mineralization systems in this area.

The Dongbulage deposit shows a close spatial and genetic relationship with the enclosing granitic rocks, and displays a conspicuous feature of porphyry–epithermal ore-forming systems in which Mo orebodies are hosted within the subvolcanic rocks and adjacent breccia pipes, whereas the Ag-base metal orebodies are hosted in the contact zone between the subvolcanic rocks and host rocks. Based on fluid inclusion studies, Li et al. (2017) suggested that the ore-forming fluid is mainly derived from magmatic water [7]. However, the ages and petrogenesis of the ore-related magmatic rocks are still unclear, thus limits our understanding of the relationships between mineralization and magmatic activity.

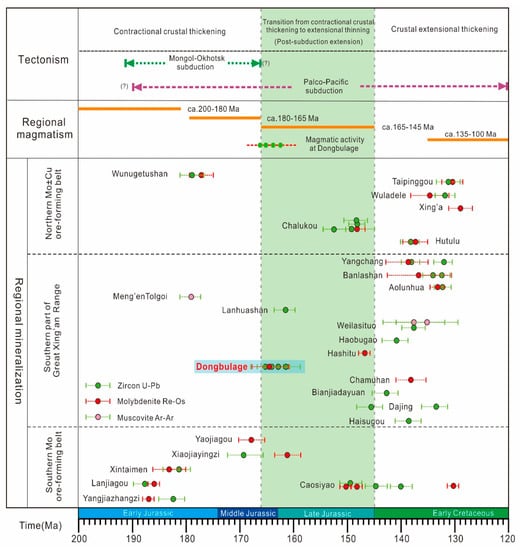

Determining the age of porphyry magmatic–hydrothermal events is critical for understanding ore genesis and related geological processes. The most commonly used tools are U–Pb zircon geochronology to date intrusive and high-temperature hydrothermal events, and Re–Os molybdenite geochronology to directly date sulfide mineralization stages. Combining the two techniques allows for clarification of the duration of magmatic–hydrothermal events associated with porphyry systems. In this manuscript, the genesis of the Dongbulage deposit is discussed based on the geology, petrology, and geochemistry of ore-related magmatic rocks, in conjunction with the molybdenite Re–Os ages of the ores and the zircon LA-ICP-MS U–Pb ages for the magmatic rocks. The aim of this study is to accurately constrain the ore-forming age, discuss the petrogenesis of the ore-related granites, and decipher ore genesis in the context of reconstructing the genetic evolution of porphyry systems and evaluating their duration.

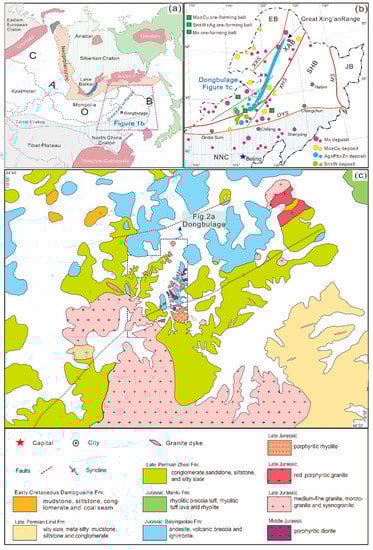

2. Geological Setting

The Dongbulage Mo-polymetallic deposit is located in the southern part of the Great Xing’an Range, in a tectonic unit known as the eastern section of the CAOB, which is often referred to as the Xing’an–Mongolian Orogenic Belt (XMOB) (Figure 1a) [8,9,10,11]. This region is considered to have experienced a complex geodynamic evolution under three distinct tectonic regimes: closure of the paleo-Asian Ocean during the Paleozoic, subduction and closure of the Mongol–Okhotsk Ocean during the Mesozoic, and subduction of the Pacific Plate during the Mesozoic–Cenozoic, which is associated with widespread magmatic and metamorphic events [9,10].

During the Paleozoic, this area recorded the migration and final closure of the paleo-Asian Ocean between the China Craton (NCC) and the Siberian Craton (SC). The XMOB is interpreted to have consisted of Phanerozoic juvenile crust formed by the amalgamation of several blocks, including, from northwest to southeast, the Erguna (EB), Xing’an–Airgin Sum (XAB), Songliao–Hunshandake (SHB), and Jiamusi blocks (JB), separated by the Xinlin–Xiguitu (XXS), Xilinhot–Heihe (XHS), Mudanjiang (MS), and Ondor Sum–Yongji sutures (OYS) (Figure 1b) [10]. Although final closure time and tectonic evolution are still debated, the XMOB was a united continent by the Mesozoic [12,13,14,15,16]. Hence, there was a significant transition since the Mesozoic, with the tectonic development being controlled by the northwest (NW)-dipping subduction of the paleo-Pacific plate and the south (S) to southeast (SE)-dipping subduction of the Mongol–Okhotsk Ocean plate [9,17,18,19,20,21,22]. During this tectonic regime, a NE-trending stratigraphy and magmatism developed that controlled the location of variously aged strata and magmatic intrusions (Figure 1b,c).

The Dongbulage Mo-polymetallic deposit is located in the southeastern part of the XAB and the northern section of the deep-seated Erlian–Hougenshan Fault (Figure 1b). Two major tectonostratigraphic units have been recognized in the region: Permian sedimentary rocks and Jurassic–Cretaceous felsic volcano-sedimentary sequences (Figure 1c) [11,23]. The Permian sedimentary rocks show discontinuous upward facies change from shallow sea to terrestrial, and can be subdivided into the Zhesi and Linxi formations. They are unconformably overlain by Cretaceous lacustrine sedimentary rocks in the Damoguaihe Formation and Jurassic continental felsic volcanic rocks in the Manitu and Baiyingaolao formations (Figure 1c) [11].

Mesozoic granites are common in the region, and have intruded Permian sedimentary rocks and mid-Jurassic terrestrial volcano-sedimentary sequences (Figure 1c). According to the intrusive relationships (and our new ages), the Mesozoic granitoids in the region are mainly composed of Middle–Late Jurassic plutonic rocks and relatively young subvolcanic intrusive complexes. The plutonic rocks are mostly located in the southern part of region, and occur as batholith and stocks (Figure 1c). The plutonic rocks were considered to be a part of the Buerhaotu granitic batholith and were classified into fine-grained to medium-grained monzogranite and syenogranite (Figure 1c). At the northern marginal facies of the Buerhaotu granitic batholith, some rocks of the subvolcanic complex outcrop as dykes and small stocks, consisting mainly of porphyritic diorite, red porphyritic granite, and porphyritic rhyolite (Figure 1c and Figure 2a). It should be noted that many polymetallic hydrothermal deposits (e.g., large Baiyinnuoer Pb–Zn–Ag, giant Shuangjianzishan Ag–Pb–Zn, and large Haobugao Fe–Zn–Cu, and Aonaodaba Cu–Sn–Ag deposits) are present in this region; these displays have a temporal and spatial relationship with the Mesozoic granites.

3. Ore Deposit Geology

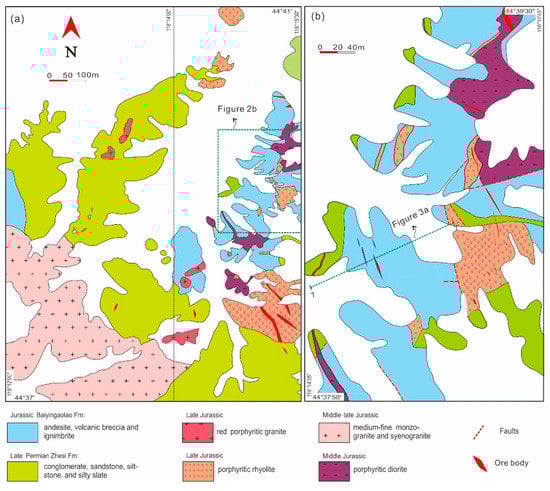

The Dongbulage Mo-polymetallic deposit is located in the northern margin of the Buerhaotu granitic batholith and the axis of the NE-trending East Ujimqin Banner anticlinorium (Figure 1c and Figure 2). The Mo-polymetallic mineralization occurs in a small area of approximately 1–2 km², and is mainly hosted by the NNW, and roughly EW-trending faults and joints (Figure 2 and Figure 3).

3.1. Host Rocks and Structures

Host rocks at Dongbulage mainly consist of: (1) the NE-trending Late Permian Zhesi sedimentary succession (Figure 2a); (2) the Jurassic volcano-sedimentary sequences in the Baiyingaolao Formation and Porphyritic diorite (Figure 2a,b); (3) the Late Jurassic subvolcanic, together with the coeval concealed hydrothermal breccias (Figure 2 and Figure 3a).

The major fractures and faults that developed in the inner and outer contact zones between the small stocks and adjacent host rocks are predominantly NNW-trending, and subordinately nearly EW-trending; these serve as major ore-controlling structures by providing conduits for the intrusion of magmatic rocks and the subsequent migration of the hydrothermal fluids that are responsible for mineralization (Figure 3).

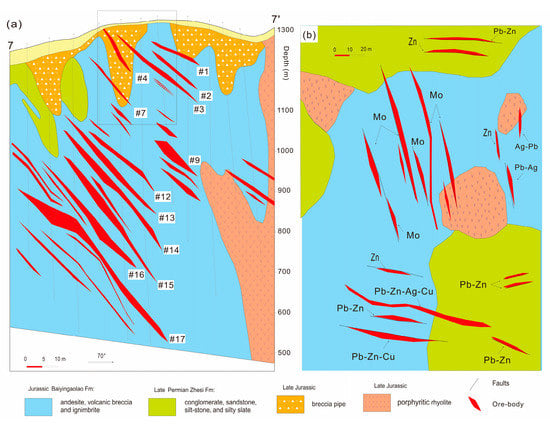

3.2. Mineralization and Zoning

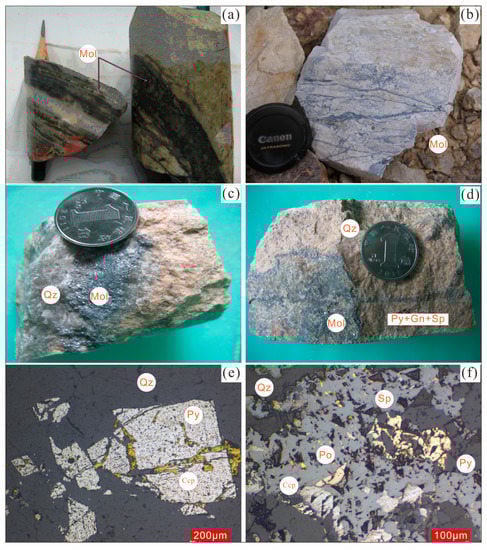

More than 100 orebodies had been outlined at Dongbulage by 2010, with 31 Mt of proved ore consisting of approximately 0.107% Mo, approximately 0.13% Zn, approximately 0.11% Pb, approximately 0.19% Cu, and approximately 4.53 ppm Ag [24]. Three types of mineralization have been recognized at Dongbulage. Disseminated and stockwork mineralization is mainly hosted by porphyritic rhyolite and adjacent country rock, the vein-type Mo-polymetallic mineralization is hosted by fractures and faults, and breccia mineralization occurs within cryptoexplosive breccia pipes. Of these, vein-type mineralization is the most abundant and economically important, and is essentially restricted to thick quartz-dominant veins (1 m in thickness), and small decimeter-scale (dm-scale) veins (0.1–1 m thick) and veinlets (0.05–0.1 m thick) (Figure 4a,b).

The mineralization shows well-developed horizontal zoning outward from the subvolcanic stocks. Based on metal assemblages, two main mineralized vein systems are recognized at Dongbulage: proximal Mo-bearing veins, which occur in the central part of the ore district, and distal Zn ± Pb ± Cu ± Ag mineralization, which is found at the edge of the ore district (Figure 3b).

Mo mineralization is primarily restricted to the NNW-trending extensional faults and fractures that developed in the inner and the outer contact zones between small stocks and adjacent host rocks (Figure 3). Individual Mo orebodies are lens-shaped and vein-shaped. Lengths along the strike direction range from 20 to 650 m, and vein widths range from 1.2 to 17 m. Orebodies #3, #12, #17 are the largest (Figure 3a). The Mo-bearing vein-type ores consist of quartz, subhedral pyrite (<0.025 mm in size), and euhedral sheeted molybdenite (approximately 0.01–0.437 mm), with associated muscovite, fluorite, and K-feldspar (Figure 4c,d). Bonanza horizons in the vein are lenticular in shape with a thickness of <2 m. The grade of bonanzas in this vein reaches 1.793%, although the average grade is 0.107%.

Distal Zn ± Pb ± Cu ± Ag mineralization is associated with shallow-level, nearly EW-trending faults and fractures within the Zhesi and Baiyingaolao formations (Figure 3b). The individual Zn ± Pb ± Cu ± Ag orebodies are approximately 25 to 150 m in length, and approximately 1.03 to 9.80 m in thickness. The high concentrations of sulfides generally coincide with a high frequency of quartz veins. Economic Zn ± Pb ± Cu ± Ag vein-type mineralization mainly contains pyrite, sphalerite, and galena, with minor chalcopyrite, pyrrhotite, and argentite (Figure 4e,f). Gangue minerals are primarily quartz and K-feldspar, with minor amounts of chlorite, muscovite, fluorite, calcite, and kaolin.

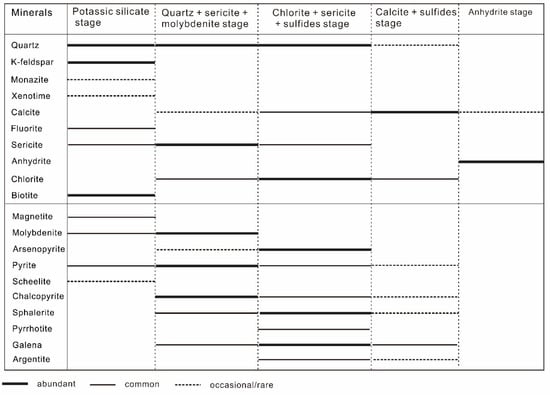

3.3. Stages of Alterations and Ore Formation

Alteration is well widespread within the ore-bearing porphyry and the contact host rocks, and is characterized by an early stage of K-silicate alteration at deeper levels of the mine, fracture-controlled silicification and sericite alteration, widespread propylitic alteration, and later argillic alteration [7]. According to the alteration–mineralization patterns and cross-cutting relationship of the veins, five stages of alteration–mineralization have been recognized: (1) the K-silicate stage; (2) the quartz + sericite + molybdenite stage; (3) the chlorite + sericite + sulfides stage; (4) the quartz + calcite stage; and (5) the anhydrite stage (Figure 5) [7].

The K-silicate stage represents the late magmatic and the initial hydrothermal stage, which is generally tightly confined to the volume occupied by deep porphyry stocks. Early K-silicate can be established, mainly consisting of quartz, K-feldspar, and biotite, with minor amounts of fluorite, pyrite, molybdenite, and magnetite, as well as traces of monazite, xenotime, and scheelite (Figure 5). During the K-silicate stage, K-feldspar and the biotite replacement of primary plagioclase in the porphyritic rhyolite is commonly observed. Moreover, in areas where the degree of K-silicate alteration is higher, disseminated and stockwork mineralization can be observed during this stage.

The quartz + sericite + molybdenite stage is the major alteration style associated with Mo mineralization, producing Mo-rich quartz veins hosted by NNW-trending faults and fractures. These veins are quite common in the porphyritic rhyolite and contact host rocks, and contain a medium-grained to coarse-grained quartz, sericite, calcite, and sulfide assemblage composed of chalcopyrite, pyrite, and molybdenite, with rare occurrences of euhedral arsenopyrite, sphalerite, and galena (Figure 5). Notably, economic vein-type Mo-mineralization occurs during this stage.

The chlorite + sericite + sulfides stage is third and the most important Zn ± Pb ± Cu ± Ag mineralizing event. It features veins controlled by the nearly EW-trending cracks and fault fractures developed primarily in the upper and outer parts of the porphyry stocks. The mineral assemblage in this stage is dominated by an intermediate–sulfidation combination composed of quartz + chlorite + muscovite + sphalerite + galena ± chalcopyrite ± arsenopyrite ± argentite ± argentite (Figure 5).

The quartz + calcite stage is subeconomic and characterized by vein, veinlets, and the dissemination of quartz and calcite, as well as accessory amounts of sulfides (Figure 5). The anhydrite stage is the final phase, and exhibits fewer mineralized sulfides and cross and cutting minerals from earlier stages. It is represented by anhydrite veins and veinlets that are commonly approximately between 15–50 mm width (Figure 5).

4. Sample Description and Analytical Methods

A total of 12 whole-rock samples were systematically collected from major magmatic rocks for geochemical analyses. The samples mainly included monzogranite, syenogranite, red porphyritic granite, and porphyritic rhyolite. The petrographic characteristics of the samples are described below.

The monzogranite (YP08, 10, and 11) and syenogranite samples (YP23, 25, and 26) were collected from the Buerhaotu granitic batholith in the southern section of the Dongbulage ore district (Figure 1c). The monzogranite consists of approximately 0.2 to 5-mm K-feldspar (30–35 vol. %), plagioclase (25–30 vol. %), quartz (20 vol. %), and biotite (5–10 vol. %), with accessory amounts of magnetite, zircon, and apatite (Figure 6a). The syenogranite is composed of approximately 2 to 7-mm long phenocrysts (30–40 vol. %) in an approximate 0.5 to 1-mm matrix (60–70 vol. %). It consists of quartz (~20 vol. %), plagioclase (~25 vol. %), K-feldspar (~45 vol. %), biotite (~3 vol. %), and accessory minerals (~2 vol. %), including zircon and fluorapatite (Figure 6b).

The samples of red porphyritic granite (YP32–34) and the samples of porphyritic rhyolite (YP6, 7, 11, and 28) were selected from drill cores at Dongbulage. Red porphyritic granite is light red in color and mainly contains quartz and K-feldspar phenocrysts (20–25 vol. %) in a cryptocrystalline matrix (75–80 vol. %), consisting of quartz, feldspar, and minor amounts of chlorite and zircon (Figure 6c). Porphyritic rhyolite is characterized by a moderately porphyritic texture, with phenocrysts (20 vol. %) that are solely grayish quartz and altered potassium feldspar, and the matrix (80 vol. %) is hyalopilitic, mainly comprising intertwined quartz and feldspar crystallites (Figure 6d).

In order to constrain the ages of major magmatic rocks, whole-rock samples were selected for LA-ICP-MS zircon U–Pb dating. Furthermore, considering that the age for the mineralization is poorly constrained using Re–Os model ages, two samples of molybdenite were also collected from Dongbulage. The molybdenite in Sample YP-5 formed aggregates in the quartz vein, while the molybdenite in Sample YP-6 was disseminated and occurred in the Jurassic volcano-sedimentary sequences.

4.1. Major and Trace Element Analyses

A total of 12 whole-rock samples were crushed and powdered to less than ~200 mesh size. Chemical analyses were performed at the National Research Center for Geoanalysis, Chinese Academy of Geological Sciences (CAGS), Beijing. Oxide concentrations were analyzed using a using an X-ray fluorescence spectrometer (Instrument model: PE 300D) with an analytical error of <1.4%, and trace elements were measured using an inductively coupled plasma mass spectrometry (ICP-MS). The analytical precision and accuracy of the analyses was better than 5% for the major elements and 10% for the trace elements. The analytical uncertainties are based on the US Geological Survey rock standards BCR-1 and AVG-2, and the Chinese national rock standard GSR-3 [4].

4.2. LA-MC-ICP-MS Zircon U–Pb Dating

Zircon grains were extracted from samples using density and magnetic separation techniques. Representative zircons were handpicked using a binocular microscope and photographed using orthogonal polarization, reflected light, and cathodoluminescence (CL) imaging. Approximately 24 grains were selected for U–Pb isotope analyses, based on their morphology and internal structure. In situ zircon U–Pb dating was completed using a Thermo Finnigan Neptune MC-ICP-MS instrument at the Key Laboratory of Crust–Mantle Materials and Environments, University of Science and Technology of China, Chinese Academy Sciences, Anhui Province, China. Laser ablation was performed using a New Wave UP 213 laser ablation system, with a laser ablation spot diameter of 32 μm. The carrier gas was He, and an external zircon standard (91,500) was analyzed after five sample points. The NIST SRM610 standard was used for calibrating element concentrations. The operating conditions for the laser ablation system were provided by Liu et al. (2007) [25]. Since ²⁰⁴Pb could not be measured due to a low signal and interference from ²⁰⁴Hg in the gas supply, a common lead correction was performed using the LaDating@Zrn Excel VBA program (Version 2, University of Oslo, Oslo, Norway) and Com Pb corr#3_18 [26]. Errors for individual analyses by LA-ICP-MS are quoted at the 1σ confidence level, while errors on pooled ages are quoted at the 95% (2σ) level. Isoplot (ver. 3.0) was used to calculate the weighted mean ages and generate Concordia plots [27].

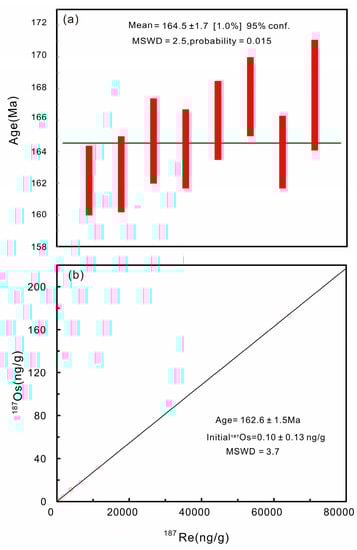

4.3. Re–Os Dating

Samples were crushed, separated, and handpicked using a binocular microscope to obtain non-oxidized molybdenite. Sample pretreatment and analysis were completed at the Re–Os Laboratory of the National Research Center of Geoanalysis, CAGS. The molybdenite samples were dissolved in an HCl–HNO₃–H₂O solution in a Carius tube. Osmium was separated by distillation and rhenium was separated by extraction, as described by Du et al. (1995, 2001, 2004) [28,29,30]. The Re and Os isotope ratios were determined using a TJA X-series ICP-MS manufactured by the Thermo Electron Corporation, Waltham, MA, USA. Shirey and Walker (1995), Stein et al. (1997), and Du et al. (2004) [30,31,32] describe the additional details of the analytical procedures used in this analysis. The ¹⁸⁷Re/¹⁸⁸Os and ¹⁸⁷Os/¹⁸⁸Os were calculated using the decay constant of ¹⁸⁷Re, and λ = equaled approximately 1.666 × 10⁻¹¹ a⁻¹, with an absolute uncertainty of approximately 0.017 × 10⁻¹¹ [33].

The uncertainty for the Re and Os contents was comprised of the weighting error for samples and diluent, the calibration error for the diluent, the fractionation correction error for mass measurements, and the measurement error of the isotopic ratio for the samples. The uncertainty for model ages consisted of the uncertainty of the decay constant. The Re–Os age uncertainties for the molybdenite analyses reported here are given as 2σ.

5. Results

5.1. Whole-Rock Geochemistry

Whole-rock geochemical data for the main magmatic rocks of Dongbulage are listed in

Table 1. Major and trace elements compositions for the rocks in the Dongbulage Mo-polymetallic deposit.

Rock Type	Monzogranite			Syenogranite			Red Porphyritic Granite			Porphyritic Rhyolite
Sample No.	YP8	YP10	YP11	YP23	YP25	YP26	YP32	YP33	YP34	YP28-11	YP6	YP7
Major Element (wt. %)
SiO2	65.99	66.22	65.09	74.41	75.15	75.31	76.16	75.97	75.41	76.35	76.05	76.39
TiO2	0.43	0.43	0.40	0.16	0.14	0.14	0.09	0.09	0.11	0.08	0.08	0.08
Al2O3	16.10	15.99	16.78	12.79	13.10	13.05	13.05	13.17	13.30	11.96	12.15	11.93
Fe2O3	1.17	0.95	1.53	0.32	0.33	0.39	0.76	0.80	0.95	0.06	0.31	0.31
FeO	2.83	2.71	2.61	1.41	1.13	1.08	0.17	0.12	0.13	0.60	0.74	0.74
MgO	0.96	0.92	0.94	0.24	0.17	0.17	0.11	0.10	0.09	0.16	0.15	0.19
CaO	1.36	1.65	1.97	1.12	0.72	0.70	0.53	0.53	0.48	1.11	0.70	0.92
Na2O	5.26	4.96	5.62	4.28	4.11	4.07	4.00	4.12	3.90	1.25	1.70	1.01
K2O	3.77	4.22	3.22	3.62	4.48	4.47	4.51	4.47	4.84	6.49	6.54	6.44
P2O5	0.14	0.13	0.13	0.05	0.03	0.03	0.03	0.03	0.03	0.01	0.01	0.01
MnO	0.07	0.07	0.08	0.07	0.06	0.06	0.03	0.03	0.03	0.04	0.04	0.04
LOI	1.76	1.57	1.45	1.48	0.52	0.48	0.5	0.5	0.66	1.77	1.41	1.82
Total	99.85	99.83	99.82	99.94	99.95	99.95	99.95	99.94	99.93	99.88	99.88	99.88
K2O + Na2O	9.04	9.17	8.84	7.89	8.60	8.54	8.51	8.60	8.73	7.74	8.24	7.46
K2O/Na2O	0.72	0.85	0.57	0.85	1.09	1.10	1.13	1.09	1.24	5.19	3.85	6.36
σ	3.55	3.62	3.54	1.98	2.30	2.26	2.19	2.24	2.35	1.80	2.05	1.67
A/CNK	1.06	1.02	1.03	0.99	1.01	1.02	1.05	1.05	1.06	1.08	1.09	1.16
A/NK	1.26	1.26	1.32	1.17	1.13	1.13	1.14	1.13	1.14	1.32	1.23	1.38
DI	86.92	84.72	81.75	87.60	92.27	92.42	94.14	94.24	94.76	87.43	92.14	89.02
Fe2O3/Fe2O3 + FeO	0.29	0.26	0.37	0.18	0.23	0.27	0.82	0.87	0.88	0.09	0.23	0.26
Trace Element (ppm)
Li	24.73	27.86	22.63	20.43	21.82	21.54	9.94	9.37	9.78	12.13	21.37	11.44
Be	5.12	5.50	3.15	3.80	5.76	5.57	5.76	6.47	5.20	2.39	4.76	2.49
Sc	6.41	6.75	5.62	3.22	3.43	3.47	2.63	2.63	3.31	1.67	1.75	1.77
V	57.91	55.45	50.59	33.58	32.86	33.15	35.43	37.12	36.54	32.48	31.35	31.15
Cr	5.85	5.92	5.84	5.08	5.14	5.40	5.96	5.80	5.45	5.39	5.33	5.32
Co	5.51	3.78	5.22	1.11	0.59	0.54	0.73	0.75	0.35	0.39	1.27	1.32
Ni	2.13	2.32	1.86	0.56	2.98	0.46	1.71	2.29	1.15	0.43	0.36	0.64
Cu	26.15	16.12	25.91	3.27	2.81	2.69	15.50	17.26	19.69	3.48	26.78	19.96
Zn	60.78	67.84	57.13	40.32	31.17	31.87	29.13	26.58	15.57	78.85	66.84	112.40
Ga	22.85	22.31	20.13	19.30	20.75	20.35	21.34	22.32	21.12	15.34	16.10	16.27
Rb	127.20	167.20	113.60	115.30	155.70	155.3	148.80	152.90	161.30	208.60	175.90	203.10
Sr	171.70	222.10	241.40	83.19	60.27	59.72	55.24	57.85	54.95	76.66	87.89	65.75
Y	27.40	26.13	22.81	23.83	38.57	32.36	25.52	23.12	17.43	32.86	35.47	33.06
Zr	379.67	398.37	413.42	159.30	176.46	157.48	141.28	142.25	146.92	117.18	119.05	117.95
Nb	9.39	9.67	7.76	9.11	21.29	21.29	11.70	14.14	20.79	10.56	11.76	10.39
Ba	547.62	855.74	658.85	188.16	156.70	147.2	173.56	181.50	172.19	579.87	569.09	514.89
Cs	4.08	6.62	6.88	2.94	7.06	7.05	3.79	3.84	4.82	5.40	6.13	5.85
Hf	10.44	11.41	12.03	6.58	8.77	8.37	7.22	7.08	7.52	6.09	6.17	6.12
Ta	0.61	0.67	0.54	0.60	1.79	1.74	1.05	1.24	1.65	1.00	1.19	1.07
Tl	0.96	1.00	0.90	0.84	0.91	0.92	1.11	1.12	0.98	2.10	2.04	2.11
Pb	11.55	16.73	8.99	11.90	11.91	11.63	14.18	14.29	12.20	15.89	28.98	10.89
Th	7.25	7.97	6.15	14.00	19.99	20.03	20.83	20.90	18.95	16.48	16.84	16.94
U	1.99	2.40	1.65	2.47	7.01	7.71	4.26	4.72	3.64	4.77	5.14	5.25
Mo	190.60	938.00	13.09	3.65	6.66	1.53	7.68	7.95	1.36	2.15	2.18	2.47
W	66.77	33.64	2.41	2.20	11.48	12.36	0.51	0.61	0.81	0.89	0.70	1.01
In	0.07	0.09	0.10	0.09	0.02	0.03	0.02	0.03	0.02	0.05	0.07	0.05
Y/Nb	2.92	2.70	2.94	2.62	1.81	1.52	2.18	1.64	0.84	3.11	3.02	3.18
Rb/Sr	0.74	0.75	0.47	1.39	2.58	2.60	2.69	2.64	2.94	2.72	2.00	3.09
Th/U	3.64	3.33	3.72	5.67	2.85	2.60	4.89	4.43	5.21	3.45	3.27	3.22
Nb/Pb	0.81	0.58	0.86	0.77	1.79	1.83	0.83	0.99	1.70	0.66	0.41	0.95
Th/Yb	2.68	3.04	2.71	6.19	5.06	5.76	7.58	8.41	9.33	4.56	4.62	4.92
Ta/Yb	0.23	0.25	0.24	0.27	0.45	0.50	0.38	0.50	0.81	0.28	0.33	0.31
Rare Earth Elements (ppm)
La	30.61	29.22	25.25	36.92	44.22	31.63	25.01	22.43	20.86	19.59	22.07	22.09
Ce	60.28	58.83	49.93	72.86	89.58	64.18	52.35	48.14	39.67	45.26	48.89	49.51
Pr	7.11	6.90	6.01	8.21	10.24	7.64	6.38	5.78	4.69	5.74	5.99	6.17
Nd	27.09	26.35	22.85	28.83	35.83	27.64	23.34	21.46	17.49	21.16	22.56	22.91
Sm	6.02	5.74	4.95	5.94	8.02	6.38	5.50	5.02	3.83	5.34	5.92	5.63
Eu	0.86	0.94	1.12	0.43	0.43	0.40	0.36	0.33	0.34	0.36	0.39	0.36
Gd	5.15	5.04	4.31	5.08	6.89	5.74	4.40	3.94	3.09	4.72	5.13	4.95
Tb	0.84	0.82	0.70	0.76	1.14	0.96	0.73	0.67	0.48	0.88	0.91	0.87
Dy	5.12	4.96	4.53	4.47	7.11	5.94	4.58	4.15	3.22	5.67	6.16	5.74
Ho	0.98	0.96	0.84	0.82	1.39	1.12	0.87	0.81	0.62	1.12	1.21	1.14
Er	2.58	2.47	2.25	2.14	3.66	3.02	2.40	2.15	1.71	3.13	3.23	3.06
Tm	0.44	0.43	0.37	0.36	0.63	0.54	0.43	0.40	0.32	0.57	0.57	0.54
Yb	2.71	2.62	2.27	2.26	3.95	3.48	2.75	2.49	2.03	3.61	3.65	3.44
Lu	0.56	0.55	0.47	0.41	0.69	0.61	0.49	0.45	0.42	0.67	0.66	0.65
∑REE	150.35	145.84	125.84	169.48	213.77	159.28	129.59	118.22	98.76	117.84	127.35	127.06
LREE/HREE	7.18	7.17	7.00	9.41	7.40	6.44	6.78	6.85	7.31	4.78	4.92	5.23
δEu	0.46	0.52	0.72	0.23	0.17	0.20	0.22	0.22	0.30	0.21	0.21	0.20
(La/Yb)N	7.62	7.52	7.49	11.02	7.55	6.13	6.14	6.08	6.93	3.65	4.08	4.32

Notes: LOI is loss on ignition; TREE, total rare earth elements; LREE, light rare earth elements; HREE, heavy rare earth elements. A/CNK = Al₂O₃/(CaO + Na₂O + K₂O)(molar ratio), A/NK = Al₂O₃/(Na₂O+K₂O) (molar ratio), DI = sum of normative Q + Or + Ab [34], (La/Yb)_N = (La/La*)/(Yb/Yb*); δEu = (Eu/Eu*)/{0.5 × [(Sm/Sm*) + (Gd/Gd*)]}; σ (The Rittmann Index) = (Na₂O + K₂O)₂/(SiO₂ − 43) (the oxide in wt. %); (La/Yb)_N is normalized using values. Several rare earths are shown as chondrite-normalized using values from [35].

. A brief summary is presented here. Before plotting, the assay results were normalized to 100% after accounting for the loss on ignition (LOI).

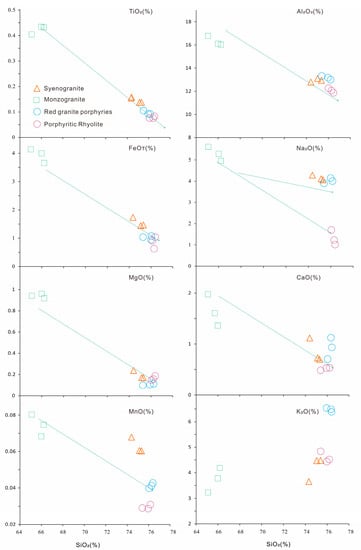

5.1.1. Major Elements

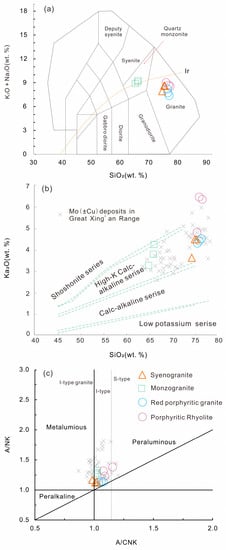

The samples of monzogranite and syenogranite selected from the Buerhaotu granitic batholith had a narrow range of SiO₂ (65.09–66.22 wt. % and 74.41–75.31 wt. %), Al₂O₃ (15.99–16.78 wt. % and 12.79–13.10 wt. %), K₂O (3.22–4.22 wt. % and 3.62–4.48 wt. %), and Na₂O contents (4.96–5.62 wt. % and 4.07–4.11 wt. %), respectively. They are also characterized by high differentiation indices (DI; sum of normative Q + Or + Ab) [34], ranging from 81.75 to 86.92 and 87.60 to 92.42, and high Rittman indices [σ = (Na₂O + K₂O)²/(SiO₂ − 43)] (oxides in wt. %), ranging from approximately 3.54 to 3.62 and approximately 1.98 to 2.30, respectively (Table 1) [34,35]. On the SiO₂ versus K₂O + Na₂O diagram, the monzogranite samples plot in the quartz monzonite field, the syenogranite samples plot in the granite field (Figure 7a), and all the samples fall within the high-K calc-alkaline series of granitic rocks (Figure 7b). On the A/CNK [A/CNK = Al₂O₃/(CaO + Na₂O + K₂O)(molar ratio)] versus A/NK [A/NK = Al₂O₃/(Na₂O + K₂O) (molar ratio)] diagram, the monzogranite samples are moderately peraluminous, with A/CNK values of approximately 1.02 to 1.06, and all the syenogranite samples fall within the metaluminous peraluminous transitional field (Figure 7c). One notable feature is that monzogranite and syenogranite both have low ratios of [Fe₂O₃/(Fe₂O₃ + FeO)] (0.19 to 0.27 and 0.26 to 0.37, respectively), suggesting that all are reduced intrusions (<0.4) [36].

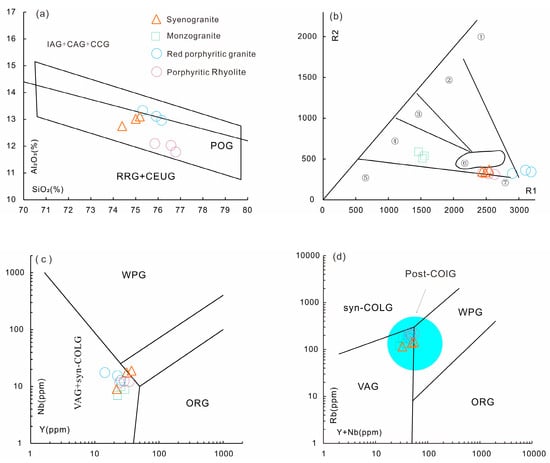

Compared to the plutons (monzogranite and syenogranite), the red porphyritic granites showed highly evolved features, with SiO₂ contents ranging from approximately 75.41 to 76.16 wt. % and DI values ranging between 94.14–94.76 (Table 1). The samples from the porphyritic rhyolite also exhibited high felsic compositions, with SiO₂ contents ranging between 76.05–76.39 wt. % and DI ranging between 87.43–92.14. Both red porphyritic granite and porphyritic rhyolite had high concentrations of total alkalis (8.51–8.73 wt. % and 7.46–8.24 wt. %, respectively) as well as Al₂O₃ (13.05–13.30 wt. % and 15.9–16.78 wt. %), with Rittman indices between 2.19–2.35 and 1.67–2.05, respectively (Table 1). On the SiO₂ versus K₂O + Na₂O diagram, all the samples from porphyritic granite and rhyolite plot in the granite field (Figure 7a) are weak peraluminous, with A/CNK ratios of 1.05–1.16, and belong to the high-K calc-alkaline series of granitic rocks (Figure 7b,c). Although samples of rhyolitic and granitic porphyry have similar major compositions, they differ in [Fe₂O₃/(Fe₂O₃ + FeO)] values. Samples from porphyritic rhyolite are more oxidized than samples of granitic porphyry [36].

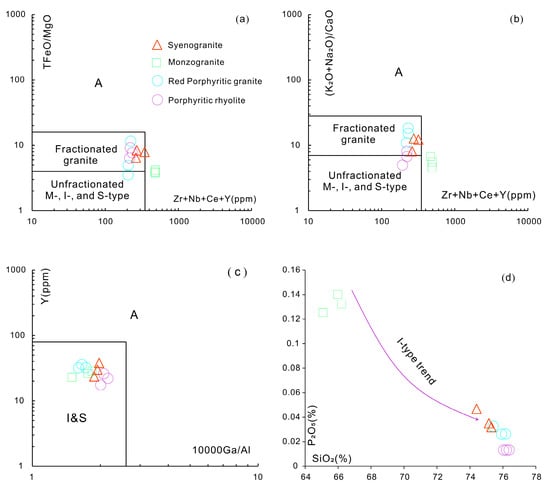

5.1.2. Trace Elements

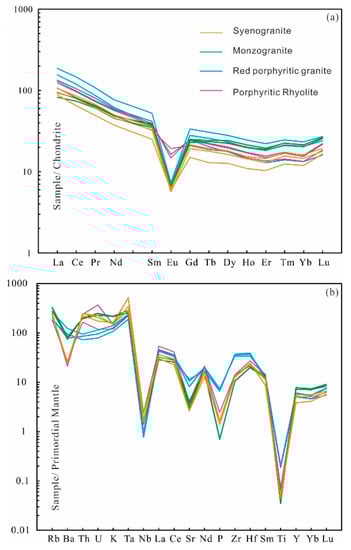

Chondrite normalized rare earth element (REE) patterns for monzogranite, syenogranite, porphyritic rhyolite, and porphyritic granite were roughly similar; they show high levels contents of total rare earth elements (∑REE) and are enriched in light rare earth elements (LREEs), and depleted in heavy rare earth elements (HREEs), with negative Eu/Eu* (δEu) compared to common magmatic rocks (Table 1 and Figure 8a) [39]. Specifically, all the samples contained high levels of total rare earth elements (∑REE), ranging from 125.84 to 150.35 ppm for monzogranite, 117.84 to 213.77 ppm for syenogranite, 98.76 to 129.59 ppm for granitic porphyry, and 117.84 to 127.35 ppm for porphyritic rhyolite. Monzogranite exhibited negative δEu values between 0.46–0.72, LREE/HREE values between 6.44–9.41, and (La/Yb)_N values between 7.49–7.62 (Table 1), whereas syenogranite yielded moderately negative δEu values of approximately 0.17 to 0.23, LREE/HREE values of approximately 6.13 to 11.02, and (La/Yb)_N values of approximately 7.00 to 7.18 (Table 1). Compared with pluton, porphyritic rhyolite and porphyritic granite both record negative δEu values between 0.20–0.21 and 0.22–0.30, LREE/HREE values between 4.78–5.23 and 6.78–7.31, and (La/Yb)_N values between 3.65–4.32 and approximately 6.08–6.93, respectively (Table 1).

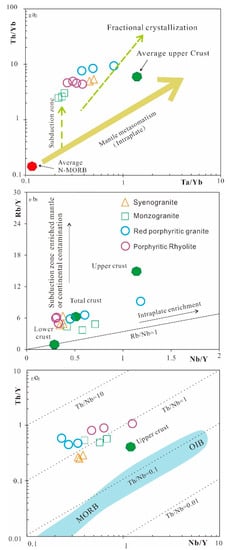

The primitive mantle normalized spider diagram indicates that the trace element characteristics for all the samples had broadly similar patterns, with elevated large-ion lithophile elements (LILE, such as U, K, Rb, and Hf) and depleted high field strength elements (HFSE, such as Nb and Ta) (Figure 8).

5.2. Zircon U–Pb Dating

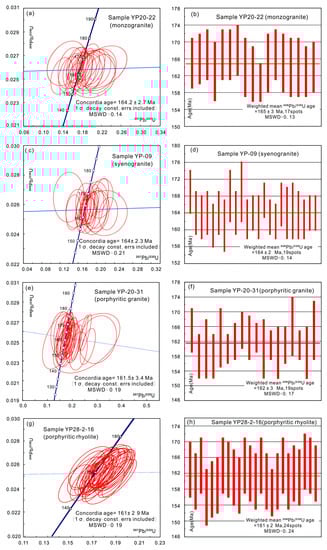

Zircons extracted from the main magmatic rocks at Dongbulage are a light to dark brown color, transparent, and dominated by typically short-prismatic, long-prismatic, and equigranular shapes, with width-to-length ratios of approximately 1:3.7 (Figure 9). All the zircon grains analyzed have a well-preserved oscillatory zoning indicative of a magmatic origin (Figure 9). Zircon ²⁰⁶Pb/²³⁸U ages for the main magmatic rocks have been summarized in

Table 2. LA-MC-ICP-MS zircon U–Pb data for samples from the Dongbulage Mo-polymetallic deposit. ICP-MS: inductively coupled plasma mass spectrometry.

Spot #	Total Pb	232Th	238U	232Th/238U	Corrected Isotopic Ratios						Corrected Age (Ma)
	10−6				207Pb/206Pb	±1σ	207Pb/235U	±1σ	206Pb/238U	±1σ	207Pb/206Pb	±1σ	207Pb/235U	±1σ	206Pb/238U	±1σ
YP20-22
1	35.36	1241.6	934.87	1.33	0.04997	0.00248	0.17851	0.01084	0.02591	0.00092	194	116	167	9	165	6
4	18.59	467.34	542.68	0.86	0.05754	0.0033	0.20656	0.01375	0.02603	0.00098	512	129	191	12	166	6
5	20.53	523.71	570.89	0.92	0.04754	0.00326	0.17177	0.01302	0.0262	0.00099	77	152	161	11	167	6
7	7	136.57	221.77	0.62	0.05163	0.00499	0.18198	0.01813	0.02556	0.00104	269	206	170	16	163	7
9	72.07	1029.7	2288.74	0.45	0.04879	0.0011	0.17701	0.0072	0.02631	0.00089	138	50	165	6	167	6
10	11.48	264.61	338.01	0.78	0.05195	0.00233	0.18758	0.01086	0.02619	0.00094	283	97	175	9	167	6
12	6.2	113.71	192.55	0.59	0.05287	0.00385	0.19272	0.0156	0.02644	0.00102	323	161	179	13	168	6
14	5	95.3	156.4	0.61	0.05552	0.00534	0.19687	0.01958	0.02572	0.00114	433	214	182	17	164	7
16	6.38	136.99	201.09	0.68	0.05408	0.00602	0.18987	0.02098	0.02547	0.00112	374	237	177	18	162	7
17	8.46	233.86	257.07	0.91	0.04793	0.00307	0.16496	0.01193	0.02496	0.00092	96	137	155	10	159	6
18	5.82	104.26	184.02	0.57	0.05829	0.00565	0.20832	0.02044	0.02592	0.00105	541	213	192	17	165	7
19	7.27	183.33	213.82	0.86	0.04694	0.00367	0.16938	0.01413	0.02617	0.00101	46	168	159	12	167	6
20	3.22	55.39	102.65	0.54	0.04375	0.00459	0.15631	0.01695	0.02591	0.00116	-84	186	147	15	165	7
21	4.54	123.73	134.75	0.92	0.04973	0.00459	0.17623	0.01647	0.0257	0.00106	182	210	165	14	164	7
22	2.83	44.46	90.89	0.49	0.06012	0.00673	0.21371	0.02427	0.02578	0.00117	608	257	197	20	164	7
23	36.52	1333.6	980.7	1.36	0.05274	0.00233	0.1862	0.01028	0.0256	0.00094	318	103	173	9	163	6
24	7.36	193.43	212.5	0.91	0.05433	0.00397	0.19344	0.01552	0.02582	0.00096	385	170	180	13	164	6
YP-09
2	8.89	261.72	250.22	1.05	0.04383	0.00413	0.15543	0.01483	0.02572	0.00087	82	102	158	7	163	5
3	35.94	498.95	1181.54	0.42	0.04766	0.00222	0.1682	0.00847	0.0256	0.00074	52	93	157	7	164	5
4	43.48	613.45	1435.61	0.43	0.04705	0.00204	0.16666	0.00793	0.02569	0.00077	283	153	169	11	161	5
5	13.72	264.63	436.01	0.61	0.05194	0.00356	0.18088	0.0124	0.02525	0.0008	308	134	173	10	164	5
6	17.92	238.3	598.49	0.40	0.05251	0.00315	0.18612	0.01164	0.02571	0.0008	814	304	212	26	161	6
7	5.62	194.09	144.2	1.35	0.06625	0.00941	0.23171	0.03203	0.02537	0.00101	521	178	194	15	168	6
8	21.84	283.93	689.22	0.41	0.05777	0.00478	0.21039	0.01745	0.02641	0.00088	170	99	164	7	164	5
10	4.25	76.4	136.88	0.56	0.03812	0.00625	0.13929	0.02229	0.0265	0.00112	763	126	207	11	162	5
11	14.33	347.12	420.49	0.83	0.06464	0.00398	0.22618	0.01352	0.02538	0.00073	338	94	176	8	164	4
12	30.72	818.64	888.25	0.92	0.05321	0.00243	0.18907	0.00949	0.02577	0.00071	474	163	185	13	163	5
13	8.44	251.76	237.23	1.06	0.05656	0.0046	0.20007	0.01549	0.02566	0.00084	338	89	179	7	167	4
14	37.59	1135.9	1054.6	1.08	0.05322	0.0023	0.19291	0.00861	0.02629	0.00071	208	77	166	6	163	4
15	62.59	945.5	2061.53	0.46	0.05029	0.00185	0.17798	0.00731	0.02567	0.0007	205	120	164	10	161	5
16	35.2	831.24	1088.36	0.76	0.05021	0.00291	0.17558	0.01178	0.02536	0.00083	136	166	164	12	166	5
17	22.5	306.95	704.98	0.44	0.04876	0.00405	0.17578	0.01406	0.02615	0.00086	427	129	182	11	164	6
18	11.62	298.73	338.83	0.88	0.05536	0.00355	0.19635	0.01329	0.02572	0.00092	424	201	182	17	164	7
19	6.4	89.64	211.38	0.42	0.0553	0.00557	0.19634	0.01961	0.02575	0.00119	508	173	187	15	163	6
21	16.67	604.9	448.85	1.35	0.04256	0.00312	0.14943	0.01073	0.02547	0.00079	238	114	168	8	164	4
22	24.67	776.52	692.41	1.12	0.05095	0.00268	0.18048	0.00954	0.02569	0.0007	315	104	174	8	164	4
YP20-31
1	6.08	151.88	185.24	0.82	0.04357	0.00524	0.15557	0.01995	0.0259	0.00139	-93	191	147	18	165	6
2	11.68	494.06	299.72	1.65	0.04676	0.00586	0.1598	0.02066	0.02479	0.00142	37	231	151	18	158	6
4	14.09	227.63	469.44	0.48	0.05042	0.00352	0.17477	0.01468	0.02514	0.00126	214	153	164	13	160	8
7	13.43	388.05	413.16	0.94	0.05889	0.00421	0.20129	0.01757	0.02479	0.00127	563	154	186	15	158	6
9	30.32	394.77	1018.82	0.39	0.05549	0.00343	0.19611	0.01455	0.02563	0.00124	432	129	182	12	163	8
10	8.1	262.99	226.44	1.16	0.04746	0.00454	0.16428	0.01673	0.0251	0.0013	72	195	154	15	160	4
11	22.04	266.6	724.72	0.37	0.04884	0.00238	0.17788	0.01196	0.02642	0.00126	140	102	166	10	168	8
13	27.95	448.81	917.88	0.49	0.04952	0.00247	0.1733	0.01182	0.02538	0.00123	173	113	162	10	162	5
15	26.5	431.82	863.88	0.5	0.04803	0.00227	0.17132	0.01162	0.02587	0.00125	101	104	161	10	165	5
16	6.78	105.62	227.81	0.46	0.04767	0.00444	0.16884	0.01743	0.02569	0.00137	83	201	158	15	163	6
17	51.28	828.74	1707.37	0.49	0.0541	0.00214	0.19067	0.01161	0.02556	0.00121	375	89	177	10	163	4
18	26.17	429.5	877.47	0.49	0.05596	0.0024	0.19354	0.01235	0.02509	0.0012	451	96	180	11	160	8
19	13.26	211.65	429.66	0.49	0.05584	0.00441	0.19521	0.01797	0.02535	0.00133	446	168	181	15	161	4
22	24.56	367.41	844.86	0.43	0.04878	0.00245	0.16722	0.01145	0.02486	0.00121	137	107	157	10	158	5
23	9.82	163.25	325.98	0.50	0.05232	0.00355	0.18296	0.01447	0.02536	0.00126	299	146	171	12	161	5
24	27.32	351.97	902.32	0.39	0.0515	0.00206	0.18541	0.01128	0.02611	0.00123	263	95	173	10	166	8
25	61.86	749.89	2107.83	0.36	0.05229	0.00156	0.18216	0.0101	0.02527	0.0012	298	71	170	9	161	3
28	12.68	173.15	430.87	0.4	0.05921	0.00523	0.20254	0.01961	0.02481	0.00133	575	202	187	17	158	8
32	21.72	300.88	718.05	0.42	0.05122	0.00256	0.18355	0.01254	0.02599	0.00127	251	115	171	11	165	8
YP28-2-16
2	38.76	529.35	1285.9	0.41	0.05424	0.00174	0.19166	0.01012	0.02563	0.00108	381	73	178	9	163	7
3	58.72	970.02	1947.29	0.5	0.04824	0.00146	0.16695	0.0086	0.0251	0.00106	111	69	157	7	160	7
6	23.97	330.9	773.69	0.43	0.05205	0.00259	0.1847	0.01203	0.02574	0.00111	288	121	172	10	164	4
7	30.93	735.09	992.41	0.74	0.0489	0.00231	0.16567	0.01047	0.02457	0.00107	143	112	156	9	156	7
9	25.43	472.51	846.98	0.56	0.05143	0.00205	0.17576	0.01028	0.02478	0.00109	260	97	164	9	158	5
10	25.03	374.35	846.73	0.44	0.04754	0.00254	0.16411	0.01096	0.02503	0.00108	77	122	154	10	159	7
11	31.23	674.5	969.95	0.7	0.05237	0.00197	0.1858	0.01041	0.02573	0.00111	302	77	173	9	164	7
12	30.37	469.11	995.36	0.47	0.04817	0.00165	0.17009	0.00938	0.02561	0.00109	107	71	159	8	163	7
13	53.97	878.18	1782.61	0.49	0.05038	0.00133	0.17523	0.00872	0.02523	0.00106	212	55	164	8	161	3
17	34.31	829.25	1086.9	0.76	0.05007	0.002	0.17229	0.01013	0.02496	0.00108	198	95	161	9	159	7
18	44.36	1085.2	1339.04	0.81	0.04956	0.00202	0.1765	0.01034	0.02583	0.00112	174	96	165	9	164	2
19	43.44	718.98	1415.64	0.51	0.05381	0.00196	0.1887	0.01051	0.02543	0.00109	363	85	176	9	162	7
20	29.25	453.45	974.32	0.47	0.05078	0.00178	0.17584	0.00967	0.02512	0.00109	231	78	164	8	160	7
21	26.99	404.76	903.86	0.45	0.05141	0.0021	0.18217	0.0107	0.0257	0.00111	259	90	170	9	164	4
22	45.97	750.09	1497.59	0.5	0.05443	0.00197	0.18803	0.0105	0.02506	0.00107	389	78	175	9	160	7
23	60.34	1008.4	2062.34	0.49	0.05166	0.00158	0.17432	0.00919	0.02447	0.00105	270	67	163	8	156	4
24	46.04	1176.2	1390.86	0.85	0.04997	0.00166	0.17282	0.00926	0.02508	0.00106	194	75	162	8	160	7
25	22.28	309.04	730.91	0.42	0.05014	0.00184	0.17786	0.01002	0.02573	0.0011	201	81	166	9	164	6
27	60.25	2007.1	1733.54	1.16	0.04958	0.0012	0.17172	0.00835	0.02512	0.00107	176	58	161	7	160	7
29	31.38	535.36	1009.31	0.53	0.05255	0.00177	0.18457	0.00995	0.02547	0.00109	309	80	172	9	162	7
30	38.08	484.21	1289.54	0.38	0.04965	0.00189	0.17296	0.00983	0.02527	0.00108	179	91	162	9	161	5
32	20.31	264.97	668.73	0.4	0.05217	0.00246	0.18645	0.0117	0.02592	0.00113	293	94	174	10	165	7
33	37.73	713.3	1195.59	0.6	0.05149	0.00175	0.18244	0.00996	0.0257	0.0011	263	68	170	9	164	6
34	65.63	1634.4	2123.01	0.77	0.05131	0.00153	0.18014	0.00938	0.02546	0.00108	255	60	168	8	162	7

and are displayed in Figure 10.

A total of 24 zircon grains extracted from Sample YP20-22 (monzogranite) are analyzed, and they exhibit a wide range of ²³²Th (55.39 to 1333.6 ppm) and ²³⁸U (90.89 to 2288.74 ppm) concentrations and associated Th/U ratios of approximately 0.45 to 1.36 (Table 2). Seventeen zircon analyses yielded concordant ²⁰⁶Pb/²³⁸U dates ranging from 168 ± 6 to 159 ± 6 Ma, with a weighted mean date of 165 ± 3 Ma [MSWD (mean square of weighted deviates) = 0.13]; Table 2 and Figure 10a,b). This mean date was interpreted to be the crystallization age for the fine-grained to medium-grained monzogranite. Five points were not concordant and were excluded from the age calculation.

The Th and U concentrations of zircons extracted from Sample YP-09 (syenogranite) varied from 76.4 to 945.5 ppm and 136.88 to 1435.6 ppm, respectively, with associated Th/U ratios of 0.40 to 1.35 (Table 2). A total of 23 points were analyzed in the syenogranite, and three others were not on the concordance line. Excluding the points that were not on the concordance line, 20 zircons yielded concordant ²⁰⁶Pb/²³⁸U ages between 161 ± 5 Ma and 168 ± 8 Ma, with a weighted average age of 164 ± 2 Ma (MSWD = 0.14; Table 2 and Figure 10c,d). This average was interpreted to be the emplacement age of the syenogranite.

Zircon grains from Sample YP-20-31 (porphyritic granite) had U and Th contents between 105.62–749.89 and 185.24–2107.83 ppm, respectively, with associated Th/U ratios of approximately 0.37–1.65 (Table 2 and Figure 10c). A total of 32 points in the sample were analyzed; the 19 dated grains yielded concordant ²⁰⁶Pb/²³⁸U ages between 158 ± 6 Ma and 168 ± 8 Ma, with a mean ²⁰⁶Pb/²³⁸U age of 162 ± 3 Ma and an MSWD value of 0.17 (Table 2 and Figure 10e,f). We interpreted this mean age as the emplacement age of the granite porphyries. A total of 13 points were not concordant and were excluded from the age calculation (Table 2).

Zircon grains selected from Sample YP28-2-16 (porphyritic rhyolite) exhibited variable ²³²Th (220–507 ppm) and ²³⁸U (668.73–2123.01 ppm) concentrations, with typical magmatic Th/U ratios between 0.40–0.77 (Table 2). A total of 34 points were selected from the porphyritic rhyolite, of which the 24 that were analyzed yielded ²⁰⁶Pb/²³⁸U ages ranging from 156 ± 7 to 165 ± 7 Ma. Excluding the 10 points that were not on the concordant line, the weighted mean age of the remaining 24 samples was 161 ± 2 Ma (MSWD = 0.24; Table 2 and Figure 10h,f), which was interpreted as the emplacement age of porphyritic rhyolite.

5.3. Re-Os Age

The concentrations of Re and Os, as well as the Os isotopic composition of molybdenite from Dongbulage, are listed in

Table 3. Re–Os data of molybdenite from the Dongbulage deposit.

Sample No.	Mineralization Types	Weight (g)	Re/μg∙g−1		Common Os/ng∙g−1		187Re/μg∙g−1		187Os/ng∙g−1		Model Age (Ma)
			Measured	2σ	Measured	2σ	Measured	2σ	Measured	2σ	Measured	2σ
YP-5	VM	0.02280	101.6	0.7	1.0195	0.2459	63.86	0.45	172.8	1.1	162.2	2.2
YP-6	VM	0.01047	18.22	0.16	0.0022	0.0718	11.45	0.10	31.06	0.20	162.6	2.4
DBLG-8 *	DSM and BM	0.04999	10.786	0.11	0.0052	0.0292	6.78	0.07	18.61	0.19	164.7	2.7
DBLG-6 *	DSM and BM	0.30009	0.4896	0.0046	0.0026	0.0015	0.3077	0.0029	0.843	0.0071	164.2	2.5
DBLG-35 *	DSM and BM	0.03708	2.741	0.023	0.0065	0.0069	1.723	0.015	4.771	0.044	166.0	2.5
DBLG-36 *	DSM and BM	0.05048	6.344	0.056	0.0822	0.0108	3.988	0.035	11.14	0.10	167.5	2.5
DBLG-38 *	DSM and BM	0.05053	6.355	0.053	0.0031	0.0035	3.995	0.033	10.93	0.09	164.0	2.3
DBLG-39 *	DSM and BM	0.04992	0.6918	0.081	0.0003	0.0003	0.4348	0.051	1.216	0.019	167.6	3.5

Notes: * Data from Li et al. (2017) [7]; VM = vein-type mineralization; DSM = disseminated and stockwork mineralization; BM = breccia mineralization.

. Since the molybdenite samples were extracted from different types of ores, the Re contents ranged widely, from 0.4896 to 101.6 μg/g. The ¹⁸⁷Os and common Os concentrations of the dated samples ranged between 0.843–172.8 ng/g and 0.0003–1.0195 ng/g, respectively (Table 3). Compared to the relatively high ¹⁸⁷Os values (0.843–172.8 ng/g) for the dated samples, the common Os values (0.0003–1.0195 ng/g) were negligible (Table 3), indicating that the measured Os is monoisotopic (¹⁸⁷Os) and the product of ¹⁸⁷Re decay [40]. Therefore, the Re–Os chronometer is an efficient method for dating.

The Re–Os dating of molybdenite extracted from disseminated and breccia mineralization yielded Re–Os model ages ranging from 164.2 to 167.6 Ma, and yielded an identical Re–Os model age of 162.2 Ma for ore-bearing vein-type mineralization hosted by fractures and faults (Figure 11a and Table 3). Model ages of molybdenites overlapped with each other within the measurement uncertainty, and Mo mineralization occurred for a short period of time (Table 3). Based on the combination of the molybdenite Re–Os data above, the ¹⁸⁷Re and ¹⁸⁷Os data for molybdenite define a well-constrained isochron, yielding a regression age of 162.6 ± 1.5 Ma (MSWD = 3.70; Figure 11b), which was virtually identical to the weighted mean age of 164.5 ± 1.7 Ma (MSWD = 2.50, n = 8; Figure 11a).

6. Discussion

6.1. Magma Evolution and Petrogenesis

6.1.1. Fractional Crystallization

The Dongbulage Mo-polymetal deposit is temporally, spatially, and genetically related to the emplacement of the granitoids. Differentiations could play an important role in the Dongbulage Mo-rich magmatic evolution, and the process of fractional crystallization is recorded by the systematic distribution patterns of major and trace elements.

The Dongbulage granitoids exhibit a variation in chemical composition, and many major oxide elements (e.g., TiO₂, FeO_T, Al₂O₃, MgO, and CaO) show good negative correlations with SiO₂, with the exception of K₂O, Na₂O, and MnO (Figure 12). This suggests that fractional crystallization may have occurred during magma evolution, and complex processes influenced the compositions of the rocks. Fractional crystallization was also confirmed by the high differentiation index (DI) ranging from 81.75 to 94.76 (Table 1) and the obvious fractionation between LREE and HREE.

De Paolo (1981), Davidson et al. (1988), and Schiano et al. (2010) suggested that processes involved in partial melting and fractional crystallization can be identified from systematic changes in incompatible element concentrations and ratios [41,42,43]. The Ba (147.2–855.74 ppm) and Sr (83.19–241.10 ppm) concentrations of these rocks vary significantly, suggesting that the trace elements were obviously affected when hydrothermal processes are involved. Hence, all the dated samples only generally plot along a fractional crystallization trend in a Ba/Zr versus Ba diagram (Figure 13a), and the same conclusion can be achieved using a Ba–Sr diagram, in which the linear correlation between Sr and Ba almost passes through the origin (Figure 13b), suggesting that the magmas that formed the Dongbulage granitoids underwent significant fractional crystallization, but the assimilation in hydrothermal processes also play a significant role in the petrogenesis.

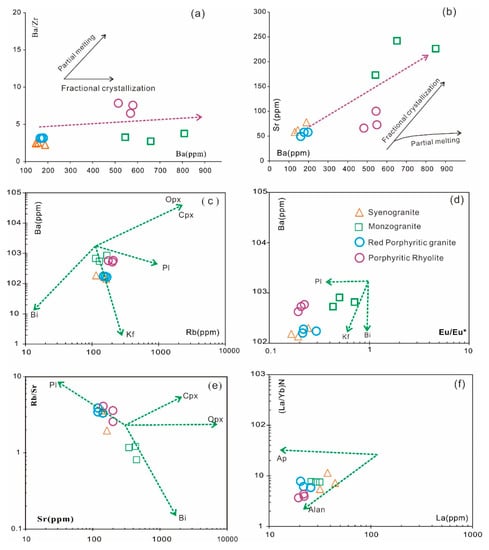

The separation of feldspars played a significant role during the evolution of the Dongbulage stocks (Figure 13c–e). Plagioclase fractionation led to the depletions of CaO, Sr, and Eu. On the other hand, negative Eu anomalies could be caused by the separation of K-feldspar, which can also explain the Ba depletion. Furthermore, the decrease in Ba with increase in Rb, and with decreasing Eu/Eu*, the decrease in Sr and increase in Rb/Sr. Trace element modeling also shows that biotite, minor apatite, and allanite are fractional phases (Figure 13c–f). Many researchers have suggested that peraluminous granitic rocks can be generated by the fractional crystallization of mafic parental magmas [44,45,46]; hence, we suggest that the peraluminous magmatic rocks around Dongbulage were successive products during the fractionation process of mafic parental magmas.

6.1.2. Magma Types

In the (Zr + Nb + Ce + Y) versus FeO_T/MgO and the (Zr + Nb + Ce + Y) versus (K₂O + Na₂O)/CaO diagrams, with the exception of the monzogranite samples, many of the magmatic rock samples around Dongbulage fell within the fractionated granite field (Figure 14a,b). However, monzogranites showed slightly high (Zr + Nb + Ce + Y) values ranging from approximately 476.73 to 493.92, which is indicative of an A-type granite affinity (Figure 14a,b). Given that all of the magmatic rocks around Dongbulage had low 10,000 Ga/Al ratios (1.52–2.14) and low Y values (17.43–38.57 ppm), this actually indicates that these rocks were not A-type granites, but rather fractionated I or S-type granites (Figure 14c) [47].

The aluminum saturation index (A/CNK) of the dated samples was <1.1, with the exception of one sample (YP-7), suggesting that Dongbulage magmatic rocks are I-type granite (Figure 14c). Chappell et al. (1998) found that the P-content of S-type granites increases along with excess Al₂O₃ during fractional crystallization, while the P-content decreases to very low values in I-type granites [48]. The samples in our study had significantly low P-contents (approximately 0.01–0.14%), which showed a negative correlation with SiO₂, and was consistent with the typical evolution of I-type granites (Figure 14d). The geochemical affinity of I-type magmatic rocks was also further supported by low Y contents (17.43–38.57 ppm; Table 1) and Rb/Sr ratios (1.39–2.94; Table 1), compared to A-type granites (75 for Y and a3.42 for Rb/Sr ratios [47]). Thus, we conclude that the Dongbulage granitoids are a typical I-type, rather than an A-type or S-type intrusion.

6.1.3. Possible Sources

Most scholars proposed that most of the highly fractionated granites in the CAOB are derived from a juvenile crust mixed with a minor proportion of Precambrian crust in their source rocks, and the magma source of granitoids may contain two member components that are mantle-derived and crust-derived [4,49,50,51]. Dongbulage granitoids have high contents of SiO₂ and K₂O, and low abundances of Cr and Ni (Table 2), suggesting that they are mainly crust-derived magmas or highly evolved magmas. Generally, K-enriched calc-alkali granites are thought to be associated with mature subduction zones, which are confirmed by the Th/Yb versus Ta/Yb diagram (Figure 15a). Here, it can be seen that the Dongbulage granitoids plot near subduction zone compositions. In the Rb/Y versus Nb/Y and Nb/Y versus Th/Y diagrams (Figure 15b,c), the samples from magmatic rocks at Dongbulage plot close to the lower part of the continental crust field, indicating that the source magmas were of deeper origin. In contrast, the Th/U ratios for the Dongbulage granitoids were abnormally low, partly because granitic melts interact with primary mantle melts (1.20 to 4.05 [35]). These geochemical characteristics suggest that the source magmas of the Dongbulage granitoids had a deeper origin.

6.2. Rhenium Concentrations in Molybdenite

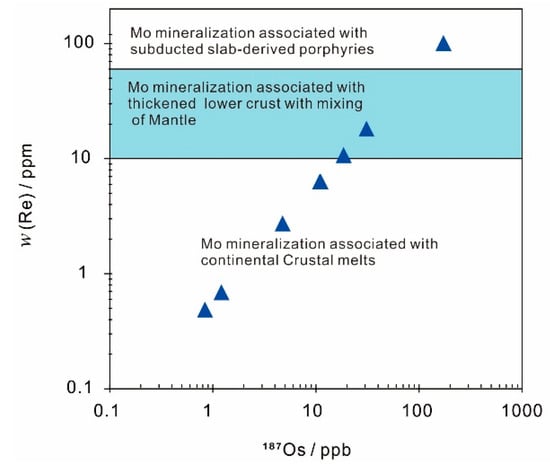

Berzina et al. (2005) suggested that the variations of Re content in molybdenites may be related to the composition of parent magmas, the concentration of Re in the ore-forming fluid, and variations of the physical and chemical crystallization conditions [52]. The Re contents in the dated molybdenites that were extracted from the Dongbulage deposit varied greatly, ranging from 0.50 to 101.6 ppm, indicating remarkable differences in metal sources. Mao et al. (1999) suggested that the Re contents of molybdenite might reflect the source of the deposits, with Re content decreasing from mantle (n × 10⁻⁴) to I-type (n × 10⁻⁵) to S-type (n × 10⁻⁶) granite-related deposits [53]. Stein et al. (2001) hypothesized that the Re concentrations in molybdenite provide clues as to the origin of a deposit, and that the deposits involving mantle contributions usually have higher Re contents than deposits derived from crust [54]. Therefore, the molybdenite Re contents at Dongbulage vary widely, implying a mixed crust–mantle origin for the ore materials (Figure 16).

6.3. Ages of Magmatism and Metallogenesis

Based on the geological field evidence, mineralization and alteration displayed horizontal zonal distributions centered on the porphyritic stocks at Dongbulage (Figure 3b), suggesting that mineralization in this area has a direct genetic relationship with porphyritic stocks. The accurate dating of magmatic–hydrothermal events is of fundamental importance when reconstructing the genetic evolution of porphyry systems and evaluating their duration.

According to the results of LA-ICP-MS zircon U–Pb dating, the ages of the felsic units at Dongbulage are 165 ± 3 Ma for monzogranite, 164 ± 2 Ma for syenogranite, 162 ± 2 Ma for red porphyritic granite, and 161 ± 2 Ma for porphyritic rhyolite (Figure 11). These dating results confirm a temporal correlation between the Buerhaotu granitic batholith (monzogranite and syenogranite) and adjacent small porphyritic stocks (porphyritic granite and porphyritic rhyolite), and indicate that the magmatism that occurred at Dongbulage continued for a protracted period ranging from approximately 165 ± 3 to 164 ± 2 Ma, with granitic pluton intruding at approximately 165 ± 3 to 164 ± 2 Ma and late phase felsic subvolcanic–volcanic complexes intruding at approximately 162 ± 3 to 161 ± 2 Ma. Hence, we suggest that the ore-hosting subvolcanic complexes represent an apophysis of a larger intrusion at depth.

Molybdenite (MoS₂) is the main economic mineral in Dongbulage, and can be dated using the Re–Os method. The stability of Re–Os in molybdenite is thought to be highly robust through post-ore geological processes [56,57]. The dated samples yielded model ages of approximately 162.2–167.6 Ma, with a weighted average age of 164.5 ± 1.7 Ma, initial ¹⁸⁷Os values ranging from approximately 0.4348 to 63.86 μg/g, and MSWD = 2.50 (Figure 11a). In addition, the dated samples yielded a Re–Os isochron age of 162.6 ± 1.5 Ma (2σ), with the initial ¹⁸⁷Os = 0.10 ± 0.13 ng/g and MSWD = 3.70 (Figure 11b). This ca. 162.6 ± 1.5 Ma age is coeval with the zircon U–Pb ages of ore-hosting subvolcanic complexes, suggesting that the mineralization may be related to the later emplacement of subvolcanic complexes, as indicated in geological evidence described above. Hence, this new molybdenite Re–Os isochron age was interpreted as the ore-forming age, and this also indicates that the Mo-polymetallic mineralization at Dongbulage was formed during the Middle-Late Jurassic stage.

Geochronological data published for the Mo (Pb–Zn–Ag) mineralization in the southern part of the Great Xing’an Range [55,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72] are shown that this region records four stages for Mo (Pb–Zn–Ag) mineralization: (1) Late Permian (265 Ma), (2) Middle Triassic (244–235 Ma), (3) Middle–Late Jurassic (179–161 Ma), and (4) Late Jurassic–Early Cretaceous (147–132 Ma). The age of 162.6 ± 1.5 Ma obtained in this study is also consistent with the Middle–Late Jurassic stage of Mo-polymetallic mineralization in the southern part of the Great Xing’an Range, such as the Lianhuashan Cu + Ag + Mo deposit with a zircon U–Pb age of 161.8 Ma and the Shuangjianzishan deposit with a pyrite Re–Os isochron age of 165 ± 4 Ma, and slightly younger than the Meng’enTolgoi deposit, which had a muscovite Ar–Ar isochron age of 179 ± 2 Ma [58,59,60] (Figure 17).

Combined with the Mo-dominant deposits in the northern and southern Mo (±Cu) ore-forming belts, examples of Middle–Late Jurassic deposits are the Wunugetushan deposit, with an Re–Os isochron age of 177.6 ± 4.5 Ma, the Chalukou deposit, with an Re–Os isochron age of 148 ± 1 Ma, the Yaojiagou deposit, with an Re–Os isochron age of 168.8 ± 3.9 Ma, the Xiaojiayingzi deposit, with an Re–Os isochron age of 161.3 ± 2.4 Ma, the Xintaimen deposit, with an Re–Os isochron age of 183 ± 3 Ma, the Lanjiagou deposit, with an Re–Os isochron age of 186.5 ± 0.7 Ma, the Yangjiazhangzi deposit, with an Re–Os isochron age of 187 ± 2 Ma, and the Caosiyao deposit, with an Re–Os isochron age of 148.5 ± 1.1 Ma (Figure 17) [76,77,78,79,80,81,82,83]. These dates indicate that the Middle–Late Jurassic is an important Mo metallogenic stage in the region, although the peak of metallogenesis actually took place during Late Jurassic–Early Cretaceous periods (Figure 17). These ore-related granites are typically characterized by high degrees of fractionation, high silica content, and formations that were enriched by volatile elements such as F and Li [84,85,86].

6.4. Tectonic Significance

Even if the final closure time and location of the Paleo-Asian Ocean are still debated, the consensus is that the XMOB was a united continent during the Mesozoic period [87,88,89,90,91]. The geochronological data suggest that the Mesozoic magmatic activity in the XMOB have consisted of five major periods: 200–180 Ma related to a subduction–collision of the Mongol–Okhotsk Ocean, 180–165 Ma and 165–145 Ma with a post-collisional extensional setting, 145–135 Ma and 135–100 Ma formed during orogenic collapse coupled with back arc extension related to the subduction of the paleo-Pacific plate (Figure 17) [75]. Ouyang et al. (2015) pointed out that the magmatism and associated mineralization from the Late Jurassic to Early Cretaceous took place during the lithospheric extension resulting from the break-off of the south-dipping Mongol–Okhotsk oceanic slab at depth with the closure of the Mongol–Okhotsk Ocean, which also restricted the westward movement of the paleo-Pacific plate [5]. Based on our new results, the magmatic activities and related ore-forming events at Dongbulage took place between approximately 165 ± 3 and 161 ± 2 Ma (Figure 17), which is consistent with the period of the regional Middle–Late Jurassic magmatic activities (165–145 Ma). However, the tectonic setting of the Middle–Late Jurassic has controversial characteristics including: (1) Jurassic subduction of the paleo-Pacific plate [19,75]; (2) post-orogenic extension following the closure of the Mongolia–Okhotsk Ocean during the Late Jurassic–Early Cretaceous [21,62]; and (3) mantle plumes and mantle branches in an intraplate anorogenic environment [20,92,93].

Given that the Middle–Late Jurassic tectonic setting in the XMOB is still unclear, the new geochemical and isotopic chronology of the magmatic rocks around Dongbulage can provide us with potential information regarding the geodynamic setting. According to the granitoid tectonic classification scheme based on major elements (the SiO₂ versus Al₂O₃ and R₁–R₂ diagrams), most of the studied samples fell in the domains of post-orogenic granite and anorogenic granite (Figure 18a,b). The same conclusion is reached using the trace element discrimination diagrams: all the studied samples fell within the post-collisional granite (post-COLG) and volcanic arc granites (VAG) fields (Figure 18c,d). These tectonic setting discrimination diagrams suggest that either a post-collisional or post-orogenic geodynamic setting could represent the dominant tectonic environment from approximately 165 ± 3 to 161 ± 2 Ma at Dongbulage.

Kravchinsky et al. (2012) proposed that the Mongol–Okhotsk Ocean may have closed gradually from west to east during the Permian–Early Cretaceous [97]. Recent studies have shown that the Mongol–Okhotsk Ocean was closed during the Middle Jurassic, and some Middle Jurassic–Early Cretaceous granitoids in the XMOB may be related to the post-orogenic collapse of the Mongol–Okhotsk orogen (Figure 17) [21,98,99,100,101,102]. According to Wang et al.(2015) [75], Middle–Late Jurassic (166–155 Ma) volcanic rocks west of the Songliao Basin belong to the high-K calc-alkaline series, which was formed during the collapse or delamination of a thickened continental crust associated with the evolution of the Mongol–Okhotsk suture belt. The evidence implies that the Middle–Late Jurassic magmatism in the XMOB may have been genetically related to the Mongol–Okhotsk orogenic event. However, much previous research data have indicated that magmatism and metallogeny are closely related to the subduction of the paleo-Pacific plates under the Eurasian continent [103], although these data overestimate the importance of the relationship between the subduction of the paleo-Pacific plate and magmatism in the XMOB. Even if the Middle–Late Jurassic magmatism in the region is active under different tectonic regimes, the consensus is that the Dongbulage granites and the associated Mo–Pb–Zn mineralization were formed in an extensional tectonic setting (Figure 17).

Therefore, the Middle–Late Jurassic Dongbulage magmatic rocks that most likely formed in a post-orogenic setting, which may have resulted from the combined influence of post-orogenic gravitational collapse and paleo-Pacific plate subduction, and perhaps been dominated by the former.

6.5. Implications for the Formation of the Dongbulage Deposit

Fluid inclusion studies from the Dongbulage deposit show that ores associated with Mo mineralization were deposited from an aqueous, high saline (63.9 eq. wt. % NaCl), high-temperature (approximately 534–312 °C) fluid, indicating that the ore-forming fluid was mainly derived from magmatic water [7]. New Re–Os model ages are similar to the crystallization age of the ore-bearing porphyritic stocks around Dongbulage; therefore, the Mo-polymetallic temporally and genetically linked with a porphyry–cryptoexplosive breccia igneous system.

The concentrations of Mo in siliceous melts of a rhyolitic composition are low, and the enrichment of Mo in these melts is possibly achieved through fractional crystallization and the interaction and movement of magmatic–hydrothermal fluids [104,105,106]. Furthermore, Audétat (2010) suggested that Mo enrichment in ore-forming magma seems to occur by fractional crystallization rather than fluid transfer from associated mafic magmas [102]. The Dongbulage magmatic rocks have high differentiation indices (81.75–94.76), together with increasingly negative δEu anomalies (0.72–0.17), high values of incompatible trace elements (e.g., Zr, Ce, and Rb) and low values of compatible trace elements (e.g., Sr and CaO). This evidence indicates a fractional crystallization process during the evolution of ore-forming magma. Hence, we conclude that Mo content may have gradually increased in conjunction with the differentiation and evolution of magma at Dongbulage.

Most granitoids hosted by Mo-polymetallic deposits in the XMOB are highly fractionated. Examples include porphyritic granites hosting the giant Wunugetushan porphyry Cu–Mo deposit and Chalukou porphyry Mo deposit in the northern Great Xing’an Range; porphyritic monzonitic granite and granodiorite hosting the Aolunhua, Haolibao porphyry Cu–Mo deposit and Banlashan porphyry in the southern Great Xing’an Range; and monzonitic granite and granitic porphyries hosting the Caosiyao, Chaganhua porphyry Mo deposit in the northern margin of the North China Craton [22,47,50,58,65,66,107]. These granitoids are highly fractionated high-K calc-alkaline I-type and/or A-type granites, and they are geochemically characterized by enrichment of the LILEs (Ba, Rb, U, and Th) and Pb, and depletion of the HFSEs (Nb, Ta, and Ti) and HREE [22,47]. It should be noted that the highly fractionated I-type magmatic rocks at Dongbulage are members of the Mo-hosting granitoids in the XMOB.

Based on the available data, porphyry Mo deposits are directly associated with small volumes of porphyry emplaced as stocks, which is a part of relatively long-lived multiphase magmatic intrusion. The size of the magma chamber is a key factor forming an economic porphyry Mo deposit; due to the low saturation concentration of Mo in granitic melt, at least several tens of km³ of magma are required to concentrate large amounts of metals to produce an economic porphyry deposit. It can be calculated that at least several tens of km³ of magma were required to form the intermediate to large Mo deposits [108]. However, Mo-polymetallic mineralization at Dongbulage was mainly hosted by subvolcanic rocks (porphyritic granite and porphyritic rhyolite) and coeval breccia pipes (Figure 3). Such small stocks could not provide the total volume of Mo-polymetallic metal found at Dongbulage. Based on the essentially identical bulk-rock geochemical and isotopic data, we deduced that the highly fractionated I-type porphyritic granite and porphyritic rhyolite are part of the Buerhaotu granitic batholith, which provided much of the metal in the process of ore-forming hydrothermal evolution. In other words, magmatic rocks associated with Dongbulage Mo-polymetallic mineralization make up precursor pluton and ore-hosted subvolcanic complexes, and were emplaced over an interval of at least approximately four million years, between 165 ± 3 and 161 ± 2 Ma. Multiple pulses of intrusions can extend the life of a magmatic–hydrothermal system to a few million years. Harris et al. (2008) suggested that episodic replenishment is essential to ensure the longevity of a magmatic–hydrothermal system or its repeated reactivation beyond approximately one to two million years [109]. Therefore, the highly fractionated magma, along with the prolonged magmatic–hydrothermal interaction, jointly contributed to the formation of the Dongbulage deposit.

7. Conclusions

The Dongbulage is a porphyry deposit hosted by and genetically associated with the multiphase composite igneous body around Dongbulage. Geochemical studies show that porphyritic stocks at the Dongbulage deposit are highly fractionated I-types granites with negative Eu anomalies.

The new zircon U–Pb data indicate that the ages of the magmatism at Dongbulage are identical within error and lasted for a period of time, ranging from 165 ± 3 to 161 ± 2 Ma, with granitic pluton intruding at approximately 165 ± 3 to 164 ± 2 Ma and late-phase felsic subvolcanic complexes intruding at approximately 162 ± 3 to 161 ± 2 Ma. The molybdenite Re–Os isochron age for different types of ores is 162.6 ± 1.5 Ma, which is in accordance with previous zircon U–Pb age determinations of magmatic rocks in the area.

We propose that ore-hosting subvolcanic complexes represent an apophysis of a larger metal-rich intrusion at depth, which recorded a Middle–Late Jurassic Mo-rich felsic magma event during post-orogenic extension that followed the Mongol–Okhotsk Ocean closure coeval with the paleo-Pacific plate subduction.
