Second Life Application of Automotive Catalysts: Hydrodynamic Cavitation Recovery and Photo Water Splitting

Abstract

A hydrodynamic cavitation method was used to maximize the effect of destructuration of a honeycomb monolithic support of a spent Selective Catalyst Reduction (SCR) catalyst—V₂O₅-WO₃/TiO₂-type—for extracting crystalline titanium and tungsten oxides from the cordierite surface. A high relative inlet pressure of 40 MPa was applied to a divergent nozzle for obtaining high shear stresses of the submerged cavitating jets and intensive micro- and nano-jets and shock waves acting on the particle surface of the milled catalyst. Scanning Electron Microscopy (SEM) analysis indicated the compact morphology of the thin metal oxide layer at the surface of the cordierite support and the high content of Ti and W elements in the sample. Energy dispersive spectroscopy (EDAX) performed along with TEM investigations on different nano-zones from the sample established the elemental composition of WO₃-TiO₂ agglomerates separated after hydrodynamic cavitation processing and identified as independent nanocrystalline structures through Bright Field Transmission Electron Microscopy (BF-TEM) and High Resolution Transmission Electron Microscopy (HR-TEM) measurements. The tetragonal anatase phase of TiO₂ and cubic phase of WO₃ were established by both interplanar d spacing measurements and X-ray diffraction analysis. The photoelectrochemical results showed the possible second life application of automotive catalysts.

1. Introduction

Selective catalyst reduction (SCR) catalysts proved to be an excellent technology for the reduction of nitrogen oxide (NO_x) emissions in diesel exhausts, due to a wide window of operating temperatures, the durability of deactivation, and high conversion rate of NO_x [1,2]. Their low cost and enhanced performance in specific areas caused them to be recommended for integration in some diesel-powered light and heavy-duty vehicles [3,4,5,6].

A SCR catalyst is composed primarily of anatase TiO₂ used as the catalyst carrier, V₂O₅ as the active component, and WO₃ acting as a promoter for thermal stability of the catalyst and offering resistance to sulfur contamination. A conventional method of preparation for the supported VO_x-WO_x/TiO₂ catalysts is by impregnation of soluble vanadium and tungsten oxide precursors onto the titania support. The supported vanadia and tungsten oxide phases consist of mono-oxo surface species of VO₄ (O = V(-O-Ti)₃) and WO₅ (O = W(-O-Ti)₄), respectively [7]. When VO₄ monolayer coverage is exceeded, crystalline V₂O₅ nanoparticles (NPs) will be formed and also, WO₃ NPs can rise above the WO₅ monolayer coverage [7]. The interaction between WO_x active sites and the TiO₂ layer will influence the distribution and morphology of VO_x on the carrier, VO_x being easily distributed on TiO₂ adjacent to WO_x sites [8].

The honeycomb-type monolithic support for the metal oxide species in the SCR catalyst is usually made of cordierite (2MgO-2Al₂O₃-5SiO₂). The oxides of vanadium and tungsten contribute to about 40% of the total cost of the SCR catalyst [9]. The commercial V₂O₅-WO₃/TiO₂ catalyst presents high tungsten (W) content, of about 7–10 wt.% WO₃ by comparing with vanadium (V) content of only 0.5–1.5% V₂O₅ [1,10].

Depending on the tungsten oxide concentration, calcination temperature, and synthesis method, WO₃/TiO₂ composites can be used as semiconductor layers in heterogeneous photocatalysts [11]. For example, 2% WO₃/TiO₂ catalyst prepared by the sol–gel method with a calcination stage developed at 500 °C for 4 h represents a promising material for the solar photocatalytic treatment of water contaminated by pesticides [12]. This sol–gel compound showed homogenous incorporation of WO₃ clusters on the anatase TiO₂ surface, with TiO₂ nanoparticles of about 20 nm in diameter. WO₃ species anchored to the crystalline TiO₃ (edge, corner, and facets) improved the photocatalytic activity by reducing electron–hole recombination, resulting in a more efficient transference of electrons between TiO₂ and WO₃ [12]. Electrospinning technique completed with heat treatment at 650–800 °C was applied to solutions containing TiO₂/WO₃ fibers and conducted to the deposition of semiconductor thin films with good photoactivity [13]. WO₃/TiO₂ nanoporous layers obtained by a micro-arc oxidation technique proved also to be a narrow bandgap photocatalyst which could decompose environmental pollutants under visible irradiation [14].

As a consequence of the limited chemical lifetime for the SCR catalyst (usually about 3 years), a regeneration process involving a chemical and/or heat treatment is often considered in order to extend this lifetime, often doubling it [15]. Even so, almost all of the deactivated SCR catalyst, after several regeneration cycles, ends up as waste and is disposed of in landfills. Starting in 2014, the spent SCR catalyst was classified in China as a hazardous solid waste [16]. Tungsten poses potential risks to human health and the environment, being classified by the U.S. Environmental Protection Agency (EPA) as an emerging contaminant [17]. The impact of W on soil and plants may represent a potential risk for human health by consumption of tungsten-polluted fauna and flora in the food chain. Therefore, the environmental and economic aspect of this waste product must be evaluated properly. In order to avoid soil contamination with the entire metallic residue coming from this catalyst waste and to recycle a part of it, a simultaneous processing strategy based on the recovery of valuable metals and regeneration of the rest of the spent catalyst must be considered [18]. The crystalline structure of TiO₂ must be preserved after treatment to reuse the processed residue as a new catalyst carrier [18].

Various pyrometallurgical/hydrometallurgical treatment techniques have been employed to recover the valuable metals from SCR catalyst waste. A pressure leaching process using caustic soda was used by I-H Choi et al. [19] for direct extraction of W and V from the spent SCR catalyst. A soda roasting process offered the possibility of increasing the leaching efficiency of tungsten from catalyst waste by increasing Na₂CO₃ content, roasting time, and temperature [20]. Another hydrometallurgical technique for the recovery of W in the form of synthetic CaWO₄ through roasting, acidic decomposition (using an HCl solution), leaching (with NaOH), and precipitation was also reported as a successful SCR waste processing method [21]. However, these methods are considered as unsustainable methods with long process flow, high energy consumption, and heavy waste emission [22]. Due to strict environmental regulation policies [23], it is highly desirable to develop an effective and green technique for spent SCR catalyst disposal [24].

A number of research studies reported successful application of hydrodynamic cavitation technique (HDC) for physical and chemical processing of different aqueous solutions such as wastewater treatment [25,26], water disinfection [27,28], modifications/improvements in physical properties of the polymers [29], and highly efficient rehydration of powders [30,31]. A few studies have been oriented on the synthesis of nanostructured catalysts through hydrodynamic cavitation, like the synthesis of nanostructured titania [32], synthesis of metal oxide catalysts with a grain size of 1–10 nm supported on silica (as a high surface area material) [33], or aggregation of ultra-fine scheelite (CaWO₄) particles [34].

For most of the experiments presented above, cavitation was generated through an orifice plate, and the cavitation nuclei are produced in an orifice flow by the gas released due to the pressure reduction or by the partial vaporization of liquid [35]. K. Sampath Kumar and V. S. Moholkar [35] designed a new type of HDC reactor based on a converging–diverging nozzle with the purpose of generating the pressure variation necessary for imposing the radial motion of cavitation bubbles, a phenomenon theoretically described by V. S. Moholkar and A. B. Pandit [36].

In this paper, a test chamber for hydrodynamic cavitation with diverging nozzles is used for the extraction of crystalline titanium and tungsten oxides from the cordierite surface of the V₂O₅-WO₃/TiO₂ spent catalyst. High values for shear forces obtained by the ignition of bubble clouds in cavitation jets were obtained for an erosion effect at the particle surface. The hydrodynamic cavitation is evidenced by elemental analysis. The second life application is proven by the photoelectrochemical activity under illumination.

2. Experimental

2.1. Chemical Composition

Mineralization was used to determine the quantity of tungsten (W), titanium (Ti), and vanadium (V). A Milestone Microwave Labstation for Synthesis (Bergamo, Italy) was used for the mineralization. The samples were in liquid and solid states. The solids were prepared from a spent catalyst. The catalyst was milled very finely for mineralization synthesis. The sample for the microwave contained 0.5 g dispersed in 12 mL of aqua regia. Aqua regia was prepared with 9 mL of HCl (35%) and 3 mL of HNO₃ (65%). Hydrochloric acid and nitric acid were purchased from Lachner (Neratovice, Czech Republic). The program was set to 180 °C for 30 min. The volume was adjusted to 30 mL with ultrapure water after the mineralization. Ultrapure water (>18.2 MΩ × cm) was supplied by the Milli-Q Direct Q System (Burlington, MA, USA).

The quantity of W, Ti, and V was determined by inductively coupled plasma-optical emission spectrometry (ICP-OES-Perkin Elmer, Avio 200, Waltham, MA, USA). Multi-element Calibration Standard 5 (PerkinElmer Inc., Waltham, MA, USA) was used to determine the W quantity. An ICP Calibration Standard Quality Control (XVI)—21 components, supplied by CPAChem (Stara Zagora, Bulgaria), was used to construct the calibration curve for Ti and V. UV–vis (Jasco V550, Tokyo, Japan) was used to determine the presence of titanium complexes from solutions.

2.2. Structural and Morphological Characterization

The crystalline phases existing in the SCR waste powder were investigated with a PANalytical X’Pert PRO MPD Powder Diffractometer (PANalytical, Almelo, The Netherlands). CuKα radiation (wavelength 1.5406 Å) and Bragg–Brentano diffraction geometry were employed here.

A scanning electron microscope (SEM) Quanta Inspect F (FEI-Philips, Hillsboro, OR, USA) working at an acceleration voltage up to 30 kV and equipped with an energy dispersion X-rays spectrometer (EDAX, 132 eV resolution at Mn Kα) was used to determine the surface morphology and elemental composition of a small sample of cordierite covered with metallic oxides, obtained from the waste SCR catalyst before HDC treatment. SEM samples were covered with a very thin gold layer to obtain an optimum contrast during investigations.

A transmission electron microscope (TEM) model Tecnai G2 F30 S-Twin, (FEI-Philips, Hillsboro, OR, USA) operated at an acceleration voltage of 300 keV and equipped with an energy dispersive X-ray spectrometer (EDAX) was used to investigate the microstructure and composition of nanometric-sized crystalline agglomerates obtained after the HDC processing of SCR waste powder. Small portions of the catalyst sample were taken and ground in an agate mortar. A small amount of such a fine powder was dispersed in ultrapure water, then subjected to ultrasound processing to obtain a homogeneous dispersion of the sample particles in water. A drop of this dispersion was deposited onto a thin amorphous carbon film supported by a copper TEM grid. After drying, the prepared grid was inserted into the TEM holder to investigate the sample under transmission electron microscopy.

2.3. Hydrodynamic Cavitation Method

Hydrodynamic cavitation was compared to the acoustic cavitation and selected as the method for achieving the aim of the research due to higher bubble jet density [37], low influence of the liquid composition on the induced shear forces during bubble collapse at the surface of the target particle [38], and ease to be scaled up.

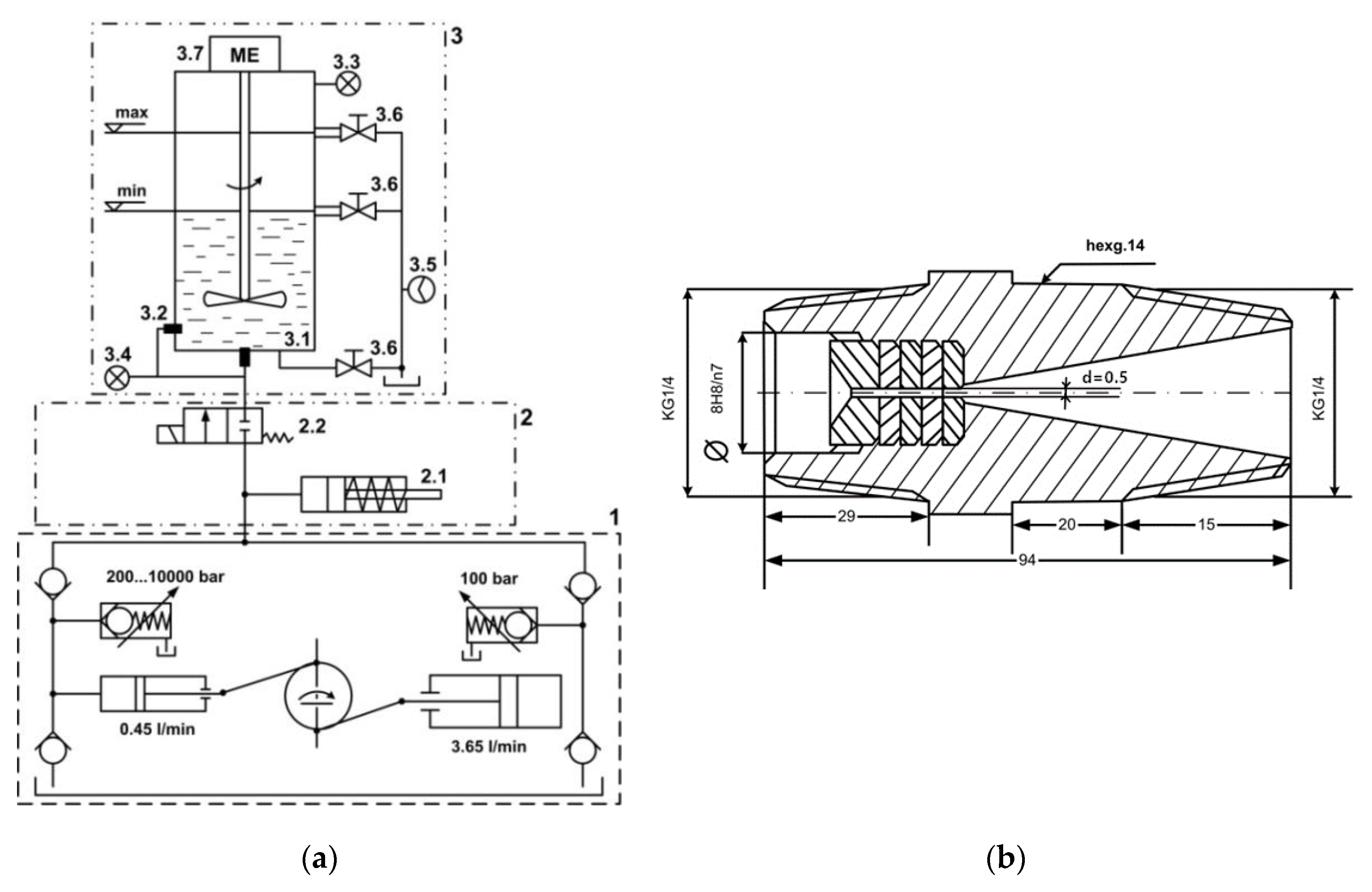

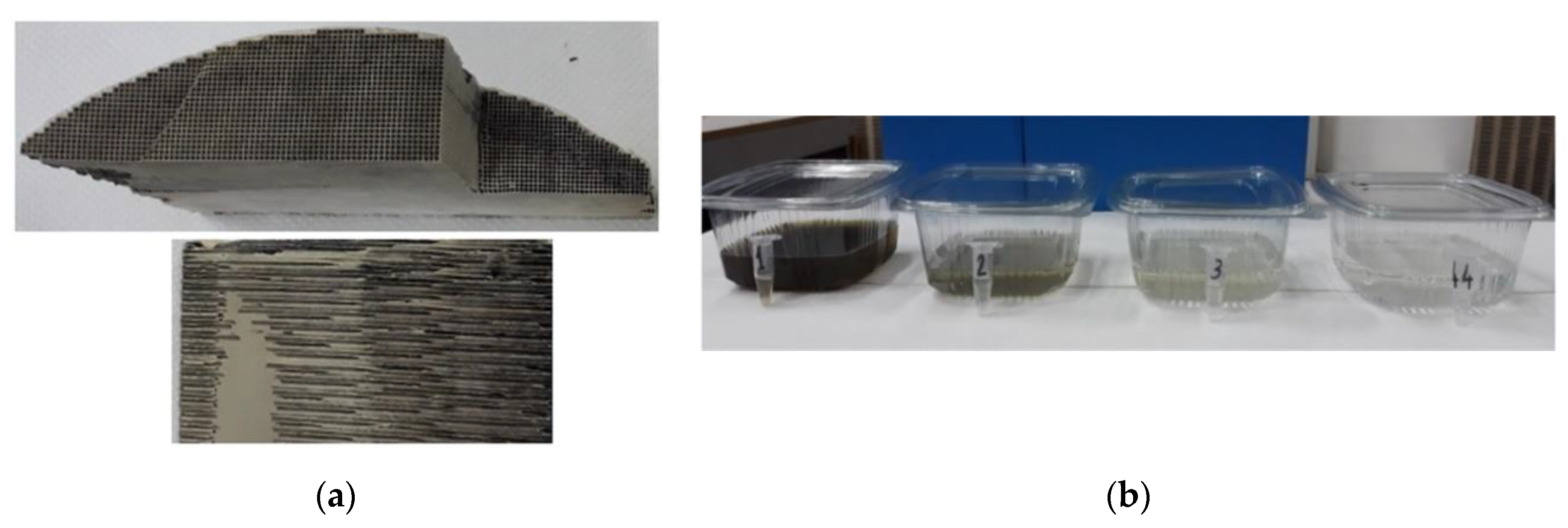

The experimental setup is presented in Figure 1a, where a cavitation jet system provides a maximum upstream pressure of 40 MPa to a test chamber. The hydrodynamic conditions for obtaining high shear forces for submerged cavitating jets were settled down by using a divergent conic nozzle with the throat diameter of 0.5 mm (see Figure 1b). For these conditions, one obtained intense micro- and nano-jets and shock waves acting on the particle surface of milled catalyst [39,40]. The tests were performed for 50 g of ground material recovered from a fracture of a spent SCR catalyst (see Figure 2a). The best results were obtained when keeping the upstream pressure constant at 40 MPa and atmospheric pressure at the outlet of the test chamber. A constant flow rate of 0.5 L/min for the plunger pump was settled down for all the tests. Four rounds of hydrodynamic cavitation were performed. Each round consisted of 50 submerged water jets induced in the test chamber. A volume of 1.5 L of biphasic fluid was obtained at the end of each round and subjected to sedimentation; the evolution of the aqueous solutions is presented in Figure 2b. The sediment obtained after one cavitation round was introduced for the next one working at the same parameters. Therefore, the particles of the spent catalyst were subjected to 200 cycles of hydrodynamic cavitation.

During the hydrodynamic process at elevated values for the upstream pressure, erosion and mechanical shocks simultaneously produce a high quality of fractions for recovery compared with other mechanical methods e.g., attrition scrubbing [41].

2.4. Electrochemical Measurements

Hydrogen evolution reaction was performed in a photoelectrochemical cell (PECC-2, ZAHNER-Electrik GmbH & CoKG, Kronach, Germany) equipped with a transparent working electrode (18 mm optical window diameter) and Voltalab electrochemical workstation (Voltalab, PGZ 301, Radiometer Analytical, Villeurbanne, France). A mercury lamp (PS-2 Mercury Lamp 100 W/DC, VanGuard, Guangdong, China) was used as a light source and positioned in front of the transparent working electrode at 6–7 cm. Fluorine-doped tin oxide plates (FTO, 7 Ω cm⁻²) purchased from Sigma-Aldrich, St. Louis, MO, USA, (#735167-1EA) served as a working electrode support. The counter and the reference electrodes were a platinum wire and Ag/AgCl, respectively. The reference electrode potential was measured against an in-house built reversible standard hydrogen electrode (SHE; Supplementary Material, Figure S1). The average measured potential was (−452 ± 0.736) mV vs. SHE. All the electrochemical potentials hereinafter are referenced versus SHE.

Working electrodes were manufactured by spraying 30 mL of catalyst solution on FTO plates at 100 °C from a vertical position at approx. 10 cm height. The equipment used was an airbrush (5 mm nozzle) connected at an air compressor (AF186 Mini Air Compressor, HSENG, Zhejiang, China) with a pressure of 2 bar. The electrochemical measurements were carried out in 0.1 M K₂SO₄. The applied potential is between −350 and −1150 mV vs. SHE with a repeated on/off irradiation cycles (5 min: 1 min in the dark to stabilize the current followed by 30 s on/30 s off cycles).

3. Results and Discussions

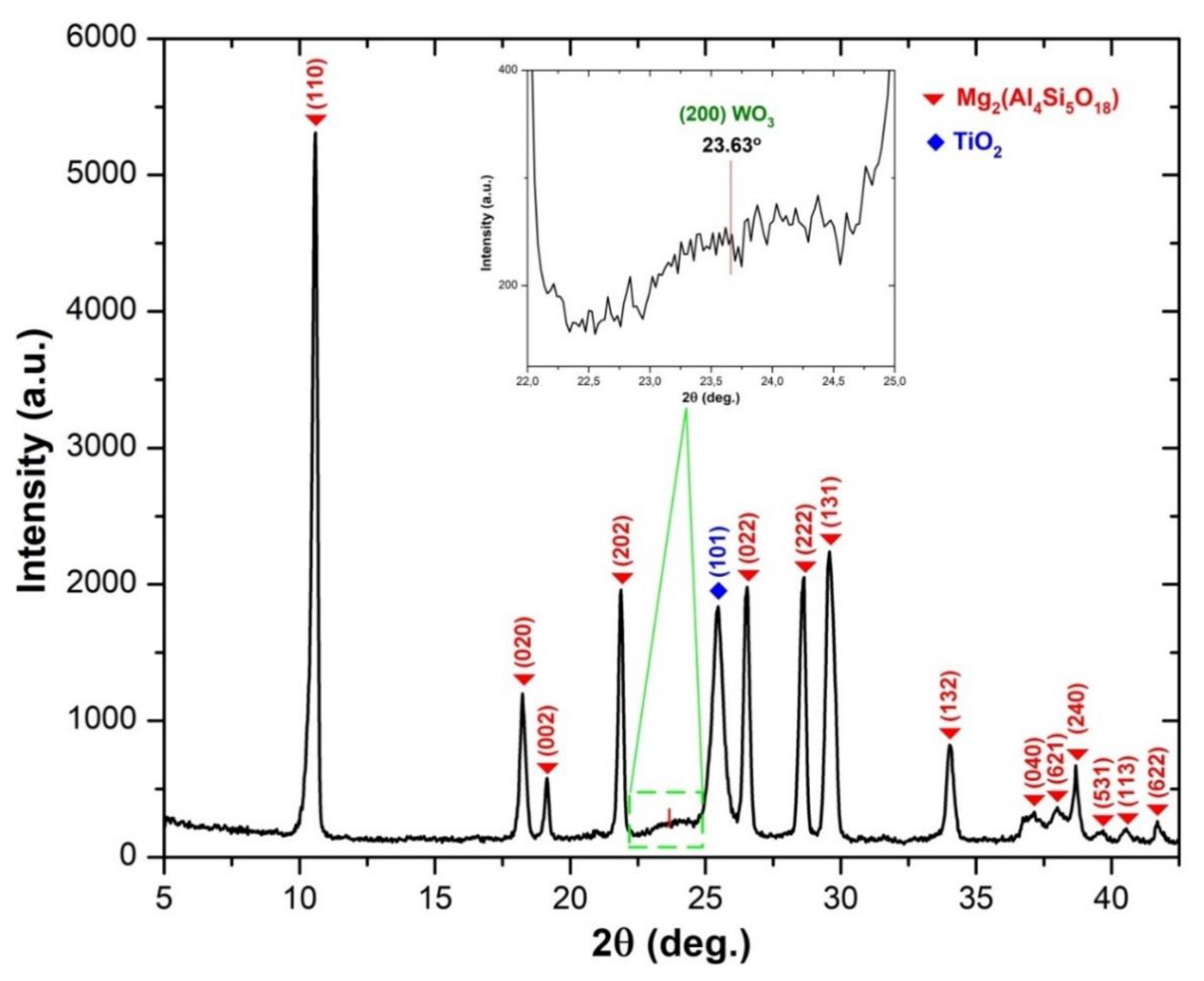

The X-ray diffraction pattern for the pristine SCR, that is before the hydrodynamic cavitation, is presented in Figure 3. The strongest diffraction peak was at 2θ = 10.48°. Most of the peaks were associated with the orthorhombic phase of Mg₂(Al₄Si₅O₁₈) (cordierite), based on ICDD PDF #01-076-6037. The tetragonal anatase TiO₂ was also identified in the diffraction spectrum. The main crystalline peak at 2θ = 25.37° was attributed to (101) in line with ICDD PDF #04-002-2751. The broad, low intensity diffraction peak at 2θ = 23.63° (3.75 Å interplanar distance) suggests the presence of a small amount of WO₃ cubic tungsten oxide (ICDD PDF: #00-046-1096). The crystalline phase for V₂O₅ was not detected in the XRD pattern due to a very low amount of this oxide in the SCR catalyst composition. It was reported that V₂O₅ loadings between 0.5 and 2 wt.% in a spent SCR catalyst did not affect XRD patterns in terms of particle size and crystalline phase [42].

Marberger et al. [10] investigated thermally aged V₂O₅/WO₃-TiO₂ catalyst samples (after treatment at 600 °C), with V₂O₅ loading between 1.7 and 3.5 wt.% by XRD. No V₂O₅ crystalline peaks could be detected in any of their spectra, but a weak WO₃ peak having identical shape with the one identified here in the inset image from Figure 3 (between the same 2θ values) was evident in the spectrum registered for the aged sample with 2.6 wt.% V₂O₅. Below 2.3 wt.% V₂O₅, WO₃ was not visible in the XRD patterns.

The metal concentration of Ti, W, and V was determined by inductively coupled plasma-optical emission spectroscopy (ICP-OES) prior to acid digestion. The initial catalyst was found to contain 2.1, 1.4, and 3.2 g/kg of Ti, W, and V, respectively. Cordierite components, such as Al, Mg, and Si, were removed from the ICP-OES analysis due to the high concentration. The reader should bear in mind that cordierite is the catalyst support and it has no catalytic activity.

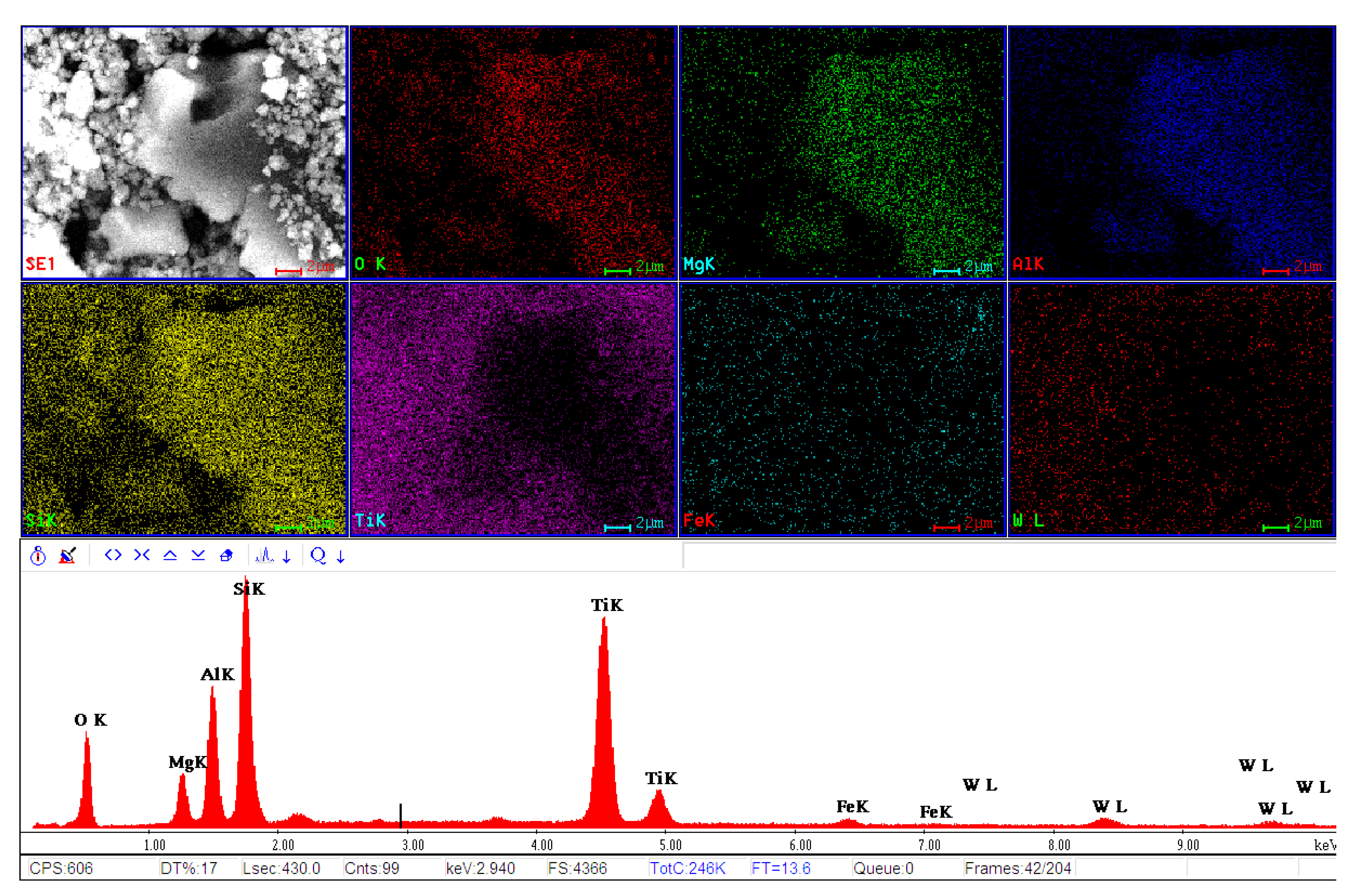

Figure 4 shows the SEM and EDX analysis of an SCR (see Figure 4). Small metal oxide agglomerates of metal oxides were found to be deposited on the surface of cordierite domain. The oxide film thickness was estimated at 20 µm. It is well-known that TiO₂ is used as a supporting catalyst to enhance catalytic performance [20,42,43]. EDX compositional investigations performed on the cordierite micro-area (morphologically identified in Figure 4a,b) indicated the presence of cordierite elements: Si, Al, and Mg, as we can see in Figure 4c,d. Tungsten was not detected in these spectra, but a small quantity of Ti and Fe could be observed here. Fe percentage in the spent catalyst was reported to be 10 times higher than in the fresh one [44]. The presence of Fe in the catalyst is toxic and may significantly reduce its catalytic activity [45]. The EDX spectrum for film micro-area, presented in Figure 4d, revealed the presence of Ti element (at about 31.4 wt.%) and also the presence of W at over 6 wt.%.

The VKα line (4.948 keV) is very close to the TiKβ line (4.931 keV) in the EDX spectra. The main VKα peak could not be detected without any doubt in our EDS investigations. It was reported that vanadium concentrations below 5 wt.% in a TiO₂-V₂O₅ system are too low to be detected [44]. Chemical composition for a spent V₂O₅-WO₃/TiO₂ catalyst was analyzed by Wu et al. [43] through inductively coupled plasma optical emission spectrometry and indicated the following values: 51.66 wt.% Ti, 4.27 wt.% W, 0.54 wt.% Ca, 0.30 wt.% V, and 0.28 wt.% Fe. The EDX mapping feature has provided a higher level of analysis by automatically collecting spectrum and generating images with elemental distribution. Investigations performed on a small micro-area located at the film/cordierite interface are presented in Figure 5. A high-density distribution of Ti was detected along the granular part of the micro-area under investigation. A lower point density of W element was observed along the same portion of the film, formed by agglomerates of a few hundred nanometers in diameter. In the central part of the micro-area was established mostly the presence of cordierite elements: Si, Mg, and Al, with a higher concentration than in the left granular part of the sample. Fe element was uniformly distributed along the entire area investigated.

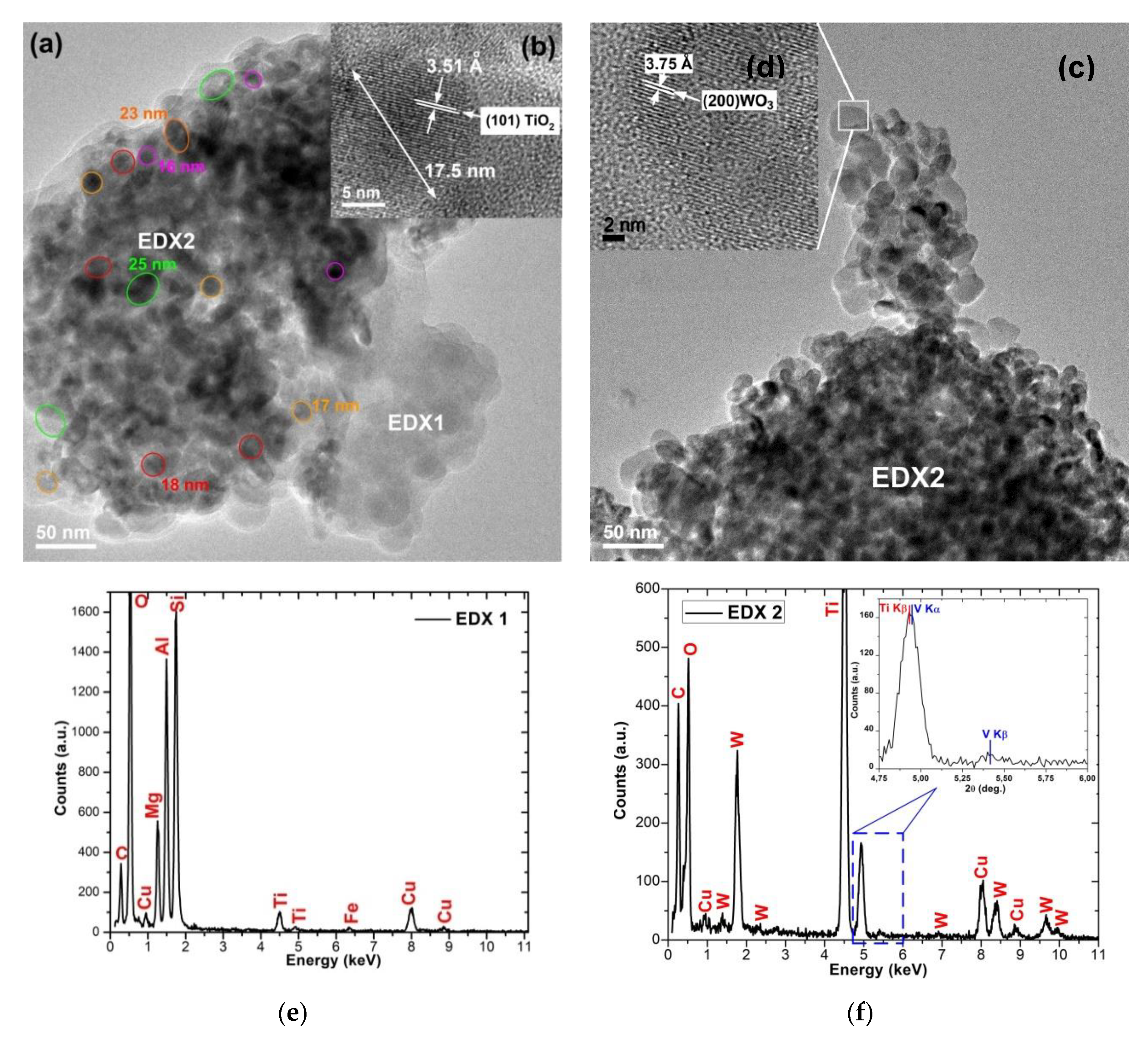

Bright field transmission electron microscopy (BF-TEM) investigations were performed on a hydrodynamically processed catalyst sample to establish the separation of Ti and W oxides from cordierite. Two separated WO₃-TiO₂ aggregates like the one identified in Figure 6 were investigated by high-resolution TEM techniques. Figure 7a shows the presence of a large number of nanometric grains associated with W and Ti oxides having a diameter of about 16–25 nm, identified in the nano-area with notation EDX2. I-H. Choi et al. [19] also reported from their TEM investigations of a spent SCR catalyst, processed through pressure leaching, the formation of a spherical type TiO₂ particles with diameters close to 30 nm under the form of isolated aggregates. In the high-resolution TEM images presented in Figure 7b,d, we observed highly-ordered fringes spaced at 3.51 and 3.75 Å, corresponding to (101) and (100) crystallographic planes of tetragonal phase for TiO₂ (ICDD PDF: 04-002-2751) and cubic phase for WO₃ (ICDD PDF: 00-046-1096), respectively.

Lee et al. [46] reported the existence of an excess quantity of W in the fresh SCR catalyst as a dispersed amorphous WO_x monolayer over the surface of TiO₂. The WO_x layer located on the TiO₂ carrier can be divided into amorphous WO_x and crystalline WO₃, and the appropriate amount of amorphous WO_x can promote the dispersion of moderately distorted vanadium species and prevent the formation of isolated vanadium oxo sites [47]. However, excessive amorphous WO_x will squeeze its neighboring vanadium species and lead to VO_x aggregation or the formation of crystalline V₂O₅ [48].

The EDX investigations showed the presence of cordierite elemental components, with a small amount of Ti (see Figure 7e). A large amount of Ti and also an important quantity of W could be established in the nano-area EDX 2, without the presence of any cordierite layer elements (see Figure 7f). From the inset image presented in Figure 7f, we could see that the Kβ spectral line of vanadium had a detectable intensity (at 5.43 keV), suggesting the presence of VO_x species on the nano-area investigated, most probably in the amorphous state due to the neighboring presence of WO₃ in the crystalline phase. Here, the spectral presence of C was associated with the amorphous carbon thin film of the TEM grid.

The initial cavitation was divided into C1, C2, and C3. For each cavitation, a solid and liquid sample was collected. The concentration of Ti, W, and V determined in the solid and liquid resulted from the hydrodynamic cavitation. The digested initial sample contained 2.1, 1.4, and 3.2 g/kg of Ti, W, and V, respectively (

Table 1. Metal concentration of the solid fraction in the initial and after the first (C1), second (C2), and third (C3) cavitation.

Sample Identification	Ti [g/kg]	W [g/kg]	V [g/kg]
initial catalyst	2.1	1.4	3.2
first cavitation—C1	43.8	20.6	7.5
second cavitation—C2	3.4	2.3	1.7
third cavitation—C3	2.0	1.41	0.6

). In the main tank, 50 g of catalyst was placed initially. Every cavitation cycle consisted of 50 submerged water jets (see Experimental Section 2.3) resulting in 0.75 g of sediment in the reservoir (see Figure 1). The calculated recovery rate was determined by dividing the metal mass in the sediment and liquid (determined from the metal concentration in Figure 8) to the metal mass in the initial sample. The overall efficiency was 44.7%, 46.2%, and 11.8% for Ti, W, and V, respectively. To the show the economic viability, we used the solution that resulted after the 3rd cavitation without further treatment as the semiconductor source (vide infra). The reader should bear in mind that the collected sediments can be used in other applications that require metal concentrations below 1 wt.%.

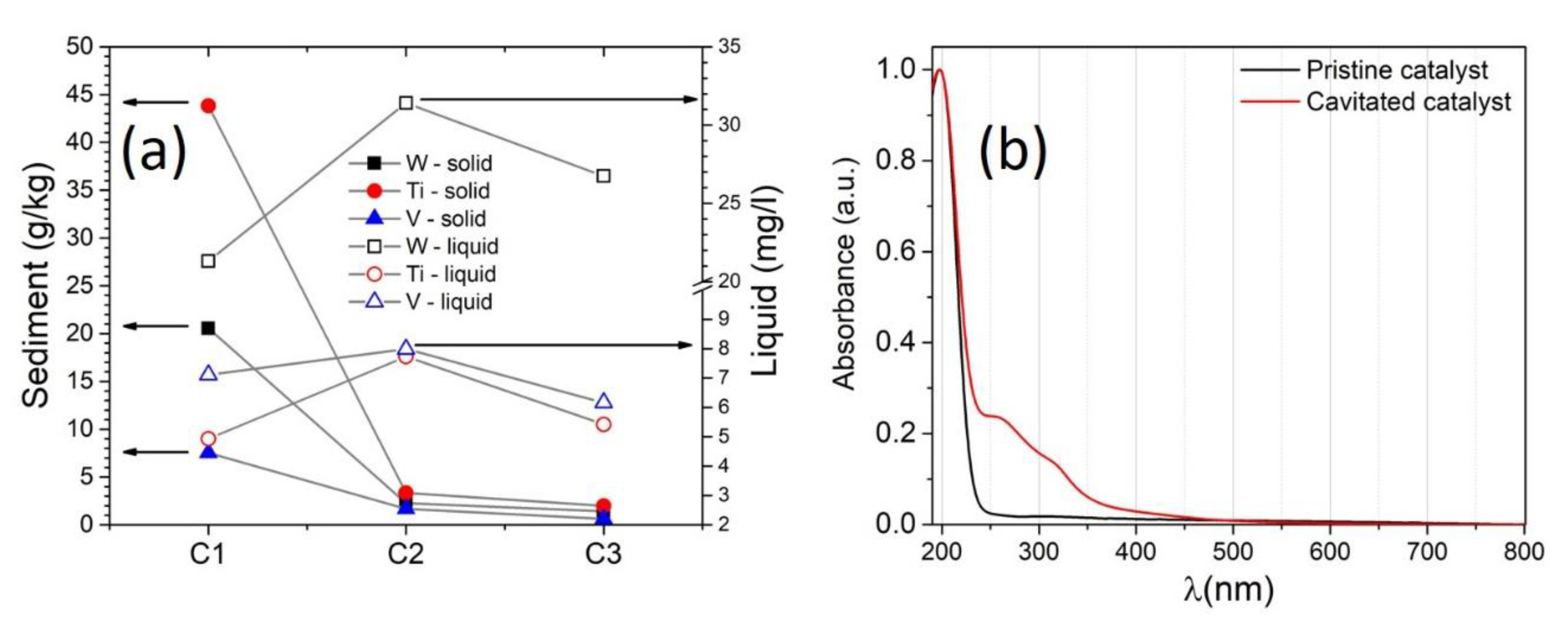

Figure 8a shows the concentrations determined by ICP-OES in the sediment. A coarse separation takes place in the initial cavitation. The highest metal concentration in the liquid was determined in the second cycle. The presence of Ti, W, and V in the liquid called for a UV–vis characterization. Figure 8b showed a flat absorption behavior of the pristine catalyst. The cavitated catalyst showed an increased absorption between 250 and 350 nm. Two distinct features at 270 and 320 nm resemble the semiconductor behavior of TiO₂ and WO₃, respectively.

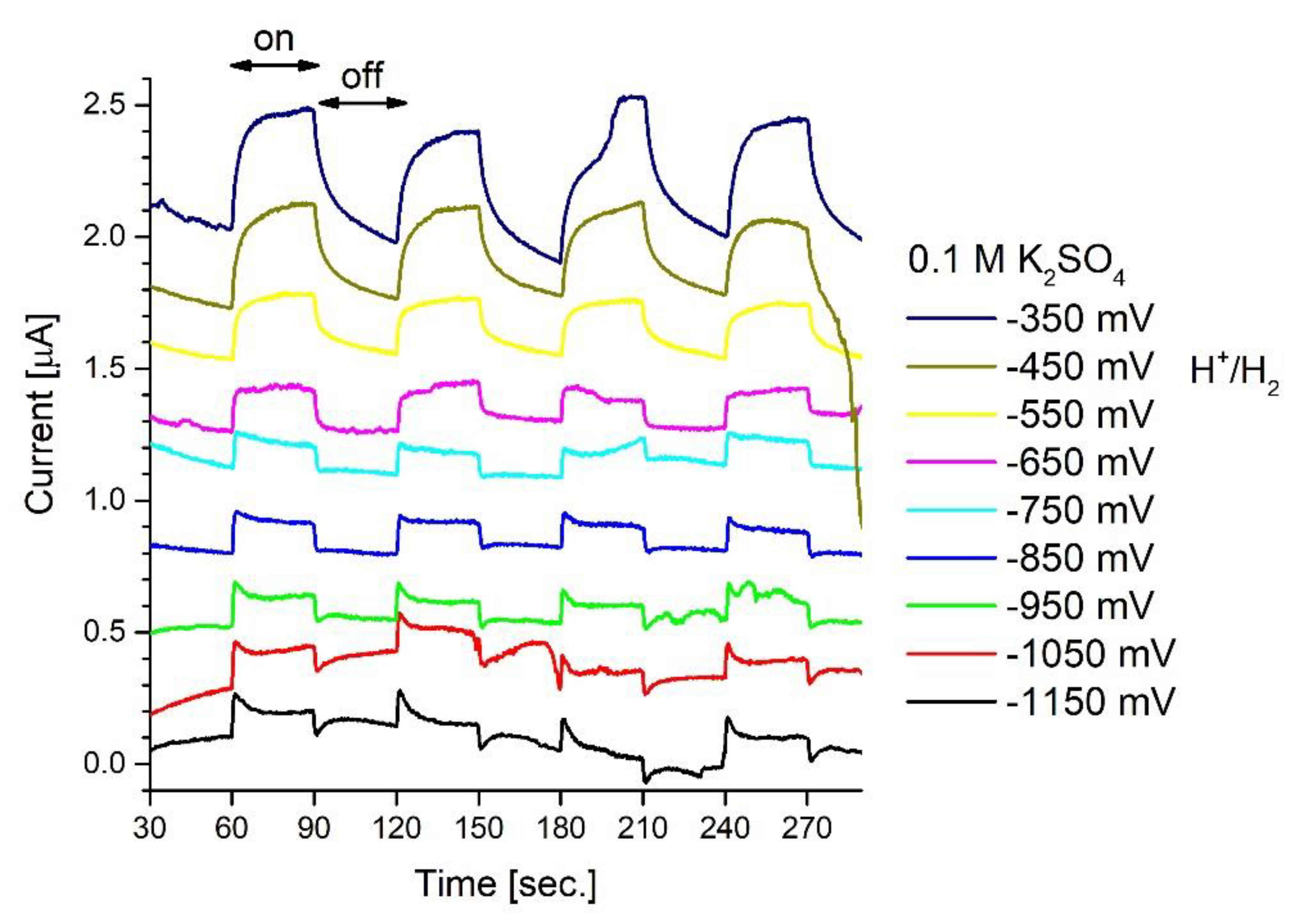

UV–vis and ICP-OES showed that there was a large amount of W, Ti, and V oxides present in the liquid, which can be used to carry out photoelectrochemical experiments. Figure 9 shows the photoelectrochemical experiments from −350 to −1150 mV vs. SHE. Protons are expected to be reduced to hydrogen gas at potentials below −350 mV. The current was constant until the samples were illuminated and generated a photocurrent. The largest photocurrent was obtained at −350 mV with almost 0.5 µA. However, the photocurrent does not increase and decrease in the well-known rectangle shape, which suggests that there is another reaction. This is an indication that the electrode undergoes corrosion. Only at −650, −750, and −850 mV the generated photocurrent is equal to the decaying photocurrent. The electrode undergoes anodic overshoot when illuminated and cathode undershoot when the lamp was turned off at potentials more negative than −850 mV. This is a clear indication that the potentials are too negative and the oxides undergo partial or complete reduction. All in all, the catalyst clearly showed its photoelectrochemical potential to act as a photo-substrate to split water. Nevertheless, the use of a co-catalyst to make use of the photogenerated electron-hole is needed.

Automotive catalysts that use metal oxides as the active component are hard to recover due to their chemical inertness. Their low price decreases the incentive for their recovery. Therefore, such automotive catalysts are rapidly considered waste. The environmental impact of the extensive use of metal oxide nanoparticles should be considered for their future applications [49,50]. The results presented in the work at-hand entangle hydrodynamic cavitation with photoelectrochemistry to generate a second-life application for metal oxide-based automotive catalysts. Our results showed that hydrodynamic cavitation can be used to increase the metal oxide concentration in the solid fraction by separating the cordierite from the metal oxide component. The sediment that resulted from the initial cavitation can be further used in applications that need a higher metal oxide concentration (e.g., cement-based paving for photocatalytic pavement).

Further treatment increases the metal oxide concentration in the liquid fraction with a remarkable colloidal stability over time. In this respect, the metal oxide solution can be used in sun-driven applications, such as photoelectrochemical water splitting. It has been recently reported that TiO₂ and WO₃ work in synergy to enhance the photoelectrochemical activity [51]. The photocurrents presented herein are <1 µA, which are considerably smaller than usually obtained values, that are >10 µA. Our approach generates photocurrents from waste which can be further tuned to reach standard photocurrent values.

4. Conclusions

A hydrodynamic cavitation method was designed for extracting the crystalline titanium and tungsten oxides from the cordierite surface of a spent SCR catalyst. High relative inlet pressure of 40 MPa was applied to a divergent nozzle of 0.5 mm for obtaining high shear stresses of the submerged cavitating jets. Intensive micro- and nano-jets and shock waves acting on the particle surface of milled catalyst were provided along 200 cycles of hydrodynamic cavitation.

SEM investigations performed on SCR catalyst sediment revealed the densely packed structure of metal oxide agglomerates (with a thickness of about 20 µm) at the surface of the cordierite layer and correspondent EDAX measurements indicated the high amount of Ti and W elements (31.4 wt.% and 6.6 wt.%, respectively) along a micro-area from the catalytic metal oxide region of the sample. The interface between the WO₃-TiO₂ region and the cordierite layer was investigated through EDAX mapping in SEM and measurements indicated a constant distribution of W and Ti elements over the entire cordierite micro-region under test.

With the help of BF-TEM investigations developed on a catalyst sample subjected to hydrodynamic cavitation processing, it was established a partial and complete separation of titanium and tungsten oxides from the cordierite support as agglomerations formed by nanoparticles with diameters of about 16–25 nm. The anatase tetragonal phase of TiO₂ and cubic phase of WO₃ were highlighted through HR-TEM and the measured inter-planar d spacing has been confirmed by the diffraction peaks of the XRD measurements.

WO₃-TiO₂ nanocrystalline agglomerates, successfully separated from a spent SCR catalyst, were used in a photoelectrochemical device. Photocurrents as large as 0.5 µA were determined, albeit extensive photoelectrochemical characterization is needed to elucidate the map out the working potential limits.
