Phase Composition of Austenitic Stainless Steels in Additive Manufacturing: A Review

by
Sergey Astafurov
and
Elena Astafurova
*
Laboratory of Physics of Hierarchical Structures in Metals and Alloy, Institute of Strength Physics and Materials Science SB RAS, 634055 Tomsk, Russia
*
Author to whom correspondence should be addressed.
Metals 2021, 11(7), 1052; https://doi.org/10.3390/met11071052
Submission received: 20 May 2021 / Revised: 21 June 2021 / Accepted: 28 June 2021 / Published: 30 June 2021
(This article belongs to the Special Issue Thermo-Mechanical Processing and Additive Manufacturing of Steels)
Browse Figures
Versions Notes

Abstract

:
Additive manufacturing (AM) is among the novel industrial technologies for fast prototyping of complex parts made from different constructional and functional materials. This review is focused on phase composition of additively manufactured chromium-nickel austenitic stainless steels. Being produced by conventional methods, they typically have single-phase austenitic structure, but phase composition of the steels could vary in AM. Comprehensive analysis of recent studies shows that, depending on AM technique, chemical composition, and AM process parameters, additively manufactured austenitic stainless steels could be characterized by both single-phase austenitic and multiphase structures (austenite, ferrite, σ-phase, and segregations of alloying elements). Presence of ferrite and other phases in AM steels strongly influences their properties, in particular, could increase strength characteristics and decrease ductility and corrosion resistance of the steels. Data in review give a state-of-art in mutual connection of AM method, chemical composition of raw material, and resultant phase composition of AM-fabricated Cr-Ni steels of 300-series. The possible directions for future investigations are discussed as well.

1. Introduction

Additive manufacturing (AM) or 3D printing is a novel and fast developing technique of rapid layer-by-layer manufacture of prototypes or parts according to computer-aided design (CAD) model. Development of AM has begun with technologies of 3D printing of polymer materials [1]. Progress in this field has given a motivation for the fabrication of complex metal parts using AM methods for the purposes of different industries, such as aerospace, automotive, medical implants production, etc. [1,2,3]. An indisputable advantage of 3D printing is the ability of fast prototyping and production of parts with complex shapes and different scales in fully automatic mode using CAD models, and with the emphasis to those materials, which are difficult, expensive and/or even cannot be produced by conventional methods [1,2,3,4,5]. Thus, AM is time-, energy-, and material-saving technology.
The keystone problem of AM for metals is that phase composition and mechanical properties of the additively produced materials differ (sometimes extremely) from their conventionally produced counterparts [1,2,4]. Here are some unfavorable factors typical of AM materials: a porosity, an anisotropy of mechanical properties, residual stresses, inhomogeneity of grain structure, and texture [1,2,4,5,6,7]. But relative to the AM-produced pure metals, one more adverse point is typical of alloys—the difference in chemical compositions of the raw material and the resultant 3D printed part [7,8].
Chromium-nickel austenitic stainless steels of 300-series are, obviously, one of the most widely used structural materials in the world due to their good ductility, weldability, and high corrosion resistance [9,10]. Among the variety of the materials used in AM, these steels take one of the leading positions [2,4], but scientists and manufacturers still face some problems during their AM-fabrication. The goal in AM-producing of chromium-nickel steels is obtaining of near single-phase austenitic structure. In reality, the anisotropic multiphase structure forms in CrNi austenitic stainless due to the complex thermal history and nonequilibrium crystallization conditions during the AM process. This affects exploitation characteristics of AM parts.
This review is focused on the phase composition of additively manufactured chromium-nickel austenitic stainless steels produced by different AM techniques, the correlation of the microstructure and mechanical properties of the AM-fabricated steels, and on analysis of problems and ways for future investigations in this research field.

2. Methods of Additive Manufacturing of Steels

Technologies of metal 3D-printing are based on melting and solidification or sintering of feedstock raw material (wire, sheets, or powder) by different sources of energy (laser, plasma, and electric arc or electron beam). According to ASTM Standard [2] there are two basic 3D printing technologies: powder bed systems (PBS) and directed energy deposition (DED). The first one is based on layer-by-layer spreading of thin layers of powder on the operation area with its subsequent melting or fusion in inert gas or vacuum chamber by source power according to CAD model [2,4,6,11,12]. In DED processes, the raw material (powder of wire) feeds to the operation area with its simultaneous melting with energy source and layer-by-layer formation of a target product according to a computer model [1,2,4,6].
Relative to the AM production of the steel parts, both DED and PBS methods attract much attention of the scientists. Selective laser melting (SLM) is the PBS method widely used for steel fabrication [12,13,14,15]. A powder feed laser melting or laser melting deposition [13,16,17,18,19,20,21], wire feed laser melting deposition [22], wire and arc additive manufacturing (gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), cold metal transfer (CMT), and plasma arc welding (PAW)) [23,24,25,26,27,28], wire feed electron-beam melting [7,8,29,30] should be mentioned among the widespread DED AM techniques, which are effectively used for fabrication of austenitic stainless steels of the 300-series. Even so, there is no universal AM method which covers all industrial needs. From the point of view of steel parts production, PBS methods look attractive due to high-resolution features of the complex parts and accurate dimensional control. Some disadvantages of PBS methods should also be mentioned: a relatively small build volume and slow deposition rate, and the need to use high-quality expensive lasers and powders [2,4,31]. Contrarily, high deposition rates (especially in the case of wire-feed systems) and the ability to produce large, full-scale components are the main advantages of the DED methods, but as-built parts often require expensive finishing operations, such as machining and heat treatments, to achieve the desired quality [2].
Indeed, AM production of the austenitic stainless steels covers many AM techniques, and, despite the differences in building methods, the common problems of the directional solidification of the austenitic grains and undesirable phase composition exist in steel products.

3. Solidification Mechanisms in AM Austenitic Steels

Austenitic stainless steels of 300-series are Fe-based alloys containing chromium and nickel as the basic alloying elements. Steel composition should provide fully austenitic structure, but in conventional production it is achieved by a final solid-solution treatment [9,10]. Resultant phase composition and phase morphology depends on the ratio of chromium (Creq) and nickel (Nieq) equivalents [32,33,34,35,36]:
Creq = wt.%Cr + wt.%Mo + 1.5wt.%Si + 0.5wt.%Nb
Nieq = wt.%Ni + 0.5wt.%Mn + 30wt.%C + 30wt.%N.
According to the Schaeffler diagram, the solidification mode, phase transformation, and final phase composition all depend on the Creq/Nieq ratio [32,33,34,35,36]:
A mode (Creq/Nieq < 1.25): L→(L + γ)→γ
AF mode (1.25 < Creq/Nieq < 1.48): L→(L + γ)→(L + γ + δ)→(γ + δ)
FA mode (1.48 < Creq/Nieq < 1.95): L→(L + δ)→(L + δ + γ)→(δ + γ)
F mode (Creq/Nieq > 1.95): L→(L + δ)→δ + γ
Thus, in the AM process, fully austenitic structure could be reached only for steels with Creq/Nieq < 1.25 in the melting pool (A mode). In all other solidification modes (AF, FA, and F modes), two phases are formed. The presence of austenitic γ-phase in the case of ferrite solidification mode (F mode) is associated with peritectic solid-state transformation of δ-ferrite during cooling. Most compositions of 300-series commercial austenitic stainless steel promote AF or FA solidification modes. So, formation of ferritic phase during solidification is inevitable.
In practice, morphology and volume content of δ-phase are determined not only by Creq/Nieq ratio in the raw material but also with the parameters of the manufacturing method, cooling rates, etc. [5].

4. Phase Composition and Mechanical Properties of AM Austenitic Stainless Steels

4.1. AISI 304 and AISI 308-Type Stainless Steels

High strength characteristics and ductility, weldability, corrosion resistance (due to high chromium content), and relatively low cost make AISI 304 and AISI 304L austenitic stainless steels attractive for different applications in petroleum, nuclear, and chemical industries [37,38]. Deformation-induced martensitic transformation from austenite to bcc-martensite (α’ phase) contributes high strain hardening of these grades of steel [39,40,41,42]. AISI 308L steel contains higher chromium and nickel and lower carbon concentrations than AISI 304L steel, but it also has high strength properties and high corrosion resistance [43]. It is used in gas, oil manufacturing and mining, steamship building, and automobile industries. Therefore, this group of CrNi austenitic stainless steels is of interest for AM production.
Table 1 contains data about concentration of the main alloying elements influencing Creq/Nieq ratio for AISI 304, 304L, and 308L steels used for additive manufacturing and described in recent articles. The compositions given by AISI standard are also presented in Table 1. Values of Creq/Nieq ratio for this group of AISI 304/308 steels are near the upper border of AF or in the range of FA solidification mode (Creq/Nieq ≈ 1.4–1.8). Accordingly, solidification process develops according to schemes (4) and (5). Austenitic dendrites should form from the melt at the early stages of solidification with subsequent ferrite formation in the interdendritic regions between austenite dendrites in the case of AF mode, and reverse sequence should be realized in FA mode [32,33,34,35,36]. In any case, a two-phase (γ + δ) microstructure is expected in AISI 304/308 steels in AM production considering the Creq/Nieq ratio. But further analysis of the articles in the field shows that processing parameters could influence phase ratio and their morphology.
Tarasov et al. [8,44] used AISI 304 wire with the chemical composition of Fe-18.4Cr-9.5Ni-1.4Mn-0.8Si-0.12C (wt.%) for wire-feed electron beam additive manufacturing (EBAM) of the billets (Creq/Nieq = 1.42). EBAM-fabricated specimens were characterized by primarily austenitic structure with thin ferrite crystallites between austenitic dendrites. Ferrite colonies had different morphology—vermiculate, cellular, lathy, or point-like. Despite the fact that wire composition did not change in the AM process, the volume content of δ-ferrite depended on the heat input value during the AM process (Figure 1) [8]. Increase in heat input up to some threshold value led to increase in ferrite fraction from 13 up to 19 vol.% with following decrease in volume content of δ-phase down to 14 vol.% at high heat input values. The authors propose that chromium atoms, which are ferrite stabilizers, are forced out to the interdendritic regions during austenitic dendrite growth. Increase in heat input up to threshold value promotes this process and assists the increase in volume content of δ-phase. Further increase in heat input higher than the threshold value facilitates the reheating of deposited metal and partial ferrite dissolution (decrease in volume content of δ-phase). The ratio of austenitic/ferritic phases influences mechanical properties of the AM-fabricated steel. Increase in volume content of ferrite leads to strengthening, decrease ductility, and corrosion resistance of the steels [44]. Thus, the authors [8,44] concluded that one can partially control the volume content of ferrite by variation of heat input value.
Wire-feed electron beam AM was used for producing the walls of AISI 304 steel (Fe-19.1Cr-9.1Ni-0.95Si-0.12C, wt.%) in series of the recent articles [7,29,30,47,48]. During EBAM processing, solidification was realized in FA mode (Creq/Nieq = 1.7). Obtained samples had austenitic structure with colonies of ferritic dendrites (vermicular and lathy), and δ-ferrite phase was enriched with chromium and depleted by nickel (Figure 2). The authors reported the gradual increase in δ-ferrite content moving along the AM-building direction, starting near the substrate and finishing in the top part of the AM-fabricated wall. Volume content of ferrite depends on cooling rate and Creq/Nieq value. Cooling rate gradually decreases during wall growth, and the increase in ferrite content in the top part of the wall is associated with the depletion of the melt by nickel and increase in Creq/Nieq ratio. Obtained billets possessed high anisotropy of mechanical properties due to revealed structural inhomogeneity in δ-ferrite fraction and columnar grain structure of austenite. One-hour solid-solution treatment at the temperature 1050 °C caused a twofold decrease in volume content of ferritic phase but did not eliminate it.
Using selective laser-beam melting (SLM) AM technology and gas-atomized powders of AISI 304L steel (Fe-18.95Cr-9.48Ni-0.87Mo-0.056Si-0.033Cu-0.029O-0.027P-0.016Mn-0.013N-0.01Co-0.006C-0.001S, wt.%) (Creq/Nieq = 1.94) as the raw material, steel billets with a relative density of 99.9% were produced [12,45]. SLM-fabricated steel had primarily austenitic structure with columnar and dendritic austenitic grains, consisting of subgrains (cells). The authors attribute such cellular fine structure to the high thermal gradient along building direction and high cooling rate during solidification. The SLM-produced structure also contained about 4 vol.% of small (up to several micrometers) δ-ferrite grains, randomly distributed in the bulk material, and about 0.4 vol.% of nanosized particles of σ-phase located along high-angle grain boundaries (Figure 3) [12]. Blocky ferrite formation is attributed to the extremely high cooling rate during the SLM process (higher than 3 × 104 K s–1 [49]), while σ-phase (CrFeMo-based particles) arises due to reheating of the material during the building process. For SLM manufacturing of the steels, the post-built solid solution treatment allows the dissolution of ferritic phase completely [45]. Moreover, H. Yu et al. [11] has obtained fully austenitic structure in AISI 304 steel billets using SLM AM without any post-building treatments. The authors have not provided the chemical composition of AISI 304 powder, which they have used for AM, and fully austenitic structure in SLM-fabricated steel billet can be associated with reduced Cr and high Ni and C content in the raw material, which decrease the Creq/Nieq ratio.
In articles [17,50], Brown et al. used powder-feed laser-based DED or laser melting deposition (LMD) technologies for fabrication AISI 304L steel billets. Powder chemical composition was typical of AISI 304L steel (Fe-19.07Cr-10.38Ni-1.55Mn-0.5Si-0.089N-0.04Mo-0.03Cu-0.02V-0.017O-0.015C-0.006P-0.006S, wt.%) (Creq/Nieq = 1.44). Obtained billets were characterized by grain/subgrain austenitic structure with about 2 vol.% of fine ferritic phase in austenite subgrain boundaries. A similar result was obtained in other research papers [13,16,18], where authors used the same AM technology and steel compositions as in the research of Brown et al. [17,50]. Therefore, austenitic structure with columnar grains of austenite with 1.5–2 vol.% of ferritic phase is the common characteristic of the LMD AM steel. Post-built heat treatments in a temperature range of 1000–1250 °C caused the decrease in dislocation density and complete dissolution of ferrite [50].
Wire-feed LMD AM was used for producing AISI 308LSi steel billets in [22]. Authors obtained austenitic billet with about 4–5% of ferrite (according to the analysis of scanning electron microscopy images, see Figure 4 [22]). The Creq/Nieq = 1.77 ratio for wire composition Fe-19.5Cr-10.5Ni-1.9Mn-0.85Si-0.02P-0.02S-0.01C (wt.%) provides FA solidification mode with the first formation of ferrite, followed by austenite formation in the interdendritic regions and the substitution of ferrite in the austenitic phase.
Similar two-phase structures were obtained using arc additive manufacturing technique (WAAM). Gordon et al. [23] used WAAM for producing AISI 304L billets with ferrite number 10 and skeletal and lathy δ-ferrite morphologies. Li et al. [25] also used WAAM technology for producing billets of AISI 308L austenitic stainless steel. A small amount of ferritic phase was uniformly distributed in austenitic matrix of the AM billets, and the volume content of ferrite increased with the distance from the substrate from 2.9 up to 3.8 vol.% (Figure 5). The morphology of ferritic phase depends on the distance from the supporting plate. The bottom layers contain mainly lathy and granular ferrite, δ-phase has predominantly skeletal morphology in the top region, and all three morphological types of ferrite are observed in the middle part of the billet. The main factor promoting such variation in ferrite morphology is the change in cooling rate with the distance from supporting plate in WAAM process. Solidification of AISI 308L steel develops in FA mode with primary ferrite formation and following replacement of the ferrite by austenitic phase during crystallization [24,43]. As a result, columnar dendritic austenitic structure is formed with the residual ferrite of skeletal, lathy, and vermicular morphology.
Miao Li et al. [46] used wire-feed laminar plasma AM for producing AISI 308L steel billets. Argon gas was used for plasma forming and as a shielding gas during the AM process. The authors obtained steel billets with fully austenitic structure (Figure 6a) although initial chemical composition of the wire (Fe-20.71Cr-9.54Ni-2.15Mn-0.82Si-0.018P-0.008S-0.017C-0.013Cu, wt.%) provided rather high value Creq/Nieq = 1.97 and F solidification mode (Table 1).
Except from the intriguing result by Li et al. [46], all mentioned above results demonstrate the common trend in AM fabrication of the AISI 304L/308L steels—austenitic structure with coarse columnar grains contains δ-ferrite, which fraction and morphology can vary in dependence on nominal composition of the raw material, method of AM, and processing regime [1,2,6,7,8,12,17,22,23,24,29,30,43,44,45,48,50]. In nonequilibrium conditions and due to the probable change in concentration of ferrite stabilizing elements in the melt (Mo, Cr, Si), the solidification of steel with composition corresponded to FA mode (reaction (5) in Section 3) could be realized according to AF mode (reaction (4) in Section 3) and vice versa [14,48]. The EBAM method provides the highest δ-ferrite fraction in the AM-steel billets, which usually could not be dissolved using post-built heat treatments. Contrarily, the fraction of ferrite in materials produced by SLM, LMD, laser-based DED, and WAAM is much lower and it could be removed by post-processing heat treatments [17].
The comparison of the mechanical properties of the AISI 304/308 SS obtained with different AM methods are summarized in Table 2. Despite the fact that AISI 308L steel billets fabricated in wire-feed laminar plasma AM [46] possess completely austenitic structure, their yield strength is a bit higher but other tensile characteristics are very similar to those for conventionally produced steels (Figure 6b, Table 2).
The existence of the small fraction of δ-ferrite in WAAM-produced billets [25] or in EBAM-fabricated ones [7] assists higher tensile strength of the AM-steel relative to those with fully austenitic structures (Table 2). Due to high dislocation density in austenitic grains and fine ferrite, two-phase specimens typically show higher flow stress value (up to 200 MPa, see for instance [17]) relative to that of conventionally produced steel. Post-built heat treatments in a temperature range of 1000–1250 °C, which is accompanied by the decrease in dislocation density and dissolution of ferrite, causes the decrease in strength (Figure 7) [50]. Under tensile tests of the steel specimens fabricated with WAAM method, plastic deformation starts in the softer austenitic phase and further develops in ferritic one with cracking predominantly in lathy ferrite [25]. During plastic deformation, dendritic δ-ferrite causes hardening effect similar to the grain refinement (Hall-Petch effect) due to the limitation of the dislocation free path between interphase boundaries (austenite/δ-ferrite) [7]. A columnar austenitic and dendritic structures, typical of AM-produced materials, is the primary reason for anisotropy of the mechanical properties in these specimens (Table 2).
Specimens obtained by the SLM method are characterized by the highest strength characteristics and ductility in comparison with those of cast and wrought AISI 304L steel (Table 2). The enhanced mechanical properties are the result of the synergetic effect of small grain size, the presence of ultra-fine subgrains (Hall-Petch effect), precipitation hardening by ferrite and σ-phase particles, and high dislocation density in austenitic grains, induced by residual stresses [12].
To conclude, the AM-fabricated AISI 304L/308L steels looks attractive for practical use from the point of view of their mechanical properties in static tensile tests, but further investigation of the corrosion resistance, wear and fatigue properties, deformation behavior, deformation-induced martensitic transformations, etc. are needed.

4.2. AISI 316L Type Stainless Steels

AISI 316L type stainless steel is one of the most widely used materials in different industries (medical tools, thermal and nuclear power plants, oil and gas industres, and chemical applications) due to its high ductility and strength characteristics, excellent corrosion resistance, and relatively low cost [15,51,52,53,54]. In contradiction to AISI 304L/308L steels, this steel does not undergo deformation-induced martensitic transformation, which makes it important for applications where nonmagnetic corrosion-resistant steels are required [9,10]. These advantages initiate investigations in the field of additive manufacturing of AISI 316L-type austenitic stainless steels. Nevertheless, the chemical compositions of the standard steel and those used for AM-fabrication correspond to AF and FA solidification modes (Table 3). Thus, the ferritic phase is expected in additively manufactured parts (ferrite is a ferromagnetic phase), which eliminates the main advantage of the AISI 316L type stainless steel.
To date, different AM methods have been successfully utilized for fabrication of the AISI 316L type stainless steel. Some of them demonstrated that the heterophase structures form in AM production of the type 316 steel, but relative to the 304L/308L steel, a portion of intermetallic σ-phase often forms additionally to δ-ferrite (due to the increased Ni and Mo content in the steel composition).
Using WAAM technique, the billets with austenitic structure containing about 4–5 vol% of ferritic phase have been obtained in different research groups [27,57,58]. Chen et al. [26] used the WAAM method (gas metal arc additive manufacturing—GMA-AM) to produce the billet of AISI 316L steel with the following composition: Fe-18.74Cr-11.82Ni-2.67Mo-1.55Mn-0.56Si-0.17Cu-0.03P-0.0014C (wt.%, Creq/Nieq = 1.76). The resulting steel billet was characterized by predominantly austenitic structure, but columnar γ-phase grains contained ferrite of fine vermicular morphology and σ-phase along austenite-ferrite boundaries (Figure 8a). The authors did not show the accurate volume content of δ- and σ-phases, but according to the microscopic analysis it was about 10 vol.%. Post-built heat treatment changes volume content of ferritic and intermetallic phases [59]:
-
1-h annealing at the temperature of 1000 °C increases content of σ-phase and leads to a spheroidization of ferritic grains (Figure 8a); and
-
1-h annealing in the temperature range of 1100–1200 °C provides a complete dissolution of σ-phase and decrease in volume content of ferrite.
Despite the variation in δ- and σ-phases, heat treatment for 1 h in the temperature range 1000–1200 °C does not affect the columnar austenitic grain structure, but 4 h annealing at a temperature 1200 °C leads to formation of equiaxed coarse austenitic grain structure with complete dissolution of δ- and σ-phases (Figure 8c) [59].
In [21] the authors utilized the direct laser deposition for fabrication of AISI 316L stainless steel. Gas-atomized powder of the following chemical composition was used: Fe-19.95Cr-10.87Ni-2.45Mo-1.41Mn-0.61Si-0.042C-0.025P-0.011S (wt.%, Creq/Nieq = 1.82). After AM-building, steel billet has primarily austenitic structure with approximately 5–10 vol.% of ferritic phase. Ferrite arises due to the high Creq/Nieq ratio (1.82, Table 3), but post-building heat treatment at 1150 °C allows it to decrease significantly (Figure 9). In [60], laser engineering net shaping AM was utilized for building billets of AISI 316L steel. Steel had austenitic structure with intercellular ferritic and σ-(FeCr) phases on subgrain boundaries (Figure 10). Saeidi et al. [51,61] used powder-feed laser melting AM for producing billets of AISI 316L billets with coarse-grained columnar austenitic structure (average grain size was 10–100 µm) with a small amount of ferritic phase and Cr-containing silicate nano-inclusions in the austenite lattice. Austenitic grains had subgrain structure with subgrain size about 0.5 µm and subgrain boundaries enriched with Mo.
In some research groups, near single phase (δ-ferrite and σ-phase free) steel billets have been obtained. Barkia et al. [19] utilized a powder-feed direct laser deposition technique for producing the billets of AISI 316L steel. Powder of AISI 316L austenitic stainless steel (Fe-17.7Cr-12.6Ni-2.33Mo-0.58Si-0.29Mn-0.15Co-0.026S-0.026V-0.024Cu-0.01P0.016C, wt.%, Creq/Nieq = 1.58) with particle sizes of 45–106 µm was used as the raw material. The produced billets with the 99.7% density had no voids and pores, and they possessed fully austenitic structure with nanosized Si-containing oxides and metal-reached precipitates located in the grain boundaries (Figure 11). Ganesh et al. [62,63] obtained fully austenitic billets of AISI316L stainless steel using powder-feed laser rapid manufacturing. A similar result was obtained by Zhong et al. [20], who used the powder feed EBAM for fabrication of Fe-17.4Cr-12.4Ni-2.5Mo-1.5Mn-0.53Si-0.06N-0.053Cu-0.53Si-0.02C (wt.%) steel. Using laser powder bed fusion AM technique and SLM, Zhang [56] and Bahl et al. [64] obtained fully austenitic structure in AISI 316L stainless steel despite the FA solidification mode (Creq/Nieq = 1.53).
Several studies were focused on the effect of AM-processing parameters on the phase composition of 316-type steels. In [14] the authors showed that scanning strategy during the SLM process does not affect phase composition of AM AISI 316L steel, which had austenitic structure.
Wen et al. [55] has shown that in WAAM-fabricated AISI 316LN steel (Fe-18.39Cr-12.5Ni-2.25Mo-1.69Mn-0.81Si-0.02C-0.015S-0.015P-0.013N, wt.%), the volume content of δ-ferrite (17.3–17.7 vol.%) does not depend on the linear heat input (LHI) value, which influences the distance between austenitic dendrites only. This distance increases from 18 to 23 µm with the increase in LHI from 219 to 590 J/mm due to the decrease in cooling rate and the fact that the cooling time does not last long enough for large austenitic dendrites formation (Figure 12).
Yang et al. [28] investigated the influence of arc current on structure and corrosion resistance of WAAM-fabricated AISI 316 L steel (Fe-18.42Cr-12.28Ni-2.46Mo-1.55Mn-0.78Si-0.02C, wt.%, Creq/Nieq = 1.5). They pointed out that for the arc current changing from 140 to 180 A, the decrease in cooling rate provides the reduced volume fraction of ferrite. Morphology of ferritic phase also changes from lathy to skeleton one and σ-phase forms with increase in arc current. Kurzynowski et al. [14] have shown that due to high cooling rates in the SLM process the primary austenite formation dominates despite FA solidification mode according to the chemical composition of the powder (316 L steel, Creq/Nieq = 1.42). Non-equilibrium ferritic phase is formed in intercellular austenitic regions, and volume content of δ-phase decreases with the increase in laser power (Figure 13).
Strength properties of the AM-produced specimens of type 316 steel are comparable or even better than those of wrought AISI 316L steel (Table 4). Produced steel [14,21,26,60] had high strength properties but lower ductility in comparison with conventionally produced counterparts. Intermetallic σ-phase, ferritic phase, Mo and Cr segregation in intercellular boundaries all increase microhardness and ultimate tensile strength of AM specimens, but reduce corrosion resistance [59] and ductility [14,26]. Ferrite and σ-phase both disimproves the corrosion resistance of AM-fabricated AISI 316LN steel due to depletion of austenitic phase by Cr and Mo atoms, which segregate in the ferritic phase [28,55].
Analysis of Creq/Nieq ratio for different 316-type steel compositions and phase compositions of the AM-fabricated materials shows that independently on solidification mode (in particular, FA mode in [19] and AF one in [20]), powder-feed technologies allow the obtaining of ferrite-free AISI 316L austenitic stainless steel. Moreover, rather simple post-processing heat treatment allows the elimination of undesirable phases and the obtaining of single-phase austenitic structure in AM-billets, in which the heterophase structure forms in AM-fabrication. But existing data are still not enough for comprehensive analysis of the effect of AM-producing methods and regimes on phase composition and mechanical properties of the 316-type steel.

5. Conclusions and Possible Trends of Investigations

A comprehensive analysis on the influence of AM techniques and process parameters on the microstructure and mechanical properties of additively manufactured austenitic stainless steels of 300-series was done with the focus on phase composition of the AM-products. During AM fabrication, the final phase composition of the steels depends on a large number of different factors, including: (1) chemical composition of the steel, which defines the solidification mode; and (2) AM technology and AM process parameters, which are responsible for thermal history of the AM billets. The combination of these factors governs the properties of steel components, which could have either fully austenitic or heterophase structure (austenite, ferrite, σ-phase, and segregations of alloying elements on interphase boundaries).
The goal in AM-producing of the CrNi austenitic stainless steels (type AISI 304, 308 and 316) is obtaining near single-phase austenitic structure possessing strength and ductility similar to those obtained in conventional metallurgy. Using powder bed AM methods, the authors have obtained fully austenitic structures using powder bed AM methods even for the compositions with high Creq/Nieq ratios, corresponding to FA or even F solidification mode [11,14,56]. Contrarily, in wire-feed electron beam or arc AM, the large volume fraction of δ-ferrite phase (up to 20%) is formed (see, for instance, [7,8,26,55]). Despite this fact, the choice of specific method of AM production does not guarantee the proper phases. Presence of δ-ferrite and σ-phase is determined by both the chemical composition of raw materials and fabrication method, as well as by dimensions of the printed part and parameters of the AM process (cooling rate, heat input, deposition rate, etc.).
The direct comparison of the mechanical properties of the steel products fabricated in different AM methods shows that δ- and σ-phases could have both positive and negative effects. Ferritic dendrites, small intermetallic particles, and segregations of alloying elements (such as Cr, Mo, Si, etc.) all increase strength characteristics of AM-fabricated steels (Table 2 and Table 4) but decreases ductility and corrosion resistance relative to the conventionally produced counterparts. So, depending on the target characteristics of additively produced parts these factors should be considered.
Possible promising trends of future investigations in the field of additive manufacturing of chromium-nickel austenitic stainless steels could be focused on searching for the ways of obtaining fully austenitic homogeneous isotropic structures. In particular, the problem could be solved in different ways:
-
by choosing the appropriate chemical composition of the raw material with low Creq/Nieq ratio, adding the nickel powder/wire or other austenite-forming elements (manganese, nitrogen, etc.) to the raw material;
-
by optimization of parameters of AM process; and
-
by development of the post-processing treatments.

Author Contributions

Conceptualization, E.A.; Investigation, S.A.; Supervision, E.A.; Writing—original draft, S.A.; Writing—review and editing, E.A. Both authors have read and agreed to the published version of the manuscript.

Funding

The work was performed according to the government research assignment for ISPMS SB RAS, project FWRW-2019-0030.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors of the articles from the reference list.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ding, D.; Pan, Z.; Cuiuri, D.; Li, H. Wire-feed additive manufacturing of metal components: Technologies, developments and future interests. Int. J. Adv. Manuf. Technol. 2015, 81, 465–481. [Google Scholar] [CrossRef]
  2. DebRoy, T.; Wei, H.L.; Zuback, J.S.; Mukherjee, T.; Elmer, J.W.; Milewski, J.O.; Beese, A.M.; Wilson-Heid, A.; De, A.; Zhang, W. Additive manufacturing of metallic components—Process, structure and properties. Progr. Mater. Sci. 2018, 92, 112–224. [Google Scholar] [CrossRef]
  3. Calleja-Ochoa, A.; Gonzalez-Barrio, H.; López de Lacalle, N.; Martínez, S.; Albizuri, J.; Lamikiz, A. A new approach in the design of microstructured ultrulight components to achieve maximum functional performance. Materials 2021, 14, 1588. [Google Scholar] [CrossRef]
  4. Li, N.; Huang, S.; Zhang, G.; Qin, R.; Liu, W.; Xiong, H.; Shi, G.; Blackburn, J. Progress in additive manufacturing on new materials: A review. J. Mater. Sci. Technol. 2019, 35, 242–269. [Google Scholar] [CrossRef]
  5. Bajaj, P.; Hariharan, A.; Kini, A.; Kürnsteiner, P.; Raabe, D.; Jägle, E.A. Steels in additive manufacturing: A review of their microstructure and properties. Mater. Sci. Eng. A 2020, 772, 138633. [Google Scholar] [CrossRef]
  6. Frazier, W.E. Metal additive manufacturing: A review. J. Mater. Eng. Perform. 2014, 23, 1917–1928. [Google Scholar] [CrossRef]
  7. Astafurova, E.G.; Panchenko, M.Y.; Moskvina, V.A.; Maier, G.G.; Astafurov, S.V.; Melnikov, E.V.; Fortuna, A.S.; Reunova, K.A.; Rubtsov, V.E.; Kolubaev, E.A. Microstructure and grain growth inhomogeneity in austenitic steel produced by wire-feed electron beam melting: The effect of post-building solid-solution treatment. J. Mater. Sci. 2020, 55, 9211–9224. [Google Scholar] [CrossRef]
  8. Tarasov, S.Y.; Filippov, A.V.; Savchenko, N.L.; Fortuna, S.V.; Rubtsov, V.E.; Kolubaev, E.A.; Psakhie, S.G. Effect of heat input on phase content, crystalline lattice parameter, and residual strain in wire-feed electron beam additive manufactured 304 stainless steel. Int. J. Adv. Manuf. Technol. 2018, 99, 2353–2363. [Google Scholar] [CrossRef]
  9. Lo, K.H.; Shek, C.H.; Lai, J.K.L. Recent developments in stainless steels. Mat. Sci. Eng. R 2009, 65, 39–104. [Google Scholar] [CrossRef]
  10. Bhadeshia, H.; Honeykombe, R. Steels: Microstructure and Properties; Elsevier: Amsterdam, The Netherlands, 2006. [Google Scholar]
  11. Yu, H.; Yang, J.; Yin, J.; Wang, Z.; Zeng, X. Comparison on mechanical anisotropies of selective laser melted Ti-6Al-4V alloy and 304 stainless steel. Mater. Sci. Eng. A 2017, 695, 92–100. [Google Scholar] [CrossRef]
  12. Hou, J.; Chen, W.; Chen, Z.; Zhang, K.; Huang, A. Microstructure, tensile properties and mechanical anisotropy of selective laser melted 304L stainless steel. J. Mater. Sci. Technol. 2020, 48, 63–71. [Google Scholar] [CrossRef]
  13. Zhang, Y.; Huang, W. Comparisons of 304 austenitic stainless steel manufactured by laser metal deposition and selective laser melting. J. Manuf. Proc. 2020, 57, 324–333. [Google Scholar] [CrossRef]
  14. Kurzynowski, T.; Gruber, K.; Stopyra, W.; Kuźnicka, B.; Chlebus, E. Correlation between process parameters, microstructure and properties of 316 L stainless steel processed by selective laser melting. Mater. Sci. Eng. A 2018, 718, 64–73. [Google Scholar] [CrossRef]
  15. Salman, O.O.; Brenne, F.; Niendorf, T.; Eckert, J.; Prashanth, K.G.; He, T.; Scudino, S. Impact of the scanning strategy on the mechanical behavior of 316L steel synthesized by selective laser melting. J. Manuf. Process. 2019, 45, 255–261. [Google Scholar] [CrossRef]
  16. Wang, Z.; Palmer, T.A.; Beese, A.M. Effect of processing parameters on microstructure and tensile properties of austenitic stainless steel 304L made by directed energy deposition additive manufacturing. Acta. Mater. 2016, 110, 226–235. [Google Scholar] [CrossRef] [Green Version]
  17. Brown, D.W.; Adams, D.P.; Balogh, L.; Carpenter, J.S.; Clausen, B.; King, G.; Reedlunn, B.; Palmer, T.A.; Maguire, M.C.; Vogel, S.C. In situ neutron diffraction study of the influence of microstructure on the mechanical response of additively manufactured 304L stainless steel. Metallurg. Mater. Trans. A 2017, 48, 6055–6069. [Google Scholar] [CrossRef]
  18. Melia, M.A.; Nguyen, H.-D.A.; Rodelas, J.M.; Schindelholz, E.J. Corrosion properties of 304L stainless steel made by directed energy deposition additive manufacturing. Corros. Resist. 2019, 152, 20–30. [Google Scholar] [CrossRef]
  19. Barkia, B.; Aubry, P.; Haghi-Ashtiani, P.; Auger, T.; Gosmain, L. On the origin of the high tensile strength and ductility of additively manufactured 316L stainless steel: Multiscale investigation. J. Mater. Sci. Technol. 2020, 41, 209–218. [Google Scholar] [CrossRef]
  20. Zhong, Y.; Rännar, L.-E.; Liu, L.; Koptyug, A.; Wikman, S.; Olsen, J.; Cui, D.; Shen, Z. Additive manufacturing of 316L stainless steel by electron beam melting for nuclear fusion applications. J. Nucl. Mater. 2017, 486, 234–245. [Google Scholar] [CrossRef]
  21. Yadollahi, A.; Shamsaei, N.; Thompson, S.M.; Seely, D.W. Effects of process time interval and heat treatment on the mechanical and microstructural properties of direct laser deposited 316L stainless steel. Mater. Sci. Eng. A 2015, 644, 171–183. [Google Scholar] [CrossRef]
  22. Abioye, T.E.; Medrano-Tellez, A.; Farayibi, P.K.; Oke, P.K. Laser metal deposition of multi-track walls of 308LSi stainless steel. Mater. Manuf. Process. 2017, 32, 1660–1666. [Google Scholar] [CrossRef]
  23. Gordon, J.V.; Haden, C.V.; Nied, H.F.; Vinci, R.P.; Harlow, D.G. Fatigue crack growth anisotropy, texture and residual stress in austenitic steel made by wire and arc additive manufacturing. Mater. Sci. Eng. A 2018, 724, 431–438. [Google Scholar] [CrossRef]
  24. Le, V.T.; Mai, D.S.; Hoang, Q.H. Effects of cooling conditions on the shape, microstructures, and material properties of SS308L thin walls built by wire arc additive manufacturing. Mater. Lett. 2020, 280, 128580. [Google Scholar] [CrossRef]
  25. Li, Y.; Luo, Y.; Li, J.; Song, D.; Xu, B.; Chen, X. Ferrite formation and its effect on deformation mechanism of wire arc additive manufactured 308 L stainless steel. J. Nuclear Mater. 2021, 550, 152933. [Google Scholar] [CrossRef]
  26. Chen, X.; Li, J.; Cheng, X.; He, B.; Wang, H.; Huang, Z. Microstructure and mechanical properties of the austenitic stainless steel 316L fabricated by gas metal arc additive manufacturing. Mater. Sci. Eng. A 2017, 703, 567–577. [Google Scholar] [CrossRef]
  27. Wang, L.; Xue, J.; Wang, Q. Correlation between arc mode, microstructure, and mechanical properties during wire arc additive manufacturing of 316L stainless steel. Mater. Sci. Eng. A 2019, 751, 183–190. [Google Scholar] [CrossRef]
  28. Yang, K.; Wang, Q.; Qu, Y.; Jiang, Y.; Bao, Y. Microstructure and corrosion resistance of arc additive manufactured 316L stainless steel. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2020, 35, 930–936. [Google Scholar] [CrossRef]
  29. Panchenko, M.Y.; Maier, G.G.; Moskvina, V.A.; Melnikov, E.V.; Astafurov, S.V.; Rubtsov, V.E.; Kolubaev, E.A.; Astafurova, E.G. Microstructural inhomogeneity of phase composition and grain structure in electron beam wire-feed additive manufactured AISI 304 stainless steel. AIP Conf. Proc. 2019, 2167, 020261. [Google Scholar]
  30. Moskvina, V.A.; Panchenko, M.Y.; Astafurov, S.V.; Maier, G.G.; Melnikov, E.V.; Rubtsov, V.E.; Kolubaev, E.A.; Astafurova, E.G. A comparative study of the macroscopical and microscopical fracture mechanisms in cast and additively manufactured austenitic stainless steels. AIP Conf. Proc. 2019, 2167, 020234. [Google Scholar]
  31. Kruth, J.-P.; Levy, G.; Klocke, F.; Childs, T.H.C. Consolidation phenomena in laser and powder-bed based layered manufacturing. CIRP Ann. 2007, 56, 730–759. [Google Scholar] [CrossRef]
  32. Suuatala, N.; Takalo, T.; Moisio, T. The relationship between solidification and microstructure in austenitic and austenitic-ferritic stainless steel welds. Metall. Trans. A 1979, 10, 512–514. [Google Scholar] [CrossRef]
  33. Kim, Y.H.; Kim, D.G.; Sung, J.H.; Kim, I.S.; Ko, D.E.; Kang, N.H.; Hong, H.U.; Park, J.H.; Lee, H.W. Influences of Cr/Ni equivalent ratios of filler wires on pitting corrosion and ductility-dip cracking of AISI 316l weld metals. Met. Mater. Int. 2011, 17, 151–155. [Google Scholar] [CrossRef]
  34. Jacob, G. Prediction of solidification phases in Cr-Ni stainless steel alloys manufactured by laser based powder bed fusion process. NIST. Adv. Manuf. Ser. 2018, 100–114, 1–38. [Google Scholar] [CrossRef]
  35. Olson, D.L. Prediction of austenitic weld metal microstructure and properties. Weld. Res. Suppl. 1985, 64, s281–s295. [Google Scholar]
  36. Sindo, K. Welding Metallurgy, 2nd ed.; Willey: New York, NY, USA, 2003. [Google Scholar]
  37. Guan, K.; Wang, Z.; Gao, M.; Li, X.; Zeng, X. Effects of processing parameters on tensile properties of selective laser melted 304 stainless steel. Mater. Des. 2013, 50, 581–586. [Google Scholar] [CrossRef]
  38. Saha, S.; Mukherjee, M.; Pal, T.K. Microstructure, texture, and mechanical property analysis of gas metal arc welded AISI 304 austenitic stainless steel. J. Mater. Eng. Perfom. 2015, 24, 1125–1139. [Google Scholar] [CrossRef]
  39. Olson, G.B.; Cohen, M. A mechanism for the strain-induced nucleation of martensitic transformations. J. Less Common Met. 1972, 28, 107–118. [Google Scholar] [CrossRef]
  40. Lecroisey, F.; Pineau, A. Martensitic transformations induced by plastic deformation in the Fe-Ni-Cr-C system. Metallurg. Trans. 1972, 3, 387–396. [Google Scholar] [CrossRef]
  41. Shen, Y.F.; Li, X.X.; Sun, X.; Wang, Y.D.; Zuo, L. Twinning and martensite in a 304 austenitic stainless steel. Mater. Sci. Eng. A 2012, 552, 514–522. [Google Scholar] [CrossRef]
  42. Beese, A.M.; Mohr, D. Effect of stress triaxiality and Lode angle on the kinetics of strain-induced austenite-to-martensite transformation. Acta. Mater. 2011, 59, 2589–2600. [Google Scholar] [CrossRef]
  43. Le, V.T.; Mai, D.S.; Doan, T.K.; Paris, H. Wire and arc additive manufacturing of 308L stainless steel components: Optimization of processing parameters and material properties. Eng. Sci. Technol. Int. J 2021, in press. [Google Scholar]
  44. Tarasov, S.Y.; Filippov, A.V.; Shamarin, N.N.; Fortuna, S.V.; Maier, G.G.; Kolubaev, E.A. Microstructural evolution and chemical corrosion of electron beam wire-feed additively manufactured AISI 304 stainless steel. J. Alloy. Comp. 2019, 803, 364–370. [Google Scholar] [CrossRef]
  45. Zhao, J.; Hou, J.; Chen, L.; Dai, B.; Xiong, X.; Tan, L.; Xhang, K.; Huang, A. Evaluating impact performance of a selective laser melted 304L stainless steel with weak texture. Mater. Today Commun. 2020, 25, 101299. [Google Scholar] [CrossRef]
  46. Li, M.; Lu, T.; Dai, J.; Jia, X.; Gu, X.; Dai, T. Microstructure and mechanical properties of 308L stainless steel fabricated by laminar plasma additive manufacturing. Mater. Sci. Eng. A 2020, 770, 138523. [Google Scholar] [CrossRef]
  47. Panchenko, M.Y.; Moskvina, V.A.; Astafurov, S.V.; Maier, G.G.; Melnikov, E.V.; Rubtsov, V.E.; Kolubaev, E.A.; Astafurova, E.G. On the influence of post-built heat treatment on strength and ductility of AISI 304 steel produced by electron-beam additive technology. AIP Conf. Proc. 2019, 2167, 020262. [Google Scholar]
  48. Melnikov, E.V.; Astafurova, E.G.; Astafurov, S.V.; Panchenko, M.Y.; Moskvina, V.A.; Maier, G.G.; Astafurov, S.V.; Fortuna, A.S.; Reunova, K.A.; Rubtsov, V.E.; et al. Anisotropy of the tensile properties in austenitic stainless steel obtained by wire-feed electron beam additive growth. Lett. Mater. 2019, 9, 460–464. [Google Scholar] [CrossRef] [Green Version]
  49. Fu, J.W.; Yang, Y.S. Origin of the lathy ferrite in AISI 304 stainless steel during directional solidification. J. Alloy. Comp. 2013, 580, 191–194. [Google Scholar] [CrossRef]
  50. Brown, D.W.; Adams, D.P.; Balogh, L.; Carpenter, J.S.; Clausen, B.; Livescu, V.; Martinez, R.M.; Morrow, B.M.; Palmer, T.A.; Pokharel, R.; et al. Using in situ neutron diffraction to isolate specific features of additively manufactured microstructures in 304L stainless steel and identify their effects on macroscopic strength. Metallurg. Mater. Trans. A. 2019, 50, 3399–3413. [Google Scholar] [CrossRef]
  51. Saeidi, K.; Gao, X.; Zhong, Y.; Shen, Z.J. Hardened austenite steel with columnar sub-grain structure formed by laser melting. Mater. Sci. Eng. A 2015, 625, 221–229. [Google Scholar] [CrossRef]
  52. Godec, M.; Zaefferer, S.; Podgornik, B.; Šinko, M.; Tchernychova, E. Quantitative multiscale correlative microstructure analysis of additive manufacturing of stainless steel 316L processed by selective laser melting. Mater. Charact. 2020, 160, 110074. [Google Scholar] [CrossRef]
  53. Lima, M.S.F.; Sankaré, S. Microstructure and mechanical behavior of laser additive manufactured AISI 316 stainless steel stringers. Mater. Des. 2014, 55, 526–532. [Google Scholar] [CrossRef]
  54. Pinto, F.C.; Souza Filho, I.R.; Sandim, M.J.R.; Sandim, H.R.Z. Defects in parts manufactured by selective laser melting caused by δ-ferrite in reused 316L steel powder feedstock. Addit. Manuf. 2020, 31, 100979. [Google Scholar] [CrossRef]
  55. Wen, D.; Long, P.; Li, J.; Huang, L.; Zheng, Z. Effects of linear heat input on microstructure and corrosion behavior of an austenitic stainless steel processed by wire arc additive manufacturing. Vacuum 2020, 173, 109131. [Google Scholar] [CrossRef]
  56. Zhang, X.; Kenesei, P.; Park, J.-S.; Almer, J.; Li, M. In situ high-energy X-ray study of deformation mechanisms in additively manufactured 316L stainless steel. J. Nucl. Mater. 2021, 549, 152874. [Google Scholar] [CrossRef]
  57. Chen, J.; Wei, H.; Zhang, X.; Peng, Y.; Kong, J.; Wang, K. Flow behavior and microstructure evolution during dynamic deformation of 316 L stainless steel fabricated by wire and arc additive manufacturing. Mater. Des. 2021, 198, 109325. [Google Scholar] [CrossRef]
  58. Chen, J.; Wei, H.; Bao, K.; Xhang, X.; Cao, Y.; Peng, Y.; Kong, J.; Wang, K. Dynamic mechanical properties of 316L stainless steel fabricated by an additive manufacturing process. J. Mater. Res. Technol. 2021, 11, 170–179. [Google Scholar] [CrossRef]
  59. Chen, X.; Li, J.; Cheng, X.; Wang, H.; Huang, Z. Effect of heat treatment on microstructure, mechanical and corrosion properties of austenitic stainless steel 316L using arc additive manufacturing. Mater. Sci. Eng. A 2018, 715, 307–314. [Google Scholar] [CrossRef]
  60. Zietala, M.; Durejko, T.; Polański, M.; Kunce, I.; Płociński, T.; Zieliński, W.; Łazińska, M.; Stępniowski, W.; Czujko, T.; Kurzydłowski, K.J.; et al. The microstructure, mechanical properties and corrosion resistance of 316 L stainless steel fabricated using laser engineered net shaping. Mater. Sci. Eng. A 2016, 677, 1–10. [Google Scholar] [CrossRef]
  61. Saeidi, K.; Gao, X.; Lofaj, F.; Kvetková, L.; Shen, Z.J. Transformation of austenite to duplex austenite-ferrite assembly in annealed stainless steel 316L consolidated by laser melting. J. Alloy. Comp. 2015, 633, 463–469. [Google Scholar] [CrossRef]
  62. Ganesh, P.; Giri, R.; Kaul, R.; Ram Sankar, P.; Tiwari, P.; Atulkar, A.; Porwal, R.K.; Dayal, R.K.; Kukreja, L.M. Studies on pitting corrosion and sensitization in laser rapid manufactured specimens of type 316L stainless steel. Mater. Des. 2012, 39, 509–521. [Google Scholar] [CrossRef]
  63. Ganesh, P.; Kaul, R.; Sasikala, G.; Kumar, H.; Venugopal, S.; Tiwari, P.; Rai, S.; Prasad, R.C.; Kukreja, L.M. Fatigue crack propagation and fracture toughness of laser rapid manufactured structures of AISI 316L stainless steel. Metallogr. Microstruct. Anal. 2014, 3, 36–45. [Google Scholar] [CrossRef]
  64. Bahl, S.; Mishra, S.; Yaza, K.U.; Kola, I.R.; Chatterjee, K.; Suwas, S. Non-equilibrium microstructure, crystallographic texture and morphological texture synergistically result in unusual mechanical properties of 3D printed stainless steel. Addit. Manuf. 2019, 28, 65–77. [Google Scholar] [CrossRef]
  65. Zhang, K.; Wang, S.; Liu, W.; Shang, X. Characterization of stainless steel parts by laser metal deposition shaping. Mater. Des. 2014, 55, 104–119. [Google Scholar] [CrossRef]
  66. Astafurov, S.V.; Maier, G.G.; Melnikov, E.V.; Moskvina, V.A.; Panchenko, M.Y.; Astafurova, E.G. The strain-rate dependence of the Hall-Petch effect in two austenitic stainless steels with different stacking fault energies. Mater. Sci. Eng. A 2019, 756, 365–372. [Google Scholar] [CrossRef]

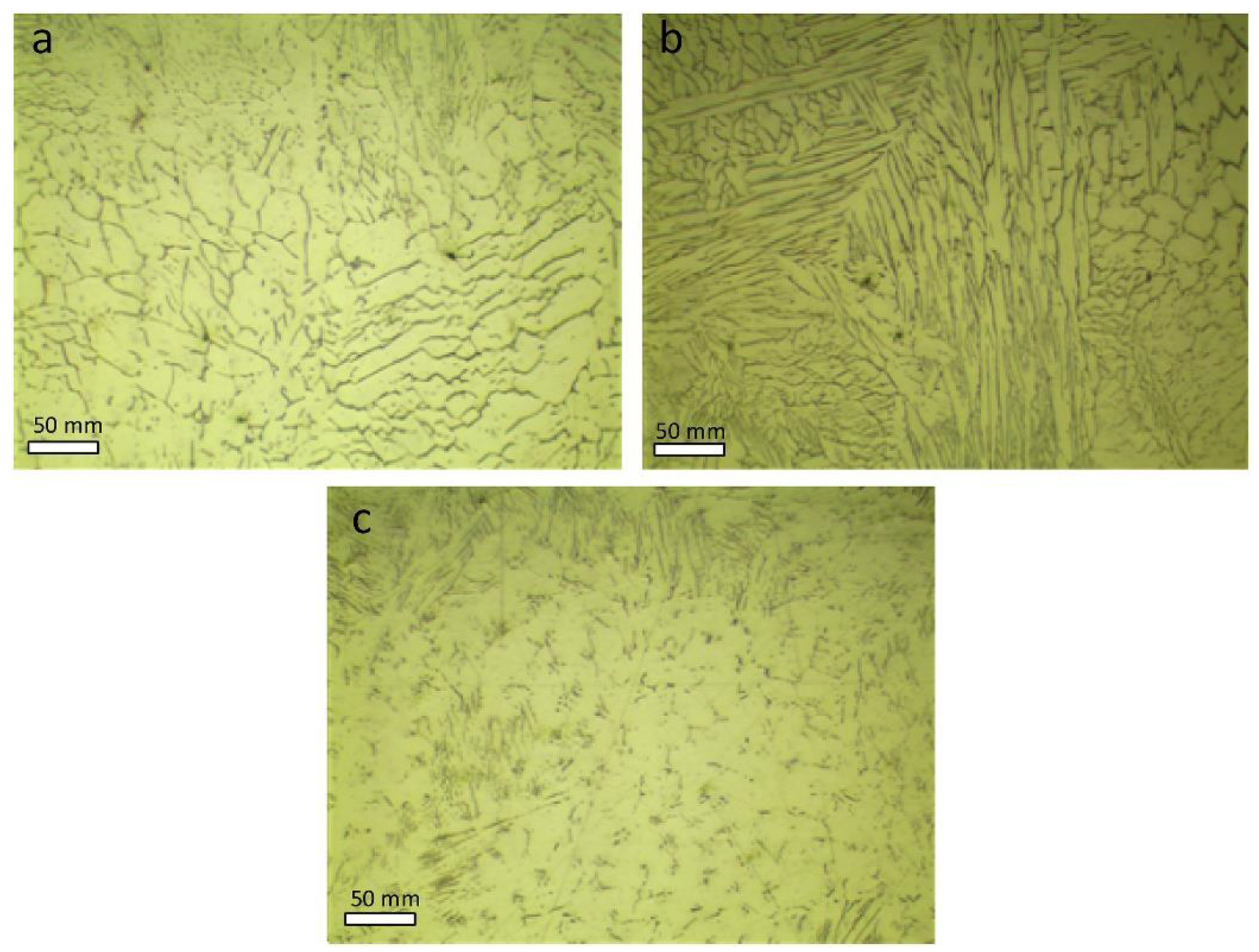

Metals 11 01052 g001 550
Figure 1. Optical images of the etched austenite + vermicular ferrite microstructure images of AM samples of the AISI 304 steel grown at heat input values (a) 0.22, (b) 0.25, and (c) 0.27 kJ/mm as viewed along the build-up direction. Reprinted with permission from [8], Copyright 2019 Elsevier.
Figure 1. Optical images of the etched austenite + vermicular ferrite microstructure images of AM samples of the AISI 304 steel grown at heat input values (a) 0.22, (b) 0.25, and (c) 0.27 kJ/mm as viewed along the build-up direction. Reprinted with permission from [8], Copyright 2019 Elsevier.
Metals 11 01052 g001
Metals 11 01052 g002 550
Figure 2. Light microscopy images (a,b) and scanning electron microscopy backscattered electron images (c,d) of as-built specimens. All images correspond to a cross-sectional surface along the building direction and transverse to the layers. Reprinted with permission from [7], Copyright 2020 Springer Nature.
Figure 2. Light microscopy images (a,b) and scanning electron microscopy backscattered electron images (c,d) of as-built specimens. All images correspond to a cross-sectional surface along the building direction and transverse to the layers. Reprinted with permission from [7], Copyright 2020 Springer Nature.
Metals 11 01052 g002

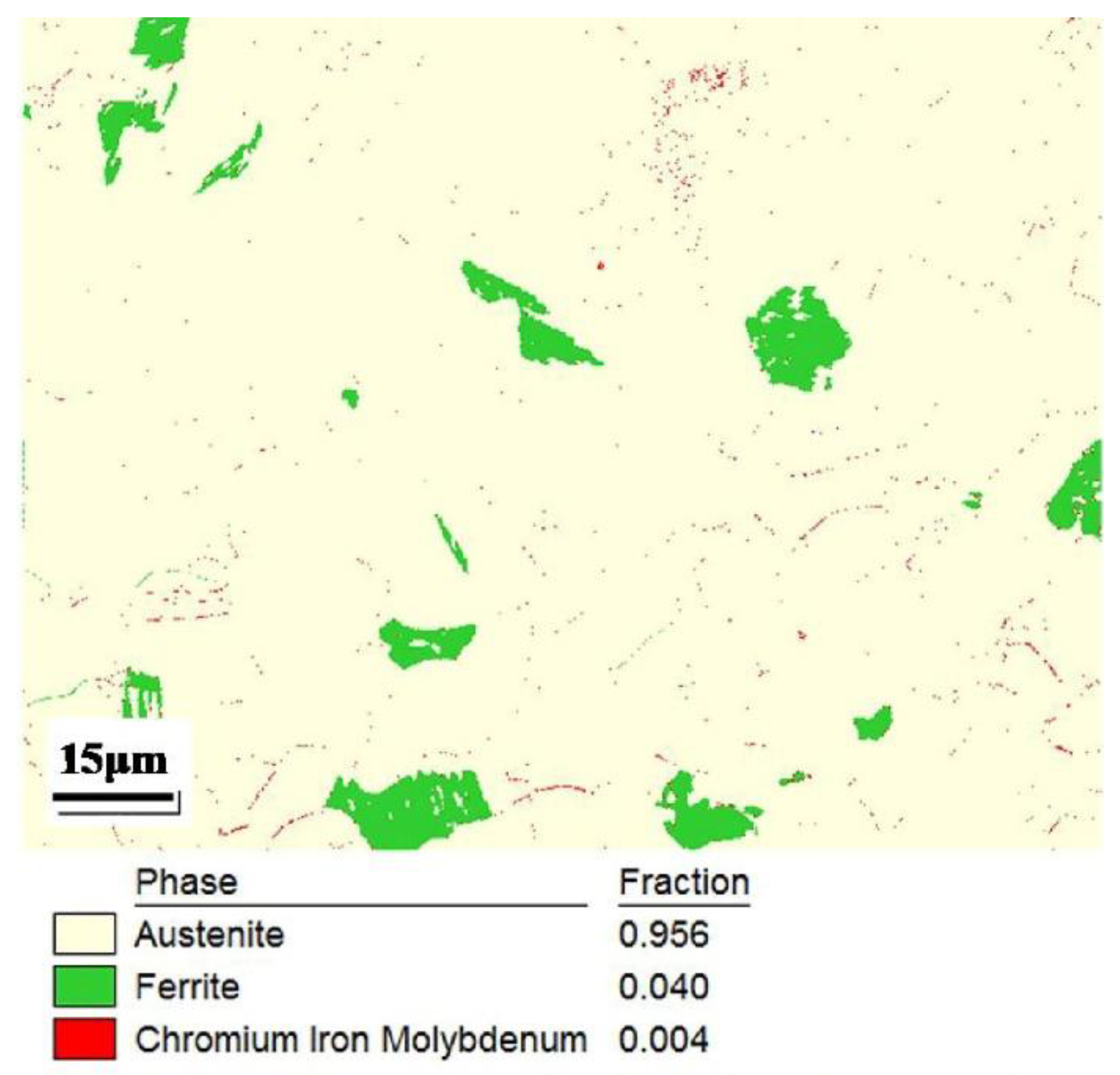

Metals 11 01052 g003 550
Figure 3. EBSD results of phase distribution map with the ferrite in green, σ phase in red, and austenite matrix in canary as shown by the color coding. Reprinted with permission from [12], Copyright 2020 Elsevier.
Figure 3. EBSD results of phase distribution map with the ferrite in green, σ phase in red, and austenite matrix in canary as shown by the color coding. Reprinted with permission from [12], Copyright 2020 Elsevier.
Metals 11 01052 g003

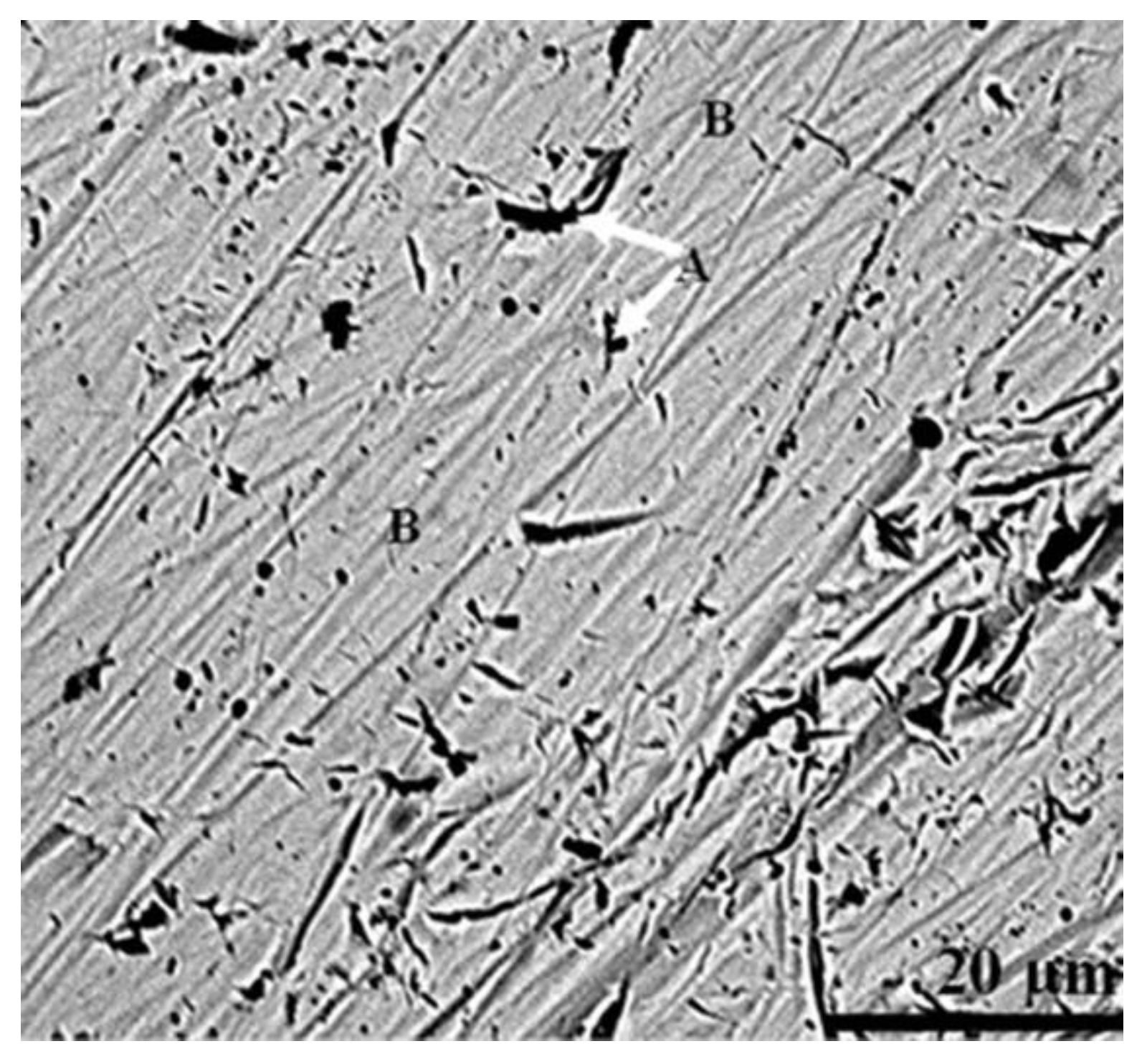

Metals 11 01052 g004 550
Figure 4. Scanning electron microscopy/back scattered electron image of the core region of the cross-sectioned single laser track of AISI 308LSi. A–ferrite, B–austenite. Reprinted with permission from [22], Copyright 2017 Taylor and Francis.
Figure 4. Scanning electron microscopy/back scattered electron image of the core region of the cross-sectioned single laser track of AISI 308LSi. A–ferrite, B–austenite. Reprinted with permission from [22], Copyright 2017 Taylor and Francis.
Metals 11 01052 g004

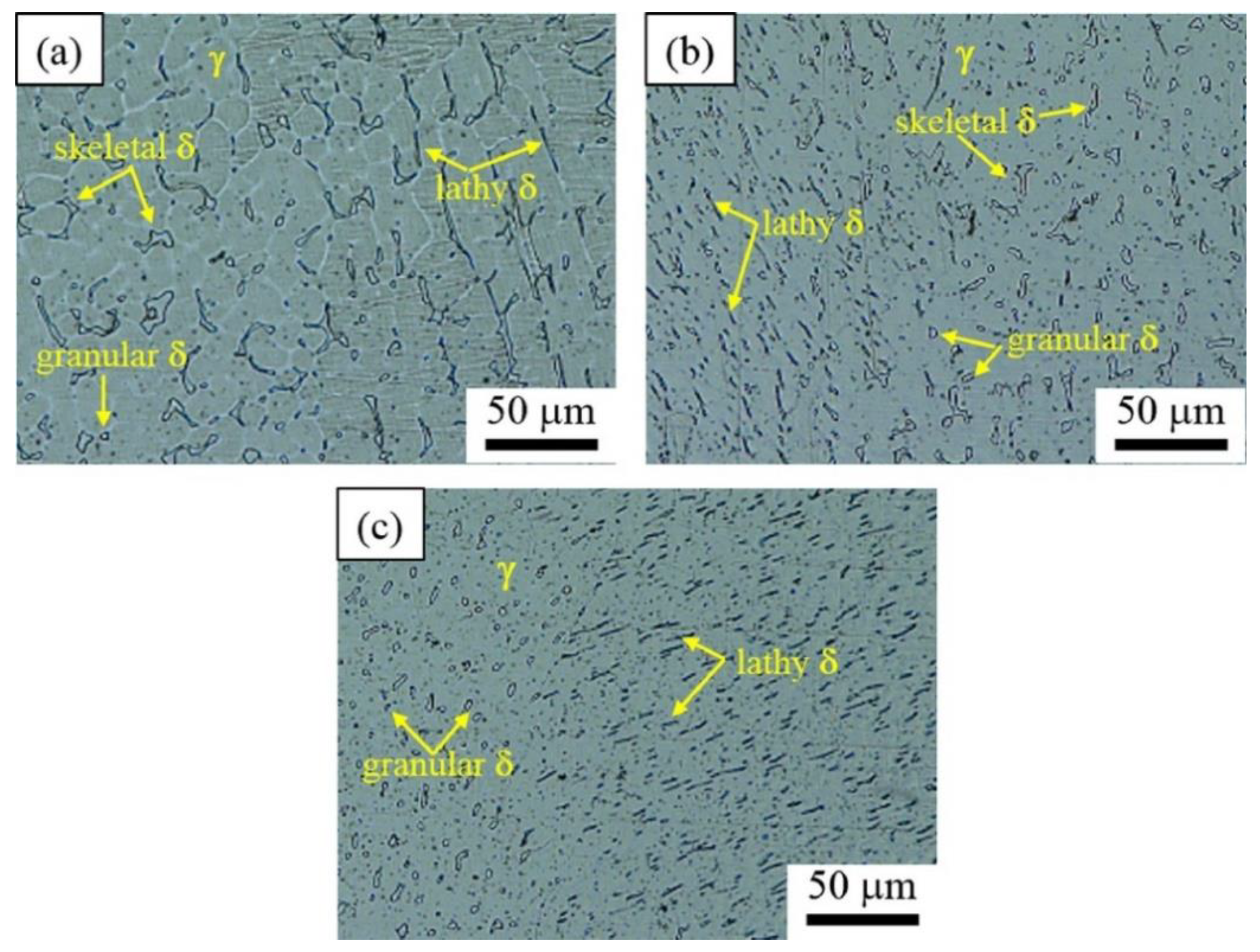

Metals 11 01052 g005 550
Figure 5. Microstructure of WAAM 308 L stainless steel characterized by optical microscopy at (a) top layer, (b) middle layer, and (c) bottom layer. Reprinted with permission from [25], Copyright 2021 Elsevier.
Figure 5. Microstructure of WAAM 308 L stainless steel characterized by optical microscopy at (a) top layer, (b) middle layer, and (c) bottom layer. Reprinted with permission from [25], Copyright 2021 Elsevier.
Metals 11 01052 g005
Metals 11 01052 g006 550
Figure 6. XRD patterns (Cu-Kα) of samples at (a) different height and curves of engineering stress vs. (b) engineering strain for wire-feed laminar plasma AM AISI308L steel. Reprinted with permission from [46], Copyright 2020 Elsevier.
Figure 6. XRD patterns (Cu-Kα) of samples at (a) different height and curves of engineering stress vs. (b) engineering strain for wire-feed laminar plasma AM AISI308L steel. Reprinted with permission from [46], Copyright 2020 Elsevier.
Metals 11 01052 g006
Metals 11 01052 g007 550
Figure 7. Macroscopic stress/strain curves for AM-fabricated 304L steel in dependence on post-built heat treatments. The stress drops are due to relaxation during the neutron diffraction data collection periods which were made in the authors’ experiments. Reprinted with permission from [50], Copyright 2019 Springer Nature.
Figure 7. Macroscopic stress/strain curves for AM-fabricated 304L steel in dependence on post-built heat treatments. The stress drops are due to relaxation during the neutron diffraction data collection periods which were made in the authors’ experiments. Reprinted with permission from [50], Copyright 2019 Springer Nature.
Metals 11 01052 g007
Metals 11 01052 g008 550

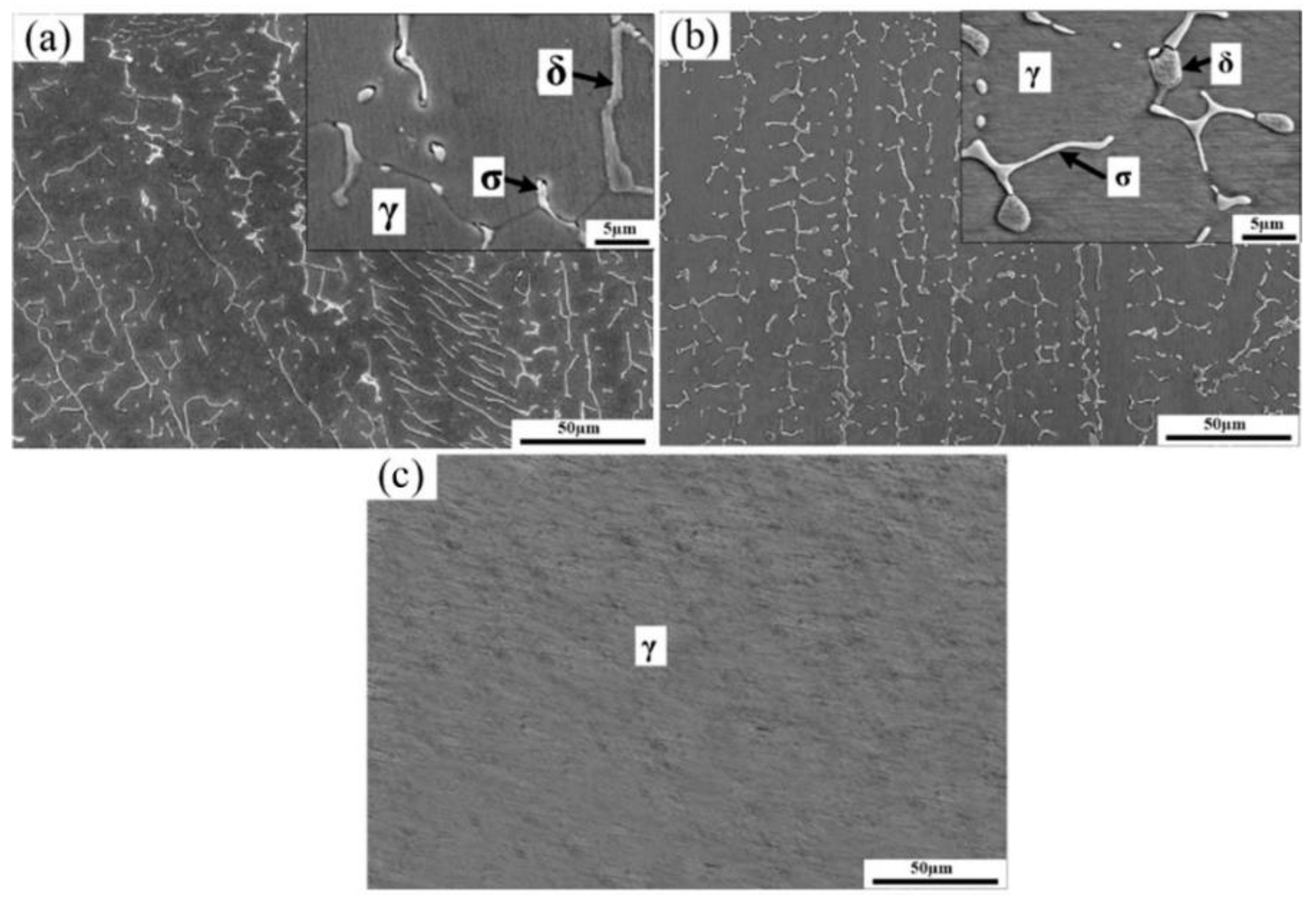

Figure 8. Microstructures of as-deposited and heat-treated GMA-AM 316L: (a) as-deposited, (b) solid solution treatment 1000 °C/1 h, water quenching (WQ), and (c) 1200 °C/4 h, WQ. Reprinted with permission from [59], Copyright 2018 Elsevier.
Figure 8. Microstructures of as-deposited and heat-treated GMA-AM 316L: (a) as-deposited, (b) solid solution treatment 1000 °C/1 h, water quenching (WQ), and (c) 1200 °C/4 h, WQ. Reprinted with permission from [59], Copyright 2018 Elsevier.
Metals 11 01052 g008
Metals 11 01052 g009 550
Figure 9. EBSD phase fraction map of a selected area in (a) the middle region of a single-built sample and in (b) the bottom region of a single-built sample after heat treatment. Reprinted with permission from Ref. [21]. Copyright 2015 Elsevier.
Figure 9. EBSD phase fraction map of a selected area in (a) the middle region of a single-built sample and in (b) the bottom region of a single-built sample after heat treatment. Reprinted with permission from Ref. [21]. Copyright 2015 Elsevier.
Metals 11 01052 g009
Metals 11 01052 g010 550

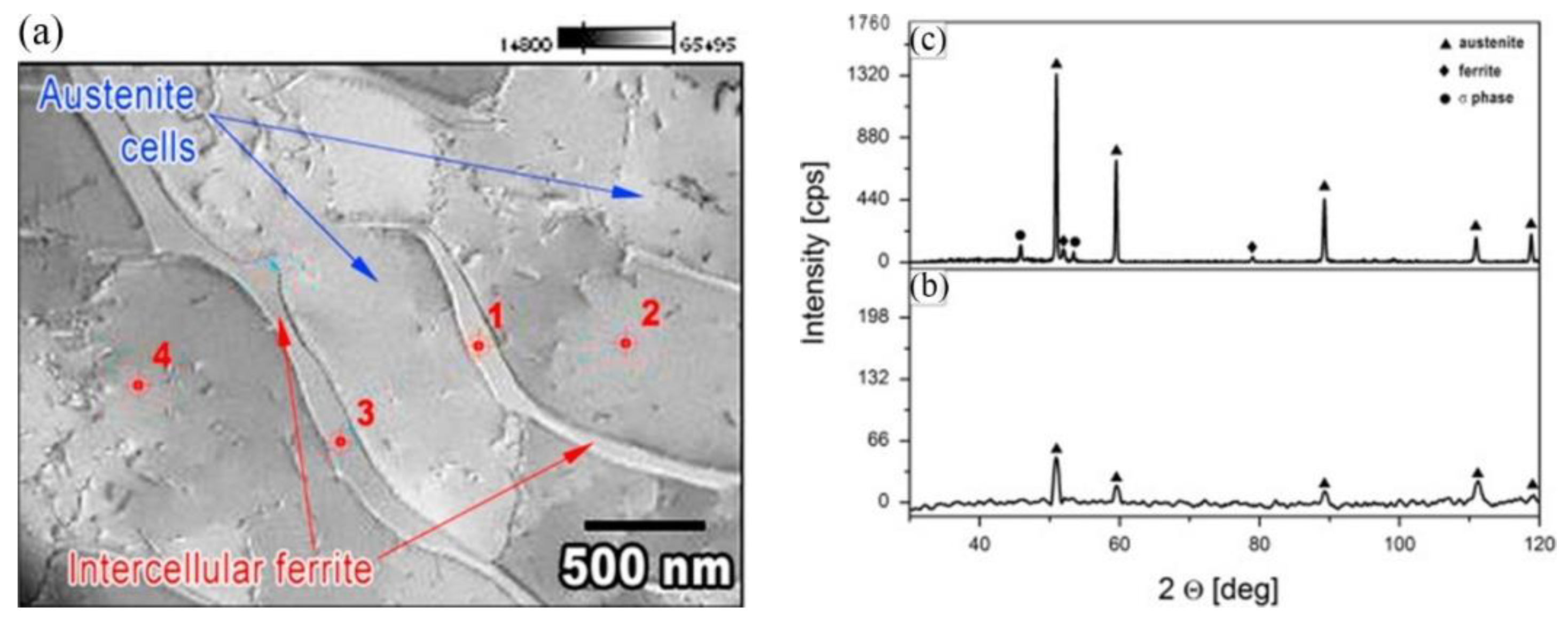

Figure 10. Microstructure of the 316 L stainless steel samples produced using (a) the laser ingineered net shaping technique and (b) X-ray diffraction patterns of the 316 L stainless steel powder, and (c) sample obtained using the LENS technique. Reprinted with permission from [60], Copyright 2016 Elsevier.
Figure 10. Microstructure of the 316 L stainless steel samples produced using (a) the laser ingineered net shaping technique and (b) X-ray diffraction patterns of the 316 L stainless steel powder, and (c) sample obtained using the LENS technique. Reprinted with permission from [60], Copyright 2016 Elsevier.
Metals 11 01052 g010
Metals 11 01052 g011 550

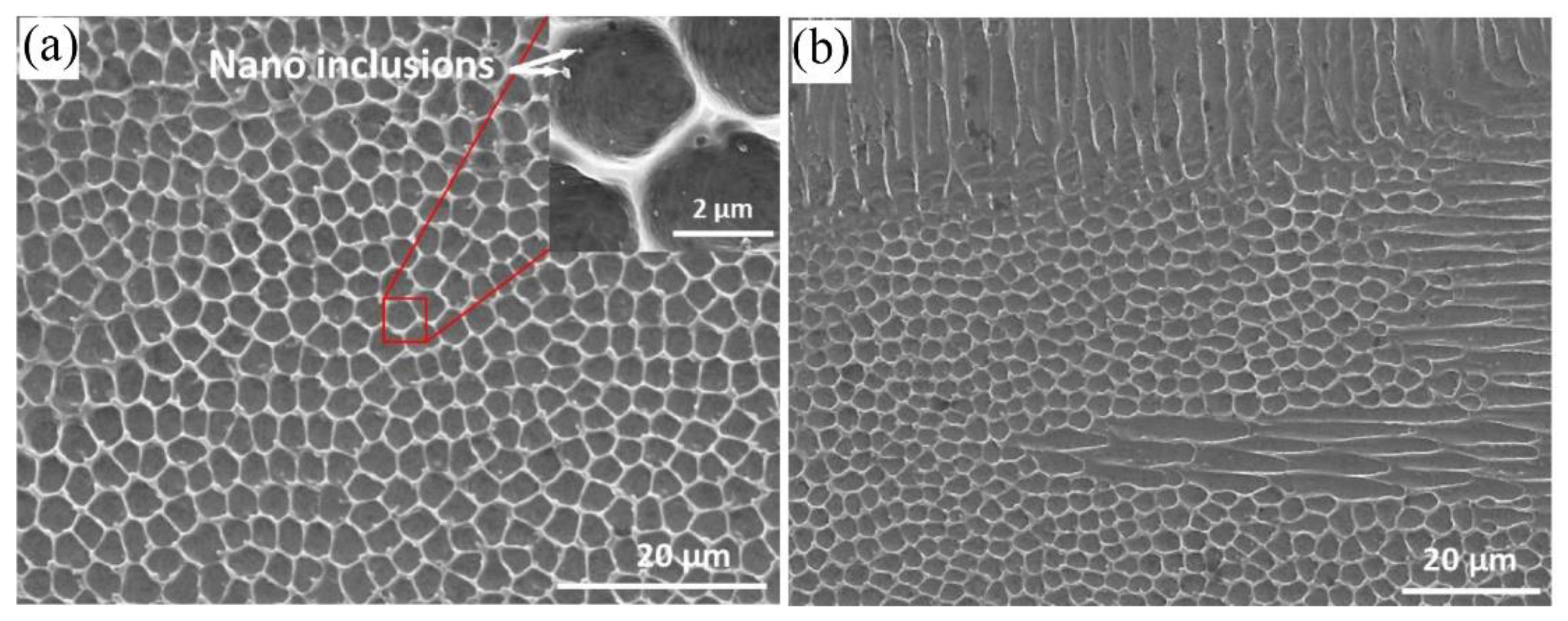

Figure 11. SEM images illustrating the typical cellular microstructure of powder-feed direct laser deposited AISI 316L steel: (a) equiaxed cells; and (b) evidence of elongated cells at the melt pool boundaries. Reprinted with permission from [19], Copyright 2020 Elsevier.
Figure 11. SEM images illustrating the typical cellular microstructure of powder-feed direct laser deposited AISI 316L steel: (a) equiaxed cells; and (b) evidence of elongated cells at the melt pool boundaries. Reprinted with permission from [19], Copyright 2020 Elsevier.
Metals 11 01052 g011
Metals 11 01052 g012 550

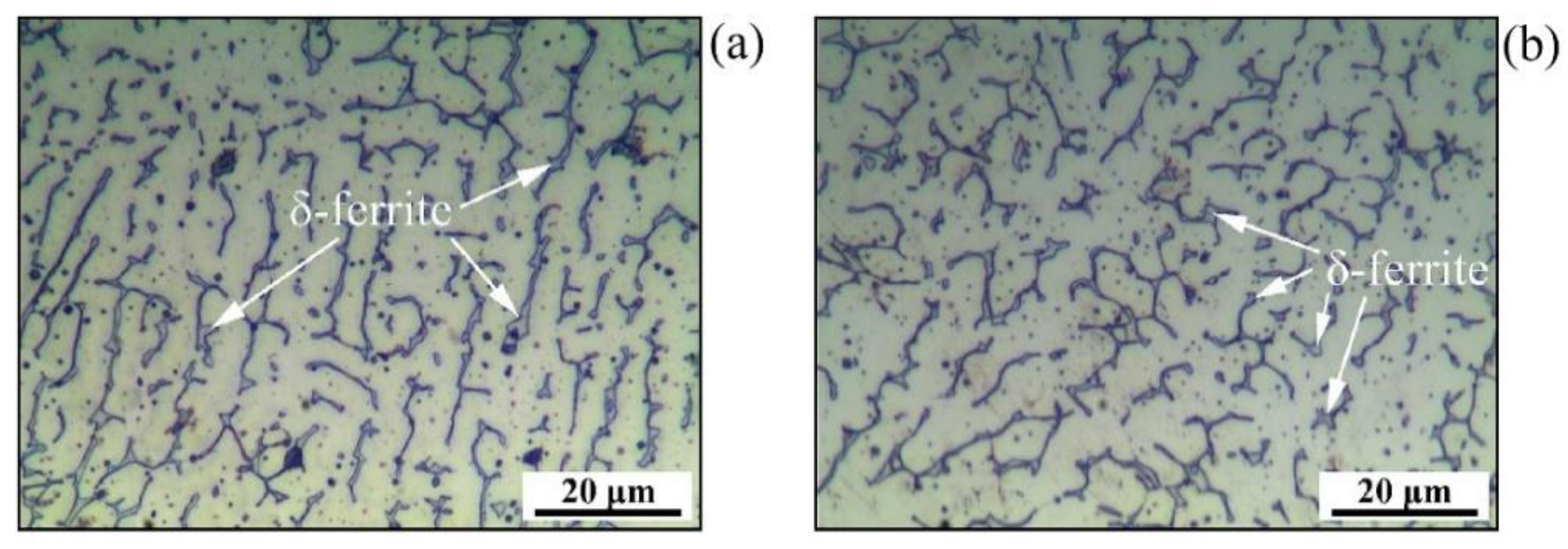

Figure 12. Microstructure of the WAAM 316L stainless steel under (a) high heat input and (b) low heat input. Reprinted with permission from [55], Copyright 2020 Elsevier.
Figure 12. Microstructure of the WAAM 316L stainless steel under (a) high heat input and (b) low heat input. Reprinted with permission from [55], Copyright 2020 Elsevier.
Metals 11 01052 g012
Metals 11 01052 g013 550

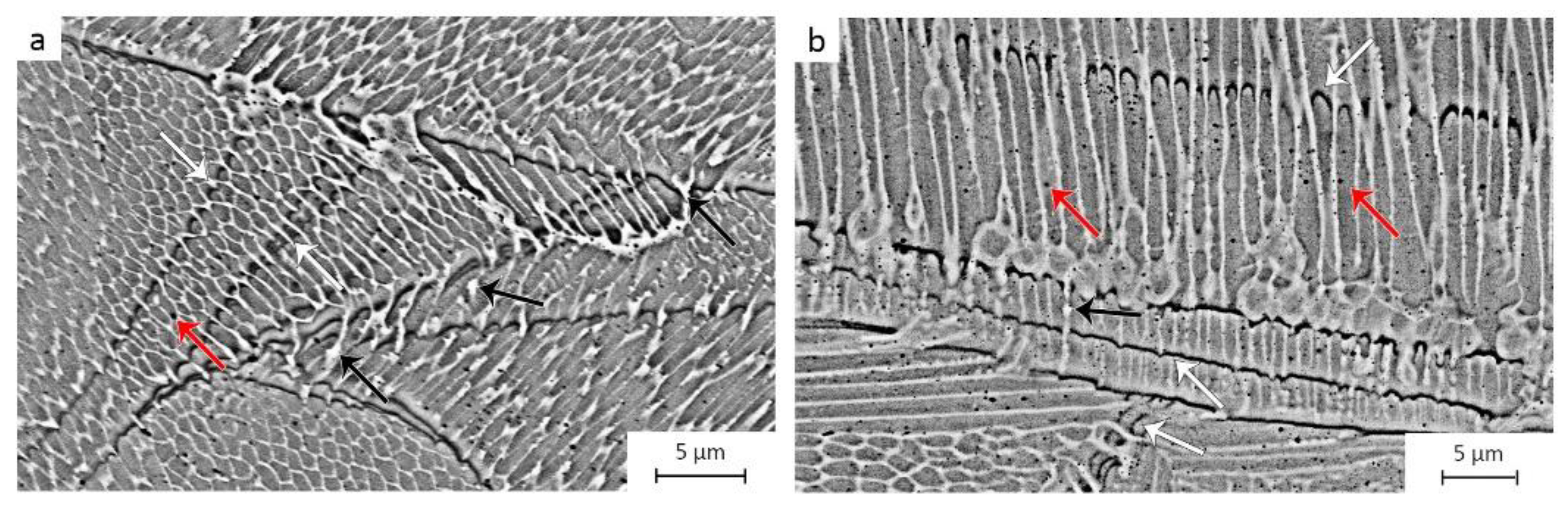

Figure 13. Backscattered SEM images of as-built microstructures showing cellular substructure in xz plane of specimens: (a) Laser power 100 W and (b) Laser power 200 W. White arrows indicate segregation traces at cells tips (solute banding lines), black arrows—eutectic δ-ferrite, and red arrows—nanoinclusions. Reprinted with permission from [14], Copyright 2018 Elsevier.
Figure 13. Backscattered SEM images of as-built microstructures showing cellular substructure in xz plane of specimens: (a) Laser power 100 W and (b) Laser power 200 W. White arrows indicate segregation traces at cells tips (solute banding lines), black arrows—eutectic δ-ferrite, and red arrows—nanoinclusions. Reprinted with permission from [14], Copyright 2018 Elsevier.
Metals 11 01052 g013
Table
Table 1. Chemical compositions (wt.%, Fe balanced) and corresponding values of Creq/Nieq ratio for AISI 304 and 308 type austenitic stainless steels used for AM. AF—austenite-ferrite solidification mode, FA—ferrite-austenite solidification mode, F—ferrite solidification mode. Data are adapted from [8,12,16,18,22,25,43,44,45,46].
Table 1. Chemical compositions (wt.%, Fe balanced) and corresponding values of Creq/Nieq ratio for AISI 304 and 308 type austenitic stainless steels used for AM. AF—austenite-ferrite solidification mode, FA—ferrite-austenite solidification mode, F—ferrite solidification mode. Data are adapted from [8,12,16,18,22,25,43,44,45,46].
Ref.CrNiMnSiMoNCCreq/Nieq, Solidification Mode
AISI 304
Standard18–208–11≤2≤1-≤0.1≤0.08-
[8,44]18.49.51.40.8--0.121.42, AF
AISI 304L
Standard18–208–12≤2≤1-≤0.1≤0.03-
[18]19.110.41.60.50.040.0890.0151.39, AF
[12,45]18.99.480.0160.0560.870.0130.0061.94, FA
[16]19.010.31.50.50.040.080.011.44, AF
AISI 308L
Standard19–2110–121–2.50.3–0.6--≤0.03-
[22]19.510.51.90.85--0.011.77, FA
[43]19.869.841.70.480.0096-0.0211.82, FA
[25]20.239.522.110.56-0.0350.031.68, FA
[46]20.719.542.150.82--0.0171.97, F
Table
Table 2. Comparison of the mechanical properties of AM-fabricated AISI 304/308 stainless steels. The compositions are given in wt.%. Data are adapted from [7,11,12,25,43,46].
Table 2. Comparison of the mechanical properties of AM-fabricated AISI 304/308 stainless steels. The compositions are given in wt.%. Data are adapted from [7,11,12,25,43,46].
Method of Manufacture, CompositionYield Strength, MPaUltimate Tensile Strength, MPaElongation, %
Conventionally produced AISI 304/308 SS
AISI 304L [12]17048540
AISI 308L annealed [25]20551530
AISI 304/308 SS fabricated with AM methods
EBAM, AISI 304 (Fe-19.1Cr-9.1Ni-0.95Si-0.12C) [7]252–277 *810–890 *36–47 *
SLM, AISI 304L (Fe-18.95Cr-9.48Ni-0.87Mo-0.056Si-0.033Cu-0.029O-0.027P-0.016Mn-0.013N-0.01Co-0.006C-0.001S) [12]414–458 *615–655 *65–71 *
SLM, AISI 304L [11]500–520750–80048–52
WAAM, AISI308L (Fe-20.23Cr-9.52Ni-2.11Mn-0.56Si-0.0349N-0.0344O-0.03C-0.014P-0.013S, wt.%) [25]26958068
WAAM, AISI308L (Fe-19.86Cr-9.84Ni-1.7Mn-0.48Si-0.076Cu-0.028P-0.021C-0.019S-0.0096Mo, wt.%) [43]343–352 *531–552 *40–54 *
Wire-feed laminar plasma, AISI308L (Fe-20.71Cr-9.54Ni-2.15Mn-0.82Si-0.018P-0.008S-0.017C-0.013Cu wt.%) [46]287–359 *467–511 *47–58 *
* Intervals indicate the variation of the mechanical properties due to the anisotropy of the microstructure.
Table
Table 3. Chemical composition (wt.%, Fe bal.) and corresponding values of Creq/Nieq ratio for some AISI 316L-type austenitic stainless steels used for AM. Data are adapted from [14,19,20,21,26,27,51,52,55,56].
Table 3. Chemical composition (wt.%, Fe bal.) and corresponding values of Creq/Nieq ratio for some AISI 316L-type austenitic stainless steels used for AM. Data are adapted from [14,19,20,21,26,27,51,52,55,56].
Ref.CrNiMnSiMoNCCreq/Nieq
AISI 316L
Standard16–1810–14≤2≤0.752–3-≤0.03-
[26]18.7411.821.550.562.67-0.00141.76FA
[55]18.3912.51.690.812.250.0130.021.52FA
[19]17.712.60.290.582.33-0.0161.58FA
[52]17.713.61.60.222.80.0920.0061.2 AF
[14]17.0910.611.170.592.380.090.0131.42AF
[51]1710.60.980.42.30.150.011.25 A-AF
[27]17.0910.611.170.592.380.090.0131.42AF
[20]17.412.41.50.532.50.060.021.33AF
[21]19.9510.871.410.612.45-0.0421.82FA
[56]17.0712.081.190.462.410.010.0061.53FA
Table
Table 4. Comparison of mechanical properties of some AM AISI 316L stainless steels. The compositions are given in wt.%. Data are adapted from [14,21,26,60,64,65,66].
Table 4. Comparison of mechanical properties of some AM AISI 316L stainless steels. The compositions are given in wt.%. Data are adapted from [14,21,26,60,64,65,66].
Method of ManufactureYield Strength, MPaUltimate Tensile Strength, MPaElongation, %
Conventionally produced AISI 316 SS
AISI 316L rolled sheet [14]220–270 *520–680 *40–45 *
Cast [21]26255255
Wrought (cold finished) [21]255–310525–62330
316L anneal rod [65]24158650
AISI 316L annealed [66]341–368 **973–1083 **59–73 **
AISI 316 SS fabricated with AM methods
WAAM, AISI 316L (Fe-18.74Cr-11.82Ni-2.67Mo-1.55Mn-0.56Si-0.17Cu-0.03P-0.0014C) [26]23553348
SLM, AISI316L [14]51768732
SLM, AISI316L [64]480–550 *565–675 *44–66 *
DLD, AISI 316L (Fe-19.95Cr-10.87Ni-2.45Mo-1.41Mn-0.61Si-0.042C-0.025P-0.011S) [21]405–415 *620–660*32–40*
LENS, AISI 316L (Fe-20Cr-11.8Ni-2.41Mo-0.91Mn-<0.03C, wt.%) [60]479–576 *703–776 *33
* Intervals indicate the variation of the mechanical properties due to the anisotropy of the microstructure. ** Depending on strain rate.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Astafurov, S.; Astafurova, E. Phase Composition of Austenitic Stainless Steels in Additive Manufacturing: A Review. Metals 2021, 11, 1052. https://doi.org/10.3390/met11071052

AMA Style

Astafurov S, Astafurova E. Phase Composition of Austenitic Stainless Steels in Additive Manufacturing: A Review. Metals. 2021; 11(7):1052. https://doi.org/10.3390/met11071052

Chicago/Turabian Style

Astafurov, Sergey, and Elena Astafurova. 2021. "Phase Composition of Austenitic Stainless Steels in Additive Manufacturing: A Review" Metals 11, no. 7: 1052. https://doi.org/10.3390/met11071052

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
