Hot Deformation Behavior of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ Medium-Entropy Alloy

Abstract

Fe₄₀Mn₂₀Cr₂₀Ni₂₀ medium-entropy alloy (MEA) has a single-phase crystal structure with high strength and good ductility at room temperature. It is important to study the hot deformation behavior for this alloy at a partially recrystallized state for possible high-temperature applications. In this investigation, the tensile tests were conducted on sheet materials treated via cold rolling combined with annealing at strain rates of 1 × 10⁻³–1 × 10⁻¹ s⁻¹ and deformation temperatures of 573–873 K. And the hyperbolic sine model was used to study the relationship between the peak stress, deformation energy storage and Zener–Hollomon parameter (Z parameter) of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ medium-entropy alloys under high-temperature tension. According to the Arrhenius-type model, the constitutive equation of the alloys based on the flow stress was constructed, and the deformation activation energy and material parameters under different strain conditions were obtained. Based on the power dissipation theory and the instability criterion of the dynamic material model, the power dissipation diagram and the instability diagram were constructed, and the hot working map with a strain of 0.1 was obtained. The results show that the hyperbolic sine relation between the peak stress and Zener–Hollomon parameters can be well satisfied, and the deformation activation energy Q is 242.51 KJ/mol. Finally, the excellent thermo-mechanical processing range is calculated based on the hot working map. The flow instability region is 620–700 K and the strain rate is 2 × 10⁻³–4 × 10⁻³ s⁻¹, as well as in the range of 787–873 K and 2 × 10⁻³–2.73 × 10⁻² s⁻¹. The optimum thermo-mechanical window is 850–873 K, $\dot{\mathsf{\epsilon }}$ = 1 × 10⁻³–2 × 10⁻³ s⁻¹.

1. Introduction

Complex concentrate alloys (CCAs), commonly referred to as high-entropy alloys (HEAs) or medium-entropy alloys (MEAs), generally contain three or more principal elements with equal or near-equiatomic ratios. The unique design concept provides a fascinating way for exploring new alloys [1,2]. These alloys have received significant research interest over the past years [3,4]. The HEAs and/or MEAs have unique mechanical properties, such as excellent low-temperature strength [5,6,7,8], toughness [9], high hardness [10], and wear resistance [11]. In addition, high-entropy ceramics have great potential for application in the thermal protection field [12]. Although their mechanical properties at low and room temperatures have been extensively studied [13], research on the deformation behavior at high temperatures is limited [14,15,16]. At present, the ductility assessment of these special alloys in practical applications is superficial, especially at high-temperature conditions. It is very effective to analyze the hot deformation properties of HEAs/MEAs by establishing hot working maps. This can be easily achieved by using thermo-mechanical processing (TMP) on the studied alloys [16,17,18,19,20].

Based on the study of viscoplastic theory, many models between flow stress, material microstructure, and deformation parameters have been established through physical simulation and experimental data analysis during the hot working process. It can be roughly divided into two categories: one is the flow stress constitutive model containing the strain term, including the Johnson–Cook model [21], suitable for large deformation, and the quantitative semi-empirical power exponential relationship model containing the temperature term proposed by Zuzin et al. [22]. Another type is physical models without strain term, including a power exponential model at low stress levels, an exponential model for high stress levels, and the unified hyperbolic sine model proposed by Garofalo [23,24].

Although HEAs/MEAs have been evaluated from different perspectives in the last few years, the research on hot deformation behavior is lacking [25], specifically for partially recrystallized alloys with excellent room temperature properties. Recent research has found that the secondary carbides strengthening the Re_0.1Hf_0.25NbTaW_0.4C_0.25 alloy exhibited excellent compressive strength at high temperatures [26]. The results indicate that reasonable precipitate modulation can improve the resistance to high-temperature softening of alloys. In this study, we selected the low-cost, partially recrystallized Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA as the research object. The Arrhenius-type hyperbolic sine model is introduced to study the thermal deformation behavior, and detailed parameters describing their thermal deformation behavior were obtained by fitting the experimental data. Finally, we developed corresponding constitutive equations and plotted the hot working map, which provides a way to understand the hot deformation behavior and optimize the hot working process.

2. Materials and Methods

Fe₄₀Mn₂₀Cr₂₀Ni₂₀ ingots with dimensions of 450 × 200 × 70 mm³ and weighing about 50 kg were fabricated using a vacuum induction furnace with pure metals (purity above 99.95 weight percent, wt.%). After being homogenized for 1.5 h at 1473 K, the alloy ingot was hot-rolled for 7 passes at 1423 K with a final pass at 1123 K to produce a plate with a thickness of about 7 mm, followed by water quenching. The 15 × 10 × 7 mm³ sheets were cut from the hot-rolled plate. Next, those sheets were rolled to an 82% reduction in thickness at room temperature. To prevent the specimen from bending, unidirectional rolling was selected during pre-deformation, and each sample was rotated 180° for each pass. Following that, the alloy was annealed at 973 K for 2 h in a preheated furnace at corresponding temperatures, and then subsequently water quenched (hereinafter referred to as CR700).

Microstructures were analyzed, employing a Phenom XL scanning electron microscope (SEM; Phenom-World; Netherland) combined with an energy dispersive spectrometer (EDS). The phase identification was characterized with a PANalytical AERIS X-ray diffraction (XRD; Malvern Panalytical; Netherland) instrument using Co Kα radiation (wavelength: 1.7890 Å) with a scanning speed of 0.02°/s.

Quasi-static uniaxial tensile tests at deformation temperatures of 573–873 K with strain rates varying from 10⁻³ s⁻¹ to 10⁻¹ s⁻¹ were carried out with the Instron 5969 testing machine. Dog-bone-shaped tensile specimens with a gauge dimension of 1.3 × 10 × 3 mm³ were cut from CR700 using electric discharge machining. All tensile tests were repeated at least three times to ensure the reliability and reproducibility of the results.

3. Results and Discussion

3.1. Microstructure Characterization and Phase Identification

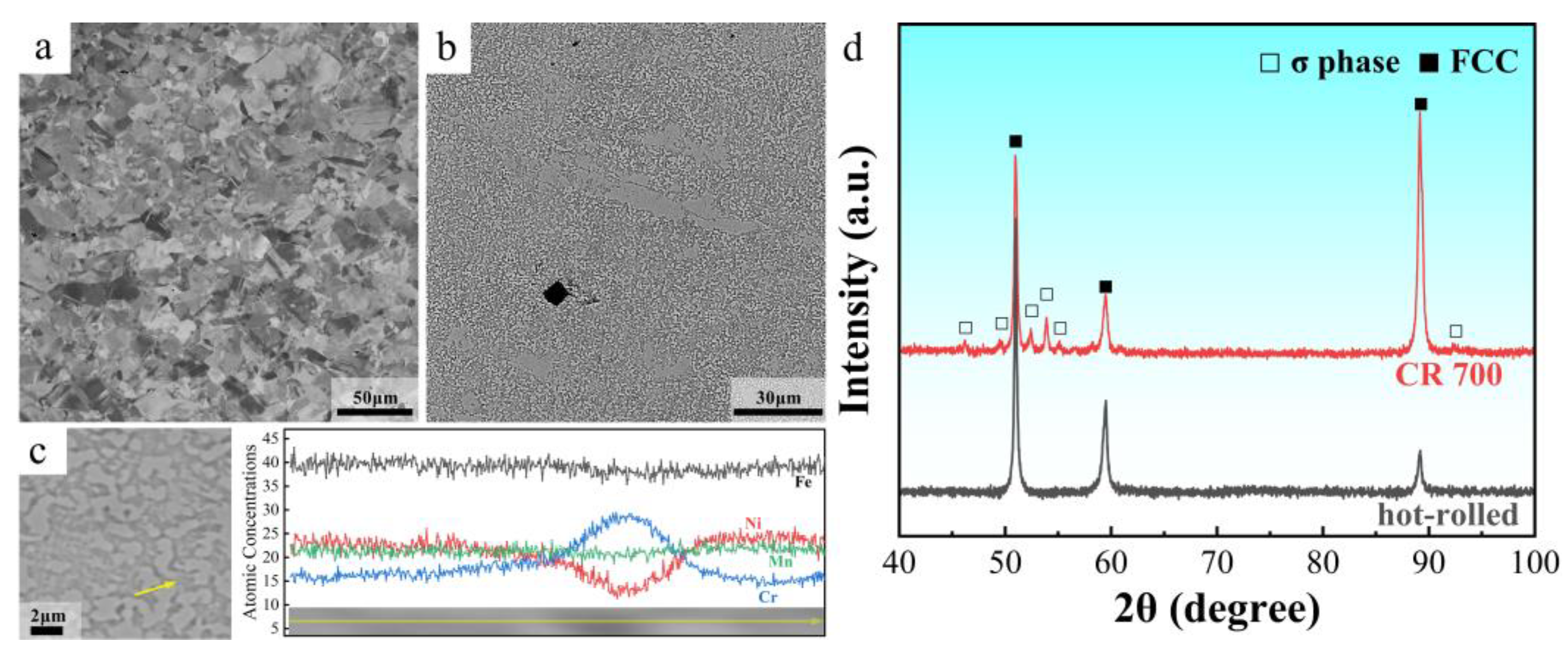

Scanning electron micrographs (SEMs) of hot-rolled and CR700 samples are shown in Figure 1a,b. For hot-rolled samples, a completely equiaxed crystal structure was observed. As for the CR700, it showed a typical partially recrystallized microstructure with small second-phase particles and few oxides. The SEM–EDS line-scan results show that the second-phase particles are rich in Cr and poor in Ni (Figure 1c). Then, the XRD results show that the hot-rolled sample is a single-phase FCC structure and the CR700 sample consists of an FCC phase and a σ phase (Figure 1d). Combining the above results and previous studies [27,28], the particles in the cold-rolled sample are Cr-rich tetragonal σ phase. Partially recrystallized microstructure and dispersed particles combined to form the heterogeneous structure, which gives the CR700 well-balanced tensile mechanical properties at room temperature [28].

3.2. Stress–Strain Curves

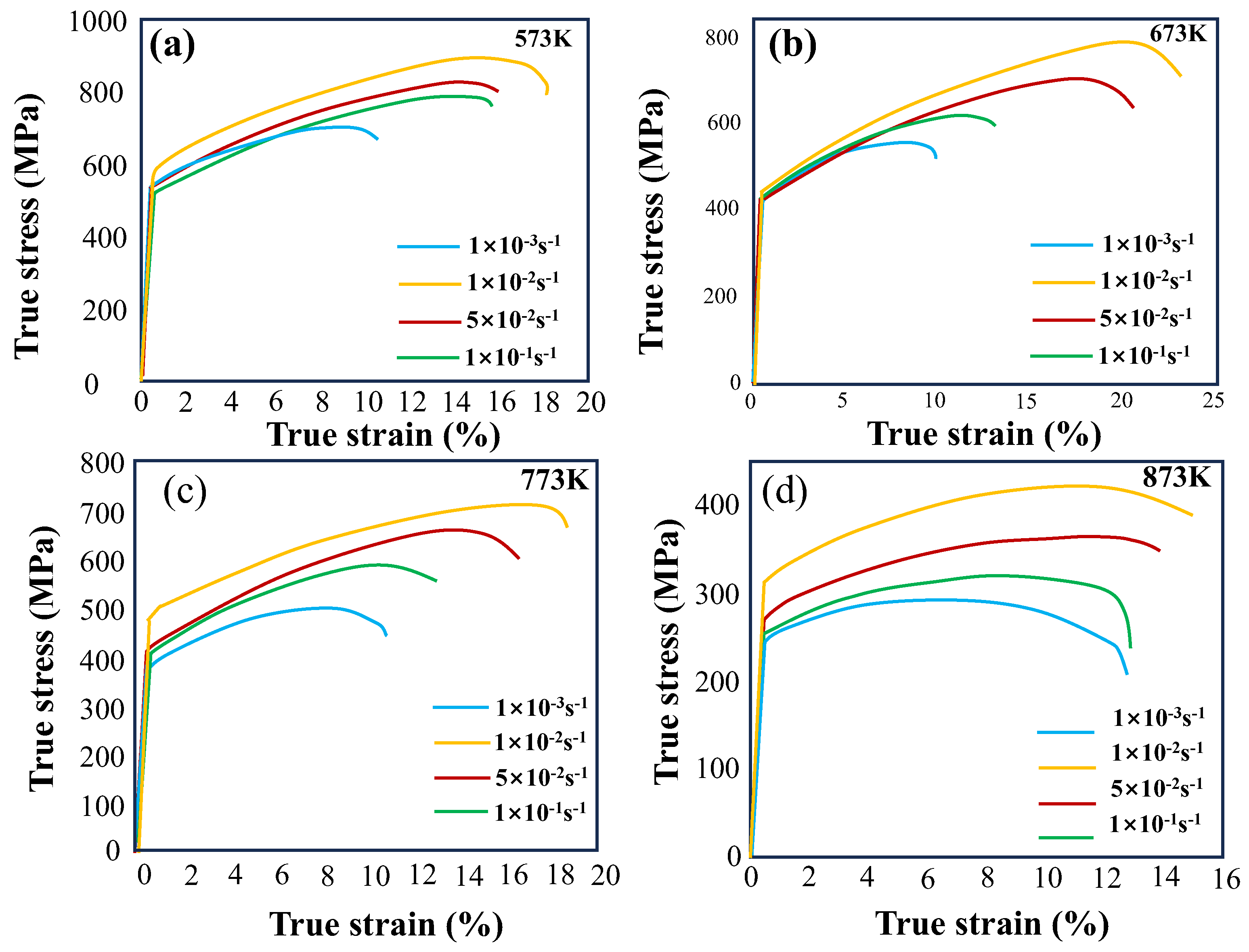

Figure 2 shows the stress–strain curves of CR700 at different deformation conditions, and they have roughly the same trend. All the flow curves have softened after an initial short hardening period. As the deformation temperature decreases, the stress level of the materials increases. However, as the strain rate increases, the peak stress increases. Meanwhile, the lateral slip of the screw dislocations and the climbing of the edge dislocations in the materials cannot proceed sufficiently with increasing strain rates, making the softening provided by lateral sliding and creeping become less at the same strain. As a result, the peak stress is relatively hysteretic.

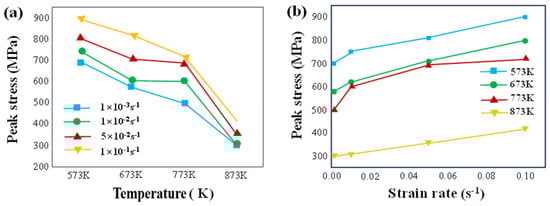

The peak flow stress is plotted as a function of the deformation temperature and strain rate, as shown in Figure 3. It can be found from Figure 3a that under the same strain rate, the higher the deformation temperature, the lower the peak flow stress. Due to the increase in the deformation temperature, the thermal motion of the atoms inside the material intensifies, the kinetic energy increases, and the bonding force between the atoms weakens, resulting in the reduction in the critical shear stress of the alloys and the shear resistance. More slip systems appear during the plastic process. In addition, the increase in the deformation temperature accelerates the migration speed of dislocations, which makes the cross-slip of screw dislocations and the climbing of edge dislocations in the alloy easier, resulting in the enhancement of the softening effect during plastic deformation. Moreover, the different behavior at 773 K is observed in Figure 3b, which is related to the changes in the hardening–softening mechanism [29] and will be further investigated in our subsequent work.

At the same temperature, the peak stress increases with the strain rate. With the increase in the strain rate, the alloy reaches the preset deformation amount in a short time, and the dislocation density increases. Due to the short deformation time, the dislocations cannot be eliminated quickly, which improves the work-hardening capacity. Additionally, the softening is alleviated due to the reduction in the dynamic softening time.

3.3. Establishment of the Deformation Constitutive Model

During the plastic deformation of metallic materials, the flow stress σ is affected by deformation conditions, including the deformation temperature T and strain rate $\dot{\mathsf{\epsilon }}$. It has been demonstrated that there is a certain relationship between the deformation temperature T, strain rate $\dot{\mathsf{\epsilon }}$ and flow stress σ of metals or alloys. Bruni proposed a power-law function and an exponential function to describe the relationship at low and high stress levels, respectively [30]. To achieve a relationship between the three parameters that satisfies at most stress levels, Sellarsdemhr proposed a hyperbolic sine relation to modify the Arrhenius relation [31,32,33,34]:

$$\dot{\mathsf{\epsilon }}\exp (\frac{\mathrm{Q}}{\mathrm{RT}})={\mathrm{A}}_1{\mathsf{\sigma }}^{{\mathrm{n}}_1}$$

(1)

$$\dot{\mathsf{\epsilon }}\exp (\frac{\mathrm{Q}}{\mathrm{RT}})={\mathrm{A}}_2\exp (\mathsf{\beta }\mathsf{\sigma })$$

(2)

$$\dot{\mathsf{\epsilon }}\exp (\frac{\mathrm{Q}}{\mathrm{RT}})=\mathrm{A}{\left[\sin \mathrm{h}(\mathsf{\alpha }\mathsf{\sigma })\right]}^{\mathrm{n}}$$

(3)

and the relationship between the deformation temperature T and strain rate $\dot{\mathsf{\epsilon }}$ can be determined by introducing the Zener–Hollomon parameter:

$$\mathrm{Z}=\dot{\mathsf{\epsilon }}\exp \left(-\frac{\mathrm{Q}}{\mathrm{RT}}\right)=\mathrm{A}{\left[\sin \mathrm{h}(\mathsf{\alpha }\mathsf{\sigma })\right]}^{\mathrm{n}}$$

(4)

where A₁, A₂, and A are material constants, Q is the deformation activation energy, R is the gas constant which equals 8.314 Jmol⁻¹K⁻¹, β is a material-related parameter, α is the stress level parameter, α = β/n₁, n is the stress exponent, and T is the temperature in the unit of Kelvins. Here, one needs to solve the values of α, n, Q, and A in Equation (4) to obtain the flow stress constitutive equation of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA suitable for different deformation conditions. Detailed deformation temperatures, strain rates, and peak stresses under different conditions of CR700 are listed in

Table 1. The peak stress of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA under different deformation conditions (MPa).

Deformation Conditions	573 K	673 K	773 K	873 K
1 × 10−3	700.23	580.21	505.38	300.35
1 × 10−2	750.32	610.38	600.20	310.38
5 × 10−2	810.83	710.27	690.60	350.30
1 × 10−1	900.42	820.32	720.92	420.42

. Based on these data, the following parameter calculations can be performed.

Take the logarithmic score of Equations (1) and (2), respectively:

$$\ln \dot{\mathsf{\epsilon }}={\mathrm{n}}_1\ln \mathsf{\sigma }+\ln {\mathrm{A}}_1-\frac{\mathrm{Q}}{\mathrm{RT}}$$

(5)

$$\ln \dot{\mathsf{\epsilon }}=\mathsf{\beta }\mathsf{\sigma }+\ln {\mathrm{A}}_2-\frac{\mathrm{Q}}{\mathrm{RT}}$$

(6)

and when the temperature T is constant, the values of β and ${\mathrm{n}}_1$ can be calculated by the following Equation [35]:

$${\mathrm{n}}_1={\left\{\frac{\text{∂}\ln \dot{\mathsf{\epsilon }}}{\text{∂}\ln \mathsf{\sigma }}\right\}}_{\mathrm{T}}$$

(7)

$$\mathsf{\beta }={\left\{\frac{\text{∂}\ln \dot{\mathsf{\epsilon }}}{\text{∂}\mathsf{\sigma }}\right\}}_{\mathrm{T}}$$

(8)

The fitting values for β and ${\mathrm{n}}_1$ are 0.05268 and 26.4736, respectively, resulting in the value of α being 0.00199. Taking the natural logarithm on both sides of Equation (4), Equation (9) can be obtained. Substitute the α value for linear fitting, and the result is shown in Figure 4a. Taking the logarithm of both sides of Equation (3):

$$\ln \dot{\mathsf{\epsilon }}=\mathrm{nln}\left[\sin \mathrm{h}(\mathsf{\sigma }\mathsf{\alpha })\right]+\mathrm{lnA}-\frac{\mathrm{Q}}{\mathrm{RT}}$$

(9)

By assuming that Q is independent of T, we can obtain:

$$\mathrm{n}={\left\{\frac{\text{∂}\ln \dot{\mathsf{\epsilon }}}{\partial \ln \left[\sin \mathrm{h}(\mathsf{\alpha }\mathsf{\sigma })\right]}\right\}}_{\mathrm{T}}$$

(10)

$$\ln \left[\sin \mathrm{h}(\mathsf{\alpha }\mathsf{\sigma })\right]=\frac{\mathrm{Q}}{\mathrm{nRT}}+\frac{(\ln \dot{\mathsf{\epsilon }}-\mathrm{lnA})}{\mathrm{n}}$$

(11)

and then, the arithmetic mean value of the slope of the fitting straight line at each strain rate level is obtained: $\stackrel{\mathrm{-}}{\mathrm{n}}$ = $\partial \mathrm{l}\mathrm{n}\dot{\mathsf{\epsilon }}/{\partial \mathrm{l}\mathrm{n}[\mathrm{s}\mathrm{i}\mathrm{n}\mathrm{h}(\mathsf{\alpha }\mathsf{\sigma })]}_{\mathrm{T}}$ = 1.457, as shown in Figure 4b. The deformation activation energy of the current MEAs can be obtained by taking the partial derivative on both sides of Equation (11):

$$\mathrm{Q}=\mathrm{nR}{\left\{\frac{\text{∂}\ln \left[\sin \mathrm{h}(\mathsf{\alpha }\mathsf{\sigma })\right]}{\text{∂}(1000/\mathrm{T})}\right\}}_{\mathsf{\epsilon }}$$

(12)

Substituting the above values into Equation (12), the Q value of 242.51 KJ/mol can be obtained. Then, taking the logarithm of both sides of Equation (3):

$$\mathrm{lnZ}=\mathrm{nln}\left[\sin \mathrm{h}(\mathsf{\alpha }\mathsf{\sigma })\right]+\mathrm{lnA}$$

(13)

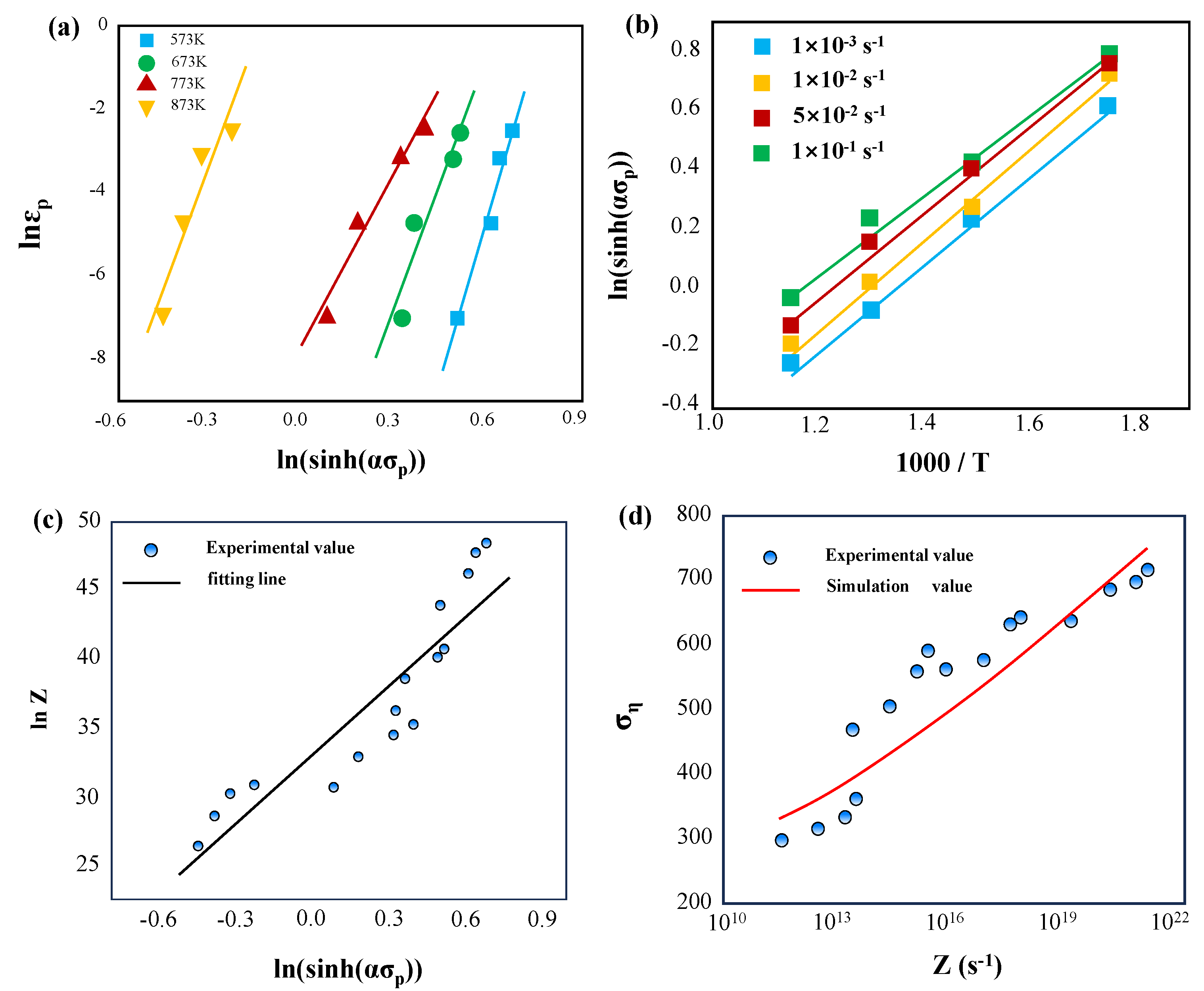

Making the scatter plot of ln[sinh(ασ)] − lnZ, and performing linear fitting in Figure 4c, the material constant A of 2.78 × 10¹⁴ is obtained.

$$\mathrm{Z}=\dot{\mathsf{\epsilon }}\exp \left(-\frac{242.51\text{×}{10}^3}{\mathrm{RT}}\right)=2.78\text{×}{10}^{14}{\left[\sin \mathrm{h}\left(0.00199\mathsf{\sigma }\right)\right]}^{20.02}$$

(14)

Combining Equation (1) with the definition of the hyperbolic sine function, we can obtain:

$$\mathsf{\sigma }=\frac{1}{\mathsf{\alpha }}\ln \left\{{\left(\frac{\mathrm{Z}}{\mathrm{A}}\right)}^{1/\mathrm{n}}+{\left[\left({\left(\frac{\mathrm{Z}}{\mathrm{A}}\right)}^{2/\mathrm{n}}+1\right)\right]}^{1/2}\right\}$$

(15)

This results in an analytic function of the peak stress and Z parameter:

$${\mathsf{\sigma }}_{\mathrm{P}}=\frac{1}{0.00199}\ln \left\{{\frac{\mathrm{Z}}{2.78\text{×}{10}^{14}}}^{1/20.02}+{\left[{\left(\frac{\mathrm{Z}}{2.78\text{×}{10}^{14}}\right)}^{2/20.02}+1\right]}^{1/2}\right\}$$

(16)

The relationship between the fitted curve and experimental value is exhibited in Figure 4d. It can be found that the combination of the peak stress and the Z parameter can better satisfy the hyperbolic sine relationship.

3.4. The Relationship between the Deformation Energy Storage and Z Parameter

During the high-temperature deformation of metallic materials, the deformation energy is mainly stored in the form of dislocation-based deformation because a small part of the deformation energy has been relaxed or cannot be stored as thermal energy, which is called deformation energy storage. Deformation energy storage mainly includes dislocation-based energy and grain boundary energy. Usually, the increase in grain boundary energy during plastic deformation is due to the fact that the deformation leads to an increase in the grain boundary area and changes the grain boundary structure, accompanied by the atomic arrangement changing from order to disorder. In parallel, the existence of deformation energy storage also leads to a significant change in the free energy of the alloy system. Therefore, it is of great significance to study deformation energy storage. According to the dislocation theory, the total energy per unit volume is:

$$\text{∆}{\mathrm{G}}_{\mathrm{D}}=\mathsf{\mu }\rho {\mathrm{b}}^2$$

(17)

The relationship between dislocation density and stress can be expressed:

$$\mathsf{\sigma }=\mathrm{Mk}\mathsf{\mu }\mathrm{b}\sqrt{\rho }$$

(18)

where μ is the shear elastic modulus, ρ is the dislocation density, b is the Burgers vector, M is the Taylor factor, and k is the material constant. According to Equations (16) and (18), the relationship between the dislocation energy per unit mole and the deformation stress can be obtained:

$$\text{∆}{\mathrm{G}}_{\mathrm{D}}=\frac{\mathrm{V}{\mathsf{\sigma }}^2}{{\mathrm{M}}^2{\mathrm{k}}^2\mathsf{\mu }}$$

(19)

where V is the molar volume, and ignoring the effect of the temperature, V is 7.1 × 10⁻⁶m³·mol⁻¹. For FCC metals and alloys, M is taken as 3.11, while the shear modulus is 79 GPa, and k is taken as 0.15. Bring the peak stress into Equation (18), and then we can fit the relationship between the Z parameter and the deformation energy storage, as presented in Figure 5.

$$\text{∆}{\mathrm{G}}_{\mathrm{D}}=-0.229{(\mathrm{lnZ})}^2+25.446(\mathrm{lnZ})-490.554$$

(20)

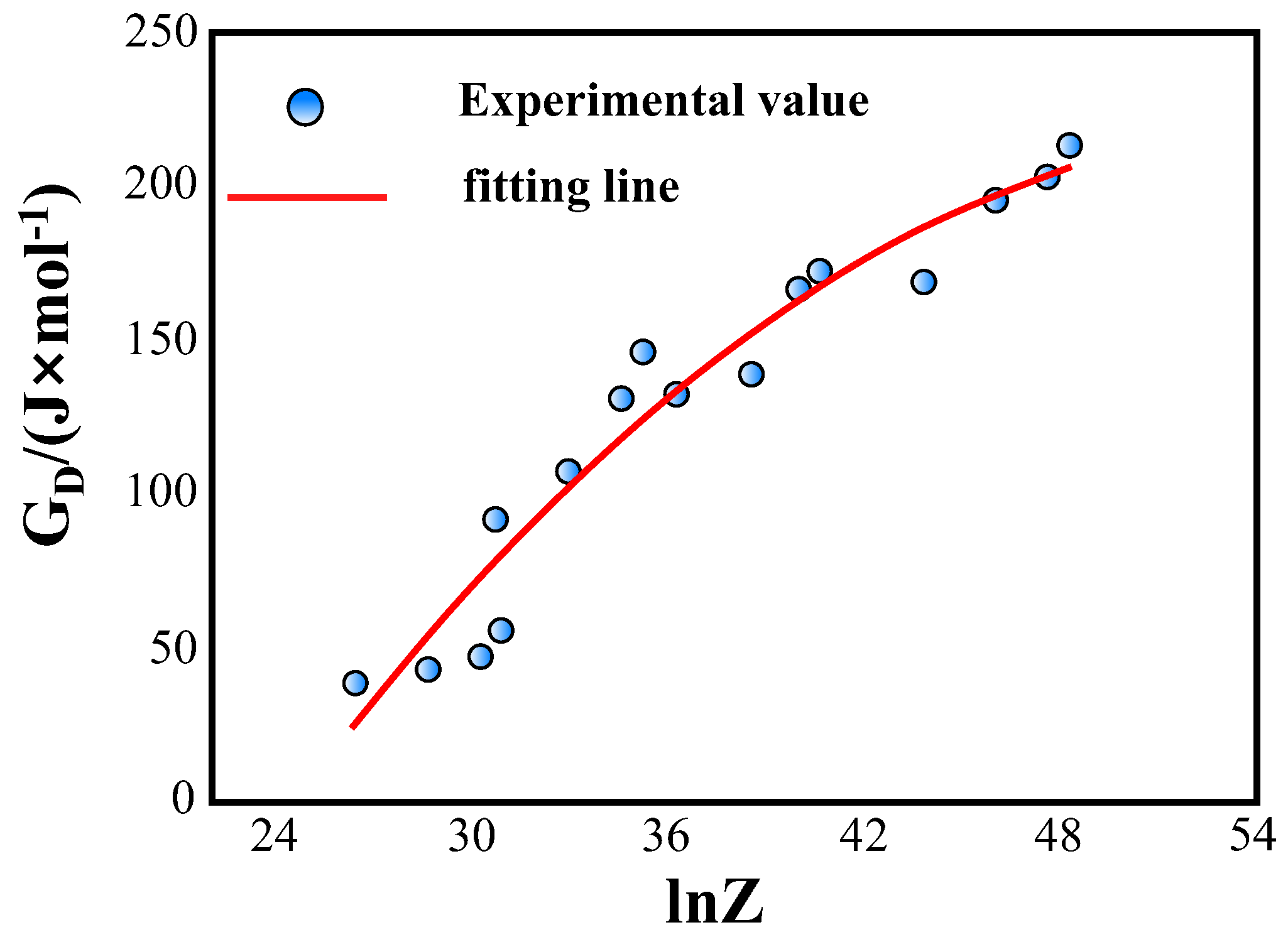

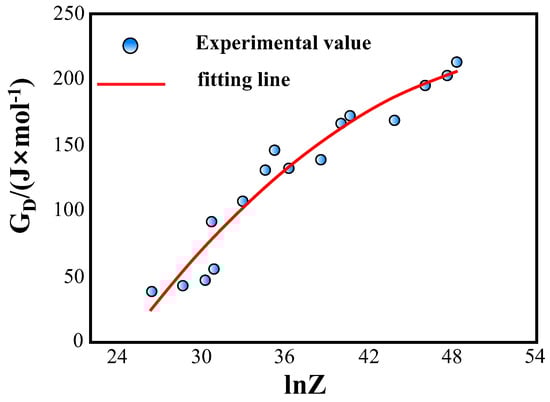

Equation (20) indicates the relationship between the deformation energy storage and the Z parameter of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA under peak stress. It can be found from Figure 5 that the deformation energy storage increases with the increase in the Z parameter value. That is, the dislocation density increases in the deformed Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA with increasing strain rate and decreasing deformation temperature.

3.5. Hot Working Map

The hot working map is useful to analyze the microstructure evolution during high-temperature deformation of metallic materials from the perspective of energy conversion. The material hot working map, established based on the dynamic material model, is widely used to study the hot deformation behavior of materials [36]. By calculating the deformation conditions that may cause instability of the materials, the instability region can be avoided and the machinability of the materials can be predicted.

The dynamic material model is established based on the basic principles of continuous mechanics, physical system simulation, and irreversible thermodynamics of large-strain plastic deformation. In this model, it is assumed that the material is a nonlinear energy dissipator, and it has a problem with energy conversion during thermo-mechanical processing. The energy absorbed by the materials from the outside per unit time and unit volume can be converted into two parts, as discussed above. One part is the dissipation amount consumed by the material during plastic deformation, which is represented by G; the other part is the change in the microstructure during plastic deformation. The power consumption is represented by J [37]. Its relationship can be expressed as [38,39]:

$$\mathrm{P}=\mathsf{\sigma }\dot{\mathsf{\epsilon }}=\mathrm{G}+\mathrm{J}={\int }_0^{\dot{\dot{\mathsf{\epsilon }}}}\mathsf{\sigma }\mathrm{d}\dot{\mathsf{\epsilon }}+{\int }_0^{\mathsf{\sigma }}\dot{\mathsf{\epsilon }}\mathrm{d}\mathsf{\sigma }$$

(21)

where P is the total power. Under the condition that the deformation temperature and strain rate are constant, the relationship between the stress and strain rate generated during high-temperature deformation of the materials can be expressed by Equations (22) and (23):

$$\mathsf{\sigma }=\mathrm{K}·{\dot{\mathsf{\epsilon }}}^{\mathrm{m}}$$

(22)

$$\mathrm{m}={\left[\frac{\text{∂}\mathrm{J}}{\text{∂}\mathrm{G}}\right]}_{\mathsf{\epsilon },\mathrm{T}}=\frac{\text{∂}\ln \mathsf{\sigma }}{\text{∂}\ln \dot{\mathsf{\epsilon }}}$$

(23)

where K is the material constant, m is the strain-rate sensitivity, and the value of m ranges from 0 to 1. If the material is assumed to be in an ideal linear state, the value of m is l, and the energy J dissipated due to the change in the microstructure reaches the maximum value. From Equation (21), we can obtain [38,40]:

$$\frac{\text{∆}\mathrm{J}}{\text{∆}\mathrm{G}}=\mathrm{m}$$

(24)

$$\frac{\text{∆}\mathrm{J}}{\text{∆}\mathrm{P}}=\frac{\mathrm{m}}{\mathrm{m}+1}$$

(25)

$$\mathsf{\eta }=\frac{\text{∆}\mathrm{J}/\text{∆}\mathrm{P}}{{\left(\text{∆}\mathrm{J}/\text{∆}\mathrm{P}\right)}_{\max }}=\frac{\mathrm{m}/\left(\mathrm{m}+1\right)}{1/2}=\frac{2\mathrm{m}}{\mathrm{m}+1}$$

(26)

The energy dissipation factor du0ring high-temperature deformation can be represented by the energy dissipation factor η, which reflects the mechanism of the microstructure evolution of the material under certain deformation temperature and strain rate conditions. When the material has high η values, beneficial deformation mechanisms such as dynamic recovery or dynamic recrystallization are prone to occur, and the material has good processability.

During thermal processing, the material sometimes becomes unstable. In order to avoid this situation, the maximum entropy principle criterion proposed by Prasad can be used to analyze whether the material is unstable [37], as shown in the following:

$$\mathsf{\xi }\left(\dot{\mathsf{\epsilon }}\right)=\frac{\text{∂}\ln (\mathrm{m}/\mathrm{m}+1)}{\text{∂}\ln \dot{\mathsf{\epsilon }}}+\mathrm{m}<0$$

(27)

Among them, ξ is the instability factor, which is defined as a dimensionless number. It means that when the rate of entropy generation of a system is less than the strain rate applied to the system, local rheology and flow will occur. Typical microscopic phenomena include adiabatic shear banding, local flow, dynamic strain aging, mechanical twinning, and kink.

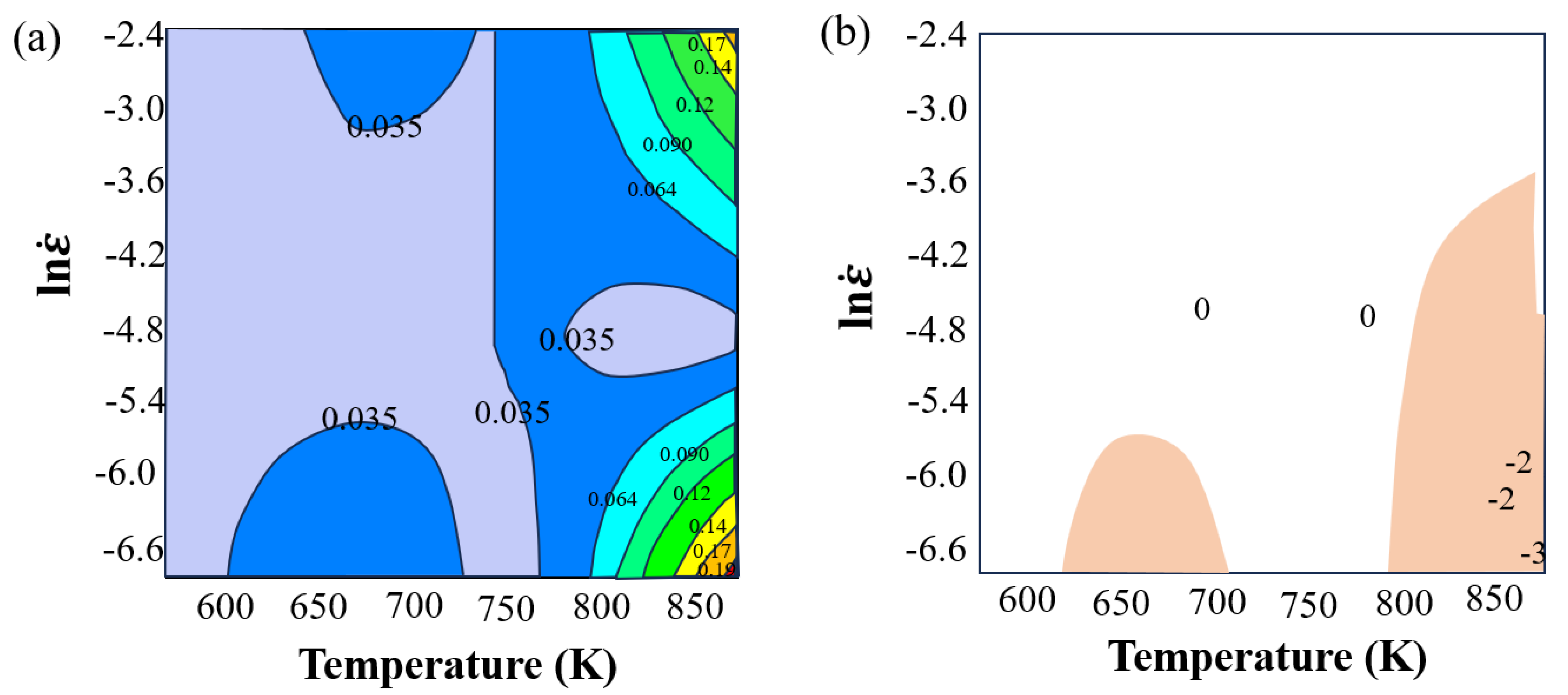

As shown in Figure 6, we plotted contour plots for values of the energy dissipation factor η and the instability factor ξ, respectively, using the deformation temperature T and the strain rate $\dot{\epsilon }$ as the coordinate axes. The Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA mainly has two flow instability zones (blue region in Figure 6b) and one hot working safety zone (white region in Figure 6b). The flow instability region is mainly located in the range of the deformation temperature of 620–700 K and 787–873 K, with the strain rate of 2 × 10⁻³–4 × 10⁻³ s⁻¹, and 2 × 10⁻³–2.73 × 10⁻² s⁻¹. This region should be avoided as much as possible during thermal processing. Under this deformation condition, the grain boundary is more likely to slip, and the stress concentration at the interface is serious. And inside the safety zone, the maximum η value (η = 17–19%) is mainly concentrated in the deformation temperatures of 850–873 K, with $\dot{\mathsf{\epsilon }}$ = 1 × 10⁻³–2 × 10⁻³ s⁻¹. Generally, in this area, the larger the power dissipation rate under the deformation conditions we studied, the better the material’s machinability. The process parameters obtained according to the hot working map are only theoretical predictions, and the optimal thermal processing parameters in actual production need to be further determined in combination with the microstructure evolution of the alloys during high-temperature deformation.

4. Conclusions

In this study, based on the flow stress curves of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA under different deformation conditions, the peak stress constitutive model was established. The main conclusions are as follows:

• Both the strain rate and the deformation temperature have a significant effect on the flow curve of the Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA. The flow stress decreased with increasing deformation temperature and decreasing strain rate.
• The analytical relationship between the high-temperature tensile peak stress of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA and the Z parameter was obtained using the hyperbolic sine model.
  ${\mathsf{\sigma }}_{\mathrm{P}}=\frac{1}{0.00199}\ln \left\{{\frac{\mathrm{Z}}{2.78\text{×}{10}^{14}}}^{1/20.02}+{\left[{\left(\frac{\mathrm{Z}}{2.78\text{×}{10}^{14}}\right)}^{2/20.02}+1\right]}^{1/2}\right\}$
• The relationship between the deformation energy storage and Z parameter was identified:

  $$\text{∆}{\mathrm{G}}_{\mathrm{D}}=-0.229{(\mathrm{lnZ})}^2+25.446(\mathrm{lnZ})-490.554$$

  the deformation energy storage also increases with the increase in the strain rates and the decrease in the deformation temperature, and with the $\text{∆}{\mathrm{G}}_{\mathrm{D}}$ value in the range of 25–200 J/mol.
• The hot working diagram of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ MEA mainly has two flow instability regions and a thermal processing safe region. The instability zones range from 620 to 700 K and 787 to 873 K, and the strain rate regions are 2 × 10⁻³–4 × 10⁻³ s⁻¹ and 2 × 10⁻³–2.73 × 10⁻² s⁻¹.
