High Temperature Oxidation and Wear Behaviors of Ti–V–Cr Fireproof Titanium Alloy

Abstract

The high temperature oxidation and wear behaviors of Ti–35V–15Cr–0.3Si–0.1C fireproof titanium alloy were examined at 873 and 1073 K. The oxidation weight gain after oxidation at 1073 K for 100 h was significantly larger than that at 873 K. Based on the analyses of the oxidation reaction index and oxide layer, the oxidation process at 1073 K was mainly controlled by oxidation reaction at the interface between the substrate and oxide layer. Dry sliding wear tests were performed on a pin-on-disk tester in air conditions. The friction coefficient was smaller at 1073 K than that at 873 K, while the volume wear rate at 1073 K was larger due to formation of amount of oxides on the worn surface. When the wearing temperature increased from 873 to 1073 K, the wear mechanism underwent a transition from a combination of abrasive wear and oxidative wear to only oxidative wear.

1. Introduction

Titanium and its alloys are widely used in aerospace, chemical, and biomedical industries because of high specific strength and excellent corrosion resistance, especially for their applications in aero-engines [1,2,3]. However, conventional titanium alloys can be ignited and burned, known as “titanium fire,” under specific conditions of high temperature, high pressure, and high-speed airflow, which limits their application for advanced aero-engines [4,5,6]. With the improvement of the thrust-weight ratio, the work conditions of components such as the case, blade, and disk becomes more complex and severe, resulting in an increase in the occurrence of titanium fire. Compared with other techniques including structural optimization design, surface alloying, and surface coating, the development of advanced fireproof titanium alloys is more desirable to completely prevent the occurrence of titanium fire in aero-engines, as well as to meet its high thrust-weight ratio [4,7].

Titanium fire is known to a typical accident of igniting, which occurs usually through high-energy friction and load impact as an ignition source, for example, between the blade and case. The whole combustion behavior goes through high temperature oxidation, super high temperature oxidation, burning, self-sustained combustion, and burning out [4]. If titanium alloys are ignited, the components in the compressor burn continually only for 4–20 s under gas flow with high temperature and pressure. The burning time is too short to take extinguishing measures. There are two types of fireproof titanium alloys: Ti–V–Cr base alloys, such as Ti–35V–15Cr (Alloy C), Ti–35V–15Cr–0.6Si–0.05C (Alloy C⁺), Ti–25V–15Cr–2Al–0.2C, Ti–25V–15Cr–0.2Si (Ti40), and Ti–35V–15Cr–0.3Si–0.1C (TF550) alloys [8,9,10,11]; and Ti–Cu–Al base alloys, such as Ti–13Cu–4Al–4Mo–2Zr (BTT–1), Ti–18Cu–2Al–2Mo (BTT–3), and Ti–13Cu–1Al–0.2Si (Ti14) [12,13,14]. Note that abovementioned and other compositions in this study are expressed in mass%. Ti–V–Cr base alloys are highly stabilized β-type titanium alloys with better performance than that of Ti–Cu–Al base alloys.

In case of TF550 fireproof titanium alloy, we previously investigated the fireproof behavior by the frictional ignition method, and found that the presence of oxides on the worn surface such as TiO₂, V₂O₅, and Cr₂O₃ affected the lubrication behavior in the local area of friction [15,16,17]. However, the high temperature oxidation and wear behaviors remain unclear for this alloy, which are considered to be closely associated with their fireproof properties. The shortage of studies results in uncertainty of the fireproof level of titanium alloys used in aero-engines and restricts the material selection of fireproof titanium alloys for engine designers. Thus, the purpose of present study is to examine the oxidation and wear behaviors of TF550 alloy at high temperatures of 873 and 1073 K, and to discuss the mechanisms of high temperature oxidation and wear.

2. Experimental Procedures

2.1. Materials Preparation

An ingot of approximately 150 kg of TF550 alloy was fabricated by consumable vacuum arc melting (ZHT-650, Baoji institute of rare metal research, Baoji, China) with the raw materials of titanium sponge, pure vanadium rods, and chromium sponge. Subsequently, it was subjected to sheathed extrusion, forging and rolling, and its actual composition was Ti–35.5V–14.6Cr–0.32Si–0.11C. For oxidation testing, samples with a dimension of 12 mm (l) × 10 mm (w) × 6 mm (t) were cut from the rolled plate and their surfaces were mechanically polished with SiC abrasive paper in order to evaluate their high temperature oxidation behavior. As-received Ti–6Al–4V alloy was used to evaluate the oxidation behavior as a comparison. For wear testing, pins and disks were also cut from the rolled plate (HQ1UP, Hanqi Company, Suzhou, China). The rod as pins was designed in the form of a cylinder with a diameter of 5 mm and a height of 9 mm, and the contact surface was a half-ball with a diameter of 5 mm. Disks with the dimensions of 25 mm diameter and 10 mm thickness were used. The contact surfaces of pins and disks were mechanically polished (UNIPOL-1200M, Kejing Company, Shenyang, China) with SiC abrasive paper and then cleaned in alcohol.

2.2. Oxidation Testing

Before oxidation testing, the samples and crucibles were ultrasonically cleaned (XY-CS-S, Xinyi Company, Shanghai, China) in alcohol. In addition, the crucibles were baked at 1373 K for 20 h to ensure their constant weight during the whole oxidation process. Oxidation tests were carried out at 873 and 1073 K for a total oxidation time of 100 h. During the oxidation period, they were cooled down to room temperature at an interval of 10 h in order to measure their weight and observe their surface morphology. Oxidation kinetics were examined based on the weight gain per unit area versus oxidation time.

2.3. Wear Testing

Dry sliding wear tests were performed on a pin-on-disk tester (THT-04015, CSM Company, Carouge, Switzerland) in air conditions at temperatures of 873 and 1073 K. A pin was loaded against a rotating disk through the mechanical loading system with a normal load of 4.9 N for 30 min. The sliding velocity was 0.2 m/s along a diameter of 10 mm circular path with total sliding distance of 3.6 × 10² m, which was proved to be sufficient to attain a steady-state condition [18,19,20,21]. The friction coefficient was recorded by the tester automatically, and the mean friction coefficient was calculated based on the whole data, which was recorded during the sliding wear tests. Volume wear rate was calculated as follows:

$$Ws=\Delta V/(PL)$$

(1)

where ΔV, P, and L are the volume loss of disk, applied loading and sliding distance, respectively. For the disk, four different regions of the wearing indent were measured by using nanomap-3D microscopy (AEP Company, Columbus, OH, USA) for 3D micrograph and the corresponding cross-section area of the wearing indent, and then the volume loss was obtained by the mean cross-section area multiplied by the circumference of the wearing indent. For the pin, the volume loss was obtained by the wearing volume of the half-ball of pin.

2.4. Microstructural Characterization

Phase identification was made by X-ray diffraction analysis (XRD) using an EMPYREN diffractometer with Cu-Kα radiation operated at 40 kV and 300 mA (Panalytical, Almelo, The Netherlands). Morphologies including backscattered electron image (BEI) and secondary electron image (SEI), and chemical compositions were examined by a SUPRA55 type scanning electron microscope (SEM, Carl Zeiss Jena Company, Oberkochen, Germany) equipped with an energy dispersive spectrometer (EDS).

3. Results and Discussion

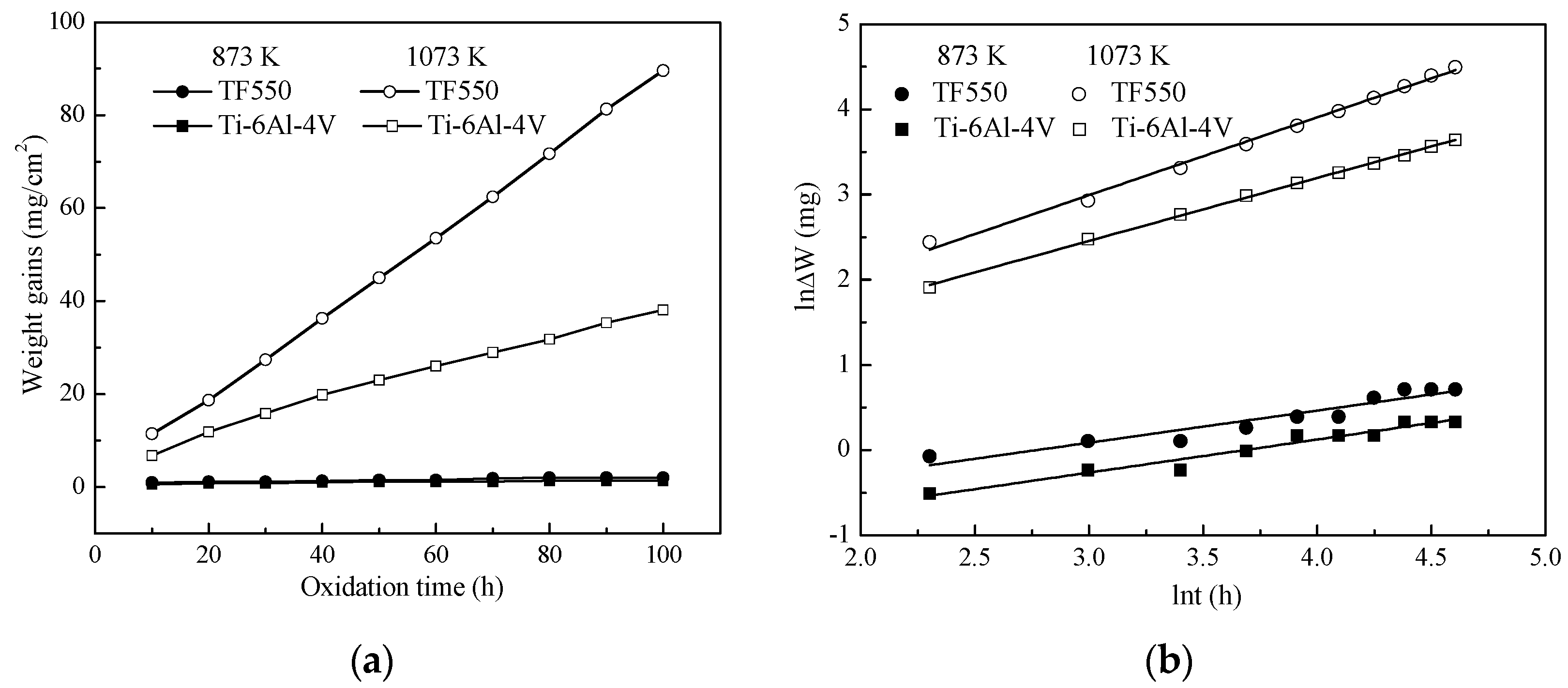

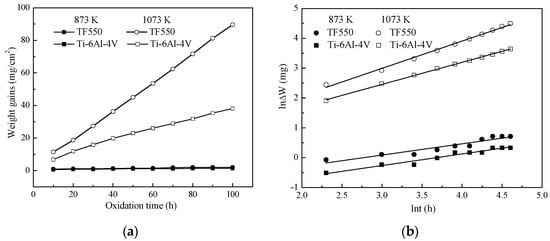

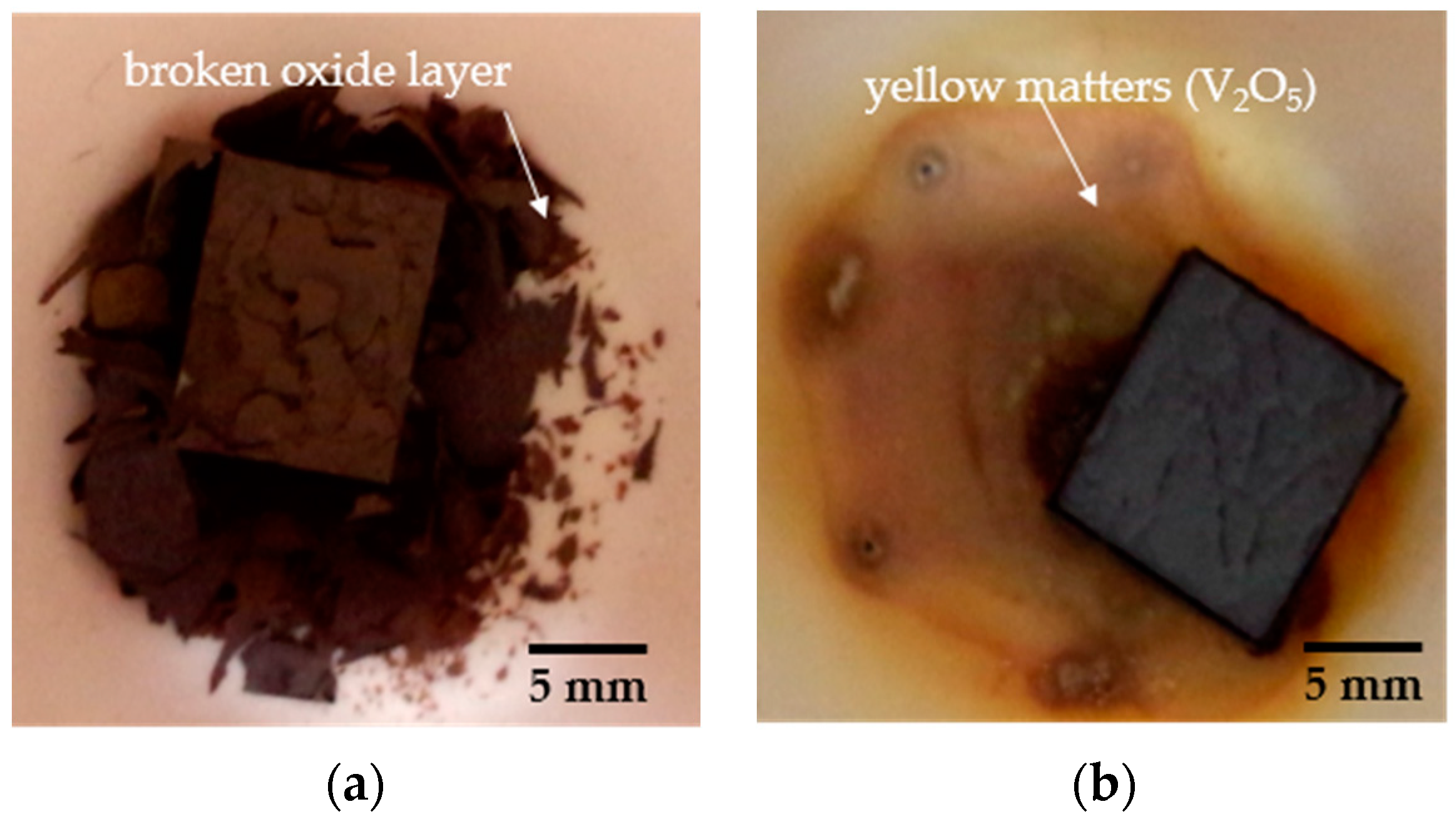

Figure 1 shows the oxidation kinetics curves of TF550 alloy along with Ti–6Al–4V alloy after oxidation at 873 and 1073 K for 100 h. As shown in Figure 1a, with increasing oxidation time, the oxidation weight gain of each alloy showed an increase tendency, and it was much larger at 1073 K than that at 873 K. The oxidation weight gain of TF550 alloy was 2 mg/cm² after oxidation at 873 K for 100 h, which was similar with that (1.4 mg/cm²) of Ti–6Al–4V alloy, while the oxidation weight gain of TF550 alloy (90 mg/cm²) was larger than that (40 mg/cm²) of Ti–6Al–4V alloy at 1073 K. The smaller oxidation weight gain of Ti–6Al–4V alloy was attributed to the formation of the compact Al₂O₃ layer, which could prevent the further oxidation of the substrate [22,23]. Although the oxidation weight gain of Ti–6Al–4V alloy was smaller than that of TF550 alloy, the oxide layer of Ti–6Al–4V alloy flaked seriously at 1073 K, as shown in Figure 2a. While V₂O₅ which formed in the oxide layer of TF550 alloy, it melted and flowed into the crucible (yellow matters in Figure 2b) due to its low melting point (about 948 K) [24,25]. The formation of V₂O₅ in TF550 alloy at high temperatures improved the wear properties resulting from their lubrication, which could enhance its burn-resistant behavior. The detailed discussion is shown in Section 3.

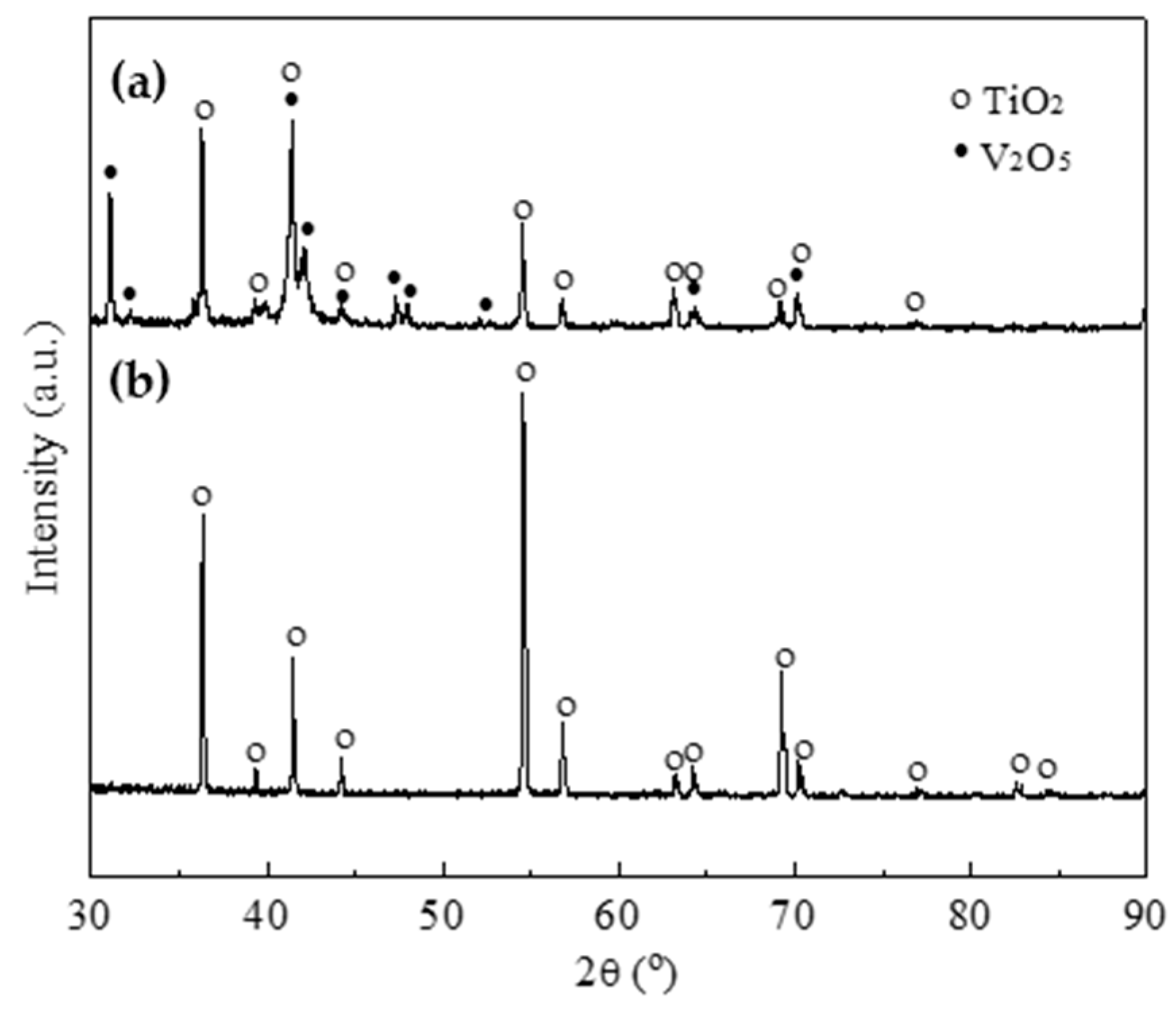

Figure 3 shows the X-ray diffraction profiles of TF550 alloy at 873 and 1073 K for 100 h. The surface oxide product was identified as TiO₂ and V₂O₅ at 873 K, while it was detected to be only TiO₂ at 1073 K. In addition, the peak intensity of V₂O₅ was weaker than that of TiO₂ at 873 K. Based on the oxidation kinetic relationship [26],

$$\Delta W=k{t}^n$$

(2)

where ∆W is the oxidation weight gain, n is the oxidation reaction index and t is the oxidation time, respectively. The oxidation reaction index (n) could be obtained to discuss the oxidation mechanism [26,27,28,29]. For example, when n is equal to 1, the oxidation reaction rate follows the linear law and the oxidation process is controlled by the reaction rate of oxygen and the substrate. When n is equal to 0.5, the oxidation reaction rate follows the parabolic law and the oxidation process is controlled by the diffusion of reactants in the oxide film. Based on the oxidation weight gain curves (Figure 1a), oxidation reaction indices were obtained through double logarithmic transformation, as shown in Figure 1b. However, considering the influencing factors of a lower oxidation weight gain and measurement deviation at 873 K, it was difficult to discuss the oxidation mechanism of TF550 alloy based only on the oxidation reaction index.

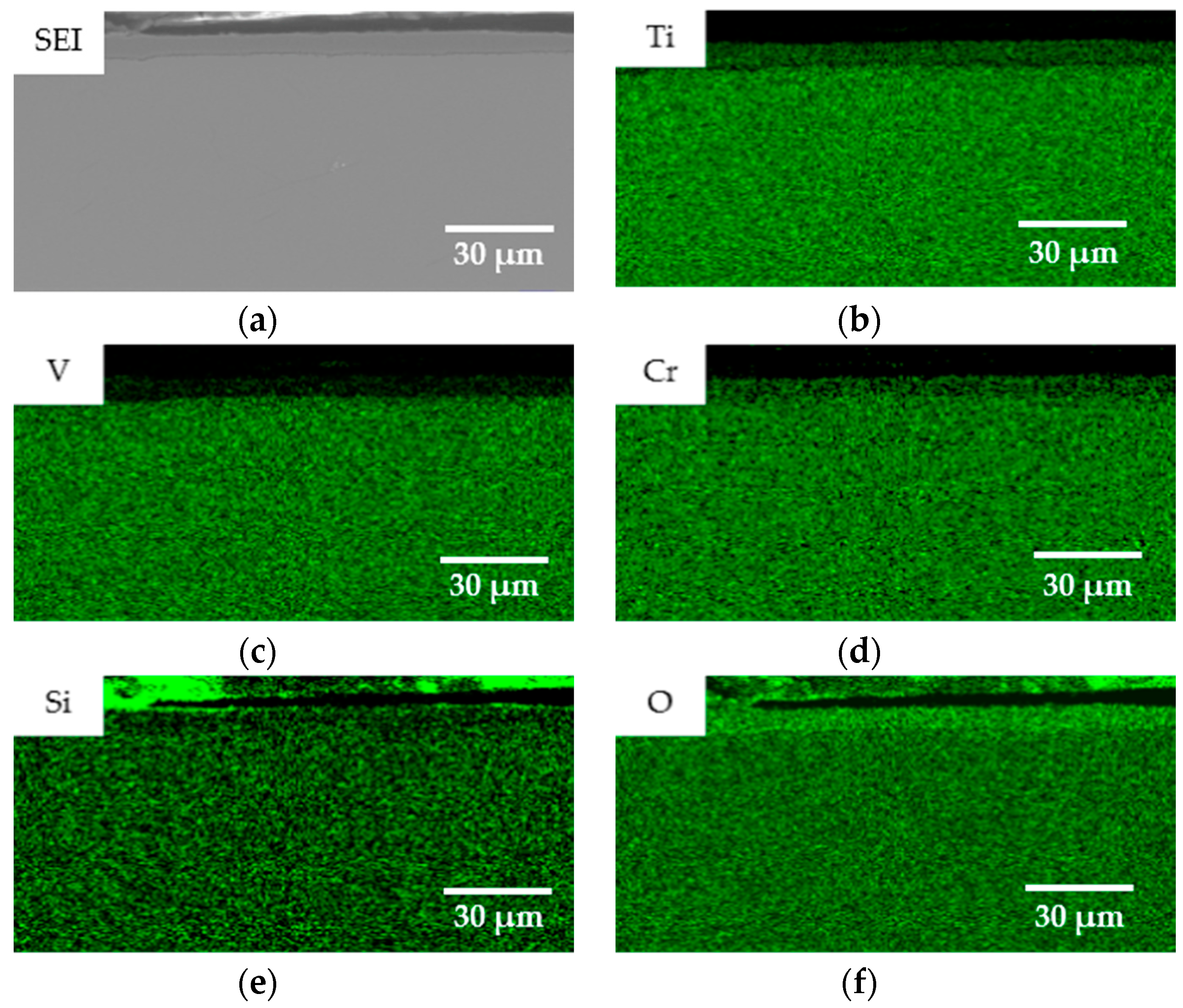

Figure 4a shows the morphology of the oxide layer in TF550 alloy after oxidation at 873 K for 100 h, by SEM observation. The average thickness of the oxide layer was measured to be 7 μm. Figure 4b–f show the EDS mapping of main elements of Ti, V, Cr, Si, and O. The concentration of O element in the oxide layer was higher than that of the substrate, while those of Ti and V elements in the oxide layer were lower. Combined with XRD results (Figure 3), the surface oxide layer consisted of TiO₂ and V₂O₅. Consequently, the oxidation process of TF550 alloy at 873 K was deduced to be controlled by the oxidation reaction at the interface between the substrate and oxide layer.

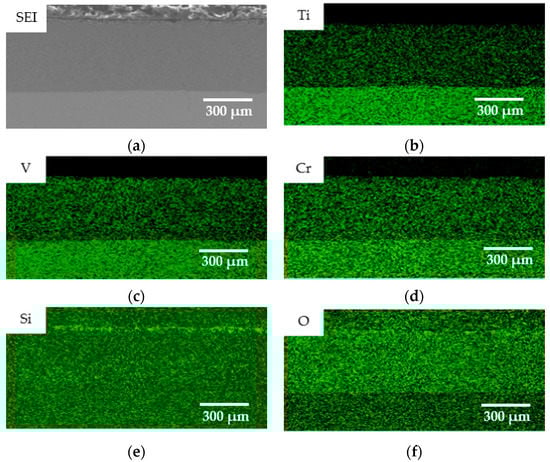

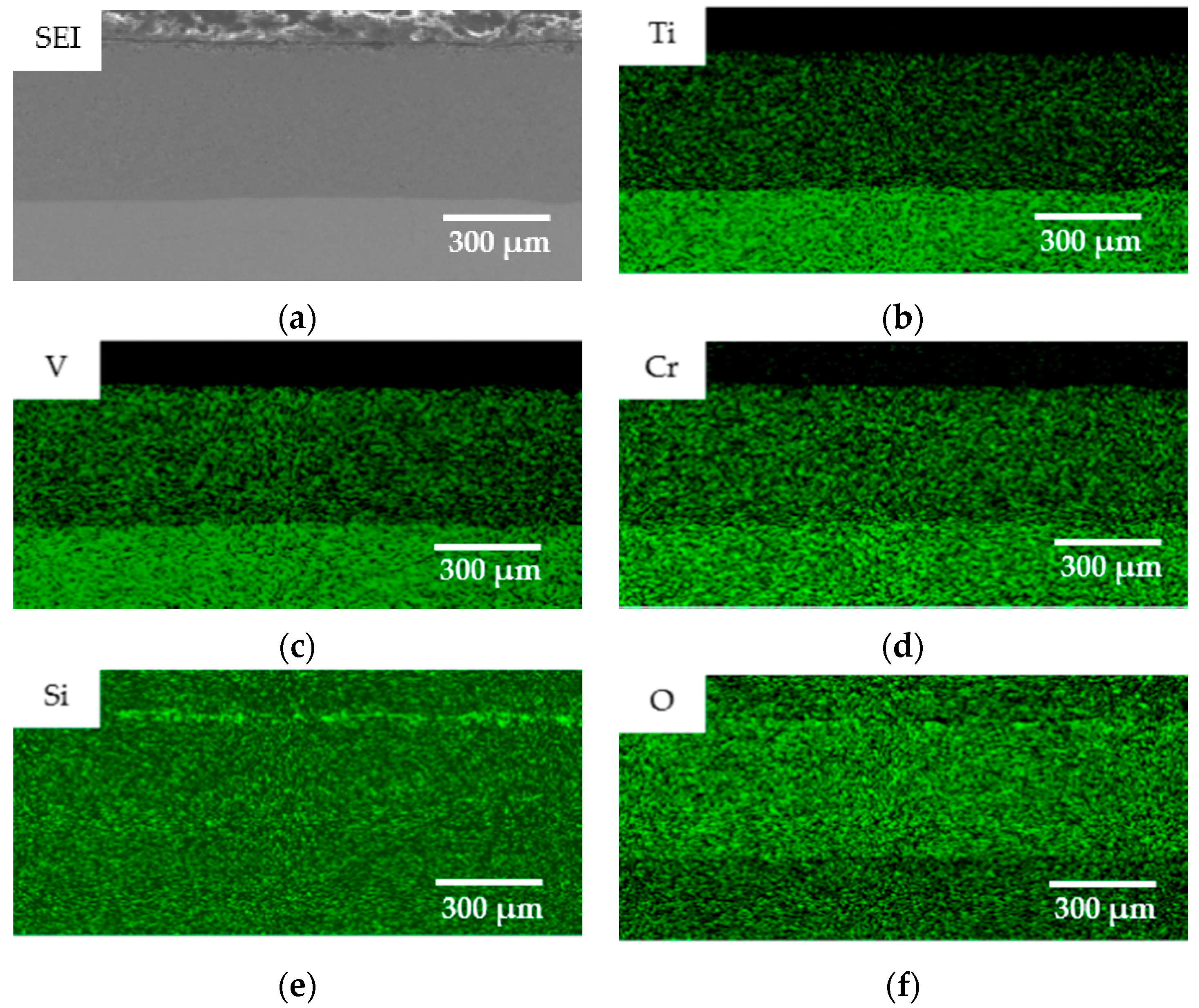

After oxidation at 1073 K for 100 h, the oxidation reaction index of TF550 alloy was analyzed to be 0.91, which was slightly larger than that (0.71) of Ti–6Al–4V alloy. The average thickness of the oxide layer as shown in Figure 5a was 460 μm after oxidation at 1073 K, which was much thicker than that of the oxide layer at 873 K. Based on the EDS mapping from Figure 5b–f, the Ti and O elements were clearly detected in the oxide layer, indicating that the oxide layer mainly consisted of TiO₂ combined with XRD results (Figure 3). The detected Si element on the top of Figure 4e and Figure 5e was a residual polishing solution (SiO₂), which was considered to have no effect on the oxidation mechanism. Thus, the oxidation reaction rate at 1073 K followed the linear law and its oxidation process was controlled by the oxidation reaction at the interface between the substrate and oxide layer [26]. As shown in Figure 5c, the V element was clearly identified in the oxide layer, while the V₂O₅ was not detected by XRD as shown in Figure 3. Due to the low melting point of V₂O₅, they flowed into the crucible rather than adhered to the specimen, resulting in an absence of V₂O₅, which was in accordance with aforementioned occurrence of yellow matters in the crucible (Figure 2b). Furthermore, a positive concentration gradient of V occurred from the substrate to the surface due to the continuous consumption of V₂O₅ in the oxide layer, which accelerated the diffuse rate of V [30]. Consequently, V element was clearly detected in the oxide layer in terms of the EDS analysis.

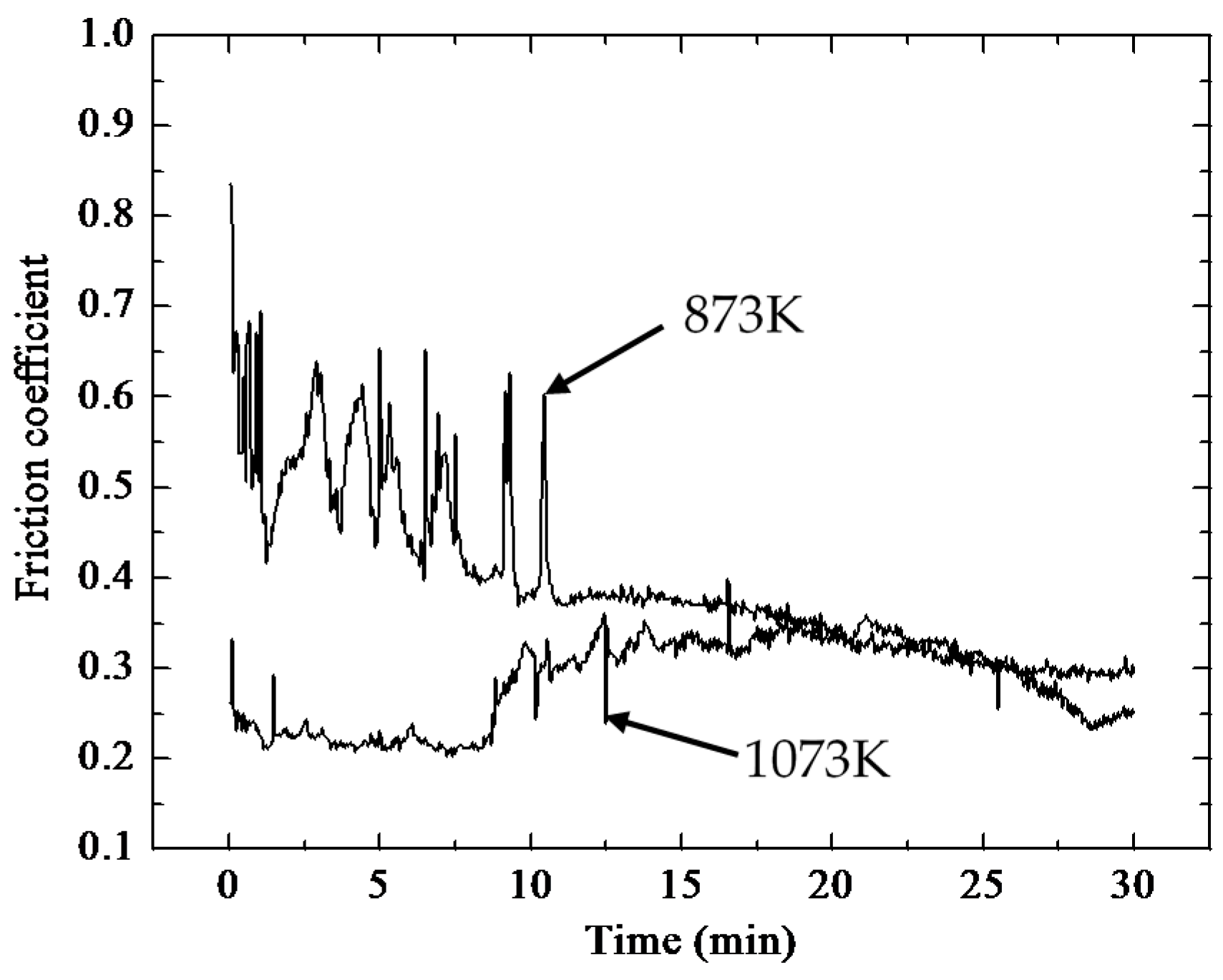

Figure 6 shows the friction coefficients of TF550 alloy as a function of wearing time at 873 and 1073 K. The friction coefficient at 873 K was largely fluctuated with wearing time up to 10 min, and then reached a steady-state condition. Compared with 873 K, the friction coefficient at 1073 K became smaller, and its fluctuation became much weaker. The mean friction coefficient (f_m) at 873 and 1073 K, as listed in

Table 1. Mean friction coefficient (f_m), volume wear rate of the disk (W_sd), and the pin (W_sp) in TF550 alloy after wearing at high temperatures of 873 and 1073 K.

Temperature (K)	fm	Wsd (10−13·m3/Nm)	Wsp (10−13·m3/Nm)
873	0.394 ± 0.095	2.21 ± 0.35	0.197 ± 0.072
1073	0.286 ± 0.050	-	0.566 ± 0.039

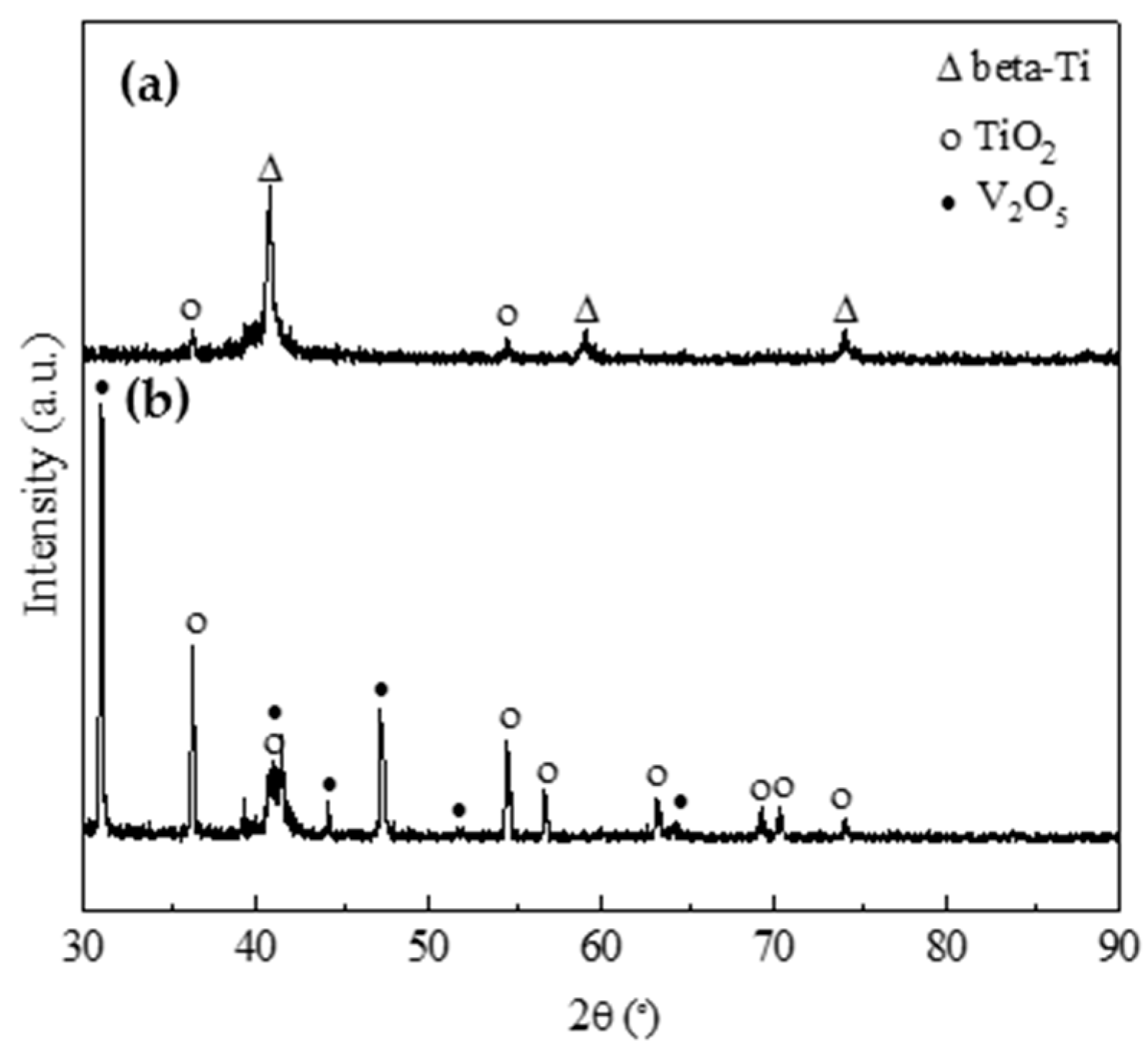

, were calculated to be 0.394 and 0.286, respectively. On the other hand, the volume wear rate of the disk (W_sd) at 873 K was obtained to be 2.21 × 10⁻¹³ m³/Nm (Table 1), while it could not be measured at 1073 K because of the amount of oxides formed on the worn surface. For a comparison, the volume wear rate of the pin (W_sp) at 873 K was 0.197 × 10⁻¹³ m³/Nm, which was smaller than that (0.566 × 10⁻¹³ m³/Nm) of the pin at 1073 K (Table 1). Figure 7 shows the XRD profiles of worn surfaces for disks at different testing temperatures. Besides the β-phase, weak peaks of TiO₂ were detected on the worm surface at 873 K. Only peaks for both oxides, i.e., TiO₂ and V₂O₅, were present at 1073 K, while the peaks of the β-phase disappeared.

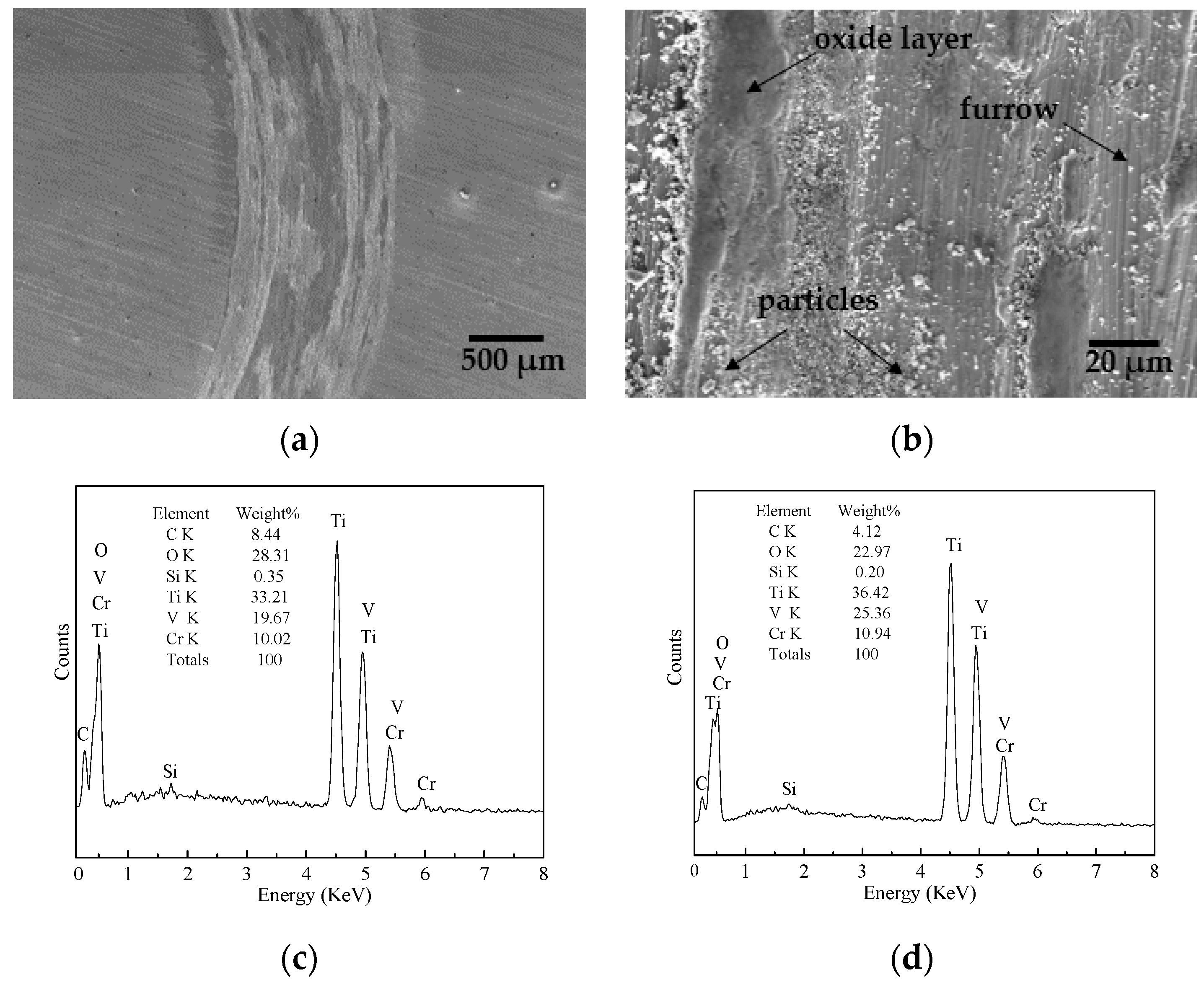

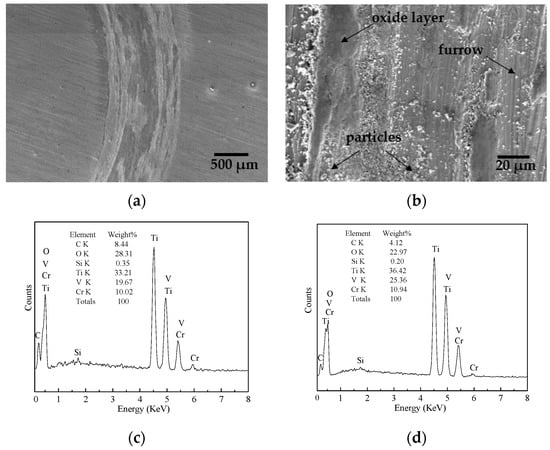

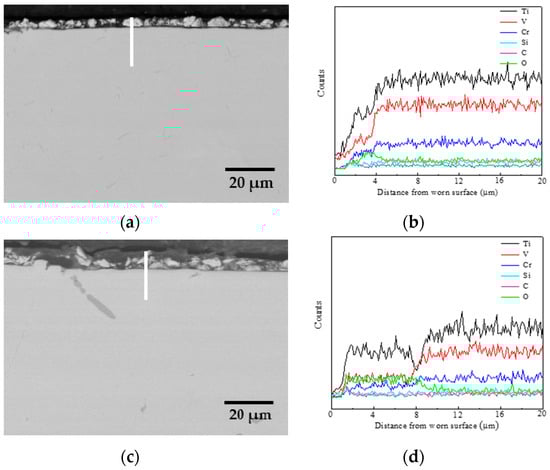

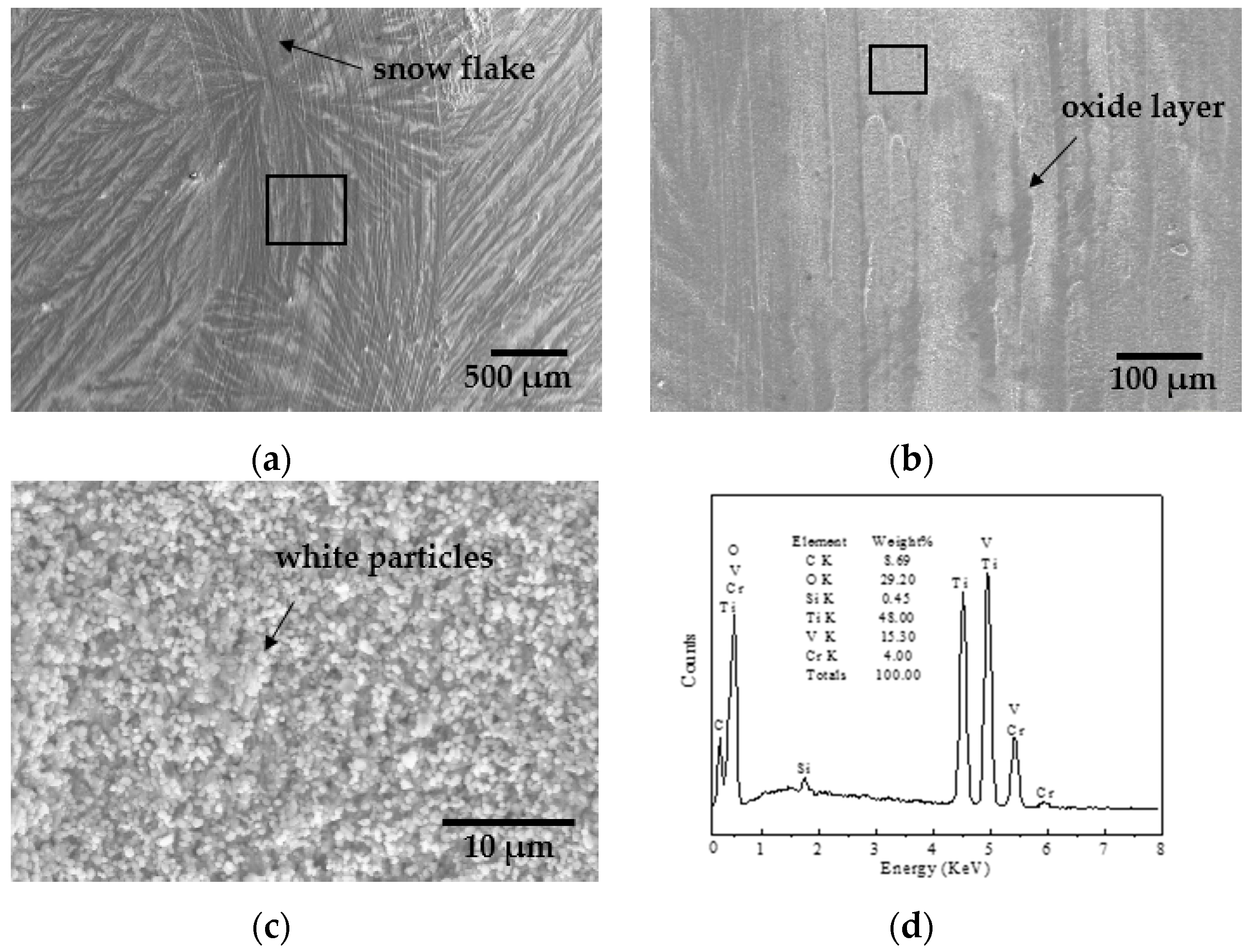

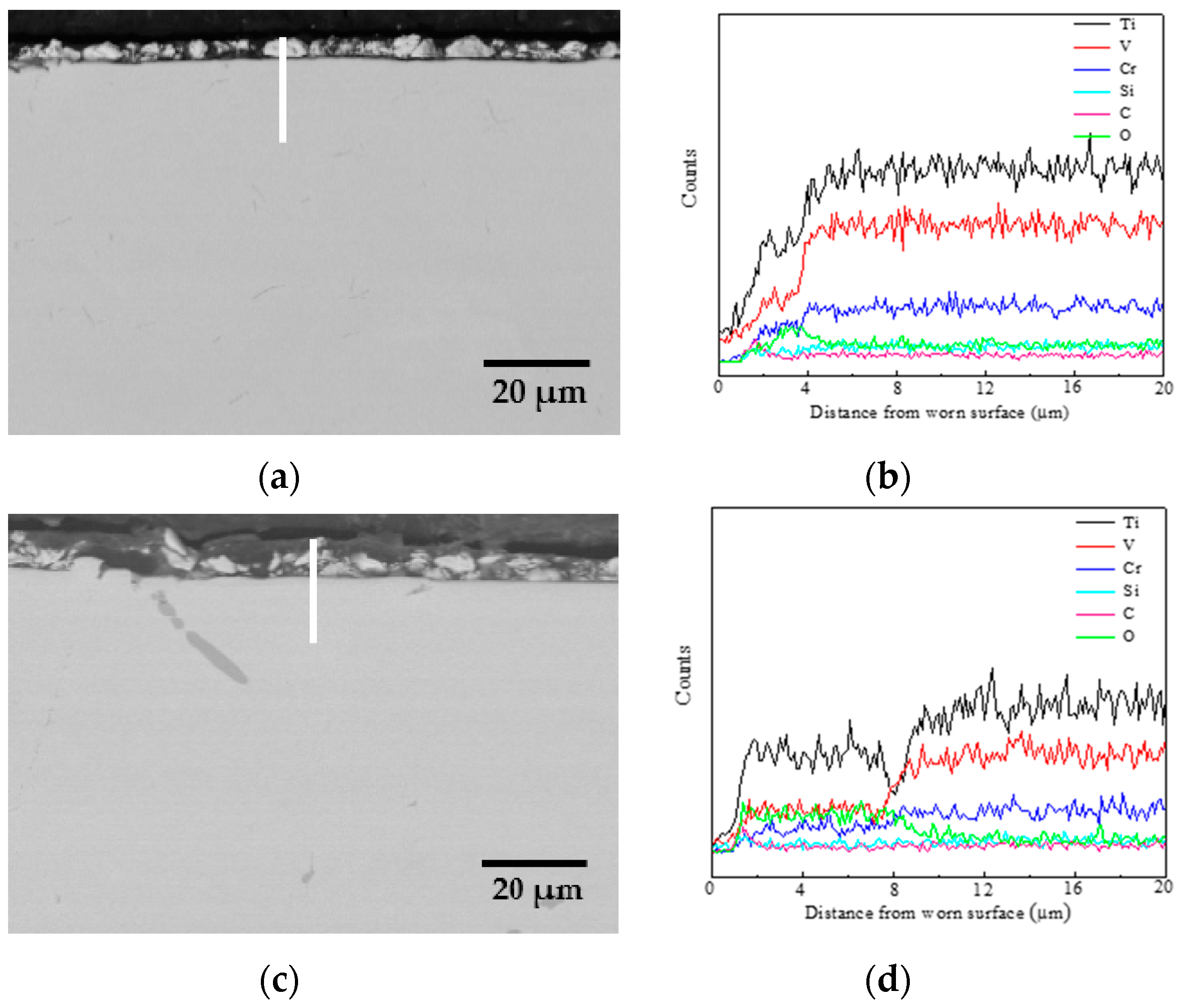

Figure 8a shows the morphology of worn surfaces with a width of the wearing indent equal to about 1.2 mm at 873 K. Furrows indicated by arrows in Figure 8b were readily identified on the worn surface. Black smooth regions were also observed, which were regarded as tribo-layers containing the oxide of TiO₂ in terms of the EDS analysis (Figure 8c). In addition, some white particles consisting of not only metal debris but also the oxide of TiO₂ were confirmed by the EDS analysis as well (Figure 8d). Figure 9 shows the morphologies and compositions of worn surfaces at 1073 K. An average width of the wearing indent was 1.6 mm, and snowflake-like features were present on the worn surface (Figure 9a). The furrows were not observed and few black smooth regions appeared, as shown in Figure 9b; instead, a large amount of particles were present on the worn surface. The particles were further observed in Figure 9c and they were confirmed to be a mixture of the oxides of TiO₂ and V₂O₅, as shown in Figure 9d. Figure 10 shows the morphologies of the cross-section near the worn surfaces at 873 and 1073 K. The tribo-layer with an average thickness of 4 μm formed on the worn surface at 873 K (Figure 10a). However, this tribo-layer was not compact and it contained trace oxide of TiO_2., identified by EDS in Figure 10b. At 1073 K, the tribo-layer became thicker (7 μm) and more continuous, and it contacted with the matrix compactly in Figure 10c. This tribo-layer was identified as both TiO₂ and V₂O₅ oxides by EDS in Figure 10d.

Based on the results of the friction coefficients, volume wear rates, and morphologies of worn surfaces, TF550 alloy presented different dry sliding wear behaviors at different testing temperatures. At 873 K, the tribo-oxide layer was not formed in the initial stage of dry sliding wear, and direct contact was not avoided completely, which resulted in a large friction coefficient. With an extension of wear time, a tribo-layer containing the oxide of TiO₂, i.e., black smooth regions formed, as shown in Figure 8b [31]. This tribo-oxide layer presented a partial protection from wearing for a decrease in the friction coefficient and its fluctuation. Some furrows appeared on the worn surface, while they were not covered with the tribo-oxide layer. Thus, the wear mechanism at 873 K was dominated by a combination of abrasive wear and oxidative wear. Amounts of oxides formed on the worn surface before the sliding test wear at 1073 K, because the temperature rose to the testing value in advance. The oxides formed before the sliding wear were loose, and thus were easily peeled off under the sliding in the initial period. Furthermore, V₂O₅ oxides could be melted during the sliding wear according to the oxidation morphology of TF550 alloy at 1073 K (Figure 2b). The molten V₂O₅ as a soft phase provided a lubricating effect, which led to a decrease in the friction coefficient, leading to a reduction of calorific value. Also, they filled defects between the hard phases, such as TiO₂ and metal debris, which could release the internal force between them, as shown in Figure 10c. Not only the loose oxides but also the molten V₂O₅ acted as a lubricant, leading to the absence of the running-in period and a relatively small friction coefficient during the wear process. The molten V₂O₅ flowed into the wear scratch and was subjected to solidification after wear testing, to exhibit the aforementioned snowflake-like features (Figure 9a), which was not in agreement with that of the single oxidation at 1073 K. In addition, the presence of amounts of oxides at relatively high temperatures made it difficult to measure the volume wear rate of the disk and resulted in an overestimated volume wear rate of the pin (Table 1). The furrows were not observed on the worn surface and amounts of oxide particles were present at 1073 K, indicating a typical feature of the oxidative wear mechanism.

4. Conclusions

In this study, the oxidation and wear characteristics of TF550 fireproof titanium alloy were investigated at high temperatures of 873 and 1073 K, and corresponding high temperature oxidation and wear mechanisms were also discussed. The main results are summarized as follows.

(1)

The oxidation gain of TF550 alloy was much larger than that of Ti64 alloy, attributed the abundant addition of vanadium, which was regarded as a positive factor to improve the burn resistance. The oxidation weight gain of TF550 alloy after oxidation at 873 K for 100 h was much smaller than that at 1073 K for 100 h. The thin surface oxide film was identified as oxides of TiO₂ and V₂O₅ at 873 K, while the thick one was detected to be TiO₂ only at 1073 K. The oxidation reaction rate at 1073 K followed the linear law, indicating that the oxidation process of this alloy was mainly controlled by the oxidation reaction at the interface between the substrate and oxide layer.

(2)

The friction coefficient at 873 K was larger than that at 1073 K, while the volume wear rate at 1073 K was larger because a large amount of oxides formed on the worn surface. The TiO₂ oxide was detected on the worn surface at 873 K, and both oxides of TiO₂ and V₂O₅ were present at 1073 K.

(3)

The presence of furrows and a tribo-oxide layer at 873 K indicated that the wear mechanism was dominated by a combination of abrasive wear and oxidative wear. The continuous tribo-oxide layer was present at 1073 K, indicating that the wear mechanism was dominated by oxidative wear.
