Recovery of Gallium from Corundum Flue Dust by Two-Stage Alkali Leaching, Carbonation, Acid Leaching and Solvent Extraction Process

Abstract

Flue dust generated during the process of manufacturing corundum is a carrier of critical metal gallium. In this study, a process of alkali leaching-carbonation-acid leaching-solvent extraction was developed to recover and enrich gallium from corundum flue dust. Over 93% of the gallium in corundum flue dust could be recovered through a two-stage alkali leaching process, which consists of 120 min of concentrated alkali leaching in NaOH solution and a subsequent 30-min dilute alkali leaching (after dilution), with an alkali-to-ore mass ratio of 1.2:1. Liquid to solid ratios in two alkali leaching stages were 1.5:1 and 8:1, respectively. The carbonation process was employed to remove high-level Si in alkali leachate. After carbonation and HCl leaching, over 96% of gallium in the NaOH leachate could be dissolved into acid solution. After extracting gallium from the HCl leachate using N235 as extracting agent, 1% NaOH solution was used to strip gallium from the organic phase. The extraction and stripping efficiency of gallium was over 99% and 97%, respectively.

1. Introduction

The application of gallium in modern electronic devices, such as integrated circuits (ICs), photovoltaic (PV), and light emitting diodes (LED), was promoted because some gallium compounds showed special properties when exposed to the light spectrum [1]. Nowadays, the global demand for gallium is growing as the demand for Ga-based products continues to increase.

Gallium is a scarce, but not rare element. It is widely distributed in nature, and its content in the earth’s crust is estimated at about 15–19 ppm, which is higher than arsenic, antimony, silver, bismuth, molybdenum, and tungsten, among others [2,3]. However, gallium has little tendency to be naturally concentrated. High-gallium minerals are extremely rare and gallium produced from these sources is very limited. Gallium is always obtained as a byproduct from processing of ores for other metals and effluent streams in metal production or power plants. Besides, gallium is also recycled from scrap generated in the process of manufacturing GaAs- and GaN-based devices. During the past few decades, studies have been carried out on recovering gallium from various sources, which included Bayer liquor [4,5,6], aluminum industry residues [7], coal fly ash [8,9], industrial zinc or copper processing residues [2,10,11,12], phosphorus flue dust [13], and corundum slags, among others [14]. In addition, flue dust generated from the process of producing brown corundum was also found to be an important source of gallium, because the gallium content in it was relatively high. Methods have been proposed to extract gallium from corundum flue dust, including hydrochloric acid leaching-solvent extraction [15], potassium and calcium salt roasting-alkali leaching [16], and dilute sulfuric acid leaching-extraction [17]. However, these methods have their own disadvantages. Using HCl leaching-solvent extraction method could only recover 70% of the gallium in corundum flue dust; the leaching efficiency is low. The roasting-alkali leaching method requires high roasting temperature (over 1200 °C), inevitably leading to high energy consumption. The dilute H₂SO₄ leaching-extraction method can extract over 80% of the gallium in corundum flue dust under atmospheric pressure, but it has the problem of low filter velocity in the case of leaching high-silica flue dust because of the formation of silica gel. Moreover, in some former studies, extractant such as amines, tri-C8-10-alkyl (N235), N, N-di(1-Methyl heptyl) acetamide (N503), and tributyl phosphate (TBP), among others, were applied to extract Ga³⁺ and In³⁺ from chloride medium [18,19]; and in this study, N235 was used to extract Ga³⁺ from the HCl leachate.

Based on former studies, this study aimed to develop an effective and efficient method to recover and enrich gallium from a corundum flue dust containing a high level of silica. This method consisted of alkali leaching, total carbonation, acid leaching, and solvent extraction. The recovery efficiency of gallium was over 90% and the entire process was performed under mild conditions.

2. Materials and Methods

2.1. Materials and Reagents

The corundum flue dust used in this study was collected from Shanxi province, China. Chemical composition of this corundum flue dust was shown in

Table 1. Chemical composition of the corundum flue dust (wt. %).

Compounds and Elements	Content/wt. %
MgO	0.26
CaO	0.13
Fe2O3	3.52
Al2O3	18.97
SiO2	56.65
Ga	0.15
K2O	4.39
Na2O	1.36
Loss on ignition	14.22

. All chemical reagents were used as received without further purification. Sodium hydroxide, hydrochloric acid used for leaching, and kerosene, 1-decanol used for solvent extraction were of analytical grade. N235 (with carbon chains C8 35–45% and C10 52–63%, Shanghai Rare-Earth Chemical Co. Ltd., Shanghai, China) used for solvent extraction was of technical grade.

2.2. Experimental Procedure

2.2.1. Leaching

The alkali leaching process in this study consisted of two stages: concentrated alkali leaching and diluted alkali leaching (as shown in Figure 1).

First, the corundum flue dust was mixed with NaOH solution. Leaching tests were performed in a 5 L Teflon container with a lid, and the suspension was agitated constantly. Waterbath equipment (DK-S28, Jiwei Test, Shanghai, China) was used to keep a constant temperature of suspension during the entire process. After a preset reaction time, a certain amount of water was added to dilute the suspension, and the suspension was continuously stirred for 30 min.

In order to determine the optimum conditions for alkali leaching of gallium from corundum flue dust, leaching parameters such as alkali-to-ore mass ratio, leaching temperature, reaction time, and liquid to solid ratio were investigated. In the tests, the mass ratio of alkali to ore was set from 0.8 to 1.8; the leaching temperature was tested from 50 °C to 90 °C; reaction time for the first alkali leaching stage was set from 60 to 180 min; liquid to solid ratios for the two alkali leaching stages were set from 1.5:1 to 3.5:1 and 5:1 to 10:1, respectively. The duration of the second alkali leaching stage (dilute alkali leaching) was fixed at 30 min. Main reactions occurred during the leaching process are listed in (1)–(3):

SiO₂ + 2NaOH → Na₂SiO₃ + H₂O

(1)

Al₂O₃ + 2NaOH + 3H₂O → 2Na[Al(OH)₄]

(2)

Ga₂O₃ + 2NaOH + 3H₂O → 2Na[Ga(OH)₄]

(3)

The leaching efficiency was calculated according to Equation (4):

Leaching efficiency (%) = (m₁/m₂) × 100%

(4)

where m₁ is the mass of metal leached, and m₂ is the mass of metal contained in raw materials.

After alkali leaching, the leachate was transferred into a container with agitator and was agitated continuously. CO₂ was introduced into the alkali leachate until pH value of the solution dropped to 9 (Temperature of 90 °C, CO₂ flow of 20 mL/min). After filtration, the carbonated precipitate was washed three times with boiling water to remove Na⁺. Then, the gallium-enriched precipitate obtained from the carbonation process was leached with 4 mol/L hydrochloric acid. The final filter cake was washed successively with diluted hydrochloric acid and water, and then it was dried overnight in an oven at 60 °C.

In the process of leaching, the liquid to solid ratio (L/S) was defined in Equation (5):

(L/S)_i = V_i/m (i = 1, 2)

(5)

In this study, liquid to solid ratios (L/S) in the first and second alkali leaching stages were designated as (L/S)₁ and (L/S)₂, respectively. V₁ (mL) is the volume of water added in the first alkali leaching stage (i.e., concentrated alkali leaching stage), V₂ (mL) is the total volume of water added in both two stages of alkali leaching (including V₁ and the volume of water added later to dilute the suspension), and m (g) is the mass of corundum flue dust.

2.2.2. Solvent Extraction

The HCl leachate should be evaporated to about half volume to increase its acidity. The solvent extraction process was carried out by mixing the concentrated HCl leachate with the organic phase (25 vol. % N235 + 5 vol. % 1-decanol + 70 vol. % kerosene) and agitating for 15 min, at an aqueous to organic phase volume ratio (A/O) of 4.5:1. Then, gallium was stripped from the organic phase with 1% NaOH solution (A/O = 1:1). The solvent extraction process was performed at room temperature.

2.3. Analysis Method

Composition of this corundum flue dust was determined by X-ray fluorescence spectroscopy (XRF) (EDXL 300, Rigaku, Tokyo, Japan). The X-ray diffraction (XRD) technique (TTRIII, Rigaku, Tokyo, Japan) was used to identify phases in the flue dust (with Cu Kα radiation, scan step of 10°/min, 2θ-range of 10–70°). The particle size of the flue dust sample was analyzed using a particle size analyzer (Mastersizer 2000, Malvern Panalytical, Malvern, UK) and the statistical result was obtained. The content of elements in solution was analyzed using inductivity coupled plasma atomic emission spectroscopy (IRIS Intrepid II XSP ICP-AES, Thermo Fisher Scientific, Waltham, MA, USA).

3. Results and Discussion

3.1. Characterization of Corundum Flue Dust

The XRD pattern of the corundum flue dust sample used in this study is shown in Figure 2.

As shown in Table 1, the content of gallium in this flue dust was 0.15 wt. %, which was much higher than that in bauxite, and the silica content was over 50 wt. %. Figure 2 shows that the main phases in this flue dust were corundum and quartz, and broad scattered peaks in this pattern indicate that the majority of silica phase in this flue dust were amorphous silica. Former studies indicated that gallium in the corundum flue dust exists as Ga₂O₃ in vitreous eutectic mixtures [20].

Particle size distribution of this flue dust sample is illustrated in Figure 3. Based on the transport phenomenon, decreasing particle sizes of ores could increase leaching efficiency of metals. This was because the creation of high specific area increases the chance of contacts between leaching agent and ore particles, consequently facilitating the diffusion of reactants and the reaction products. In this study, the corundum flue dust particles are fine; about 85% of the flue dust particles were finer than 100 μm, and nearly 93% of the particles were finer than 200 μm. Moreover, the cost of sieving and grinding would be unfavorable for scale-up tests in the future. Therefore, in this study, corundum flue dust was used in tests without sieving and grinding.

3.2. Alkali Leaching

3.2.1. Effect of Alkali-to-Ore Mass Ratio

Figure 4 shows the results of leaching tests performed under different alkali-to-ore mass ratios.

Flue dust was leached for 60 min in concentrated NaOH solution (the initial NaOH concentration were 35 wt. %, 40 wt. %, 44 wt. %, 50 wt. %, and 55 wt. % at alkali-to-ore mass ratios of 0.8, 1.0, 1.2, 1.5, and 1.8, respectively) at 90 °C, followed by a 30-min leaching process after dilution, with (L/S)₁ = 1.5:1 and (L/S)₂ = 6:1. As illustrated in Figure 4 that the leaching efficiency of gallium increased obviously from 64.9% to 82.6% with a rising alkali-to-ore mass ratio from 0.8 to 1.2, indicating that the amount of NaOH was important for gallium recovery. Further increasing the alkali-to-ore mass ratio to 1.8 could only raise the gallium leaching efficiency slightly to 86.2%. Therefore, an alkali-to-ore mass ratio of 1.2 was considered appropriate in this study.

3.2.2. Effect of Leaching Temperature

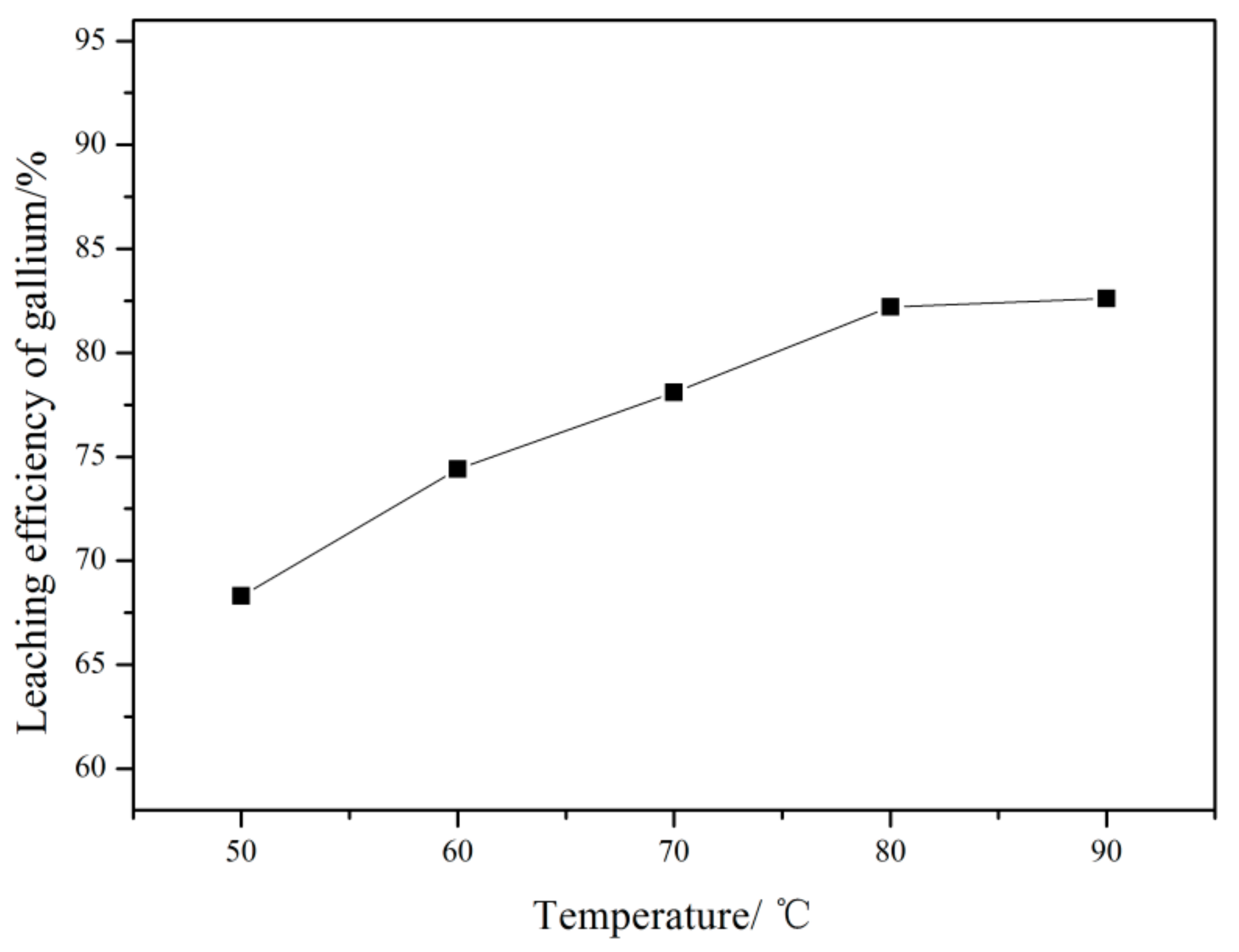

The effect of temperature on alkali leaching is shown in Figure 5.

In this set of tests, leaching temperature was varied in the range between 50 and 90 °C, and the mass ratio of alkali to ore was fixed at 1.2:1. Other test parameters were set the same as in Section 3.2.1. As shown in Figure 5, the leaching efficiency of gallium shows an upward trend as the temperature raised. At a temperature of 80 °C, 82.2% of the gallium in flue dust could be extracted. The leaching efficiency of gallium was maintained almost constant when the temperature was increased to 90 °C. Therefore, the subsequent leaching tests were performed at 80 °C.

3.2.3. Effect of Reaction Time of the First Alkali Leaching Stage (Concentrated Alkali Leaching Stage)

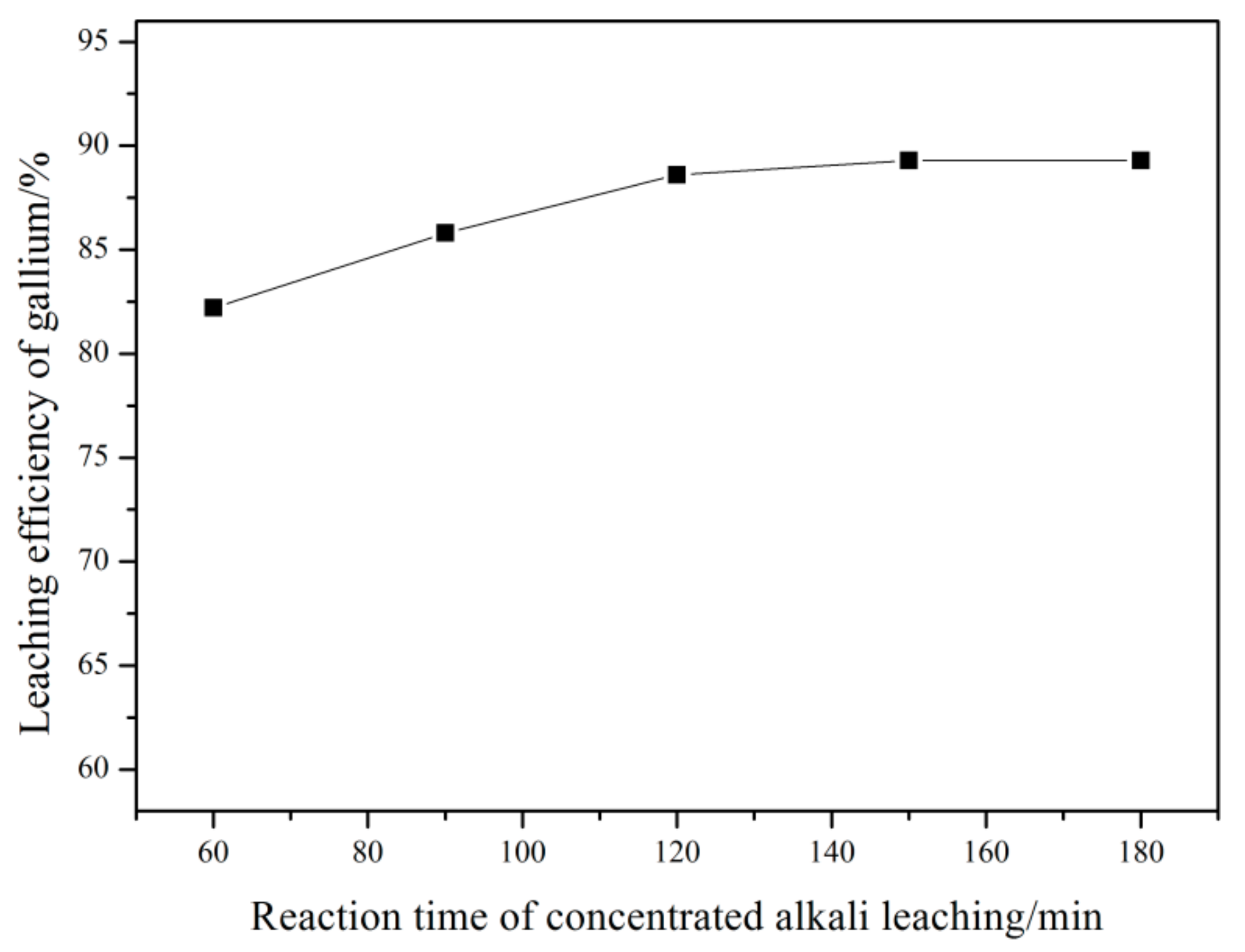

Figure 6 shows the variation of gallium leaching efficiency with increased reaction time for concentrated alkali leaching.

This set of leaching tests was performed at 80 °C, with an alkali-to-ore mass ratio of 1.2:1, (L/S)₁ = 1.5:1 and (L/S)₂ = 6:1. As shown in Figure 6, the leaching efficiency of gallium increased steadily from 82.2% to 88.6% with prolongation of reaction time from 60 to 120 min. This was because as the reaction time increased, more surface area of the unreacted particles could come into contact with the leaching agent. However, the leaching efficiency of gallium remained almost constant when the reaction time was further prolonged, indicating that the leaching reaction achieved its reaction equilibrium within 120 min. According to this, a reaction time of 120 min was considered enough for the first alkali leaching stage.

3.2.4. Effect of (L/S)₁ (L/S for Concentrated Alkali Leaching)

The effect of L/S for the concentrated alkali leaching on recovery of gallium was shown in Figure 7. L/S for concentrated alkali leaching varied from 1.5 to 3.5 in this set of experiments. Leaching tests were performed at 80 °C. The reaction times for two alkali leaching stages were 120 min and 30 min, respectively. The mass ratio of alkali to ore was 1.2:1, and L/S for the second alkali leaching stage (dilute alkali leaching) was 6:1. As shown in Figure 7, the leaching efficiency of gallium decreased significantly with the increase of L/S in the concentrated alkali leaching stage, and it dropped to 74.5% at the L/S of 3.5:1. It is obvious that lower L/S value in the first alkali leaching stage was beneficial to the leaching of gallium from flue dust. According to the test results, a liquid to solid ratio of 1.5:1 was optimal for concentrated alkali leaching.

3.2.5. Effect of (L/S)₂ (L/S for Dilute Alkali Leaching)

Figure 8 shows the variation tendency of gallium leaching efficiency with the increase of L/S value in dilute alkali leaching stage.

L/S in the second alkali leaching stage was varied in the range from 5:1 to 10:1 to investigate its effect on gallium recovery. In these tests, L/S for the first alkali leaching stage (concentrated alkali leaching) was fixed at 1.5:1, and other testing parameters including leaching temperature, reaction time, and alkali-to-ore mass ratio were the same as those in Section 3.2.4. Figure 8 shows that a higher L/S value in the dilute alkali leaching stage was more favorable for gallium recovery and the leaching efficiency of gallium reached 93.6% at the L/S of 8:1. At a higher L/S value of 10:1, the leaching efficiency of gallium was about 94%. Therefore, in the second stage of alkali leaching, a L/S of 8:1 was considered to be optimal in this study.

According to the results shown above, the L/S value in two alkali leaching stages significantly affected the leaching efficiency of gallium. A low L/S value in the first leaching stage implied that the concentration of NaOH in suspension was high, and this was conducive to the corrosion of phases (especially silica-enriched phases) in the flue dust; hence, gallium could be easily dissolved into the suspension. However, high viscosity (implied poor fluidity) of the concentrated alkali suspension was unfavorable for filtration and the further leaching of gallium. Therefore, the concentrated suspension should be diluted. Optimal conditions for the two-stage alkali leaching are shown in

Table 2. Optimal conditions and result for two-stage alkali leaching. (L/S—liquid to solid ratio).

Test Parameters and Result	Value
Alkali-to-ore mass ratio	1.2:1
Temperature	80 °C
Reaction Time (1st + 2nd stage)	120 min + 30 min
L/S for the 1st alkali leaching stage	1.5:1
L/S for the 2nd alkali leaching stage	8:1
Leaching efficiency	93.6%

.

3.3. Carbonation and Acid Leaching

The concentration of Si in the alkali leachate was high (>15 g/L), which was unfavorable for further treatment of the leachate. As a result, leachate obtained from the alkali leaching process should be carbonated first. Main reactions during the process of carbonation are as described in Equations (6)–(10) [21].

2NaOH + CO₂ → Na₂CO₃ + H₂O

(6)

Na₂CO₃ + CO₂ + H₂O → 2NaHCO₃

(7)

Na₂SiO₃ + CO₂ + nH₂O → Na₂CO₃ + SiO₂·nH₂O

(8)

2Na[Al(OH)₄] + CO₂ → 2Al(OH)₃↓+ Na₂CO₃ + H₂O

(9)

2Na[Ga(OH)₄] + 4NaHCO₃ + aq → Na₂O·Ga₂O₃·2CO₂·nH₂O+ 2Na₂CO₃ + (6 − n) H₂O + aq

(10)

After being washed with boiling water, the carbonated precipitate was leached by 4 mol/L HCl. The analysis results show that there was hardly any gallium in both carbonated liquor and the washing liquor, the recovery efficiency of gallium in the process of carbonation was higher than 99%. Over 96% of gallium in carbonated precipitate could be dissolved into the HCl leachate. Si in the alkali leachate was effectively removed via carbonation and acid leaching; the concentration of Si in the HCl leachate was reduced to lower than 50 mg/L. As gallium in the flue dust was transferred into the acid leachate, hydrated silica could also be obtained.

3.4. Solvent Extraction

The acid leachate obtained from the alkali leaching-carbonation-HCl leaching process was evaporated to half of its volume to ensure sufficient acidity, so that gallium ions in the solution converted to gallium tetrachloride GaCl₄⁻ ions [22]. N235 was chosen as extracting agent in this study, and the organic phase consisted of 25 vol. % N235, 5 vol. % 1-decanol, and 70 vol. % kerosene. The process of solvent extraction can be described as follows [23,24,25,26].

R₃N + HCl ⇌ R₃NH⁺Cl⁻

(11)

Ga³⁺ + 4Cl⁻ ⇌ GaCl₄⁻

(12)

Fe³⁺ + 4Cl⁻ ⇌ FeCl₄⁻

(13)

R₃NH⁺Cl⁻ + GaCl₄⁻ ⇌ R₃NH⁺ GaCl₄⁻ + Cl⁻

(14)

R₃NH⁺Cl⁻ + FeCl₄⁻ ⇌ R₃NH⁺ FeCl₄⁻ + Cl⁻

(15)

Gallium in the solution was extracted as GaCl₄⁻ [25,26,27], as shown in Equation (13). The concentration of major elements in the acid leachate after evaporation is shown in

Table 3. Content of major elements in acid leachate after evaporation (g/L).

Element	Concentration/wt. %
Ga	0.468
Si	0.110
Al	1.823
Fe	0.244

. The results of solvent extraction are shown in

Table 4. Recovery of gallium from the acid leachate. (A/O—aqueous/organic volume ratio)

Test Parameters and Results	Value
Extraction	-
Solvent	25% N235 + 5% 1-Decanol + 70% kerosene
A/O	4.5:1
Temperature	Ambient temperature
Extraction efficiency (Ga)	99.8%
Extraction efficiency (Fe)	99.1%
Stripping	-
Stripping agent	1% NaOH solution
A/O	1:1
Temperature	Ambient temperature
Stripping efficiency (Ga)	97.4%
Stripping efficiency (Fe)	96.5%

. The extraction efficiency of gallium was higher than 99% in a two-stage counter-current extraction process with A/O (aqueous/organic volume ratio) = 4.5:1, and the stripping efficiency of gallium was higher than 97% when the organic phase was stripped with 1% NaOH solution in a three-stage counter-current stripping process (A/O = 1:1). In addition, the extraction and stripping efficiencies of iron were about 99% and 96%, respectively. In the process of solvent extraction, tertiary amine only extracted Ga³⁺ and Fe³⁺ in leachate, while Al³⁺ remained in the raffinate [22,28]. As a result, major elements in the strip solution were gallium and iron, and the concentrations of Ga and Fe in this solution were about 2 g/L and 1 g/L, respectively.

Obviously, gallium in corundum flue dust could be effectively recovered and concentrated through leaching and extraction processes in this study, which facilitated further separation and purification of gallium. Separation of gallium from the strip solution could be achieved by further processing the strip solution with conventional methods. For instance, gallium could be extracted individually from the solution (containing both FeCl₃ and GaCl₃) after reducing Fe³⁺ to Fe²⁺ [22].

4. Conclusions

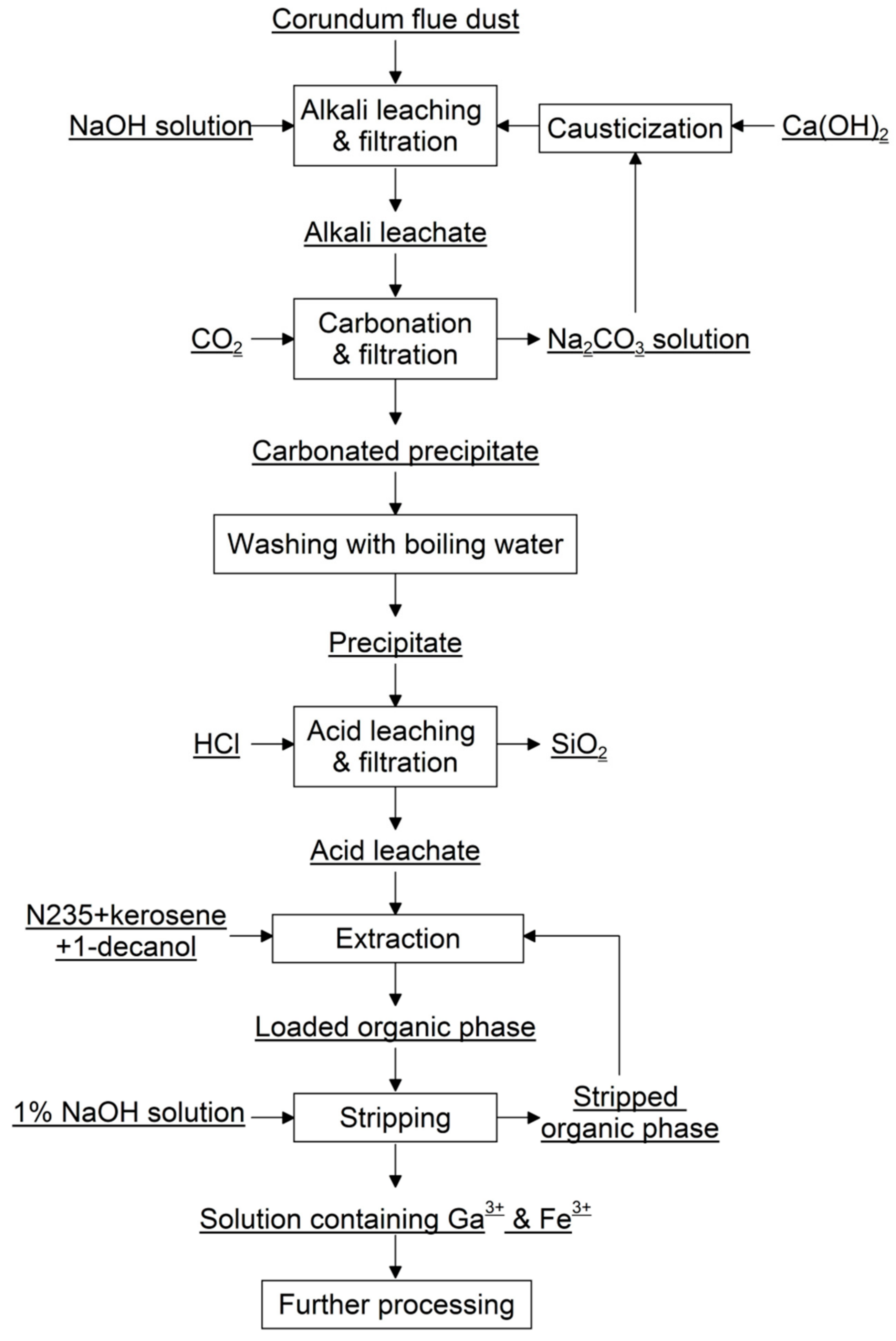

Gallium was effectively recovered and enriched from the corundum flue dust by performing a process consisting of alkali leaching, carbonation, acid leaching, and solvent extraction. The flowchart is given in Figure 9.

The leaching efficiency of gallium in the two-stage alkali leaching process was above 93% under optimum conditions, including alkali-to-ore mass ratio of 1.2:1; temperature of 80 °C; reaction time of 120 min + 30 min; and liquid to solid ratios of 1.5:1 and 8:1 in the first and second alkali leaching stage, respectively. During the process of carbonation and HCl leaching, over 96% of gallium in the alkali leachate could be extracted into HCl leachate; high-level Si in the solution could also be effectively removed.

Using a mixture of 25 vol. % N235, 5 vol. % 1-Decanol, and 70 vol. % kerosene (with A/O = 4.5:1), 99.8% of the gallium in HCl leachate could be extracted. Then, the loaded organic phase was stripped with 1% NaOH solution at an A/O ratio of 1:1, and the stripping efficiency of gallium was 97.4%. As a result of these, a gallium-enriched solution containing 2 g/L Ga and 1g/L Fe was obtained.

The method proposed in this study contributed to recycling of rare metal gallium from a common industrial waste-corundum flue dust. It was easy to operate, and had advantages of high recovery efficiency of gallium and low energy consumption.
