4. Discussion
The non-modified aluminide coating’s formation is a result of two processes [
14]: diffusion of nickel, cobalt, chromium, titanium and other superalloys’ elements from the substrate to the surface, leading to formation of the interdiffusion layer, reaction of nickel with aluminum supplied by the gas phase in the CVD process and formation of the additive layer.
The total coating thickness includes two layers. Both consist of the β-NiAl phase. As solubility of alloying elements in the β-NiAl phase is very low, these elements precipitate in Topologically Closed-Pack phases (μ and σ).
Rhodium content between additive and interdiffusion layers is 4 at. %. According to the Al-Ni-Rh phase diagram, it is too low to form rhodium-rich precipitations. Therefore, rhodium dissolves in the β-NiAl phase.
The formation of the rhodium-modified aluminide coating seems to take place in several steps: rhodium probably dissolves in γ + γ’ phases near the surface of CMSX-4 alloy during heating of the alloy with 0.5 μm of rhodium; aluminum during aluminizing in the CVD process arrives at the surface where Rh is diluted by Ni and since aluminum has more affinity to nickel than rhodium, it forms the (Ni,Rh)Al phase layer.
The formation of the palladium-modified aluminide coating seems to take place in the next steps [

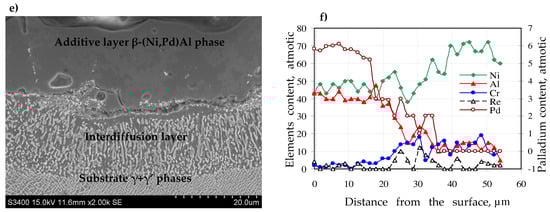

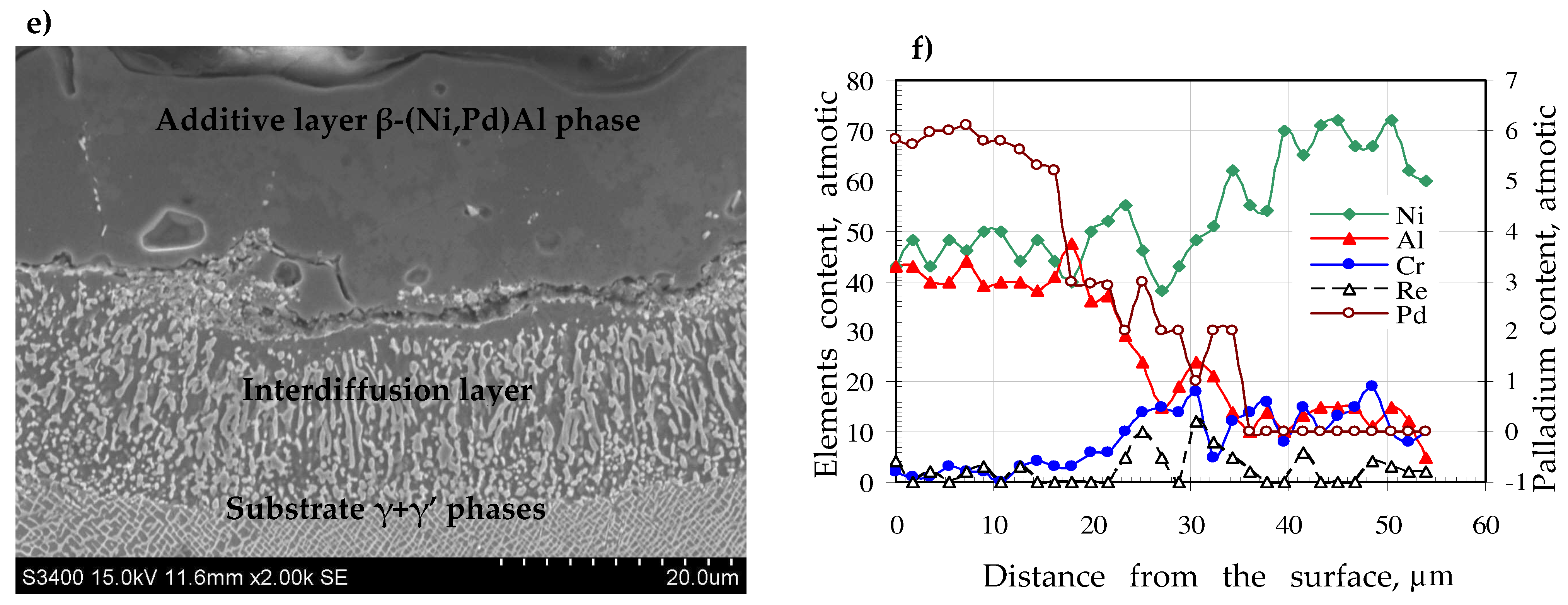

13]: Palladium dissolution in γ + γ’ phases near the surface of CMSX-4 alloy during heating of alloy with 3 μm of palladium; reaction of dissolved in the substrate palladium with aluminum; and (Ni,Pd)Al phase formation.

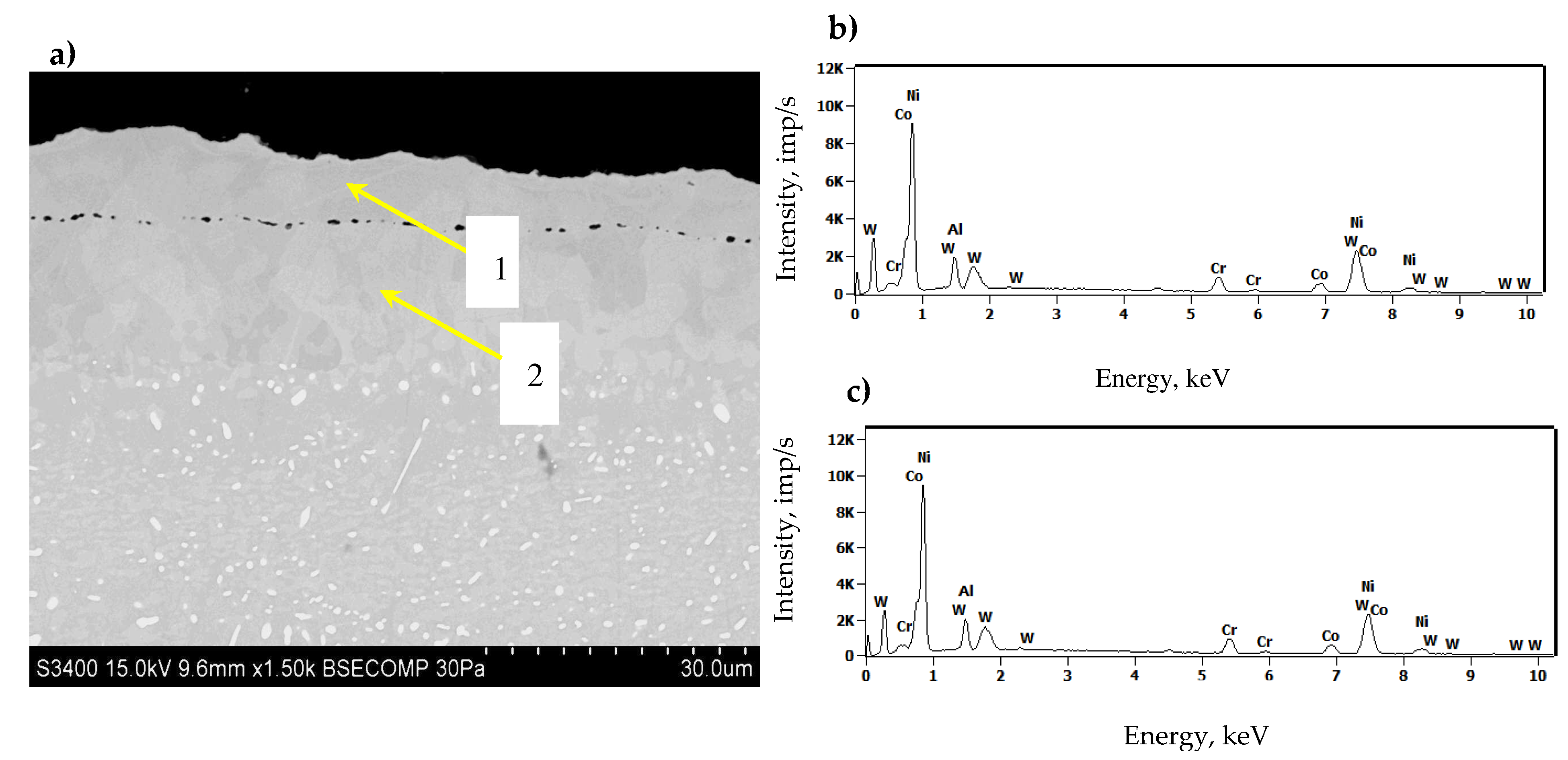

The oxidation of the non-modified aluminide coating probably takes places as follows: initial development of continuous Al
2O
3 oxides; diffusion of aluminum from coating to Al
2O
3 oxides; and to substrate. As a result of diffusion of aluminum a Ni
3Al phase is being formed and propagates inwards. Prolongation of oxidation leads to scale spallation with subsequent formation of poorly-protective oxides such as NiAl
2O

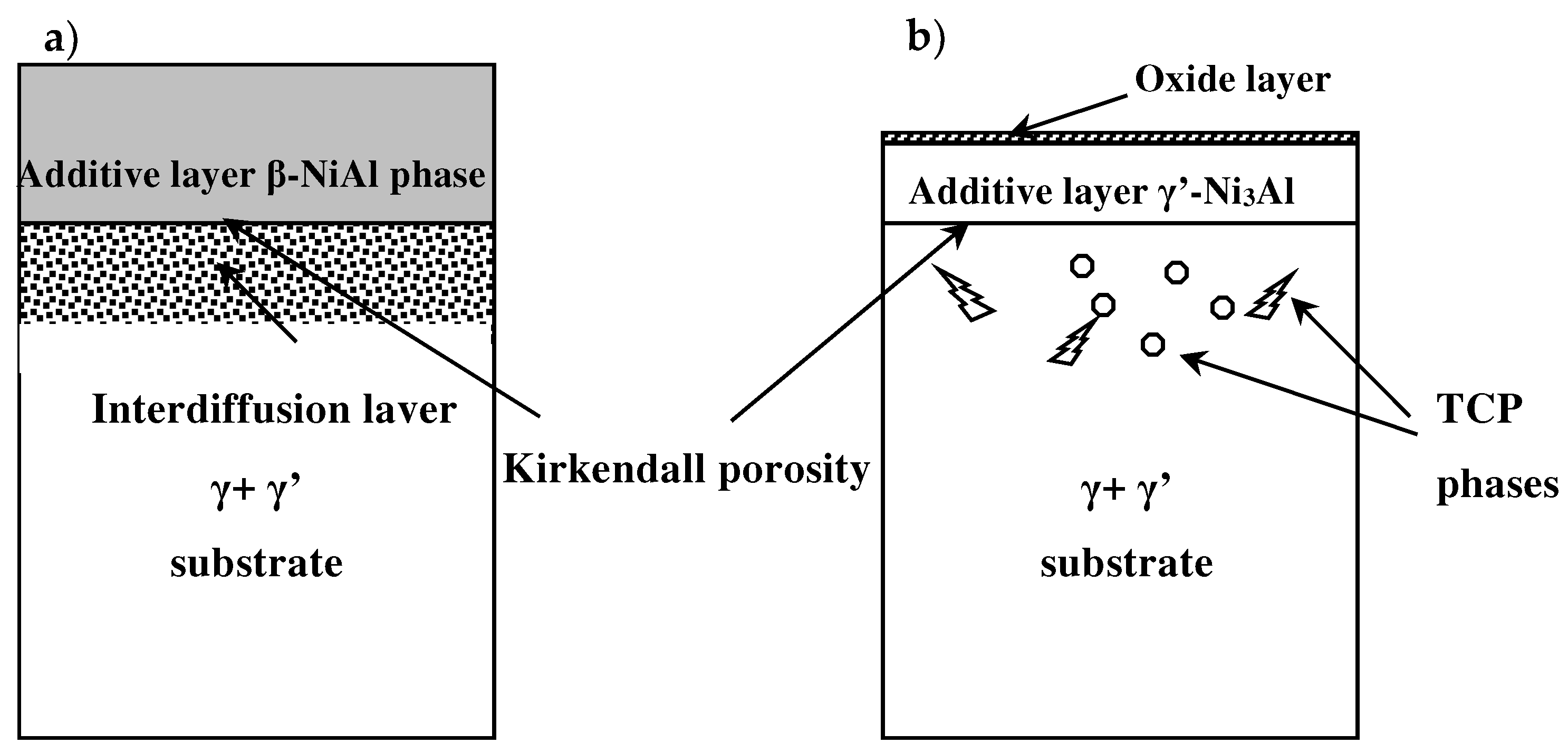

4 and (Ni,Cr)O. A schema of evolution of non-modified aluminide coating before oxidation and after oxidation is presented in
Figure 12.

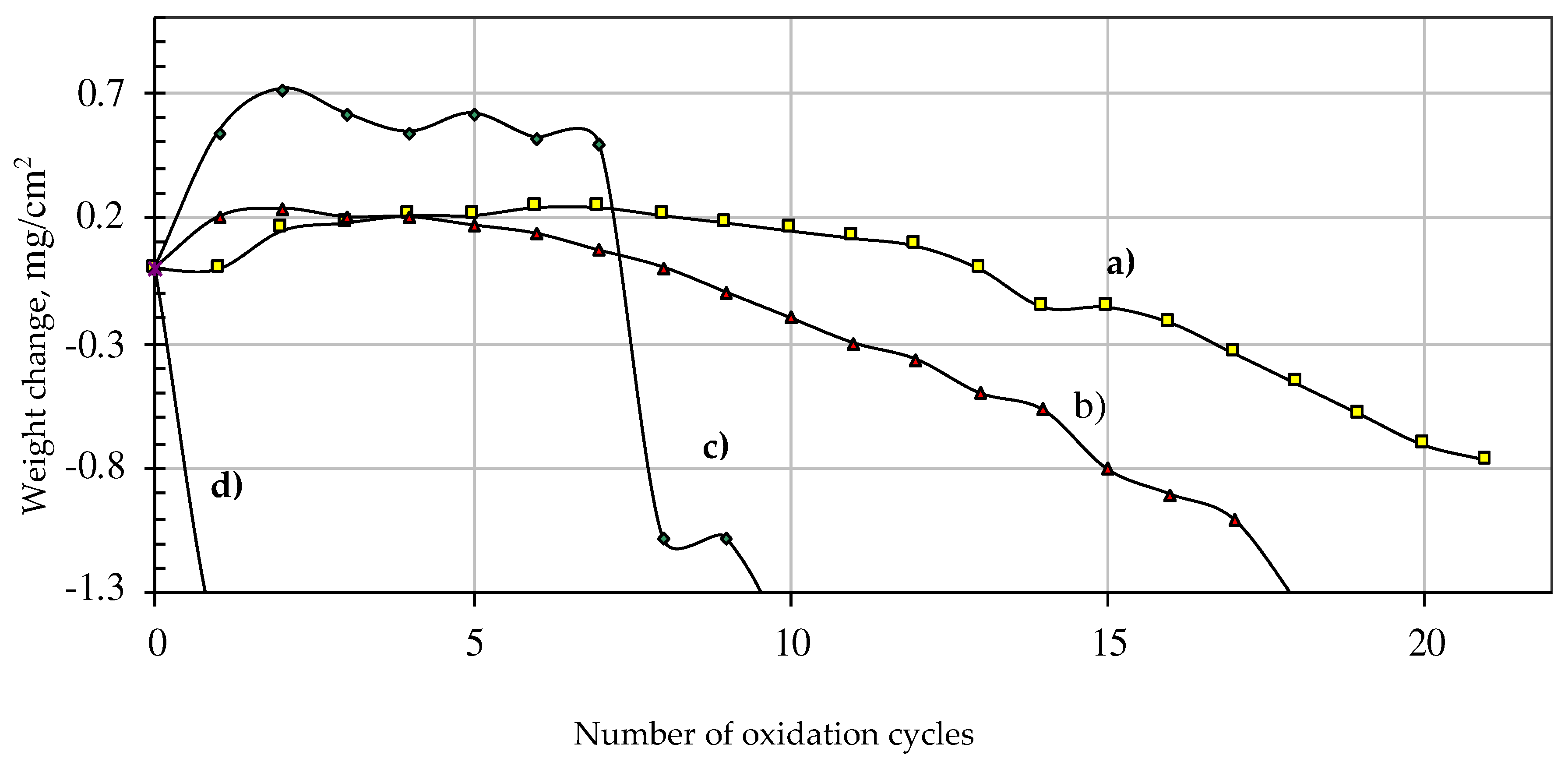

Rhodium modification of aluminide coatings effectively improves oxidation resistance of superalloy. Moreover, deposition of thin rhodium layer (0.5 µm thick) on the superalloy followed by aluminizing ensures better oxidation resistance than deposition of thicker palladium layer (3 µm thick) on the superalloy followed by aluminizing.

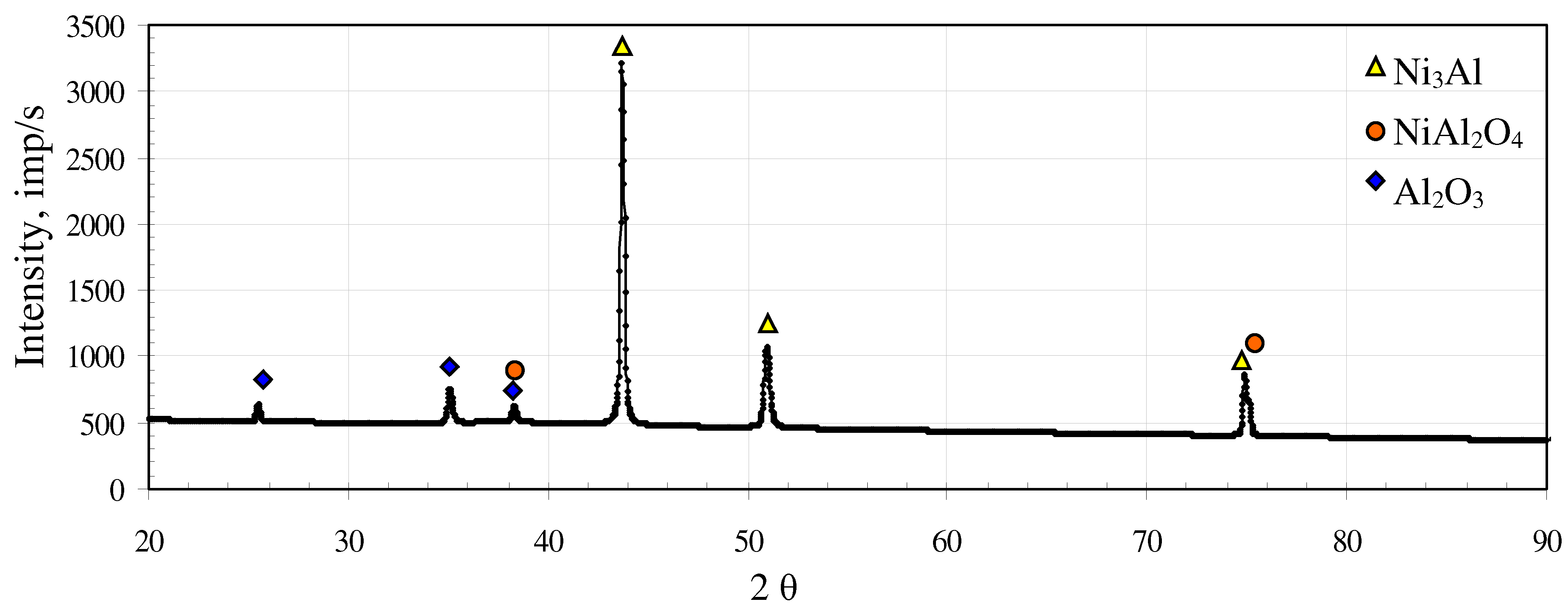

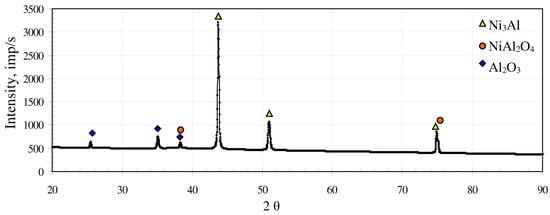

The oxide layer formed on the surface of the rhodium or palladium-modified coatings consists of the Al
2O
3 phase matrix with top layer of the NiAl
2O

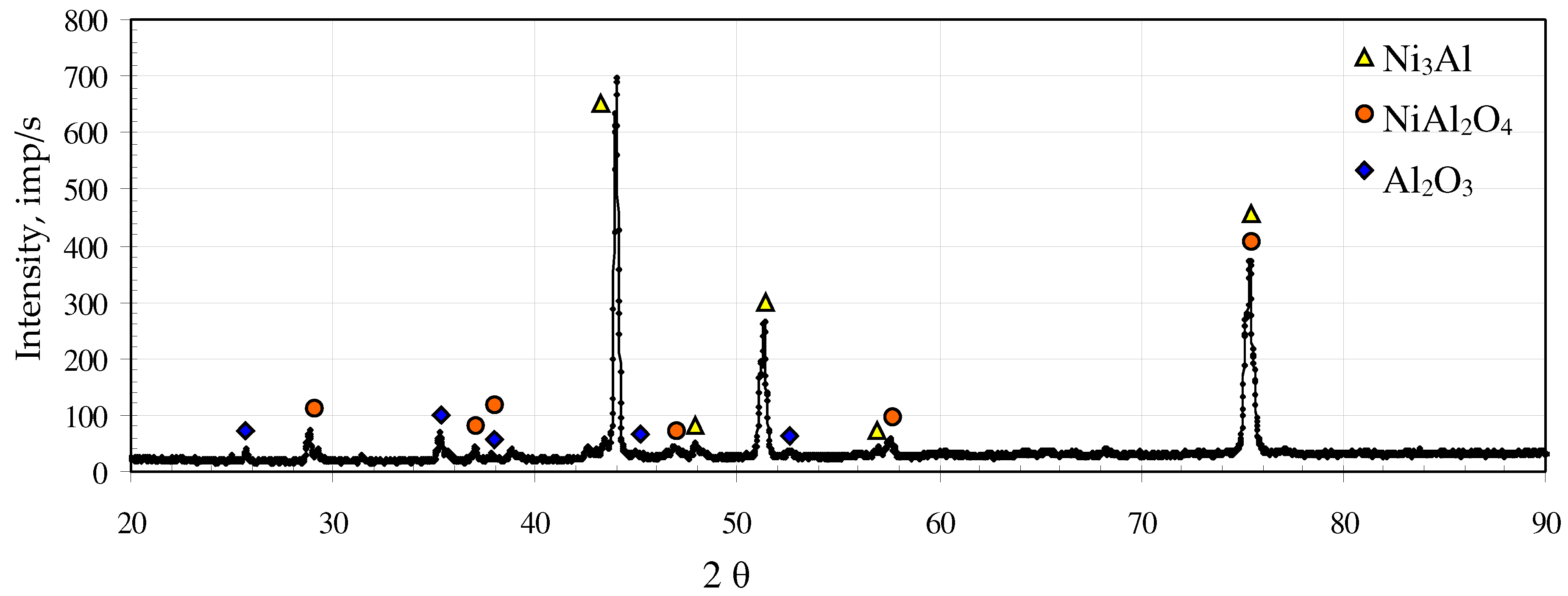

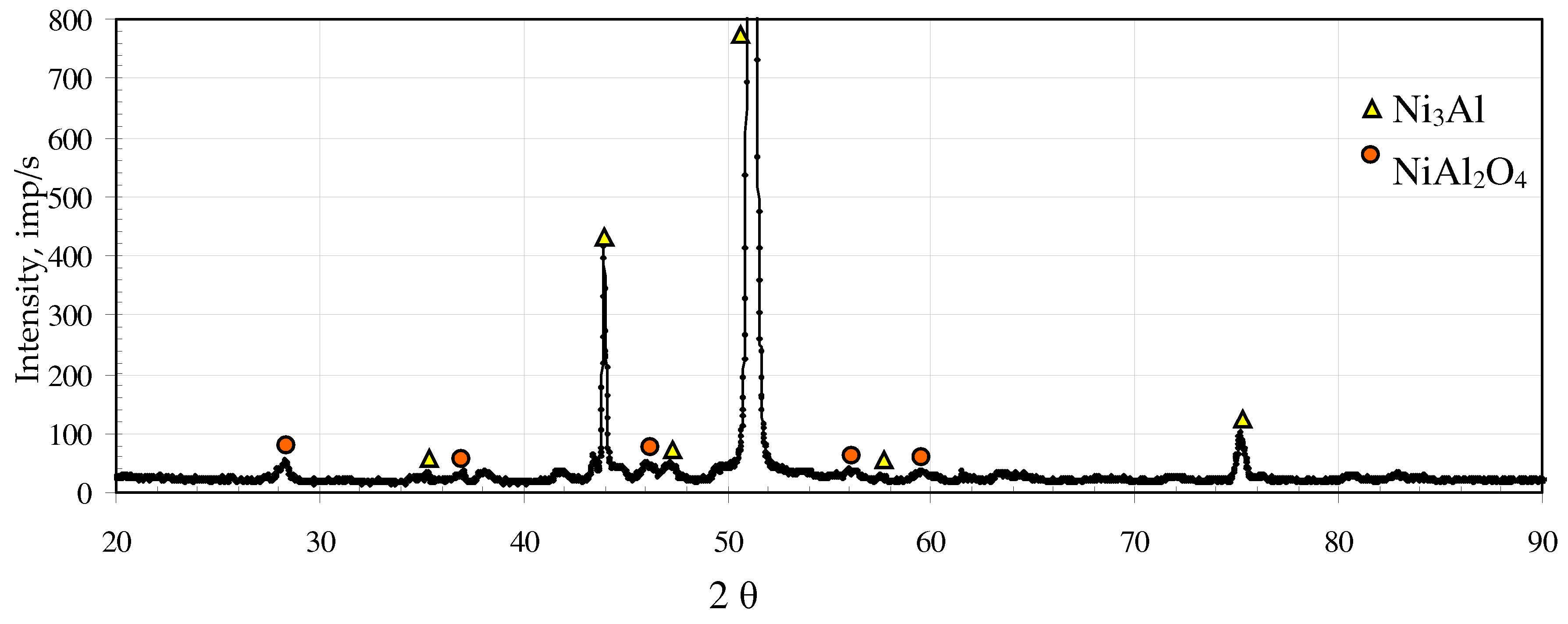

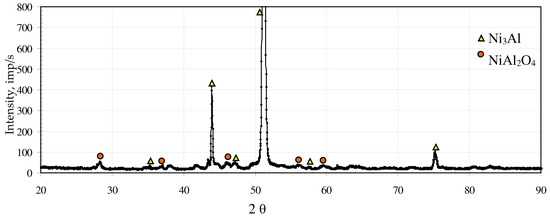

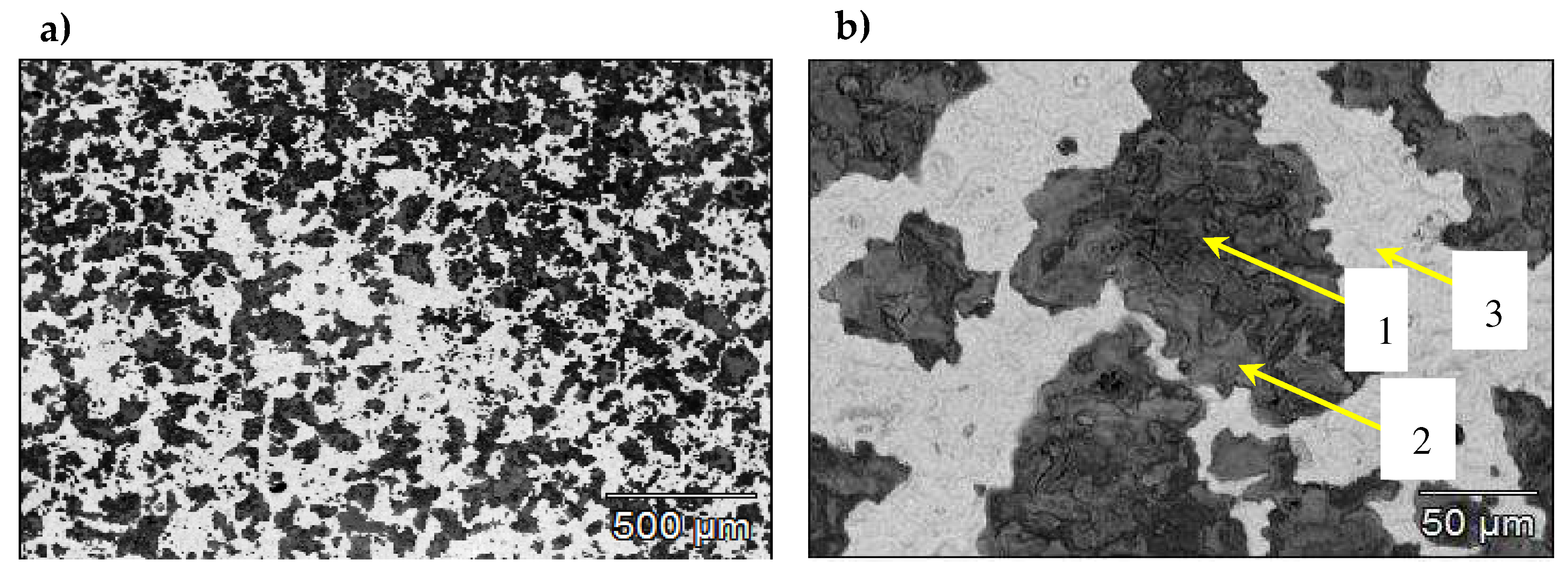

4 phase. On the surface of non-modified coating NiAl

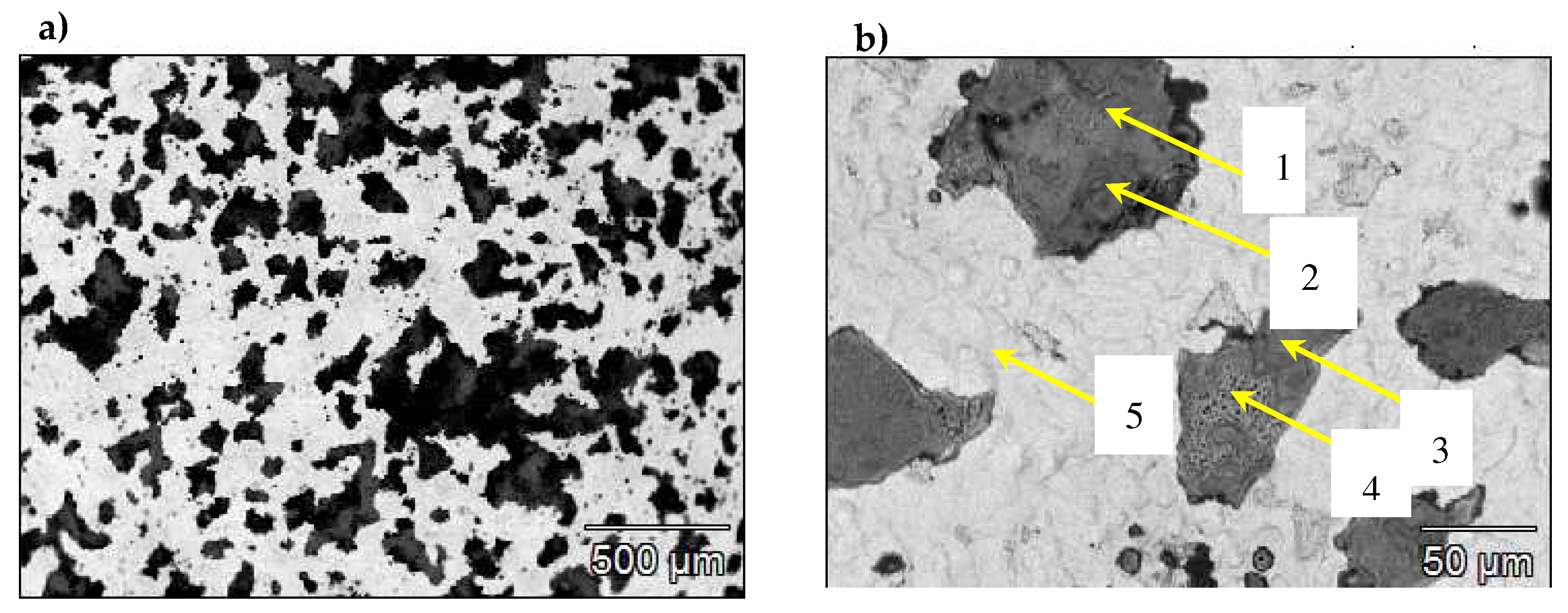

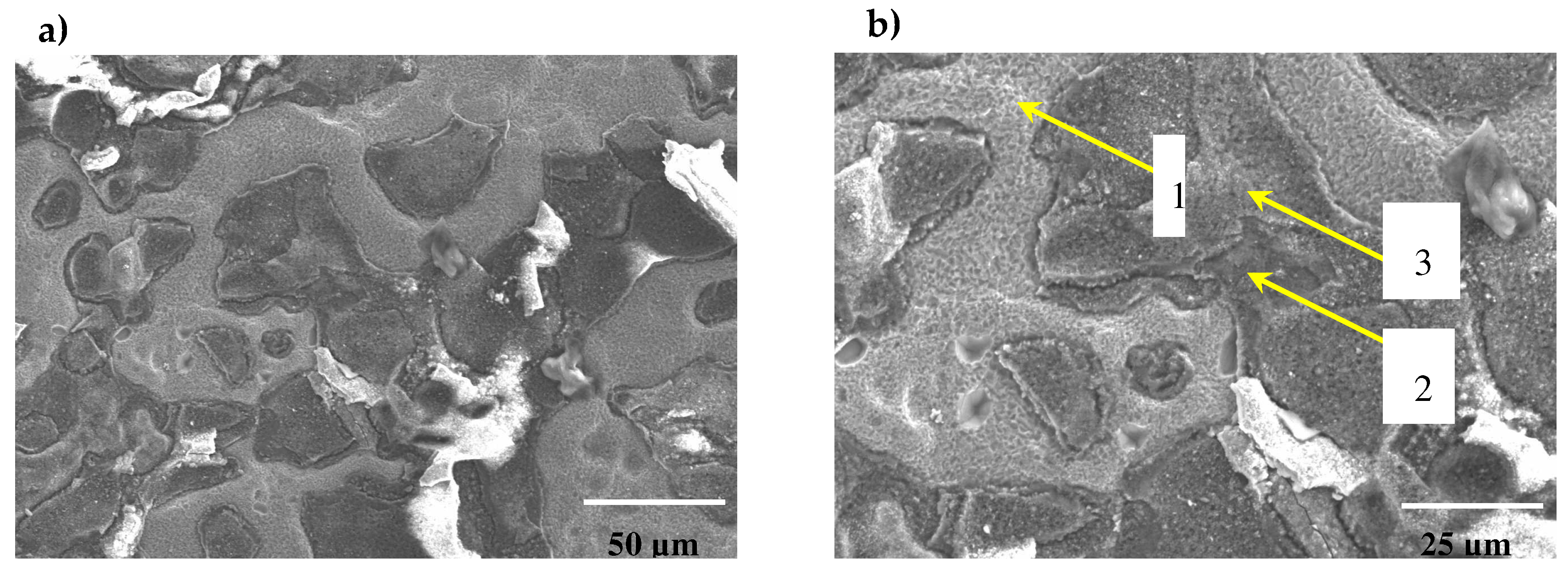

2O
4 oxides and some porous oxides with chemical composition of (Ni,Cr)O phase were found. According to Swadźba et al. [
15] NiAl
2O
4 forms mainly above the γ’-Ni
3Al regions where not enough Al is available for Al
2O

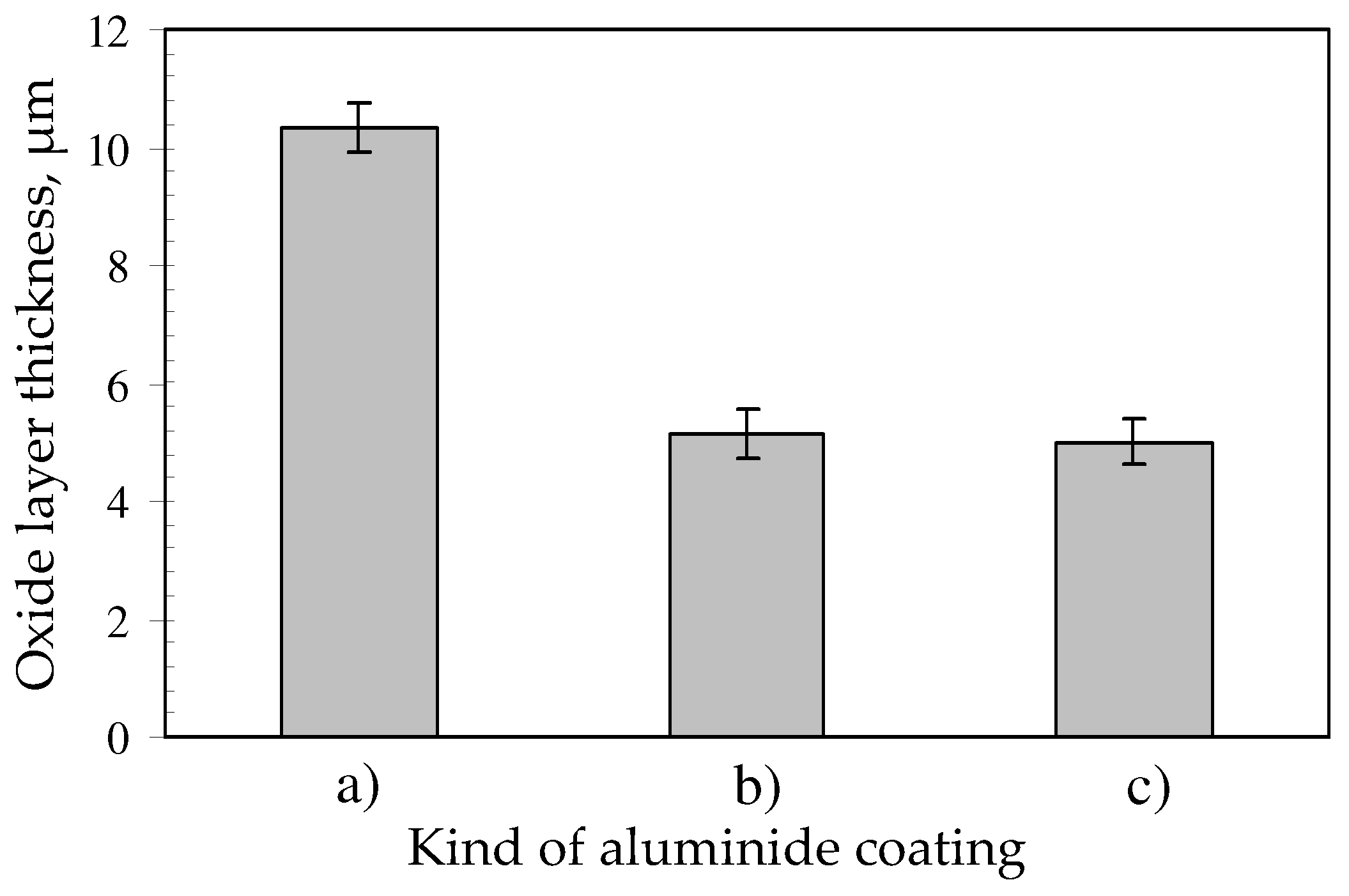

3 exclusive formation. It was also found that modification of rhodium (0.5 µm rhodium layer thick) and of palladium (3 µm palladium layer thick) decreases the oxide layer growth rate. The oxides layer thickness of the non-modified coating was about 10 µm, while the oxides layer thickness of the rhodium or palladium-modified coatings was about 5 µm (
Figure 13).

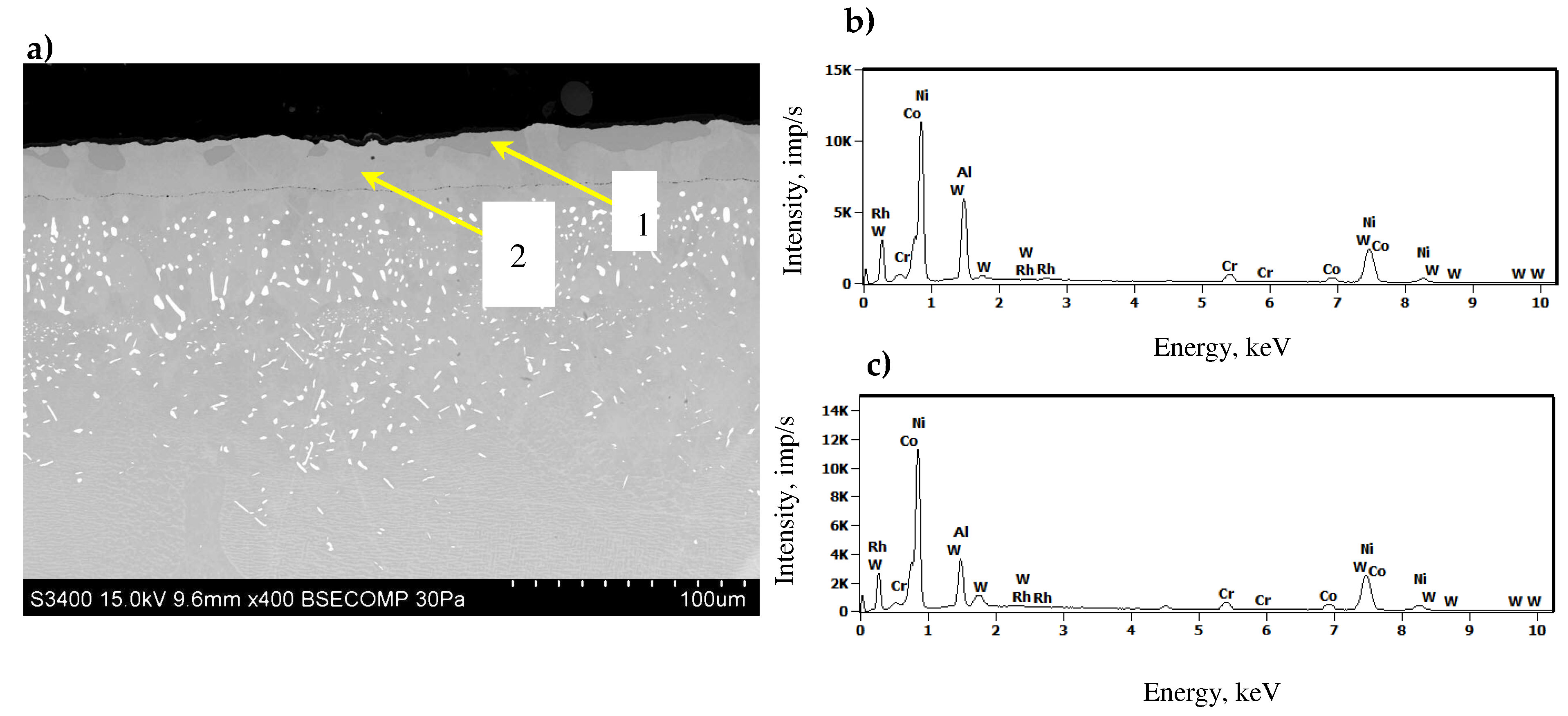

Cross-sectional microstructure of the rhodium-modified coatings after oxidation consists of three regions: Al-depleted (30 at. %) β-NiAl phase grains, the γ’-Ni
3Al phase region and the refractory-rich precipitates region. In comparison to the non-modified and the palladium-modified, the rhodium-modified coating exhibits β-NiAl phase stability, and stable α-Al
2O
3 layer. It seems that rhodium produces at the same time an increase of the diffusivity of aluminum and a decrease of that of other superalloy elements, so that the rhodium containing coating acts as a filter enabling aluminum to diffuse more easily than the other elements, resulting in the formation of aluminum oxide layer. This also helps to form aluminum oxide layers more rapidly and under lower aluminum concentrations as well as to maintain the β-NiAl phase at the coating surface for longer periods. Chromium, cobalt and tungsten, as well as nickel, rhodium and aluminum, are found in the β-NiAl phase of rhodium-modified coatings after oxidation. However, contents of chromium, cobalt and tungsten in the β-NiAl phase are smaller than in the γ’-Ni
3Al phase. All these indicate that rhodium tends to be solid solutioned in the β instead of the γ’ phase. The rhodium-modified aluminide coatings perform better than the non-modified and palladium-modified ones. In particular, protective oxide layer keeps for longer periods of time on the rhodium-modified coatings compared to the non-modified and palladium-modified ones. β phase remains in the rhodium-modified coatings while γ’ phase is both non-modified and palladium-modified after oxidation. It is possible that the major function of rhodium is to produce a large initial reservoir of aluminum and to reduce the amount of aluminum lost by diffusion processes. Rhodium probably has similar effects on the aluminide coating, since rhodium belongs to the platinum group of metals. Rhodium, similar to platinum, may accumulate near the thermally grown oxide due to the selective oxidation of other elements. Then, the aluminum activity gradient is increased, and the flux of aluminum to the thermally grown oxide/intermetallic coating interface is increased as well. This phenomenon may promote alumina scale formation. Some inclusions enriched in substrates elements have been observed in the additive layer of non-modified aluminide coatings (

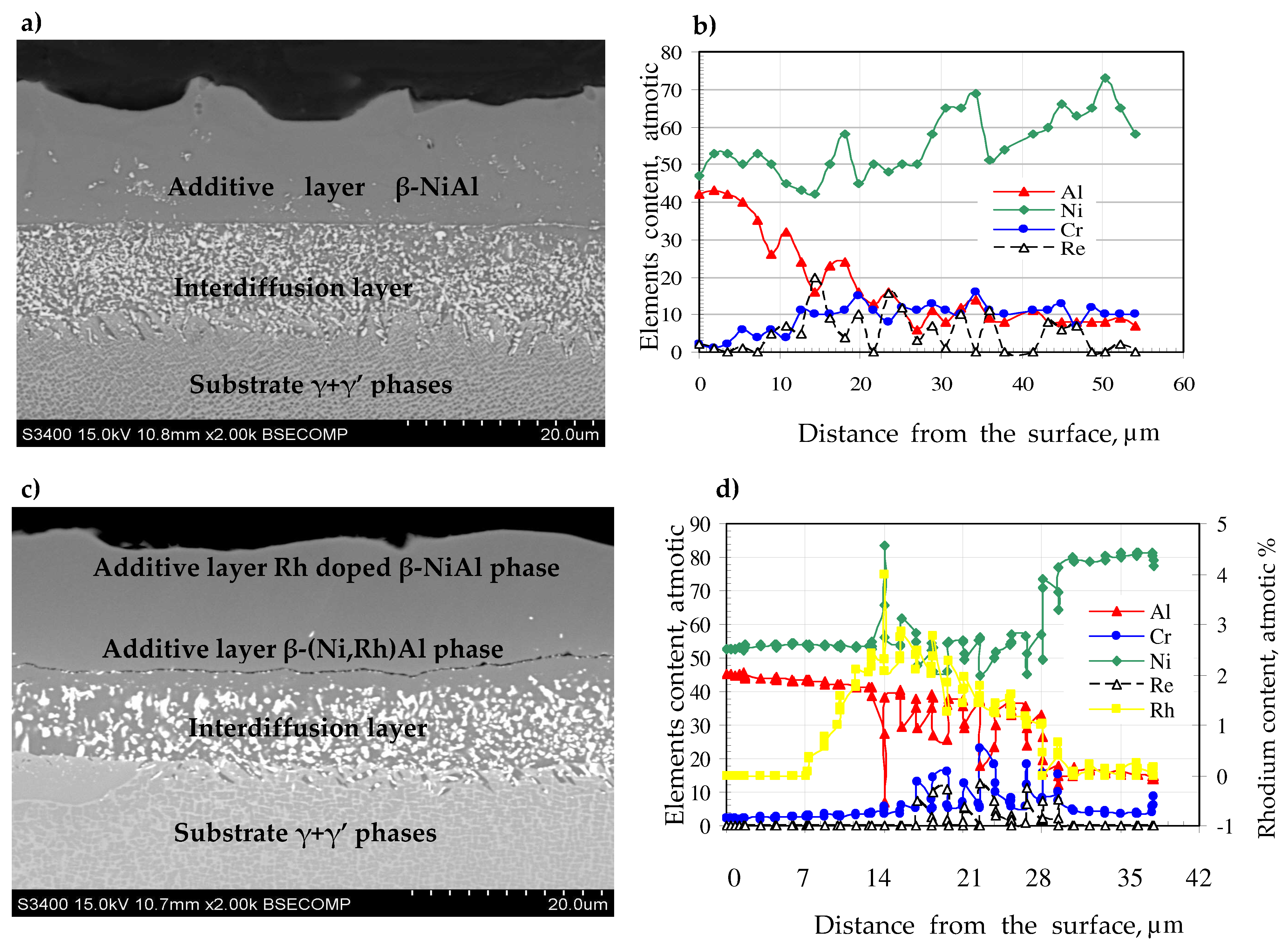

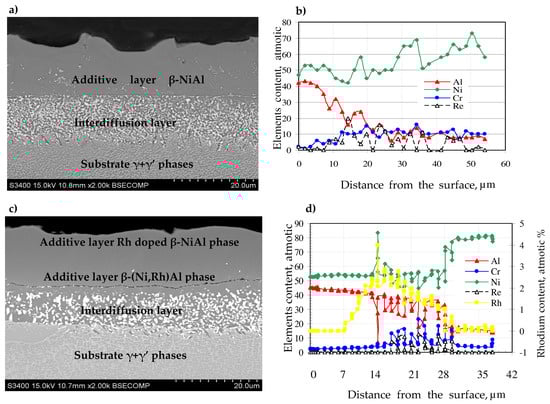

Figure 1a), whereas far fewer incursions have been observed in the additive layer of rhodium-modified ones. Therefore, it may be assumed that increasing of the lifetime of the β-phase is possible by impeding the outward diffusion of substrate elements to the additive layers of coating. The amount of the γ’-Ni
3Al phase formed under oxide layer in the rhodium-modified coatings is much smaller than in the palladium-modified and non-modified ones. It indicates that transformation from the β-NiAl phase to the γ’-Ni
3Al phase is decelerated due to the presence of the (Ni,Rh)Al phase in the as-deposited coating [
13]. Because the γ’-Ni
3Al phase has a poor oxidation resistance, the deceleration of the γ’-Ni
3Al phase formation leads to improvement of the oxidation resistance. The aluminum depletion in the palladium-modified aluminide coating was lower than in the non-modified one, nevertheless aluminum content was too low to maintain stable β-NiAl phase. McMinn et al. [

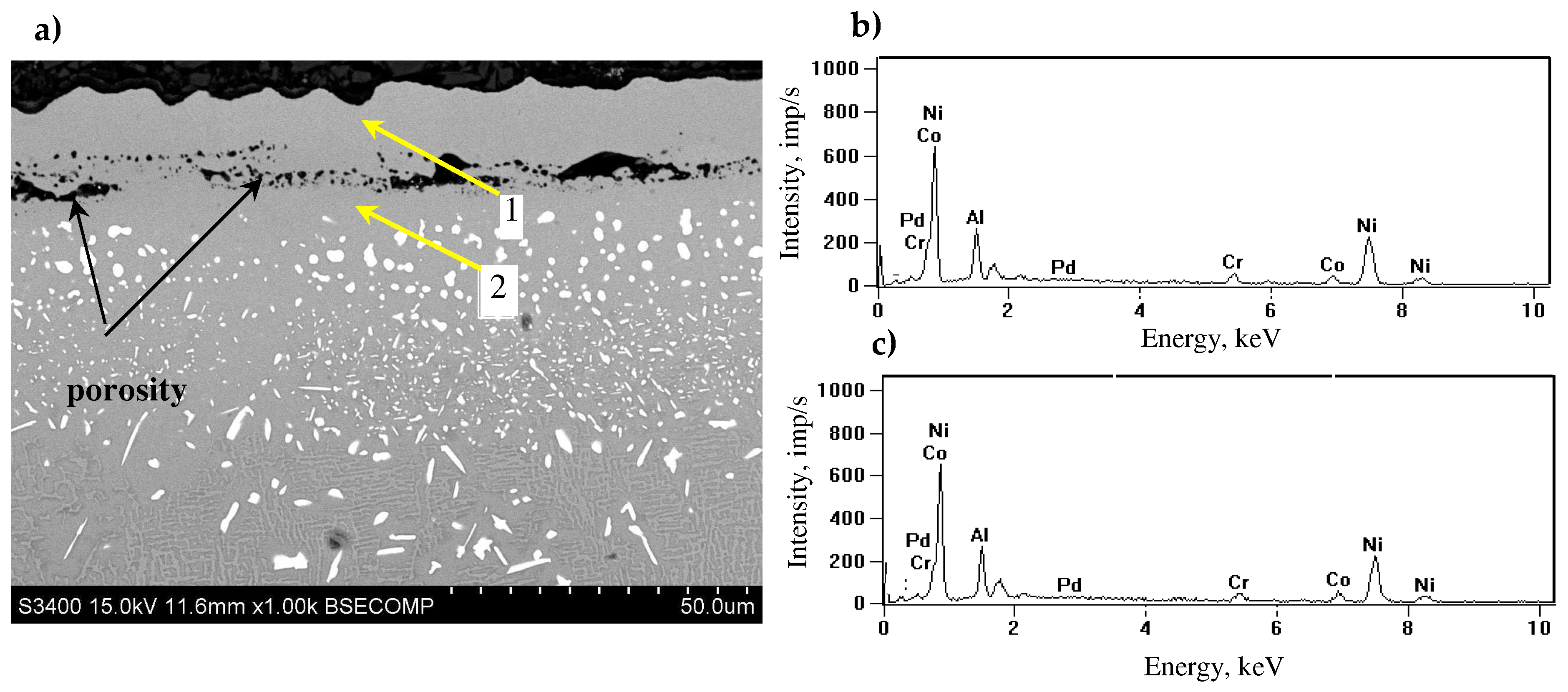

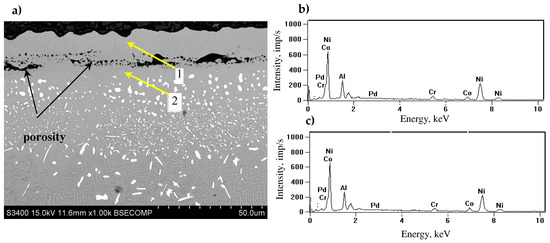

17] allege that palladium-modified aluminide coating is a poor protector due to formation of pores by the Kirkendall effect. Hydrogen that dissolves in the coating during the aluminizing process results in blistering of the coating and subsequent rapid pitting at high temperature [
18].
The oxide scale formed on the surface of the rhodium-modified aluminide coatings is more adherent than on the non-modified one. According to Zhang et al. [
19] oxide adherence at coating grain boundaries may be influenced by several mechanisms: chemical effects (short-circuit diffusion pathways for alloying elements and sulfur impurities), geometric effects and preferential void nucleation and coalescence sites. Refractory-rich particles were observed at the grain boundaries of the β-NiAl phase in the as-deposited non-modified aluminide coating, but were not observed at the grain boundaries of the β-(Ni,Rh)Al phase in the as-deposited rhodium-modified aluminide coating [
13]. According to Zhang et al. [
20] the presence of refractory elements on the coating grain boundaries may accelerate oxide spallation by degrading the oxide-metal bond strength, stabilizing the γ’-Ni
3Al phase formation or increasing the growth rate of the oxide layer once oxide layer spallation and reformation begin.
The analysis of chemical composition in microareas proves that rhodium is easy to solidify into solution in the β-NiAl phase. The higher content of rhodium in the β-NiAl phase sustains aluminum concentration. Addition of rhodium helps to stabilize the β-NiAl phase of high aluminum content and to delay the degradation of the aluminide coating.
