Effects of Initial Grain Size of Al-Zn-Mg-Cu Alloy on the Recrystallization Behavior and Recrystallization Mechanism in Isothermal Compression

Abstract

Fine-grained (average gain size 3.8 μm) and coarse-grained (average gain size 24.9 μm) Al-Zn-Mg-Cu alloys were subjected to isothermal compression at 10⁻³ s⁻¹ and temperature ranges from 300 °C to 450 °C. The grain structures after isothermal compression were observed by electron backscatter diffraction (EBSD). The results show that the continuous dynamic recrystallization (CDRX) mechanism dominated to form sub-grains in grain interiors during isothermal compression of coarse-grained materials, and sub-grains were gradually developed in grain interiors as the effective strain increased. Discontinuous dynamic recrystallization (DDRX) was the main recrystallization mechanism during isothermal compression of fine-grained materials, in which finer recrystallized grains were formed at grain boundaries. The temperature of isothermal compression had little influence on the recrystallization when the growth of recrystallized grains was slight, and sub-grains were hardly developed in fine-grain interiors.

1. Introduction

Dynamic recrystallization has been studied extensively, including recrystallization in hot rolling [1,2], hot extrusion [3,4], and hot forging [5,6]. Generally, the finer grain structure of aluminum alloy brings better mechanical properties for enhancing grain boundary strengthening [7,8,9,10]. Roven et al. [11] found that the ultimate tensile strength increased significantly in a finer grain structure while the ductility almost remained the same. In addition, the grain structure of aluminum alloy containing mainly fine sub-grains, improving its corrosion resistance for precipitation free zones (PFZs), was hardly formed along low angle boundaries [12,13]. Naeini et al. [14] found that pitting corrosion resistance of 5052 aluminum alloys was diminished with a finer grain structure. Wei et al. [15] found that the size and the amount of pitting corrosion in an ultra-fine grained UFG Al-Mn alloy sample was lower compared to a coarse-grained (CG) sample. The grain structures are mainly controlled by dynamic recrystallization during hot deformation, thus it is important to understand dynamic recrystallization behavior and recrystallization mechanisms.

Isothermal compression of aluminum alloys has been studied for a long time to understand dynamic recrystallization behavior under various conditions [16,17,18,19]. Generally, recrystallized grains increase as the temperature of isothermal compression increases [20] or strain rate [21] decreases, but the average size of recrystallized grains increases slightly. Besides, isothermal multi-direction forging (MDF) with continuous dynamic recrystallization (CDRX) mechanism has also been substantially reported in recent years, which is employed to grain refinement by transformation of lower angle grain boundaries (LAGBs) formed at early stages into higher angle grain boundaries (HAGBs) [22,23]. Another dynamic recrystallization mechanism is discontinuous dynamic recrystallization (DDRX), in which fine recrystallized grains were formed at grain boundaries [24].

The grain structure of material that is subjected to hot compression may have large differences with different situations; the grain structure may have big differences after isothermal compression. Although various initial materials with different grain sizes that are subjected to isothermal compression has been studied, the influence of grain size on recrystallization mechanisms and recrystallization behavior is not obvious. However, when the initial grain size of initial materials that are subjected to isothermal compression is small enough, the effect of the grain size of aluminum alloy on the recrystallization behavior and recrystallization mechanism during isothermal compression has not been reported until now. In order to fill this gap, Al-Zn-Mg-Cu alloys with an average grain size around 25 μm or 4 μm were subjected to isothermal compression to study the influence of grain size on the recrystallization behavior and recrystallization mechanism.

2. Material and Methods

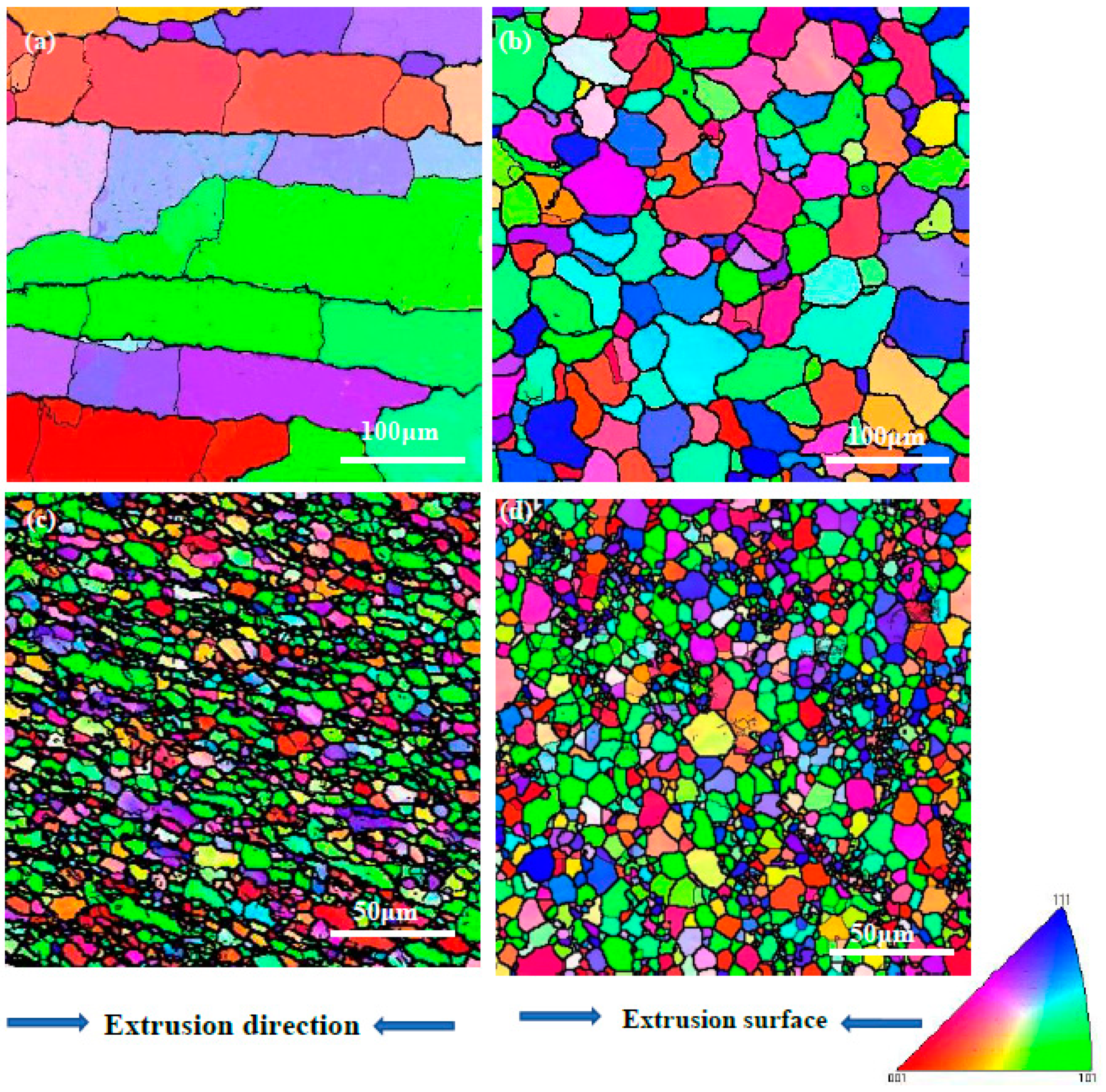

The aluminum alloy used in this study was Al-Zn-Mg-Cu alloy with Al-5.47Zn-2.19Mg-2.11Cu-0.12Zr-0.01Cr-0.1Fe-0.01Mn (wt.%). Two different initial materials that were subjected to isothermal compression were produced by extrusion and equal-channel angular pressing (ECAP) of cylindrical samples (20 mm diameter by 100 mm long), respectively. The coarse-grained materials were processed by extrusion at 400 °C from a diameter 40 mm to 20 mm, and then they were subjected to solution heat treatment at 470 °C for 2 h and water quenched before isothermal compression. The fine-grained materials were produced by ECAP at 400 °C with twelve passes, and then they were subjected to solution heat treatment at 470 °C for 2 h and water quenched before isothermal compression. The EBSD maps of two different starting materials are shown in Figure 1. The average size of the coarse-grains materials was 68 μm along the extrusion direction and 24.9 μm perpendicular to the extrusion direction. The average size of the fine-grained materials was 3.8 μm along the extrusion direction and 3.6 μm perpendicular to the extrusion direction. For the sake of the initial materials with two different grain sizes, they were subjected to solid solution heat treatment at 470 °C for 2 h and adequate recrystallization occurred; the preliminary crystallographic was almost the same with cube texture.

Cylindrical specimens with a size of Φ7 × 10 mm² was machined from the center of the extrusion materials and ECAP materials. Isothermal compression was carried out at strain rates of 10⁻³ s⁻¹ and temperatures ranged from 300 °C to 450 °C to an effective strain of 1.2. These samples were heated to the target temperature at a rate of 20 °C/s and held for 5 min before compression. Isothermal compression was then performed on Gleeble-3500 with a lubricant powder of boron nitride, and rapid water quenching was performed after isothermal compression.

Microstructural analysis was carried out in the central part of the specimen, which was perpendicular to the compression axis, by electron backscattering diffraction pattern analysis using a field emission gun-environmental scanning electron microscopy (FEG-SEM, ZEISS, Berlin, Germany) FEI device equipped with an HKL Channel 5 EBSD system. The samples that isothermal compression for EBSD were prepared by electro polishing in a solution of 10% HClO₄ and 90% C₂H₅OH at 20 °C, the step size during acquisition is 0.9. The EBSD data were collected using HKL Channel 5 software (version 1, ZEISS, Berlin, Germany). The average grain size were evaluated using the line-intercept technique, the low-angle boundaries (LABs) with 2° and 15° in the EBSD maps are depicted as thin lines while the high-angle boundaries (HABs) >15° are depicted as thick lines.

The microstructure characterization was also carried out by transmission electron microscopy (TEM, FEI, Philadelphia, PA, USA) techniques in the central part of the specimen, which is perpendicular to the compression axis. The preparation of TEM is about 50 μm foil, then the twin-jet was polished in a 30% HNO₃ and 70% CH₄O solution. The TEM examination was performed using a Libra 200FE transmission electron microscope (FEI, Philadelphia, PA, USA) operating at 200 KV.

3. Results

3.1. Effect Initial Grain Size on the True Stress-Strain Curves during Isothermal Compression

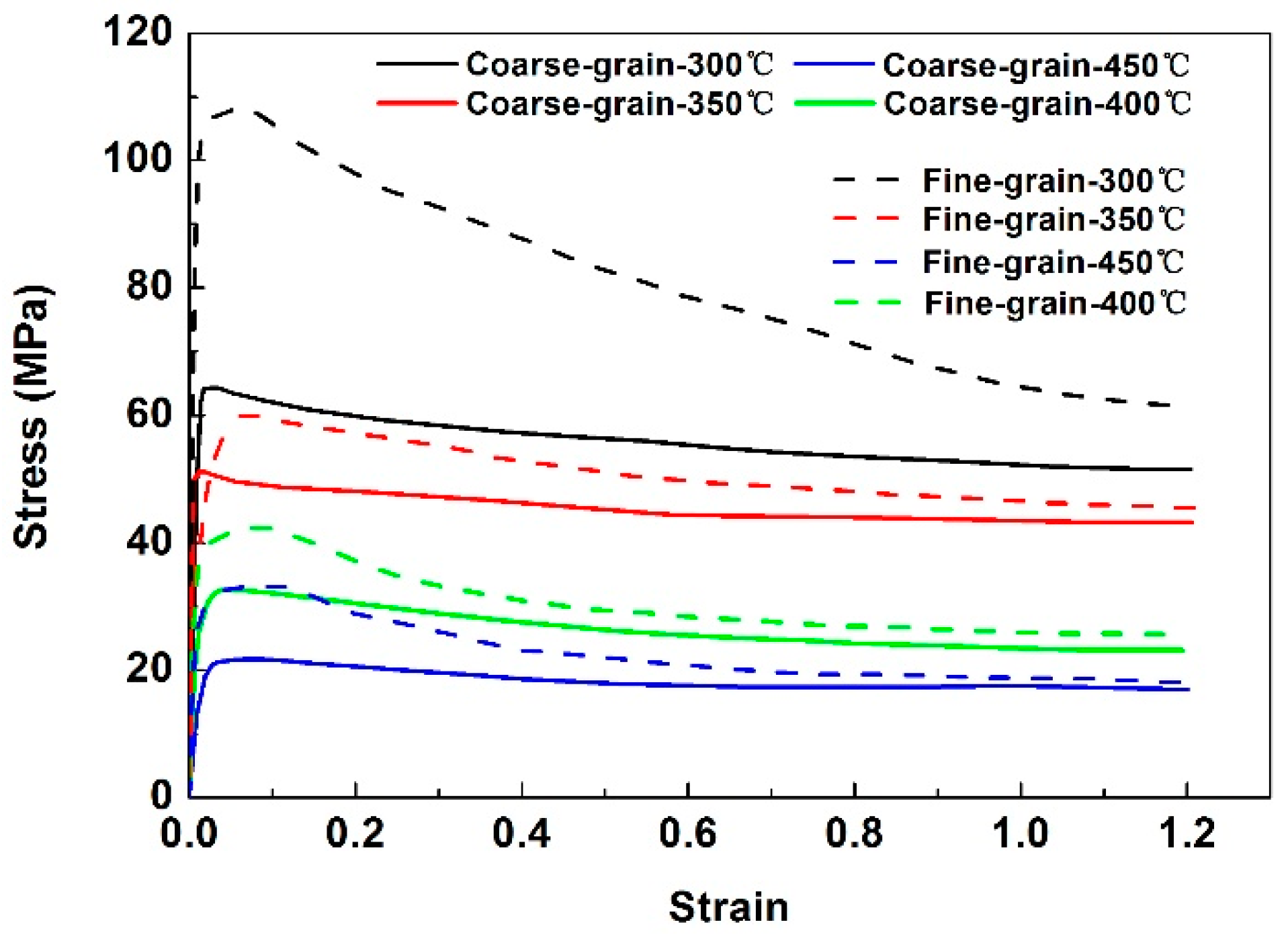

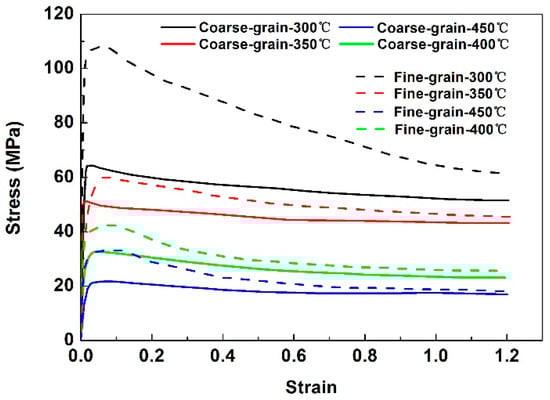

Fine-grained and coarse-grained aluminum alloy were subjected to isothermal compression at 10⁻³ s⁻¹ and temperatures of 300 °C, 350 °C, 400 °C, and 450 °C to an effective strain of 1.2, the true stress-strain curves are shown in Figure 2. Two stages are included in these stress-strain curves, the effective stress increases to the maximum quickly at the first stage for increasing dislocations rapidly, and then drop gradually to be stable at the second stage for the occurrence of dynamic recrystallization or dynamic recovery to balance the number of dislocations. For coarse-grained alloy, the stress decreases gradually as the temperature increased from 300 °C to 450 °C during isothermal compression, and the maximum stress decreases from about 65 MPa to 20 MPa. Because the grain boundary strengthen is much stronger in fine-grained alloy than in the coarse-grained alloy, the true stress is much higher in the fine-grained alloy, and the maximum stress decreases gradually from 110 MPa to 30 MPa as the temperature increased from 300 °C to 450 °C.

3.2. Effect of Initial Grain Size on Recrystallization after Isothermal Compression

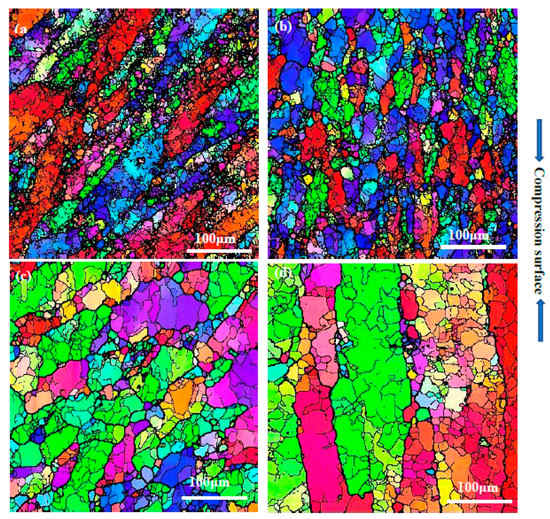

Figure 3 shows the EBSD maps of our previous study [25] after isothermal compression of coarse-grained aluminum alloy at 10⁻³ s⁻¹ and temperatures of 300 °C, 350 °C, 400 °C, and 450 °C. Many sub-grains were developed into grain interiors after isothermal compression. The number of sub-grains decreased, and the size of sub-grains increased gradually as the temperature of isothermal compression increased from 300 °C to 450 °C. A few recrystallized grains appeared in grain interiors, which are formed via increasing the misorientation of sub-grains. It is obvious that the CDRX mechanism is the main recrystallization mechanism for isothermal compression of coarse-grained materials, as many sub-grains are formed in grain interiors and a few of them are transferred into recrystallized grains, and almost none of the recrystallized grains are formed at grain boundaries [20,26].

As seen in Figure 4, totally different grain structures are formed after isothermal compression of the fine-grained aluminum alloy at 10⁻³ s⁻¹ and temperatures of 300 °C, 350 °C, 400 °C, and 450 °C. After isothermal compression at 300 °C, almost a completely recrystallized grain structure is formed, only quite a few low angle grain boundaries (LAGBs) appear in grain interiors. As the temperature of isothermal compression increased from 300 °C to 450 °C, the grain structure did not change too much, and completely recrystallized grain structures were obtained. Discontinuous dynamic recrystallization is the main recrystallization mechanism, in which recrystallized grain are formed at grain boundaries, and almost no sub-grains are developed into fine grain interiors [21,26].

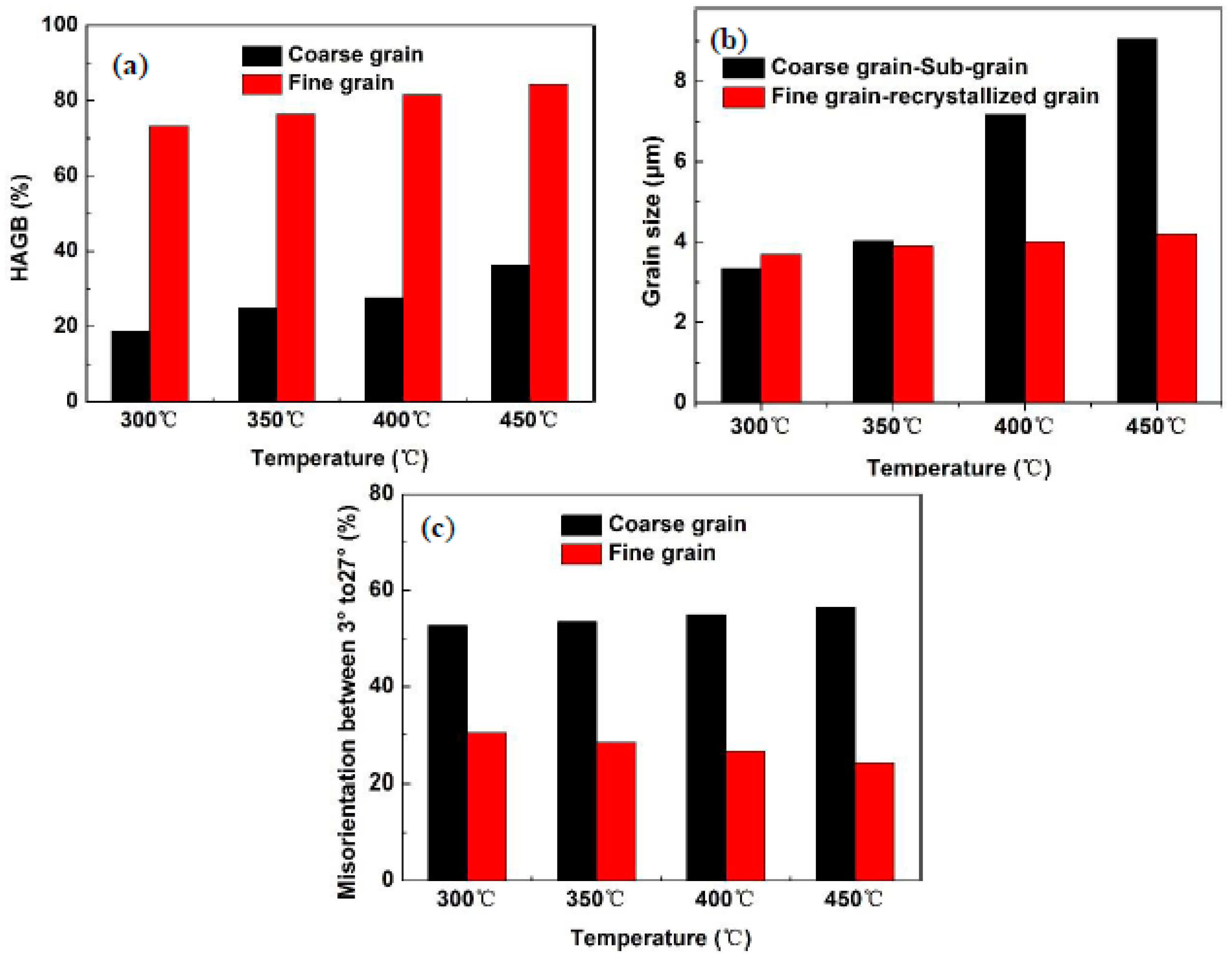

After isothermal compression of coarse-grained and fine-grained aluminum alloy at 10⁻³ s⁻¹ and temperature ranges from 300 °C to 450 °C. Figure 5 shows the comparison of HAGB%, average grain size of sub-grains and recrystallized grains, and the percentage of misorientation angle of grain boundaries between 3° to 27°. For fine-grained materials, the HAGB% increases from 73.2% to 84.2% when the temperature of isothermal compression increased from 300 °C to 450 °C; it is much higher than with isothermal compression of coarse-grained materials. For coarse-grained materials, the HAGB% increases from 18.7% to 36.2% when the compression temperature increased from 300 °C to 450 °C. For coarse-grained alloy, a great many sub-grains were developed in the grain interiors, the average size of sub-grains increases from 3.3 μm to 9.1 μm as the temperature of isothermal compression increased from 300 °C to 450 °C. For fine-grained alloy, the average size of recrystallized grains increases from 3.7 μm to 4.2 μm slightly as the temperature increased from 300 °C to 450 °C, and it is smaller than the average size of sub-grains with isothermal compression of coarse-grained materials. The percentage of the misorientation angle of grain boundaries between 3° to 27° has great difference with isothermal compression of different initial materials; it is about 50% with isothermal coarse-grained materials at temperature ranges from 300 °C to 450 °C, and it is about 27% with isothermal compression of fine-grained materials at temperature ranges from 300 °C to 450 °C.

4. Discussion

4.1. Effect of the Initial Grain Structure on the Dynamic Recrystallization Mechanism

Isothermal compression was performed at 10⁻³ s⁻¹ and temperature ranges from 300 °C to 450 °C for coarse-grained materials. The CDRX mechanism dominated to form sub-grains in the grain interiors, as seen in Figure 3. The size of the sub-grains can be written as Equation (1).

$$D=\mathrm{k}1-\mathrm{k}2\log Z$$

(1)

where k1 and k2 are constants, D is the sub-grains’ size, and Z is the Zener–Hollomon parameter [27].

For the sake of the Z value decreasing as the temperature increases, the D value would increase when the temperature increases. Thus, the average size of the sub-grains increased gradually when the temperature of isothermal compression increased from 300 °C to 450 °C, as seen in Figure 5b.

However, when the temperature of isothermal compression was performed at 10⁻³ s⁻¹ for fine-grained materials, almost no sub-grains were developed in grain interiors, as seen in Figure 4. The DDRX mechanism dominated to form recrystallized grains at grain boundaries. If sub-grains can develop in grain interiors with isothermal compression of fine-grained materials, as seen in Equation (1), the size of the sub-grains that formed with isothermal compression of fine-grained materials should be close to the size of sub-grains formed with isothermal compression of coarse-grained materials which shared the same Z value. But the average grain size with isothermal compression of fine-grained materials is smaller than the average sub-grain size with isothermal compression of coarse-grained materials, as seen in Figure 5b, thus almost no sub-grains were developed in grain interiors.

4.2. The Evolution of Grain Structure with Two Different Dynamic Recrystallization Mechanisms

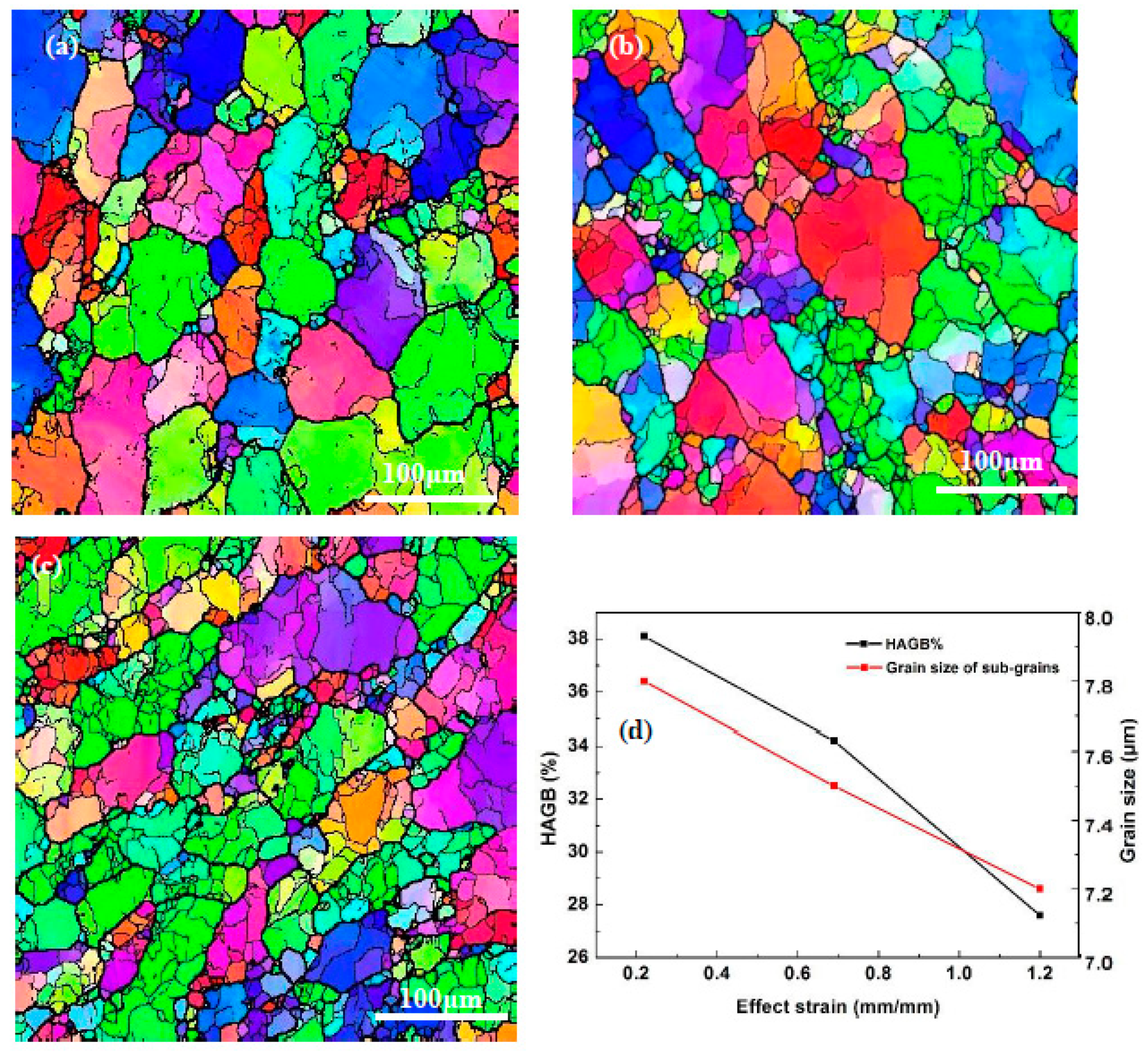

Figure 6 shows the evolution of grain structure with isothermal compression of coarse-grained materials at 10⁻³ s⁻¹ and 400 °C. For the effective strain of 0.22, Figure 6a shows that only a few sub-grains are formed near grain boundaries. As the effective strain increased from 0.22 to 1.2, the HAGB% decreases from 38.1% to 27.6%, and many more sub-grains were developed in the grain interiors with higher effective strain. Besides, the average sub-grain size decreased slowly from 7.8 μm to 7.2 μm. In addition, the coarse grains consisted of a higher density of dislocations which were sorted into walls and were transferred into sub-grains as effective strain increased. Also, the initial state of coarse grains includes low fraction of HAGBs and promoted the mobility of grain boundaries. Figure 5c shows the higher mobility with isothermal compression of coarse-grained materials. Therefore, sub-grains are continuously formed in grain interiors as effective strain increased during isothermal compression when CDRX is the main mechanism.

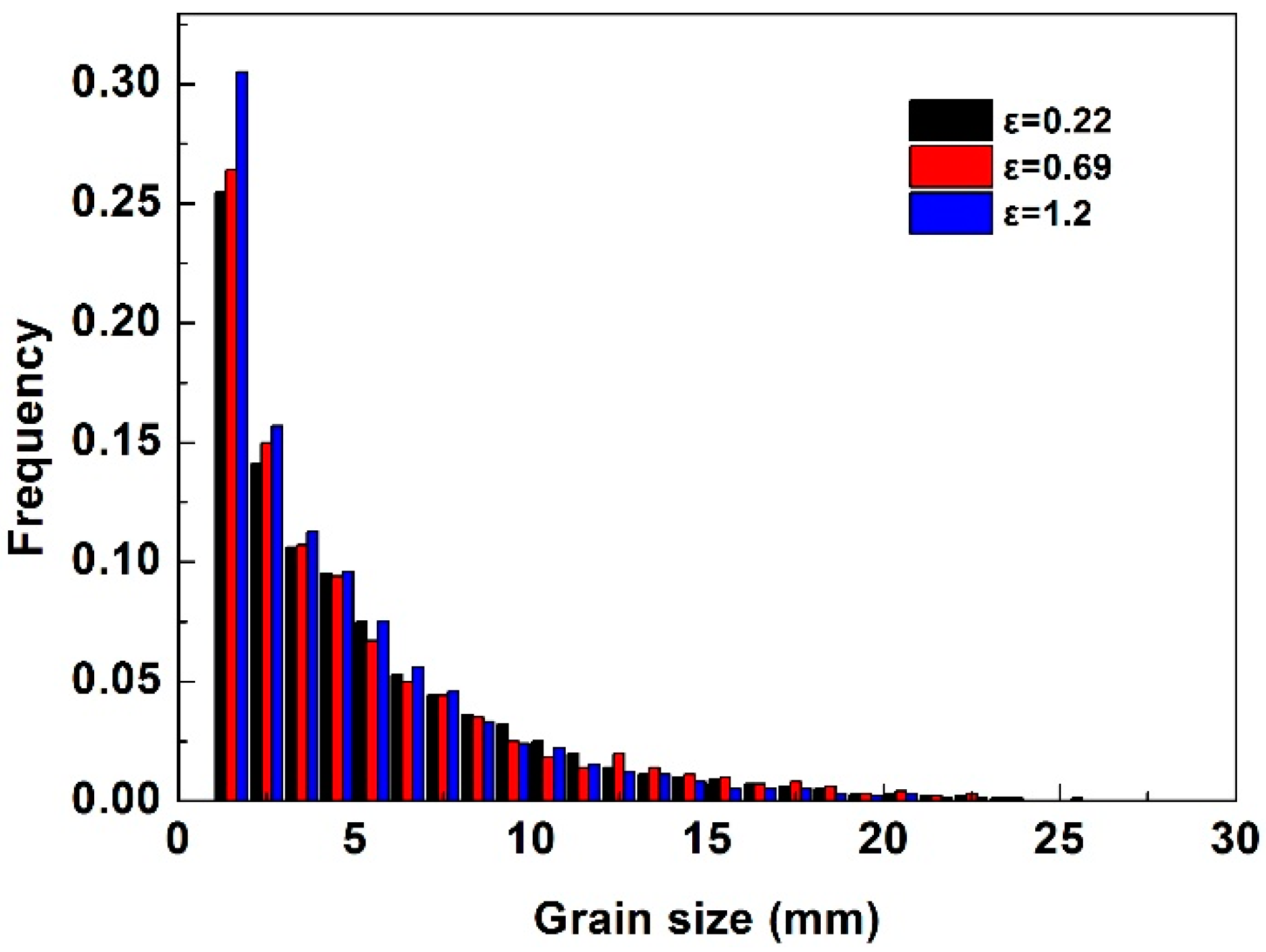

Figure 7 shows the evolution of grain structure with isothermal compression of fine-grained materials at 10⁻³ s⁻¹ and 400 °C. Almost completely recrystallized grain structures were obtained with isothermal compression of fine-grained materials at 10⁻³ s⁻¹ with different effective strains. The HAGB% and the average grain size do not change too much as the effective strain increased from 0.22 to 1.2, the HAGB% is around 80% and the average grain size is about 4 μm. Figure 8 shows that the grain size after isothermal compression with different effective strains was between 1 μm to 30 μm, and 70% of grains after compression were between 3 μm to 10 μm. As effective strain increased from 0.22 to 1.2, finer grains with grain size approximately 2.5 μm increased gradually, for recrystallized grains formed at grain boundaries increased gradually. As the microstructure included fine grains, dislocation mobility was hindered and grain boundaries acted as barriers and sometimes sinks, thus sub-grains hardly formed. Figure 5c also shows the lower mobility of grain boundaries with isothermal compression of fine-grained materials.

4.3. The TEM Maps when Isothermal Compression with Two Different Dynamic Recrystallization Mechanisms

Figure 9a shows that dislocation walls and low angle grain boundaries (LAGBs) are formed after isothermal compression of coarse-grained materials at 400 °C. Many sub-grains were also formed which transferred from dislocation walls when the CDRX mechanism dominated, as seen in Figure 9b. When isothermal compression was performed on the fine-grained materials, dislocations were easier to move to grain boundaries during isothermal compression due to shorter grain boundary distance, leading to grain boundary bulging occurring to form DDRX grains. Thus, almost no sub-grains were formed with isothermal compression of fine-grained alloys. Figure 9b shows finer recrystallized grains were formed at grain boundaries via the DDRX mechanism with isothermal compression of fine-grained materials at 400 °C.

5. Conclusions

The effect of grain size on the recrystallization behavior and recrystallization mechanism during isothermal compression at 10⁻³ s⁻¹ and temperature ranges from 300 °C to 400 °C were studied in Al-Zn-Mg-Cu alloy. The main conclusions are as follows:

(1)

When isothermal compression was performed on coarse-grained materials, the CDRX mechanism dominated to form sub-grains in grain interiors. The HAGB% and the average size of sub-grains increased gradually as the temperature of isothermal compression increased. However, DDRX was the main recrystallization mechanism when the starting material was fine-grained alloy, and many finer recrystallized grains were formed at grain boundaries with few sub-grains developed into grain interiors. The HAGB% and average size of recrystallized grains almost kept the same as the temperature increased.

(2)

The average grain size after isothermal compression of fine-grained materials was smaller than the average size of sub-grains after isothermal compression of coarse-grained materials. In addition, coarse sub-grains cannot be formed in fine grain interiors, thus almost no sub-grains were developed in fine grain interiors with isothermal compression of fine-grained materials.
