MALDI-TOF MS Limits for the Identification of Mediterranean Sandflies of the Subgenus Larroussius, with a Special Focus on the Phlebotomus perniciosus Complex

by
Antoine Huguenin
1,2,*,
Bernard Pesson
1,
Matthieu L. Kaltenbach
1,
Adama Zan Diarra
3,
Philippe Parola
3,
Jérôme Depaquit
1,2 and
Fano José Randrianambinintsoa
1
1
EA 7510 ESCAPE, USC VECPAR, ANSES, SFR Cap Santé, Université de Reims Champagne-Ardenne, 51096 Reims, France
2
Laboratoire de Parasitologie, Pôle de Biologie Territoriale, CHU, 51100 Reims, France
3
IRD, AP-HM, SSA, VITROME, IHU-Méditerranée Infection, Aix Marseille University, 19-21 Boulevard Jean Moulin, 13005 Marseille, France
*
Author to whom correspondence should be addressed.
Microorganisms 2022, 10(11), 2135; https://doi.org/10.3390/microorganisms10112135
Submission received: 6 August 2022 / Revised: 20 October 2022 / Accepted: 22 October 2022 / Published: 28 October 2022
(This article belongs to the Special Issue Matrix-Assisted Laser Desorption/Ionization Time of Flight Mass Spectrometry (MALDI-TOF MS) for the Identification of Pathogenic Microorganisms 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
Leishmania infantum is the agent of visceral leishmaniasis in the Mediterranean basin. It is transmitted by sandflies of the subgenus Larroussius. Although Phlebotomus perniciosus is the most important vector in this area, an atypical Ph. perniciosus easily confused with Ph. longicuspis has been observed in North Africa. MALDI-TOF MS, an important tool for vector identification, has recently been applied for the identification of sandflies. Spectral databases presented in the literature, however, include only a limited number of Larroussius species. Our objective was to create an in-house database to identify Mediterranean sandflies and to evaluate the ability of MALDI-TOF MS to discriminate close species or atypical forms within the Larroussius subgenus. Field-caught specimens (n = 94) were identified morphologically as typical Ph. perniciosus (PN; n = 55), atypical Ph. perniciosus (PNA; n = 9), Ph. longicuspis (n = 9), Ph. ariasi (n = 9), Ph. mascittii (n = 3), Ph. neglectus (n = 5), Ph. perfiliewi (n = 1), Ph. similis (n = 9) and Ph. papatasi (n = 2). Identifications were confirmed by sequencing of the mtDNA CytB region and sixteen specimens were included in the in-house database. Blind assessment on 73 specimens (representing 1073 good quality spectra) showed a good agreement (98.5%) between MALDI-TOF MS and molecular identification. Discrepancies concerned confusions between Ph. perfiliewi and Ph. perniciosus. Hierarchical clustering did not allow classification of PN and PNA. The use of machine learning, however, allowed discernment between PN and PNA and between the lcus and lcx haplotypes of Ph. longicuspis (accuracy: 0.8938 with partial-least-square regression and random forest models). MALDI-TOF MS is a promising tool for the rapid and accurate identification of field-caught sandflies. The use of machine learning could allow to discriminate similar species.

1. Introduction

Leishmania infantum Nicolle is the main agent of visceral (VL) and cutaneous (CL) leishmaniasis. In the Mediterranean basin, the Middle East and East Africa, this zoonosis is transmitted by the bite of an infected female Phlebotomine sandfly belonging mainly to the genus Phlebotomus Rondani & Berté, subgenus Larroussius Nitzulescu [1]. In the case of leishmaniasis due to L. infantum, domestic dogs and wild foxes play the role of vertebrate hosts. Although rabbits could play the role of alternative reservoir hosts locally [2], the role of cats as alternative vertebrate hosts has been mostly neglected to this date [3].
In the Western part of the Mediterranean basin, L. infantum proven vectors are Ph. perniciosus Newtsead, Ph. longicuspis Nitzulescu, Ph. langeroni Nitzulescu, Ph. perfiliewi Parrot and Ph. ariasi Tonnoir, all belonging to the subgenus Larroussius. The most widespread and abundant species in this area and major vector is Ph. perniciosus. Ph. perfiliewi is also widespread, but with a lower frequency. The distribution areas of Ph. longicuspis, Ph. langeroni and Ph. ariasi are limited, but they can also act as vectors locally [4].
The Ph. perniciosus complex Nitzulescu [5] includes two species: Ph. perniciosus and Ph. longicuspis. First identified in Malta, Ph. perniciosus is widely distributed throughout the western Mediterranean Basin: from Croatia to Portugal in Europe, and from Libya to Morocco in North Africa where it is predominantly found in sub-humid and semi-arid bioclimate zones [6]. Phlebotomus longicuspis distribution is restricted to North Africa where it is most frequently recorded in semi-arid, arid, and per-arid bioclimate zones (Rioux et al., 1984). Its identification in southern Spain [7,8] remains doubtful [9]. Indeed, females have long been considered undistinguishable. Their identification, based on the morphology of the base of the basal dilatation of their spermathecal ducts [10], is only possible for well-trained entomologists. Identification of the males is based on the top of the parameral sheath, which is bifurcated in Ph. perniciosus, whereas it is simple, lightly curved and pointed in Ph. longicuspis. Moreover, Ph. perniciosus male specimens exhibit ten to 16 internal setae on their gonocoxite, whereas Ph. longicuspis exhibits 15 to 29 gonocoxal setae.
An atypical form of Ph. perniciosus (PNA as compared to typical PN Ph. perniciosus), with a simple and curved distal portion of parameral sheath instead of bifurcated, which can be confused with Ph. longicuspis, has been described in the western part of Mediterranean region [9]. Males of the two species can, however, be morphologically differentiated by the number of coxite setae, as explained above [11]. No morphological character has been described to date to identify PNA females from PN females. Isoenzymatic analysis classified PNA as Ph. perniciosus, and sequence analysis of the COI fragment of mtDNA have shown a distinct haplotype for PNA [9,12]. However, the mtDNA PNA haplotype was also observed for two males with PN morphology, raising concerns concerning its reliability to correctly identify PNA [9]. The PNA form has been described in Morocco [9,13,14,15,16,17], Algeria [11] and Tunisia [12,18,19]. Probable atypical Ph. perniciosus forms, intermediate between Ph. perniciosus and Ph. longicuspis, have also been described in Spain under the Ph. longicuspis name [18,19]. The PNA form reported in Morocco seems to correlate positively with altitude and humid and sub-humid climates [15,16]. Zarrouk et al. [16] reported that the geographical repartition of PNA is negatively correlated with that of human VL, whereas the correlation was positive for PN. In Tunisia, Ghrab et al. [20] described the predominance of PNA in South-Eastern Tunisia where no L. infantum VL has been reported and its absence in foci of the disease. These observations raise the question as to the role of PNA in the transmission of VL due to L. infantum.
MALDI-TOF MS is currently an important tool for the identification of arthropods of medical or veterinary importance [21]. It has also been successfully applied to the identification of sandflies [22,23,24,25]. It allows the identification of immature stages [26] and blood meals [27,28] in engorged females.
Few studies investigated field-caught sandflies belonging to the Ph. perniciosus complex. In 2015, Mathis et al. reported [23] on the identification of sandflies by means of MALDI-TOF MS with a database of 20 species obtained from specimens captured in the field or from colonies. A grouping according to the origin (colonies or field) of the spectra of Ph. perniciosus was noted. Discrepancies were reported for the Larroussius subgenus, particularly for a specimen identified morphologically as Ph. galilaeus whose spectrum matched with that of Ph. perniciosus. However, specimens of Ph. perniciosus did not come from areas where PNA are described.
Our objective was to evaluate the performance of MALDI-TOF MS to identify species of the genus Larroussius and to see if this technique can distinguish between different morphotypes of Ph. perniciosus.

2. Materials and Methods

2.1. Sandfly Sampling

Sandflies were collected using CDC miniature light traps (John W. Hock company, Gainesville, FL) as explained in Table 1. All specimens were initially stored in liquid nitrogen at −80 °C since 2015. They were processed between 2019 and 2022.
Our sample included typical Ph. perniciosus from several countries: Portugal, Spain, France, Italy, Malta and Morocco; PNA Ph. perniciosus from Morocco, as well as a few other Larroussius (i.e., Ph. perfiliewi and Ph. ariasi). Several other species belonging to the subgenera Transphlebotomus, Phlebotomus and Paraphlebotomus were also added to our sample as out-groups (Table 1).
Briefly, specimens were dissected on cold table (−20 °C) under a stereomicroscope (Olympus, Japan). The head and genitalia of individual sandflies were cut off and processed for morphological analysis (see below). The body of each specimen was separated into thorax and abdomen, then stored individually in 1.5 mL sterile tubes at −20 °C.

2.2. Morphological Analysis

Head and genitalia were processed in individual vials. Soft tissues were lysed in a bath of 10% KOH overnight, washed with distilled water, bleached in Marc-André solution overnight and mounted between a microscope slide and cover slide in Euparal® for species identification after dehydration in successive alcoholic baths. The species were identified by observation of the head and genitalia under a BX50 microscope (Olympus, Japan).

2.3. Molecular Analysis

Genomic DNA was extracted from the abdomen of individual sandflies using the QIAmp DNA Mini Kit (Qiagen, Germany) following the manufacturer’s instructions, except for crushing sandfly tissues with a piston pellet (Treff, Switzerland), and using an elution volume of 150 µL [29].
A fragment of 550 bp of cytochrome b (Cyt b) (using the C3B-PDR: 5′-CAYATTCAACCWGAATGATA-3′ and N1N-PDR: 5′-GGTAYWTTGCCTCGAWTTCGWTATGA-3′ primers) was amplified by PCR [24]. Amplicons were analyzed by electrophoresis in 1.5% agarose gel containing Gel Green at a concentration of 0.005% v/v. Direct sequencing in both directions was performed using the primers used for DNA amplification.
Sequences obtained during the present study have been deposited in GenBank under the numbers OP617463 to OP617553 and compared to reference sequences (Pesson et coll., 2004 [9]).
A phylogenetic tree was inferred using the Maximum-Likelihood method with Mega11 [30]. The HKY (Hasegawa-Kishino-Yano) model was selected as the most appropriate model of DNA evolution. Statistical support of internal was evaluated by bootstrapping (100 replicates).

2.4. MALDI-TOF MS Analysis

Thoraxes, including legs of the specimens, were placed in 10 µL of formic acid (Sigma-Aldrich, Lyon, France) and homogenized with a teflon pestle in a microtube. After addition of 10 µL of acetonitrile (Sigma-Aldrich) and centrifugation for 2 min at 10,000 rpm, 1 μL of supernatant was deposited on a 96-well steel target plate. Four spots were deposited for each specimen. After complete drying, 1 μL of HCCA matrix (Bruker Daltonics) saturated solution in organic solvent solution (Sigma-Aldrich) was added. After complete drying at room temperature, plates were then analyzed in a Bruker Microflex LT MALDI–TOF spectrometer (Bruker Daltonics, Champs-Sur-Marne, France). Spectra acquisition was repeated 8 times for each well using the built-in Bruker method “MBT_BTS_Validation_AutoX”. A bacterial test standard was used for instrument calibration. Lastly, spectra were visualized using FlexAnalysis v3.4 and imported in Biotyper Compass Explorer v4.1.100 for analysis.
The Bruker “MALDI Biotyper Preprocessing Standard Method” was used for the creation of main spectra profiles (MSP). High-quality spectra were selected for incrementing the local database (at least 10 good quality spectra by MSP). Hierarchical cluster analysis (HCA) was performed using a correlation method and the Ward algorithm for clustering with the MSP dendrogram tool of Compass Explorer. Sensitivity and specificity were assessed by blind testing the in-house MSP database against spectra from 77 specimens not used for MSP creation. The cut-off value of log-score value (LSV) was determined using receptor-operated-channel curve (ROC curve) analysis with the R pROC package [31]. Our spectra were also tested against the sandflies’ MSP of the Vitrome UMR D 257 (Pr. Philippe Parola).
Machine learning discrimination between PN and PNA was based on custom R scripts based on the caret package [32] using four algorithms: k nearest neighbour (KNN), partial least-square discriminant analysis (PLS), random forest analysis (RF), and extreme gradient boosting machine (xgbTree). Bruker FID spectra files were imported using the MALDIQuantForeign package [33]. Preprocessing and selection of high quality spectra was performed by using the screenSpectra function from the MALDIrppa package [34]. Data were partitioned into training, validation and test datasets. The test dataset contained spectra from specimens that did not belong to the training and validation datasets. Repartition of spectra between different group is reported in Supplementary material (Table S1).
Model training was performed on the training dataset with the KNN, PLS, RF and xgbTree caret [32] methods, with repeated cross validation (ten folds and ten repeats). LogLoss metrics were used to evaluate model performance.

3. Results

3.1. Entomological Investigation

Atypical Phlebotomine sandflies were clearly identified at the specific level according to their morphological characters. The unequivocal identification of the members of the Ph. perniciosus complex was based on the observation of the top of the parameral sheath and the number of gonocoxal internal setae.

3.2. Molecular Identification

Morphological identification of all specimens included in our study was confirmed by cytb mtDNA sequencing with homologies >99% versus reference sequences deposited in Genbank. A phylogenic tree inferred from the Maximum-Likelihood method is presented in Figure 1.

3.3. MALDI-TOF MS Analysis

3.3.1. MALDI-TOF Analysis and Construction of an In-House Database

Non-flat-line, usable spectra were obtained from 95 out of 99 specimens (95.95%). Visual assessment of acquired spectra from all Phlebotomus species using Flex analysis showed consistent and reproducible spectra for each species. Spectra of five representative specimens are presented in Figure 2. MALDI-TOF MS spectra of Ph. perfiliewi and Ph. perniciosus PN were very similar whereas Ph. perniciosus PNA displayed a different pattern of peaks intensities.
MSP was obtained for 90 specimens. Cluster analysis of 64 specimens is presented in Figure 3, showing good separation between Ph. perniciosus complex and other species. The spectra of Ph. perfiliewi (MT23) was mixed with spectra of Ph. perniciosus. For Ph. perniciosus, no clear clustering according to morphotype (PNA/PN), sex or geographical origin (Iberic vs. Italian-Maltese sublineage) was identified.
High-quality spectra from 17 specimens were chosen for creating an in-house MSP library: Ph. perniciosus (PN: 6 MSP; PNA: 2 spectra), Ph. longicuspis lcx (2 MSP), Ph. longicuspis lcus, Ph. ariasi (Ph. mascittii, Ph. neglectus, Ph. papatasi, Ph. perfliliewi (1 MSP for each species).

3.3.2. Blind Test Evaluation

In-House Database

3496 spectra acquired from 73 specimens were tested against the upgraded homemade reference database. Determination of LSV threshold was based on molecular identification using ROC curve (Figure 4). The optimal threshold value, as determined by the Youden J statistic, was 1.665, with a sensitivity of 93.3% and a specificity of 82.5%. In order to compare our results with those of other studies [25], we used an LSV cut-off value of 1.7 for identification at the species level instead achieving a specificity of 82.5% and a sensitivity of 93.0%. Using a LSV ≥ 2 for specific identification did not significantly improve specificity (84.57%) but decreased sensitivity (90.34%).
Among the 3496 spectra, 1073 (31%) reached a log score > 1.7, which was considered a probable identification at the species level. Six specimens (8.2%) displayed spectra that did not reach the LSV cut-off. One of these was MT08, a specimen of Ph similis not present in the database. The confusion matrix (Table 2) revealed a good agreement (98.5% at spectra level, 97.1% at specimen level) between MALDI-TOF MS and molecular identification.

Marseille Database

Spectra acquired from our 73 specimens were matched against the Marseille MSP database. 894 reached the cut-off LSV-value (25.57%). Agreement between molecular biology and MALDI-TOF was 97.87% (Table 3). The 19 discrepant spectra were from Ph. perniciosus (18/19) (confused with Ph. perfiliewi (n = 13)) or Ph. tobbi (n = 5), and Ph. longicuspis (1/19) (confused with Ph. perfiliewi). The Marseille database did not allow the discrimination of lcux from lcx haplotypes of Ph. longicuspis.
Marseille and Reims (in-house) databases were also matched against spectra from the samples of Mhaidi et al. [36], kindly provided by Petr Halada. Results are presented in Supplementary (Table S1). In spite of the high quality of the spectra, only 5 spectra out of 18 reached the 1.7 LSV cut-off value with the Reims in-house database and none with the Marseille database. For spectra reaching the cut-off value, two specimens of Ph. longicuspis were identified as Ph. perniciosus with the Reims database. Interestingly, the second identification was Ph. longicuspis in both cases.

3.3.3. PNA Identification Using Machine Learning

Spectra from Ph. longicuspis (lcx and lcus haplotypes), PNA and PN haplotypes of Ph. perniciosus were partitioned into (I) a training dataset (500 spectra from 53 specimens), (II) a validation dataset (124 spectra from 30 specimens) and (III) a test dataset (273 spectra from 11 specimens not used for training or validation). The training dataset was balanced concerning the two Ph. longicupis haplotypes, PN and PNA to prevent overfitting with 125 spectra for each taxa. Use of 4 common machine learning algorithms allowed to discriminate spectra from the test dataset as Ph. perniciosus PNA/PN and Ph. longicuspis lcx and lcus with good reliability (Figure 5). The best results were obtained with the RF or PLS algorithms attaining an accuracy of 89.38%. Most of the confusions arose between Ph. longicuspis lcus and lcx haplotypes, particularly for the K Next-Neighbour (KNN) and eXtreme Gradient Boosting (XGBoost) models.

4. Discussion

MALDI-TOF MS allows to discriminate Larrousius from non-Larroussius subgenus sandflies efficiently. Clustering according to sex, as reported by Lafri et al. [24], was not encountered in our specimens. Within the Ph. perniciosius complex, no classification errors were noted with our in-house database for the Ph. neglectus and Ph. ariasi species. Confusions between Ph. perfiliewi and Ph. perniciosus sensu stricto were, however, endured. Spectra of these closely related species were visually indistinguishable. This confusion has also been reported by other authors. In 2016, Lafri et al. [24] described the application of MALDI-TOF MS for the identification of sandflies caught in the field. Their spectral database included Ph. perniciosus (PN form), Ph. longicuspis and Ph. perfiliewi species of the subgenus Larroussius. They reported very similar observations between MALDI-TOF MS spectra for these two species, and a difficulty in identifying these two species using Bruker MALDI-Biotyper.
The Marseille database allowed the correct classification of 7 out of 14 Ph. perfiliewi spectra. The remaining spectra were also classified as Ph. perniciosus. Unfortunately, only one specimen of Ph. perfiliewi was collected, thus not allowing the use of machine learning algorithms to discriminate between this two sibling species using MALDI-TOF MS. The inclusion of new specimens of Ph. perfiliewi would, however, allow the identification of Ph. perfiliewi subspecies [37]. Both databases did not permit reliable identification of spectra obtained from a previous study by Mhaidi et al. [36]. This result illustrates the variability commonly seen between laboratories using MALDI-TOF MS technology. Our sample preparation differed from the one used by our colleagues in Marseille, by using the thorax and legs without wings with grinding in formic acid before adding acetonitrile, instead of using a mixture of these two substances. Mhaidi et al. only used thoraxes with grinding in formic acid alone, followed by mixing with sinapinic acid MALDI matrix. The specimen preparation protocol, although based on the same principles, seems to have a significant impact on the spectra obtained, which limits the portability of existing MSP databases. The protein composition of the wings or legs does probably affect the MALDI-TOF MS spectra, explaining at least partly some of the discrepancies noted between different databases. The spectral variability can also be explained by the use of different spectrometers, although they share the same brand, technology and calibration procedures with identical Bruker bacterial standards. Standardization of protocols thus appears necessary to allow the exchange of spectra between MALDI-TOF MS users. Automatic processing would also be particularly interesting to quickly obtain a large quantity of spectra with a high reproducibility [21].
No clustering according to the haplotype was observed for PN spectra using hierarchical classification, as well as no discrimination between populations of Ph. perniciosus as previously emphasized. Pesson et coll. [9] demonstrated that the Italian-Maltese lineage could be discriminated from the Iberian lineage by both isoenzyme analysis and cyt b sequences analysis. The French population of Ph. perniciosus is in an intermediate position in relation to the hypothesis that its settlement could be a consequence of a late dispersion following the last glaciation [38]. Moreover, the same authors separated the European lineages from the North African ones when MALDI-TOF MS with hierarchical classification could not achieve this.
Good discrimination of PN/PNA and Ph. longicuspis haplotypes using MALDI-TOF MS has been obtained with machine learning. Ph. perniciosus whole genome sequencing could allow recognition of the protein origin of these discriminant peaks and could thus provide information on the genetic status of these two forms. Machine learning is an interesting approach to extract information from MALDI-TOF MS spectra. It has been used for bacteria identification, antibiotic resistance prediction [39,40,41], malaria transmission prediction in Anopheles mosquitoes [42] and Aspergillus clones identification [43]. It has a great potential to discriminate between MALDI-TOF spectra of insects’ close species. The need of a large sample size with a similar number of specimens between classes, however, is an important limitation. In our study, a training dataset with close to 200 spectra in each class was sufficient to establish models capable of robust prediction. Our study is also limited by the absence of an external validation dataset with spectra acquired from a different MALDI-TOF device in another laboratory. The wide acceptance of the model and the reproducibility of the prediction is thus somewhat limited. Nevertheless, we used a test dataset with specimens that had never been used for training and spectra acquired during a new session held 10 months after the training and validation set. The analytical performance of the different algorithms in the test dataset lead us to think that overfitting was limited in our case.
It is important to note that the cyt b PNA (pern06) haplotype was also found in two PN males from Morocco and Tunisia [9]. Benabdennbi et al. also noted that a unique female could lay eggs of both PN and PNA males [44]. This implies that the haplotypes described for PNAs are not a completely reliable marker. In this study, we used, for the training dataset, spectra from males identified both morphologically and molecularly as PNA and females of the PNA haplotypes. This approach allowed a reliable identification in the test dataset of morphologically identified males PNA and of females of the same haplotype. MALDI-TOF MS could thus be used for rapid identification of females corresponding to the PNA haplotype. This could be of epidemiological interest since the presence of a PNA population seems associated with the absence of foci of L. infantum VL [16,20].

5. Conclusions

The collection of a large number of specimens is necessary to improve the discriminatory power of MALDI-TOF and the identifiability of Phlebotomus specimens, especially in the case of Ph. longicuspis and Ph. perfiliewi s. l. Unfortunately, we could not find any other specimen of the latter species in the processed collections. Hierarchical classification of spectra cannot cluster the geographical populations of Ph. perniciosus as cyt b sequences. Machine learning, however, allowed reliable discrimination between PN and PNA subspecies, Ph. longicuspis lcx and lcus haplotypes. It is a promising approach to distinguish sibling species with similar spectral profiles. The differentiation of these four taxa by morphology requires a trained microscopist and a good dissection of genitalia. The use of chaetotaxy sometimes does not permit differentiation of PNA from Ph. longicuspis when the specimen presents 15 or 16 gonocoxal setae. MALDI-TOF is a tool that does not require a formal training in entomology which can be used to quickly screen a collection of frozen sandflies. The use of MALDI-TOF in routine testing for closely related sandflies species identification remains however difficult at the present time. as methods used by laboratories worldwide need some type of standardization. Morphological expertise remains particularly important and, in many cases, identification by molecular biology remains necessary for reliable diagnosis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms10112135/s1, Table S1: Results of Reims and Marseille MSP database for identification on spectra collected by Mhaidi et al. [36]. Table S2: Characteristics of specimens included in this study.

Author Contributions

Conceptualization, F.J.R., A.H. and J.D.; methodology, F.J.R., A.H.; software, A.H.; validation, J.D., F.J.R. and A.H.; resources, P.P., A.Z.D.; data curation, A.H.; writing—original draft preparation, A.H.; writing—review and editing, J.D., B.P., P.P., A.Z.D., M.L.K.; English editing: M.L.K., visualization, A.H.; supervision, B.P., F.J.R., J.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Sequences obtained during the present study have been deposited in GenBank under the numbers OP617463 to OP617553, as detailed in Supplementary (Table S2).

Acknowledgments

We would like to thank Petr Halada (BioCeV–Institute of Microbiology, The Czech Academy of Sciences) and Vit Dvořák (Department of Parasitology, Faculty of Science, Charles University, Prague) for sharing spectra of PNA. The authors would like to thank all those who contributed to the constitution of the collections kept in the liquid nitrogen cryotheque from 1988 to 2012: C. Alves-Pires, D. Barbier, S. Boussaa, I. Benabbdenbi-Cherkaoui, M. Cadi-Soussi, H. Ferté, M. Gállego, M. Killick-Kendrick, R. Killick-Kendrick (deceased), N. Léger, J. Lucientes, S. Mahamdallie, G. Madulo-Leblond (deceased), E. Martinez-Ortega, F. Morillas-Marquez, S. Perrotey and P. Ready.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Akhoundi, M.; Kuhls, K.; Cannet, A.; Votýpka, J.; Marty, P.; Delaunay, P.; Sereno, D. A Historical Overview of the Classification, Evolution, and Dispersion of Leishmania Parasites and Sandflies. PLoS Negl. Trop. Dis. 2016, 10, e0004349. [Google Scholar] [CrossRef] [PubMed]
  2. García, N.; Moreno, I.; Alvarez, J.; de la Cruz, M.L.; Navarro, A.; Pérez-Sancho, M.; García-Seco, T.; Rodríguez-Bertos, A.; Conty, M.L.; Toraño, A.; et al. Evidence of Leishmania infantum Infection in Rabbits (Oryctolagus cuniculus) in a Natural Area in Madrid, Spain. BioMed Res. Int. 2014, 2014, 318254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Maia, C.; Nunes, M.; Campiño, L. Importance of Cats in Zoonotic Leishmaniasis in Portugal. Vector Borne Zoonotic Dis. 2008, 8, 555–559. [Google Scholar] [CrossRef] [PubMed]
  4. Rioux, J.A.; Lanotte, G.; Périères, J.; Croset, H. Ecology of leishmaniasis in the south of France. 6. First report of a spontaneous infestation of Phlebotomus ariasi. Ann. Parasitol. Hum. Comp. 1973, 48, 519–522. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Seccombe, A.K. Catalogue of Old World Phlebotomine Sandflies (Diptera: Psychodidae, Phlebotominae); Natural History Museum: London, UK, 1993. [Google Scholar]
  6. Rioux, J.-A.; Rispail, P.; Lanotte, G.; Lepart, J. Relations Phlébotomes-bioclimats en écologie des leishmanioses Corollaires épidémiologiques. L’exemple du Maroc. Bull. Société Bot. Fr. Actual. Bot. 1984, 131, 549–557. [Google Scholar] [CrossRef]
  7. Morillas, M.; Guevara Benitez, D.C.; Gilcollado, J.; Ubeda Ontiveros, J. Prensencia en España de Phlebotomus (Larroussius) longicuspis (Nitzulescu 1930). In Revista Ibérica de Parasitología; Instituto José de Acosta: Granada, Spain, 1982; pp. 191–196. [Google Scholar]
  8. Martinez-Ortega, E.; Martin-Luengo, F.; Conesa-Gallego, E.; Ward, R.D. New distribution of Phlebotomus (Larroussius) longicuspis Nitzulescu 1930 (Diptera, Phlebotomidae) in Spain. In Revista Ibérica de Parasitología; Instituto José de Acosta: Granada, Spain, 1982. [Google Scholar]
  9. Pesson, B.; Ready, J.S.; Benabdennbi, I.; Martin-Sanchez, J.; Esseghir, S.; Cadi-Soussi, M.; Morillas-Marquez, F.; Ready, P.D. Sandflies of the Phlebotomus perniciosus complex: Mitochondrial introgression and a new sibling species of P. longicuspis in the Moroccan Rif. Med. Vet. Entomol. 2004, 18, 25–37. [Google Scholar] [CrossRef]
  10. Léger, N.; Pesson, B.; Madulo-Leblond, G.; Abonnenc, E. Sur la différenciation des femelles du sous-genre larroussius nitzulescu, 1931: (Diptera-Phlebotomidae) de la région méditerranéenne. Ann. Parasitol. Hum. Comparée 1983, 58, 611–623. [Google Scholar] [CrossRef] [Green Version]
  11. Benallal, K.E.; Benikhlef, R.; Garni, R.; Gassen, B.; Dedet, J.-P.; Harrat, Z. Presence of Phlebotomus perniciosus Atypical Form in Algeria. J. Arthropod-Borne Dis. 2017, 11, 139–146. [Google Scholar]
  12. Boudabous, R.; Jaouadi, K.; Bounamous, A.; Babba, H. Morphological and Molecular Investigations of Population Structure of Phlebotomus perniciosus and Phlebotomus longicuspis (Diptera: Psychodidae) in Tunisia. J. Med. Entomol. 2012, 49, 787–793. [Google Scholar] [CrossRef]
  13. Benabdennbi, I.; Pesson, B.; Cadi-Soussi, M.; Marquez, F.M. Morphological and Isoenzymatic Differentiation of Sympatric Populations of Phlebotomus perniciosus and Phlebotomus longicuspis (Diptera: Psychodidae) in Northern Morocco. J. Med. Entomol. 1999, 36, 116–120. [Google Scholar] [CrossRef]
  14. Guernaoui, S.; Boumezzough, A.; Laamrani, A. Altitudinal structuring of sand flies (Diptera: Psychodidae) in the High-Atlas mountains (Morocco) and its relation to the risk of leishmaniasis transmission. Acta Trop. 2006, 97, 346–351. [Google Scholar] [CrossRef] [PubMed]
  15. Kahime, K.; Boussaa, S.; El Mzabi, A.; Boumezzough, A. Spatial relations among environmental factors and phlebotomine sand fly populations (Diptera: Psychodidae) in central and southern Morocco. J. Vector Ecol. 2015, 40, 342–354. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Zarrouk, A.; Kahime, K.; Boussaa, S.; Belqat, B. Ecological and epidemiological status of species of the Phlebotomus perniciosus complex (Diptera: Psychodidae, Phlebotominae) in Morocco. Parasitol. Res. 2016, 115, 1045–1051. [Google Scholar] [CrossRef] [PubMed]
  17. Boussaa, S.; Boumezzough, A.; Remy, P.E.; Glasser, N.; Pesson, B. Morphological and isoenzymatic differentiation of Phlebotomus perniciosus and Phlebotomus longicuspis (Diptera: Psychodidae) in Southern Morocco. Acta Trop. 2008, 106, 184–189. [Google Scholar] [CrossRef]
  18. Morillas, M.F.; Sanchís, M.M.; Martín, S.J.; Acedo, S.C. On Phlebotomus perniciosus Newstead, 1911 (Diptera, Phlebotomidae) in the Province of Almeria in southeastern Spain. Parassitologia 1991, 33, 437–444. [Google Scholar]
  19. Martín-Sánchez, J.; Gramiccia, M.; Pesson, B.; Morillas-Marquez, F. Genetic polymorphism in sympatric species of the genus Phlebotomus, with special reference to Phlebotomus perniciosus and Phlebotomus longicuspis (Diptera, Phlebotomidae). Parasite 2000, 7, 247–254. [Google Scholar] [CrossRef] [Green Version]
  20. Ghrab, J.; Rhim, A.; Bach-Hamba, D.; Chahed, M.K.; Aoun, K.; Nouira, S.; Bouratbine, A. Phlebotominae (Diptera: Psychodidae) of human leishmaniosis sites in Tunisia. Parasite 2006, 13, 23–33. [Google Scholar] [CrossRef] [Green Version]
  21. Sevestre, J.; Diarra, A.Z.; Laroche, M.; Almeras, L.; Parola, P. Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry: An emerging tool for studying the vectors of human infectious diseases. Future Microbiol. 2021, 16, 323–340. [Google Scholar] [CrossRef]
  22. Dvorak, V.; Halada, P.; Hlavackova, K.; Dokianakis, E.; Antoniou, M.; Volf, P. Identification of phlebotomine sand flies (Diptera: Psychodidae) by matrix-assisted laser desorption/ionization time of flight mass spectrometry. Parasit. Vectors 2013, 7, 21. [Google Scholar] [CrossRef] [Green Version]
  23. Mathis, A.; Depaquit, J.; Dvorak, V.; Tuten, H.; Bañuls, A.-L.; Halada, P.; Zapata, S.; Lehrter, V.; Hlavackova, K.; Prudhomme, J.; et al. Identification of phlebotomine sand flies using one MALDI-TOF MS reference database and two mass spectrometer systems. Parasit. Vectors 2015, 8, 266. [Google Scholar] [CrossRef] [Green Version]
  24. Lafri, I.; Almeras, L.; Bitam, I.; Caputo, A.; Yssouf, A.; Forestier, C.-L.; Izri, A.; Raoult, D.; Parola, P. Identification of Algerian Field-Caught Phlebotomine Sand Fly Vectors by MALDI-TOF MS. PLoS Negl. Trop. Dis. 2016, 10, e0004351. [Google Scholar] [CrossRef] [PubMed]
  25. Chavy, A.; Nabet, C.; Normand, A.C.; Kocher, A.; Ginouves, M.; Prévot, G.; dos Santos, T.V.; Demar, M.; Piarroux, R.; Thoisy, B. de Identification of French Guiana sand flies using MALDI-TOF mass spectrometry with a new mass spectra library. PLoS Negl. Trop. Dis. 2019, 13, e0007031. [Google Scholar] [CrossRef] [PubMed]
  26. Halada, P.; Hlavackova, K.; Dvorak, V.; Volf, P. Identification of immature stages of phlebotomine sand flies using MALDI-TOF MS and mapping of mass spectra during sand fly life cycle. Insect Biochem. Mol. Biol. 2018, 93, 47–56. [Google Scholar] [CrossRef] [PubMed]
  27. Hlavackova, K.; Dvorak, V.; Chaskopoulou, A.; Volf, P.; Halada, P. A novel MALDI-TOF MS-based method for blood meal identification in insect vectors: A proof of concept study on phlebotomine sand flies. PLoS Negl. Trop. Dis. 2019, 13, e0007669. [Google Scholar] [CrossRef]
  28. Messahel, N.E.; Benallal, K.E.; Halada, P.; Lafri, I.; Manseur, H.; Hakem, A.; Houali, K.; Harrat, Z.; Volf, P.; Dvorak, V. Identification of blood source preferences and Leishmania infection in sand flies (Diptera: Psychodidae) in north-eastern Algeria. Vet. Parasitol. Reg. Stud. Rep. 2022, 31, 100729. [Google Scholar] [CrossRef]
  29. Depaquit, J.; Léger, N.; Ferté, H.; Robert, V. Les Phlébotomes de Madagascar (Diptera: Psychodidae)-II-Description de la femelle de Phlebotomus (Anaphlebotomus) fertei Depaquit, Léger & Robert, 2002; description du mâle et redescription de la femelle de Phlebotomus (Anaphlebotomus) berentiensis (Léger & Rodhain, 1978) comb. nov. Parasite 2004, 11, 201–209. [Google Scholar] [CrossRef] [Green Version]
  30. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  31. Robin, X.; Turck, N.; Hainard, A.; Tiberti, N.; Lisacek, F.; Sanchez, J.-C.; Müller, M. pROC: An open-source package for R and S+ to analyze and compare ROC curves. BMC Bioinform. 2011, 12, 77. [Google Scholar] [CrossRef]
  32. Kuhn, M. Caret: Classification and Regression Training 2020. Available online: https://cran.r-project.org/web/packages/caret/caret.pdf (accessed on 5 August 2022).
  33. Gibb, S.; Strimmer, K. MALDIquant: A versatile R package for the analysis of mass spectrometry data. Bioinformatics 2012, 28, 2270–2271. [Google Scholar] [CrossRef] [Green Version]
  34. Palarea-Albaladejo, J.; Mclean, K.; Wright, F.; Smith, D.G.E. MALDIrppa: Quality control and robust analysis for mass spectrometry data. Bioinformatics 2018, 34, 522–523. [Google Scholar] [CrossRef] [Green Version]
  35. Hasegawa, M.; Kishino, H.; Yano, T. Dating of the human-ape splitting by a molecular clock of mitochondrial DNA. J. Mol. Evol. 1985, 22, 160–174. [Google Scholar] [CrossRef] [PubMed]
  36. Mhaidi, I.; Ait Kbaich, M.; El Kacem, S.; Daoui, O.; Akarid, K.; Spitzova, T.; Halada, P.; Dvorak, V.; Lemrani, M. Entomological study in an anthroponotic cutaneous leishmaniasis focus in Morocco: Fauna survey, Leishmania infection screening, molecular characterization and MALDI-TOF MS protein profiling of relevant Phlebotomus species. Transbound. Emerg. Dis. 2022, 69, 1073–1083. [Google Scholar] [CrossRef] [PubMed]
  37. Depaquit, J.; Bounamous, A.; Akhoundi, M.; Augot, D.; Sauvage, F.; Dvorak, V.; Chaibullinova, A.; Pesson, B.; Volf, P.; Léger, N. A taxonomic study of Phlebotomus (Larroussius) perfiliewi s. l. Infect. Genet. Evol. 2013, 20, 500–508. [Google Scholar] [CrossRef]
  38. Perrotey, S.; Mahamdallie, S.S.; Pesson, B.; Richardson, K.J.; Gállego, M.; Ready, P.D. Postglacial dispersal of Phlebotomus perniciosus into France. Parasite 2005, 12, 283–291. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Weis, C.V.; Jutzeler, C.R.; Borgwardt, K. Machine learning for microbial identification and antimicrobial susceptibility testing on MALDI-TOF mass spectra: A systematic review. Clin. Microbiol. Infect. 2020, 26, 1310–1317. [Google Scholar] [CrossRef] [PubMed]
  40. Weis, C.; Cuénod, A.; Rieck, B.; Dubuis, O.; Graf, S.; Lang, C.; Oberle, M.; Brackmann, M.; Søgaard, K.K.; Osthoff, M.; et al. Direct antimicrobial resistance prediction from clinical MALDI-TOF mass spectra using machine learning. Nat. Med. 2022, 28, 164–174. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, H.-Y.; Hsieh, T.-T.; Chung, C.-R.; Chang, H.-C.; Horng, J.-T.; Lu, J.-J.; Huang, J.-H. Efficiently Predicting Vancomycin Resistance of Enterococcus Faecium From MALDI-TOF MS Spectra Using a Deep Learning-Based Approach. Front. Microbiol. 2022, 13, 821233. [Google Scholar] [CrossRef]
  42. Nabet, C.; Chaline, A.; Franetich, J.-F.; Brossas, J.-Y.; Shahmirian, N.; Silvie, O.; Tannier, X.; Piarroux, R. Prediction of malaria transmission drivers in Anopheles mosquitoes using artificial intelligence coupled to MALDI-TOF mass spectrometry. Sci. Rep. 2020, 10, 11379. [Google Scholar] [CrossRef]
  43. Normand, A.-C.; Chaline, A.; Mohammad, N.; Godmer, A.; Acherar, A.; Huguenin, A.; Ranque, S.; Tannier, X.; Piarroux, R. Identification of a clonal population of Aspergillus flavus by MALDI-TOF mass spectrometry using deep learning. Sci. Rep. 2022, 12, 1575. [Google Scholar] [CrossRef]
  44. Benabdennbi, I.; Pesson, B. À propos de la variabilité morphologique de Phlebotomus perniciosus (Diptera: Psychodidae). Bull. Société Française Parasitol. 1998, 16, 53–60. [Google Scholar]
Microorganisms 10 02135 g001 550

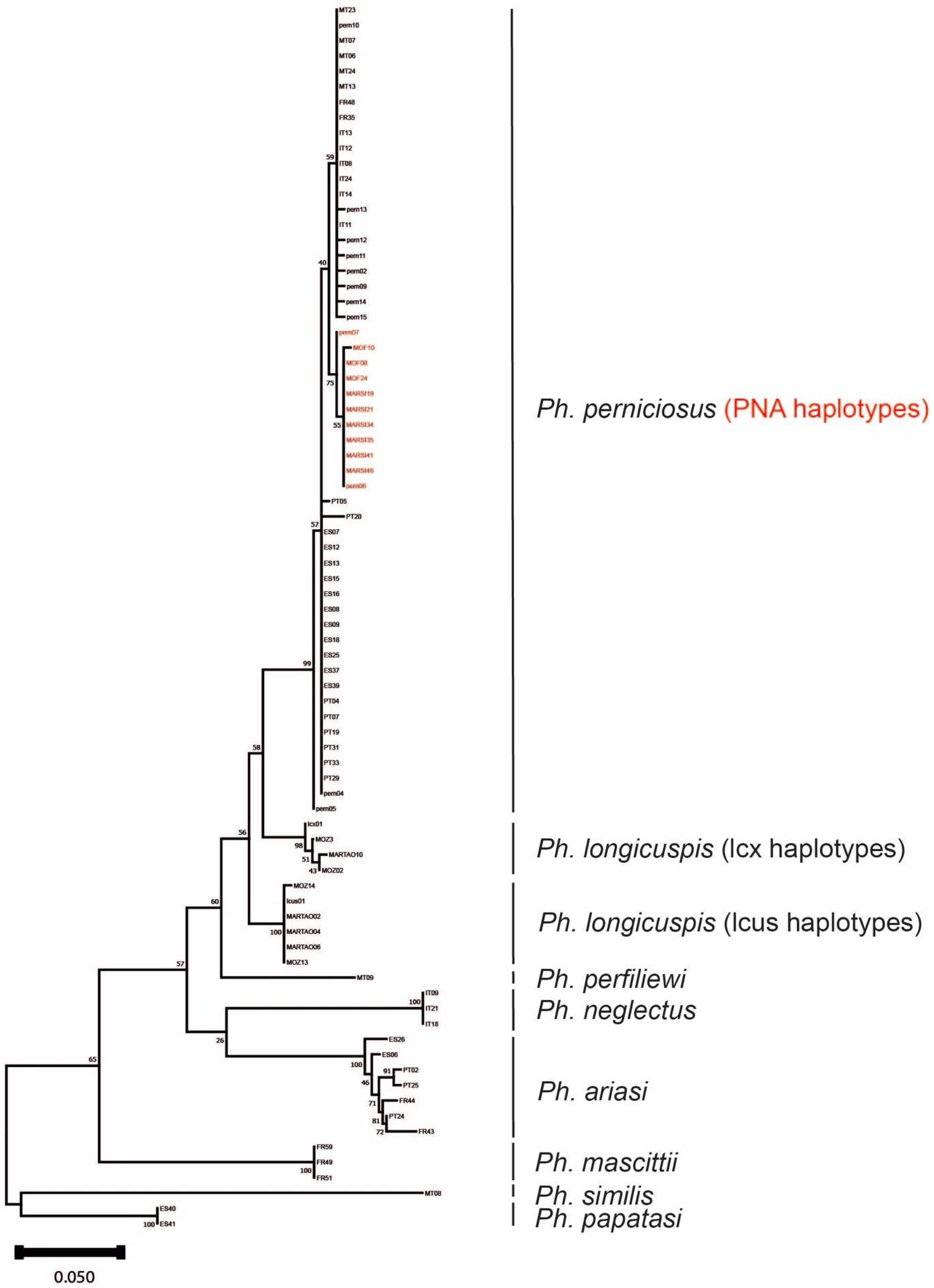

Figure 1. Maximum Likelihood tree based on 84 cyt b sequences using a HKY model [35]. Bootstrap values are indicated on the nodes. Tree was constructed using MEGA11 [30].
Figure 1. Maximum Likelihood tree based on 84 cyt b sequences using a HKY model [35]. Bootstrap values are indicated on the nodes. Tree was constructed using MEGA11 [30].
Microorganisms 10 02135 g001
Microorganisms 10 02135 g002 550

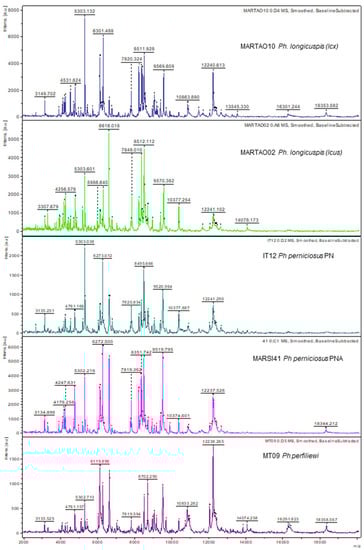

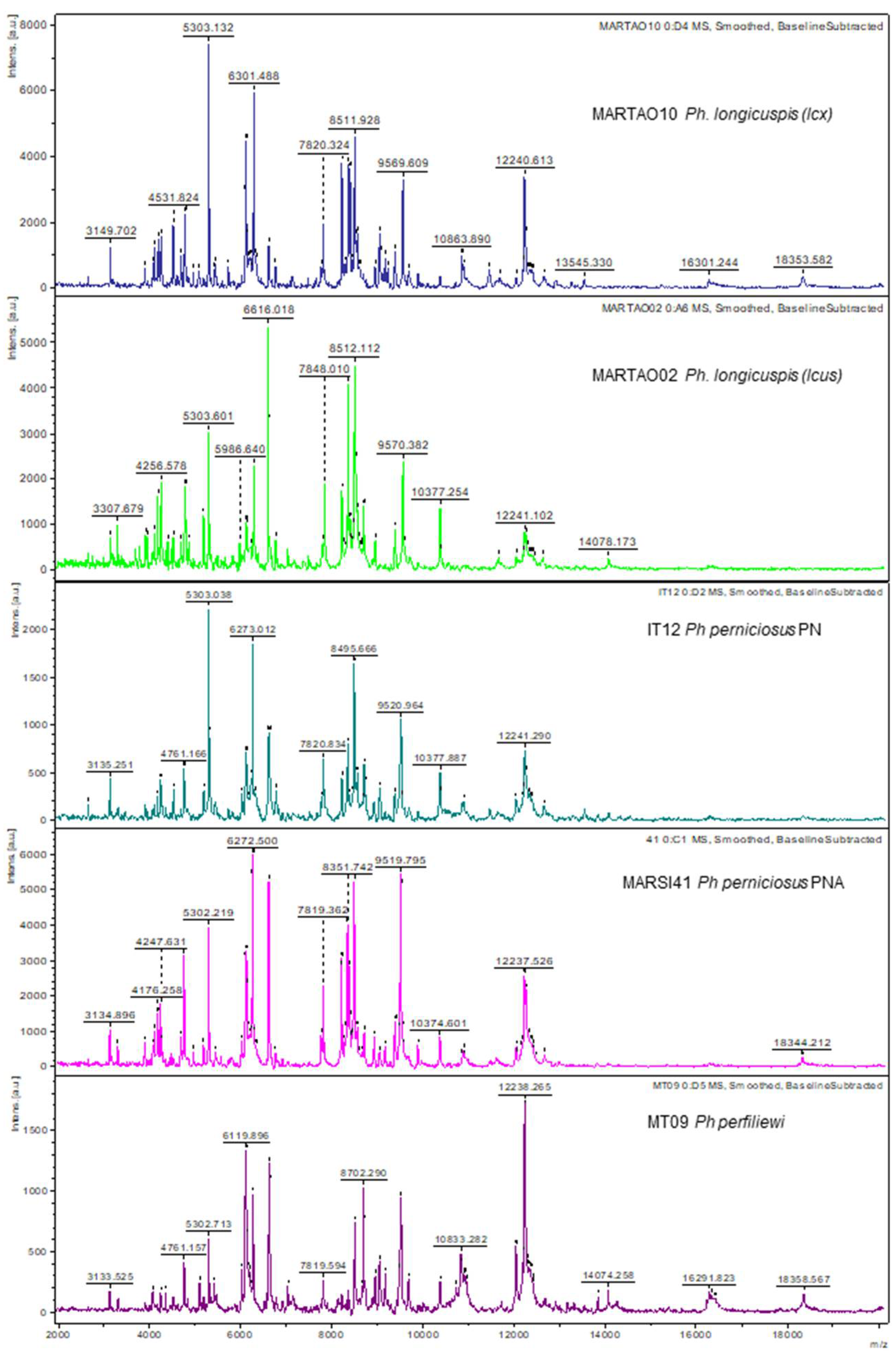

Figure 2. Representative spectra of Ph. longicuspis (lcus haplotype), Ph. longicuspis (lcx haplotype), Ph. perniciosus PN (typical form), Ph. perniciosus PNA (atypical form) and Ph. perfiliewi.
Figure 2. Representative spectra of Ph. longicuspis (lcus haplotype), Ph. longicuspis (lcx haplotype), Ph. perniciosus PN (typical form), Ph. perniciosus PNA (atypical form) and Ph. perfiliewi.
Microorganisms 10 02135 g002
Microorganisms 10 02135 g003 550

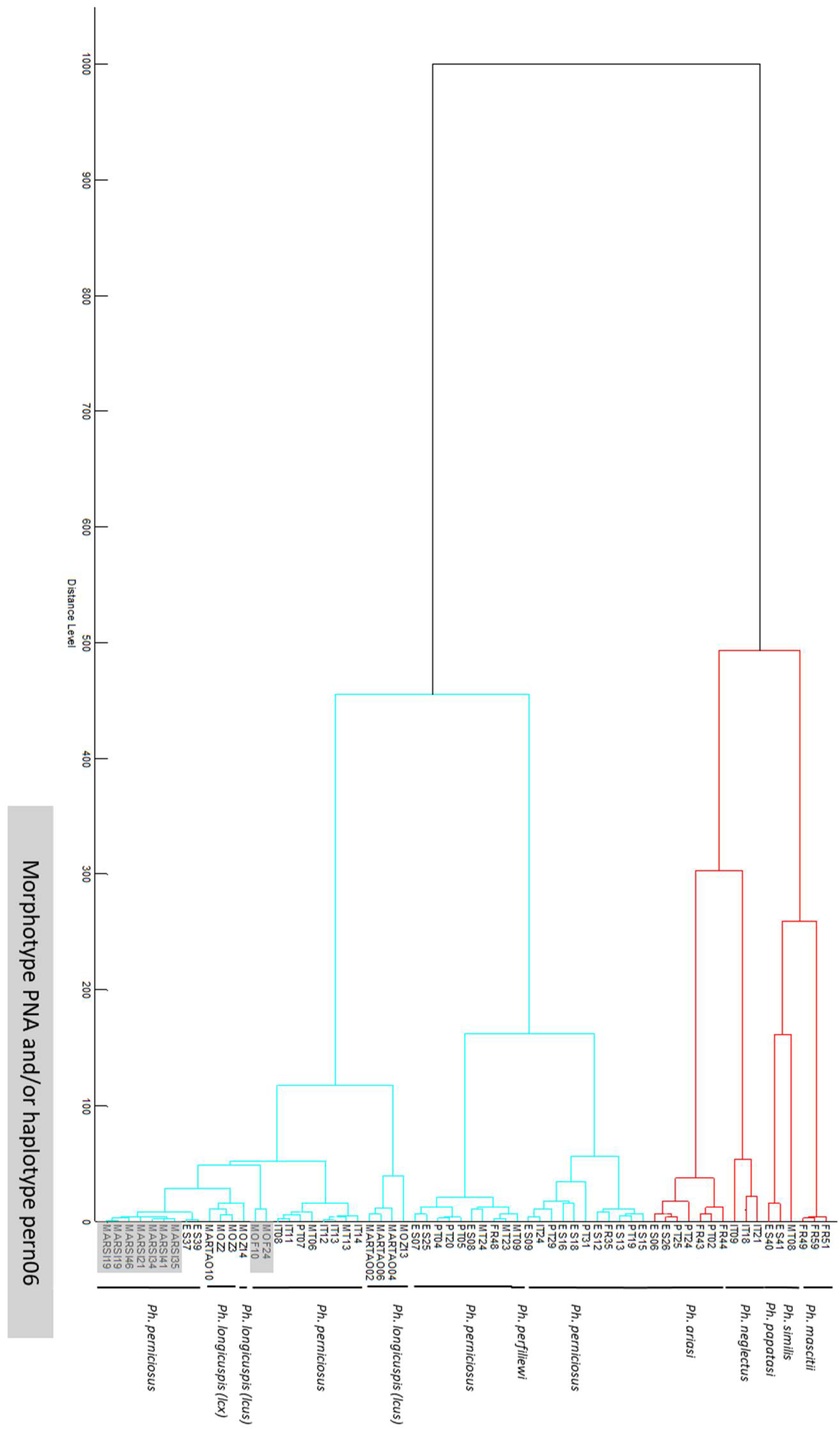

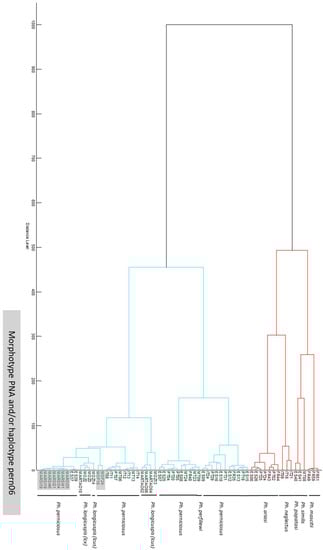

Figure 3. Hierarchical clustering dendrogram of MALDI-TOF MSP using correlation distance measure and Ward algorithm. Molecular identification and PNA haplotype status (grey highlighting) is indicated.
Figure 3. Hierarchical clustering dendrogram of MALDI-TOF MSP using correlation distance measure and Ward algorithm. Molecular identification and PNA haplotype status (grey highlighting) is indicated.
Microorganisms 10 02135 g003
Microorganisms 10 02135 g004 550

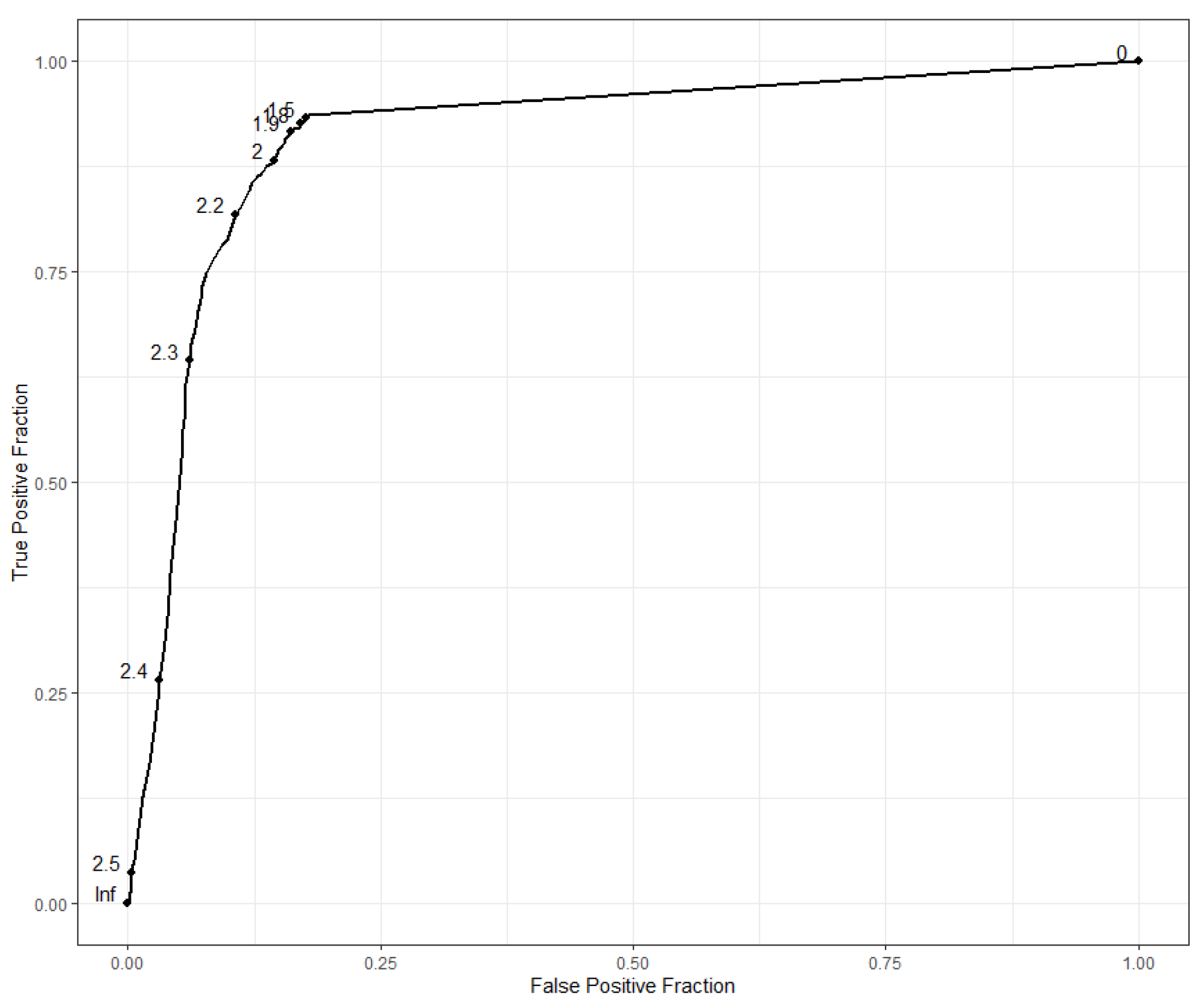

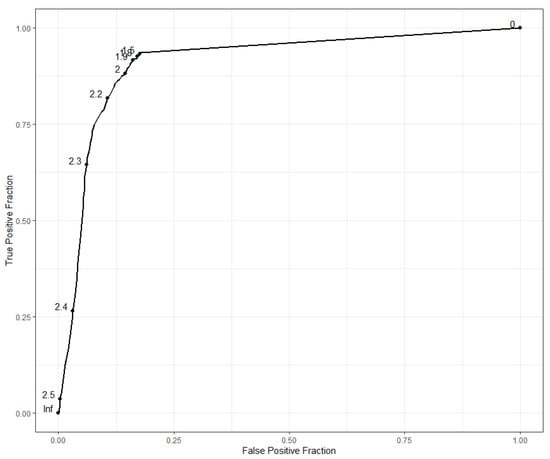

Figure 4. ROC curve analysis of blind test for determination of the optimal LSV cut-off.
Figure 4. ROC curve analysis of blind test for determination of the optimal LSV cut-off.
Microorganisms 10 02135 g004
Microorganisms 10 02135 g005 550

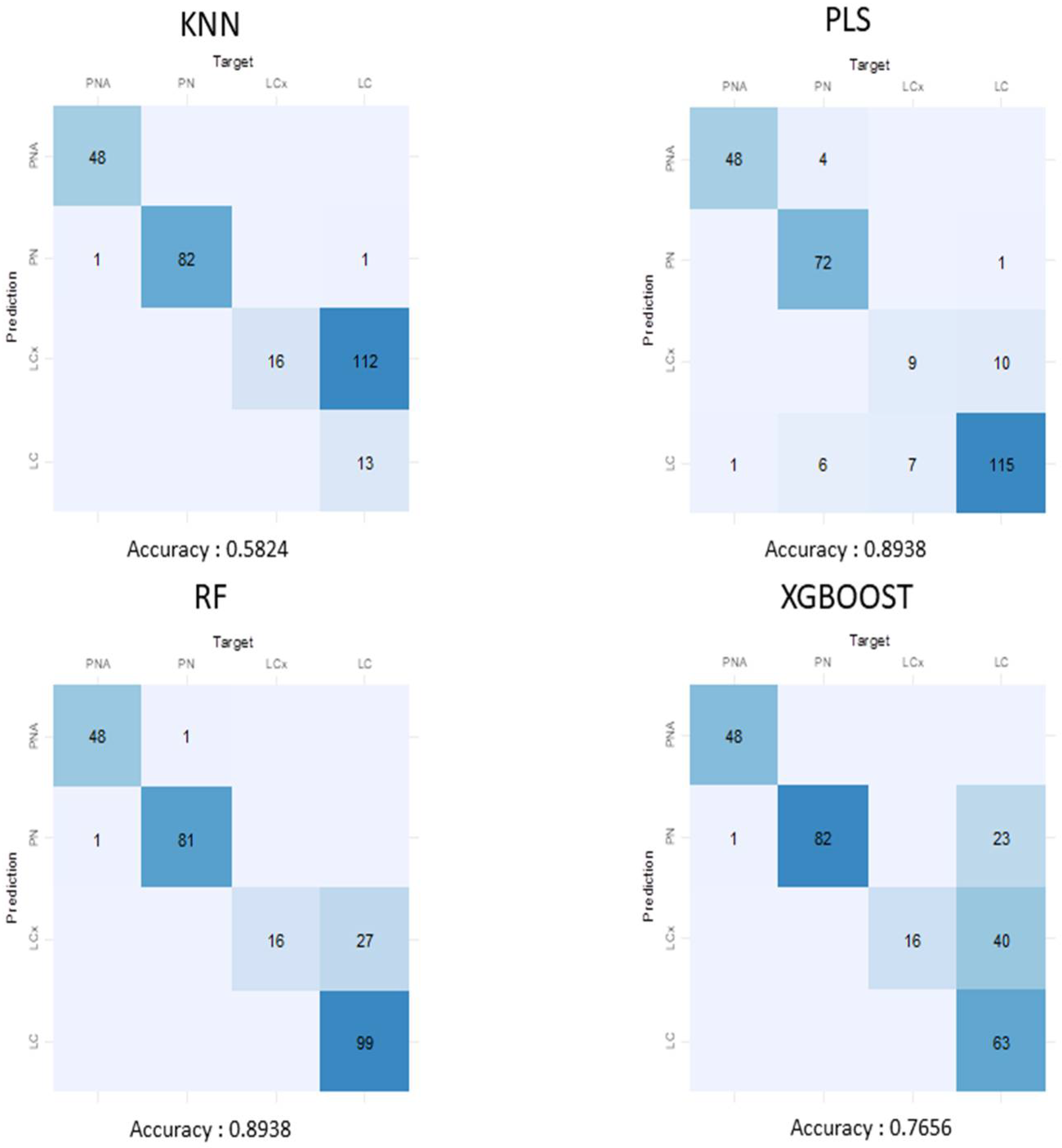

Figure 5. Confusion matrix of various machine learning algorithms for classification of PNA/PN and Ph. longicuspis lcx/lcus haplotypes with the test dataset.
Figure 5. Confusion matrix of various machine learning algorithms for classification of PNA/PN and Ph. longicuspis lcx/lcus haplotypes with the test dataset.
Microorganisms 10 02135 g005
Table
Table 1. Species sampling.
Table 1. Species sampling.
SpeciesCountryLocationMalesFemales
Ph. perniciosusItalyGargano
(Monte San Angelo)		IT07, IT11, IT14, IT22, IT24IT08, IT12, IT13,
FranceTouraine (Beauvallon)FR35
Dordogne (Vaunac)FR47, FR48, FR50
SpainCatalonia (Begues) ES07
Saragossa
(El Bourgo de Ebro)		ES12, ES13, ES15, ES16ES08, ES09, ES18, ES18
Murcia (Verdolay)ES25, ES29, ES31ES30
Andalusia (Turre)ES37, ES39, ES43, ES45
PortugalAlgarvePT08, PT09, PT13PT01, PT03, PT04, PT05, PT07, PT19, PT20
DouroPT31, PT33, PT34PT29
MaltaGozoMT01, MT02, MT10, MT11, MT12, MT13, MT21, MT24MT04, MT05, MT06, MT07, MT23
Ph. perniciosus PNAMoroccoChefchaouene (Loubar)MOF8, MOF10MOF24
SidibouyahyaMARSI19, MARSI21, MARSI34, MARSI35, MARSI41, MARSI46
Ph. longicuspisMoroccoNorth (Ouezzana Kchile) MOZ02 (lcx), MOZ03 (lcx), MOZ13 (lcus), MOZ14 (lcus)
Taounate MARTAO02 (lcus), MARTAO04 (lcus), MARTAO06 (lcus)
Taounate (Aïcha)MARTAO10 (lcx)
Chefchaouene (Loubar) MOF22 (lcx)
Ph. neglectusItalyGargano
(Monte San Angelo)		IT09, IT15, IT18, IT21IT06
Ph. ariasiSpainCatalonia (Begues) ES06
Murcia (Verdolay) ES26
PortugalAlgarve PT02
Douro PT24, PT25, PT37
FranceDordogne (Vaunac)FR43, FR44
Ph. perfiliewiMaltaGozoMT09
Ph. mascittiiFranceDordogne (Vaunac) FR49, FR51
Franche-Comté (Seillières) FR59
Ph. papatasi Andalusia (Turre)ES40, ES41
Ph. similisMaltaGozo MT08
Table
Table 2. Evaluation of the in-house database (LSV cut-off value > 1.7).
Table 2. Evaluation of the in-house database (LSV cut-off value > 1.7).
MALDI-TOF MS Identification
Ph. ariasiPh. mascittiiPh. neglectusPh papatasiPh longicuspis (lcus)Ph longicuspis (lcx)Ph. perniciosusTotal
Ph. ariasi50 50
Ph. mascittii 12 12
Ph. neglectus 10 10
Ph papatasi 8 8
Ph longicuspis (lcus) 241131254
Ph longicuspis (lcx) 2136 138
Ph. perniciosus 601601
Total 50121082431496011073
Table
Table 3. Results of blind test using Marseille database (LSV cut-off value > 1.7).
Table 3. Results of blind test using Marseille database (LSV cut-off value > 1.7).
MALDI-TOF MS Identification
Ph. longicuspisPh. neglectusPh. papatasiPh. perfiliewiPh. perniciosusPh. tobbiTotal
Ph longicuspis (lcus)215 215
Ph longicuspis (lcx)137 1 138
Ph. neglectus 2 2
Ph. papatasi 4 4
Ph. perniciosus 135175535
Total35224145175894
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huguenin, A.; Pesson, B.; Kaltenbach, M.L.; Diarra, A.Z.; Parola, P.; Depaquit, J.; Randrianambinintsoa, F.J. MALDI-TOF MS Limits for the Identification of Mediterranean Sandflies of the Subgenus Larroussius, with a Special Focus on the Phlebotomus perniciosus Complex. Microorganisms 2022, 10, 2135. https://doi.org/10.3390/microorganisms10112135

AMA Style

Huguenin A, Pesson B, Kaltenbach ML, Diarra AZ, Parola P, Depaquit J, Randrianambinintsoa FJ. MALDI-TOF MS Limits for the Identification of Mediterranean Sandflies of the Subgenus Larroussius, with a Special Focus on the Phlebotomus perniciosus Complex. Microorganisms. 2022; 10(11):2135. https://doi.org/10.3390/microorganisms10112135

Chicago/Turabian Style

Huguenin, Antoine, Bernard Pesson, Matthieu L. Kaltenbach, Adama Zan Diarra, Philippe Parola, Jérôme Depaquit, and Fano José Randrianambinintsoa. 2022. "MALDI-TOF MS Limits for the Identification of Mediterranean Sandflies of the Subgenus Larroussius, with a Special Focus on the Phlebotomus perniciosus Complex" Microorganisms 10, no. 11: 2135. https://doi.org/10.3390/microorganisms10112135

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
