Application of Aspergillus niger in Practical Biotechnology of Industrial Recovery of Potato Starch By-Products and Its Flocculation Characteristics

by
Liang Zhang
1,
Guangli Cao
2,*,
He Liu
3,
Zhenting Wu
1,
Dianliang Gong
1,
Xin Ru
1,
Xiujie Gong
4,
Qiuyue Pi
1 and
Qian Yang
1,2,*
1
Bioengineering Center, School of Life Science and Technology, Harbin Institute of Technology, Harbin 150001, China
2
State Key Laboratory of Urban Water Resources and Environment, Harbin Institute of Technology, Harbin 150090, China
3
Hainan Key Laboratory of Tropical Eco-Circular Agriculture, Environmental and Plant Protection Institute, Chinese Academy of Tropical Agricultural Sciences, Haikou 571101, China
4
Institute of Farming and Cultivation, Heilongjiang Academy of Agricultural Sciences, Harbin 150086, China
*
Authors to whom correspondence should be addressed.
Microorganisms 2022, 10(9), 1847; https://doi.org/10.3390/microorganisms10091847
Submission received: 3 September 2022 / Revised: 8 September 2022 / Accepted: 11 September 2022 / Published: 15 September 2022
(This article belongs to the Special Issue Microbial Advances in a Sustainable Environment: Biological Waste Treatment and Bioconversion Technology)
Browse Figures
Versions Notes

Abstract

:
This study developed a practical recovery for potato starch by-products by A. niger and applied it on a plant scale to completely solve the pollution problems. Soughing to evaluate the effect of A. niger applied towards the production of by-products recycling and analyze the composition and characteristics of flocculating substances (FS) by A. niger and advance a possible flocculation mechanism for by-product conversion. After fermentation, the chemical oxygen demand (COD) removal rate, and the conversion rates of cellulose, hemicellulose, pectin, and proteins were 58.85%, 40.19%, 53.29%, 50.14%, and 37.09%, respectively. FS was predominantly composed of proteins (45.55%, w/w) and polysaccharides (28.07%, w/w), with two molecular weight distributions of 7.3792 × 106 Da and 1.7741 × 106 Da and temperature sensitivity. Flocculation was mainly through bridging and ionic bonding, furthermore, sweeping effects may occur during sediment. Flocculation was related to by-products conversion. However, due to severe pollution problems and resource waste, and deficiencies of existing recovery technologies, converting potato starch by-products via A. niger liquid fermentation merits significant consideration.

1. Introduction

Potato starch industry occupied above 70% of the potato processing industry in China as a processing method to maximize the economic value of potatoes. The development of the potato starch industry has brought problems of environmental pollution and waste of biomass resources, as well as strict enforcement of environmental laws, which has hindered its development. Starch production generated large wastewater quantities with high organic and high chemical oxygen demand (COD) levels that pollute the environment when discharged without appropriate treatment. It mainly includes two parts: one is the wastewater produced by extracting starch milk, which is mainly potato cell fluid with high protein content; the other is the wastewater produced in the process of extracting starch, that is, the process wastewater, mainly from the transport and washing wastewater. Potato residue is the waste material in potato starch production process with high levels of cellulose and hemicellulose but poor protein [1]. It is mainly composed of water, cell debris, residual starch particles and potato peel cells or cellular structures. Previous research on the resource utilization of potato starch by-products followed two typical pathways: one ought to satisfy discharge standards by consuming macro molecular substances in water using anaerobic and aerobic sludge bioreactors [2,3]. Although these methods effectively removed COD, continuous investment and routine sludge treatment increased production costs and led to the waste of biomass resources. The other pathway recycled by-products to produce a single substance, such as fiber extraction [4,5]; production of cellular protein by microbial fermentation [6]; protein recovery [1,7]; biological hydrogen production [8,9]; preparation of methane from potato residues [10]; production of pullulan polysaccharide [11]; production of microbial flocculants [12,13], preparation the potato protease inhibitors (PPIs) from wastewater [14] are just a few. Most of these methods remain theoretical in the laboratory and have not completely solved the pollution problem or recovered by-products. In this case, the value of the converted product is lower than the investment cost, which greatly hinders the industrial application of many of these biotechnologies. In our preliminary work, microbial liquid fermentation conversion of potato starch by-products for cellular protein positively impacted COD removal from wastewater [1,6]. Based on that, the recovery biotechnology was optimized for industrial production, the recyclable and economically valuable substances in by-products were reclaimed more comprehensively and wastewater recycling benefitted pollution remediation. In the process of industrial recovery biotechnology of potato starch by-products, microbial fermentation performance impacted all downstream unit operations and by-product conversions [15], such as the degradation of cellulose, hemicellulose, and pectin, conversion of proteins. In addition, solid–liquid separation and energy consumption were also affected. Lowering moisture levels decreased energy consumption and represented a step in the right direction [16].
Aspergillus niger efficiently converts the complex structure of biomass resources by secreting large amounts of hydrolytic and oxidative enzymes [17,18], from which the relevant genes were identified [19], and is the most wildly used microbial strain in industry. Additionally, as a safe use for enzyme and metabolite production [20], A. niger has great potential industrial reuse of biological waste. Such as cellulase production [21], hemicellulase production [22] and pectinase production [23]. In addition, A. niger positively impacted on COD removal in sewage treatment [24]. In terms of bioflocculation, potato starch wastewater was utilized by A. niger to produce flocculants by optimizing production, the removal of COD and turbidity of potato starch wastewater reached 91.15% and 60.22%, respectively. These studies showed that A. niger played an indispensable role in biomass recycling and was a flocculating microorganism.
Flocculation by A. niger in the sedimentation process after fermentation was affected by a variety of factors and the flocculation mechanism in biological systems was intricate and many theories had been put forward on it: (1) Electric neutralization mechanism. The electric neutralization of flocculants occurred between flocculant molecules with opposite charges and flocculated particles. Due to the electrostatic attraction of flocculant molecules, the charge density between them and particles decreased, as do the repulsions between particles and flocculants, which eventually led to flocs formation [25]. (2) Adsorption bridging mechanism. The distance of the microbial flocculant extending from the particle surface to the solution exceeded particle repulsions, which resulted in adsorption bridging. The effectiveness of the bridging mechanism depended on the molecular weight, active group, charge on the molecule, hydrogen bonding of the flocculation system, van der Waals forces, and other microbial flocculant factors [26,27]. (3) Compression electric double layer mechanism. The flocculant was thought to act with colloidal particles via hydrogen bonds, van der Waals forces, electrostatic attractions, which resulted in the electric double layers between particles being compressed and overlapped, and the charges of colloidal particles were combined by flocculant molecules with opposite charges, which lowered the repulsion between particles and destabilized the colloidal system to form flocs [28,29]. (4) Sweeping effect. When the flocculant was added to the solution, sedimentation formed due to adsorption bridging or electric neutralization. The sedimentation swept or netted the colloidal particles in the solution during flocculation sinking and resulted in precipitation. (5) Chemical reaction mechanism. Flocculant molecules and colloidal particles were thought to react chemically to form large flocs that ultimately precipitate from the solution.
In this study, we developed a practical industrial recovery for potato starch by-products by A. niger and fundamentally solved the wastewater pollution problems with a closed-loop cycle. The circulating water reduced the water consumption of the potato starch production line and thus reduces the production cost. The production process is as follows (Figure 1a): (1) All by-products (potato residues and wastewater) from the potato starch production line were transported to the Premix tank that maintained a by-products temperature of 30–35 °C by stirring and heat exchange, followed by transportation into the fermentation tank. Activated A. niger (from the Seed culture tank) was added into the fermentation tank (solid green line), followed by the air injection to start fermentation at a ventilation ratio of 0.01 VVM (air system not shown). (2) After fermentation (72 h), the solid-liquid stratification resulted in sedimentation (for 2 h); the supernatant was centrifuged for solid–liquid separation (solid blue line), and the solid was taken to a storage tank. The liquid was spray-dried after low-temperature (50 °C) concentration, and the solid was recovered (solid red line). (3) The sediment in the fermentation tank was discharged into the solid–liquid separator for preliminary solid–liquid separation (solid pale brown line), and the recovered solid matter was transported to the storage tank (solid red line). The liquid entered the water treatment unit of the supernatant for secondary solid-liquid separation. The solid substances in the storage tank were dried by the cyclone drying system to become recycled finished products and the dry matter content was about 92%, w/w (solid red line). Most of the water became a steam condensate during low temperature (50 °C) concentration and entered the potato starch production line for cleaning potatoes and starch (solid purple line). All units formed a closed-loop cycle.
A. niger was applied to convert by-products (potato residues and wastewater) into multifunctional potato powder. During production, solid-liquid separation was an important step during sedimentation process after fermentation, bioflocculation directly affected the subsequent production units by affecting the settling substance water content. Due to high-water levels of settling substances, the energy consumption and production costs of dehydration and drying increased [16]. The conversion effect directly determinized the value of the end product, multifunctional potato powder, which contained dietary fiber, proteins, vitamins, amino acids, etc. (data not shown), with applications in medical care, medical raw materials, and food additives. In addition, A. niger has been confirmed as a flocculation microorganism [30,31]. The possible flocculation mechanism was inferred by analyzing the soluble components with flocculation in the fermentation broth and the changes in the main components of potato starch by-products converted by A. niger, and by analyzing factors that affected the flocculation during sedimentation. It facilitates energy savings and cost reductions through subsequent fermentation optimization.

2. Materials and Methods

2.1. Strains and Cultural Conditions

Fungal strain Aspergillus niger, isolated and preserved in the Laboratory of Microbiology of Harbin Institute of Technology, was used in these experiments [6]. Spore culture medium: bran passed through 40 mesh sieve, mixed bran and water 4:6 ratio, sterilized at 121 °C for 30 min, then cultured at 30 °C for 5−7 d until A. niger reached 109 spores g−1. The potato starch production line of the factory has an annual output of 1000 tons of starch, the by-products contain 3.5−4% dry matter. The liquid fermentation volume of each tank was 24 t/30 t with a 0.1% (w/w) inoculation amount of A. niger spores, cultured at 30 ± 2 °C for 72 h, and the ventilation ratio by 0.01 VVM (volume of air per volume of liquid per minute). The fermentation tank was an airlift fermentation tank developed independently by the Harbin Institute of Technology.

2.2. By-Products Component Analysis

Microbial fermentation decomposed and metabolized biomass [4]. Analyzing the changes of by-product components before and after fermentation intuitively verified the conversion effect of A. niger on by-products and provided mechanistic insights or factors that influence flocculation. Several experiments analyzed the primary by-product components before and after fermentation. Samples were taken after 24 h, 48 h, and 72 h, then layered for 2 h. The supernatant was used to determine COD levels, pH, and protein content. The precipitates were gathered and dried at 80 °C for 24 h, ground, and passed through 100 mesh sieves to determine cellulose, hemicellulose, and pectin levels.

2.3. Extraction and Characteristics of Flocculating Substance (FS)

All potato starch by-product samples were taken from Jilin MaoQuanShuBao Biotechnology Development Co., Ltd., (Changchun, China). FS was prepared by sampling after fermenting for 72 h. The fermentation solution was centrifuged at 5000 rpm 4 °C for 10 min, stirred with a double volume of pre-chilled 95% ethanol, stored at 4 °C for 24 h, then centrifuged at 5000 rpm for 10 min at 4 °C. The precipitates were collected and freeze-dried for FS.
A 1% solution of FS lyophilized powder was prepared for subsequent experiments. Components in FS were preliminarily analyzed by full band scanning. A 200 μL FS solution was added to 96 well plates and measured using a microplate reader (Infinite M200 Pro, Tecan, Männedorf, Switzerland) at wavelengths from 230–1000 nm. FTIR (Nicolet 6700, Thermo Fisher Scientific, Waltham, MA, USA) investigated FS functional groups. Gel Permeation Chromatography (GPC, Agilent 120, Walterbloom, Germany) determined the FS molecular weights (column model, Agilent PL aqua gel-OH 8 μm). The Monosaccharide composition analysis was carried out by Ion Chromatography (ICS5000, Thermo Fisher Scientific) with an electrochemical detector, Dionex™ CarboPac™ PA20 (150 × 3.0 mm, 10 μm, Thermo ScientificTM, Waltham, MA, USA) liquid chromatography column with a 5 µL injection volume. The GPC and monosaccharide composition tests were performed by shiyanjia lab (www.shiyanjia.com) (accessed on 21 January 2022).

2.4. FS Stability Analysis

The effects of different temperatures and initial pH levels were studied on a kaolin flocculation system to evaluate the stability of FS flocculation. Several experimental groups determined the stability of FS flocculation: a 0.5% (v/v) FS solution (1%) was heated at 30 °C, 40 °C, 50 °C, 60 °C, 70 °C, 80 °C, 90 °C and 100 °C for 0.5 h. After cooling, the 0.3% (w/v) kaolin suspension was flocculated, and the flocculation results were compared. The pH of the 0.3% (w/v) kaolin suspension was adjusted to 3, 4, 5, 6, 7, 8, 9, and 10. A 0.5% (v/v) FS solution (1%) was added to each group, stirred at 30 °C for 0.5 h, then stood for 0.5 h to compare the flocculation effect.

2.5. Analytical Methods and Statistical Analysis

Changes in kaolin flocculation morphologies by FS were observed, and all samples were characterized by SEM (QUANTA FEG 250, FEI, Hillsboro, OR, USA). Kaolin solid powder, FC powder, floc formed with 0.3% (w/v) kaolin solution, 0.08% (w/v) CaCl2 and 0.5% (v/v) FS solution (1%) were fixed with 2.5% glutaraldehyde for 12 h at 4 °C then dehydrated by different concentrations of ethyl alcohol. After drying, the surface state of FS and kaolin before and after FS flocculation were observed by SEM. The surface charges of kaolin, FS, and the flocculated kaolin treated by FS were determined based on zeta potential measurements. All samples were measured at pH 7/25 °C (Zeta-PALS, BIC, Shelton, CT, USA). Aliquots of 100 mL 2 mol·L−1 EDTA, 100 mL 0.5 mol·L−1 HCl, and 100 mL 5 mol·L−1 urea was added into the flocs to determine whether there was exclusive adsorption during floc formation in the ternary systems of kaolin, CaCl2, and FS, respectively, which was the sedimentation after supernatant removal in a system of total volume 100 mL, comprising 0.3% (w/v) kaolin solution, 0.08% (w/v) CaCl2, and 0.5% (v/v) FS solution (1%), pH 7. Changes in flocs were observed and recorded.
Cellulose and hemicellulose were determined by the Van Soest method [32]. Pectin was determined by the calcium pectate method [33]. COD was determined by the dichromate method [34]. The total sugar content of the FS was determined by the phenol sulfuric acid method [35]. The protein content of FS was determined by the Bradford method [36]. The flocculating rate was determined by the research method [37] and the flocculation system was substituted by 0.3% (w/v) kaolin solution, 0.08% (w/v) CaCl2, and 0.5% (v/v) FS solution (1%). Three parallel experiments were conducted for all experimental groups and the data was analyzed using Microsoft Office Excel 2016 (Microsoft, Redmond, DC, USA).

3. Results and Discussion

3.1. Changes in By-Product Components

COD levels (Figure 2) decreased with fermentation time. After 72 h, the removal rate was 58.85%, lower than 65.92% of the previous 150 m3 volume fermentation by mixing microorganisms for 6 d [1] and much lower than anaerobic sludge (AS) and co-cultured microalgae [8]. Given that COD removal was related to flocculation [38,39], it indirectly helped investigate the correlation between the main components changes of by-products and flocculation in this process. Meanwhile, the pH decreased with time from 5.61 to 4.04. The protein contents in the supernatant decreased rapidly in the first 24 h to the decrease from 24–72 h, and the conversion efficiency was 37.09% after 72 h. The utilization of basic protein may have caused the pH decline [40] or the A. niger produced organic acids [41]. Generally, potato residues contain abundant celluloses, hemicellulose, and pectin [42], predominantly polymers with complex structures polymerized by various sugars. As shown in Figure 3, after 72 h of fermentation, the contents of cellulose, hemicellulose, and pectin decreased by 40.19%, 50.14%, and 53.29%, respectively. The conversion rates of cellulose and hemicellulose were lower than the previous study [1]. These polysaccharides decomposed into adequate monosaccharides (reducing sugar) by A. niger as carbon sources for growth. As shown in Figure 4, the removal ratio of COD in the first 24 h maximized at 32.62%, while the degradation ratio of cellulose, pectin, and hemicellulose occurred in the first initial 24 h (10.69%, 7.67%, and 10.96%, respectively), and conversion ratio of proteins maximized at 28.62%, which indicated that in the first 24 h, the COD removal in wastewater was mainly related to the protein conversion. In addition, the pH of wastewater decreased. This may be due to the basic proteins in wastewater conversion and utilization by A. niger [40]. Fermentation from 24 h to 48 h, the degradation ratio of cellulose was insignificant (11.72%), but the hemicellulose and pectin degradation ratio improved considerably (15.79% and 16.87%, respectively), and the conversion ratio of proteins reduced (6.71%). From 48 h to 72 h, the conversion ratio of hemicellulose and pectin improved considerably (22.30% and 28.75%, respectively), which may be due to the A. niger elevated viability of hemicellulase and pectinase, but the conversion ratio of cellulose improved slightly (17.79%), which may be due to glucose in a certain concentration inhibited cellulase [43]. The conversion ratio of proteins in the wastewater reduced (5.53%) and the pH decreased to 4.04. From 24 h to 72 h, the COD total removal ratio was at 25.24% and the total conversion ratio of cellulose, hemicellulose and pectin occurred (29.50%, 38.08%, and 45.62%, respectively), while the total conversion ratio of proteins was at 12.24%. This indicated that the COD removal from 24 h to 72 h was mainly related to the degradation of cellulose, hemicellulose, and pectin. This may be due to the degradation of three main polysaccharide components: cellulose degradation for providing glucose for A. niger growth priority utilization; pectin degradation converted to most of the monosaccharides may combine with unconverted proteins in the water; furthermore, the monosaccharides from hemicellulose degradation, such as arabinose and galactose were bound to proteins in the wastewater. Most of the monosaccharides after hemicellulose and pectin degradation were bound to the unconverted proteins and constituted the initial FS components. All the results indicated that in the production process, the proteins from wastewater provided a nitrogen source for A. niger growth, while the degradation of cellulose, hemicellulose, and pectin provided a carbon source. The COD removal was correlated with the conversion of cellulose, hemicellulose, pectin, and proteins by A. niger.

3.2. Composition and Functional Groups

Full band scanning results demonstrated that a 1% FS solution had absorbed at 280 nm (Figure 5), which indicated that FS contained protein. By the determination of protein content, the existence of protein substance in FS was further verified, and the proportions of the protein content were determined to be 45.55% (w/w): the proportions of the polysaccharides content were determined to be 28.07% (w/w), the results indicated that the main components of FS were proteins and polysaccharides. Similar results have been found [44].
The FTIR spectrum of FS (Figure 6) shows typically broad and sharp stretching vibrations between 3000–3700 cm−1, and the broad absorption wavelength at the peak of 3388.37 cm−1 was from -OH stretches (polysaccharides) and amino groups (proteins). The peak at 2933.85 cm−1 was due to asymmetric CH sugar stretches; the peak at 1720.22 cm−1 was characteristic of C=O stretching vibrations in -COOH, while the peak at 1645.01 cm−1 was due to C=O stretching vibrations caused by the protein amide bond, that confirmed the presence of carboxylates [37]. The peak at 1407.80 cm−1 was caused by variable angle C-H vibrations; the peaks at 1240.02 cm−1 and 1072.25 cm−1 were attributed to two kinds of C-O stretching vibrations—the C-O-C characteristic absorption peak of ether in polysaccharides ring, and a C-O-H absorption peak, characteristic of all sugar moieties [45]. The weak absorption at 927.61 cm−1 indicated the polysaccharides contained a β-Type glycosidic bond. Those results indicated the FS functional groups comprised hydroxyl, carbonyl, carboxyl groups, and amide groups, which have a high binding capacity in flocculation.

3.3. Molecular Weight and Monosaccharide Composition

The FS molecular weight distributions were highly important, particularly when bridging was the primary flocculation mechanism [27]. GPC chromatography showed that FS had a bimodal molecular weight distribution (Figure 7). The average molecular weight (Mw), molecular mass (Mn), and polydispersity (PDI) results are shown in Table 1. The Mw, Mn, and PDI of M-1 were 7.3792 × 106 Da, 7.2665 × 106 Da, and 1.0156, respectively. The Mw, Mn, and PDI of M-2 were 1.7741 × 106 Da, 1.4987 × 106 Da, and 1.1838, respectively. The molecular weight distributions of the two polymers are shown in Figure S1. FTIR results showed protein functional groups in FS. In addition, full band scanning and protein content detection of FS also suggested the double peaks of GPC chromatography might be due to proteins and polymer compositions by polysaccharides and proteins. Given that the biopolymer molecular masses with flocculation activity generally exceed 0.102 × 106 Da, flocculants with higher molecular masses involve more adsorption points for bridging and resulted in larger flocs [46,47]. The two molecular weight distributions of FS were considerably higher than 0.102 × 106 Da, which provided the building blocks for bridging during flocculation. In addition, the flocculant with two molecular masses distributions demonstrated a better flocculation effect [48].
Monosaccharide analysis (Figure 8) showed that polysaccharide components in FS were composed of Ara, Rha, Gal, Glc, Xyl, Gal-UA, and Glc-UA (molar ratios—11.72:9.54:55.44:24.40:3.85:4.71:1.09, respectively). Table 1 shows, that the Gal-UA and Glc-UA content levels were 3.47% and 4.57% (w/w), respectively, which supply carboxyl groups to the FS molecular chain to produce flocculation in wastewaters [49]. Ara, Rha, and Gal as neutral sugar components in the RG-I domain of the pectin polymers [50], and Gal-UA as the main component of the HG domain are all components of potato pectin [51]. In addition, Ara and Gal are also the constituents of hemicellulose molecules [52]. The FS monosaccharide composition results indicated that potato residue hemicellulose and pectin degradation correlated with flocculation. This may explain that the COD removal was mainly associated with the conversion of hemicellulose and pectin during fermentation from 24 h to 72 h.

3.4. Stability Analysis of FS

Active ingredients of FS components affect flocculation, and pH and temperature may affect the stability of those components. By comparing the flocculation effects of FS on kaolin suspensions with different initial pH levels, the lowest flocculation rates (about 60%) occurred under strongly acidic or alkali conditions, but the highest flocculation rate (76.91 ± 4.21%) occurred at pH 7 (Figure 9). The maximum influence range by pH on the flocculation rate was approximately 20%, attributed to the weakening of FS spatial charge arrangements under different pH conditions [45]. This indicated that pH did not significantly affect the flocculation efficiency, which affected the electronic states of FS.
FS solutions were heated for 30 min at different temperatures, then cooled to room temperature to flocculate the kaolin suspension. The flocculation rate reached 81.10 ± 2.91% after heating at 30 °C and decreased at higher temperatures. The lowest flocculation rate occurred when FS was heated at 100 °C and decreased by 69.54%. These results indicated that temperature significantly impacted the flocculation of FS, which may stem from bond dissociation between proteins and polysaccharides or the disintegration of the flocculation system caused by protein structure changes at higher temperatures (Figure 10). A similar study demonstrated flocculants with protein as the main chain was sensitive to temperature [53]; this may explain the presence of proteins and polysaccharides in FS, which polymerize and adsorb particles to generate flocculation.

3.5. SEM, Zeta Potential, Inspection of Ionic and Hydrogen Bond

The kaolin particles observed by SEM were loose and unevenly shaped, while the flocculated kaolin particles gathered closely to form a large floc. Flocculated kaolin particles attached to the floc surface, which has the shape of some long chain structures similar to the bridging structure. All units formed a dense reticular structure and aggregated into larger flocs. The FS surface had a convex prism structure, which added more charge surface area and bridging sites during flocculation. The SEM results are shown in Figure S2.
The zeta potential of the kaolin suspension was −28.15 ± 0.56 mV at pH 7, which indicated a negatively charged kaolin particle surface. The solution zeta potential decreased to −7.82 ± 0.14 mV upon Ca2+ addition, likely due to the ionic neutralization which resulted in lower zeta potential. The FS zeta potential was −1.87 ± 0.46 mV at pH 7 (Figure 11), which indicated a negatively charged FS surface and possibly due to the existence of hydroxyl, carboxyl, and amide groups on FS. The change of kaolin potential before and after flocculation indicated a charge neutralization of FS occurred during flocculation. The pH stability results demonstrated the flocculation rate was not particularly sensitive to pH, indicating that charge neutralization may not be the main mechanism of flocculation.
Active functional groups on polymer FS form flocs by adsorption bridging with colloids or particles. Bonds between FS, kaolin, and Ca2+ were estimated by identifying the flocculated flocs with EDTA, HCl, and urea. As described in Table 2, flocs were so sensitive to EDTA and HCl that flocs disintegrated but were not sensitive to urea. Urea forms hydrogen bonds, while EDTA and HCl disrupted the ionic bonds between FS and particles and disintegrated flocs. This implied the binding mode between FS, kaolin, and Ca2+ was predominantly ionic bonds.

3.6. The Hypothesis of Flocculation Mechanism of A. niger during the Potato Starch By-Products Conversion

The functional group analysis results indicated the main functional groups in FS were hydroxyl, carboxyl, and amido groups; all provide adequate bridging sites [54]. SEM observations showed the FS surface had a prismatic structure and surface depressions, which provided additional surface area and bridging sites. The higher molecular weight provided more binding sites for bridging flocculants, which resulted in higher flocculation activities and larger flocs formation [54]. The two molecular weight distributions had better flocculation effects and more readily formed large flocs [48]. This indicated the primary flocculation by FS was bridging. However, the influence of pH on flocculation rate was limited and the change in flocculation rate was <20%. This indicated that charge adsorption was not the main flocculation mechanism. Differences in EPS polysaccharides secreted by microorganisms [55], indicated many FS polysaccharides came from potato starch by-product decomposition, especially hemicellulose and pectin. This indicated that the FS synthesis related to pectin and hemicellulose degradation and agreed with a previous study [44]. The sensitivity of FS to temperature indicated that glycoprotein in FS might drive flocculation. In practical sedimentation process, FS formed large flocs with particles via charge neutralization and adsorption bridges, and the large flocs attracted each other more easily to form a grid structure. SEM results demonstrated that the flocs were closely connected and formed a sweeping effect to reduce COD in the wastewater. The previous study showed that a bioflocculant (MBFA18) produced by fermentation of potato starch wastewater (juice) by A. niger was mainly polysaccharide [56]. Differently, A. niger was used to convert all the by-products simultaneously, and the flocculating substances (FS) generated were predominantly protein and polysaccharide in this study. The stability of FS is related to the different components of flocs. Flocs mainly containing protein are affected by temperature, while polysaccharide is relatively less affected, which is consistent with the results of the studies [12,13,44]. The factors affecting flocculation can be summarized as the active components of the flocculant, the products of different microorganisms and the raw materials, etc. Previous studies have shown that by using different sources of microorganism flocculants to floc potato starch wastewater, the predominantly flocculant mechanism was adsorption bridging.

4. Conclusions

This study developed a recovery biotechnology by A. niger to convert the potato starch by-products for industrial adaptation and solve the wastewater pollution completely. The impact of the COD removal, the protein conversion, and the degradation of by-products (cellulose, hemicellulose, and pectin) by A. niger was significant. Furthermore, flocculation by A. niger also played an important role in reducing the settling substance water content during production due to the solid-liquid separation affected the energy consumptions and the production costs. FS by A. niger primarily contained proteins and polysaccharides, with two molecular weight distributions (7.3792 × 106 Da and 1.7741 × 106 Da) and temperature sensibility. The monosaccharides that comprised the polysaccharides were predominantly composed of Gal, Glc, Ara, Rha, Gla-UA, Fru, and 72% of the monosaccharides were from hemicellulose and pectin conversion by A. niger. FS functional groups comprised hydroxyl, carbonyl, carboxyl groups, and amide groups. FS was negatively charged and connected with kaolin and Ca2+ by ionic bond and adsorption bridge, supplemented by charge neutralization to produce flocculation in a kaolin system. Combined with sedimentation during production, a sweeping effect on reducing COD may occur. The results indicated that flocculation by A. niger was mainly related to the conversion of proteins, hemicellulose, and pectin. Further research will examine the energy consumption of the production back-end unit and reduce the production costs by improving the conversion capacity of A. niger to proteins, hemicellulose, and pectin by optimizing fermentation to improve flocculation. In conclusion, a hypothetical model for the flocculation mechanism by A. niger during industrial reutilization of potato starch by-products is shown in the Figure 12.
Environmental pollution remains a severe problem in the potato starch industry, however, balancing investment costs and product value from practical biotechnologies with environmental pollution requires involved solutions. Compared with other potato starch by-product re-utilization directions, the cost considerations and pollution problems for practical industrial applications remain. Thus, this strategy of potato starch by-products merits serious consideration.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms10091847/s1, Figure S1. The two molecular weight distributions. (a,c) represent the relationship between the elution volume and the detector response of M-1 and M-2, respectively; (b,d) represent the relationship between molar mass and W (log M) of M-1 and M-2, respectively. Figure S2. SEM observation of kaolin, kaolin after flocculation and FS. (a) kaolin; (b) kaolin after flocculation; (c) FS.

Author Contributions

All authors contributed to the work presented in this paper, and to the writing of the final manuscript. L.Z. executed the research and prepared the first draft of the manuscript; D.G. and X.R. provided discussion to some of the results; Z.W. and Q.P. prepared the reagents for all the experiment; H.L. and X.G. analyzed and interpreted the data; G.C. and Q.Y. conceptualized and supervised the research. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Harbin science and technology research key projects Fund (No. 2016AB3AP042).

Institutional Review Board Statement

Ethical approval was not required for the study.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

All individuals included in this section have consented to the acknowledgement.

Acknowledgments

This work was supported by Harbin science and technology research key projects Fund (No. 2016AB3AP042); Natural Science Foundation of Heilongjiang Province of China (No. LH2021E071), State Key Laboratory of Urban Water Resource and Environment (Harbin Institute of Technology) (No. 2021TS09); National-Local Joint Engineering Research Center for Biomass Energy Development and Utilization (Harbin Institute of Technology) (No. 2021B006); Major Science and Technology Program of Hainan Province (Grant Number ZDKJ2021009); Central Public-interest Scientific Institution Basal Research Fund (NO.1630042021016).

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could appear to influence the work reported in this paper.

References

  1. Liu, B.; Song, J.; Li, Y.; Niu, J.; Wang, Z.; Yang, Q. Towards industrially feasible treatment of potato starch processing waste by mixed cultures. Appl. Biochem. Biotechnol. 2013, 171, 1001–1010. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, R.M.; Wang, Y.; Ma, G.P.; He, Y.F.; Zhao, Y.Q. Efficiency of porous burnt-coke carrier on treatment of potato starch wastewater with an anaerobic–aerobic bioreactor. Chem. Eng. J. 2009, 148, 35–40. [Google Scholar] [CrossRef]
  3. Hinken, L.; Huber, M.; Weichgrebe, D.; Rosenwinkel, K.H. Modified ADM1 for modelling an UASB reactor laboratory plant treating starch wastewater and synthetic substrate load tests. Water Res. 2014, 64, 82–93. [Google Scholar] [CrossRef]
  4. Cheng, L.; Zhang, X.; Hong, Y.; Li, Z.; Li, C.; Gu, Z. Characterisation of Physicochemical and Functional Properties of Soluble Dietary Fibrefrom Potato Pulp Obtained by Enzyme-assisted Extraction. Int. J. Biol. Macromol. 2017, 101, 1004. [Google Scholar] [CrossRef] [PubMed]
  5. Gaudino, E.C.; Colletti, A.; Grillo, G.; Tabasso, S.; Cravotto, G. Emerging Processing Technologies for the Recovery of Valuable Bioactive Compounds from Potato Peels. Foods 2020, 9, 1598. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, B.; Li, Y.; Song, J.; Zhang, L.; Dong, J.; Yang, Q. Production of single-cell protein with two-step fermentation for treatment of potato starch processing waste. Cellulose 2014, 21, 3637–3645. [Google Scholar] [CrossRef]
  7. Waglay, A.; Karboune, S.; Alli, I. Potato protein isolates: Recovery and characterization of their properties. Food Chem. 2014, 142, 373–382. [Google Scholar] [CrossRef]
  8. Ren, H.Y.; Liu, B.F.; Kong, F.; Zhao, L.; Ren, N. Hydrogen and lipid production from starch wastewater by co-culture of anaerobic sludge and oleaginous microalgae with simultaneous COD, nitrogen and phosphorus removal. Water Res. 2015, 85, 404–412. [Google Scholar] [CrossRef]
  9. Singhvi, M.; Maharjan, A.; Thapa, A.; Jun, H.-B.; Kim, B.S. Nanoparticle-associated single step hydrogen fermentation for the conversion of starch potato waste biomass by thermophilic Parageobacillus thermoglucosidasius. Bioresour. Technol. 2021, 337, 125490. [Google Scholar] [CrossRef]
  10. Parawira, W.; Murto, M.; Read, J.S.; Mattiasson, B. A study of two-stage anaerobic digestion of solid potato waste using reactors under mesophilic and thermophilic conditions. Environ. Technol. 2007, 28, 1205–1216. [Google Scholar] [CrossRef]
  11. Jin, Z.; Bai, Y.; Li, X. Pullulanase Mutant. U.S. Patent US-11142752-B2, 12 October 2021. [Google Scholar]
  12. Guo, J.; Lau, A.K.; Zhang, Y.; Zhao, J. Characterization and flocculation mechanism of a bioflocculant from potato starch wastewater. Appl. Microbiol. Biotechnol. 2015, 99, 5855–5861. [Google Scholar] [CrossRef] [PubMed]
  13. Guo, J.; Zhang, Y.; Zhao, J.; Zhang, Y.; Xiao, X.; Wang, B.; Shu, B. Characterization of a bioflocculant from potato starch wastewater and its application in sludge dewatering. Appl. Microbiol. Biotechnol. 2015, 99, 5429–5437. [Google Scholar] [PubMed]
  14. Liu, Y.T.; Hu, X.P.; Bai, Y.; Zhao, Q.Y.; Li, T.P. Preparation and antioxidative stability of the potato protease inhibitors (PPIs) from potato starch waste-water. LWT Food Sci. Technol. 2020, 134, 109963. [Google Scholar] [CrossRef]
  15. Crater, J.S.; Lievense, J.C. Scale-up of Industrial Microbial Processes. Fems Microbiol. Lett. 2018, 365, fny138. [Google Scholar] [CrossRef] [PubMed]
  16. Marcotte, M.; Grabowski, S. Minimising energy consumption associated with drying, baking and evaporation. In Handbook of Water and Energy Management in Food Processing; Woodhead Publishing: Sawston, UK, 2008; pp. 481–522. [Google Scholar]
  17. Cairns, T.C.; Barthel, L.; Meyer, V. Something old, something new: Challenges and developments in Aspergillus niger biotechnology. Essays Biochem. 2021, 65, 213–224. [Google Scholar]
  18. Garrigues, S.; Kun, R.S.; Peng, M.; Bauer, D.; Keymanesh, K.; Lipzen, A.; Ng, V.; Grigoriev, I.V.; Vries, R. Unraveling the regulation of sugar beet pulp utilization in the industrially relevant fungus Aspergillus niger. Iscience 2022, 25, 104065. [Google Scholar] [CrossRef]
  19. De Vries, R.P.; Riley, R.; Wiebenga, A.; Aguilar-Osorio, G.; Amillis, S.; Uchima, C.A.; Anderluh, G.; Asadollahi, M.; Askin, M.; Barry, K.; et al. Comparative genomics reveals high biological diversity and specific adaptations in the industrially and medically important fungal genus Aspergillus. Genome Biol. 2017, 18, 28. [Google Scholar] [CrossRef]
  20. Frisvad, J.C.; Møller, L.; Larsen, T.O.; Kumar, R.; Arnau, J. Safety of the fungal workhorses of industrial biotechnology: Update on the mycotoxin and secondary metabolite potential of Aspergillus niger, Aspergillus oryzae, and Trichoderma reesei. Appl. Microbiol. Biotechnol. 2018, 102, 9481–9515. [Google Scholar] [CrossRef]
  21. Santos, G.B.; Filho, L.; Rodrigues, J.; Souza, R. Cellulase production by Aspergillus niger using urban lignocellulosic waste as substrate: Evaluation of different cultivation strategies—ScienceDirect. J. Environ. Manag. 2022, 305, 114431. [Google Scholar] [CrossRef]
  22. Azzouz, Z.; Bettache, A.; Boucherba, N.; Eugenio, L.D.; Benallaoua, S. Optimization of β-1,4-endoxylanase production by a new Aspergillus niger strain growing on wheat straw and application in xylooligosaccharides production. Authorea Prepr. 2020. [Google Scholar] [CrossRef]
  23. Saa, A.; Moa, B.; Ana, B.; Aha, B.; Ama, B.; Mma, A. Utilization of agro-industrial orange peel and sugar beet pulp wastes for fungal endo- polygalacturonase production—ScienceDirect. Saudi J. Biol. Sci. 2022, 29, 963–969. [Google Scholar]
  24. Chuppa-Tostain, G.; Tan, M.; Adelard, L.; Shum-Cheong-Sing, A.; François, J.-M.; Caro, Y.; Petit, T. Evaluation of Filamentous Fungi and Yeasts for the Biodegradation of Sugarcane Distillery Wastewater. Microorganisms 2020, 8, 1588. [Google Scholar] [CrossRef] [PubMed]
  25. Ajao, V.; Bruning, H.; Rijnaarts, H.; Temmink, H. Natural flocculants from fresh and saline wastewater. Chem. Eng. J. 2018, 349, S1385894718309379. [Google Scholar] [CrossRef]
  26. Salehizadeh, H.; Shojaosadati, S.A. Extracellular biopolymeric flocculants: Recent trends and biotechnological importance. Biotechnol. Adv. 2001, 19, 371–385. [Google Scholar] [CrossRef]
  27. Wang, L.; Zhang, B.; Xiao, J.; Huang, Q.; Li, C.; Fu, X. Physicochemical, functional, and biological properties of water-soluble polysaccharides from Rosa roxburghii Tratt fruit. Food Chem. 2018, 249, 127. [Google Scholar] [CrossRef]
  28. Szewczuk-Karpisz, K.; Wisniewska, M.; Pac, M.; Choma, A.; Komaniecka, I. Sinorhizobium meliloti 1021 Exopolysaccharide as a Flocculant Improving Chromium(III) Oxide Removal from Aqueous Solutions. Water Air Soil Pollut. 2014, 225, 2052. [Google Scholar] [CrossRef]
  29. Tang, Y.; Hu, X.; Cai, J.; Xi, Z.; Yang, H. An enhanced coagulation using a starch-based coagulant assisted by polysilicic acid in treating simulated and real surface water. Chemosphere 2020, 259, 127464. [Google Scholar] [CrossRef]
  30. Aljuboori, A.; Uemura, Y.; Osman, N.B.; Yusup, S. Production of a bioflocculant from Aspergillus niger using palm oil mill effluent as carbon source. Bioresour. Technol. 2014, 171, 66–70. [Google Scholar] [CrossRef]
  31. Nasir, N.M.; Yunos, F.; Jusoh, H.; Mohammad, A.; Lam, S.S.; Jusoh, A. Subtopic: Advances in water and wastewater treatment harvesting of Chlorella sp. microalgae using Aspergillus niger as bio-flocculant for aquaculture wastewater treatment. J. Environ. Manag. 2019, 249, 109373. [Google Scholar] [CrossRef]
  32. Van Soest, P.J.; Robertson, J.B.; Lewis, B.A. Methods for dietary fiber, neutral detergent fiber, and nonstarch polysaccharides in relation to animal nutrition. J. Dairy Sci. 1991, 74, 3583–3597. [Google Scholar] [CrossRef]
  33. Emmett, A.M.; Carré, M. A Modification of the Calcium Pectate Method for the Estimation of Pectin. Biochem. J. 1926, 20, 6–12. [Google Scholar] [CrossRef] [PubMed]
  34. Clescerl, L.S. Standard Methods for the Examination of Water and Wastewater, 20th ed.; American Public Health Association: Washington, DC, USA, 1998. [Google Scholar]
  35. Masuko, T.; Minami, A.; Iwasaki, N.; Majima, T.; Nishimura, S.I.; Lee, Y.C. Carbohydrate analysis by a phenol–sulfuric acid method in microplate format. Anal. Biochem. 2005, 339, 69–72. [Google Scholar] [CrossRef] [PubMed]
  36. Walker, J.M. Protein Protocols Handbook, The Volume 0||The Bradford Method for Protein Quantitation; Springer: Berlin/Heidelberg, Germany, 2002; pp. 15–22. [Google Scholar] [CrossRef]
  37. Pu, S.; Ma, H.; Deng, D.; Xue, S.; Zhu, R.; Zhou, Y.; Xiong, X. Isolation, identification, and characterization of an Aspergillus niger bioflocculant-producing strain using potato starch wastewater as nutrilite and its application. PLoS ONE 2018, 13, e0190236. [Google Scholar] [CrossRef] [PubMed]
  38. Rahman, A.; Meerburg, F.A.; Ravadagundhi, S.; Wett, B.; Jimenez, J.; Bott, C.; Al-Omari, A.; Riffat, R.; Murthy, S.; De Clippeleir, H. Bioflocculation management through high-rate contact-stabilization: A promising technology to recover organic carbon from low-strength wastewater. Water Res. 2016, 104, 485–496. [Google Scholar] [CrossRef] [PubMed]
  39. Tan, S.; Cui, C.; Chen, X.; Li, W. Effect of bioflocculation on fouling-related biofoulants in a membrane bioreactor during saline wastewater treatments. Bioresour. Technol. 2016, 224, S0960852416314808. [Google Scholar] [CrossRef]
  40. Li, Q.; Ray, C.S.; Callow, N.V.; Loman, A.A.; Islam, S.; Ju, L.K. Aspergillus niger production of pectinase and α-galactosidase for enzymatic soy processing—ScienceDirect. Enzym. Microb. Technol. 2020, 134, 109476. [Google Scholar] [CrossRef]
  41. Steiger, M.G.; Rassinger, A.; Mattanovich, D.; Sauer, M. Engineering of the citrate exporter protein enables high citric acid production in Aspergillus niger. Metab. Eng. 2019, 52, 224–231. [Google Scholar] [CrossRef]
  42. Meyer, A.S.; Dam, B.P.; Lærke, H.N. Enzymatic solubilization of a pectinaceous dietary fiber fraction from potato pulp: Optimization of the fiber extraction process. Biochem. Eng. J. 2009, 43, 106–112. [Google Scholar] [CrossRef]
  43. Hsieh, C.; Cannella, D.; Jørgensen, H.; Felby, C.; Thygesen, L.G. Cellulase Inhibition by High Concentrations of Monosaccharides. J. Agric. Food Chem. 2014, 62, 3800–3805. [Google Scholar] [CrossRef]
  44. Qi, Z.; Zhu, Y.; Guo, H.; Wang, X.; Shao, Q. Production of Glycoprotein Bioflocculant from Untreated Rice Straw by a CAZyme-rich Bacterium, Pseudomonas sp. HP2. J. Biotechnol. 2019, 306, 185–192. [Google Scholar] [CrossRef]
  45. Busisiwe, M.; Kunle, O.; Ncedo, N.; Uchechukwu, N.; Ezekiel, G.; Leonard, M.; Anthony, O. Assessment of Bacillus pumilus Isolated from Fresh Water Milieu for Bioflocculant Production. Appl. Ences 2016, 6, 211. [Google Scholar]
  46. Sobeck, D.C.; Higgins, M.J. Examination of three theories for mechanisms of cation-induced bioflocculation. Water Res. 2002, 36, 527–538. [Google Scholar] [CrossRef]
  47. Allen, M.S.; Welch, K.T.; Prebyl, B.S.; Baker, D.C.; Meyers, A.J.; Sayler, G.S. Analysis and glycosyl composition of the exopolysaccharide isolated from the floc-forming wastewater bacterium Thauera sp. MZ1T. Environ. Microbiol. 2004, 6, 780–790. [Google Scholar] [CrossRef] [PubMed]
  48. Gregory, J.; Barany, S. Adsorption and flocculation by polymers and polymer mixtures. Adv. Colloid Interface Sci. 2011, 169, 1–12. [Google Scholar] [CrossRef]
  49. Cosa, S.; Mabinya, L.V.; Olaniran, A.O.; Okoh, A.I. Production and characterization of bioflocculant produced by Halobacillus sp. Mvuyo isolated from bottom sediment of Algoa Bay. Environ. Technol. 2012, 33, 967–973. [Google Scholar] [CrossRef]
  50. Khodaei, N.; Karboune, S. Extraction and structural characterisation of rhamnogalacturonan I-type pectic polysaccharides from potato cell wall. Food Chem. 2013, 139, 617–623. [Google Scholar] [CrossRef]
  51. Yang, J.S.; Mu, T.H.; Ma, M.M. Extraction, structure, and emulsifying properties of pectin from potato pulp. Food Chem. 2018, 244, 197–205. [Google Scholar] [CrossRef]
  52. Larsen, N.; de Souza, C.B.; Krych, L.; Kot, W.; Leser, T.D.; Sorensen, O.B.; Blennow, A.; Venema, K.; Jespersen, L. Effect of potato fiber on survival of Lactobacillus species at simulated gastric conditions and composition of the gut microbiota in vitro. Food Res. Int. 2019, 125, 108644. [Google Scholar] [CrossRef]
  53. Guo, J.; Yu, J.; Xin, X.; Zou, C.; Cheng, Q.; Yang, H.; Nengzi, L. Characterization and flocculation mechanism of a bioflocculant from hydrolyzate of rice stover. Bioresour. Technol. Biomass Bioenergy Biowastes Convers. Technol. Biotransform. Prod. Technol. 2015, 177, 393–397. [Google Scholar] [CrossRef]
  54. Yuan, S.J.; Sun, M.; Sheng, G.P.; Li, Y.; Li, W.W.; Yao, R.S.; Yu, H.Q. Identification of key constituents and structure of the extracellular polymeric substances excreted by Bacillus megaterium TF10 for their flocculation capacity. Environ. Sci. Technol. 2011, 45, 1152–1157. [Google Scholar] [CrossRef]
  55. Mx, A.; Han, Z.A.; Ca, A.; Lan, H.A.; Li, S.; Rya, B.; Yla, B.; Miao, C.; Jla, B.; Xwa, B. A novel polysaccharides-based bioflocculant produced by Bacillus subtilis ZHX3 and its application in the treatment of multiple pollutants. Chemosphere 2021, 289, 133185. [Google Scholar]
  56. Byrne, B.J.; Geberhiwot, T.; Barshop, B.A.; Barohn, R.; Hughes, D.; Bratkovic, D.; Desnuelle, C.; Laforet, P.; Mengel, E.; Roberts, M.; et al. A study on the safety and efficacy of reveglucosidase alfa in patients with late-onset Pompe disease. Orphanet J. Rare Dis. 2017, 12, 144. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 10 01847 g001 550

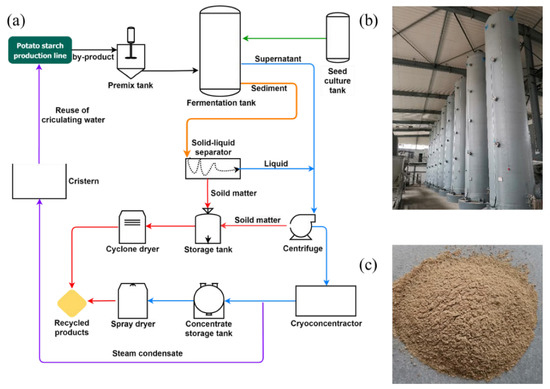

Figure 1. (a) Industrial reutilization biotechnology of potato starch by-products from a plant with an annual output of 1000 tons of starch and composed of three parts: Microbial fermentation production line, Solid-liquid separation production line, Drying and recovery production line. (b) Real photo of Microbial fermentation production line in the factory. (c) Recycled products.
Figure 1. (a) Industrial reutilization biotechnology of potato starch by-products from a plant with an annual output of 1000 tons of starch and composed of three parts: Microbial fermentation production line, Solid-liquid separation production line, Drying and recovery production line. (b) Real photo of Microbial fermentation production line in the factory. (c) Recycled products.
Microorganisms 10 01847 g001
Microorganisms 10 01847 g002 550

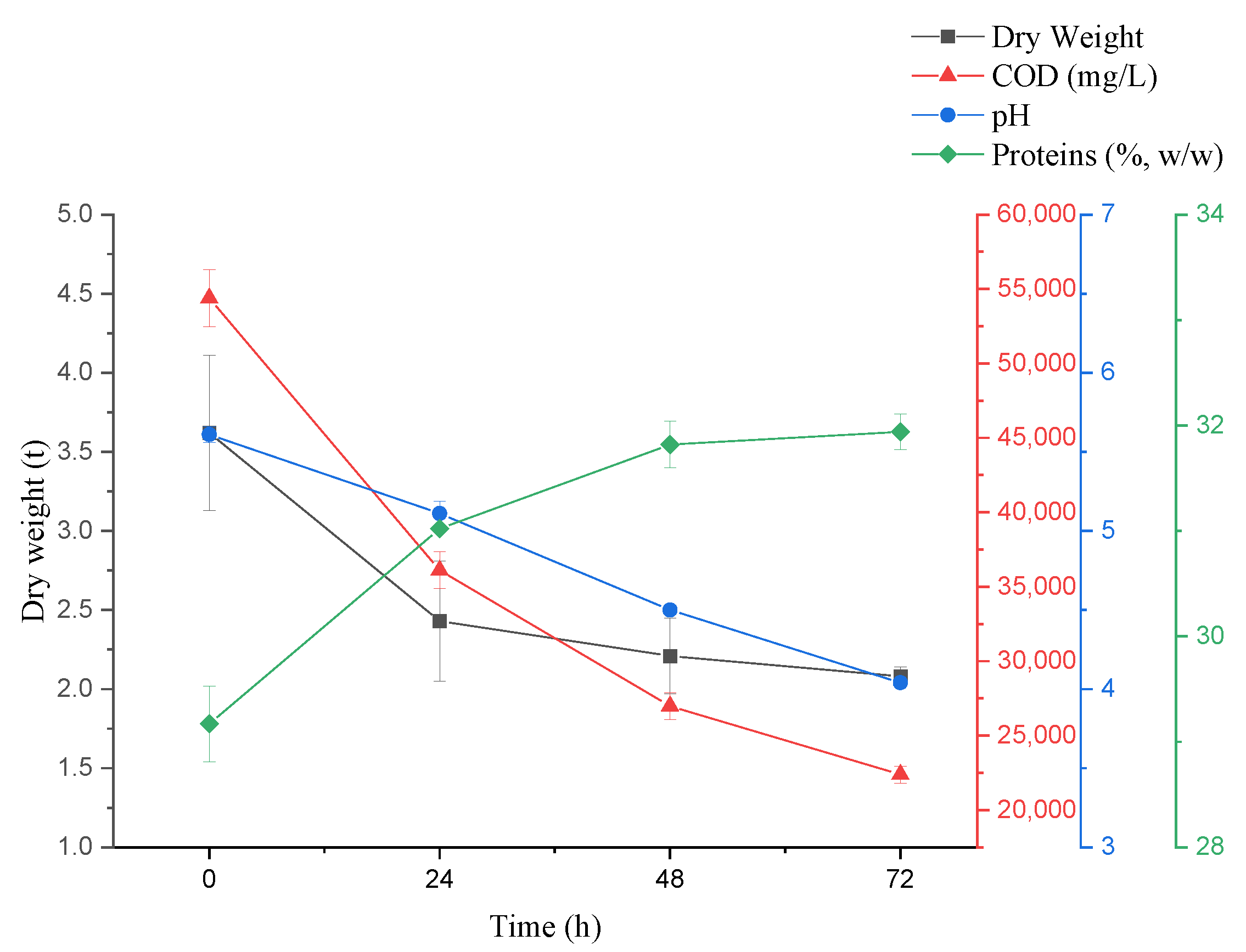

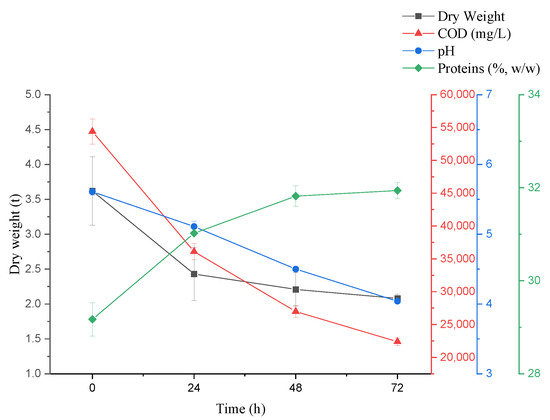

Figure 2. Component changes of wastewater composition. Error bars show a standard error from triplicate observations.
Figure 2. Component changes of wastewater composition. Error bars show a standard error from triplicate observations.
Microorganisms 10 01847 g002
Microorganisms 10 01847 g003 550

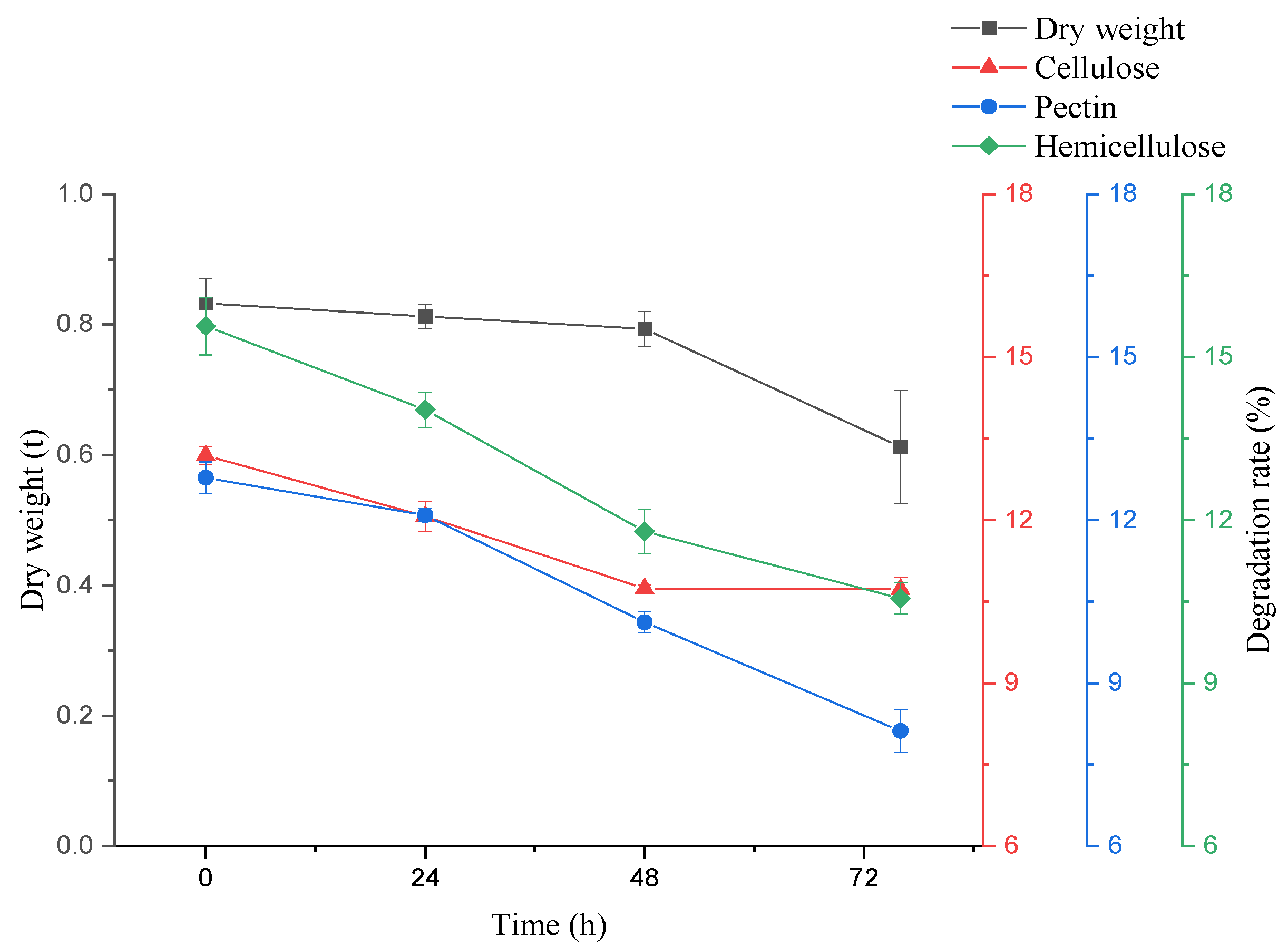

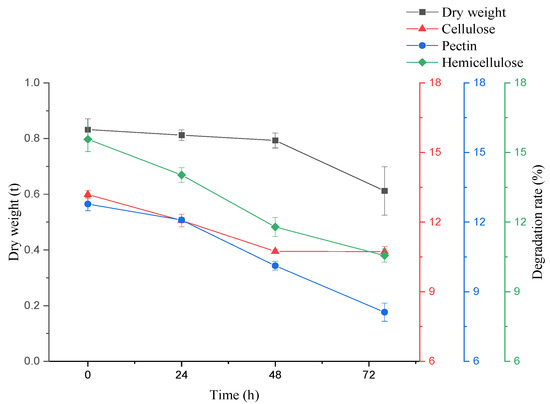

Figure 3. Component changes of sediment composition changes. Error bars show a standard error from triplicate observations.
Figure 3. Component changes of sediment composition changes. Error bars show a standard error from triplicate observations.
Microorganisms 10 01847 g003
Microorganisms 10 01847 g004 550

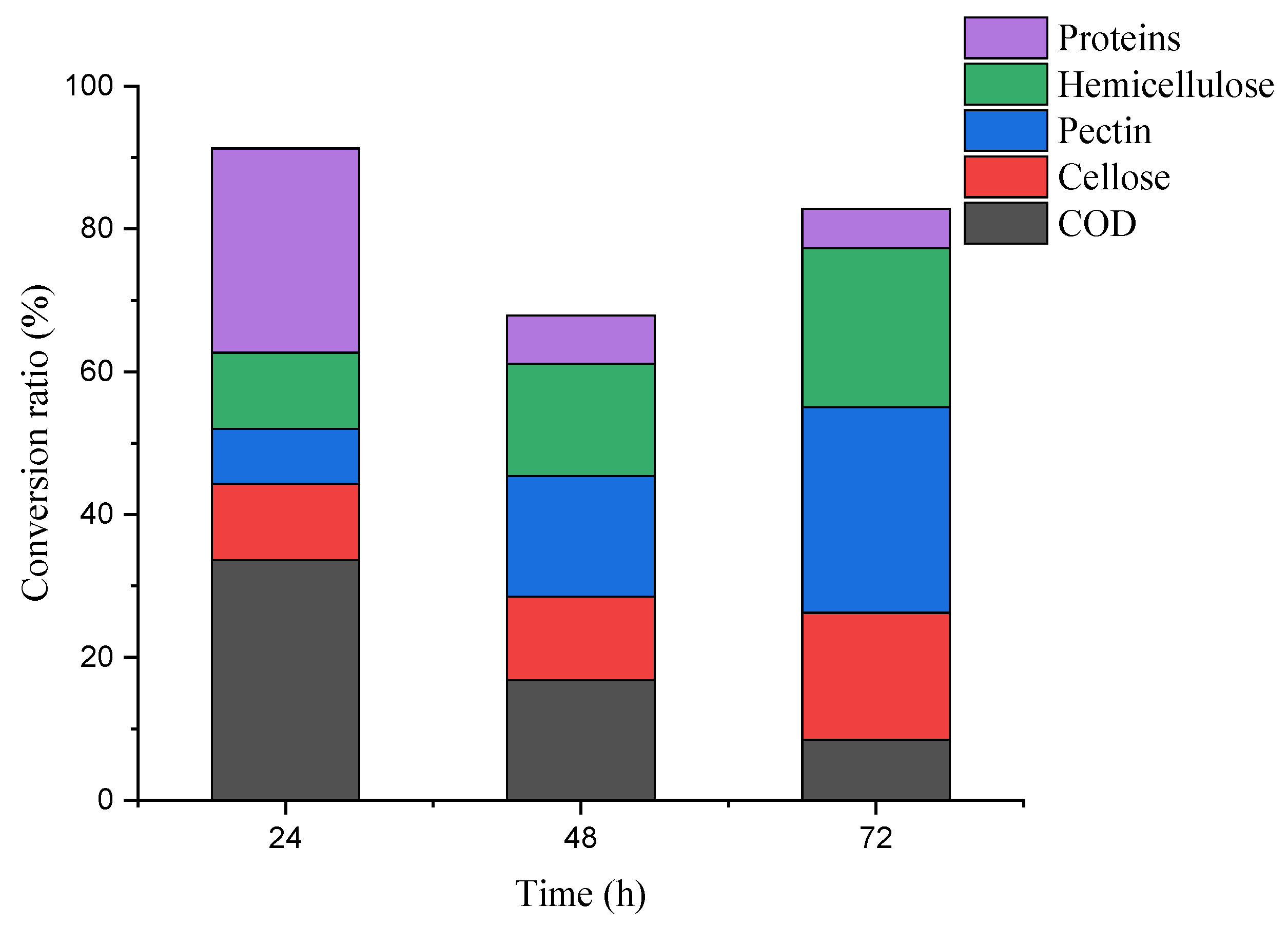

Figure 4. The conversion ratio of COD, cellulose, pectin, hemicellulose, and proteins per 24 h.
Figure 4. The conversion ratio of COD, cellulose, pectin, hemicellulose, and proteins per 24 h.
Microorganisms 10 01847 g004
Microorganisms 10 01847 g005 550

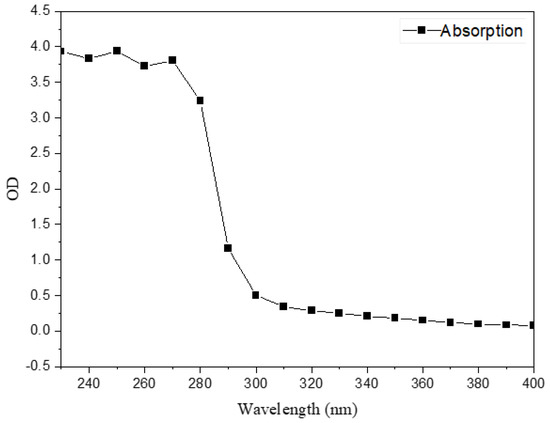

Figure 5. Full band scanning results of FS.
Figure 5. Full band scanning results of FS.
Microorganisms 10 01847 g005
Microorganisms 10 01847 g006 550

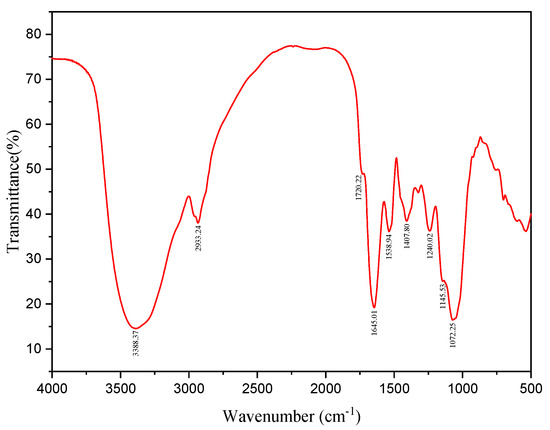

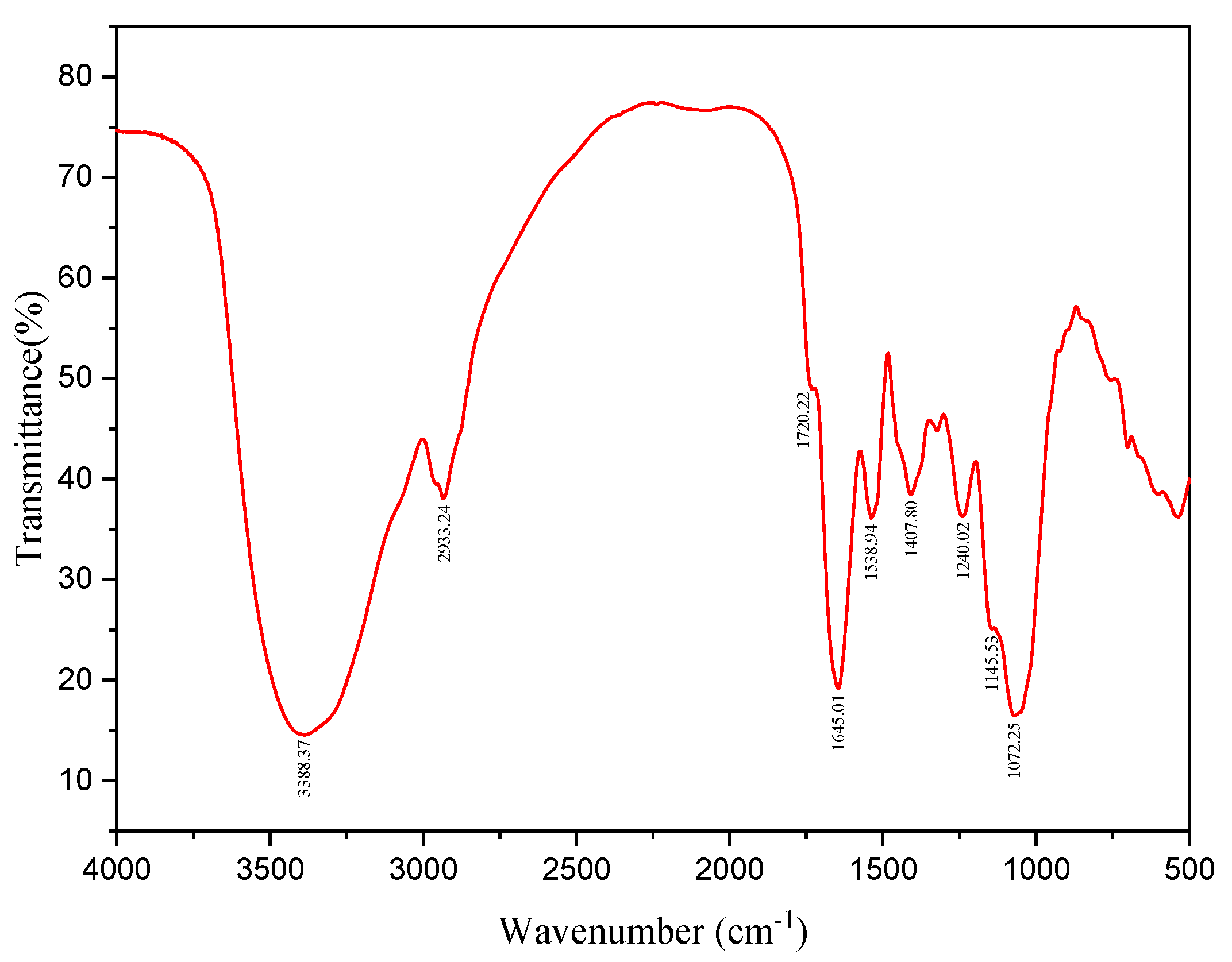

Figure 6. FTIR spectroscopy of FS.
Figure 6. FTIR spectroscopy of FS.
Microorganisms 10 01847 g006
Microorganisms 10 01847 g007 550

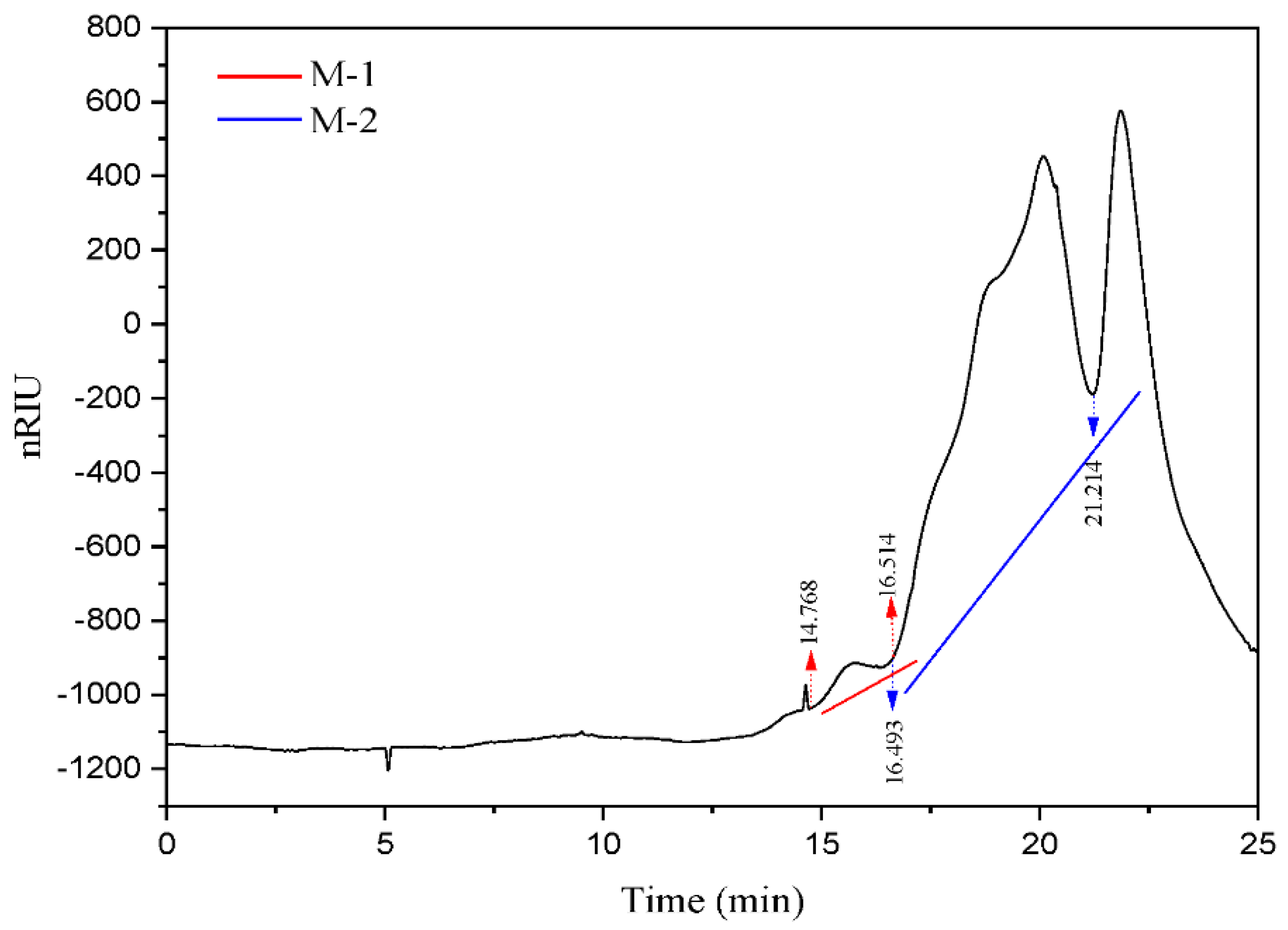

Figure 7. GPC raw data graph: the red line represents M-1 and the blue line represents M-2, which indicate the two molecular weight distributions of FS.
Figure 7. GPC raw data graph: the red line represents M-1 and the blue line represents M-2, which indicate the two molecular weight distributions of FS.
Microorganisms 10 01847 g007
Microorganisms 10 01847 g008 550

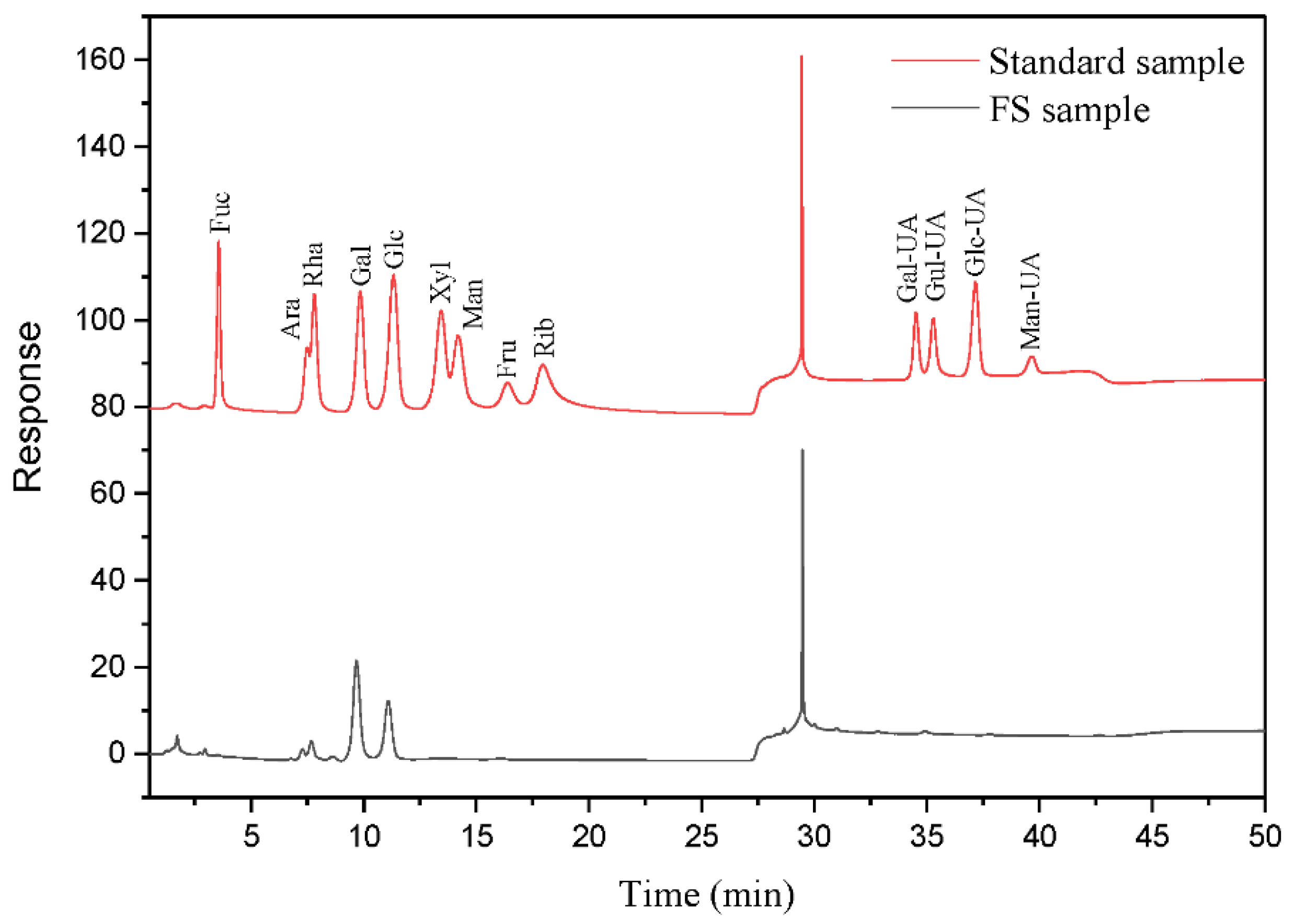

Figure 8. Monosaccharide ion chromatogram of polysaccharide: the red line represents mixed monosaccharides standard, and the black line represents the FS sample.
Figure 8. Monosaccharide ion chromatogram of polysaccharide: the red line represents mixed monosaccharides standard, and the black line represents the FS sample.
Microorganisms 10 01847 g008
Microorganisms 10 01847 g009 550

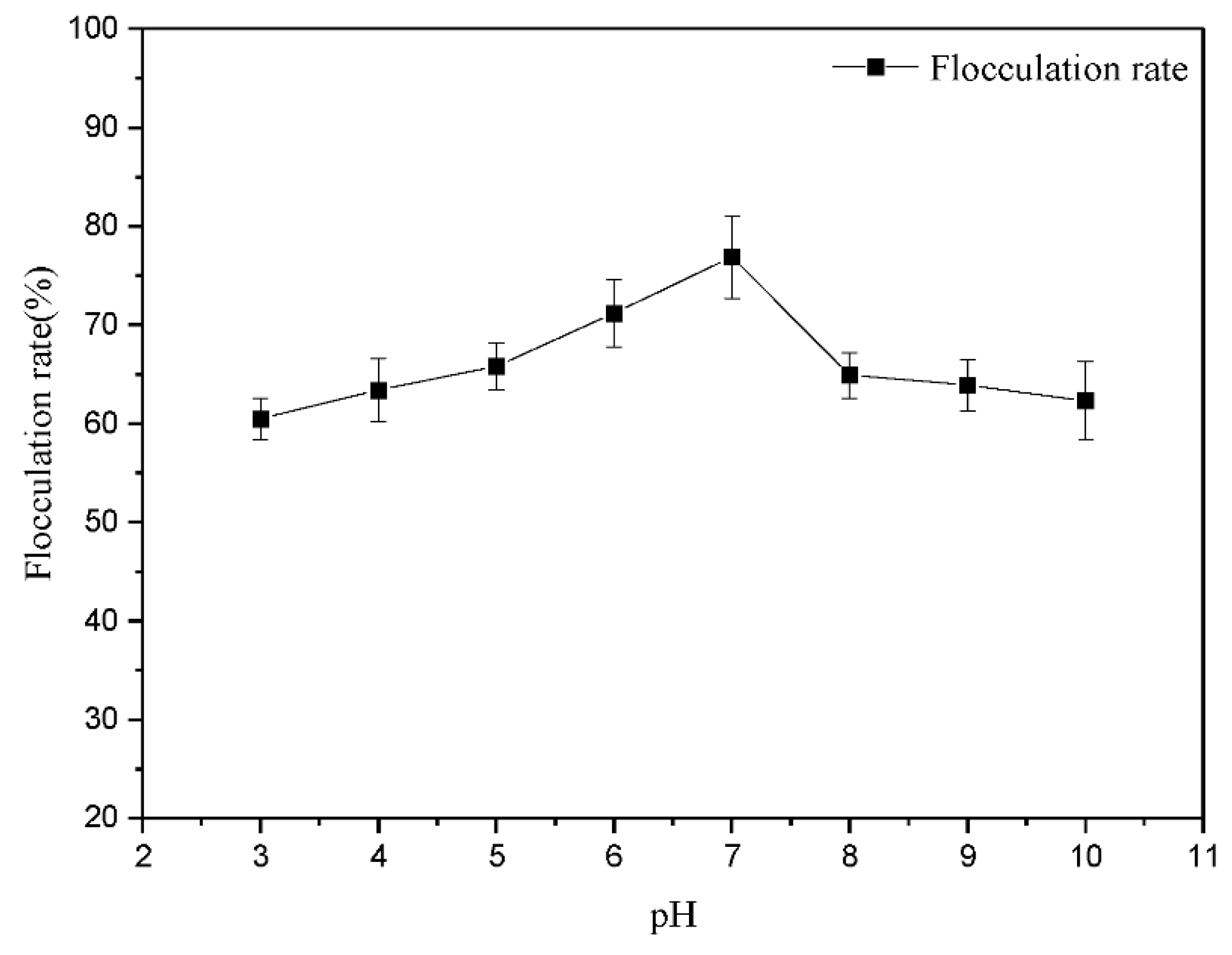

Figure 9. The effects of pH on the FS stability. Error bars show standard errors among triplicate observations.
Figure 9. The effects of pH on the FS stability. Error bars show standard errors among triplicate observations.
Microorganisms 10 01847 g009
Microorganisms 10 01847 g010 550

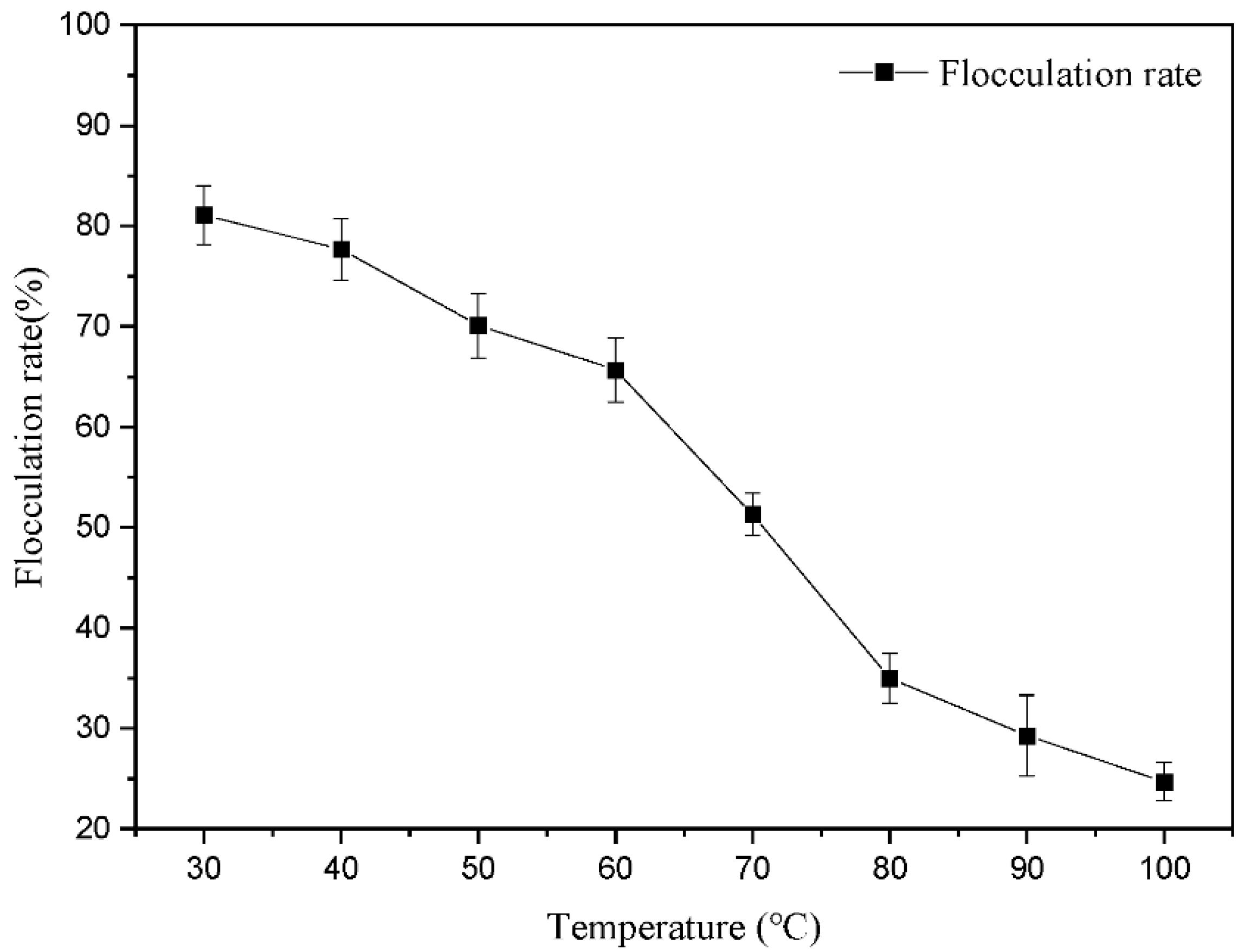

Figure 10. The effects of temperature on the FS stability. Error bars show standard errors among triplicate observations.
Figure 10. The effects of temperature on the FS stability. Error bars show standard errors among triplicate observations.
Microorganisms 10 01847 g010
Microorganisms 10 01847 g011 550

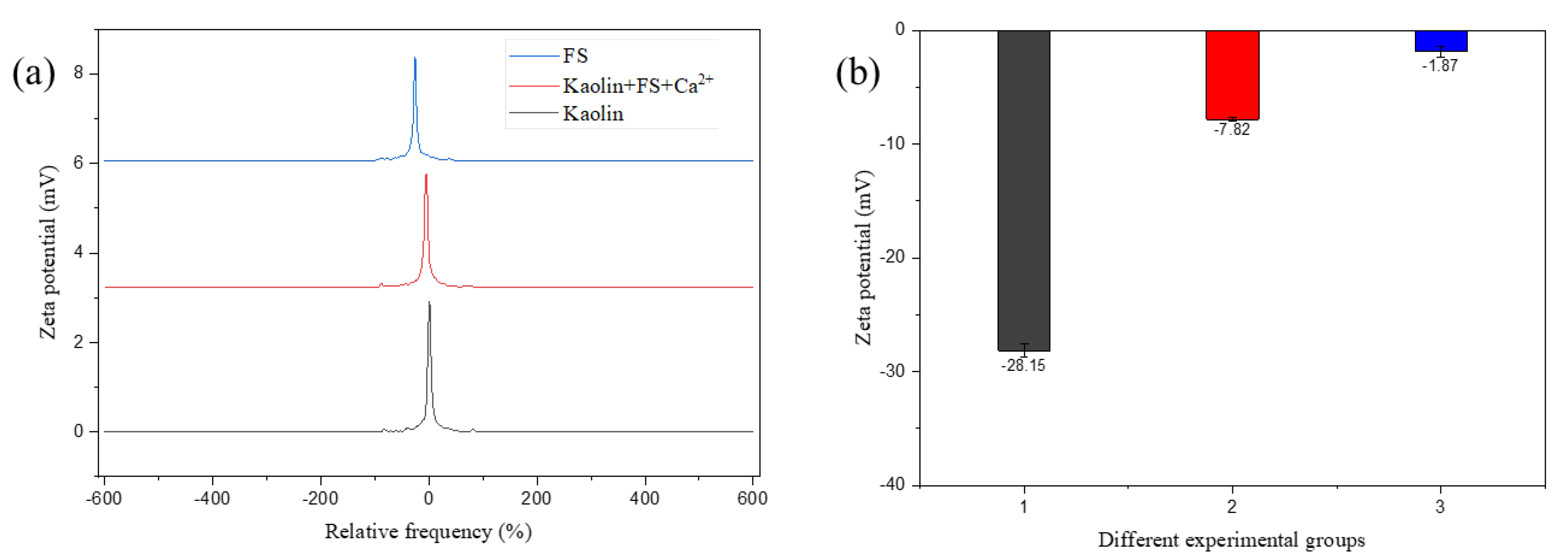

Figure 11. Zeta potentials of kaolin, kaolin + FS + Ca2+, and FS, respectively. Black solid lines and columns represent kaolin; red solid lines and columns represent kaolin + FS + Ca2+; and blue solid lines and columns represent the potential of FS, respectively. (a) Zeta potential frequency diagram (b) Zeta potential in different experimental groups.
Figure 11. Zeta potentials of kaolin, kaolin + FS + Ca2+, and FS, respectively. Black solid lines and columns represent kaolin; red solid lines and columns represent kaolin + FS + Ca2+; and blue solid lines and columns represent the potential of FS, respectively. (a) Zeta potential frequency diagram (b) Zeta potential in different experimental groups.
Microorganisms 10 01847 g011
Microorganisms 10 01847 g012 550

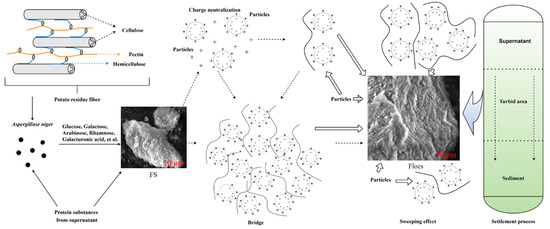

Figure 12. A hypothetical model for the flocculation by A. niger during industrial reutilization of potato starch by-products. The solid black arrows represent the conversion of potato starch by-products by A. niger and the formation of FS. The black dotted arrow represents the putative flocculation mechanistic process. The frame arrow represents the sweeping effect of large flocs by adsorption of surrounding matter.
Figure 12. A hypothetical model for the flocculation by A. niger during industrial reutilization of potato starch by-products. The solid black arrows represent the conversion of potato starch by-products by A. niger and the formation of FS. The black dotted arrow represents the putative flocculation mechanistic process. The frame arrow represents the sweeping effect of large flocs by adsorption of surrounding matter.
Microorganisms 10 01847 g012
Table
Table 1. Composition and characteristics of FS.
Table 1. Composition and characteristics of FS.
Carbohydrate (%, w/w)Proteins
(%, w/w)		Molecular Weight DistributionsMonosaccharide Component (%, w/w)
Mw (g/mol)Mn (g/mol)PDIFucAraRhaGalGlcXylManFruGla-UAGlc-UA
28.07 ± 0.1245.55 ± 0.04M-17.3792 × 1067.2665 × 1061.01560.428.808.6949.9421.980.510.543.474.571.06
M-21.7741 × 1061.4987 × 1061.1838
Table
Table 2. Inspection of ionic and hydrogen bonds.
Table 2. Inspection of ionic and hydrogen bonds.
EDTAHClUrea
PhenomenonThe flocs disintegrated obviously; the supernatant was turbidThe flocs disintegrated obviously; the supernatant was turbidThe flocs no obvious disintegrated; the supernatant was clarified
Ionic bonds++−
Hydrogen bonds−−+
“+” indicates the presence of a bond, and “−” indicates the absence of a bond.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, L.; Cao, G.; Liu, H.; Wu, Z.; Gong, D.; Ru, X.; Gong, X.; Pi, Q.; Yang, Q. Application of Aspergillus niger in Practical Biotechnology of Industrial Recovery of Potato Starch By-Products and Its Flocculation Characteristics. Microorganisms 2022, 10, 1847. https://doi.org/10.3390/microorganisms10091847

AMA Style

Zhang L, Cao G, Liu H, Wu Z, Gong D, Ru X, Gong X, Pi Q, Yang Q. Application of Aspergillus niger in Practical Biotechnology of Industrial Recovery of Potato Starch By-Products and Its Flocculation Characteristics. Microorganisms. 2022; 10(9):1847. https://doi.org/10.3390/microorganisms10091847

Chicago/Turabian Style

Zhang, Liang, Guangli Cao, He Liu, Zhenting Wu, Dianliang Gong, Xin Ru, Xiujie Gong, Qiuyue Pi, and Qian Yang. 2022. "Application of Aspergillus niger in Practical Biotechnology of Industrial Recovery of Potato Starch By-Products and Its Flocculation Characteristics" Microorganisms 10, no. 9: 1847. https://doi.org/10.3390/microorganisms10091847

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
