Carbon-Based Catalysts for Biodiesel Production—A Review

Abstract

In recent years, a new class of superior heterogeneous acid catalyst for biodiesel production has emerged. These catalysts offer advantages over their predecessors such as high surface area, elevated acid site density, enhanced catalyst activity, good operation stability and relevant economic affordability in an environmentally friendly frame. This review was concerned with carbon-based solid acid (CBAS) catalysts derived from both carbohydrate and pyrolysis products. A series of CBASs with various origins such as D-glucose, sucrose, starch, cellulose and vegetable oil asphalt, converted to char and sulphonated, have been explored as potential heterogeneous catalysts. Catalyst preparation and synthesis methods were briefly summarized. Catalyst characterization and performance for biofuels related reactions were elucidated, identifying potential research applications. Three catalysts in particular were identified as having potential for industrial application and requiring further research.

1. Introduction

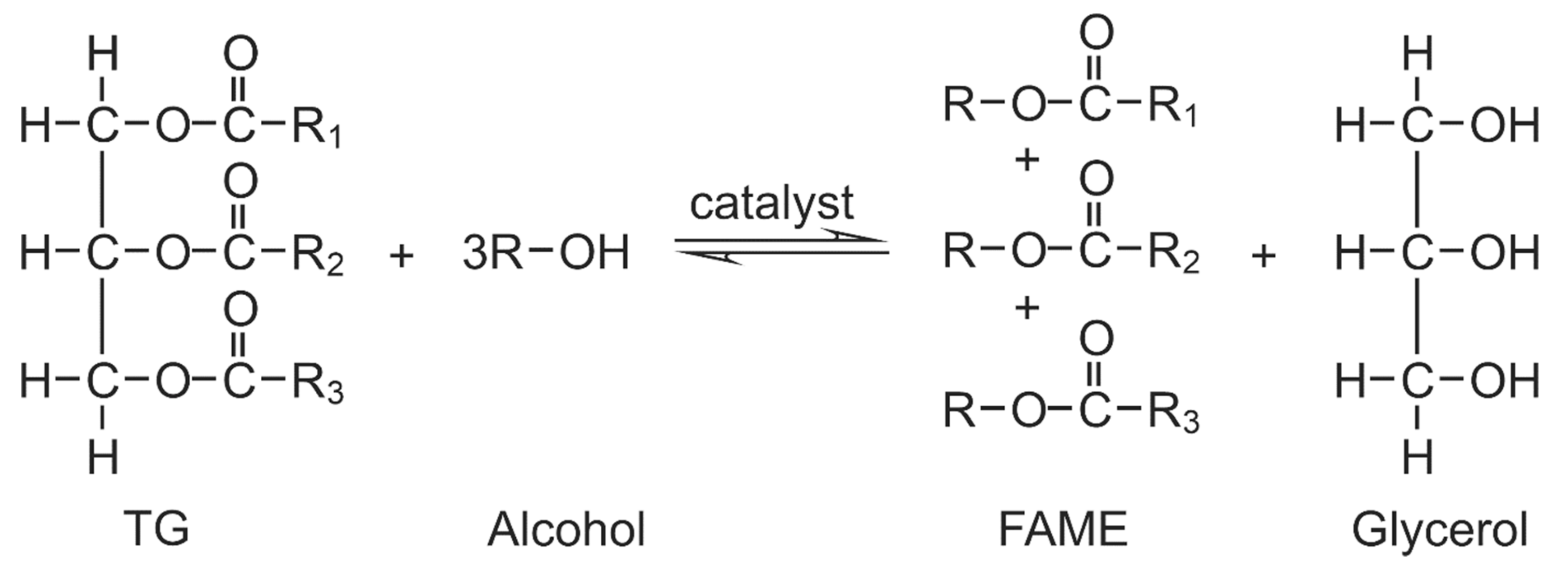

There has been a spike in interest in fossil fuel alternatives in recent years due to growing concerns regarding the environmental impact of fossil fuel usage. According to the report by the IPCC [1], human-induced global warming reached approximately 1 °C above pre industrial levels in 2017. Among these alternatives is biodiesel, a substitute for traditional petrochemical diesel, that is composed of fatty acid methyl esters (FAMEs) and can be used in diesel compression engines without modification [2,3]. Biodiesel is a favourable option to traditional diesel due to its non-toxic, biodegradable nature and its emission profile, which contains little to no sulphur dioxide and a reduced amount of CO and CO₂ [4,5,6,7]. According to item four, article three of the renewable energy directive, it is a requirement by law for all EU member states to ensure that a minimum of 10% of the energy consumed in transport comes from renewable sources such as biodiesel by 2020. Under the Paris agreement, a new EU directive was established, setting the requirement for renewable energy use by 2030 at 32% [8]. Currently, the production of biodiesel is more expensive than traditional diesel production but, as a result of the renewable energy directive, the demand for biodiesel as a fuel additive is rising [9,10]. Biodiesel consists of a mixture of C₁₂–C₁₄ fatty acid monoalkyl esters. The FAME present in biodiesel is produced commercially via two pathways, the transesterification of triglycerides (TGs) and the esterification of free fatty acids (FFAs) [10,11]. Transesterification takes place in the presence of a short-chain alcohol (usually methanol) and a catalyst, as schematically presented in Figure 1. Transesterification of TGs to FAMEs is a process with three consecutive steps. Firstly, diglycerides are formed from triglycerides, then monoglycerides and finally FAMEs are formed. Glycerol is produced as a by-product of the reaction [10,11]. The reaction produces 3 moles of FAME and 1 mole of glycerol for each mole of TG [11,12].

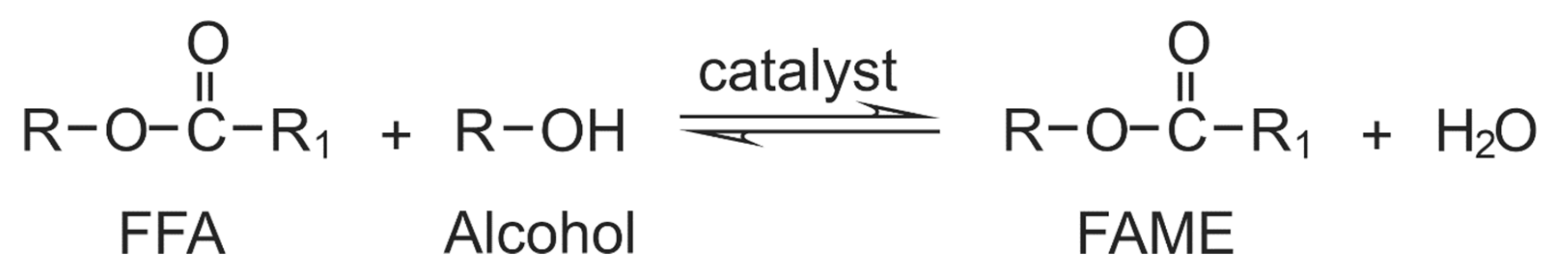

The esterification of FFAs in the presence of a short-chain alcohol and a suitable catalyst is the second route for FAME production, presented in Figure 2.

Traditional biodiesel production methods utilise homogeneous base catalysis for the transesterification reaction, the reaction is carried out at atmospheric pressure and mild temperatures (50–80 °C) and an oil to alcohol ratio in the region of 5:1 [13,14]. While homogeneous base catalysis boasts a high yield of biodiesel, mild operating conditions and a fast reaction rate, there are several obstacles that prevent the process from being economically viable [10,15,16].

Firstly, the homogeneous nature of the process means that the separation of the homogeneous base is difficult and requires an energy and cost intensive neutralisation and water-washing step [6,15]. Secondly, while liquid base catalysts catalyse the transesterification very well, the presence of FFAs presents a problem, as a saponification reaction will occur when FFAs are present in the feedstock for a liquid base catalysed reaction. The formation of soap inhibits the separation of the FAMEs, the water and the glycerol [6,17,18,19,20]. As a result, the oil feedstock for homogeneous base catalysis must be a virgin vegetable oil, with a very low FFA content (< 0.5 wt.%), or waste oils (such as cooking oil) must be pre-treated to lower the FFA content [12,17,18]. It is estimated that 70%–90% of the cost of biodiesel production is due to the cost of raw materials [12,21,22]. First-generation biodiesel production uses edible feedstock to produce FAMEs; while the FFA content is low, this process is uneconomical due to the competition for these oils with the food market [11,23,24]. Second-generation biodiesel production utilises lower-cost inedible feedstock or waste cooking oils, and these lower-grade plant oils and waste oils often have elevated FFA and water content, making homogeneous base catalysis an economically unfavourable process [11,19].

Homogenous acid catalysis is insensitive to FFA content and has the potential to carry out simultaneous esterification and transesterification. Despite this distinct advantage, homogeneous acid catalysis presents the same separation issues as homogeneous base catalysis. As well as this, the rate of reaction for the transesterification process is much slower than homogeneous base catalysis, making the process economically challenging due to the increased energy requirements [2,25,26,27,28,29,30,31].

Heterogeneous catalysis using a solid base catalyst for the transesterification of TGs shares many of the same properties as the homogeneous base catalysis such as mild operating conditions, a fast rate of reaction and a high conversion [28,29,32,33,34]. However, heterogeneous base catalysis has a distinct advantage over the traditional homogeneous base catalysis. The heterogeneous nature of the reaction means that no separation is required and that the catalyst has the potential to be reused multiple times [9,11,32]. Similarly in heterogeneous case, the feedstock is required to have a FFA content below 0.5% as the by-products of the saponification reaction poisons the catalyst and prevents re-use [11,32]. Leaching of the base into the feedstock was also a commonly reported issue [35]. Due to the leaching, homogeneous catalysis was effectively occurring, which was problematic as a separation step was necessary [19,36].

Heterogeneous acid catalysis is a promising alternative to conventional biodiesel production due to the simplistic and environmentally friendly nature of the process and the simultaneous promotion of both esterification and transesterification [37,38,39]. In particular, this study will focus on a branch of solid acid catalysts known as sulphonated carbon-based acid solids (CBASs). CBASs are formed from either carbohydrate or biomass precursors. The mechanism described by Okamura et al. [40], with a further stage suggested by Hara (2010) [41], was adapted by the authors in Figure 3. In the first stage (A) of catalyst production, the carbohydrate/biomass is carbonised, which leads to the removal of water from the molecules and (B) the dissociation of the C–O–C bond, forming polycyclic aromatic carbon sheets. The carbon sheets formed are then subjected to sulphonation (C) with sulphuric acid; the acid sulphonates the aromatic rings, introducing SO₃H, COOH and OH groups at the edge of the carbon rings, forming the CBAS material that acts as a 3-D structure catalyst. During step (D), the carbonisation temperature is raised to 500 °C and larger polycyclic aromatic sheets are formed with the layered polycyclic aromatic rings, which reduce the amount of potential locations of sulphuric groups.

CBASs show high affinity for both the esterification and the transesterification reaction. They have been shown to have better activities for both the esterification of FFAs and the transesterification of TGs than commercially available solid acid catalysts such as sulphated zirconia and niobic acid [10,42]. CBASs can tolerate high FFA and water content meaning lower quality unrefined feedstock can be used such as waste cooking oil [43,44]. Solid acid catalysis demonstrates reliable re-usability, has been shown to be chemically inert and can be used to simultaneously carry out esterification and transesterification [11,41].

The characteristics that make a CBAS an effective catalyst for the production of biodiesel are strong Bronsted and Lewis acid sites, high acid site density, a hydrophobic surface, high pore volume and unique porosity [10,11,45]. This review will focus on the different types of CBASs currently being researched, preparation methods, and classification as catalysts and effectiveness in terms of both esterification and transesterification.

2. Carbohydrate Precursors

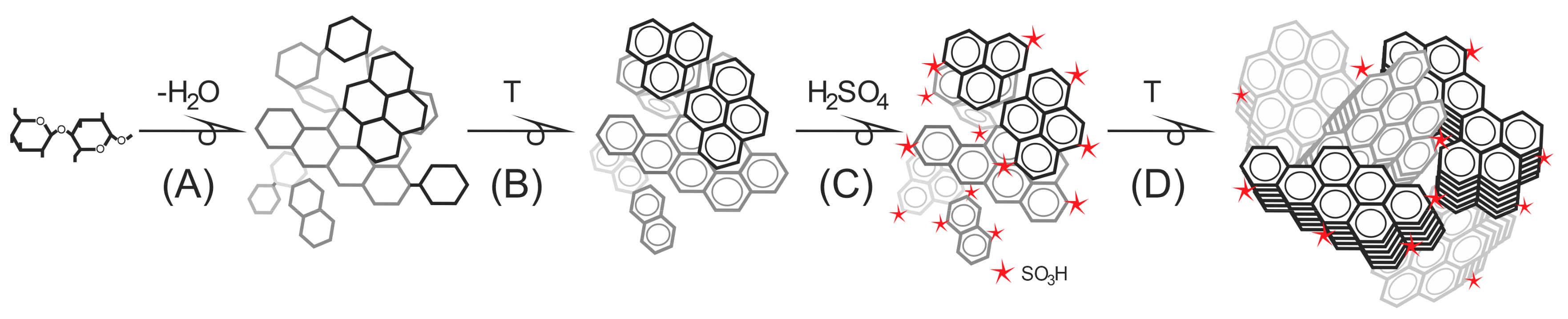

A novel branch of carbonaceous catalysts, formed by the incomplete carbonisation of carbohydrate sources such as D-glucose, sucrose, starch and cellulose followed by subsequent sulphonation has been shown to exhibit excellent catalytic activity for the esterification and transesterification reactions in biodiesel production [10].

Zong et al. [46] utilised D-glucose to prepare a CBAS to catalyse the esterification of oleic acid and subsequently waste cooking oil. D-glucose was incompletely carbonised at 400 °C for 15 h under N₂ flow, following the carbonisation the material was ground to a powder before being heated to 150 °C in concentrated H₂SO₄ for a further 15 h. The catalytic ability of this sulphonated sugar catalyst was compared to three typical solid acid catalysts, namely sulphated zirconia, niobic acid and amberlyst 15 resin. The reaction was carried out at 80 °C, with an alcohol to oil molar ratio of 10:1. The sugar catalyst demonstrated a higher catalytic activity than sulphated zirconia and Amberlyst 15. It was reflected in the yields of methyl oleate achieved by the various catalysts, presented in

Table 1. Catalytic activity and methyl oleate yield (esterification) for various catalysts.

Catalyst	Catalytic Activity µmol min−1	Yield of Methyl Oleate wt.%
Sugar Catalyst	67	95
Sulphated Zirconia	21	85
Amberlyst 15	7	15
Niobic Acid	1.5	6

.

Niobic acid demonstrated little to no catalytic activity. Despite the larger BET surface area of the sulphated zirconia the increased number of acid sites in the sugar catalyst, lead to an improved catalytic ability. As part of their study, Zong and his team utilised the D-glucose catalyst to catalyse the conversion of waste oil with a high FFA content to biodiesel. Use of this type of oil is not possible applying traditional homogeneous base methods. The D-glucose catalyst achieved a yield of over 90 wt.%, which was far greater than any of the typical commercial catalysts tested, compared in Figure 4. The catalyst retained 93% of its catalytic activity following fifty successive uses demonstrating excellent reusability properties.

Nata et al. [39] demonstrated a one-step hydrothermal carbonisation of a glucose catalyst at 180 °C for 4 h. The resulting catalyst had an acidity of 1.99 mmol g⁻¹ similar to the work of Zong et al. [46] Waste cooking oil (WCO), high in FFAs, was used to demonstrate the catalytic ability of the glucose catalyst. The reaction was carried out at 60 °C and a methanol:oil molar ratio of 20:1. A 95% FFA conversion was achieved. The catalyst was reused and after five repeated uses, a 7% increase in FFAs was observed indicating good reusability.

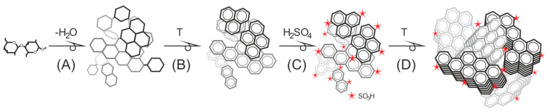

Hara [41] demonstrated the catalytic ability of sulphonated incompletely carbonised cellulose. The catalytic material was prepared in a similar way to the D-glucose catalyst by Zong et al. [46] The esterification of oleic acid to methyl oleate was used to demonstrate the catalytic ability of the sulphonated cellulose. The esterification reaction was carried out at 95 °C. A yield of 99.9% was achieved after 4 h, in six sequential runs the catalyst demonstrated excellent reusability for the esterification reaction, as presented in Figure 5.

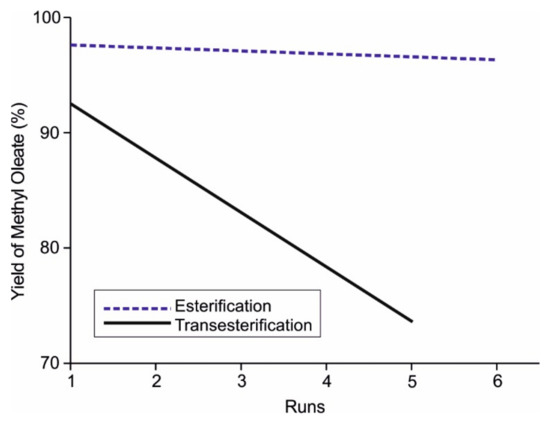

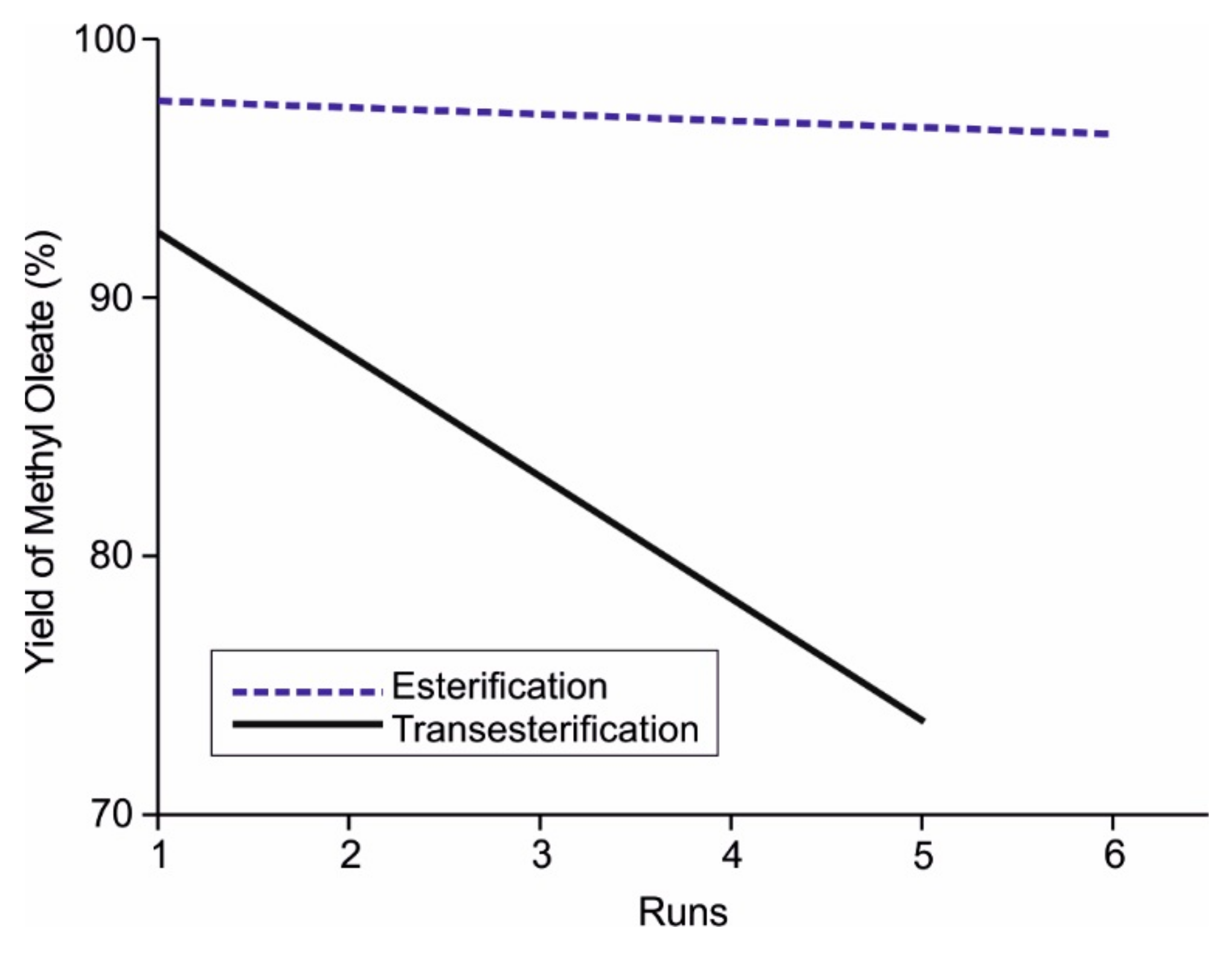

Hara [41] also investigated the ability of the catalyst to catalyse the transesterification reaction; the cellulose catalyst was used to catalyse the transesterification of triolein to methyl oleate in the presence of methanol. A conversion of > 98% was achieved; the catalyst demonstrated good reusability over five runs for the transesterification reaction, presented in Figure 5.

Lou et al. [10] prepared and compared four carbohydrate-derived catalysts from D-glucose, sucrose, cellulose and starch. The preparation method was as the same as that by Zong et al. [46] except carbonisation was carried out at 400 °C rather than 450 °C. The esterification of oleic acid was used to evaluate the catalytic activity of the four catalysts. Each catalyst was added to a methanol oleic acid mixture, with a 10:1 molar ratio, and reacted at 80 °C. After 3 h, the starch, cellulose, sucrose and D-glucose catalysts had achieved a conversion of 95%, 88%, 80% and 76%, respectively. Figure 4 clearly indicates that the catalyst derived from starch was much more active for the esterification reaction than the other three catalysts. A yield of 95% was achieved in under 3 h whereas the cellulose, D-glucose and sucrose catalysts required 4–5 h to achieve a comparable yield.

For all four catalysts, the XRD pattern was typical of amorphous carbon. The starch-derived catalyst had the highest sulphur content, the highest acid site density and the highest contribution for SO₃H to the acid site density. In terms of textural properties, the starch catalyst also possesses the most favourable properties, the largest surface area of the four carbohydrate-derived catalysts the largest average pore volume and average pore size (

Table 2. Textural properties of various solid acid catalysts.

Catalyst Derived From	S Content wt.%	Total Acid Site Density mmol/G	SO3H Acid Site Density mmol/G	Surface Area m2/g	Average Pore Volume cm3/g	Average Pore Size nm
D-Glucose	4.7	1.6	1.47	4.1	0.44	4.0
Sucrose	5.1	1.71	1.59	5.0	0.52	5.1
Cellulose	5.4	1.82	1.68	5.7	0.65	6.4
Starch	5.9	1.97	1.83	7.2	0.81	8.2

). The larger pore size, pore volume and surface area allowed reactants easier accessibility to the SO₃H sites leading to the higher efficiency of the starch catalyst.

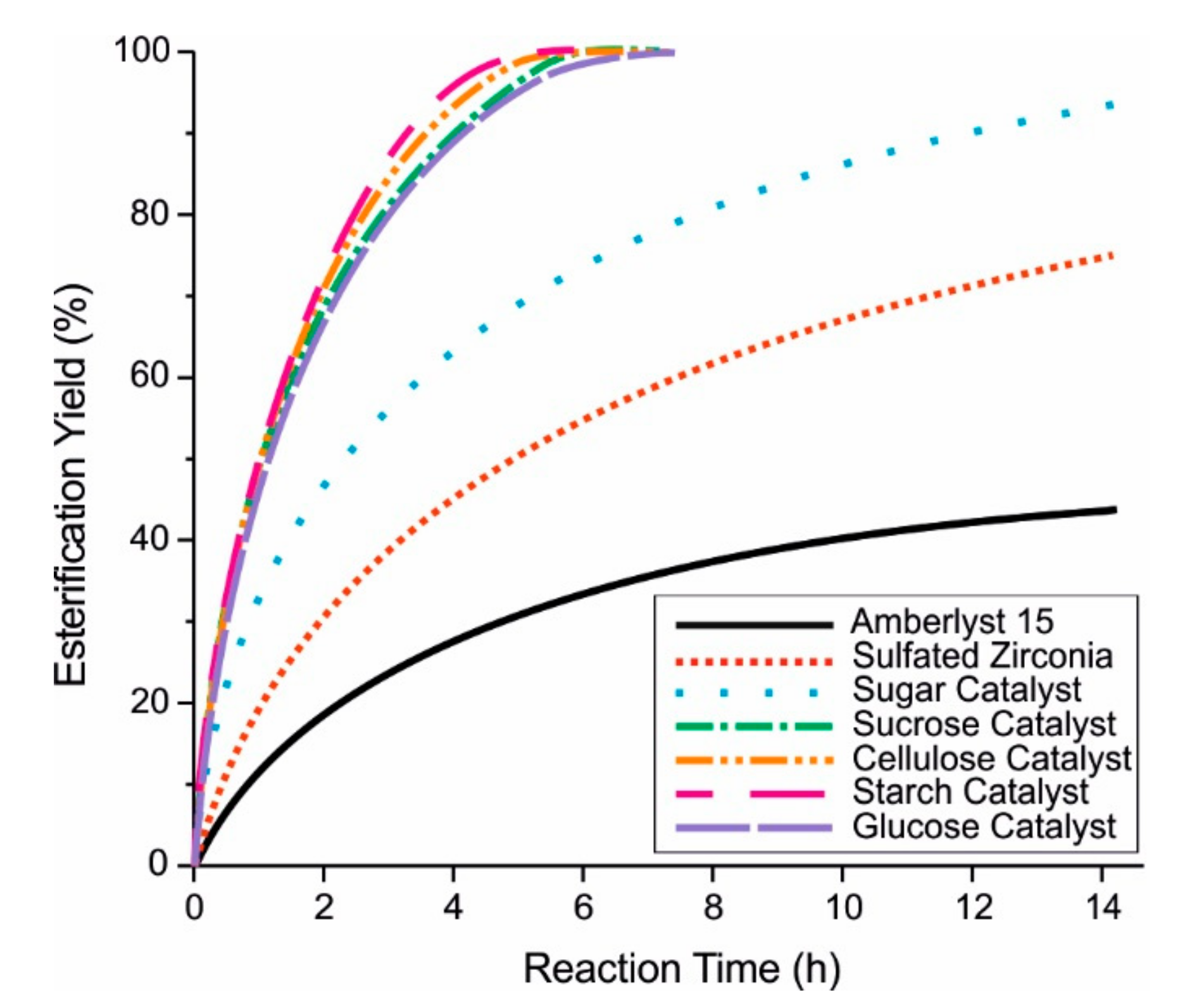

Despite the inferior surface area of the carbohydrate-derived catalysts in comparison with the sulphated zirconia and niobic acid, the four prepared catalysts exhibited much higher esterification and transesterification activity. The starch catalyst in particular had an esterification and transesterification activity comparable to that of the concentrated H₂SO₄ (Figure 6).

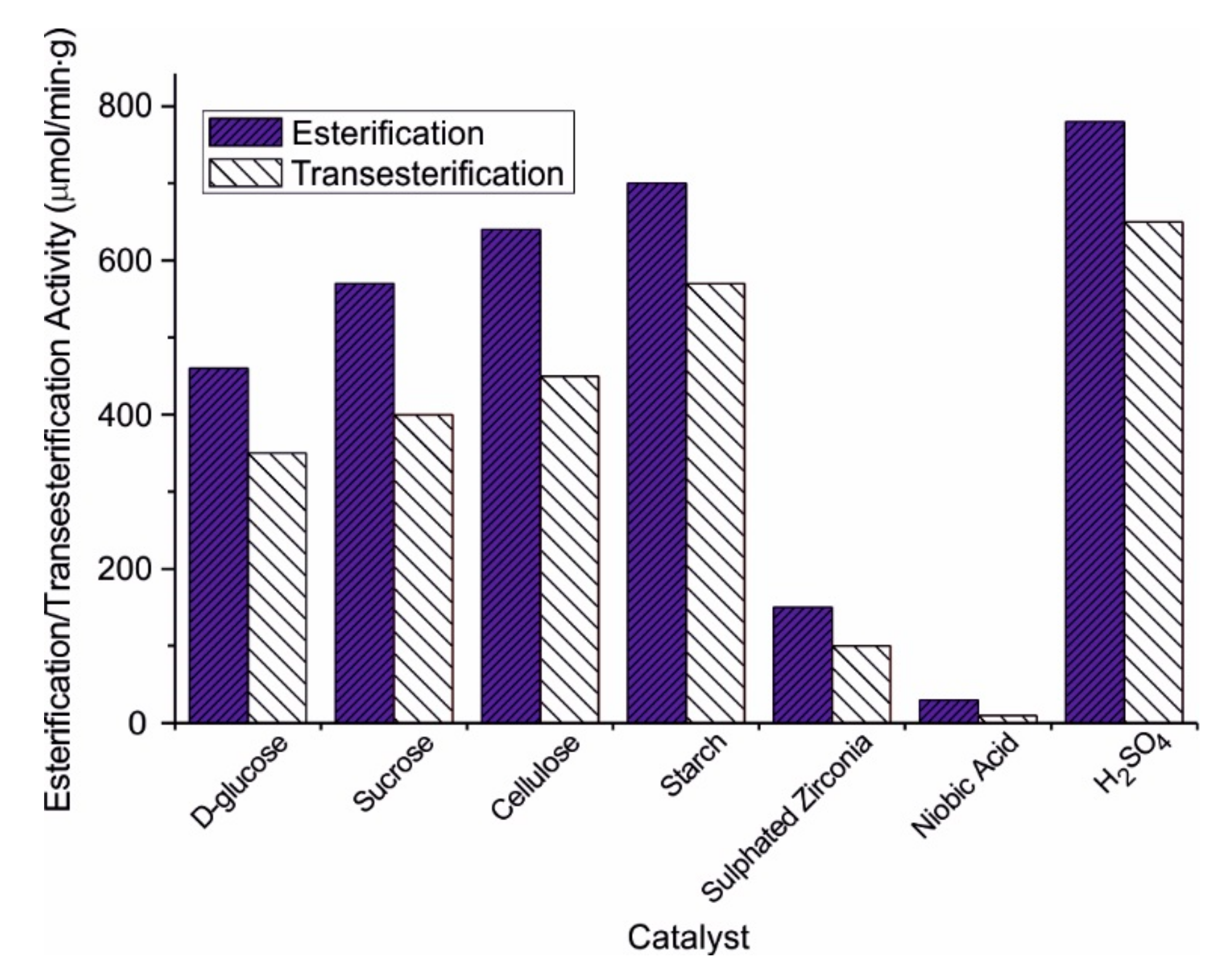

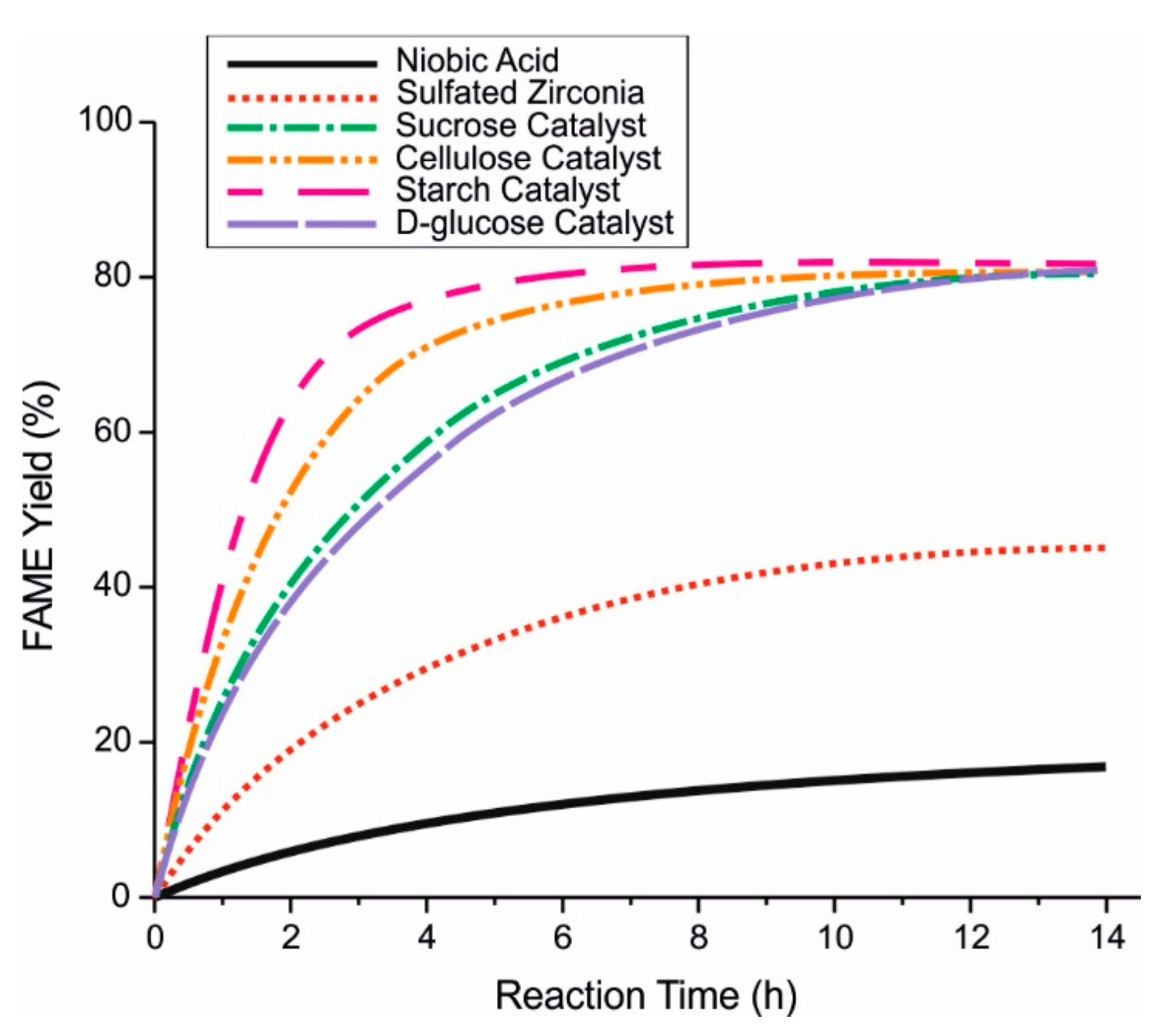

Following the initial experimentation that showed the effectiveness of the four carbohydrate-derived catalysts, Lou et al. [10] conducted a further experiment. The goal of which was to assess the effectiveness of the catalyst for the simultaneous esterification and transesterification of waste cooking oils (27.8 wt.% FFA). The reaction was carried out at 80 °C with a methanol: oil molar ratio of 20:1. As presented in Figure 7 the starch achieved the highest FAME yield in the shortest time of any of the catalyst.

Through experimentation and assessing the return vs. the cost, it was determined that the optimal oil:methanol ratio was 30:1, and the catalyst loading was optimised at 10 wt.%. The optimal reaction temperature and time was 80 °C for 8 h. Under these conditions, a yield of 92% was achieved. It was also determined that, the starch-derived catalyst retained 93% of its catalytic activity after fifty successive reuses.

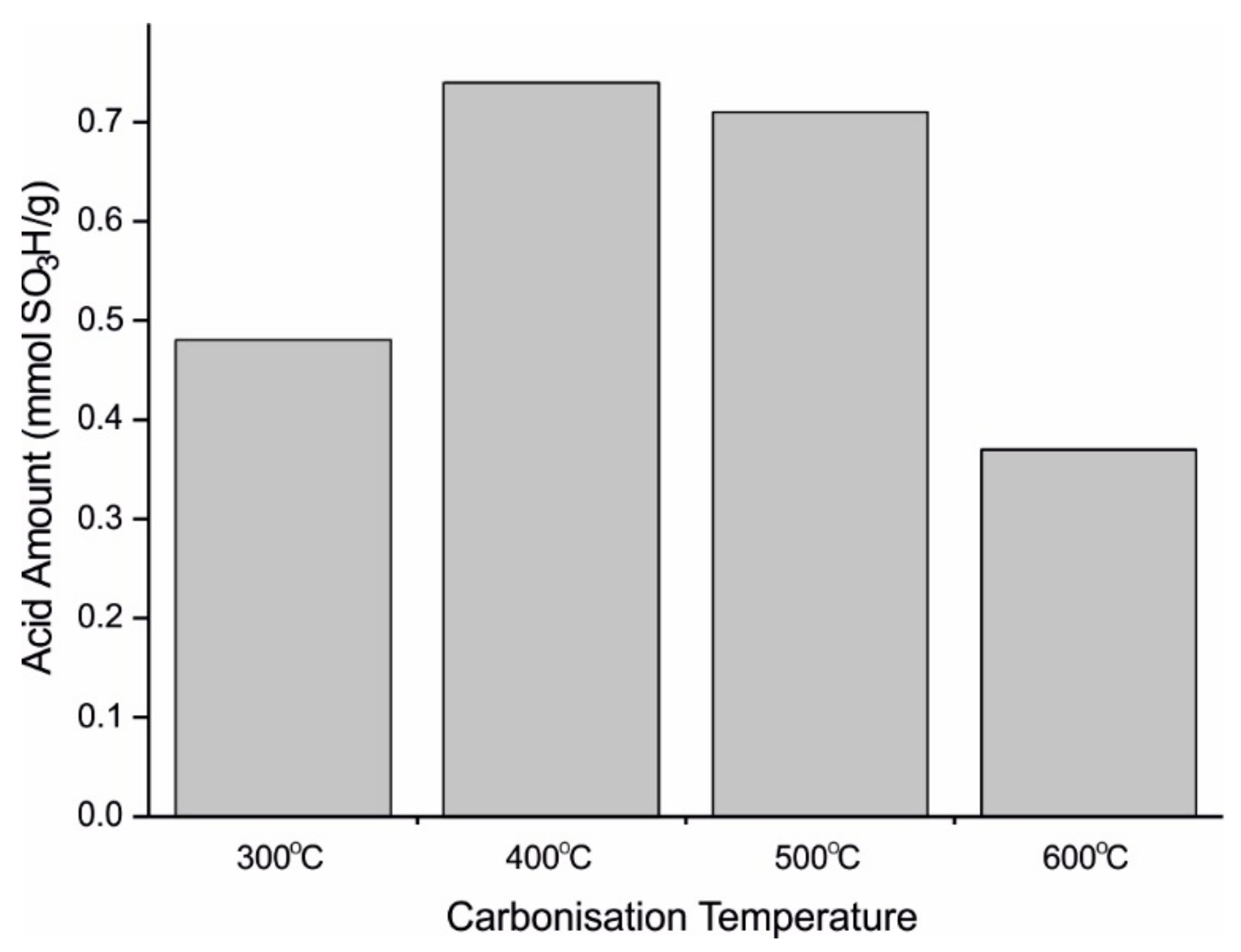

Okamura et al. [40] completed a study on the effect of carbonisation temperature on the catalytic ability of a D-glucose catalyst. The D-glucose was carbonised at 300, 400, 500 and 600 °C. The acid content due to SO₃H (which is representative of the catalytic performance) of the four D-glucose was compared, and the results are shown in Figure 8.

The acid content steadily increases with increasing carbonisation temperature up to 450 °C. This temperature is the temperature used in the preparation of almost all the carbohydrate-derived CBASs discussed in this review. Beyond 450 °C, the sulphur content and the catalytic performance of the D-glucose catalyst began to decrease dramatically. This effect can be summarised as follows; at lower carbonisation temperatures, small aromatic carbon sheets of 10–20 carbons are formed, as in Figure 3. The structural compositions of the biochars change with an increase in carbonisation temperature and give rise to a loss of aliphatic-C moieties and a transformation of C compounds to mostly poly-condensed aromatic-C type structures [47]. The smaller polycyclic aromatic sheets formed at lower temperatures lead to a higher acid content as the SO₃H groups join to the edges of the carbon sheets. Larger sheets formed at higher temperatures reduce the amount of potential locations for sulphonation to occur.

Interestingly, in the same study, a sample of the D-glucose carbonised at 400 °C was sulphonated with fuming sulphuric acid, and this catalyst exhibited twice the activity of the corresponding catalyst sulphonated with H₂SO₄.

3. Biomass Precursors

The conversion of biomass to effective and value-added catalytic material for biodiesel production makes use of a readily available and renewable feedstock that would usually be disposed of. The development of sulphonated carbon catalysts derived from waste biomass such as seed cake, nut husks and pyrolysis by-products will be the subject of this section.

Dawodu et al. [3] generated a sulphonated catalyst from the seed cake of Calophyllum Inophyllum (more commonly known as polanga). Polanga, an inedible tropical seed, was incompletely carbonised at 400 °C and the resulting powder was then sulphonated with concentrated H₂SO₄. SEM analysis of the material revealed large grains with irregular shapes and rough edges. The carbon was determined to be amorphous comprised of aromatic sheets in random orientation.

A one-step production of biodiesel (simultaneous esterification and transesterification) from polanga oil (15% FFA) was used to evaluate the catalytic ability of the sulphonated seed cake catalyst. The seed cake derived catalyst achieved a biodiesel yield of 99%. The reusability of the catalyst was also evaluated, as presented in Figure 9. For three consecutive uses, the catalyst retained good reusability after the third use the catalytic activity began to decrease substantially. As observed by some researchers, a combination of sulphur leaching [48] and catalyst poisoning by glycol [3] is believed to be responsible for the loss of activity.

Vegetable oil and petroleum oil asphalt is another form of biomass that has received attention for its potential catalytic ability for biodiesel production. Shu et al. [49] prepared two solid acid catalysts by sulphonating vegetable and petroleum oil asphalt that was carbonised at 500–700 °C. Following sulphonation the vegetable oil asphalt derived catalyst was found to have a loose irregular structure of large pores, conversely the petroleum asphalt catalyst exhibited little to no pores. The reason for the difference in morphology is believed to be due to the composition of the petroleum oil, consisting of the heaviest hydrocarbon non-metallic elements, which lead to a high degree of graphitisation following carbonisation, whereas vegetable oil asphalt is comprised of mainly straight chain aliphatic hydrocarbon polymers leading to a much lower level of graphitisation. The acid site density and the average pore size are presented in

Table 3. Sulphur content of oil asphalt catalysts.

Catalyst	Sulphur wt.%	Average Pore Size nm
Vegetable oil asphalt	7.1	43.9
Petroleum oil asphalt	3.6	2.2

. The sulphur content and pore size of the vegetable oil asphalt derived catalyst were substantially higher than that of the petroleum oil asphalt.

The attachment of SO₃H groups to non-graphitic carbon is more favourable than graphitic carbon leading to a higher acid site density. As well as a higher acid site density, the sulphonated vegetable oil asphalt exhibited a larger average pore volume than the petroleum oil catalyst allowing the reactants easier access to acid sites.

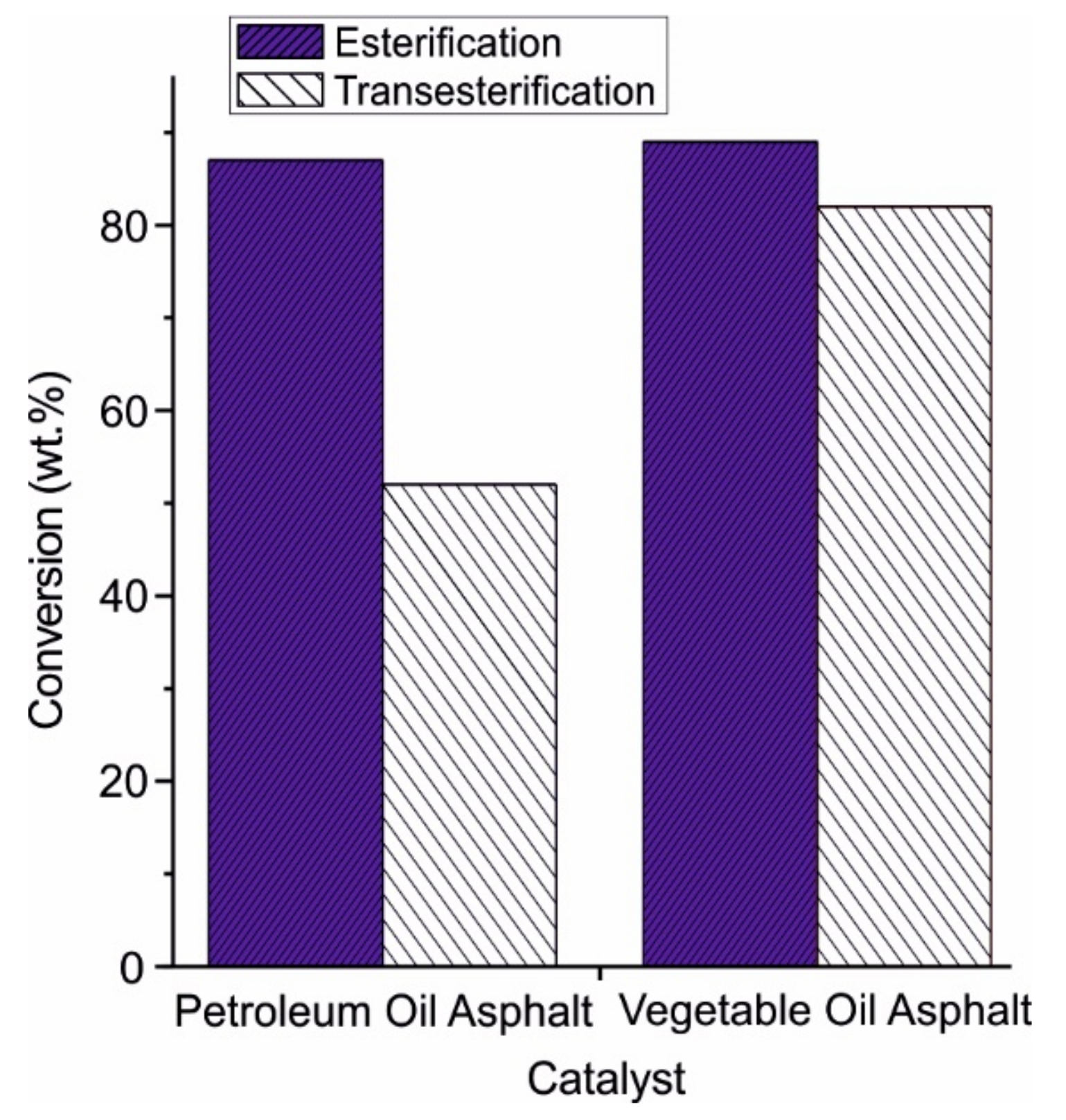

Both the vegetable oil asphalt and the petroleum oil asphalt catalysts were assessed for their esterification and transesterification ability using a model waste oil (50% cottonseed oil and 50% oleic acid). A combined esterification and transesterification process was used with a catalyst loading of 0.3 wt.% and a molar ratio of methanol: oil of 20:9. The esterification was carried out at 140 °C for 2 h, and following the esterification, the FAME and water formed in the first step were removed, fresh methanol was re-added to the reaction and the transesterification reaction was carried out at 220 °C for 3 h. The esterification and transesterification conversion are presented in Figure 10.

The eco-friendly vegetable oil asphalt gave a significantly higher conversion of FFAs than either of the petroleum asphalt catalysts used. Similarly, under the stated reaction conditions the vegetable oil asphalt outperformed the petroleum oil asphalt in the transesterification reaction.

Biochar is obtained as a solid residue in the pyrolysis of biomass [50,51]. Biochar is of interest as a catalytic material for a wide variety of reasons such as; large surface area, high pore volume, long term stability, the potential for surface functional groups and low cost of production [51,52,53,54]. Depending on the heating rate during pyrolysis the biochar can be produced as the major component or as a by-product. Fast pyrolysis is used to produce bio-oil, and biochar is generated as a by-product of the reaction (about 15 wt%), whereas slow pyrolysis with a lower heating rate favours the production of biochar giving a yield of 30–50 wt% [55,56].

Dehkhoda et al. [21] prepared two sulphonated biochar catalysts from woody biomass and examined their esterification and transesterification ability. The catalysts were prepared using two different methods. Method A: conc. H₂SO₄ was added to the biochar and heated; method B: the biochar was pre-treated with 7 M KOH to improve the porosity and surface area, and fuming H₂SO₄ was added to the treated biochar and heated.

Despite the lower surface area, catalyst B displayed a much higher sulphonic group density and total acidity than catalyst A (

Table 4. Catalyst characterisation for method A and B.

Catalyst	Surface Area m2/g	Sulphonic Group Density mmol/g	Total Acidity µmol/g
Method A	14.4	0.59	83
Method B	2.6	1.04	3200

). Catalyst A showed little to no catalytic activity for the transesterification of canola oil in the presence of ethanol. However, the catalyst demonstrated good esterification ability when tested with waste vegetable oil. Catalyst B showed significantly better activity for the transesterification reaction due to the increased acid site density and in particular, the increased sulphonic group density as this is the only acid group strong enough to catalyse the transesterification process. Despite the increased activity of catalyst B for the transesterification reaction, the maximum yield obtained was in the range of 10%.

A further study was completed by Yu et al. [57] in which an improved sulphonated biochar catalyst was produced from woody biomass using a method similar to method B with the carbonisation of the biochar being carried out at a range of temperatures. As expected, the surface area decreased following sulphonation but as depicted in

Table 5. Catalyst characterisation results for the various biochar catalysts.

Catalyst	Carbonisation Temperature °C	HCl Treatment	Surface Area (SA) before Sulphonation m2/g	SA after Sulphonation m2/g	Decrease in SA after Sulphonation %	Pore Size before Sulphonation nm	Pore Size after Sulphonation nm	Total Pore Volume after Sulphonation cm3/g	Total Acid Density mmol/g
Biochar [57]	450	No	204	1.9	99	2.6	-	0.01	2.6
Biochar [57]	675	No	668	640	4	2.2	2.2	0.35	1.2
Biochar [57]	875	No	1469	1411	4	2.2	2.2	0.71	0.5
Biochar [58]	675	Yes	990	949	4	3.2	3.2	0.85	2.0
Peanut shell [59]	450	No	-	12	-	-	39.3	-	6.9

the percentage decrease in surface area was drastically different for the catalysts carbonised at different temperatures. The catalyst carbonised at 450 °C showed the largest decrease in surface area, pore size, pore volume, and for the catalysts carbonised at 675 and 875 °C, the decrease in surface area, pore volume, and pore size was substantially lower. The reason for this is believed to be the elevated number of C–C bonds when the biochar was carbonised at higher temperatures, the C–C bond is more resistant to collapse leading to a lesser reduction in surface area, pore size and pore volume.

In contrast, the total acid density showed the opposite trend, with increasing carbonisation temperature and increasing degree of carbonisation, an increasing number of C–H bonds are ruptured which in turn reduces the active acid sites available on the catalyst surface.

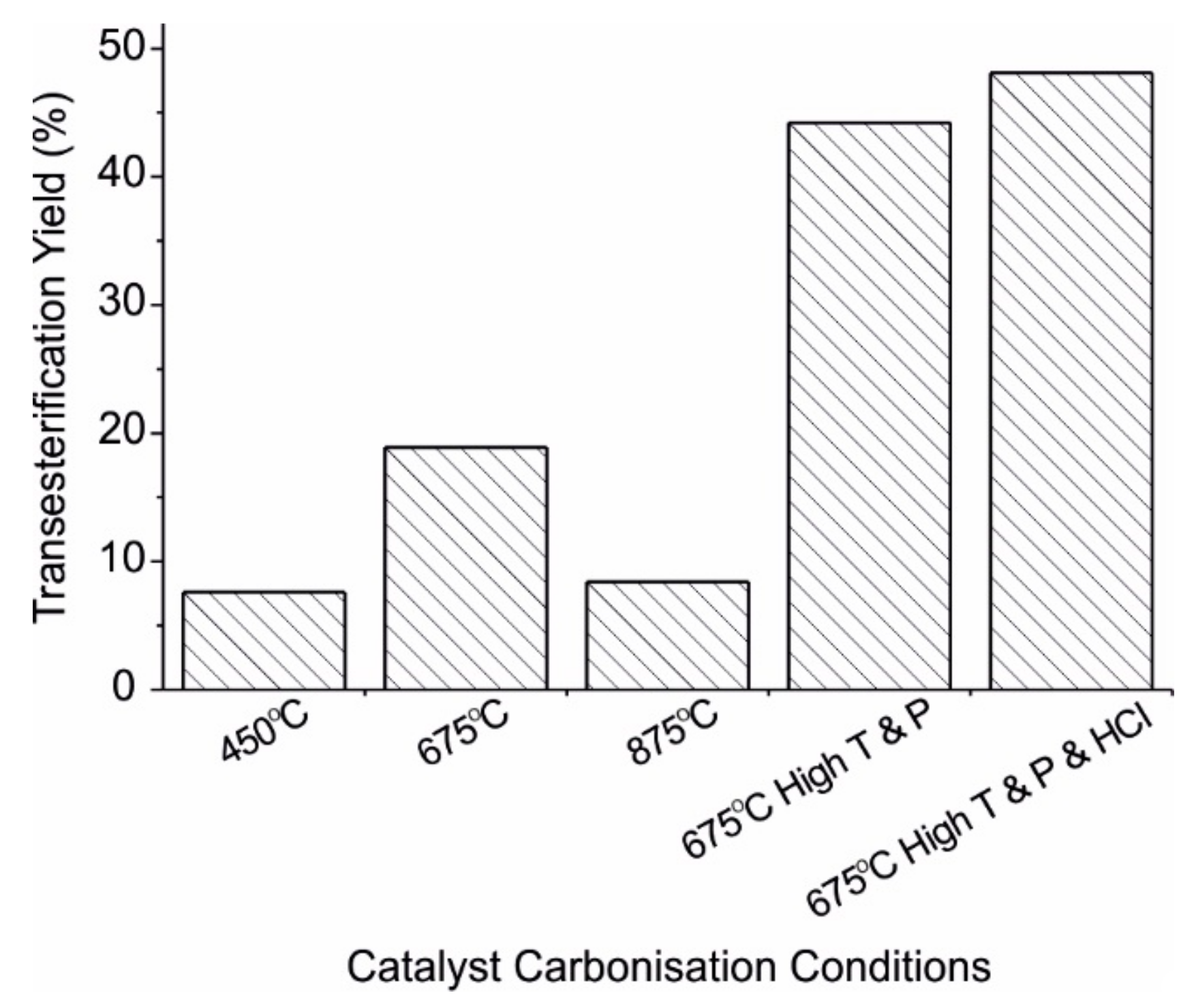

The transesterification of canola oil with methanol was used to evaluate the catalytic activity of the prepared catalyst. The yield of the three catalysts carbonised at three different temperatures can be seen in the Figure 11. The catalyst carbonised at 675 °C gave the highest yield of 18.9 wt.%, and this catalyst provided the right balance between high surface area and high acid site density.

A high pressure (P) and temperature (T) transesterification reaction was carried out at 150 °C and 1.52 MPa. The reaction was carried out for 3 h and the yield was 44%, which is a marked improvement over the previous result presented in Figure 11. Upon evaluation of the reusability of the catalyst, it was found that the catalyst retained little to no activity (0.9 wt.%) after the first run, and this was due to acid site leaching.

Dehkhoda and Ellis [58] completed a further investigation using the biochar carbonised at 675 °C, where an improvement in the reusability of the catalyst was observed. The catalyst was prepared in a similar way to method B described previously with the addition of one extra step—before sulphonation, the catalyst was treated with 0.1 M HCl. Catalyst characterisation results can be found in Table 5.

A high pressure and temperature transesterification reaction was carried out at 150 °C and 1.5 MPa. The yield achieved was 48 wt.% presented in Figure 11, which is very promising for biodiesel production. The reaction yield only decreased by 8 wt.% upon reuse of the catalyst. This is a substantial improvement in the reusability compared with previous biochar catalysts.

Zeng et al. [59] produced a biochar-derived catalyst that was superior to all other catalysts discussed in terms of yield and reusability. Waste peanut shells were used as a biomass feedstock for a biochar catalyst. The waste peanut shells were carbonised at 450 °C and sulphonated with conc. H₂SO₄. Table 5 contains catalyst characterisation data. The transesterification of cottonseed oil was used to assess the catalytic performance of the peanut shell catalyst. The optimum reaction conditions were determined to be as follows; methanol: oil molar ratio of 9:1, and a reaction temperature of 85 °C. Under the stated reaction conditions, a yield of 90% was achieved.

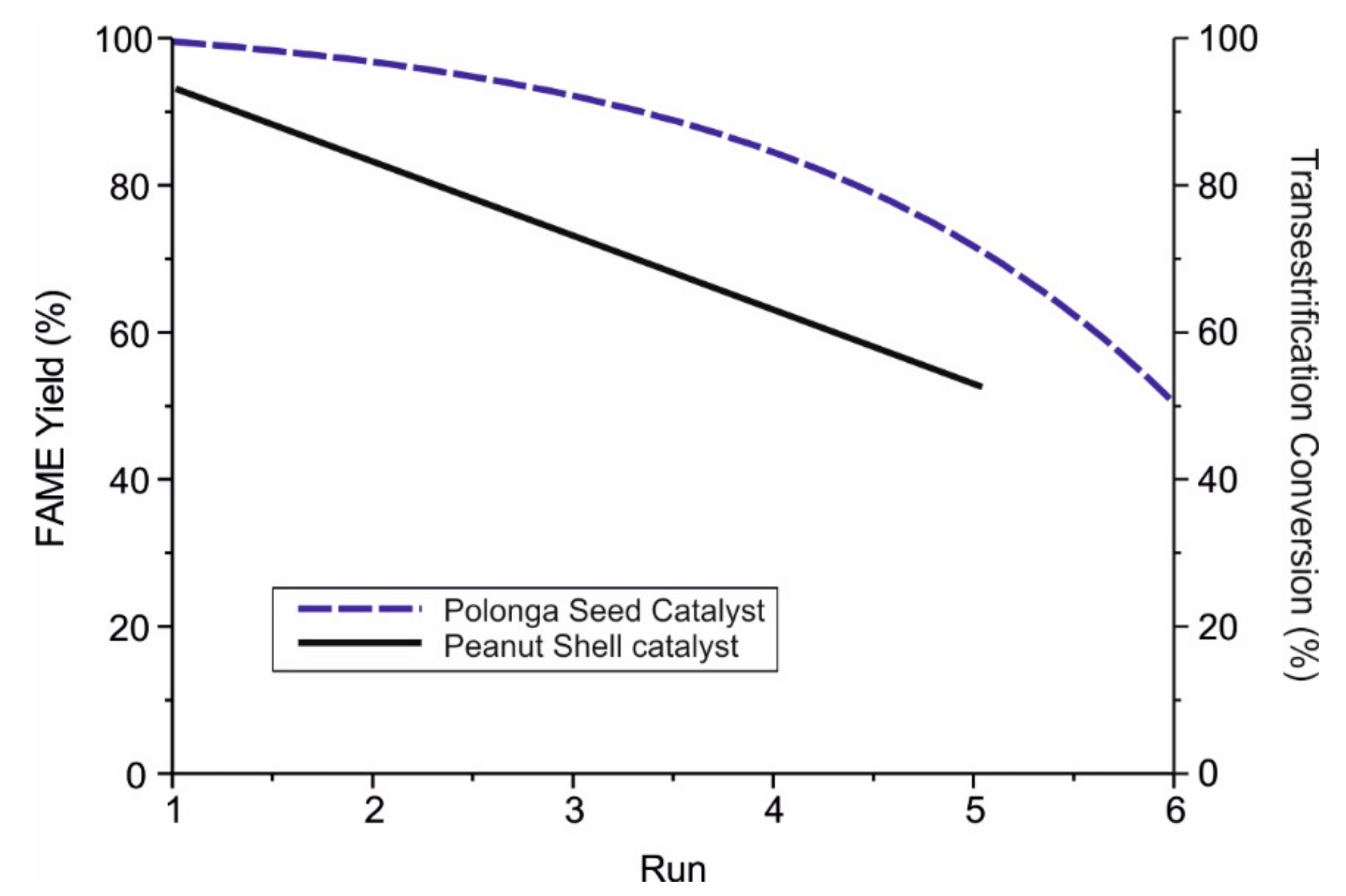

The catalyst showed good stability. However, a gradual loss in activity was observed, following five runs the catalyst still maintained approx. 50% of its activity (Figure 9). Following the five runs, the catalyst was regenerated by treating with 1 M H₂SO₄ for 5 h. The acid site density of the catalyst was initially 6.9 mmol/g following five uses the acid site density dropped to 3.4 mmol/g. The catalyst was regenerated, and the acid site density again increased to 6.1 mmol/g. The majority of the catalytic activity can be recovered using this regeneration process.

The waste peanut shell derived catalyst has been demonstrated to be a very attractive and viable catalyst option for biodiesel production. The feedstock is cheap, readily available and environmentally friendly, the resulting catalyst demonstrates high conversion and stability.

4. Economic and Operating Condition Assessment

Table 6. Summary of operating conditions, performance and cost per kg for all catalysts discussed.

Catalyst	Cost Per kg ($) (Taken from Sigma Aldrich)	Carbonisation: Temperature Time	Sulphonation Conditions	Reaction Conditions	Yield: Esterification Transesterification	Reusability
D-glucose [46]	39.2	400 °C 15 h	Conc. H2SO4 150 °C 15 h 10 mL/g	Methanol:WCO weight ratio 1:1 10 wt.% catalyst loading 80 °C	Esterification = 90%	Retains 93% of activity after 50 successive runs
D-glucose [39]	39.2	180 °C 4 h	One step hydrothermal carbonisation and sulphonation	Methanol:WCO molar ratio 20:1 10 wt.% catalyst loading 80 °C, 3 h	Esterification = 95%	5 repeated uses 7% increase in FFAs
Cellulose [41]	196.0	450 °C 5 h	Fuming sulphuric acid 180 °C 10 h	Esterification:oleic acid 17 wt% catalyst 95 °C, 4 h Transesterification: Triolein 130 °C, 700 kPa, 5 h	Esterification = 99.9% Transesterification = 98.1%	Esterification: No reduction in activity after 10 uses Transesterification: No reduction in activity after four uses
D-glucose [10]	39.2	400 °C 15 h	Conc. H2SO4 150 °C 15 h	WCO (27.8% FFA) Methanol:WCO molar ratio 20:1 10 wt% catalyst loading 8 h, 80 °C	Combined Transesterification and Esterification 70%	Not investigated
Sucrose [10]	93.4				Combined Transesterification and Esterification = 72%	Not investigated
Cellulose [10]	196.0				Combined Transesterification and Esterification = 78%	Not investigated
Starch [10]	31.9				Combined Transesterification and Esterification = 92%	Retained 93% of catalytic ability after 50 uses
Sulphonated seed cake [3]	By product of oil extraction process. Low-cost inedible oil	400 °C 10 h	Conc. H2SO4 150 °C 10 h	Methanol:seed oil weight ratio 1:1 0.38 g catalyst (7.5 wt%) 180 °C, 5 h	Combined Transesterification and Esterification = 99%	Begins to deteriorate after three successive uses
Petroleum oil asphalt [49]	By-product of petroleum industry	500–700 °C 4–6 h	Conc. H2SO4 210 °C 10 h 10 mL/g	Cottonseed oil:oleic acid molar ratio 1:1 Methanol:oil molar ratio 20:9 0.3 wt.% catalyst loading 140 °C Esterification 220 °C Transesterification 5 h	Esterification = 54% Transesterification = 87%	Not investigated
Vegetable oil asphalt [49]	Low cost can be produced from waste oils and inedible oils				Esterification = 83% Transesterification = 89%	Not investigated
Biochar A [21]	Waste wood	475 °C Unknown time	Conc. H2SO4 150 °C 24 h 10 mL/g	Esterification: Waste vegetable oil 28:1 Methanol:oil molar ratio 15:1 5 wt% catalyst 60 °C	Esterification = 89%	Not investigated
Biochar B [21]		475 °C Unknown time	Fuming sulphuric acid 150 °C 5 & 15 h	Transesterification Methanol:oil molar ratio 15:1 5 wt% catalyst loading 24 h, 65 °C	Transesterification = 10%	Not investigated
Biochar [57]		450 °C 675 °C 875 °C 4.5–7 h	Fuming sulphuric acid 150 °C 15 h 16.5 mL/g	Methanol:canola oil molar ratio 15:1 5 wt% catalyst loading 150 °C, 3 h, 1.52 MPa	Combined Transesterification and Esterification = 44.2	Loses almost all catalytic ability after one use
Biochar [21]	Waste product	675 °C Unknown time	Fuming sulphuric acid 150 °C 15 h 16.5 mL/g	Methanol:oil (70% canola 30% oleic acid) molar ratio 15:1 5wt% catalyst loading 150 °C, 1.52 MPa, 3 h	Combined Transesterification and Esterification = 48.1	Reaction yield decreases by 8% upon reuse of catalyst
Peanut shell biochar [22]	Waste product from peanut industry	450 °C 15 h	Conc. H2SO4 200 °C 10 h 100 mL/g	Refined cottonseed oil Methanol:oil molar ratio 9:1 2 wt% catalyst loading 85 °C, 2 h	Combined Transesterification and Esterification = 90.2%	Retains 50% of catalytic activity after 5 runs. Easily regenerated with 1 M H2SO4

compares the different CBAS catalysts discussed in terms of cost per kg, (the price given above does not represent bulk purchase prices and is for comparison purposes only) preparation conditions, operating conditions, reaction times, yield and reusability. Among the carbohydrate-derived catalysts, the carbonisation and sulphonation conditions are almost identical; carbonisation was carried out at between 400 and 450 °C for up to 15 h for all of the carbohydrate-derived catalysts. Sulphonation conditions were typically 150–180 °C for 10–15 h with conc. H₂SO₄ in the range of 10 cm³ per gram of catalyst. In some cases, fuming sulphuric acid was used, giving an improved catalytic performance. The starch and glucose derived catalysts were relatively more economical than their sucrose and cellulose counterparts. The starch catalyst prepared by Lou et al. [10] in particular shows excellent potential for commercial use. The catalytic activity of the starch catalyst is similar to that of concentrated H₂SO₄ for both the esterification and transesterification reactions. The starch-derived carbohydrate achieved the highest conversion and highest rate of reaction of any of the carbohydrate catalysts produced. The reusability of the catalyst is key to its application in industry, as this will reduce production costs.

Biomass-derived catalysts have the advantage when it comes to economics, as the biochar is prepared from low-cost waste biomass feedstock. The catalyst synthesised from Calophyllum inophyllum seed cake by Dawodu et al. [3] exhibited excellent catalytic properties and demonstrated reusability for three successive runs. The seed cake catalyst promotes a reduced raw material cost, whereas the starch catalyst exhibits greater reusability and the reaction takes place at milder conditions. Further investigation is required to determine the most economical catalyst.

Of all the pyrolysis residue products that were investigated for their catalytic ability, the peanut shell biochar catalyst demonstrated the highest catalytic activity and the best reusability. The pyrolysis conditions used to produce this catalyst are mild in comparison with the other biochar catalysts discussed while the sulphonation conditions used are slightly harsher than those used in the starch or seed cake catalyst. Interestingly the ratio of concentrated H₂SO₄ to catalyst is twenty times higher than that used for the starch and seed cake catalyst. It is not known whether this ratio is necessary or whether it was just decided arbitrarily, and this may be an important factor to consider in the cost of production if it is a requirement. The catalysts derived from pyrolysis products generally suffer with reusability issues when compared with carbohydrate-derived catalysts.

In terms of the next steps for CBAS biodiesel catalysts, further investigation is required to determine which catalyst highlighted in the economic assessment is the most economically viable, taking cost of the raw material, preparation and operating conditions as well as yield and reusability into account. A study comparing their catalytic activity under identical reaction conditions would give comparable results between the catalysts allowing the optimal catalyst and reaction conditions to be chosen.

5. Conclusions

An ideal catalyst would have high acid site density, with a large amount of the acidity coming from SO₃H functional groups, a large surface area, high stability leading to good reusability properties and a large average pore size and pore density. In terms of the carbohydrate-derived catalysts, the starch catalyst demonstrated the above properties to the greatest extent, delivering a high FAME yield and showing good reusability. The biomass catalyst prepared from seed cake showed excellent potential for commercial use, with a high yield and good reusability over three successive runs. The pyrolysis residue products typically suffer from poor reusability. However, the peanut shell biochar catalyst produced a very high FAME yield, while retaining a high proportion of its activity on subsequent runs, which was a marked improvement over the other biochar catalysts discussed.

One further area of study that may be of interest is the use of fuming sulphuric acid. In cases where fuming sulphuric acid was used, enhanced catalytic activity was observed. Investigation into the performance, reusability and economics of fuming sulphuric acid versus concentrated sulphuric acid under the same conditions is required to gain a clear picture of the advantages of one sulphonation method over the other.
