Study, Development and Prototyping of a Novel Mild Hybrid Power Train for a City Car: Design of the Turbocharger

Abstract

Within a large, state-funded, Italian National Project aimed to test the feasibility of an on-the-road prototype of a mild hybrid city vehicle, one of the tasks was to conceive, design and implement an innovative turbocharger that would allow for some energy recovery. The selected vehicle is propelled by a 3-cylinder, 998 cc turbocharged engine (the 66 kW Mitsubishi-Smart W451). The idea is to implement two types of energy recovery: one via the new turbocharger and one through a standard braking energy recovery (also known as KERS). The study of the former is the object of this paper. The proposed turbocharger configuration consists of mechanically separated, electrically coupled compressor and turbine, possibly mounting only slightly modified commercial equipment to reduce construction costs. This paper reports the results of the calculation of the behavior of the new turbocharging group across the entire engine operating range and describes the preliminary design of the unit. An accurate simulation of a mixed (urban and extra-urban) driving mission demonstrates that a net saving of about 5.6% can be attained by the installation of the novel turbocharger unit.

1. Introduction

Issues related to the road transportation system and the proposed solutions are currently being debated worldwide. The crux of this debate is whether to shift to electric vehicles (EVs) because of their purported “zero emission capability” and high conversion efficiency, or to devise novel configurations for the gasoline (or diesel or LPG or methane) fueled engines. On the wave of strong subsidies to an “electric transition”, this field is attracting public and private investors, and the market, although still a niche one, is booming: worldwide sales of plug-in cars increased by about 8% in 2018–2019. There are three main types of electric vehicles: battery powered (battery electric or BEVs), ICE-hybrid (HEVs) and fuel cell powered (FCVS) [1,2,3]. Compared to traditional ICE, the propulsion system is fully or partially powered by batteries or smaller ICE or fuel cells, and the traction can be all-electric or mixed (the ICE and the electric motor power separate axles). Advanced electronic equipment is used to monitor and control battery packs, electric motors, power converters, sensors, energy flow management, etc. and has become a key element in the design and implementation of this type of vehicle. The subject of this research is the study and implementation of an innovative supercharger for the ICE (998 cc) of a city car, the Mitsubishi-Smart W451. The design concept is to mechanically disconnect the compressor/turbine unit, powering the compressor with a dedicated electric motor and extracting extra work via a turbine-driven generator. Such a decoupling, currently implemented only on Formula cars and also developed at prototype stage by the Garret corporation [4], allows for both machines to be designed so that they operate very close to their respective maximum efficiency within the expected real operating ranges (dictated by the engine map). Specifically, the turbine is expected to have a lower rotation rate than the original group and will, therefore, be slightly larger. The advantage is that in current supercharged groups the surplus at lower and higher regimes is discharged through the waste-gate valve without expanding in the turbine. In the configuration proposed here, instead, all of the energy of the exhaust gases is exploited by the turbine to generate electrical power that can be channeled into the battery pack. Such a configuration is called a mild hybrid vehicle (MHV).

2. Compressor Re-Design

Since the vehicle displacement and power (998 CC) are assigned, the natural choice is to use (and possibly slightly reconfigure) the compressor currently installed, i.e., the Garrett GT12 model, whose operational map is shown in Figure 1. In view of the modifications implemented on the compressor geometry and briefly described below, it is useful to summarize here the conceptual design procedure [5,6,7,8,9]:

• The nameplate volumetric flow rate ${\dot{Q}}_{nom}=\dot{m}/{\rho }_{nom}$ is calculated at the rotor intake, at standard $p_0$ and $T_0$ conditions (298 K, 1 bar);
• The design compression ratio β is imposed, and the polytropic specific work is calculated by:

  $$W=c_{p,av} T_0 \left( {\beta }^{\frac{k-1}{k·{\eta }_p}}- 1\right)$$

  (1)
• Using the design peripheral speed of the current industrial version of the machine, $U_{des}$, the required head coefficient is obtained:

  $${\psi }_2=\frac{W_{EUL}}{{\eta }_m{U}_{des}^2}$$

  (2)
• If the obtained ${\psi }_2$ value is acceptable (i.e., falls within the range of values historically adopted in similar machines with technically satisfactory results), only one stage will be sufficient. This is the case for the present situation.

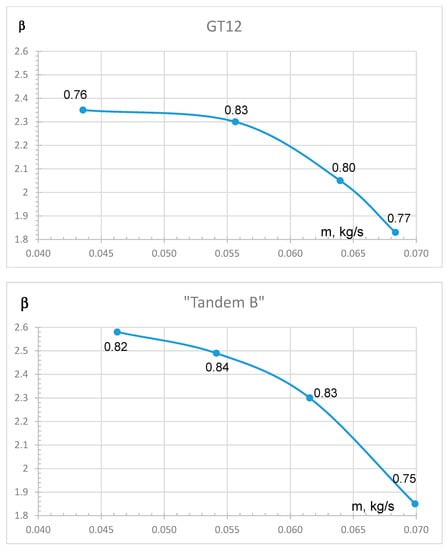

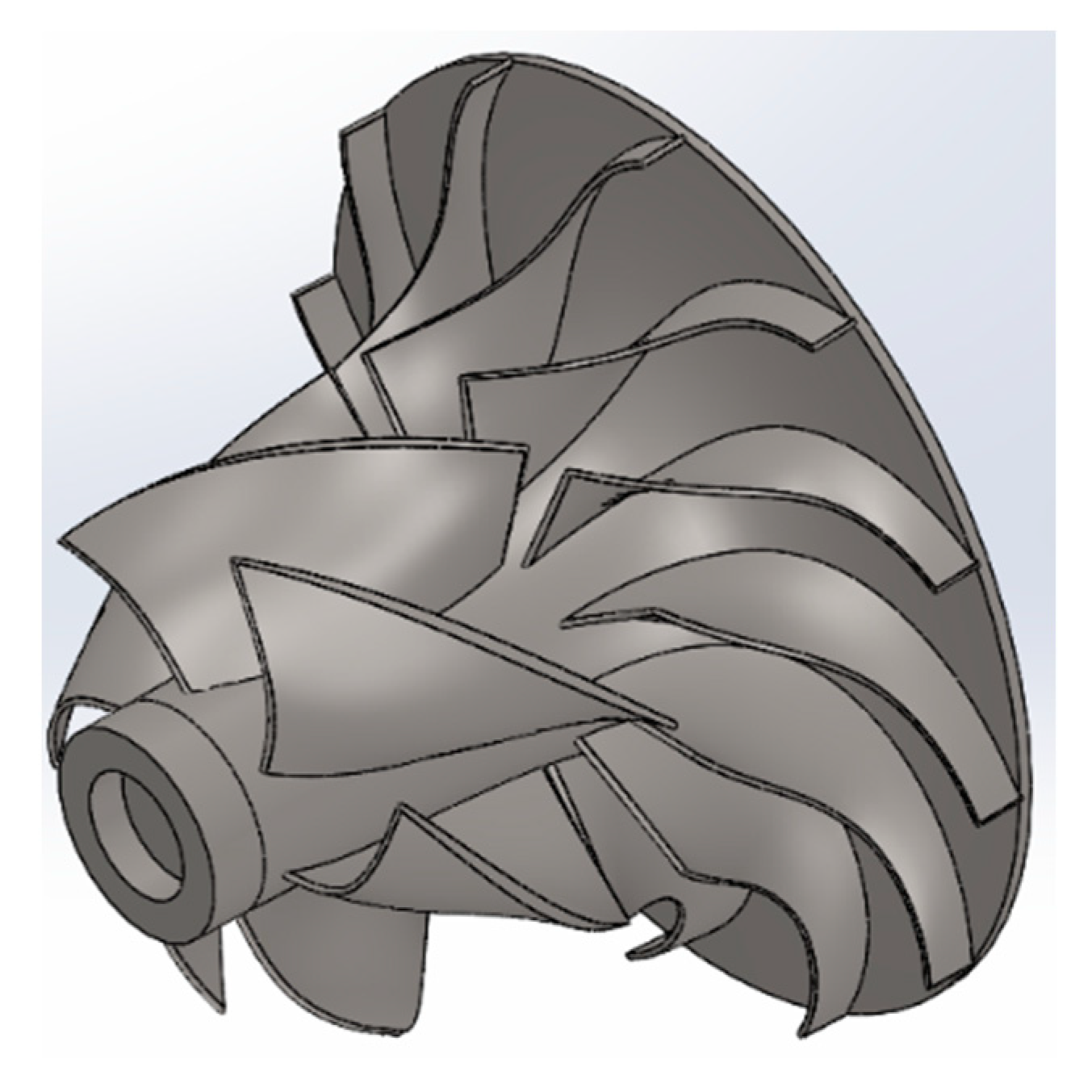

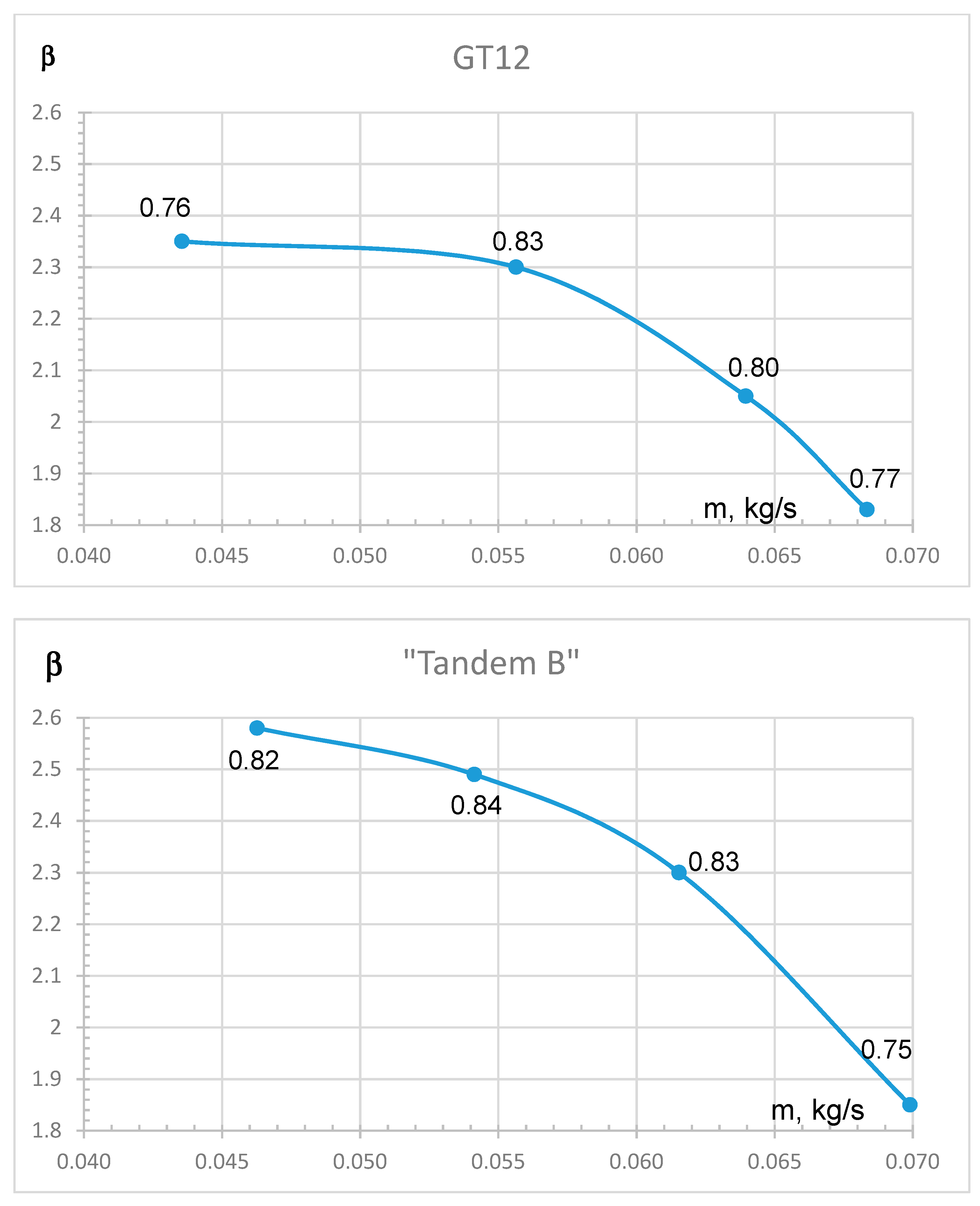

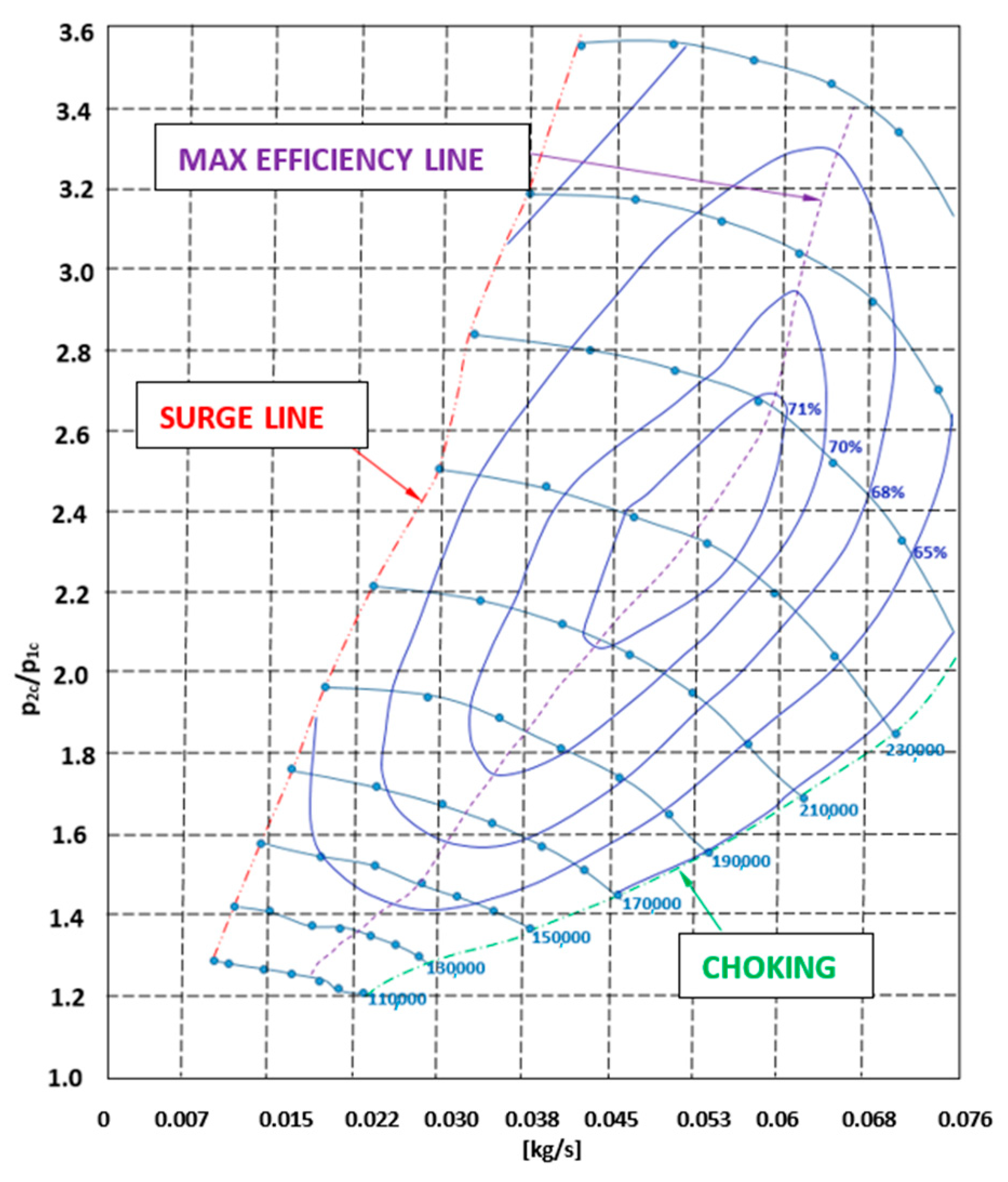

The next step is to perform a preliminary design of the stage, i.e., to define all of its dimensions and shape ratios, choosing the materials and proceeding to a final design [10,11,12]. In our case, it was decided to modify the compressor design adopting a tandem configuration (Figure 2) consisting of an axial inducer followed by a radial exducer, maintaining the same inlet and outlet section diameters as in the Garrett GT12. The details of the necessary modifications and the DOE-CFD-aided configuration optimization are reported in detail in [13], and only the final results will be presented here. The modified compressor has a higher compression ratio than the original unit with an improved surge margin and a lower sensitivity to choking: its characteristic is shown in Figure 3, together with the corresponding engine operating points. The results of the preliminary design of the compressor are displayed in

Table 1. Tandem version of the GT12 compressor operating points (new design).

ICE rpm	$\dot{\mathit{m}}$ [kg/s]	Compressor rpm	βc	Tin [K]	Tout [K]	P [W]	η
2000	0.021	145,000	1.42	298.4	344	920.71	0.68
3500	0.0408	180,000	1.64	297.5	354	2474.39	0.8
5500	0.0619	210,000	1.78	297.5	366.8	4444.96	0.82

.

3. Preliminary Re-Design of the Turbine

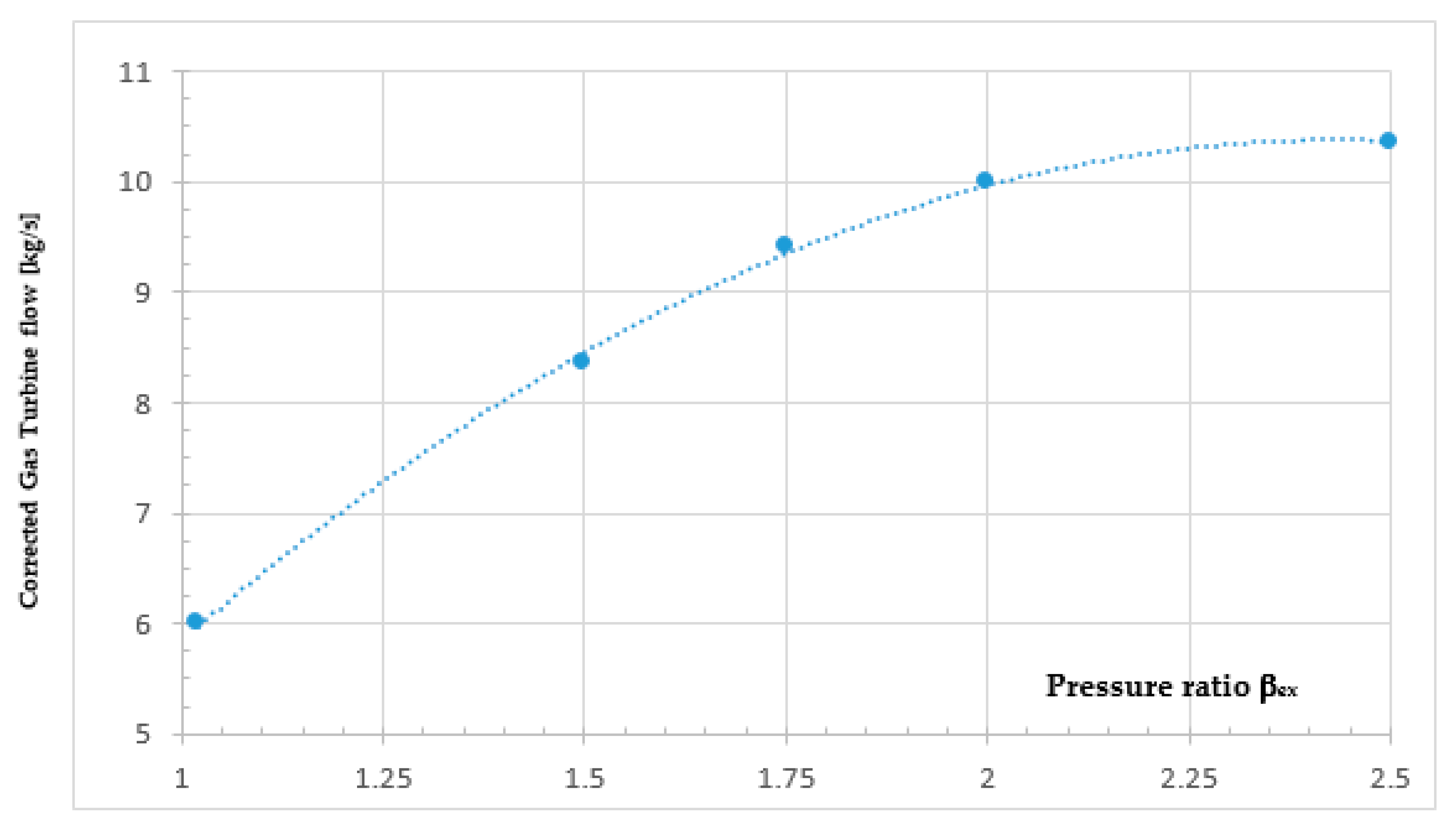

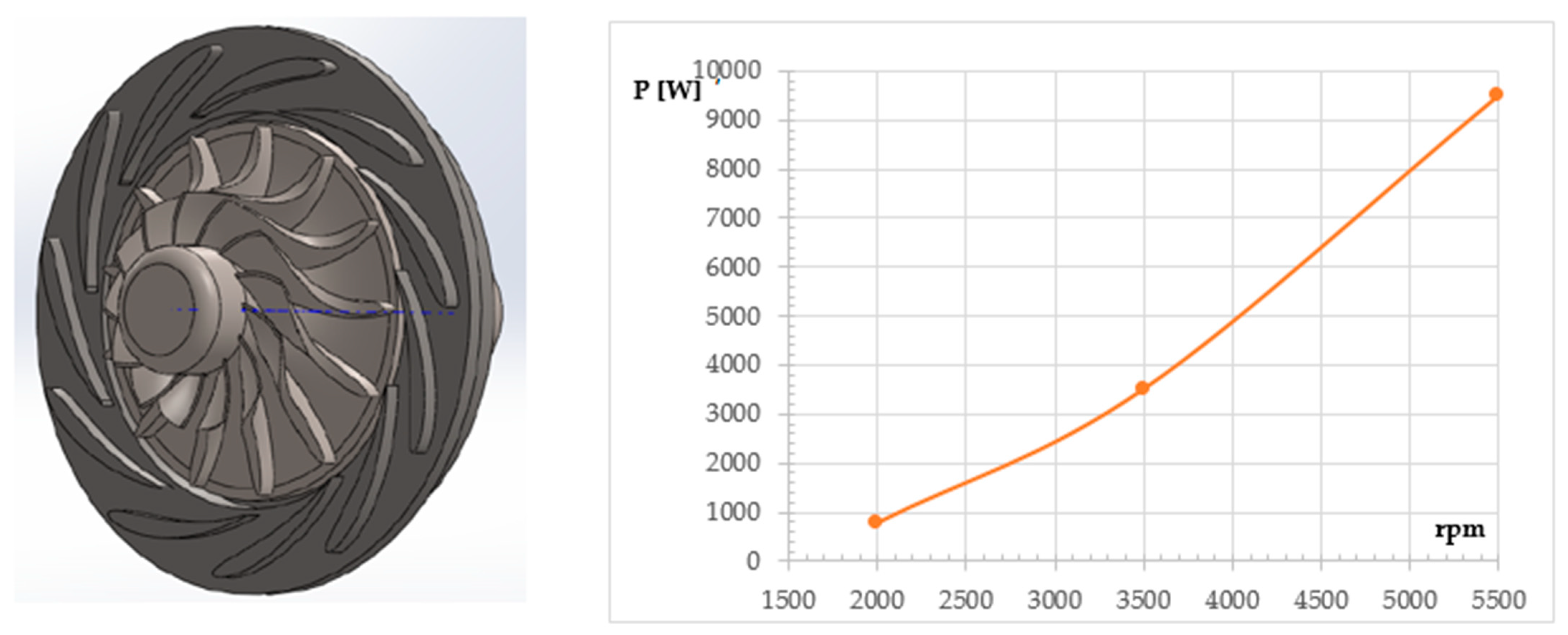

In an electrically coupled turbocharger it is not possible to use the original GT12 component, because its design points depend on the operation of the waste-gate valve, and as such it would not be able to properly respond to the engine conditions nor to supply the required extra power [14,15,16,17,18]. The selection and redesign of the turbine are detailed in a separate work [19], and only a brief summary is repeated here. The selected turbine is a modified Garrett GT20 (operative map in Figure 4), with an accurate redesign of the blade shapes to improve its efficiency and delay choking. In particular, the rotor blade number was increased (14 vs. the original 9), the rotor profile shape and fluid/blade angles were modified, and an 11-blade variable-angle one replaced the original fixed nozzle. The final design and the characteristic curve are shown in Figure 5, and the operating points are displayed in

Table 2. The modified GT20 turbine operating points.

ICE rpm	$\dot{\mathit{m}}$ [kg/s]	Turbine rpm	βc	Tin [K]	Tout [K]	P [W]	η
2000	0.024	82,170	1.2	954	922	780	0.87
3500	0.04	134,483	1.6	1005	930	3510	0.86
5500	0.07	164,002	2	1045	932	9500	0.81

.

4. Energy Recovery from the Turbocharger and Preliminary Vehicle Energy Balance

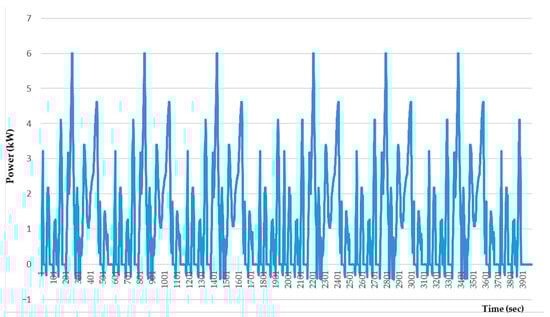

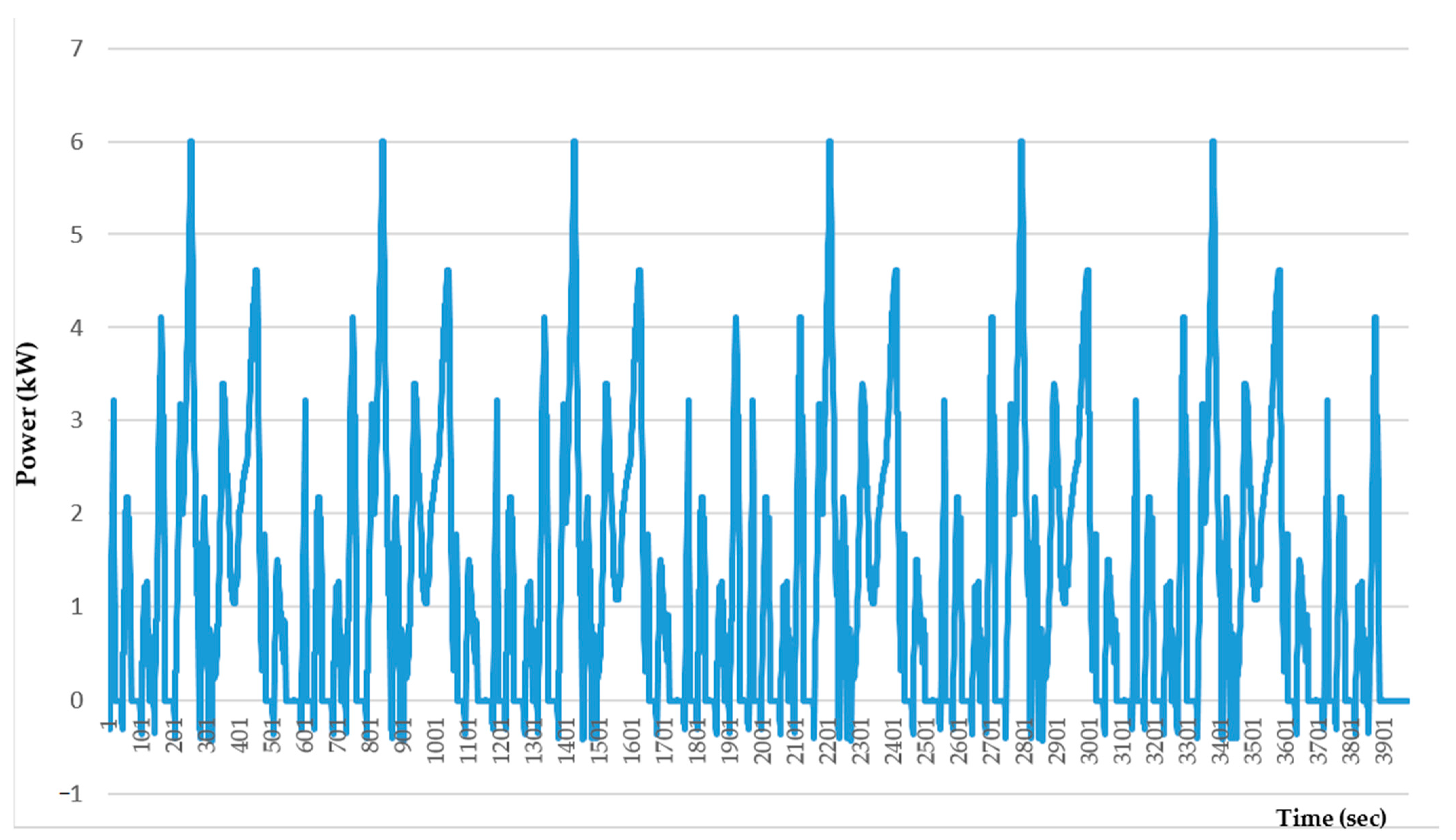

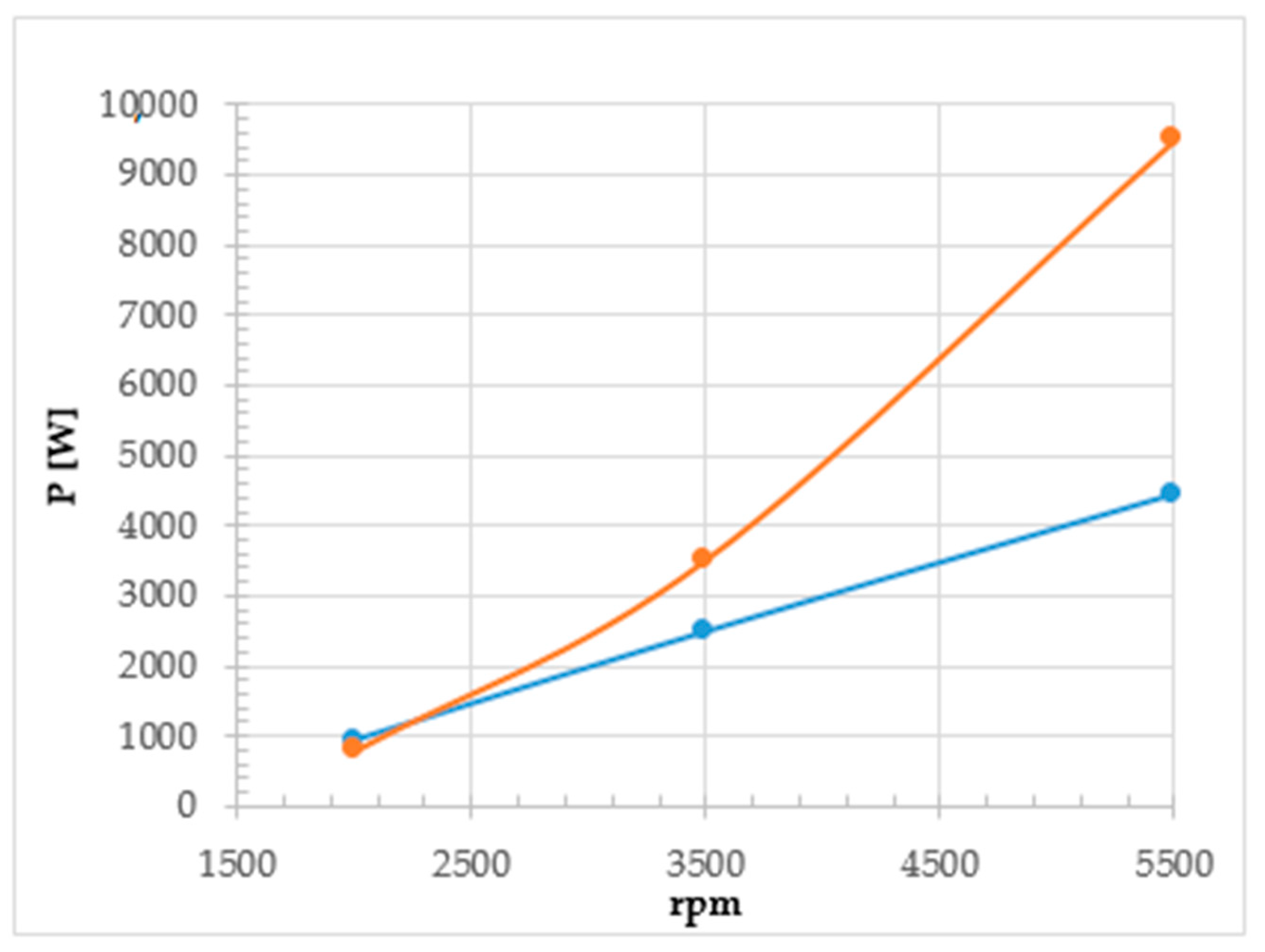

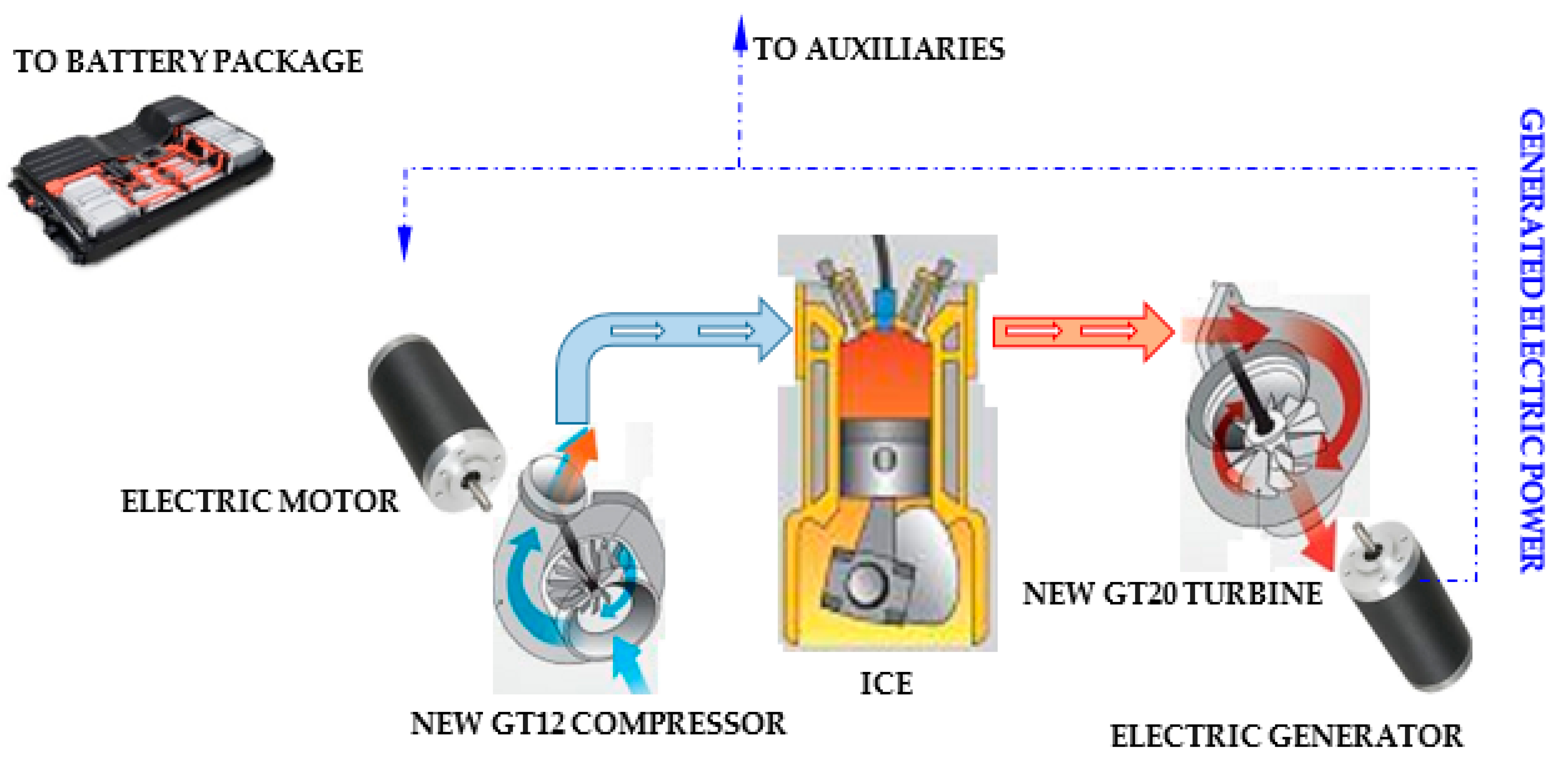

Thanks to the above described design modifications, the new turbocharger, operating in the configuration shown in Figure 6, delivers an extra power at all engine regimes, except below about 2500 rpm (Figure 7): notice that the reported values include the mechanical and electrical efficiency and therefore represent net power. For any mission type (in the present study, a local semi-urban city path curve has been used, but the procedure obviously can be adapted to any type of mission, as well as ETC, EUDC, WVU and NEDC [20,21]), the engine energy balance is computed by calculating the instantaneous power request at the wheels [22,23,24], adding the transmission losses and the compressor power and subtracting the turbine power, and taking into account the charging efficiency of the battery pack. The effect of the KERS has not been included in the simulations presented here, because the relevant specifications are not available at the time of this writing. The results of the simulations are shown in Figure 8 and Figure 9. For almost the entire mission, the turbocharger unit is able to deliver net extra power. This power will be used to feed the vehicle auxiliaries (lights, air conditioning, GPS, control panel, console, etc.). Where the power count is negative (almost always in restarts and sometimes during braking), the compressor will draw the required power from the on-board battery pack.

Since the vehicle is conceived as a mild hybrid, this battery pack is obviously much smaller than in an HEV or a BEV [21,25]. In longer missions, the instantaneous surplus generated by the turbocharger, discounted of the contributions dispatched to the auxiliaries, may lead to a condition in which the battery pack has a SOC (State of Charge) close to 100% and cannot accept further charging. Under these circumstances, the extra power could be conveyed to an auxiliary electric motor for additional propulsion [20,25,26]. Such an option though will be considered only after the conclusion of the bench tests on the complete unit (ICE + turbocharger + battery pack).

5. Discussion

The general concept of obtaining extra “free” power by redesign of the turbocharger appears feasible. Major changes were introduced in the compressor, which is now in a tandem configuration (the stage is composed of an axial inducer and of a radial exducer, both mounted on the same shaft) and whose design has been independently optimized. The tandem unit has the same radial dimensions as the original GT12 but has a somewhat longer axial span because of the presence of the inducer: thus, a repackaging of the compressor assembly is necessary.

The electrical motor [19,20] is mounted on the back of the rotor, so that the stage inlet is unobstructed. As for the turbine, although the redesign was relatively minor (blade number and curvature were changed, and a moving NGV added), the need for power required the installation of a larger unit, namely a modified version of the Garrett GT20: again, this requires a complete repackaging of the assembly, which would have been necessary anyhow, given the elimination of the waste-gate valve and the positioning of the electrical generator on the “colder” downstream side, properly shielded from the turbine discharge pipe.

Aside from the obvious advantage of generating excess power, the new turbocharger also performs better than the original one: it has a higher efficiency and is less sensitive to surge (in the compressor) and choking (in the turbine). Its only drawback is the fact that below 2500 rpm (of the ICE) it absorbs power from the battery, although this does not seem to be a problem, at least in the simulated mission.

6. Conclusions

Within the frame of a broader research project, the present study deals with the redesign of the existing turbocharger unit in a 998 gasoline fueled city car. The proposed solution is to physically decouple compressor and turbine, powering the former by an electric motor and collecting the power of the latter by an electric generator. Both machines were redesigned, the compressor to a larger amount, to improve surge and choke characteristics. In the turbine (a modified Garrett GT20), variable-angle NGV were installed.

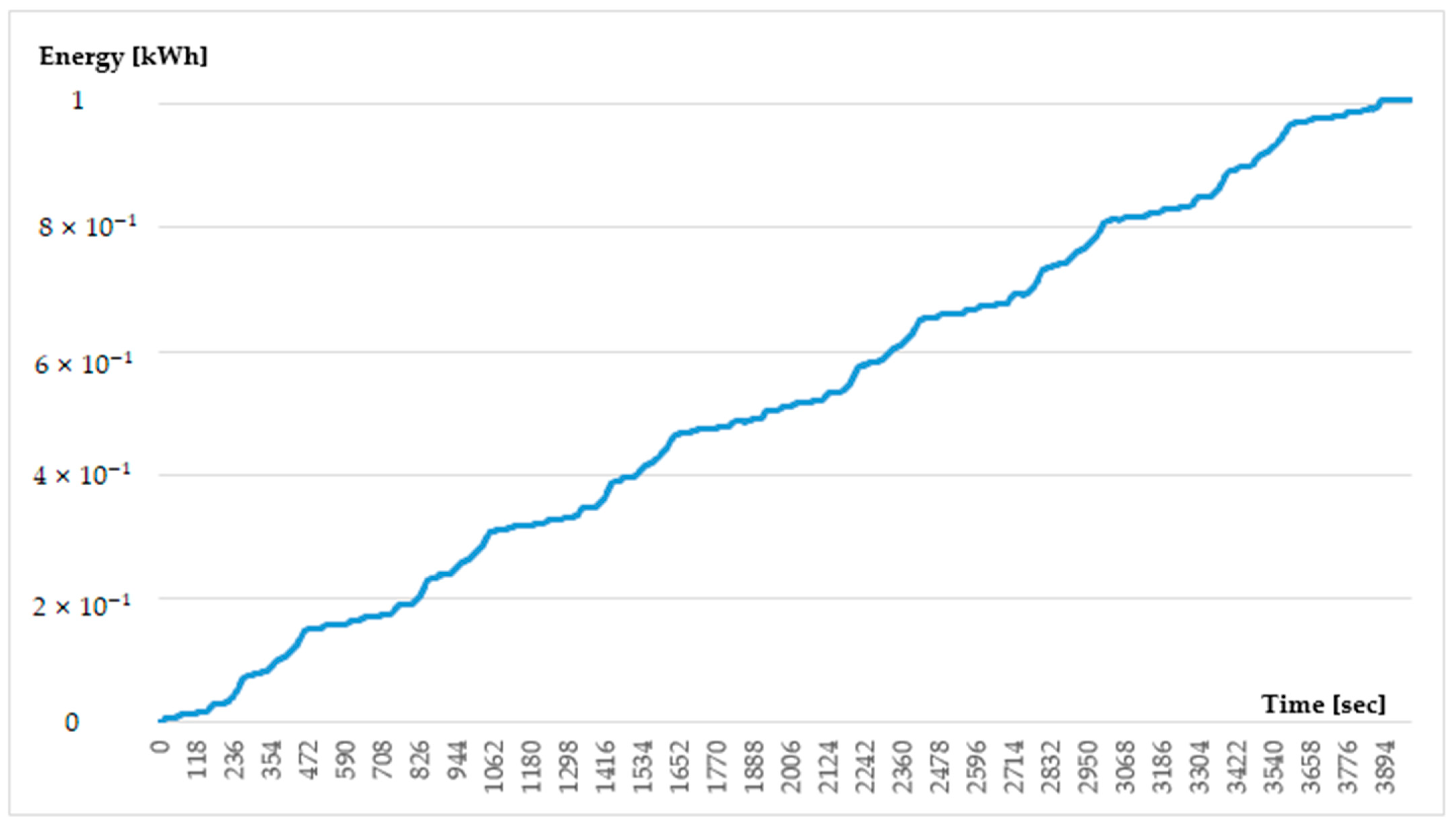

Complete simulations of both machines, presented elsewhere, demonstrated improved efficiencies as well, and provided operational curves that were used in the present study. A quite taxing mission profile was simulated, and the excess power calculated: the total energy recovered over the entire mission amounts to 1.01 kWh (versus the 18 kWh of total energy required by the vehicle), meaning that a net saving of about 5.6% can be attained by the installation of the novel turbocharger unit.

A series of bench tests to calibrate the electronic control units is also in the making, and their results will be the object of a separate paper.
