A New Method for Detecting Onset and Offset for Singing in Real-Time and Offline Environments

Featured Application

The onset, offset, and transition detector algorithm that this paper is proposing can be used in singing assessment, note extraction, score following, automatic signing to score transcription, and singing to score alignment, but it is not limited to them.

Abstract

This paper introduces a new method for detecting onsets, offsets, and transitions of the notes in real-time solo singing performances. It identifies the onsets and offsets by finding the transitions from one note to another by considering trajectory changes in the fundamental frequencies. The accuracy of our approach is compared with eight well-known algorithms. It was tested with two datasets that contained 130 files of singing. The total duration of the datasets was more than seven hours and had more than 41,000 onset annotations. The analysis metrics used include the Average, the F-Measure Score, and ANOVA. The proposed algorithm was observed to determine onsets and offsets more accurately than the other algorithms. Additionally, unlike the other algorithms, the proposed algorithm can detect the transitions between notes.

1. Introduction

One of the fundamental processes of analyzing audio signals is finding the start and endpoint of the notes, which are called the onset and the offset, respectively. Onset and offset are not exact points/times that are universally agreed as the starting and ending of a note but exist within an acceptable range [1,2,3,4].

Several applications need the results of onset/offset detection, such as tempo and pitch estimation, beat tracking, score following, automatic music transcription, and analysis of recorded music. Real-time music applications demand almost instantaneous results, i.e., real-time onset detection for systems such as the interactive music systems explained in Müller-Rakow [5] and Malloch [6], or for music transcriptions as discussed by Kroher and Díaz-Báñez [7]. Therefore, it is vital to minimize the time delay between the onset or offset and their detection in real-time environments.

Over the years, many research contributions have been made for onset detection, but most work offline. If the onset detection function has been appropriately created, then onsets events will give rise to well-localized recognizable features, e.g., a peak, in the detection function [8]. Several common approaches for detecting onsets, such as spectral difference, phase deviation, wavelet regularity modulus, negative log-likelihood, and high-frequency content, are well explained in the Bello et al. [8] study and then compared by Collins [9]. Moreover, Dixon [10] has proposed multiple future enhancements for some of these methods.

In addition, Lacoste and Eck [11] propose an offline music onset detection algorithm using single and combined versions of Artificial Neural Networks (ANN) trained with different hyperparameters, and Eyben et al. [12] employ a Recurrent Neural Network (RNN) based on Mel spectrograms. Furthermore, after pre-processing with a time-variant filter, a method using Hidden Markov Models (HMMs) was proposed by Degara et al. [13] for offline onset detection. Schlüter and Böck [14] refined the model proposed by Eyben et al. [12] and trained Convolutional Neural Networks (CNNs) with mini-batch gradient descent (this splits the training dataset into small batches) to reduce model error, and the input to their model was two log Mel-spectrograms. Their approach outperformed other traditional methods and required less additional processing. However, the peak-picking approaches used for CNN and RNN-based methods rely on future information (not probabilistic) to detect an event; thus, they cannot work for real-time music onset detection.

Some of the studies are mainly focused on detecting onsets from singing signals. For instance, the singing onset detection method of Toh et al. [15] is based on audio features such as Mel Frequency Cepstral Coefficients, Linear Predictive Cepstrum Coefficients, pitch stability zero-crossing rate, and signal periodicity. First, the extracted audio features are classified into onset and non-onset frames using Gaussian Mixture Models (GMM). After GMM scoring, the feature evaluation is preceded by a dual detection function (feature level and decision level fusion) for higher accuracy in selecting the most optimal features. This method resulted in an 86.5% precision, 83.9% recall, and an F-measure of 85.2%. The recall shows the proportion of real positive cases that are correctly predicted positive. Precision implies the fraction of predicted positive cases that are correctly real positives. In binary classification, the F-measure calculates a test’s accuracy. It is calculated from the precision and recall of the test. The F-measure is the harmonic mean of the precision and the recall. The value of an F-measure is between 0 and 1. The highest value specifies perfect precision and recall, while the lowest shows whether the precision or the recall is zero [16]. However, despite the high F-measure score, it was still possible that their result could contain bias because of the dataset they used. The training and test set come from a tiny dataset comprising 18 singing recordings from four singers with 1127 onsets.

In the study conducted by Gong and Serra [17], a deep learning model was trained for musical onset detection in solo singing, and the authors discussed how their algorithm could lead to improve live onset detection models. They used two datasets, one of which contains more than 25,000 onsets, mostly complex mixtures or solo instrumental excerpts, and only three excerpts are of a solo singing voice, and the other dataset is a subset of a solo Jingju singing voice that contains 100 recordings. They employed seven deep learning-based architectures.

In the Gong and Serra [17] study, it was preferred to use the score-informed method if the musical score information was available. Score-informed approaches evaluate the data with the assistance of musical scores. Based on the results, score-informed HMM outperformed peak picking for all of the architectures used in this experiment [17]. The reported F-measure for the combination of the peak picking method and a no-dense neural network architecture was 73.88%, with a p-value of 0.002. For the score-informed HMM method, a nine-layer CNN architecture worked best, giving an F-measure of 80.90% and a p-value of 0.001. Learning strategies for inter-dataset knowledge transfer were also studied, but due to different musical patterns, the authors claimed that when the musical patterns from the two datasets used to train their model were different, the onset prediction was not accurate.

Despite these studies, onset detection of a musical note remains a challenge, primarily for the singing voice. Chang and Lee [18] explain several reasons for this, including inconsistency of articulation, singer-dependent tonal quality, and gradual variation in onset envelopes over time. In other words, the time-varying spectral envelope and the inconsistency of vocal tracks may produce fake maxima (i.e., peaks) in an onset detection function that can lower the precision rate for onset detection. Therefore, detecting onsets from the singing voice is still an active area of study because of waveform unpredictability and the occurrence of many noisy segments. Moreover, most methods are only suitable for recorded singing and are designed to work offline.

According to the previously published results, most existing approaches do not work well for soft onsets, including singing music. A soft onset has a long attack duration or vague envelope shape that becomes a challenge to the peak-picking procedure. The underlying reason for these issues is that the singing voice is classified as a pitched non-percussive (PNP) instrument, and PNP instruments still present a challenge for onset detection [9]. The nature of the singing voice adds further complexity due to its natural inconsistency with respect to pitch and time dynamics. Unlike some instruments, where their timbre is usually consistent throughout a note, the singing voice inherently can produce more variations of formant structures (for articulation); sometimes, it may even variate within the duration of a single note [19]. While most onset detection algorithms are based on detecting spectral changes, they can fail to differentiate such variations in a singing voice because of singing features such as vibration and soft onset.

Relevant challenges for onset detection in solo singing voices were identified in a report from the Music Information Retrieval Evaluation eXchange 2012 (MIREX 2012). According to this report, the best-performing detection method gives an F-measure of only 55.9% [4], which even becomes lower for solo sustained strings with an average F-measure of 52.8%. In addition, training datasets for dynamically changing patterns in a singing voice is still a challenge [17,20].

One of the missing parts of most of the onset detection algorithms is considering the actual singing style features. In the Mayor et al. [21] study, it is shown that one of the crucial features that should be taken into account in onset detection is the transition from a note to another note where there is no intervening silence, i.e., legato singing [21]. The transition means a singer will take a while to reach the target note. If the time for the transiting is not incorporated, the onset detector cannot find the correct times for onset and offset events. These transitions are categorized as a soft onset.

This paper aims to introduce a new onset detection algorithm incorporating more knowledge about the singing features for a more accurate onset estimation. Although the result of this study is based on an offline F0 estimator algorithm, the proposed algorithm can work in a real-time environment if fundamental frequencies can be estimated correctly.

The following section explains the methodology. After that, in Section 3, the new algorithm will be discussed in detail. Then, the evaluation results for the proposed algorithm will be presented and discussed in Section 4. Finally, the last section concludes the paper and its findings.

2. Materials and Methods

This section explains the details of the approach taken to develop our algorithm. It first describes the datasets used, then explains the algorithm thoroughly, followed by the structure of the evaluation procedure.

2.1. Datasets

Two onset-annotated vocal datasets, Erkomaishvili [2] and SVNote1 [4,18], are used for this study. The following paragraphs provide a summary description of these different musical datasets.

2.1.1. Erkomaishvili Dataset

This dataset includes 100 monophonic audio files of traditional Georgian vocal music performed by a professional singer, Artem Erkomaishvili. Each audio file contains the fundamental frequencies, segment annotation, onset annotations, and sheet music in XML. Moreover, it contains more than seven hours of music with 40,135 onset annotations. The annotations were estimated manually except for the fundamental frequencies, whose calculation was semi-automated. Moreover, in this dataset, the points for onset and offset in successive notes were deemed to coincide, i.e., the offset of the previous note is the onset of the new note. Since the files were recorded in 1966, the audio files have poor quality. In addition, the recordings are of natural melodic singing rather than only some scales or arpeggios. Therefore, it is a challenging dataset for automatic annotation algorithms.

2.1.2. Note-Level Singing Voice Dataset (SVNote1)

This dataset included 30 audio files sung by seven men and three women. Each of the singers recorded three popular pieces of music (1—“soft kitty, warm kitty, little ball of fur”, 2—“school bell”, and 3—“Twinkle, twinkle little star”). They are, in total, around 16 min of music with 1440 onset annotations. In addition, three people annotated the onsets of each audio file separately, which means that three sets of annotations are provided for each audio file. The three annotators’ average is considered to be the ground truth for this study.

2.2. State of-the-Art Onset Detection Algorithms

To evaluate our proposed algorithm’s efficiency and accuracy, eight different onset detection algorithms were selected against which to compare the accuracy of the proposed algorithm. The implemented versions of the algorithms in Python were used. The algorithms were taken from implementations across four different Python libraries, namely Librosa [22,23], Madmom [24], Aubio [25], and Essentia [26]. The explanations of the algorithms are provided in the following by categorizing them based on the Python libraries.

2.2.1. Librosa

Librosa is a well-known library for sound analysis and feature extraction [23]. It has three different methods to estimate onsets. The first method (referred to as “LibRaw” in this paper) locates the note onsets based on peaks in the onset strength envelope. The onset strength envelope is calculated by finding the spectral flux, which is the difference in power spectrum between two consecutive frames, applying a threshold, and returning a one-dimensional array representing the change in spectral energy for each frame. Then, based on the onset strength, it peaks where the energy is a minimum based on the heuristic described by Boeck et al. [27]. Another two methods rely on backtracking from the nearest preceding minimum energy point [28]. The second method (called “LibBt”) works by backtracking using the onset strength profile, while the third method (named “LibBtRMS”) depends on backtracking with the Root Mean Square (RMS) or amplitude value. All these three methods are offline; they have not been designed to work in real time.

2.2.2. Madmom

This Python library provides two real-time onset detection methods [24,29]. The first approach (called “MadmomCNN” in this article) uses a Convolutional Neural Network model [14] trained on 26,000 annotated onsets. The model was trained to predict percussive and harmonic onsets with a frame rate of 100 per second. Next, the spectral onset processor method detects the onsets from a logarithmically scaled audio signal representation based on the spectral magnitude and phase, which is referred to using the name “MadmomSF” in this paper.

2.2.3. Aubio

This real-time library uses a window size of 2048 frequency samples to detect onsets [30]. In addition, Aubio sets a threshold value to mark quiet regions. Finally, it constructs a function based on successive spectral frames with a window size of 2048 and a hop-size of 1024, meaning the frame duration was approximately 23.22 ms for a 44,100 Hz sample rate. The dynamic thresholding and peak selections return the onset frames.

2.2.4. Essentia

This offline onset tracking method was used with its default values for the window and hop sizes, 1024 and 512, respectively, for a Hann window [26]. Therefore, the duration of each frame was roughly 11.61 ms. There are two approaches to this library. The first method, Essentia Onset HFC (EssHFC), uses a high-frequency content detection function [31]. The high frequency is calculated by multiplying the magnitude of each frame position (frequency) with the summation of the magnitudes of the spectral frame. The discrete spectrum of N unique points is formulated in Equation (1).

$$\mathrm{HFC}={\displaystyle {{\displaystyle \sum }}_{i=0}^{N-1}}i\left|X\left(i\right)\right|,$$

(1)

The second method, Essentia Onset Complex (EssCplx), uses a complex domain spectral difference function to identify significant changes in magnitude and phase [32]. This algorithm tries to identify significant energy changes on note onsets or the deviation of phase values within the phase spectrum caused due to pitch changes.

Finally, it should be mentioned that all these algorithms/libraries calculate only onsets and do not compute offsets or identify transitions.

2.3. The Methods for Evaluation

The accuracy of the proposed algorithm is evaluated by running the algorithms presented in Section 2.2 and the proposed algorithm on the datasets mentioned in Section 2.1. Then, the F-measure scores were calculated by the mir_eval Python library [33], and the results were ordered so that they could be compared with each other. As mentioned above, the onset points are not exact times but a range of acceptable times. Therefore, to calculate F-measure scores, each of the estimated onsets’ points should be compared with a range of points around the ground truth points. Thus, six different window sizes (10, 50, 100, 150, 200, and 250 ms) were considered to calculate the F-measure scores. Furthermore, the F-measure scores’ average, variance, and ANOVA were calculated to better understand the results.

3. The Proposed Algorithm

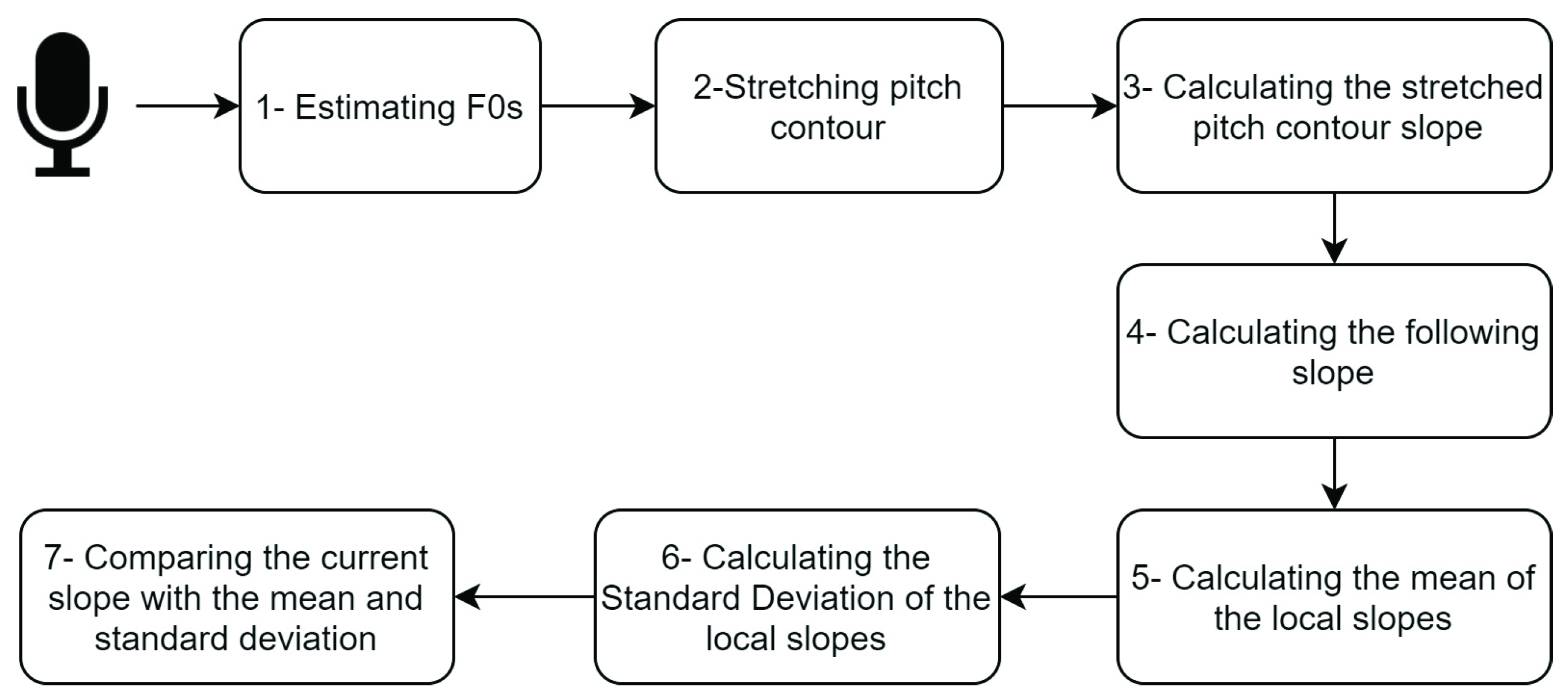

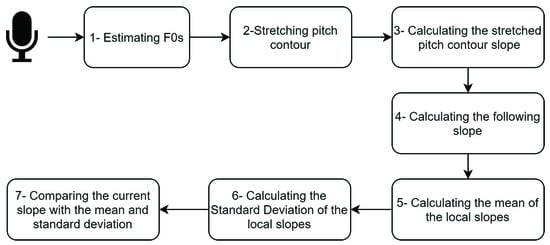

This algorithm is based on our observations following investigations that involved many singing pitch contours. From many of the plotted pitch contours, it was noticed that there is a noticeable trajectory change in the fundamental frequency when moving from one note to another. Therefore, the proposed algorithm is focused on evaluating the changes on a pitch contour to identify those meaningful changes that will signify onsets, offsets, and transitions.

The pitch contour is selected because it is a robust indicator of onset compared to other features. For example, Rabiner and Sambur [34] looked to find significant changes in the sound energy contour to find the start and the end of an isolated utterance. Their approach is based on short-time energy and zero-crossing rate. However, although in the case of a silence existing between notes, as considered by Rabiner and Sambur [34], a noticeable change in amplitude contour is easy to see, it is difficult to rely on the amplitude contour as a feature when analyzing legato singing, as unpredictable variation occurs in the movement from one note to the next. In contrast, the fundamental frequency track is either erratic before the onset and then quickly becomes stable or moves smoothly from one value to the next in the case of legato singing, even when the consecutive notes are in the same pitch frequency. Thus, the proposed algorithm can be explained as seven main steps to find the onsets, offsets, and transitions, as shown in Figure 1. The steps are explained in the subsequent paragraphs.

3.1. Estimating F0s

Since the algorithm is based on the fundamental frequencies, the F0s must be estimated correctly. However, as mentioned in [35,36,37], the current real-time pitch detection algorithms are unreliable when applied to singing phrases. Therefore, according to the study by Faghih and Timoney [35], a more reliable offline algorithm, pYin [38], was employed to avoid a compounding effect in this analysis if any real-time pitch detector algorithm would be used. Thus, it was possible to evaluate the accuracy of the onset algorithm without any adverse effects caused by the pitch detection algorithms. A Python library, Librosa [22], was used for pYin.

The main difference between the real-time and offline algorithms is the amount of data they need for the calculation. Therefore, real-time algorithms are only based on the previous data points and/or a few later data points meaning that only a short buffer delay is required. On the other hand, offline algorithms require a long buffer delay to have sufficient data to perform their calculations. Using the pYin algorithm does not mean the proposed algorithm needs a long buffer delay to obtain a large amount of data, but the algorithm can work with a very short buffer delay, as explained below.

3.2. Stretching Pitch Contour

Since humans’ vocal pitch range is wide, generally from 77 to 900 Hz [39], calculating significant changes occurring on pitch contour has some difficulty. For example, the slope of the line when moving from the note $E2\approx 82 \mathrm{Hz}$ to the note $F2 \approx 87 \mathrm{Hz}$ is much less than when it moves from the note $E5\approx 659 \mathrm{Hz}$ to the note $F5 \approx 698 \mathrm{Hz}$. Therefore, to counteract any adverse effect of this wide pitch frequency range on the slopes, the F0s are stretched to be on the almost same pitch frequency range.

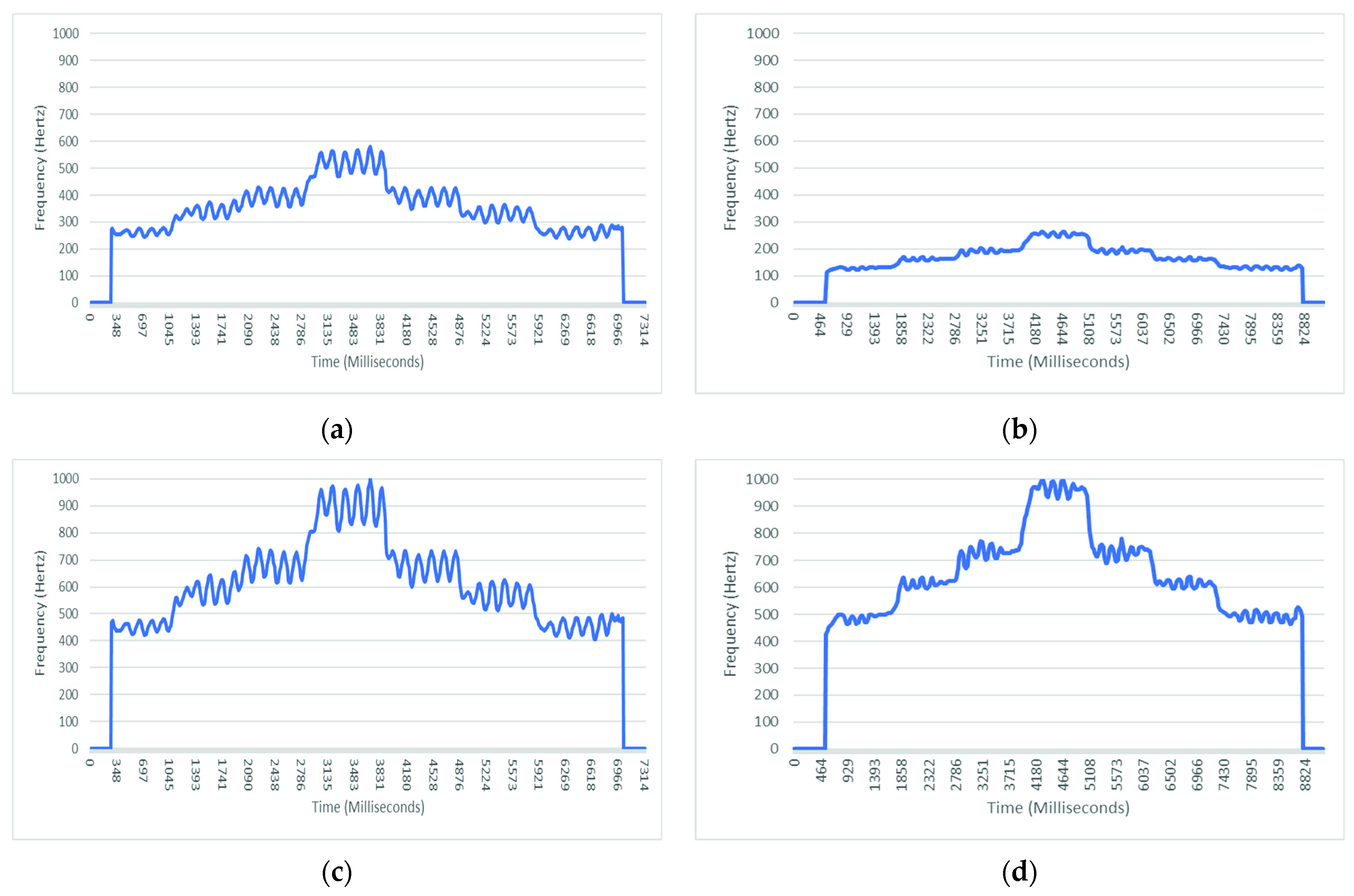

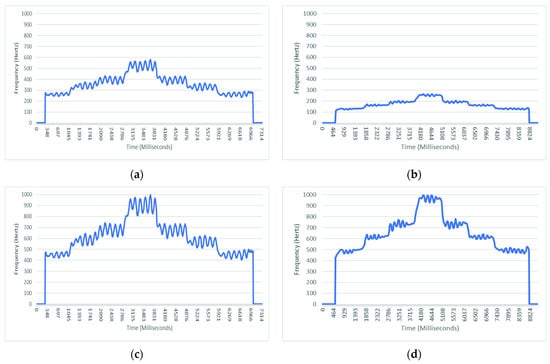

Figure 2 plots two estimated pitch contours (panels a and b) and the stretched version of them (panels c and d, respectively). As depicted in Figure 2, although (a) and (b) are in different pitch frequency ranges, after stretching, the slopes between notes in both (c) and (d) are almost similar.

The following formulas, Equations (2) and (3), are used to implement the stretch.

$$\max =\{\begin{array}{c}F{0}_i, F{0}_i>max\\ max, otherwise \end{array},$$

(2)

$$F{0}_i=\frac{F{0}_i\ast Threshold}{max},$$

(3)

where the variable $max$ holds the maximum F0 estimated until index $i-1$, and the constant value $Threshold$ holds the maximum possible F0. Since the maximum pitch frequencies of the singers in both datasets mentioned above are less than 1000 Hz, for this study, 1000 Hz is considered as the $Threshold.$ In Equation (2), if the current F0, $F{0}_i$, is more than the $max$ variable, Equation (3) should be run for all the F0 from index $0$ to index $i-1$.

3.3. Calculating the Stretched Pitch Contour Slopes

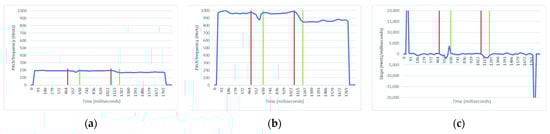

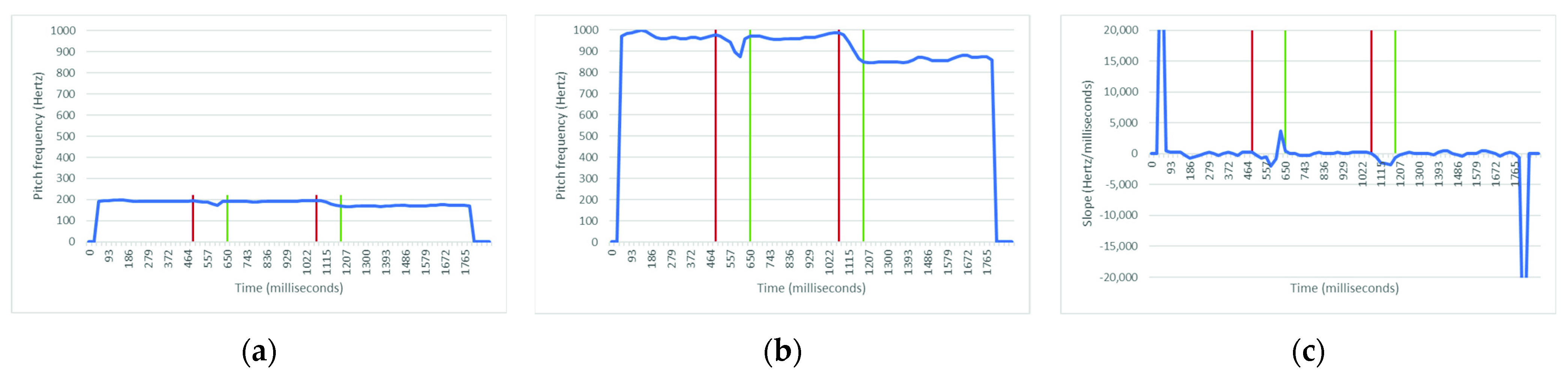

To find the significant changes in F0s, the slopes between points in the pitch contour are needed. Figure 3 illustrates the process of calculating the slopes: in the left-hand panel, (a), the estimated pitch contour is plotted; the graph in the middle panel, (b), shows a stretched pitch contour of the contour in panel (a) as discussed in Section 3.2, while that the right-hand panel, (c), depicts the slopes between the F0s of the stretched pitch contour. It is computed by differentiating the contour. The vertical red lines in Figure 3 show the possible offset points, and the vertical green lines are the possible onset points.

3.4. Calculating the Summation of Slopes in the following Line

In singing, transitions can be observed as the singer moves from one note to another. An example of this is outlined between the two pairs of orange-colored lines in Figure 4.

In this step, the summation of the following points’ slopes is calculated to find the transitions at each point. In other words, as far as the direction of the line (upward, downward, or straight) in the stretched pitch contour remains the same, the slopes between every two consecutive points would be added to each other. The algorithm is depicted in Figure 5, where $i$ is the current point in this figure.

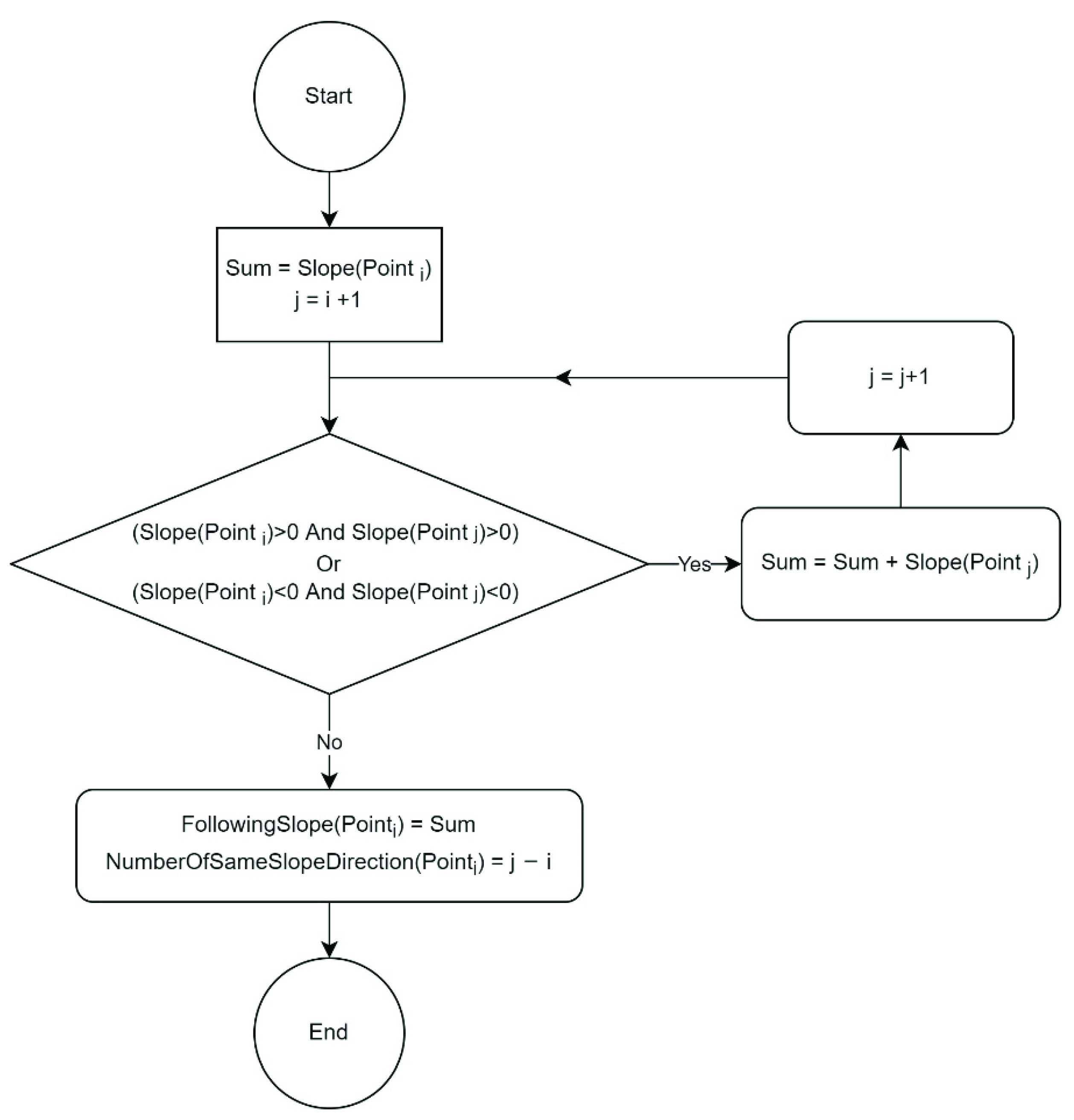

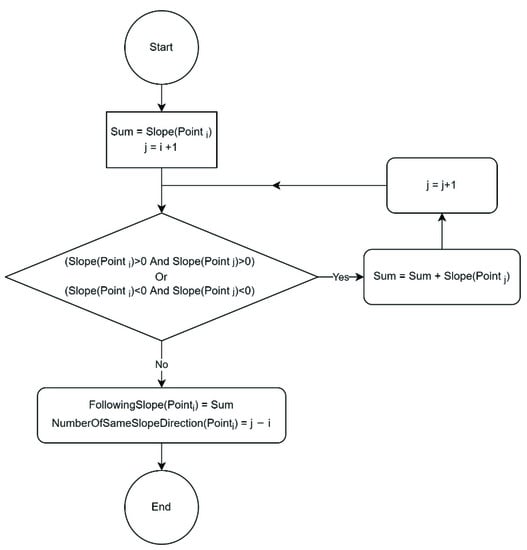

The algorithm commences by computing the cumulative sum of the consecutive points in the slope representation. In other words, their amplitudes, the values on the y-axis in Figure 3c, are summed. According to the evaluation of several manually annotated onsets, offsets, and transitions, it is observed that there is a sharp upward or downward movement between two consecutive notes in a pitch contour. Therefore, a heuristic function implemented using decision logic is applied to assess how much change happens after each new point. In addition, it is found how many consecutive points have the same sign as the current point’s slope: that is, how many of the successive values are heading in the same direction. The function denotes this in Figure 5, which is named $\mathrm{Number}\mathrm{of}\mathrm{Same}\mathrm{Slope}\mathrm{Direction}\left(Poin{t}_i\right)$.

Therefore, the algorithm, at this point, detects when the slope changes sign.

3.5. Calculating the Mean of the Local Slopes

In this step, the mean of the local slopes needs to be calculated. This mean is always accounted for by considering some of the previous points until the current point, as shown in Equation (4).

$$Mean\left(Poin{t}_i\right)=\frac{{{\displaystyle \sum }}_{x=i-n}^{x=i}Slope(Poin{t}_x)}{n},$$

(4)

where $n$ is the size of the window. The value of $n$ is important to produce a mean that can show the mean of the fluctuations in a note. If $n$ is too big, it may include some old-time fluctuations that make an incorrectly local mean. In contrast, if $n$ is too small, there would not be enough fluctuations to calculate the correct local mean. The $n$ should be selected based on the singing technique, duration, and intervals. In this study, the selected values of $n$ were chosen to be 230 ms for the Erkomaishvili dataset and 46 ms for the SVNote1 dataset. These selections for $n$ were made according to a trial-and-error method of adjusting the $n$ value to have the best result for one of the files of each dataset.

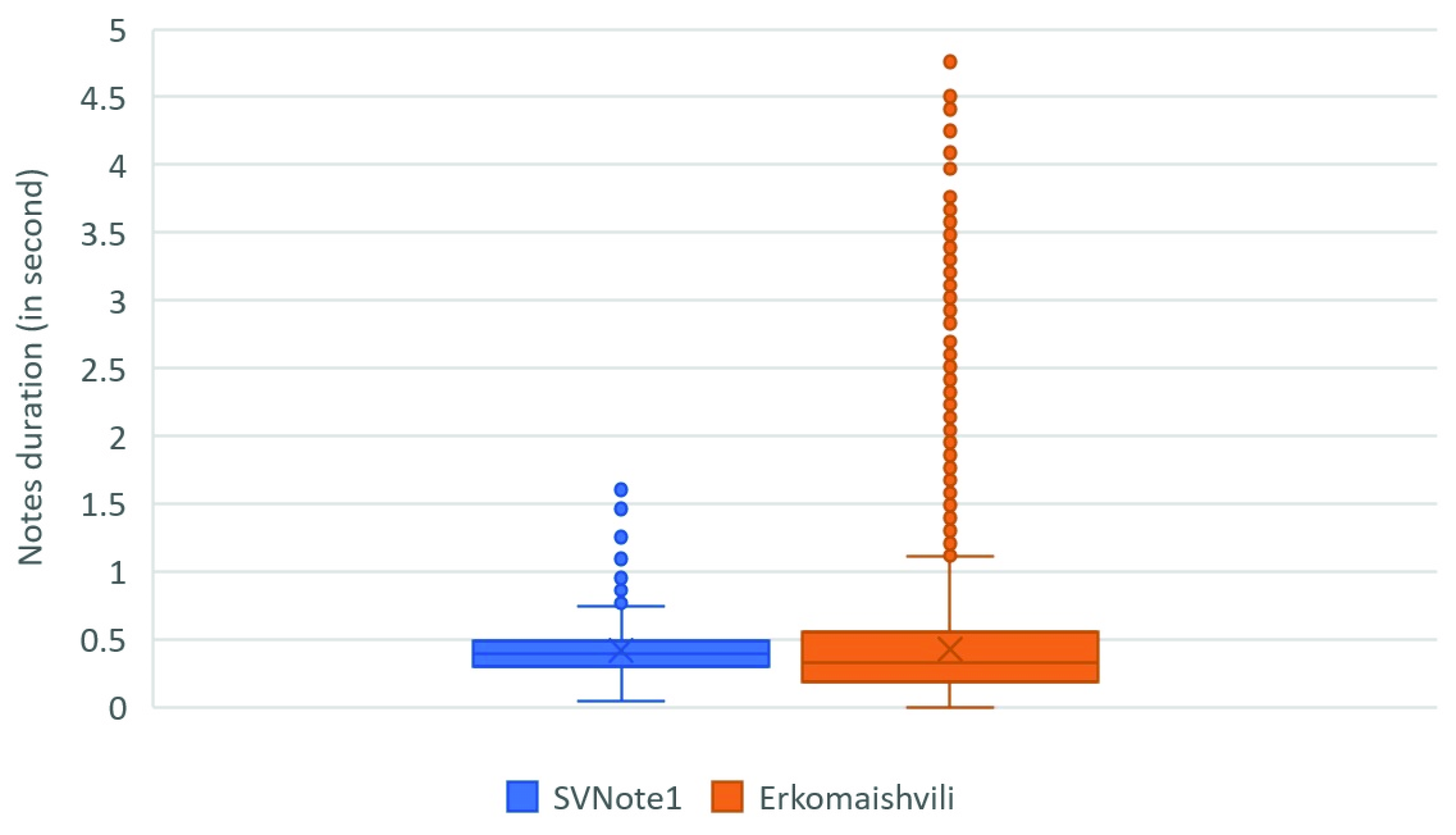

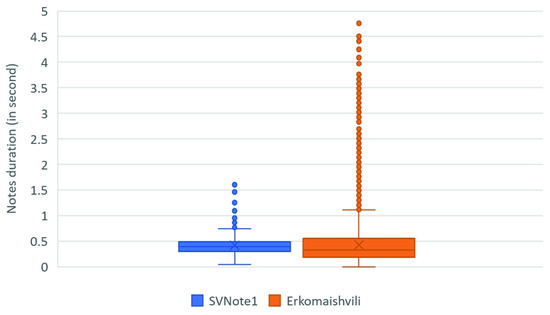

As shown in Figure 6, although the median duration of the notes in both datasets is almost similar, roughly 0.42 s, the duration of most of the notes in the Erkomaishvili dataset is longer than the median. In contrast, the duration of the notes in the SVNote1 dataset is distributed approximately uniformly below and above the average. Therefore, the variance of notes’ duration in the Erkomaishvili dataset is greater than in the SVNote1 dataset. In addition, the variance of the intervals between notes in the Erkomaishvili dataset is smaller than in the SVNote1 dataset. Thus, two different $n$ values for each dataset were selected.

3.6. Calculating the Standard Deviation of the Local Slopes

To define a trajectory change in the fundamental frequencies, the sample standard deviation of the local slopes is calculated as shown in Equation (5).

$$STD\left(Poin{t}_i\right)=\sqrt{\frac{{{\displaystyle \sum }}_{x=i-n}^{x=i}\left(Slope(Poin{t}_x\right)-Mean\left(Poin{t}_i\right){)}^2}{n-1}},$$

(5)

The same window size ($n$ value) as for calculating the mean was used for estimating the standard deviation.

3.7. Comparing the Current Slope with the Mean and Standard Deviation

In this step, all the required information is prepared to determine if a significant change has occurred in the fundamental frequency trajectory.

Each of the points in the pitch contour can have only one of the following statuses:

A.

Onset: this means the point is an onset.

B.

Offset: this means the point is an offset.

C.

StartTransition: this means a transition will follow, and this point is the start of the transition.

D.

EndTransition: this means it is the end of the transition.

E.

None: this means this point is neither an event’s start nor the end.

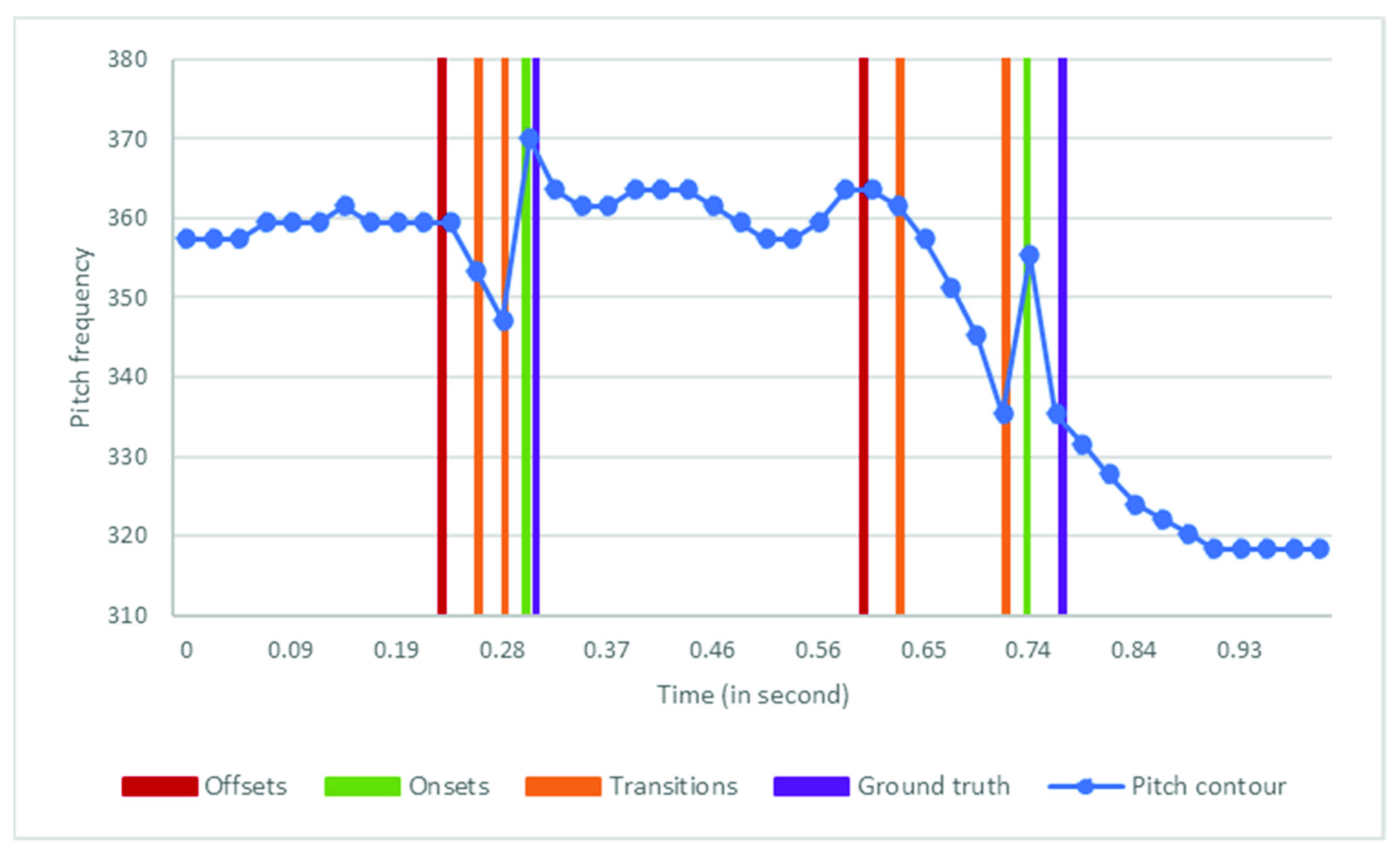

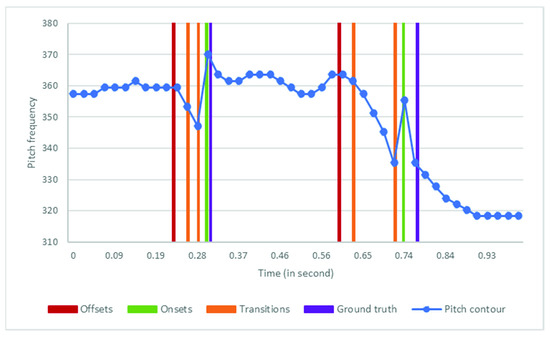

These statuses are illustrated in the diagram in Figure 4. The red and green lines show offset and onset events respectively, while the orange lines denote a transition from a note to the following note, i.e., the points between an offset and its subsequent onset.

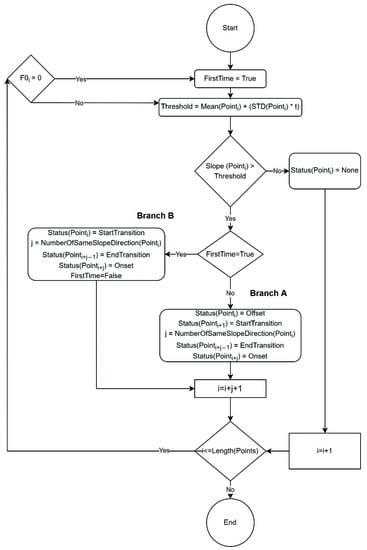

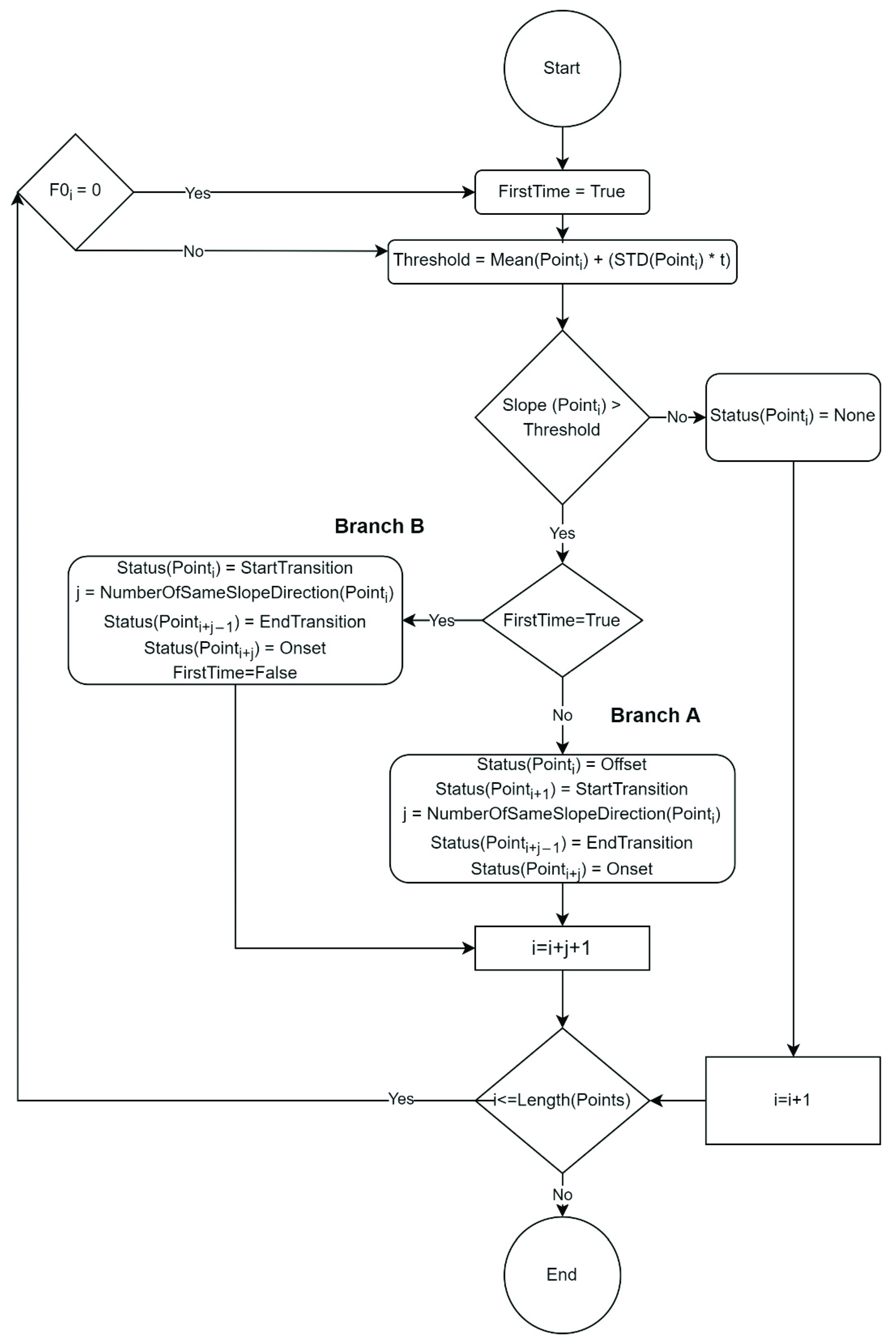

Figure 7 illustrates the algorithm for finding each point’s status. This algorithm works based on the values calculated by the algorithm illustrated in Figure 5. This algorithm is run iteratively on each of the estimated pitch values.

First, a $Threshold$ for the local pitch contour’s slope must be calculated. This is completed by adding the mean of the local slopes at $Poin{t}_i$to the product of the standard deviation of the local slopes at P$oin{t}_i$ and $t$ coefficients. The $t$ is a user-specified value that indicates which range of frequencies, based on their variation from the mean, should be considered as belonging to the same note. The value t does not define a fixed variation from the mean but is derived based on the singer’s techniques. For instance, when the singer uses vibrato, the variation is higher than singing in an unmodulated tone. This study selected a threshold of 5 for the Erkomaishvili dataset and 2 for the SVNote1 dataset.

Second, if the slope at $Poin{t}_i$ is bigger than the $Threshold$, it means that a trajectory change has happened. This significant change should be an $Onset$, $Offset$, or $StartTransition$. If it is the first trajectory change after a silence (see Branch B in Figure 7), it is a movement to reach an $Onset$; otherwise (see Branch A in Figure 7), the current point is an $Offset$. Based on each of these situations, Onset, Offset, StartTransition, and EndTransition statuses will be marked. The start and end of transitions are consecutively after and before an Offset and an Onset, respectively. In other words, the start and end of transitions are one point apart from the Offset and Onset points.

When the algorithm finds a trajectory change at $poin{t}_i$, all the events between $Poin{t}_i$and $Poin{t}_{i+j}$ will be labeled; thus, the following point that needs to be checked is $i+j+1$. Therefore, there is a jump with a size of $j+1$ at the end of the algorithm to set the $i$ value for the next iteration.

In the beginning, the $FirstTime$ variable is set to true, and when a rest is reached (when $F{0}_i$ equals zero), a $True$ value will be assigned to this variable.

A full implementation of the algorithm has been released to provide all the details at https://github.com/BehnamFaghihMusicTech/Onset-Detection, accessed on 15 July 2022.

4. Results and Discussion

This section provides the results and the details of the procedure for evaluating the proposed algorithm. It should be mentioned that the accuracy of the real-time proposed algorithm is compared against a set of real-time and offline algorithms. The delay of the proposed algorithms in calculating each event depends on its parameters, as mentioned in Section 3. Delays of 230 and 46 ms are used for the Erkomaishvili and SVNote1 datasets, respectively.

Since the other onset detection algorithms mentioned in Section 2.2 only estimate onsets but not offsets and transitions, only onsets need to be extracted to evaluate and compare the proposed algorithm with them. Therefore, two types of onset times were considered: (1) First, there are only those points in the pitch contour labeled as an onset. The green line illustrates these in Figure 8, and (2) the middle point between the start time of the transition and onset, illustrated by the pink lines in Figure 8, is considered as the new onset point. The reason for considering the second type is to align with the approach used for ground truth datasets’ because this one does not consider that transitions occurs between notes. Therefore, they would probably select a point between the red and green lines in Figure 8 as the onset. Therefore, considering the middle point should result in just a minor deviation from the ground truths.

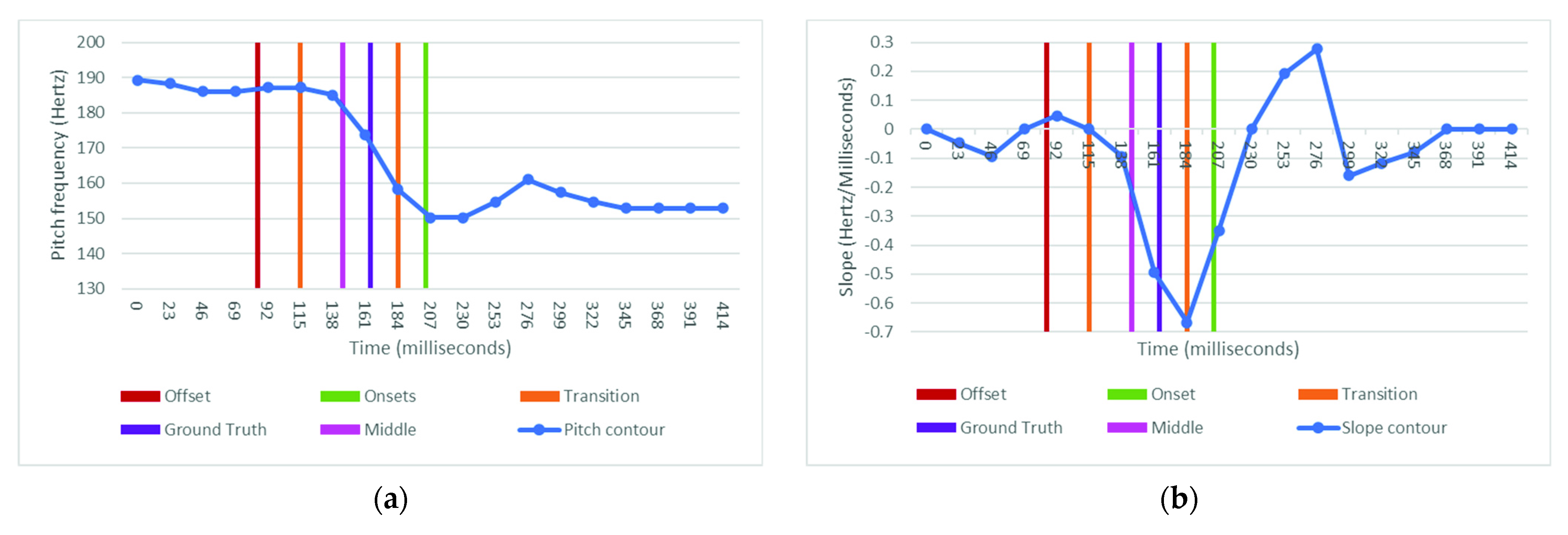

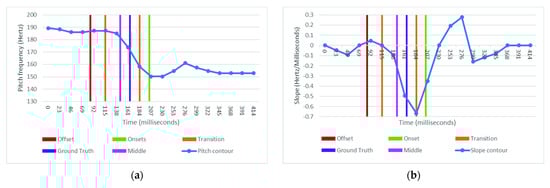

Generally, as shown in Figure 8, a range of points between the offset and the start of the following note could be selected as an onset. Therefore, the algorithms were compared with different window sizes of 10, 50, 100, 150, 200, and 250 ms for calculating the F-measure.

Table 1. The average of the F-measures of all the algorithms on the Erkomaishvili dataset based on six window sizes, from 10 to 250 ms.

	Window Size	10	50	100	150	200	250
Algorithm
Aubio *		0.072	0.295	0.415	0.480	0.523	0.553
EssCplx		0.076	0.304	0.444	0.508	0.541	0.557
EssHFC		0.065	0.297	0.452	0.533	0.58	0.611
LibBt		0.064	0.288	0.448	0.521	0.560	0.585
LibBtRMS		0.046	0.247	0.416	0.502	0.551	0.58
LibRaw		0.056	0.295	0.455	0.525	0.563	0.586
MadmomCNN *		0.086	0.308	0.42	0.479	0.516	0.543
MadmomSF *		0.088	0.287	0.392	0.450	0.488	0.515
Pro Algorithm 1 *		0.036	0.198	0.416	0.55	0.631	0.681
Pro Algorithm 2 *		0.059	0.274	0.464	0.579	0.649	0.691

* The algorithms marked with a star are real-time algorithms.

and

Table 2. The average of the F-measures of all the algorithms on the SVNote1 dataset based on six window sizes, from 10 to 250 ms.

	Window Size	10	50	100	150	200	250
Algorithm
Aubio *		0.118	0.509	0.655	0.694	0.696	0.696
EssCplx		0.064	0.313	0.492	0.550	0.562	0.563
EssHFC		0.095	0.561	0.739	0.787	0.798	0.798
LibBt		0.045	0.371	0.611	0.737	0.779	0.786
LibBtRMS		0	0.111	0.498	0.697	0.761	0.783
LibRaw		0.257	0.672	0.763	0.784	0.785	0.785
MadmomCNN *		0.042	0.496	0.665	0.667	0.667	0.667
MadmomSF *		0.020	0.662	0.779	0.781	0.781	0.782
Pro Algorithm 1 *		0.089	0.469	0.704	0.827	0.893	0.923
Pro Algorithm 2 *		0.108	0.432	0.646	0.764	0.845	0.881

* The algorithms marked with a star are real-time algorithms.

display F-measures computed across all the algorithms in the six window sizes. A larger window size for F-measure shows more similarity, since an enormous difference between the ground truth and the estimated onset would be accepted in this case. However, as seen in Table 1 and Table 2, after applying the window size of 150 ms, the speed of improvement in F-measure values decreases. In addition, a window size of more than 250 cannot be meaningful, since it accepts more than a 250 ms difference between the ground truth and the estimated onset, which is too long. These tables provide the similarity between the ground truth’s onsets times and the estimated onsets times by each algorithm. As mentioned above, two onset point selections are considered regarding the proposed algorithm. The rows titled “Pro Algorithm 1” in Table 1 and Table 2 consider the green line in Figure 8 as the onset, while the rows titled “Pro Algorithm 2” select the middle point, which is the pink line in Figure 8.

All the algorithms show better results on the SVNote1 dataset than the Erkomaishvili dataset. One of the possible reasons for the better result could be the better audio quality of the SVNote1 dataset. In addition, there is a speaking introduction at the beginning of each audio file that is not included in their annotations. Nevertheless, since all the algorithms are working on the same audio files, they all have the same faulty sound, which will not affect the comparison.

As the result of the comparison, our proposed algorithm finds more correct onsets compared to the other algorithms when the window size is equal to or greater than 150 ms, as shown in the rows for Pro Algorithm 1 in Table 1 and Table 2. The bold numbers in these two tables highlight the performance of the best algorithm.

Selecting the average of the onset and the start of the transition as the onset leads to an increase in the accuracy of the proposed algorithm by 3.4% on average for the Erkomaishvili dataset. However, the opposite is the case for the SVNote1 dataset, in which the accuracy of the onset identification decreased by 3.8%. The reason for these opposing results is that the annotator of the Erkomaishvili dataset considered onsets more closely to the middle, as depicted in Figure 8. However, the SVNote1 dataset’s annotators mostly considered onsets after the proposed algorithm’s onset point, as shown in Figure 4. Both approaches can be interpreted as correct, since the onset point is not universally agreed in a pitch contour, as mentioned above, but it is deemed to be valid over a range of points.

To check the meaningfulness of the averages of the F-measure values of each onset detection algorithm, the p-values for ANOVA were calculated for all the F-measure values calculated for every single file. The ANOVA’s p-values for both Table 1 and Table 2 were less than 0.0001, which means a significant difference between the accuracy of all evaluated algorithms.

As another result, the average and the standard deviation of the duration of the transitions are shown in

Table 3. The average, standard deviation, the minimum, and the maximum typical duration of transitions in both the datasets and overall.

	Average	STD	Min	Max
Erkomaishvili	57.44	40.77	16.67	98.21
SVNote1	56.25	44.68	11.57	100.93
Overall	57.4	40.91	16.49	98.31

. This table also provides the minimum (average minus standard deviation) and the maximum (average plus standard deviation) typical duration for the transitions. Therefore, the average transitions’ duration in the datasets is almost the same. Overall, based on the results, the minimum and maximum duration of the transitions were approximately 16 and 98 ms. Therefore, since the proposed algorithm is based on the trajectory changes in a pitch contour and the transitions show these significant changes, the minimum delay required to find the onset, offset, and the transition is 16 ms and the maximum of 98 ms. However, most events should be found correctly, with the average transition duration being around 57 ms. This delay would be acceptable for most real-time music information retrieval applications. For example, Henkel and Widner’s real-time score-following system [40] requires a delay of around 56 ms.

Since the proposed algorithm is based on the changes in a pitch contour, when the intervals between notes are bigger, and there are fewer soft onsets, the algorithm can estimate onsets more accurately.

The accuracy of the proposed algorithm may be improved by considering more spectrogram channels, i.e., including other related frequency components from the spectrogram and not only the fundamental frequencies. In this way, a more comprehensive formula weighted together with the measurements for each channel could improve the overall measure. Therefore, a new series of numbers will be generated to find the onsets, offsets, and transitions from the trajectory changes in the new contour. In this approach, the adverse effect of the incorrect F0 estimation may be reduced, especially in a real-time environment.

Moreover, the accuracy of the proposed algorithm can be improved by incorporating a function tracking significant changes in the magnitudes of each spectral channel that are also associated with the onset.

Another possible approach instead of using the starting pitch explained in Section 3.2 is to scale down all F0s to one specific octave and then use a log frequency axis. This approach may help in regularizing the slopes and making them comparable.

In addition, the algorithm is based on two parameters, window size (as explained in Section 3.5) and the proportion of the standard deviation to calculate the thresholds, as discussed in Section 3.7. By evaluating the algorithm on other larger datasets such as VocalSet [41], these parameters could be fixed to be a constant value that is generally applicable to all singers or could be determined by a formula and therefore be adaptive to the nature of the style of input singing.

Furthermore, the algorithm’s efficiency and accuracy could be evaluated on notes performed by musical instruments to see if it is also applicable in that domain.

Lastly, making the algorithm more computationally efficient requires a smaller buffer size to work faster in real-time environments.

5. Conclusions

This paper has proposed a new algorithm for detecting onsets, offsets, and the transitions between notes in singing. The algorithm can work in both offline and real-time environments. In the case of real-time, a 57-millisecond delay is needed to have adequate information for calculating the events. Compared to other well-known algorithms, the algorithm shows an improvement of between 2% and 36%, especially when the window size for calculating the F-measure is equal to or greater than 150 ms.
