Extraction of Glycyrrhizic Acid from Glycyrrhiza uralensis Using Ultrasound and Its Process Extraction Model

Abstract

This work focused on the intensification of extraction process of glycyrrhizic acid (GA) from Glycyrrhiza uralensis using ultrasound-assisted extraction (UAE) method. Various process parameters such as ultrasonic power, ultrasonic frequency, extraction temperature, and extraction time which affect the extraction yield were optimized. The results showed that all process parameters had exhibited significant influences on the GA extraction. The highest GA yield of 217.7 mg/g was obtained at optimized parameters of 125 W, 55 kHz, 25 °C, and 10 min. Furthermore, the extraction kinetics model of this process was also investigated based on Fick’s first law available in the literature. Kinetic parameters such as equilibrium concentration (C_e) and integrated influence coefficient (λ) for different ultrasonic powers, ultrasonic frequencies, and extraction temperatures were predicted. Model validations were done successfully with the average of relative deviation between 0.96% and 4.36% by plotting experimental and predicted values of concentration of GA in extract. This indicated that the developed extraction model could reflect the effectiveness of the extraction of GA from Glycyrrhiza uralensis and therefore serve as the guide for comprehending other UAE process.

1. Introduction

It has been reported that glycyrrhizic acid (GA) is a major active constituent in the traditional medicines called Glycyrrhizia uralensis, which has been used as a medicinal herb in worldwide [1]. Glycyrrhizic acid has been recognized as exhibiting many important pharmacological activities such as antiviral, anticancer, anti-HIV, antiulcer, anti-inflammatory, antioxidant [2,3], and so on. Besides medicinal usage as an ingredient in pharmaceutical preparations, glycyrrhizic acid is also used extensively as a sweetener or functional additive in food, tobacco, and confectionery products all over the world [4,5].

In recent years, glycyrrhizic acid is generally extracted from various natural plants by several extraction techniques such as supercritical CO₂ extraction [6], aqueous two phase extraction [7], solvent extraction [5,8], third-phase extraction [9], microwave-assisted extraction [10], ultrasound-assisted extraction [11], and so on. Among the different existing techniques, UAE has been widely recognized as a safe, effective, inexpensive, and environment-friendly technology. When it is applied in the solid-liquid extraction process, it has been proven to be capable of reducing the consumption of solvent, shortening the extraction time, and improving extraction yields [12,13,14,15]. This is mainly attributed to the ultrasonic cavitation, which can generate cavitation bubbles in liquid medium and result in macro-turbulence, high-velocity flow, and perturbation in micro-particles of the biomass [16]. The collapse of these bubbles can facilitate the disruption of cell wall and allow the penetration of solvent into raw materials, thus increasing the contact surface area of solid particle and enhancing mass transfer across cell membrane [17]. Moreover, the conventional extraction methods for extraction of glycyrrhizic acid from Glycyrrhiza uralensis suffer from various disadvantages such as more extraction time, large solvent requirement, higher extraction temperature, and lower yield. Thus, ultrasound will be applied for the extraction of glycyrrhizic acid in this work.

In order to better predict the UAE process and also understand the effects of various extraction factors on the extraction process, it is very important for use a mathematical tool to model the extraction mechanism and determine the kinetic parameters. In recent years, Charpe and Rathod [11] have investigated the kinetic model for the extraction of glycyrrhizic acid based on the second order rate equation, in which they established the kinetic model of the temperature and solvent to solute ratio. However, the establishment of a kinetic model for ultrasonic power and ultrasonic frequency had not been studied. In fact, ultrasonic power and ultrasonic frequency are two important process parameters for the extraction of glycyrrhizic acid. Yang, et al. [18] reported that the extraction efficiency of glycyrrhizic acid increased dramatically with the increase of ultrasonic power from 50 to 200 W. Charpe and Rathod presented that there was a higher glycyrrhizic acid yield at ultrasonic frequency of 25 kHz. A similar result was reported in previous literatures [19]. Therefore, the optimization of extraction process using ultrasound and its establishment of kinetic model for ultrasonic power and ultrasonic frequency is worthy of further study.

The objective of this work is to investigate the effects of process parameters on the extraction of glycyrrhizic acid from Glycyrrhiza uralensis and to obtain optimum process parameters which will give higher yields compared to conventional extraction methods. The second objective is to understand the kinetics and to develop the extraction model for this extraction process under optimum process parameters to predict equilibrium concentration and integrated influence coefficient.

2. Materials and Methods

2.1. Plant Materials

The samples of licorice root (Glycyrrhiza uralensis Fisch.) were purchased from a local herbal medicine market in Wuxi, Jiangsu province, China. The authenticity of the plant species was established by Professor Shouquan Lin (Institute of Medicinal Plants, Chinese Academy Medical Sciences). The dried samples were cut along the root into round slices about 3 mm thick and 5–10 mm in diameter using a blade mixer. After that, the ground samples were sealed and stored in a dry and dark place until use. The content of GA in the sample is 3.72 wt.% based on HPLC analysis.

2.2. Reagents

Ammonia (25% NH₃, chemical reagent), acetonitrile (reagent for high performance liquid chromatography), glacial acetic acid (analytical reagent), ethanol (analytical reagent), and glycyrrhizic ammoniate were all purchased from the Tianjin Chemical Factory, Tianjin, China.

2.3. Apparatus

Ultrasound-assisted extraction has been carried out in an ultrasonic bath system (KQ-250DE, Kunshan Ultrasound Co. Ltd., Suzhou, China) of internal dimensions 300 mm × 240 mm × 150 mm with multi-frequency. The nominal output power and frequency of the ultrasound generator can be adjusted from 0 to 250 W and from 20 to 100 kHz, respectively. Extraction temperature was controlled by the water temperature in the ultrasonic bath, which can be circulated and regulated at constant desired temperatures using a heating/cooling temperature controlling circulator included in the extraction apparatus. Moreover, time can also be set to a desired value by a digital timer.

2.4. Ultrasound-Assisted Extraction

For all following extraction experiments, according to a previous report [20], the solvent used was composed with 1% ammonia + 60% ethanol + 39% water. The extraction was carried out in a 500 mL Erlenmeyer flask kept in an ultrasound bath. Firstly, an aforementioned ground sample of 5.0 g was mixed with 150 mL of mixed solution to produce the solvent/solid ratios of 30 mL/g in the flask. In order to avoid the loss of solvent, the flask was covered with lid before it was kept to ultrasound bath. After sealing, the sample beakers were immersed into the ultrasound bath for irradiation and fixed well in the same position during sonication. At the end of experiment, the filtrates were centrifuged for 10 min at 12,000 rpm and ordinary temperature, and the supernatant was taken out and was filtered through a 0.45 μm filter. Finally, the samples were stored in a dark site at a low temperature until the analysis of glycyrrhizic acid composition.

2.5. Single Factor Experimental Design

In the experiments, the effects of three process parameters, including ultrasonic power, ultrasonic frequency, and extraction temperature on the glycyrrhizic acid yield were investigated by single factor experiments. Firstly, sonication was carried out at 25 °C, and frequency of 55 kHz under five different levels of ultrasonic powers (12.5, 50, 75, 100, and 125 W) to study the effect of ultrasonic power. Secondly, the effect of ultrasonic frequency on the extraction yield of glycyrrhizic acid was performed at 25 °C, and ultrasound power of 125 W with different frequencies (20, 30, 40, 55, and 90 kHz). Finally, the effect of extraction temperature on the extraction yield of glycyrrhizic acid was carried out at an ultrasonic frequency of 55 kHz and power of 125 W with different extraction temperatures (20, 25, 35, 60, and 70 °C). The extraction process was repeated three times for each experiment.

2.6. Modeling Theoretical

To develop the extraction model for the UAE process of glycyrrhizic acid, the Fick’s diffusion Equation for the behavior of solid-liquid extraction from cellular tissue was described on the basis of the reported studies [21,22,23,24]. The solution of this equation for an infinite slab can be written as [25,26,27]:

$$\frac{C_t-C_e}{C_0-C_e}={\displaystyle \sum _{i=1}^{\infty }\frac{\frac{2}{3}a(1+a)}{1+a(1+a{m}_1^2/9)}}\cdot e^{-\frac{D{m}_1^2}{r^2}t}$$

(1)

where D is the diffusion coefficient (m²/s), r is the solid particle radius (m), m_i is the non-zero positive roots of the equation: $\tan (m_i)=1/(1+a{m}_i^2/3)$, where $a=V/v$, V is the total solution volume (m³), and $v$ is the solution volume of penetrating the solid particles (m³). C_t is the total solute concentration at time t during the extraction process (g/L), C_e is the equilibrium solute concentration in the liquid extract (g/L), and C₀ is the initial solute concentration at t = 0 (g/L).

Equation (1) can be reduced to the first term of the series solution because only the first term is significant in a short period [26,28]. Consequently, it can be written as:

$$\frac{C_t-C_e}{C_0-C_e}=\frac{\frac{2}{3}a(1+a)}{1+a(1+a{m}_1^2/9)}{e}^{-\frac{D{m}_1^2}{r^2}t}$$

(2)

Suppose that the initial solute concentration C₀ is 0 at t = 0, substituting it into Equation (2), thus, the value of the expression $\frac{2}{3}a(1+a)/[1+a(1+a{m}_1^2/9)]$ is determined as 1. Substituting it into Equation (2) and rearranging it, the C_t can be written simply as an Equation (3):

$$C_t=C_e(1-e^{-\frac{D{m}_1^2}{r^2}t})$$

(3)

In the ultrasonic extraction process, the diffusion coefficient D is generally affected by the process parameters, including ultrasonic power, frequency, and extraction temperature. In general, ultrasound irradiation can induce eddying effects such as acoustic streaming, acoustic radiation force, and acoustic cavitation, which have been proven to be a significant effect on the extraction process and therefore influence the extraction efficiency or yield. Therefore, ultrasonic power, frequency, and extraction temperature are the main factors for the extraction at other fixed conditions.

In order to simplify the analysis process, let $\mathsf{\lambda }=D{m}_1^2/r^2$. λ is the integrated influence coefficient (s⁻¹), which is a function about the process parameters (P, f and T) [29]. So the extraction model Equation (3) under ultrasound irradiation can be written as:

$$C_t=C_e(1-e^{-\mathsf{\lambda }t})$$

(4)

When using a nature logarithm function to process both sides of Equation (4), a linear relationship below is achieved:

$$\ln (C_e-C_t)=\ln C_e-\mathsf{\lambda }t$$

(5)

When $\ln (C_e-C_t)$ is plotted versus t, the λ can be determined experimentally by the slope, and C_e also can be determined from its intercept. It was assumed that the extraction model could be employed as the analysis of the influences of process parameters (P, f, and T). Thus, the C_e and λ have relations with those parameters and are fitted by functional models by using the software: Origin Pro 7.5SR1 (V 7.5776, Origin Lab Corporation, Northampton, MA, USA).

2.7. HPLC Analyses

The glycyrrhizic acid in the extract samples were determined by using HPLC. HPLC analyses were carried out on an Agilent Model 1100 high performance liquid chromatography (Agilent Co., Ltd., Qbiogene, CA, USA) which consists of an auto sampler, a degasser, a quaternary pump, and a DAD detector. Before analysis, the extracts obtained from UAE method were centrifuged at 12,000 rpm for 10 min to remove the fine suspensions on a MIKRO 22R frozen centrifuge (Hettich, Tutlingen, Germany). Separation was achieved on a Kromasil KR100-5 C₁₈ column of dimensions 150 mm × 4.6 mm. The column was eluted by a mobile phase which consists of a binary mixture of 3% CH₃CN and CH₃COOH-H₂O (41:59, v/v). The eluent was monitored by a DAD with the displayed wavelength set at 254 nm. The flow rate was constant at 1 mL/min. The total time of the chromatographic separation and the retention time of glycyrrhizic acid were 20 min and 10.5 min, respectively. The extraction yield of glycyrrhizic acid can be calculated using Equation (6).

$$\mathrm{Extraction}\mathrm{yield}\left(\mathrm{mg}/\mathrm{g}\right)=\frac{\mathrm{amount}\mathrm{of}\mathrm{glycyrrhizic}\mathrm{acid}\left(\mathrm{mg}\right)}{\mathrm{sample}\mathrm{weight}\left(\mathrm{g}\right)}$$

(6)

where amount of glycyrrhizic acid represents the average mass of three subsequent sample determinations, sample weight represents the average weight from three samples before extraction.

2.8. Statistical Analysis

Each extraction procedure was replicated three times. The significance of the differences of quercetin and rutin was calculated using a one-way ANOVA procedure. Duncan’s multiple range tests were applied for the determination of significant differences among treatments at p-values < 0.05. The results of HPLC analysis were expressed as the mean value ± the standard deviation.

3. Results and Discussion

3.1. Effect of Process Parameters

3.1.1. Effect of Ultrasonic Power

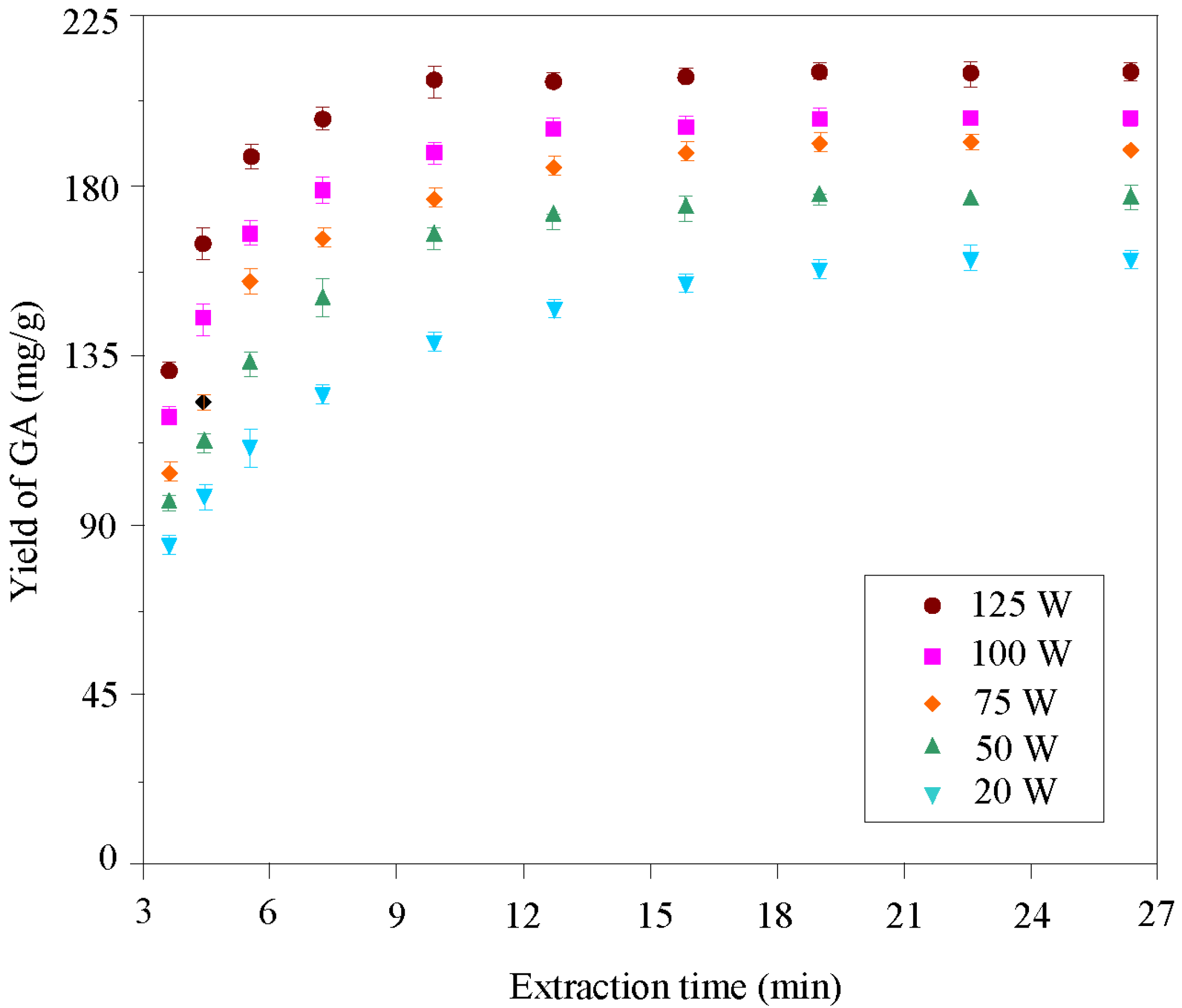

The evolution of extraction yields of glycyrrhizic acid from Glycyrrhiza uralensis with different ultrasonic powers at different extraction times were shown in Figure 1. As can be seen, the extraction yields of glycyrrhizic acid under different ultrasonic powers firstly increased rapidly with extraction time, and then a slight increase was observed. Finally, they all reached their equilibrium. The results indicated that the glycyrrhizic acid yield was closely related to the extraction time. For different ultrasonic powers of 20, 50, 75, 100, and 125 W, the glycyrrhizic acid yields were 161.2, 174.9, 192.7, 198.5, and 204.6 mg/g after reaching the stabilization at corresponding extraction times of 22, 20, 16, 13, and 10 min, respectively. Also, the glycyrrhizic acid yield increased gradually along with the increase of the ultrasonic power. As expected, the results showed that the increasing ultrasonic power significantly reduced the extraction time and obtained the highest extraction yield. It might be mainly attributed to the reason that an increase in ultrasonic power can provide more intense acoustic cavitation, which can markedly influence the acoustic amplitude and the dynamics of cavitation bubbles [30,31], and further can affect the extraction efficiency. As a result, the increase of ultrasonic power is beneficial to shorten the extraction time and to enhance the extraction yield. Similar results were obtained in the studies of ultrasound-assisted extractions of rutin from Euonymus alatus Sieb and tartary buckwheat milling fractions, in which the increase of output ultrasonic power enhanced the extraction yields [32]. These results were reasonable because increased ultrasonic power could improve the extraction mechanical and cavitation effects of ultrasound [33].

An increase in the ultrasonic power was proven to help to shorten the extraction time and prominently improve the glycyrrhizic acid yield even though the energy consumption needed to be considered. Consequently, the maximum value of ultrasonic power of 125 W was used for the following tests.

3.1.2. Effect of Ultrasonic Frequency

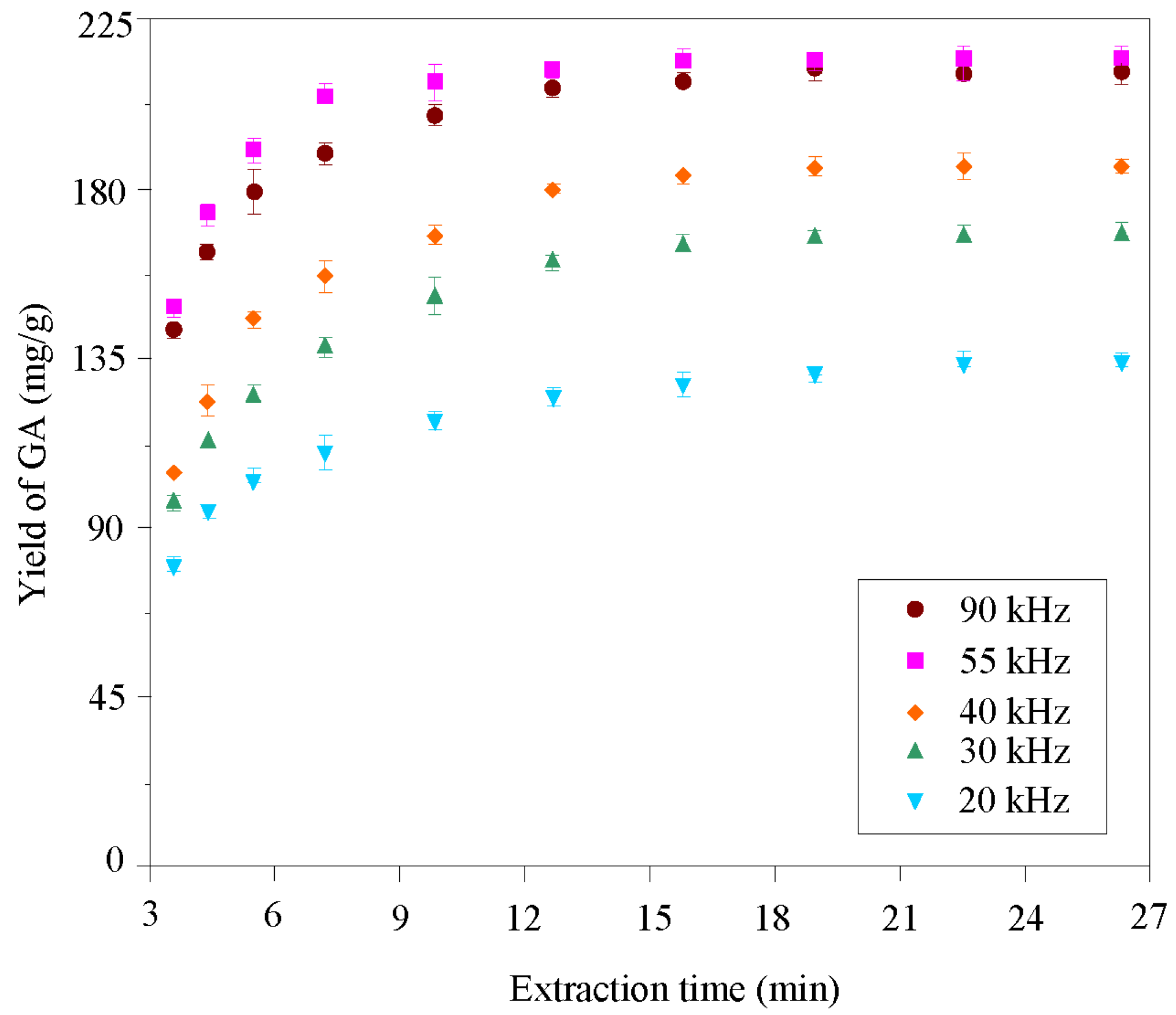

The effect of ultrasonic frequency on the glycyrrhizic acid yield at different extraction times was illustrated in Figure 2. Similar to the effect of ultrasonic power on the extraction yield, the glycyrrhizic acid yield increased rapidly in the first 3 min and then showed a slow increase from 7 to 16 min before reaching equilibrium. Moreover, the glycyrrhizic acid yield significantly increased along with the increase of the ultrasonic frequency from 20 kHz to 55 kHz. After reaching equilibrium, the glycyrrhizic acid yield at 20 kHz was 133.8 mg/g while the corresponding yields increased to 217.7 mg/g at 55 kHz. It was noteworthy that a further increase in the ultrasonic frequency to 90 kHz, however, the glycyrrhizic acid yield did not increase, but slightly decreased. The results suggested that the frequency of 55 kHz was an optimal ultrasonic frequency for the extraction of glycyrrhizic acid. Similarly, our previous studies [34,35] also reported that the highest extraction yield was obtained at an optimal ultrasonic frequency during the extraction of rutin from Sophora japonica and hesperidin from tangerine peels. These results were mainly attributed to the resonance mechanism of cavitation bubbles generated by ultrasound. Actually, in the UAE process, not all bubbles can cause significant cavitation effects. Only when the ultrasonic frequency is equal to the resonance frequency of cavitation bubbles, the greatest coupling of the ultrasonic energy will occur, which is favorable for cell to swell and enlarge the surface area of the cell wall. The increased area and sound swelling can improve the rate of mass transfer, which further leads to a reduction in the extraction time and increase in the extraction yield [36]. Therefore, the recommended ultrasonic frequency was 55 kHz in the rest of experiments.

3.1.3. Effect of Extraction Temperature

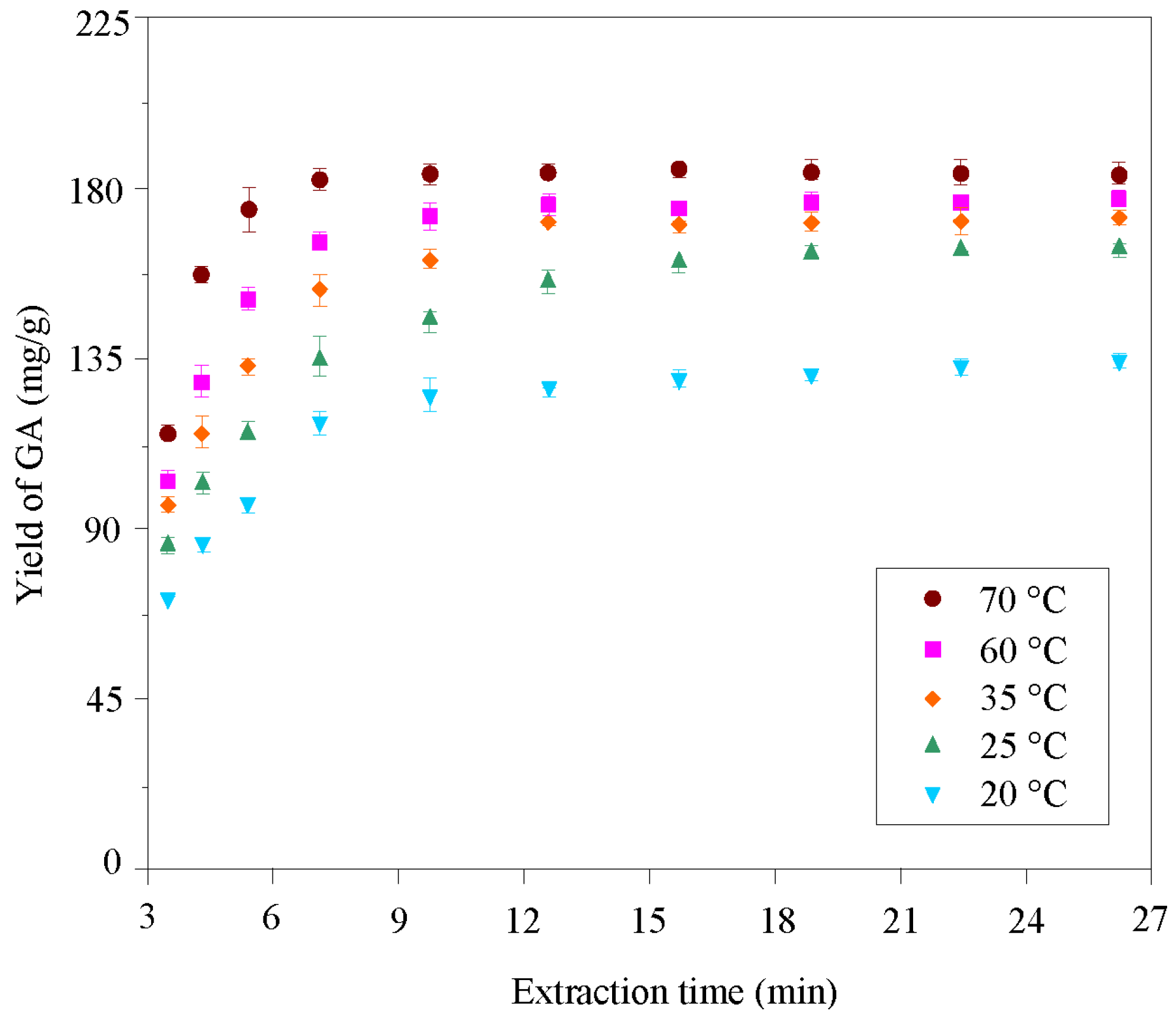

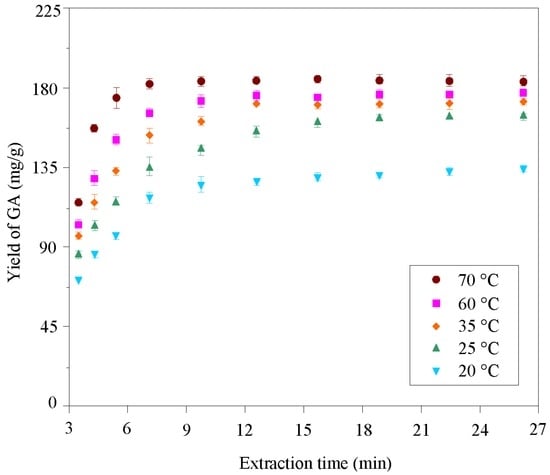

Figure 3 showed the total extraction yield of glycyrrhizic acid from Glycyrrhiza uralensis under different extraction temperatures and extraction time. The extraction temperatures had markedly effected on the total glycyrrhizic acid yield. As can be seen from Figure 3, with an increase in the extraction temperatures from 20 °C to 25 °C the glycyrrhizic acid yield was rapidly increased from 133.6 mg/g to nearly 160.0 mg/g. However, a further increase in the extraction temperature to 60 °C only increased by 13.5 mg/g. This result showed a low efficiency of extraction temperatures between 25 °C and 60 °C, which not only did not significantly increase the glycyrrhizic acid yield but was also power-consuming. As expected, after the extraction temperature of 60 °C, the glycyrrhizic acid yield rapidly increased as the extraction temperature increased once again. The possible reason for this is that the rising of high extraction temperature can accelerate the swelling and softening of the samples, which is favorable for increasing the solubility of extracted elements and decreasing the viscosity of the solvent [37]. As a result, the mass transfer of glycyrrhizic acid from sample particles was improved when the extraction temperature was increased to a high level. These results indicated that the high extraction temperature in an appropriate range could facilitate the extraction of raw materials under ultrasound irradiation. By considering the convenience and cost of the operation, the recommended temperature was 25 °C.

Based on the present results, when other extraction conditions were constant, the three process parameters—i.e., ultrasonic power, frequency, and extraction temperature—played an important role in the extraction of glycyrrhizic acid from Glycyrrhiza uralensis in most cases of ultrasound treatment. Therefore, it was necessary to study the extraction model for the extraction of glycyrrhizic acid under the three key process parameters.

3.2. Extraction Model for The Extraction Process of Glycyrrhizic Acid

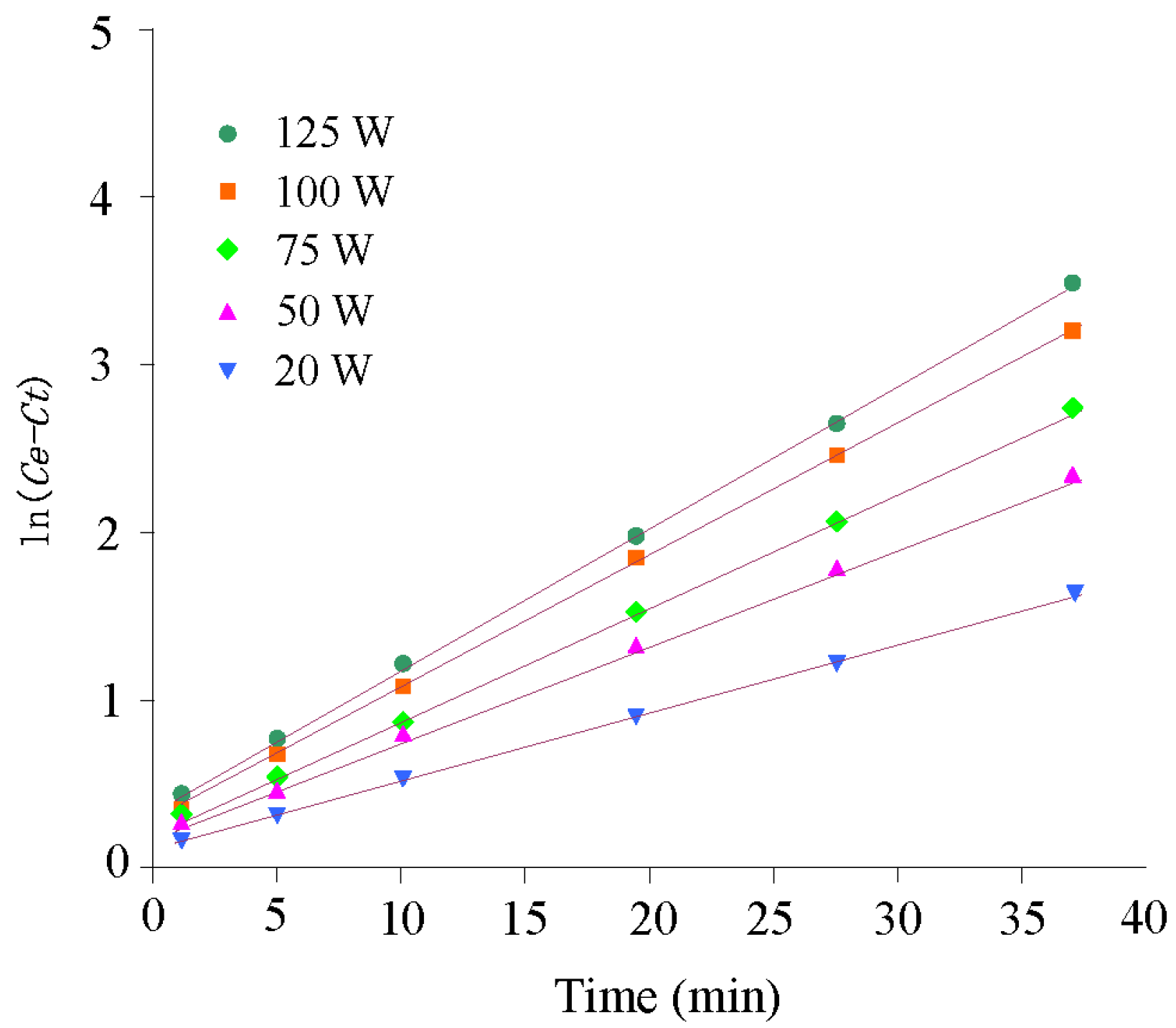

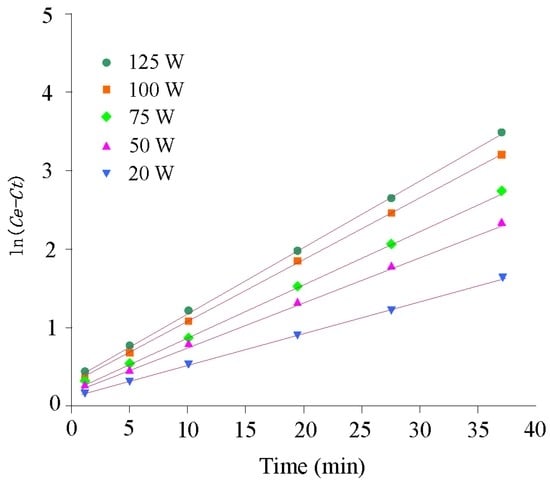

For ultrasonic power, the relationship of $\ln (C_e-C_t)$ against time was shown in Figure 4 which presented a good linear relationship. The values of kinetic parameters (C_e, λ) for different ultrasonic powers from the logarithm of $\ln (C_e-C_t)$ were obtained and listed in

Table 1. Parameters of Kinetic model of glycyrrhizic acid from Glycyrrhiza uralensis with different ultrasonic powers.

Ultrasonic Power (W)	20	50	75	100	125
Ce (g/L)	2.397	2.754	3.425	3.696	4.208
λ (10−1 s−1)	0.482	0.876	1.440	2.759	4.516
R2	0.998	0.999	0.997	0.999	0.996

. As can be seen, these kinetic parameters increased with the increase of ultrasonic power as expected in accordance with the experimental analysis results.

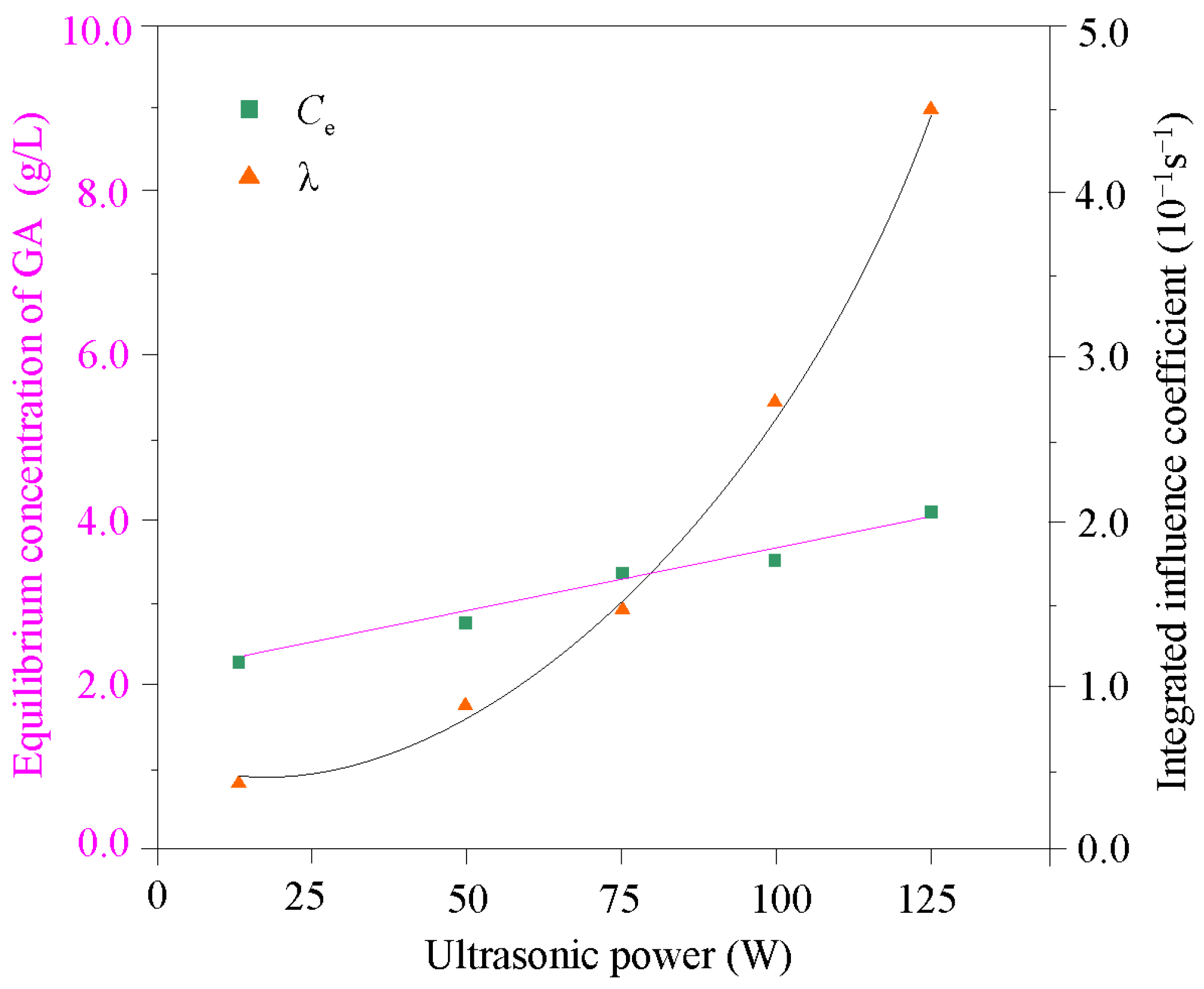

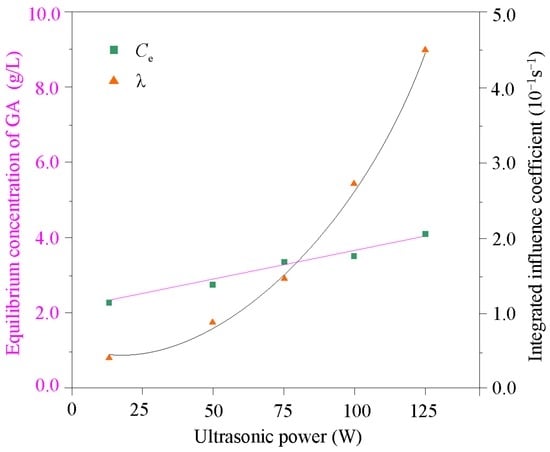

Because these kinetic parameters were extremely dependent on ultrasonic powers, the C_e and λ values for different P values were successfully fitted by linear and second-order polynomial functions due to the high values of correlation coefficient (R²). The functions were plotted in Figure 5 and expressed as follows:

$$C_{e,P}=0.0164P+2.143R^2=0.995$$

(7)

$${\mathsf{\lambda }}_P=0.0004P^2-0.0171P+0.667R^2=0.985$$

(8)

Substituting Equations (7) and (8) into Equation (4), the total bufadienolides concentration C_t,p as a function of P therefore could be obtained. Their relationship was expressed as:

$$C_{t,P}=(0.0164P+2.143)[1-e^{-(0.0004P^2-0.0171P+0.667)t}]$$

(9)

This power extraction model (i.e., Equation (9)) could be employed to predict the extraction of glycyrrhizic acid from Glycyrrhiza uralensis at a given ultrasonic frequency of 55 kHz and extraction temperature of 25 °C with a solvent/solid ratio of 30 (mL/g).

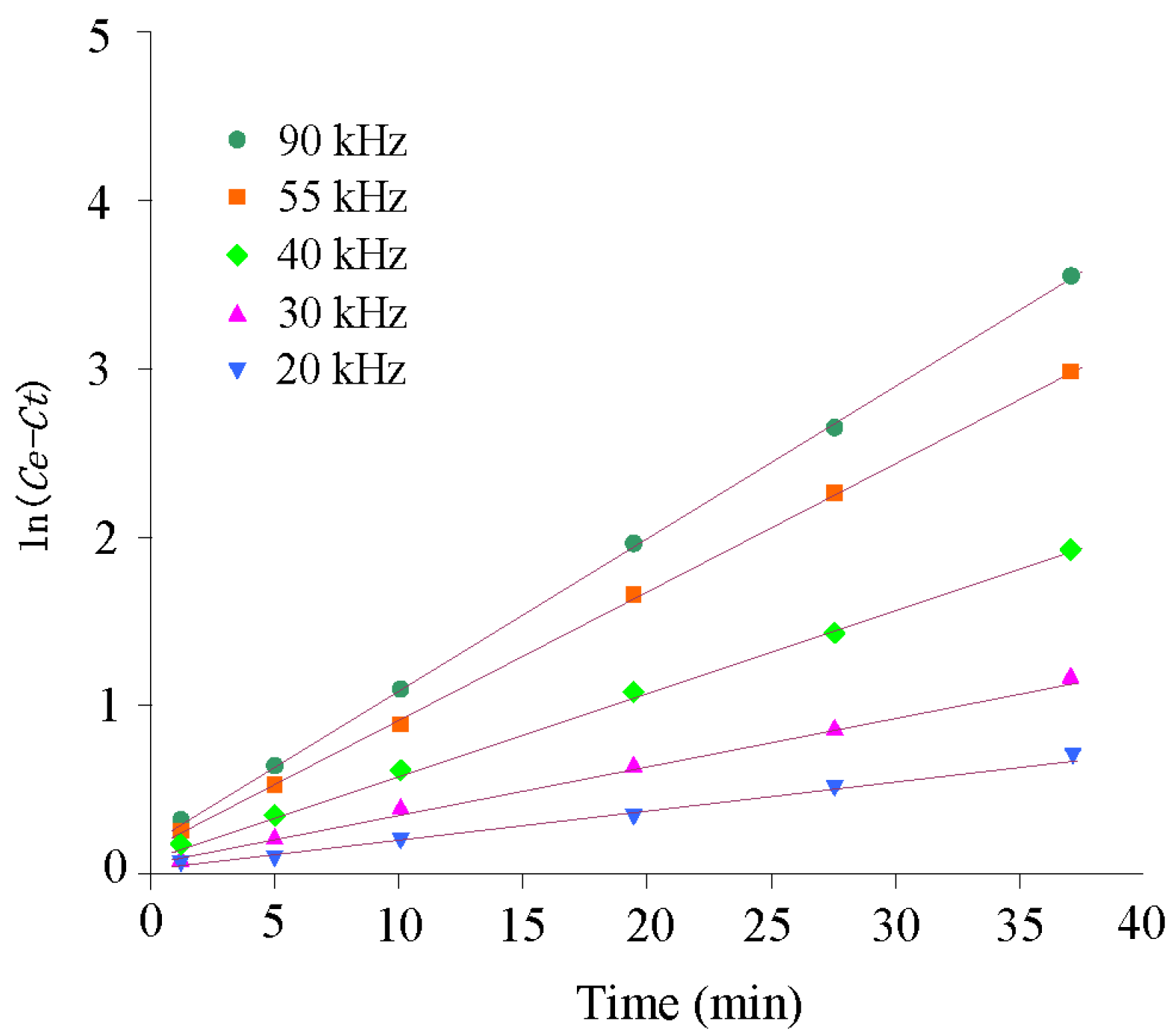

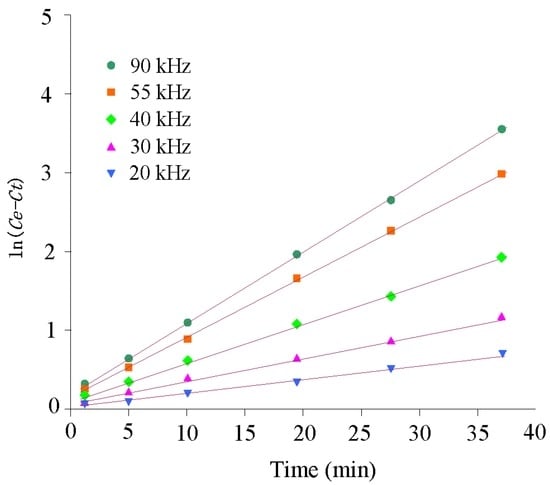

For ultrasonic frequency, the relationship of $\ln (C_e-C_t)$ against time was shown in Figure 6 which also presented a good linear relationship. The values of kinetic parameters (C_e, λ) for different ultrasonic frequencies from the logarithm of $\ln (C_e-C_t)\sim t$ were obtained and listed in

Table 2. Parameters of kinetic model of glycyrrhizic acid from Glycyrrhiza uralensis with different ultrasonic frequencies.

Ultrasonic Frequency (kHz)	20	30	40	55	90
Ce (g/L)	3.688	3.755	5.086	7.121	5.827
λ (10−1 s−1)	1.088	1.026	1.275	1.922	2.645
R2	0.999	0.999	0.997	0.998	0.998

.

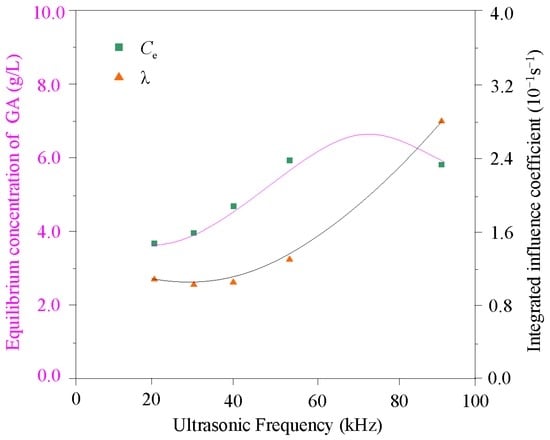

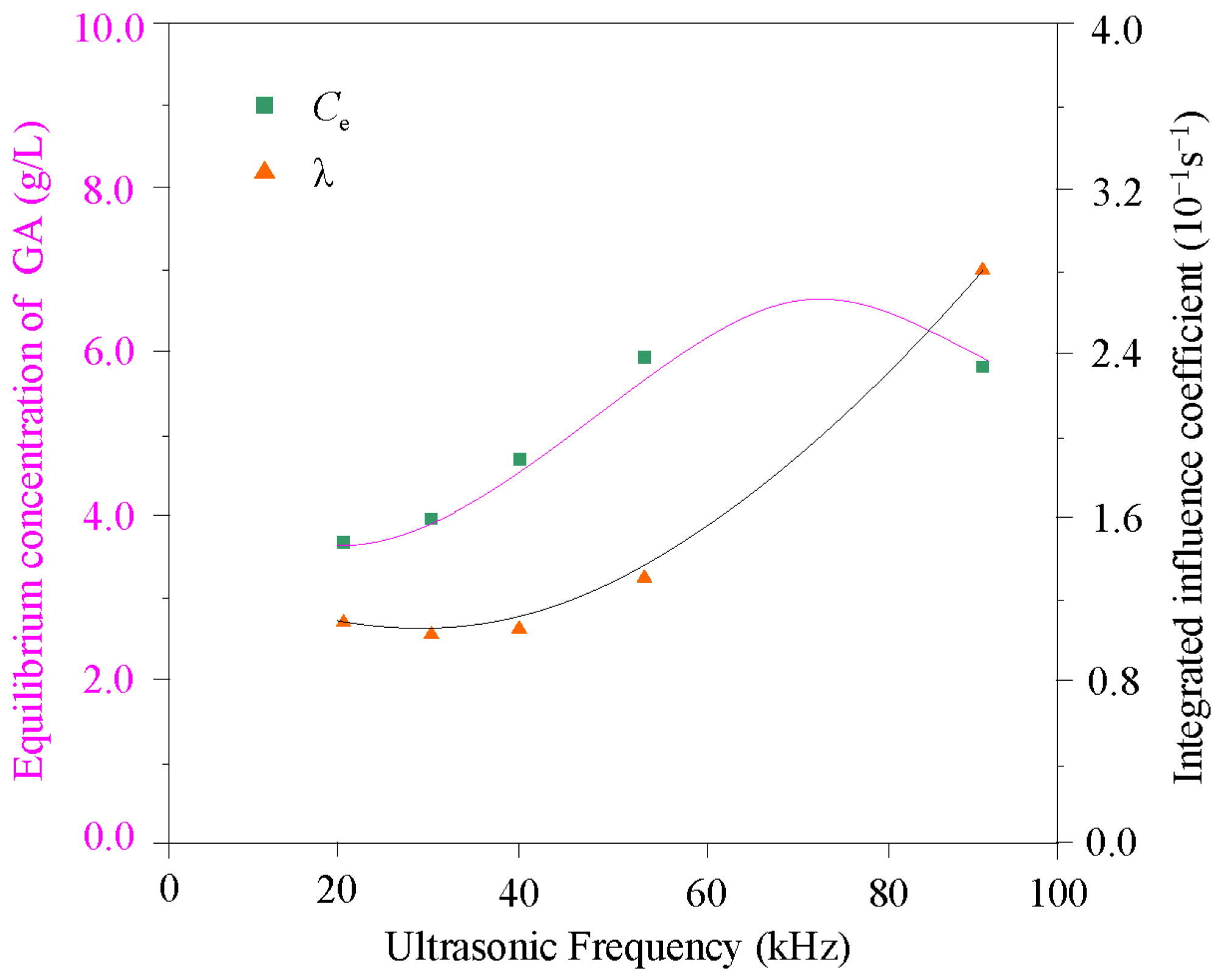

As can be seen, the extraction at a frequency of 70 kHz displayed the highest λ value compared to those at 20, 30, 40, and 55 kHz. For the C_e, however, the highest C_e value was obtained at 55 kHz instead of 90 kHz. The result was in agreement with the results in Section 3.1.2. Based on the model assumption, these kinetic parameters (C_e, λ) were expressed by the variance of ultrasonic frequency (f). Therefore, the relationships among C_e, λ, and f were nonlinearly fitted with three-order polynomial, and second-order polynomial functions, respectively. The two functions were plotted in Figure 7 and expressed as follows:

$$C_{e,f}=-0.0001f^3+0.0109f^2-0.26f+5.443R^2=0.950$$

(10)

$${\mathsf{\lambda }}_f=0.0005f^2-0.0129f+0.1141R^2=0.965$$

(11)

Substituting the C_e,f and λ_f into Equation (4), the relationship was described as:

$$C_{t,f}=(-0.0001f^3+0.0109f^2-0.26f+5.443)[1-e^{-(0.0005f^2-0.0129f+0.1141)t}]$$

(12)

This ultrasonic frequency extraction model (i.e., Equation (12)) could be employed to predict the glycyrrhizic acid extraction process at a given ultrasonic power of 125 W and extraction temperature of 25 °C with a solvent/solid ratio of 30 (mL/g).

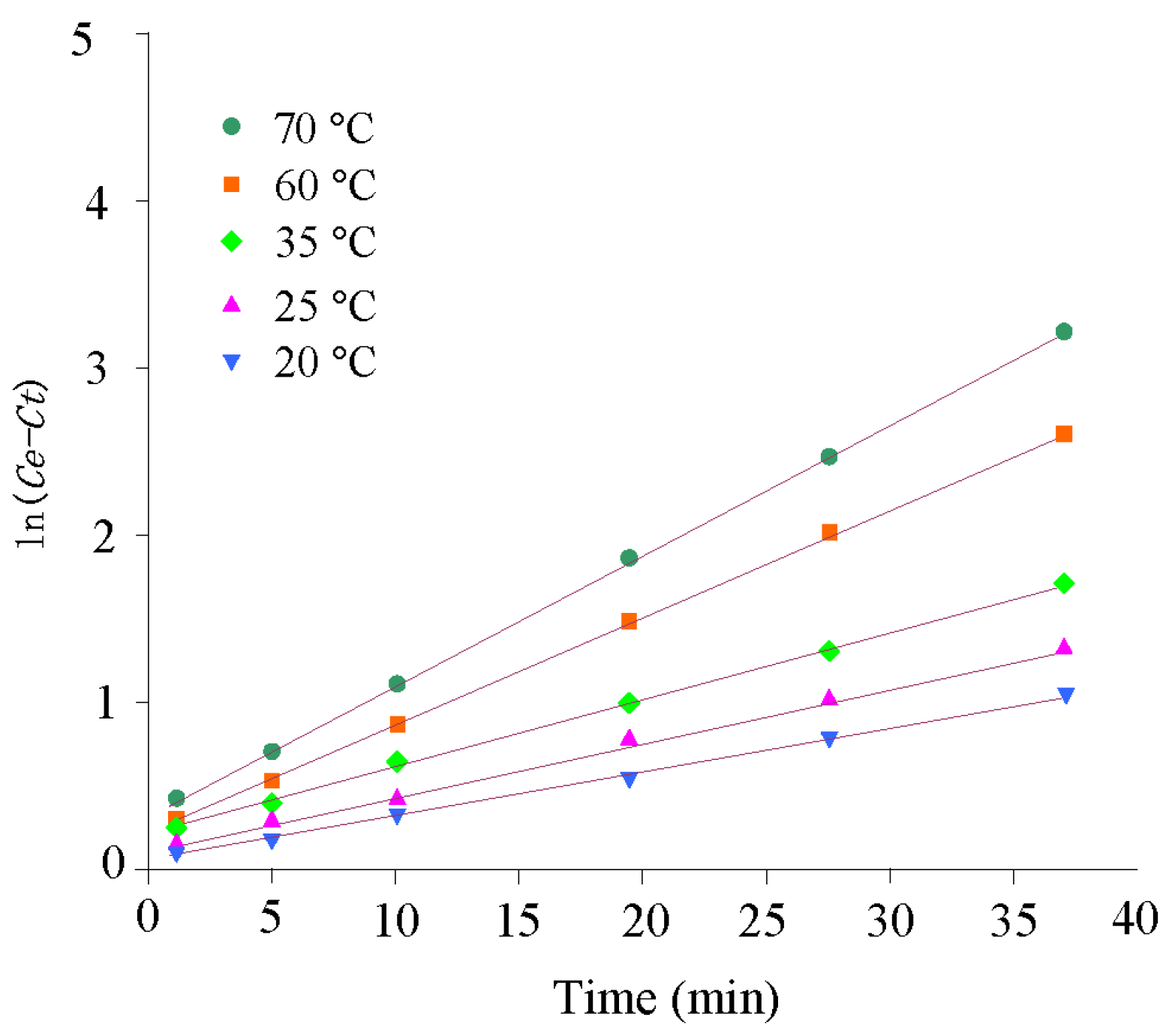

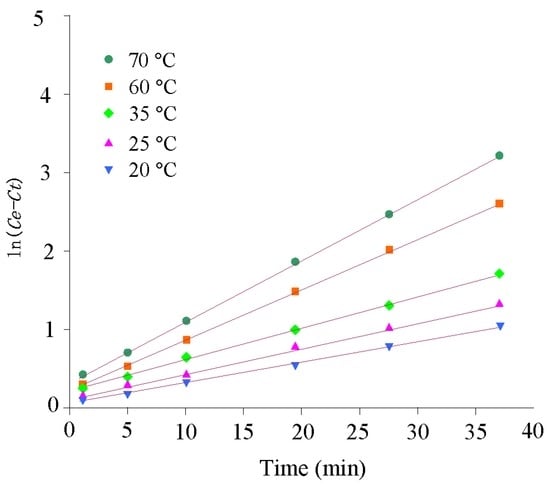

For extraction temperature, the relationship of $\ln (C_e-C_t)$ against time was shown in Figure 8. It can be seen that $\ln (C_e-C_t)\sim t$ presented a good linear relationship. The values of kinetic parameters (C_e, λ) for different extraction temperatures from the logarithm of Figure 8 were obtained and listed in

Table 3. Parameters of kinetic model of glycyrrhizic acid from Glycyrrhiza uralensis with different extraction temperatures.

Extraction Temperature (°C)	20	25	35	60	70
Ce (g/L)	2.623	2.853	3.226	4.786	6.289
λ (10−1 s−1)	0.971	1.022	1.258	3.556	6.267
R2	0.996	0.998	0.997	0.999	0.998

.

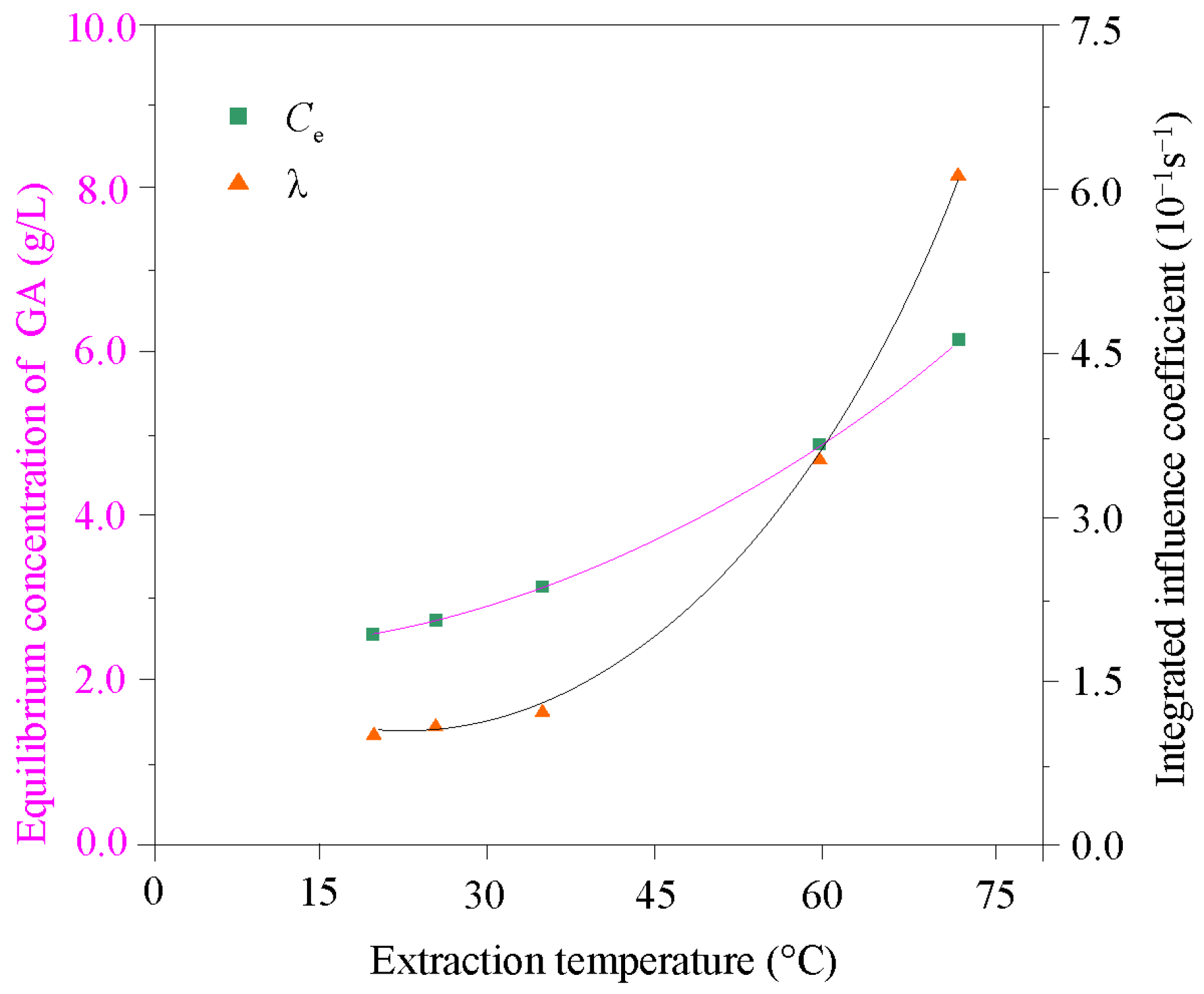

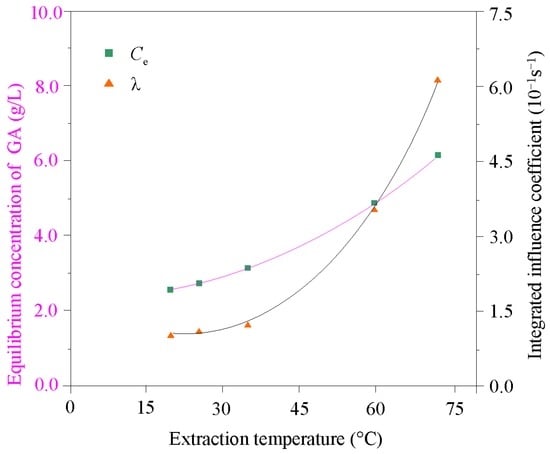

As can been seen, both values of C_e and λ increased as the extraction temperature increased. The highest C_e and λ values were all achieved at a temperature of 70 °C, followed by those at 60, 35, 25, and 20 °C. This result was similar to the previous report [38], which was consistent with the fact that a significant increase of extraction temperature could cause the increase of diffusivity [39,40]. The relationships among C_e, λ, and T were fitted well by two second-order polynomial functions because of the high values of R². The functions were plotted in Figure 9 and written as:

$$C_{e,T}=0.0013T^2-0.0439T+3.103R^2=0.995$$

(13)

$${\mathsf{\lambda }}_T=0.003T^2-0.1707T+3.342R^2=0.970$$

(14)

Substituting the C_e,T and λ_T into Equation (4), the relationship was obtained as:

$$C_{t,T}=(0.0013T^2-0.0439T+3.103)[1-e^{-(0.003T^2-0.1707T+3.342)t}]$$

(15)

This temperature extraction model (i.e., Equation (15)) could be employed to predict the glycyrrhizic acid extraction process at a given ultrasonic power of 125 W and frequency of 55 kHz with a solvent/solid ratio of 30 (mL/g).

3.3. Verification of Model

Validity of those three extraction models—i.e., Equations (9), (12) and (15)—have been evaluated by comparing with the experimental data. In order to verify the accuracy of the proposed extraction models, further several experiments were carried out at different process parameters. In these experiments, to ensure accuracy of the experimental results, each experiment was repeated three times and the average values were used.

Table 4. The relative deviation between predictive values and experimental values.

Ultrasonic Power			Ultrasonic Frequency			Extraction Temperature
P (W)	RDmax a (%)	The Average of RD b (%)	f (kHz)	RDmax (%)	The Average of RD (%)	T (°C)	RDmax (%)	The Average of RD (%)
20	6.25	1.25	20	5.54	2.02	20	5.22	1.88
50	3.09	0.96	30	5.98	3.36	25	4.31	1.97
75	5.62	2.37	40	7.69	4.36	35	8.74	4.21
100	7.98	3.66	55	4.33	1.85	60	6.32	2.65
125	4.65	1.99	90	8.21	4.05	70	3.10	1.02

^a RD_max is the maximum of relative deviation; ^b RD is the relative deviation.

listed the relative deviation (RD) between predictive values and experimental values. It could be seen that the average of RD showed a low range from 0.96% to 4.36%. The maximum values of relative deviation of ultrasonic power, ultrasonic frequency, and extraction temperature were 7.98%, 8.21%, and 8.74%, respectively.

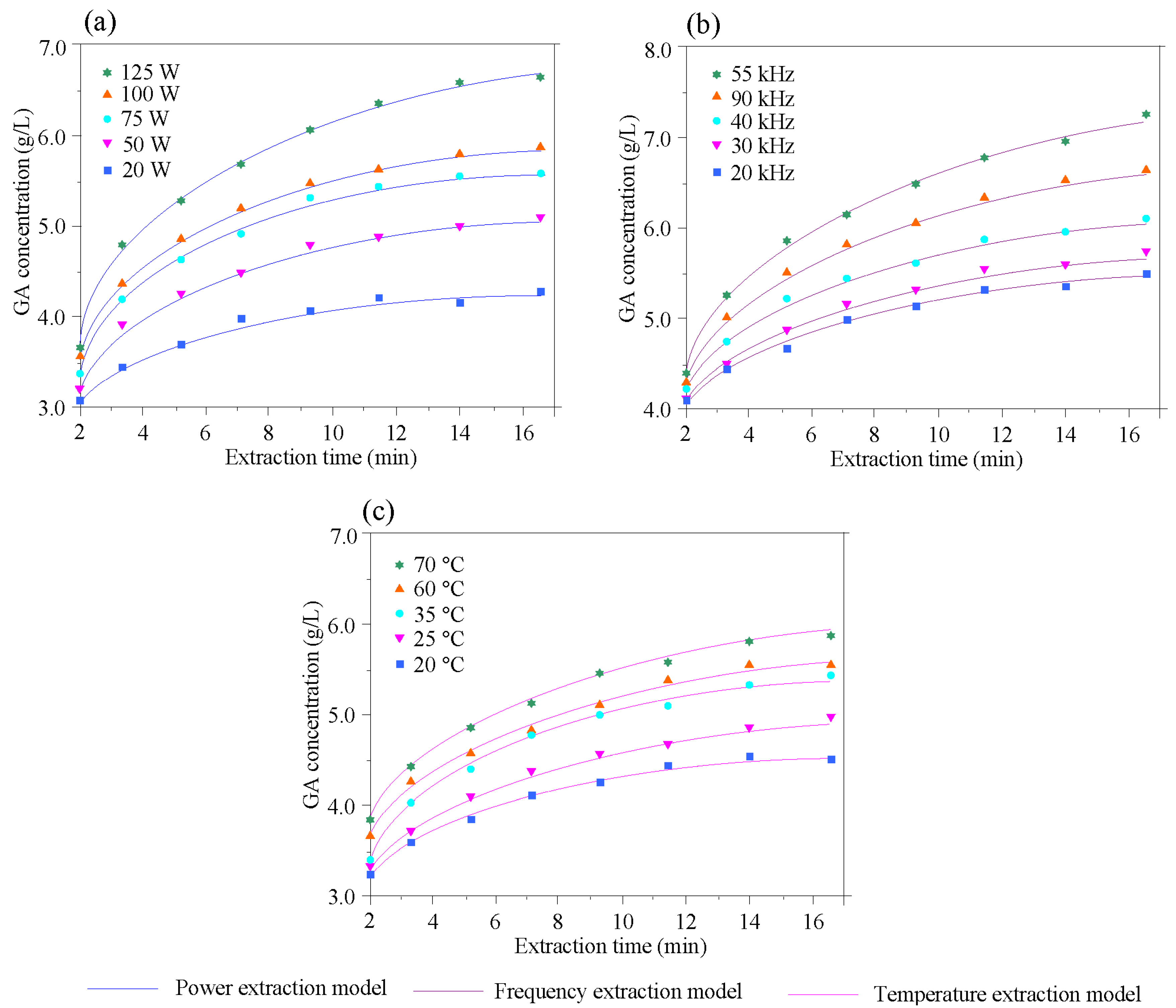

Additionally, Figure 10 depicted the experimental and model prediction of glycyrrhizic acid concentration. In all the considered cases, as can be seen, there was a good agreement between the experimental data and simulated trends. These satisfactory fits indicated that the developed extraction model could be used for better describing and predicting the ultrasonic extraction process of glycyrrhizic acid from Glycyrrhiza uralensis.

4. Conclusions

In the present work, extraction experiments were performed under ultrasonic irradiation in order to study the process parameters on the extraction of glycyrrhizic acid from Glycyrrhiza uralensis. It has been found that glycyrrhizic acid yield increased with increased ultrasonic power, extraction temperature, and ultrasonic frequency. However, the yield decreased at the ultrasonic frequency from 55 kHz to 90 kHz was found. The results indicated ultrasonic power and extraction temperature have a very positive effect on the glycyrrhizic acid yield, while ultrasonic frequency beyond 55 kHz has a negative impact. The optimal extraction conditions were as: ultrasonic power of 125 W, ultrasonic frequency of 55 kHz, and extraction temperature of 25 °C, which has given the highest yield of glycyrrhizic acid. To better describe and predict the UAE processes, the extraction model with different process parameters was developed on the basis of Fick’s diffusion Equation. Close agreement with between predictive values and experimental data to the average of RD from 0.96% to 4.36% was achieved, which indicated that the developed model gave satisfactory quality of data fit and could be used to better optimize the UAE process of glycyrrhizic acid from Glycyrrhiza uralensis.
