Open AccessArticle
Appl. Sci. 2017, 7(3), 279; doi:10.3390/app7030279

A Finite Element Investigation into the Impact Performance of an Open-Face Motorcycle Helmet with Ventilation Slots

Department of Mechanical Engineering, Advanced Institute of Manufacturing for High-tech Innovations, National Chung Cheng University, 168 University Rd., Minhsiung, Chiayi 62102, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Stefano Invernizzi
Received: 11 January 2017 / Revised: 6 March 2017 / Accepted: 6 March 2017 / Published: 16 March 2017
View Full-Text   |   Download PDF [4236 KB, uploaded 16 March 2017]   |

Abstract

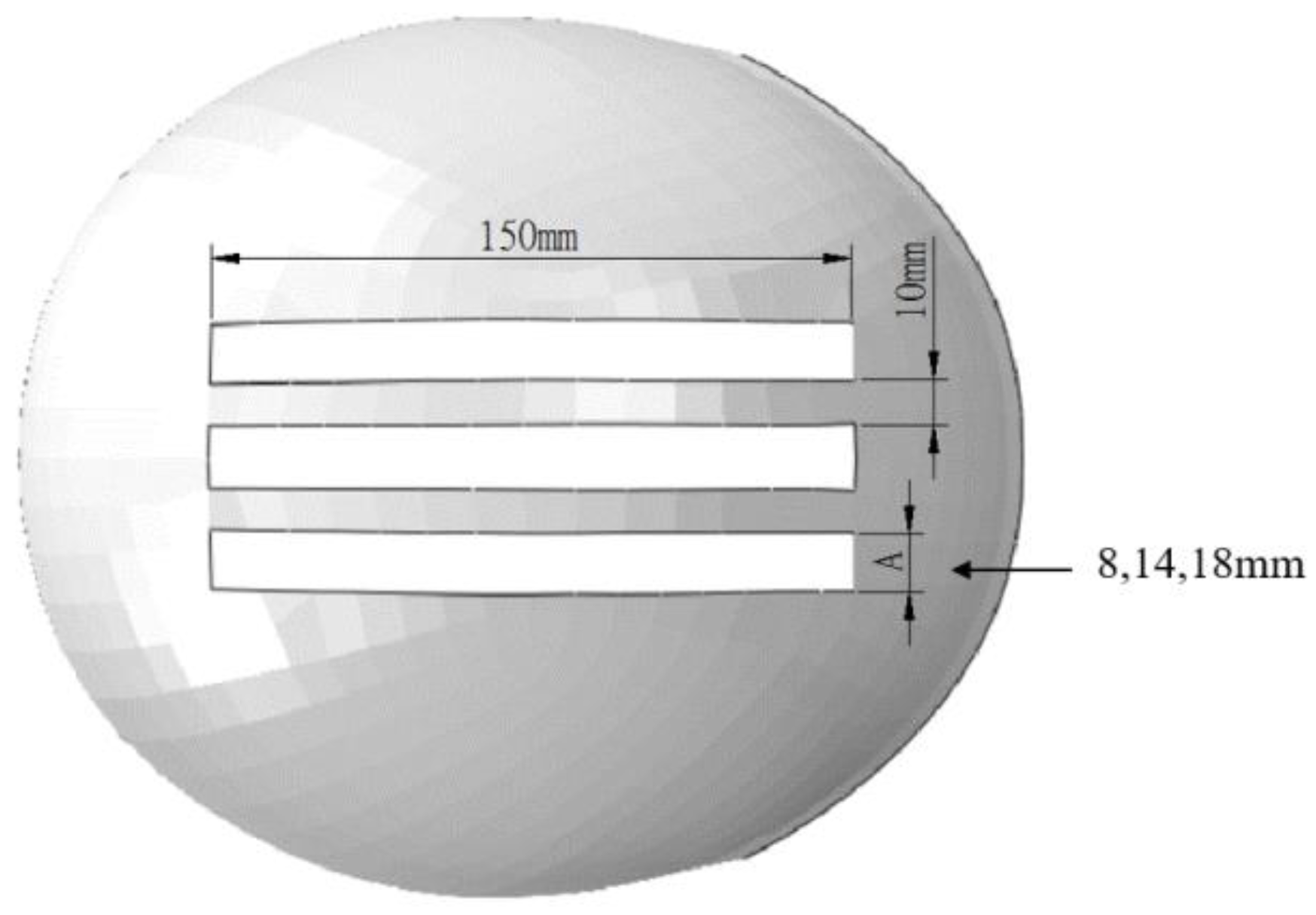

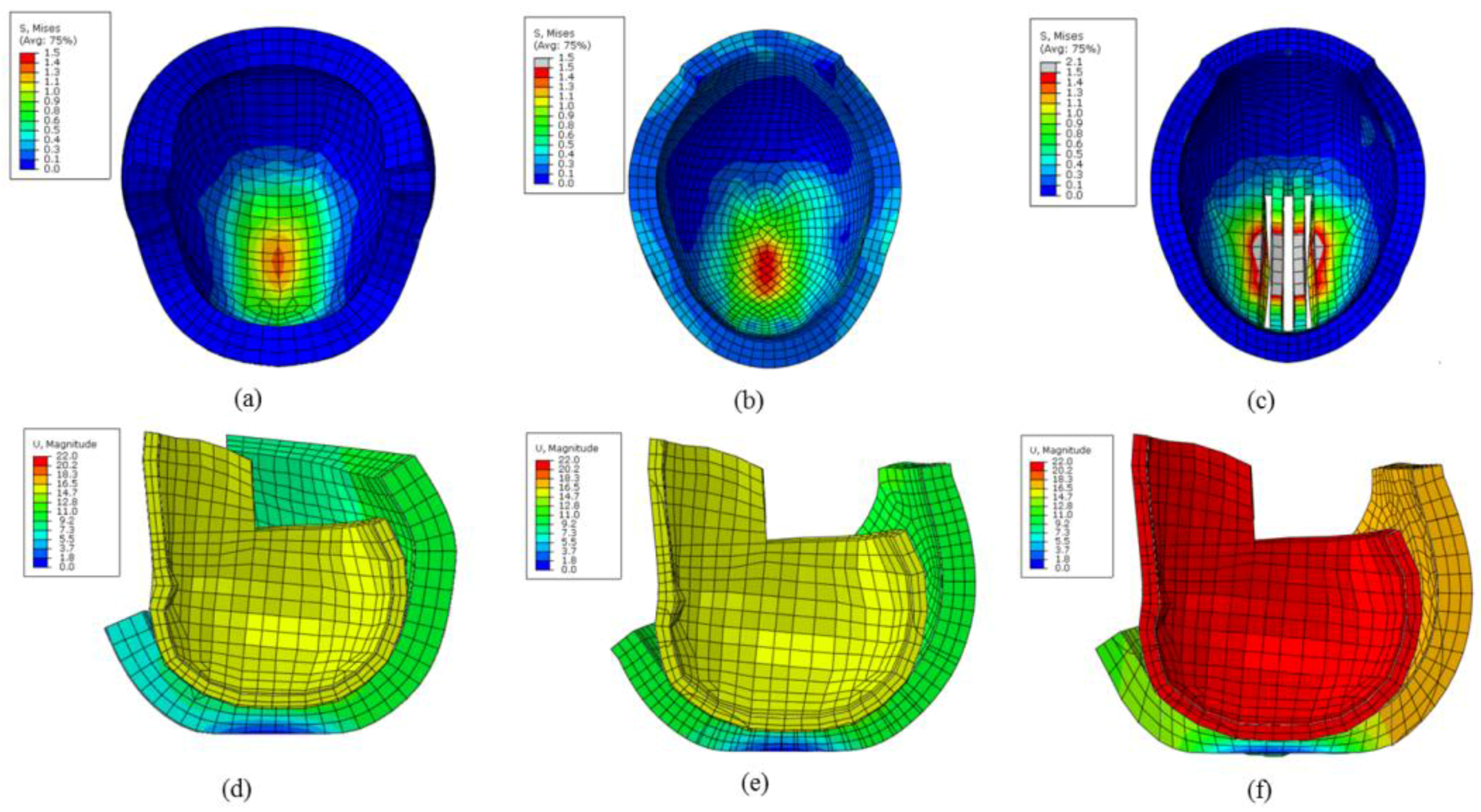

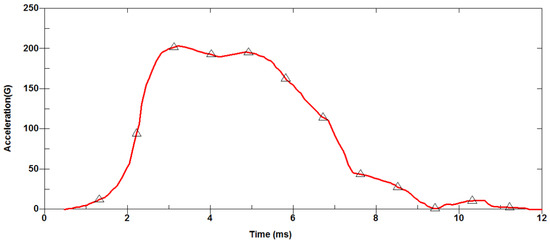

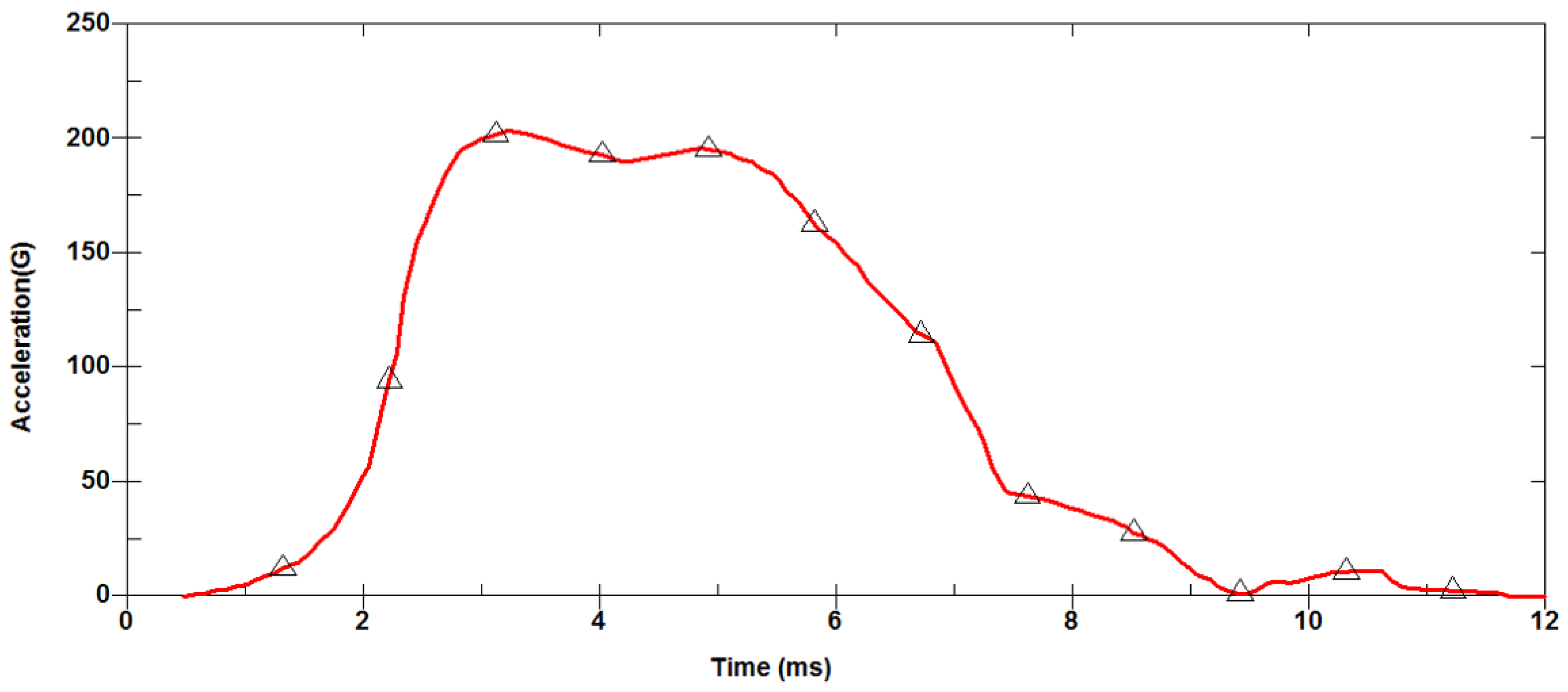

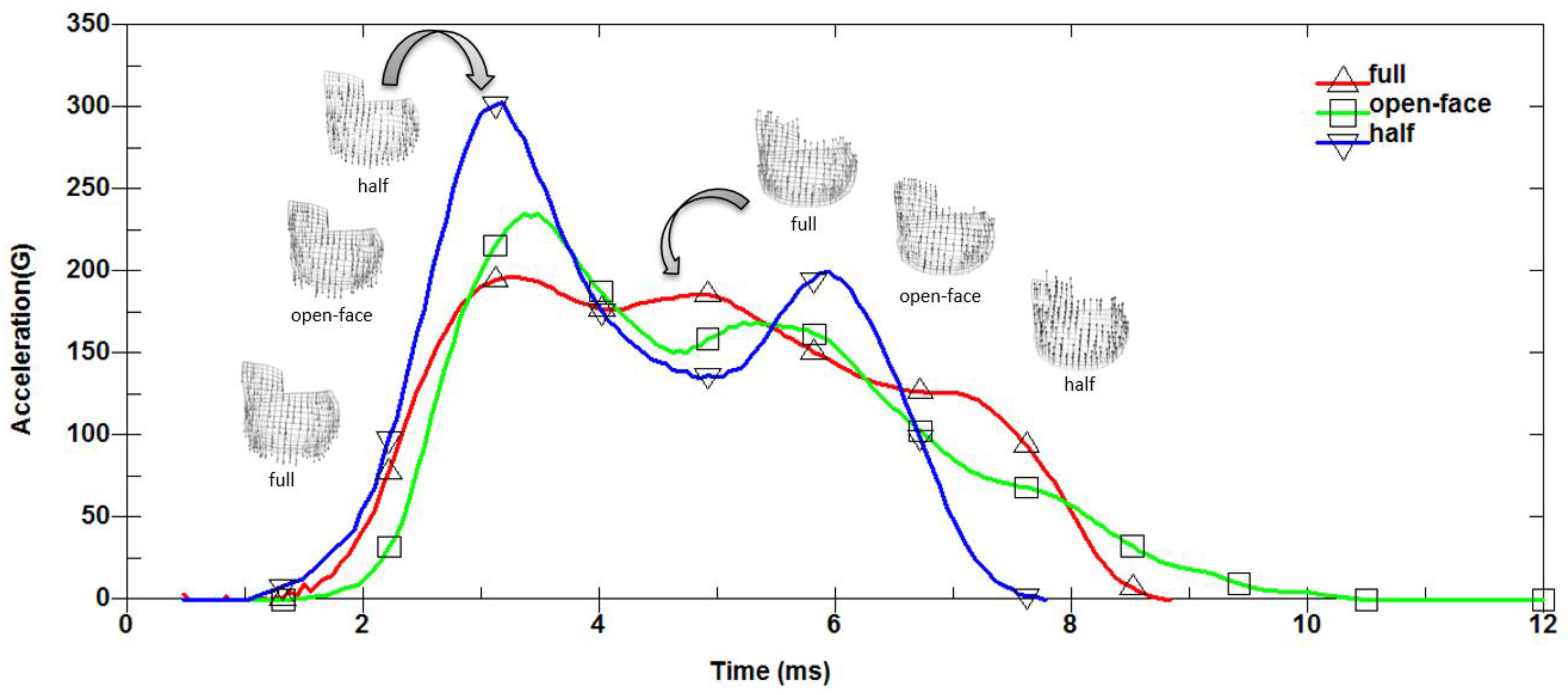

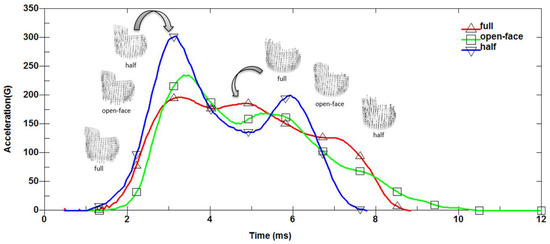

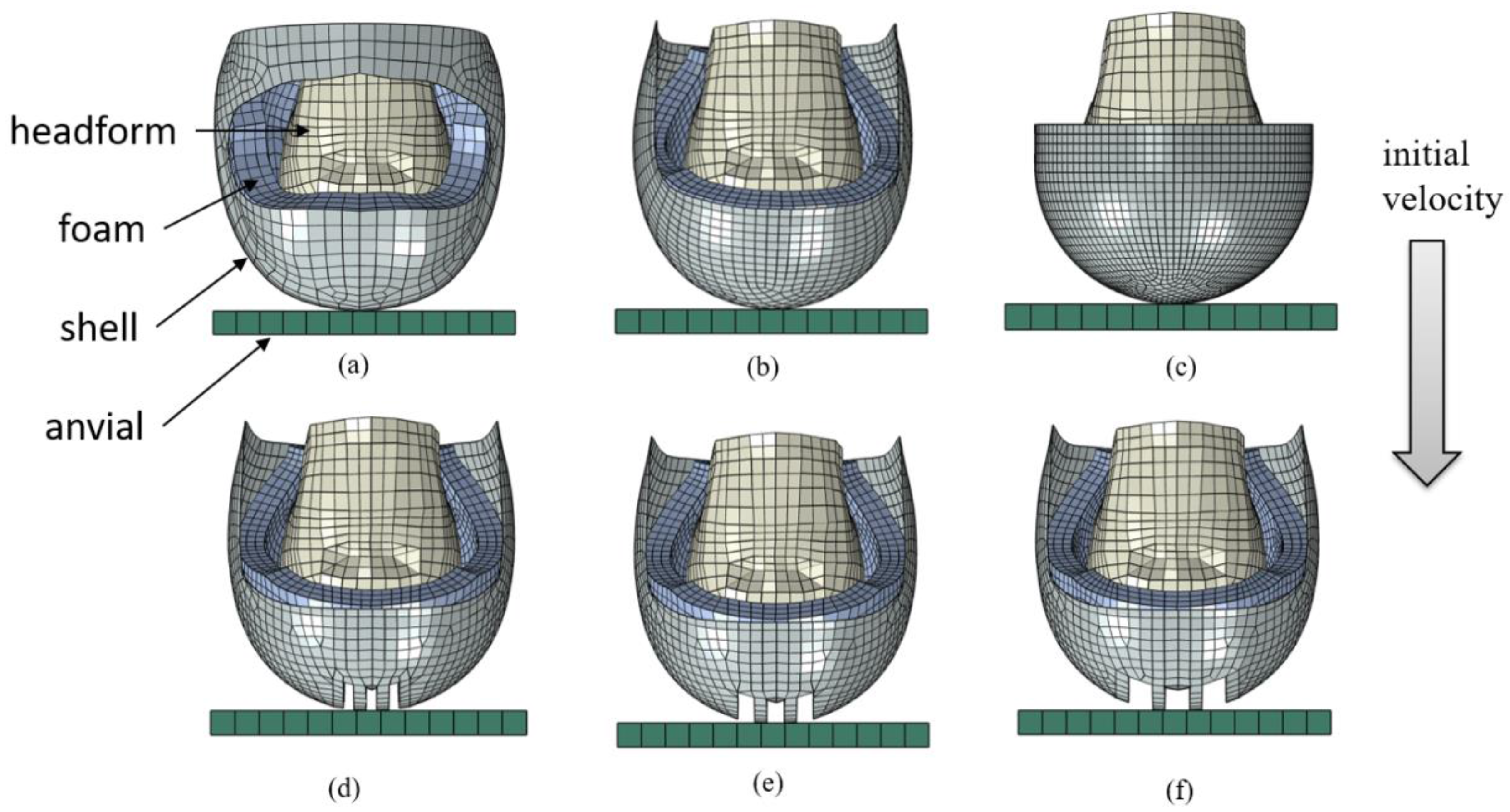

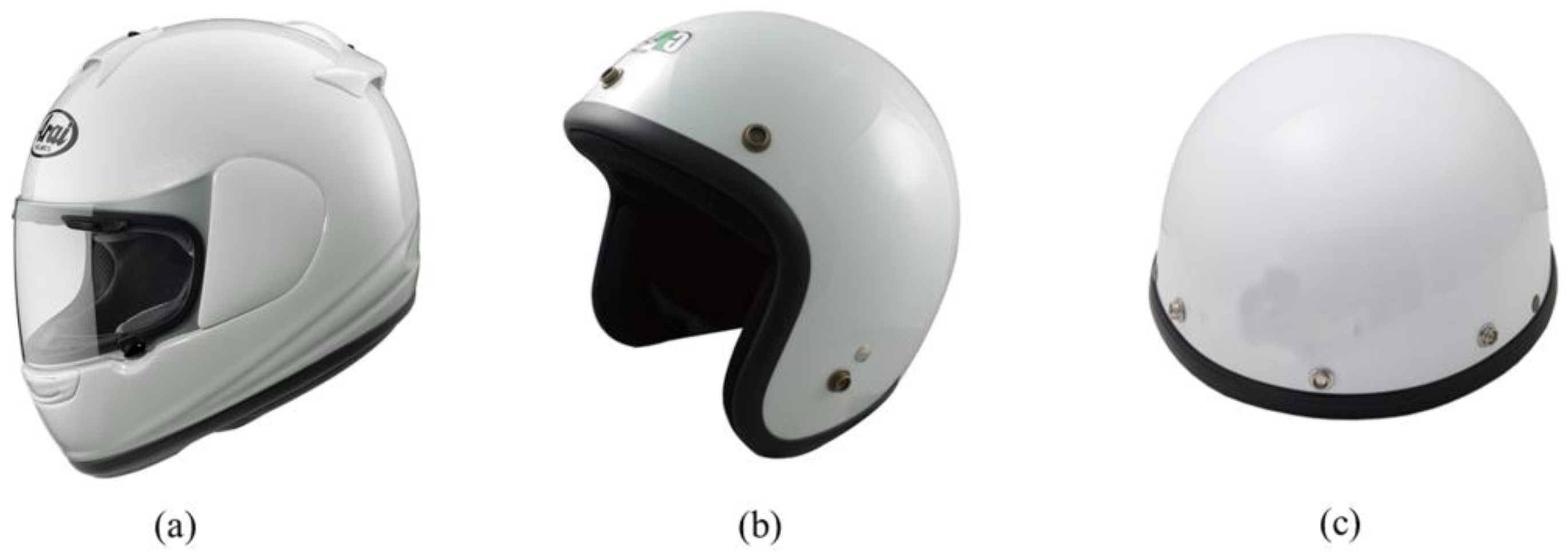

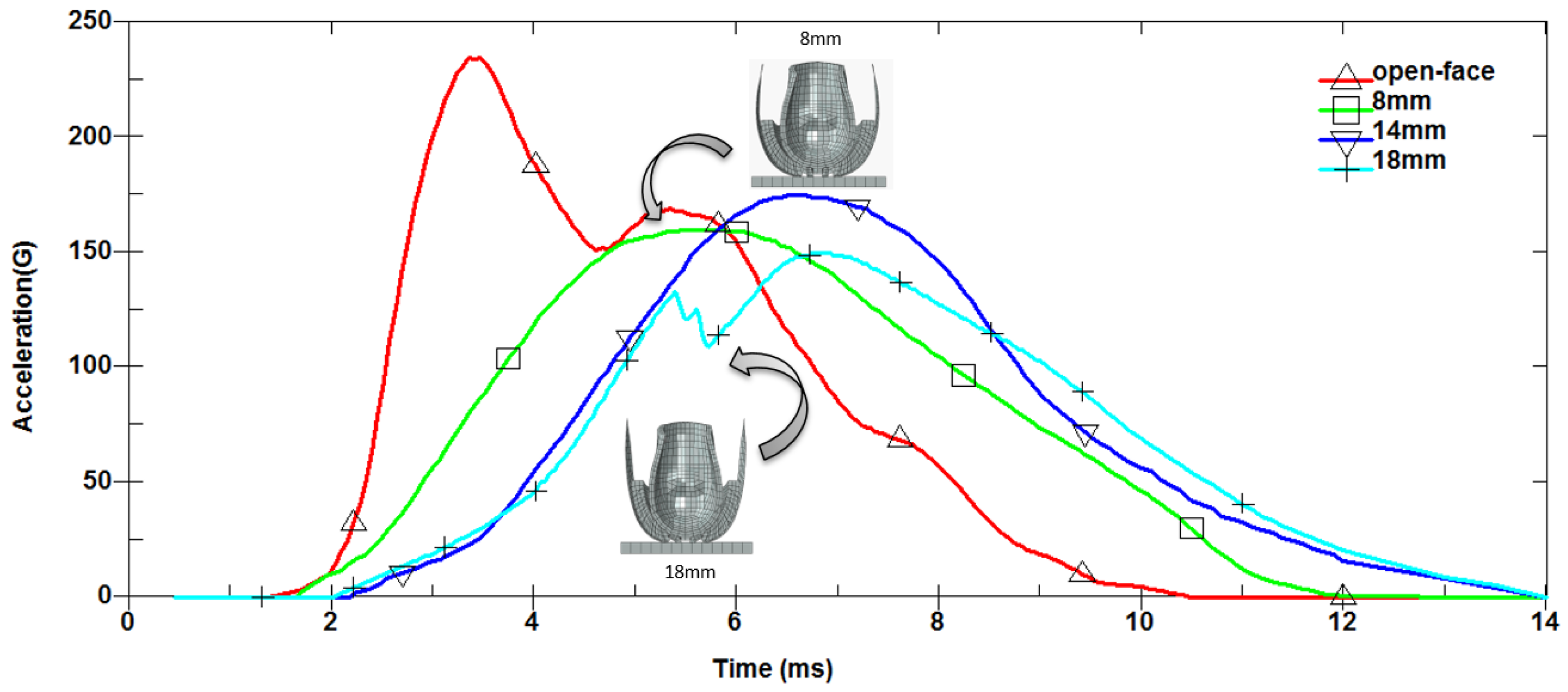

Motorcycle helmets are essential for reducing the risk of head injuries in the event of an impact. However, during the design of helmets, a compromise must be made between user safety and user comfort. Accordingly, the present study proposes a novel open-face helmet design, in which the helmet features three ventilation slots in the upper-head region. Finite element analysis (FEA) models were constructed for both a prototype helmet design, and three traditional helmet designs (full-face, open-face, and half-face helmets). In simulating the proposed open-face helmet, this study considered three different ventilation slot widths, namely 8, 14, and 18 mm. The simulation results showed that of all the helmet designs, the half-face helmet resulted in the greatest headform acceleration (303 G). The internal ventilation helmet achieved a lower peak acceleration than that of the full-face helmet. By contrast, the proposed open-face helmet with ventilation slots resulted in the lowest acceleration, irrespective of the ventilation slot width. The 8-mm ventilation slot width resulted in the optimal impact performance level (i.e., a peak headform acceleration of 160 G). Overall, the results suggest that the proposed open-face helmet design with ventilation slots provides a promising solution for ensuring both user protection and user comfort in warm climates. View Full-Text
Keywords: finite element analysis; motorcycle helmet; impact severity; head injury; safety finite element analysis; motorcycle helmet; impact severity; head injury; safety
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Liu, D.-S.; Chen, Y.-T. A Finite Element Investigation into the Impact Performance of an Open-Face Motorcycle Helmet with Ventilation Slots. Appl. Sci. 2017, 7, 279.
