Scandium Doping Effect on a Layered Perovskite Cathode for Low-Temperature Solid Oxide Fuel Cells (LT-SOFCs)

Abstract

Layered perovskite oxides are considered as promising cathode materials for the solid oxide fuel cell (SOFC) due to their high electronic/ionic conductivity and fast oxygen kinetics at low temperature. Many researchers have focused on further improving the electrochemical performance of the layered perovskite material by doping various metal ions into the B-site. Herein, we report that Sc³⁺ doping into the layered perovskite material, PrBaCo₂O_5+δ (PBCO), shows a positive effect of increasing electrochemical performances. We confirmed that Sc³⁺ doping could provide a favorable crystalline structure of layered perovskite for oxygen ion transfer in the lattice with improved Goldschmidt tolerance factor and specific free volume. Consequently, the Sc³⁺ doped PBCO exhibits a maximum power density of 0.73 W cm⁻² at 500 °C, 1.3 times higher than that of PBCO. These results indicate that Sc³⁺ doping could effectively improve the electrochemical properties of the layered perovskite material, PBCO.

1. Introduction

The solid oxide fuel cell (SOFC) is an attractive eco-friendly energy conversion system because of its high energy conversion efficiency, fuel flexibility, and low emission of pollutants [1,2,3,4,5,6,7,8]. Recently, many studies have focused on developing low-temperature (400–600 °C) SOFCs (LT-SOFCs) because the intermediate-to-high-operating temperature (600–1000 °C) causes critical issues, such as material degradation and expensive maintenance costs [9,10]. However, the low-operating temperature leads to high cathodic polarization due to the slow kinetics of oxygen ion transfer. In this respect, mixed ionic and electronic conductors (MIECs) have received great attention because of their high electrocatalytic activity for the oxygen reduction reaction (ORR), high electrical conductivities, fast surface exchange coefficient, and high oxygen diffusivity characteristics. Also, the ORR occurs not only at the triple phase boundary (TPB) but at the entire surface of the cathode (i.e., the two-phase boundary, 2PB), because oxygen anions can transport through the MIEC bulk [11].

Among MIECs, layered perovskites have been widely used for SOFC cathode material because of its exceptional electrochemical catalytic activity [12,13,14,15,16]. These layered perovskites have a general formula of AA’B₂O_5+δ, where A, A’, and B are trivalent lanthanide ion, alkaline earth metal, and a first-row transition metal, respectively. The layered perovskite consists of a stacking sequential layer of …|A’O|BO₂|AO_δ|BO₂|… along the c-axis [4,10,17]. This layered structure possesses a disorder-free channel for ion motion in the |AO_δ| and |BO₂| planes that can provide fast oxygen-ion transport [18,19].

Recently, many researchers have devoted efforts to further improving the electrochemical performance of the layered perovskite by substituting various metal ions [20,21,22,23,24,25,26]. For example, substituting constant-valence state metal ions (e.g., Nb⁵⁺, Ta⁵⁺, and Ti⁴⁺) into the perovskite could increase the ionic conductivity by reducing the lattice strain that occurs during the oxygen ion transport [27,28,29,30]. Especially, in the oxygen transport membrane system, it was reported that doping scandium into the perovskite-type oxide improves the electrochemical property by lowering the activation energy for oxygen ion transfer [31,32]. In this regard, the Sc³⁺ doped layered perovskite oxide is expected to exhibit a lower cathode polarization of the LT-SOFC.

The crystal structure along with the A and/or B site cations play a significant role in determining the electrical and ionic properties of PrBaCo₂O_5+δ (PBCO) perovskite oxides. Based on the literature data and experimental observations, several interesting relationships between the crystal structure, composition, and electrochemical properties have been established. In this regard, the critical radius for the oxide-ion transfer, unit cell free volume, and Goldschmidt tolerance factor (t_f) are the key factors that govern the oxide ion conductivity in PBCO perovskite oxides [33,34,35]. Among those properties, the Goldschmidt tolerance factor is a useful indicator for evaluating distortion of the crystal structure [36,37]. A Sc³⁺ ion substitution into the layered perovskite material PBCO could provide a beneficial effect on the of lattice crystal structure. The Goldschmidt tolerance factor (t_f) approaches 1 by substitution of Sc³⁺ in PBCO. Since the t_f value of PBCO is 1.012, it is possible to reduce the t_f by doping the B site with an ion larger than the Co ion. In this regard, substituting a larger Sc³⁺ (0.75 Å) ion with a smaller Co³⁺/⁴⁺ (0.53–0.61 Å) ion could converge t_f closer to 1, which enables fast oxygen transport. [38,39]

In this study, we report the improvement of electrochemical performance by Sc³⁺ doping into the layered perovskite, PBCO. To investigate the Sc³⁺ doping effect on PBCO, we evaluated the structural characteristics, morphological properties, oxygen contents (5 + δ), electrical and electrochemical properties of PBCO, PrBaCo_1.9Sc_0.1O_5+δ (PBCSc), and Pr_0.5Ba_0.5Co_0.9Sc_0.1O_3−δ (SP-PBCSc).

2. Materials and Methods

PrBaCo₂O_5+δ (PBCO), PrBaCo_1.9Sc_0.1O_5+δ (PBCSc) and Pr_0.5Ba_0.5Co_0.9Sc_0.1O_3−δ (SP-PBCSc) oxides were synthesized through the Pechini method. Stoichiometric amounts of Pr(NO₃)₃⋅6H₂O (Aldrich, St. Louis, MO, USA, 99.9%, metal basis), Ba(NO₃)₂ (Aldrich, ≥99%), Co(NO₃)₂⋅6H₂O (Aldrich, ≥98%), Sc(NO₃)₃⋅xH₂O (Alfa Aesar, Haverhill, MA, USA, 99.9%), and citric acid as chelate were dissolved in distilled water. After the proper amount of polyethylene glycol was completely dissolved, the solutions were heated to approximately 250 °C in air until combustion to form a fine powder of the cathode materials. The resulting powders were calcined at 600 °C for 4 h and ground with zirconia balls for 24 h. Samples were pressed into a pellet and sintered at 1150 °C for 6 h and 1200 °C for 4 h to prepare a dense pellet. The Ce_0.9Gd_0.1O_2−δ (GDC) powder for the electrolyte and the NiO-GDC powder for the anode were synthesized using the glycine-nitrate process (GNP) with stoichiometric amounts of metal nitrates and glycine.

The crystalline structures of samples were determined by X-ray diffractometer (Rigaku diffractometer, Cu Kα radiation). The Rietveld refinement using GSAS II program was used to analyze the crystal structures and lattice parameters of the samples. The high-resolution transmittance electron microscopy (HR TEM) images were obtained with a JEOL JEM 2100F at 200 kV. The microstructures of samples were investigated using a field emission scanning electron microscope (Nova Nano SEM, FEI, Hillsboro, OR, USA). The electrical conductivities of samples were determined by a four-terminal DC arrangement with a BioLogic Potentiostat from 100 to 800 °C. Thermogravimetric analysis (TGA) was performed using a thermogravimetric analyzer (SDT-Q600, TA Instruments, New Castle, DE, USA) from 100 °C to 900 °C with a heating/cooling rate of 2 °C min⁻¹ in air. Iodometric titration was performed to measure the oxygen contents at room temperature. The samples were dissolved in HCl under inert gas atmosphere to prevent the oxidation of the I⁻ ions. The solution was titrated with sodium thiosulfate solution. Regarding the error of this analytic method, the standard deviation values of the samples were calculated.

Symmetric cells were used for the impedance spectroscopy measurement. The GDC powders were pressed into pellets and sintered at 1350 °C for 4 h in air to fabricate a dense electrolyte. Cathode slurries were painted onto both surfaces of the GDC electrolyte and heated at 950 °C for 4 h. Ni-GDC anode-supported cells (cathode/GDC/Ni-GDC) were prepared using a drop-coating method. The NiO powder, GDC powder, and starch were mixed using ball-milling in ethanol for 24 h. The mixed powders were pressed into pellets and fired at 800 °C for 4 h. Thin GDC electrolyte was prepared by a refined particle suspension coating technique. A GDC suspension was prepared by dispersing GDC powders (Aldrich) in a solvent with the proper amount of binder, then dispersant, and plasticizer at a ratio of 1:10. The GDC suspension was prepared by dispersing GDC powder in a solution of 2-butanone and ethanol with a small amount of polyvinyl butyral as a binder, then plasticizers such as polyalkylene glycol and butyl benzyl phthalate, and triethanolamine as a dispersant at a ratio of 1:10. The GDC suspension solution was drop-coated to the Ni–GDC anode support, followed by drying in air and co-sintering at 1400 °C for 5 h. For the preparation of cathode slurry, all pre-calcined electrode powders were blended with an organic binder (Heraeus V006) to form slurries. The cathode slurries were screen-printed on the surface of the electrolyte with an active cathode area of 0.36 cm².

For the electrochemical performance of symmetrical cells and single cell, Ag wires were attached to both electrodes using Ag paste. Ceramic adhesive (Aremco, Valley Cottage, NY, USA, Ceramabond 552) was used to fix the cells at the end of the alumina tube.

Impedance spectra of the symmetrical cell in the air were measured at 400–600 °C under open circuit voltage (OCV) in a frequency range of 1 mHz to 500 kHz with 10 mV AC perturbation with curve fitting using software EC-lab. Impedance spectra of the samples were fitted to equivalent circuits. To determine the electrochemical performance of single cells, humidified H₂ (3 vol% H₂O) was provided on the surface of the anode, and air was supplied to the cathode as oxidant. The single cell performances of cathodes were investigated at 400–550 °C using the BioLogic Potentiostat.

3. Results and Discussion

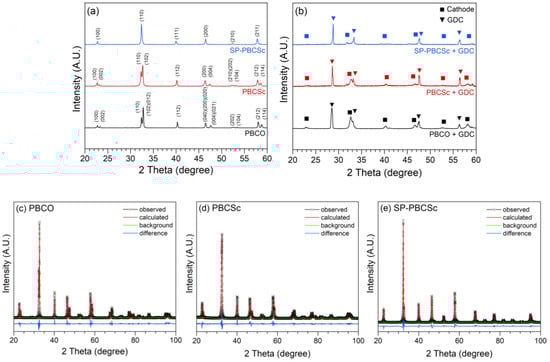

The crystal structures of PrBaCo₂O_5+δ (PBCO), PrBaCo_1.9Sc_0.1O_5+δ (PBCSc), and Pr_0.5Ba_0.5Co_0.9Sc_0.1O_3−δ (SP-PBCSc) were confirmed by X-ray diffraction (XRD) analysis (Figure 1a). The XRD patterns show a single-phase layered perovskite structure without any detectable impurities for PBCO and PBCSc. The chemical compatibility between the cathodes and the GDC electrolyte was investigated with the mixture sintered at 950 °C for 4 h (Figure 1b). It revealed that there were no secondary reactions between the cathodes and GDC electrolyte. Figure 1c–e exhibits the Rietveld refinement profiles with the difference between the observed and calculate XRD. (Rp = 0.19, 0.16 and 0.17 for PBCO, PBCSc and SP-PBCSc, respectively.) Crystal structures and the calculated lattice parameters are summarized in

Table 1. Space group and lattice parameters of PBCO, PBCSc and SP-PBCSc.

Sc Content	Cathode	Space Group	a (Å)	b (Å)	c (Å)	Unit Cell Volume (Å3)	Oxygen Content
0	PrBaCo2O5+δ	Pmmm	3.91914	3.84016	7.85418	118.206	5.68
0.1	PrBaCo1.9Sc0.1O5+δ	P4/mmm	3.92141	3.92141	7.72105	118.730	5.64
0.2	Pr0.5Ba0.5Co0.9Sc0.1O3−δ	Pm$\overline{3}$m	3.90801	3.90801	3.90801	59.685	2.80

. PrBaCo_1.8Sc_0.2O_5+δ is labeled with SP-PBCSc because of its different crystal structure with PrBaCo_1.8Sc_0.2O_5+δ. The samples for Sc³⁺ ≤0.1 represent the layered perovskite phase. As shown in Table 1, PBCO shows an orthorhombic crystal structure with the Pmmm space group, while PBCSc shows a tetragonal crystal structure with P4/mmm space group. PBCO and PBCSc show a layered perovskite phase, however, SP-PBCSc with higher Sc³⁺ substitution (Sc³⁺ = 0.2) shows a simple perovskite cubic crystal structure with Pm$\overline{3}$m space group. From the high-resolution transmission electron microscopy (HRTEM) images of PBCO and PBCSc, A-site ordering layered structures were observed showing a weak additional spot in the fast-Fourier transformed pattern, which are indexed with (001) of layered double perovskite. (Figure S1a,b) Meanwhile, HR TEM image of SP-PBCSc (Figure S1c) shows the fast-Fourier transformed pattern indexed with (001) of cubic perovskite.

The microstructures of the PBCO and PBCSc were investigated using scanning electron microscopy (SEM) as presented in Figure 2. The similar microstructures of PBCO and PBCSc indicate that Sc³⁺ substitution does not affect the morphological property of the cathode materials. As shown in Figure 2c, a dense GDC electrolyte (~10 μm thick) and a porous PBCSc cathode (~25 μm thick) are successfully fabricated without delamination between them.

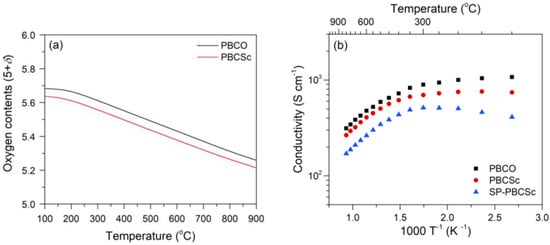

Figure 3a shows the temperature dependence of the oxygen non-stoichiometry for PBCO and PBCSc by thermogravimetric analysis (TGA) in air. The oxygen contents (5 + δ) of samples at room temperature were determined by iodometric titration. Average δ values of PBCO and PBCSc at room temperature were 0.6833, 0.6367 with standard deviation values of 8.916 × 10⁻³ and 9.251 × 10⁻³, respectively. In the temperature range of 100–900 °C, the Sc³⁺ substitution into PBCO leads to relatively decrease the oxygen content.

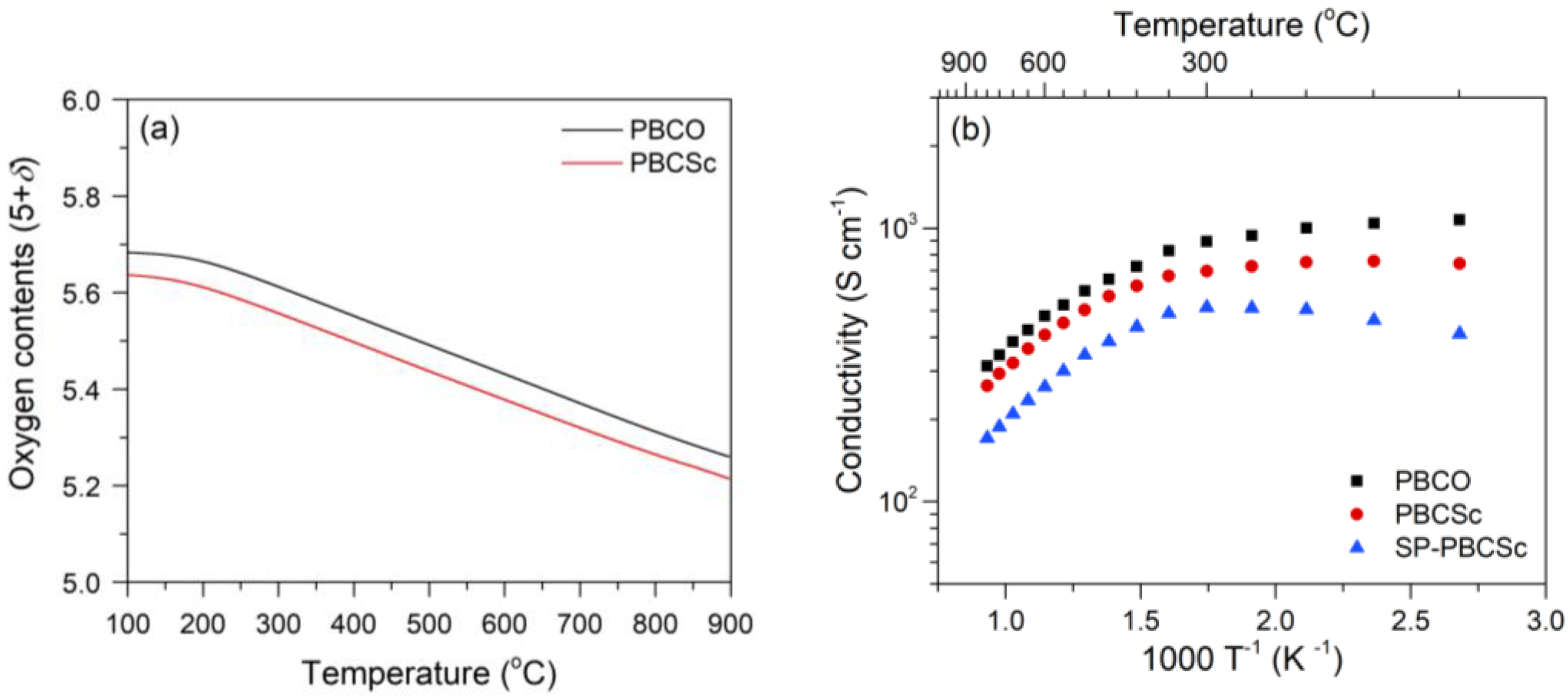

Figure 3b presents the electrical conductivities of the samples at various temperatures. The electrical conductivities of all samples increase with decreasing temperature, implying a typical metallic behavior. All the samples show sufficient electrical conductivity values of 589, 503, and 344 S cm⁻¹ for PBCO, PBCSc, and SP-PBCSc, respectively at 500 °C, which are higher than the requirement for efficient SOFC operation (>10 S cm⁻¹). PBCSc shows smaller electrical conductivity than PBCO due to disturbance of the electron conduction, which originated from the substitution of constant valance state Sc³⁺ ion for multivalent Co ion [24,40,41]. Substitution of the Sc³⁺ reduces the overlapping between multivalent Co ion with the oxygen 2p orbitals and decreases the electron transport between the multivalent cobalt cations, which is known as Zener double exchange.

The Goldschmidt tolerance factor is a useful indicator to determine the distortion of a unit cell structure, defined by the following equation;

$${\mathrm{t}}_{\mathrm{f}}=\frac{\left({\mathrm{r}}_{\mathrm{A}}+{\mathrm{r}}_{\mathrm{O}}\right)}{\sqrt{\left({\mathrm{r}}_{\mathrm{B}}+{\mathrm{r}}_{\mathrm{O}}\right)}},$$

(1)

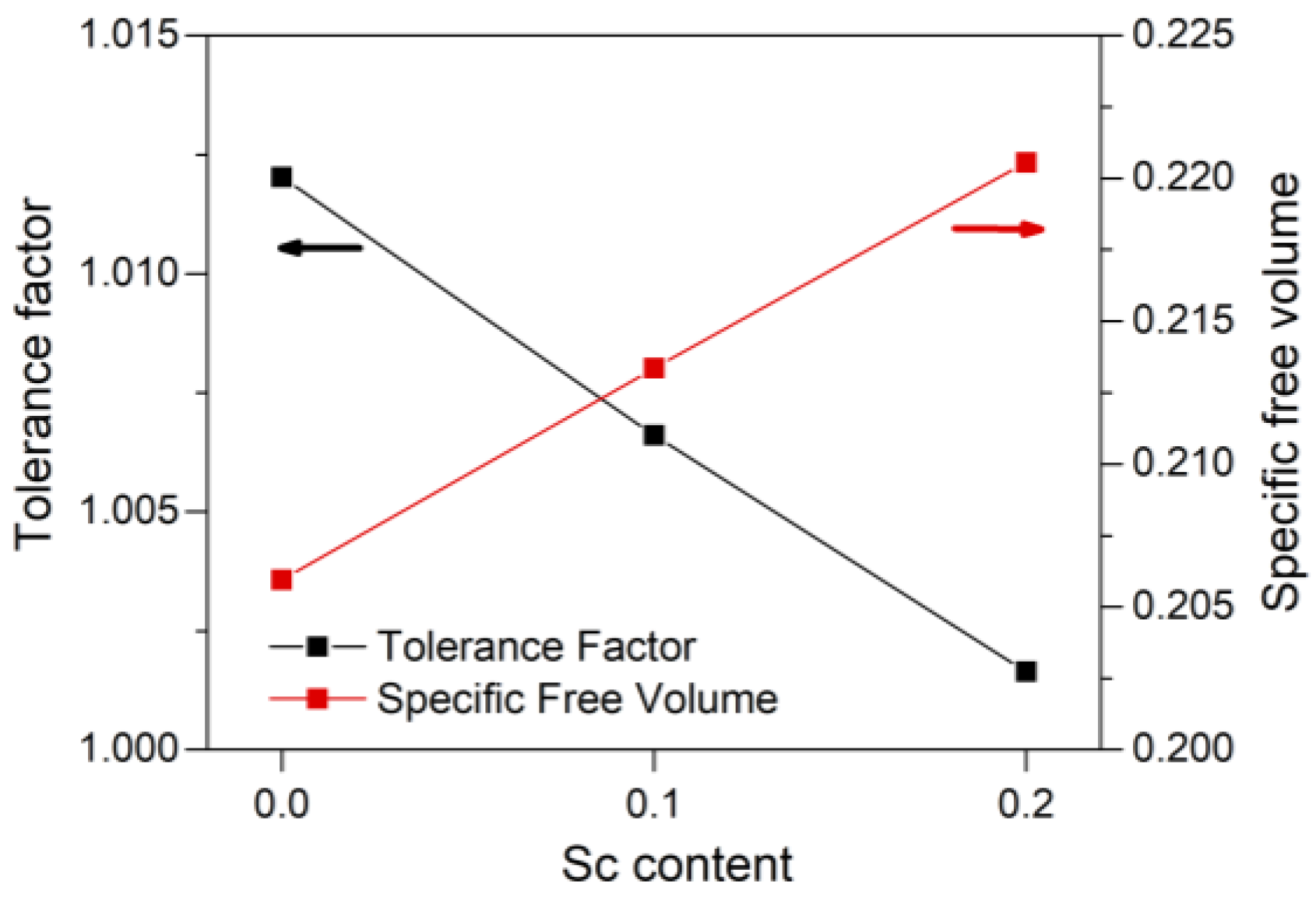

where r_A, r_B, and r_O are the ionic radii of cation A, cation B, and oxygen, respectively. Figure 4 shows that the substitution of Sc³⁺ into PBCO can converge the Goldschmidt tolerance factor of PBCO near to 1 (e.g., from 1.012 to 1.006), implying that Sc³⁺ doping could reduce distortion of the perovskite structure and alleviate the local strain of the lattice.

The evaluation of free volume could be also a significant structural parameter to estimate electrochemical performance. Free volume is defined as the difference between the perovskite unit cell volume and the total volume occupied by the ions [36]. The large free volume could provide sufficient space for oxygen transport in the unit cell, resulting in the reduction of activation energy for oxygen diffusion [42]. Therefore, we calculated the specific free volume of PBCO and PBCSc, defined as follows;

(specific free volume) = (free volume)/(unit cell volume),

(2)

As seen in Figure 4, PBCSc exhibits higher specific free volume, 0.213, than that of PBCO, 0.206, indicating that PBCSc can be considered as a more favorable structure for oxygen transfer due to larger free volume for oxygen migration than that of PBCO.

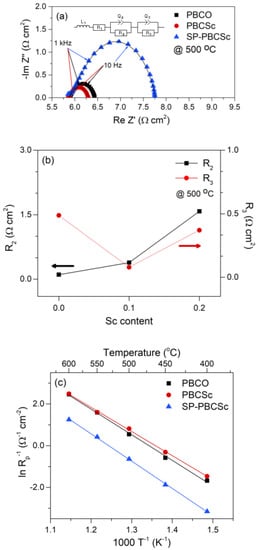

Figure 5a shows impedance spectroscopy to evaluate the electrocatalytic activities of samples. The area specific resistances (ASRs) were evaluated by alternating current (AC) impedance spectroscopy with GDC symmetrical cells in air. As can be expected from the favorable structural properties of PBCSc for oxygen anion transfer and ORR, (i.e., Goldschmidt tolerance factor and specific free volume) the PBCSc shows a lower ASR value of 0.44 Ω cm² than that of PBCO (0.58 Ω cm²). Substitution of the Sc³⁺ ion into PBCO is a more effective method to reduce the impedance of the cathode material than several approaches recently reported to enhance the electrocatalytic activity of cathode materials. [43,44,45] Meanwhile, the ASR value of SP-PBCSc is increased due to its structural change to the cubic Pm$\overline{3}$m crystal structure. A similar result was observed in the A-site doped PrBa_1−xSr_xCo₂O_5+δ system; a phase transition was observed for higher Sr content (orthorhombic → tetragonal → cubic structure) [46]. According to the Adler–Lane–Steele (ALS) model [47], the ASR is related to oxygen kinetics, such as bulk diffusion ($D_o^{\ast }$) and surface exchange ($k_o^0$); this can be expressed as,

$${\mathrm{R}}_{\mathrm{cathode}}=\frac{\mathrm{RT}}{2{\mathrm{F}}^2}{\left[\frac{\mathsf{\tau }}{\left(1-\mathsf{\phi }\right){\mathrm{Sc}}_0^2{\mathrm{D}}_{\mathrm{o}}^{\ast }{\mathrm{k}}_{\mathrm{o}}^{\mathrm{o}}}\right]}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}$$

(3)

where φ, S, and τ are the porosity, surface area, and tortuosity, respectively. Assuming that the structural parameters of both PBCO and PBCSc are similar (porosity, cathode surface area, and tortuosity), high bulk diffusion and surface exchange lead to lower ASR values. Therefore, it can be explained that Sc³⁺ substitution results in the improvement of oxygen-related electrochemical properties (i.e., fast oxygen diffusion and high surface kinetics on the surface).

Total ASR values consist of the sum of the charge-transfer resistance (R₂) and the non-charge transfer resistance (R₃) [48]. R₂ is associated with the migration and diffusion of oxygen species from the triple phase boundary to the electrolyte, while R₃ is generally related to the non-charge transfer process (e.g., oxygen surface exchange and gas-phase diffusion on the surface of the electrode). The non-charge transfer resistance (R₃) of PBCSc is lower than that of PBCO, (Figure 5b) indicating that Sc³⁺ substitution considerably lowers non-charge transfer resistance (R₃) [25].

Arrhenius plots of the polarization resistances for PBCO, PBCSc, and SP-PBCSc are shown in Figure 5c. The activation energies determined by the slope of the Arrhenius plots are related to the oxygen kinetics of the cathode including the oxygen adsorption, dissociation, and diffusion behavior [14,49]. The activation energies (E_a) are 102 and 96 kJ mol⁻¹ for PBCO and PBCSc, respectively. This result matches well with other reports on the enhancement of oxygen surface exchange through partial substitution of Sc³⁺ [31,32].

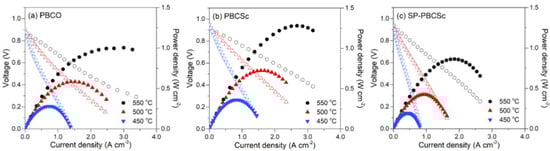

Figure 6 presents the current-voltage (I–V) curves and corresponding power density curves for the cathode/GDC/Ni-GDC cell using humidified H₂ and air, as a fuel and oxidant, respectively. As expected from the lower ASR value of PBCSc, PBCSc exhibits excellent maximum power densities of 1.3 and 0.73 W cm⁻² at 550 and 500 °C, respectively and these are ~1.5 times higher than those of PBCO.

4. Conclusions

In the present study, the scandium doping effect on PrBaCo₂O_5+δ (PBCO) was studied to improve the electrochemical performance of LT-SOFC by characterizing the structural, electrical, and electrochemical properties of PBCO and PrBaCo_1.9Sc_0.1O_5+δ (PBCSc). The substitution of Sc³⁺ improves the electrochemical performance of PBCO by favoring structural properties related to O²⁻ diffusion and oxygen reduction reactions. Based on these favorable Sc³⁺ doping effects, the PBCSc cathode presents a low polarization resistance (0.44 Ω cm²) at 500 °C with a maximum power density of 0.73 W cm⁻² which is 1.3 times higher than that of PBCO. Consequently, these results imply that the substitution of Sc³⁺ into the PBCO could effectively enhance the cathodic electrochemical performance of low-temperature SOFC.
