Synthesis and Investigation of Thermal Properties of Highly Pure Carboxylic Fatty Esters to Be Used as PCM

Abstract

Latent heat storage systems are gaining the attention of researchers as possible substitutes to conventional sensible heat storage systems due to their compactness and their ability to absorb and release heat almost isothermally. Among the Phase Change Materials (PCM) for energy storage studied so far, esters are believed to show promising properties. In particular, a broad range of melting temperatures, little to no supercooling, low corrosivity, chemical and thermal stability, and high enthalpies of fusion are reported. Many esters have the advantage of being bio-based and biodegradable, making them more sustainable in comparison to other popular PCM. Still, a clear lack of experimental data exists in regards to this class. In the present study, esters derived from saturated fatty carboxylic acids (myristic, palmitic, stearic, behenic), coupled with primary linear alcohols of different length (methanol, 1-decanol) were synthesized through Fischer esterification and their properties were investigated. Purities higher than 89% were obtained for all cases as proven by gas chromatography coupled with mass spectroscopy and nuclear magnetic resonance analysis. Additionally, the esters’ formation and reaction kinetics were characterized by attenuated total reflectance infrared spectroscopy. The esters produced showed to possess relatively high enthalpies of fusion above 190 J/g and thermal stability over three repeated cycles with differential scanning calorimetry. The melting points measured ranged between 20 °C and 50 °C, therefore proving to be interesting candidates for low-medium temperature applications such as heating and cooling in buildings. A correlation could be observed between the chemical structure and melting point of the produced esters. Additionally, thermogravimetric analysis revealed a higher thermal resistance for esters with longer aliphatic chains in comparison to shorter-chained ones.

1. Introduction

The recent trends in energy consumption and energy policies are shifting the focus to sustainable utilization of energy as a key issue [1,2]. Based on an International Energy Agency (IEA) report [1], a steep increase in global primary energy consumption has been observed over the last few years. Roughly 50% of this energy is being used to heat and cool applications in the industrial and domestic sectors. Thermal Energy Storage (TES) systems are arising as key technologies to help increase energetic efficiency and enable a high share of renewable energies for future energy systems [1,2,3]. TES can be divided into three main categories: Sensible Heat Storage (SHS), Latent Heat Storage (LHS) and Thermo-Chemical Heat Storage (TCS). In LHS systems, heat is stored in the form of phase change enthalpy, which can be accumulated or released upon phase change of the energy-storing material [2,3]. As such, this application requires materials with high phase change enthalpies, which are referred to as Phase Change Materials (PCM). As reported by Sharma et al. (2009) [4], due to higher compactness and higher heat storage density, LHSs allow for greater flexibility in the location selection of the storage system and minimum space usage. PCMs accumulate energy while the phase change occurs at almost isothermal conditions and over narrower temperature ranges, therefore providing higher energy efficiency with a smaller temperature difference between charging and discharging in comparison to sensible storage [5,6,7]. However, in addition to higher investment costs compared to SHSs, PCMs often face issues with toxicity, flammability, and possible degradation of properties after several cycles [5].

Early studies focused on salt hydrates as inorganic PCMs due to their availability, low cost, and high latent heat storage capacities. However, because of their tendency to corrode, supercool and segregate, researchers have turned their attention towards organic PCMs as well [8,9,10]. Paraffins are the most commonly used organic PCMs as of today; however, they are oil derivatives and are characterized by high flammability and relatively limited melting point range. Therefore, carboxylic acids and their derivatives have been selected as a more sustainable alternative [10,11,12]. In particular, in order to reduce environmental impact, research is being conducted on organic PCMs based on readily available natural resources, such as carboxylic esters, which naturally occur in fats and oils from renewable feedstock [10,11,12]. Menoufli et al. [11] conducted preliminary studies on the environmental impact of salt hydrates and esters as PCM in house-shaped cubicles in Spain. The results showed that based on the Eco-indicator 99 method, an impact reduction of 10.5% for esters compared to paraffins was calculated. Carboxylic esters can be obtained via Fischer esterification of carboxylic acids with alcohols, and present comparable thermal and chemical characteristics to the original acids [12]. In fact, similarly to the corresponding carboxylic acids, they are reported to show low or no toxicity, no corrosivity, high enthalpies of fusion, high chemical and thermal stability, and are mainly inflammable [8,9]. Millions of possible combinations between carboxylic acids and alcohols exist, creating endless possibilities for esters as PCMs [8]. However, despite the advantages reported above, esters as PCM have not been investigated deeply so far. As reported by Stamatiou [12] and Aydin [13,14], a clear gap in the data concerning experimental thermal properties of esters derived from carboxylic esters exists. This is probably due to lack of easily available commercial products, which makes it challenging to collect experimental data.

In order to allow for identification of potential esters to be used as future PCM in relevant temperature ranges, more experimental data on the thermal properties of esters is required. The interpretation of these data could also help gain a clearer understanding of the dependence between chemical structure and thermal properties. While little experimental data on enthalpies of fusion exists, previous studies on the correlation between molecular structure and melting temperature have been performed. Firstly, Carnelley [15] in 1882, and more recently Boese et al. [16] in 2001 both observed that symmetrical molecules with efficient crystal packing tend to have higher melting points due to stronger intermolecular bonding. This is true for molecules with higher molecular weights because of lower kinetic energy and therefore more tightly packed structures. For the same reason, branched molecules are reported to have lower melting points compared to linear homologues since they tend to form less packed structures [16]. As reported by Noël et al. [17] and Yang et al. [18], the melting points of alkanes increase with longer carbon chains, with two different trends for even and odd numbered carbon chains, where even-numbered ones present higher values. Stamatiou et al. [12] examined 11 commercially available linear fatty esters for use as PCM, and confirmed the trends reported above for melting points in relation to molar mass. Other studies have been performed on the subject. Aydin et al. [13,14] synthesized even-numbered fatty acid esters of myristyl alcohol and esters from dicarboxylic acids with promising enthalpies of fusion over 200 J/g. Sari et al. [19] synthesized esters derived from stearic acid with glycerol, isopropyl alcohol and n-butyl alcohol through Fischer esterification.

In this study, synthesis of linear fatty esters from fatty acids of different even-numbered chain lengths (Myristic Acid MY (C₁₄), Palmitic Acid PA (C₁₆), Stearic Acid SA (C₁₈), Behenic Acid BE (C₂₂)), coupled with alcohols (methanol (C₁) and 1-decanol (C₁₀)) was performed. All IUPAC names, trivial names, chemical structures and shortenings from the esters produced are reported in Figure A1. The thermal properties of the esters produced were analyzed to individuate possible trends with the molecular structure, and to obtain a broader overview on the possible range of melting points. In order to optimize and validate the synthesis, at first a commercially available ester (Methyl Palmitate) was reproduced in the laboratory and the resulting properties compared with the one purchased by manufacturers. Following optimization of the synthesis procedure, new esters of fatty acids with methanol (MeOH) and 1-decanol was produced. Methyl Palmitate (MEPA), Methyl Myristate (MEMY) and Methyl Stearate (MESA) have been previously produced and are available at affordable prices, while Methyl Behenate (MEBE) is also available at higher prices. Little to no thermal data has been found on fatty esters derived from 1-Decanol, and their commercial availability is limited.

2. Materials and Methods

Carboxylic PA (≥90%) was purchased from Vopak (Rotterdam, Netherlands), MY (≥99%) from Sigma Aldrich (Saint Louis, MO, USA), SA (≥90%) from Alfa Aesar (Haverhill, MA, USA), BE (≥85%) from Alfa Aesar (Haverhill, MA, USA), while alcohols MeOH, and 1-decanol were acquired from Sigma Aldrich with high purities (≥99%) as synthesis precursors. MEPA from Sigma Aldrich (≥99%) was used as commercial reference for synthesis optimization. Concentrated sulfuric acid (H₂SO₄) was used as the acid catalyst, Sodium Sulfate anhydrous (Na₂SO₄) as a water-absorbing agent for elimination of water, diethyl ether (Et₂O) and ethyl acetate (EtOAc) as organic solvents for separation; they were all purchased from Sigma Aldrich with purities ≥99%. All chemical materials were used without any prior purification.

2.1. Synthesis Development

2.1.1. Synthesis Mechanism and Instrumentation

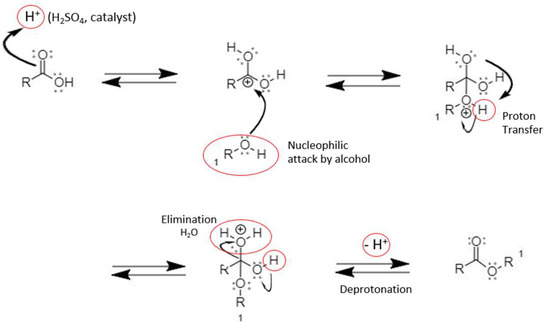

The esters were synthesized based on Fischer esterification process with H₂SO₄ as a catalyst. Under acidic conditions, the oxygen from the carbonyl group is protonated, thus creating a partial positive charge on the carbon, which is more prone to be attacked by the nucleophilic alcohol. Water is then formed by proton transfer and eliminated. Upon deprotonation of the carbonyl oxygen, the double bond is formed again to create the resulting ester group. Since the reaction is an equilibrium based on Le-Châtelier principle, it can be shifted towards the products (ester) by working with an excess of alcohol under refluxing conditions [20]. The reaction mechanism is shown in Figure 1.

The synthesis was performed in a two-necked round bottom flask with a magnetic stirrer and thermometer, equipped with a reflux condenser and immersed in an oil bath with a temperature-regulating sensor. In a 100 mL two-necked round bottom, the fatty acid (0.02 moL) and alcohol (0.1 moL, 5:1 alcohol:acid ratio) were added, and the oil bath was heated to 100 °C and the stirring set to 200 rpm. Upon complete melting of the acid, 1 mL of concentrated H₂SO₄ (concentrated at 95–98%) was added to the reaction mixture. The reagents were left to react for 5 h, after which the flask was allowed to cool down to room temperature. Afterwards, Et₂O or EtOAc was added to the reaction mixture. The obtained solution was washed three times with deionized water, and the organic phase separated in a separating funnel. Na₂SO₄ (anhydrous) was then added to the organic phase to create an oversaturated solution in order to dry it from eventual residual water [20,21]. After 10 min, the solution was filtered using filtering paper and the excess organic solvent removed in the rotary evaporator (Rotavapor Büchi RII) at 50 °C bath temperature and 100 mbar for approximately 1 h. In order to ensure statistical relevance to the results obtained and to guarantee reproducibility, all synthesis described in the next chapters was repeated three times.

2.1.2. Purification

The esters produced were purified according to the degree of impurity observed in the Attenuated Total Reflectance Infrared Spectroscopy (ATR-IR) and Nuclear Magnetic Resonance (NMR). Esters derived from MeOH were not processed further following solvent removal with Rotavapor, since they presented degree of purity.

Conversely, those derived from 1-Decanol presented relevant traces of residual alcohol following drying in Rotavapor. Therefore, they were first dissolved in MeOH at ratio 10:1 alcohol:ester to favor the migration of residual 1-Decanol in the MeOH hydrophilic phase, then crystallized at 2–5 °C overnight (1-Decanol melting point at 6 °C), and afterwards filtered through vacuum filtration by washing with MeOH.

Upon observation of the resulting products, if 1-decanol was still detected in ATR-IR or any other analytical technique, the crystallization procedure was repeated until disappearance of the impurities. Generally, purification by one crystallization process was sufficient for most esters, but in some cases, it had to be repeated up to three times.

2.2. Characterization

2.2.1. Differential Scanning Calorimetry (DSC)

Based on TA instruments application note [22], analysis of melting and crystallization temperatures was conducted via DSC 823^e by METTLER TOLEDO between −25 °C and 100 °C at 10 °C/min heating rates. The DSC was calibrated with indium standard before the measurements, and the uncertainty of the instrument was ±0.1 K. The samples were measured under a constant flow of nitrogen at a rate of 100 mL/min, and samples masses were between 5 mg and 15 mg. In order to test the stability of the samples, the heating/cooling cycles were repeated three times with the same method for the same sample. Moreover, as stated previously, all syntheses were repeated three times to ensure reproducibility; therefore, each ester was measured three times, with three cycles per sample. All uncertainty values reported in the next pages are based on replicate measurements, therefore denoting the accuracy of the results. To evaluate the degree of supercooling, the difference between the onset melting peak and the onset crystallization peak reported from the instrument were considered.

2.2.2. Thermal Gravimetric Analysis (TGA)

The samples’ thermal stability and degradation were analyzed by TGA on a STAR^e 2 System by METTLER TOLEDO in the temperature range between 25 °C and 600 °C with a heating rate of 10 °C/min and sample masses between 15–20 mg. The uncertainty of the instrument’s balance is reported to be 0.1 μg. For each sample, a blank measurement of the empty crucible was performed with the same method as described above for correct baseline subtraction.

2.2.3. Attenuated Total Reflectance Infrared Spectroscopy (ATR-IR)

In order to gain structural information on the samples produced, as well as the degree of purity and the kinetics of the reaction, ATR-IR Cary 630 by Agilent Technologies (Santa Clara, CA, USA) in the wavenumber range between 4000 and 600 cm⁻¹ with 4 cm⁻¹ resolution was used. No prior sample preparation was needed, and a background spectra was registered every 30 min with 32 scans. Afterwards, a few mg of the samples were simply deposited on the diamond tip in either solid or liquid form and the spectrum was registered with 32 scans.

2.2.4. Gas Chromatography Coupled with Mass Spectroscopy (GC-MS)

Gas chromatograms were measured on an Agilent Technologies GC 6890N connected to Agilent MSD 5973 with EI standard source, with Topaz 4.0 mm inlet liner with Wool in split mode 1:10 on a Supelco SLB-5 ms 30 m × 250 μm × 0.25 μm column and 1.3 mL/min flow rate. The oven program was 100 °C for 1 min, then 10 °C/min heating rate to 300 °C and at hold for 4 min afterwards. The temperature of the MSD transfer line was 250 °C. Mass spectra were measured with electron ionization (EI) at 70 eV, source temperature of 200 °C, acceleration voltage of 5 kV, and resolution of 2500. The instrument was scanned between m/z 100 und 600 at scan rate of 2 s/decade in the magnetic scan mode. Perfluorokerosene (PFK, Fluorochem, Hadfield, Derbyshire, UK) served for calibration. The samples were diluted in chloroform with a concentration of 0.1 mg/mL and injection volume was 1 μL.

2.2.5. Nuclear Magnetic Resonance (NMR)

All ¹H NMR spectra were recorded using a Bruker (Billerica, MA, USA) 400 MHz (¹H) spectrometer at room temperature (unless otherwise stated). Chemical shifts (δ-values) are reported in ppm, spectra were calibrated relative to the residual proton chemical shifts (CDCl₃, δ = 7.26) of the solvent.

3. Results and Discussion

3.1. Synthesis Development and Optimization

In order to validate the suitability of the developed synthesis method, commercial MEPA was purchased and its main thermal properties were compared with those of the MEPA produced in the laboratory in-house. Based on the results obtained, the synthesis was adjusted accordingly to obtain the highest degree of purity and conversion possible. Once the synthesis was optimized, esters of methanol and 1-decanol were synthesized and studied.

3.1.1. ATR-IR Analysis

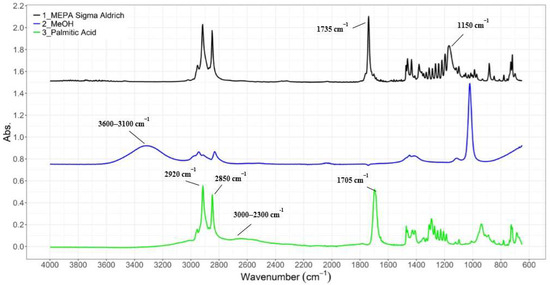

At first, the raw materials were analyzed on ATR-IR for correct assignment of the main peaks and structure identification. The characteristic ester peak from the stretching of C=O group is observed at 1735 cm⁻¹, while the stretching of C=O from the carboxylic acid occurs at 1705 cm⁻¹, which allows for identification of residual acid in the ester product. At 1150 cm⁻¹, a sharp peak for C–O–C stretching from esters is visible, while it is completely absent in the acid spectra. The peaks at 2850 and 2920 cm⁻¹ belong to the alkane chain, and the ratio between them and the ester peak at 1735 cm⁻¹ can be seen increasing for increasing carbon chain length [23]. A characteristic broad peak from the stretching of O–H in alcohols is observed between 3100–3600 cm⁻¹. A shouldering broad peak from 2300 to 3000 cm⁻¹ from the stretching of O–H in carboxylic acids is observed in the spectra of PA, but as expected is completely absent in MEPA spectra, which allows for further observation of impurities in produced esters (Figure 2).

Following structural characterization of the raw materials, the synthesis was performed and the product compared with commercial MEPA. In order to investigate the effect of heating time and COOH:OH ratio on the product formation, synthesis with increasing heating times and with two different ratios (COOH:OH 1:4 and 1:5) have been performed. As Figure 3 shows, slight improvements in the ester yield were observed when raising the COOH:OH ratio from 1:4 to 1:5 excess. In fact, when comparing the absorbance of the ester peak (1735 cm⁻¹) against the unreacted PA peak (1705 cm⁻¹), a growth in the ester:acid ratio from 4.7 to 4.85 was observed for higher ratios COOH:OH of 1:5. As a result, such excess of alcohol was considered optimal for ester formation and used for all further synthesis (Figure 3).

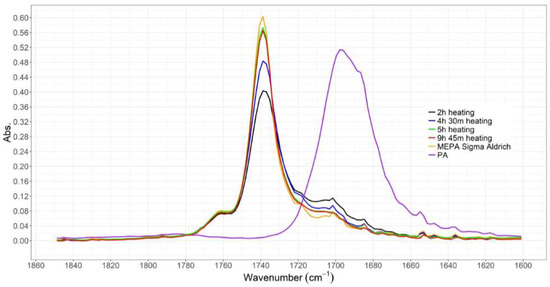

Concerning the influence of heating time on the ester formation, as shown in Figure 4, the unreacted acid can be seen decreasing over increasing heating times, while conversely the ester peak is increased. No further change in the ester formation is observed following 5 h heating time, since the curve for 9 h and 45 m heating time equals the one from 5 h heating. Therefore, 5 h was considered as the end point of the reaction, and followed for all subsequent syntheses.

3.1.2. GC-MS and NMR Analysis

In order to confirm the ester structures and the degree of purity observed in the ATR-IR for MEPA produced with 5:1 excess of MeOH and 5 h heating time, GC-MS and NMR spectra were recorded for the commercial MEPA from Sigma Aldrich and the self-produced MEPA, and compared.

Regarding GC, both commercial MEPA and PA were analyzed, and retention times of 13.880 min and 14.226 min, respectively, were observed, confirming that PA impurities would be visible and the peak well separated in the self-produced MEPA chromatogram. This would allow for identification of residual unreacted acid and impurities. Afterwards, MEPA produced in the laboratory with 5 h heating and 5:1 excess of MeOH was analyzed on the same column, and the resulting chromatogram showed that the Ester produced had a retention time of 13.883 min as expected and purity estimated around 98%.

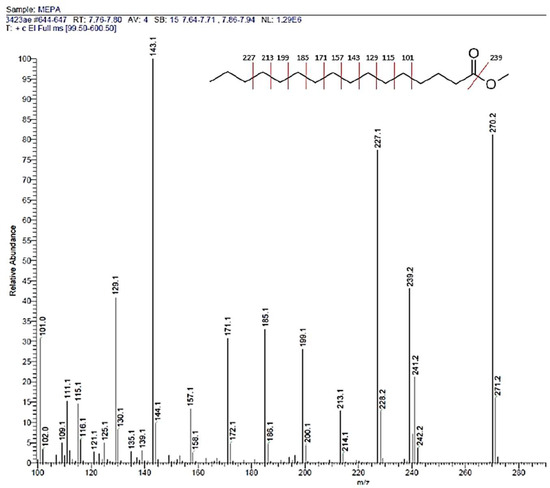

Following GC characterization, a mass spectra of the self-produced MEPA was registered to further confirm the molecular structure (Figure 5). The peak from the molecular ion was observed at 270.2 m/z with high abundance, as reported in literature for linear long-chained alkane systems [24]. From there, the cleavage of the methanol group was visible from the peak at 239 m/z, corresponding to a loss of 31 of the methyl molecule (15 m/z) and alcohol atom (16 m/z). Side resonances at 241 and 242 are thought to be due to resonance forms of the methoxy group. From 227 m/z to 101 m/z several peaks distanced 14 m/z each (227, 213, 199, 185, 171, 157, 143, 129, 115, 101) show the progressive breaking of the aliphatic chain by loss of -CH₂ from the acid side. Hence, the overall structure of MEPA was confirmed.

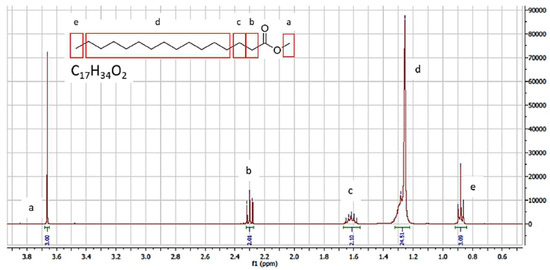

With regards to NMR results, the spectra of self-produced MEPA with 1:5 acid:alcohol ratio and 5 h heating time was fully characterized, and the structure and purity confirmed. At 3.66 ppm (a), a singlet arising from the protons of the deshielded methyl group –CH₃, which resonated as a singlet due to lack of neighbouring protons, was visible. The normalized area of the peak was assigned a value of 3 to correctly calculate the amount of protons in the spectra recorded. At 2.28–2.32 ppm (b), a triplet with area 2 from the –CH₂ in α-position to the carbonyl, and a multiplet between 1.58–1.65 ppm (c) with area 2 from the –CH₂ in β-position to the carbonyl was seen. The –CH₂ in α-position resonated as a triplet due to proximity with the two protons from the the –CH₂ in β-position, and appeared to be more de-shielded due to the neighboring carbonyl group. An intense peak corresponding to 24 hydrogen atoms resonating together was observed around 1.26 ppm (d), and was assigned to the long aliphatic chain from the fatty acid. Lastly, the –CH₃ group at the end of the aliphatic chain appeared as a triplet with integrated area of 3 at 0.86–0.90 ppm (e) due to strong shielding effect and distance from the carbonyl group and electro-withdrawing elements. By summing the integrated areas values of the peaks assigned, a total of 34 hydrogens were obtained, which matched the elemental composition C₁₇H₃₄O₂ of MEPA (Figure 6). No impurities were observed, thus confirming the results obtained from GC-MS spectral data. Therefore, it could be concluded that commercial MEPA had been successfully replicated in the laboratory with high purity, and new esters could be produced through the Fischer esterification procedure reported above.

3.1.3. DSC and TGA Analysis

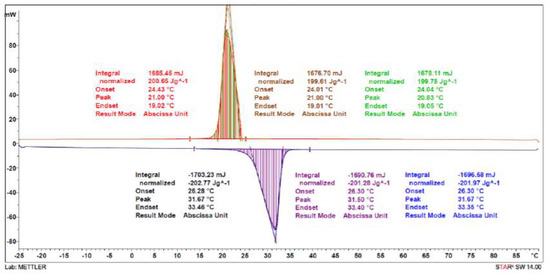

Following structural and purity analysis, thermal characterization was performed by TGA and DSC to determine thermal stability (thermal degradation, cycling), melting and crystallization points T_m and T_c, degree of supercooling and enthalpy of fusion ΔH of commercial and self-produced MEPA. Commercial MEPA presented an average onset T_m of 28.2 °C ± 0.2 °C, and T_c of 25.3 °C ± 0.1 °C in accordance to what was stated by the provider, and a supercooling of 2.9 °C for 10 °C/min heating rate. The melting and crystallization peaks were calculated by the STAR^e software through the tangent method, and the enthalpies were obtained by integration of the corresponding peak. The standard deviations were calculated from the results of the cycling tests and repetitions. For determination of phase change temperatures, onset temperatures are reported, and supercooling is calculated as the difference between onset melting temperature and onset crystallization temperature, unless stated otherwise. A high ΔH of 204 J/g ± 2 J/g was observed for commercial MEPA, indicating its suitability as PCM for LHS applications. As can be seen from Figure 7, synthesized MEPA presents phase change temperatures in accordance with the commercial sample with melting temperature of 26.3 °C ± 0.0 °C and crystallization temperature of 24.2 °C ± 0.2 °C, same degree of supercooling and stability over three heating/cooling cycles. The enthalpy of fusion observed from integration of the corresponding peak amounted to 201 ± 1 J/g, indicating a high degree of purity in the MEPA produced, thus confirming once again the results previously reported.

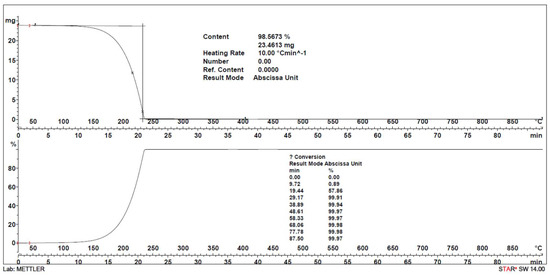

Concerning TGA analysis, no residuals of methanol were observed in the sample (boiling point 64.7 °C), and degradation of the produced sample was complete by 240 °C in accordance with what was registered for commercial MEPA. The starting temperature of degradation varied between 100 and 110 °C for laboratory samples, while it was around 150 °C for commercial MEPA (Figure 8). The mass loss before 150 °C was less than 5% for all laboratory MEPA samples, and the remaining 95% was lost in the range between 150–240 °C as for commercial MEPA. Therefore, it could be concluded that no significant differences in the thermal stability between the self-produced sample and commercial one existed.

3.2. Synthesis of Methyl and Decyl Esters

Following the optimization of the synthesis procedure, esters derived from fatty carboxylic acids coupled with MeOH and fatty alcohol 1-decanol were produced, as reported previously. After confirming an acceptable degree of purity (≥89%), the thermal properties of the different esters were determined and subsequently analyzed and compared, in order to identify possible trends between chemical structure and thermal behavior, and to gain a broader overview of the melting points of different esters.

Concerning ATR-IR characterization, the appearance of the ester characteristic peak at 1735 cm⁻¹, the progressive disappearance of the broad alcohol peak at 3100–3600 cm⁻¹, and of the acid at 1705 cm⁻¹ over time proved the efficiency of the reaction and the formation of the desired product. For all 1-decanol esters, however, a ratio of about 2:1 between the ester peak and the acid peak, respectively, was observed after drying with Rotavapor. This, together with the presence of a peak in the alcohol region, proved that not all reagents had been consumed during the reaction time. Therefore, crystallization in MeOH was performed until there was no visible residual alcohol peak and acid peak in the final spectra. Figure 9 shows the difference between unpurified decyl palmitate (DEPA) and DEPA crystallized twice in MeOH with a ratio of 1:10 for DEPA:MeOH. Generally, as reported previously, one or two crystallizations were sufficient to obtain degrees of purity over 89%.

A clear gain in the ester band was achieved, confirming the efficacy of the purification process. However, besides purity control and synthesis control, the IR could not confirm the true identity of the esters created since no clear differences were visible in terms of the ester peak and alkane chain peaks at 2920 and 2850 cm⁻¹. Therefore, the structure of the produced esters had to be recognized through NMR and GC-MS analysis.

The mass spectra recorded for methyl esters showed the same peaks reported for MEPA, confirming the cleavage of a methyl group with peak at 239 m/z. Esters derived from different fatty acids could be recognized by the longer or shorter fragmentation of the alkane chain by progressive loss of –CH₂ (14 m/z) and by the molecular ion. On the other hand, spectra for decyl esters showed a different fragmentation pattern, especially regarding the cleavage of the alcohol chain. For instance, for DEPA (molecular peak at 396 m/z), a strong signal was recorded due to the loss of the decyl alkane chain (loss of 141 m/z, peak at 255 m/z), thus forming a carboxylate group. The decyl aliphatic chain is then thought to form a decene through resonance to give the observed mass loss of 139 m/z at corresponding peak 257 m/z. The alcohol cleavage with loss of 1-decanol (loss of 157 m/z) was observed at 239 m/z, which confirms that the ester analysed was indeed a decyl ester. Additionally, the usual progressive fragmentation of the alkyl chain from the acid side is observed through steps of 14 m/z loss each.

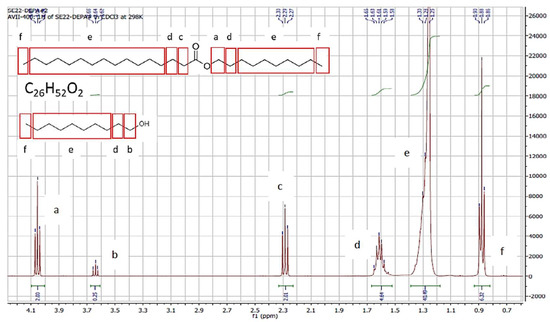

Similarly, the structures of the different esters could be easily identified through ¹H NMR analysis, as well as detection and quantification of impurities from residual alcohol or acid (Figure 10). All the ¹H NMR spectra of methyl esters showed a high degree of purity and no residual alcohol, therefore their purity was estimated at ≥98%. The same main peaks as the ones observed in the spectra of replicated MEPA were observed, namely the singlet at 3.66 ppm from the deshielded methyl group –CH₃ directly attached to the carbonyl group, the triplet at 2.28–2.32 ppm from the –CH₂ in α-position to the carbonyl, the multiplet from the –CH₂ in β-position at 1.58–1.65 ppm, the peak from the alkane chain around 1.26 ppm and the triplet at 0.86–0.90 ppm from the shielded –CH₃ group at the end of the aliphatic chain. On the other hand, some variances in the spectra for decyl esters allowed differentiation between the diverse groups of esters. Here, a triplet with integral value of 2 instead of a singlet appeared at 4.05–4.07 ppm (a) from the –CH₂ in α-position to the oxygen of the ester group. This is due to the fact that in 1-decanol, unlike in methanol, the aliphatic chain continues, therefore the –CH₂ in α-position feels the influence of the neighboring –CH_2. The triplet at 2.28–2.32 ppm (c) from the –CH₂ in α-position to the carbonyl group remained the same, while the multiplet at 1.58–1.65 ppm (d) from the –CH₂ groups in β-position had an integral equal to 4 hydrogens instead of 2 due to the presence of the additional –CH₂ in β-position to the oxygen from the alcohol side. Similarly, the peak from the alkane chain at 1.26 ppm (e) had an integral value of about 38 hydrogens, and the triplet at 0.86–0.90 ppm (f) corresponded to the 6 hydrogens from the shielded –CH₃ at the end of the aliphatic chains from the acid and the alcohol sides. Small alcohol impurities, when present, were visible in the form of a triplet at 3.62–3.66 ppm (b) from the –CH₂ in α-position to the hydroxy group of the free alcohol molecules.

The ratio between its integral value and the one from the ester signal at 4.05–4.07 ppm allowed to quantify the degree of purity of the sample. As mentioned previously, in the absence of any additional peaks from unreacted reagents, the purity was estimated to be ≥98%, like in the case of methyl esters.

Impurities still present in the decyl esters could also be observed through DSC analysis. In the presence of residual alcohol, a second broad peak appeared between 2–10 °C (T_m of 1-Decanol: 6.4 °C), and lower ΔH of about 150–160 J/g were registered. Upon further crystallizations and purifications though, such peak decreased until it was barely visible over the baseline noise of the instrument, and ΔH for the ester peak increased again to values over 190 J/g.

In general, the results obtained concerning thermal properties of synthesized esters are summarized in

Table 1. Summary of thermal properties of the ester produced. The colors indicate the temperature gradient from the lowest values (blue) to the highest (red). A trend between degradation temperatures and molecular structure is observed, with a progressive growth of the thermal stability together with carbon chain length. This is supposedly due to longer chains’ ability to create more compact crystal packing structures, thus stronger intermolecular forces. No clear correlation between ΔH (J/g) and the structure can be deduced, however all ΔH (J/g) values registered were over 190 J/g, confirming the fatty acid esters’ suitability as PCM. An increase in molar ΔH (KJ/mol) is observed for increasing molecular weights.

	Structure	Carbon Number	MW (g/mol)	Purity	Tc (onset, °C)	Tm (onset, °C)	Supercooling (°C)	ΔH (J/g)	ΔH (KJ/mol)	Tdegradation (Start, °C)	Tdegradation (End, °C)
MEMY (C1-C14)	C15H30O2	15	242.4	98%	13.5 ± 1.2	14.7 ± 1.9	1.2	190 ± 2	46.1	87 ± 12	233 ± 12
MEPA (C1-C16)	C17H34O2	17	270.5	98%	24.2 ± 0.2	26.3 ± 0.0	2.1	201 ± 1	54.4	119 ± 10	272 ± 4
MESA (C1-C18)	C19H38O2	19	298.5	98%	31.9 ± 1.1	35.6 ± 1.0	3.7	204 ± 1	60.9	117 ± 7	287 ± 6
MEBE (C1-C22)	C23H46O2	23	354.6	98%	41.5 ± 1.0	47.9 ± 0.7	6.4	200 ± 5	70.9	155 ± 7	305 ±20
DEMY (C10-C14)	C24H48O2	24	368.7	98%	22.9 ± 0.2	25.2 ± 0.4	2.3	196 ± 3	72.3	130 ± 5	318 ± 11
DEPA (C10-C16)	C26H52O2	26	396.7	89%	28.9 ± 1.2	29.0 ± 1.9	0.1	193 ± 6	76.6	145 ± 7	310 ± 14
DESA (C10-C18)	C28H56O2	28	424.8	98%	33.8 ± 1.3	36.2 ± 0.8	2.4	192 ± 6	81.6	205 ± 20	350 ± 14
DEBE (C10-C22)	C32H64O2	32	480.9	95%	44.7 ± 0.6	44.8 ± 0.7	0.1	193 ± 9	92.8	200 ± 20	375 ± 21

. As mentioned beforehand, the esters names have been abbreviated as follows: methyl myristate (MEMY, C1–14), decy myristate (DEMY, C10-C14), methyl palmitate (MEPA, C1-C16), decyl palmitate (DEPA, C10-C16), methyl stearate (MESA, C1-C18), decyl stearate (DESA, C10-C18), methyl behenate (MEBE, C1-C22), decyl behenate (DEBE, C10-C22).

A trend can be observed in the degradation temperatures, with the longer chained esters being the most stable and starting to degrade at much higher temperatures compared to shorter ones. This can be explained using literature reports, with longer chain esters being able to create tighter crystal structures and therefore stronger intermolecular bonding, thus requiring higher temperature to break the bonds [15,16,17,18]. A similar behavior would be expected regarding melting temperatures T_m. However, as can be clearly observed, MEBE was the ester showing higher melting temperature and not DEBE, as would have been expected.

Upon reversing the order of the esters shown above, a trend is revealed between molecular structure and melting points (

Table 2. Rearrangement of the previous table to show the dependency of phase transition temperature on fatty ester type and carbon chain length. As for Table 1, the colors indicate the temperature gradient from the lowest temperature values (blue) to the highest (red).

	Carbon Number	Tc (Onset, °C)	Tm (Onset, °C)
MEMY (C1-C14)	15	13.5 ± 1.2	14.7 ± 1.9
DEMY (C10-C14)	24	22.9 ± 0.2	25.2 ± 0.4
MEPA (C1-C16)	17	24.2 ± 0.2	26.3 ± 0.0
DEPA (C10-C16)	26	28.9 ± 1.2	29.0 ± 1.9
MESA (C1-C18)	19	31.9 ± 1.1	35.6 ± 1.0
DESA (C10-C18)	28	33.8 ± 1.3	36.2 ± 0.8
MEBE (C1-C22)	23	41.5 ± 1.0	47.9 ± 0.7
DEBE (C10-C22)	32	44.7 ± 0.6	44.8 ± 0.7

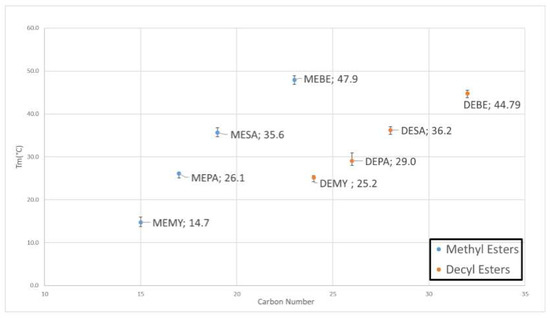

). The melting points are seen increasing based on both the fatty acid carbon length and the alcohol length, but those from decyl esters follow a parallel trend to methyl ester, and do not show the same behavior (Figure 11). What reported above is found to be true for both T_m and T_c for all samples_. This could be due to the odd-even numbered effect explained by Noël et al. [17] and Yang et al. [18], according to which different but parallel trends can be observed between odd-numbered and even-numbered carbon chain series. In addition, the length of the fatty acid carbon chain seems to have a higher impact on the resulting phase transition temperature of the ester, compared to the alcohol.

The molar enthalpies of fusion (ΔH in KJ/moL) could be seen increasing with increasing chain length and molecular weight; however, no clear trends could be observed for even and odd-numbered esters as for T_m. Nevertheless, all values measured were above 190 J/g with uncertainties around 1.5%, confirming the suitability of fatty esters as PCM. All of the samples proved to be stable to short cycles (three times), with variations lower than 0.5 °C. Additionally, supercooling lower than 7 °C were observed in all cases at a rate of 10 °C/min.

4. Conclusions

In conclusion, fatty esters from methanol and 1-decanol and fatty acids of different carbon chain length (myristic acid, palmitic acid, stearic acid, behenic acid) to be used as possible PCM were successfully synthesized through Fischer esterification with purities over 89%. While methyl esters of myristic, palmitic and stearic acid have been synthesized before and their thermal properties partially investigated, to the best of the author’s knowledge, a clear lack in experimental thermal data exists in regards of methyl behenate and all decyl esters produced. The synthetic procedure was validated through comparison of properties of the self-produced methyl palmitate with the commercial homologue purchased. While simple drying with rotary evaporation was sufficient to purify the final methyl esters, all decyl esters had to be further purified through one or more consequent crystallizations in methanol. ATR-IR proved to be a valid technique for identification of residual unreacted acid or alcohol in a qualitative manner; however, it did not allow for identification of different esters. On the other hand, NMR and GC-MS analysis allowed for correct identification of structures and compound identity. Additionally, eventual residual impurities could be successfully detected and quantified through both methods. Identification of residual impurities was possible also through DSC analysis, where side peaks could be observed in case of impurities, together with lower ΔH. The phase change temperatures of the esters ranged between 14 °C and 45 °C circa. As reported by Du et al. [25], PCM in the range between 5 °C and 40 °C appear to be interesting for low-medium temperature applications, such as free cooling (19–24 °C), evaporative and radiative cooling systems (around 18 °C), solar absorption chillers (29 °C), and passive heating and cooling of buildings (19–29 °C). Preliminary works conducted on such setups with different PCM (salt hydrates, paraffins) showed promising results, with high cost saving and decrease in energy consumption (25–30%). The esters produced proved to be interesting PCM candidates thanks to ΔH over 190 J/g for 10 °C/min heating rates. Additionally, the DSC indicates rather moderate supercooling rates for all samples. A trend could be observed correlating both degradation temperatures and phase transition temperatures to the chemical structure of the molecules. In the first case, a higher thermal stability was observed for longer carbon chains, confirming the tendency of longer molecules to form more tightly packed structures and stronger intermolecular bonds. On 2424the other hand, an increase in the melting temperatures with increasing carbon chain length was observed for both methyl esters and decyl esters, but with parallel trends and a higher influence from the fatty acid carbon length compared to the alcohol. This is attributed to odd-even numbered carbon chain length effect described in previous works [17,18].

Given the lack of experimental thermal data on esters, future research on different ester classes (e.g. diesters, lactones, aromatic, benzylic esters) is planned, in order to collect further information about the thermal behavior and possible trends, and to individuate the best suitable candidates to be used as PCM for different scopes and applications.
