Efficient Removal of Lead Ions from Water by a Low-Cost Alginate-Melamine Hybrid Sorbent

Abstract

A low-cost alginate-melamine hybrid sorbent (named as Alg-Mel) was designed and synthesized for the removal of Pb²⁺ from water. The as-prepared Alg-Mel sorbent exhibited high affinity and selectivity to Pb²⁺. The selectivity coefficients of the Alg-Mel for Pb²⁺/Cd²⁺, Pb²⁺/Cu²⁺, Pb²⁺/Cr³⁺ and Pb²⁺/Co²⁺ were all over 7. It is found that the hybrid sorbent could uptake 95.4% of Pb²⁺ from Pb²⁺-containing solutions (0.48 mM), and the maximum adsorption capacity for Pb²⁺ reaches 1.39 mmol/g (287.7 mg/g), which is much higher than that of most reported lead ion-sorbents. Furthermore, the Alg-Mel can be regenerated by a simple acid-washing process and used repeatedly. The results of adsorption mechanism analysis reveal that the adsorption of Pb²⁺ by Alg-Mel is mainly ascribed to the chemical coordination and ion exchange effects.

1. Introduction

Lead is a non-essential element of the human body [1]. Lead that enters the human body through the food chain cannot be degraded, and also accumulates in the human body for a long time, thereby causing damage to the intestinal system and nervous system, resulting in a series of physiological diseases such as colic, headache, insomnia and convulsions. In addition, lead has greater impacts on children in their development period. Previous studies have indicated that children are 30 times more sensitive to lead ion than adults, and excessive lead can severely affect their ability to speak, to remember and to pay attention [2]. Therefore, it is important to study the removal of lead ions from water.

Currently, many methods such as ion exchange, chemical precipitation, electrochemistry, membrane filtration, adsorption and biochemical treatment (bio-adsorption, flocculation, microbial metabolism) have been employed for the removal of Pb²⁺ from wastewater [3,4,5]. Among these methods, the adsorption method has attracted greater attention due to its simple operation, large processing capacity, can be used repeatedly, and has low-concentration wastewater treatment efficiency (≤10 mg/L). The most widely used adsorbent at present is activated carbon. Activated carbon has high specific surface area and reaction activity, and therefore it can remove lead ions from water. However, the high-quality activated carbon has a high preparation cost and its regeneration process is cumbersome, which limit the large-scale production and applications of activated carbon.

Over the past decade, many low-cost lead ion adsorbents have been developed to replace activated carbon [6,7,8], such as clay minerals, zeolites, chitosan and its derivatives, industrial waste and so on. However, these adsorbents often have one or more of the following deficiencies in the application process, for example: (1) less binding sites (functional groups such as -COOH, -NH₂, -OH, -COO, -CHO, etc.) on the surface of adsorbent materials, and a longer time required for adsorption to reach equilibrium; (2) low adsorption capacity for Pb²⁺ ions due to a small specific surface area; (3) the adsorbent is a powder material and is not easy to recollect and recycle; (4) the stability is not high. The morphology and adsorption performance of adsorbent decrease rapidly after repeated use; (5) the preparation or modification process is more complicated, and organic solvents (such as toluene, ethanol, etc.) are usually used. To overcome these disadvantages of traditional adsorbents, the macroscopic porous monolithic adsorbents are highly desired.

In our previous study, we used biocompatible sodium alginate as a raw material to prepare a green and efficient calcium alginate aerogel (CAA) by a simple one-step gel method and vacuum freeze-drying technique [9]. The fabricated CAA sorbent could uptake 96.4% of lead ions from Pb²⁺-containing solutions (1.5 nmol/L). The maximum adsorption capacity for lead ions was 390.7 mg/g. However, after repeated use, the adsorption performance and morphology of CAA changed greatly. In order to solve this problem, in this work, the chemically stable melamine is modified on the surface of CAA to improve the physical and chemical properties of the aerogel. In addition, to the best of our knowledge, there have been no reports on the adsorption of Pb²⁺ by combined melamine and sodium alginate. The physical and chemical properties (such as adsorption ability and capacity, selectivity, etc.) of the synthetic alginate-melamine hybrid sorbent (Alg-Mel) are also evaluated by scanning electron microscopy (SEM), infrared spectrometry and inductively coupled plasma-optical emission spectrometry (ICP-OES).

2. Experiment

2.1. Materials

Melamine, sodium alginate, inorganic acids, 2-morpholinoethanesulfonic acid (MES), N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDC), metal nitrate, N-hydroxysuccinimide (NHS) and other reagents were bought from Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China. All reagents are of analytical grade and used without further purification. All aqueous solutions were prepared with distilled water. The pH value of solutions is adjusted by 1.0 M HNO₃ or NaOH solution.

The tap water samples were collected from the tap of the laboratory and used directly. The river water samples were taken from the Anqing section of Changjiang River using a clean glass bottle and were allowed to stand for 12 h to precipitate the sediment before use. Battery plant wastewater samples were collected from the wastewater pool of Anhui Xunqi Power Technology Co., Ltd. Anqing, China, and used directly.

2.2. Instruments

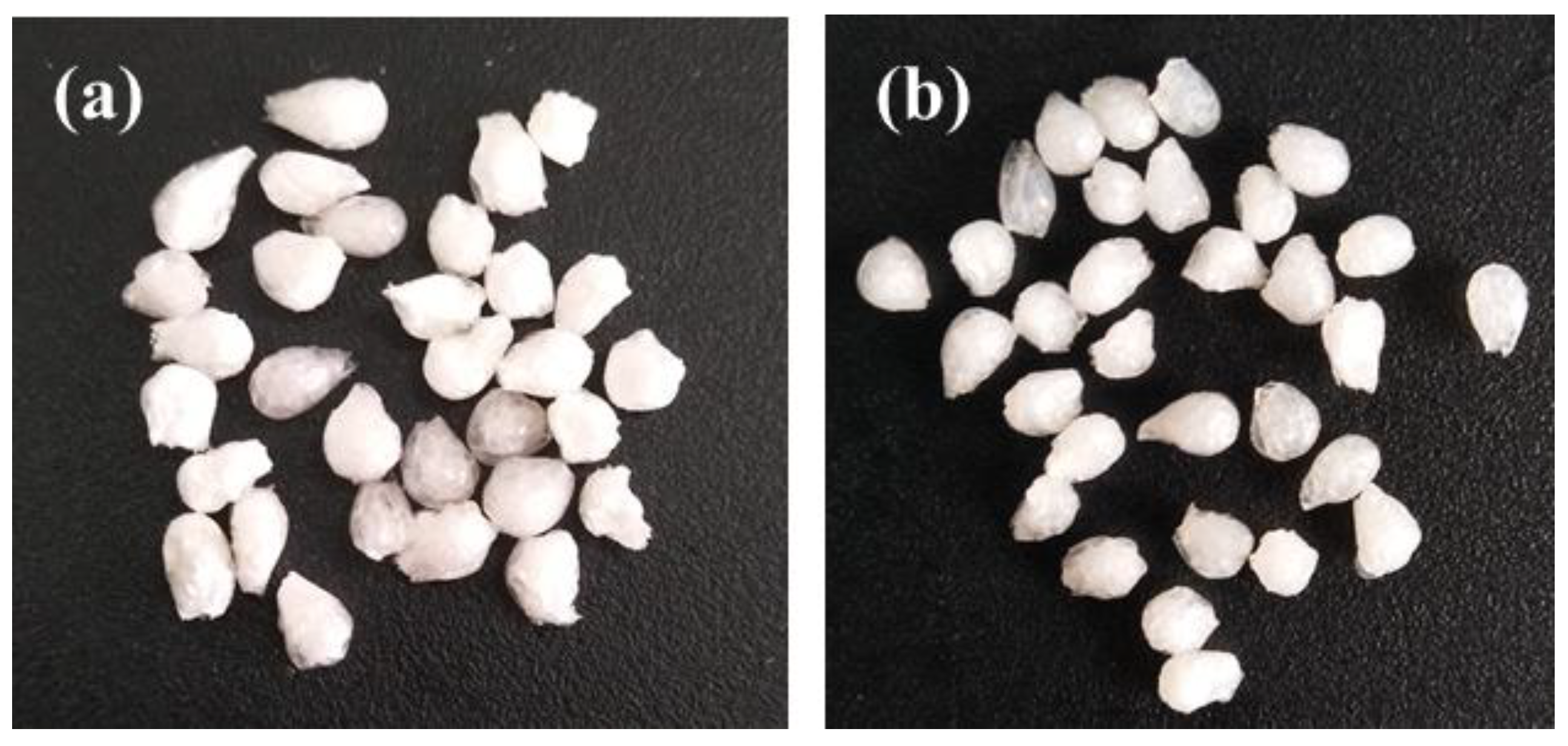

The digital photo of the Alg-Mel sorbent was taken by an iPhone 6S camera, and the morphology and surface structure of the Alg-Mel were recorded on a SEM (Hitachi S-4800, Tokyo, Japan). Infrared spectra of samples were obtained from an infrared spectrometer (Nicolet 6700, Waltham, MA, USA). The carbon, hydrogen and nitrogen content of the Alg-Mel was analyzed by an elemental analyzer (Perkin-Elmer 2400, Waltham, MA, USA). The metal ions concentration was measured by an ICP-OES (Perkin-Elmer Optima 8000, Waltham, MA, USA). Each solution sample was determined in parallel three times and then averaged. The pH value of solutions was measured by an acidity meter (Leici PHS-3E, Shanghai, China).

2.3. Preparation of Alg-Mel Sorbent

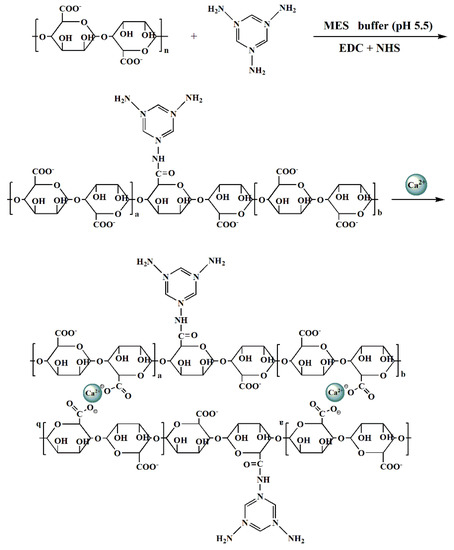

The preparation route of Alg-Mel is illustrated in Figure 1. First, 1.5 g of sodium alginate was weighed and dissolved in 100 mL of pH 5.5 MES buffer solution. 0.15 g of EDC and 0.12 g of NHS were then added successively (EDC activates the carboxyl group, NHS acts as a shrinking agent in the reaction of carboxyl group and amino group). After stirring for 3 h, 0.5 g of melamine was added and stirred for another 12 h at room temperature. Then, the mixed solution was dropped into 1000 mL of 0.5 M calcium nitrate solution by using a 10 mL syringe (when the mixed solution was in contact with the calcium nitrate solution, an oval-shaped hydrogel was formed immediately), and continue stirring 30 min after the completion of the dropping. The solid hydrogel was separated by a decantation method and washed three times with distilled water. Finally, the hydrogel was immersed in distilled water and placed into a vacuum freeze-drying instrument, and the final Alg-Mel aerogel sorbent was obtained after freezing the hydrogel for 3 h at −15 °C and drying under vacuum for 24 h.

2.4. Typical Adsorption Process and Desorption Process

In the adsorption experiment, about 100 mg (or 20 mg) of Alg-Mel sorbent was first weighed and added to 40 mL of 0.48 mM Pb²⁺ solution, stirred at room temperature for 6 h, and then filtered. The amount of unextracted Pb²⁺ in the filtrate was measured by ICP-OES. The adsorption experiments of other metal ions were the same as above except that other metal ion solutions were used instead of the Pb²⁺ solution.

Desorption of Pb²⁺ was performed by mixing Pb²⁺-loaded Alg-Mel into 40 mL of 0.07 M nitric acid solution for 1 h. After that, Alg-Mel was separated by decantation and washed with distilled water for three times. The desorbed Pb²⁺ in the eluent was determined by ICP-OES.

In the regeneration experiment, the Pb²⁺-loaded Alg-Mel was first immersed into 40 mL of 0.07 M nitric acid solution for 1 h at room temperature. Then, Alg-Mel was filtered and washed in sequence with distilled water, 0.001 M Ca(OH)₂ solution and distilled water.

3. Results and Discussion

3.1. Material Characterization

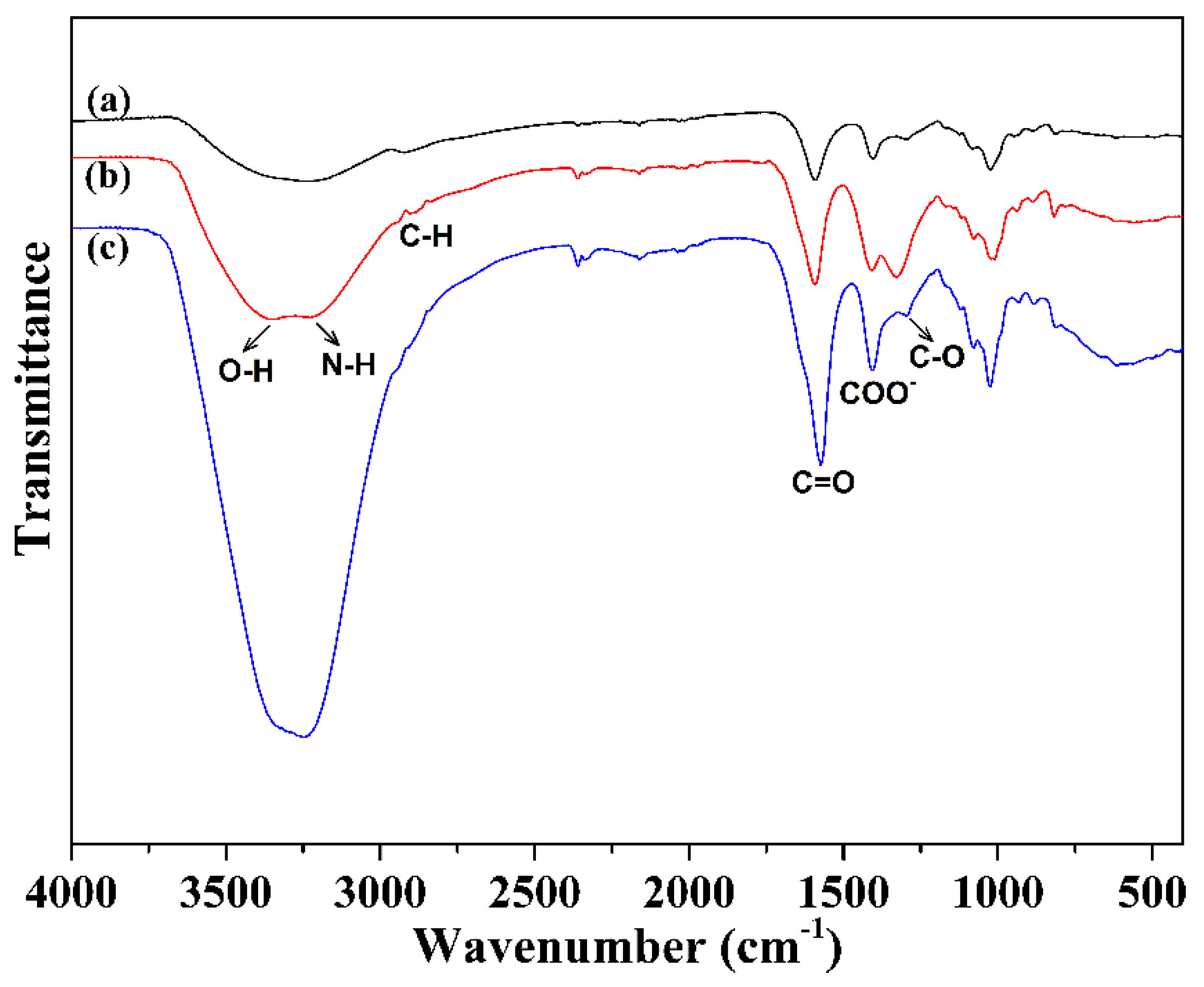

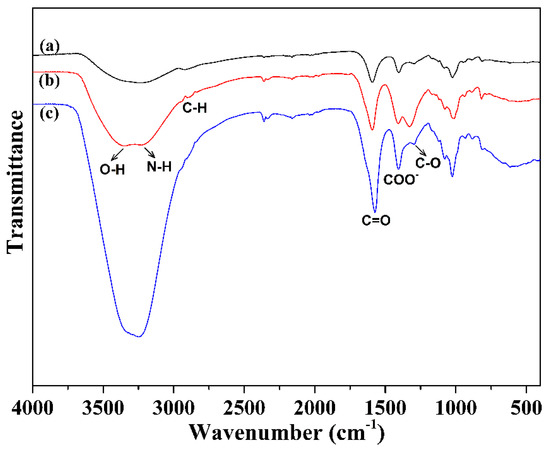

In order to confirm whether melamine and sodium alginate were successfully linked, we measured and compared the infrared spectra of sodium alginate, Alg-Mel hybrid and Pb²⁺-loaded Alg-Mel. As can be seen in Figure 2, the broad adsorption peak at 3371 cm⁻¹ belongs to the ν_O–H vibration. The weak adsorption peak at 2919 cm⁻¹ was attributed to the aliphatic C–H stretching vibration. The adsorption peaks at 1591 and 1329 cm⁻¹ belong to C=O and C–O, respectively [10,11]. When compared with the infrared spectrum of raw sodium alginate, there is a new adsorption peak of N–H stretching vibration at 3217 cm⁻¹ in the spectra of Alg-Mel and Pb²⁺-loaded Alg-Mel, which confirms that melamine was successfully linked with alginate. Moreover, after loading Pb²⁺, the COO⁻ (carboxylate) peak of the Alg-Mel shifted from 1329 to 1294 cm⁻¹, which might be caused by the coordination of the carboxylate groups with the Pb²⁺ [12,13].

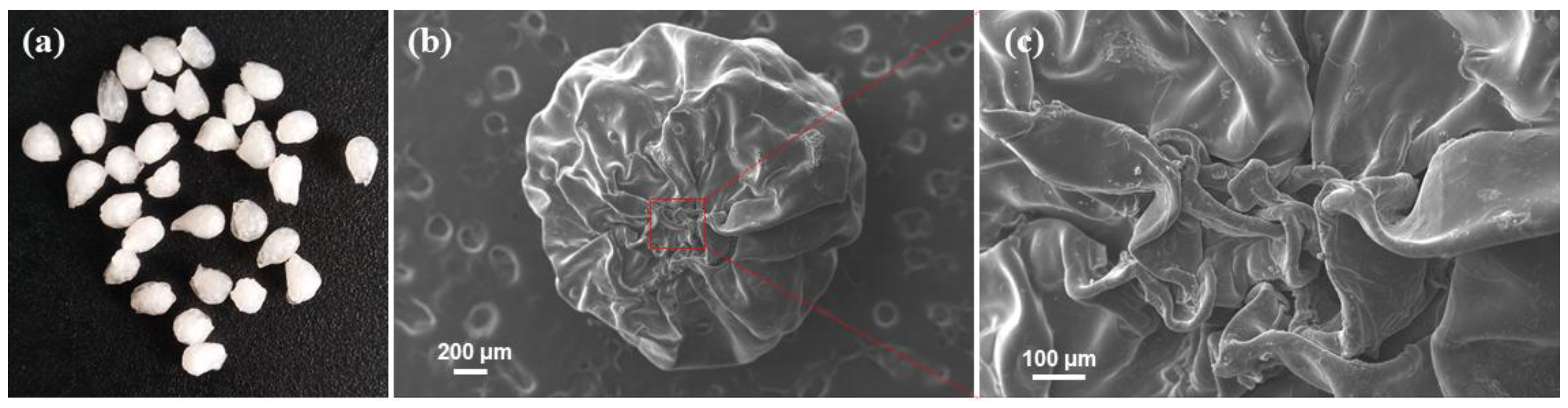

Furthermore, the morphology of Alg-Mel was also characterized by SEM. As shown in Figure 3, the Alg-Mel is Oval-shaped and owns an uneven surface. On the other hand, the elemental analysis indicates that the mass percentage of carbon, nitrogen and hydrogen of Alg-Mel is 37.71%, 14.76% and 3.93%, respectively. It indirectly indicates that the Alg-Mel is rich in oxygen, and these oxygen-containing groups such as -OH, -COO⁻ are beneficial in increasing the adsorption capacity of target metal ions.

3.2. Influence of pH

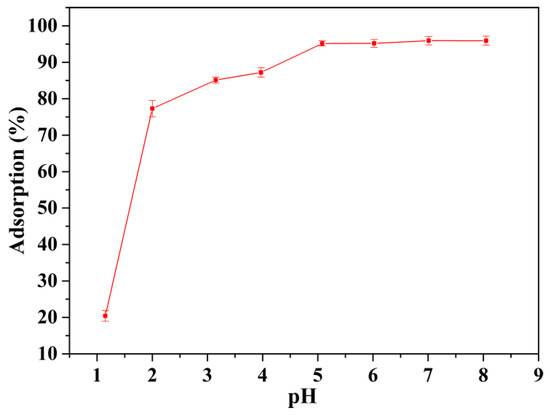

First, Alg-Mel sorbent (about 100 mg) was added into 40 mL of 0.48 mM the Pb²⁺ solution with different pH values (range from 1 to 8), stirred at room temperature (25 °C) for 6 h, filtered, and then the amount of unadsorbed Pb²⁺ in the filtrate was measured by ICP-OES. As shown in Figure 4, the influence of pH on the adsorption capacity of Alg-Mel can be divided into three stages: (1) when the pH value of the solution is less than 1, the Alg-Mel can only adsorb less than 25% of Pb²⁺. This may be due to the pH value being lower than pH_pzc (the pH_pzc value of Alg-Mel is 1.83), the surface of Alg-Mel is positively charged and exhibits electrostatic repulsion towards Pb²⁺; (2) when the solution pH in the range of 1–5, the adsorption capacity of Alg-Mel for Pb²⁺ increases rapidly with increasing of pH. This can be ascribed to the negative surface charge (when the pH value is higher than pH_pzc) and strong chelating groups on the surface of the Alg-Mel; (3) when the solution pH is in the range of 5–8, the adsorption capacity of Alg-Mel remains stable. On another hand, according to the rule of solubility product, Pb²⁺ ions (0.48 mM) will start to form Pb(OH)₂ precipitation when the pH value of solution is greater than 5.74. Therefore, we suggest that the optimal adsorption condition for the Alg-Mel is the solution pH in the range of 5–5.74. Within this range, neither the amino group is protonated nor Pb²⁺ ions are precipitated. Therefore, pH 5.0 of the metal solution was chosen for the adsorption experiment in this study.

3.3. Effect of Contact Time and Temperature

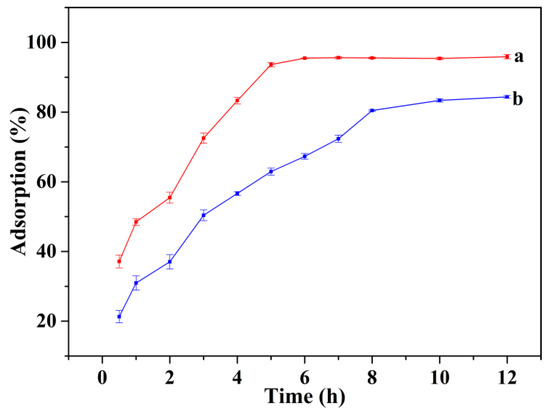

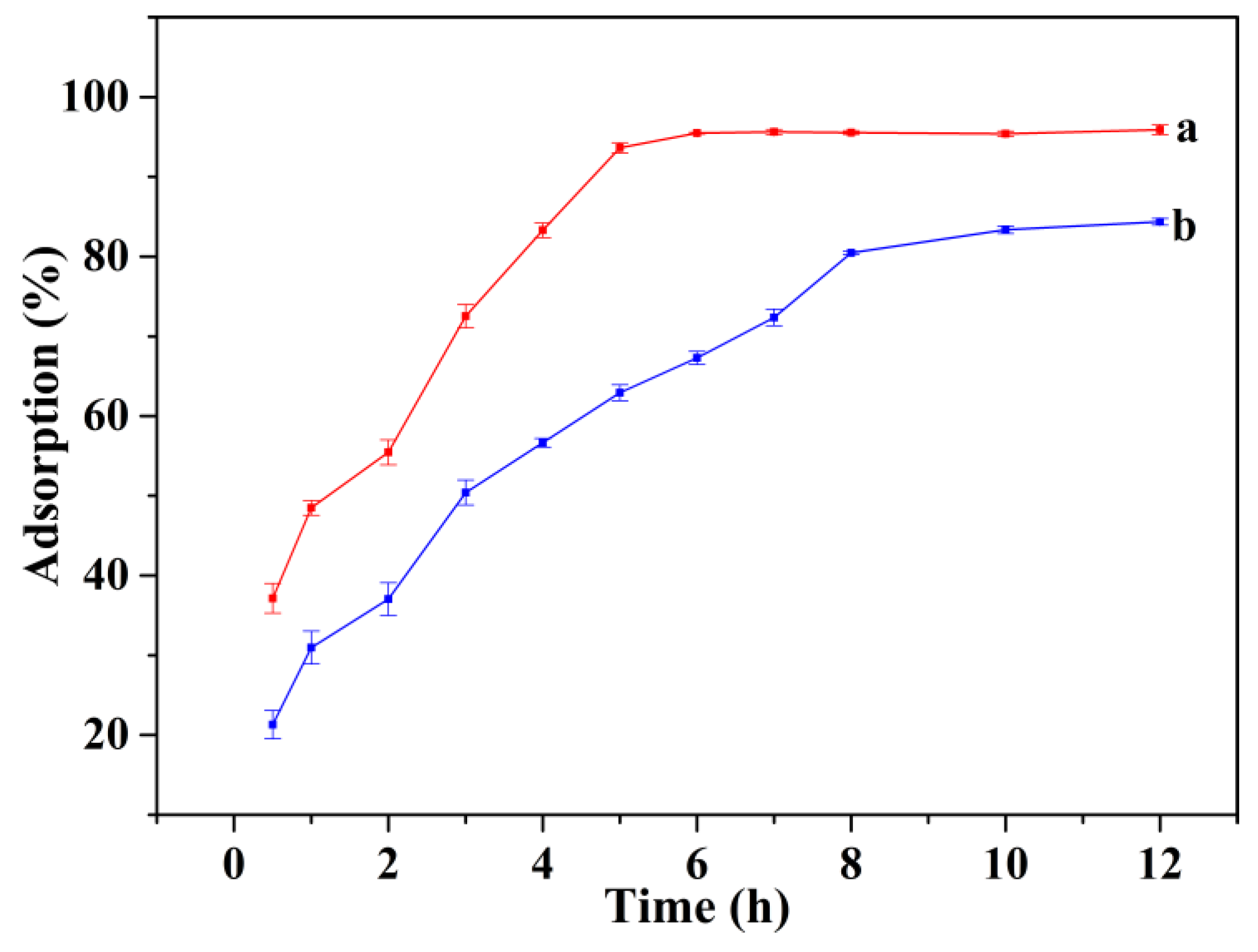

The effect of adsorption time on the adsorption capacity of Alg-Mel was also evaluated with contact time in the range of 0.5–12 h under pH 5.0 at room temperature. It can be seen from Figure 5a that the adsorption capacity of the Alg-Mel for Pb²⁺ increases with the increasing of contact time and then remains stable. More than 95% of Pb²⁺ was adsorbed onto the Alg-Mel sorbent within 5 h. On another hand, when ~20 mg of Alg-Mel was used for treating 40 mL of 0.48 mM Pb²⁺ solution, it took more than 12 h for the adsorption to reach equilibrium (Figure 5b).

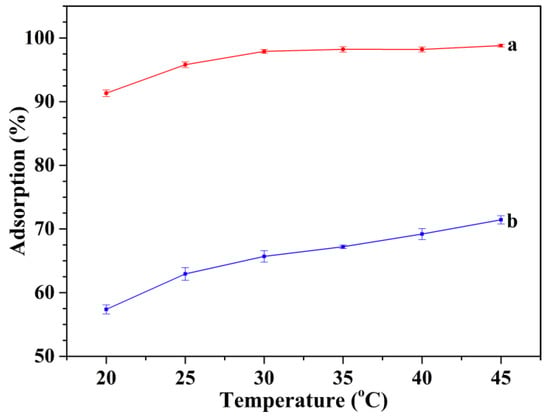

Furthermore, the influence of ambient temperature on adsorption abilities of the Alg-Mel was also studied. It can be seen from Figure 6 that the adsorption ability of the Alg-Mel for Pb²⁺ increases slowly with the ambient temperature rose from 20 °C to 45 °C, which indicates that the adsorption process is an endothermic process.

3.4. Adsorption Ability and Selectivity

The adsorption abilities of the Alg-Mel for heavy metals such as Pb²⁺, Cd²⁺, Cu²⁺, Co²⁺ and Cr³⁺ ions were also studied, and the results are listed in

Table 1. Adsorption abilities of Alg-Mel for various metal ions.

Alg-Mel	Initial Solution (mM)		Adsorption (%)		Capacity (mmol/g)		Kd		k
Pure water samples	0.48 (Pb2+)	-	95.4	-	0.18	-	8.2	-	-
	0.89 (Cd2+)	-	50.2	-	0.18	-	0.4	-	-
	1.57 (Cu2+)	-	59.3	-	0.36	-	0.6	-	-
	1.92 (Cr3+)	-	67.0	-	0.49	-	0.8	-	-
	1.70 (Co2+)	-	29.1	-	0.19	-	0.2	-	-
	0.48 (Pb2+)	1.57 (Cu2+)	84.9	12.6	0.16	0.08	2.2	0.06	39.2
	0.48 (Pb2+)	0.89 (Cd2+)	82.4	37.7	0.16	0.13	1.8	0.24	7.7
	0.48 (Pb2+)	1.92 (Cr3+)	77.4	29.6	0.15	0.22	1.3	0.16	8.1
	0.48 (Pb2+)	1.70 (Co2+)	94.5	14.7	0.17	0.10	6.6	0.07	99.5
Tap water sample 1	0.48 (Pb2+)	-	94.1	-	0.17	-	6.0	-	-
River water sample	0.48 (Pb2+)	-	90.7	-	0.17	-	3.7	-	-
Battery plant wastewater	0.08 (Pb2+)	0.05 (Cd2+)	95.1	46.6	0.03	0.01	7.4	0.33	22.4

¹ Tap and River water samples spiked with standard Pb²⁺.

(In an adsorption test, 100 mg of Alg-Mel was equilibrated with 40 mL of metal ions-containing solution at 25 °C for 6 h, and then filtered. The unextracted metal ions in the filtrate was measured by ICP-OES). As can be seen in Table 1, the Alg-Mel sorbent shows high affinity to Pb²⁺, Cd²⁺, Cu²⁺ and Cr³⁺. It can uptake 95.4% of Pb²⁺, 50.2% of Cd²⁺, 59.3% of Cu²⁺ and 67.0% of Cr³⁺ from the corresponding solution, respectively. This may be ascribed to the coordination of the amino and carboxyl groups on the Alg-Mel with the heavy metals. Furthermore, the results of the competitive adsorption test indicate that the Alg-Mel sorbent has higher adsorption capacity and selectivity to Pb²⁺. The selectivity coefficient (k) values for Pb²⁺/Cd²⁺, Pb²⁺/Cu²⁺, Pb²⁺/Cr³⁺, and Pb²⁺/Co²⁺ are all over 7, which can be attributed to the similar hydrated radius of Pb²⁺ (0.40 nm) and Ca²⁺ (0.41 nm) and the higher binding energy of the carboxyl group with Pb²⁺ than other metal ions [9,14].

The percentage of adsorbed metal ions (Adsorption%), adsorption capacity (Capacity), selectivity coefficient (k) and distribution coefficient (K_d) of Alg-Mel for Pb²⁺ were calculated as follows:

$$\mathrm{Adsorption}\%=\frac{C_i-C_f}{C_i}\times 100\%\hspace{1em}\hspace{1em}\hspace{1em}\mathrm{Capacity}=\frac{(C_i-C_f)\times 0.04}{MW}$$

$$K_d=\frac{\left(C_i-C_f\right)\times 0.04}{C_{f}W} k=\frac{K_d\left(P{b}^{2+}\right)}{K_d\left(metal ion\right)}$$

where C_i represents the initial concentration of the metal ions in solution (mM), C_f represents the final concentration of the metal ions in solution (mM). M represents the molar mass of metal ion, W represents the mass of Alg-Mel sorbent (g). K_d represents the distribution coefficient (L/g), and k represents the selectivity coefficient.

3.5. Maximum Adsorption Capacity for Pb²⁺

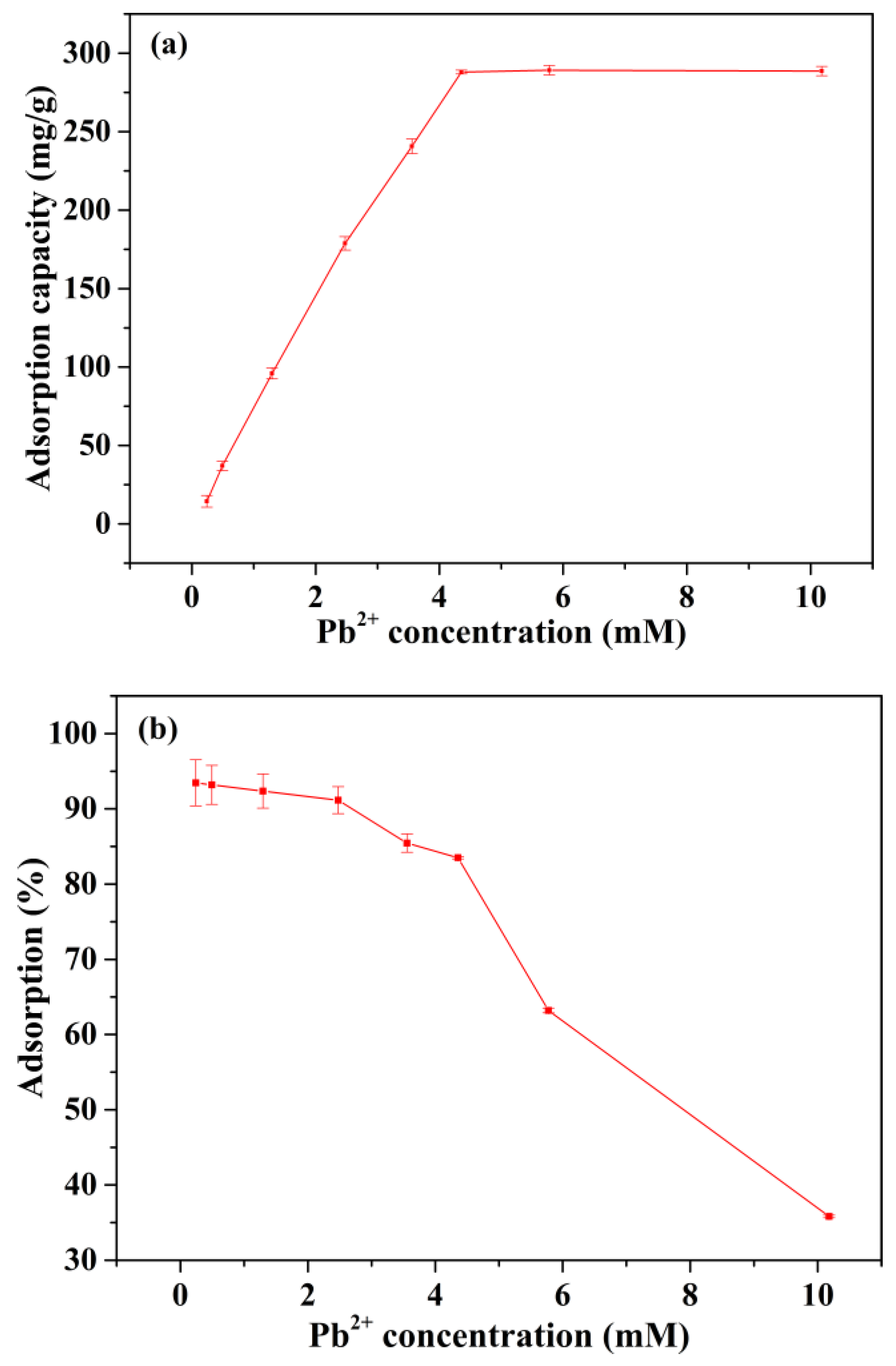

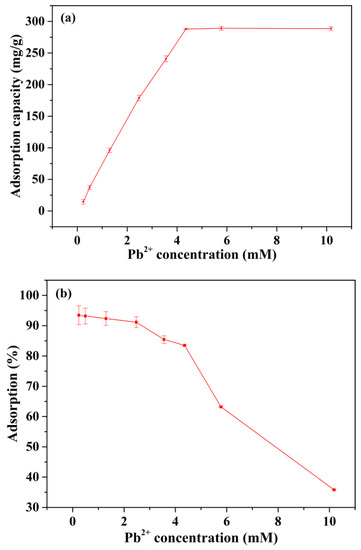

The maximum adsorption capacity is the most important characteristic of a adsorbent, which determines the economics and practicability of the adsorbent. In order to measure the maximum adsorption capacity of the designed sorbent, 100 mg of Alg-Mel sorbent was weighed and added into 40 mL of Pb²⁺-containing solution with concentrations ranging from 0.24 to 10.14 mM for 6 h. As shown in Figure 7, the adsorption capacity of Alg-Mel increases with the initial concentration from 0.24 to 4.34 mM, and then remains stable as the concentration increases further. Therefore, the maximum adsorption capacity for Pb²⁺ was calculated to be 1.39 mmol/g (287.7 mg/g), which is much higher than that of most reported lead ion-sorbents (

Table 2. Comparison of the adsorption capacity of various sorbents towards Pb²⁺.

Adsorbent	Target Heavy Metals	Maximum Adsorption Capacity (mg/g)	Reference
Alginate-melamine hybrid	Pb2+	287.7	Our work
Polydopamine microspheres	Pb2+	165.8	[15]
γ-Fe2O3 nanoparticles	Cu2+, Pb2+	34.0 (Cu2+), 69.0 (Pb2+)	[16]
Fe3O4 nanoparticles	Cr6+, Pb2+	41.5 (Cr6+), 96.8 (Pb2+)	[17]
Magnetic chitosan/graphene oxide imprinted Pb2+	Pb2+	79.0	[18]
Amino functionalized mesoporous silica	Cd2+, Pb2+	18.3 (Cd2+), 57.7 (Pb2+)	[19]
Alginate-SBA-15 composite	Pb2+	222.2	[20]
Longan shell	Pb2+	51.5 (Pb2+)	[21]
Silica modified calcium alginate-xanthan gum hybrid bead composite	Pb2+	18.9	[22]
Soy protein hollow microspheres	Cd2+, Cu2+, Pb2+	120.8 (Cd2+), 115.0 (Cu2+), 235.6 (Pb2+)	[23]
Biochar-alginate capsule	Pb2+	263.2	[24]
Pb2+ ion imprinted polymers	Pb2+	8.35	[25]
Activated carbon-calcium alginate composite	Pb2+	15.7	[26]
Magnetic alginate beads	Pb2+	50	[27]
Polyving alcohol/polyacrylic acid double network gel	Cd2+, Pb2+	115.9 (Cd2+), 195.0 (Pb2+)	[28]
Modified mesoporous SiO2	Pb2+	147.5	[29]
Chitosan coated calcium alginate	Pb2+	106.9	[30]

) [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30].

3.6. Adsorption Mechanism

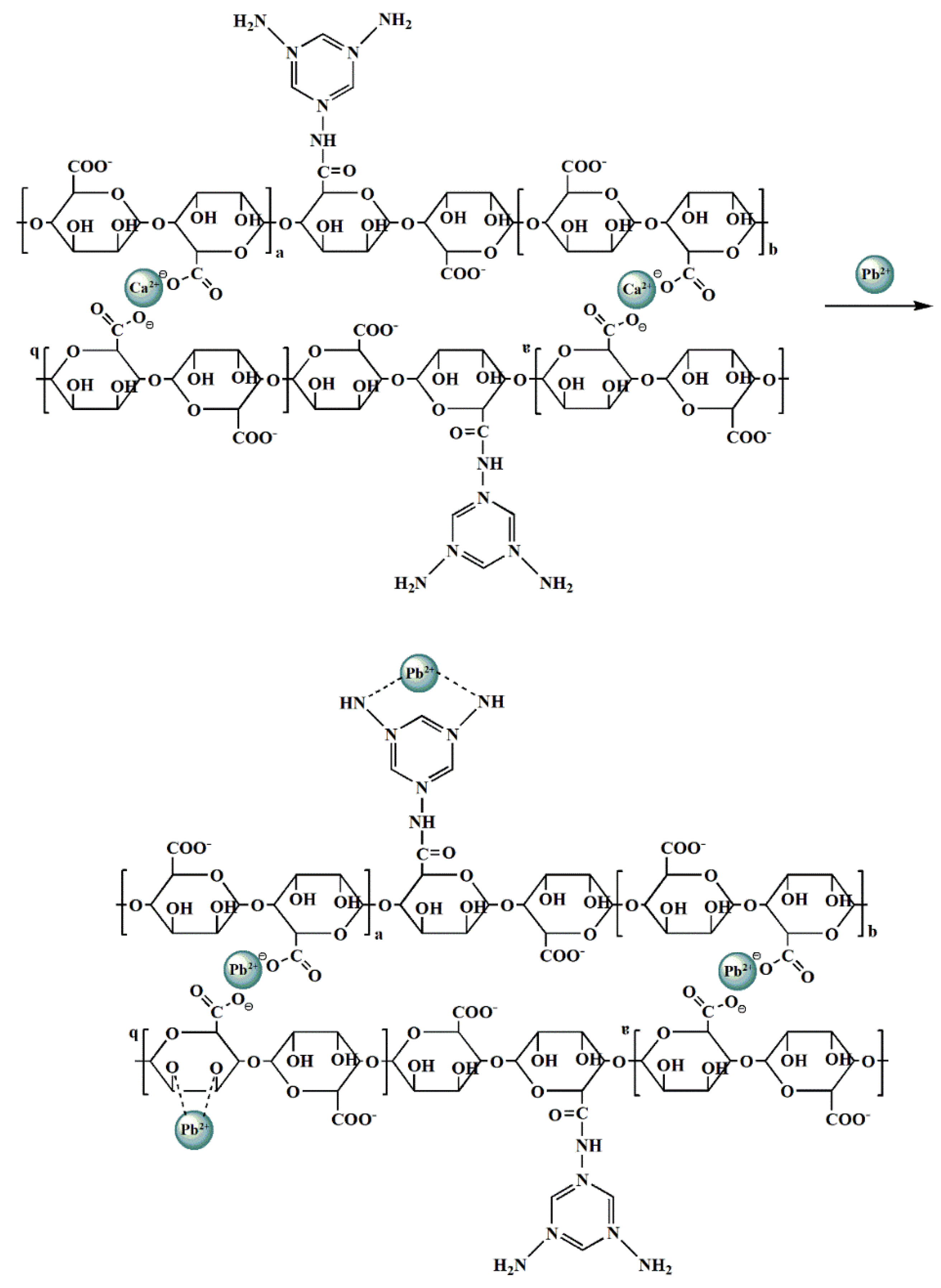

To reveal the adsorption mechanism of the Alg-Mel, we also monitored the changes in Ca²⁺ and Pb²⁺ concentrations in the adsorption process. The ICP-OES analysis indicated that the concentration of Ca²⁺ increased with the reaction proceeded and the concentration of Pb²⁺ decreased gradually. However, after the adsorption, the mole mass of the adsorbed Pb²⁺ ions became greater than that of the desorbed Ca²⁺ ions, indicating that the ion exchange is not the only adsorption mechanism in the whole process. By combined with the COO⁻ (carboxylate) peak of the Alg-Mel shifted after the Pb²⁺ adsorption (the carboxylate peak of the Alg-Mel shifted from 1329 to 1294 cm⁻¹), which might be caused by the coordination of the carboxylate groups with the Pb²⁺. Thus, we proposed a possible adsorption mechanism as depicted in Figure 8.

3.7. Reusability and Applications

Different stripping agents such as CH₃COOH, HNO₃ and HCl were used to desorb Pb²⁺ from the Pb²⁺-loaded Alg-Mel. It can be seen from

Table 3. Effect of stripping agents on Pb²⁺ recovery ¹.

Stripping Agent	Concentration (M)	Pb2+ Recovery (%)
CH3COOH	0.07	67.7
CH3COOH	0.02	32.8
HCl	0.07	93.5
HCl	0.02	81.0
HNO3	0.07	96.3
HNO3	0.02	85.7

¹ ~100 mg of Alg-Mel and 40 mL of stripping agent were used in each desorption test.

that 0.07 M HNO₃ is more effective for desorbing Pb²⁺ from the Pb²⁺-loaded sorbent, in which more than 96% of adsorbed Pb²⁺ could be desorbed from the Pb²⁺-loaded Alg-Mel within a single wash. Therefore, 0.07 M of HNO₃ solution was selected as the stripping agent in this research.

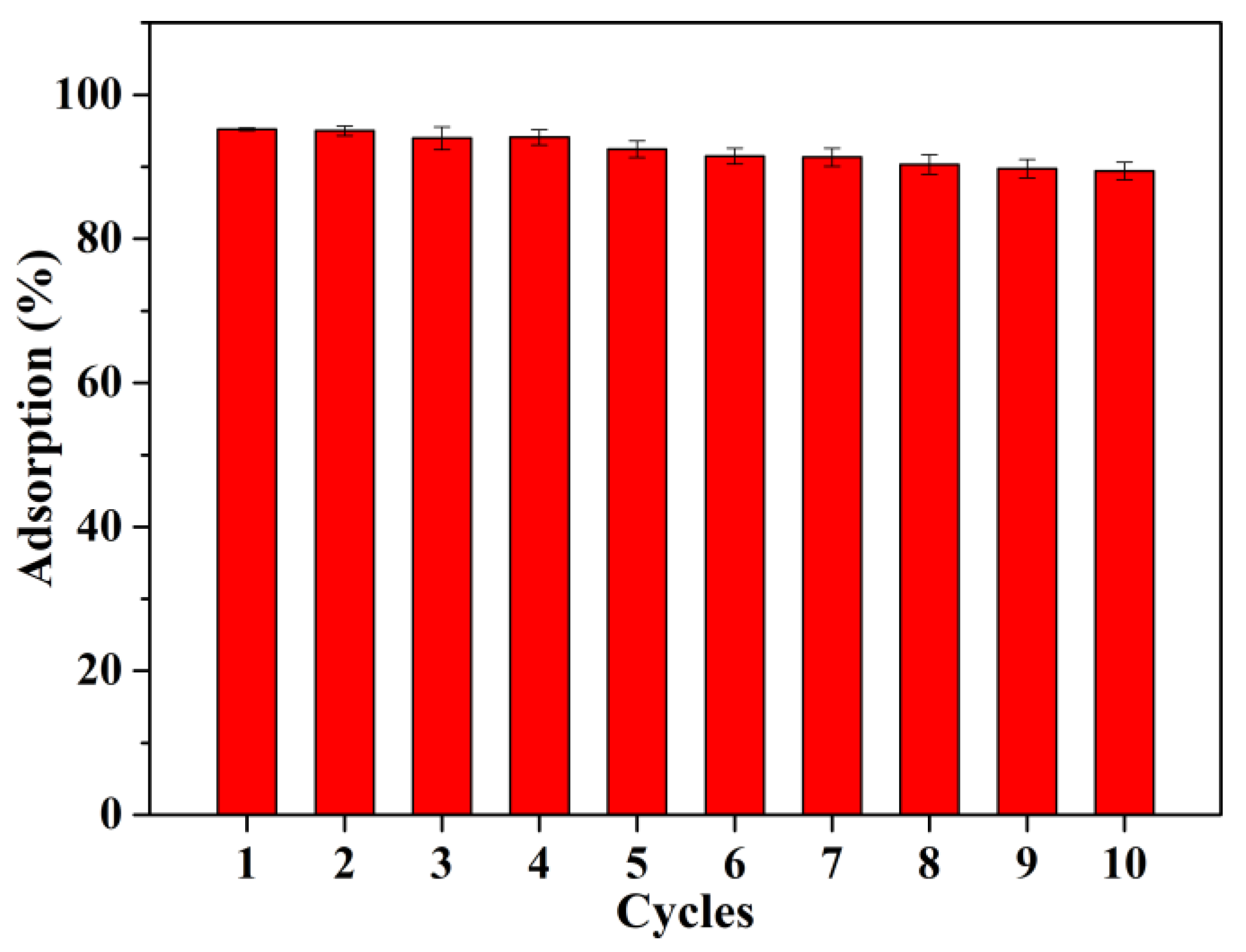

In order to evaluate the recyclability of the sorbent, the same Alg-Mel sorbent was used to uptake Pb²⁺ through ten adsorbing-desorbing cycles. As shown in Figure 9, the adsorption ability of the Alg-Mel remains stable in ten cycles. It can remove 93% ± 3% of Pb²⁺ from the Pb²⁺-containing solution, and its shape does not change much after recycling (Figure 10). These finding indicates that the as-prepared Alg-Mel sorbent possesses high chemical and mechanical stability as well as high recyclability.

4. Conclusions

In this work, a highly efficient alginate-melamine hybrid sorbent (Alg-Mel) was designed and fabricated for removing Pb²⁺ from Pb²⁺-containing wastewater. The as-prepared Alg-Mel exhibited high affinity and selectivity towards Pb²⁺, it could adsorb 95.4% of Pb²⁺ in aqueous solution, and the maximum adsorption capacity for Pb²⁺ reached 287.7 mg/g, which is much higher than that of most reported lead ion-sorbents. Moreover, the application results in natural water samples are also satisfactory. The results of adsorption mechanism analysis indicated that Alg-Mel adsorb the heavy metals mainly by the chemical coordination and ion exchange effects. The low-cost raw materials, simple synthesis process, efficient adsorption ability and high recyclability mean that the synthetic Alg-Mel sorbent has great potential in the treatment of Pb²⁺-containing wastewater.
