Electrochemical Impedance Characterization of Cell Growth on Reduced Graphene Oxide–Gold Nanoparticles Electrodeposited on Indium Tin Oxide Electrodes

Abstract

The improved binding ability of graphene–nanoparticle composites to proteins or molecules can be utilized to develop new cell-based assays. In this study, we fabricated reduced graphene oxide–gold nanoparticles (rGO-AuNP) electrodeposited onto a transparent indium tin oxide (ITO) electrode and investigated the feasibility of the electrochemical impedance monitoring of cell growth. The electrodeposition of rGO–AuNP on the ITO was optically and electrochemically characterized in comparison to bare, rGO-, and AuNP-deposited electrodes. The cell growth on the rGO–AuNP/ITO electrode was analyzed via electrochemical impedance measurement together with the microscopic observation of HEK293 cells transfected with a green fluorescent protein expression vector. The results showed that rGO–AuNP was biocompatible and induced an increase in cell adherence to the electrode when compared to the bare, AuNP-, or rGO-deposited ITO electrode. At 54 h cultivation, the average and standard deviation of the saturated normalized impedance magnitude of the rGO–AuNP/ITO electrode was 3.44 ± 0.16, while the value of the bare, AuNP-, and rGO-deposited ITO electrode was 2.48 ± 0.15, 2.61 ± 0.18, and 3.01 ± 0.25, respectively. The higher saturated value of the cell impedance indicates that the impedimetric cell-based assay has a broader measurement range. Thus, the rGO–AuNP/ITO electrode can be utilized for label-free and real-time impedimetric cell-based assays with wider dynamic range.

1. Introduction

Graphene-based nanomaterials have garnered much attention when it comes to sensors as they require enhanced measuring sensitivity and functionality due to their unique electrochemical, mechanical, and optical properties [1]. Using electrochemical measurements, graphene oxide (GO)-deposited electrode sensors have been used in the ultrasensitive detection of proteins and living microorganisms [2,3,4]. Graphene–nanoparticle-based hybrids have been developed to amplify the sensitivity and selectivity of the sandwich-type electrochemical immunosensor [5], the cell signaling-protein sensor [6], or apoptotic cell sensor [7]. The hybrid material of graphene anchored with nanoparticles gives rise to synergetic effects such as encouraging biocompatible conditions [8] or increasing the electrochemical sensing area of its tangled construction [9]. Moreover, the electrochemical measurement sensitivity of biomolecules was also shown to be reinforced by employing nanoparticles, which were deposited or patterned on the electrode surface by using electrodeposition or thermal deposition with evaporation masks [10,11,12]. Additionally, graphene–nanoparticle composites along with electrochemical measurement showed great potential, feasibility, and increased sensitivity for label-free and real-time biomolecular and protein detection due to its improved ability to capture analytes [13,14,15].

This improved binding ability of graphene nanocomposites to proteins can be utilized to develop new cytosensors for detecting target cells or cell-based assays for monitoring cell behavior. The cytosensor employing the graphene–nanomaterial composites showed high sensitivity and selectivity for sensing Du-145 cancer cells (limit of detection: 20 cells, linear range: 10² to 10⁶ cells per mL) [16] or HL-60 cells exposed to apoptotic inducer (limit of detection: 48 cells, measurement range: 10³ to 10⁷ cells per mL) [7]. Cell-based assays using electrochemical impedance measurement have already been applied to non-destructively detect real-time cellular responses to drug candidates and disease risk factors [17]. Electrochemical impedance monitoring of cells on biocompatible gold or platinum electrodes has also been used in a wide range of applications, including wound healing assays, clinical diagnoses, cytotoxic assays, and drug development [18,19]. The transparent indium tin oxide (ITO) electrode made it possible to characterize the impedance of cells with better optical transmittance when compared to typical gold or platinum electrodes [20,21]. The surface of the ITO electrode could be modified via protein, peptide, or organic polymer coatings to achieve the biocompatibility [22,23,24,25] required for the impedance monitoring of cells. However, organic materials are easily affected by environmental factors including temperature, humidity, pH, and solvent ions, and can be denatured such that substrate conditions cannot guarantee cell cultivation. Additionally, cell behavior is dependent on protein environments and the extracellular matrix.

In this study, we investigated the feasibility of a graphene nanoparticle (alternative to denaturable organic materials)-coated ITO electrode for the impedance characterization of cell growth. For this, an ITO microelectrode, deposited with reduced graphene oxide (rGO) and gold nanoparticles (AuNP), was prepared and characterized using electrochemical and optical analysis. The modified ITO electrode was then used for impedance measurements of HEK293 cells during cell growth to evaluate whether the rGO–AuNP could be used as biocompatible substrates for the impedance monitoring of cells. Furthermore, the measurement range of the cellular impedance measurement (the difference between the largest and smallest measurable value) using the highly-conductive rGO–AuNP-modified ITO electrode was compared to a bare ITO electrode to evaluate the enhancement of the hybrid sensor’s performance.

2. Materials and Methods

2.1. Fabrication of the ITO Electrode-Based Cultureware

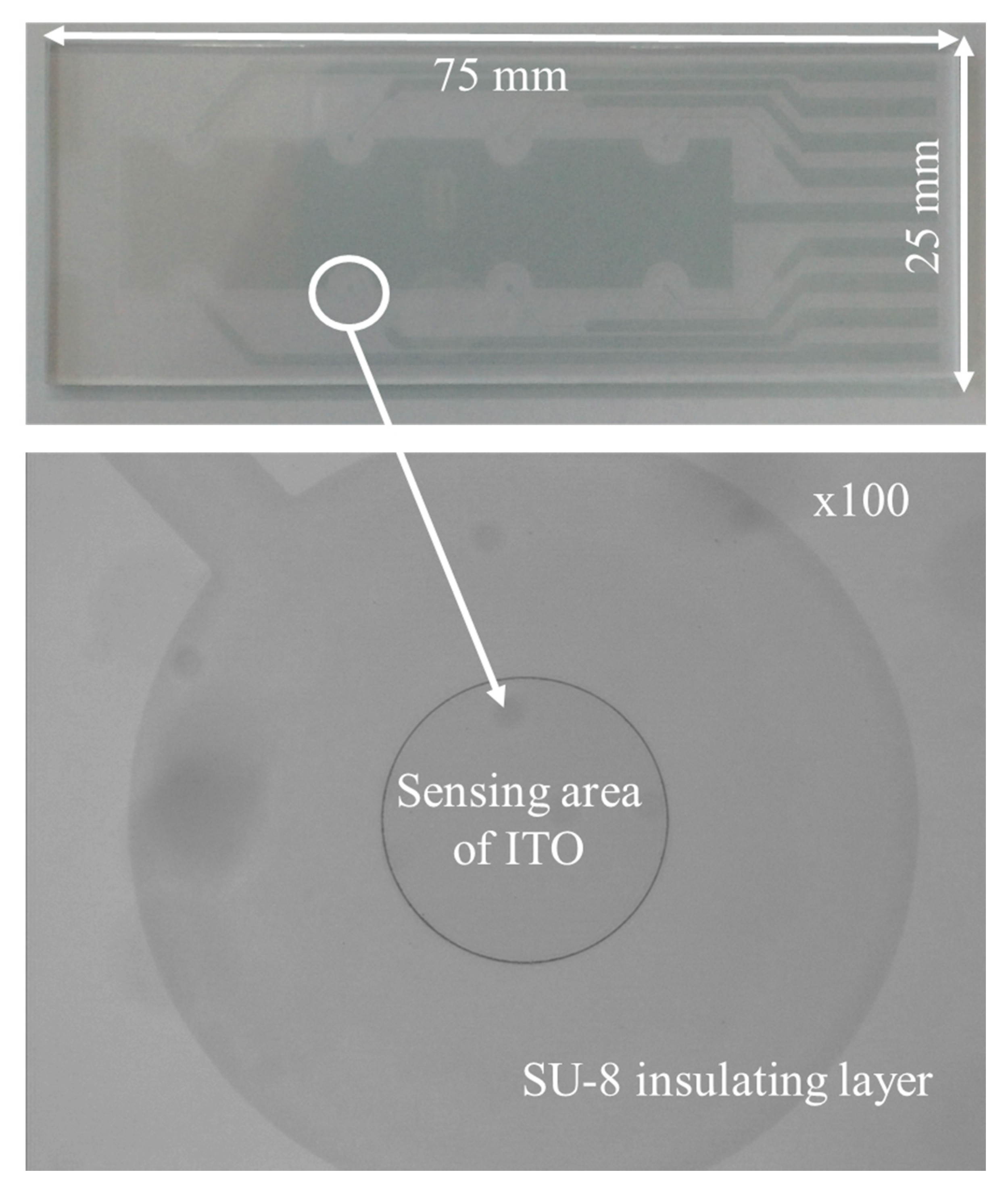

The ITO electrode, which was established in our previous studies [22,26], was prepared as shown in Figure 1. The brief fabrication process of the ITO electrode-based cultureware is as follows. The ITO film was deposited on a slide glass at a thickness of 450 nm via thermal evaporation and patterned via laser ablation to form sensing and counter electrodes, transmission lines, and terminal pads. The deposited ITO conductor had a sheet resistance of 4 Ω/square. To insulate the transmission lines, a highly-resistive photoresist with a thickness of 2 µm (SU-8 2002; MicroChem, Newton, MA, USA) was patterned on the ITO electrode via photolithography. The sensing electrode was circular with a radius of 250 µm and separated by a distance of 2 mm from the relatively large counter electrode. Finally, the polystyrene chamber that holds cells and media was attached to the electrode using a silicone adhesive.

2.2. Electrochemical Deposition of rGO–AuNP on the ITO Electrode

GO, gold(III) chloride trihydrate (HAuCl₄·3H₂O), sodium phosphate monobasic anhydrous (purum p.a. ≥99.0%, BioUltra), sodium phosphate dibasic anhydrous (≥99.5%), and potassium ferrocyanide were obtained from Sigma Aldrich, St. Louis, MO, USA. GO (1 mg/mL) was diluted to prepare 0.5 mg/mL in 25 mM sodium phosphate buffer (pH adjusted to 5.4). HAuCl₄·3H₂O was dissolved in deionized water (18 MΩcm) to a concentration of 0.5 mM.

For the electrodeposition of rGO and AuNP onto the ITO electrode surface, the established method [2,9] was employed. The potential applied on the ITO electrode using a potentiostat (CompactStat; Ivium, Eindhoven, The Netherlands) was −1.4 V vs. Ag/AgCl for rGO deposition and −0.9 V vs. Ag/AgCl for AuNP deposition. The rGO–AuNP composites were obtained by deposition using two-step chronoamperometry at −1.4 V for rGO and at −0.9 V for AuNP, respectively.

The optical properties of the ITO deposited by rGO and AuNP were characterized using a UV-Vis spectrophotometer (Optizen POP; Mecasys, Daejeon, Korea). Scanning electron microscopy (EM-30; COXEM, Deajeon, Korea) and transmission electron microscopy (Zeiss LEO 912 AB; Operating at a voltage of CM-200 kV) were used to determine the size and morphology of the decorated AuNPs in the hybrid nanocomposites deposited onto the ITO surface.

2.3. Impedance Measurement of Cells on the rGO–AuNP/ITO Electrode

The electrochemical impedance characteristics of the modified electrodes were analyzed to validate whether the electrode sensors were well fabricated. For this, the impedance spectra of the electrodes were measured with an electrolyte containing 10 mM potassium ferricyanide K₃[Fe(CN)₆] in 0.1 M potassium chloride (KCl) dissolved in deionized water in the frequency range of 0.1 Hz to 100 kHz (CompactStat; Ivium, Eindhoven, The Netherlands).

HEK293 cells transfected with a green fluorescent protein expression vector (HEK293/GFP), Dulbecco’s modified Eagle’s medium (DMEM), fetal bovine serum (FBS), and penicillin-streptomycin (PS) were prepared for the experiments. HEK293/GFP cells (2 × 10⁵/mL) along with the culture medium (10% FBS and 1% PS in DMEM) were applied to the ITO electrode modified with rGO, AuNP, or rGO–AuNP. The viability and morphology of the cells cultured on each electrode were analyzed by fluorescent microscopy (XJF300T; UniNANO Technology, Yongin, Korea).

For the impedance monitoring of cells, the established experimental setup [22,26] was utilized, which consisted of the digital lock-in-amplifier (SR830; Stanford Research Systems, Sunnyvale, CA, USA), multiplexer, and LabVIEW program. The amplitude of the current flowing through the cells on the electrode was restricted to below 1 µA to minimize electrical effects on the cells. The impedance spectra were measured in the frequency range of 10 Hz to 100 kHz during cell cultivation.

3. Results and Discussion

3.1. Characterization of the rGO–AuNP/ITO Electrode

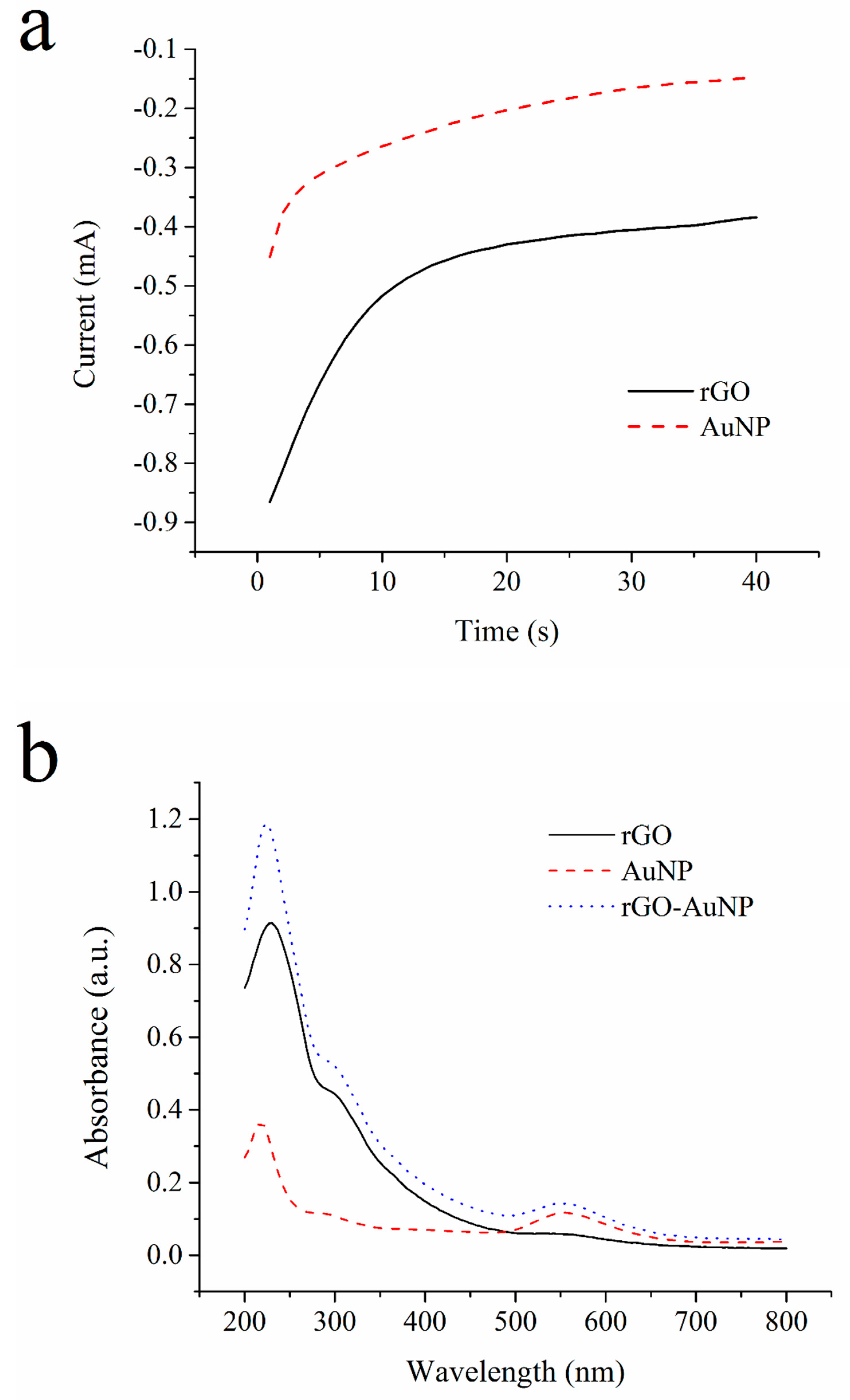

GO is highly stable in water and can also be dispersed in an organic solvent due to the presence of oxygen functionalities. It is described as an insulator because of the disruption of its sp² bonding networks and a hydroxyl group on or in its surface. However, when it is reduced (rGO), it exhibits a conductivity that can be used in sensor applications [27,28,29]. The current responses acquired during the electrochemical deposition of rGO and AuNP on the ITO electrode are shown in Figure 2a. The electrochemical reduction of GO can be expressed as follows [30]:

$$GO+a{H}^{+}+b{e}^{-}\to rGO+c{H}_{2}O$$

(1)

The electrochemical deposition of AuNP determined by the reduction of Au³⁺ with HAuCl₄ [31,32] can be expressed as follows:

$$HAuC{l}_4+3H^{+}+3e^{-}\to Au+4HCl$$

(2)

The reductive current showed a significant increase during the first 10 s and 4 s for rGO and AuNP deposition respectively, and gradually reached a stationary value.

Figure 2b shows the UV-Vis spectra of the rGO-, AuNP-, and rGO–AuNP-deposited ITO substrates using chronoamperometry. From the spectra of the rGO, a shoulder absorption at around 230 nm was caused by an n-π* transition shift of double bonded carbon–oxygen conjugation (C=O; electrons transition from a non-bonding (lone-pair) n orbital to an anti-bonding π orbital called π*). In the case of the AuNP, the absorption peak at about 550 nm was observed due to the resonance frequency in generating the surface plasmon. Therefore, the hybrid layer formation of rGO–AuNP was confirmed by the two UV-Vis absorption peaks at 224~233 nm for rGO and 548~557 nm for AuNP.

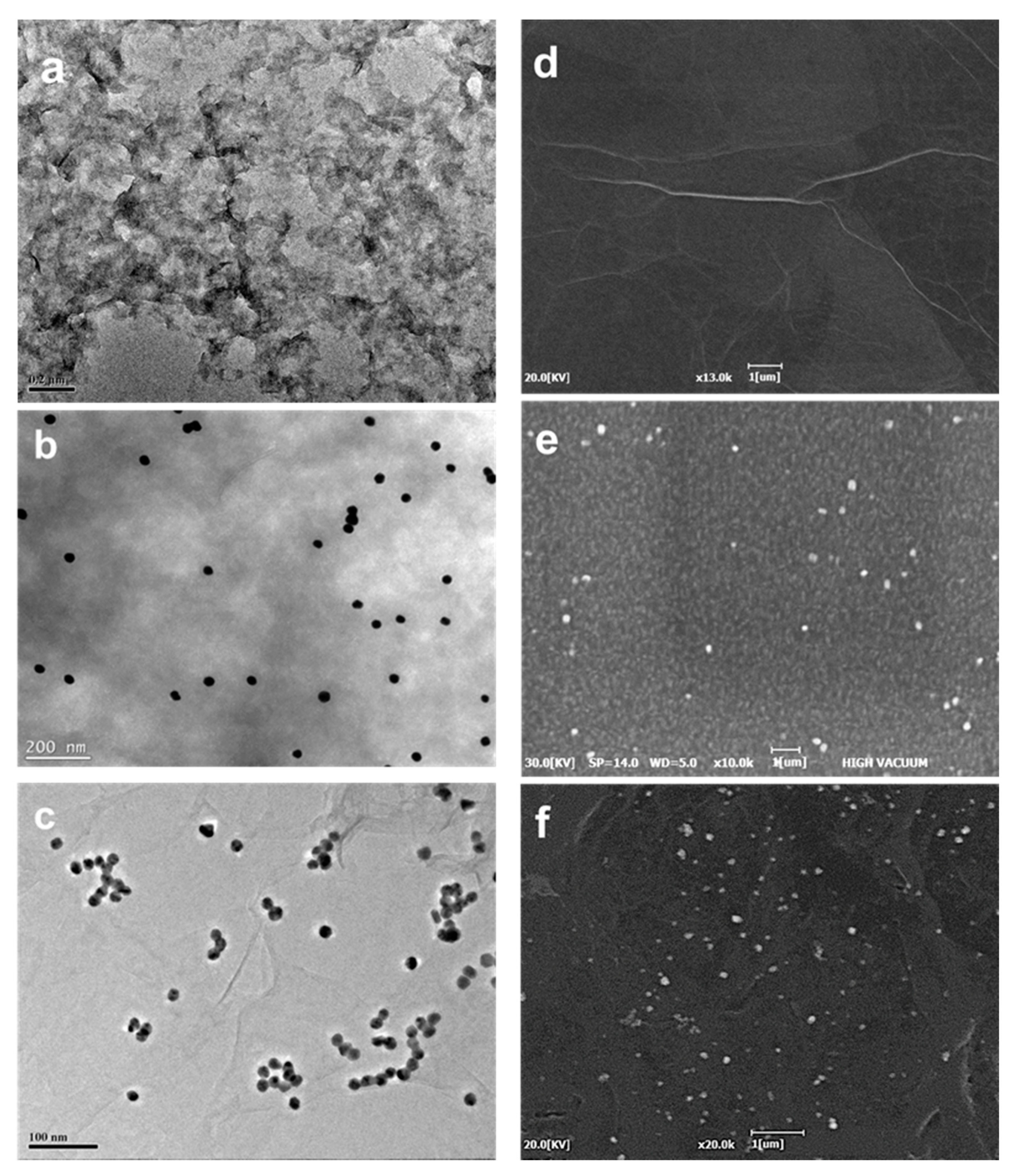

The morphological features of rGO, AuNP and the rGO–AuNP nanocomposite were determined by transmission electron microscope (TEM) and scanning electron microscope (SEM) analysis. Figure 3 shows characteristic TEM and SEM images of rGO, AuNP and the rGO–AuNP nanocomposite. rGO has a typical sheet-like structure. In contrast to rGO, the AuNPs exhibited spherical morphologies, evenly distributed with an average size of 15 nm. In addition, the rGO–AuNP hybrid nanocomposite has AuNPs anchored to the surfaces of the rGO. The adhered particles also have spherical morphologies deposited with a diameter of 15 nm on the rGO surfaces. In the rGO–AuNP nanocomposite, the rGO looks like evenly-distributed silky waves of thin sheets, which may be significant in preventing the aggregation of rGO and upholding a surface, enabling the attachment of AuNP to the graphene sheets. The size and density of the AuNPs could be adjusted by controlling the chronoamperometric time, during which the AuNPs were formed by the nucleation and growth of Au deposition. Thus, it was found that the AuNPs were successfully deposited on the rGO/ITO to obtain the hybrid rGO–AuNP/ITO structure via chronoamperometry.

3.2. Impedimetric Measurement of Cell Growth on the rGO–AuNP/ITO Electrode

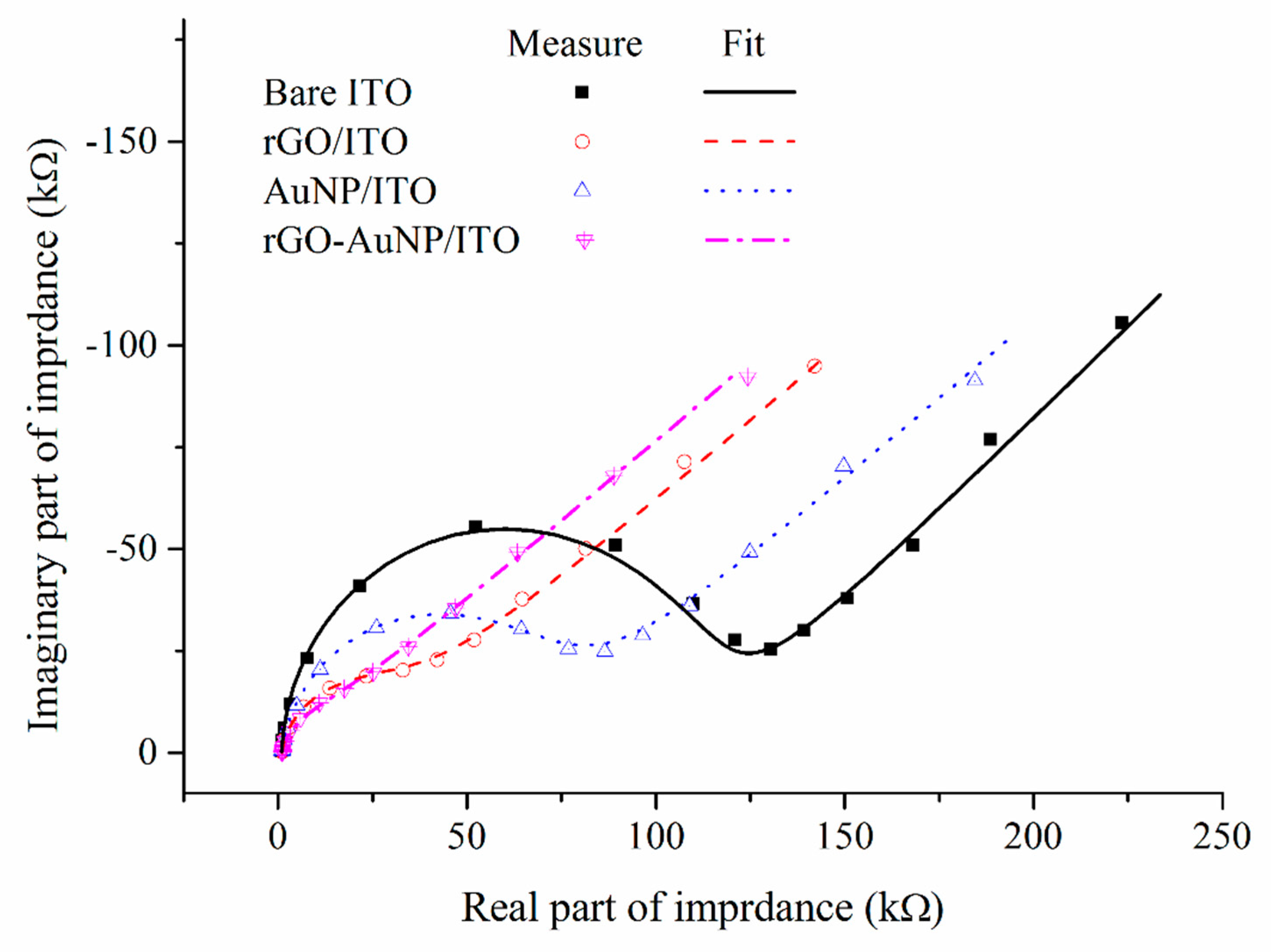

The measured electrochemical impedances of the bare ITO, AuNP/ITO, rGO/ITO, and rGO–AuNP/ITO in are shown in the Nyquist plot in Figure 4. The measured impedance data of the electrode (Z_EL) are presented as symbols and analyzed via non-linear curve fitting using the following equation:

$$Z_{EL}=\left(Z_{CPE}·\left(R_{CT}+Z_W\right)\right)/\left(Z_{CPE}+R_{CT}+Z_W\right)+R_S$$

(3)

where Z_CPE is the constant phase element for the non-ideal capacitive characteristic of the electrode-electrolyte (=T/(jω)^P; j is the imaginary unit, and ω is the angular frequency), R_CT is the charge transfer resistance, Z_W is the Warburg impedance, and R_S is the solution resistance.

The results showed that the measured impedance data of the electrode agreed with the fitted lines using Equation (3), and that the electrode interfacial impedance determining the faradaic and non-faradaic current was decreased by the electrochemical deposition of the electrode surface. In the parameters of Equation (3) extrapolated from the fitting analysis, Z_CPE and R_CT were selected to characterize the surface modification of the ITO electrode. The Z_CPE values of the bare, AuNP-, rGO-, and rGO–AuNP-deposited ITO electrodes were found to be 90.05/(jω)^0.94, 14.4/(jω)^0.88, 4.71/(jω)^0.91, and 1.7/(jω)^0.88 MΩ, respectively. The R_CT values of the bare, AuNP-, rGO-, and rGO–AuNP-deposited ITO electrodes were found to be 118.07, 77.59, 34.67, and 23.4 kΩ, respectively. The decrease in the P value of Z_CPE of the AuNP- and rGO–AuNP-deposited electrodes can be explained by an increase in the surface roughness of the electrode caused by the electrochemical deposition process. The significant decreases in the T value of Z_CPE and R_CT of the rGO–AuNP-deposited ITO electrode can be induced by an increase of the sensing area and charge transfer conductance of the modified electrode.

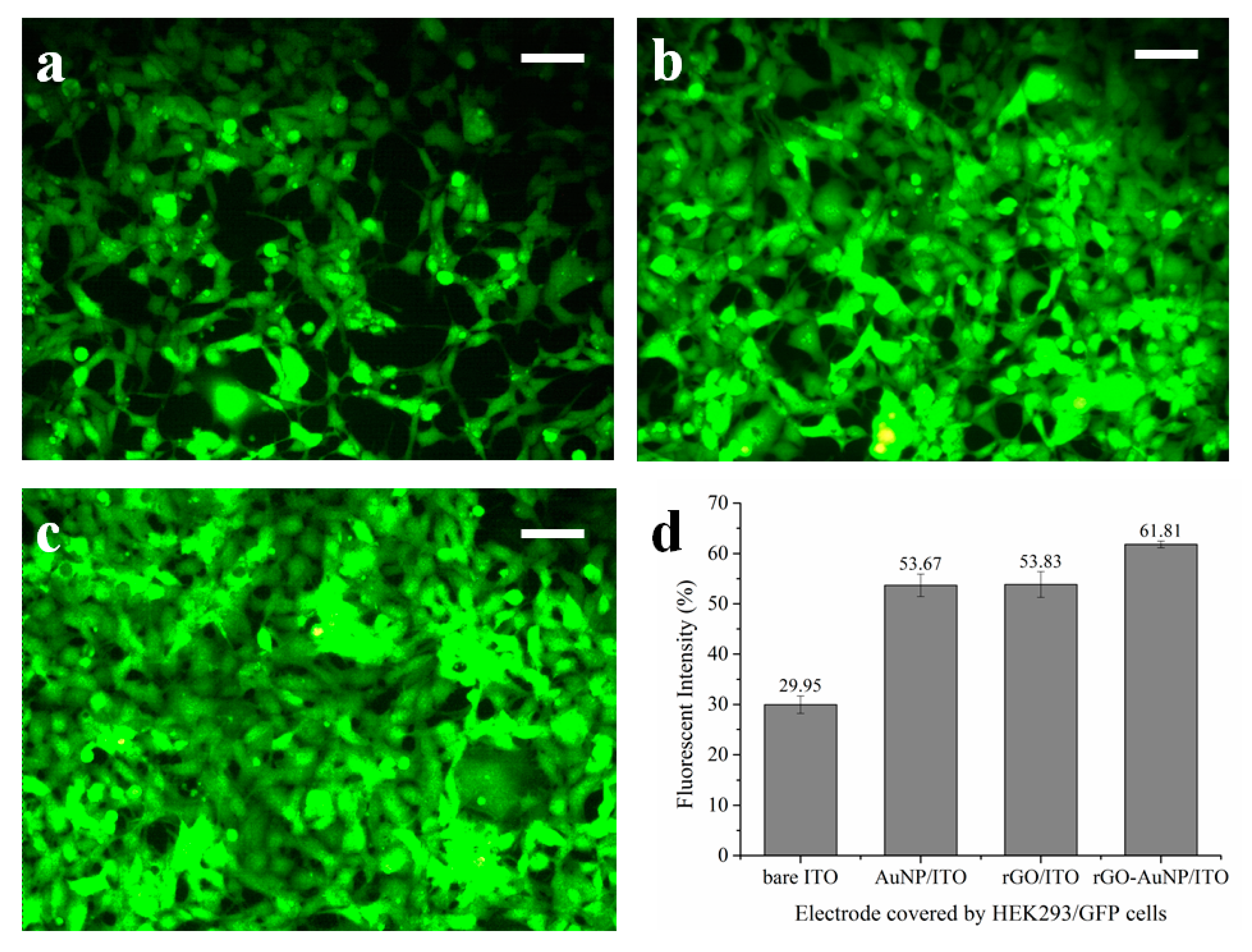

Figure 5a–c shows the fluorescent microscopic images of HEK293/GFP cells cultured for 40 h on bare, AuNP-, and rGO–AuNP-deposited ITO electrodes, when the cells were exposed to the blue light (400~490 nm). The average and standard deviation of the fluorescent intensity of the cells cultured on each electrode analyzed by ImageJ is shown in Figure 5d. The microscopic images proved that the rGO–AuNP deposited ITO electrode is biocompatible and that the optical density of the cells was observed to be higher on the rGO–AuNP deposited ITO electrode when compared to the bare, AuNP, or rGO-deposited ITO.

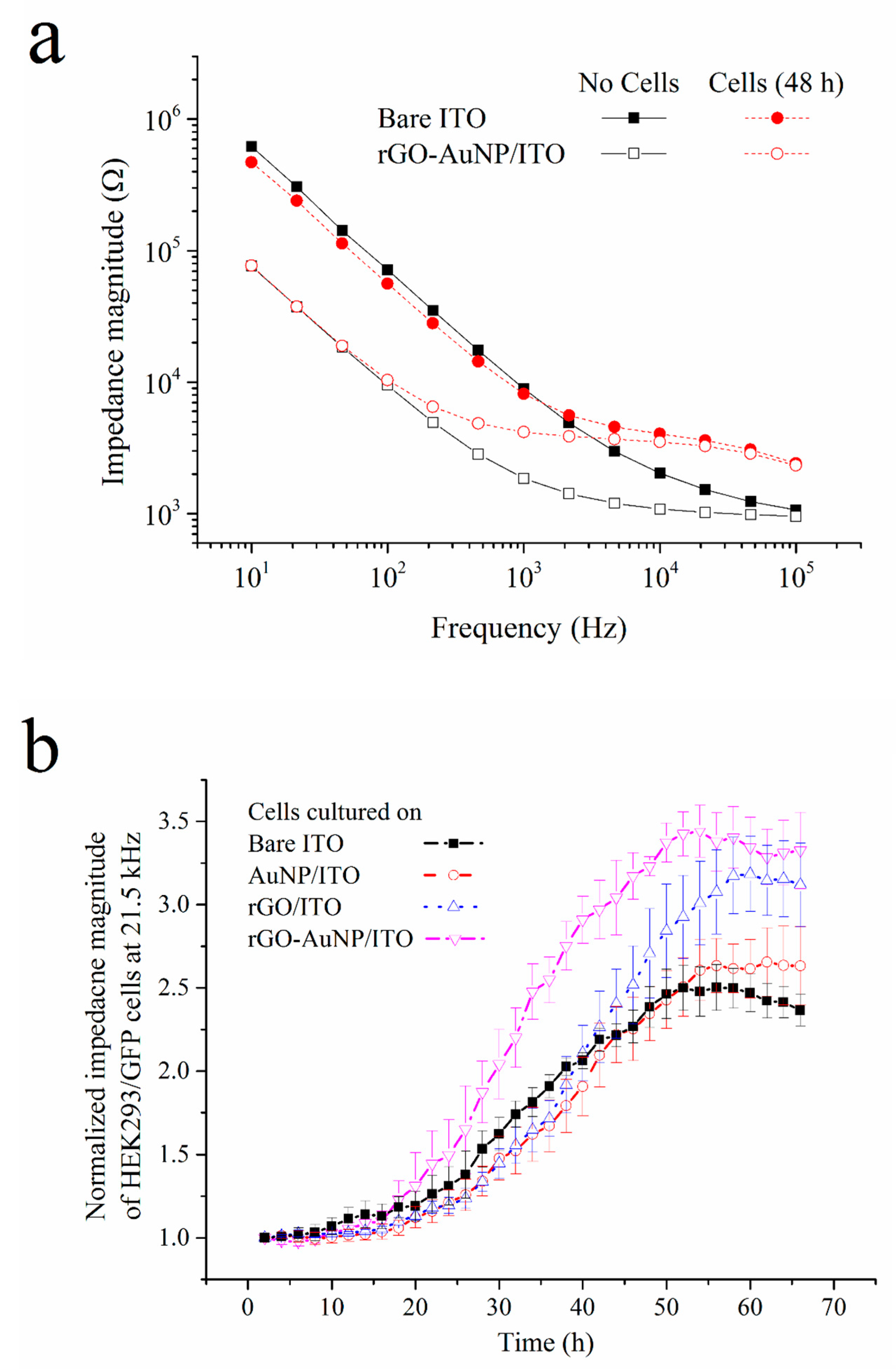

The impedance magnitudes without or with HEK293/GFP cells cultured for 48 h on the bare or rGO–AuNP-deposited ITO electrode measured at a frequency of 10 Hz to 100 kHz is shown in Figure 6a. The impedance magnitude of the electrode without cells showed the capacitive impedance of the electrode interface at low frequencies and the resistance of the culture media at high frequencies. As the cells adhered and proliferated on the electrodes during cell growth, an increase in the impedance magnitude at frequencies above 4.64 kHz for the bare ITO or 215.4 Hz for rGO–AuNP-deposited ITO electrode was observed.

Figure 6b demonstrates the normalized impedance magnitude at 21.5 kHz recorded during cell culture on the bare, rGO-, AuNP-, and rGO–AuNP-deposited ITO electrodes. The normalized impedance magnitude (|Z|_norm) of the HEK293/GFP cells was calculated as follows:

$$|Z{|}_{norm}=|Z{|}_{Cells}/|Z{|}_{NoCells}$$

(4)

where |Z|_Cells and |Z|_{No Cells} are the impedance magnitudes with and without cells, respectively.

The data are presented as averages (symbol) and standard deviation (bar) (n = 4). When the cells adhered to the electrode surface in the beginning of the cultivation (<20 h), the impedance values were weakly increased for all electrodes and a difference in values between each group of electrodes was not observed. However, the value of the cells on the rGO–AuNP/ITO electrode increased significantly when compared to the bare, rGO-, and AuNP-deposited ITO electrodes after 20 h of cultivation time dominated by cell proliferation. The normalized impedance magnitude of the cells then reached a saturation level (>52 h) when the cells proliferated sufficiently on the limited electrode surface. The saturated |Z|_norm of the rGO–AuNP/ITO electrode was 3.44 ± 0.16 at 54 h cultivation, while the value of bare, AuNP-, and rGO-deposited ITO electrode was 2.48 ± 0.15, 2.61 ± 0.18, and 3.01 ± 0.25, respectively. The results indicated that the HEK293/GFP cells adhered and grew more efficiently on the rGO–AuNP-deposited ITO electrode when compared to the bare AuNP- or rGO-deposited ITO electrode. The higher saturated value of cell impedance makes it possible to implement the impedimetric cell-based assay with a broader measurement range. Thus, the rGO–AuNP-deposited ITO electrode can be utilized for label-free and real-time cell-screening assays with a wider dynamic range.

4. Conclusions

In this study, an rGO–AuNP-deposited ITO electrode was fabricated to be used as an advanced impedimetric cell sensor with a wider dynamic range. The hybrid structure of the rGO–AuNP was successfully deposited on the ITO electrode using chronoamperometry and characterized via UV-Vis spectroscopy, SEM, and impedance spectroscopy. Impedance monitoring of the cells via fluorescent microscopy proved that the rGO–AuNP/ITO electrode enhanced cell growth and yielded a higher cell density on the electrode surface. During the cell growth, the saturated normalized impedance magnitude of the rGO–AuNP/ITO electrode was higher (average and standard deviation: 3.44 ± 0.16) than the value of bare (2.48 ± 0.15), AuNP- (2.61 ± 0.18), or rGO-deposited (3.01 ± 0.25) ITO electrodes at 54 h cultivation. The higher saturated value of the cell impedance indicates that the impedimetric cell-based assay has a wider measurement range. Based on the results, the rGO–AuNP/ITO electrode can be utilized for advanced label-free and real-time impedimetric cell-based assays with broader dynamic range.
