Review

Dual-Source Photon-Counting Computed Tomography—Part I: Clinical Overview of Cardiac CT and Coronary CT Angiography Applications

by
Filippo Cademartiri
1,*,
Antonella Meloni
1,2,
Laura Pistoia
1,
Giulia Degiorgi
1,
Alberto Clemente
1,
Carmelo De Gori
1,
Vincenzo Positano
1,2,
Simona Celi
3,
Sergio Berti
4,
Michele Emdin
5,
Daniele Panetta
6,
Luca Menichetti
6,
Bruna Punzo
7,
Carlo Cavaliere
7,
Eduardo Bossone
8,
Luca Saba
9,
Riccardo Cau
9,
Ludovico La Grutta
10 and
Erica Maffei
1
1
Department of Radiology, Fondazione Monasterio/CNR, 56124 Pisa, Italy
2
Department of Bioengineering, Fondazione Monasterio/CNR, 56124 Pisa, Italy
3
BioCardioLab, Department of Bioengineering, Fondazione Monasterio/CNR, 54100 Massa, Italy
4
Cardiology Unit, Ospedale del Cuore, Fondazione Monasterio/CNR, 54100 Massa, Italy
5
Department of Cardiology, Fondazione Monasterio/CNR, 56124 Pisa, Italy
6
Institute of Clinical Physiology, National Council of Research, 56124 Pisa, Italy
7
Department of Radiology, IRCCS SynLab-SDN, 80131 Naples, Italy
8
Department of Cardiology, Ospedale Cardarelli, 80131 Naples, Italy
9
Department of Radiology, University Hospital, 09042 Monserrato, Italy
10
Department of Radiology, University Hospital “P. Giaccone”, 90127 Palermo, Italy
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2023, 12(11), 3627; https://doi.org/10.3390/jcm12113627
Submission received: 16 March 2023 / Revised: 15 May 2023 / Accepted: 17 May 2023 / Published: 23 May 2023

Abstract

:
The photon-counting detector (PCD) is a new computed tomography detector technology (photon-counting computed tomography, PCCT) that provides substantial benefits for cardiac and coronary artery imaging. Compared with conventional CT, PCCT has multi-energy capability, increased spatial resolution and soft tissue contrast with near-null electronic noise, reduced radiation exposure, and optimization of the use of contrast agents. This new technology promises to overcome several limitations of traditional cardiac and coronary CT angiography (CCT/CCTA) including reduction in blooming artifacts in heavy calcified coronary plaques or beam-hardening artifacts in patients with coronary stents, and a more precise assessment of the degree of stenosis and plaque characteristic thanks to its better spatial resolution. Another potential application of PCCT is the use of a double-contrast agent to characterize myocardial tissue. In this current overview of the existing PCCT literature, we describe the strengths, limitations, recent applications, and promising developments of employing PCCT technology in CCT.

1. Introduction

Non-invasive cardiac imaging is a constantly and rapidly evolving field of medicine that has recently experienced major technological breakthroughs. The diagnostic need is growing in several applications of major imaging technologies, and is mainly driven by ruling in or out significant coronary luminal stenosis or coronary anomalies, investigating myocardial tissue characteristics, assessing coronary atherosclerotic plaque morphology and characteristics, and providing adequate pre-operative support for interventional procedures [1,2,3,4,5,6]. Computed tomography (CT) represents a powerful tool to address these clinical indications and it can already be considered the primary diagnostic tool in cardiovascular medicine when an angiographic/anatomical assessment is needed. However, for the heart and the coronary arteries, some limitations still remain (also depending on the technology involved), mostly related to limited contrast resolution, sub-optimal spatial resolution for angiography in patients with severe calcifications and stents, metallic/blooming/beam-hardening artifacts, and sub-optimal tissue characterization capabilities [7,8]. Moreover, there are a few direct risks associated with CT scanning, such as the increased exposure to ionizing radiation and the possibility of contrast-induced allergic reactions or nephropathy.
Photon-counting computed tomography (PCCT) is a newly introduced CT detector technology that has been developed for more than 15 years and has recently entered the clinical field. After Food and Drug Administration (FDA) clearance in September 2021, Siemens Healthineers released the world’s first commercial PCCT scanner (Naeotom Alpha.
PCCT is based on a completely new generation of X-ray detectors [9,10,11,12]. Until now, the standard technology for CT detectors was energy-integrating detectors (EIDs) in which photons hit the detector surface, and the detected signal is proportional to the total energy deposited by all photons without specific information about an individual photon or its energy; this is because photons are converted into light with several inherent limitations, such as limited spatial resolution, scattering, loss of low energy photons, and no energy level discrimination. PCCT detectors, instead, are composed of semiconductor detector materials made of cadmium telluride, cadmium zinc telluride, or silicon that directly convert each X-ray photon into electron hole pairs [9,13,14]. This can result in the direct detection of photons, enabling them to be counted (i.e., photon counting) and to be separated into their specific energy levels, while eliminating noise at the electronic level. This detector characteristic has major clinical benefits in cardiovascular imaging by more than doubling spatial resolution, reducing electronic noise and artifacts, decreasing the X-ray dose and amount of contrast media, and allowing simultaneous multi-energy acquisition to characterize myocardial tissue and/or atherosclerotic coronary plaques [7,9,11,12,15,16,17].
In this current overview of the existing PCCT literature, we describe the strengths, limitations, recent applications, and promising developments of employing PCCT technology in CCT.

2. Basic Features and Technical Improvements Related to PCCT Technology

PCCT can operate in two different modalities: conventional and spectral. The first corresponds to single-energy CT, in which X-ray photons are not differentiated by their energy but are only summed. Spectral data can be used through two distinct mechanisms: the weighting of energy and the decomposition of the material.
With the first approach, PCCT provides improved noise performance in comparison with conventional state-of-the-art CT scanners. Indeed, it is possible to assign custom weights to specific energy bins in order to improve image quality. This enables normalization of the weight of low-energy X-ray photons and leads to an improvement in the contrast-to-noise ratio between soft tissues [18] or a correction in beam-hardening artifacts [8,19].
Decomposition of the material spectral analysis, instead, provides information about the distribution of certain elements within the image (e.g., iodine, calcium, and gadolinium) by measuring the energy-dependent material-specific X-ray attenuation. This PCCT technology also enables the generation of virtual mono-energetic images [8,18]. In contrast to dual-energy computed tomography (DECT), PCCT acquires data in three or more energy regimes, enabling more than two different contrast agents to be discerned and quantification with a K-edge (e.g., gold and gadolinium) in the diagnostic energy range [8,20,21,22]. This energy threshold capability also allows PCCT to improve the contrast-to-noise ratio and the capability of CT to generate separate quantitative maps for each component [8,18].
Moreover, the detector element size in PCCT is smaller than that in EID. Since PCCT detectors convert X-ray photons directly into electronical charges without scintillator layers, the spatial resolution in PCCT is not limited by the need to separate proximate detector elements with reflecting layers to minimize crosstalk between neighboring detector elements and prevent image degradation [18]. This technology enables higher spatial resolution in comparison with conventional CT [18].

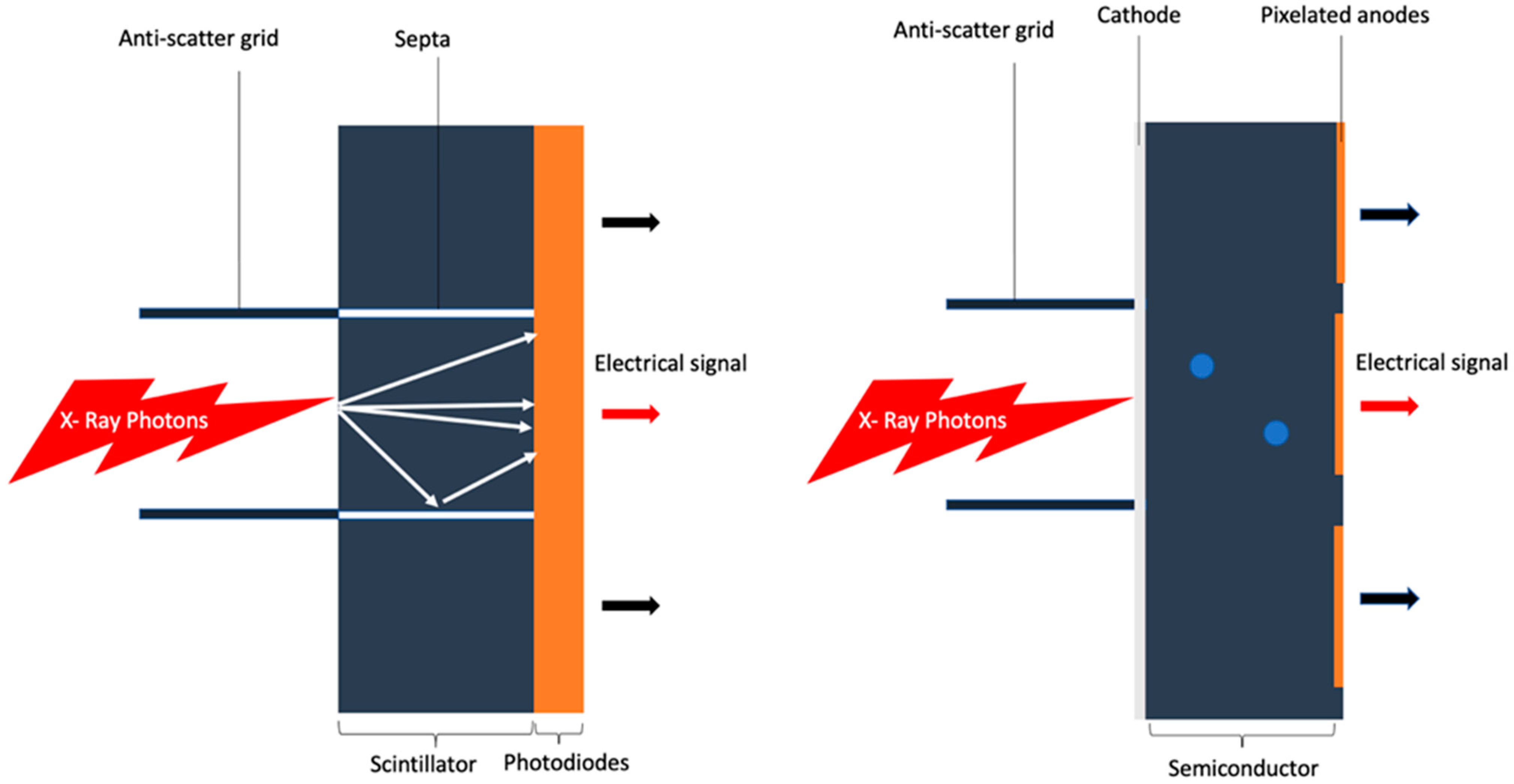

A schematic representation of EIDs and PCDs is shown in Figure 1.

3. Clinical Implications of Photon-Counting CT Technology

The main clinical translation of new PCCT technology in the cardiac field application is related to the higher spatial resolution and to the multiparametric/multi-energetic nature of the information collected.
The presence of semiconductor materials and the detector element size result in higher spatial resolution [8,14,18]. This provides a much more detailed capability of visualization of smaller anatomical structures with more contrast resolution, including coronary lumen and stent patency. Improved spatial resolution can be also helpful for a better evaluation of high-risk plaque features, namely low-attenuation plaque, spotty calcifications, positive remodeling, and napkin-ring sign [18,23]. PCCT technology enables the counting of both the cumulative number of photons and their energy distribution, leading to improved contrast-to-noise ratios and energy discrimination capabilities. This translates into increased iodine contrast, reduced administered radiation dose, or reduced contrast media volume required to obtain comparable enhancement [24,25,26]. Finally, multi-energy capabilities of PCCT detectors could be useful to reduce metal artifact, differentiate components of coronary atherosclerosis plaque, and discern between different exogenous contrast agents [18,24,27,28,29].
Table 1 summarizes the main benefits of PCCT and effects on cardiovascular applications.
Table 2 summarizes previous studies on PCCT in cardiovascular imaging.

3.1. Coronary Lumen

The PCCT system provides clinical benefits in the luminal assessment of coronary arteries, enabling improved spatial resolution and contrast-to-noise ratio [25].
In a recent prospective study of 14 patients who underwent both PCCT and conventional CT angiography, PCCT demonstrated a score improvement for overall quality and diagnostic confidence of 57% (95% CI: 41, 72) and 55% (95% CI: 39, 70), respectively, and 48% (95% CI: 33, 63), 51% (95% CI: 35, 67), and 69 (95% CI: 53, 82) for coronary proximal lumen, coronary distal lumen, and coronary wall, respectively [30]. These findings were also supported by a phantom study reporting that PCCT images had a 2.3-fold increased detectably index for coronary lumen in comparison with conventional CT images [30]. In an in vitro study, PCCT was compared with EID under various conditions of simulated patient size (small, medium, and large), demonstrating lower noise magnitude and higher noise frequency peak with better spatial resolution compared to EID [31]. Moreover, PCCT can be advantageous in quantifying luminal stenosis in heavily calcified plaques in comparison with conventional CT scanners, as demonstrated in a recent phantom study, especially for concentric heavy calcified plaque configuration [12]. Similar results were also reported by Li et al., who demonstrated a reduction in partial volume and blooming artifacts resulting in a finer stenosis assessment [41]. In parallel, PCCT enables CCT K-edge imaging using a gadolinium-based contrast agent. An ex vivo coronary artery study showed an improved luminal depiction with clear differentiation among the intravascular gadolinium-based contrast agent, calcified plaque, and stent material [21]. Similar results have also been recently described using iodinated contrast agents [42].
A different approach to assess the vessel lumen is the use of emerging image reconstruction algorithms based on spectral CT [32]. Allmendinger et al. investigated the performance of a novel calcium-removal image reconstruction algorithm (called PureLumen) to eliminate only the calcified contribution of an anthropomorphic thorax phantom attached to an artificial motion device, simulating realistic cardiac motion [32]. The authors demonstrated decreased blooming artifacts and an improvement in image interpretability [32]. PCCT enables an “always available” multi-energy discrimination, overcoming a current dilemma in cardiac CT, represented by the infeasibility of high temporal resolution and multi-energy imaging acquisition [43].
In addition, improved spatial resolution of PCCT allows a proportion of improvement in diagnostic quality for pericoronary fat tissue of 36% (95% CI: 22, 52) in comparison with conventional CT scanners [30].
Figure 2 shows PCCT images of normal and non-obstructive coronary artery disease (CAD) while PCCT examples of obstructive CAD are shown in Figure 3 and Figure 4.

3.2. Coronary Stent

Current state-of-the-art CT scanners do not always allow optimal assessment of the vessel lumen in patients with coronary stents due to several technical issues (e.g., metallic, blooming, and beam-hardening artifacts, as well as limited spatial resolution) [44,45].
In a recent in vitro study, PCCT was compared with conventional CT scanners in the evaluation of 18 different coronary stents. The authors reported superior in-stent visibility, and fewer blooming and partial volume artifacts, with a smaller increase in the attenuation of the lumen inside the stent for PCCT [23]. These results were also confirmed in different in vitro studies [34,46].
Recently, several in-human studies investigated the advantages of PCCT in coronary stent evaluation [30,33]. Boccalini et al. compared the image quality of in vivo coronary stents between PCCT and conventional CT, reporting a superior stent and lumen visibility with fewer artifacts and lower dose radiation (25.7 mGy for PCCT vs. 35.7 mGy for conventional CT, p = 0.02) [33]. Similar results were also reported by Si-Mohamed et al., who compared the quality of CCT scans obtained with PCCT technology and conventional CT scanners [30]. The authors described a proportion of improvement with PCCT images for coronary stent of 92% (95% CI: 71, 98) in diagnostic quality with a lower mean dose-length product (411 mGy vs. 592 ± 171, p < 0.01) [30].

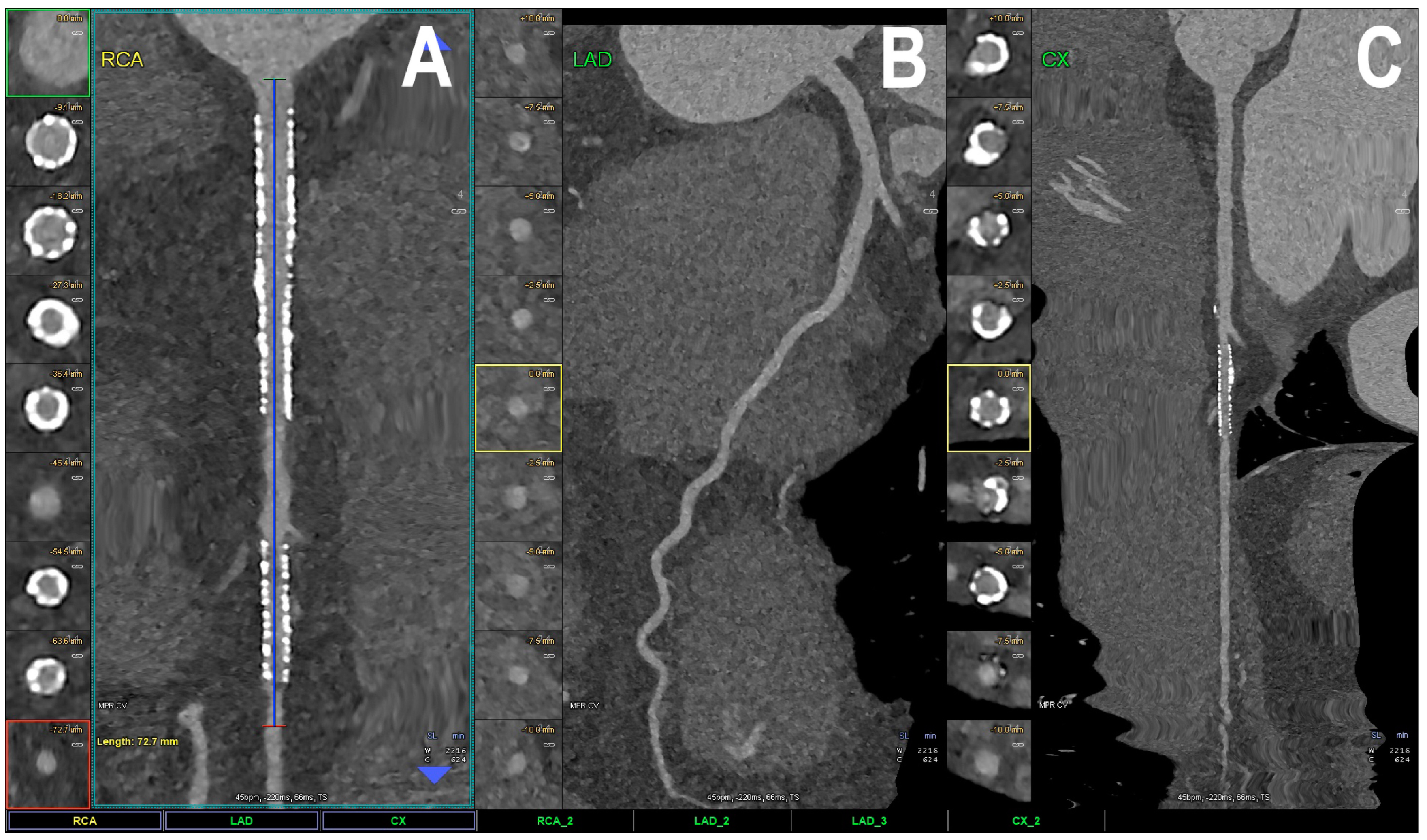

A PCCT image of a complete coronary tree with multiple stents is shown in Figure 5.
This new technology can also be applied to cardiac valve and prosthetic valve complications (Figure 6), especially in patients with sub-optimal ultrasound views or with field inhomogeneities in cardiac magnetic resonance [35].

3.3. Coronary Artery Calcium Score

Coronary artery calcium (CAC) is generally quantified on CT using the Agatston score [6,47,48]. The factor used for the calculation of the Agatston score is selected according to fixed HU thresholds and is highly dependent on the maximum attenuation of a calcified plaque [47,48]. PCCT allows for reducing the level of electronic noise, resulting in less image noise, fewer streak artifacts, and more stable Hounsfield unit (HU) numbers [49,50]. In an in vitro study, coronary calcium scoring was compared between PCCT and CT scanners, reporting a comparable CAC score for the routine clinical protocol [36]. Further, PCCT increased detectability and accuracy in CAC with a reduced slice thickness [36]. Symons et al. investigated the performance of PCCT at standard and reduced radiation doses in a dedicated cardiac CT phantom, ten ex vivo hearts, and ten asymptomatic volunteers [38]. Phantom and in vivo human studies demonstrated the potential of PCCT to improve CAC score image quality and/or to reduce radiation dose while maintaining diagnostic image quality [38].
An excellent correlation and agreement were demonstrated between the CAC score derived from PCCT and conventional CT in 26 calcified coronary lesions from 5 cadaveric hearts [10], supporting the potential use of the Agatston score derived from PCCT in clinical practice.
Eberhard et al. investigated the accuracy of the CAC score on PCCT in comparison with conventional CT scanners and explored the optimal virtual mono-energetic images and iterative image reconstruction algorithm at different radiation doses in a phantom and patients [37]. The study showed decreasing CAC score at increasing iterative image reconstruction algorithm levels (p < 0.001) and increasing keV levels (p < 0.001) [37].
PCCT may also have substantial benefits for aortic valve calcification score imaging. In an initial report of five patients who underwent transcatheter aortic valve replacement planning CT using a novel PCCT, an excellent correlation of aortic valve calcium score and volumes between virtual non-contrast and true-contrast images (r = 0.945, p = 0.01; r = 0.938, p = 0.01; respectively) was demonstrated [35].

3.4. Atherosclerotic Plaque Composition

Besides stenosis assessment, a growing body of evidence has emphasized the need for a more detailed evaluation of atherosclerotic plaque morphology and characteristics [51,52,53,54,55,56]. Direct visualization of coronary plaque components (e.g., thin cap fibroatheroma, microcalcifications) is problematic in conventional CT scanners [5,57,58]. PCCT, thanks to its improved spatial resolution, provides an improvement in diagnostic quality for coronary calcification and noncalcified plaque of 100% and 45% (95% CI: 28, 63), respectively [30]. In an in vitro study, PCCT provided superior detectability for simulated 0.5 mm thick non-calcified plaques (AUC ≈ 95% vs. AUC ≈ 75%) and lipid-rich atherosclerotic plaques (AUC = 85% vs. AUC = 77.5%) in comparison with EID [31].
Further, spectral analysis also allows multi-material mapping via a material decomposition algorithm. A preliminary ex vivo study investigated the capabilities of PCCT to differentiate components of coronary atherosclerosis plaque in 23 histologically demonstrated atheromatous plaques from post-mortem human coronary arteries [9]. PCCT was demonstrated to identify plaque components by measuring differences in contrast agent concentration and spectral attenuation [9]. Another ex vivo study confirmed the significant potential of PCCT to distinguish components of vulnerable atherosclerotic plaque (calcium, iron, lipid surrogate, and cellular surrogate) based on their different photo-electric and Compton effects with good correlation with histological slices [59]. Furthermore, Jorgensen et al. demonstrated the ability of PCCT to quantify vasa vasorum density as a marker of early atherosclerosis changes in perfusion of the arterial wall [60].
A recent ex vivo study explored the effectiveness of PCCT to quantify vulnerable plaque features (e.g., fibrous cap thickness, fibrous cap area, and lipid-rich necrotic core area) and compared PCCT features with histological measurements. PCCT and histological measurement of fibrous cap thickness, fibrous cap area, and lipid-rich necrotic core area did not show significant differences (p > 0.05) [61].

3.5. Multi-Contrast-Material Applications

This game-changing technology enables different exogenous contrast agents to be discerned and takes full advantage of the capability of K-edge imaging with the introduction of novel contrast agents (e.g., nanoparticles). K-edge imaging enables the recognition of the binding energy between the inner electron shell and the atom as a specific signature, permitting a specific and quantitative evaluation of different contrast agents [18]. These novel contrast agents promise to overcome some limitations of iodine-based agents, including rapid circulation, short retention time, and the similar HU value of iodine to that of calcium at high kilovolt tube voltages [62]. The feasibility of using PCCT to perform multi-contrast imaging of three contrast materials was recently demonstrated in different phantom studies, allowing the creation of a separate material density map for each contrast agent [8,18,22,29,63].
A recent in vivo study explored the capability of PCCT to simultaneously discriminate between three contrast agents, namely, intravenous gadolinium and iodine, and oral bismuth, in an animal model, and reported the feasibility of PCCT to differentiate the three K-edge contrast agents in vivo [64].
Recent works have been performed on the use of nanoparticles for PCCT [20,21,22,65,66,67,68]. Si-Mohamed compared PCCT-enabled K-edge imaging in combination with gold nanoparticles with conventional CT images, histologic examination, and transmission electron microscopy data to detect the macrophage burden within rabbit atherosclerotic aortas [22]. A good correlation between the gold concentration and the macrophage area was found (r = 0.82; 95% CI: 0.67, 0.91; p = 0.001), highlighting the potential role of PCCT in atherosclerosis in terms of plaque composition and vulnerability [22]. Another in vivo and phantom study demonstrated the potential of PCCT in association with a gold high-density lipoprotein nanoparticle contrast agent to identify macrophage burden, calcifications, and stenosis of atherosclerosis plaques [69].
Similarly, tungsten-based and ytterbium-based contrast media have shown to improve atherosclerotic imaging with respect to lumen and plaque visualization [70,71]. Further potential applications of nanoparticles include visualization of tumor vasculature, detection of bleeding, and vascular abnormalities after treatment. Riederer et al. investigated the potential of PCCT to discriminate between liquid embolic agents and iodinated contrast medium using a tantalum-based contrast [72]. The authors demonstrated in a phantom study that PCCT can provide a tantalum density map, differentiating between tantalum and iodine, and enabling the reduction in artifacts due to the liquid embolic agents in patients after vascular occlusion therapy [72]. Gold nanoparticles and liposomal iodine were used in an in vivo study to quantify tumor blood volume and vascular permeability as indicators of cancer angiogenesis [73]. The conjunction of PCCT with gold nanoparticles in the study by Moghiseh et al. allowed the identification and quantification of specific monoclonal antibody-labeled gold nanoparticles with accurate detection of tumor heterogeneity [74].

3.6. Myocardial Tissue Imaging

PCCT ensures dual-energy or multi-energy acquisition at a single X-ray tube potential thanks to its energy-discrimination capability. In contrast to DECT, PCCT can differentiate more than two contrast media in each voxel at the time of acquisition.
This technology can be applied to determine the extent of cardiac damage in myocardial infarction using a double-contrast agent. The first in vivo experiments were conducted in a canine model with myocardial infarction by injecting gadolinium-based and iodine contrast media [27]. The authors demonstrated that these multi-contrast agents can combine first-pass iodine and late gadolinium maps to discriminate between blood pool, scar, and remote myocardium [27].
Quantification of material concentration may be useful for myocardial perfusion analyses since this allows the exact quantification of the contrast agent in the myocardium [27,28,75]. Notably, iodine maps represent a well-known CT technique to assess myocardial perfusion and have also been validated for the quantification of myocardial late iodine enhancement on DECT [76,77]. The energy threshold capability of PCCT enables minimization of the spectral overlap of DECT, improving the contrast-to-noise ratio and the quantitative capabilities to estimate contrast media concentrations [18]. An example of myocardial late enhancement with PCCT is depicted in Figure 7. PCCT has been demonstrated to provide precise iodine quantification (root mean square error of 0.5 mgI/cc) at different phantom sizes [78].
A recent case report demonstrated the usefulness of spectral CT in clinical practice [11]. Polacin et al. described a case report of a 61-year-old male with acute chest pain who underwent a PCCT scan for suspected acute coronary syndrome. Dual-energy-derived iodine maps from PCCT demonstrated a small ischemic transmural scar, confirmed with late gadolinium cardiac magnetic resonance [11].
Combined iodine/gadolinium injection imaging may be also useful for endovascular leak assessment, as recently demonstrated in a phantom study [79]. Material maps derived from PCCT allowed a reliable distinction of contrast media and aneurysmatic calcifications [79].
An in vivo study explored the radiomics features of the left ventricle myocardium in 30 patients using first-generation, whole-body, dual-source PCCT, reporting an association of coronary artery calcifications and texture analysis [15]. The authors highlighted the potential role of PCCT to overcome the well-known limitation of radiomics analysis in comparison with EID CT, thanks to its higher spatial resolution and contrast-to-noise ratio, and fewer artifacts [15]. Tharmaseelan et al. investigated the texture changes of periaortic adipose tissue in relationship with aortic calcifications using PCCT, demonstrating an association of periaortic adipose tissue with the presence of local aortic calcifications using radiomics analysis [80].
Recently, CT has been demonstrated to be an alternative method to extracellular volume fraction (ECV) quantification in comparison with cardiac magnetic resonance that represents the current non-invasive reference standard. The capability to characterize myocardial tissue using PCCT was emphasized in the in vivo study of Mergen et al. [81]. The authors investigated the feasibility and accuracy of extracellular volume quantification in 30 patients with severe aortic stenosis using PCCT with virtual mono-energetic and dual-energy iodine maps [81]. Virtual mono-energetic and dual energy-derived ECV quantification showed a high correlation (r = 0.87, p < 0.001) with narrow limits of agreements and a mean error of 0.9%.

3.7. Dose and Contrast Media Reduction

PCCT can boost the attenuation of iodinated contrast media. It is well known that the linear attenuation coefficient of iodine increases with decreasing X-ray energy. This physical aspect results in the possibility of using a lower amount of intravenous contrast media, achieving the same diagnostic results as a full-dose conventional CT examination. This was demonstrated for CCT in a phantom study where the use of virtual mono-energetic image reconstruction at 40 KeV on PCCT allowed reduction in the contrast media concentration by up 50% [82]. Several studies have shown an improved contrast-to-noise ratio using PCCT in comparison with conventional CT scanners, resulting in iodine contrast concentration reduction. Kappler et al. investigated these features in a water phantom, reporting an increased attenuation of iodine with similar image noise compared to conventional CT scanners [83].
An anthropomorphic phantom and ex vivo study investigated the iodine contrast-to-noise ratio in commercial-energy-integrated and PC detectors simulating four patient sizes at four tube potential settings [40]. The authors demonstrated a mean increase in contrast-to-noise ratio of 11%, 23%, 31%, and 38% in comparison with commercially available CT scanners at 80, 100, 120, and 140 kV, respectively [40]. Further, PCCT of a cadaveric human showed decreased artifacts (e.g., beam-hardening and blooming) in the high-energy bin images and improved contrast in low-energy bin images compared to energy-integrated-detector CT [40].
Sawall et al. explored the potential of PCCT to increase iodine contrast, reduce administered radiation dose, or reduce contrast media volume in a phantom of different sizes (small, medium, and large) using an energy-integrated-detector, single-bin PCCT, and two-bin PCCT [25]. The average contrast-to-noise ratio improved using all tube voltages and phantom sizes with an augmentation up to 30% (small: 10%, medium: 18%, large: 30%) with single-bin energy, and up to 37% (small: 13%, medium: 25%, large: 37%) with two-bin energy, highlighting a potential radiation dose reduction of up to 46% [25]. These findings suggested that PCCT can reduce the amount of contrast media required. In this regard, patients allergic to iodine or with renal insufficiency may benefit from spectral CT.
The improvement in electronic noise on image quality by PCCT was assessed for various cardiovascular applications at a low radiation dose. Superior quality of CAC scoring at low radiation doses was described in an in vitro, ex vivo, and in vivo study [38]. The absence of electronic noise in combination with improved soft-tissue contrast allowed the reduction in the radiation dose of CAC scoring [38]. A significant dose reduction (up to 67%) in CAC scoring was also described in an anthropomorphic thorax phantom study using virtual mono-energetic images from PCCT [16].

4. Challenges

As for all emerging technologies, there are several technical challenges that must be addressed before the full potential of PCCT can be deployed in clinical practice, including photon flux-independent effects (e.g., charge sharing, charge trapping, and k fluorescence escape) and photon flux-dependent effects (e.g., pulse pile-up) [84,85,86]. Charge sharing occurs when X-ray photons arrive near the boundary between pixels and the cloud is counted in multiple adjacent pixel electrodes [87,88,89,90]. Charge sharing can also occur from the emission of a characteristic photon. Different schemes have been developed to correct for this phenomenon [91,92]. Secondary photons from fluorescence in the detector can be detected in neighboring pixels, causing multiple events that share the total energy of the incident photon. This effect is responsible for the lower limit of the detector pixel size in practical applications [93]. The pulse pile-up is due to the fact that, at very high X-ray flux, the generated voltage pulses overlap in time and are incorrectly counted as a single photon, affecting both energy resolution and image quality [94,95]. The probability of pulse pile-up can be reduced by decreasing the pixel size. However, at realistic CT flux rates, this effect does not play a major role [94].
With increased spatial resolution and multi-energy acquisition, there are also related practical challenges of higher-image data files and an increased burden on data storage, interpretation, and post-processing by human operators [96]. In regard to multi-energy acquisition and K-edge imaging, there are still some issues to overcome before considering a clinical application. These include the gadolinium doses required for in vivo imaging, which are higher in comparison with the current dose needed and recommended in cardiac magnetic resonance, and the fact that other contrast agents (e.g., nanoparticles) are actually still in an experimental stage [24].
However, the major limitations remain the high cost and lack of widespread availability of this technology [96]. Indeed, the elevated costs associated with the production of high-quality PCDs may have a negative impact on the large-scale diffusion of the PCCT technology in the near term.

5. Conclusions

PCCT promises to dramatically change the clinical application of CT in cardiovascular imaging in the coming years.
Further studies are warranted to evaluate the clinical benefits of PCCT for clinical practice in cardiovascular imaging. Specifically, using the data of prospective trials (e.g., Clinical Impact of Cardiac Photon Counting CT [NCT05240807]) may be the first attempt to evaluate the performance of this new CT technology in comparison with conventional CT in applications in the cardiac field. In particular, PCCT will yield clinically important differences that can affect the patient’s management in coronary artery and stent imaging.

Author Contributions

Conceptualization, F.C.; Investigation, A.M., G.D., A.C., C.D.G., D.P., B.P., C.C., E.B., L.S. and R.C.; Resources, S.B. and M.E.; Visualization, A.M. and L.P.; Supervision, L.L.G. and E.M.; writing—original draft, F.C., A.M. and E.M.; writing—review and editing, L.P., G.D., A.C., C.D.G., V.P., S.C., S.B., M.E., D.P., L.M., B.P., C.C., E.B., L.S., R.C. and L.L.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

An informed consent for publication was obtained from all patients whose images were included in this review.

Data Availability Statement

Not applicable.

Acknowledgments

We are deeply grateful to all patients for their cooperation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Puchner, S.B.; Liu, T.; Mayrhofer, T.; Truong, Q.A.; Lee, H.; Fleg, J.L.; Nagurney, J.T.; Udelson, J.E.; Hoffmann, U.; Ferencik, M. High-risk plaque detected on coronary CT angiography predicts acute coronary syndromes independent of significant stenosis in acute chest pain: Results from the ROMICAT-II trial. J. Am. Coll. Cardiol. 2014, 64, 684–692. [Google Scholar] [CrossRef] [PubMed]
  2. Hoffmann, U.; Brady, T.J.; Muller, J. Use of New Imaging Techniques to Screen for Coronary Artery Disease. Circulation 2003, 108, e50–e53. [Google Scholar] [CrossRef] [PubMed]
  3. Collet, J.P.; Thiele, H.; Barbato, E.; Barthélémy, O.; Bauersachs, J.; Bhatt, D.L.; Dendale, P.; Dorobantu, M.; Edvardsen, T.; Folliguet, T.; et al. 2020 ESC Guidelines for the management of acute coronary syndromes in patients presenting without persistent ST-segment elevation. Eur. Heart J. 2021, 42, 1289–1367. [Google Scholar] [CrossRef]
  4. Cury, R.C.; Abbara, S.; Achenbach, S.; Agatston, A.; Berman, D.S.; Budoff, M.J.; Dill, K.E.; Jacobs, J.E.; Maroules, C.D.; Rubin, G.D.; et al. Coronary Artery Disease—Reporting and Data System (CAD-RADS): An Expert Consensus Document of SCCT, ACR and NASCI: Endorsed by the ACC. JACC Cardiovasc. Imaging 2016, 9, 1099–1113. [Google Scholar] [CrossRef]
  5. Cademartiri, F.; Balestrieri, A.; Cau, R.; Punzo, B.; Cavaliere, C.; Maffei, E.; Saba, L. Insight from imaging on plaque vulnerability: Similarities and differences between coronary and carotid arteries-implications for systemic therapies. Cardiovasc. Diagn. Ther. 2020, 10, 1150–1162. [Google Scholar] [CrossRef]
  6. Cau, R.; Cherchi, V.; Micheletti, G.; Porcu, M.; Mannelli, L.; Bassareo, P.; Suri, J.S.; Saba, L. Potential Role of Artificial Intelligence in Cardiac Magnetic Resonance Imaging: Can It Help Clinicians in Making a Diagnosis? J. Thorac. Imaging 2021, 36, 142–148. [Google Scholar] [CrossRef] [PubMed]
  7. Rajagopal, J.R.; Farhadi, F.; Richards, T.; Nikpanah, M.; Sahbaee, P.; Shanbhag, S.M.; Bandettini, W.P.; Saboury, B.; Malayeri, A.A.; Pritchard, W.F.; et al. Evaluation of Coronary Plaques and Stents with Conventional and Photon-counting CT: Benefits of High-Resolution Photon-counting CT. Radiol. Cardiothorac. Imaging 2021, 3, e210102. [Google Scholar] [CrossRef] [PubMed]
  8. Tortora, M.; Gemini, L.; D’Iglio, I.; Ugga, L.; Spadarella, G.; Cuocolo, R. Spectral Photon-Counting Computed Tomography: A Review on Technical Principles and Clinical Applications. J. Imaging 2022, 8, 112. [Google Scholar] [CrossRef]
  9. Boussel, L.; Coulon, P.; Thran, A.; Roessl, E.; Martens, G.; Sigovan, M.; Douek, P. Photon counting spectral CT component analysis of coronary artery atherosclerotic plaque samples. Br. J. Radiol. 2014, 87, 20130798. [Google Scholar] [CrossRef]
  10. Skoog, S.; Henriksson, L.; Gustafsson, H.; Sandstedt, M.; Elvelind, S.; Persson, A. Comparison of the Agatston score acquired with photon-counting detector CT and energy-integrating detector CT: Ex vivo study of cadaveric hearts. Int. J. Cardiovasc. Imaging 2022. [Google Scholar] [CrossRef]
  11. Polacin, M.; Templin, C.; Manka, R.; Alkadhi, H. Photon-counting computed tomography for the diagnosis of myocardial infarction with non-obstructive coronary artery disease. Eur. Heart J. Case Rep. 2022, 6, ytac028. [Google Scholar] [CrossRef] [PubMed]
  12. Koons, E.; VanMeter, P.; Rajendran, K.; Yu, L.; McCollough, C.; Leng, S. Improved quantification of coronary artery luminal stenosis in the presence of heavy calcifications using photon-counting detector CT. Proc. SPIE Int. Soc. Opt. Eng. 2022, 12031. [Google Scholar] [CrossRef]
  13. Goo, H.W.; Goo, J.M. Dual-Energy CT: New Horizon in Medical Imaging. Korean J. Radiol. 2017, 18, 555–569. [Google Scholar] [CrossRef]
  14. Willemink, M.J.; Persson, M.; Pourmorteza, A.; Pelc, N.J.; Fleischmann, D. Photon-counting CT: Technical Principles and Clinical Prospects. Radiology 2018, 289, 293–312. [Google Scholar] [CrossRef] [PubMed]
  15. Ayx, I.; Tharmaseelan, H.; Hertel, A.; Norenberg, D.; Overhoff, D.; Rotkopf, L.T.; Riffel, P.; Schoenberg, S.O.; Froelich, M.F. Myocardial Radiomics Texture Features Associated with Increased Coronary Calcium Score-First Results of a Photon-Counting CT. Diagnostics 2022, 12, 1663. [Google Scholar] [CrossRef]
  16. van der Werf, N.R.; van Gent, M.; Booij, R.; Bos, D.; van der Lugt, A.; Budde, R.P.J.; Greuter, M.J.W.; van Straten, M. Dose Reduction in Coronary Artery Calcium Scoring Using Mono-Energetic Images from Reduced Tube Voltage Dual-Source Photon-Counting CT Data: A Dynamic Phantom Study. Diagnostics 2021, 11, 2192. [Google Scholar] [CrossRef]
  17. Meloni, A.; Frijia, F.; Panetta, D.; Degiorgi, G.; De Gori, C.; Maffei, E.; Clemente, A.; Positano, V.; Cademartiri, F. Photon-Counting Computed Tomography (PCCT): Technical Background and Cardio-Vascular Applications. Diagnostics 2023, 13, 645. [Google Scholar] [CrossRef]
  18. Sandfort, V.; Persson, M.; Pourmorteza, A.; Noël, P.B.; Fleischmann, D.; Willemink, M.J. Spectral photon-counting CT in cardiovascular imaging. J. Cardiovasc. Comput. Tomogr. 2021, 15, 218–225. [Google Scholar] [CrossRef]
  19. Schmidt, T.G. CT energy weighting in the presence of scatter and limited energy resolution. Med. Phys. 2010, 37, 1056–1067. [Google Scholar] [CrossRef]
  20. Cormode, D.P.; Fayad, Z.A. Nanoparticle contrast agents for CT: Their potential and the challenges that lie ahead. Imaging Med. 2011, 3, 263–266. [Google Scholar] [CrossRef]
  21. Feuerlein, S.; Roessl, E.; Proksa, R.; Martens, G.; Klass, O.; Jeltsch, M.; Rasche, V.; Brambs, H.J.; Hoffmann, M.H.; Schlomka, J.P. Multienergy photon-counting K-edge imaging: Potential for improved luminal depiction in vascular imaging. Radiology 2008, 249, 1010–1016. [Google Scholar] [CrossRef] [PubMed]
  22. Si-Mohamed, S.A.; Sigovan, M.; Hsu, J.C.; Tatard-Leitman, V.; Chalabreysse, L.; Naha, P.C.; Garrivier, T.; Dessouky, R.; Carnaru, M.; Boussel, L.; et al. In Vivo Molecular K-Edge Imaging of Atherosclerotic Plaque Using Photon-counting CT. Radiology 2021, 300, 98–107. [Google Scholar] [CrossRef] [PubMed]
  23. Mannil, M.; Hickethier, T.; von Spiczak, J.; Baer, M.; Henning, A.; Hertel, M.; Schmidt, B.; Flohr, T.; Maintz, D.; Alkadhi, H. Photon-Counting CT: High-Resolution Imaging of Coronary Stents. Invest. Radiol. 2018, 53, 143–149. [Google Scholar] [CrossRef]
  24. Si-Mohamed, S.A.; Miailhes, J.; Rodesch, P.A.; Boccalini, S.; Lacombe, H.; Leitman, V.; Cottin, V.; Boussel, L.; Douek, P. Spectral Photon-Counting CT Technology in Chest Imaging. J. Clin. Med. 2021, 10, 5757. [Google Scholar] [CrossRef] [PubMed]
  25. Sawall, S.; Klein, L.; Amato, C.; Wehrse, E.; Dorn, S.; Maier, J.; Heinze, S.; Schlemmer, H.P.; Ziener, C.H.; Uhrig, M.; et al. Iodine contrast-to-noise ratio improvement at unit dose and contrast media volume reduction in whole-body photon-counting CT. Eur. J. Radiol. 2020, 126, 108909. [Google Scholar] [CrossRef]
  26. Wehrse, E.; Klein, L.; Rotkopf, L.T.; Wagner, W.L.; Uhrig, M.; Heussel, C.P.; Ziener, C.H.; Delorme, S.; Heinze, S.; Kachelriess, M.; et al. Photon-counting detectors in computed tomography: From quantum physics to clinical practice. Radiologe 2021, 61, 1–10. [Google Scholar] [CrossRef]
  27. Symons, R.; Cork, T.E.; Lakshmanan, M.N.; Evers, R.; Davies-Venn, C.; Rice, K.A.; Thomas, M.L.; Liu, C.Y.; Kappler, S.; Ulzheimer, S.; et al. Dual-contrast agent photon-counting computed tomography of the heart: Initial experience. Int. J. Cardiovasc. Imaging 2017, 33, 1253–1261. [Google Scholar] [CrossRef]
  28. Muenzel, D.; Bar-Ness, D.; Roessl, E.; Blevis, I.; Bartels, M.; Fingerle, A.A.; Ruschke, S.; Coulon, P.; Daerr, H.; Kopp, F.K.; et al. Spectral Photon-counting CT: Initial Experience with Dual-Contrast Agent K-Edge Colonography. Radiology 2017, 283, 723–728. [Google Scholar] [CrossRef]
  29. Tao, S.; Rajendran, K.; McCollough, C.H.; Leng, S. Feasibility of multi-contrast imaging on dual-source photon counting detector (PCD) CT: An initial phantom study. Med. Phys. 2019, 46, 4105–4115. [Google Scholar] [CrossRef]
  30. Si-Mohamed, S.A.; Boccalini, S.; Lacombe, H.; Diaw, A.; Varasteh, M.; Rodesch, P.-A.; Dessouky, R.; Villien, M.; Tatard-Leitman, V.; Bochaton, T.; et al. Coronary CT Angiography with Photon-counting CT: First-In-Human Results. Radiology 2022, 303, 303–313. [Google Scholar] [CrossRef]
  31. Rotzinger, D.C.; Racine, D.; Becce, F.; Lahoud, E.; Erhard, K.; Si-Mohamed, S.A.; Greffier, J.; Viry, A.; Boussel, L.; Meuli, R.A.; et al. Performance of Spectral Photon-Counting Coronary CT Angiography and Comparison with Energy-Integrating-Detector CT: Objective Assessment with Model Observer. Diagnostics 2021, 11, 2376. [Google Scholar] [CrossRef] [PubMed]
  32. Allmendinger, T.; Nowak, T.; Flohr, T.; Klotz, E.; Hagenauer, J.; Alkadhi, H.; Schmidt, B. Photon-Counting Detector CT-Based Vascular Calcium Removal Algorithm: Assessment Using a Cardiac Motion Phantom. Investig. Radiol. 2022, 57, 399–405. [Google Scholar] [CrossRef] [PubMed]
  33. Boccalini, S.; Si-Mohamed, S.A.; Lacombe, H.; Diaw, A.; Varasteh, M.; Rodesch, P.A.; Villien, M.; Sigovan, M.; Dessouky, R.; Coulon, P.; et al. First In-Human Results of Computed Tomography Angiography for Coronary Stent Assessment With a Spectral Photon Counting Computed Tomography. Invest. Radiol. 2022, 57, 212–221. [Google Scholar] [CrossRef] [PubMed]
  34. Symons, R.; De Bruecker, Y.; Roosen, J.; Van Camp, L.; Cork, T.E.; Kappler, S.; Ulzheimer, S.; Sandfort, V.; Bluemke, D.A.; Pourmorteza, A. Quarter-millimeter spectral coronary stent imaging with photon-counting CT: Initial experience. J. Cardiovasc. Comput. Tomogr. 2018, 12, 509–515. [Google Scholar] [CrossRef] [PubMed]
  35. Harmel, E.K.; Braun, F.; Rippel, K.; Scheurig-Münkler, C.; Kroencke, T.; Girdauskas, E.; Scheidt, W.v.; Schwarz, F. Abstract 12178: Photon Counting Computed Tomography for Aortic Valve Calcium Scoring in Contrast- Enhanced Datasets of the Heart. Circulation 2021, 144, A12178. [Google Scholar] [CrossRef]
  36. van der Werf, N.R.; Si-Mohamed, S.; Rodesch, P.A.; van Hamersvelt, R.W.; Greuter, M.J.W.; Boccalini, S.; Greffier, J.; Leiner, T.; Boussel, L.; Willemink, M.J.; et al. Coronary calcium scoring potential of large field-of-view spectral photon-counting CT: A phantom study. Eur. Radiol. 2022, 32, 152–162. [Google Scholar] [CrossRef]
  37. Eberhard, M.; Mergen, V.; Higashigaito, K.; Allmendinger, T.; Manka, R.; Flohr, T.; Schmidt, B.; Euler, A.; Alkadhi, H. Coronary Calcium Scoring with First Generation Dual-Source Photon-Counting CT-First Evidence from Phantom and In-Vivo Scans. Diagnostics 2021, 11, 1708. [Google Scholar] [CrossRef]
  38. Symons, R.; Sandfort, V.; Mallek, M.; Ulzheimer, S.; Pourmorteza, A. Coronary artery calcium scoring with photon-counting CT: First in vivo human experience. Int. J. Cardiovasc. Imaging 2019, 35, 733–739. [Google Scholar] [CrossRef]
  39. Mergen, V.; Eberhard, M.; Manka, R.; Euler, A.; Alkadhi, H. First in-human quantitative plaque characterization with ultra-high resolution coronary photon-counting CT angiography. Front. Cardiovasc. Med. 2022, 9, 981012. [Google Scholar] [CrossRef]
  40. Gutjahr, R.; Halaweish, A.F.; Yu, Z.; Leng, S.; Yu, L.; Li, Z.; Jorgensen, S.M.; Ritman, E.L.; Kappler, S.; McCollough, C.H. Human Imaging With Photon Counting-Based Computed Tomography at Clinical Dose Levels: Contrast-to-Noise Ratio and Cadaver Studies. Invest. Radiol. 2016, 51, 421–429. [Google Scholar] [CrossRef]
  41. Li, Z.; Leng, S.; Halaweish, A.F.; Yu, Z.; Yu, L.; Ritman, E.L.; McCollough, C.H. Overcoming calcium blooming and improving the quantification accuracy of percent area luminal stenosis by material decomposition of multi-energy computed tomography datasets. J. Med. Imaging 2020, 7, 053501. [Google Scholar] [CrossRef] [PubMed]
  42. Gronberg, F.; Lundberg, J.; Sjolin, M.; Persson, M.; Bujila, R.; Bornefalk, H.; Almqvist, H.; Holmin, S.; Danielsson, M. Feasibility of unconstrained three-material decomposition: Imaging an excised human heart using a prototype silicon photon-counting CT detector. Eur. Radiol. 2020, 30, 5904–5912. [Google Scholar] [CrossRef] [PubMed]
  43. Ahmed, Z.; Rajendran, K.; Gong, H.; McCollough, C.; Leng, S. Quantitative assessment of motion effects in dual-source dual-energy CT and dual-source photon-counting detector CT. Proc. SPIE Int. Soc. Opt. Eng. 2022, 12031, 120311P. [Google Scholar] [CrossRef] [PubMed]
  44. Maintz, D.; Seifarth, H.; Raupach, R.; Flohr, T.; Rink, M.; Sommer, T.; Ozgün, M.; Heindel, W.; Fischbach, R. 64-slice multidetector coronary CT angiography: In vitro evaluation of 68 different stents. Eur. Radiol. 2006, 16, 818–826. [Google Scholar] [CrossRef] [PubMed]
  45. Maintz, D.; Juergens, K.U.; Wichter, T.; Grude, M.; Heindel, W.; Fischbach, R. Imaging of coronary artery stents using multislice computed tomography: In vitro evaluation. Eur. Radiol. 2003, 13, 830–835. [Google Scholar] [CrossRef]
  46. von Spiczak, J.; Mannil, M.; Peters, B.; Hickethier, T.; Baer, M.; Henning, A.; Schmidt, B.; Flohr, T.; Manka, R.; Maintz, D.; et al. Photon Counting Computed Tomography With Dedicated Sharp Convolution Kernels: Tapping the Potential of a New Technology for Stent Imaging. Invest. Radiol. 2018, 53, 486–494. [Google Scholar] [CrossRef]
  47. Agatston, A.S.; Janowitz, W.R.; Hildner, F.J.; Zusmer, N.R.; Viamonte, M., Jr.; Detrano, R. Quantification of coronary artery calcium using ultrafast computed tomography. J. Am. Coll. Cardiol. 1990, 15, 827–832. [Google Scholar] [CrossRef]
  48. van der Bijl, N.; Joemai, R.M.; Geleijns, J.; Bax, J.J.; Schuijf, J.D.; de Roos, A.; Kroft, L.J. Assessment of Agatston coronary artery calcium score using contrast-enhanced CT coronary angiography. AJR Am. J. Roentgenol. 2010, 195, 1299–1305. [Google Scholar] [CrossRef]
  49. Mannil, M.; Ramachandran, J.; Vittoria de Martini, I.; Wegener, S.; Schmidt, B.; Flohr, T.; Krauss, B.; Valavanis, A.; Alkadhi, H.; Winklhofer, S. Modified Dual-Energy Algorithm for Calcified Plaque Removal: Evaluation in Carotid Computed Tomography Angiography and Comparison With Digital Subtraction Angiography. Invest. Radiol. 2017, 52, 680–685. [Google Scholar] [CrossRef]
  50. McCollough, C.H.; Boedeker, K.; Cody, D.; Duan, X.; Flohr, T.; Halliburton, S.S.; Hsieh, J.; Layman, R.R.; Pelc, N.J. Principles and applications of multienergy CT: Report of AAPM Task Group 291. Med. Phys. 2020, 47, e881–e912. [Google Scholar] [CrossRef]
  51. Virmani, R.; Kolodgie, F.D.; Burke, A.P.; Farb, A.; Schwartz, S.M. Lessons from sudden coronary death: A comprehensive morphological classification scheme for atherosclerotic lesions. Arterioscler. Thromb. Vasc. Biol. 2000, 20, 1262–1275. [Google Scholar] [CrossRef] [PubMed]
  52. Falk, E. Pathogenesis of atherosclerosis. J. Am. Coll. Cardiol. 2006, 47, C7–C12. [Google Scholar] [CrossRef] [PubMed]
  53. Finn, A.V.; Nakano, M.; Narula, J.; Kolodgie, F.D.; Virmani, R. Concept of vulnerable/unstable plaque. Arterioscler. Thromb. Vasc. Biol. 2010, 30, 1282–1292. [Google Scholar] [CrossRef] [PubMed]
  54. Saba, L.; Chen, H.; Cau, R.; Rubeis, G.D.; Zhu, G.; Pisu, F.; Jang, B.; Lanzino, G.; Suri, J.S.; Qi, Y.; et al. Impact Analysis of Different CT Configurations of Carotid Artery Plaque Calcifications on Cerebrovascular Events. AJNR Am. J. Neuroradiol. 2022, 43, 272–279. [Google Scholar] [CrossRef]
  55. Cau, R.; Faa, G.; Nardi, V.; Balestrieri, A.; Puig, J.; Suri, J.S.; SanFilippo, R.; Saba, L. Long-COVID diagnosis: From diagnostic to advanced AI-driven models. Eur. J. Radiol. 2022, 148, 110164. [Google Scholar] [CrossRef]
  56. Saba, L.; Antignani, P.L.; Gupta, A.; Cau, R.; Paraskevas, K.I.; Poredos, P.; Wasserman, B.; Kamel, H.; Avgerinos, E.D.; Salgado, R.; et al. International Union of Angiology (IUA) consensus paper on imaging strategies in atherosclerotic carotid artery imaging: From basic strategies to advanced approaches. Atherosclerosis 2022, 354, 23–40. [Google Scholar] [CrossRef]
  57. Cau, R.; Flanders, A.; Mannelli, L.; Politi, C.; Faa, G.; Suri, J.S.; Saba, L. Artificial intelligence in computed tomography plaque characterization: A review. Eur. J. Radiol. 2021, 140, 109767. [Google Scholar] [CrossRef]
  58. Saba, L.; Agarwal, N.; Cau, R.; Gerosa, C.; Sanfilippo, R.; Porcu, M.; Montisci, R.; Cerrone, G.; Qi, Y.; Balestrieri, A.; et al. Review of imaging biomarkers for the vulnerable carotid plaque. JVS Vasc. Sci. 2021, 2, 149–158. [Google Scholar] [CrossRef]
  59. Zainon, R.; Ronaldson, J.P.; Janmale, T.; Scott, N.J.; Buckenham, T.M.; Butler, A.P.; Butler, P.H.; Doesburg, R.M.; Gieseg, S.P.; Roake, J.A.; et al. Spectral CT of carotid atherosclerotic plaque: Comparison with histology. Eur. Radiol. 2012, 22, 2581–2588. [Google Scholar] [CrossRef]
  60. Jorgensen, S.M.; Korinek, M.J.; Vercnocke, A.J.; Anderson, J.L.; Halaweish, A.; Leng, S.; McCollough, C.H.; Ritman, E.L. Arterial Wall Perfusion Measured with Photon Counting Spectral X-ray CT. Proc. SPIE Int. Soc. Opt. Eng. 2016, 9967, 99670B. [Google Scholar] [CrossRef]
  61. Dahal, S.; Raja, A.Y.; Searle, E.; Colgan, F.E.; Crighton, J.S.; Roake, J.; Saba, L.; Gieseg, S.; Butler, A.P.H. Components of carotid atherosclerotic plaque in spectral photon-counting CT with histopathologic comparison. Eur. Radiol. 2023, 33, 1612–1619. [Google Scholar] [CrossRef] [PubMed]
  62. Li, Y.; Younis, M.H.; Wang, H.; Zhang, J.; Cai, W.; Ni, D. Spectral computed tomography with inorganic nanomaterials: State-of-the-art. Adv. Drug Deliv. Rev. 2022, 189, 114524. [Google Scholar] [CrossRef]
  63. Kim, J.; Bar-Ness, D.; Si-Mohamed, S.; Coulon, P.; Blevis, I.; Douek, P.; Cormode, D.P. Assessment of candidate elements for development of spectral photon-counting CT specific contrast agents. Sci. Rep. 2018, 8, 12119. [Google Scholar] [CrossRef]
  64. Symons, R.; Krauss, B.; Sahbaee, P.; Cork, T.E.; Lakshmanan, M.N.; Bluemke, D.A.; Pourmorteza, A. Photon-counting CT for simultaneous imaging of multiple contrast agents in the abdomen: An in vivo study. Med. Phys. 2017, 44, 5120–5127. [Google Scholar] [CrossRef] [PubMed]
  65. Cormode, D.P.; Naha, P.C.; Fayad, Z.A. Nanoparticle contrast agents for computed tomography: A focus on micelles. Contrast Media Mol. Imaging 2014, 9, 37–52. [Google Scholar] [CrossRef]
  66. Robison, L.; Zhang, L.; Drout, R.J.; Li, P.; Haney, C.R.; Brikha, A.; Noh, H.; Mehdi, B.L.; Browning, N.D.; Dravid, V.P.; et al. A Bismuth Metal-Organic Framework as a Contrast Agent for X-ray Computed Tomography. ACS Appl. Bio Mater. 2019, 2, 1197–1203. [Google Scholar] [CrossRef] [PubMed]
  67. Fu, J.J.; Guo, J.J.; Qin, A.P.; Yu, X.Y.; Zhang, Q.; Lei, X.P.; Huang, Y.G.; Chen, M.Y.; Li, J.X.; Zhang, Y.; et al. Bismuth chelate as a contrast agent for X-ray computed tomography. J. Nanobiotechnology 2020, 18, 110. [Google Scholar] [CrossRef] [PubMed]
  68. Negussie, A.H.; de Ruiter, Q.M.B.; Britton, H.; Donahue, D.R.; Boffi, Q.; Kim, Y.S.; Pritchard, W.F.; Moonen, C.; Storm, G.; Lewis, A.L.; et al. Synthesis, characterization, and imaging of radiopaque bismuth beads for image-guided transarterial embolization. Sci. Rep. 2021, 11, 533. [Google Scholar] [CrossRef]
  69. Cormode, D.P.; Roessl, E.; Thran, A.; Skajaa, T.; Gordon, R.E.; Schlomka, J.P.; Fuster, V.; Fisher, E.A.; Mulder, W.J.; Proksa, R.; et al. Atherosclerotic plaque composition: Analysis with multicolor CT and targeted gold nanoparticles. Radiology 2010, 256, 774–782. [Google Scholar] [CrossRef]
  70. Sartoretti, T.; Eberhard, M.; Rüschoff, J.H.; Pietsch, H.; Jost, G.; Nowak, T.; Schmidt, B.; Flohr, T.; Euler, A.; Alkadhi, H. Photon-counting CT with tungsten as contrast medium: Experimental evidence of vessel lumen and plaque visualization. Atherosclerosis 2020, 310, 11–16. [Google Scholar] [CrossRef]
  71. Pan, D.; Schirra, C.O.; Senpan, A.; Schmieder, A.H.; Stacy, A.J.; Roessl, E.; Thran, A.; Wickline, S.A.; Proska, R.; Lanza, G.M. An early investigation of ytterbium nanocolloids for selective and quantitative "multicolor" spectral CT imaging. ACS Nano 2012, 6, 3364–3370. [Google Scholar] [CrossRef]
  72. Riederer, I.; Bar-Ness, D.; Kimm, M.A.; Si-Mohamed, S.; Noel, P.B.; Rummeny, E.J.; Douek, P.; Pfeiffer, D. Liquid Embolic Agents in Spectral X-Ray Photon-Counting Computed Tomography using Tantalum K-Edge Imaging. Sci. Rep. 2019, 9, 5268. [Google Scholar] [CrossRef]
  73. Clark, D.P.; Ghaghada, K.; Moding, E.J.; Kirsch, D.G.; Badea, C.T. In vivo characterization of tumor vasculature using iodine and gold nanoparticles and dual energy micro-CT. Phys. Med. Biol. 2013, 58, 1683–1704. [Google Scholar] [CrossRef] [PubMed]
  74. Moghiseh, M.; Lowe, C.; Lewis, J.G.; Kumar, D.; Butler, A.; Anderson, N.; Raja, A. Spectral Photon-Counting Molecular Imaging for Quantification of Monoclonal Antibody-Conjugated Gold Nanoparticles Targeted to Lymphoma and Breast Cancer: An In Vitro Study. Contrast Media Mol. Imaging 2018, 2018, 2136840. [Google Scholar] [CrossRef]
  75. Muenzel, D.; Daerr, H.; Proksa, R.; Fingerle, A.A.; Kopp, F.K.; Douek, P.; Herzen, J.; Pfeiffer, F.; Rummeny, E.J.; Noël, P.B. Simultaneous dual-contrast multi-phase liver imaging using spectral photon-counting computed tomography: A proof-of-concept study. Eur. Radiol. Exp. 2017, 1, 25. [Google Scholar] [CrossRef] [PubMed]
  76. Palmisano, A.; Vignale, D.; Benedetti, G.; Del Maschio, A.; De Cobelli, F.; Esposito, A. Late iodine enhancement cardiac computed tomography for detection of myocardial scars: Impact of experience in the clinical practice. Radiol. Med. 2020, 125, 128–136. [Google Scholar] [CrossRef]
  77. Palmisano, A.; Vignale, D.; Tadic, M.; Moroni, F.; De Stefano, D.; Gatti, M.; Boccia, E.; Faletti, R.; Oppizzi, M.; Peretto, G.; et al. Myocardial Late Contrast Enhancement CT in Troponin-Positive Acute Chest Pain Syndrome. Radiology 2022, 302, 545–553. [Google Scholar] [CrossRef] [PubMed]
  78. Leng, S.; Zhou, W.; Yu, Z.; Halaweish, A.; Krauss, B.; Schmidt, B.; Yu, L.; Kappler, S.; McCollough, C. Spectral performance of a whole-body research photon counting detector CT: Quantitative accuracy in derived image sets. Phys. Med. Biol. 2017, 62, 7216–7232. [Google Scholar] [CrossRef]
  79. Dangelmaier, J.; Bar-Ness, D.; Daerr, H.; Muenzel, D.; Si-Mohamed, S.; Ehn, S.; Fingerle, A.A.; Kimm, M.A.; Kopp, F.K.; Boussel, L.; et al. Experimental feasibility of spectral photon-counting computed tomography with two contrast agents for the detection of endoleaks following endovascular aortic repair. Eur. Radiol. 2018, 28, 3318–3325. [Google Scholar] [CrossRef]
  80. Tharmaseelan, H.; Froelich, M.F.; Norenberg, D.; Overhoff, D.; Rotkopf, L.T.; Riffel, P.; Schoenberg, S.O.; Ayx, I. Influence of local aortic calcification on periaortic adipose tissue radiomics texture features-a primary analysis on PCCT. Int. J. Cardiovasc. Imaging 2022, 38, 2459–2467. [Google Scholar] [CrossRef]
  81. Mergen, V.; Sartoretti, T.; Klotz, E.; Schmidt, B.; Jungblut, L.; Higashigaito, K.; Manka, R.; Euler, A.; Kasel, M.; Eberhard, M.; et al. Extracellular Volume Quantification With Cardiac Late Enhancement Scanning Using Dual-Source Photon-Counting Detector CT. Invest. Radiol. 2022, 57, 406–411. [Google Scholar] [CrossRef] [PubMed]
  82. Emrich, T.; O’Doherty, J.; Schoepf, U.J.; Suranyi, P.; Aquino, G.; Kloeckner, R.; Halfmann, M.C.; Allmendinger, T.; Schmidt, B.; Flohr, T.; et al. Reduced Iodinated Contrast Media Administration in Coronary CT Angiography on a Clinical Photon-Counting Detector CT System: A Phantom Study Using a Dynamic Circulation Model. Invest. Radiol. 2023, 58, 148–155. [Google Scholar] [CrossRef] [PubMed]
  83. Kappler, S.; Hannemann, T.; Kraft, E.; Kreisler, B.; Niederloehner, D.; Stierstorfer, K.; Flohr, T. First results from a hybrid prototype CT scanner for exploring benefits of quantum-counting in clinical CT. In Proceedings of the Medical Imaging 2012: Physics of Medical Imaging, San Diego, CA, USA, 5–8 February 2012; p. 83130X. [Google Scholar]
  84. Rajiah, P.; Parakh, A.; Kay, F.; Baruah, D.; Kambadakone, A.R.; Leng, S. Update on Multienergy CT: Physics, Principles, and Applications. Radiographics 2020, 40, 1284–1308. [Google Scholar] [CrossRef] [PubMed]
  85. Zhou, W.; Lane, J.I.; Carlson, M.L.; Bruesewitz, M.R.; Witte, R.J.; Koeller, K.K.; Eckel, L.J.; Carter, R.E.; McCollough, C.H.; Leng, S. Comparison of a Photon-Counting-Detector CT with an Energy-Integrating-Detector CT for Temporal Bone Imaging: A Cadaveric Study. AJNR Am. J. Neuroradiol. 2018, 39, 1733–1738. [Google Scholar] [CrossRef]
  86. Kreisler, B. Photon counting Detectors: Concept, technical Challenges, and clinical outlook. Eur. J. Radiol. 2022, 149, 110229. [Google Scholar] [CrossRef]
  87. Cammin, J.; Xu, J.; Barber, W.C.; Iwanczyk, J.S.; Hartsough, N.E.; Taguchi, K. A cascaded model of spectral distortions due to spectral response effects and pulse pileup effects in a photon-counting x-ray detector for CT. Med. Phys. 2014, 41, 041905. [Google Scholar] [CrossRef]
  88. Taguchi, K.; Frey, E.C.; Wang, X.; Iwanczyk, J.S.; Barber, W.C. An analytical model of the effects of pulse pileup on the energy spectrum recorded by energy resolved photon counting x-ray detectors. Med. Phys. 2010, 37, 3957–3969. [Google Scholar] [CrossRef]
  89. Wang, A.S.; Harrison, D.; Lobastov, V.; Tkaczyk, J.E. Pulse pileup statistics for energy discriminating photon counting x-ray detectors. Med. Phys. 2011, 38, 4265–4275. [Google Scholar] [CrossRef]
  90. Nakamura, Y.; Higaki, T.; Kondo, S.; Kawashita, I.; Takahashi, I.; Awai, K. An introduction to photon-counting detector CT (PCD CT) for radiologists. Jpn. J. Radiol. 2022, 41, 266–282. [Google Scholar] [CrossRef]
  91. Tanguay, J.; Cunningham, I.A. Cascaded systems analysis of charge sharing in cadmium telluride photon-counting x-ray detectors. Med. Phys. 2018, 45, 1926–1941. [Google Scholar] [CrossRef]
  92. Hsieh, S.S.; Sjolin, M. Digital count summing vs. analog charge summing for photon counting detectors: A performance simulation study. Med. Phys. 2018, 45, 4085–4093. [Google Scholar] [CrossRef]
  93. Taguchi, K.; Iwanczyk, J.S. Vision 20/20: Single photon counting X-ray detectors in medical imaging. Med. Phys. 2013, 40, 100901. [Google Scholar] [CrossRef] [PubMed]
  94. Flohr, T.; Schmidt, B. Technical Basics and Clinical Benefits of Photon-Counting CT. Investig. Radiol. 2023. [Google Scholar] [CrossRef] [PubMed]
  95. Wang, A.S.; Pelc, N.J. Spectral Photon Counting CT: Imaging Algorithms and Performance Assessment. IEEE Trans. Radiat. Plasma Med. Sci. 2021, 5, 453–464. [Google Scholar] [CrossRef] [PubMed]
  96. Pourmorteza, A. Photon-counting CT: Scouting for Quantitative Imaging Biomarkers. Radiology 2021, 298, 153–154. [Google Scholar] [CrossRef]
Figure 1. Schematic representation of EIDs vs. PCDs. Schematic representation of energy integrating detector system (on the left): The X-ray photons are absorbed by the scintillator and converted into visible light which is then collected by photo diodes that generate an electrical signal. Schematic representation of photon counting detector system (on the right): The X-ray photons are absorbed in a semiconductor detector material that directly converts each X-ray photon into an electron hole.
Figure 1. Schematic representation of EIDs vs. PCDs. Schematic representation of energy integrating detector system (on the left): The X-ray photons are absorbed by the scintillator and converted into visible light which is then collected by photo diodes that generate an electrical signal. Schematic representation of photon counting detector system (on the right): The X-ray photons are absorbed in a semiconductor detector material that directly converts each X-ray photon into an electron hole.
Jcm 12 03627 g001
Figure 2. Cardiac PCCT examples of normal and non-obstructive CAD. The figure shows two examples of left anterior descending coronary artery (LAD; (A,B)). In A, the LAD is completely normal without any sign of coronary artery disease (CAD); the only finding is a deep intramyocardial course of the middle segment ((A); arrowheads). In (B), there are at least two atherosclerotic plaques ((B); arrowheads) with predominantly calcified phenotype, without any signs of significant obstruction of the coronary lumen. What is special about this imaging with PCCT is that this very high detail and spatial resolution is obtained with standard imaging protocols and does not require high radiation dose.
Figure 2. Cardiac PCCT examples of normal and non-obstructive CAD. The figure shows two examples of left anterior descending coronary artery (LAD; (A,B)). In A, the LAD is completely normal without any sign of coronary artery disease (CAD); the only finding is a deep intramyocardial course of the middle segment ((A); arrowheads). In (B), there are at least two atherosclerotic plaques ((B); arrowheads) with predominantly calcified phenotype, without any signs of significant obstruction of the coronary lumen. What is special about this imaging with PCCT is that this very high detail and spatial resolution is obtained with standard imaging protocols and does not require high radiation dose.
Jcm 12 03627 g002

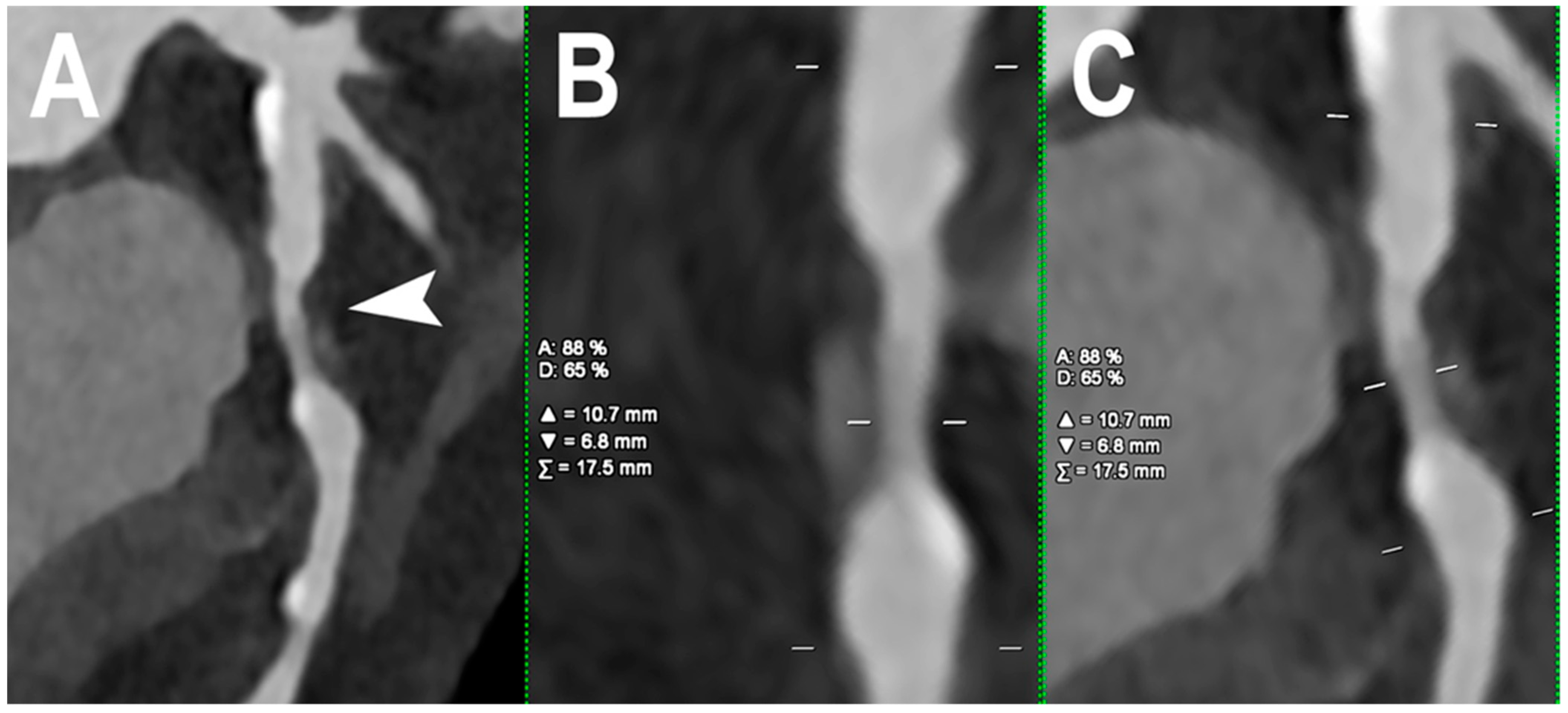

Figure 3. Cardiac PCCT example of obstructive CAD. The figure shows an example of left circumflex stenosis due to a predominantly non-calcified atherosclerotic plaque with non-significant positive remodeling ((A); arrowhead). This example is obtained in medium resolution which, in this case, is a 0.4 mm slice thickness. The quantitative assessment ((B,C); orthogonal longitudinal views of the stenosis) of the stenosis shows a 65% lumen reduction in diameter and an 88% lumen reduction in area.
Figure 3. Cardiac PCCT example of obstructive CAD. The figure shows an example of left circumflex stenosis due to a predominantly non-calcified atherosclerotic plaque with non-significant positive remodeling ((A); arrowhead). This example is obtained in medium resolution which, in this case, is a 0.4 mm slice thickness. The quantitative assessment ((B,C); orthogonal longitudinal views of the stenosis) of the stenosis shows a 65% lumen reduction in diameter and an 88% lumen reduction in area.
Jcm 12 03627 g003
Figure 4. Cardiac PCCT example of obstructive CAD. The figure shows an example of high-grade coronary artery stenosis in the middle portion of left anterior descending (LAD) coronary artery (AC). The plaque ((A,B); arrowheads) shows predominantly non calcified phenotype and low inner core density (C). This example is obtained with high resolution mode (100 microns spatial resolution and minimum slice thickness of 0.2 mm).
Figure 4. Cardiac PCCT example of obstructive CAD. The figure shows an example of high-grade coronary artery stenosis in the middle portion of left anterior descending (LAD) coronary artery (AC). The plaque ((A,B); arrowheads) shows predominantly non calcified phenotype and low inner core density (C). This example is obtained with high resolution mode (100 microns spatial resolution and minimum slice thickness of 0.2 mm).
Jcm 12 03627 g004
Figure 5. Cardiac PCCT example of a complete coronary tree with multiple stents. The figure shows the complete coronary tree of a patient with multiple stents at follow-up (AC). There are two stents at the level of the proximal and middle right coronary artery (A) and one stent on the marginal branch of the left circumflex coronary artery (C); the left anterior descending (LAD; (B)) the coronary artery is normal without any detectable atherosclerotic disease. All stents are perfectly visualized in their inner struts and also in their inner lumen, which is not normal for cardiac CT without photon counting technology.
Figure 5. Cardiac PCCT example of a complete coronary tree with multiple stents. The figure shows the complete coronary tree of a patient with multiple stents at follow-up (AC). There are two stents at the level of the proximal and middle right coronary artery (A) and one stent on the marginal branch of the left circumflex coronary artery (C); the left anterior descending (LAD; (B)) the coronary artery is normal without any detectable atherosclerotic disease. All stents are perfectly visualized in their inner struts and also in their inner lumen, which is not normal for cardiac CT without photon counting technology.
Jcm 12 03627 g005
Figure 6. Cardiac PCCT of aortic valve prosthesis. In this example we show a follow-up of an aortic valve prosthesis that shows significant signs of Hypo-Attenuating Leaflet Thickening (HALT) which can be due to thrombotic apposition (arrowheads) and may impair valve leaflet motion. With PCCT this very thin layer of hypodense tissue can be easily seen.
Figure 6. Cardiac PCCT of aortic valve prosthesis. In this example we show a follow-up of an aortic valve prosthesis that shows significant signs of Hypo-Attenuating Leaflet Thickening (HALT) which can be due to thrombotic apposition (arrowheads) and may impair valve leaflet motion. With PCCT this very thin layer of hypodense tissue can be easily seen.
Jcm 12 03627 g006
Figure 7. Cardiac PCCT of myocardial late enhancement. In this example (A,B), a three-chamber projection is shown of a patient with a severe phenotype of hypertrophic cardiomyopathy that affects mostly the mid-basal septum of the left ventricle ((A); arrowhead). Seven minutes after the intravenous administration of iodine-based contrast material, the transmural accumulation of iodinated CM in the hypertrophic left ventricular wall, also referred to as late enhancement, is clearly visible ((B); arrowhead). This phenomenon is equivalent to the one observed in cardiac magnetic resonance and well established in clinical practice. What is special about this imaging with PCCT is that spectral imaging is contextual with standard cardiac CT protocols and it does not require specific protocols.
Figure 7. Cardiac PCCT of myocardial late enhancement. In this example (A,B), a three-chamber projection is shown of a patient with a severe phenotype of hypertrophic cardiomyopathy that affects mostly the mid-basal septum of the left ventricle ((A); arrowhead). Seven minutes after the intravenous administration of iodine-based contrast material, the transmural accumulation of iodinated CM in the hypertrophic left ventricular wall, also referred to as late enhancement, is clearly visible ((B); arrowhead). This phenomenon is equivalent to the one observed in cardiac magnetic resonance and well established in clinical practice. What is special about this imaging with PCCT is that spectral imaging is contextual with standard cardiac CT protocols and it does not require specific protocols.
Jcm 12 03627 g007
Table 1. Benefits of photon-counting detectors and impact on cardiovascular applications.
Table 1. Benefits of photon-counting detectors and impact on cardiovascular applications.
Benefits of Photon-Counting DetectorsPotential Cardiovascular Applications
Higher spatial resolutionStent imaging
Coronary lumen evaluation
Atherosclerotic plaque imaging
Coronary artery calcium scoring
Aortic valve calcification score
Improved iodine signalCoronary lumen evaluation
Stent imaging
Multi-energy acquisitionCoronary lumen evaluation
Atherosclerotic plaque imaging
Dose reduction
Coronary artery calcium scoring
Aortic valve calcification score
Energy binningStent imaging
Atherosclerotic plaque imaging
Dose reduction
Myocardial tissue characterization.
Artifact reductionCoronary lumen evaluation
Stent imaging
Atherosclerotic plaque imaging
Table 2. Studies on PCCT for cardio-vascular applications.
Table 2. Studies on PCCT for cardio-vascular applications.
AuthorsYearsModelNumber of PatientsClinical ApplicationResults
Si-Mohamed et al. [30]2022In vivo (human)14Coronary lumenProportions of score improvement with PCCT images (compared to EID-CT images) for overall quality and diagnostic confidence were 57% (95% CI: 41, 72) and 55% (95% CI: 39, 70), respectively, and 48% (95% CI: 33, 63), 51% (95% CI: 35, 67), and 69 (95% CI: 53, 82) for coronary proximal lumen, coronary distal lumen, and coronary wall, respectively.
Rotzinger et al. [31]2021In vitro Coronary lumenPCCT provided higher spatial resolution, lower noise magnitude, and superior lipid core detectability than EID-CT.
Koons et al. [12]2022In vitro Coronary lumenPCCT demonstrated an improvement in plaque/lumen delineation and a more accurate stenosis quantification for all plaques than EID-CT.
Allmendiger et al. [32]2022In vitro Coronary lumenAn image reconstruction algorithm using PCCT decreases blooming artifacts caused by heavily calcified plaques and improves image interpretability.
Si-Mohamed et al. [30]2022In vivo (human)14Pericoronary fat tissueProportion of improvement in diagnostic quality for pericoronary fat tissue of 36% (95% CI, 22–52) in PCCT versus EID-CT.
Rotzinger et al. [31]2021In vitro Atherosclerotic plaque compositionPCCT provided superior detectability for simulated 0.5 mm thick non-calcified plaques (AUC ≈ 95% vs AUC ≈ 75%) and lipid-rich atherosclerotic plaques (AUC = 85% vs. AUC = 77,5%) in comparison with EID-CT.
Si-Mohamed et al. [30]2022In vivo (human)12 (non-calcified plaques)
10 (calcified plaques)
Atherosclerotic plaque compositionProportions of score improvement with PCCT versus EID-CT images for coronary calcification and noncalcified plaque were 100% and 45% (95% CI: 28, 63), respectively.
Si-Mohamed et al. [22]2021In vivo (rabbit)11Atherosclerotic plaque compositionA good correlation between the gold concentration and the macrophage area was found (r = 0.82; 95% CI: 0.67, 0.91; p = 0.001).
Boussel et al. [9]2014In vitro3Atherosclerotic plaque compositionPCCT demonstrated to identify plaque components by measuring differences in contrast agent concentration and spectra attenuation.
Boccalini et al. [33]2022In vivo (human)8Coronary stent
Dose reduction
Superior stent and lumen visibility with fewer blooming artifacts and lower dose radiation for PCCT versus conventional CT.
Mannil et al. [23]2018In vitro Coronary stentIn comparison with EID-CT, PCCT offered superior in stent visibility, fewer blooming and partial volume artifacts, with a lower increase in the attenuation of the lumen inside the stent.
Symons et al. [34]2018In vitro Coronary stentBetter luminal depiction with lower image noise in PCCT compared to EID-CT.
Harmel et al. [35]2021In vivo (human)5Aortic calcium scoreExcellent correlation of aortic valve calcium score and volumes between virtual non-contrast and true-contrast images (r = 0.945, p = 0.01; r = 0.938, p = 0.01; respectively).
Van Der Werf et al. [36]2022In vitro Coronary artery calcium scoreA comparable CAC score for routine clinical protocol between PCCT and conventional CT was demonstrated. Further, PCCT showed increased detectability and accuracy in CAC at reduced slice thickness.
Eberhard et al. [37]2022In vitro
In vivo
20Coronary artery calcium scorePCCT showed decreasing CAC score at increasing iterative image reconstruction algorithm levels (p < 0.001) and increasing keV levels (p < 0.001).
Skoog et al. [10]2022In vitro Coronary artery calcium scoreHigh correlation and agreement were observed between the CAC score derived from PCCT and EID-CT.
Symons et al. [38]2019In vitro
In vivo
10Coronary artery calcium score
Dose reduction
In vitro: CAC score reproducibility was significantly higher for the PCCT at the lowest dose setting (50 mAs) (p = 0.002).
In vivo: agreement between standard-dose and low-dose CAC score was significantly better for the PCCT than for the conventional CT.
Symons et al. [27]2017In vivo (canine)3Myocardial tissue characterizationThe distribution and morphology of myocardial scar by PCCT single-energy and gadolinium map correlated well with MRI and histology. The gadolinium map had 31% higher contrast-to-noise ratio than the CT single-energy images for identifying infarct versus remote tissue.
Mergen et al. [39]2022In vivo (human)30Myocardial tissue characterizationWith PCCT virtual mono-energetic and dual-energy-derived ECV quantification showed high correlation (r = 0.87, p < 0.001) with narrow limits of agreements and a mean error of 0.9%.
Van Der Werf et al. [16]2021In vitro Dose reductionVirtual mono-energetic images from PCCT demonstrated a dose reduction up to 67%.
Gutjahr et al. [40]2016In vitro
Ex vivo
Contrast-to-noise ratioIn vitro: a mean increase in contrast-to-noise ratio of 11%, 23%, 31%, 38% was demonstrated for PCCT in comparison with commercially available CT scanners at 80, 100, 120, and 140 kV, respectively.
Ex vivo: Compared to EID-CT, PCCT allowed for decreased artifacts (e.g., beam-hardening and blooming) in the high-energy bin images and improved contrast in low-energy bin images.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cademartiri, F.; Meloni, A.; Pistoia, L.; Degiorgi, G.; Clemente, A.; Gori, C.D.; Positano, V.; Celi, S.; Berti, S.; Emdin, M.; et al. Dual-Source Photon-Counting Computed Tomography—Part I: Clinical Overview of Cardiac CT and Coronary CT Angiography Applications. J. Clin. Med. 2023, 12, 3627. https://doi.org/10.3390/jcm12113627

AMA Style

Cademartiri F, Meloni A, Pistoia L, Degiorgi G, Clemente A, Gori CD, Positano V, Celi S, Berti S, Emdin M, et al. Dual-Source Photon-Counting Computed Tomography—Part I: Clinical Overview of Cardiac CT and Coronary CT Angiography Applications. Journal of Clinical Medicine. 2023; 12(11):3627. https://doi.org/10.3390/jcm12113627

Chicago/Turabian Style

Cademartiri, Filippo, Antonella Meloni, Laura Pistoia, Giulia Degiorgi, Alberto Clemente, Carmelo De Gori, Vincenzo Positano, Simona Celi, Sergio Berti, Michele Emdin, and et al. 2023. "Dual-Source Photon-Counting Computed Tomography—Part I: Clinical Overview of Cardiac CT and Coronary CT Angiography Applications" Journal of Clinical Medicine 12, no. 11: 3627. https://doi.org/10.3390/jcm12113627

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
