Article

Multicenter Study of Intense Pulsed Light for Patients with Refractory Aqueous-Deficient Dry Eye Accompanied by Mild Meibomian Gland Dysfunction

by
Reiko Arita
1,2,*,
Shima Fukuoka
2,3,
Takanori Mizoguchi
2,4 and
Naoyuki Morishige
2,5
1
Department of Ophthalmology, Itoh Clinic, 626-11 Minami-Nakano, Minumaku, Saitama, Saitama 337-0042, Japan
2
Lid and Meibomian Gland Working Group (LIME), Tokyo 112-0006, Japan
3
Omiya Hamada Eye Clinic, 1-169-1, Sakuragicho, Omiyaku, Saitama 330-0854, Japan
4
Mizoguchi Eye Clinic, 6-13, Tawaramachi, Sasebo, Nagasaki 857-0016, Japan
5
Division of Cornea and Ocular Surface, Ohshima Eye Hospital, 11-8, Kamigofukumachi, Hakataku, Fukuoka 812-0036, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2020, 9(11), 3467; https://doi.org/10.3390/jcm9113467
Submission received: 20 September 2020 / Revised: 25 October 2020 / Accepted: 26 October 2020 / Published: 28 October 2020
(This article belongs to the Special Issue Cutting-Edge Topics in Dry Eye Disease)
Browse Figures
Versions Notes

Abstract

:
Aqueous-deficient dry eye (ADDE) and meibomian gland dysfunction (MGD) can be refractory to therapy. Intense pulsed light (IPL) was recently introduced as an effective treatment for MGD. We here evaluated the efficacy of IPL combined with MG expression (MGX) compared with MGX alone (n = 23 and 20, respectively) for patients with refractory ADDE with mild MGD at three sites. Symptom score, visual acuity (VA), noninvasive breakup time (NIBUT) and lipid layer thickness (LLT) of the tear film, lid margin abnormalities, fluorescein BUT (FBUT), fluorescein staining, tear meniscus height (TMH), meibum grade, meiboscore, and Schirmer’s test value were assessed at baseline and 1 and 3 months after treatment. LLT, plugging, vascularity, FBUT and NIBUT were improved only in the IPL-MGX group at three months compared with baseline. All parameters with the exception of VA, meiboscore, TMH, Schirmer’s test value were also improved in the IPL-MGX group compared with the control group at three months, as was VA in patients with central corneal epitheliopathy. Although IPL-MGX does not affect aqueous layer, the induced improvement in quality and quantity of the lipid layer may increase tear film stability and ameliorate symptoms not only for evaporative dry eye but for ADDE.

1. Introduction

Dry eye disease is a common condition that causes ocular discomfort [1]. Although it generally does not reduce conventionally tested visual acuity (VA), most individuals with this condition manifest impairment of functional visual acuity, with higher-order aberrations in particular leading to disturbance of quality of vision [2]. Dry eye disease is classified into two major subtypes—aqueous-deficient dry eye (ADDE) and evaporative dry eye (EDE) [3]—both of which can involve pathology of meibomian glands, lacrimal glands, the eyelids, the tear film, and ocular surface cells [4]. ADDE and EDE tend to coexist, in part because the lacrimal gland defects associated with ADDE can lead to meibomian gland dysfunction (MGD) [5], and consequent EDE as a result of friction between the lid margin and the cornea and conjunctiva [6].
Common therapies for patients with ADDE include various topical medications such as cyclosporine, diclofenac sodium, steroids, loteprednol etabonate, resolvin E1, tacrolimus, autologous serum, and vitamin A [7,8]. In addition, punctal plug insertion, oral systemic antibiotics, surgery, dietary modification, local environmental changes, and alternative medicines have been applied [8]. Common therapies for patients with MGD, which is a major cause of EDE, include the application of a warm compress [9], the practice of lid hygiene [9], dietary supplementation with omega-3 fatty acids [9], forced meibum expression [9], intraductal probing [10], automated thermal pulsation [11], and the administration of topical steroids [9], topical and oral antibiotics including topical cyclosporine and azithromycin [9], preservative-free artificial tears [9], lipid-containing eyedrops [9], and topical diquafosol [12,13]. Despite the varied treatment options available, however, some patients with ADDE or MGD are refractory to therapy and therefore do not experience complete or long-term relief of symptoms.
Intense pulsed light (IPL) therapy based on the delivery of intense pulses of noncoherent light with wavelengths of 500 to 1200 nm has been applied in dermatology to treat various conditions, including benign cavernous hemangiomas or venous malformations, telangiectasia, port wine stains, and other pigmented lesions [14,15]. The efficacy of IPL therapy for patients with dry eye due to MGD was discovered during IPL treatment of facial rosacea [16]. Subsequent studies found that IPL, with or without concomitant meibomian gland expression (MGX), is effective for improvement of subjective symptoms and objective findings in patients with mild to moderate MGD or dry eye [17,18,19,20,21,22,23,24,25,26,27,28]. The combination of IPL and MGX was also shown to be effective in patients with refractory MGD [28,29]. In addition, it ameliorated dry eye symptoms and improved meibomian gland function in patients with refractory dry eye, including not only individuals with MGD but also those with graft-versus-host disease or Sjögren syndrome [20] or those with keratoconjunctivitis sicca [30]. However, as far as we are aware, no previous study has evaluated the effects of IPL on tear fluid–related parameters in addition to meibomian gland–related parameters in patients with refractory ADDE accompanied by mild MGD. We have therefore now performed a multicenter, retrospective, controlled study to evaluate the efficacy of IPL combined with MGX in comparison with MGX alone in patients with refractory ADDE and mild MGD who had been treated with conventional therapies.

2. Experimental Section

2.1. Patients

This retrospective controlled study was approved by the Institutional Review Boards of Itoh Clinic (approval code: IRIN201903-03), Mizoguchi Eye Clinic, and Ohshima Eye Hospital on March 11th, 2019, and it adhered to the tenets of the Declaration of Helsinki. Patients with refractory ADDE associated with mild MGD who were treated with either IPL and MGX or MGX alone between April and December 2017 at three sites in Japan (Itoh Clinic, Mizoguchi Eye Clinic, and Ohshima Eye Hospital) were enrolled in the study. Informed consent to study participation was obtained from each patient.
Inclusion criteria were as follows: (1) an age of at least 20 years; (2) a diagnosis of ADDE based on the diagnostic criteria for ADDE in Japan [31], which encompass ocular symptoms, a fluorescein tear film breakup time (FBUT) of ≤5 s, a Schirmer’s test value of ≤5 mm, and the presence of conjunctival or corneal epithelial damage as evidenced by a fluorescein staining (Fluo) score of ≥1 (on a scale of 0 to 9) according to the van Bijsterveld method [32]; (3) a diagnosis of mild MGD based on the diagnostic criteria for MGD in Japan [33], which encompass ocular symptoms, plugged gland orifices (plugging grade [34] of ≥1, which corresponds to plugging of fewer than three gland orifices with a distribution of less than half of the full length of the lid), vascularity and irregularity of lid margins, reduced meibum expression (meibum grade of ≥2, on a scale of 0 to 3, where 0 = clear meibum easily expressed, 1 = cloudy meibum expressed with mild pressure, 2 = cloudy meibum expressed with more than moderate pressure, and 3 = meibum cannot be expressed even with strong pressure) [35], and a meiboscore of ≥3 (on a scale of 0 to 6) [36]; (4) refractoriness of ADDE as defined by the failure to respond over a period of ≥2 years to at least three types of conventional therapy prescribed in Japan, including tear replacement therapy, tear conservation, and anti-inflammatory eyedrops; and (5) a Fitzpatrick skin type of 1 to 4 based on sun sensitivity and appearance [37]. Exclusion criteria included the presence of active skin lesions, skin cancer, or other specific skin pathology or of active ocular infection or ocular inflammatory disease.

2.2. Experimental Design

Each patient underwent a series of four IPL-MGX treatment sessions or four sessions of MGX alone at 3-week intervals and was subjected to clinical assessment as described below both before treatment as well as 4 and 12 weeks after the final treatment session. All patients were asked to continue their current ocular medications as well as not to initiate therapy with a new topical or systemic agent for dry eye or MGD during the treatment course.

2.3. Clinical Assessment

The thickness of the lipid layer of the tear film (LLT), noninvasive breakup time of the tear film (NIBUT), and interferometric fringe pattern of the tear film were determined with a DR-1α tear interferometer (Kowa, Tokyo, Japan) as described previously [38]. Lid margin abnormalities (plugging of meibomian gland orifices and vascularity of lid margins) [34], FBUT, the Fluo score [32], tear meniscus height (TMH) based on fluorescein staining, and meibum grade [35] were evaluated with a slitlamp microscope. For determination of TMH, the center of the lower tear meniscus stained with fluorescein was photographed with a CCD camera attached to the slitlamp microscope, with a magnification of 10 × and under lighting with a blue-free filter. The photographs were examined by an ocular surface expert (R.A.) for semiquantitative grading of TMH as low, normal or high. Morphological changes of meibomian glands were assessed on the basis of the meiboscore [36] as determined by noninvasive meibography. Tear fluid production was measured by Schirmer’s test as performed without anesthesia [39]. Symptoms were assessed with the standard patient evaluation of eye dryness (SPEED) validated questionnaire (scale of 0 to 28) [40,41]. VA was also measured with the use of Landolt C charts, and best corrected Landolt VA was converted to logarithm of the minimum angle of resolution (logMAR) VA.

2.4. IPL-MGX Procedure

Before the first treatment, each patient underwent Fitzpatrick skin typing [37] and the IPL machine (M22; Lumenis, Yokneam, Israel) was adjusted to the appropriate setting (Toyos setting: 590-nm cutoff filter, triple pulses of 6.0 ms with an interval of 50 ms, and total fluence range of 13 to 15 J/cm2). At each treatment session, both eyes of the patient were closed and sealed with IPL-Aid disposable eye shields (Honeywell Safety Products, Smithfield, RI, USA). After generous application of ultrasonic gel to the targeted skin area, each patient received ~13 pulses of light (with slightly overlapping applications) from the right preauricular area, across the cheeks and nose, to the left preauricular area, reaching up to the inferior boundary of the eye shields. This procedure was then repeated in a second pass. Immediately after the IPL treatment, MGX was performed on both upper and lower eyelids of each eye with an Arita Meibomian Gland Compressor (Katena, Denville, NJ, USA). Pain was minimized during MGX by the application of 0.4% oxybuprocaine hydrochloride to each eye. Patients in the control group underwent the MGX procedure alone, without IPL.

2.5. Statistical Analysis

Data were found to be non-normally distributed with the Shapiro–Wilk test (p < 0.05), and nonparametric testing was therefore applied. The Mann–Whitney U test was used to compare numerical variables between the control (MGX alone) and the IPL-MGX groups. The Wilcoxon signed-rank test was used to compare numerical variables between baseline and either 1 or 3 months after the final treatment session. Fisher’s exact test was used to compare categorical variables between the control and IPL-MGX groups. The chi-square test was used to compare lipid layer grade and TMH between before and either 1 or 3 months after the final treatment session. Adjusted p values were calculated by multiplication of obtained p values by the number of comparisons in Bonferroni’s correction. The outcome variables of the study were the SPEED score and NIBUT before and after treatment. We performed a statistical power analysis for both the SPEED score and NIBUT at 3 months after the final treatment session in the control and IPL-MGX groups. The power (1-β) was >0.90 at the level of α = 0.025, and the sample size was sufficient. Statistical analysis was performed with JMP Pro version 15 software (SAS, Cary, NC, USA). All statistical tests were two sided, and a p value of <0.05 was considered statistically significant.

3. Results

3.1. Patient Characteristics

The characteristics of the 43 study subjects with refractory ADDE and mild MGD, including 23 individuals in the IPL-MGX group and 20 in the MGX group, are presented in Table 1. Approximately 40% of patients had Sjögren syndrome or rheumatoid arthritis.
The frequency of other ADDE therapies previously administered is shown in Table 2, with most patients having been treated with diquafosol eyedrops, topical steroids, hyaluronic acid eyedrops, or punctal plugs.

3.2. Efficacy of IPL-MGX

The SPEED score was significantly reduced at 4 weeks after the final treatment session compared with baseline in both IPL-MGX group and MGX groups, and this difference was maintained for up to 3 months (Table 3). LLT was significantly increased at both 1 and 3 months after the final treatment session in the IPL-MGX group but not in the control group (Table 3).
Both NIBUT and FBUT were significantly prolonged at both 1 and 3 months after the final treatment session in the IPL-MGX group, whereas they were significantly improved only at 1 month in the control group (Table 3). Changes in interferometric fringe pattern (lipid layer grade) from one typical of aqueous deficiency (Jupiter like) to the normal condition (pearl like) were apparent in 61% and 35% of eyes in the IPL-MGX group as well as in 30% and 5% of those in the control group at 1 and 3 months, respectively, after the final treatment session compared with baseline (Table 4). Lipid layer grade was thus significantly better in the IPL-MGX group compared to the control group at both 1 and 3 months after the final treatment session. The Fluo score had decreased significantly at both 1 and 3 months after the final treatment session in both groups, with the value being significantly lower in the IPL-MGX group than in the control group at both posttreatment assessment points (Table 3).
The logMAR VA of eyes in the IPL-MGX group was significantly improved at both 1 and 3 months after treatment completion compared with baseline, although the values that did not differ between the two groups either before or 1 or 3 months after treatment (Table 5). Eleven of 40 (27.5%) and 12 of 46 (26.1%) eyes in the control and IPL-MGX groups, respectively, manifested central corneal epitheliopathy central corneal epitheliopathy (CCE) with these frequencies not differing significantly between the two groups (p = 1, Fisher’s exact test). A significantly improvement in log MAR VA was apparent for the eyes with CCE in the IPL-MGX group compared with those in the control group, both after amerilration of the CCE at 1 month and at 3 months after treatment completion (Table 5, Figure 1).
Meibum grade was significantly decreased in both groups at both 1 and 3 months after treatment completion compared with baseline, whereas vascularity score was significantly decreased at both time points only in the IPL-MGX group (Table 3). Plugging score was significantly decreased in both groups at 1 month after treatment completion compared with baseline, whereas only in the IPL-MGX at 3 months (Table 3). The IPL-MGX group showed a significant difference in meibum grade and lid margin abnormality (plugging and vascularity) scores compared with the control group at both 1 and 3 months after the treatment (Table 3). The meiboscore was not significantly changed at either 1 or 3 months in the IPL-MGX or control group (Table 3). Schirmer’s test value also remained unchanged at 1 and 3 months after the final treatment session in both the IPL-MGX and control groups (Table 3). Finally, TMH was low at baseline and remained so after treatment in both groups (Table 4).

4. Discussion

This is the first multicenter study to show an improvement in subjective symptoms and objective signs in patients with refractory ADDE (including those with Sjögren syndrome or rheumatoid arthritis) with mild MGD by treatment with a series of IPL sessions combined with MGX compared to MGX alone. Clinical parameters including ocular symptoms, tear film stability, fluorescein staining, and meibomian gland function were significantly improved by IPL-MGX treatment compared with MGX alone, although tear fluid parameters remained unchanged. Moreover, eyes with CCE showed an improvement in VA associated with IPL-MGX after amelioration of the epitheliopathy. Our results thus suggest that IPL-MGX might be an effective treatment not only for EDE but also for ADDE and mixed EDE-ADDE, although the present study examined only patients with refractory ADDE accompanied by mild MGD. Given that homeostasis of the lipid and tear fluid components of the tear film appears to be important for tear film health, IPL-MGX may have a role as a supportive treatment for ADDE.
We found that IPL-MGX therapy was more effective for the management of refractory ADDE accompanied by mild MGD than was MGX alone, and it was associated with an improvement in meibomian gland-related parameters but not with a change in tear fluid-related parameters. Although >30 studies have indicated that IPL is safe and effective for the treatment of MGD, as far as we are aware only one previous study included patients with Sjögren syndrome [20]. However, this previous study did not evaluate tear fluid-related parameters such as TMH or Schirmer’s test value, but instead assessed only ocular symptoms and meibomian gland expressibility [20]. Five previous studies determined the Schirmer’s test value [30,42,43,44], but all of these studies with the exception of one [43] found no significant change in this parameter in response to IPL therapy. The one exception among these five studies showed that the median Schirmer’s test value increased from 13 to 15 mm (p = 0.046) after IPL therapy [43]. The one previous study that measured TMH found no significant difference in this parameter between before and after IPL treatment [21]. Our present results are thus largely consistent with those of previous studies and suggest that IPL does not affect lacrimal glands, but rather influences meibomian glands alone.
With regard to the mechanism of action of IPL in MGD, the treatment likely warms meibomian glands by increasing the temperature of the thin periocular skin and thereby promotes the melting of meibum [16,23]. In addition, the IPL device emits energy that is absorbed by chromophores in hemoglobin and likely thereby promotes closing of abnormal vessels in the lid margin and adjacent conjunctiva as well as attenuates the local release of inflammatory factors from the abnormal vessels [45,46]. A recent study found that the concentrations of various inflammatory factors—including interleukin-17A, interleukin-6, and prostaglandin E2—in tear fluid were reduced after IPL therapy [25]. IPL treatment is also likely able to reduce bacterial load of the eyelid margin and the number of Demodex mites surrounding adnexa [44] as well as to ameliorate the associated inflammation [47].
Our present results show that MGX alone was also effective for the treatment of refractory ADDE accompanied by mild MGD with regard not only to subjective symptoms but also objective parameters with the exception of LLT, vascularity of lid margins, the meiboscore, TMH and Schirmer value. MGX alone likely does not have anti-inflammatory and meibum-melting effects or improve the condition of the aqueous layer of the tear film. In contrast, IPL-MGX showed significant effects on all of the parameters measured with the exception of the meiboscore, TMH and Schirmer’s test value compared with MGX alone. Our findings suggest that IPL alone might be effective for the treatment of refractory ADDE, although the present study did not examine the effects of IPL without MGX.
The improvement of ADDE by IPL-MGX is consistent with the notion that tear film homeostasis is required for maintenance of tear film health. Self-reported ocular symptoms covered by the SPEED questionnaire were significantly ameliorated after IPL-MGX treatment in the present study, similar to the results of previous studies [20,23,25,29,42,48]. Twenty-two of the 23 study patients (96%) thus showed a decrease in the SPEED score of ≥8 points at both one and three months after the final IPL-MGX treatment session. The Fluo score was also significantly reduced after IPL-MGX therapy, again consistent with previous data [21,23,28,29,30,42,43,44,49]. Of note, eyes with CCE showed a significant improvement in VA after IPL-MGX compared with those receiving MGX alone. The targeting of MGD by IPL-MGX may thus improve the quality and quantity of lipids in the tear film and thereby result in a decline in the concentrations of inflammatory cytokines in tear fluid. Such an action might break the vicious cycle of corneal-conjunctival epitheliopathy and ocular surface inflammation.
The patients treated with IPL-MGX therapy in the present study had experienced ADDE for 8.1 ± 6.7 years (range of 2–24 years), and conventional therapies had proven insufficient of amelioration of ocular symptoms and improvement of tear film–related parameters. A recent study found that most patients with ADDE due to Sjögren syndrome and a disease duration of >3 years also developed MGD, likely because the early destruction of lacrimal glands eventually begins to affect meibomian glands [50]. Indeed, ~40% of patients in the present study also had systemic diseases such as Sjögren syndrome or rheumatoid arthritis. The conditions of such patients may be too severe to manage even with a combination of several conventional therapies. Our study has now demonstrated an improvement in clinical parameters of patients with refractory ADDE and mild MGD by treatment with IPL-MGX or MGX alone, suggesting that therapy targeted to the lipid layer of the tear film may be necessary for such patients who do not respond to conventional therapies. The efficacy of MGX alone in the present study was essentially apparent only one month after treatment completion, whereas that of IPL-MGX remained manifest at three months. The combination of therapies that target both aqueous and lipid layers may thus improve homeostasis of the tear film, resulting in amelioration of corneal-conjunctival epitheliopathy and subjective symptoms as well as an increase in VA.
Previous studies have found that ADDE and EDE occur frequently together, given that not only lacrimal glands but also meibomian glands can be affected in ADDE. A reduced production of tear fluid can increase friction between the eyelid and the ocular surface and thereby promote eyelid inflammation [4,5]. We propose that IPL therapy can increase the quality and quantity of lipid in the tear film, dampen the inflammatory reaction due to abnormal vessels, and thereby block the vicious circle underlying the pathophysiology of dry eye. It ameliorates ocular surface epitheliopathy and increases tear film stability, leading to an improvement in ocular symptoms (Figure 2). Together, our results suggest that it is important to treat not only the aqueous layer but also the lipid layer of the tear film in order to restore ocular surface health in patients with ADDE including those with refractory ADDE associated with mild MGD.
Limitations of the present study include its retrospective nature and the relatively small sample size. In addition, both eyes of the study subjects were included, although the two eyes of each patient are not independent. Moreover, the study was not randomized or performed in a masked manner. Finally, osmolarity of tear fluid was not measured as an indicator of the efficacy of IPL-MGX treatment. Our data nevertheless suggest that prospective case-control studies with long-term follow-up are warranted for IPL-MGX treatment of patients with refractory ADDE associated with mild MGD. Further studies should also investigate the effectiveness of such treatment for patients with ADDE alone. Guidelines for IPL therapy based on disease severity are also needed for dry eye patients.
In conclusion, our results suggest that IPL-MGX therapy is effective for patients with refractory ADDE accompanied by mild MGD, with the severe disease of such patients being difficult to manage with conventional therapies. IPL-MGX thus has the potential to improve the condition of not only patients with MGD but also those with refractory ADDE and mild MGD.

Author Contributions

Conceptualization, R.A. and S.F.; formal analysis, S.F.; investigation, R.A., T.M. and N.M.; writing—original draft preparation, R.A.; writing—review and editing, N.M., S.F. and T.M.; supervision, N.M.; project administration, R.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

R.A. has the patent of the non-invasive meibography system (JP Patent Registration No. 5281846, US Patent Publication No.2011-0273550A1, EP Patent Publication No. 2189108A1). R.A. is a consultant for Lumenis Japan, KOWA company and TOPCON Japan. No conflicting relationship exists for the other authors.

References

  1. McGinnigle, S.; Naroo, S.A.; Eperjesi, F. Evaluation of dry eye. Surv. Ophthalmol. 2012, 57, 293–316. [Google Scholar] [CrossRef] [PubMed]
  2. Koh, S. Mechanisms of Visual Disturbance in Dry Eye. Cornea 2016, 35, S83–S88. [Google Scholar] [CrossRef] [PubMed]
  3. Craig, J.P.; Nichols, K.K.; Akpek, E.K.; Caffery, B.; Dua, H.S.; Joo, C.K.; Liu, Z.; Nelson, J.D.; Nichols, J.J.; Tsubota, K.; et al. TFOS DEWS II Definition and Classification Report. Ocul. Surf. 2017, 15, 276–283. [Google Scholar] [CrossRef] [PubMed]
  4. Bron, A.J.; de Paiva, C.S.; Chauhan, S.K.; Bonini, S.; Gabison, E.E.; Jain, S.; Knop, E.; Markoulli, M.; Ogawa, Y.; Perez, V.; et al. TFOS DEWS II pathophysiology report. Ocul. Surf. 2017, 15, 438–510. [Google Scholar] [CrossRef] [PubMed]
  5. Shimazaki, J.; Goto, E.; Ono, M.; Shimmura, S.; Tsubota, K. Meibomian gland dysfunction in patients with Sjogren syndrome. Ophthalmology 1998, 105, 1485–1488. [Google Scholar] [CrossRef]
  6. Vu, C.H.V.; Kawashima, M.; Yamada, M.; Suwaki, K.; Uchino, M.; Shigeyasu, C.; Hiratsuka, Y.; Yokoi, N.; Tsubota, K.; Dry Eye Cross-Sectional Study in Japan Study Group. Influence of Meibomian Gland Dysfunction and Friction-Related Disease on the Severity of Dry Eye. Ophthalmology 2018, 125, 1181–1188. [Google Scholar] [CrossRef] [PubMed]
  7. Sy, A.; O’Brien, K.S.; Liu, M.P.; Cuddapah, P.A.; Acharya, N.R.; Lietman, T.M.; Rose-Nussbaumer, J. Expert opinion in the management of aqueous Deficient Dry Eye Disease (DED). BMC Ophthalmol. 2015, 15, 133. [Google Scholar] [CrossRef] [Green Version]
  8. Jones, L.; Downie, L.E.; Korb, D.; Benitez-Del-Castillo, J.M.; Dana, R.; Deng, S.X.; Dong, P.N.; Geerling, G.; Hida, R.Y.; Liu, Y.; et al. TFOS DEWS II Management and Therapy Report. Ocul. Surf. 2017, 15, 575–628. [Google Scholar] [CrossRef]
  9. Geerling, G.; Tauber, J.; Baudouin, C.; Goto, E.; Matsumoto, Y.; O’Brien, T.; Rolando, M.; Tsubota, K.; Nichols, K.K. The international workshop on meibomian gland dysfunction: Report of the subcommittee on management and treatment of meibomian gland dysfunction. Investig. Ophthalmol. Vis. Sci. 2011, 52, 2050–2064. [Google Scholar] [CrossRef] [Green Version]
  10. Maskin, S.L. Intraductal meibomian gland probing relieves symptoms of obstructive meibomian gland dysfunction. Cornea 2010, 29, 1145–1152. [Google Scholar] [CrossRef]
  11. Greiner, J.V. A single LipiFlow(R) Thermal Pulsation System treatment improves meibomian gland function and reduces dry eye symptoms for 9 months. Curr. Eye Res. 2012, 37, 272–278. [Google Scholar] [CrossRef] [PubMed]
  12. Arita, R.; Suehiro, J.; Haraguchi, T.; Maeda, S.; Maeda, K.; Tokoro, H.; Amano, S. Topical diquafosol for patients with obstructive meibomian gland dysfunction. Br. J. Ophthalmol. 2013, 97, 725–729. [Google Scholar] [CrossRef] [PubMed]
  13. Fukuoka, S.; Arita, R. Increase in tear film lipid layer thickness after instillation of 3% diquafosol ophthalmic solution in healthy human eyes. Ocul. Surf. 2017, 15, 730–735. [Google Scholar] [CrossRef] [PubMed]
  14. Raulin, C.; Greve, B.; Grema, H. IPL technology: A review. Lasers Surg. Med. 2003, 32, 78–87. [Google Scholar] [CrossRef] [PubMed]
  15. Wat, H.; Wu, D.C.; Rao, J.; Goldman, M.P. Application of intense pulsed light in the treatment of dermatologic disease: A systematic review. Dermatol. Surg. 2014, 40, 359–377. [Google Scholar] [CrossRef] [PubMed]
  16. Toyos, R.; McGill, W.; Briscoe, D. Intense pulsed light treatment for dry eye disease due to meibomian gland dysfunction; a 3-year retrospective study. Photomed. Laser Surg. 2015, 33, 41–46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Craig, J.P.; Chen, Y.H.; Turnbull, P.R. Prospective trial of intense pulsed light for the treatment of meibomian gland dysfunction. Investig. Ophthalmol. Vis. Sci. 2015, 56, 1965–1970. [Google Scholar] [CrossRef] [Green Version]
  18. Vora, G.K.; Gupta, P.K. Intense pulsed light therapy for the treatment of evaporative dry eye disease. Curr. Opin. Ophthalmol. 2015, 26, 314–318. [Google Scholar] [CrossRef]
  19. Gupta, P.K.; Vora, G.K.; Matossian, C.; Kim, M.; Stinnett, S. Outcomes of intense pulsed light therapy for treatment of evaporative dry eye disease. Can. J. Ophthalmol. 2016, 51, 249–253. [Google Scholar] [CrossRef]
  20. Vegunta, S.; Patel, D.; Shen, J.F. Combination Therapy of Intense Pulsed Light Therapy and Meibomian Gland Expression (IPL/MGX) Can Improve Dry Eye Symptoms and Meibomian Gland Function in Patients With Refractory Dry Eye: A Retrospective Analysis. Cornea 2016, 35, 318–322. [Google Scholar] [CrossRef]
  21. Jiang, X.; Lv, H.; Song, H.; Zhang, M.; Liu, Y.; Hu, X.; Li, X.; Wang, W. Evaluation of the Safety and Effectiveness of Intense Pulsed Light in the Treatment of Meibomian Gland Dysfunction. J. Ophthalmol. 2016, 2016, 1910694. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Dell, S.J. Intense pulsed light for evaporative dry eye disease. Clin. Ophthalmol. 2017, 11, 1167–1173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Dell, S.J.; Gaster, R.N.; Barbarino, S.C.; Cunningham, D.N. Prospective evaluation of intense pulsed light and meibomian gland expression efficacy on relieving signs and symptoms of dry eye disease due to meibomian gland dysfunction. Clin. Ophthalmol. 2017, 11, 817–827. [Google Scholar] [CrossRef] [Green Version]
  24. Rong, B.; Tu, P.; Tang, Y.; Liu, R.X.; Song, W.J.; Yan, X.M. Evaluation of short-term effect of intense pulsed light combined with meibomian gland expression in the treatment of meibomian gland dysfunction. Zhonghua Yan Ke Za Zhi 2017, 53, 675–681. [Google Scholar] [PubMed]
  25. Liu, R.; Rong, B.; Tu, P.; Tang, Y.; Song, W.; Toyos, R.; Toyos, M.; Yan, X. Analysis of Cytokine Levels in Tears and Clinical Correlations After Intense Pulsed Light Treating Meibomian Gland Dysfunction. Am. J. Ophthalmol. 2017, 183, 81–90. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Guilloto Caballero, S.; Garcia Madrona, J.L.; Colmenero Reina, E. Effect of pulsed laser light in patients with dry eye syndrome. Arch. Soc. Esp. Oftalmol. 2017, 92, 509–515. [Google Scholar] [CrossRef] [PubMed]
  27. Yin, Y.; Liu, N.; Gong, L.; Song, N. Changes in the Meibomian Gland After Exposure to Intense Pulsed Light in Meibomian Gland Dysfunction (MGD) Patients. Curr. Eye Res. 2018, 43, 308–313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Albietz, J.M.; Schmid, K.L. Intense pulsed light treatment and meibomian gland expression for moderate to advanced meibomian gland dysfunction. Clin. Exp. Optom. 2018, 101, 23–33. [Google Scholar] [CrossRef] [Green Version]
  29. Arita, R.; Fukuoka, S.; Morishige, N. Therapeutic efficacy of intense pulsed light in patients with refractory meibomian gland dysfunction. Ocul. Surf. 2019, 17, 104–110. [Google Scholar] [CrossRef]
  30. Ruan, F.; Zang, Y.; Sella, R.; Lu, H.; Li, S.; Yang, K.; Jin, T.; Afshari, N.A.; Pan, Z.; Jie, Y. Intense Pulsed Light Therapy with Optimal Pulse Technology as an Adjunct Therapy for Moderate to Severe Blepharitis-Associated Keratoconjunctivitis. J. Ophthalmol. 2019, 2019, 3143469. [Google Scholar] [CrossRef] [Green Version]
  31. Shimazaki, J. Definition and diagnosis of dry eye. Atarashii Ganka (J. Eye) 2006, 24, 181–184. [Google Scholar]
  32. Van Bijsterveld, O.P. Diagnostic tests in the Sicca syndrome. Arch. Ophthalmol. 1969, 82, 10–14. [Google Scholar] [CrossRef] [PubMed]
  33. Amano, S.; Arita, R.; Kinoshita, S.; Japanese Dry Eye Society MGD Working Group. Definition and diagnostic criteria for meibomian gland dysfunction. Atarashii Ganka (J. Eye) 2010, 27, 627–631. [Google Scholar]
  34. Arita, R.; Minoura, I.; Morishige, N.; Shirakawa, R.; Fukuoka, S.; Asai, K.; Goto, T.; Imanaka, T.; Nakamura, M. Development of Definitive and Reliable Grading Scales for Meibomian Gland Dysfunction. Am. J. Ophthalmol. 2016, 169, 125–137. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Shimazaki, J.; Sakata, M.; Tsubota, K. Ocular surface changes and discomfort in patients with meibomian gland dysfunction. Arch. Ophthalmol. 1995, 113, 1266–1270. [Google Scholar] [CrossRef] [PubMed]
  36. Arita, R.; Itoh, K.; Inoue, K.; Amano, S. Noncontact infrared meibography to document age-related changes of the meibomian glands in a normal population. Ophthalmology 2008, 115, 911–915. [Google Scholar] [CrossRef]
  37. Fitzpatrick, T.B. The validity and practicality of sun-reactive skin types I through VI. Arch. Dermatol. 1988, 124, 869–871. [Google Scholar] [CrossRef]
  38. Arita, R.; Morishige, N.; Fujii, T.; Fukuoka, S.; Chung, J.L.; Seo, K.Y.; Itoh, K. Tear Interferometric Patterns Reflect Clinical Tear Dynamics in Dry Eye Patients. Investig. Ophthalmol. Vis. Sci. 2016, 57, 3928–3934. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Shirmer, O. Studiun zur Physiologie und Pathologie der Tranenabsonderung und Tranenabfuhr. Albrecht Graefes Arch. Ophthalmol. 1903, 56, 197–291. [Google Scholar] [CrossRef]
  40. Korb, D.R.; Blackie, C.A.; McNally, E.N. Evidence suggesting that the keratinized portions of the upper and lower lid margins do not make complete contact during deliberate blinking. Cornea 2013, 32, 491–495. [Google Scholar] [CrossRef]
  41. Ngo, W.; Situ, P.; Keir, N.; Korb, D.; Blackie, C.; Simpson, T. Psychometric properties and validation of the Standard Patient Evaluation of Eye Dryness questionnaire. Cornea 2013, 32, 1204–1210. [Google Scholar] [CrossRef] [PubMed]
  42. Arita, R.; Mizoguchi, T.; Fukuoka, S.; Morishige, N. Multicenter Study of Intense Pulsed Light Therapy for Patients with Refractory Meibomian Gland Dysfunction. Cornea 2018, 37, 1566–1571. [Google Scholar] [CrossRef]
  43. Mejia, L.F.; Gil, J.C.; Jaramillo, M. Intense pulsed light therapy: A promising complementary treatment for dry eye disease. Arch. Soc. Esp. Oftalmol. 2019, 94, 331–336. [Google Scholar] [CrossRef] [PubMed]
  44. Cheng, S.N.; Jiang, F.G.; Chen, H.; Gao, H.; Huang, Y.K. Intense Pulsed Light Therapy for Patients with Meibomian Gland Dysfunction and Ocular Demodex Infestation. Curr. Med. Sci. 2019, 39, 800–809. [Google Scholar] [CrossRef] [PubMed]
  45. Schroeter, C.A.; Haaf-von Below, S.; Neumann, H.A. Effective treatment of rosacea using intense pulsed light systems. Dermatol. Surg. 2005, 31, 1285–1289. [Google Scholar] [CrossRef] [PubMed]
  46. De Godoy, C.H.; Silva, P.F.; de Araujo, D.S.; Motta, L.J.; Biasotto-Gonzalez, D.A.; Politti, F.; Mesquita-Ferrari, R.A.; Fernandes, K.P.; Albertini, R.; Bussadori, S.K. Evaluation of effect of low-level laser therapy on adolescents with temporomandibular disorder: Study protocol for a randomized controlled trial. Trials 2013, 14, 229. [Google Scholar] [CrossRef] [Green Version]
  47. Farrell, H.P.; Garvey, M.; Cormican, M.; Laffey, J.G.; Rowan, N.J. Investigation of critical inter-related factors affecting the efficacy of pulsed light for inactivating clinically relevant bacterial pathogens. J. Appl. Microbiol. 2010, 108, 1494–1508. [Google Scholar] [CrossRef] [PubMed]
  48. Rong, B.; Tang, Y.; Tu, P.; Liu, R.; Qiao, J.; Song, W.; Toyos, R.; Yan, X. Intense Pulsed Light Applied Directly on Eyelids Combined with Meibomian Gland Expression to Treat Meibomian Gland Dysfunction. Photomed. Laser Surg. 2018, 36, 326–332. [Google Scholar] [CrossRef]
  49. Choi, M.; Han, S.J.; Ji, Y.W.; Choi, Y.J.; Jun, I.; Alotaibi, M.H.; Ko, B.Y.; Kim, E.K.; Kim, T.I.; Nam, S.M.; et al. Meibum Expressibility Improvement as a Therapeutic Target of Intense Pulsed Light Treatment in Meibomian Gland Dysfunction and Its Association with Tear Inflammatory Cytokines. Sci. Rep. 2019, 9, 7648. [Google Scholar] [CrossRef]
  50. Wang, Y.; Qin, Q.; Liu, B.; Fu, Y.; Lin, L.; Huang, X.; Jin, X. Clinical Analysis: Aqueous-Deficient and Meibomian Gland Dysfunction in Patients With Primary Sjogren’s Syndrome. Front. Med. 2019, 6, 291. [Google Scholar] [CrossRef] [PubMed]
Jcm 09 03467 g001 550
Figure 1. Representative case of a 72-year-old woman treated with intense pulsed light-meibomian gland expression. Slitlamp images of fluorescein staining of the left eye obtained before (a) and 3 months after completion of (b) treatment showed amelioration of central corneal epitheliopathy. The logMAR visual acuity also improved from 0.15 to 0.09 in association with improvement in the lipid layer of the tear film, whereas tear meniscus height was unchanged.
Figure 1. Representative case of a 72-year-old woman treated with intense pulsed light-meibomian gland expression. Slitlamp images of fluorescein staining of the left eye obtained before (a) and 3 months after completion of (b) treatment showed amelioration of central corneal epitheliopathy. The logMAR visual acuity also improved from 0.15 to 0.09 in association with improvement in the lipid layer of the tear film, whereas tear meniscus height was unchanged.
Jcm 09 03467 g001
Jcm 09 03467 g002 550

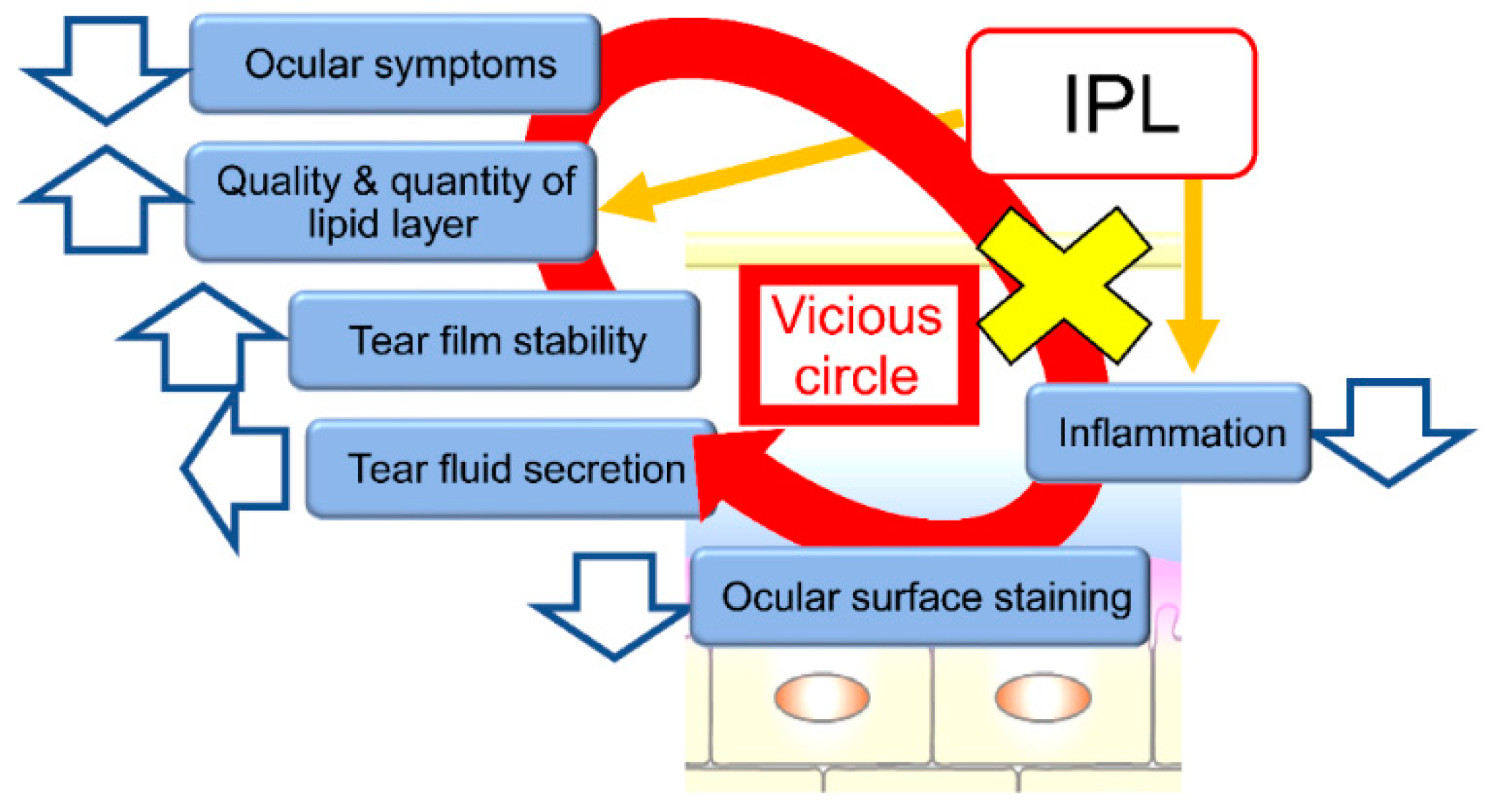

Figure 2. Proposed mechanism of action of IPL therapy on the vicious cycle of dry eye. IPL increases the quality and quantity of the lipid layer of the tear film as well as reduces inflammation of the ocular surface and lid margin. These effects result in amelioration of ocular surface epitheliopathy (ocular surface staining) and an increase in tear film stability, followed by improvement of ocular symptoms without any change in tear fluid secretion. IPL can block the vicious cycle (yellow x) underlying the pathophysiology of dry eye. IPL, Intense pulsed light.
Figure 2. Proposed mechanism of action of IPL therapy on the vicious cycle of dry eye. IPL increases the quality and quantity of the lipid layer of the tear film as well as reduces inflammation of the ocular surface and lid margin. These effects result in amelioration of ocular surface epitheliopathy (ocular surface staining) and an increase in tear film stability, followed by improvement of ocular symptoms without any change in tear fluid secretion. IPL can block the vicious cycle (yellow x) underlying the pathophysiology of dry eye. IPL, Intense pulsed light.
Jcm 09 03467 g002
Table
Table 1. Characteristics of the study subjects with aqueous-deficient dry eye (ADDE) and mild meibomian gland dysfunction in the intense pulsed light (IPL)-meibomian gland expression (MGX) and MGX (control) groups.
Table 1. Characteristics of the study subjects with aqueous-deficient dry eye (ADDE) and mild meibomian gland dysfunction in the intense pulsed light (IPL)-meibomian gland expression (MGX) and MGX (control) groups.
CharacteristicControl (MGX) Group
(n = 20 Subjects, 40 Eyes)		IPL-MGX Group
(n = 23 Subjects, 46 Eyes)		p
Age (years), mean ± SD (range)61.4 ± 15.1 (31–78)59.0 ± 15.0 (43–84)0.64
Sex (male/female)7/139/140.78
Duration of ADDE (years),
mean ± SD (range)		8.8 ± 5.1 (2–20)8.1 ± 6.7 (2–24)0.60
History of contact lens wear22 eyes of 11 patients24 eyes of 12 patients0.85
(55.0%)(52.2%)
Previous ocular surgery24 eyes of 12 patients18 eyes of 9 patients0.17
(60.0%)(39.1%)
Sjögren syndrome6 patients7 patients1
(30.0%)(30.4%)
Rheumatoid arthritis2 patients2 patients1
(10.0%)(8.7%)
p values were determined with Mann–Whitney U test (displayed in gray) or Fisher’s exact test. SD, standard deviations.
Table
Table 2. Previous therapies for the study patients in the intense pulsed light (IPL)-meibomian gland expression (MGX) and MGX (control) groups.
Table 2. Previous therapies for the study patients in the intense pulsed light (IPL)-meibomian gland expression (MGX) and MGX (control) groups.
TherapyNo. (%) of Patients
Control Group
(n = 20)		IPL-MGX Group
(n = 23)
Diquafosol eyedrops19 (95.0)22 (95.7)
Topical steroids10 (50.0)21 (91.3)
Rebamipide eyedrops9 (45.0)15 (65.2)
Hyaluronic acid eyedrops8 (40.0)18 (78.3)
Punctal plugs8 (40.0)16 (69.6)
Preservative-free artificial tears8 (40.0)10 (43.5)
Omega-3 fatty acid supplementation3 (15.0)6 (26.1)
Table
Table 3. Characteristics of the study subjects with aqueous-deficient dry eye and mild meibomian gland dysfunction in intense pulsed light (IPL)-meibomian gland expression (MGX) and MGX (control) groups before as well as 1 and 3 months after the final treatment session.
Table 3. Characteristics of the study subjects with aqueous-deficient dry eye and mild meibomian gland dysfunction in intense pulsed light (IPL)-meibomian gland expression (MGX) and MGX (control) groups before as well as 1 and 3 months after the final treatment session.
CharacteristicGroupBaseline1 Month after the Final Treatment Session3 Months after the Final Treatment Session
Mean ± SDAdjusted p Value for IPL-MGX vs. ControlMean ± SDMean Change ± SEAdjusted p Value vs. BaselineAdjusted p Value for
IPL-MGX vs. Control		Mean ± SDMean Change ± SEAdjusted p Value vs. BaselineAdjusted p Value for IPL-MGX vs. Control
SPEED scoreControl14.2 ± 4.60.5310.1 ± 3.9−4.2 ± 0.6<0.001 **0.003 *10.4 ± 4.1−3.8 ± 0.6<0.001 **<0.001 **
(0–28)IPL-MGX15.9 ± 4.26.0 ± 4.6−9.9 ± 0.7<0.001 **4.2 ± 3.9−11.7 ± 0.9<0.001 **
LLTControl63.1 ± 16.20.7256.1 ± 11.2−7.0 ± 2.60.055<0.001 **57.9 ± 11.8−5.2 ± 2.70.14<0.001 **
(nm)IPL-MGX66.6 ± 24.178.6 ± 21.514.7 ± 3.2<0.001 **84.2 ± 20.618.3 ± 2.9<0.001 **
PluggingControl1.0 ± 0.20.880.8 ± 0.4−0.3 ± 0.10.002 *<0.001 **1.1 ± 0.30.1 ± 0.10.37<0.001 **
(0–3)IPL-MGX1.0 ± 0.00.3 ± 0.4−0.7 ± 0.1<0.001 **0.3 ± 0.5−0.7 ± 0.1<0.001 **
VascularityControl1.7 ± 0.60.851.7 ± 0.60.0 ± 0.01<0.001 **1.7 ± 0.60.0 ± 0.01<0.001 **
(0–3)IPL-MGX1.9 ± 0.80.8 ± 0.7−1.1 ± 0.1<0.001 **0.9 ± 0.7−1.0 ± 0.1<0.001 **
MeiboscoreControl1.7 ± 0.60.691.7 ± 0.60.0 ± 0.010.321.7 ± 0.60.0 ± 0.010.69
(0–6)IPL-MGX1.5 ± 1.01.5 ± 1.0−0.1 ± 0.00.0881.5 ± 1.00.0 ± 0.01
Meibum gradeControl2.0 ± 0.011.6 ± 0.5−0.4 ± 0.1<0.001 **<0.001 **1.9 ± 0.4−0.2 ± 0.10.025 *<0.001 **
(0–3)IPL-MGX2.0 ± 0.00.5 ± 0.6−1.5 ± 0.1<0.001 **0.4 ± 0.6−1.6 ± 0.1<0.001 **
NIBUTControl2.2 ± 1.113.6 ± 1.61.4 ± 0.2<0.001 **0.002 *2.4 ± 1.20.2 ± 0.10.22<0.001 **
(s)IPL-MGX2.1 ± 1.35.3 ± 2.23.2 ± 0.3<0.001 **5.5 ± 2.03.4 ± 0.3<0.001 **
FBUTControl2.4 ± 1.10.843.4 ± 1.51.1 ± 0.2<0.001 **0.001 *2.5 ± 1.30.1 ± 0.10.17<0.001 **
(s)IPL-MGX2.2 ± 1.35.2 ± 2.03.0 ± 0.4<0.001 **5.4 ± 2.13.2 ± 0.4<0.001 **
Fluo scoreControl3.2 ± 0.80.752.7 ± 0.9−0.5 ± 0.1<0.001 **<0.001 **2.9 ± 0.9−0.3 ± 0.1<0.001 **<0.001 **
(0–9)IPL-MGX3.4 ± 2.20.5 ± 0.9−3.0 ± 0.3<0.001 **0.3 ± 0.6−3.1 ± 0.3<0.001 **
Schirmer’s test valueControl2.4 ± 1.512.4 ± 1.50.0 ± 0.2112.5 ± 1.40.1 ± 0.110.89
(mm)IPL-MGX2.3 ± 1.52.2 ± 1.4−0.1 ± 0.212.2 ± 1.4−0.1 ± 0.10.84
SPEED score: control group (n = 20); IPL-MGX group (n = 23). Other characteristics: control group (n = 40 eyes); IPL-MGX group (n = 46 eyes). p values were determined with the Wilcoxon signed-rank test vs. baseline or Mann–Whitney U test vs. control with Bonferroni’s correction (* adjusted p < 0.05, ** adjusted p < 0.001). SPEED, standard patient evaluation of eye dryness; LLT, lipid layer thickness; NIBUT, noninvasive breakup time; FUBT, fluorescein breakup time; Fluo, fluorescein staining; SE, standard errors; SD, standard deviations.
Table
Table 4. Lipid layer grade and tear meniscus height (TMH) of the study subjects with aqueous-deficient dry eye and mild meibomian gland dysfunction in the intense pulsed light (IPL)—meibomian gland expression (MGX) group (n = 46 eyes) and MGX (control) group (n = 40 eyes) at baseline as well as 1 and 3 months after the treatment completion.
Table 4. Lipid layer grade and tear meniscus height (TMH) of the study subjects with aqueous-deficient dry eye and mild meibomian gland dysfunction in the intense pulsed light (IPL)—meibomian gland expression (MGX) group (n = 46 eyes) and MGX (control) group (n = 40 eyes) at baseline as well as 1 and 3 months after the treatment completion.
CharacteristicGroupBaseline1 Month after the Final Treatment Session3 Months after the Final Treatment Session
No. (%) of EyesAdjusted p Value for IPL-MGX vs. ControlNo. (%) of EyesAdjusted p Value vs. BaselineAdjusted p Value for IPL-MGX vs. ControlNo. (%) of EyesAdjusted p Value vs. BaselineAdjusted p Value for IPL-MGX vs. Control
Interferometric patternJupiter-likeControl40 (100.0%)128 (70.0%)<0.001 **0.016 *38 (95.0%)<0.001 **0.003 *
Pearl-like0 (0.0%)12 (30.0%)2 (5.0%)
Crystal-like0 (0.0%)0 (0.0%)0 (0.0%)
Jupiter-likeIPL-MGX46 (100.0%)18 (39.1%)<0.001 **30 (65.2%)<0.001 **
Pearl-like0 (0.0%)28 (60.9%)16 (34.8%)
Crystal-like0 (0.0%)0 (0.0%)0 (0.0%)
TMHLowControl40 (100%)140 (100%)1140 (100%)11
Normal0 (0.0%)0 (0.0%)0 (0.0%)
High 0 (0.0%)0 (0.0%)0 (0.0%)
LowIPL-MGX46 (100.0%)46 (100.0%)146 (100.0%)1
Normal0 (0.0%)0 (0.0%)0 (0.0%)
High0 (0.0%)0 (0.0%) 0 (0.0%)
p values were determined with the chi-square test vs. baseline and Fisher’s exact test vs. control with Bonferroni’s correction (* adjusted p < 0.05, ** adjusted p < 0.001).
Table
Table 5. Logarithm of the minimum angle of resolution (logMAR) visual acuity of the study subjects with or without central corneal epitheliopathy (CCE) in the intense pulsed light (IPL)—meibomian gland expression (MGX) group (n = 12 and 32, respectively) and MGX (control) group (n = 11 and 29, respectively) at baseline as well as 1 and 3 months after the final treatment session.
Table 5. Logarithm of the minimum angle of resolution (logMAR) visual acuity of the study subjects with or without central corneal epitheliopathy (CCE) in the intense pulsed light (IPL)—meibomian gland expression (MGX) group (n = 12 and 32, respectively) and MGX (control) group (n = 11 and 29, respectively) at baseline as well as 1 and 3 months after the final treatment session.
GroupBaseline1 Month after the Final Treatment Session3 Months after the Final Treatment Session
Mean ± SDAdjusted p Value for IPL-MGX vs. ControlMean ± SDMean Change ± SEAdjusted p Value vs. BaselineAdjusted p Value for IPL-MGX vs. ControlMean ± SDMean Change ± SEAdjusted p Value vs. BaselineAdjusted p Value for IPL-MGX vs. Control
TotalControl0.23 ± 0.2210.23 ± 0.220.00 ± 0.00110.23 ± 0.220.01 ± 0.010.81
IPL-MGX0.22 ± 0.210.20 ± 0.21−0.02 ± 0.01<0.001 **0.20 ± 0.21−0.02 ± 0.010.003 *
Without CCEControl0.20 ± 0.2410.19 ± 0.24−0.01 ± 0.000.6210.20 ± 0.230.00 ± 0.0111
IPL-MGX0.23 ± 0.220.22 ± 0.23−0.01 ± 0.000.0890.22 ± 0.22−0.01 ± 0.010.34
With CCEControl0.31 ± 0.140.260.31 ± 0.130.01 ± 0.0110.036 *0.32 ± 0.150.01 ± 0.0210.030 *
IPL-MGX0.19 ± 0.170.14 ± 0.16−0.05 ± 0.010.016 *0.14 ± 0.14−0.05 ± 0.010.016 *
p values were determined with the Wilcoxon signed-rank test vs. baseline or Mann–Whitney U test vs. control with Bonferroni’s correction (* adjusted p < 0.05, ** adjusted p < 0.001). SE; standard errors, SD; standard deviations.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arita, R.; Fukuoka, S.; Mizoguchi, T.; Morishige, N. Multicenter Study of Intense Pulsed Light for Patients with Refractory Aqueous-Deficient Dry Eye Accompanied by Mild Meibomian Gland Dysfunction. J. Clin. Med. 2020, 9, 3467. https://doi.org/10.3390/jcm9113467

AMA Style

Arita R, Fukuoka S, Mizoguchi T, Morishige N. Multicenter Study of Intense Pulsed Light for Patients with Refractory Aqueous-Deficient Dry Eye Accompanied by Mild Meibomian Gland Dysfunction. Journal of Clinical Medicine. 2020; 9(11):3467. https://doi.org/10.3390/jcm9113467

Chicago/Turabian Style

Arita, Reiko, Shima Fukuoka, Takanori Mizoguchi, and Naoyuki Morishige. 2020. "Multicenter Study of Intense Pulsed Light for Patients with Refractory Aqueous-Deficient Dry Eye Accompanied by Mild Meibomian Gland Dysfunction" Journal of Clinical Medicine 9, no. 11: 3467. https://doi.org/10.3390/jcm9113467

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
