1. Introduction
Analysis of radiative properties plays a key role in advancing high-density matter research and it is quantitative spectroscopy that has considerably progressed the field [
1,
2,
3,
4,
5,
6,
7,
8], including dense plasma effects on atomic structure and elementary processes [
5,
6,
9,
10,
11]. The fundamental quantities are the atomic populations that have to be obtained from population kinetics, taking into account all relevant collisional-radiative processes. Traditional spectroscopy is based on the analysis of resonance line emissions [
1,
2] that originate from single excited states. Autoionizing states, however, are multiple-excited states from which the so-called dielectronic satellite emission originates. This emission is of particular interest for the advanced analyses (supra-thermal electrons, transient matter evolution, spatial non-homogeneity, opacity, and radiation field) of radiative properties [
6].
For autoionizing states, the atomic population kinetic collisional-radiative approach becomes readily extremely complex because of the large number of atomic levels involved, even for rather simple configurations. The concept of validity criteria for local thermodynamic equilibrium (LTE) is therefore of great importance. Although well established for non-autoionizing states [
1], the complexity of multiple-excited core hole atomic states does not allow for the development of simple and general criteria.
It is the purpose of the present article to analyze the possible pathways to the local thermodynamic equilibrium of autoionizing states and shed more light on LTE validity criteria and their use in estimating critical densities.
2. Criteria for Local Thermodynamic Equilibrium
The spectral distribution of local plasma emission is given by:
where
is the spectral distribution originating from charge state
,
and
are the atomic levels in the various charge states
(
is the nuclear charge),
is the spontaneous transition probability,
is the transition angular frequency,
is the line profile, and
is the atomic/ionic population density.
One of the most powerful methods for determining atomic/ionic populations is the concept of local thermodynamic equilibrium. When the LTE holds true, the atomic population density is given by:
where
is the statistical weight of level
,
is the partition function,
is the energy of the state
, and
is the electron temperature. When Equation (2) holds true, the complex task for calculating
is circumvented. The application of Equation (2) to all atomic/ionic states considerably simplifies the determination of atomic populations. In fact, Equation (2) would also concern ground states and all charge states that would then necessarily be connected by the well-known Saha-relation. The related critical density may easily exceed the solid density (in particular for highly charged ions) and is therefore of little practical interest.
More appropriate is the application of Equation (2) just to autoionizing states of certain configurations, thereby still permitting a large reduction in numerical burden while conserving the possibility of following transient plasma evolution and non-LTE population for resonance line emission [
12]. If
characterizes the autoionizing bound state manifold of interest, Equation (2) would be applied only to levels
. For practical application, these manifolds may be defined to include states with the same principal quantum numbers, but different angular-momentum combinations, e.g.,
.
For non-autoionizing single excited states, Griem [
1,
2] provided a general criterion comparing the relative importance of the spontaneous radiative decay rate
and the electron collisional depopulation rate
. The LTE is achieved when collisions are much more important than radiative decay, i.e.,
Generalizing this expression to arbitrary excited states with a principle quantum number
permits a closed expression for the critical density of H-like ions, where radiative decay is dominated by transitions to the ground state [
6]:
where
is the critical electron density above which LTE holds for states with a principal quantum number larger than
,
and
is the ionic charge. Equation (4) is a criterion for partial local thermodynamic equilibrium PLTE, i.e., a Boltzmann population for levels with quantum numbers larger than
.
The generalization of Equation (3) for autoionizing states requests the introduction of the autoionization rate
(that can even be larger than corresponding radiative decay rates).
Figure 1a schematically visualizes the introduction of the autoionization rate on the same footing as Equation (3): Collisional depopulation rates have to exceed the decay given by radiative (
) and non-radiative transitions (
). Instead of Equation (3), we obtain:
We note that Equation (5) does not readily lead to a modification of Equation (4), because, for autoionization rates, there are no simple scaling laws available.
Let us therefore illustrate Equation (5) with a numerical example of the autoionizing manifold
of aluminum.

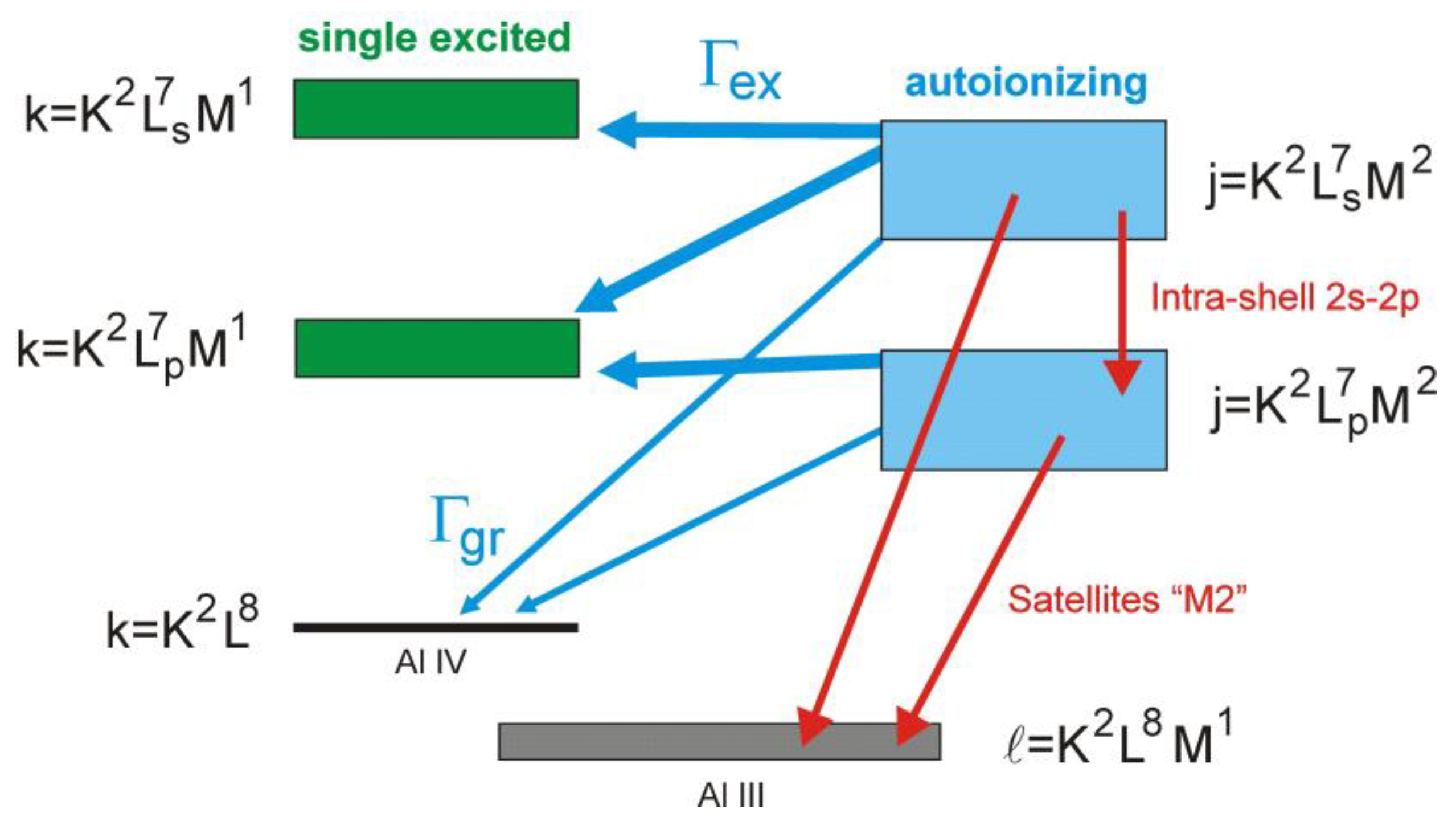

Figure 2 shows the corresponding level structure and relevant transitions.
Figure 3 shows the spectral distribution of the dielectronic satellite transitions that involve three different types of transition:
As demonstrated by
Figure 3, transitions (6a) are essentially located around 14 nm, transitions (6b) are around 17 nm, and intra-shell transitions are near 26 nm. Spectral distributions are calculated according Equation (1), while population densities are calculated from collisional-radiative population kinetics (taking into account all LSJ-split autoionizing and non-autoionizing levels of Al III).
Figure 3 also shows that the spectral distribution approaches the LTE distribution (indicated in the figure as the “Boltzmann limit”) at electron densities of about 10
24–10
25 cm
−3.
Employing the FAC atomic structure code [
13], we obtain the following averaged quantities relevant for Equation (5):
,
, and
, from which it follows
. This estimate seems to be in agreement with the simulations presented in
Figure 3 for the various electron densities: the spectral distribution calculated for
is rather close to the Boltzmann limit, while the distribution calculated for
is quite far from the LTE case (see in particular the large deviations around 26 nm).
The critical electron density according Equation (5) is therefore much larger than solid density, and the LTE assumption would not be satisfied for the overwhelming number of experimental cases. This conclusion would be a general one, because autoionization rates are typically of the order of and do not strongly depend on charge . In fact, in the simple H-like model, the autoionization rate is even independent of , i.e., . Therefore, large critical densities are also related to low-charged ions, while in the standard case of single excited states (Equation (3)), the strong scaling of the radiative decay rate with charge, i.e., , implies that critical densities considerably decrease for a low ion charge (Equation (4)).
3. Thermalization of Autoionizing States
The underlying assumptions of Equations (3) and (5) are readily identified comparing the schematic diagrams of
Figure 1a,b. The bunch of autoionizing levels “j” is indicated by a single black horizontal line “Upper levels” in
Figure 1a,b.
Figure 1c visualizes the detailed LSJ-split-level structure for all autoionizing levels “j” and the collisional redistribution (indicated by the collisional rate coefficients
) between these levels.
Figure 1a shows a single-channel approach: only depopulation rates are considered while the collisional rates are compared with all other processes to obtain relations (3) and (5).
Figure 1b is conceptually different. The multi-channel approach considers depopulation and population. This allows for the possibility that the population flow (indicated by “DC” in
Figure 1b) contributes to thermalization, thereby reducing the “work load” of collisions (indicated with “C” in
Figure 1b,c), which implies a reduction in the critical density. Likewise, it may allow for the possibility that this population flow works against thermalization, implying an increase in the critical density.
Below it will be demonstrated that the inclusion of the multi-channel “DC” can result only in a reduction in the critical density.
3.1. Multi-Channel Approach
In order to study the impact of multi-channels on critical densities in analytical form, we consider quasi-stationary population kinetics related to the autoionizing manifold
for one level “
l” and one level “
k” (see
Figure 2):
For our cases of interest, the autoionization rate
is much higher than the radiative
and collisional
ones, and dielectronic capture dominates over inner-shell excitation. Equation (7) then simplifies to:
The dielectronic capture (inverse process of autoionization) rate coefficient
is given by:
where
is the (positive) capture energy (capture from state “
k” to the autoionizing level “
j”),
is the electron mass, and
and
are the statistical weights. Let us now consider a couple of levels
and
and form the ratio of Equations (8) and (9):
The levels “
k” are single excited levels where the standard thermalization criteria (2) with corresponding relatively low critical densities apply. E.g., for the present example of the manifold
, the critical densities for the levels “
k” (see also
Figure 2) are several orders of magnitude lower than those provided by Equation (5) for the autoionizing levels “
j”. Let us therefore assume that levels “
k” are populated essentially according Boltzmann, i.e.,
Inserting (11) into (10) results in:
from which it follows:
Equation (13) means that thermalization between the autoionizing levels has occurred. The important difference of Equation (13) as derived from Equations (7)
–(12) rather than derived directly from Criteria (5) is that only critical densities that are related to the “k-levels” are involved rather than to the autoionizing levels “
j” themselves. This results in critical densities that are smaller by orders of magnitude, as visualized in
Figure 4.
According to Equations (7)–(13), the thermalization of the autoionizing levels is achieved without involving collisions between the autoionizing levels themselves. This is conceptually different from the standard criteria (2) or (5). The key question is now: Does Equation (8) relate to cases of practical interest? It will be shown below that this is really the case and in particular holds true if capture to excited states exists.
3.2. Boltzmann-like Population Flow Driven by Inverse Autoionization
Physically, the multi-channel approach (
Figure 1b) acts with the population flow “DC” (see
Figure 1b) into autoionizing levels like a “Boltzmann flow” into the autoionizing manifold, while the Boltzmann-like feature is established by collisions between the capture states “
k” rather than by collisions between the autoionizing states “j”.
The necessary conditions to apply Equation (13) are related to the transition from Equation (7) into Equation (8), i.e., that almost all autoionizing rates are dominating for the autoionizing manifold. In order to study this condition in detail, we performed Multi-Configuration-Dirac-Fock atomic structure calculations, including intermediate coupling and configuration interaction with the FAC code to obtain the autoionization and radiative decay rates for all LSJ-split levels.
Interference effects between autoionization and radiative decay [
14] are not included. These effects are of particular importance for energy resolved studies on autoionization. This is not the case in plasmas, where the frequent collisions between continuum electrons result in a very broad energy distribution function. Consequently, only the integral over the resonance function is of importance. E.g., if radiative decay rates are about a factor of two larger than autoionization rates (a typical case for highly charged iron), the interference calculations differ only slightly from standard ones [
15]. In the case where radiative decay is dominating (typically the case for highly charged Xenon), the resonance case may differ considerably between the two types of calculations, but, as in the case of iron, the total integrals differ again much less dramatically.
Moreover, as interference effects are of importance for the total rates of autoionization and radiative decay if the radiation decay rate is much larger than the autoionization rate, a relevant “interference case” does not really correspond to the present multi-channel approach that requests autoionization rates much larger than radiative decay rates.

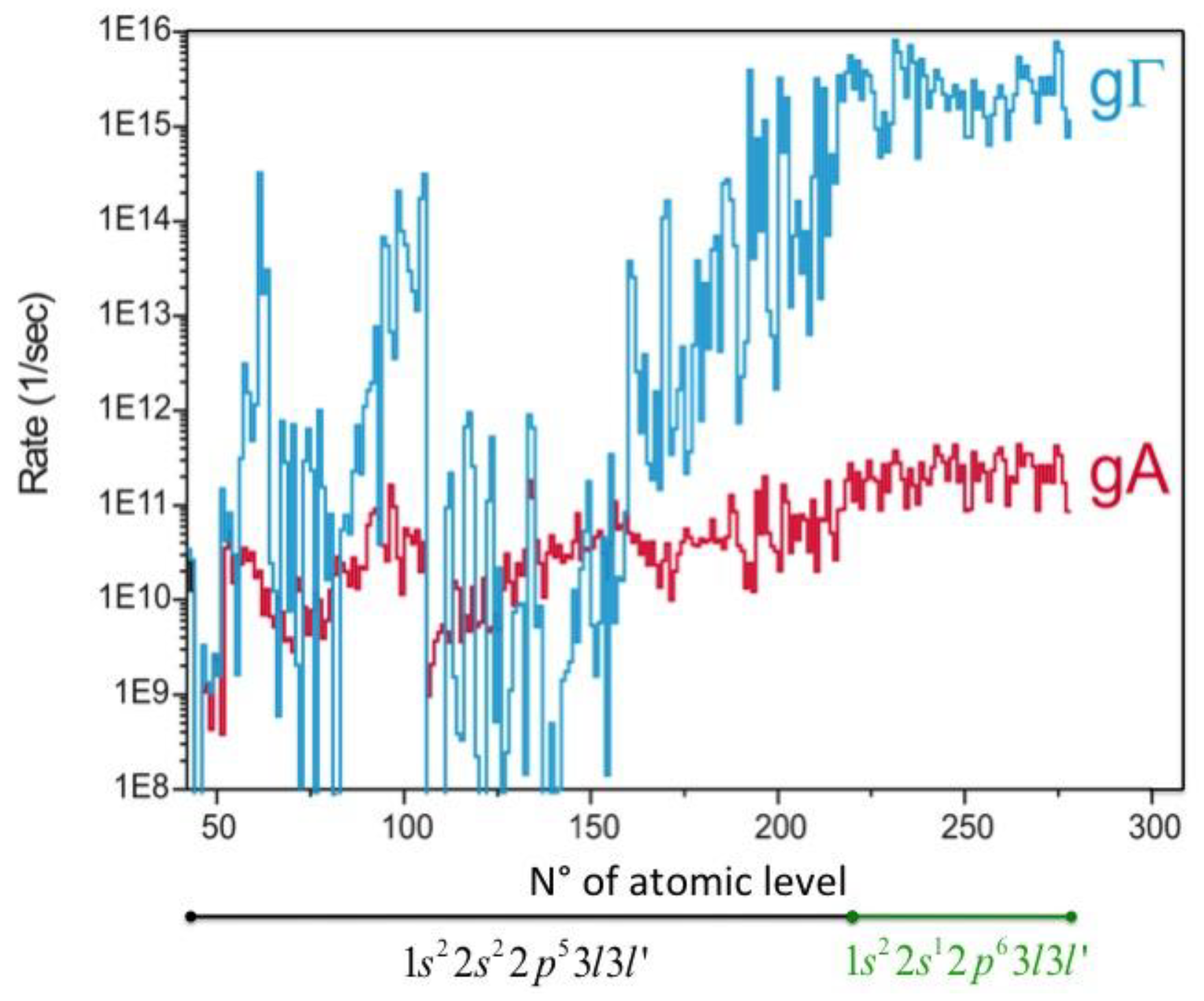

Figure 5 shows the distribution of the autoionization and radiative decay rates for all levels of the autoionizing manifold (indicated by level numbers 42–278), while
Table 1 summarizes the averaged data. Three important observations can be drawn from
Figure 5 and
Table 1: first, autoionizing rates are, by many orders of magnitude, larger than radiative decay rates, second, large autoionization rates are distributed rather smoothly over all autoionizing levels
, and third, autoionization to excited states is 1–2 orders more important than to the ground state. These properties assure a rather homogenous Boltzmann-like flow all over all autoionizing levels “
j” driven from the levels “
k”.
From the atomic structure point of view, the rather homogenous distribution of radiative decay and autoionization rates is a consequence of the multi-electron open shell configurations, where configuration interaction and electron–electron interaction are important. Therefore, the “atomic structure complexity” of the autoionizing manifold facilitates thermalization.
3.3. Numerical Calculations
In order to validate the analytical estimates, we present below detailed numerical calculations. For this purpose, we established a multi-level multi-ion charge state system of atomic population kinetic equations to calculate the level populations
for the ground, single, and multiple-excited states for various charge states. The collisional-radiative processes include all radiative electric dipole transitions, autoionization to ground and single-excited states, dielectronic capture form ground and single-excited states, collisional excitation and de-excitation, ionization, three-body recombination, and radiative recombination in an LSJ-split level structure. Atomic structure, levels, and rate coefficients were obtained from the FAC code, taking into account configuration interaction and intermediate coupling. The selected plasma parameters are relevant to an XUV-FEL experiment, where the focused beam was brought to interact with solid aluminum [
16].
Figure 6 shows the spectral distribution of the relevant satellite emissions for k
BT
e = 25 eV and various electron densities; the Boltzmann limit is indicated by the dashed black curve. It is observed that for electron densities n
e = 10
20 cm
−3, the spectral distribution is close to LTE and, at n
e = 10
21 cm
−3, the distribution is almost identical to the LTE case. This indicates that the Boltzmann flow from the single-excited states
is so effective that the critical electron density
above which the LTE holds is decreased by almost four orders of magnitude (compared to
Figure 3 that does not include the capture channel from the levels k).
The contribution of the Boltzmann flow from the levels “k” to the autoionizing manifold depends on the absolute population of these levels, being strongly dependent on the ionic charge state distribution. The charge state distribution does not only depend on temperature and density, but on the transient evolution too.
3.4. Transient Plasma Evolution
Let us characterize the transient plasma evolution by the ground state population ratio of Al IV and Al III via the parameter
.
Figure 7 shows simulations that cover two orders of magnitude different r-values and one order of magnitude in temperature (and is therefore relevant to almost all experimental conditions). It can directly be seen that, for all cases, the exact simulations carried out for n
e = 10
22 cm
−3 are almost identical to the LTE case. This means that, for almost all cases of practical interest, the critical electron density above which LTE holds is lower by two…three orders of magnitude compared to the case depicted in
Figure 3.
In view of this analysis, the criterion (5) is identified as a theoretical limiting case, where the charge state that corresponds to levels “k” has vanishing population: if the charge state of the autoionizing manifold is with a population , then the charge state of levels “k” is and a vanishing population then means .
5. Conclusions
We considered pathways to Local Thermodynamic Equilibrium (LTE) in atomic physics for autoionizing states. The standard criterion where collisional rates have to exceed considerably radiative ones in order to determine the critical densities (above which atomic levels are populated according Boltzmann) was extended to autoionizing states. It was demonstrated that the extended criterion provided densities exceed considerably exceeded solid densities for many cases of practical interest . This held true in particular for complex autoionizing manifolds that decayed not only to the ground state, but to excited states too . Also, for low-charged ions, huge critical densities were predicted, as dominating autoionizing rates were rather independent of the ion charge.
We introduced a new criterion, where the critical density was given by the criterion related to the capture states “k” rather than to the autoionizing levels “j” themselves (supplemented by the conditions and that dielectronic capture dominated over inner-shell excitation). Detailed considerations were carried out for the autoionizing manifold K2L7M2 of low-charged Al III. While the standard criterion provides critical densities of about 1024 cm−3, the new criterion provides only 1021 cm−3, being in excellent agreement with the numerical calculations.
