Review

Immunoglobulin Isotypes in Atlantic Salmon, Salmo Salar

by
Ivar Hordvik
Department of Biology (BIO), High Technology Center, University of Bergen, Bergen N-5020, Norway
Biomolecules 2015, 5(1), 166-177; https://doi.org/10.3390/biom5010166
Submission received: 10 November 2014 / Revised: 10 February 2015 / Accepted: 22 February 2015 / Published: 27 February 2015
(This article belongs to the Special Issue Immunoglobulin)
Browse Figures
Versions Notes

Abstract

:
There are three major immunoglobulin (Ig) isotypes in salmonid fish: IgM, IgD and IgT, defined by the heavy chains μ, δ and τ, respectively. As a result of whole genome duplication in the ancestor of the salmonid fish family, Atlantic salmon (Salmo salar) possess two highly similar Ig heavy chain gene complexes (A and B), comprising two μ genes, two δ genes, three intact τ genes and five τ pseudogenes. The μA and μB genes correspond to two distinct sub-populations of serum IgM. The IgM-B sub-variant has a characteristic extra cysteine near the C-terminal part of the heavy chain and exhibits a higher degree of polymer disulfide cross-linking compared to IgM-A. The IgM-B:IgM-A ratio in serum is typically 60:40, but skewed ratios are also observed. The IgT isotype appears to be specialized to mucosal immune responses in salmonid fish. The concentration of IgT in serum is 100 to 1000 times lower than IgM. Secreted forms of IgD have been detected in rainbow trout, but not yet in Atlantic salmon.

1. Introduction

There are three major types of immunoglobulins in teleost fish: IgM, IgD and IgT/IgZ, the latter of which is unique for teleost fish [1]. The orthologous molecules in trout and zebrafish were published at the same time and named IgT and IgZ, respectively [2,3]; therefore the introduction of two different names. The monomer unit of each Ig type in teleost fish consists of two identical heavy chains and two identical light chains. Four types of Ig light chains have been characterized in teleost fish [1]. The isotype classification: IgM, IgD and IgT, is determined by the heavy chain of the molecule: μ, δ and τ, respectively.
The IgM monomer has been relatively stable and maintained the primordial structure in all jawed vertebrates, but the primary amino acid sequence and the overall polymer structure has diverged considerably (Figure 1). The IgD molecule has been evolutionarily labile and has been subjected to many internal duplications and deletions [1]. Several mRNA splice variants of teleost δ have also been identified [4,5]. The ancestral δ gene arose very early in evolution and is orthologous to ω in elasmobranch fish [6]. The IgT/IgZ heavy chain in trout, salmon and zebrafish has four constant domains like IgM, but the number of τ domains varies among other teleosts [1].
Biomolecules 05 00166 g001 1024

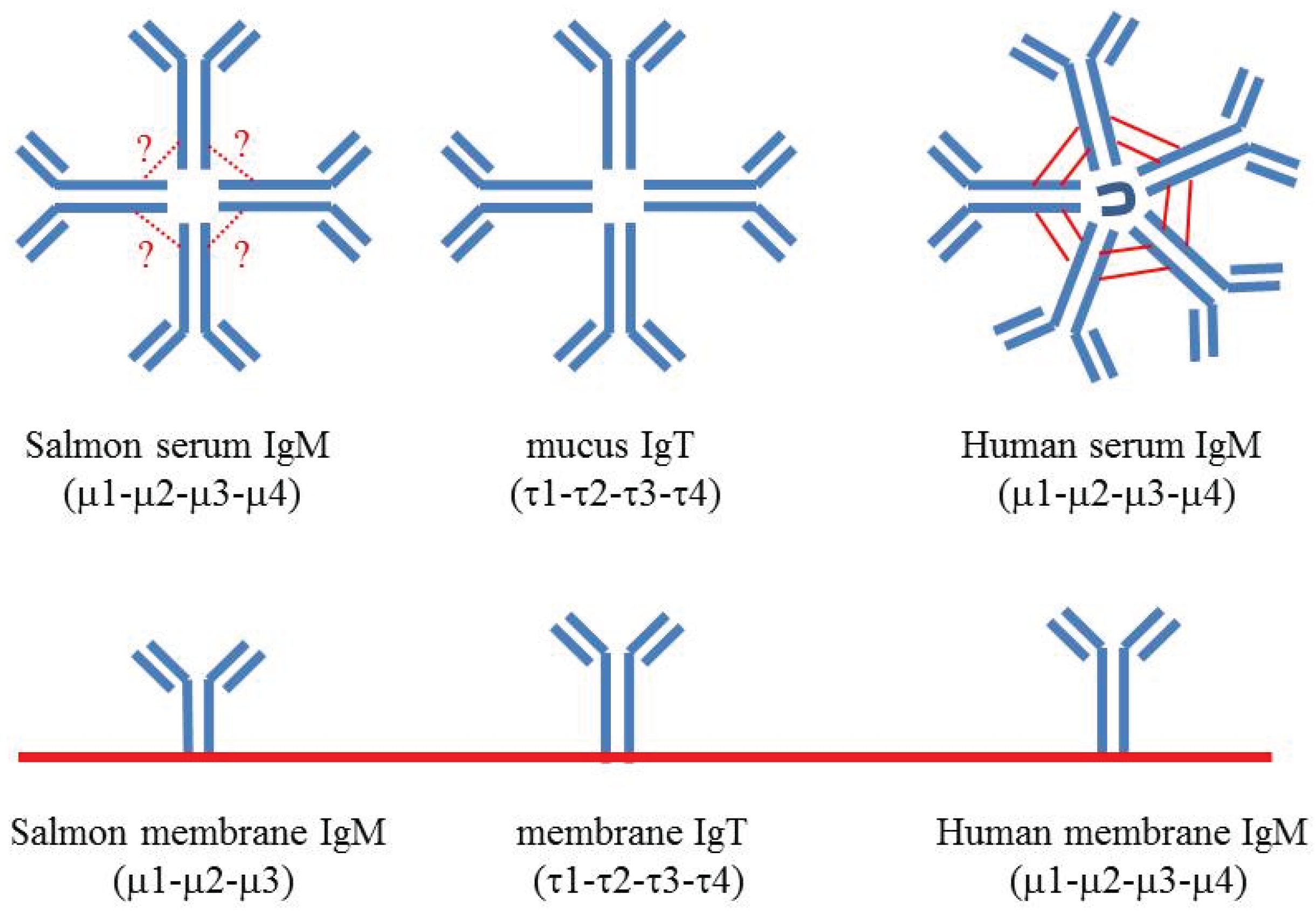

Figure 1. Schematic overview of secreted and membrane anchored IgM and IgT of salmonid fish, compared with human IgM. Serum IgM is a tetramer in teleosts. In contrast to the IgM pentamer in mammals, the monomer units in teleost IgM are loosely linked by disulfide bonding, and the J chain is lacking. Membrane anchored IgM in teleosts is one domain shorter than in mammals as a result of a special splicing pattern which excludes the entire fourth constant domain. Salmonid IgT appears to be non-covalently bonded tetramers in mucus. The similarity between the first constant domains of IgM and IgT is relatively high (52%) in Atlantic salmon, whereas the remaining domains of the heavy chains are only 13%–24% similar [7].
Figure 1. Schematic overview of secreted and membrane anchored IgM and IgT of salmonid fish, compared with human IgM. Serum IgM is a tetramer in teleosts. In contrast to the IgM pentamer in mammals, the monomer units in teleost IgM are loosely linked by disulfide bonding, and the J chain is lacking. Membrane anchored IgM in teleosts is one domain shorter than in mammals as a result of a special splicing pattern which excludes the entire fourth constant domain. Salmonid IgT appears to be non-covalently bonded tetramers in mucus. The similarity between the first constant domains of IgM and IgT is relatively high (52%) in Atlantic salmon, whereas the remaining domains of the heavy chains are only 13%–24% similar [7].
Biomolecules 05 00166 g001
The major systemic antibody in teleost fish is IgM, whereas IgT (at least in salmonid fish) is specialized to mucosal immune responses [7,8]. The IgT isotype in rainbow trout seems to be a monomer in blood and a tetramer in mucus [8]. Channel catfish, which apparently lack the IgT isotype, possess one δ gene, which encodes the membrane form, and another gene which encodes the secreted form [9]. Rainbow trout produce secreted and membrane anchored IgD by an alternative mRNA splicing strategy [5].
In mammals, the polymeric immunoglobulin receptor (pIgR) has a fundamental role in the transport of IgA (and IgM) across the epithelial cell layer into the mucus. A part of the pIgR (secretory component) is bound to the antibody and protects it from degradation in the hostile mucosal milieu. A molecule homologous to pIgR has been identified in teleosts and shown to be involved in transport of IgM [10]. However, teleost pIgR is quite different from the mammalian counterpart in structure: the secretory part is composed of two Ig domains, in contrast to five in mammals [11]. Using specific antibodies raised against the second Ig domain of rainbow trout pIgR (recombinant polypeptide) it was shown that IgT and IgM from gut mucus co-immunoprecipitate with the deduced secretory component of pIgR [8]. In salmon, a pIgR-like gene with an expression profile unlike pIgR has also been identified, and a cluster of pIgR-like genes was identified in zebrafish [11,12]. In zebrafish, pIgR-like molecules have shown to be involved in transport of phospholipids [12].

2. Immunoglobulin Heavy Chain Genes in Teleost Fish

The first identifications of immunoglobulin genes in teleost fish about 25 years ago were based on immunoscreening, DNA-cross-hybridization and PCR-homology cloning, and later, by large-scale sequencing and searches of sequence databases. Molecular characterization of IgM provided an explanation to a previous observation: that membrane bound IgM in teleost fish appeared to be shorter than the mammalian counterparts [13]. In contrast to mammals, where the first transmembrane exon (TM1) is spliced to a cryptic splice site in μ4, TM1 is spliced directly to μ3 in teleosts, excluding the entire μ4 exon [14]. Characterization of IgD transcripts from teleost fish revealed another special splicing pattern where μ1 is spliced to δ1 [15].
The Ig heavy chain genes in teleost fish have a translocon type of organization, and the δ gene is located immediately downstream of the μ gene like in higher vertebrates. However, the τ genes are located between variable gene segments upstream of μ and δ [16]. Accordingly, teleost fish do not have a class switch mechanism as in higher vertebrates (class switch means that a successfully recombined variable region gene can be expressed in the context of different classes of antibodies by a physical re-arrangement of constant region genes: for example by deletion of μ and δ and switch to γ1 during a secondary immune response; i.e., an IgM to IgG1 switch).
The antibody repertoire in teleost fish is generated by V(D)J recombination of variable gene segments, enzymatic deletions or additions of nucleotides in the junctions, combinations of heavy and light chains, and subsequently, somatic mutations. Theoretically, there is a potential of creating an almost unlimited number of different antibodies, but it has been shown in humans that the usage of variable gene segments is not generally random. Some gene segments are used as little as 0.1%, whereas other are used more than 10%. As an outcome of evolution the expressed Ig repertoire is to some degree genetically determined [17], and it is reasonable to assume that there is a biased usage of variable gene fragments in teleost fish as well.

3. Ig Expression in Teleost Fish

Teleost fish have two primary lymphoid organs; the anterior part of the kidney (analogue of the bone marrow in mammals) and the thymus. The kidney serves as a secondary lymphoid organ as well, together with the spleen. The abundance of μ, τ and δ mRNA in teleosts is typically highest in head kidney and spleen, and correlates to a large degree with blood content in other tissues [7]. In a study of Atlantic salmon the quantity of μ transcripts was found to be more than 200 times that of δ, and τ transcripts were up to 20 times as abundant as δ [7]. At the protein level the IgM concentration in serum has been measured to be between 100 and 1000 fold higher than IgT in rainbow trout [8,18].
Fish possess a secondary capillary system (homologous to lymph vessels) but lack lymph nodes [19]. In mammals, the lymph nodes play an important role in the adaptive immune response; providing compartments for B and T cell communication during the adaptive immune response. In fish, clusters of melanomacrophages are believed to form the analogue of the germinal centers in mammalian lymph nodes. It is assumed that melanogenesis is an important immune mechanism in fish [20].
The gill is an extremely important entry point for pathogens. The gill constitutes more than 90% of the surface area of the fish and represents a semi-permeable barrier to the surrounding environment. In sea bass, the gill was identified as a major organ for antibody secreting cell production [21]. An intraepithelial lymphoid tissue (ILT) in the gills of Atlantic salmon was found to be rich in T cells whereas few IgM+ cells were found in the region that was examined [22,23,24]. However, it is likely that B cells are recruited to the gills during infection of salmonid fish, and that this is an arena for B and T cell communication. In mammals, mucosal surfaces harbor aggregations of organized lymphoid cells, i.e., the tonsils in the pharynx and the Peyers patches of the intestines. The localization, architecture and arrangement of these immune tissues are of fundamental importance. In a study of rainbow trout it was found that the ratio of IgD to IgM in the gills was higher than in other tissues, indicating a significant role for IgD in the gills [5], and recently an IgD+IgM- B-lymphocyte subset was found to be mainly expressed in the gills [25]. The involvement of IgT in the gills needs further investigations. The IgT isotype has been found to be involved in mucosal immune responses in the intestine and on skin [8,26].

4. Ancestral Tetraploidy and Ig Sub-Variants in Salmonid Fish

Teleost fish is a very heterogenous group of animals; the number of species is estimated to be higher than 30,000. A whole genome duplication, which occurred early in the evolution of teleosts, more than 300 million years ago, has contributed to this diversity [27].
A second whole genome duplication event, estimated to approximately 96 million years ago, occurred in the ancestor of the salmonid fish family [28,29]. In spite of the long time period since this event, most of the duplicated DNA is maintained in present-day species of salmonid fish. Due to highly similar stretches of DNA in the haploid genome it has been a challenge to assemble the complete genome sequences of species like rainbow trout and Atlantic salmon. However, the genome sequence of rainbow trout was published recently [29], and the Atlantic salmon genome is underway.
There has been much speculation on how salmonid fish may benefit from their partially tetraploid genome, for example in their adaptation to an anadromous life cycle and various environments [28]. It is plausible to assume that some answers to major questions regarding timing and regulation can be found between the genes and in the overall structure of the DNA, rather than on protein coding loci. On the other hand, a high number of duplicated genes are still intact (approximately 50% in rainbow trout), several of which show differential mRNA expression patterns [29].
In agreement with ancestral tetraploidy there are two highly similar Ig heavy chain gene complexes, named A and B in the Atlantic salmon genome [30]. The A and B heavy chain gene complexes comprise two μ genes, two δ genes, three intact τ genes and five τ pseudogenes [16]. Expression of μA and μB is most likely regulated by a mechanism similar to allotypic exclusion.
The μA and μB genes correspond to two distinct IgM subpopulations in Atlantic salmon (IgM-A and IgM-B), which can be isolated from serum by gel filtration followed by anion exchange chromatography [31,32,33,34,35]. The IgM-B:IgM-A ratio in serum is typically 60:40, but skewed ratios are also observed [36]. An IgM-B:IgM-A ratio of 60:40 was found to be in accordance with the relative amounts of lymphocytes displaying IgM-B versus IgM-A on the surface [37].
An extra cysteine residue near the C-terminal part of μB characterizes this sub-variant [33,34]. Comparative studies have shown that the IgM-B type is only present in species belonging to the Salmo genus, i.e., Atlantic salmon and brown trout [35]. As illustrated in Figure 2a,b, a monoclonal antibody (Mab4C10) originally made against rainbow trout IgM have shown to react exclusively with IgM-A in Atlantic salmon, and with IgM-B in brown trout [34,35,38].
Biomolecules 05 00166 g002 1024

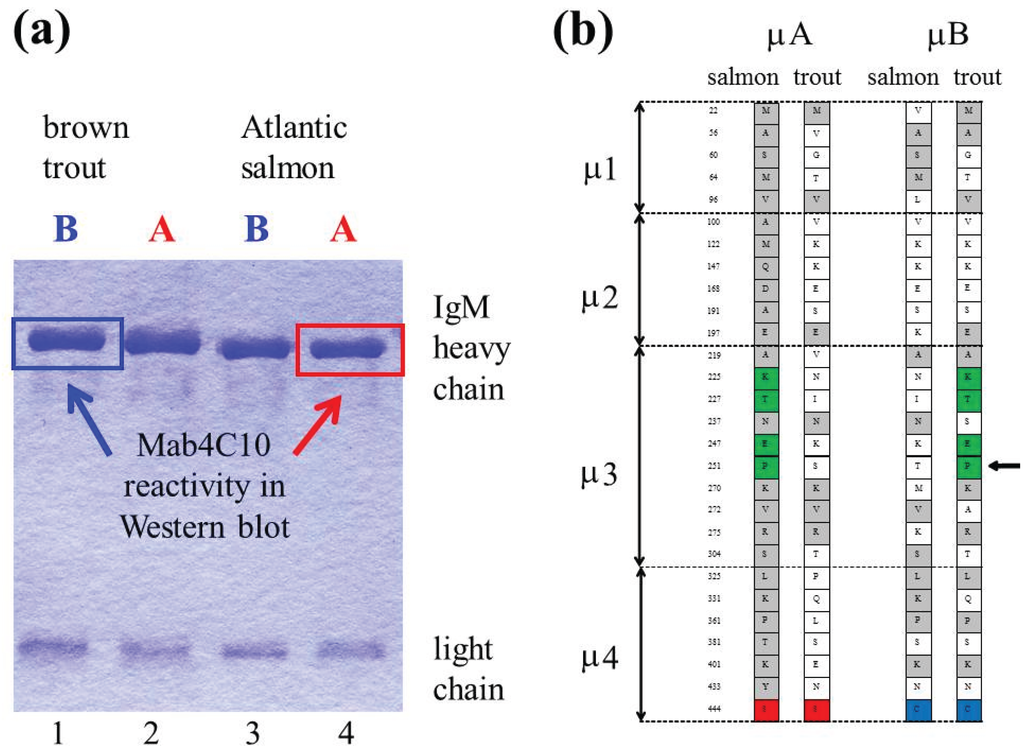

Figure 2. (a) A monoclonal antibody (Mab4C10) raised against rainbow trout IgM reacts exclusively with IgM-A in Atlantic salmon, whereas in brown trout it reacts with IgM-B. A coomassie stained gel of reduced IgM-B (lane 1) and IgM-A (lane 2) from brown trout, and IgM-B (lane 3) and IgM-A (lane 4) from salmon is shown (the lanes are indicated below the gel), and the reactivity with Mab4C10 is indicated with arrows (b) Schematic overview of amino acid substitutions in μ sub-variants of Atlantic salmon and brown trout. A cysteine residue near the C-terminal part of μ4 is characteristic for the μB sub-variant in Atlantic salmon and brown trout (indicated with blue). Residues which are identical in salmon μA and brown trout μB are indicated with green. By in vitro mutagenesis and transfection experiments it was shown that a proline (indicated with an arrow) in μ3 is essential for binding of Mab4C10 [35].
Figure 2. (a) A monoclonal antibody (Mab4C10) raised against rainbow trout IgM reacts exclusively with IgM-A in Atlantic salmon, whereas in brown trout it reacts with IgM-B. A coomassie stained gel of reduced IgM-B (lane 1) and IgM-A (lane 2) from brown trout, and IgM-B (lane 3) and IgM-A (lane 4) from salmon is shown (the lanes are indicated below the gel), and the reactivity with Mab4C10 is indicated with arrows (b) Schematic overview of amino acid substitutions in μ sub-variants of Atlantic salmon and brown trout. A cysteine residue near the C-terminal part of μ4 is characteristic for the μB sub-variant in Atlantic salmon and brown trout (indicated with blue). Residues which are identical in salmon μA and brown trout μB are indicated with green. By in vitro mutagenesis and transfection experiments it was shown that a proline (indicated with an arrow) in μ3 is essential for binding of Mab4C10 [35].
Biomolecules 05 00166 g002
The fact that two Ig heavy chain gene complexes have been preserved in Atlantic salmon and brown trout during a long time in evolutionary terms, addresses questions regarding the biological significance of this phenomenon. Sequence analyses of the Atlantic salmon and brown trout μ genes indicate that recombination between the paralogous genes has occurred [34,35]. Recombination could have allowed one of the sub-variants to take over, but μA and μB have been conserved since the radiation of Atlantic salmon and brown trout. Divergence of both variable and constant region gene segments might be of significance regarding the maintenance of two parallel gene complexes in Atlantic salmon and brown trout. In a long-term perspective, the expected outcome of whole genome duplication is that one of the duplicated Ig heavy chain gene complexes is finally deleted after a process of recombination and fusion.

5. IgM Structure

Based on scanning electron microscopy photographs of IgM from some teleosts and estimation of the molecular weight of the polymers, IgM is regarded to be a tetramer in teleosts [31,39,40]. IgM is a pentamer in other groups of vertebrates and a J-chain is involved in the polymer formation of IgM (and IgA). A homolog of the J-chain appears to be absent in teleosts [41]. As illustrated by electron microscopy photographs, human IgM has a relatively flat ring structure, and when bound to a surface it can obtain a crab-like structure, changing the exposure of binding sites to other components of the immune system. Recently, a slightly modified IgM ring structure was predicted on the basis of a crystallographic structure of IgE Fc [42].
The 3D structure of teleost IgM is open to speculation. In contrast to mammals, where IgM cannot be secreted if it is not fully disulfide cross-linked, IgM tetramers of teleost fish are more loosely linked by disulfide bonding. In Atlantic salmon the degree of inter-heavy chain disulfide bonding appears to be higher in IgM-B than in IgM-A [35], presumably due to the extra cysteine residue near the C-terminal part of μB [33]. Accordingly, an additional cysteine residue in the C-terminal sequence of μ was found to be essential for establishing a series of covalently inter-bonded forms of IgM in channel catfish [43].
Our working hypothesis is that salmon IgM-A and IgM-B can be separated by anion exchange chromatography due to (1) distinct exposure of charged residues related to the polymer structure/post-translational modifications (e.g., glycosylation), and/or (2) a hitherto unidentified associated component. SDS-PAGE analyses have not revealed any additional bands that could indicate the presence of an associated molecule. However, an additional band might have been shaded by the Ig heavy or light chains. The Ig light chain bands vary extensively in size, and usually a spectrum of Ig light chains are seen by SDS-PAGE. Additional faint bands in the same region as the major Ig bands might represent posttranslational modifications.
In rainbow trout it has been shown that there is a correlation between greater antibody affinity and increased disulfide polymerization, i.e., that high affinity B-cells produce more highly polymerized IgM, and that high-affinity highly polymerized antibodies possess longer half-lives than lower-affinity antibodies [44,45,46]. In this context, it is interesting that the IgM-B sub-variant in Atlantic salmon appears to be more highly polymerized than the IgM-A type.

6. Immunoglobulin Concentration in Serum

Although knowledge about Ig concentrations in fish is somewhat anecdotal there is no doubt that there are huge differences between species. The reported serum concentrations of IgM in fish vary to a great extent, depending on infection and vaccination status, and with several other parameters like, age/size/weight, gender, season, environment, etc. (Table 1).
Table
Table 1. IgM concentration in serum of salmonid fish.
Table 1. IgM concentration in serum of salmonid fish.
SpeciesFishNumber of Fishmg/mL SerumReference
Atlantic salmonfarm 2 to 8 kg100.8 to 1.3[31]
Atlantic salmonfarm 2.5 to 4 kg2–3~1[40]
Brown troutun-injected1047.4 ± 0.3[47]
PBS-injected706.7 ± 0.2[47]
antigen-stimulated3997.5 to 16.8[47]
Rainbow troutstream583.3 ± 2.1[48]
farm252.2 ± 0.7[48]
farm VHS/ERM404.2 ± 1.5[48]
farm PKD1010.9 ± 5.3[48]
aquarium201.5 ± 0.4[48]
Rainbow trout20 g (temp 19 °C)100.67 ± 0.66[49]
125 g (temp 19 °C)159.1 ± 4.17[49]
>1 kg (temp 19 °C)129.36 ± 2.78[49]
>1 kg (temp 7 °C)123.51 ± 1.18[49]
Masu salmonlarvae 88–235 dph100 + 50 (pooled)<0.1[50]
251–429 dph590.69 ± 0.037[50]
adult males1082.273 ± 118[50]
adult females1252.049 ± 97[50]
Coho salmon50–200 g3 groups2.1 ± 0.1[51]
VHS = viral haemorrhagic septicaemia; ERM = enteric red-mouth; PKD = proliferative kidney disease; dph = days post hatch.
Biomolecules 05 00166 g003 1024

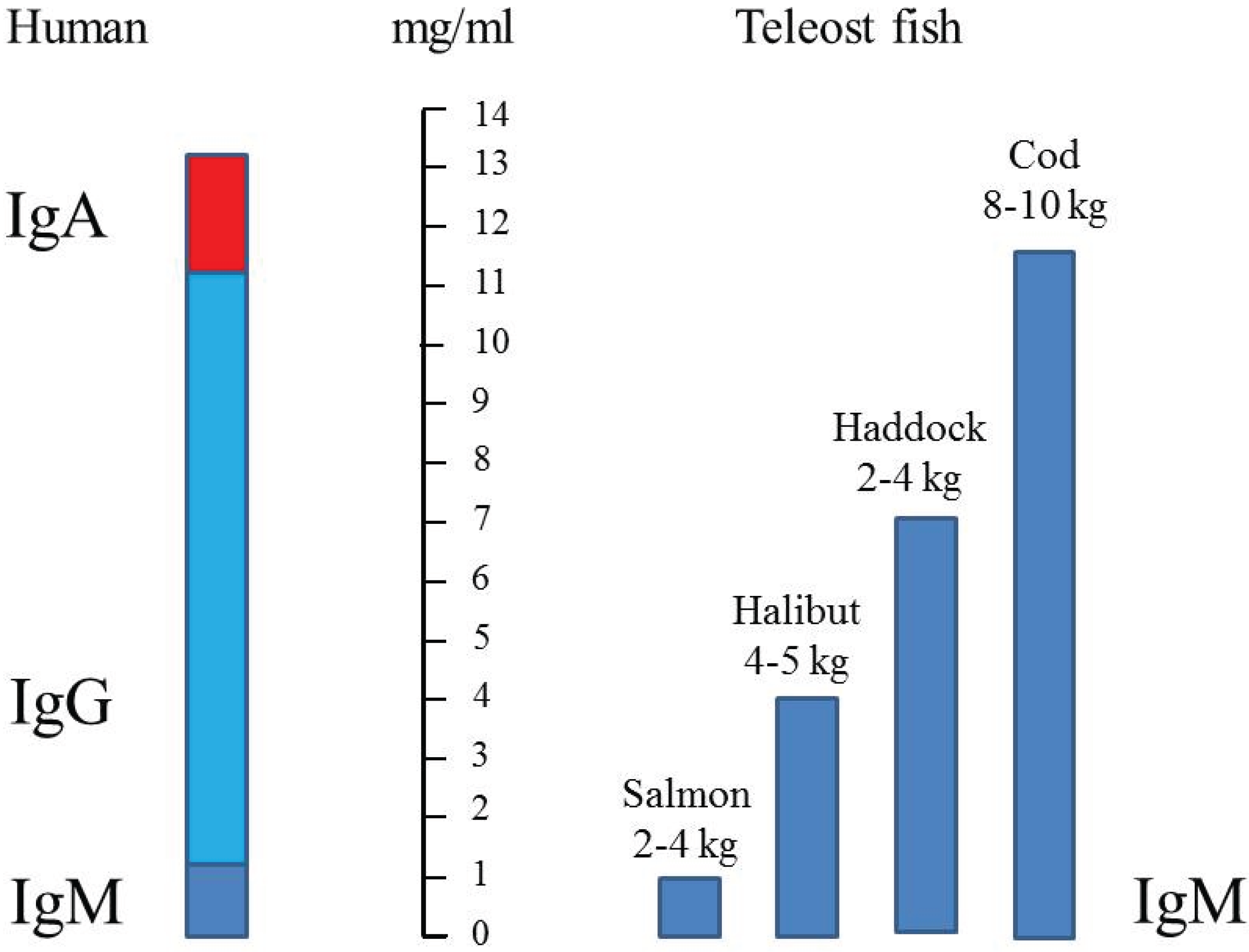

Figure 3. Comparison of serum immunoglobulin (IgM) concentrations in different teleosts [40] compared to human (IgM + IgG + IgA). IgM is indicated with dark blue, IgG with light blue and IgA with red.
Figure 3. Comparison of serum immunoglobulin (IgM) concentrations in different teleosts [40] compared to human (IgM + IgG + IgA). IgM is indicated with dark blue, IgG with light blue and IgA with red.
Biomolecules 05 00166 g003
In some recent reports it has been shown that Atlantic salmon that have received commercial oil-adjuvanted vaccines have IgM concentrations that are two- to fourfold higher than in un-vaccinated fish. The depot effect of the mineral oil seems to trigger a continuous higher production of IgM which persists to the fish are slaughtered [36,52]. As shown in Table 1, a study of rainbow trout revealed an average serum IgM concentration of 3.3 mg/mL in free living fish [48]. When the fish were transferred to an aquarium the concentration dropped to 1.5 mg/mL. Fish from farms with outbreaks of VHS and ERM disease had average IgM concentrations of 4.2 mg/mL, and in a farm with PKD it was 10.9 mg/mL [48]. In a recent study of rainbow trout, the IgM concentration was found to increase 15 fold during systemic VHSV infection [18].
Magnadottir [40] did a comparison of four different species, and found that serum IgM concentration in Atlantic salmon (~1 mg/mL) was significantly lower than in other species (Figure 3). This estimate is in agreement with measurements done in our laboratory [31].

7. Conclusions

Exciting discoveries of IgD and IgT responses in mucosal tissues of salmonid fish have attracted much focus these last years [5,8,25,26]. IgT can be highly up-regulated in response to pathogens [8,18]. However, the amount of IgT produced is not comparable to IgA in mammals, and the concentration in serum is very low (estimated to 3.7 μg/mL in a study of rainbow trout [8]). Elucidating the impact of mucosal antibody responses (and the mechanisms of communication between mucosal and systemic components) is of great interest regarding alternative delivery regimes of vaccines to fish, as well as in basic immunology research. As indicated by this review many basic questions regarding the major serum immunoglobulins are still not resolved. Several studies of immunoglobulins were performed before the discoveries of IgD and IgT, and in the belief that IgM was the only isotype present in teleost fish. A retrospective survey of early literature might be useful and inspire new studies with the improved toolbox available today.

Acknowledgements

The present work was supported by the Meltzer Fund (University of Bergen).

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Hikima, J.-I.; Jung, T.-S.; Aoki, T. Immunoglobulin genes and their transcriptional control in teleosts. Dev. Comp. Immunol. 2011, 35, 924–936. [Google Scholar] [PubMed]
  2. Hansen, J.D.; Landis, E.D.; Phillips, R.B. Discovery of a unique Ig heavy-chain isotype (IgT) in rainbow trout: Implications for a distinctive B cell developmental pathway in teleost fish. Proc. Natl. Acad. Sci. USA 2005, 102, 6919–6924. [Google Scholar] [CrossRef] [PubMed]
  3. Danilova, N.; Bussmann, J.; Jekosch, K.; Steiner, L.A. The immunoglobulin heavy-chain locus in zebrafish: Identification and expression of a previously unknown isotype, immunoglobulin Z. Nat. Immunol. 2005, 6, 295–302. [Google Scholar] [CrossRef] [PubMed]
  4. Hordvik, I. Identification of a novel immunoglobulin delta transcript and comparative analysis of the genes encoding IgD in Atlantic salmon and Atlantic halibut. Mol. Immunol. 2002, 39, 85–91. [Google Scholar] [CrossRef] [PubMed]
  5. Ramirez-Gomez, F.; Greene, W.; Rego, K.; Hansen, J.D.; Costa, G.; Kataria, P.; Bromage, E.S. Discovery and characterization of secretory IgD in rainbow trout: Secretory IgD is produced through a novel splicing mechanism. J. Immunol. 2012, 188, 1341–1349. [Google Scholar] [CrossRef] [PubMed]
  6. Hordvik, I.; Thevarajan, J.; Samdal, I.; Bastani, N.; Krossøy, B. Molecular cloning and phylogenetic analysis of the Atlantic salmon immunoglobulin D gene. Scand. J. Immunol. 1999, 50, 202–210. [Google Scholar] [CrossRef] [PubMed]
  7. Tadiso, T.M.; Lie, K.K.; Hordvik, I. Molecular cloning of IgT from Atlantic salmon, and analysis of the relative expression of τ, μ and δ in different tissues. Vet. Immunol. Immunopathol. 2010, 139, 17–26. [Google Scholar] [CrossRef] [PubMed]
  8. Zhang, Y.-A.; Salinas, I.; Li, J.; Parra, D.; Bjork, S.; Xu, Z.; LaPatra, S.E.; Bartholomew, J.; Sunyer, J.O. IgT, a primitive immunoglobulin class specialized in mucosal immunity. Nat. Immunol. 2010, 11, 827–835. [Google Scholar] [CrossRef] [PubMed]
  9. Bengten, E.; Quiniou, S.M.; Stuge, T.B.; Katagiri, T.; Miller, N.W.; Clem, L.W.; Warr, G.W.; Wilson, M. The IgH locus of the channel catfish, Ictalurus punctatus, contains multiple constant region gene sequences: Different genes encode heavy chains of membrane and secreted IgD. J. Immunol. 2002, 169, 2488–2497. [Google Scholar] [CrossRef] [PubMed]
  10. Rombout, J.H.; Abelli, L.; Picchietti, S.; Scapigliati, G.; Kiron, V. Teleost intestinal immunology. Fish Shellfish Immunol. 2011, 31, 616–626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Tadiso, T.M.; Sharma, A.; Hordvik, I. Analysis of polymeric immunoglobulin receptor-and CD300-like molecules from Atlantic salmon. Mol. Immunol. 2011, 49, 462–473. [Google Scholar] [CrossRef] [PubMed]
  12. Kortum, A.N.; Rodriguez-Nunez, I.; Yang, J.; Shim, J.; Runft, D.; O’Driscoll, M.L.; Haire, R.N.; Cannon, J.P.; Turner, P.M.; Litman, R.T.; et al. Differential expression and ligand binding indicate alternative functions for zebrafish polymeric immunoglobulin receptor (pIgR) and a family of pIgR-like (PIGRL) proteins. Immunogenetics 2014, 66, 267–279. [Google Scholar] [CrossRef] [PubMed]
  13. Warr, G.W.; Marchalonis, J.J. Lymphocyte surface immunoglobulin of the goldfish differs from its serum counterpart. Dev. Comp. Immunol. 1977, 1, 15–22. [Google Scholar] [CrossRef] [PubMed]
  14. Wilson, M.R.; Marcuz, A.; van Ginkel, F.; Miller, N.W.; Clem, L.W.; Middleton, D.; Warr, G.W. The immunoglobulin M heavy chain constant region gene of the channel catfish, Ictalurus punctatus: An unusual mRNA splice pattern produces the membrane form of the molecule. Nucleic Acid Res. 1990, 18, 5227–5233. [Google Scholar] [CrossRef] [PubMed]
  15. Wilson, M.; Bengten, E.; Miller, N.W.; Clem, L.W.; Du Pasquier, L.; Warr, G.W. A novel chimeric Ig heavy chain from a teleost fish shares similarities to IgD. Proc. Natl. Acad. Sci. USA 1997, 94, 4593–4597. [Google Scholar] [CrossRef] [PubMed]
  16. Yasuike, M.; de Boer, J.; von Schalburg, K.R.; Cooper, G.A.; McKinnel, L.; Messmer, A.; So, S.; Davidson, W.S.; Koop, B.F. Evolution of duplicated IgH loci in Atlantic salmon, Salmo salar. BMC Genomics 2010. [Google Scholar] [CrossRef]
  17. Jackson, K.J.L.; Kidd, M.J.; Wang, Y.; Collins, A.M. The shape of the lymphocyte receptor repertoire: Lessons from the B cell receptor. Front. Immunol. 2013. [Google Scholar] [CrossRef]
  18. Castro, R.; Jouneau, L.; Pham, H.-P.; Bouchez, O.; Giudicelli, V.; Lefranc, P.; Quillet, E.; Benmansour, A.; Cazals, F.; Six, A.; et al. Teleost fish mount complex clonal IgM and IgT responses in spleen upon systemic viral infection. PLOS Pathog. 2013, 9, e1003098. [Google Scholar] [CrossRef] [PubMed]
  19. Yaniv, K.; Isogai, S.; Castranova, D.; Dye, L.; Hitomi, J.; Weinstein, B.M. Life imaging of lymphatic development in the zebrafish. Nat. Med. 2006, 12, 711–716. [Google Scholar] [CrossRef] [PubMed]
  20. Haugarvoll, E.; Thorsen, J.; Laane, M.; Huang, Q.; Koppang, E.O. Melanogenesis and evidence for melanosome transport to the plasma membrane in a CD83+ teleost leukocyte cell line. Pigment Cell Res. 2006, 19, 214–225. [Google Scholar] [CrossRef] [PubMed]
  21. Dos Santos, N.M.S.; Taverne-Thiele, J.J.; Barnes, A.C.; van Muiswinkel, W.B.; Ellis, A.E.; Rombout, J.H.W.M. The gill is a major organ for antibody secreting cell production following direct immersion of sea bass (Dicentrachus labrax, L.) in a Photobacterium damselae ssp. Piscicida bacterin: An ontogenetic study. Fish Shellfish Immunol. 2001, 11, 65–74. [Google Scholar] [CrossRef] [PubMed]
  22. Haugarvoll, E.; Bjerkås, I.; Nowak, B.F.; Hordvik, I.; Koppang, E.O. Identification and characterization of a novel intraepithelial lymphoid tissue in the gills of Atlantic salmon. J. Anat. 2008, 213, 202–209. [Google Scholar] [CrossRef] [PubMed]
  23. Koppang, E.O.; Fischer, U.; Moore, L.; Tranulis, M.A.; Dijkstra, J.M.; Köllner, B.; Aune, L.; Jirillo, E.; Hordvik, I. Salmonid T cells assemble in the thymus, spleen and in novel interbranchial lymphoid tissue. J. Anat. 2010, 217, 728–739. [Google Scholar] [CrossRef] [PubMed]
  24. Aas, I.B.; Austbø, L.; König, M.; Syed, M.; Falk, K.; Hordvik, I.; Koppang, E.O. Transcriptional characterization of the T cell population within the salmonid interbranchial lymphoid tissue. J. Immunol. 2014, 193, 3463–3469. [Google Scholar] [CrossRef] [PubMed]
  25. Castro, R.; Bromage, E.; Abos, B.; Pignatelli, J.; Granja, A.G.; Luque, A.; Tafalla, C. CCR7 is mainly expressed in teleost gills where it defines an IgD + IgM- B lymphocyte subset. J. Immunol. 2014, 192, 1257–1266. [Google Scholar] [CrossRef] [PubMed]
  26. Xu, Z.; Parra, D.; Gomez, D.; Salinas, I.; Zhang, Y.-A.; von Gersdorff Jørgensen, L.; Heinecke, R.D.; Buchmann, K.; LaPatra, S.; Sunyer, J.O. Teleost skin, an ancient mucosal surface that elicits gut-like immune responses. Proc. Natl. Acad. Sci. USA 2013, 110, 13097–13102. [Google Scholar] [CrossRef] [PubMed]
  27. Glasauer, S.M.K.; Neuhauss, S.C.F. Whole-genome duplication in teleost fishes and its evolutionary consequences. Mol. Genet. Genomics 2014. [Google Scholar] [CrossRef]
  28. Allendorf, F.W.; Thorgaard, G.H. Tetraploidy and the evolution of salmonid fishes. In Evolutionary Genetics of Fishes; Turner, B.J., Ed.; Plenum Press: New York, NY, USA, 1984; pp. 1–55. [Google Scholar]
  29. Berthelot, C.; Brunet, F.; Chalopin, D.; Juanchich, A.; Bernard, M.; Noe, B.; Bento, P.; Silva, C.D.; Labadie, K.; Alberti, A.; et al. The rainbow trout genome provides novel insights into evolution after whole-genome duplication in vertebrates. Nat. Commun. 2014. [Google Scholar] [CrossRef]
  30. Hordvik, I. The impact of ancestral tetraploidy on antibody heterogeneity in salmonid fishes. Immunol. Rev. 1998, 166, 153–157. [Google Scholar] [CrossRef]
  31. Haavarstein, L.S.; Aasjord, P.M.; Ness, S.; Endresen, C. Purification and partial characterization of an IgM-like serum immunoglobulin from Atlantic salmon (Salmo salar). Dev. Comp. Immunol. 1988, 12, 773–785. [Google Scholar] [CrossRef] [PubMed]
  32. Hordvik, I.; Voie, A.M.; Glette, J.; Male, R.; Endresen, C. Cloning and sequence analysis of two isotypic IgM heavy chain genes from Atlantic salmon, Salmo salar L. Eur. J. Immunol. 1992, 22, 2957–2962. [Google Scholar] [CrossRef] [PubMed]
  33. Hordvik, I.; Berven, F.S.; Solem, S.T.; Hatten, F.; Endresen, C. Analysis of two IgM isotypes in Atlantic salmon and brown trout. Mol. Immunol. 2002, 39, 313–321. [Google Scholar] [CrossRef] [PubMed]
  34. Kamil, A.; Falk, K.; Sharma, A.; Raae, A.; Berven, F.; Koppang, E.O.; Hordvik, I. A monoclonal antibody distinguishes between two IgM heavy chain isotypes in Atlantic salmon and brown trout: Protein characterization, 3D modeling and epitope mapping. Mol. Immunol. 2011, 48, 1859–1867. [Google Scholar] [CrossRef] [PubMed]
  35. Kamil, A.; Raae, A.; Fjelldal, P.G.; Koppang, E.O.; Kari, F.E.; Hordvik, I. Comparative analysis of IgM sub-variants in salmonid fish and identification of a residue in µ3 which is essential for MAb4C10 reactivity. Fish Shellfish Immunol. 2013, 34, 667–672. [Google Scholar] [CrossRef] [PubMed]
  36. Kamil, A.; Fjelldal, P.G.; Hansen, T.; Raae, A.; Koppang, E.O.; Hordvik, I. Vaccination of Atlantic salmon leads to long-lasting higher levels of serum immunoglobulin and possible skewed ratios of two distinct IgM isotypes. Adv. Biosci. Biotechnol. 2013, 4, 85–90. [Google Scholar] [CrossRef]
  37. Hedfors, I.A.; Bakke, H.; Skjødt, K.; Grimholt, U. Antibodies recognizing both IgM isotypes in Atlantic salmon. Fish Shellfish Immunol. 2012, 33, 1199–1206. [Google Scholar] [CrossRef] [PubMed]
  38. Thuvander, A.; Fossum, C.; Lorenzen, N. Monoclonal-antibodies to salmonid immunoglobulin: Characterization and applicability in immunoassays. Dev. Comp. Immunol. 1990, 14, 415–423. [Google Scholar] [CrossRef] [PubMed]
  39. Acton, R.T.; Weinheimer, P.F.; Hall, S.J.; Niedermeier, W.; Shelton, E.; Bennett, J.C. Tetrameric immune macroglobulins in three orders of bony fishes. Proc. Natl. Acad. Sci. USA 1971, 68, 107–111. [Google Scholar] [CrossRef] [PubMed]
  40. Magnadottir, B. Comparison of immunoglobulin (IgM) from four fish species. Icel. Agric. Sci. 1998, 12, 47–59. [Google Scholar]
  41. Klimovich, V.B.; Samoilovich, M.P.; Klimovich, B.V. Problem of J-chain of immunoglobulins. J. Evol. Biochem. Physiol. 2008, 44, 151–166. [Google Scholar] [CrossRef]
  42. Czajkowsky, D.M.; Zhifeng, S. The human IgM pentamer is a mushroom-shaped molecule with flexural bias. Proc. Natl. Acad. Sci. USA 2009, 106, 14960–14965. [Google Scholar] [CrossRef] [PubMed]
  43. Getahun, A.; Lundqvist, M.; Middleton, D.; Warr, G.; Pilström, L. Influence of the μ-chain C-terminal sequence on polymerization of immunoglobulin M. Immunology 1999, 97, 408–413. [Google Scholar] [CrossRef] [PubMed]
  44. Ye, J.; Bromage, E.S.; Kaattari, S.L. The strength of B cell interaction with antigen determines the degree of IgM polymerization. J. Immunol. 2010, 184, 844–850. [Google Scholar] [CrossRef] [PubMed]
  45. Ye, J.; Bromage, E.; Kaattari, I.; Kaattari, S. Transduction of binding affinity by B lymphocytes: A new dimension in immunological regulation. Dev. Comp. Immunol. 2011, 35, 982–990. [Google Scholar] [CrossRef] [PubMed]
  46. Ye, J.; Kaattari, I.M.; Ma, C.; Kaattari, S. The teleost humoral immune response. Fish Shellfish Immunol. 2013, 35, 1719–1728. [Google Scholar] [CrossRef] [PubMed]
  47. Ingram, G.A.; Alexander, J.B. Immunoglobulin of the brown trout, Salmo trutta and its concentration in the serum of antigen-stimulated and non-stimulated fish. J. Fish Biol. 1979, 14, 249–260. [Google Scholar] [CrossRef]
  48. Olesen, N.J.; Jørgensen, P.E. Quantification of serum immunoglobulin in rainbow trout Salmo gairdneri under various environmental conditions. Dis. Aquat. Org. 1986, 1, 183–189. [Google Scholar] [CrossRef]
  49. Sanchez, C.; Babin, M.; Tomillo, J.; Ubeira, F.M.; Dominguez, J. Quantification of low-levels of rainbow-trout immunoglobulin by enzyme-immunoassay using 2 monoclonal-antibodies. Vet. Immunol. Immunopathol. 1993, 36, 65–74. [Google Scholar] [CrossRef] [PubMed]
  50. Fuda, H.; Soyano, K.; Yamazaki, F.; Hara, A. Serum immunoglobulin M (IgM) during early development of masu salmon (Oncorhynchus masou). Comp. Biochem. Physiol. A. Comp. Physiol. 1991, 99, 637–643. [Google Scholar] [CrossRef] [PubMed]
  51. Voss, E.W.; Groberg, W.J.; Fryer, J.L. Metabolism of coho salmon Ig: Catabolic rate of coho salmon tetrameric Ig in serum. Mol. Immunol. 1980, 17, 445–452. [Google Scholar] [CrossRef] [PubMed]
  52. Koppang, E.O.; Bjerkås, I.; Haugarvoll, E.; Chan, E.K.L.; Szabo, N.J.; Ono, N.; Akikusa, B.; Jirillo, E.; Poppe, T.T.; Sveier, H.; et al. Vaccination-induced systemic autoimmunity in farmed Atlantic salmon. J. Immunol. 2008, 181, 4807–4814. [Google Scholar] [CrossRef] [PubMed]
