Development of an Effective Sonotrode Based Extraction Technique for the Recovery of Phenolic Compounds with Antioxidant Activities in Cherimoya Leaves
by
, , and
Beatriz Martín-García
1,2
,
María José Aznar-Ramos
2,3
,
Vito Verardo
2,3,* and
Ana María Gómez-Caravaca
1,3 1
Department of Analytical Chemistry, Faculty of Sciences, University of Granada, Avd. Fuentenueva s/n, 18071 Granada, Spain
2
Department of Nutrition and Food Science, University of Granada, Campus of Cartuja, 18071 Granada, Spain
3
Biomedical Research Center, Institute of Nutrition and Food Technology ‘José Mataix’, University of Granada, Avda del Conocimiento sn., Armilla, 18100 Granada, Spain
*
Author to whom correspondence should be addressed.
Plants 2022, 11(15), 2034; https://doi.org/10.3390/plants11152034
Submission received: 12 July 2022
/
Revised: 27 July 2022
/
Accepted: 1 August 2022
/
Published: 4 August 2022
(This article belongs to the Special Issue Antioxidant Capacity of Plant Extracts)
Abstract
:The leaves of Annona cherimola Mill (cherimoya) are a potential source of phenolic compounds that have been shown to have beneficial properties. Therefore, this study focuses on establishing an ultrasonic-assisted extraction of phenolic compounds in cherimoya leaves using a sonotrode. For that purpose, a Box-Behnken design based on a response surface methodology (RSM) was used to optimize factors, such as amplitude, extraction time and solvent composition to obtain the maximum content of phenolic compounds by HPLC-MS and the maximum in-vitro antioxidant activity by DPPH, ABTS and FRAP assays in ‘Fino de Jete’ cherimoya leaves. The optimal conditions were 70% amplitude, 10 min and 40:60 ethanol/water (EtOH/H2O) (v/v). The results obtained under these optimum conditions by using a sonotrode were compared with those from an ultrasonic bath; briefly, recovery of phenolic compounds by sonotrode was 2.3 times higher than a bath. Therefore, these optimal conditions were applied to different varieties ‘Campas’, ‘Fino de Jete’ and ‘Negrito Joven’ harvested in the Tropical Coast of Granada (Spain). A total of 39 phenolic compounds were determined in these cherimoya leaf extracts, 24 phenolic compounds by HPLC-MS and 15 proanthocianidins by HPLC-FLD. 5-p-coumaroylquinic acid, lathyroside-7-O-α-l-rhamnopyranoside and quercetin hexose acetate were first identified in cherimoya leaves. The most concentrated phenolic compounds were the flavonoids, such as rutin and quercetin hexoside and proanthocyanidins including monomers. Almost no significant differences in the phenolic content in these cultivars were found (11–13 mg/g d.w. for phenolic compounds and 11–20 mg/g d.w. for proanthocyanidins). In addition, sonotrode ultrasonic-assisted extraction has been shown to be an efficient extraction technique in the phenolic recovery from cherimoya leaves that could be implemented on an industrial scale.
1. Introduction
The Annonaceae family has 112 genera and comprises around 2500 species. Most of these species are found in the tropics [1]. This family comprises four subfamilies: Anaxagoreoideae, Ambavioideae, Annonoideae and Malmeoideae and 14 tribes [2]. A few of these species belong to just two genera Annona L. and Asimina Adans. provides edible fruits, which are mainly found in wild species, although certain species have been cultivated [2]. In the genus Annona there are about 119 species [3]. The most famous species are Annona cherimola Mill (cherimoya), Annona muricata L. (soursop), Annona squamosa L. (conde fruit), Annona reticulata L. (custard apple), and the interspecific hybrid Atemoya (A. cherimola × A. squamosa). In particular, Annona cherimola is the most diffused specie in subtropical countries [4]. Currently, Andalusia has around 3000 hectares devoted to the production of cherimoyas, which yield around 40,000 tonnes of fruit; this makes Andalusia the world’s leading grower in terms of both production and acreage [5]. Most of Spain’s production comes from plantations in the provinces of Granada and Malaga [6]. The commercial value of cherimoya is mainly related to its fruit, essentially destined for fresh consumption. However, cherimoya fruit is traditionally used for the treatment of several diseases. Recently, it has been shown that cherimoya fruit and its by-products (leaves and seeds) are a rich source of bioactive compounds including phenolic compounds (catechin, proanthocyanidins, rutin) [7], alkaloids (annocherines, norisocorydine, cheritamine, annonaine) [5,8], acetogenins (cherimolin-2 and almunequin) [9], terpenes (myrcene, pinene, linalool, caryophillene, terpenolene and germacrene) [10,11] and cyclopeptides (cherimoya cyclopetide E and cherimoya cyclopetide F) [12]. Concretely, cherimoya leaves are currently ingredients used in traditional medicine preparations and folk teas for the treatment of gastric, intestinal, cardiovascular, skin, and eye diseases [13]. These beneficial properties are due in part to their content in phenolic compounds which possess antioxidant activities [5,14,15,16,17,18] that could be exploited by the food, nutraceutical and cosmeceutical industries. Nevertheless, the bioactive properties of these phenolic compounds in cherimoya leaves have been poorly explored. Today, these leaves are just discarded as agricultural waste, usually in considerable quantities. Therefore, the recovery of phenolic compounds from cherimoya leaves could be profitable for the food industry. In recent years, ultrasound-assisted extraction (UAE) has been an efficient extraction technique for the recovery of phenolic compounds from plants. UAE has high reproducibility, is an efficient and simplified technique, has low cost, requires short processing times and has low or no amount of solvents [19]. Ultrasound (US) facilities component extraction because it produces a phenomenon known as cavitation which causes the rupture of the cellular wall, reduces the pore size of solid materials, and provides an increase in the contact surface area between the solid phase and the solvent [20]. For this reason, the aim of the present study was the establishment, for the first time, of an optimized extraction via sonotrode ultrasound-assisted extraction to obtain the highest phenolic content from cherimoya leaves and the highest in vitro antioxidant activity by DPPH, FRAP and ABTS assays. For that purpose, a Box-Behnken design (BBD) was carried out with three independent variables (amplitude, time and % of ethanol (EtOH)). The leaf extracts were analyzed by an Ultra Performance liquid chromatography (UPLC) system coupled to an electrospray ionization (ESI) source and a quadrupole time-of-flight (qTOF) mass detector. Therefore, this study presents a new strategy to obtain cherimoya leaf extracts enriched in bioactive compounds that could be used in the food, pharmaceutical, and cosmetic industries.
2. Results and Discussion
2.1. Identification of Phenolic Compounds from Cherimoya Leaf Extracts by UPLC-ESI-TOF-MS
Cherimoya leaf extracts obtained by ultrasonic-assisted extraction by sonotrode were analyzed by UPLC-ESI-TOF-MS. Phenolic compounds were identified by using their mass spectra and by comparison with the data reported in previous studies and several databases. The analytical parameters that allowed the identification of specific phenolic compounds in cherimoya leaf extracts were the following: retention time, experimental and calculated m/z, error, Fit Conf %, main in source fragments and molecular formula [M-H]−. These parameters are shown in Table 1.
A total of 29 phenolic compounds were identified in cherimoya leaf extracts, eight phenolic acid derivatives and twenty-one flavonoids. Four of these compounds were identified for the first time in cherimoya leaves. Peaks 1 and 2 with retention times at 1.12 and 2.24 min with a molecular formula C15H15O11 showed a molecular ion at m/z 371.0614 and the fragment ions at m/z 209.0302 and 743.1304 and they were detected as caffeoyl-glucaric acid derivatives [21]. Peak 3 at 3.70 min presented a molecular ion at m/z 355.0653 and fragment ions at m/z 163.0399, 209.0293 and 711.1283 and a molecular formula C15H15O10 was identified as a p-coumaroylglucaric acid derivative [21]. Peaks 4 and 8 at 3.90 and 5.18 min which presented a molecular formula of C15H13O6, m/z 289.0711 and a fragment ion at m/z 245 were proposed as catechin and epicatechin, respectively [5,21]. Peaks 5, 6 and 7 with retention times at 4.55, 4.72 and 4.92 min exhibited a molecular ion at m/z 353.0873 with molecular formula C16H17O9 and fragment ions at m/z 191.0561 and 707.1754 were identified as chlorogenic acid isomers [21]. Peaks 9 and 11 at 5.52 and 5.72 min (C33H39O21) and m/z 771.1984 were tentatively identified as isomers of quercetin 3-O-rutinoside-7-O-glucoside [5,21]. Peak 10 at 5.56 min, molecular formula C30H25O12, m/z 577.1324 and fragment ions at m/z 289.0706, 425.0938 was proposed to be procyanidin dimer type B [21]. Peaks 12 and 13 (5.90 and 6.07 min) with a molecular ion at m/z 337.0923 (C16H17O8) and fragment ions at m/z 191.05553, 163.0376, 173.0376 and 119.04448, were identified as isomers of 5-p-coumaroylquinic acid [22]. This compound has been identified previously in bamboo shoot shells. To our knowledge, this compound has been identified for the first time in cherimoya leaves. Peak 14 at 7.14 min at m/z 865.1959 and a molecular formula of C45H37O18 presented a fragment ion at m/z 577.1373, which was assigned as procyanidin trimer type B [21]; 7.65 min (peak 15) with m/z 1153.2571 (C60H49O24) was proposed to be procyanidin tetramer type B [21]. Peaks 16 and 17 (8.52 and 8.69 min) with a molecular formula of C32H37O20, m/z 741.1866 and a fragment ion at m/z 300.027, were characterized as isomers of calabricoside A [21]. Peaks 18 and 19 at 8.75 and 9.07 min presented a molecular ion at m/z 609.1456 and a molecular formula C27H29O26 with a fragment at m/z 300.027 and were identified as isomers of rutin [5,21,23]. At 9.20 min, the compound 20 (C21H19O12), m/z 463.0867 with a fragment ion at m/z 300.0269 was detected as quercetin hexoside [5,21]. Peaks 21 and 22 (C32H37O19) at 9.22 and 9.42 min, m/z 725.1929 and a fragment ion at m/z 284 were tentatively detected as kaempferol-lathyroside-7-O-α-l-rhamnopyranoside isomers, which have been identified previously in chickpea flour [24], thus, these compounds have been detected for the first time in cherimoya leaf extracts. The compound 23 at 9.48 min, m/z 593.1506 and a molecular formula of C27H29O15 with a fragment ion at m/z 285.0387 was proposed to be kaempferol 3-galactoside-7-rhamnoside [5]. Peaks 24 and 26 at 9.78 and 10.10 min with a molecular ion at m/z 447.0927 (C21H19O11) and a fragment ion of m/z 285 were identified as kaempferol hexoside [21]. Peak 25 at a retention time of 9.95 min, m/z 593.1508 (C27H29O15) presented a fragment m/z 285.0404, which corresponds with luteolin-3-galactoside-7-rhamnoside [5]. At 10.14 min, the peak 27 at m/z 505.0982 (C23H21O13) and fragment ions at m/z 151.0026, 301.0327, 447.094 was proposed to be quercetin hexose acetate, this compound has been detected previously in blackberry [25]. It must be emphasized that this compound has been identified for the first time in Cherimoya leaves. Finally, compounds 28 and 29 (13.50 and 13.58 min) with a molecular formula C30H25O13, m/z 593.1295 showed a fragment ion at m/z 447, which corresponds with isomers of kaempferol 3-O-β-D-(6^-O-p-coumaroyl) galactopyranoside [21].
2.2. Fitting the Model
The BBD carried out for the optimization of UAE sonotrode factors, considering the experimental values obtained for the variable responses, is exhibited in Table 2.
The regression coefficients of the models and the results of the analysis of variance (ANOVA) are shown in Table 3. The evaluation of the model was carried out according to the significance of the regression coefficients, quadratic correlation coefficients (R2) and lack of fit. According to previous studies, the level of significance was α < 0.1 in order to increase the number of significant variables [26]. The significant variables for the response variable of TPC were the linear effect of amplitude % (v/v) (X1) (p = 0.014629) and its quadratic effect (X11) (p = 0.016527), the quadratic effect of time (X22) (p = 0.099676), the linear effect of % EtOH (X3) (p = 0.005422) and its quadratic effect (X33) p = 0.001523) and the cross effect between amplitude and % EtOH (X13) (p = 0.092264) and time with % EtOH (X23) (p = 0.048384). The significant variables for the variable response of DPPH were the linear effect of amplitude (X1) (p = 0.018346) and its quadratic effect (X11) (p = 0.022500), quadratic effect of time (X22) (p = 0.061514) linear effect of %EtOH (X3) (p = 0.002566) and its quadratic (X33) (p = 0.001407) and the cross effect between time and % EtOH (X23) (p = 0.033680). In addition, the significant effects on the response ABTS were the following: amplitude % (v/v) (X1) (p = 0.028732) and its quadratic effect (X11) (p = 0.044629), linear effect of time (X2) (p = 0.092438), the linear effect of % EtOH (X3) (p = 0.005781) and its quadratic effect (X33 = 0.005475), the cross effect between time and % EtOH (X23) (p = 0.040944). Finally, the significant effects for the FRAP were the linear effect of amplitude (X1) (p = 0.016602) and its quadratic (X11) (p = 0.020975) the linear effect of time (X2) (p = 0.098882), % EtOH (X3) (p = 0.022687) and its quadratic (X33) (p = 0.010810).
An analysis of variance (ANOVA) with a 95% confidence level was generated and the effect and regression coefficients of individual linear, quadratic and interaction terms were determined. The models presented a high correlation between independent factors and response variables with quadratic correlation coefficients (R2) from 85.84–95.78%. According to Le Man et al. [27], a model is adequate when R2 > 0.75. In addition, the p-value of lack-of-fit was used to verify the adequacy of the model, which was non-significant (p > 0.05); thus, the model fits well (Table 3).
2.3. Analysis of Response Surfaces
Figure 1 and Figure 2 are the three-dimensional plots showing the effects of % amplitude (v/v) (X1) with time (X2) (a,d), % amplitude (X1) with % EtOH (X3) (b,e) and time (X2) with % EtOH (X3) (c,f) on the sum of phenolic compounds and DPPH and ABTS and FRAP, respectively.
According to the surface response plots obtained for the content of the sum of phenolic compounds, its highest content was obtained at the following conditions: 60–80% amplitude and 8–20 min (Figure 1a), 20–50% EtOH and 50–80% amplitude (Figure 1b) and 30–60% EtOH and 4–20 min. In the case of antioxidant activities by different assays, the maximum antioxidant activity by DPPH was observed in the range of 8–20 min and 60–90% of amplitude (Figure 1d), 40–70% EtOH and 40–90% amplitude in Figure 1e and 40–60% EtOH and 8–20 min in Figure 1f. The maximum value by ABTS in Figure 2a was observed at 55–85% amplitude and 1–14 min, 40–70% EtOH and 40–100% amplitude (Figure 2b) and 40–80% EtOH and 1–20 min (Figure 2c). Finally, the highest antioxidant activity by the FRAP assay was obtained at 4–20 min and 60–90% amplitude (Figure 2d), 30–60% EtOH and 50–90% amplitude (Figure 2e) and 40–60% EtOH and 10–20 min (Figure 2f).
2.4. Optimization of Sonotrode Ultrasonic Assisted Extraction
2.4.1. Optimal Sonotrode Ultrasonic Assisted Extraction Conditions
The optimal extraction conditions for the sonotrode were chosen based on three-dimensional response surface plots. The accuracy of the model was established by comparing the predicted with the experimental results. The optimal conditions to obtain the highest amount of sum of phenolic compounds and antioxidant activities were: 70% amplitude, 10 min and 40% EtOH to obtain the predicted values of 12.1 ± 0.6 mg/g d.w. for the sum of phenolic compounds and 21 ± 2, 11 ± 1, 8 ± 1 mg Trolox eq/g d.w. for DPPH, ABTS and FRAP, respectively.
No significant differences (p < 0.05) were obtained between the experimental and predictable values (Table 4). These results were compared with an ultrasonic-assisted extraction in a bath at optimum conditions previously established by a study that used 80% EtOH and 20 min (Table S1) [21]. By comparison of these results, the content in the phenolic compounds and antioxidant activities by using probe-type (sonotrode) was 2.3 and 1.6–2 times higher in comparison with the bath. Therefore, the use of a sonotrode has been shown to be more efficient than the ultrasonic-assisted extraction by a bath. This could be due to the fact that the power reached into the solvent with the sonotrode is higher than that used in the bath, improving the mass transfer of phenolic compounds across cellular membranes into the solution. In addition, the delivered intensity is attenuated by the water present in the bath and the glassware used for the experiment [28].
The optimum obtained by the sonotrode was compared with the extraction performed by ultrasonic bath according to the method described by Diaz-de-Cerio et al. [16]. The results are shown in Table 5.
As noticed, sonotrode extraction reported a higher recovery of phenolic compounds compared to ultrasonic baths. In fact, the total phenolic content in the sonotrode extract was 2.3 times higher than in the bath extract. A similar trend was reported for flavonoids (2.6 times higher) and phenolic acids (1.7 times higher).
Antioxidant activity of the extracts evaluated by DPPH, ABTS and FRAP confirmed the trend reported for the phenolic content.
2.4.2. Quantification of Phenolic Compounds by HPLC-MS in Different Cultivars of Cherimoya Leaf Extracts at Optimal UAE Sonotrode Conditions
The sonotrode extraction optimum conditions established for the cultivar ‘Fino de Jete’ was applied in other cultivars of cherimoya leaves ‘Campas’, and ‘Negrito Joven’. Among 29 phenolic compounds identified in the cultivars of cherimoya leaves, 23 of them were quantified in all cultivars by HPLC-MS (except proanthocyanidins) (Table 6). Flavonoids were the most abundant phenolic compounds, which content comprise 77.3, 83.8, 76.1 and 83.1% of their total phenolic content in ‘Campas-1’, ‘Campas-2’, ‘Fino de Jete’ and ‘Negrito Joven’, respectively. These results were similar to those obtained by a previous study that reported a total amount of flavonoids between 63 and 76% regarding the total phenolic content in cherimoya leaf extracts [21]. Regarding the flavonoids, the most concentrated flavonoid in cherimoya leaf extracts was rutin. These results are in agreement with previous studies that reported rutin as the most abundant flavonoid in different cultivars of cherimoya leaves [5,21]. Concentrations of rutin represent around 40.3–43.2% of their total phenolic content for all cultivars of cherimoya leaf extracts. This result is similar to the one obtained by a previous study that reported a rutin content in Annona muricata leaves, which represents 37.5% of its total phenolic content [29]. In general, slight quantitative differences were found among the cultivars under study. In particular, the lowest content in rutin was obtained in the cultivar ‘Campas-2’; the value was 14.9% lower than in ‘Campas-1’and 11.8 and 9.7% lower than in the cultivars ‘Fino de Jete’ and ‘Negrito Joven’.
By comparison of the sum of phenolic compounds obtained in all cultivars, it has no shown significant differences between the cultivars ‘Campas 1’ and ‘Fino de Jete’. These results are in concordance with a previous study that reported no significant difference in the total phenolic content obtained in the cultivars ‘Fino de Jete’ and ‘Campas’ obtained in the same harvest season (650.75 and 639.4 mg gallic acid eq/g d.w.), respectively [5]. In addition, the sum of phenolic compounds obtained in ‘Negrito Joven’ and ‘Campas 2’ was slightly lower than the obtained by ‘Campas-1’ and ‘Fino de Jete’. Hence, the fact that there are almost no differences in the phenolic content could be due to these cultivars being grown under the same agronomic conditions [30].
The sum of phenolic compounds obtained in ‘Fino de Jete’ was in the same order of magnitude that the reported in the same cultivar by Diaz de Cerio et al. (2018), which reported a total content of 14 and 17 mg/g d.w. obtained in the same cultivar at 80% and 70% EtOH by using a sonicator for 20 min [21]. In addition, the phenolic content obtained in ‘Fino de Jete’ cherimoya leaves was similar to that reported in the fruit peel (20.35 mg/g d.w.) and it was double that of the pulp and the seeds (7.4 and 7.6 mg/g d.w., respectively) [7].
2.5. Antioxidant Activities Obtained in Cherimoya Leaves Cultivars at Optimal Conditions
Results of the antioxidant activities in the different cultivars of cherimoya leaves are shown in Table 6. According to the results, the highest antioxidant activity was obtained in ‘Fino de Jete’, ‘Negrito Joven’ and ‘Campas-1’ by DPPH, which were 5.4–9.3% higher than ‘Campas-2’. In addition, the highest antioxidant values obtained by ABTS and FRAP were obtained in ‘Fino de Jete’ and ‘Negrito Joven’, followed by ‘Campas-1’ and ‘Campas-2’. Therefore, ‘Campas-2’ possess antioxidant activity values slightly lower than the rest of the cultivars and these results agree with those obtained from the sum of compounds by HPLC-MS. The values of antioxidant activities in ‘Fino de Jete’ and ‘Campas’ (8.2–8.8, 4.4–4.8 and 2.9–3.6 mmol trolox/100 g d.w.) by DPPH, ABTS and FRAP were in the same order of magnitude than those obtained by a previous study in the same cultivars [5]. The statistical correlation between phenolic compounds and antioxidant activities is shown in Table S2. Both DPPH and ABTS exhibit a significant positive correlation with rutin and kaempferol 3-O-ß-D-(6^-O-p-coumaroyl) galactopyranoside, flavonoids and the sum of phenolic compounds. However, DPPH also possesses a significant positive correlation with calabricoside A I. In addition, ABTS and FRAP have shown significant correlations with caffeoyl-glucaric acid derivative II, p-coumaroylglucaric acid derivative, procyanidin dimer type B and lathyroside-7-O-α-Lrhamnopyranoside isomer I. Therefore, differences in correlation between specific phenolic compounds with the antioxidant activities in different assays could be due to the diverse responses of phenolic compounds to different antioxidant reaction mechanisms [31]. DPPH and ABTS neutralized the two radicals by radical quenching via hydrogen atoms or by radical quenching via hydrogen atoms. However, the FRAP essay consists of a reduction in the ferric ion by means of donor electrons in the sample [32].
2.6. Quantification of Proanthocyanidins in Cherimoya Leaf Extract by HPLC-FLD
The quantification of proanthocyanidins in cherimoya leaf extract was performed using HPLC-FLD (Supplementary Figure S1). The calibration curve of the standard catechin was used to quantify the proanthocyanins (y = 88.254x + 56.648, r2 = 0.9991). The quantification of oligomers and polymers was carried out by the application of different correction factors established by Robbins et al. [33].
The concentration values of proanthocyanidins obtained in cherimoya leaf extracts at optimum sonotrode conditions are shown in Table 7.
The total proanthocyanidins content was in the same order of magnitude as reported by Díaz-De-Cerio et al. (2018) (5.38 ± 0.03 and 5.5 ± 0.2 mg/g leaf d.w., respectively) [21]. Among the proanthocyanidins presented in the cultivars of cherimoya leaves, the most concentrated ones were the monomers (catechin and epicatechin). The highest concentration of monomers was obtained in ‘Campas-1’ and ‘Campas-2’, with values 22.0–25.9% and 72.4–77.9% higher than in ‘Fino de Jete’ and ‘Negrito Joven’. This result is in concordance with that reported by Mannino et al. (2020), which reported a concentration in monomers in ‘Campas’, which was 46.8% higher than that obtained in ‘Fino de Jete’ [5]. In addition, trimers of proanthocyanidins were found in a high concentration, which represents between 13.4 and 16.0% of their total content of proanthocianidins. There is no information regarding the content of oligomers of proanthocyanidinds in cherimoya leaves for comparative purposes. However, when compared with those described for the pulp of cherimoya, the highest content of proanthocyanidins obtained in ‘Mateus I’ was 43.5% lower than the mean obtained in the present study in cherimoya leaves [34]. The highest proanthocyanidin content was obtained in the cultivars ‘Fino de Jete’ and ‘Campas-1’, which was 15.7 and 52.2% higher than that obtained in ‘Campas-2’ and ‘Negrito Joven’. Therefore, the sonotrode could be considered an efficient extraction technique that allows a good recovery of phenolic substances from cherimoya leaf that could be easily scale-up at the industrial level.
3. Materials and Methods
3.1. Samples
‘Fino de Jete’, ‘Negrito joven’, ‘Campas-1’ and ‘Campas-2’ cherimoya leaves cultivars were harvested in the Tropical Coast of Granada (Spain). These cultivars were harvested in September 2020. Leaves were air dried at room temperature in dark conditions (25–28 °C for 1 week) and afterward, they were milled using an A10 basic miller from IKA (IKA, Staufen, Germany).
3.2. Chemicals
Ethanol, methanol and HPLC-grade acetonitrile were purchased from Merck KGaA (Darmstadt, Germany) and water was purified using a Milli-Q system (Millipore, Bedford, MA, USA). The acetic acid used was purchased from Fluka (Buchs, Switzerland). Vanillic acid, chlorogenic acid, quercetin, catechin and rutin were purchased from Sigma-Aldrich (St. Louis, MO, USA).
3.3. Experimental Design
A Box-Behnken design with three variables was carried out in order to optimize the extraction parameters to obtain the highest content of phenolic compounds in ‘Fino de Jete’ cherimoya leaves. In this study, three independent variables were evaluated: amplitude (X1), time (X2), and percentage of EtOH/H2O (X3), with three levels for each variable. The response variables (Y) were total phenolic content (TPC) obtained by HPLC-MS, and antioxidant activities by FRAP, DPPH and ABTS. The range in percentage of amplitude (20, 60 and 100%) was the same as reported in a previous study on olive leaves [35]. The range of extraction times (1, 10.5 and 20 min) was chosen based on a previous study that used 20 min with a sonicator bath in cherimoya leaves [21]. Finally, the percentage of EtOH was 0, 50 and 100%, based on previous studies that used 70, 75 and 80% EtOH, respectively [5,21]. The design consisted of 15 combinations including three center points.
Response surface methodology (RSM) is the most popular tool for modeling. In RSM, a second-order polynomial equation is always used to build the relationship between the response variables and independent variables [36]. The experimental design and the determination of optimal UAE sonotrode factors were chosen based on the highest phenolic content and antioxidant activities by using the program STATISTICA 7.0 (2002, StatSoft, Tulsa, OK, USA).
3.4. Extraction of Phenolic Compounds in Cherimoya Leaves
The sonotrode extraction was achieved by adding 100 mL of EtOH/H2O mixture to 0.25 g of cherimoya leaves [1:400 (w/v)]. The sonotrode used was UP400St (Hielscher Ultrasonics GmbH, Teltow, Germany). The ultrasound amplitude, percentage of EtOH/H2O and extraction time were varied according to a Box-Behnken experimental design. In addition, the ultrasonic-assisted extraction with bath (Bandelin, Sonorex, RK52, Berlin, Germany) was achieved by using the conditions previously established in the literature [21]. After that, the extracts were centrifugated at 1000× g for 10 min, the supernatant was collected, evaporated and reconstituted in 2 mL of methanol/water (1:1, v/v). The cherimoya leaf extracts were filtered through 0.2 μm nylon syringe filters and stored at −18 °C until their analysis.
3.5. Antioxidant Capacity
Three different assays were used to determine the antioxidant capacity of the extracts obtained from cherimoya leaves cultivars. In all assays, Trolox (6-hydroxy-2,5,7,8-tetramethylchromen-2-carboxylic acid) was used as the standard and the results were expressed in mg of Trolox equivalents (TE)/g of dry weight.
3.5.1. DPPH Radical Scavenging
A DPPH assay was performed according to the method described by Brand-Williams. et al. [37].
3.5.2. ABTS Cation Radical Scavenging
The antioxidant activity of the cherimoya leaf extracts by ABTS cation radical scavenging was conducted following the method reported by Re R. et al. [38].
3.5.3. Ferric Reducing Antioxidant Power (FRAP)
The FRAP of the cherimoya leaf extract was performed by using a protocol described by Pulido et al. [39].
3.6. Determination of Phenolic Compounds in Cherimoya Leaf Extracts by UPLC-ESI-TOF-MS Analysis
Cherimoya leaf extracts obtained by ultrasonic-assisted extraction via the sonotrode were analyzed by the ACQUITY Ultra Performance LC system (Waters Corporation, Milford, MA, USA) coupled to an electrospray ionization (ESI) source operating in the negative mode and a time-of-flight (TOF) mass detector (Waters Corporation, Milford, MA, USA). The separation was performed by using an ACQUITY UPLC BEH Shield RP18 column (1.7 µm, 2.1 mm × 100 mm; Waters Corporation, Milford, MA, USA) at 40 °C by using the gradient conditions as Verni et al. [40] The data were processed by using MassLynx 4.1 software (Waters Corporation, Milford, MA, USA).
3.7. Determination of Procyanidins in Cherimoya Leaf Extracts by HPLC-FLD
The analysis of procyanidins was carried out by using an Agilent 1200 Series HPLC system (Agilent Technologies, Santa Clara, CA, USA) equipped with a binary pump delivery system, a degasser, an autosampler and a fluorescence detector (FLD). The separation was carried out by using a column Develosil Diol 100Å (250 × 4.6 mm, 5µm particle size) purchased from Phenomenex (Torrance, CA, USA). The gradient conditions were the same as those previously used by Robbins et al. [33]. A standard curve of catechin at six concentration levels from 10 to 650 µg/mL was carried out for the quantification of flavan-3-ols. In addition correction factors suggested by Robbins et al. [33] were used for quantification. The results are expressed as mg catechin equivalents (CE)/g d.w.
3.8. Statistical Analysis
Tukey’s honest significant differences (one-way ANOVA), p < 0.05, were evaluated using Statistica 8.0 software (2007, StatSoft, Tulsa, OK, USA).
4. Conclusions
A Box-Behnken design has been used for the first time to optimize the ultrasonic-assisted extraction via sonotrode in ‘Fino de Jete’ cherimoya leaves with the aim to obtain the highest content of phenolic compounds by HPLC-MS and the highest value of the antioxidant activities by DPPH, ABTS and FRAP. According to the results, the optimal factors were 70% amplitude, 10 min and EtOH/H2O (40:60, v/v). Under these conditions, the total phenolic content obtained via the sonotrode was twice more than using a conventional ultrasonic bath. These optimal conditions were applied in different cultivars of cherimoya leaves ‘Campas-1’, ‘Campas-2’, ‘Fino de Jete’ and ‘Negrito Joven’ which were grown under the same agronomic conditions. In addition, the content of proanthocyanidins in these cherimoya leaf extracts was analyzed via HPLC-FLD. Cherimoya leaf extracts possess a high content in monomers, dimers, trimers and polymers. No significant differences in the phenolic and proanthocyanidins content have been obtained between ‘Fino de Jete’, and ‘Campas-1’; the content was slightly higher in comparison with ‘Negrito Joven’ and ‘Campas-2’. Therefore, the employment of this sonotrode extraction technique under the optimum conditions established could be implemented at an industrial scale to obtain a cherimoya leaf extract rich in phenolic compounds. This consists of additional investment in equipment and skilled labor but it could improve the recovery of these valuable compounds.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11152034/s1, Table S1. Correlation analysis of phenolic content and antioxidant activities of Cherimoya leaf extracts. Figure S1. Chromatographic separation of proanthocyanidins by HPLC-FLD.
Author Contributions
Conceptualization, V.V. and A.M.G.-C.; methodology, B.M.-G.; software, B.M.-G. and A.M.G.-C.; validation, A.M.G.-C. and V.V.; formal analysis, A.M.G.-C. and B.M.-G.; investigation, B.M.-G. and M.J.A.-R.; resources, V.V. and A.M.G.-C.; data curation, B.M.-G. and M.J.A.-R.; writing—original draft preparation, B.M.-G.; writing—review and editing, A.M.G.-C. and V.V.; visualization, B.M.-G.; supervision, A.M.G.-C. and V.V.; project administration, A.M.G.-C. and V.V.; funding acquisition, A.M.G.-C. and V.V. All authors have read and agreed to the published version of the manuscript.
Funding
This study was supported by project RTI2018-099835-A-I00 financed by MCIN/AEI/10.13039/501100011033/FEDER “Una manera de hacer Europa”.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Acknowledgments
Vito Verardo thanks the Spanish Ministry of Economy and Competitiveness (MINECO) for the “Ramon y Cajal” contract (RYC-2015-18795).
Conflicts of Interest
The authors declare no conflict of interest.
References
- Quílez, A.M.; Fernández-Arche, M.A.; García-Giménez, M.D.; De la Puerta, R. Potential therapeutic applications of the genus Annona: Local and traditional uses and pharmacology. J. Ethnopharmacol. J. 2018, 225, 244–270. [Google Scholar] [CrossRef]
- Larranaga, N.; Albertazzi, F.J.; Hormaza, J.I. Phylogenetics of Annona cherimola (Annonaceae) and some of its closest relatives. J. Syst. Evol. 2019, 57, 211–221. [Google Scholar] [CrossRef]
- Pinto, A.D.Q.; Cordeiro, M.C.R.; De Andrade, S.R.M.; Ferreira, F.R.; Filgueiras, H.D.C.; Alves, R.E.; Kinpara, D.I. Annona Species; International Centre for Underutilized Crops: Wageningen, The Netherlands, 2005; ISBN 0854327851. [Google Scholar]
- Gentile, C.; Mannino, G.; Palazzolo, E.; Gianguzzi, G.; Perrone, A.; Serio, G.; Farina, V. Pomological, sensorial, nutritional and nutraceutical profile of seven cultivars of Cherimoya (Annona cherimola Mill). Foods 2021, 10, 35. [Google Scholar] [CrossRef] [PubMed]
- Mannino, G.; Gentile, C.; Porcu, A.; Agliassa, C.; Caradonna, F.; Bertea, C.M. Chemical profile and biological activity of cherimoya (Annona cherimola Mill.) and atemoya (Annona atemoya) leaves. Molecules 2020, 25, 2612. [Google Scholar] [CrossRef] [PubMed]
- Galán Saúco, V.; Farré Massip, J.M. Tropical and subtropical fruits in Spain. Acta Hortic. 2005, 694, 259–264. [Google Scholar] [CrossRef]
- García-Salas, P.; Gómez-Caravaca, A.M.; Morales-Soto, A.; Segura-Carretero, A.; Fernández-Gutiérrez, A. Identification and quantification of phenolic and other polar compounds in the edible part of Annona cherimola and its by-products by HPLC-DAD-ESI-QTOF-MS. Food Res. Int. 2015, 78, 246–257. [Google Scholar] [CrossRef] [PubMed]
- Rabêlo, S.V.; Costa, E.V.; Barison, A.; Dutra, L.M.; Nunes, X.P.; Tomaz, J.C.; Oliveira, G.G.; Lopes, N.P.; Santos, M.d.F.C.; da Silva Almeida, J.R.G. Alkaloids isolated from the leaves of atemoya (Annona cherimola × Annona squamosa). Rev. Bras. Farmacogn. 2015, 25, 419–421. [Google Scholar] [CrossRef] [Green Version]
- Gutiérrez, M.T.; Durán, A.G.; Mejías, F.J.R.; Molinillo, J.M.G.; Megias, D.; Valdivia, M.M.; Macías, F.A. Bio-guided isolation of acetogenins from Annona cherimola deciduous leaves: Production of nanocarriers to boost the bioavailability properties. Molecules 2020, 25, 4861. [Google Scholar] [CrossRef] [PubMed]
- Ferreira, L.; Perestrelo, R.; Câmara, J.S. Comparative analysis of the volatile fraction from Annona cherimola Mill. cultivars by solid-phase microextraction and gas chromatography-quadrupole mass spectrometry detection. Talanta 2009, 77, 1087–1096. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ammoury, C.; Younes, M.; El Khoury, M.; Hodroj, M.H.; Haykal, T.; Nasr, P.; Sily, M.; Taleb, R.I.; Sarkis, R.; Khalife, R.; et al. The pro-apoptotic effect of a Terpene-rich Annona cherimola leaf extract on leukemic cell lines. BMC Complement. Altern. Med. 2019, 19, 365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wélé, A.; Zhang, Y.; Brouard, J.P.; Pousset, J.L.; Bodo, B. Two cyclopeptides from the seeds of Annona cherimola. Phytochemistry 2005, 66, 2376–2380. [Google Scholar] [CrossRef]
- Arun Jyothi, J.; Venkatesh, K.; Chakrapani, P.; Roja Rani, A. Phytochemical and pharmacological potential of Annona cherimola-a review. Int. J. Phytomedicine 2011, 3, 439–447. [Google Scholar]
- Al Kazman, B.S.M.; Harnett, J.E.; Hanrahan, J.R. Traditional Uses, Phytochemistry and Pharmacological Activities of Annonacae. Molecules 2022, 27, 3462. [Google Scholar] [CrossRef] [PubMed]
- Martínez-Solís, J.; Calzada, F.; Barbosa, E.; Valdés, M. Antihyperglycemic and antilipidemic properties of a tea infusion of the leaves from annona cherimola miller on streptozocin-induced type 2 diabetic mice. Molecules 2021, 26, 2408. [Google Scholar] [CrossRef] [PubMed]
- Perrone, A.; Yousefi, S.; Salami, A.; Papini, A.; Martinelli, F. Botanical, genetic, phytochemical and pharmaceutical aspects of Annona cherimola Mill. Sci. Hortic. 2022, 296, 110896. [Google Scholar] [CrossRef]
- Haykal, T.; Younes, M.; El Khoury, M.; Ammoury, C.; Tannous, S.; Hodroj, M.H.; Sarkis, R.; Gasilova, N.; Menin, L.; Rizk, S. The pro-apoptotic properties of a phytonutrient rich infusion of A. cherimola leaf extract on AML cells. Biomed. Pharmacother. 2021, 140, 111592. [Google Scholar] [CrossRef]
- García-Villegas, A.; Rojas-García, A.; Villegas-Aguilar, M.D.C.; Fernández-Moreno, P.; Fernández-Ochoa, Á.; Cádiz-Gurrea, M.d.L.; Arráez-Román, D.; Segura-Carretero, A. Cosmeceutical Potential of Major Tropical and Subtropical Fruit By-Products for a Sustainable Revalorization. Antioxidants 2022, 11, 203. [Google Scholar] [CrossRef] [PubMed]
- Zhao, Y.; Wen, C.; Feng, Y.; Zhang, J.; He, Y.; Duan, Y.; Zhang, H.; Ma, H. Effects of ultrasound-assisted extraction on the structural, functional and antioxidant properties of Dolichos lablab L. Protein. Process Biochem. 2021, 101, 274–284. [Google Scholar] [CrossRef]
- Aguilar-Villalva, R.; Molina, G.A.; España-Sánchez, B.L.; Díaz-Peña, L.F.; Elizalde-Mata, A.; Valerio, E.; Azanza-Ricardo, C.; Estevez, M. Antioxidant capacity and antibacterial activity from Annona cherimola phytochemicals by ultrasound-assisted extraction and its comparison to conventional methods. Arab. J. Chem. 2021, 14, 103239. [Google Scholar] [CrossRef]
- Díaz-De-Cerio, E.; Aguilera-Saez, L.M.; Gómez-Caravaca, A.M.; Verardo, V.; Fernández-Gutiérrez, A.; Fernández, I.; Arráez-Román, D. Characterization of bioactive compounds of Annona cherimola L. leaves using a combined approach based on HPLC-ESI-TOF-MS and NMR. Anal. Bioanal. Chem. 2018, 410, 3607–3619. [Google Scholar] [CrossRef] [PubMed]
- Jiang, L.; Belwal, T.; Huang, H.; Ge, Z.; Limwachiranon, J.; Zhao, Y.; Li, L.; Ren, G.; Luo, Z. Extraction and Characterization of Phenolic Compounds from Bamboo Shoot Shell Under Optimized Ultrasonic-Assisted Conditions: A Potential Source of Nutraceutical Compounds. Food Bioprocess Technol. 2019, 12, 1741–1755. [Google Scholar] [CrossRef]
- Carmona, A.P.B.; Beltran, N.P.S.; Ruiz, J.-C.G.; Ruiz-Cruz, S.; Quiroz, C.C.; Palacio, E.F.M. Antiviral, antioxidant, and antihemolytic Effect of Annona muricata L. leaves extracts. Plants 2020, 9, 1650. [Google Scholar] [CrossRef] [PubMed]
- De Pasquale, I.; Verni, M.; Verardo, V.; Gómez-Caravaca, A.M.; Rizzello, C.G. Nutritional and functional advantages of the use of fermented black chickpea flour for semolina-pasta fortification. Foods 2021, 10, 182. [Google Scholar] [CrossRef] [PubMed]
- D’Angelo, R.W.O.; Gonçalves, M.M.; Fachi, M.M.; Vilhena, R.D.O.; Pontarolo, R.; Maluf, D.F. UPLC–QToF-MS Characterization of Blackberry Extracts of Cultivars ‘Tupy’, ‘Guarani’, and ‘Xavante’: Development of Extract-Loaded Niosomes. Rev. Bras. Farmacogn. 2020, 30, 519–527. [Google Scholar] [CrossRef]
- Fakheri, F.; Alam, A.S. Application of Box Behnken experimental design to analysis reaction conversion of n-butyl acetate to n-butanol. J. Adv. Chem. Eng. 2014, 4, 1–5. [Google Scholar] [CrossRef] [Green Version]
- Le Man, H.; Behera, S.K.; Park, H.S. Optimization of operational parameters for ethanol production from korean food waste leachate. Int. J. Environ. Sci. Technol. 2010, 7, 157–164. [Google Scholar] [CrossRef] [Green Version]
- Sukor, N.; Jusoh, R.; Rahim, S.A.; Kamarudin, N. Ultrasound assisted methods for enhanced extraction of phenolic acids from Quercus Infectoria galls. Mater. Today Proc. 2018, 5, 21990–21999. [Google Scholar] [CrossRef]
- Nam, J.S.; Park, S.Y.; Jang, H.L.; Rhee, Y.H. Phenolic compounds in different parts of young Annona muricata cultivated in Korea and their antioxidant activity. Appl. Biol. Chem. 2017, 60, 535–543. [Google Scholar] [CrossRef]
- Cezarotto, V.S.; Giacomelli, S.R.; Vendruscolo, M.H.; Vestena, A.S.; Cezarotto, C.S.; Da Cruz, R.C.; Maurer, L.H.; Ferreira, L.M.; Emanuelli, T.; Cruz, L. Influence of harvest season and cultivar on the variation of phenolic compounds composition and antioxidant properties in vaccinium ashei leaves. Molecules 2017, 22, 1603. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lfitat, A.; Zejli, H.; Bousraf, F.Z.; Bousselham, A.; El Atki, Y.; Gourch, A.; Lyoussi, B.; Abdellaoui, A. Comparative assessment of total phenolics content and in vitro antioxidant capacity variations of macerated leaf extracts of Olea europaea L. And Argania spinosa (L.) Skeels. Mater. Today Proc. 2021, 45, 7271–7277. [Google Scholar] [CrossRef]
- Prior, R.L.; Wu, X.; Schaich, K. Standardized methods for the determination of antioxidant capacity and phenolics in foods and dietary supplements. J. Agric. Food Chem. 2005, 53, 4290–4302. [Google Scholar] [CrossRef]
- Robbins, R.J.; Leonczak, J.; Johnson, J.C.; Li, J.; Kwik-Uribe, C.; Prior, R.L.; Gu, L. Method performance and multi-laboratory assessment of a normal phase high pressure liquid chromatography-fluorescence detection method for the quantitation of flavanols and procyanidins in cocoa and chocolate containing samples. J. Chromatogr. A 2009, 1216, 4831–4840. [Google Scholar] [CrossRef]
- Santos, S.A.O.; Vilela, C.; Camacho, J.F.; Cordeiro, N.; Gouveia, M.; Freire, C.S.R.; Silvestre, A.J.D. Profiling of lipophilic and phenolic phytochemicals of four cultivars from cherimoya (Annona cherimola Mill.). Food Chem. 2016, 211, 845–852. [Google Scholar] [CrossRef] [PubMed]
- Martín-García, B.; de Montijo-Prieto, S.; Jiménez-Valera, M.; Carrasco-Pancorbo, A.; Ruiz-Bravo, A.; Verardo, V.; Gómez-Caravaca, A.M. Comparative extraction of phenolic compounds from olive leaves using a sonotrode and an ultrasonic bath and the evaluation of both antioxidant and antimicrobial activity. Antioxidants 2022, 11, 558. [Google Scholar] [CrossRef]
- Tao, Y.; Sun, D.-W. Critical Reviews in Food Science and Nutrition Enhancement of Food Processes by Ultrasound: A Review. Crit. Rev. Food Sci. Nutr. 2015, 55, 570–594. [Google Scholar] [CrossRef] [PubMed]
- Brand-Williams, W.; Cuvelier, M.E.; Berset, C. Use of a free radical method to evaluate antioxidant activity. Leb. Technol. 1995, 28, 25–30. [Google Scholar] [CrossRef]
- Re, R.; Pellegrini, N.; Proteggente, A.; Pannala, A.; Yang, M.; Rice-Evans, C. Antioxidant activity applying an improved ABTS radical cation decolorization assay. Free Radic. Biol. Med. 1999, 26, 1231–1237. [Google Scholar] [CrossRef]
- Pulido, R.; Bravo, L.; Saura-Calixto, F. Antioxidant activity of dietary polyphenols as determined by a modified ferric reducing/antioxidant power assay. J. Agric. Food Chem. 2000, 48, 3396–3402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Verni, M.; Pontonio, E.; Krona, A.; Jacob, S.; Pinto, D.; Rinaldi, F.; Verardo, V.; Díaz-de-Cerio, E.; Coda, R.; Rizzello, C.G. Bioprocessing of Brewers’ Spent Grain Enhances Its Antioxidant Activity: Characterization of Phenolic Compounds and Bioactive Peptides. Front. Microbiol. 2020, 11, 1831. [Google Scholar] [CrossRef] [PubMed]

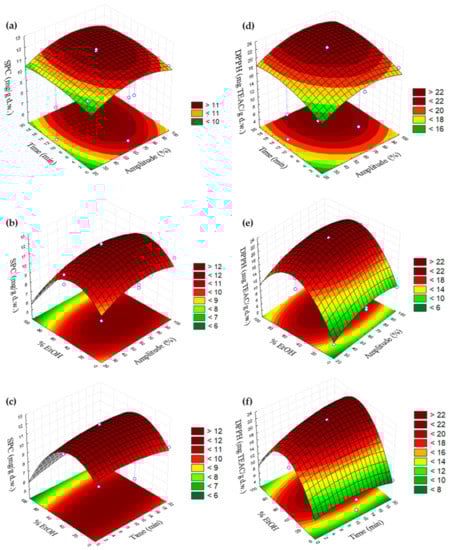

Figure 1.
Three-dimensional plots showing the effects of % amplitude (v/v) (X1) with time (X2) (a,d), % amplitude (X1) with % EtOH (X3) (b,e) and time (X2) with % EtOH (X3) (c,f) on the sum of phenolic compounds and DPPH.
Figure 1.
Three-dimensional plots showing the effects of % amplitude (v/v) (X1) with time (X2) (a,d), % amplitude (X1) with % EtOH (X3) (b,e) and time (X2) with % EtOH (X3) (c,f) on the sum of phenolic compounds and DPPH.

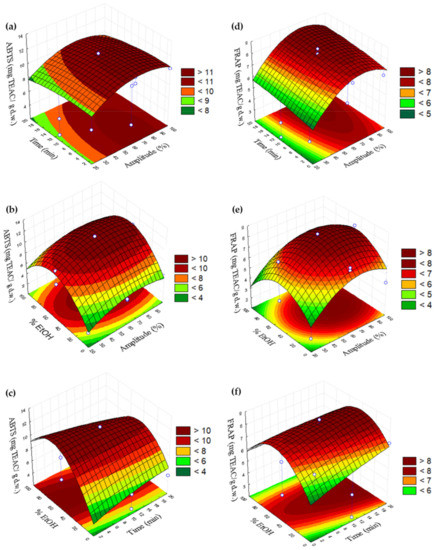

Figure 2.
Three-dimensional plots showing the effects of % amplitude (v/v) (X1) with time (X2) (a,d), % amplitude (X1) with % EtOH (X3) (b,e) and time (X2) with % EtOH (X3) (c,f) on the ABTS and FRAP.
Figure 2.
Three-dimensional plots showing the effects of % amplitude (v/v) (X1) with time (X2) (a,d), % amplitude (X1) with % EtOH (X3) (b,e) and time (X2) with % EtOH (X3) (c,f) on the ABTS and FRAP.
Table 1.
Identification table of phenolic compounds in cherimoya leaves obtained at UAE sonotrode conditions.
Table 1.
Identification table of phenolic compounds in cherimoya leaves obtained at UAE sonotrode conditions.
| RT (min) | m/z Experimental | m/z Calculated | Tolerance (ppm) | Error (ppm) | Fit Conf % | Fragments | Molecular Formula | Compound | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1.12 | 371.0609 | 371.0614 | 20 | −1.3 | 99.72 | 209.0302, 743.1304 | C15H15O11 | Caffeoyl-glucaric acid derivative I |
| 2 | 2.24 | 371.0625 | 371.0614 | 20 | 3 | 99.96 | 209.0305, 743.1282 | C6H7O7 | Caffeoyl-glucaric acid derivative II |
| 3 | 3.70 | 355.0653 | 355.0665 | 20 | −3.4 | 94.57 | 163.0399, 209.0293, 711.1283 | C15H15O10 | p-coumaroylglucaric acid derivative |
| 4 | 3.90 | 289.0711 | 289.0712 | 20 | −0.7 | 99.98 | 245.0825 | C15H13O6 | Catechin |
| 5 | 4.55 | 353.087 | 353.0873 | 20 | −0.8 | 96.98 | 191.0561, 707.1754 | C16H17O9 | Chlorogenic acid I |
| 6 | 4.72 | 353.0876 | 353.0873 | 20 | 0.8 | 95.86 | 191.0564, 707.1786 | C16H17O9 | Chlorogenic acid II |
| 7 | 4.92 | 353.0876 | 353.0873 | 20 | 0.8 | 93.35 | 191.0564, 707.1786 | C16H17O9 | Chlorogenic acid III |
| 8 | 5.18 | 289.0711 | 289.0712 | 20 | −0.3 | 100 | 245.0806 | C15H13O6 | Epicatechin |
| 9 | 5.52 | 771.1967 | 771.1984 | 20 | −3.2 | 90.37 | C33H39O21 | Quercetin 3-O-rutinoside-7-O-glucoside I | |
| 10 | 5.56 | 577.1324 | 577.1346 | 20 | −3.8 | 99.71 | 289.0706, 425.0938 | C30H25O12 | Procyanidin dimer type B |
| 11 | 5.72 | 771.1959 | 771.1984 | 20 | 4.5 | 91.28 | C33H39O21 | Quercetin 3-O-rutinoside-7-O-glucoside II | |
| 12 | 5.90 | 337.0927 | 337.0923 | 20 | 1.2 | 99.85 | 191.05553, 163.0376, 173.0376, 119.04448 | C16H17O8 | 5-p-coumaroylquinic acid I |
| 13 | 6.07 | 337.093 | 337.0923 | 20 | 2.1 | 99.77 | 191.0559, 163.0386, 173.0435, 119.0499 | C16H17O8 | 5-p-coumaroylquinic acid II |
| 14 | 7.14 | 865.1959 | 865.198 | 20 | −2.4 | 99.72 | 577.1373 | C45H37O18 | Procyanidin trimer type B I |
| 15 | 7.65 | 1153.2571 | 1153.2614 | 20 | −3.7 | 86.2 | C60H49O24 | Procyanidin tetramer type B I | |
| 16 | 8.52 | 741.1866 | 741.1878 | 20 | −1.6 | 89.54 | 300.027 | C32H37O20 | Calabricoside A I |
| 17 | 8.69 | 741.1855 | 741.1878 | 20 | −3.1 | 99.97 | 300.027 | C32H37O20 | Calabricoside A II |
| 18 | 8.75 | 609.1457 | 609.1456 | 20 | 0.2 | 99.36 | 300.0271 | C27H29O26 | Rutin I |
| 19 | 9.07 | 609.1459 | 609.1456 | 20 | 0.5 | 97.64 | 300.0274 | C27H29O26 | Rutin II |
| # | RT (min) | m/z experimental | m/z calculated | Tolerance (ppm) | Error (ppm) | Fit Conf % | Fragments | Molecular formula | Compound |
| 20 | 9.20 | 463.0867 | 463.0877 | 20 | −2.2 | 94.75 | 300.0269 | C21H19O12 | Quercetin hexoside |
| 21 | 9.22 | 725.1923 | 725.1929 | 20 | −0.8 | 99.36 | 284.0324 | C32H37O19 | Kaempferol-lathyroside-7-O-α-L-rhamnopyranoside isomer I |
| 22 | 9.42 | 725.1901 | 725.1929 | 20 | −3.9 | 99.98 | 284.0315 | C32H37O19 | Kaempferol-lathyroside-7-O-α-L-rhamnopyranoside isomer II |
| 23 | 9.48 | 593.1503 | 593.1506 | 20 | −0.5 | 93.29 | 285.0387 | C27H29O15 | Kaempferol 3-galactoside-7-rhamnoside |
| 24 | 9.78 | 447.0934 | 447.0927 | 20 | 1.6 | 88.65 | 285.0397 | C21H19O11 | Kaempferol hexoside I |
| 25 | 9.95 | 593.1508 | 593.1506 | 20 | 0.3 | 93.69 | 285.0404 | C27H29O15 | Luteolin-3-galactoside-7-rhamnoside |
| 26 | 10.10 | 447.0919 | 447.0927 | 20 | −1.8 | 99.99 | 285.0372 | C21H19O11 | Kaempferol hexoside II |
| 27 | 10.14 | 505.0966 | 505.0982 | 20 | −3.2 | 99.99 | 151.0026, 301.0327, 447.0947 | C23H21O13 | Quercetin hexose actetate |
| 28 | 13.50 | 593.1283 | 593.1295 | 20 | −2 | 94.19 | 447.0889 | C30H25O13 | Kaempferol 3-O-β-D-(6^-O-p-coumaroyl) galactopyranoside I |
| 29 | 13.58 | 593.1263 | 593.1295 | 20 | −5.4 | 48.12 | 447.0932 | C30H25O13 | Kaempferol 3-O-β-D-(6^-O-p-coumaroyl) galactopyranoside II |
Table 2.
Experimental Box-Behnken design (BBD), with natural and coded values for the factors, and response variable values.
Table 2.
Experimental Box-Behnken design (BBD), with natural and coded values for the factors, and response variable values.
| Run | Dependent Factors | Response Variables | |||||
|---|---|---|---|---|---|---|---|
| X1 | X2 | X3 | SPC | DPPH | ABTS | FRAP | |
| 1 | 20 | 1.0 | 50 | 10.96 | 14.77 | 6.86 | 3.81 |
| 2 | 100 | 1.0 | 50 | 10.76 | 18.75 | 10.24 | 6.53 |
| 3 | 20 | 20.0 | 50 | 9.94 | 18.03 | 9.40 | 7.52 |
| 4 | 100 | 20.0 | 50 | 10.35 | 20.86 | 9.88 | 7.87 |
| 5 | 20 | 10.5 | 0 | 8.47 | 4.48 | 2.84 | 2.33 |
| 6 | 100 | 10.5 | 0 | 10.64 | 7.55 | 5.16 | 4.23 |
| 7 | 20 | 10.5 | 100 | 5.47 | 10.82 | 5.15 | 3.62 |
| 8 | 100 | 10.5 | 100 | 6.18 | 13.34 | 6.11 | 7.20 |
| 9 | 60 | 1.0 | 0 | 9.60 | 8.37 | 4.83 | 7.29 |
| 10 | 60 | 20.0 | 0 | 9.92 | 7.75 | 4.94 | 7.03 |
| 11 | 60 | 1.0 | 100 | 5.60 | 8.44 | 10.27 | 5.55 |
| 12 | 60 | 20.0 | 100 | 8.00 | 15.93 | 3.99 | 3.31 |
| 13 | 60 | 10.5 | 50 | 11.55 | 21.71 | 10.51 | 7.67 |
| 14 | 60 | 10.5 | 50 | 11.87 | 23.11 | 11.81 | 8.14 |
| 15 | 60 | 10.5 | 50 | 12.02 | 21.88 | 10.92 | 8.55 |
Amplitude (%), X2: time (min) and X3: %EtOH. SPC (sum of phenolic compounds by HPLC-MS) was expressed as mg g−1 d.w. DPPH, ABTS and FRAP were expressed as mg trolox eq. g−1 d.w.
Table 3.
Regression coefficients and analysis of variance (ANOVA) of the model for the response variables.
Table 3.
Regression coefficients and analysis of variance (ANOVA) of the model for the response variables.
| SPC | DPPH | ABTS | FRAP | |
|---|---|---|---|---|
| β0 | 7.253700 * | −1.08121 | −2.89394 | −0.467654 |
| Linear | ||||
| β1 | 0.085998 * | 0.24544 * | 0.17005 * | 0.150340 * |
| β2 | 0.022230 | 0.34860 | 0.32289 ** | 0.206726 ** |
| β3 | 0.092866 ** | 0.43362 * | 0.25189 * | 0.083568 * |
| Cross product | ||||
| β12 | 0.000402 | −0.00076 | −0.00191 | −0.001553 |
| β13 | −0.000182 ** | −0.00007 | −0.00017 | 0.000211 |
| β23 | 0.001098 * | 0.00427 * | −0.00336 * | −0.001044 |
| Quadratic | ||||
| β11 | −0.000595 * | −0.00163 * | −0.00099 * | −0.000982 * |
| β22 | −0.004019 * | −0.01692 ** | −0.00440 | −0.001318 |
| β33 | −0.001269 * | −0.00423 * | −0.00187 * | −0.000882 * |
| R2 | 0.94493 | 0.95784 | 0.92139 | 0.85839 |
| p (Lack of fit) | 0.074024 | 0.146656 | 0.192242 | 0.058427 |
* Significant at p < 0.05 level, ** Significant at p < 0.1 level.
Table 4.
Optimal conditions for UAE sonotrode extraction.
| Optimal Conditions | SPC | DPPH | ABTS | FRAP |
|---|---|---|---|---|
| Amplitude % | 70 | 70 | 70 | 70 |
| Time (min) | 10 | 10 | 10 | 10 |
| %EtOH | 40 | 40 | 40 | 40 |
| Predicted | 12.1 ± 0.6 | 21 ± 2 | 11 ± 1 | 8 ± 1 |
| Observed | 13.4 ± 0.7 | 21.9 ± 0.4 | 12.2 ± 0.3 | 8.99 ± 0.07 |
| Significant differences | N.S. | N.S. | N.S. | N.S. |
| p value | 0.1023 | 0.0998 | 0.1273 | 0.1109 |
N.S.: no significant differences. SPC was expressed as mg/g d.w. DPPH, ABTS and FRAP were expressed as mg trolox/g sample d.w.
Table 5.
Concentration of phenolic compounds (mg/g d.w.) obtained at optimum sonotrode conditions and with ultrasonic bath in the ‘Fino de Jete’ cherimoya leaves by HPLC-MS.
Table 5.
Concentration of phenolic compounds (mg/g d.w.) obtained at optimum sonotrode conditions and with ultrasonic bath in the ‘Fino de Jete’ cherimoya leaves by HPLC-MS.
| Phenolic Compounds | Fino de Jete | |
|---|---|---|
| Sonotrode | Bath | |
| Caffeoyl-glucaric acid derivative I 1 | 0.225 ± 0.004 a | 0.13 ± 0.01 b |
| Caffeoyl-glucaric acid derivative II 1 | 0.141 ± 0.002 a | 0.064 ± 0.003 b |
| p-coumaroylglucaric acid derivative 1 | 0.36 ± 0.01 a | 0.198 ± 0.005 b |
| Chlorogenic acid I 1 | 0.420 ± 0.007 a | 0.198 ± 0.001 b |
| Chlorogenic acid II 1 | 0.59 ± 0.06 a | 0.162 ± 0.002 b |
| Chlorogenic acid III 1 | 0.2100 ± 0.0005 b | 0.64 ± 0.02 a |
| Quercetin 3-O-rutinoside-7-O-glucoside I 2 | 0.007 ± 0.001 b | 0.203 ± 0.005 a |
| Quercetin 3-O-rutinoside-7-O-glucoside II 2 | 0.033 ± 0.004 | <LOQ |
| 5-p-coumaroylquinic acid I 1 | 0.69 ± 0.01 a | 0.49 ± 0.3 b |
| 5-p-coumaroylquinic acid II 1 | 0.54 ± 0.03 a | 0.0041 ± 0.0005 b |
| Calabricoside A I 2 | 0.65 ± 0.05 a | 0.103 ± 0.001 b |
| Calabricoside A II 2 | 0.66 ± 0.04 a | 0.027 ± 0.001 b |
| Rutin I 2 | 2.3 ± 0.1 a | 1.32 ± 0.05 b |
| Rutin II 2 | 3.1 ± 0.1 a | 1.8 ± 0.3 b |
| Quercetin hexoside 2 | 1.60 ± 0.09 a | 0.029 ± 0.2 b |
| Kaempferol-lathyroside-7-O-α-L-rhamnopyranoside isomer I 3 | 0.078 ± 0.009 a | 0.020 ± 0.001 b |
| Kaempferol-lathyroside-7-O-α-L-rhamnopyranoside isomer II 3 | 0.038 ± 0.01 a | 0.015 ± 0.003 b |
| Kaempferol 3-galactoside-7-rhamnoside 3 | 0.26 ± 0.02 a | 0.116 ± 0.005 b |
| Kaempferol hexoside I 3 | 0.117 ± 0.007 a | 0.009 ± 0.001 b |
| Luteolin-3-galactoside-7-rhamnoside 3 | 0.41 ± 0.01 a | 0.13 ± 0.02 b |
| Kaempferol hexoside II 3 | 0.145 ± 0.008 a | 0.0064 ± 0.0002 b |
| Quercetin hexose acetate 2 | 0.268 ± 0.001 a | 0.034 ± 0.001 b |
| Kaempferol 3-O-ß-D-(6^-O-p-coumaroyl) galactopyranoside I 3 | 0.54 ± 0.03 a | 0.013 ± 0.001 b |
| Kaempferol 3-O-ß-D-(6^-O-p-coumaroyl) galactopyranoside II 3 | <LOQ | <LOQ |
| Sum flavonoids | 10.2 ± 0.5 a | 3.9 ± 0.2 b |
| Sum phenolic acid derivatives | 3.2 ± 0.1 a | 1.89 ± 0.06 b |
| Sum | 13.4 ± 0.7 a | 5.8 ± 0.3 b |
| DPPH | 21.9 ± 0.4 a | 13.8 ± 0.3 b |
| ABTS | 12.2 ± 0.3 a | 6.72 ± 0.02 b |
| FRAP | 8.99 ± 0.07 a | 4.4 ± 0.3 b |
1 chlorogenic acid equivalent, 2 rutin equivalent, 3 kaempferol 3-rhamnoside equivalent. Different letters in the same line indicate significant differences among the extractions. <LOQ: Less than the limit of quantification.
Table 6.
Quantification table of phenolic compounds and antioxidant activities in different cultivars of cherimoya leaves obtained at optimum UAE sonotrode conditions.
Table 6.
Quantification table of phenolic compounds and antioxidant activities in different cultivars of cherimoya leaves obtained at optimum UAE sonotrode conditions.
| Phenolic Compounds | ‘Campas-1’ | ‘Campas-2’ | ‘Fino de Jete’ | ‘Negrito Joven’ |
|---|---|---|---|---|
| Caffeoyl-glucaric acid derivative I 1 | 0.211 ± 0.006 b,c | 0.201 ± 0.001 c | 0.225 ± 0.004 b | 0.336 ± 0.002 a |
| Caffeoyl-glucaric acid derivative II 1 | 0.1337 ± 0.0005 b | 0.140 ± 0.001 b | 0.141 ± 0.002 b | 0.200 ± 0.003 a |
| p-coumaroylglucaric acid derivative 1 | 0.334 ± 0.003 a | 0.25 ± 0.02 b | 0.36 ± 0.01 a | 0.1954 ± 0.0006 c |
| Chlorogenic acid I 1 | 0.599 ± 0.002 a | 0.18 ± 0.02 c | 0.420 ± 0.007 b | 0.148 ± 0.002 c |
| Chlorogenic acid II 1 | 0.58 ± 0.02 a | 0.51 ± 0.06 a | 0.59 ± 0.06 a | 0.53 ± 0.01 a |
| Chlorogenic acid III 1 | 0.191 ± 0.005 b | 0.155 ± 0.007 c | 0.2100 ± 0.0005 a | 0.154 ± 0.002 c |
| Quercetin 3-O-rutinoside-7-O-glucoside I 2 | 0.008 ± 0.001 b | 0.006 ± 0.002 b | 0.007 ± 0.001 b | 0.035 ± 0.001 a |
| Quercetin 3-O-rutinoside-7-O-glucoside II 2 | 0.078 ± 0.001 b | 0.077 ± 0.006 b | 0.033 ± 0.004 c | 0.208 ± 0.002 a |
| 5-p-coumaroylquinic acid I 1 | 0.57 ± 0.03 b | 0.22 ± 0.02 c | 0.69 ± 0.01 a | 0.293 ± 0.007 c |
| 5-p-coumaroylquinic acid II 1 | 0.41 ± 0.01 b | 0.133 ± 0.003 d | 0.54 ± 0.03 a | 0.204 ± 0.004 c |
| Calabricoside A I 2 | 0.624 ± 0.008 a | 0.42 ± 0.01 b | 0.65 ± 0.05 a | 0.33 ± 0.02 b |
| Calabricoside A II 2 | 0.85 ± 0.01 a | 0.47 ± 0.01 c | 0.66 ± 0.04 b | 0.473 ± 0.008 c |
| Rutin I 2 | 2.18 ± 0.02 a | 1.90 ± 0.06 b | 2.3 ± 0.1 a | 2.1664 ± 0.0007 a,b |
| Rutin II 2 | 3.42 ± 0.07 a | 2.864 ± 0.001 b | 3.1 ± 0.1 a,b | 3.11 ± 0.04 a,b |
| Quercetin hexoside 2 | 1.19 ± 0.03 b | 1.30 ± 0.09 b | 1.60 ± 0.09 a | 1.763 ± 0.004 a |
| Kaempferol-lathyroside-7-O-α-L-rhamnopyranoside isomer I 3 | 0.081 ± 0.003 a | 0.03 ± 0.01 b | 0.078 ± 0.009 a | <LOQ |
| Kaempferol-lathyroside-7-O-α-L-rhamnopyranoside isomer II 3 | 0.06 ± 0.01 a | 0.015 ± 0.003 b | 0.038 ± 0.01 a,b | 0.0099 ± 0.0001 b |
| Kaempferol 3-galactoside-7-rhamnoside 3 | 0.28 ± 0.04 a | 0.31 ± 0.02 a | 0.26 ± 0.02 a | 0.33 ± 0.01 a |
| Kaempferol hexoside I 3 | 0.079 ± 0.006 b | 0.15 ± 0.03 a | 0.117 ± 0.007 a,b | 0.118 ± 0.004 a,b |
| Luteolin-3-galactoside-7-rhamnoside 3 | 0.50 ± 0.04 b | 0.47 ± 0.06 b | 0.41 ± 0.01 b | 0.68 ± 0.03 a |
| Kaempferol hexoside II 3 | 0.097 ± 0.006 c | 0.164 ± 0.005 b | 0.145 ± 0.008 b | 0.209 ± 0.003 a |
| Quercetin hexose acetate 2 | 0.25 ± 0.04 a | 0.117 ± 0.008 b | 0.268 ± 0.001 a | 0.238 ± 0.008 a |
| Kaempferol 3-O-ß-D-(6^-O-p-coumaroyl) galactopyranoside I 3 | 0.458 ± 0.006 b | 0.94 ± 0.07 a | 0.54 ± 0.03 b | 0.48 ± 0.09 b |
| Kaempferol 3-O-ß-D-(6^-O-p-coumaroyl) galactopyranoside II 3 | <LOQ | <LOQ | <LOQ | <LOQ |
| Sum flavonoids | 10.2 ± 0.3 a | 9.24 ± 0.08 b | 10.2 ± 0.5 a | 10.15 ± 0.03 a |
| Sum phenolic acid derivatives | 3.03 ± 0.02 a | 1.8 ± 0.1 c | 3.2 ± 0.1 a | 2.06 ± 0.03 b |
| Sum | 13.2 ± 0.3 a | 11.03 ± 0.04 c | 13.4 ± 0.7 a | 12.208 ± 0.002 b |
| DPPH | 21.9 ± 0.2 a | 20.5 ± 0.1 b | 21.9 ± 0.4 a | 22.4 ± 0.2 a |
| ABTS | 11.61 ± 0.01 b | 11.11 ± 0.08 c | 12.2 ± 0.3 a | 12.53 ± 0.01 a |
| FRAP | 7.4 ± 0.5 b | 7.24 ± 0.03 b | 8.99 ± 0.07 a | 9.8 ± 0.1 a |
1 chlorogenic acid equivalent, 2 rutin equivalent, 3 kaempferol 3-rhamnoside equivalent, The results are expressed in mg/g d.w. DPPH, ABTS and FRAP values are expressed as mg Trolox eq/g d.w. Different letters in the same line indicate significant differences among the cultivars. <LOQ: Less than limit of quantification.
Table 7.
Table of quantification of proanthocyanidins (mg/g d.w.) in different cultivars of cherimoya leaves at optimum sonotrode conditions by HPLC-FLD.
Table 7.
Table of quantification of proanthocyanidins (mg/g d.w.) in different cultivars of cherimoya leaves at optimum sonotrode conditions by HPLC-FLD.
| Proanthocyanidins | ‘Campas-1’ | ‘Campas-2’ | ‘Fino de Jete’ | ‘Negrito Joven’ |
|---|---|---|---|---|
| monomers | 5.00 ± 0.01 a | 5.16 ± 0.02 a | 4.098 ± 0.003 b | 2.9 ± 0.2 c |
| dimers | 1.7 ± 0.2 a | 2.2 ± 0.2 a | 1.81 ± 0.02 a | 0.87 ± 0.01 b |
| dp3 | 3.2 ± 0.1 a | 2.3 ± 0.3 b | 2.78 ± 0.02 a | 1.56 ± 0.05 c |
| dp4 | 2.8 ± 0.3 a | 1.37 ± 0.01 d | 2.31 ± 0.05 b | 1.54 ± 0.02 c |
| dp5 | 1.94 ± 0.04 b | 2.5 ± 0.2 a | 1.44 ± 0.02 c | 0.89 ± 0.01 d |
| dp6 | 1.13 ± 0.02 a | 0.45 ± 0.01 c | 0.67 ± 0.05 b | 0.33 ± 0.04 d |
| dp7 | 0.72 ± 0.01 b | 0.27 ± 0.06 d | 0.67 ± 0.01 c | 0.88 ± 0.01 a |
| dp8 | 0.50 ± 0.05 a | 0.081 ± 0.002 c | 0.32 ± 0.05 b | 0.33 ± 0.07 b |
| dp9 | 0.218 ± 0.001 a | 0.027 ± 0.002 c | 0.104 ± 0.006 b | 0.112 ± 0.005 b |
| dp10 | 0.168 ± 0.003 a | 0.017 ± 0.001 d | 0.086 ± 0.007 c | 0.106 ± 0.001 b |
| dp11 | 0.08 ± 0.01 a | <LOQ | 0.028 ± 0.005 c | 0.060 ± 0.001 b |
| dp12 | 0.047 ± 0.002 a | <LOQ | 0.0052 ± 0.0002 c | 0.017 ± 0.001 b |
| dp13 | 0.0094 ± 0.0001 a | N.D. | N.D. | 0.00347 ± 0.00001 b |
| dp14 | 0.00439 ± 0.00005 | N.D. | N.D. | N.D. |
| polymer | 2.3 ± 0.2 b | 2.9 ± 0.5 b | 5.14 ± 0.05 a | 1.73 ± 0.02 c |
| Total | 19.9 ± 0.4 a | 17.2 ± 0.4 b | 19.45 ± 0.02 a | 11.3 ± 0.2 c |
dp = degree of polymerization. <LOQ: Less than limit of quantification. N.D.: Not detected. Different letters in the same line indicate significant differences among the cultivars. <LOQ: Less than limit of quantification
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Martín-García, B.; Aznar-Ramos, M.J.; Verardo, V.; Gómez-Caravaca, A.M. Development of an Effective Sonotrode Based Extraction Technique for the Recovery of Phenolic Compounds with Antioxidant Activities in Cherimoya Leaves. Plants 2022, 11, 2034. https://doi.org/10.3390/plants11152034
AMA Style
Martín-García B, Aznar-Ramos MJ, Verardo V, Gómez-Caravaca AM. Development of an Effective Sonotrode Based Extraction Technique for the Recovery of Phenolic Compounds with Antioxidant Activities in Cherimoya Leaves. Plants. 2022; 11(15):2034. https://doi.org/10.3390/plants11152034
Chicago/Turabian StyleMartín-García, Beatriz, María José Aznar-Ramos, Vito Verardo, and Ana María Gómez-Caravaca. 2022. "Development of an Effective Sonotrode Based Extraction Technique for the Recovery of Phenolic Compounds with Antioxidant Activities in Cherimoya Leaves" Plants 11, no. 15: 2034. https://doi.org/10.3390/plants11152034
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
