Article

Detailed Seed Cone Morpho-Anatomy Provides New Insights into Seed Cone Origin and Evolution of Podocarpaceae; Podocarpoid and Dacrydioid Clades

1
School of Biological Sciences, The University of Adelaide, Adelaide, SA 5005, Australia
2
CAS Key Laboratory for Plant Diversity and Biogeography of East Asia, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650201, China
3
State Herbarium of South Australia, Adelaide, SA 5005, Australia
4
Department of Biology, University of Konstanz, 78457 Konstanz, Germany
*
Author to whom correspondence should be addressed.
Plants 2023, 12(22), 3903; https://doi.org/10.3390/plants12223903
Submission received: 29 July 2023 / Revised: 13 September 2023 / Accepted: 25 October 2023 / Published: 19 November 2023
(This article belongs to the Collection Advances in Plant Diversification and Biosystematics)

Abstract

:
The study of reproductive morphology and trait evolution provides a vital insight to understand the evolutionary history of plants. The conifer family Podocarpaceae has a remarkable diversity of seed cones, with distinct morphology among the genera and with conifers in general. However, we lack a good understanding of the seed cone morpho-anatomy and trait evolution of Podocarpaceae. We investigated detailed seed cone morpho-anatomy using staining and sectioning techniques to clarify the anatomical, morphological diversity and evolution of functional traits. The presence of a fleshy receptaculum is a characteristic feature of both clades. However, species of Retrophyllum, Afrocarpus and some species of Nageia and Podocarpus form a fleshy sarcotesta-like seed coat, lacking a fleshy receptaculum. The ancestral state reconstructions show a shift between and sometimes within the genus. Although both clades demonstrate fleshiness as an ancestral trait, the shift in fleshy structures provides evidence for complex multiple evolutions of fleshy morphologies. These seed cone traits (e.g., fleshiness and size), along with the broad, flattened and well-adapted (leaf dimorphism) foliage in both clades, are largely congruent with efficient light harvesting and bird dispersal. These traits make these two clades well adapted to their environment, when growing in communities including tall and broad-leaved angiosperms (closed-canopy angiosperm forests), compared to other podocarps, making them more successful in achieving a wider distribution and species richness.

1. Introduction

Podocarps are unique among conifers in their ability to successfully compete with angiosperms, especially in tropical forests [1]. Podocarps achieved this capacity by evolving some functionally significant traits, e.g., flattened broad leaves, fleshy seed cones and large seed sizes [2,3,4,5]. Podocarps have an amazing diversity of fleshy seed cones and have evolved several complex functional structures in different genera [6,7,8,9,10]. Recent phylogenetic analyses show three major clades in the Podocarpaceae, i.e., Prumnopityoid, Podocarpoid and Dacrydioid, along with some separate and distinct lineages [4,11]. The Podocarpoid and Dacrydioid clades have evolved an amazing diversity in both leaf and seed traits [4,12,13,14]. The Podocarpoid clade has a suggested crown age of approximately 75 Ma (54–85 Ma) and is the largest genus within Podocarpaceae (consisting of more than 130 species), distributed in Southeast Asia and through much of the Southern Hemisphere [13,15]. The Dacrydioid clade is the second most species-rich clade and includes three genera (Dacrydium, Dacrycarpus and Falcatifolium) with a suggested crown age of approximately 75 Ma (54–95 Ma) and is predominantly distributed in the Southern Hemisphere [4,13]. Some studies have evaluated seed cone evolution in conifers based on morpho-anatomy, and some have used model-based ancestral reconstruction [6,8,14,16,17,18,19]. However, detailed and comprehensive studies of the seed cone morpho-anatomy are still lacking. Klaus and Matzke [6], in concluding that the ancestral state for the Podocarpaceae seed cone is fleshy, considered the Podocarpoid clade genera Afrocarpus and Retrophyllum, and some species of Nageia and Podocarpus as non-fleshy. The study by Chen et al. [19] considers the epimatium of Dacrydium, Falcatifolium, Microcachrys and Lepidothamnus as non-fleshy and reported a complete absence of fleshy receptacles in Nageia in their ancestral reconstructions. Although some studies have been undertaken to evaluate different aspects of the reproductive cycles of Acmopyle, Podocarpus, Dacrydium and Dacrycarpus [14,16,17,18], no comprehensive studies are available on detailed seed cone morpho-anatomy and the evolution of functional traits and structures for both the Podocarpoid and Dacrydioid clades. Similarly, because seed cone morphology is complex in podocarps and there has been a lack of detailed studies on the seed cone morpho-anatomy, it is difficult to correlate fossil seed cones with extant taxa [4]. The recent studies on the detailed seed cone morpho-anatomy of three paleoendemic genera [9] and the Prumnopityoid clade [10] provide vital insights into the origin and evolution of seed cone types in Podocarpaceae [20]. The goal of this study is to understand and describe the detailed morpho-anatomical structures of the two largest species rich clades, i.e., Podocarpoid and Dacrydioid clades’ seed cones, and discuss the complex evolutionary history of fleshiness in Podocarpaceae. The morpho-anatomical similarities and differences among the genera are evaluated and compared with the available related fossil data. The origin, evolution, and potential drivers of fleshy seed cone evolution among the genera of these clades are also discussed.

2. Material and Methods

2.1. Seed Cone Collection

Seed cones at different developmental stages were collected from the Australian National Botanic Gardens, Canberra, ACT, Australia; Mount Lofty Botanical Garden, South Australia; and The Tasmanian Arboretum, Devonport, Tasmania. Seed cones of Nageia (AN-395) and Retrophyllum (RB-23) were collected from preserved specimens in the State Herbarium of South Australia and the Department of Ecology and Evolution, University of Adelaide. The spirit collection of the seed cones, with voucher numbers from UOA-10 to UOA-60, are stored at the Department of Ecology and Evolution, University of Adelaide, Australia. We included Acmopyle in this study as an outgroup because it has a fleshy receptacle, a papery epimatium fused with the outer testa and a woody sclerotesta (endotesta). Data on seed dispersal were collected from the available literature.

2.2. Morphology and Distribution of the Investigated Taxa

Members of the Podocarpoid clade are usually large trees or sometimes shrubs, with broad and flattened leaves and fleshy seed cones. Representative species from each genus that cover the variation in the seed cone morphology were included here. In this study, we examined:
  • The South African Afrocarpus falcatus (Thunb.) C.N. Page, which forms large trees [21].
  • Two species of Nageia, N. nagi (Thunb.) Kuntze, which is an evergreen tall tree, distributed in China (introduced), Japan, Taiwan (introduced) and Vietnam [21,22] and N. wallichiana (Presl.) Kuntze, which is a tall tree distributed in Brunei Darussalam, Cambodia, China, India, Indonesia, Laos, Malaysia, Myanmar, Papua New Guinea, the Philippines, Thailand and Vietnam [21,22]).
  • Three species of Podocarpus subgenus Podocarpus (P. henkelii Stapf., P. elongatus (Aiton) L’Herit. Ex Persoon and P. oleifolius D. Don). Podocarpus henkelii and P. elongatus occur in southern Africa, while P. oleifolius is found in Central America [23].
  • Two species of Podocarpus subgenus Foliolatus (P. spinulosus (Smith) R. Br. Ex Mirbel and P. elatus R. Br. ex Endlicher). Podocarpus spinulosus and P. elatus are dioecious species from northeastern Australia [24].
  • Retrophyllum comptonii (Buchholz) C.N. Page, which is a tree endemic to New Caledonia [25].
Additionally, we examined the following members from the Dacrydioid clade:
  • Dacrycarpus dacrydioides (A. Richard.) de Laub., a tall tree endemic to New Zealand.
  • Dacrydium cupressinum Solander ex G. Forst., a tall tree endemic to New Zealand.
  • Falcatifolium papuanum de Laub., a tall tree endemic to Papua New Guinea [26].
Finally, we included Acmopyle pancheri (Brongniart et Grisebach) Pilger, which is endemic to New Caledonia [21,22,27] as an outgroup to the two main clades.

2.3. Taxon Processing and Sectioning

Specimens were fixed in 200 mL of FAA (100 mL 95% ethanol + 80 mL dH2O + 20 mL 37% formaldehyde solution) immediately after collection. Whole seed cones, plus longitudinal and cross sections of the seed cones were photographed with a Nikon-SMZ25 stereomicroscope. For histology, seed cones were fixed for 48–72 h. The seed cones were processed for a 48 h cycle on a Sakura Tissue-Tek VIP6 Vacuum Infiltration Tissue Processor (Torrance, CA, USA). The seed cones were embedded in paraffin wax (Sakura Tissue Tek embedding centre) and then longitudinal and cross sections of 8–10 µm thickness, were produced using a Leica RM 2235 Rotary Microtome, (Wetzlar, Germany) and stained with H & E (DAKO Cover Stainer (Agilent, Santa Clara, CA, USA)) and Toluidine blue stains. The sections were brought to water and to slide. Each slide was individually stained for 10 s in Toluidine blue stain by pipetting a few drops of Toluidine blue stain into each slide. The slides were observed under light microscopy and photographed at several magnifications.

2.4. Measurements and Trait Reconstructions

Different morpho-anatomical and embryological characters were recorded (Table 1). The anatomical layers were measured from mature seed cones (ten seed cone replicates for each species). The measurements were taken using ImageJ 1.8.0_112 software. Seed cone morpho-anatomical trait data were collected mainly from living and Herbarium material. Quantitative seed cone data were mainly based on Herbarium observations and information in Farjon [21]. For ancestral reconstruction, we used the dated phylogeny of Khan et al. [13], based on three chloroplasts (rbcL, matK and trnL-trnF) and three nuclear genes (NEEDLY, PHYP and ITS2). The characters were mapped for their evolution using RASP 4.2-BayesTraits [28], Mesquite 3.6 [29] with maximum likelihood (ML) and the Markov chain Monte Carlo (MCMC) reconstruction method.

3. Results

3.1. Afrocarpus Seed Cone Morpho-Anatomy

Afrocarpus falcatus seed cones are yellow, obovoid, and are produced abundantly annually (Figure 1A). It is wind-pollinated, and the reproductive cycle completes in one year from initiation to the formation of the mature cone. The terminal bud initiates in the form of two primordia and develops into an ovule–epimatium complex. This structure differentiates into a seed cone apex and later into an ovule with an integument and epimatium. The megaspore mother cell differentiates from other cells surrounded by the nucellus. The seed cone (12–20 × 6–14 mm) is surrounded by 1–2 bracts and the ovule is inverted. The seed cone cross sections show six major zones: (i). Epimatium: 8–14 layers of small irregular isodiametric cells. Scattered sclereids cells are also present in this zone. (ii). Exotesta: 10–18 layers of round and elongated cells. Multiple vascular traces (four ascending and several descending), as well as resin canals, were observed in this zone. Scattered sclereids cells are also present. The epimatium is connate with the exotesta forming a fleshy sarcotesta-like seed coat (Section 3.6, a–c in the figure). (iii). Mesotesta: 3–5 layers of elongated cells. The vascular bundles from the exotesta enter this zone. These layers are highly resinous. (iv). Endotesta: 20–32 compact layers of small dense cells. The endotesta is hard and stony when mature, forming a sclerified sclerotesta-like structure. (v). Nucellus: The protective cover of the embryo consisting of 4–10 layers of dense and smaller cells and (vi). Gametophyte: 10–22 layers of cells with a mature embryo which is about 0.8–1.2 × 0.3–0.5 mm.

3.2. Nageia Seed Cone Morpho-Anatomy

Nageia nagi produces brown globose (12–18 × 10–16 mm) seed cones that are wind-pollinated. In its native range, the reproductive cycle initiates in February and completes in November to December. Pollination occurs in April–May. The ovule is inverted. The seed cone cross sections show five major zones (Supplementary Figure S1): (i). Epimatium: 4–8 layers of small and large irregular isodiametric cells. (ii). Exotesta: 12–20 layers of round and elongated cells. Several vascular bundles and resin ducts are present in this layer. The epimatium is connate with the exotesta forming a fleshy sarcotesta-like seed coat. (iii). Endotesta: 10–18 compact layers of small dense cells. The sclerotesta is hard and stony when the seed cone is mature, forming a sclerified sclerotesta-like structure. (iv). Nucellus: 6–12 layers of dense and smaller cells. (v). Gametophyte: 12–20 layers of cells with a mature embryo which is about 0.8–1.5 × 0.3–0.4 mm. The N. nagi seed cone has no fleshy receptacle, similar to N. fleuryi, N. formosensis and N. maxima, but distinct from N. wallichiana, where the seed cones have a fleshy receptaculum (Table 1).

3.3. Podocarpus Seed Cone Morpho-Anatomy

3.3.1. Podocarpus henkelii

Podocarpus henkelii produces obovoid seed cones with one inverted ovule and completes its reproductive cycle in one year. The seeds are yellow–green and are positioned on a non-fleshy receptacle (Figure 1D). The seed cones are 15–20 mm long and 8–12 mm wide. The seed cone cross section shows six zones: (i). Epimatium: 12–16 layers of small, irregular isodiametric cells. Sclereids are present in this zone. The epimatium is fleshy and fused with the exotesta surrounding the whole seed, forming a fleshy sarcotesta-like seed coat. (ii). Exotesta: 12–18 layers of round and elongated cells. Several vascular traces, small resin ducts and large resin canals and sclereids are present in this zone (Figure 2c,d). (iii). Mesotesta: 16–22 layers of dense round and rectangular sclerenchymatous cells. (iv). Endotesta: 12–20 compact layers of small isodiametric cells. The mature endotesta is woody and stony, forming a sclerified sclerotesta-like structure. (v). Nucellus: 6–12 layers of isodiametric cells, forming the protective cover of the embryo. (vi). Gametophyte: 14–24 layers with a straight embryo (about 0.65–1.2 × 0.2–0.4 mm in size).

3.3.2. Podocarpus elongatus

Podocarpus elongatus has an oblong seed cone with one inverted ovule positioned on the bright red receptaculum. The seed cone reproductive cycle completes in one year. The seed cone cross section shows seven major zones: (i). Epimatium: 6–10 layers of small irregular isodiametric cells. Sclereids are present in this zone. The epimatium is papery and fused with the outer testa surrounding the whole seed. (ii). Exotesta: 8–13 layers of round and elongated cells. Several enlarged vascular traces and normal-sized resin canals and sclereids are present in this zone. The epimatium is papery and fused with the exotesta surrounding the whole seed. (iii). Mesotesta: 3–5 layers of dense, round, and rectangular sclereid cells. (iv). Endotesta: 6–12 layers of large and small irregular and isodiametric cells (Figure 2e,f). The cells are sclerified when the seed cone is mature, but they are not woody. (v). Nucellus: 8–14 layers of large and small irregular and isodiametric cells, forming the protective cover of the embryo. (vi). Gametophyte: 14–18 layers of cells with a straight embryo (about 0.5–0.9 × 0.2–0.3 mm in size). (vii). Receptacle: 12–25 layers of small and large rounded cells. The longitudinal section shows that three vascular bundles enter the receptaculum. The central vascular bundle enters the seed.

3.3.3. Podocarpus oleifolius

Podocarpus oleifolius produces elongated-oblong fleshy seed cones (12–18 × 4–7 mm) and completes its reproductive cycle in one year (Figure 1J,K). One or two inverted ovules are placed on the yellowish red fleshy receptacle with two small bracts. The seed cone cross section shows seven zones: (i). Epimatium: 8–12 layers of small and large isodiametric cells. Sclereids are present in this zone. The epimatium is papery and fused with the exotesta surrounding the whole seed (Figure 2a,b). (ii). Exotesta: 10–14 layers of small and large rounded cells. (iii). Mesotesta: 10–16 layers of small and large cells. Several vascular traces, resin ducts and resin canals are present. (iv). Endotesta: 10–16 compact layers of small dense cells that are sclerified when the seed cone is mature. However, the cone is not woody. (v). Nucellus: 7–10 layers of large and small rounded cells that form the protective cover of the embryo. (vi). Gametophyte: 12–22 layers of large and small isodiametric cells with a straight embryo (about 0.6–0.8 × 0.2–0.3 mm in size). (vii). Receptacle: 10–15 layers of small and large rounded cells with four vascular traces in the centre of the receptaculum (Figure 3B).

3.3.4. Podocarpus spinulosus

Podocarpus spinulosus completes its reproductive cycle in one year and produces elongated oblong fleshy seed cones (11–22 × 6–7 mm). The inverted ovule is positioned on the blueish black fleshy receptacle. Six major zones can be observed in the cross section of the seed cone: (i). Epimatium:14–18 layers of small and large rounded and elongated cells. Sclereids are present in this zone. (ii). Exotesta: 12–16 layers of round and elongated cells. Several vascular traces, resin ducts, resin canals and sclereids are present in this zone. The epimatium is papery and fused with the exotesta surrounding the whole seed. (iii). Endotesta: 5–8 compact layers of small and large dense cells that become highly sclerified when the seed cone matures. However, the endotesta is not woody. (iv). Nucellus: 6–8 layers of dense cells form the protective cover of the embryo. (v). Gametophyte: 12–22 layers of large and small isodiametric cells with a straight embryo (about 0.6–0.9 × 0.2–0.4 mm in size). (vi). Receptacle: 9–18 layers of small and large rounded cells. The longitudinal section shows that three vascular bundles enter the receptaculum. The central vascular bundle enters the seed (Figure 4c,d).

3.3.5. Podocarpus elatus

Podocarpus elatus completes its reproductive cycle in about one year, initiated from the last week of August in the new vegetative buds. It produces abundant elongated oblong fleshy seed cones, with one or sometimes two inverted ovules positioned on the bright red fleshy receptacle, which is formed by two bracts. Two weeks after seed cone initiation, a bract ovule complex appears. The peduncle extends the seed cone away from the shoot. This bract ovule complex differentiates into the nucellus and integument. Pollination and fertilization occur in November–December. Six major zones can be observed in the cross section of the seed cone: (i). Epimatium: 6–10 layers of small and large isodiametric cells. Sclereids are present in this zone. (ii). Exotesta: 18–26 layers of round and elongated cells. Several vascular traces, small and large resin canals (resin ducts at the end of the exotesta) and sclereids are present in this zone. The epimatium is papery and fused with the exotesta surrounding the whole seed (Figure 2g,q,h). (iii). Endotesta: 4–6 compact layers of small dense cells that become sclerified when the seed cone matures. However, the endotesta is not woody. (iv). Nucellus: 2–4 layers of small, dense cells form the protective cover of the embryo. (v). Gametophyte: 14–20 layers of large isodiametric cells with a straight embryo (about 0.7–1.2 × 0.3–0.5 mm in size). (vi). Receptacle: 14–18 layers of small and large rounded cells and six elongated vascular bundles arranged spirally, with several resin ducts.

3.4. Retrophyllum Seed Cone Morpho-Anatomy

Retrophyllum comptonii produces solitary reddish oblong-subglobose seed cones (10–20 × 7–15 mm). The seed cone is surrounded by 3–5 bracts. The ovule is inverted. Six major zones can be observed in the cross section of the seed cone: (i). Epimatium: 6–12 layers of large isodiametric cells. Sclereid cells are dominant in this zone. (iii). Exotesta: 16–20 layers of dense round cells. Several vascular traces, resin canals and sclereids are present in this zone. The epimatium is fleshy and fused with the exotesta surrounding the whole seed, forming a fleshy sarcotesta-like seed coat. (iii). Mesotesta: 6–8 layers of isodiametric cells, containing several vascular traces and resin ducts. (iv). Endotesta: 12–18 compact layers of small dense sclerified cells. This zone is hard and stony when the seed matures, forming a sclerotesta-like structure. (v). Nucellus: 4–8 layers of dense and smaller cells forming the protective cover of the embryo. (vi). Gametophyte: 8–12 layers of dense isodiametric cells with a straight embryo (about 0.4–0.9 × 0.2–0.4 mm in size).

3.5. Acmopyle Seed Cone Morpho-Anatomy

Acmopyle pancheri seed cones initiate in September, pollination and fertilization occur in December and the cones mature in May–June. The elongated oblong (18–34 × 10–18 mm), reddish brown seed cones are produced on scale-leaved branches of the second order. The receptacle is verrucose, papillate and fleshy (Figure 5G). The peduncle and scaly leaves transform into a fleshy structure, forming the receptacle. The seed cone has 6–10 bracts, with one or sometimes two erect ovules. Seven major zones can be observed in the cross section of the seed cone: (i). Epimatium: 5–8 layers of small and large isodiametric cells, with sclereids dominant. (ii). Exotesta: 14–20 layers of dense round cells, including several vascular traces, resin canals and sclereids. The epimatium is papery and fused with the exotesta surrounding the whole seed. (iii). Mesotesta: 6–12 layers of small dense cells. (iv). Endotesta: 12–18 compact layers of small dense sclerified cells, forming a thick, woody and stony zone. (v). Nucellus: 4–8 layers of dense and smaller cells forming the protective cover of the embryo. (vi). Gametophyte: 8–12 layers of dense isodiametric cells with a straight embryo (about 0.3–0.6 × 0.1–0.2 mm in size). (vii). Receptacle: A fleshy elongate receptaculum is present, consisting of 12–18 layers of small and large rounded cells with four vascular bundles and resin ducts at the centre (Figure 4g,h).

3.6. Dacrycarpus Seed Cone Morpho-Anatomy

Dacrycarpus dacrydioides seed cones initiate in March and mature in January–February. The seed cones are elongated oblong (10–18 × 4–8 mm) and fleshy, with an orange –red colour. The peduncle and keel-shaped leaves transform into a fleshy receptacle. The seed cone usually has 2–3 bracts and one inverted ovule. Six major zones can be observed in the cross section of the seed cone: (i). Epimatium: 3–6 layers of elongated cells. (ii). Exotesta: 10–14 layers of dense small round and elongated cells, including several vascular traces and resin canals, which are elongated resin ducts. The epimatium is papery and fused with the exotesta surrounding the whole seed (Figure 6d–f). (iii). Endotesta: 4–6 compact layers of small dense sclerified cells. However, the endotesta is not woody. (iv). Nucellus: 3–6 layers of elongated irregular cells form the protective cover of the embryo. (v). Gametophyte: 10–15 layers of dense large isodiametric cells with a straight embryo (about 0.6–1.0 × 0.2–0.5 mm in size). (vi). Receptacle: A fleshy receptaculum is present, consisting of 12–18 layers of small and large rounded cells, with three vascular bundles and resin ducts.

3.7. Dacrydium Seed Cone Morpho-Anatomy

Dacrydium cupressinum seed cones initiate in August–September and mature in March (~18 months later). The seed cones are elongated oblong (6–10 × 2–4 mm), fleshy and bright red. The fertile bracts transform into a swollen and fleshy bright-coloured structure at maturity. The seed cone has 8–14 bracts and one inverted ovule. An asymmetrical cup-like fleshy epimatium is also present (Figure 5D,E and Figure 6g–i). Six major zones can be observed in the cross section of the seed cone: (i). Epimatium: 3–8 layers of small irregular cells. The epimatium is a fleshy, asymmetrical, cup-like structure covering half of the seed. (ii). Exotesta: 1–2 layers of elongated cells. No vascular traces or resin canals are present. (iii). Endotesta: 8–18 compact layers of small dense sclerified cells. (iv). Nucellus: 6–10 layers of dense and smaller rounded cells, forming the protective cover of the embryo. (v). Gametophyte: 8–14 layers of dense isodiametric cells with a straight embryo (about 0.25–0.6 × 0.1–0.2 mm in size). (vi). Receptacle: 12–18 layers of small and large rounded cells, including three vascular bundles and several resin ducts (Figure 4e,f).

3.8. Falcatifolium Seed Cone Morpho-Anatomy

Falcatifolium papuanum seed cones are solitary with a fleshy asymmetrical cup-like epimatium and receptaculum. The seed cones are obovoid and fleshy (10–16 × 4–6 mm). The peduncle and keel-shaped leaves transform into a fleshy red receptacle. The seed cone usually has 6–12 bracts. The ovule orientation is inverted, but this gradually changes to nearly erect when the seed cones are mature. Six major zones can be observed in a cross section of the seed cone: (i). Epimatium: 4–8 layers of small, elongated and irregular-shaped cells. (ii). Exotesta: 3–6 layers of small rounded and elongated cells, including vascular traces or resin canals. (iii). Endotesta: 6–14 compact layers of small dense sclerified cells. (iv). Nucellus: 4–8 layers of dense and small rounded cells forming the protective cover of the embryo. (v). Gametophyte: 8–16 layers of dense isodiametric cells with a straight embryo (about 0.3–0.6 × 0.15–0.25 mm in size). (vi). Receptacle: 10–18 layers of small and large isodiametric cells, with two vascular bundles and resin ducts.

3.9. Comparison of Seed Cone Morpho-Anatomical Characters

The seed cone shape of the species studied in both clades varies from obovoid (Afrocarpus falcatus, Podocarpus henkelii, Retrophyllum comptonii, Dacrydium cupressinum and Falcatifolium papuanum), to globose (Nageia nagi), to oblong (N. wallichiana, Podocarpus elongatus, P. oleifolius, P. spinulosus, P. elatus, Dacrycarpus dacrydioides and Acmopyle pancheri). The ovule orientation is inverted in all species except A. pancheri. The number of ovules per seed cone is usually one and sometimes two (Table 1). The testa is observed to be differentiated into three zones (exotesta, mesotesta and endotesta) or two zones (exotesta and endotesta). In the Podocarpoid clade, three zones are present in Afrocarpus falcatus, Podocarpus henkelii, P. elongatus, P. oleifolius and Retrophyllum comptonii and two zones in Nageia nagi, N. wallichiana, Podocarpus spinulosus and P. elatus. In the Dacrydioid clade, the testa is divided into two zones (exotesta and endotesta) in the species examined (Dacrydium cupressinum, Dacrycarpus dacrydioides and Falcatifolium papuanum). An epimatium is present in all species (Figure 1, Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6). The epimatium and outer testa in all species, except Dacrydium cupressinum and Falcatifolium papuanum, are connate, forming a papery/coriaceous or fleshy sarcotesta-like seed coat. This sarcotesta-like seed coat is papery/coriaceous in all species studied except Afrocarpus falcatus, Nageia nagi, Podocarpus henkelii and Retrophyllum comptonii, which possess a fleshy sarcotesta-like seed coat, but lack a fleshy receptacle (Figure 1 and Figure 2). The mesotesta is woody and stony in Acmopyle pancheri, while the endotesta is woody and stony in Afrocarpus falcatus, Podocarpus henkelii and Retrophyllum comptonii. Species with a fleshy sarcotesta-like seed coat have a hard woody mesotesta or endotesta, except for Acmopyle pancheri, which has a papery sarcotesta-like seed coat at maturity. An asymmetrical cup-like fleshy epimatium is present in Dacrydium cupressinum and Falcatifolium papuanum. Nageia wallichiana and N. motleyi are the only species in the genus with a fleshy, bright red receptaculum. The receptacle surfaces of Acmopyle pancheri, A. sahniana and Dacrycarpus dacrydioides have a papillate appearance (Figure 3 and Figure 5). Whitish wax is present on both the receptacle and seed surface of most species, and in Acmopyle pancheri and Afrocarpus falcatus, the entire seed cones are covered by stomata containing white wax. Vascular bundles, resin canals and resin ducts are present in the testa of all species and are especially prominent in Acmopyle sahniana, Dacrycarpus dacrydioides, both Nageia species, Retrophyllum comptonii, all Podocarpus species examined and Afrocarpus falcatus. A system of several small vascular traces and resin ducts is present in the exotesta of Afrocarpus falcatus, Podocarpus elongatus, P. henkelii, P. spinulosus, P. elatus, Nageia nagi, N. wallichiana and Retrophyllum comptonii, and in the mesotesta of Podocarpus oleifolius. A similar complex system of vascular traces and resin canals is present in Dacrycarpus dacrydioides in the inner layers of the exotesta. A resinous layer or a system of enlarged resin ducts is present in the mesotesta of Afrocarpus falcatus, Podocarpus elongatus, P. henkelii and Retrophyllum comptonii; enlarged resin canals are present in the mesotesta of Podocarpus henkelii and the endotesta of Podocarpus spinulosus and P. elatus. A similar complex system of enlarged resin ducts is present in Dacrycarpus dacrydioides in the inner layers of the mesotesta. No such system was observed in Dacrydium cupressinum or Falcatifolium papuanum.

3.10. Seed Cone Morpho-Anatomical Traits and Structures

Both clades have evolved diverse structures and traits in their seed cones.

3.10.1. Fleshy Seed Cones

The species of both clades produce fleshy seed cones, although the fleshy structures (receptaculum, epimatium or fleshy sarcotesta-like seed coat) differ among the genera. The ancestral state reconstruction of fleshiness and non-fleshiness in podocarps is not very meaningful in an evolutionary sense, as the fleshy structures differ across the clades, and sometimes within genera. All four genera of the Podocarpoid clade (Afrocarpus, Podocarpus, Nageia and Retrophyllum) and three genera of the Dacrydioid clade (Dacrydium, Dacrycarpus and Falcatifolium) produce fleshy seed cones, but the fleshy structures differ among the genera. A fleshy receptaculum and sarcotesta-like seed coat are the main fleshy structures.

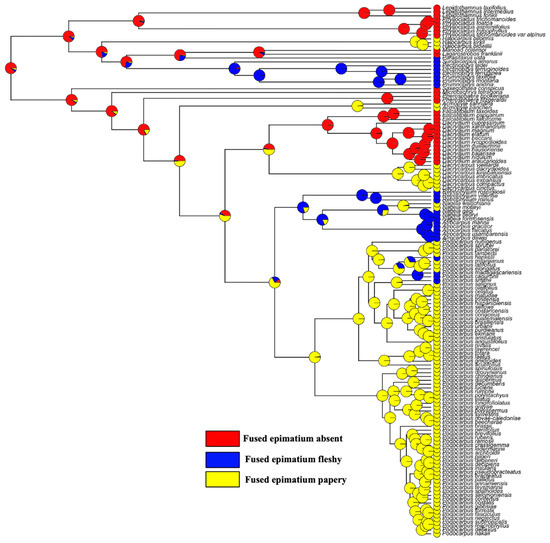

3.10.2. Epimatium Morphology

An epimatium is present in all species in both clades. The ancestral state reconstructions infer that the presence of an epimatium is an ancestral state in the Podocarpoid and Dacrydioid clades. However, the epimatium morphology differs among genera, from free to fused and from fleshy to papery. Ancestral state reconstructions indicate that the papery fused epimatium is an ancestral trait in the Podocarpoid clade and the fleshy fused epimatium evolved several times (Figure 7). An epimatium fused with the outer testa is present in all species of the Podocarpoid clade and evolved independently in Dacrycarpus (Dacrydioid clade). Dacrydium and Falcatifolium have a free asymmetrical cup-like epimatium that usually becomes fleshy when the seed cone is mature. Dacrycarpus and Podocarpus species with a fused epimatium have a papery morphology, except in P. smithii, P. henkelii, P. madagascariensis and P. capuronii and in four of the six species of Nageia, where the epimatium is fused to the outer testa and develops a fleshy sarcotesta-like seed coat, akin to that in Afrocarpus and Retrophyllum (Figure 1).

3.10.3. Receptaculum Morphology

The presence of a fleshy receptacle is a characteristic feature in both clades. In most species of Podocarpus, the fleshy structure is a receptaculum (the exceptions are P. smithii, P. henkelii, P. madagascariensis and P. capuronii). A receptaculum is also present in two species of Nageia (N. wallichiana and N. motleyi) and all species of Dacrydium, Dacrycarpus, Falcatifolium and Acmopyle (Figure 4). The ancestral state reconstructions elucidate that the presence of a fleshy receptaculum is most likely an ancestral trait in both clades examined here (Supplementary Figure S2). The fleshy receptaculum is absent in some Podocarpus species (P. smithii, P. henkelii, P. madagascariensis and P. capuronii), which develop a fleshy fused epimatium with the outer testa, with a woody and stony endotesta. The receptaculum is usually brightly coloured. The seed cone bracts or scale leaves around the seed and the asymmetrical cup-like epimatium transform into a fleshy structure at seed cone maturity in Dacrydium and Falcatifolium. The receptacle in Acmopyle has a papillate surface (similar to Dacrycarpus) with white (waxy) stomata.

3.10.4. Testa Morpho-Anatomy

In Dacrydium, Dacrycarpus, Falcatifolium, Nageia (N. wallichiana and N. motleyi), Podocarpus (except P. smithii, P. henkelii, P. madagascariensis and P. capuronii) and Acmopyle, the testa is non-fleshy and has a papery structure. The endotesta is also non-woody in all these species, except Acmopyle, where the endotesta is woody and stony. The testa is fused with the epimatium, forming a fleshy sarcotesta-like seed coat, in Retrophyllum, Afrocarpus, Nageia and in some species of Podocarpus (e.g., P. smithii, P. henkelii, P. madagascariensis and P. capuronii). These species also have a hard woody mesotesta or endotesta. This strategy possibly evolved in these species to encourage endozoochory but to prevent digestion of the seed. The ancestral state reconstructions of the fleshy sarcotesta-like structure show that it evolved several times in the Podocarpoid clade (Figure 8). Retrophyllum has no fleshy receptaculum and is comparable to Afrocarpus in developing a fleshy sarcotesta-like seed coat. The main morpho-anatomical difference between these genera is the presence of a hard stony sclerotesta in Afrocarpus and Retrophyllum and a non-woody sclerotesta in most species of Podocarpus and two species of Nageia. Several vascular bundles and resin canals were present in the exotesta of all the Podocarpus species examined.

3.10.5. Ovule and Embryo Traits

Prior to pollination, ovules are inverted and the micropyle points towards the cone axis/base in all species of both clades. However, the micropyle of the mature seed cones of Dacrydium, Falcatifolium and Acmopyle points towards the apex, i.e., the ovule orientation changes post-pollination. The number of prosuspensor cells varies widely in the Podocarpaceae (Table 2), and it ranges from seven to twenty-three in the Podocarpoid clade and from five to fourteen in the Dacrydioid clade. The number is lower in other reported Podocarps (3–6), and there is variable reporting of the number of binucleate cells and elongating cells present. The reproductive cycle varies from one to two years. Afrocarpus falcatus, Nageia and Dacrycarpus dacrydioides complete their reproductive cycle in one year from seed cone initiation to the production of mature seed cones, while Dacrydium cupressinum and Acmopyle pancheri complete their reproductive cycle in two years. The reproductive cycle also varies among species of the same genus, e.g., Podocarpus species complete their reproductive cycle in one to two years, depending on the species.

4. Discussion

4.1. The Dominance of Fleshy Seed Cones in Living Podocarps and Fossil Evidence

Most of the living podocarps (about 18 genera) produce fleshy seed cones. Fleshy seed cones are present in all genera of both clades. However, the fleshy structures are different (e.g., fleshy sarcotesta-like seed coat, bracts, receptacle and epimatium) and evolved multiple times. Podocarps, in general, evolved fleshy seed cones using different functional structures, e.g., receptaculum, epimatium, fleshy sarcotesta-like seed coat, aril or fleshy bracts [9,10,13,20].
Klaus and Matzke [6] reported that seven genera of the Podocarpaceae (including some Podocarpus species) have non-fleshy seed cones, while Herting et al. [8] reported that three genera of the Podocarpaceae (Manoao, Saxegothaea and Pherosphaera) have non-fleshy seed cones. Khan and Hill [9] suggest that 18 podocarp genera show fleshiness (the exceptions being Saxegothaea and Pherosphaera). This study confirms the presence of fleshy epimatium in Dacrydium, Falcatifolium, Microcachrys and Lepidothamnus, contrary to the study by Chen et al., [19]. However, the current study demonstrates that fleshy seed cones have evolved several times, using different functional structures. Klaus and Matzke [6] suggested that a reversion from fleshy to non-fleshy seed cones took place by the Early Eocene in the Retrophyllum + Nageia + Afrocarpus clade. The current study suggests no reversion to non-fleshy seed cones, because these genera have fleshy seed cones. Herting et al. [8] also considered the seed cones of Retrophyllum + Nageia + Afrocarpus clade as fleshy in their ancestral state reconstructions. Klaus and Matzke [6] considered a seed cone fleshy in the Podocarpoid clade if the taxa had a fleshy receptacle and were likely bird-dispersed. The fossil record demonstrates the presence of fleshiness or fleshy structures in the female cone of the Podocarpaceae by the Middle Cretaceous [32].
The fossil record also provides some evidence for the presence of some of these traits. Fossil seed cones of the extinct species Podocarpus witherdenensis, from the Eocene of Vegetable Creek, NSW, Australia, show the presence of a fleshy receptaculum and a non-fleshy fused epimatium [33]. The paleo data also suggest that the presence of fleshy cones, similar to crown podocarps, may have existed by the Early Cretaceous, in the Rajmahal flora in India [34]. Seed cones with a free epimatium that are regarded as belonging to an extinct species of the genus Lepidothamnus were recorded from the Middle Cretaceous of Winton, Queensland [32]. Similarly, some extinct podocarps (e.g., Mataia, Nipaniostrobus, Harrisiocarpus gucikii and H. cracoviensis) also show the presence of an epimatium-like structure [35,36,37,38,39]. The fossil cone records also show the presence of a fleshy receptaculum in Dacrycarpus in the Miocene–Eocene [33]. Seed cones with a fleshy receptaculum are recorded in fossil Dacrycarpus guipingensis from the Miocene of Guangxi, South China [40], D. puertae from the Eocene of Patagonia [41] and D. mucronatus from the Miocene of Balcombe Bay, Victoria, Australia [42].

4.2. Shifts in the Fleshy Structures

In Retrophyllum, Afrocarpus, Nageia (except N. wallichiana and N. motleyi) and in some species of Podocarpus (e.g., P. smithii, P. henkelii, P. madagascariensis and P. capuronii), the seed coat (epimatium plus exotesta) is fleshy. The Podocarpoid clade exhibits a shift from a fleshy receptaculum to a fleshy sarcotesta-like seed coat on two separate occasions. A fleshy receptacle of several bright colours has been recorded in different species of Podocarpus, Dacrydium, Dacrycarpus, Falcatifolium, Acmopyle and two species of Nageia. The presence of a fleshy receptaculum is reconstructed as ancestral in both the Podocarpoid and Dacrydioid clades. However, in the Podocarpoid clade, the fleshy receptaculum is lost several times and reappears once in Nageia. This is also contrary to the study by Chen et al. [19], which suggested the absence of a fleshy receptacle. The only other genus with a fleshy receptaculum is Lepidothamnus [43]. The Podocarpoid clade shows a transition from a fleshy receptaculum to a fleshy fused epimatium and from a fleshy fused epimatium to a fleshy receptaculum. This transition is more evident in the Podocarpoid clade and was not limited to the ancestor of the AfrocarpusNageiaRetrophyllum clade but has also occurred within Podocarpus and Nageia. In the case of Podocarpus, this transition has occurred several times. A similar transition has occurred in the Prumnopityoid clade, suggesting that the evolutionary history of fleshiness in the Podocarpaceae is complex, because of the presence or absence of fleshiness and the functional structures that contribute to fleshiness among the seed cones (i.e., receptaculum, bracts and/or epimatium). The presence of a fleshy receptaculum in Nageia was previously reported by Mill, 2001 [44]. Klaus and Matzke [6] also reported that Podocarpus latifolius, P. milanjianus and P. elongatus have no fleshy receptacle, but our observations show that a fleshy receptaculum is present in P. latifolius and P. elongatus.
In contrast, the Dacrydioid clade is different because Dacrycarpus produces a fleshy receptaculum and a fused papery epimatium, while Dacrydium and Falcatifolium produce a free asymmetrical fleshy epimatium, that surrounds the seed and the subtending multiple bracts, or a fleshy receptaculum at maturity [45,46]. The epimatium is considered homologous to the ovuliferous scale of other conifers, and this conclusion is supported by Herting and Stützel, 2020 [47].

4.3. Significance of the Evolutionary Reconstruction of Fleshiness

Both clades produce brightly coloured fleshy seed cones. The ancestral reconstruction of the conifer seed cones implies that the ancestral seed cones of extant conifers were sclerified [8,45]. However, the fleshiness of the Podocarpaceae seed cones is an ancestral trait [8]. Klaus and Matzke [6] reported that fleshy seed cone structures appeared seven times in the Podocarpaceae independently and that the ancestral trait was non-fleshy. However, a reconstruction of fleshiness and non-fleshiness is not very meaningful in an evolutionary sense for podocarps, because the fleshy structures are quite different across clades, sometimes even within genera, and ancestral state reconstructions show that these fleshy structures have evolved multiple times in the Podocarpaceae.

4.4. Broader Perspective with other Podocarps

A broader podocarp perspective suggests that the type of morpho-anatomical adaptations and evolution of traits and structures seen in the Dacrydioid and Podocarpoid clades are typical of podocarps. A similar evolutionary pattern is present in the Prumnopityoid clade and Acmopyle [22]. Different functional structures of podocarps seed cones (sterile bracts, fertile bracts, epimatia and occasionally arils) produce fleshiness either singly or in combination. This shows that there is strong evolutionary pressure among the living podocarps, especially in the Podocarpoid clade, to produce fleshy seed cones. This supports the theory that species of the Dacrydioid and Podocarpoid clades evolved fleshy seed cones and broad flattened foliage as an adaptive strategy in the canopy-forming Cenozoic Forest evolution [2,48]. Fleshy fruits in podocarps are generally associated today with tropical forests [49]. A parallel shift in the seed cone size is also noticeable with Cenozoic Forest evolution [50]. The Podocarpoid clade species have relatively large seed cones (Supplementary Figure S4). Furthermore, Leslie et al. [50] reported that seed sizes are generally larger in animal dispersed species [5]. The number of seeds per cone varies in the Podocarpoid clade from one to two, which have, for example, been reported in Podocarpus [51]. Most genera in the Prumnopityoid clade (except Parasitaxus) possess one to two or else multiple seeds per cone, as does Acmopyle and the relict genera Microcachrys; Saxegothaea and Pherosphaera have multiovulate (seeded) cones [52]. Species with one or two seeds per cone generally have larger seed cones than the multiovulate cone. All species of both the Dacrydioid and Podocarpoid clades have inverted ovules. The Prumnopityoid clade also has inverted ovules. Pherosphaera, Phyllocladus and Acmopyle are the only three genera with mature erect ovules. In Acmopyle, ovules are usually horizontally inclined to the fertile bract initially and become erect after pollination [12].

4.5. Evolution of Morphological Structures and Animal Dispersal

The Dacrydioid and Podocarpoid clades show a remarkable tendency towards the evolution of fleshiness through a complex mechanism. Fleshiness has probably evolved through several different ways, in order to attract animals to disperse the seeds. Around 40% of living conifer species show fleshy morphologies [22]. Eighteen podocarp genera show fleshy structures that support the zoochorous dispersal of seed cones. The seed cone of podocarps is generally dispersed by birds and small animals, which are attracted by the brightly coloured fleshy structures [9,10,13]. Eleven podocarp genera show features consistent with avian endozoochory [6,53]. For example, masting is well known in many temperate podocarps, which may favour zoochory [54]. Both clades considered here show zoochory as the main seed dispersal strategy. For example, in the Podocarpoid clade, Podocarpus is the most dominant and widely distributed genus in Podocarpaceae [13]. Most Podocarpus species produce seed cones with a colourful, fleshy receptacle and are mainly dispersed through endozoochory, with frugivory being dominant (Table 1). Afrocarpus falcatus is reported to be dispersed by birds and several other vertebrates, (Table 1) because its fleshy epimatium and testa complex serve as a food source [43,55]. Retrophyllum, Nageia and Acmopyle produce colourful fleshy seed cones that also support zoochory [45,52,56]. Klaus and Matzke [6] reported that the morphological characteristics of the Retrophyllum seed cone do not support avian endozoochory, although they regarded the presence of a fleshy receptaculum as the key evidence. Retrophyllum minus is a rheophytic species at low elevations in New Caledonia, for which hydrochory has been reported [56,57]. The seed cone morphology of the Dacrydioid clade also supports zoochory, as all species produce fleshy seed cones (Table 1). The fleshy receptaculum of Dacrycarpus dacrydioides helps in the bird dispersal of seed cones [58,59]. The fossil record shows the unique geographic distribution of Dacrycarpus and is a good example of probable long-distance dispersal [40,41]. The fossil seed cone morphology also supports zoochory and bird dispersal. For example, the fossil seed cone records from Patagonia (Eocene) and South China (Miocene) show the presence of a fleshy receptacle [40,41]. The seed cones of Dacrydium cupressinum are dispersed by frugivory (Table 1). These cones are small and favour local dispersal (10–40 m) by wind [60], but they are well adapted for frugivory when the fleshy receptacle is fully developed [61,62,63,64,65,66]. Falcatifolium is also reported to be dispersed through zoochory (Table 1). The living species of the Dacrydioid and Podocarpoid clades have evolved fleshy and coloured seed cone structures and demonstrate a shift in the fleshy parts, and adaptation to endozoochory as the main seed dispersal strategy [6].

5. Conclusions

The Podocarpoid and Dacrydioid clades produce fleshy seed cones and have zoochory as their main dispersal strategy. Ancestral state reconstruction shows that although fleshiness in both clades is an ancestral trait, this fleshiness is achieved through diverse and complex mechanisms of similar and different functional structures, e.g., the receptaculum, epimatium and fleshy sarcotesta-like seed coat (fleshy fused epimatium with testa). The Podocarpoid clade follows a similar evolutionary pathway in achieving fleshiness (e.g., a shift in fleshiness from the receptaculum to the epimatium fused with the testa and vice versa). Similarly, the Dacrydioid clade shows both receptaculate seed cones with a papery, fused epimatium and receptaculate seed cones with a fleshy, free epimatium. This shows that in podocarps, fleshy seed cones have evolved via different functional structures, suggesting that the evolutionary pressure to evolve fleshy cones is high in these podocarps and they have the genetic and morphological flexibility to respond to this pressure in several different ways. This provides an exciting opportunity for investigating the evolutionary history of fleshy cones in conifer and connections between plants and animals in the early Cenozoic.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12223903/s1, Figure S1. Longitudinal (A) and cross section (B) of Nageia nagi; Figure S2. Character mapping of the receptaculum presence in different genera of Podocarpaceae using RASP 4.2 (Reconstruct Ancestral State) Maximum likelihood; Figure S3. Seed cone (A) and cross section (B) of Podocarpus lawrencei; Figure S4. Variation in seed cone size; L (length) and W (width). Species of Podocarpoid clade shows larger seed cone size as compared to Dacrydioid clade.

Author Contributions

R.K. carried out the lab work, the analysis of data and the writing of the first draft. V.M.D. contributed to the first draft writing. E.B. helped in the phylogenetic inference and the analysis of data. R.S.H. supervised the study and contributed to the designing, writing and revising of the final draft. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data are contained within the article and supplementary materials. And supplementary data available at https://doi.org/10.25909/17125403.

Acknowledgments

We acknowledge Adelaide Microscopy, University of Adelaide; Australian National Botanic Gardens, Canberra; Mount Lofty Botanical Garden, SA; and The Tasmanian Arboretum, Devonport.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

Rp = receptaculum/podocarpium, Ar = aril, Em = epimatium, Emr = epimatium ridge, Fs = fertile scale, Fsbr = fleshy sterile bracts, Ax = cone axis, Mi = micropyle, Ov = ovule, Ep = epidermis, Nu = nucellus, Ts = testa, Exo = exotesta, Mes = mesotesta, End = endotesta, Mg = megagametophyte, Emb = embryo, Mi = micropyle, Br = bract, Sd = seed, Vb = vascular bundle, Rc = resin canal, Rd = resin duct, Sc = seed cone, Sl = sclereid, Slsc = sarcotesta-like seed coat, Nc = nucellar cap, In = integument, Pd = peduncle, Cu = cuticle, Rl = resin layer, Sls = sclerotesta-like structure.

References

  1. Brodribb, T.J. A functional analysis of podocarp ecology. In Smithsonian Contributions to Botany; Smithsonian Institution Scholarly Press: Washington, DC, USA, 2011. [Google Scholar]
  2. Biffin, E.; Conran, J.G.; Lowe, A.J. Podocarp evolution: A molecular phylogenetic perspective. In Ecology of the Podocarpaceae in tropical Forests; Turner, B.L., Cernusak, L.A., Eds.; Smithsonian Contributions to Botany; Smithsonian Institution Scholarly Press: Washington, DC, USA, 2011. [Google Scholar]
  3. Biffin, E.; Brodribb, T.J.; Hill, R.S.; Thomas, P.; Lowe, A.J. Leaf evolution in Southern Hemisphere conifers tracks the angiosperm ecological radiation. Proc. R. Soc. B Biol. Sci. 2012, 279, 341–348. [Google Scholar] [CrossRef] [PubMed]
  4. Leslie, A.B.; Beaulieu, J.; Holman, G.; Campbell, C.S.; Mei, W.; Raubeson, L.R.; Mathews, S. An overview of extant conifer evolution from the perspective of the fossil record. Am. J. Bot. 2018, 105, 1531–1544. [Google Scholar] [CrossRef]
  5. Leslie, A.B.; Benson, R.B.J. Neontological and paleontological congruence in the evolution of Podocarpaceae (coniferales) reproductive morphology. Front. Ecol. Evol. 2022, 10, 1058746. [Google Scholar] [CrossRef]
  6. Klaus, K.V.; Matzke, N.J. Statistical comparison of trait-dependent biogeographical models indicates that Podocarpaceae dispersal is influenced by both seed cone traits and geographical distance. Syst. Biol. 2020, 69, 61–75. [Google Scholar] [CrossRef]
  7. Rudall, P. Colourful cones: How did flower colour first evolve? J. Exp. Bot. 2020, 71, 759. [Google Scholar] [CrossRef]
  8. Herting, J.; Stützel, T.; Klaus, K.V. The Ancestral Conifer Cone: What Did It Look Like? A Modern Trait-Evolution Approach. Int. J. Plant Sci. 2020, 181, 871–886. [Google Scholar] [CrossRef]
  9. Khan, R.; Hill, R.S. Morpho-anatomical affinities and evolutionary relationships of three paleoendemic podocarp genera based on seed cone traits. Ann. Bot. 2021, 128, 887–902. [Google Scholar] [CrossRef] [PubMed]
  10. Khan, R.; Hill, R.S.; Dörken, V.M.; Biffin, E. Detailed seed cone morpho-anatomy of the Prumnopityoid clade: An insight into the origin and evolution of Podocarpaceae seed cones. Ann. Bot. 2022, 130, 637–655. [Google Scholar] [CrossRef]
  11. Andruchow-Colombo, A.; Wilf, P.; Escapa, I.H. A South American fossil relative of Phyllocladus: Huncocladus laubenfelsii gen. et sp. nov. (Podocarpaceae), from the early Eocene of Laguna del Hunco, Patagonia, Argentina. Aust. Syst. Bot. 2019, 32, 290–309. [Google Scholar] [CrossRef]
  12. Morley, R.J. Dispersal and paleoecology of tropical podocarps. In Smithsonian Contributions to Botany; Smithsonian Institution Scholarly Press: Washington, DC, USA, 2011; pp. 21–41. [Google Scholar]
  13. Khan, R.; Hill, R.S.; Liu, J.; Biffin, E. Diversity, Distribution, Systematics and Conservation Status of Podocarpaceae. Plants 2023, 12, 1171. [Google Scholar] [CrossRef]
  14. Tomlinson, P. Aspects of cone morphology and development in Podocarpaceae (Coniferales). Int. J. Plant Sci. 1992, 153, 572–588. [Google Scholar] [CrossRef]
  15. Quiroga, M.P.; Mathiasen, P.; Iglesias, A.; Mill, R.R.; Premoli, A.C. Molecular and fossil evidence disentangle the biogeographical history of Podocarpus, a key genus in plant geography. J. Biogeogr. 2016, 43, 372–383. [Google Scholar] [CrossRef]
  16. Mundry, I. Morphologische und morphogenetische Untersuchungen zur-Evolution der Gymnospermen. Bibl. Bot. 2000, 152, 1–90. [Google Scholar]
  17. Restemeyer, J. Morphologische und morphogenetische Untersuchungen zur Phylogenie und Evolution der Podocarpaceae und Phyllocladaceae. Ph.D. Thesis, Ruhr-Universität Bochum, Bochum, Germany, 2002. [Google Scholar]
  18. Mill, R.R.; Möller, M.; Glidewell, S.M.; Masson, D.; Williamson, B. Comparative anatomy and morphology of fertile complexes of Prumnopitys and Afrocarpus species (Podocarpaceae) as revealed by histology and NMR imaging, and their relevance to systematics. Bot. J. Linn. Soc. 2004, 145, 295–316. [Google Scholar] [CrossRef]
  19. Chen, L.; Jin, W.-T.; Liu, X.-Q.; Wang, X.-Q. New insights into the phylogeny and evolution of Podocarpaceae inferred from transcriptomic data. Mol. Phylogenetics Evol. 2022, 166, 107341. [Google Scholar] [CrossRef]
  20. Leslie, A.B. How many ways can you build a conifer cone? A commentary on ‘Origin and evolution of Podocarpaceae seed cones’. Ann. Bot. 2022, 130, i–iii. [Google Scholar] [CrossRef]
  21. Farjon, A. The Kew review: Conifers of the world. Kew Bull. 2018, 73, 8. [Google Scholar] [CrossRef]
  22. Farjon, A. Taxonomic treatment of genera and species. A Handbook of the World’s Conifers; Brill: Leiden, The Netherlands, 2017; Volume 2. [Google Scholar]
  23. Ornelas, J.F.; Ortiz-Rodriguez, A.E.; Ruiz-Sanchez, E.; Sosa, V.; Pérez-Farrera, M.Á. Ups and downs: Genetic differentiation among populations of the Podocarpus (Podocarpaceae) species in Mesoamerica. Mol. Phylogenetics Evol. 2019, 138, 17–30. [Google Scholar] [CrossRef]
  24. Mellick, R.; Rossetto, M.; Porter, C. Isolation and characterisation of polymorphic microsatellite loci from Podocarpus elatus (Podocarpaceae). Mol. Ecol. Resour. 2009, 9, 1460–1466. [Google Scholar]
  25. Mill, R. A monographic revision of Retrophyllum (Podocarpaceae). Edinb. J. Bot. 2016, 73, 171–261. [Google Scholar] [CrossRef]
  26. De Laubenfels David, J. Coniferales. In Flora Malesiana; Kluwer Academic: Dordrecht, The Netherlands, 1988; Series I; Volume 10. [Google Scholar]
  27. Farjon, A.; Filer, D. An Atlas of the World’s Conifers: An Analysis of Their Distribution, Biogeography, Diversity and Conservation Status; Brill: Leiden, The Netherlands, 2013. [Google Scholar]
  28. Yu, Y.; Blair, C.; He, X. RASP 4: Ancestral state reconstruction tool for multiple genes and characters. Mol. Biol. Evol. 2020, 37, 604–606. [Google Scholar] [CrossRef] [PubMed]
  29. Maddison, W.; Maddison, D. Mesquite: A Modular System for Evolutionary Analysis, Version 3.51; Mesquite Project: Arlington, AZ, USA, 2019. [Google Scholar]
  30. Buchholz, J.T. Embryogeny of the Podocarpaceae. Bot. Gaz. 1941, 103, 1–37. [Google Scholar] [CrossRef]
  31. Doyle, J.; Looby, W. Embryogeny in Saxegothaea and its relation to other podocarps. Sci. Proc. R. Dublin Soc. 1939, 22, 127–147. [Google Scholar]
  32. Peters, M.D. A taxonomic Analysis of a Middle Cretaceous Megafossil Plant Assemblage from Queensland, Australia. Ph.D. Thesis, University of Adelaide, Adelaide, Australia, 1985. [Google Scholar]
  33. Hill, R.; Carpenter, R. Evolution of Acmopyle and Dacrycarpus (Podocarpaceae) foliage as inferred from macrofossils in south-eastern Australia. Aust. Syst. Bot. 1991, 4, 449–479. [Google Scholar] [CrossRef]
  34. Mittre, V. Studies on the fossil flora of Nipania, Rajmahal Series, India—Pteridophyta and general observations on Nipania fossil flora. Palaeobotanist 1959, 7, 47–66. [Google Scholar]
  35. Rao, A. Nipaniostrobus, a New Genus of Dacrydium-Like Sed-Bearing Cones, and Other Silicifield Plants from the Rajmahal Series. Proc. Natl. Acad. Sci. USA 1943, 13, 113–133. [Google Scholar]
  36. Townrow, J.A. Conifer from the Jurassic of east Antarctica. Pap. Proc. R. Soc. Tasman. 1967, 101, 137–149. [Google Scholar]
  37. Miller, C.N. Mesozoic conifers. Bot. Rev. 1977, 43, 217–280. [Google Scholar] [CrossRef]
  38. Reymanówna, M. A Jurassic podocarp from Poland. Rev. Palaeobot. Palynol. 1987, 51, 133–143. [Google Scholar] [CrossRef]
  39. Stewart, W.N.; Stewart, W.N.; Stewart, W.M.; Rothwell, G.W. Paleobotany and the Evolution of Plants; Cambridge University Press: Cambridge, UK, 1993. [Google Scholar]
  40. Wu, X.K.; Zavialova, N.E.; Kodrul, T.M.; Liu, X.Y.; Gordenko, N.V.; Maslova, N.P.; Quan, C.; Jin, J.H. Northern Hemisphere megafossil of Dacrycarpus (Podocarpaceae) from the Miocene of South China and its evolutionary and paleoecological implications. J. Syst. Evol. 2021, 59, 352–374. [Google Scholar] [CrossRef]
  41. Wilf, P. Rainforest conifers of Eocene Patagonia: Attached cones and foliage of the extant Southeast Asian and Australasian genus Dacrycarpus (Podocarpaceae). Am. J. Bot. 2012, 99, 562–584. [Google Scholar] [CrossRef]
  42. Lewis, E.K.; Drinnan, A.N. The Miocene conifer flora of Balcombe Bay, Victoria, Australia. Aust. Syst. Bot. 2013, 26, 145–155. [Google Scholar] [CrossRef]
  43. Geldenhuys, C. Reproductive biology and population structures of Podocarpus falcatus and P. latifolius in southern Cape forests. Bot. J. Linn. Soc. 1993, 112, 59–74. [Google Scholar] [CrossRef]
  44. Mill, R. A new sectional combination in Nageia Gaertn. (Podocarpaceae). Edinb. J. Bot. 2001, 58, 499. [Google Scholar] [CrossRef]
  45. Contreras, D.; Duijnstee, I.; Ranks, S.; Marshall, C.; Looy, C. Evolution of dispersal strategies in conifers: Functional divergence and convergence in the morphology of diaspores. Perspect. Plant Ecol. Evol. Syst. 2017, 24, 93–117. [Google Scholar] [CrossRef]
  46. Sahni, B.; Mitra, A. Notes on the anatomy of some New Zealand species of Dacrydium. Ann. Bot. 1927, 41, 75–89. [Google Scholar] [CrossRef]
  47. Herting, J.; Stützel, T. Morphogenesis of the seed cone of Araucaria ancheri (Molina) K. Koch and the evolution of the coniferous seed scale. Flora 2020, 273, 151719. [Google Scholar] [CrossRef]
  48. Field, T.S.; Brodribb, T.J.; Iglesias, A.; Chatelet, D.S.; Baresch, A.; Upchurch, G.R.; Gomez, B.; Mohr, B.A.; Coiffard, C.; Kvacek, J. Fossil evidence for Cretaceous escalation in angiosperm leaf vein evolution. Proc. Natl. Acad. Sci. USA 2011, 108, 8363–8366. [Google Scholar] [CrossRef] [PubMed]
  49. Galetti, M.; Pizo, M.A.; Morellato, L.P.C. Diversity of functional traits of fleshy fruits in a species-rich Atlantic rain forest. Biota Neotrop. 2011, 11, 181–193. [Google Scholar] [CrossRef]
  50. Leslie, A.B.; Beaulieu, J.M.; Mathews, S. Variation in seed size is structured by dispersal syndrome and cone morphology in conifers and other nonflowering seed plants. New Phytol. 2017, 216, 429–437. [Google Scholar] [CrossRef]
  51. Del Fueyo, G.M. Cone and ovule development in the Podocarpus species from Argentina. Phytomorphology 1999, 49, 49–60. [Google Scholar]
  52. Mill, R.; Möller, M.; Christie, F.; Glidewell, S.; Masson, D.; Williamson, B. Morphology, anatomy and ontogeny of female cones in Acmoanchericheri (Brongn. & Gris) Pilg. (Podocarpaceae). Ann. Bot. 2001, 88, 55–67. [Google Scholar]
  53. Blendinger, P.G. Functional equivalence in seed dispersal effectiveness of Podocarpus parlatorei in Andean fruit-eating bird assemblages. Front. Ecol. Evol. 2017, 5, 57. [Google Scholar] [CrossRef]
  54. Enright, N.J.; Jaffré, T. Ecology and distribution of the Malesian podocarps. In Ecology of the Podocarpaceae in Tropical Forests; Turner, B.L., Cernusak, L.A., Eds.; Smithsonian Institution Scholarly Press: Washington, DC, USA, 2011. [Google Scholar]
  55. Koen, J. The effect of rodent granivory on recruitment of the irregularly fruiting Podocarpus falcatus in the southern Cape. S. Afr. For. J. 1991, 159, 25–28. [Google Scholar] [CrossRef]
  56. Eckenwalder, J.E. Conifers of the World: The Complete Reference; Timber Press: Portland, OR, USA, 2009. [Google Scholar]
  57. Wilf, P.; Donovan, M.P.; Cúneo, N.R.; Gandolfo, M.A. The fossil flip-leaves (Retrophyllum, Podocarpaceae) of southern South America. Am. J. Bot. 2017, 104, 1344–1369. [Google Scholar] [CrossRef]
  58. Fountain, D.W.; Holdsworth, J.M.; Outred, H.A. The dispersal unit of Dacrycarpus dacrydioides (A. Rich.) de Laubenfels (Podocarpaceae) and the significance of the fleshy receptacle. Bot. J. Linn. Soc. 1989, 99, 197–207. [Google Scholar] [CrossRef]
  59. Robertson, H.A.; Hackwell, K.R. Habitat preferences of birds in seral kahikatea Dacrycarpus dacrydioides (Podocarpaceae) forest of South Westland, New Zealand. Biol. Conserv. 1995, 71, 275–280. [Google Scholar] [CrossRef]
  60. Norton, D.; Herbert, J.; Beveridge, A. The ecology of Dacrydium cupressinum: A review. N. Z. J. Bot. 1988, 26, 37–62. [Google Scholar] [CrossRef]
  61. Beveridge, A. Dispersal and destruction of seed in central North Island podocarp forests. N. Z. Ecol. Soc. 1964, 11, 48–55. [Google Scholar]
  62. Beveridge, A. Regeneration of podocarps in a central North Island Forest. N. Z. J. For. 1973, 18, 23–35. [Google Scholar]
  63. Warburton, B.; Kingsford, S.; Lewitt, D.; Spurr, E. Plant species preferences of birds in lowland rimu (Dacrydium cupressinum) forest-implications for selective-logging. N. Z. J. Ecol. 1992, 16, 119–126. [Google Scholar]
  64. Fidler, A.E.; Lawrence, S.B.; McNatty, K.P. An hypothesis to explain the linkage between kakapo (Strigops habroptilus) breeding and the mast fruiting of their food trees. Wildl. Res. 2008, 35, 1–7. [Google Scholar] [CrossRef]
  65. Thorsen, M.J.; Dickinson, K.J.; Seddon, P.J. Seed dispersal systems in the New Zealand flora. Perspect. Plant Ecol. Evol. Syst. 2009, 11, 285–309. [Google Scholar] [CrossRef]
  66. Spurr, E.; Rod, S.; Tranter, K. Food preferences of the bellbird (Anthornis melanura) in native forest remnants on the Port Hills, Banks Peninsula, New Zealand. Notornis 2011, 58, 139–157. [Google Scholar]
Figure 1. Seed cone of Afrocarpus falcatus (A), longitudinal section (B), cross section (C); Podocarpus henkelii (D), longitudinal section (E), cross section (F); Podocarpus spinulosus (G), longitudinal section (H), cross section (I); and Podocarpus oleifolius (J), longitudinal section (K), cross section (L). Shown are the epimatium (Em), bract (Br), fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), megagametophyte (Mg), micropyle (Mi), embryo (Emb), resin canal (Rc), resin duct (Rd), peduncle (Pd), receptaculum (Rp) and resin layer (Rl).
Figure 1. Seed cone of Afrocarpus falcatus (A), longitudinal section (B), cross section (C); Podocarpus henkelii (D), longitudinal section (E), cross section (F); Podocarpus spinulosus (G), longitudinal section (H), cross section (I); and Podocarpus oleifolius (J), longitudinal section (K), cross section (L). Shown are the epimatium (Em), bract (Br), fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), megagametophyte (Mg), micropyle (Mi), embryo (Emb), resin canal (Rc), resin duct (Rd), peduncle (Pd), receptaculum (Rp) and resin layer (Rl).
Plants 12 03903 g001
Figure 2. Seed anatomy of Podocarpus oleifolius longitudinal section (a), cross section (b); P. henkelii longitudinal section (c), cross section (d); P. elongatus longitudinal section (e), cross section (f); and P. elatus longitudinal section (g), cross section (h). Shown are the epimatium (Em), bract (Br), fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), megagametophyte (Mg), embryo (Emb), resin canal (Rc), resin duct (Rd) and vascular bundles (Vb).
Figure 2. Seed anatomy of Podocarpus oleifolius longitudinal section (a), cross section (b); P. henkelii longitudinal section (c), cross section (d); P. elongatus longitudinal section (e), cross section (f); and P. elatus longitudinal section (g), cross section (h). Shown are the epimatium (Em), bract (Br), fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), megagametophyte (Mg), embryo (Emb), resin canal (Rc), resin duct (Rd) and vascular bundles (Vb).
Plants 12 03903 g002
Figure 3. Cross sections of the receptaculum of Podocarpus elongatus (A); Podocarpus oleifolius (B); Podocarpus spinulosus (C); Dacrycarpus dacrydioides (D); Dacrydium cupressinum (E) and Acmopyle pancheri (F), showing vascular bundles (Vb) and resin ducts (Rd).
Figure 3. Cross sections of the receptaculum of Podocarpus elongatus (A); Podocarpus oleifolius (B); Podocarpus spinulosus (C); Dacrycarpus dacrydioides (D); Dacrydium cupressinum (E) and Acmopyle pancheri (F), showing vascular bundles (Vb) and resin ducts (Rd).
Plants 12 03903 g003
Figure 4. Receptacle anatomy of Podocarpus oleifolius cross section (a,b); Podocarpus spinulosus cross section (c,d); Dacrydium cupressinum cross section (e,f); and Acmopyle pancheri cross section (g,h). Shown are the vascular bundles (Vb) and resin canals (Rc).
Figure 4. Receptacle anatomy of Podocarpus oleifolius cross section (a,b); Podocarpus spinulosus cross section (c,d); Dacrydium cupressinum cross section (e,f); and Acmopyle pancheri cross section (g,h). Shown are the vascular bundles (Vb) and resin canals (Rc).
Plants 12 03903 g004
Figure 5. Seed cone of Dacrycarpus dacrydioides (A) longitudinal section (B) cross section (C); Dacrydium cupressinum (D), longitudinal section (E), cross section (F); and Acmopyle pancheri (G), longitudinal section (H), seed (I). Shown are the epimatium (Em), bract (Br), fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), megagametophyte (Mg), micropyle (Mi), embryo (Emb), resin canal (Rc), resin duct (Rd) and receptaculum (Rp).
Figure 5. Seed cone of Dacrycarpus dacrydioides (A) longitudinal section (B) cross section (C); Dacrydium cupressinum (D), longitudinal section (E), cross section (F); and Acmopyle pancheri (G), longitudinal section (H), seed (I). Shown are the epimatium (Em), bract (Br), fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), megagametophyte (Mg), micropyle (Mi), embryo (Emb), resin canal (Rc), resin duct (Rd) and receptaculum (Rp).
Plants 12 03903 g005
Figure 6. Anatomy of seed cones of Afrocarpus falcatus longitudinal section (a), cross section (b,c); Dacrycarpus dacrydioides longitudinal section (d), cross section (e,f); and Dacrydium cupressinum longitudinal section (g), cross section (h,i). Shown are the fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), epimatium (Em), megagametophyte (Mg), micropyle (Mi), embryo (Emb), nucellus (Nu), resin canal (Rc), resin duct (Rd) and receptaculum (Rp).
Figure 6. Anatomy of seed cones of Afrocarpus falcatus longitudinal section (a), cross section (b,c); Dacrycarpus dacrydioides longitudinal section (d), cross section (e,f); and Dacrydium cupressinum longitudinal section (g), cross section (h,i). Shown are the fleshy sarcotesta-like seed coat (Slsc), mesotesta (Mes), endotesta (End), epimatium (Em), megagametophyte (Mg), micropyle (Mi), embryo (Emb), nucellus (Nu), resin canal (Rc), resin duct (Rd) and receptaculum (Rp).
Plants 12 03903 g006

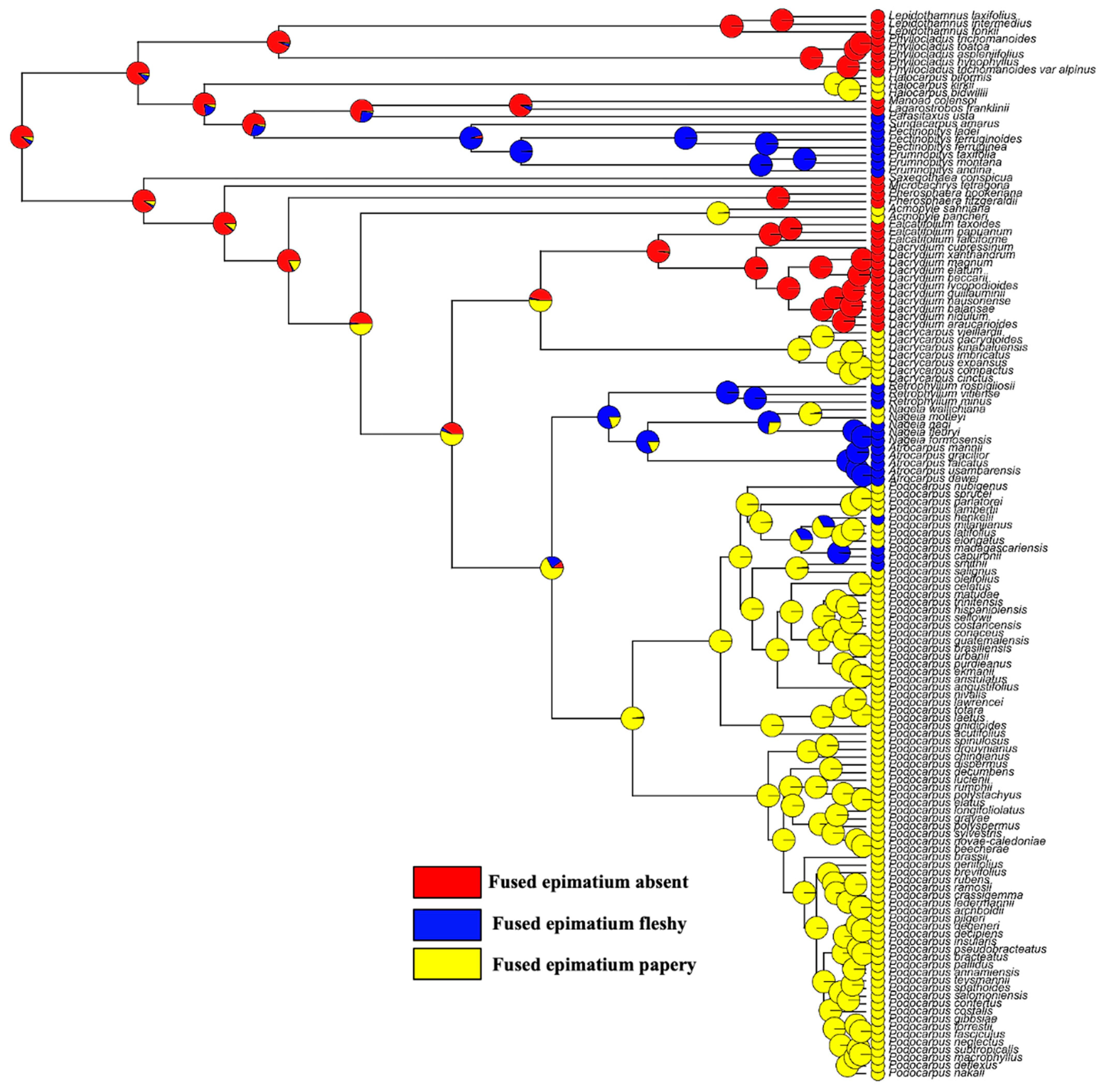

Figure 7. Character mapping of fused epimatium fleshiness and non-fleshiness in different genera of Podocarpaceae—maximum likelihood.
Figure 7. Character mapping of fused epimatium fleshiness and non-fleshiness in different genera of Podocarpaceae—maximum likelihood.
Plants 12 03903 g007

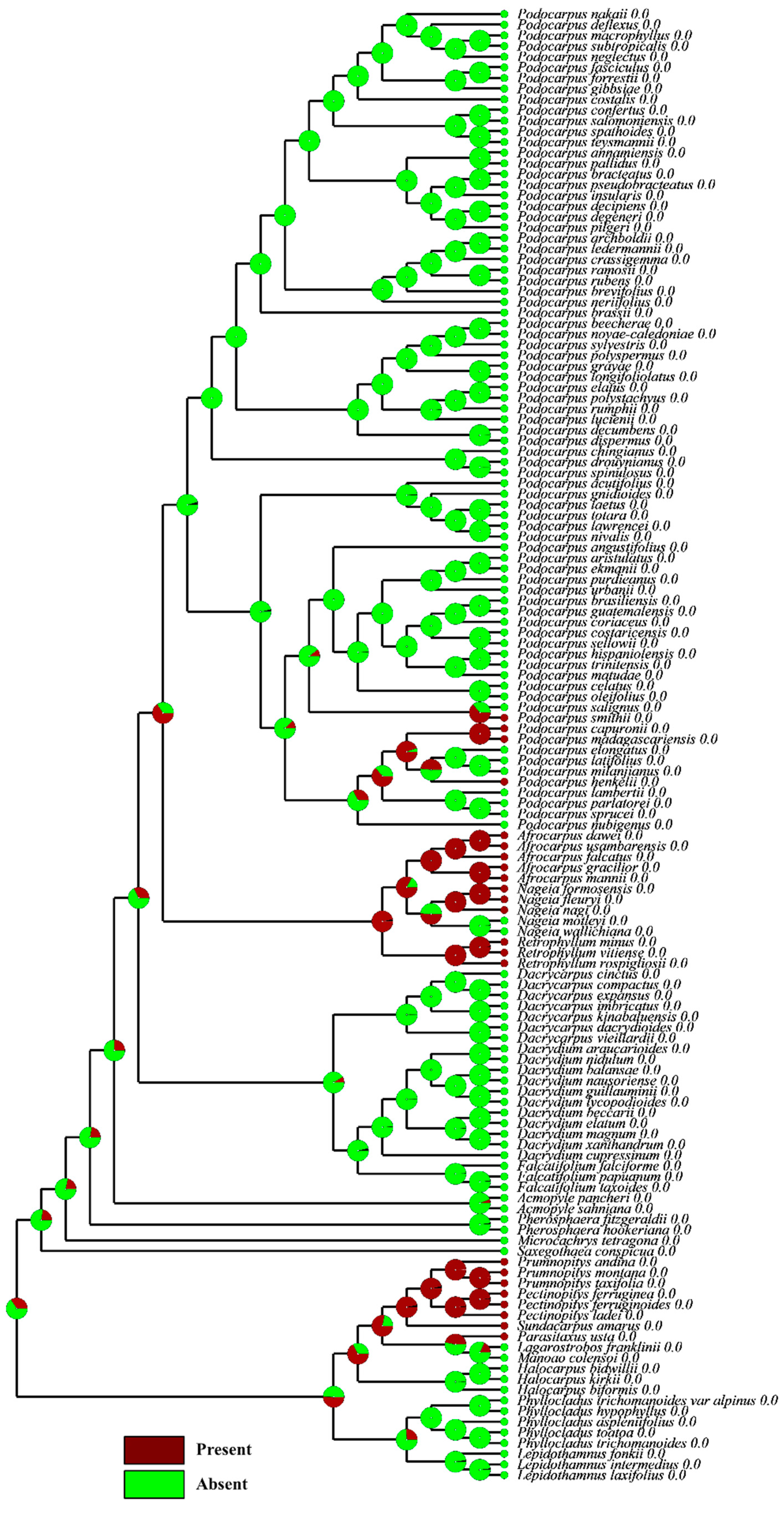

Figure 8. Character mapping of the fleshy sarcotesta-like structure in different genera of Podocarpaceae—maximum likelihood.
Figure 8. Character mapping of the fleshy sarcotesta-like structure in different genera of Podocarpaceae—maximum likelihood.
Plants 12 03903 g008
Table 1. Seed cone morphological and anatomical, and qualitative and quantitative characteristics for the Podocarpoid and Dacrydioid clades.
Table 1. Seed cone morphological and anatomical, and qualitative and quantitative characteristics for the Podocarpoid and Dacrydioid clades.
CharactersAfrocarpus falcatusNageia wallichianaNageia nagiPodocarpus henkelii (subgenus Podocarpus)Podocarpus elongatus (subgenus Podocarpus)Podocarpus oleifolius (subgenus Podocarpus)Podocarpus spinulosus (subgenus Foliolatus)Podocarpus elatus (subgenus Foliolatus)Retrophyllum comptoniiDacrydium cupressinumDacrycarpus dacrydioidesFalcatifolium papuanumAcmopyle pancheri
Reproductive cycle1 year1 year 1 year 1 year1 year1 year1 year1 year1 year2 years1 year 1 year1–2 years
Cone shapeobovoidovoidgloboseobovoidovoidovoidovoidovoidovoid-subgloboseobovoidovoidobovoidovoid
Cone size (mm)12–20 × 8–16 18–38 × 6–1012–18 × 10–1615–20 × 8–1213–20 × 4–812–22 × 4–711–24 × 6–725–45 × 10–2010–20 × 7–156–10 × 2–4 10–18 × 4–8 10–16 × 4–618–34 × 10–18
Colouryellowishreddishbrownyellowish reddishreddishdark purpledark purplereddishreddishreddishreddishreddish-brown
Number of seeds per cone11–21111–211–21–211–211–2
Seed size (mm)8–18 × 6–1414–20 × 10–1610–15 × 8–1212–17 × 4–66–12 × 3–55–8 × 3–68–10 × 5–715–20 × 12–157–17 × 5–122.5–6 × 2–3 6–10 × 4–86–7 × 4–56–8 × 5–7
Seed surfacerugoserugoserugoserugosesmoothsmoothrugoserugoserugosesmoothsmoothsmoothrugose
Seed colourbrownbrownbrownlight brownbrownbrownbrownpurplish blackbrownbrownish blackpurplish blackdark brownbrown
Ovule orientationinverted inverted inverted invertedinvertedinvertedinvertedinvertedinvertedinvertedinvertedinvertederect
Cuticlethickthickthickthickthinthinthinthinthickthickthinthinthick
Epidermal layers11–21–21111–2111111
Epidermal cell shaperectangularround–triangularround–triangularround–triangularround–triangularrectangularround–triangularround–triangularisodiametric dome-shapeddome-shapeddome-shapedtriangular
Exotesta fleshycoriaceouscoriaceousfleshycoriaceouscoriaceouscoriaceouscoriaceousfleshycoriaceouscoriaceouscoriaceouscoriaceous
Exotesta layers of cells10–1814–2212–2012–188–1310–1412–1618–2616–201–210–143–614–20
Mesotesta layers of cells3–516–223–510–166–86–12
Endotesta layers of cells20–3212–2010–1812–206–1210–165–84–612–188–104–66–1412–18
Nucellus layers4–105–106–126–128–147–106–82–44–86–103–64–84–8
Embryo (megagametophyte) shapestraightstraightstraightstraightstraightstraightstraightstraightstraightstraightstraightstraightstraight
Embryo size (mm)0.8–1.2 × 0.3–0.50.8–1.7 × 0.3–0.50.8–1.5 × 0.3–0.40.65–1.2 × 0.2–0.40.5–0.9 × 0.2–0.30.6–0.8 × 0.2–0.30.5–1.3 × 0.3–0.50.7–1.2 × 0.3–0.50.4–0.9 × 0.2–0.40.25–0.6 × 0.1–0.2 0.6–1.0 × 0.2–0.50.3–0.6 × 0.15–0.250.3–6 × 0.1–0.2
Bracts 1–24–74–61–2222–423–58–142–36–124–10
Stomata on bractspresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresent
Epimatiumpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresent
Epimatium shapefleshy and fused with outer testa surrounding the whole seedpapery and fused with outer testa surrounding the whole seedfleshy and fused with outer testa surrounding the whole seedfleshy and fused with outer testa surrounding the whole seedpapery and fused with outer testa surrounding the whole seedpapery and fused with outer testa surrounding the whole seedpapery and fused with outer testa surrounding the whole seedpapery and fused with outer testa surrounding the whole seedfleshy and fused with outer testa surrounding the whole seedfleshy asymmetrical cup-likepapery and fused with outer testa surrounding the whole seed fleshy asymmetrical cup-likepapery and fused with outer testa surrounding the whole seed
Epimatium structurefleshyfleshyfleshyfleshypaperypaperypaperypaperyfleshyfleshypaperyfleshypapery
Epimatium colouryellowishpurplepurpleyellowishpurpleolive greendark purplepurplish blackreddishbrownish blackpurplish blackreddish brownbrown
Receptaculumabsentpresentabsentabsentpresentpresentpresentpresentabsentpresentpresentpresentpresent
Receptaculum colour-reddish-absentbright redyellowish redblueish blackblueish black-reddishorange–redreddishreddish brown
Sclereidspresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresent
Resin canalspresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresentpresent
Dispersalzoochory [birds, bats (Rousettus aegyptiacus), monkeys (Chlorocebus pygerythrus), woodland dormouse (Graphiurus murinus) and Verreaux’s mouse (Myomyscus verreauxii)]zoochoryzoochoryzoochory (birds)zoochory (birds)zoochory (birds)zoochory (birds)zoochory (birds)zoochoryzoochory [New Zealand bellbird (Anthornis melanura) and Tūī (Prosthemadera novaeseelandiae), Kākāpō (Strigops habroptilus)]zoochory [New Zealand pigeon (Hemiphaga novaeseelandiae), Tūī (Prosthemadera novaeseelandiae) and New Zealand bellbird (Anthornis melanura), Anthornis melanura, Hemiphaga novaeseelandiae, Prosthemadera novaeseelandiae]zoochory (birds)zoochory (birds)
Table 2. Number of prosuspensor and binucleate embryonic cells in Podocarpaceae.
Table 2. Number of prosuspensor and binucleate embryonic cells in Podocarpaceae.
TaxonNumber of Prosuspensor CellsNumber of Binucleate Embryonic CellsReference
Podocarpoid Clade
Afrocarpus18–239–11Buchholz, 1941 [30]
Nageia18–237, 9–11#
Podocarpus glomeratus11–132–3#
P. chinensis14–151–2#
P. lawrencei7–101–2#
P. nivalis7–101–2#
P. totara7–101–2#
P. laetus7–101–2#
P. urbanii11–132–3#
Dacrydioid Clade
Dacrycarpus dacrydioides11–144 or 5Buchholz, 1941 [30]
Dacrydium7–115–9#
Other Podocarpaceae
Phyllocladus4–69–12Doyle and Looby, 1939 [31]
Saxegothaea3–410–12#
Pectinopitys ferruginea7–97–9Buchholz, 1941 [30]
Prumnopitys taxifolia6–99–12#
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Khan, R.; Hill, R.S.; Dörken, V.M.; Biffin, E. Detailed Seed Cone Morpho-Anatomy Provides New Insights into Seed Cone Origin and Evolution of Podocarpaceae; Podocarpoid and Dacrydioid Clades. Plants 2023, 12, 3903. https://doi.org/10.3390/plants12223903

AMA Style

Khan R, Hill RS, Dörken VM, Biffin E. Detailed Seed Cone Morpho-Anatomy Provides New Insights into Seed Cone Origin and Evolution of Podocarpaceae; Podocarpoid and Dacrydioid Clades. Plants. 2023; 12(22):3903. https://doi.org/10.3390/plants12223903

Chicago/Turabian Style

Khan, Raees, Robert S. Hill, Veit M. Dörken, and Ed Biffin. 2023. "Detailed Seed Cone Morpho-Anatomy Provides New Insights into Seed Cone Origin and Evolution of Podocarpaceae; Podocarpoid and Dacrydioid Clades" Plants 12, no. 22: 3903. https://doi.org/10.3390/plants12223903

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
