Exploring Deposition Techniques and Supramolecular Arrangement in Thin Films for Sensor Applications

Abstract

In recent decades, many research efforts have been dedicated to finding highly sensitive devices for fast and reliable identification and quantification of an expanding range of analytes. As a result, there has been an increased number of publications dedicated to this area and a consequent increase in the number of review papers on the subject. However, unlike most review articles, we chose to explore the impact of supramolecular arrangement (or deeper, when possible, approaching the molecular organization) and assembly variables on sensing performance. This review briefly discusses the methods used to determine the molecular organization of thin films. We also examine various deposition techniques, including Langmuir-Blodgett, Langmuir-Schaefer, Layer-by-Layer assembly, electrodeposition, and spray pyrolysis, describing mainly (but not limited to) the advances in the last five years in developing thin films for sensors, with a particular emphasis on how the supramolecular arrangement can influence the sensing properties of these films.

1. Introduction

Chemical sensors are defined by the International Union of Pure and Applied Chemistry (IUPAC) as devices that transform chemical information into an analytically useful signal [1]. According to Araujo, Reddy, and Paixão [2], chemical sensors are devices that respond to an analyte based on a chemical reaction (or recognition) and can be used for the qualitative or quantitative determination of species being analysed in order to provide an analytical output. For detection purposes, a variety of materials can be applied as recognition elements, and the way this (or these) material is organized or assembled as a thin film is decisive to the success of the detection. When considering “the way” they are organized, one should delve into the material deposition method, going further to the supramolecular arrangement level and deeper at the species interacting between the sensing material and the target. The term “supramolecular chemistry” refers to interactions and structures originated by noncovalent intermolecular forces [3]. When considering “supramolecular arrangement”, its scope extends beyond molecular organization, encompassing the latter and including other aspects such as crystallinity, surface morphology, and thickness. In this review paper, we approach the influence of the supramolecular arrangement in sensor applications and, when possible, we specifically address the molecular organization in thin films. The term spatial orientation (or simply orientation) is preferred when refer to the organization of nanostructures such as one or two-dimensional materials.

Considering the range of possibilities available today, simple approaches such as the Layer-by-Layer (LbL) self-assembly [4] or more sophisticated ones such as the Langmuir-Blodgett (LB) [5,6] enable nanoscale control over desired characteristics through controllable experimental parameters. For instance, they allow control over morphology, which can be interesting to particles or molecules adsorption due to the increased surface area, or also provide the possibility of tunning the charge transfer aiming applications such as electrical (impedimetric and chemiresistive) or electrochemical sensors.

In this review, we discuss methods to manipulate materials to form thin films towards the manufacture of sensing surfaces. We start with the LB and Langmuir-Schaefer (LS) techniques, which are based on forming an ordered monolayer on the air-water interface and the transference of this monolayer onto a solid substrate. Perhaps, this one allows the most precise control over the thickness and the molecular organization in thin films. Next, we delve into the topic of the LbL technique. Based on the spontaneous adsorption of materials onto a solid substrate, the simplicity and versatility of this technique make it the most employed functionalization strategy for many applications. Following, we discuss the electrodeposition methods, which appear as a rapid and environmentally friendly way to modify electrodes. Thus, avoiding lengthy and tiring reactions as well as the use of harmful reagents. Finally, we have commented on the spray pyrolysis approach, based on spraying the precursor solution onto a heated solid, leading to thermal decomposition and film formation. The scalability and simplicity of the setup are the advantages of this method, which has gained attention in many application fields.

2. The Investigation of Molecular Organization

The study of supramolecular arrangements involves understanding the principles governing the formation, stability, and properties of these structures. Moreover, by manipulating supramolecular arrangements, new functional thin films can be developed for several applications, especially sensors. The manipulation of supramolecular arrangement can be performed by changes in experimental parameters such as solvent [7], chemical structure, chain substitution [8,9], deposition techniques [10,11] as well as heat treatments [12]. Specifically, to examine the molecular organization, techniques such as FTIR (Fourier Transform Infrared Spectroscopy) and XRD (X-ray Diffraction) can be used individually or combined to provide valuable insights helping to understand its effect on their properties.

Vibrational spectroscopy is one of the most used techniques to determine organization at the molecular level. For FTIR, due to the molecular organization and the interaction between the electric field of the incident radiation and the molecular electric dipole of the molecule during the vibration, the spectra can present differences in their band intensities. Thus, this relation is called the selection rule [8,13,14,15] and refers to the conditions under which a vibrational mode of a molecule will give rise to an observable absorption band in the infrared spectrum.

Based on the selection rule in FTIR measurements, the intensity of the signal I is proportional to the scalar product of the dipole moment μ and the electric field E: $I\alpha {(\overrightarrow{\mu }·\overrightarrow{E})}^2$ [16]. The absorption signal is intense when the dipole moment of the vibration mode is parallel to the electric field of the infrared (IR) beam. Thus, for a better determination of molecular organization through a film surface, FTIR characterization can be performed by reflection and transmission modes [8]. The reflection mode using an incident beam angle of 80° is typically employed [8], but in some cases, the attenuated total reflection (ATR) mode can be used by taking the measurement very close to the film surface [17,18,19,20,21]. Essentially, in the reflection mode, the $\overrightarrow{E}$ is polarized mostly perpendicular to the substrate surface (Figure 1), thus promoting a strong signal for vibration modes with a dipole moment perpendicular to the substrate surface, while the vibration modes with a dipole moment parallel to the substrate tend to be suppressed. The opposite effect is expected in the transmission mode, where the $\overrightarrow{E}$ is polarized parallel to the substrate surface (Figure 1). The signal is strong for vibration modes with a dipole moment parallel to the substrate surface, while the absorption signal for vibration mode with a dipole moment perpendicular to the substrate tends to be suppressed. It is possible to determine the molecular organization by comparing the contrasting signal (relative intensity) obtained from the spectra acquired in reflection and transmission modes [8].

When using this strategy, it is important to discard the influence of the substrate since different surfaces may end up eliciting different molecular organizations. The reflection mode is usually performed on a metal-covered surface, while the transmission analysis requires an IR transparent substrate such as zinc selenide (ZnSe) or Germanium. On metal surfaces, the chemical or strong physicochemical interactions of the film with the adhesion organic layer (a self-assembled monolayer, SAM) can interfere with the supramolecular arrangement. In this case, an intermediate oxide layer between the metal surface and the film of interest avoids the chemisorption and consequently preserves the vibrational modes from the film [23,24].

Another approach for analysing molecular organization involves the comparison of the FTIR spectrum of the film collected in either reflection or transmission modes to the spectrum of the monomer (powder precursor) dispersed in potassium bromide (KBr, IR-transparent matrix) [8], assuming for the later a random distribution (isotropic structure) [22,25]. Aroca and Thedchanamoorthy [8] described the molecular organization of evaporated films of InCIPc (indium(III) chloro phthalocyanine), analysing the changes in the relative intensities when comparing the spectrum of the powder in KBr pellet (random orientation) to the transmission mode spectrum of a 25 nm-thick film onto KBr and to the reflection mode spectrum of a 25 nm-thick film on a silver substrate. Zanfolim et al. [22] investigated the organization of evaporated ZnPc (zinc phthalocyanine) films by analysis of the spectra of a powder sample in KBr pellet by transmission mode, the 40 nm-thick film onto ZnSe by transmission mode and a 40 nm-thick film on a silver substrate in reflection mode, as shown in Figure 1. Through the comparison of the relative intensities of each spectrum, observing the dominance of the out-of-plane stretching of the C–H band in the transmission mode, which becomes weaker in the reflection mode, it was suggested that the ZnPc molecules were preferentially organized with the macrocycle ring practically perpendicular to the surface substrate [22].

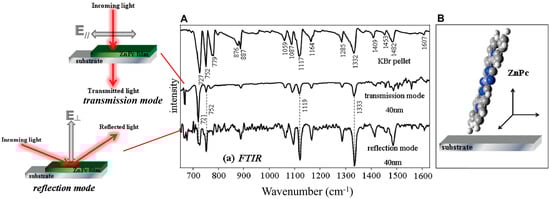

Polarized infrared spectroscopy has been applied to the determination of molecular organization [26], for instance, grazing angle attenuated total reflection (GATR) [17], p-polarized multiple-angle incidence resolution spectrometry (pMAIRS) [27,28,29] and polarization modulation infrared reflection-absorption spectroscopy (PM-IRRAS) have been reported [20,23,30,31,32]. The mentioned polarized infrared techniques measure the reflected light and are used to study surface properties and molecular organization but differ in the experimental setup and parameters. Fratczak, Uznanski, and Moneta [17] presented an approach to investigate the molecular organization of pentacene on SiO₂ surface by comparing FTIR spectroscopy at transmission and by polarized attenuated total reflectance geometry at GATR. In the s- and p-polarized GATR, it is possible to observe only vibration modes with non-zero components of transition dipole moments parallel or perpendicular to the surface [33]. Thus, the molecular organization was determined by comparing the band intensities related to characteristic vibrations of chemical bonds: all vibrations (in-plane and out-of-plane) were observed in the spectrum collected through the p-polarized beam, while the spectrum originated from the s-polarized source depicted some bands gaining intensity and others significantly reduced. Since the unpolarized IR beam at normal incidence excites only the vibration modes with transition dipole components parallel to the substrate surface, the comparison of band intensities of the transmission mode spectrum and the s-polarized GATR spectrum helped to establish the molecular organization of pentacene, which was with the molecules standing almost perpendicular to the SiO₂ substrate [17].

Although Raman spectroscopy has been widely used to investigate the composition and structure of materials, the analysis of molecular organization became restricted to the case of surface-enhanced Raman scattering (SERS). For instance, in the case of SERS, the selection rules favour the vibrations which occur perpendicular to the particle surface [34]. Still, molecules or nanostructures adsorbed on the top of a plasmonic surface can have their organization investigated by Raman spectroscopy [34] However, the configuration of polarized Raman spectroscopy can be applied for this purpose, interpreting the scattering intensities for different polarized scattering geometries [35]. Polymer fibres [36], 2D materials [37,38] and nanotubes [39,40] have already been investigated. For instance, angle-resolved polarized Raman spectroscopy (ARPRS) permits rotating the polarization of incident light or rotating the sample in the plane [41]. Particularly for graphene nanoplatelets, the intensity scattering of the Raman band depends on the axis of laser polarization when the laser beam is parallel to the graphene sheet plane [37,42]. Based on this, Li et al. [37] developed ways to establish the spatial orientation (correlated to molecular organization, but considering the 2D graphene structure) of GO flakes in nanocomposites.

Especially for films obtained by Langmuir films (Langmuir-Blodgett, LB and Langmuir-Schafer, LS), the molecular organization can be previously induced and investigated on the air/water interface. Interpreting the π–A isotherm and the extrapolated mean area allows us to infer the molecules or nanomaterials organization before the film transference to a substrate [43,44]. However, it is important to consider that the transference process to a solid substrate can induce a different organization [45]. Therefore, other characterization techniques should confirm the organization post-transference. An interesting example that represents the previous establishment of the organization by the formation of Langmuir films occurs for one-dimensional (1D) nanomaterials, which carry extreme anisotropic properties [46,47]. The barrier compression led to the formation of well-aligned 1D structures, which can be collected both by the horizontal or vertical dipping of the substrate. Miao et al. [48] have synthesized ZnO nanowires (Figure 2A, in random orientation) and aligned them by the barrier compression. Figure 2B,C depict a traditional π–A isotherm with the different compression states (details in Section 3.1) and a scanning electron microscopy (SEM) image of the aligned structures, respectively. The XRD analysis (Figure 2D) of the collected LB film indicated a hexagonal wurtzite structure, which is highly [100]oriented along the surface normal. Considering the XRD information allied to high resolution-transmission electron microscopy (HRTEM) (Figure 2E), the authors ascribed the topography depicted in Figure 2F.

Regarding crystalline materials, crystallography is also applied to determine the organization, specifically the three-dimensional arrangement of atoms or molecules within a crystal lattice. However, it may not be suitable for amorphous or disordered systems lacking long-range order. X-rays are directed at the crystal in XRD, and their interaction with the crystal lattice causes diffraction or scattering [49]. The resulting diffraction pattern is recorded and analysed to extract information about the arrangement of atoms or molecules within the crystal. Therefore, the diffractogram reveals how individual units interact and organize themselves in the crystal structure, which is crucial for studying their properties. Rivalta et al. [50] investigated the molecular organization and phase of indigo molecules deposited on silica surfaces by XRD and micro-Raman spectroscopy, respectively. By the XRD peak position and the interplane distance (from Bragg s Law), it was possible to infer that indigo molecules are oriented alongside the (1 0 0) plane while the polymorph B was determined by the specific Raman spectrum.

Currently, several techniques (or combinations of techniques) can be used to infer molecular organization in thin films. Despite being widely known that the molecular organization directly influences the properties of these films and, consequently, has a direct influence on the performance of sensors, due to the inaccessible experimental setup as well as complex and time-consuming data analysis, there are a relatively small amount of works that investigate molecular organization influence in sensors. Indeed, the works dedicated to this study demand an in-depth investigation, ultimately leading to a subject that fills a manuscript. On the other hand, most sensor application papers are worried about analytical performance. Here, we tried to find a balance or connection between the fabrication techniques, molecular organization (or supramolecular arrangement in general) and the sensing application.

3. Supramolecular Thin Films Assembly Techniques

3.1. Langmuir-Blodgett and Langmuir-Schaefer Assembly

The precise tuning of thin film growth and the possibility of achieving the desired supramolecular arrangement is the main reason for choosing the Langmuir-Blodgett (LB) and Langmuir-Schaefer (LS) depositions. Going back to 1917, Irving Langmuir demonstrated the precise control of monolayer formation at the General Electric Labs [51]. Later in 1935, his assistant Katharine Blodgett reported the sequential transferring of the floating monolayer from the air/water interface to a solid substrate [51,52].

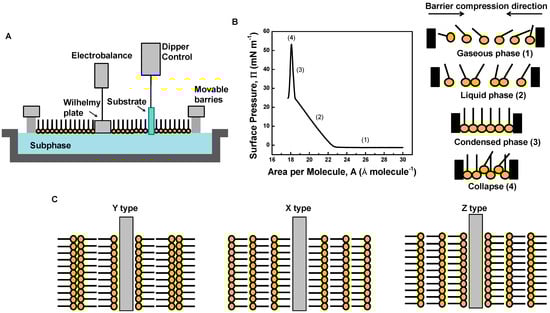

A Langmuir trough is necessary to fabricate LB or LS films, as shown in Figure 3A. The trough consists of an inert Teflon recipient containing the aqueous subphase and some characterization accessories, essentially, a surface pressure sensor (a Wilhelmy plate) to monitor the different stages of the film organization. Other accessories, such as a surface potential analyser, PM-IRRAS [53] and Brewster angle microscopy [54] can be added to the set-up. A volatile solvent is used to suspend the material of interest (e.g., chloroform, toluene, hexane), which is spread onto the aqueous subphase using a microsyringe. After solvent evaporation, the compression of the moving barriers leads to a decrease in area. As a result, the molecules are forced into an organized state, passing through the initial gaseous phase (see Figure 3B (1)) to the liquid phase (2), followed by the condensed phase (3) and finally, the collapse of the film (4) with the superposition of molecules [5,55].

The thin film with a high organization can be transferred to a solid substrate as an LB or LS film. For the LB films, the substrate is vertically immersed or raised. For a hydrophilic substrate, Y–type deposition is achieved by the first raising of the substrate from the subphase, and consecutive immersion and raising cycles lead to molecules stacking in a head-to-head and tail-to-tail configuration (Figure 3C). The X–type LB film is formed when the deposition occurs only during the substrate down stroke, whereas the Z–type films are produced when the deposition occurs only during the substrate up stroke [52]. The LS films, introduced by Irving Langmuir and Vicent Schaefer [55], involve the horizontal contact of the substrate with the compressed Langmuir film. The LS method is preferred for rigid monolayers, although it allows less control over deposition compared to the LB films [56]. In-depth information on the subject of Langmuir monolayers and Langmuir-Blodgett films can be found in M. Petty “Langmuir-Blodgett Films: an introduction” and A. Ulman entitled “Langmuir-Blodgett Films: An Introduction to Ultrathin Organic Films from Langmuir-Blodgett to Self-Assembly” [5,55]. Some recent review papers also bring the essence of LB films [6,57].

Initially, the LB technique was solely used for amphiphilic molecules. However, it has been expanded to include several materials to explore new applications. A plethora of literature exists on the applications of LB and LS techniques with different materials, such as metal nanoparticles [58,59,60,61], carbon nanotubes [62,63,64,65], graphene [66,67,68,69], biomolecules [70,71,72], metal-organic frameworks [73,74], conjugated polymers [75] and others. The LB and LS techniques have been used to fabricate hybrid films solely or combined with other approaches: (1) spreading a mixture of materials [63,76], (2) spreading a material on the air-water interface, and using the second material in the subphase [69,77]; (3) to assembly LB or LS films intercalated with self-assembled layers [68,78,79,80].

The control of parameters such as molecular organization and thickness is very important for sensor fabrication. Remarkably, the LB and LS techniques allow for the manipulation of packing, wrinkling, and folding of graphene nanosheets [81,82], the control of the packing density of metal nanoparticles [59,60,61], or the alignment of 1D materials [63,83,84]. A multitude of materials has been successfully applied as LB and LS films in sensing applications. However, due to space limitations, we will focus on a selected group of materials: graphene derivatives, 1-D materials, and nanoparticles.

3.1.1. Graphene-Derivatives

Cote, Kim, and Huang [81] pioneered assembling single graphene oxide (GO) layers by the LB assembly in 2008. The first thing to mention is that common solvents for spreading solutions, such as chloroform or toluene, are inadequate for the hydrophilic GO. To avoid aggregates, the spreading solution for GO is usually a mixture of water and methanol [81,85]. The interactions between graphene sheets govern the film formation and depend on the balance between the electrostatic repulsion and the Van der Waals attraction. At the first stage of film compression, the GO sheets started to touch each other forming a close-packed monolayer. With the decreasing area, thanks to the flexibility of the single layer, the augmented surface pressure was dissipated as folding and wrinkling of sheets at the touching points (edges) but keeping the interior flat. This edge-to-edge interaction prevents the centre of the GO sheets from wrinkling until there is no space left when the monolayer buckles. With further compression and consequent increase in the Van der Waals forces, the face-to-face interaction led to a reversible flocculation between sheets of similar sizes or an irreversible coagulation between sheets of very different sizes [81]. Following Cote’s pioneering work, Zheng et al. [86] fabricated transparent conductive LB films using ultra-large graphene sheets. Despite the in-plane compression, they discovered that the formation of wrinkling also depends on the evaporation of water molecules. For instance, at a fast substrate-pulling speed, the water molecules become trapped, and their evaporation induces the wrinkling of the sheets. Conversely, small-GO sheets allow easy water evaporation, forming wrinkle-free films.

In 2017, Bonatout et al. [85] investigated GO sheets on an air-water interface by X-ray reflectivity and XRD using synchrotron sources and pointed out that GO spontaneously forms a bilayer of sheets interfaced between air and water by hydrogen-bonded water bridges [85]. Unconventionally, Jaafar et al. [67] have used the LB technique to fabricate 3D reduced graphene oxide (rGO) structures. This was achieved by collecting the film after the collapse pressure, producing a highly porous surface, which could be tuned by the number of deposition layers.

As a result of the high hydrophilicity conferred by the plenty of oxygenated groups on the GO structure, the accommodation of a variety of moieties is possible and makes GO a functional substrate for anchoring biomolecules to create hybrid nanostructures. The anchoring of nucleic acids [87,88,89,90], antibodies [91,92,93] and enzymes [69] were improved by the use of GO layers. Chalmpes et al. [79] fabricated biohybrid graphene-based structures by conventional and surfactant-assisted LS deposition for further self-assembly deposition of cytochrome c (CYC), as presented in Figure 4A. For the conventional LS deposition, the GO was spread (5:1 methanol: water mixture) onto the air-water interface, compressed to the monolayer formation, and further removed as an LS film. For the surfactant-assisted deposition, octadecylamine (ODA) is spread onto a subphase of an aqueous dispersion of GO. The barrier compression led to the ODA-GO hybrid film formation at the air-water interface, which is collected as an LS film. Further immersion of the substrates into the CYC solution provided the GO-CYC and ODA-GO-CYC films. Atomic force microscopy (AFM) images indicated a smoother distribution and higher coverage in the ODA-GO-CYS LS film (Figure 4B(a) compared to the traditional LS (b)), with the images depicting flakes with well-defined edges and negligible voids between them.

Interestingly, the ODA-GO-CYC presented no catalytic activity. Even with the ODA increasing the interlayer space between GO nanosheets, thus enabling CYC molecules’ accommodation, their bulk moieties increase mass transfer limitations during biocatalysis (hampers contact between enzyme and substrate). On the other side, the protein is anchored to the edges of the GO in the GO-CYC LS films, which facilitates the enzyme-protein interaction. Additionally, another reason could be related to hydrophobic interactions between the alkyl chain of ODA and CYC, which could lead to decreased activity.

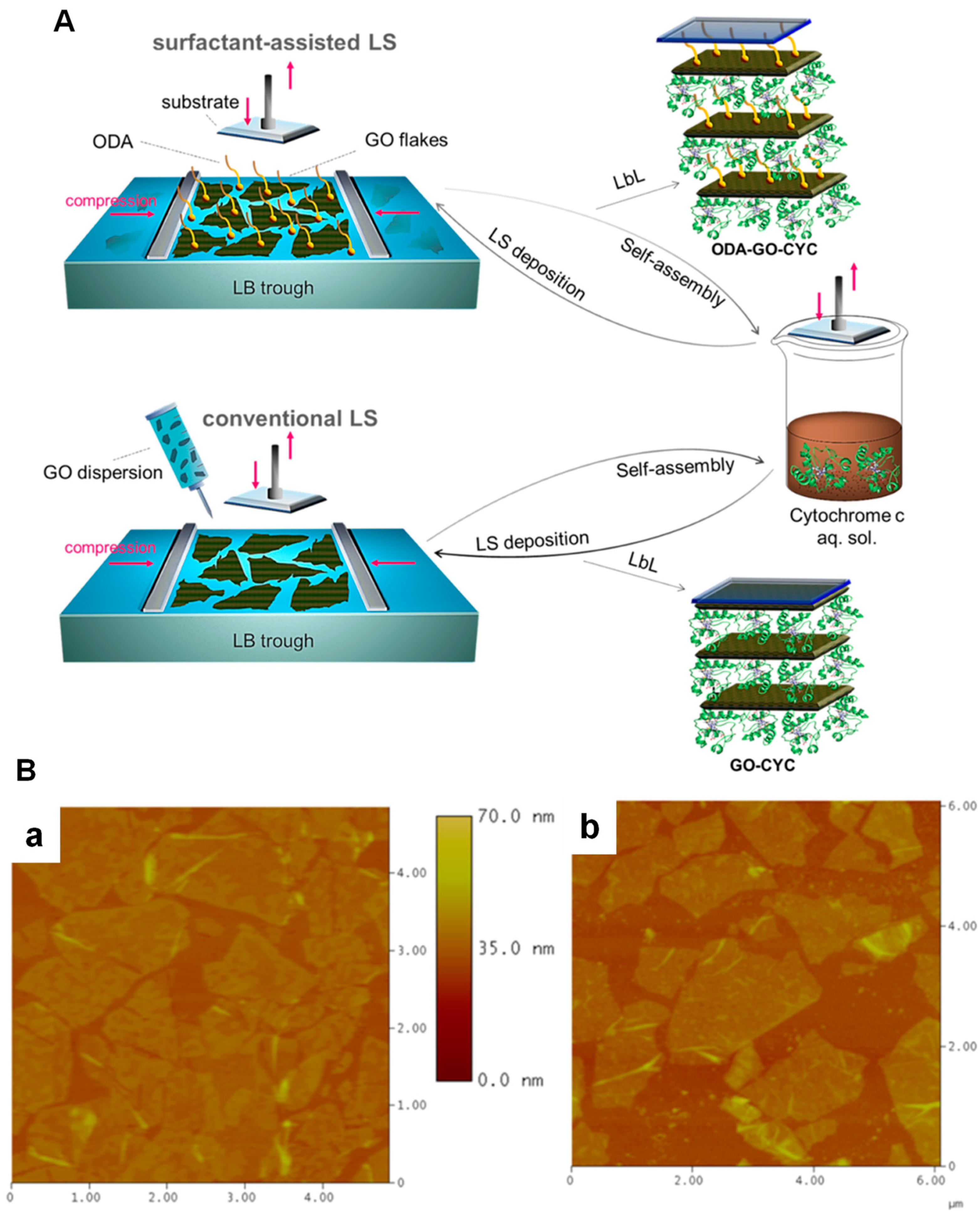

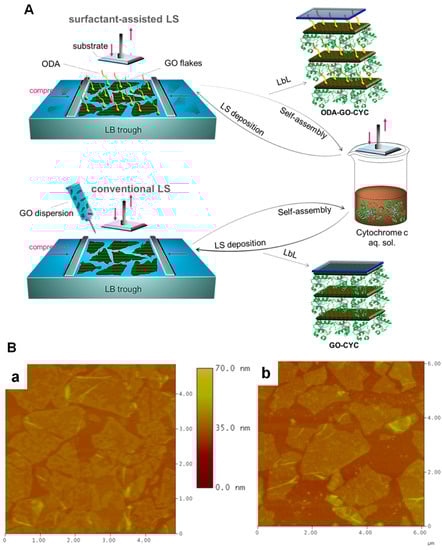

Miyazaki et al. [91] have compared GO depositions by different techniques for posterior antibody immobilization. Aiming to take advantage of oxygenated groups from the GO structure, GO was immobilized on the gold surface by SAMs of cysteamine and by LB GO films collected on two different surface pressures (15 and 30 mN/m). Although the LB films of GO provided high surface roughness, the transfer of the monolayers to the substrate left uncovered spaces on the gold substrate, which hampered the antibody loading. Also, the microscopy images indicated smaller GO sheets when compared to the self-assembled GO film. This could be due to the fact that the small sheets were able to float at the air-water interface while the large and heavy ones sunk into the subphase. Solanski et al. [66] explored LB films of ordered GO on indium tin oxide (ITO) substrates followed by hydrazine vapor reduction (creating reduced-graphene oxide–rGO) for Dengue detection. Dengue NS1 protein target was detected by the NS1 antibodies covalently linked on the rGO-coated ITO electrodes by electrochemical impedance spectroscopy (EIS) technique. The limit of detection (LOD) achieved was 0.081 ng mL⁻¹ in human serum samples, which is convenient since the target antigen level in humans varies from 0.01 to 2 μg mL⁻¹ in primary and secondary infections.

3.1.2. One-Dimensional Materials (Nanowires and Carbon Nanotubes)

One-dimensional (1D) materials have anisotropic physical properties. It is essential to control their alignment direction to achieve superior properties compared to the randomly oriented structures. For instance, electronic transport is known to be better along the alignment direction than those disordered and cross-linked networks [83,94,95]. Optical, catalytic, and magnetic properties also differ in aligned 1D structures due to the coupling effects and synergetic collective properties in oriented domains [83,96]. Valuable review papers on the alignment of 1D materials have been published by Hu et al. [83], specifically for nanowires by He et al. [97], for carbon nanotubes (CNTs) [46,64,65], and specifically using the LS technique [98].

Among the 1D materials, CNTs are one of the most widely investigated in sensing applications due to their interesting optical, electronic, and (electro)catalytic properties [99,100]. CNTs can be immobilized on solid substrates through direct growth or solution processing for sensing purposes. The latter is preferred due to the mild operation conditions (low temperature and pressure) involved and suitability for large-scale production. The alignment of 1D nanomaterials through solution processes is discussed in [101]. The LB technique, a solution-phase processing strategy, offers the advantage of allowing high-density packing [46,101,102]. The first to align CNTs using the LB technique looks to be Li et al. in 2007. Since then, LB and LS techniques have been explored to align nanotubes for sensing applications.

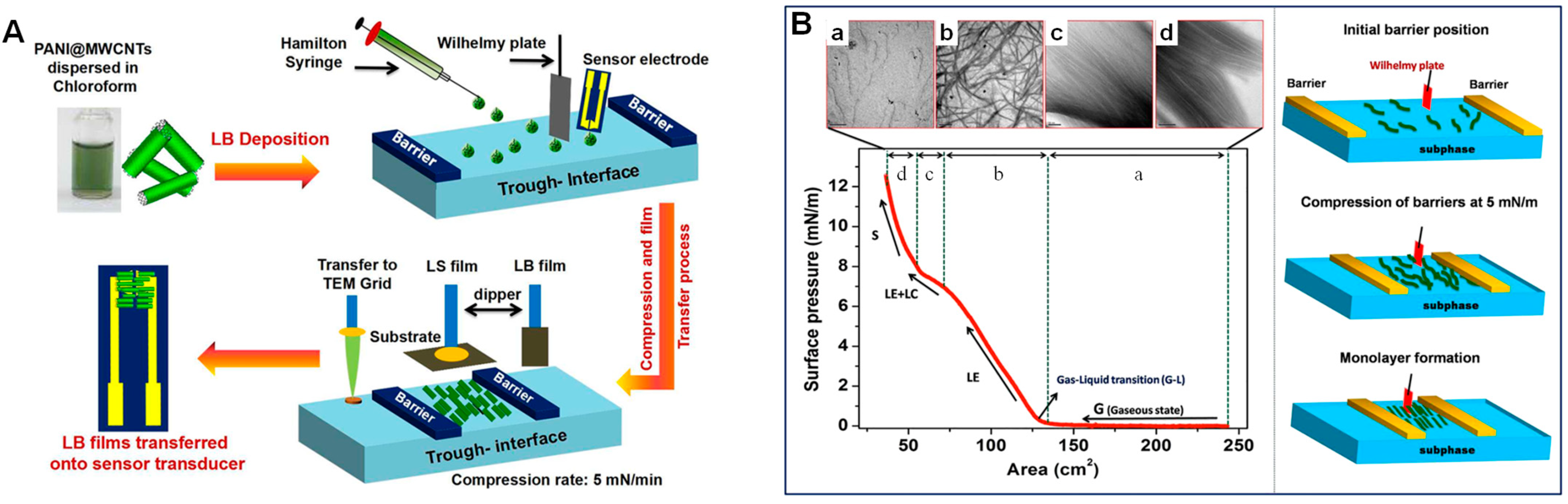

To fabricate LB or LS films of CNTs, they were functionalized or mixed with amphiphilic molecules. Abdulla et al. [63] have functionalized multiwalled-CNTs (MWCNT) with polyaniline (PANI@MWCNT) to be spread on the Langmuir trough (Figure 5A). The barrier compression led to the formation of well-aligned structures, and the horizontal or vertical dipping of the substrate originated the LS or LB films, respectively. Figure 5B illustrates the TEM images and the corresponding phases in the compression isotherm from the gaseous state (a), liquid-expanded (LE) (b and c), liquid-condensed (LC) (c), and solid (S) (d) states, with the CNTs oriented parallel to the barrier. An application as a chemoresistive NH₃ gas sensor presented 2-fold superior performance compared to spin-coated sensors. It is believed that the aligned PANI@MWCNTs created an easy pathway for the NH₃ gas interaction and facilitated electron transport through the ordered network [63].

Vertically aligned CNTs are also possible through the LB technique. Wang et al. [96] developed a method using ODA. Firstly, ODA was spread onto the trough, and after solvent evaporation, a first compression would leave a layer of ODA molecules floating with some bevel angles. Then, after a careful spreading of MWCNT, an hour is lasted to allow ODA and MWCNTs to enwind each other to finally compress the barriers. The electrochemical sensor was tested for methylparaben after transferring it to a glassy carbon electrode (GCE). The best electrochemical performance was achieved with two layers of MWCNTs. The possible reason is that the second one supplemented some imperfections left by the first deposited layer. Adding a third layer augmented the film resistance caused by the non-conductive ODA. The GCE/MWCNTs voltammetric sensor presented a linear range of 1 × 10⁻⁶ to 8 × 10⁻⁵ mol L⁻¹ and a LOD of 4 × 10⁻⁷ mol L⁻¹. The same group used a similar approach with PANI-CSA (polyaniline base doped with camphor sulphonic acid) to produce PANI-vertically aligned MWCNTs (MWCNTs-PANI-LB/GCE) [84]. The electrochemical investigation in the probe solution revealed the charge transfer resistance decreasing from MWCNTs-PANI-LB/GCE < MWCNT/GCE (dropcast) < bare GCE. This was reflected in the daidzein detection, widely used in treating cardio-cerebrovascular diseases. Compared to the randomly dispersed MWCNTs, the MWCNTs-PANI-LB/GCE presented a wider linear range (1 × 10⁻⁷–9 × 10⁻⁶ mol L⁻¹) and a lower LOD of 8 × 10⁻⁸ mol L⁻¹ [84].

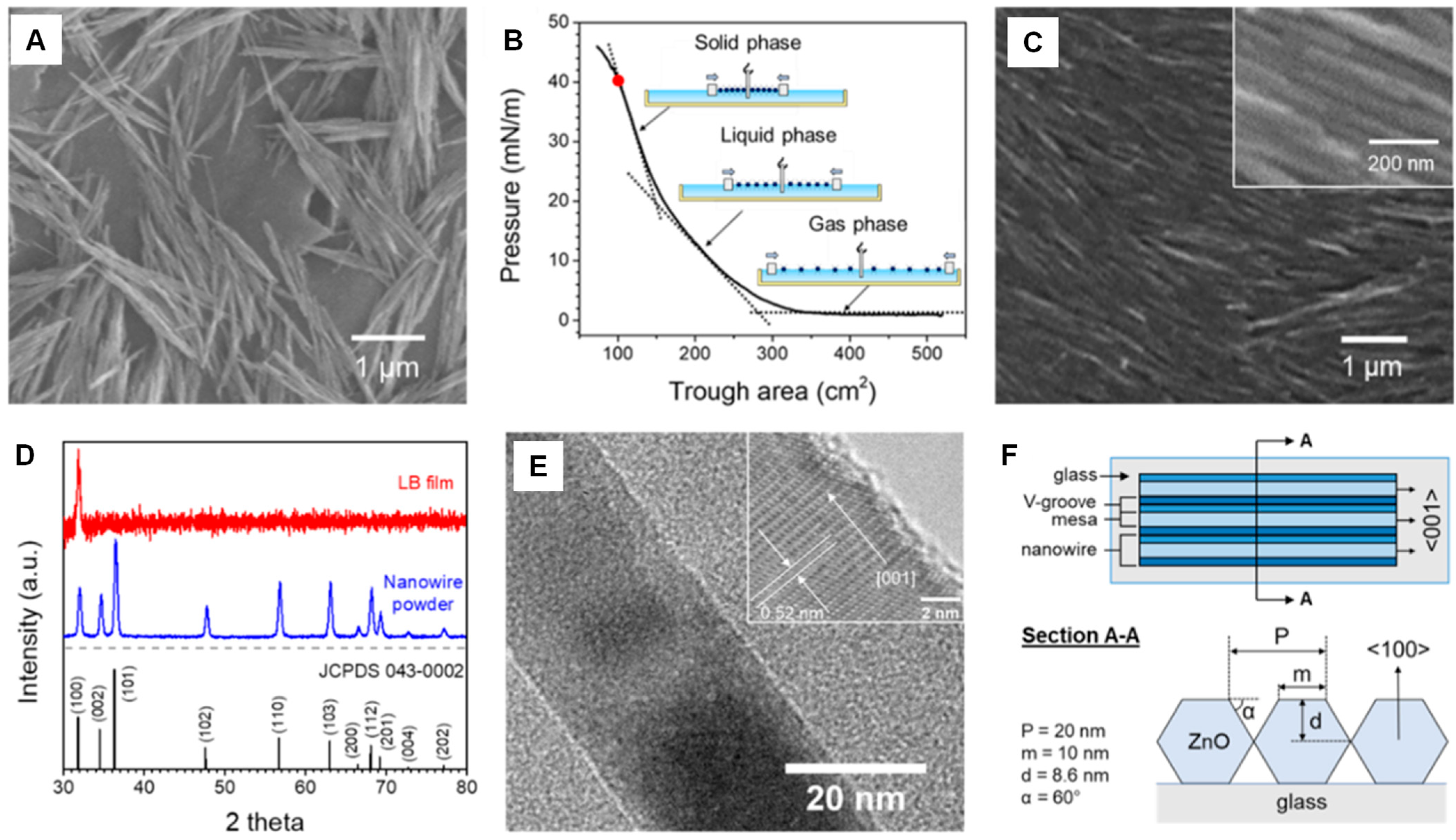

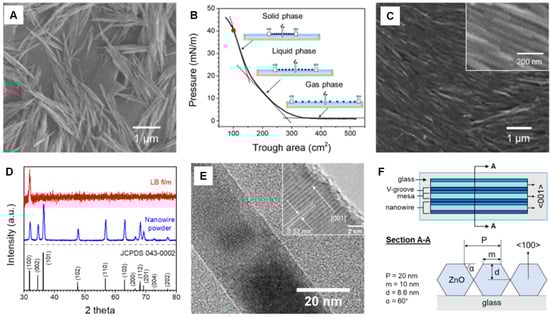

The sensing application of nanowires (NWs) has also been explored. However, to take advantage of their 1D nature (i.e., almost monocrystalline perfection, atomically sharp termination, and small diameter, close to the electron confinement limit), the orientation of NWs must be controlled. ZnO nanowires-based LB/LS films demonstrated interesting gas-sensing properties [48,95]. As a result of the high hydrophilicity of the ZnO nanowires, a functionalization with amphiphilic surfactants is needed to allow their floating at the air-water interface, as with palmitic acid [95] or 2-dodecanthiol [48]. Baratto et al. [95] worked on the Langmuir film formation with the NWs parallel to the barrier, which was further collected by the LS technique onto Au electrodes. Annealing was performed to improve the contact between NWs and Au electrodes and to remove the palmitic acid. The aligned ZnO-NWs sensor was suitable to detect NO₂ either at 200 °C or at room temperature, while the drop cast film (random orientation) presented no correlation between relative response and NO₂ concentration. Without orientation, there is a strong dependence on the response with the percolation through the interconnections between the NWs, which depends on the preparation conditions.

Concerning NWs, the possibility of creating aligned structures is of great interest to SERS researchers. Pioneering work of Tao et al. [103] in 2003 used the LB technique to fabricate aligned AgNWs film. The NWs with pentagonal cross-section and pyramidal tips were previously capped with poly(vinyl pyrrolidone)—PVP to turn the NWs’ surface hydrophobic, thus preventing aggregation. The formed AgNWs monolayer became well-aligned parallel to the barrier, and the LB film was transferred to a silicon wafer for SERS application. The enhancement factor was 10⁵ and 10⁹ for 2,4-dinitrotoluene and Rhodamine 6G, respectively. Recently, Sheng et al. [104] have fabricated ordered LB TeNWs film to further immerse in HAuCl₄ aqueous solution. After the reduction, the ordered Te-Au hetero NWs film was tested as a SERS substrate. The enhancement factor using 3,3′-diethylthiatricarbocyanine iodide (DTTCI) as a probe was calculated as ~10⁶ and ~10⁵ for the ordered and disordered (dropcast film) SERS substrate, respectively. Due to the orderly and close arrangement of the plasmonic gold nanoparticles (AuNPs), there is a greater number of hot spots in the ordered film, while in the disordered one, the AuNPs are dispersed (far apart from each other). Additionally, the Te-Au hetero NWs film exhibits excellent uniformity and flexibility. Interestingly, a test using a polarized laser indicated that the local field that dominates the SERS signal is perpendicular to the NW template in the axial direction, while the intensity is independent of the angle of polarized light for the disordered film [104].

3.1.3. Nanoparticles

Regarding sensing platforms based on the surface plasmons, for instance, SERS, which is based on localized surface plasmon resonances (LSPR), and SPR (surface plasmon resonance) sensing approaches, the deposition techniques through monolayers are interesting due to the possibility of controlling the nanoparticles organization and the packing density by means of adjustment of the moving barriers. Although this message sounds very appealing from the perspective of various sensing applications, achieving a high degree of surface coverage of metal nanoparticles is still a challenge. Swierczewski and Bürgi [59] have discussed the differences between manufacturing films of purely hydrophobic metal nanoparticles to typical amphiphilic molecules. The absence of hydrogen bonds to stabilize the Langmuir layer introduces the main challenge to ordering and transferring the films [59]. Experimental conditions such as the chosen capping ligand (length and chemical nature, their density on the metal core) influence the steric repulsion and the Van der Waals attractions between the particles. Effects such as affinity between the capping ligand and the spreading solvent are also relevant.

The possibility of tunning the hot spots during the fabrication of the plasmonic architectures has attracted attention to the subject of SERS [60,61,105,106,107]. While the conventional self-assembly method provided a limited surface coverage (~50%) as a result of the steric hindrance [108], the LB deposition allowed much higher coverage of Au nanoparticles due to the controllable surface pressure of the monolayer (above 90% for spherical nanoparticles) [109,110]. An alternative approach in which the metal ions are adsorbed on the top of an organic Langmuir monolayer for further photoreduction also provided significant surface coverage (76%), as well as the use of LB films of silica nanoparticles followed by gold sputtering [111,112].

Tahghighi et al. [60] created a SERS substrate through AuNP monolayers at the air-water interface. Nanoparticles were capped with 1-dodecanthiol and PEG-SH to prevent aggregation. The excess (non-adsorbed) PEG-SH was removed by centrifugation before suspension in chloroform and spreading. The monolayer was transferred to a (3-aminopropyl) triethoxysilane (APTES)-modified substrate and used as seeds for electroless deposition of Au. A probe molecule (4-mercaptobenzoic acid, 4-MBA) was dropped on the substrate to analyse the SERS performance. The SERS intensity increases with the lateral pressure, corresponding to an increase in particle density, until it reaches a maximum at the pressure of ~13 mN m⁻¹ (corresponding to the limit of the monolayer stability). Progressive compression leads to the collapse of the monolayer, multilayered aggregates, and decreased signal [60]. For the Au nanostars, the maximum amplification was found in films deposited at 10 mN m⁻¹, lower than in the spherical ones since high packing densities may cause interdigitation between neighbouring nanostars [61].

Turning our attention to the use of the LB technique in the fabrication of magnetic nanoparticle films, it is worth noting that this subject remains understudied due to the self-aggregation process, which limits the suspension stability. Pandey et al. [113] presented the coating of iron oxide nanoparticles (IONPs) with poly(lactic-co-glycolic acid)—Plg to provide stability and active sites for the immobilization of antibodies against E. coli O157:H7. The EIS-based sensor provided a LOD of 3.0 CFU mL⁻¹. In a study developed by Khasraw et al. [114], the application of an external magnetic field during the fabrication process of the monolayer of stearic acid-capped IONPs improved the packing density of the nanoparticles. It is possible to form striped structures aligned to the direction of the external magnetic field [114].

3.1.4. Other Materials

Due to the fashionable molecular organization, countless materials have been applied to sensing platforms and fabricated by the LB or LS techniques. Due to space limitations, we have chosen to discuss a bit about porphyrins, phthalocyanines (Pc), and biomolecules.

Porphyrins and Pc are largely investigated due to their stimuli-responsive properties. Katsuhiko Ariga has particularly reviewed the LB and the LbL strategies to fabricate films of porphyrins and related molecules [115]. Maximino et al. [116] have highlighted the versatility of fabricating thin films of metallic Pc through different techniques (LB, LS, LbL, PVD, and electrodeposition). Concerning the use of a Langmuir trough, the rigid nature of the pristine porphyrin floating monolayers appeared to hamper the transferring by the LB technique in some cases, and most works have used the LS transferring method [117,118,119,120]. Bettini et al. [117] tested three bis-porphyrin compounds (metal-free, Ni, and Co complexes) LS films for histidine detection. A previous interaction study with the Langmuir monolayer revealed that the interaction with the aminoacid promotes conformation changes in the porphyrin, with an important role of the central metal ion [117]: a partially closed structure for NiNiPo₂ (tweezer structure) and an opened anti-conformation for the CuCuPo₂. By SPR, which is based on changes in the local refractive index very close to the sensing surface [121], the angle of minimum reflectivity varied as a function of the histidine concentration, with two ranges of linearity: 10⁻⁹ to 10⁻⁶ and 10⁻⁶ to 10⁻⁴ M. The same research group developed a sensor for chiral discrimination between L- and D-histidine through an LS film of cubane-bridged bisporphyrin (H₂por-cubane-H₂por). Again, the sensor is based on conformation changes provoked by each one of the chiral structures: L-histidine promotes the stabilization of the anti-conformer of the porphyrin molecules, while D-histidine promotes the tweezer conformation [118].

Phthalocyanines (Pc) electroactive and electrocatalytic properties have also attracted interest in developing electrochemical sensors [10,11,120,122,123]. Ermakova et al. [119] prepared LS films of porphyrin-5-ylphosphonate diesters for mercury(II) ions. To the monolayer formation, the π stacking was avoided by the bulky diethoxyphospohoryl and mesityl groups, chemically introduced for this purpose. The selectivity of the dual sensor (absorbance and fluorescence) composed of 10-layer LS film is based on the coordination of the interfering metals (Cu²⁺, Zn²⁺, Cd^2+, and Pb²⁺) to the donor heteroatoms at the periphery of the macrocycle. The LOD of this reusable thin-film (tested over six cycles) sensor is ~10⁻⁸ M. Akyüz and Koca [120] combined the LB technique to electrochemical deposition to fabricate a sensor for pesticides. An LB film of terminal alkynyl substituted manganese phthalocyanine (MnPc-TA) film was assembled on ITO electrodes for further 4-azidoaniline (N₃-ANI) reaction to the MnPc-TA alkynyl groups. Finally, the hybrid MnPc-TA/N₃-ANI film was electropolymerized to be tested as an electrochemical sensor for fenitrothion, eserine, and diazinon. By the square-wave voltammetry, the sensor was selective only for fenitrothion, with a LOD of 0.049 μmol dm⁻³.

Biomolecules have also been applied by the LB technique. One of the main features can be attributed to the LB films of enzymes, which keeps their activities (if not improved) for longer periods compared to the homogeneous suspension [70,71]. Usually, a matrix of phospholipids provides a friendly environment for the biomolecules. For that, the lipid monolayer is formed at the air-water interface to further enzyme adsorption (from subphase [69], injected into the water subspace after the spreading of the lipid [70] or injected below the formed lipid monolayer [71,124]). This allows the enzyme to adapt, reaching the minimum free energy to conserve its secondary structure and thus preserve its catalytic property [125]. Additionally, the combination of enzymes with conjugated polymers to provide structural conservation and improved energy transfer in sensing applications was also explored [75,126].

Regarding biosensing applications, Scholl et al. [69] have investigated the enzymatic activity of penicillinase (PEN) in lipid LB films in the presence of GO. For the Langmuir film formation, the lipid dimyristoylphosphatidic acid (DMPA) was spread at the air-water interface on a subphase containing GO and the enzyme. Additive shifts to higher areas for PEN and GO were verified (compared to pristine DMPA monolayer), indicating their interpenetration on the DMPA monolayer. The synergy between the compounds leads to a suitable molecular accommodation that preserves PEN activity [69].

3.2. Layer-by-Layer Assembly

Since its introduction by G. Decher in 1992 [127], the Layer-by-Layer (LbL) technique has garnered significant attention for manufacturing thin films. It is a straightforward way to create multilayered films through sequential and spontaneous adsorption of materials that interact via Coulomb interactions, hydrophobic forces, Van der Waals forces, and hydrogen bonds [128]. The LbL technique enables precise control of molecular-level thickness through experimental parameters. At the same time, its versatility allows for the functionalization of surfaces with unlimited size and shape, making it an interesting approach to develop new functional thin films exhibiting a synergistic combination of properties.

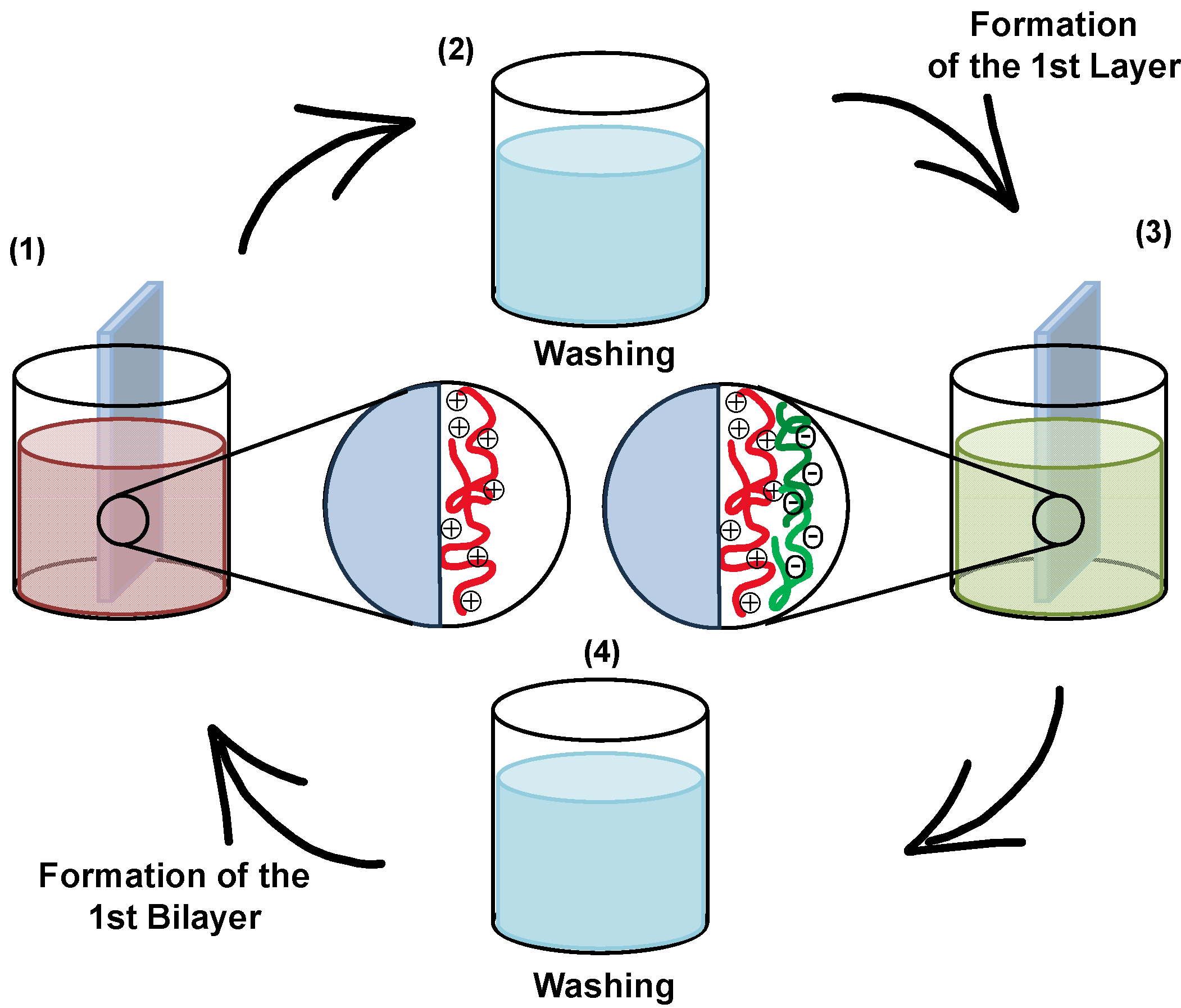

The traditional immersive LbL assembly, described in Figure 6, relies on the spontaneous adsorption of materials onto a solid substrate submerged in a stable aqueous suspension. Following each immersion, the substrate undergoes washing to remove any weakly adsorbed material and prevent cross-contamination. It is optional to perform a drying process (naturally in air or by nitrogen) after each step of immersion and washing. The thickness can be easily regulated by controlling the number of deposited layers. Combining two, three, or four different materials can create supramolecular arrangements with bi-, tri-, quadrilayers, or even more, as desired.

About the requirements to manufacture a thin film through the LbL technique, the substrate may be hydrophilic and preferably charged. Fortunately, functionalization strategies are available for practically all surfaces of interest to precede the LbL assembly. For instance, Au surfaces can be modified with SAMs of thiolated molecules to acquire charged functional groups: 11-mercaptoundecanoic acid, 1-octanethiol, and 6-mercapto-1-hexanol are common reagents to provide negatively charged surfaces via carboxyl or hydroxyl groups. At the same time, cysteamine and APTS (a silane coupling agent) are employed to surface functionalization with positive amine groups. Silica surfaces (as common substrates of glass and quartz) can be cleaned to exhibit their natural hydrophilicity and negative charges [129] or can be plasma activated and/or by the APTS method [130]. Other oxides, such as titanium oxide, iron oxides, ITO, and fluorine-doped tin oxide (FTO), can also be modified by APTS [130]. Another important point is that the materials of interest should be suspended in a homogeneous and stable aqueous dispersion, even though the LbL deposition using organic solvents has already been reported [131,132].

Although initially proposed for charged polyelectrolytes, the LbL technique can be applied to a wide range of materials, including metal nanoparticles, carbon-based materials, and biomolecules. The LbL nanostructured films exhibit excellent stability and unique properties, thus finding widespread use in the development of various electronic and optical devices, such as energy generation and storage devices [133,134,135], as well as sensors and biosensors [134,135,136].

Other LbL approaches are possible, such as spraying, spinning, and fluidic assembly. However, we focus here on the traditional immersive self-assembly. More details about the alternative LbL approaches can be found in [137,138]. The manufacture of sensors usually accomplishes the modification of flat surfaces. However, another application that should be mentioned here is the importance of the LbL assembly in colloids, especially in developing drug delivery systems. More information on this theme can be found in recently published review papers [139,140,141].

3.2.1. Graphene-Based Materials

The first study on LbL assembly of graphene dates from 2009 [142]. Shen et al. [142] started with GO exfoliation to avoid graphene aggregation in an aqueous solution. GO was further reduced and stabilized with poly(acrylic acid) (PAA) and poly(acryl amide) (PAM), which introduced negative and positive charges on the graphene surface, respectively, allowing the electrostatic LbL assembly. Since then, graphene derivatives have been largely explored in LbL films. rGO is conductive and greatly applied to improve the charge transfer between specific sensing reactions and the electrode. At the same time, the abundance of oxygenated groups of the oxidized form (GO) enables improved biomolecule loading to biosensing applications, which also allows improved sensitivity [92,143].

The conductive property is the most sought-after for application as electrical and electrochemical sensors [144]. However, the conductive form possesses the sp² carbon network, which is hydrophobic and non-water soluble, hampers the LbL assembly of its pure form. Therefore, LbL films of graphene nanoplatelets originate from aqueous exfoliation of GO and follow two alternatives: (1) chemical reduction prior to the LbL assembly, usually functionalized or stabilized in charged polyelectrolytes to keep a stable aqueous suspension [145,146,147]; (2) chemical [148], electrochemical [149,150,151] or thermal reduction [152,153,154] post-assembly of LbL film of GO, which is applied as the negatively charged material multilayered with a positively charged material.

Due to its solubility in water and the easy functionalization with polyelectrolytes, GO has been combined with an infinitude of functional materials in aqueous media to stabilize the reduced form to allow the manufacture of LbL films. Rodrigues et al. [145] prepared stable dispersions using two polyelectrolytes, positively charged poly(diallyldimethylammonium chloride) (PDDA) and negatively charged poly(styrenesulfonate) (PSS), to subsequent chemical reduction with hydrazine, leading to the formation of rGO stabilized in PDDA (GPDDA) and in PSS (GPSS). The LbL films of (GPDDA/GPSS)₁₀ and an alternative arrangement containing PAH stabilized-AuNPs ((GPDDA/GPSS)₁(AuNP-PAH/GPSS)₁₀) were assembled on ITO electrodes and evaluated as an electrochemical sensor for the pesticide methyl parathion (MP). Raman spectroscopy of these films indicated the D’ band (absent in bulk material) assigned to surface graphene layers (not sandwiched between two other layers), indicating the successful assembly of well-exfoliated graphene layers. While there was a homogeneous distribution of MP molecules on the LbL film with the AuNPs, the analyte was preferentially adsorbed on the graphene aggregates on the film without AuNPs. The lower LOD by the (GPDDA/GPSS)₁₀ film was justified by the facilitated charge transfer provided by the proximity of MP and graphene, while the wider linear range by the sensor with AuNP in the composition would be related to the higher analyte distribution (more interaction sites) [145].

Unlike Rodrigues et al. [145], Al-Hamry et al. [152] produced PANI/GO LbL films to perform a further thermal reduction. Likewise, Miyazaki et al. [149] performed an electrochemical reduction after depositing alternating PDDA and GO layers. In the face of the possibilities of reducing GO films, it is necessary to consider that chemical reduction requires reagents for the reduction and stabilization of nanosheets but allows control of the functionalization in suspension, whereas thermal and electrochemical reduction are reagent-less processes but require heating and the application of a reduction potential, respectively. Heat or applied potential is inherently applied to the entire film and can alter the morphology and eventually compromise the integrity of polyelectrolytes/material assembled GO.

LbL films of GO have also encountered applications in sensor development due to their planar structure and/or the oxygen-containing functional groups [92,144]. For instance, Oliveira et al. [143] deposited alternate layers of PAH:GO and PANI:poly(2-acrylamido-2-methyl-1-propanesulfonic acid) on a p-Si/SiO₂ chip. This LbL film was used as a support layer to immobilize urease and penicillinase enzymes separately for later application as urea and penicillin sensors. The LbL film provided a better adhesion of the enzymes and an increased number of sensor units (bioreceptors) due to the rougher active surface area. A 15% improvement in the average sensitivity was achieved with the LbL film modification.

3.2.2. Phthalocyanines (Pc)

Metal tetrasulfonated phthalocyanines (MTsPc) are water-soluble and versatile molecules with supramolecular properties that make them suitable for LbL deposition [116]. Typically, sulfonic groups in the MTsPc structure provide both water solubility and negative charges to the LbL assembly. FeTsPc [155], CuTsPc [156,157], and NiTsPc [158,159,160,161] were applied as an anionic material as alternated layers with a cationic polyelectrolyte such as PAH or poly(ethylene imine) (PEI). Thus, the supramolecular arrangement of LbL films with Pc derivatives can be evaluated based on factors such as LbL composition [161], the number of bilayers [155,156], pH of the solution [162], and by the combination with other materials such as nanoparticles [157,158,159,160,163] and carbon materials [164,165].

Hybrid materials based on Pc and metal nanoparticles are widely explored for the development of electrochemical and chemiresistor sensors [166]. The incorporation of AuNPs in LbL film showed an increase in electron transfer due to the interaction of –NH³⁺ from PAH and –SO³⁻ from MTsPc, which improves the catalytic property for electrochemical sensing of propylparaben [159], tartrazine [158], and pesticides [157,161]. Although the LbL assembly depends on the electrostatic attraction between the composite layers (namely, between MTsPc and NPs), the MTsPc can also be LbL assembled based on coordination via oxo bridges [160]. Ribeiro et al. [160] described significant changes in UV-vis absorption spectra as well as the shift in Raman bands of NiTsPc after LbL deposition with IONPs, ascribing to the mutual electrostatic and covalent interaction (Ni(II)-O-Fe(III) oxo bridges). The unusual supramolecular arrangement allowed the electrocatalytic oxidation of ethinyl estradiol (EE2), which was impossible with the NiTsPc or IONPs alone [160]. The detection of EE2 was also evaluated by LbL films of MWCNTs and different MPcs (FePc, MnPc, and CoPc) [164]. The oxidation performance depended on the metal centre, with the higher oxidation achieved by CoPc [164]. The LbL combination of Pc and carbon-derived materials is also promising in sensing applications [164,167]. Besides, the incorporation of Pc in LbL films is also explored for the development of biosensors [167,168].

3.2.3. Metal Nanoparticles

Metal nanoparticles (MNPs) have been effectively incorporated into sensor development through the LbL technique. As a result of their conductive and electrocatalytic properties, MNPs are widely explored for electrical and electrochemical sensors. Due to their plasmonic properties, Au, Ag, and Cu NPs are leveraged to develop optical sensors, especially plasmonic ones.

MNPs are determining components of hybrid systems. Electrochemical sensing applications take advantage of the electrocatalytic property, augmented surface area, and reduced charge transfer resistance promoted by the MNP-modified electrodes. MNPs usually come combined with other nanomaterials as Pc [157,158,159,163,168], carbon-based materials [145,165,169,170], clays [171,172], ionic liquids [168,173], among others. In addition, MNPs have been combined with biomolecules for biosensing applications [169,174,175,176,177]. To contextualize, Salvo-Comino et al. [178] have combined materials with complimentary functionalities by the LbL technique to build an enzymatic sensor for catechol: Pc as an efficient electron mediator, the ionic liquid to improve the conductivity of the film, and chitosan to create a suitable environment to the enzyme. They obtained a LOD at the nanomolar level, which was lower than other assemblies found in the literature using LbL, LB, and SAM approaches.

AuNPs are the most used mainly due to their chemical stability and facile surface functionalization. Stable suspensions for the LbL assembly are usually achieved under reduction by polyelectrolyte stabilization [145,165,179,180,181], ionic liquids [173], glutathione [175,177], and citrate [89,182]. These stable suspensions can be applied as a component of the LbL assembly combined with opposite-charged polyelectrolytes, nanomaterials, or ions. Another approach is the immobilization of the AuCl₄⁻ anionic precursor onto the LbL assembly to further reduction. This can be carried out by the adsorption of the ionic precursor onto a pre-formed polyelectrolyte multilayer film [179,183] or by mixing AuCl₄⁻ ions with polyelectrolytes to the LbL assembly [184,185] prior to the reduction.

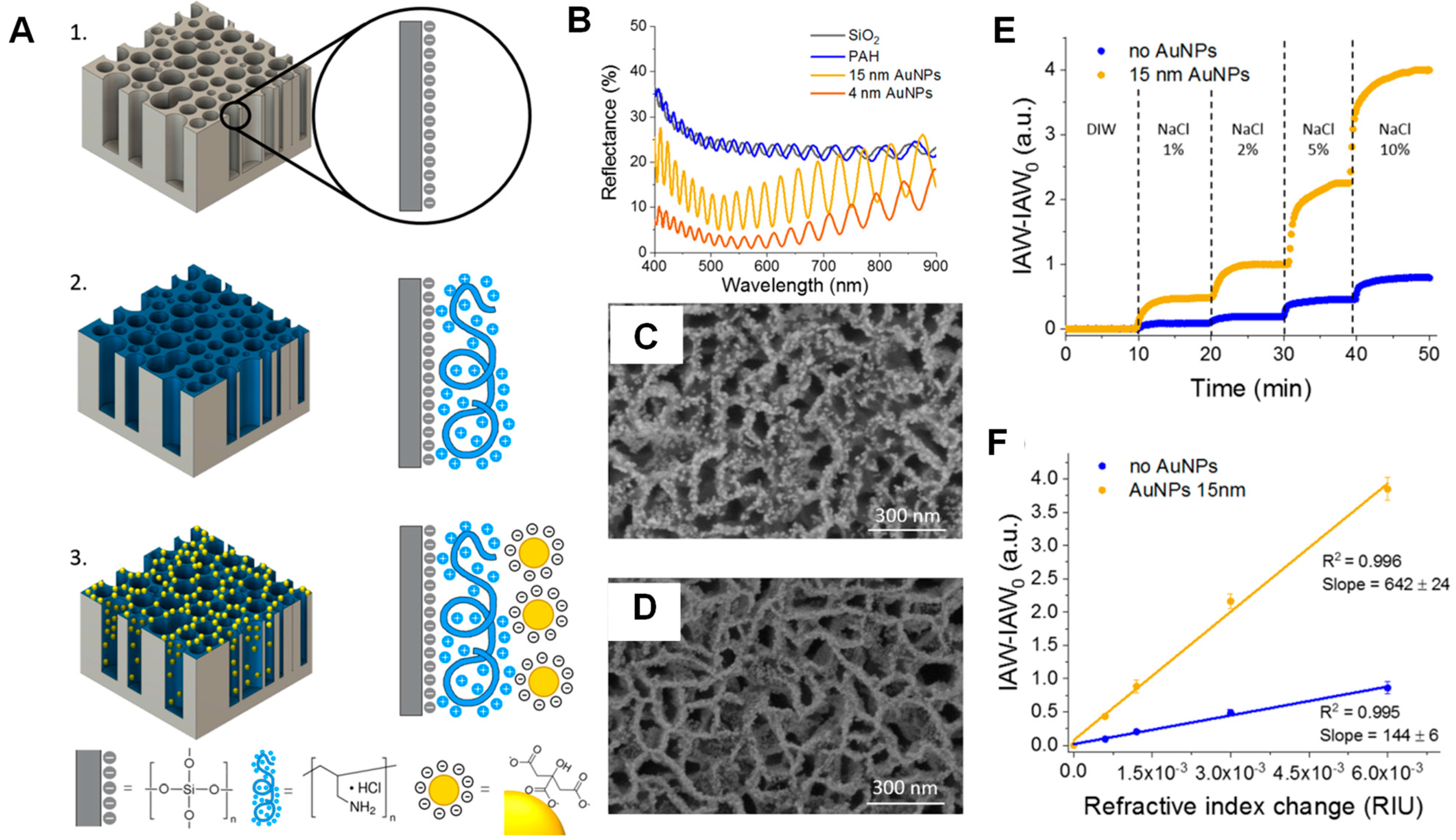

Regarding optical sensor applications, the modification of optical fibre aiming LSPR sensing has been recently reported [179,181,182,186]. The LbL technique allows the easy and controllable assembly of AuNPs and AgNPs on the optical fibre surface providing the LSPR signal (plasmon absorption band), which is sensitive to changes in the refractive index of the surrounding medium. Another optical sensing approach is centred on the fabrication of SERS substrates [187,188,189,190]. Highlights for the possibility of easily combining graphene and plasmonic particles uniting the fluorescence quenching of GO and signal enhancement from MNPs for SERS detection [188,189].

Mariani et al. [191] described the LbL assembly of the positively charged PAH and negatively charged citrate-capped AuNP on porous silicon (PSi) interferometers and distributed Bragg reflectors (DBRs) (Figure 7A). The PAH/AuNP assembly enhanced the Fraby–Pérot fringe contrast due to the increased reflectivity (Figure 7B). The morphology of the LbL-modified PSi with AuNPs with 15 and 4 nm sizes were depicted in Figure 7C and Figure 7D, respectively. Cross-sectional SEM and EDS analysis of PSi interferometers allowed verify that the smaller AuNPs (4 nm) efficiently decorated the inner porous while the 15 nm-AuNPs poorly penetrated the inner surfaces [191]. The sensing capability was evaluated by IAW (interferogram average over wavelength). Bulk and surface refractive index sensing were assessed, resulting in a 4.5-fold increase by NaCl infiltration and a 2.6-fold increase by bovine serum albumin (BSA) adsorption to the modified PSi. Figure 7E presents the sensorgram of IAW–IAW₀ (average value of the spectral interferogram upon the subtraction of the reflectance spectrum recorded after the injection of NaCl and the reference reflectance spectrum recorded in buffer) over the injection of different refractive index patterns. The corresponding calibration curve is illustrated in Figure 7F. This PSi/PAH/AuNP interferometers demonstrated sensitivity by both photonic (DBR stop-band) and plasmonic (LSPR) peaks to changes in the refractive index promoted by bulk and surface changes [191].

3.2.4. Biomolecules

Immobilizing proteins and other biological molecules on solid substrates by the LbL technique is advantageous due to the ability to maintain controlled conditions such as pH and temperature and entrapment of water molecules between the layers [192]. Although it is not common to have studies describing the molecular organization of LbL films, there is generally an investigation into the relationship between the number of layers or another experimental parameter with the sensor performance. In general, the sensitivity increases with the number of layers (with the augmented loading of biomolecules) until reaching a maximum, followed by a plateau or even a decrease [193,194] caused by the limited diffusion and/or hindered electron transfer in thick films [195]. So, the sensitivity can be tuned by the number of layers.

The LbL approach can be utilized to form multilayered structures of biomolecules, as enzymes [147,195,196] or antibodies [197], or also used to build a matrix layer to preserve the activity of biomolecules when immobilized as solid films [136,147,195,198,199]. The LbL technique also enables the possibility of achieving a synergistic effect by combining different materials. For instance, they can bring together the electrocatalytic property of carbon materials for electrochemical sensing [200,201] and an adequate environment for the biomolecule’s immobilization [198,202,203]. Chitosan, a biocompatible polysaccharide found in crustaceous shells [204], is commonly used as a positively charged polyelectrolyte to build LbL matrices able to maintain the biomolecule activity [201,202,205].

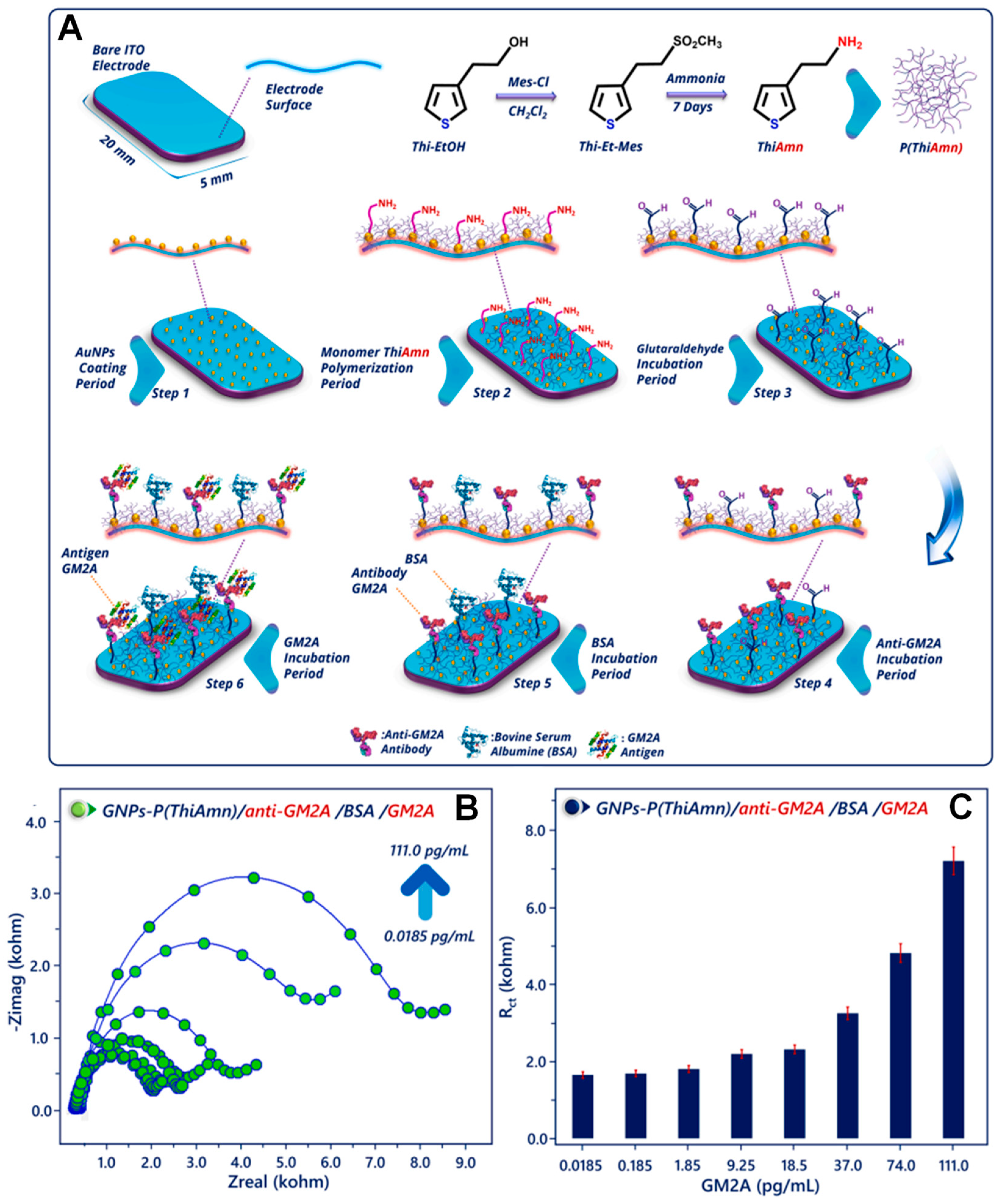

Regarding immunosensors, electrochemical sensors based on LbL films as a support for antibody immobilization have been described [175,199,206]. Multilaminate composite films were fabricated by negatively charged AuNPs and positively charged Fc@MgAl-LDH (MgAl layered double hydroxides containing ferrocene-carboxylic acid) and used as a support for antibody anchoring and detection of cancer biomarkers [199,206]. Zhang et al. [206] have used (AuNP/Fc@MgAl-LDH) films for electroluminescence (ECL) detection of prostate-specific antigen (PSA) through a sandwich immunoassay. In this immunosensing approach, an primary (or capture) antibody is immobilized on the solid surface and works capturing the antigen from sample, and another antibody called secondary antibody, which is labelled and binds to the antigen-antibody complex, providing the detectable signal [207]. The film (AuNP/Fc@MgAl-LDH) was used to immobilize the primary antibody. After incubation with the target PSA, a label composed of luminol and a secondary antibody (Ab₂) supported on a metal-organic framework (MOF) was left to incubate on the surface. The optimum response was achieved with 12 bilayers-(AuNP/Fc@MgAl-LDH) film. The synergy between the materials in the LbL assembly was crucial: MgAl-LDH provided an ideal microenvironment for the uniform immobilization of Fc while the Fc carboxyl groups allowed the Ab anchoring and the AuNPs were responsible for improving the electron transfer of the system. Finally, the peroxidase-like catalytic activity of MOF-supported Ab₂ and luminol improved the ECL intensity to detect PSA.

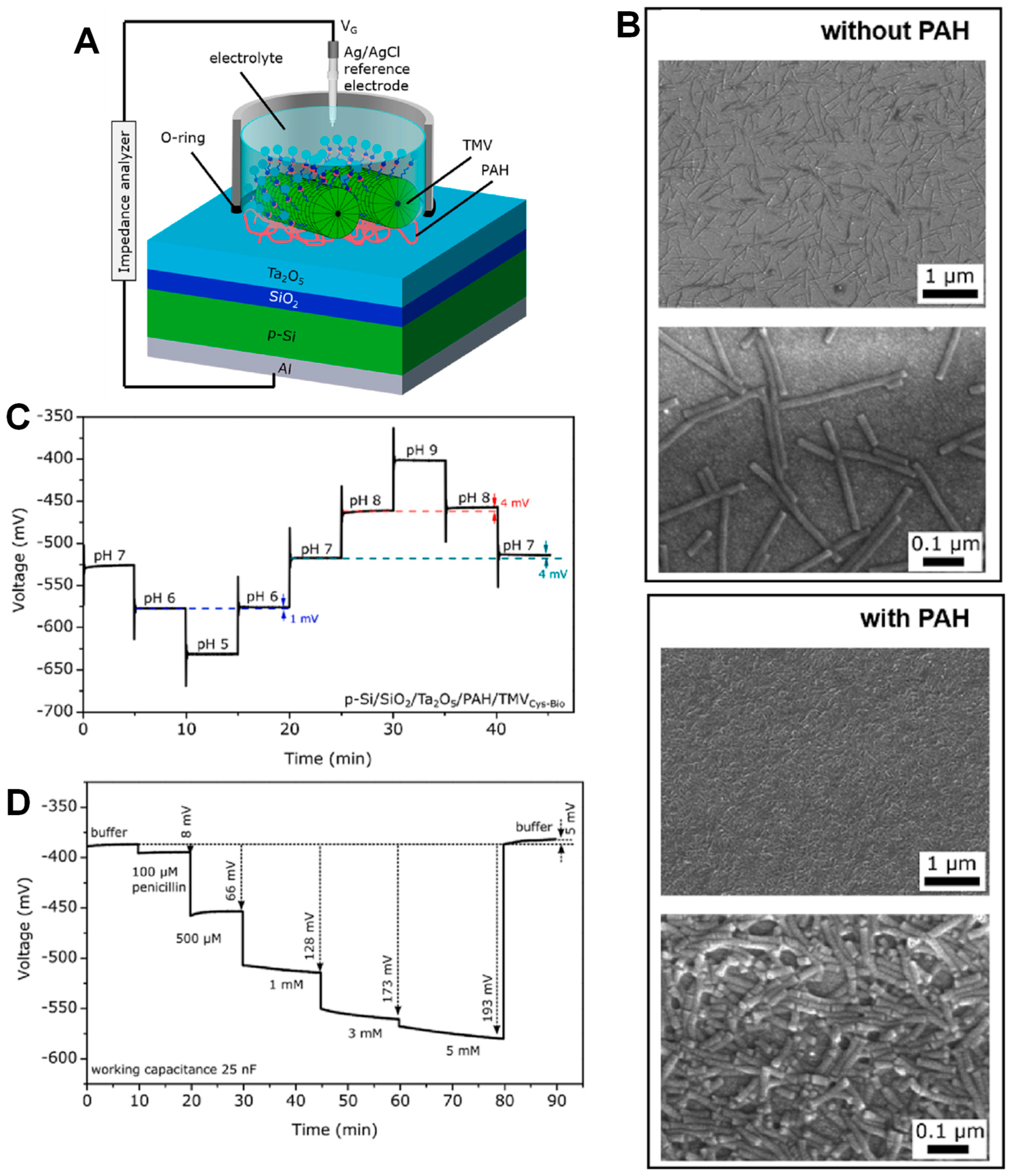

As an interesting example of an LbL-based enzymatic sensor, Welden et al. [203] have developed a field-effect biosensor (Figure 8A) for penicillin through the modification of an electrolyte-insulator semiconductor capacitor (EISCAP) with an LbL film of PAH and TMV_Cys-Bio (Tobacco Mosaic Virus exposing cysteine residue and biotinylated). Following this, streptavidin-functionalized penicillinase was anchored to build the sensor. Compared to a surface in the absence of PAH (direct immobilization of TMV_Cys-Bio), the LbL assembly provided a higher surface coverage (Figure 8B) thanks to the partial neutralization of the negative net charge of the TMV particles provided by the PAH layer, thus diminishing the Coulomb repulsion between neighbouring tubes. Since the operation principle of the sensor is based on the local pH changes (the enzymatic reaction produces protons), the signal was firstly assessed for various pH (Figure 8C) and then for penicillin (Figure 8D).

3.3. Electrochemical Deposition

Electrodeposition (ED) is a technique used to modify a conductive substrate, coating it with a thin layer of a specific material through an electrochemical process. It involves the use of an electrolytic cell, and the material deposition is performed based on the principle of electrolysis [208,209]. Through a controlled potential, during the redox reaction (oxidation or reduction), the material is deposited at the conductive substrate surface as a film. The success of ED depends on several factors, including the composition of the electrolyte solution, the electrical current and voltage applied, the duration of the process, and the substrate surface preparation. These factors can influence the thickness, uniformity, and quality of the deposited layer. The film deposition can be performed using the electrochemical cell of two or three electrodes, as illustrated in Figure 9.

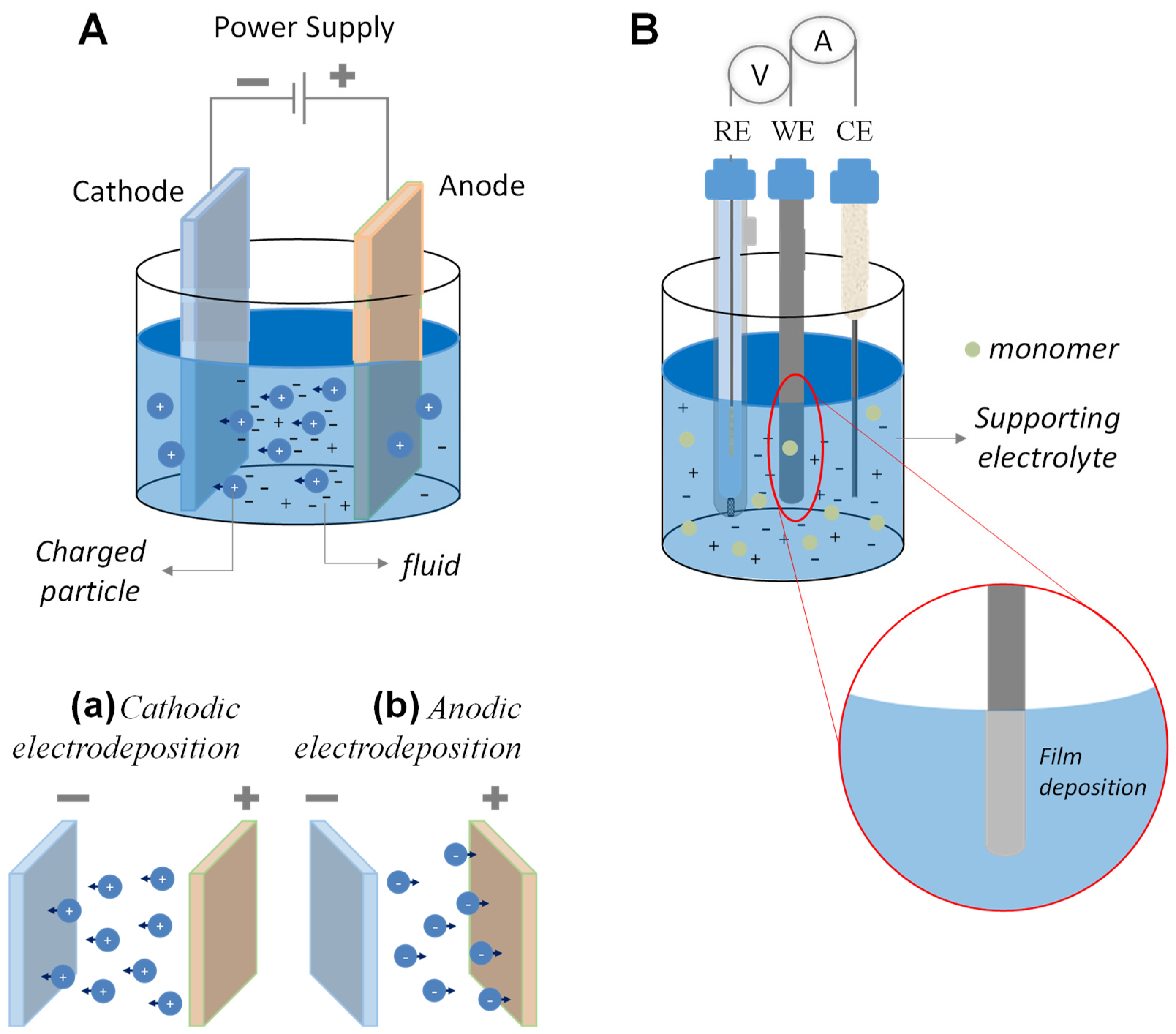

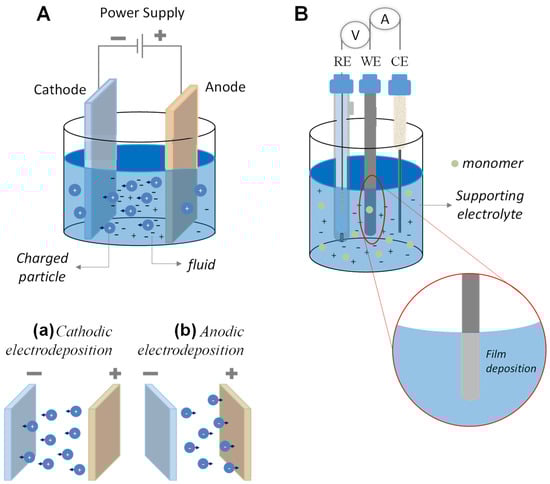

Electrophoresis performs ED by applying electrolysis between an anode and cathode, named electrophoretic deposition (EPD). The EPD involves the application of an electric field to drive the movement of charged particles toward the substrate, resulting in their deposition onto the substrate [209]. The deposited film by EPD is usually from metallic, ceramic, polymer, or composite materials [209]. The material suspension should contain charged particles that migrate under the influence of an electric field, i.e., the positive particles depositing through migration toward the cathode substrate (negatively charged) (Figure 9A(a)), and the negatively charged particles towards the anode substrate (positively charged) (Figure 9A(b)).

The supramolecular arrangement can be controlled by adjusting the deposition parameters, including the electric field strength, deposition time, particle concentration, and suspension composition [209]. Cai et al. [210] described the formation of polyaniline/cobalt porphyrin (PANI/CoTPP) by one-step self-assembled ED method (2.0 V, 100 s, 2 cm of electrode distance) with the deposition occurring on the anode (ITO- polyethylene terephthalate (PET) flexible working electrode). The sensing performance for ammonia detection through the PANI/CoTPP-based electrode was modulated by CoTPP monomer concentration. The increase in CoTPP concentration leads to the formation of large aggregates and high roughness, thus providing many ammonia gas adsorption sites and enhancing the charge transfer rate. The film formed using 0.7 mmol/L CoTPP demonstrated higher sensitivity with a LOD of 0.83 ppm [210].

ED can also be performed in a voltammetric cell composed of a reference electrode, a counter-electrode, and a working electrode, where the deposition of the material occurs (Figure 9B). In this setup, the potential is applied between the reference and working electrode, and it can be performed in both potentiodynamic and potentiostatic modes. In the potentiodynamic ED, the electrode potential is varied during the deposition steps to achieve specific coating properties providing information about the ED mechanism cycle-by-cycle [211]. In potentiodynamic mode, the supramolecular arrangement, including the morphology and thickness of the film, can be controlled by the deposition rate (scan rate) [212], the number of potential cycles, and the potential range. On the other hand, the potentiostatic ED maintains a constant electrode potential for a uniform and controlled deposition, and parameters such as applied potential and time can be controlled [10].

In general, ED films on a conductor substrate have their supramolecular arrangements evaluated, attempting to understand their morphology (microscopy images) and the effect on their electrical properties (voltammetric and impedance measurements). Therefore, the optimization as a sensor is performed using techniques such as EIS and cyclic voltammetry in an inert supporting electrolyte or with a redox probe such as [Fe(CN)₆]³⁻/[Fe(CN)₆]⁴⁻. An extensive list of materials is used for both potentiodynamic and potentiostatic deposition modes. Bellow, a summary of recent works is organized in a group of materials, discussing mainly the effect of the supramolecular arrangement and applications as sensors.

3.3.1. Polymers and Organic Films

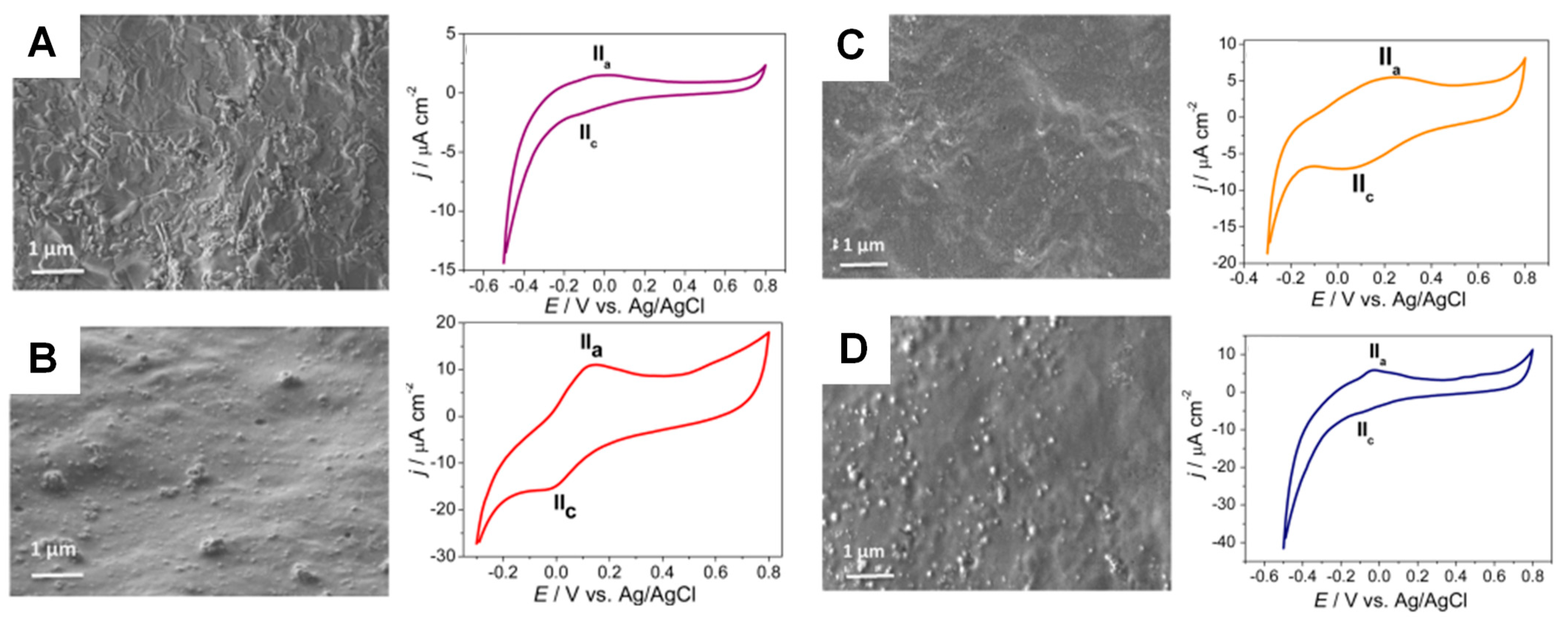

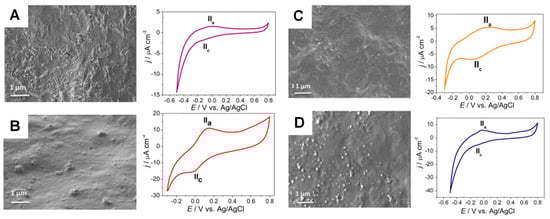

Conducting polymers have emerged as promising high-performance materials due to their tuneable sensitivity adjusted by formation techniques [213,214]. The conducting polymers such as thiophene [215,216,217], aniline [218,219], and pyrrole [217,220] can be obtained by ED, especially by potentiodynamic mode due to the possibility of understanding the mechanism of electrochemical polymerization [221]. The supramolecular arrangement and the properties of conducting polymers can be tuned by changes in the electrolyte solution, monomers, pH, doping, and electrochemical parameters such as potential range and ED time [217,221,222]. Phenazine, phenoxazine, and phenothiazine derivatives [223,224,225] are other examples of species with the possibility to form electrodeposited polymers, such as methylene green [226,227], methylene blue [228,229,230], neutral red [231,232], Nile blue [233], and others [223,234]. In general, all electrodeposited materials presented some enhancement or suppression of electrical properties due to changes in the ED stage. Olean-Oliveira et al. [234] described the role of the anion size used in the electrochemical polymerization of poly(thionine) on its electrical properties. The potential for radical cation formation depends on the anion size, with the large ones demanding lower potential application. The anion size also influences the polymer redox behaviour by limiting the movement of anions through the polymer matrix [234]. The effect of anion or polyelectrolytes on the electrochemical polymerization of conducting polymers and their efficiency in detecting ammonia was reported by Gribkova et al. [235] and Patois et al. [236].

Eventually, a previous electrode modification can be performed before the ED. Silva, Queiroz, and Brett [226] electrodeposited methylene green on the GCE surface previously modified with Fe₂O₃NP (iron oxide nanoparticles)-chitosan. The poly(methylene green) (PMG) was electrodeposited in an ethaline deep eutectic solvent and an aqueous solution for comparison. The ED was performed by applying 15 potential cycles between −0.6 and +0.8 V at a scan rate of 50 mV s⁻¹. Different Fe₂O₃NP loadings (0.2%, 0.5%, and 1.0% w/v). were evaluated, which influenced growth, surface morphology, and charge transfer (Figure 10). The Fe₂O₃NP_0.2/GCE presented the best polymer film growth, and when tested to detect the antibiotic 4,4-diaminodiphenylsulfone, a LOD of 0.33 μmol/L was achieved.

The ED of biomimetic polymers has attracted attention due to their biocompatibility and strong adhesive properties [237,238]. Besides, recent studies have revealed the development of a supramolecular arrangement that exhibits characteristics reminiscent of a 2D-ordering material [239,240]. Almeida et al. [241] described the effect of co-ED of polydopamine and laccase through one-step potentiostat deposition for application as the phenolic sensor. Incorporating laccase does not significantly affect a polydopamine film’s redox behaviour, optical properties, and morphology. However, it alters the film’s charge transfer properties, thickness, and hydrophilicity. The polydopamine-laccase film presented a LOD of 0.14, 0.09, and 0.29 μmol/L for caffeic acid, rosmarinic acid, and gallic acid, respectively [241].

3.3.2. Cilodextrins

Cyclodextrins (CD) are cyclic oligosaccharides formed by glucose molecules, joined by glycosidic linkages, which allowed the formation of a truncated cone structure, which can be classified according to chain sizes as alfa, beta, and gamma (α-CD, β-CD, γ-CD) [242]. The cone-like structure has been a recent property explored in the formation of sensors by CD ED. Pereira et al. [243] discussed the electrochemical polymerization of β-CD in different experimental conditions. Diverse experimental parameters were tested until establishing the optimized conditions: potential range of −1.3 to 0.9 V at 100 mV/s, electrolyte at pH 5 with β-CD concentration of 6 mmol/L under agitation and in the absence of dissolved oxygen.

Due to the hydrophobic inner cavity, the β-CD can host biomolecules (bio-recognition probes). Chang et al. [244] described the electrochemical polymerization using the potential range of −1.0 to +1.0 V at 20 mV/s and 10 potential cycles. Following, the β-CD allowed the immobilization of the aptamer fragment (amino-modified aptamer fragment 1, AF1) through covalent bound with carboxylic acid functionalized adamantane using EDC/NHS chemistry. The modified electrode demonstrated an enhanced charge transfer after inserting AuNPs on the electrode surface. The voltammetric detection of 17β-estradiol achieved a LOD of 6.3 × 10⁻¹⁴ mol/L [244]. The β-CD has also been incorporated within conducting polymers and carbon derivatives, playing an important role in detecting many target molecules, such as biomolecules, drugs, pesticides and others [245,246,247,248,249,250,251].

3.3.3. Phthalocyanines (Pc)

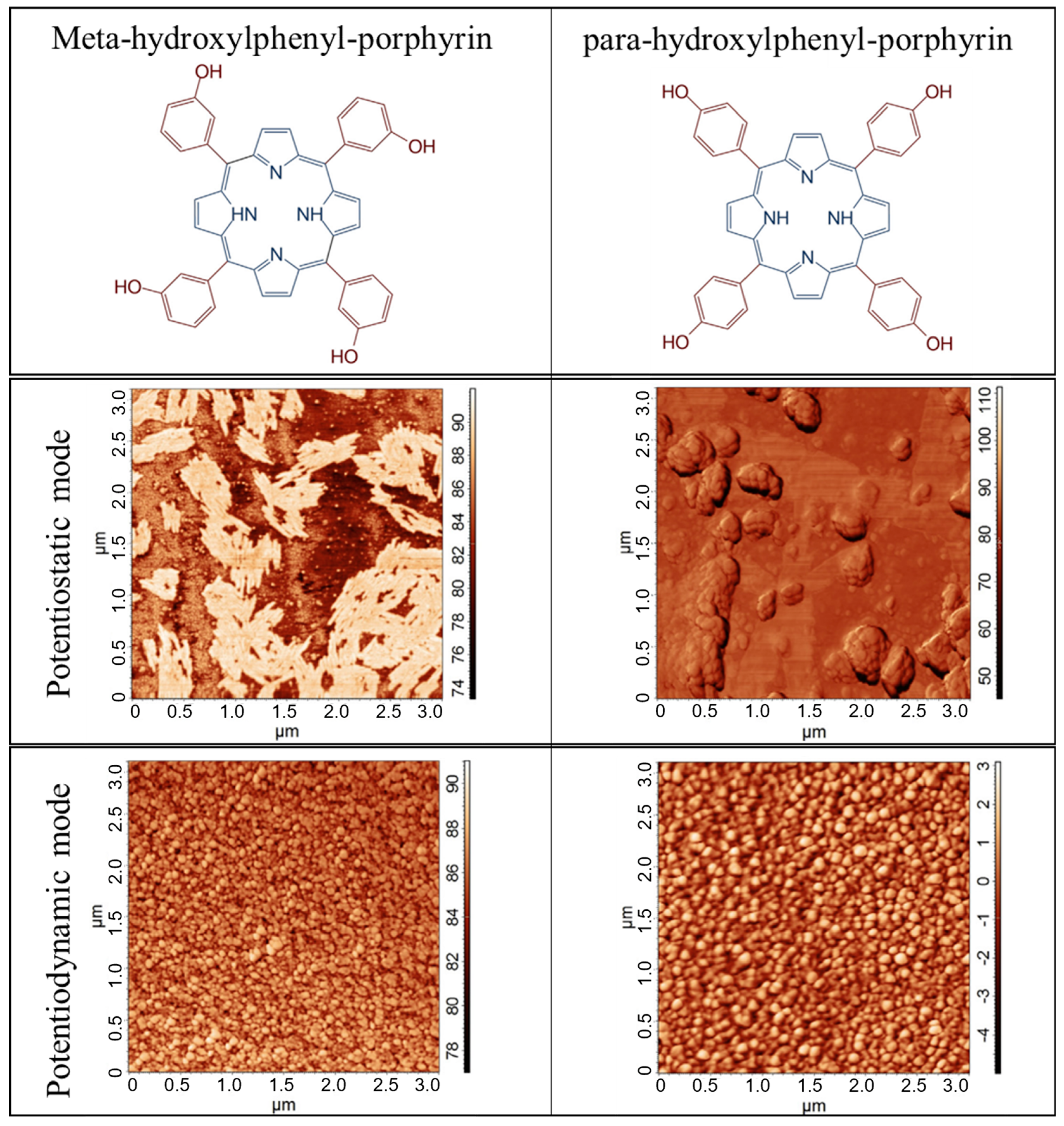

The porphyrins and Pc have demonstrated interesting results for sensing applications [252] due to their structural properties, such as π-conjugated bonds, chemical and thermal stability, and self-organization [253]. Due to their high supramolecular stabilization and adsorption on the conducting surfaces, these molecules have been used to create ED films for sensing and electrical devices [254,255,256,257]. The porphyrins also draw attention due to the possibility of their ED through the metal-free porphyrins [212,258]. Kusmin et al. [258] demonstrated the effect of the substituents in porphyrins and investigated how the potentiostatic or potentiodynamic modes influence the film deposition, leading to changes in the supramolecular arrangement, including surface morphology and molecular structure [258]. For instance, the films of meta-substituted hydroxyphenylporphyrin exhibited a blocking effect on the electrochemical reaction, while the para-substituted hydroxyphenylporphyrin allowed the fabrication of polymeric films with a thickness of up to 300 nm and high specific conductivity [258]. Furthermore, the morphology is influenced by both chemical substitution and ED mode. A homogeneous distribution was observed for porphyrin films formed by potentiodynamic mode, while large aggregates were observed for the potentiostatic mode, as shown in the AFM images (Figure 11).

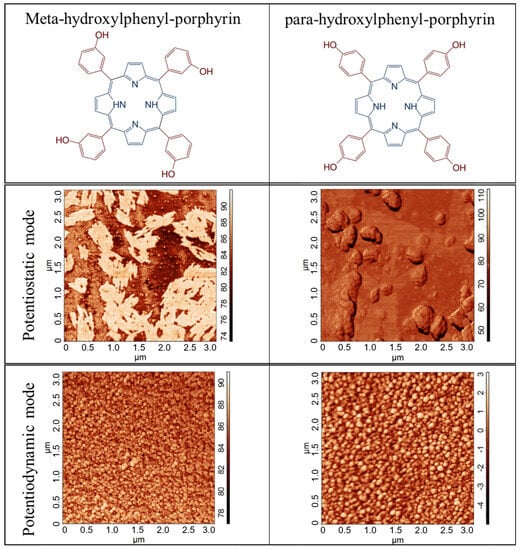

Metal Pc is a versatile molecule for film deposition through potential application [259,260]. Iron phthalocyanine (FePc) can be electrodeposited using dynamic and static modes [260]. Besides, the supramolecular arrangement of FePc films can be controlled by the deposition technique, as well as variations in the ED parameters [10,261]. When electrodeposited in the potentiostatic mode, the film exhibited variations in its optical and electrical properties with the ED time. Specifically, a flat-on molecular organization was observed after 1800 s of ED at −1.5 V [10]. The FePc films applied to catecholamine detection presented a LOD of 0.28 and 0.56 μmol/L to dopamine and L-dopa, respectively [261]. The properties of Pc ED films can also be modulated through the incorporation of rGO, as reported by Charles and Mashazi [262]. In this case, the ED of rGO and cobalt tetraamino phthalocyanine (CoTAPc) demonstrated a synergic effect on the electron transfer, which allowed the simultaneous detection of dopamine and paracetamol with a low LOD, 0.095 and 0.104 μmol/L, respectively [262]. The synergic effect between Pc and rGO was also observed for other deposition methods [263].

3.3.4. Carbon Derivatives

Carbon derivatives are widely applied in electrode modification for sensor development [264,265,266,267]. In general, the carbon derivatives such as single-walled carbon nanotubes (SWCNTs), MWCNTs, and GO are deposited on the conducting electrode surface by drop casting technique followed by the ED of other functional materials forming hybrid films [231,232,268,269]. For example, Gallay, Eguílaz, and Rivas [269] developed a glucose sensor based on the deposition of the enzyme onto a previously modified GCE. This modification encompassed the casting of avidin(Av)-MWCNT suspension onto the electrode followed by the ED of ruthenium nanoparticles (RuNPs) (constant potential of −0.6 V) to produce GCE/Av-MWCNT/RuNPs. The synergy between MWCNT and RuNPs allowed an increased catalytic property towards peroxidase reduction, with a LOD of 65 nmol/L. Thus, biotinylated-Glucose Oxidase (biot-GOx) was self-assembled, producing the GCE/MWCNT-Av-RuNP/biot-GOx, with a LOD to glucose equal to 3.3 μmol/L. In addition, the authors emphasize the importance of the supramolecular arrangement, with the GCE/Av-MWCNTs/RuNPs composition better than the GCE/RuNPs/Av-MWCNTs motivated by the lower accessibility of RuNPs through the Av-MWCNTs layer, as well as to a less efficient deposition of Av-MWCNTs onto a previous RuNPs modified-electrode. As pointed out by this example, when constructing a biosensor, the ED stage may be conducted before the immobilization of biomolecules, such as enzymes, DNA, proteins, and antibodies [270].

Alternatively, hybrid structures can also be generated by one-step co-ED of carbon-based materials mixed with other materials [271,272], as demonstrated by Sen and Sarkar [271]. They co-electrodeposited AuNPs, PEDOT (poly(3,4-ethylenedioxythiophene), and functionalized MWCNTs on the surface of GCE. Initially, a stable colloid suspension of Au-PEDOT-MWCNT was prepared, followed by applying a potential range of −0.9 to +1.8 V through nine potential cycles with a scan rate of 50 mV/s [271]. The ED enhanced the effective surface area, sensitivity, and selectivity of the sensor for simultaneous detection of uric acid, xanthine, and hypoxanthine, demonstrating a LOD in the nanomolar range (199.3, 24.1; 90.5 nmol/L, respectively) [271].

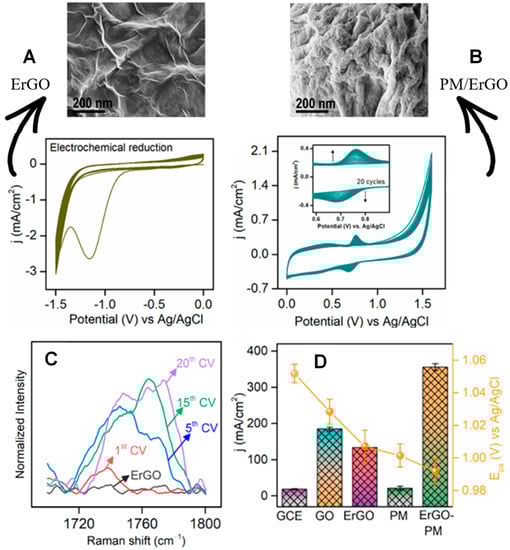

Graphene derivatives have also attracted considerable attention for electrode modifications [248,273,274,275,276]. Kanagavalli et al. [277] electrochemically reduced GO (ErGO) on GCE, performing 20 cycles between 0 to −1.5 V at 50 mV/s (Figure 12A). The ErGO/GCE was investigated by in-situ Raman and X-ray photoelectron spectroscopic (XPS), revealing the ErGO surface with an abundant graphitic carbon network with residual oxygenated functional groups, which favours the electropolymerization of melamine (3 mmol/L melamine monomer in 0.5 mol/L H₂SO₄ and 5 mmol/L KCl with 20 potential cycles between 0 to 1.6 V at 100 mV/s) (Figure 12B) [277]. The ED of polymelamine (PM) was confirmed by the increase in the Raman band between 1720 and 1760 cm⁻¹, corresponding to the formation of an amine-substituted C=O functional group (Figure 12C). The SEM images also indicated increased surface roughness after PM deposition (Figure 12A,B). The amperometric measurements indicated a catalytic effect of PM/ErGO/GCE for acyclovir when compared to ErGO/GCE, GO/GCE, PM/GCE, and bare GCE (Figure 12D). Modifying the GCE surface with ErGO before PM ED allowed modulating the sensing properties to detect acyclovir, resulting in a very low LOD (137.4 pmol/L) [277].

3.3.5. Nanoparticles

Metal oxide [278,279,280,281,282,283] and metal [215,284,285] nanoparticles have also been electrodeposited for the development of sensors [286]. The metal oxide nanoparticle films can be prepared by the potentiodynamic or potentiostatic modes or using both combined [283]. The potentiodynamic mode is assigned to the nucleation step, while the potentiostatic mode is to the particle growth, as reported by Dumore and Mukhopadhyay [283] studying the ED of SiO₂NPs. The authors explored the effect of the ED time (100 to 800 s) on the electrocatalysis towards H₂O₂ reduction [283]. The optimized parameters (potential of −0.85 V for 600 s) provided a high electrocatalytic effect with a sensitivity of 67.6 μA/mmol cm² [283]. The electrocatalytic effect was improved by additional ED of platinum nanoparticles (PtNPs) and selenium nanoparticles (SeNPs). The sequence and the duration of the ED of each layer influence the morphology and electrocatalytic effect on H₂O₂ detection. The best performance was obtained for PtNPs-SeNPs-SnO₂NPs@FTO with flower, spherical and irregular shapes, while the SnO₂NPs@FTO presented only spherical and irregular shapes [283]. The PtNPs-SeNPs-SnO₂NPs@FTO demonstrated a sensitivity of 104.8 μA/mmol cm² and a LOD of 0.01 mmol/L for H₂O₂ [283].

The AuNPs are also easily electrodeposited at the conductor surface for both potentiodynamic [268,287,288] and potentiostatic modes [257,289,290,291,292]. Compared to usual chemical routes, ED is advantageous mainly for being environmentally friendly, avoiding the use of reducing agents and stabilizers, which can hamper the conducting and catalytic properties. The supramolecular arrangement can be modulated by variations in the potential, electrolysis time, and ED precursor solution, changing principally the size and shape of nanostructures [286]. Due to the great number of works based on the electrodeposited AuNP films towards sensing applications,

Table 1. List of electrodeposited AuNP film-based sensors: electrodes, precursor solution, ED conditions, morphology, and sensing applications.

Substrate	Solution	ED Conditions	Size/Shape	Application/LOD	Ref.
Carbon paper	HAuCl4⋅3H2O (0.1%) solution	−0.2 V for 120 s	400 nm/spherical	Voltammetric sensor for glyphosate/0.03 μmol/L	[257]
MoS2/SPE	1:1 (v:v) of HAuCl4 and H2PtCl6 in 0.2 mol/L Na2SO4	−0.5 V for 100 s a	110−130 nm/spherical	Voltametrica sensor for latic acid/0.33 μmol/L	[284]
AC/GCE	5.0 mmol/L HAuCl4⋅3H2O in 0.05 mol/L H2SO4	−1.0 V for 30 s	125 nm/non-uniform	Voltammetric sensor for ciprofloxacin/0.20 nmol/L	[289]
FPC	0.5 mmol/L HAuCl4⋅3H2O in in 0.5 mol/L H2SO4	−0.9 to 200 s	typical mellow and full shape	Voltammetric sensor for imidacloprid/61 nmol/L	[292]
N-rGO/GCE	0.1 mmol/L HAuCl4 in 0.1 mol/L PBS (pH 6.0)	−0.2 to −1.3 V, 20 cycles, 50 mV/s	spherical	Simultaneous voltammetric detection of uric acid/0.9 nmol/L and xanthine/90 pmol/L	[294]
PMD/PGEs	0.5 mmol/L HAuCl4⋅3H2O in 0.1 mol/L KCl	−1.0 to 0.2 V, 10 cycles, 100 mV/s	50 nm/spherical	Voltammetric sensor for darifenacin/0.94 μmol/L	[287]
NF/CD	6.0 mmol/L HAuCl4 in 0.1 mol/L KNO3	−0.8 to 0.4 V, 20 cycles, 50 mV/s	clusters	Voltammetric sensor for dopamine/0.6 nmol/L	[288]
GCE	0.25 mmol/L HAuCl4+5 mmol/L luminol in 0.5 mol/L H2SO4	0 to 1.0 V, 20 cycles, 100 mV/s b	5 nm/spherical	Immuno sensor for prostate antigen/0.45 fg/mL	[290]
CNPs/GCE	5.0 mmol/L HAuCl4	−0.3 to 1.2 V, 10 cycles, 50 V/s	spherical	Voltammetric sensor for arsenic/0.092 ppb	[268]
SPCE *	-	0.9 to 0 V, 5 cycles, 100 mV/s	spherical	Voltammetric sensor for myo-inositol/1 nmol/L	[295]
PANI/GCE	HAuCl4 (1%)	−0.2 V for 30 s	clusters	electrochemiluminescence immunosensor for 3-nitrotyrosine/2.57 pmol/L	[296]
SPCE/ZnONR/ PMBDES	4.0 mmol/L HAuCl4 in 0.05 mol/L PBS (pH 7.0)	−1.3 to 0.2 V, 10 cycles, 50 mV/s	spherical	Voltammetric sensor for serotonin (5-HT)/1.91 nmol/L	[297]
ITO	0.05 mol/L HAuCl4	−0.2 to 1.3 V, 10 cycles, 50 mV/s	5.8 nm/spherical	Electrochemical biosensor for GM2A/5.8 fg/mL	[298]

^a—co-electrodeposition with platinum nanoparticles (bimetallic AuPt nanoparticles); ^b—co-electrodeposition with luminol. GCE: glassy carbon electrode; MoS₂: molybdenum disulphide; SPCE: screen-printed carbon electrode; FPC: flexible printed circuit; N-RGO: nitrogen-doped reduced graphene oxide; PMD: poly-methyldopa; PGEs: pencil graphite electrode; NF: Nafion; CD: cyclodextrin; CNPs: carbon nanoparticles; PANI: polyaniline; ZnONR: zinc oxide nanorod; PMBDES: polymethylene blue (deep eutectic solvent); ITO: thin-oxide electrode; GM2A: GM2 activator protein, * SPCE/Au as support for electrodeposition of 3-aminophenylboronic acid (3-APBA) with myo-inosytol (MI) for molecularly imprinted polymer based MI sensor.

summarizes the ED conditions, morphology, and sensing applications. The ED of AuNPs begins with the adsorption and reduction of AuCl₄⁻ ions. Nucleation and growth occur simultaneously at potentials more negative than −0.8 V [286,293].

Regarding the co-ED of metal NPs with other materials, it can influence the final shape [299] and size distribution [271,284]. Zhe et al. [299] described the co-ED of rGO, β-CD, and AgNPs by cycling from 0 V to −1.5 V 30 times with a scan rate of 50 mV/s. The composition allowed the formation of dendritic nanostructures, providing a large active surface confirmed by FE-SEM images. Besides, the XRD reveals peaks at 38° (111), 44° (200), 64° (220), and 77° (311), indicating a standard face-centred cubic structure AgNPs [299]. The film was applied for electrocatalytic oxidation of nitrite at low over-potential, presenting a LOD of 0.24 μmol/L [299]. The co-ED of metal nanoparticles with other organic materials has been used as a simple approach to tune the electrochemical performance and enhance the sensitivity and selectivity of sensors [271,284,299].

Aiming biosensor development, the formation of electrodeposited AuNP films also offers an easy functionality for anchoring biomolecules, such as enzymes, nucleic acids, and antibodies [268,290,296,298,300]. Aydin, Aydin, and Sezgintürk [298] described the construction of an immunosensor for GM2 activator protein (GM2A, a cancer marker) following six steps (Figure 13). At first, AuNP ED was performed by potentiodynamic mode, and in step 2, the electropolymerization of amine-functionalized thiophene (ThiAmn) to produce poly-ThiAmn. Next, a layer of glutaraldehyde was added (step 3) to allow the antibody (anti-GM2A) immobilization (step 4); the unspecific sites were blocked by BSA (step 5); finally, perform the incubation with the antigen (GM2A). The thickness of the ThiAmn polymer layer influenced the immunosensor performance: varying the number of cycles (2, 5, and 10 potential cycles) between −0.5 and 2.5 V at 100 mV/s, the highest signal was achieved with 5 cycles [298]. The ITO/AuNPs/P(ThiAmn)/anti-GM2A/BSA electrode provided a very low LOD (5.8 fg/mL) for GM2A using the EIS technique (Nyquist plots and the relationship between the charge transfer resistance—R_ct versus GM2A concentrations were presented in Figure 13B and Figure 13C, respectively) [298].

3.4. Spray Pyrolysis

Spray coating is a method in which a liquid solution containing the desired materials is atomized and sprayed onto the substrate using a spray system. The sprayed material forms a thin layer on the substrate as it is deposited. This technique is widely used for large-scale coating applications, such as painting, protective and anticorrosive coatings [301,302,303,304]. There are two specific techniques related to spray coating: spray cold and spray pyrolysis [305]. Spray cold (SC) refers to the application of a coating or material at ambient or lower temperatures. SC coatings can be solvent-based or water-based, depending on the specific requirements and composition of the coating material [306]. Spray pyrolysis (SP) is a technique used to deposit thin films by thermally decomposing precursor materials in a spray form. The process involves spraying a solution or suspension of precursors onto a heated substrate. As the droplets contact the substrate, the precursor undergoes pyrolysis, resulting in the deposition of a solid film on the surface. SP is often used to produce thin films in areas such as thin-film solar cells, gas sensors, and electronic devices [307]. SC and SP offer advantages in terms of ease of application, uniformity of coating, and adaptability to various substrates. However, SP is the most reported method in the literature.

According to Workie et al. [305], during the 1950s and 1960s, SP was primarily utilized for depositing metallic and semiconductor films. The main objective was to comprehend the fundamental principles of this method and create uncomplicated precursor solutions and process conditions capable of producing high-quality films. SP gained popularity in the 1970s and 1980s for depositing oxide films, including titanium, zinc, and zinc-tin oxides. During this period, the research began exploring surfactants, micelles, and polymers to regulate the morphology of the deposited films. In the 1990s and 2000s, there was a notable increase in SP applications to deposit a diverse range of materials, including composites, alloys, and multilayer structures. This progress was followed by developing new precursor solutions, such as organometallic precursors and precursors containing various metallic species. These advances allowed the growth of intricate structures with precise control over composition and morphology. Due to technological advances, SP has experienced significant improvements, facilitating the deposition of a wide range of materials and utilizing more advanced precursor solutions. These improvements have enhanced the ability to control the morphology, composition, and structural properties of films produced through this technique.

SP deposition involves spraying tiny droplets of a precursor solution, in the form of aerosols, onto a heated substrate through a nozzle [308]. The quality of the resulting film is influenced by factors such as solvent evaporation, droplet state, and chemical reactions, which are, in turn, influenced by the size and momentum of the droplets [309,310,311]. A schematic illustration of the SP deposition process is presented in Figure 14.

The SP technique comprises several components, including a spray gun, temperature controller, liquid flux meter, pressure regulator, heater, thermocouple, and a metallic airtight chamber. The spray gun can be attached to a rotor, facilitating its movement over the substrate and allowing dynamic spraying. The spray nozzle breaks down the precursor solution into tiny droplets and this allows the solution to be sprayed effectively. The spray nozzle rotor, driven by an electric gear motor, is controlled by a speed controller to maintain a consistent spray rate. The heating element is a hot plate made of iron and equipped with an electric heater. This setup can achieve a maximum temperature of up to 600 °C [307]. A thermocouple is in contact with the hot iron plate to measure the temperature of the substrate. The temperature controller regulates the temperature of the iron plate to maintain desired conditions. The gas valve controls the carrier gas pressure, ensuring proper spraying conditions. Generally, the spray system is kept inside a metallic airtight chamber, which includes an exhaust to remove the gases emitted during the spray deposition process. Next, we discuss the effect of SP deposition parameters on the structure and organization of thin films.

3.4.1. Effect of Deposition Parameters

The SP method is highly effective in producing thin films with controlled morphology and uniform particle sizes. A notable advantage of this technique is its versatility in creating various nanostructures, which can achieve by adjusting parameters such as precursor type, substrate temperature, flow rate, carrier gas, solvent type, and other deposition variables [312]. The types of nanostructures that can be deposited using the SP technique include nanorods [313], nanosheets [314], nanowires [315], nanospheres [316], and nanoparticles [317], among others. Abdulrahman et al. [318] employed the SP technique to produce zinc oxide (ZnO) nanoflowers on silicon substrates for efficient ultraviolet radiation detection. These flower-like clusters (Figure 15) are formed through a preferential growth direction and are densely packed across the substrate surface. The ZnO nanoflowers exhibited a morphology composed of tightly packed nanoneedles. The authors attributed the remarkable photoresponse of the ZnO nanoflowers device to their high surface-to-volume ratio and enhanced crystal performance. These results highlighted the efficacy of the low-cost SP technique in creating highly photoconductive ZnO nanodevices for various applications in photoelectronic.

The main parameters of the SP technique and their impacts on the characteristics of thin films are mentioned below:

• Solution flow rate: the flow rate of the spray solution affects the thickness and uniformity of the deposited film. Higher flow rates lead to thicker films resulting in less uniformity and more defects, on the other hand lower flows lead to thinner films and may result in no percolation. Therefore, it is important to optimize the flow rate to achieve the desired film thickness and uniformity. Yusuf et al. [319] investigated the influence of the solution flow rate on the structural, morphological, and electrical properties of molybdenum oxide films. The arriving spray on the silicon substrate was controlled by varying the solution flow rate (ranging from 3.0 to 1.5 mL/min) at the substrate temperature of 300 ± 5 °C. XRD analysis allowed verify the changes in the crystallite size as the flow rate decreased. A morphological study using FE-SEM and AFM demonstrated the reducing grain size with decreasing flow rate, which promotes the homogeneity and smoothness of the film. In a study conducted by Zargou et al. [320], thin films of ZnO were deposited on glass substrates using a spray solution volume of 60 mL at 300 °C and employing different spray rates of 5, 10, 15, and 20 mL/h. They observed that the solution flow rate had a significant impact on the physical and structural properties of the thin films. The ZnO thin film deposited at a solution flow rate of 15 mL/h exhibited remarkable characteristics displaying high transparency, with a transmission rate of 99.1%. Additionally, this film demonstrated the highest electrical conductivity in dark conditions. Moreover, it exhibited the lowest carrier concentration, activation energy, and resistivity among the tested deposition conditions. Overall, the findings emphasized the notable influence of the solution flow rate on the properties of the ZnO thin films, particularly highlighting the favourable attributes achieved at a flow rate of 15 mL/h.
• Solution composition: the composition of the spray solution, which includes the precursor materials and solvents [321], dramatically influences the chemical composition and stoichiometry of the resulting film. Modifying the concentration and ratio of precursors can alter the film’s elemental composition, doping levels, and crystalline structure [322].
• Pyrolysis temperature: the substrate temperature during the deposition in SP impacts the film’s crystallinity, grain size, and morphology [323]. Higher substrate temperatures promote crystallization and grain growth, producing films with improved crystallinity and larger grain sizes. Furthermore, uncontrolled high temperatures can lead to film degradation or damage to the substrate. Ebin et al. [324] reported the production of ZnO nanoparticles and porous particles using the ultrasonic SP method through zinc nitrate precursor at different temperatures under an air atmosphere. The ZnO particles were obtained in a hexagonal crystal structure, and the shape of the crystallites changed from spherical to hexagonal as the reaction temperature increased from 400 to 1000 °C. At the lowest reaction temperature, ZnO nanoparticles were obtained, while at higher temperatures, ZnO porous particles were formed through the aggregation of ZnO nanoparticles due to effective sintering. The results indicate that the reaction temperature can be readily adjusted to manipulate the size and morphology of ZnO nanostructures, highlighting the suitability of the SP method for large-scale production due to its controllability.
  Al Ghamdi et al. [325] investigated the influence of substrate temperature and solution concentration on the properties of copper oxide (CuO) thin films. They deposited a series of CuO thin films on glass substrates, varying the temperature between 400 and 650 °C and using two different concentrations of copper salt. The structure and morphology of the films were examined using XRD and SEM, while UV-visible spectroscopy was employed to analyse their optical properties. A significant influence of substrate temperature on the growth mechanisms and physical characteristics of the CuO films was verified: the films primarily exhibited a single phase of CuO with an observed reduction in crystallite size as the substrate temperature increased. Hameed et al. [326] fabricated nickel oxide (NiO) thin films on glass substrates using the SP technique at different temperatures (300, 400, and 500 °C). Analysis of the XRD data confirmed the presence of a cubic structure in the films, indicating their polycrystalline nature. Notably, it was observed that at a temperature of 500 °C, the lattice constant of the thin films closely approached the ideal lattice parameter of 4.176 Å for a cubic structure. Therefore, it can be concluded that the thin films exhibited a desirable lattice constant at 500 °C.
• Distance between the nozzle and substrate: the distance between the spray nozzle and the substrate affects the film’s morphology and surface roughness. Generally, its decrease results in a denser and smoother film due to the increased heat and mass transfer efficiency [327]. Omar [328] studied the influence of the distance between the nozzle and substrate on the morphological, structural, chemical composition, and optical properties of ZnO thin films deposited using the SP technique. The morphology of the thin film was examined using Scanning Tunnelling Microscopy (STM), and it was observed that reducing the nozzle-substrate distance led to an increased root mean square (rms) roughness. Specifically, the rms values were measured as 17.470 nm and 10.062 nm at 20 cm and 30 cm distances, respectively. The surface morphology strongly influenced the optical properties, including transmittance and the optical band gap, parameters of great importance to photovoltaic applications.
• Spray pressure: the spray pressure influences the droplet size, spray pattern, and film morphology. Higher pressure causes a lower solvent evaporation rate compared to lower pressure, and this allows the solute crystal to grow in a relatively longer time and thus larger nanoparticles are formed [327,329]. In addition, excessively high pressure can cause droplet fragmentation or spray pattern distortion.
• Deposition time: the deposition time must be controlled according to the desired consistency and film quality requirements in order to avoid defects or degradation. Hathot et al. [330] conducted a study to assess the influence of different deposition times (4, 8, and 12 min) on the crystallinity, absorption, and electrical characteristics of zinc sulfide thin films (ZSTFs). XRD analysis of the ZSTFs indicated the presence of both hexagonal and cubic phases. The average crystallite size of the thin films ranged from 27.81 to 31.54 nm, while the optical band gap energy varied between 2.7 and 3 eV. The thin films exhibited low transmittance in the visible and infrared regions, with the surface roughness playing a significant role in this characteristic. As the deposition time increased, the refractive indices of the films also increased while the extinction coefficients decreased. The thin films demonstrated excellent electrical and dielectric properties, making them suitable for various applications.

By adjusting these deposition parameters in SP, it is possible to control the film’s composition, structure, morphology, and properties. Optimization of these parameters is crucial to achieving the desired film characteristics for specific applications, particularly thin-film devices, e.g., thin-film transistors (TFTs) [331,332], electrolyte-gated transistors (EGTs) [333,334,335], capacitors [310], diodes [336,337], solar cells [338,339], gas sensors [340], etc. It is important to note that the specific device fabrication processes and materials may vary depending on the desired application and the research advancements in the field.

3.4.2. Sensing Applications

The SP technique offers numerous advantages for fabricating different nanostructured films for sensor applications. By adapting the composition, morphology, and properties of these nanostructures, sensors can be designed to exhibit greater sensitivity, selectivity, stability, and response time. For example, gas sensors have been developed with metal oxide films using SP [341,342,343]. Metal oxide films, such as tin oxide (SnO) and zinc oxide (ZnO), can exhibit changes in their electrical properties when exposed to specific gases, enabling them to detect and quantify the gas concentration. Similarly, other types of sensors, such as humidity [344,345] and biosensors [346], can be developed by incorporating appropriate materials into the film composition. SP allows one to fabricate thin films that serve as active sensing elements with the material’s choice and the sensor’s specific design depending on the target application and desired sensing capabilities.

Martínez-Saucedo et al. [347] investigated the impact of copper oxide film thickness in a working electrode for a non-enzymatic glucose sensor. The CuO film was deposited on a conductive nickel substrate by the SP technique, where diethanolamine (DEA) was used as the reducing agent. The use of DEA offered the advantage of employing lower deposition temperatures (290 °C), resulting in low-resistivity films suitable for building glucose-sensing electrodes. The sensitivity (0.475 mAmM⁻¹/cm²) obtained in a wide glucose range (0–8 mM) enabled the quantification of glucose levels for diabetes mellitus monitoring. This work demonstrated that a straightforward solution-based technique such as SP could be utilized to produce functional glucose sensors.

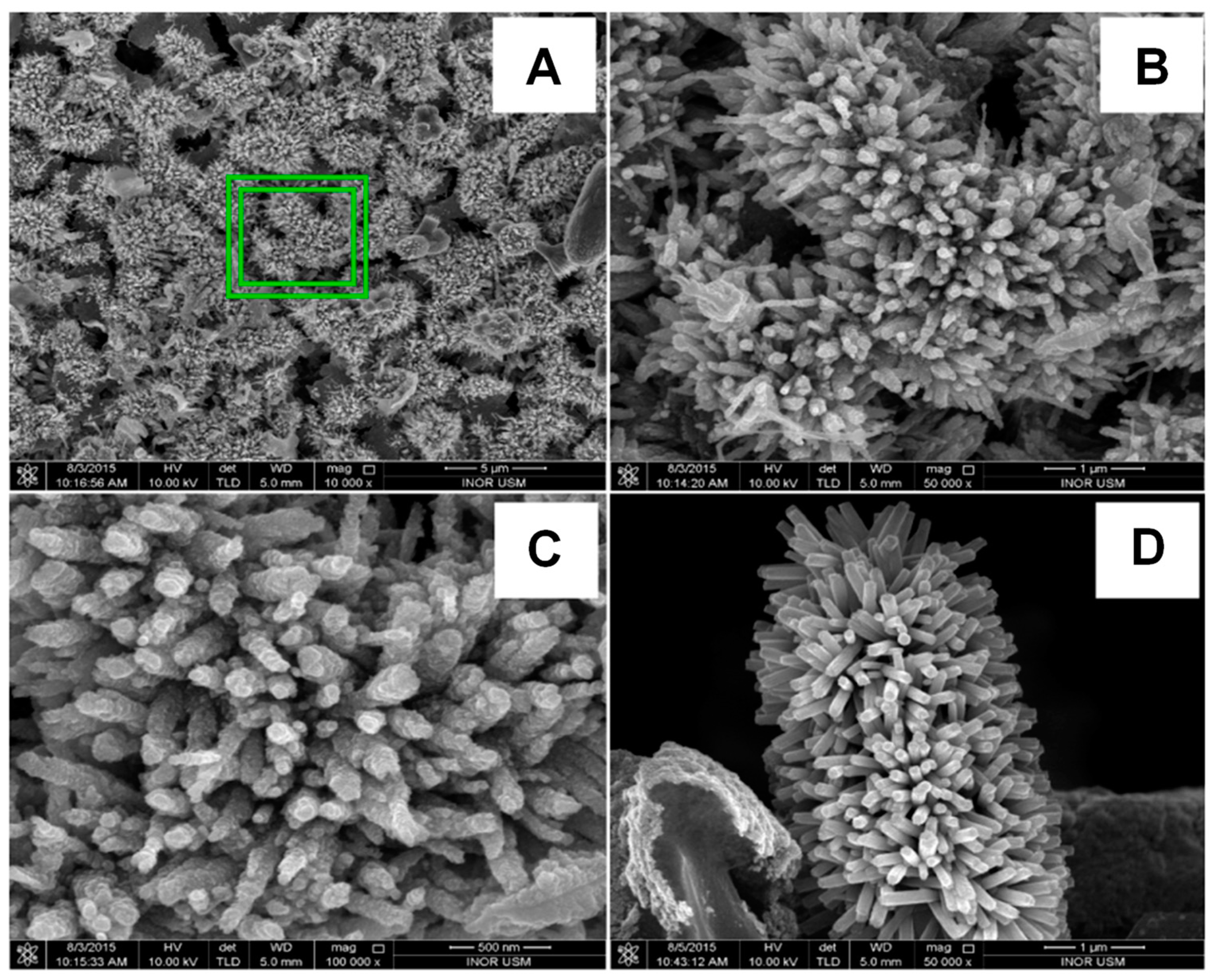

In another study, Dong et al. [348] reported the fabrication of a modified GCE with Ag-substituted ZnO nanoflowers to detect tyramine. The Ag-substituted ZnO nanoflowers were synthesized on the GCE by the SP technique, revealing nanoflowers structures with high porosity, surface area, and density. The structural analysis confirmed Ag incorporation into the ZnO nanoflowers lattice, with ZnO adopting a hexagonal wurtzite structure and silver exhibiting a face-centred-cubic phase. These results demonstrated that the SP technique is highly promising for producing ZnO nanostructures. Amperometric measurements indicated a rapid response of the Ag-substituted ZnO-modified GCE to successive additions of tyramine, resulting in a linear range of 1–900 µM and a LOD of 0.03 µM. The interference study confirmed the selective and reliable response for tyramine.

The SP technique has also shown excellent results for the fabrication of mesoporous SiO₂ towards an efficient enzyme immobilization [349]. Using MWCNTs as a template, Kumar et al. [349] synthesized SiO₂ microparticles with a mesoporous multi-compartment structure and open pores. These highly porous SiO₂ particles were synthesized through a post-treatment process of MWCNT-SiO₂ composite particles, initially synthesized via a one-pot SP process. Glutaraldehyde-functionalized porous SiO₂ particles were then employed to immobilize lipase. The enzyme immobilized on the highly porous SiO₂ particles exhibited superior characteristics compared to previously reported immobilized enzymes on MWCNTs and octylsepharose supports. The immobilized biocatalyst used for constructing the biosensor demonstrated high sensitivity and increased stability compared to previously reported lipase-based biosensors.

The advantages of different nanostructured films obtained by the SP technique for sensor applications reside in their tuneable properties, large surface area, higher sensitivity, selectivity, and stability. Researchers and engineers can use the capabilities of the technique to develop innovative sensors with enhanced performance and features tailored to meet the specific demands of various sensing applications.

4. Final Remarks

The central idea of modifying surfaces with thin films lies in the functionalities resulting from the synergistic effect of combined materials. Coatings through drop-casting of mixtures may not fully harness the potential of this synergic effect. Some techniques ensure a certain level of molecular organization as well as control over other supramolecular arrangements. As a result, the properties can be fine-tuned through the manipulation of experimental parameters. Different organizations dictate the film’s properties and, consequently, its performance as a sensor. The LB technique, although requiring relatively expensive equipment and being a laborious and time-consuming technique, persists due to the possibility of fine control over molecular organization. The LbL technique continues to be greatly used to produce multilayered thin films mainly due to its experimental simplicity. Versatility is another term to define the LbL technique since substrates of any form or size can be coated, and an infinite number of materials can be suspended as homogeneous suspensions to be assembled as an LbL film. On the other hand, ED techniques have gained prominence owing to their inherent simplicity, cost-effectiveness, rapidity, environmental sustainability, manufacturability as well as scalability. This process offers advantages across a wide range of materials suitable for film deposition. However, it is important to note that the material of interest must possess electrochemical activity, and naturally, the substrate on which the deposition takes place should be conductive. The SP technique stands out for its simplicity, versatility, efficiency, and low operational cost. Hybrid films can be formed by precursor mixtures or intercalating suspensions to form multilayers. The main disadvantages of the SP technique are the low yield of the solutions (waste of material) and the need to control the chemical reactions that occur during the pyrolysis process. The strong influence of the deposition parameters can be interpreted as an advantage or a disadvantage. Morphological, structural, and electrical properties can be tuned but demand an extensive study of many deposition parameters. Still, SP does not reach the ideal of being able to manufacture very organized and reproducible films. Although it was challenging to compile all of the work and ideas related to ultra-thin film applications as sensors in recent years, we have attempted to gather important information about the molecular organization and its relationship to sensor performance. Each technique presents its characteristics, and all of them will still have a long future in sensor development.
