Review

Recent Advances for Imidacloprid Detection Based on Functional Nanomaterials

by
Shu Chen
1,
Yawen Wang
2,
Xiuli Liu
2 and
Longhua Ding
2,*
1
School of Bioengineering, Shandong Polytechnic, Jinan 250104, China
2
Institute for Advanced Interdisciplinary Research, School of Chemistry and Chemical Engineering, University of Jinan, Jinan 250022, China
*
Author to whom correspondence should be addressed.
Chemosensors 2023, 11(5), 300; https://doi.org/10.3390/chemosensors11050300
Submission received: 6 April 2023 / Revised: 5 May 2023 / Accepted: 16 May 2023 / Published: 18 May 2023
(This article belongs to the Special Issue The Application of Electrochemical Sensors or Biosensors Based on Nanomaterials)
Browse Figures
Versions Notes

Abstract

:

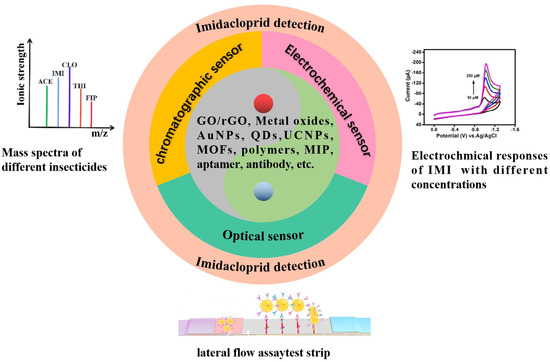

Imidacloprid (IMI) has been applied in agricultural production to prevent pests. It is vital to detect IMI residues with high sensitivity for food safety. In general, nanomaterials have driven the development of highly sensitive sensing platforms owing to their unique physical and chemical properties. Nanomaterials play important roles in the construction of high-performance sensors, mainly through sample pretreatment and purification, recognition molecules immobilization, signal amplification, and providing catalytic active sites. This review addresses the advances in IMI sensors based on the combination of nanomaterials and various analytical techniques. The design principles and performance of different chromatographic, electrochemical, and fabricated optical sensors coupled with nanomaterials are discussed. Finally, the challenges and prospects of sensors based on nanomaterials for IMI analysis have also been incorporated.

1. Introduction

In recent years, the market share of neonicotinoid pesticides has steadily increased in the global insecticide market because of their relative low toxicity to mammals but high activity against insects [1]. As a first-generation neonicotinoid pesticide, imidacloprid (IMI, 1-((6-Chloro-3-pyridiny)methyl)-N-nitro-imidazolidinimine) was first introduced in the 1990s. IMI is the largest-selling pesticide among neonicotinoid pesticides, and it is widely used for seed treatment in agriculture to protect crops from pests. It acts on the nicotinic acetylcholine receptor (nAChRs) by disturbing the central nervous systems of insects [2]. However, the long lifetime and high dose uses of IMI lead to large residues in environmental water, soil, and food, which could enter the human body through the food chain and pose a potential risk to human health [3,4,5]. This has led to some related laws being established to limit the maximum amount of IMI residue. For example, in 2018, the European Union banned the use of IMI [6]. The Chinese national standard GB 2763-2021 stipulated that the maximum residues of IMI in Chinese cabbage were 0.2 mg/kg [7]. Thus, it is particularly necessary to develop reliable methods for IMI residue detection.
Up until now, various analytical methods have been developed for pesticide detection, including chromatographic techniques, electrochemical methods, and optical methods. Each of them has its own advantages and disadvantages (discussed in detail in Part 3). For example, efficient sample pretreatment methods are required before chromatographic analysis [8]. The weaker electrochemical response of IMI on traditional bare electrodes results in low sensitivity. Introducing nanomaterials into these analytical techniques can overcome these shortcomings. With the advancement of nanotechnology and synthetic methodologies, various nanostructure materials (NMs), including carbon-base materials (graphene, carbon nanotubes, porous carbon, etc.), metal nanoparticles, metal oxides and sulfides, upconverting nanoparticles, metal-organic frameworks (MOFs), conducting polymers, and their composites, have been designed and prepared [9,10,11,12]. These nanostructure materials possess excellent physicochemical and plasmonic properties owing to their small particle size and high surface area. These properties make them an essential part of the field of analytical techniques [13,14,15,16]. Nanomaterials play roles in sensor construction by enhancing catalytic activity, immobilizing biological entities (enzyme, antibody, aptamer, etc.), signal amplification, purification, exaction, and separation [17,18,19,20,21]. This review aims to cover the recent development of IMI sensors by combining these analytical techniques with various nanomaterials (Scheme 1).

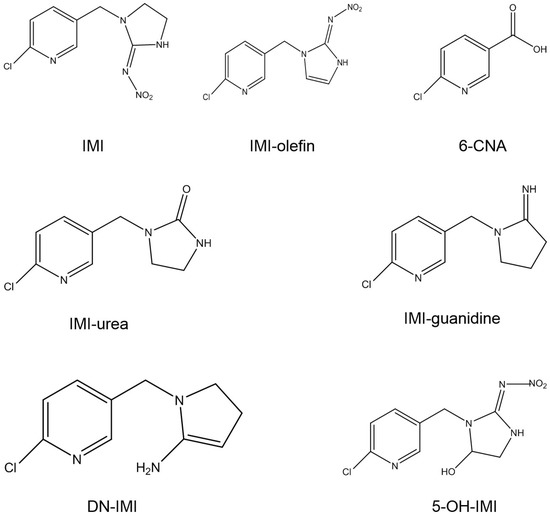

2. The Metabolites of IMI

When pesticides are applied to crops, they are often converted into metabolites. In the case of IMI, the degradation of IMI produces several metabolites, including imidacloprid-olefin (IMI-olefin), urea-imidacloprid (IMI-urea), 6-chloronicotinic acid (6-CNA, or 6-chl), 5-hydroxy-imidacloprid (5-OH-IMI), desnitro-imidacloprid (DN-IMI), and nitro-methylene analogue (CH-IMI) [25,26,27,28,29,30], etc. Their chemical structures are shown in Figure 1. The metabolites produced by IMI are related to the environment, and they exhibit higher toxicity than IMI. For example, in casing soil during mushroom cultivation, the main metabolites were IMI-urea, IMI-olefin, and 6-CNA [31]. In honey, the concentrations of IMI-olefin (5.6 ng g−1) and 5-OH-IMI (21.1 ng g−1) were higher than those of IMI (0.8 ng g−1) [32]. To make matters worse, the metabolites are more toxic than IMI itself. For example, IMI-olefin is twice as toxic as IMI [33]. Hence, the risk of IMI metabolites should be considered comprehensively when evaluating the harm of IMI.

3. Detection Methods

3.1. Sample Pretreatment and Chromatographic Analysis

The traditional chromatographic methods, including gas chromatography (GC), high-performance liquid chromatography (HPLC), mass spectrometry (MS), gas chromatography-tandem mass spectrometry (GC-MS), high-performance liquid chromatography-tandem mass spectrometry (HPLC-MS), capillary electrophoresis-mass spectrometry (CE-MS), and ultraperformance liquid chromatography/tandem mass spectrometry (UPLC-MS/MS), can offer high accuracy and have been recognized as the gold standard for the detection of many organic analytes [34,35,36,37]. However, owing to the wide use of insecticides, they may exist in a variety of complex matrices, such as soil, food, Chinese medicine, etc., and the interferences in these matrices often affect the accuracy and sensitivity of detection [38]. Therefore, the determination of pesticide residues generally includes two steps: sample pretreatment and quantitative detection. Up to now, researchers have proposed versatile sample pretreatment methods to extract targets from different samples, such as solvent extraction, solid phase extraction (SPE), the QuEChERS method (the Quick, Easy, Cheap, Effective, Rugged, and Safe method), etc. [8,39,40,41,42]. Nanomaterials could be used for the extraction and enrichment of targets in complex matrices due to their small size, large specific surface area, and adjustable surface groups. At present, many types of nanomaterials have been used in sample pretreatment processes, such as carbon-based nanomaterials [43], polydopamine [44], MOFs [45,46], covalent organic frameworks (COFs) [47,48] and so on [49]. So far, researchers have realized that the determination of IMI in complex samples is based on pretreatment and chromatographic analysis (Table 1). For example, Xu et al. [50] proposed an UPLC-MS/MS method for IMI detection. Firstly, IMI was extracted with UiO-66-NH2 as an adsorbent and acetonitrile as a desorption solution. Then, IMI was treated by UPLC with a gradient eluting procedure and identified by electrospray ionization (ESI) on a mass spectrometer. Moreover, this method successfully detected IMI in fruit samples with satisfactory recovery. Kharbouche et al. [51] applied a mesoporous material (MSU-1) as a sorbent to preconcentrate 218 pesticides in environmental waters and subsequently determine them by UPLC-MS/MS. Mou et al. [23] used nitrogen and sulfur co-doped carbon dots (N,S-CDs) as QuECHERS cleanup reagents in the complex samples and determined multiple pesticides with a portable mass spectrometer (μ-MS) (Figure 2). This method could achieve simultaneous detection of five kinds of pesticides. Besides, the metabolites of IMI were measured mainly by chromatographic analysis. For instance, Sánchez-Hernández et al. [52] confirmed the existence of IMI and DN-IMI in honey and maize crop samples by LC/QTOF-MS analytical techniques.

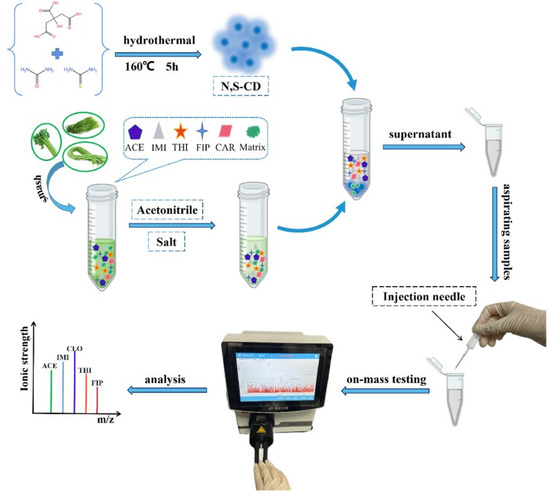

The quantitative detection of three metabolites, including IMI-olefin, 5-OH-IMI, and 6-chl, was achieved by Li et al. [53] using LC-QQQ/MS. The results showed that the residual concentration of these three metabolites varied according to vegetable tissue and exposure time. These results helped to understand the distribution of IMI and its metabolite residues in leaf vegetables. Moreover, these chromatographic methods exhibited excellent performance in the simultaneous detection of multiple analytes.
Table
Table 1. Analytical performance of IMI detection based on chromatographic analysis.
Table 1. Analytical performance of IMI detection based on chromatographic analysis.
MatricesSample PretreatmentAnalytical TechniqueRecoveryLODReference
fruitSPE: UiO-66-NH2UPLC-MS/MS92.39%0.04 μg L−1[50]
groundwaterSPE: MSU-1UPLC-MS/MS80–86%below 0.1 µg L−1[51]
vegetablesQuEChERS: N,S-CDμ-MS82.2–109.7%0.5–1.0 ng g−1[23]
honey, tomato, lettuce and Chinese cabbage samplesSPE: a Fe3O4@Ph-HCPHPLC80.1–111%0.30–0.67 ng g−1 (honey), 1–1.5 ng g−1 (tomato,
lettuce and Chinese cabbage)		[54]
lemon juice, honeySPE: b Rut-MOPHPLC82–118%0.03–0.04 ng mL− 1 (lemon juice), 2.5–3.0 ng g−1 (honey)[55]
vegetablec MSPE: d (Fe3O4@COF-(NO2)2)HPLC81.7–103.5%0.04 ng mL−1[56]
cucumber, tomato and tap waterSPE:
e TPN/Fe3O4 NPs/GO		HPLC91.2–102.4%0.17 μg L−1[57]
honeyanion exchanger-f DPXLC-MS/MS72–104%1.5 µg kg−1[34]
wheat samplesg D-µSPE: h CNPCHPLC91–99%0.056 µg Kg− 1[58]
wheat, rice and fruitQuEChERSLC–MS/MS94.1–103.3%-[59]
a Fe3O4@Ph-HCP: nitrogen-rich magnetic hypercrosslinked polymer; b Rut-MOP: hydroxyl-functional magnetic porous organic polymer; c MSPE: magnetic solid phase extraction; d (Fe3O4@COF-(NO2)2): magnetic covalent organic framework containing the nitro groups; e TPN/Fe3O4NPs/GO: triazine-based polymeric network modified magnetic nanoparticles/graphene oxide; f DPX: disposable pipette extraction; g D-µSPE: dispersive micro-solid phase extraction; h CNPC: CuO nanoplate-polyaniline composite.

3.2. Electrochemical Sensors

Recently, various electrochemical techniques have attracted much attention from researchers due to their numerous advantages, including high sensitivity, low cost, and easy preparation [60]. Hence, electrochemical methods have been used for constructing sensors for IMI. The electrochemical detection performance of IMI is mainly dependent on various electrode-modified materials, such as carbon composite, reduced graphene oxide, β-cyclodextrin, bismuth film, silica film, molecularly imprinted polymers, biological materials, and so on. There are mainly three electrochemical strategies for IMI detection: direct detection, indirect detection (electrochemical sensors based on MIPs and biometric recognition elements), and electrochemical ratio sensors.

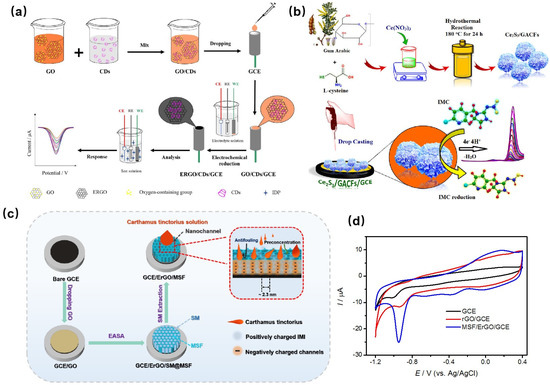

3.2.1. Direct Electrochemical Detection

IMI is an electroactive molecule in which the nitro group can undergo two-electron or four-electron reduction on an electrode surface. The direct electrochemical reduction of IMI proceeded on various modified electrodes to improve the sensitivity (Table 2). β-cyclodextrin (β-CD) has a hydrophobic internal cavity and a hydrophilic external surface, which make it useful for capturing various molecules. Therefore, β-CD was extensively applied for sensor construction. For instance, Pereira [61] developed an electrochemical sensor for IMI based on β-CD film coated on a glass carbon electrode (GCE). The electrochemical performance of IMI on β-CD/GCE was better than that on bare GCE due to the encapsulating effect of β-CD for IMI. A variety of carbon materials, including carbon nanotubes, carbon paste, graphene oxide (GO) or reduced graphene oxide (rGO), etc., have excellent electrochemical properties and are widely used in electrochemical sensors. Urbanová et al. [62] constructed an IMI electrochemical sensor using GO-modified electrodes. The proposed sensor could detect IMI at 10–200 μM with a limit of detection (LOD) of 8.3 μM. Johnson et al. [63] established an electrochemical sensing platform for several neonicotinoids using laser-induced graphene (LIG) that was prepared by a scalable direct-write laser fabrication process. The LIG-based sensor exhibited a rapid response time (~ 10 s) and excellent performance for IMI detection with a LOD of 384 nM. The composite composed of CD and carbon also acted as electrode-modified materials for IMI reduction. Zhao et al. [64] fabricated an electrochemical sensor using rGO/CD-modified GCE (Figure 3a). They found that rGO/α-CD/GCE possessed the best analytical performance than other composites (rGO/β-CD and rGO/γ-CD) owing to the good supramolecular recognition of α-CD toward IMI. In addition, electrochemically reduced GO (E-rGO) was time-saving and cost-effective compared with rGO prepared by wet-chemical synthesis. The obtained E-rGO/α-CD/GCE displayed a low LOD of 23 nM with a wider linear range of 0.5–40 μM. Finally, this new sensor could detect IMI in brown rice with satisfactory recoveries. Our group [10] developed an electrochemical sensor for IMI based on raffia-derived porous carbon/polyaniline composite modified GCE (PRC@PANI/GCE). The PRC@PANI exhibited high electrocatalytic activity for IMI, resulting in a fourfold increase in electrochemical signal. This prepared sensor offers high sensitivity for IMI with a LOD of 0.03 μg mL−1. Further, we constructed an antifouling electrochemical sensor for IMI determination in complex samples based on mesoporous silica film (MSF) coating electrochemically reduced graphene oxide/GCE (ErGO/MSF/GCE) (Figure 3c) [65]. This prepared sensor showed excellent performance for IMI determination due to the electrocatalytic activity of ErGO and the preconcentration ability of MSF towards IMI (Figure 3d). Mutharani et al. [22] synthesized cerium sulfide with gum arabic carbon flowers (Ce2S3/GACFs) through the hydrothermal method and employed it to monitor IMI (Figure 3b). The obtained Ce2S3/GACFs had a high surface area, which provided many electrocatalytic active sites for IMI reduction. This prepared sensor could detect IMI in a wide linear range of 0.05–1266 μM with a LOD of 32 nM. Besides, other materials such as TiO2 [66], bismuth film [67], graphene quantum dots/ionic liquid/multiwall carbon naotubes (GQDs/IL/MWCNTs) [68] were also used to modify GCE and applied for IMI determination. The nanomaterials can improve the electrochemical response of IMI mainly in two aspects: on the one hand, they can increase the active area of the electrode, and on the other hand, they can catalyze the reduction of IMI.

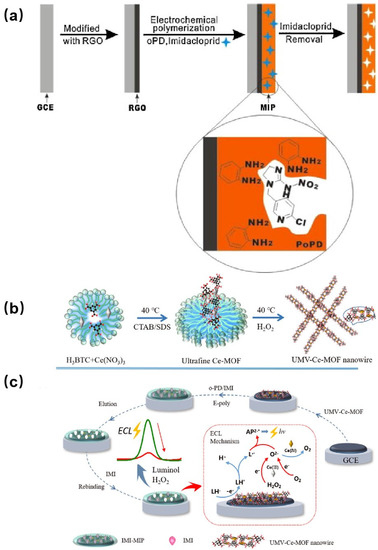

3.2.2. Electrochemical Sensors Based on MIPs

Molecularly imprinted polymers (MIPs) are tailor-made synthetic materials with high-affinity binding sites for a specific target molecule [73]. MIPs are prepared by mixing a target molecule as a template with a cross-linking agent and an initiator. After polymerization, the template is removed, leaving the hole exactly the same as the target molecule. The forming hole can rebind perfectly with the target molecule, allowing it to be specifically recognized and detected target molecule. Therefore, sensors based on MIPs have been designed and applied in various fields, such as environmental analysis [74], pharmaceutical analysis [75], nucleic acid assay [76], and food safety [77]. For instance, the Zhou group [78] prepared MIP on graphene oxide modified GCE by cyclic voltammetry, using IMI as the template and o-phenylenediamine (o-PD) as the functional monomer (Figure 4a). The imprinted electrode exhibited good selectivity toward IMI, detecting IMI in the concentration range of 0.75–70 μM with a LOD of 0.4 μM. The Wang group [79] synthesized MIP by chemical method, using p-vinylbenzoic acid (VBA) as functional monomer, IMI as template molecule, ethylene glycol dimethacrylate (EGDMA), and azobisisobutyronitrile (AIBN) as cross-linker and initiator. The prepared MIP was dropped on polished GCE and applied for IMI detection. This proposed sensor could detect IMI at 0.5–15 μM with a LOD of 0.1 μM. Moreover, it was successfully applied to detect IMI in brown rice samples. Tang et al. [80] prepared upconverting nanoparticles with a modified zeolite imidazolate framework and MIPs composite (MIPs/UCNPs@ZIF-8) for constructing an electrochemiluminescence (ECL) sensor. The obtained ECL sensor exhibited excellent performance for IMI detection in a concentration range of 0.1 ng L−1 to 1 mg L−1 with a LOD of 0.01 ng L−1. Ma et al. [81] developed an ECL sensor for trace detection of IMI based on an ultrafine mixed-valence Ce-MOF (UMV-Ce-MOF) combined with MIP (Figure 4b,c). This proposed sensor could detect IMI with high sensitivity and selectivity.

3.2.3. Electrochemical Sensor Based on Biometric Molecules

Except for MIP, some biometric recognition elements such as antibodies, enzymes, and aptamers have been used to improve the selectivity of sensors. Timur et al. [82] found an aptamer of IMI by the Systematic Evolution of Ligands by Exponential Enrichment (SELEX) process, and an aptasensor was constructed for IMI detection in a range of 0.1–50 ng mL−1 with a LOD of 0.19 ng mL−1. Pérez-Fernández et al. [83] reported a competitive immunosensor for IMI detection based on AuNPs-modified screen-printed carbon electrodes (AuNPs-SPCE). In this work, a monoclonal antibody to IMD (mAb-IMD) was immobilized on AuNPs-SPCE, and a competitive assay was performed between free IMI and IMI labeled with horseradish peroxidase (HRP). The electrochemical reduction signal of oxidized 3,3’,5,5’-tetramethylbenzidine (TMB) was associated with IMI concentration, avoiding the use of secondary antibodies. This sensor exhibited excellent performance for IMI determination, with a satisfactory low LOD, high selectivity, and stability. Furthermore, this sensor was successfully applied in IMI analysis on a real sample, and the reliability was also validated by HPLC-MS/MS. Table 3 concludes the analytical performance of electrochemical IMI detection based on recognition elements such as MIP, antibodies, and aptamers.
Table
Table 3. Analytical performance of the electrochemical method for IMI detection based on recognition molecules.
Table 3. Analytical performance of the electrochemical method for IMI detection based on recognition molecules.
Electrode MaterialsRecognition ElementTechniqueLinear RangeLODReference
PoPD-RGO/GCE aMIPLSV0.75–70 μM0.4 μM[78]
GN/MIPs/GCE bMIPLSV0.5–15 μM0.1 μM[79]
GCE/TiO2NPs/IMD imprinted
poly(levodopa)		MIPSWV2.0–400 μM0.3 μM[84]
UMV-Ce-MOF cMIPECL2–120 nM0.34 nM[81]
MIPs/
UCNPs@ZIF-8/GCE d		MIPECL0.1 ng mL−1 mg mL−10.01 ng mL−1[80]
Gold electrodeaptamerEIS f0.1–50 n g mL−10.19 ng mL−1[82]
AuNP-SPCE eantibodychronoamperometry50–10,000 pM22 pM[83]
SPCEantibodychronoamperometry50–10,000 pM24 pM[85]
a PoPD-RGO: imprinted poly(o-phenylenediamine) (PoPD) membranes at reduced graphene oxide (RGO); b GN: graphene; c UMV-Ce-MOF: ultrafine mixed-valence Ce-MOF; d UCNPs@ZIF-8: upconverting nanoparticle functional zeolite imidazolate framework; e AuNP-SPCE: gold nanoparticle-modified screen-printed carbon electrodes (SPCE); f EIS: electrochemical impedance spectroscopy.

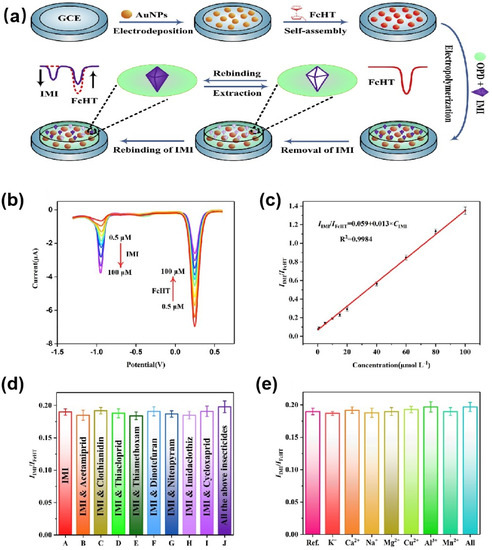

3.2.4. Ratiometric Electrochemical Sensor

The classical electrochemical sensor contains only a single electrochemical signal of the target molecule, and its reproducibility is easily influenced by electrode properties or the complex detection system. To overcome this limitation, ratiometric electrochemical sensors involving the simultaneous measurement of two electrochemical signals at different potentials have been developed. By introducing a built-in correction for the analyte’s signal, the ratio electrochemical sensor greatly improves the reproducibility and reliability of electrochemical detection. So far, ratio electrochemical sensors have been used to detect metal ions, nucleic acids, proteins, biological small molecules, etc. [86,87]. The researchers also applied the ratio sensing strategy for IMI detection. The Kan group [88] constructed a ratio electrochemical sensor by electropolymerization of thionine and β-CD composite on GCE for IMI determination, in which thionine as an internal reference element provides a built-in correction. The current ratio of IMI and thionine was employed as the signal for IMI detection, and it exhibited a good linear relationship in the concentration range of 0.04–10 μM. The Zou group [89] prepared a ratio electrochemical sensor coupled with a MIP strategy for IMI detection, in which 6-(Ferrocenyl)hexanethiol (FcHT) is used as an inner reference and MIP as a molecular recognition receptor (Figure 5). The combination of ratiometric strategy and MIP enhances the sensitivity and selectivity of the sensor.
To sum up, researchers have developed a variety of electrochemical sensing strategies based on nanomaterials for IMI detection. On the one hand, designing and synthesizing nanomaterials with controlled morphology or preparing hybrid materials to further improve the electrocatalytic reduction of IMI is highly necessary. On the other hand, combining the advantages of easy miniaturization of electrochemical sensors with specific recognition elements, the establishment of hand-held electrochemical sensing devices with high selectivity and sensitivity has great prospects.

3.3. Optical Sensors

Over the past decades, researchers have devoted intensive efforts to developing various optical sensors due to their advantages, including simplicity, ultra-sensitivity, and high selectivity. The principle of an optical sensor is based on the shift of the characteristic signal caused by the interaction of the analyst with the substrate or with other optical molecules. With the development of nanotechnology, many optical detection platforms have been born. According to the different detection signals, multiple optical sensors, including fluorescence, colorimetry, surface plasmon resonance (SPR), and surface enhanced Raman spectroscopy (SERS), have been applied to detect IMI (Table 4).

3.3.1. Fluorescent Method

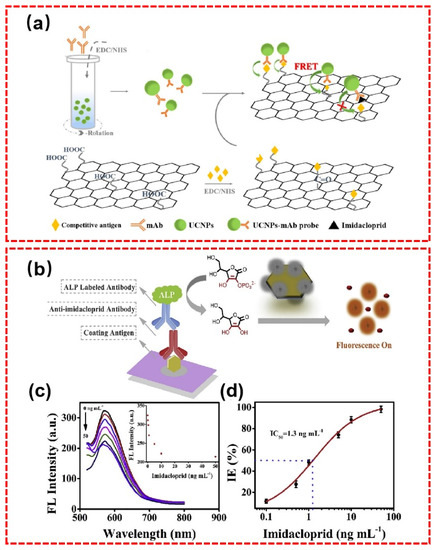

Recently, with the significant development of optical nanomaterials, fluorescence sensing has dramatically benefited from various luminescent nanoparticles. For instance, Tian et al. [90] developed two kinds of lateral flow immunoassay (LFIA) for IMI determination based on time-resolved fluorescent nanobeads and colloidal gold, respectively. The proposed LFIAs achieved high accuracy and a low LOD for IMI analysis. Guo et al. [12] established a competitive fluorescence resonance energy transfer (FRET) immunoassay for IMI detection (Figure 6a). FRET occurred through the specific immunoreaction between antigen/GO and mAb/up-converting nanoparticles, (UCNPs). The fluorescence intensity of UCNPs was weakened by GO, and the florescent recovery of UCNPs is associated with IMI concentration through the competitive mechanism. This sensor showed a wide range of 0.08–50 ng/mL for IMI in the presence of other interferences. Li et al. [91] proposed a fluorescence-based immunoassay (FIA) for IMI, in which multiple strategies were involved (Figure 6b). In details, firstly, gold nanoclusters (AuNCs) were loaded on cobalt oxyhydroxide (CoOOH) nanoflakes by electrostatic interaction, in which the fluorescence intensity of AuNCs was suppressed by CoOOH by FRET. Secondly, the fluorescence of AuNCs recovered due to the decomposition of CoOOH nanoflakes triggered by ascorbic acid (AA), which was produced through enzyme-induced L-ascorbic acid-2-phosphate (AAP) hydrolysis. Clearly, the fluorescence response of AuNCs was related to the ALP activity labeled on the antibody. Thirdly, in the presence of IMI, the amount of labeled ALP decreased due to competitive immunoreaction, resulting in a decrease in the fluorescence intensity of AuNCs. The fluorescence change of AuNCs was related to the concentration of IMI, so the quantitative detection of IMI could be realized (Figure 6c,d). This FIA protocol was 60 times more sensitive than that of a conventional enzyme-linked immunosorbent assay (ELISA), and a low LOD of 1.3 ng mL−1 was obtained.

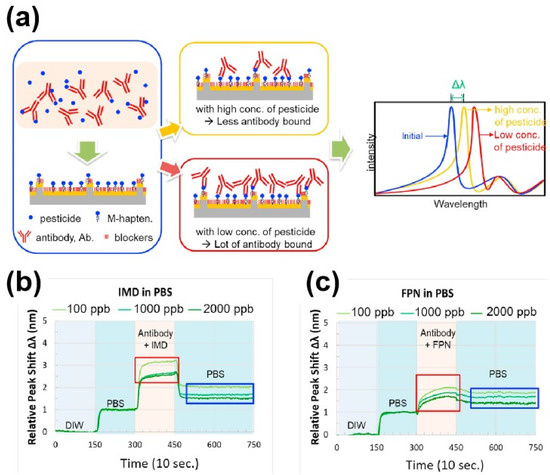

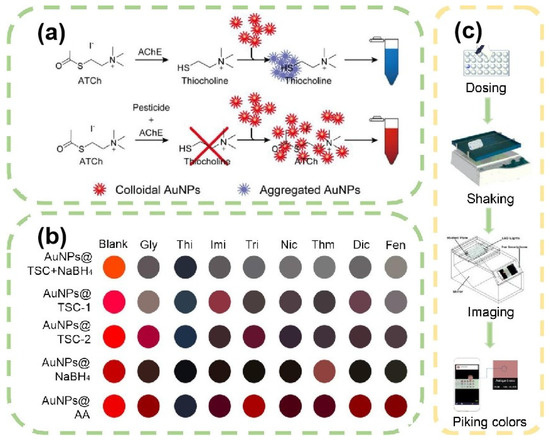

3.3.2. Colorimetric and Surface Plasmon Resonance (SPR) Sensors

A colorimetric sensor has the merits of visualization, simplicity, low cost, and being a powerful tool for high-throughput analysis. In recent years, various noble metal nanoparticles, such as AuNPs and AgNPs, have been applied for the construction of colorimetric sensors owing to their strong localized surface plasmon resonance (LSPR) effect. Further, plasmonic colorimetric sensors based on metal nanoparticles have been applied to detect various analytes, including metal ions, pesticides, proteins, DNA, pathogens, and so on [92,93,94,95,96]. For example, Tian et al. [97] developed a colorimetric sensor for IMI based on the induced-aggregation property of prperidine-calix [4] arene modified AuNPs (PPC-AuNPs), and this sensor could detect IMI with high sensitivity and a LOD of 0.25 μM. Zhao et al. [98] proposed colorimetric sensors for different pesticides based on their inhibition of acetylcholinesterase (AChE) using diverse AuNPs (Figure 7a), and this method could successfully distinguish eight pesticides by linear discriminant analysis (LDA) (Figure 7b). More importantly, a portable device was constructed by combing this method with a smartphone (Figure 7c). Wang et al. [99] designed a label-free SPR sensing platform with a multichannel spectral imaging system, which enabled high-throughput quantified detection of IMI and fipronil (Figure 8). More importantly, this custom-made integrated system could allow on-site detection, which was an improvement over chromatographic methods.

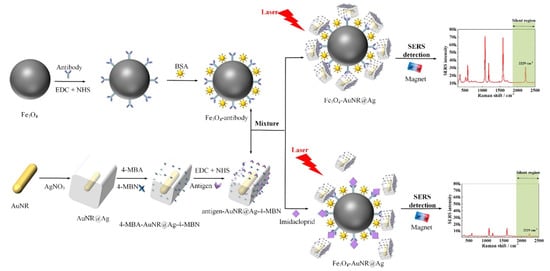

3.3.3. Surface-Enhanced Raman Spectroscopy

The Surface Enhance Raman Scattering (SERS) technique has received much attention in the field of analysis due to its non-invasive and unique fingerprint characteristics. In particular, the Raman signal can be enhanced with the use of nanomaterials with plasmonic properties, greatly improving the sensitivity of detection. For example, the O’Riordan group [100] proposed a SERS sensor for two neonicotinoids, including clothianidin and IMI, using Ag nanoparticles coated Polyvinylidene fluoride (PVDF) substrates. The developed SERS can sense 1 ng/mL IMI with a LOD of 4 nM. More importantly, in this work, the authors provide the detailed vibrational characteristics of IMI in combination with first-principle simulations. Sun et al. [101] developed a SERS sensor for IMI with a competitive immune strategy (Figure 9). In this work, a Raman tag containing C≡N (1800–2800 cm−1) bond was anchored on an AuNR@Ag nanocuboid to resist the optical interference from the fingerprint region (<1800 cm−1) and an antibody was used to specifically identify IMI. In addition, the Fe3O4 nanoparticles were used to achieve magnetic separation and improve the SERS intensity. This SERS immunosensor can detect IMI at 10–40 nM with high selectivity. Sheng et al. [24] developed a SERS-based lateral flow assay (SERS-LFA) test strip for detection of IMI, chlorothalonil (CHL), and oxyfluorfen (OXY) simultaneously with a competitive immune strategy. In this work, the prepared silver-core, gold-shell (Ag@Au) nanoprobe was used to fix the SERS signal molecule 4-nitrothiophenol (4-NTP), connect antibodies, and enhance the SERS signal. This SERS-LFA test strip gains reliable results with rapid response, high sensitivity, low LOD, and low cost. The detection sensitivity was closely related to the type of SERS base materials.
Table
Table 4. Analytical performance of IMI detection based on optical methods.
Table 4. Analytical performance of IMI detection based on optical methods.
MethodsMaterialsLinear RangeLODReference
colorimetryPPC-Au NPs 10.05–1000 μM5.0 μM[97]
colorimetryI-IL-Au NPs 2Not given0.5 μM[102]
SPR immunoassayNanoplasmonic chipsNot given11.103 ppb[99]
SPR immunoassayplasmonic biochip Not given0.2 ng mL−1[103]
fluorescenceCoOOH-AuNCs0.1 ng mL−1 –50 ng mL−10.1 ng mL−1[91]
fluorescencecolloidal gold0.028 ng mL−1–0.5 ng mL−10.01 ng mL−1[90]
fluorescenceGO-UCNPs 30.08 ng mL−1–50 ng mL−10.08 ng mL−1[12]
SERS immunosensorFe3O4-AuNR@Ag10–400 nM9.58 nM[101]
LSPR immunosensorY-shaped gold NPsNot given1.0 ng mL−1[104]
ratiometric fluorescenceMIFP-SiCQDs@CdTe QDs 45 ng mL−1–0.5 μg mL−13.55 ng mL−1[105]
1 PPC-Au NPs: piperidine-calix [4] arene modified gold nanoparticles; 2 I-IL-Au NPs: onimidazole ionic liquid (IL) modified gold nanoparticles; 3 GO-UCNPs: graphene oxide (GO) and up-converting nanoparticles (UCNPs); 4 MIFP-SiCQDs@CdTe QDs: molecularly imprinted multilevel mesoporous silica.

4. Conclusions and Outlook

This review summarized the impressive recent works on sensors for IMI using various nanomaterials, and the functions of nanomaterials in different analytical techniques (chromatographic, electrochemical, and optical) were described. From the comprehensive analysis results displayed in Table 1, Table 2 and Table 3, it can be seen that nanomaterials play significant roles in designing novel sensors, and the analytical performance of sensors is greatly improved with the incorporation of nanomaterials. For sample preparation, various pretreatment methods have been designed to remove matrix interference and pre-enrich the targets based on functional nanomaterials. Subsequently, multiple chromatographic techniques were used for the accurate detection of IMI and its metabolites. In electrochemical and optical methods, nanomaterials are mainly used for immobilizing specific molecules and amplifying signals. Moreover, the selective detection of IMI has been realized with the help of MIP and biometric molecules.
Although researchers have developed a variety of highly sensitive sensors for IMI detection, these sensing systems still face several problems and challenges. Hence, we suggest that further research perspectives in this field be taken into account: (1) decrease the testing cost of sensors; (2) continuous real-time monitoring of IMI during crop growth; (3) portable microdevices for field detection; (4) long-term stability of sensors in complex real samples. By considering the abovementioned problems, the development of various sensors should be combined with other advanced technologies, such as the microfluidic technique, to give full play to the advantages of portability and miniaturization of microfluidic devices. On the other hand, antifouling sensing platforms need to be established to maintain their stability on complex substrates.

Author Contributions

Writing—original draft preparation, S.C., Y.W. and X.L.; writing—review and editing, L.D.; supervision, L.D.; funding acquisition, L.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (51802118) and the Natural Science Foundation of Shandong Province (2018GSF118166).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
