Early-Onset Glaucoma in egl1 Mice Homozygous for Pitx2 Mutation

by
Bindu Kodati
1,†,
Shawn A. Merchant
2,†,
J. Cameron Millar
1 and
Yang Liu
1,*
1
North Texas Eye Research Institute, Department of Pharmacology and Neuroscience, University of North Texas Health Science Center, Fort Worth, TX 76107, USA
2
Department of Psychology and Neuroscience, Baylor University, Waco, TX 76798, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biomedicines 2022, 10(3), 516; https://doi.org/10.3390/biomedicines10030516
Submission received: 12 January 2022 / Revised: 18 February 2022 / Accepted: 19 February 2022 / Published: 22 February 2022
(This article belongs to the Special Issue Animal Models of Human Pathology: Revision, Relevance and Refinements)
Browse Figures
Versions Notes

Abstract

:
Mutations in PITX2 cause Axenfeld–Rieger syndrome, with congenital glaucoma as an ocular feature. The egl1 mouse strain carries a chemically induced Pitx2 mutation and develops early-onset glaucoma. In this study, we characterized the glaucomatous features in egl1 mice. The eyes of egl1 and C57BL/6J control mice were assessed by slit lamp examination, total aqueous humor outflow facility, intraocular pressure (IOP) measurement, pattern electroretinography (PERG) recording, and histologic and immunohistochemistry assessment beginning at 3 weeks and up to 12 months of age. The egl1 mice developed elevated IOP as early as 4 weeks old. The IOP elevation was variable and asymmetric within and between the animals. The aqueous humor outflow facility was significantly reduced in 12-month-old animals. PERG detected a decreased response at 2 weeks after the development of IOP elevation. Retinal ganglion cell (RGC) loss was detected after 8 weeks of IOP elevation. Slit lamp and histologic evaluation revealed corneal opacity, iridocorneal adhesions (anterior synechiae), and ciliary body atrophy in egl1 mice. Immunohistochemistry assessment demonstrated glial cell activation and RGC axonal injury in response to IOP elevation. These results show that the eyes of egl1 mice exhibit anterior segment dysgenesis and early-onset glaucoma. The egl1 mouse strain may represent a useful model for the study of congenital glaucoma.
Keywords:
glaucoma; Pitx2; mouse model

1. Introduction

Glaucoma is a multifactorial optic neuropathy characterized by retinal ganglion cell (RGC) loss, which accompanies optic nerve axonal injury. The disease leads to irreversible blindness if left untreated. Elevated intraocular pressure (IOP) is a major risk factor for glaucoma development and progression [1]. Congenital glaucoma, a major cause of childhood blindness, is a severe form of glaucoma that occurs in children from birth to the age of 3 years (infantile glaucoma) or after 3 years of age (juvenile glaucoma). According to the American Academy of Ophthalmology, congenital glaucoma is diagnosed only in 25% of babies who manifest the condition at birth and may occur in as many as 1 in 10,000 live births [2,3]. The increase in IOP in congenital glaucoma is due to developmental abnormalities in the anterior chamber angle, including trabeculodysgenesis, which leads to increased aqueous humor outflow resistance and thus elevated IOP [4,5]. Despite extensive research on congenital glaucoma, the molecular and cellular pathological events that occur are still unclear.
Genetic studies have been conducted to identify genes associated with congenital glaucoma. Research has shown that mutations in certain genes, such as PITX2, FOXC1, PAX6, and CYP1B1, are associated with congenital glaucoma [6,7,8,9,10,11]. Among these genes, extensive work has been carried out to identify the functions of PITX2. PITX2 is involved in the Nodal/Sonic Hedgehog pathway, which determines the polarity and asymmetrical expression during the early development of the mesoderm derived organs as well as the eye, tooth, and umbilicus [12,13,14]. PITX2 produces three isoforms (PITX2a, PITX2b, and PITX2c), which consist of similar bicoid-like homeodomain 2 (HD) transcription factors that play an important role in fetal and embryonic development. Missense mutations, or heterozygous defects of the PITX2 gene in the HD region, cause DNA binding impairment, thereby altering the transactivation of transcription factors, which can lead to ocular deficits by gain or loss of function [15,16,17]. The expression of PITX2 is higher in the anterior segment than in either the retina or the sclera during the first 9.5 weeks of intrauterine development. PITX2 expression is further increased in the iridocorneal complex during week 18 [18]. Intragenic deletions and decreased mRNA expression of PITX2 have been observed in patients with Axenfeld–Rieger syndrome affected by advanced glaucoma [7,19,20]. Using transcription activator-like effector nuclease (TALEN)-mediated genome editing, studies on the zebrafish for the generation of pitx2−/− lines have also revealed the importance of pitx2 in ocular development. Transcriptome studies have identified the molecular changes associated with disease pathology [21]. Similarly, other studies on zebrafish and mouse models have also shown that, as in Axenfeld–Rieger syndrome, Pitx2 mutations can lead to abnormalities in the development of the anterior segment of the eye as well as protuberant umbilicus, dental hypoplasia, and facial dysmorphism [22,23,24].
Certain mouse strains develop spontaneous glaucoma at a young age. These strains are valuable tools for studying the mechanisms of early-onset glaucoma in humans. A recent study described that mice heterozygous for the Pitx2 deletion (Pitx2+/−) modeled the major ocular features of Axenfeld–Rieger syndrome and associated glaucoma [25]. In addition, a mouse strain homozygous for the Pitx2 mutation named the egl1 strain has been established in an N-ethyl-N-nitrosourea chemical mutagenesis screening program [26,27]. On the basis of the whole-exome sequencing results of the egl1 strain, Pitx2 p.R115L knock-in mice were further generated using CRISPR/Cas9 technology and characterized for a glaucomatous phenotype [26]. The establishment of these models provides a powerful tool to explore mechanisms of glaucoma pathogenesis. Each mouse strain is unique in its development, genotype, and genetic background. The egl1 mouse strain is commercially available as an early-onset glaucoma mouse model. However, the characterization of this strain has yet to be completed.
In this study, we further characterized the glaucomatous phenotype in the egl1 mouse strain. We assessed the anterior segment morphology, aqueous humor outflow facility, IOP elevation, and RGC and optic nerve head degeneration. Our study provides insightful information for using the egl1 mouse strain as an early-onset glaucoma model.

2. Materials and Methods

2.1. Animals

C57BL/6J and C57BL/6J-Pitx2egl1/Boc (egl1 mutant) mice were obtained from the Jackson Laboratory (Bar Harbor, ME, USA). All animal experiments were performed in accordance with the National Institutes of Health guide for the care and use of laboratory animals and were approved by the Institutional Animal Care and Use Committee of the University of North Texas Health Science Center (IACUC 2020-0023). Mice (both sexes) aged 3 weeks to 12 months were examined. Thirteen C57BL/6J mice (7 females and 6 males) and 60 egl1 mice (33 females and 27 males) were randomized into the study, and data were obtained from 26 and 116 eyes from C57BL/6J and egl1 mutant mice, respectively. Exclusion criteria included fluid leaking during aqueous humor outflow facility measurement and central corneal opacity affecting pattern electroretinography recording. Each individual eye was considered the experimental unit in this study. Each experiment includes similar numbers of female and male mice.
All animals were housed in individually ventilated cages (IVCs, polysulfone material with 500 cm2 floor space) (Allentown, Allentown, NJ, USA) at a temperature of 21 to 24 °C and humidity of 40–45%. Lights were turned on at 0630 h, and a 12 h light/12 h dark cycle was maintained. Same-sex littermates were housed together at the maximum density of 5 mice per cage. As bedding, a 1/8-inch corn cob (The Andersons, Maumee, OH, USA) was provided. Shredded paper and enrichment rectangles were used as nesting and enrichment (The Andersons). Mice were fed an irradiated mouse diet (5LG4, LabDiet, St. Louis, MO, USA) and provided reverse osmosis filtered drinking water ad libitum. All materials, including IVCs, lids, feeders, bedding, nesting, and enrichment, were autoclaved before use. Sentinel mice were negative for at least all Federation of Laboratory Animal Science Associations (FELASA)-relevant murine infectious agents, as monitored by the Department of Laboratory Animal Medicine on campus.

2.2. Intraocular Pressure Measurement

Intraocular pressure (IOP) was measured non-invasively using the TonoLab impact tonometer (Colonial Medical Supply, Franconia, NH, USA) as described previously [28,29]. Briefly, mice were placed in a soft plastic cone (Braintree Scientific, Inc., Braintree, MA, USA) and gently restrained in a plastic mouse restrainer (Colonial Medical Supply, Londonderry, NH, USA). IOP was measured after mice were acclimated. All measurements were performed during the same 3 h time window (1–4 pm) during the lights-on phase of the day; the average of 4–6 measurements was used as the IOP value. IOP was measured twice a week until pressure elevation was detected, and once a week thereafter. Total IOP exposure for each individual eye was determined by the determination of the area under the IOP–time curve (AUC). Six C57BL/6J and twenty-two egl1 mice were included in this experiment, and IOP was monitored at age 3 through 8 weeks old.

2.3. Slit Lamp Examination

Anterior segments of mouse eyes were examined with a slit lamp (SL-D7; Topcon, Tokyo, Japan), and images were taken with a digital camera (D100; Nikon, Tokyo, Japan). Slit lamp examinations were performed on conscious animals. Six C57BL/6J and twenty-two egl1 mice were examined longitudinally at age 4 weeks to 12 months.

2.4. Anterior Segment Histologic Examination

For histologic examination, animals were euthanized by exposure to 10% to 30% cage volume/min carbon dioxide. After death was confirmed, eyes were enucleated and fixed in 10% neutral formalin (Electron Microscopy Sciences, Hatfield, PA, USA) overnight. Eyes were then dehydrated with ethanol and xylene and embedded in paraffin. Sagittal sections (5 µm) were prepared, mounted on glass microscope slides, and stained with hematoxylin and eosin (H&E) for structural evaluation. Three C57BL/6J and six egl1 mice were examined before and 4 weeks after intraocular pressure elevation.

2.5. Immunofluorescent Staining

For immunofluorescent staining, eyes were fixed in 4% paraformaldehyde (Electron Microscopy Sciences) in phosphate-buffered saline (PBS) for 2 h at 4 °C and cryo-preserved after 10%, 20%, and 30% sucrose (Thermo Scientific, Rockford, IL, USA) sequential cryo-protection. Cryosections of mouse eyes were blocked with PBS-based SuperBlock (Thermo Scientific) for 2 h at room temperature (RT) and incubated overnight at 4 °C with primary antibodies against glial fibrillary acidic protein (GFAP, 1:500 dilution; Cell Signaling #3670, Danvers, CA, USA) [30], ionized calcium-binding adaptor 1 (Iba-1, 1:500 dilution, Fujifilm Cellular Dynamics 019-19741, Madison, WI, USA) [31], or neurofilament H (NF-H, 1:1000 dilution, Abcam ab8135, Waltham, MA, USA) [32]. After 3 rinses in PBS, sections were further incubated with Alexa488 or TRITC conjugated secondary antibodies (Life Technologies, Carlsbad, CA, USA) against rabbit (for Iba-1 and NF-H) or mouse (for GFAP) IgGs for 1 h at RT. The sections were rinsed again and mounted in ProLong Gold anti-fade reagent with DAPI (Thermo Scientific). Non-primary control staining was performed using PBS instead of primary antibodies. Images were viewed and captured using a Zeiss LSM 510 META confocal microscope. The fluorescence intensity for Iba-1 and GFAP were analyzed using ImageJ software in a masked manner. Two C57BL/6J and seven egl1 mice (2–3 mice per time point) were included in this experiment.

2.6. Aqueous Humor (AH) Outflow Facility Measurement

The egl1 mice at ages 8 weeks and 1 year were used for aqueous humor outflow facility measurement, which was performed using a constant flow infusion method established previously [33,34,35,36]. In brief, mice were anesthetized by an intraperitoneal injection of a cocktail of ketamine/xylazine (100/10 mg/kg, respectively; maintenance: 1/2 × to 1/4 × induction dose). One drop of 0.5% proparacaine HCl was applied for corneal anesthesia (Alcaine, Alcon, Fort Worth, TX, USA). The anterior chamber of each eye was cannulated with a 32-gauge needle attached to tubing connected to a pressure transducer (BLPR2; World Precision Instruments (WPI), Sarasota, FL, USA) and a glass microsyringe (Hamilton Company, Reno, NV, USA) filled with sterile PBS and loaded onto a microdialysis infusion pump (SP101i; WPI). The eyes were infused at a flow rate of 0.1 µL/min initially for approximately 30 min to stabilize the pressure registered by the pressure transducer. On pressure stabilization, 3 pressure readings, spaced 5 min apart, were obtained over the following 10 min period. The flow rate was then increased to 0.2 µL/min, and following 5 min for stabilization, 3 pressure readings were obtained in a similar manner. The process was then repeated at flow rates of 0.3, 0.4, and 0.5 µL/min. Mean stabilized pressure flow rate curves were generated for each eye and fit using simple linear regression. The total aqueous humor outflow facility was calculated as the reciprocal of the slope of each respective curve. All measurements were conducted in a single masked manner. Seven egl1 mice (3 aged 2 months and 4 aged 12 months) were assessed.

2.7. Retinal Ganglion Cell Function Assessment

Pattern electroretinography (PERG) was performed in 6 egl1 mice using the JORVEC System (Intelligent Hearing Systems, Miami, FL, USA) as described previously [37]. The egl1 mice with severe corneal opacity that blocked central cornea were excluded from the PERG study. Briefly, mice were anesthetized with intraperitoneal injections of a mixture of ketamine and xylazine (100 and 10 mg/kg, respectively). The PERG responses were recorded from a stainless-steel needle (Grass, West Warwick, RI, USA) placed in the snout subcutaneously. Pattern stimuli consisting of contrast-reversing gratings with a spatial frequency of 0.05 cycles/deg and maximum contrast were displayed on two custom-made tablets. The contrast reversal frequency was 1 Hz. A total of 2232 responses were averaged. The amplitude was measured from the positive peak to the negative trough, and the latency was the time to the peak of the response.

2.8. Retinal Ganglion Cell Quantification

Quantification of retinal ganglion cells (RGCs) was performed using immunostained retinal whole mounts [38]. Briefly, mice (5 C57BL/6J and 21 egl1 mice) were euthanized by exposure to 100% CO2(g). Following the cessation of breathing and heartbeat, eyes were enucleated and fixed in 4% paraformaldehyde (Electron Microscopy Sciences) for 2 h at 4 °C. Retinas were dissected from fixed eyes and blocked with 0.3% Triton X-100 in PBS containing 2% goat serum for 2 h. Retinas were incubated in rabbit polyclonal RBPMS antibody (1:200, diluted in 0.3% Triton X-100 in PBS, GeneTex GTX118619, Irvine, CA, USA) [39] overnight at 4 °C. Following washes in PBS, retinas were further incubated in AlexaFluor596 goat-anti-rabbit (1:1000, diluted in 0.1% Triton X-100 in PBS) overnight at 4 °C. After washes with PBS, the retinas were cut into four quadrants and mounted on glass slides (Fischer Scientific, Pittsburgh, PA, USA). Eight images were taken from the peripheral and mid-peripheral regions in four quadrants of each retina. The number of cells from each image (0.0867 mm2 retina area) was counted using Adobe Photoshop software V22.2 (Adobe Systems, Inc., San Jose, CA, USA). The average of all counts from each retina was used as the number of RGCs presented in each eye. Cell counts were performed in a masked manner.

2.9. Statistical Analysis

One-way ANOVA followed by a Tukey post hoc test was performed to analyze intragroup differences. The unpaired Student’s t-test was used for the comparison of differences between the two groups. The correlation between RGC counts and IOP exposure was assessed by Pearson’s correlation coefficient. Data are presented as means ± SEM, and p < 0.05 was considered statistically significant.

3. Results

3.1. Anterior Segment Morphology in egl1 Mice

We performed slit lamp examination on C57/BL/6J (Figure 1A) and egl1 mice (Figure 1B–I) aged 4 weeks to 12 months. The egl1 mice developed anterior segment abnormalities of various types and severities (Figure 1C–I). Approximately 60% of eyes showed localized faint opacity in the paracentral zone of the cornea (Figure 1C). The onset of the corneal lesion was as early as 4 weeks old and appeared independent of mechanical stimulation. Some corneas of aged egl1 mice remained clear, despite repeated IOP measurements (Figure 1B), similar to those of C57BL/6J wildtype animals (Figure 1A). The corneal lesion progressed to dense corneal opacity with neovascularization in some animals as they aged (Figure 1D,E). In a few animals aged 12 months, we observed the diffuse opacity covering the entire cornea (Figure 1F).
The egl1 mice also developed iris defects including anterior synechiae (Figure 1G–I), atrophy (Figure 1D), and pupil deviation (Figure 1E). We further examined the anterior segment histology of 8-week-old young adult mice. In the egl1 mice with normal IOP, the iridocorneal angle remained open, and the ciliary body appeared normal (Figure 1K) compared to C57BL/6J wildtype mice (Figure 1J). In eyes with elevated IOP (Figure 1L), there were anterior synechiae and ciliary body atrophy. Despite the ocular abnormalities, egl1 animals appeared similar in body size and coat color compared to C57BL/6J mice.

3.2. IOP Elevation in egl1 Mice

The egl1 mice were maintained on the C57BL/6J background; thus, C57BL/6J mice were used as control animals in this analysis. We monitored the conscious IOP longitudinally in a cohort of 22 egl1 mice and 6 C57BL/6J mice using the TonoLab tonometer (Figure 2A–C). At 3 weeks of age, egl1 mice exhibited an IOP of 15.9 ± 0.5 mmHg (mean ± SEM; n = 44) which was similar to age-matched C57BL/6J control mice (14.0 ± 1.3 mmHg; mean ± SEM; n = 12). A significant elevation of IOP was observed in egl1 mice as early as 4 weeks old and remain elevated at all ages examined. The IOP values were 19.2 ± 0.6, 21.7 ± 0.8, and 21.4 ± 0.8 mmHg (mean ± SEM; n = 44) at 4, 6, and 8 weeks of age, respectively, as shown in Figure 2D. The IOP values remained unchanged in C57BL/6J mice, which were 15.1 ± 0.8, 14.8 ± 1.0, and 15.7 ± 0.9 mmHg (mean ± SEM; n = 12) at 4, 6 and 8 weeks of age, respectively.
The IOP elevation in egl1 mice was variable and asymmetric. By age 8 weeks, 55% of mice examined exhibited IOPs under 20 mmHg (Figure 2E). The elevated IOP values also demonstrated a wide range in mice of the same age. Some mice had IOPs greater than 35 mmHg at all time points examined. Furthermore, individual animals showed dramatic asymmetry in IOPs, which differed by more than 15 mmHg.

3.3. Aqueous Humor Outflow Facility in egl1 Mice

The AH circulation plays a key role in IOP regulation. We measured total aqueous humor outflow facility in young (2 months) and aged (1 year) egl1 mice. The outflow facility in young animals was 30.25 ± 1.34 nL/min/mmHg (mean ± SEM; n = 5); The aged animals demonstrated significantly reduced outflow facility (17.07 ± 1.44 nL/min/mmHg, mean ± SEM; n = 7, p < 0.001), indicating a significantly higher outflow resistance in the aged animals (Figure 3A). The outflow facility and IOP measurement showed a trend of negative correlation, but this did not achieve statistical significance (Figure 3B).

3.4. RGC Death in egl1 Mice

The degeneration of RGCs is a key feature of glaucoma. We quantified the RGC loss in response to IOP elevation in egl1 mice to assess the glaucomatous neurodegeneration. The egl1 mice with normal IOPs showed similar numbers of RGCs (263 ± 6/0.0867 mm2; mean ± SEM; n = 17) in the retina, compared to C57BL/6J control mice (270 ± 8/0.0867 mm2; mean ± SEM; n = 10). As expected, prolonged exposure to high IOP induced RGC loss in egl1 mice. RGC numbers (217 ± 14/0.0867 mm2; mean ± SEM; n = 14) were significantly decreased in mice with 8 weeks of IOP elevation (Figure 4A,B).
To determine the correlation between RGC death and IOP elevation, we further plotted the RGC numbers against IOP exposure calculated as the area under the IOP–time curve. The RGC counts showed a moderate negative correlation (R square: 0.43, p < 0.001) with IOP exposure (Figure 4C).

3.5. RGC Functional Loss in egl1 Mice

To further examine glaucomatous neurodegeneration in egl1 animals, we performed PERG recording in mice with normal and elevated IOP. The egl1 animals demonstrated a normal PERG waveform with a positive peak elicited at 89.6 ± 2.4 ms, followed by a negative trough (Figure 5A). The PERG amplitude in the egl1 mice with normal IOP was 23.0 ± 3.2 µV (mean ± SEM; n = 5). After 2 weeks of IOP elevation, there was a significant decrease in PERG amplitude (9.2 ± 1.3 µV) (Figure 5B) as well as an increase in latency (155.7 ± 21.6 ms, mean ± SEM; n = 6), which indicates damaged RGC function (Figure 5C).

3.6. Glaucomatous ONH Changes in egl1 Mice

Elevated IOP induces glial activation in the ONH and optic nerve axonal degeneration, hallmarks of glaucomatous optic neuropathy. To evaluate these phenotypes in egl1 mice, we collected eyes from C57BL/6J and egl1 mice before and 2 and 8 weeks after IOP elevation and performed immunofluorescence staining using specific antibodies against glial fibrillary acidic protein (GFAP), ionized calcium-binding adaptor molecule 1 (Iba-1), and neurofilament (NF) (Figure 6). Eyes of C57BL/6J and egl1 mice with normal pressure exhibited similar expression levels and patterns of GFAP, Iba-1, and NF. Elevated IOP increased expression levels of GFAP and Iba-1, which peaked at 2 weeks, indicating astrocyte activation and microglia infiltration in the ONH in response to glaucomatous insult. Quantification of GFAP and Iba-1 fluorescence intensity showed a trend of increase at 2 weeks after IOP elevation without statistical significance (n = 3–6). The pattern of neurofilaments became disorganized after 2 weeks of IOP elevation. Eyes with extended pressure elevation further exhibited disruption of neurofilaments, suggesting optic nerve axonal damage in the egl1 mice.

4. Discussion

The present study characterized the glaucoma phenotype in a mouse strain carrying a missense mutation of Pitx2 named the egl1 mutation. The egl1 mutant mice developed glaucoma with a significant variation in the age of onset and phenotypic severity within and between animals. The mice with ocular hypertension demonstrated glaucomatous retinopathy and optic nerve neuropathy.
As a powerful tool, mouse models carrying the Pitx2 mutation or deletion have been developed to investigate the functions of PITX2 and the pathogenesis of glaucoma. The egl1 mice have a chemically induced Pitx2 mutation and develop early-onset glaucoma. The mouse strain is homozygous for the egl1 mutation, which was mapped to chromosome 3. High-throughput sequencing further identified the mutation as a single G to T transversion in Pitx2 exon 2, changing amino acid 115 from arginine to leucine [26,27]. In humans, PITX2 has been identified as a glaucoma-causing gene. Mutations in PITX2 are associated with Axenfeld–Rieger syndrome, which involves ocular malformations leading to congenital and childhood glaucoma in more than 50% of the affected patients [40]. Similarly, we found that the egl1 mouse strain developed anterior segment abnormalities, and by the age of 6 weeks, approximately 50% of the animals developed early-onset glaucoma despite having an identical genotype and genetic background. Gender difference in the risk for glaucoma and glaucoma blindness has been well documented [41,42]. In the egl1 mice, ocular hypertension developed in male and female mice at a similar percentage. Larger-scale studies are needed to reveal potential sex-associated differences in glaucoma development and severity in egl1 animals. The IOP elevation in egl1 animals exhibited significant variation and asymmetry. The onset of ocular hypertension was as early as 3 weeks old, and IOP was elevated to a maximum of 20 to 37 mmHg. Individual animals exhibited significant ocular hypertension in one eye and normal IOP in another. The variation and asymmetry in the development of ocular hypertension may require larger animal cohorts in the research design to ensure a sufficient sample size for statistical analysis. On the other hand, the wide range of IOP values offers a spectrum of disease severity and eyes with normal tension, providing an ideal strain-matched control.
Through our longitudinal IOP measurements, we also found that the IOP elevation in the egl1 mice demonstrated two patterns: sustained mild elevation until the age of 4 months or high elevation followed by normal pressure. Ciliary body atrophy has been described in the Pitx2+/− mice as well as in human chronic cases when left untreated [25]. Similarly, the histologic examination showed ciliary body atrophy in the egl1 mice with prolonged ocular hypertension. The reduction of IOP following a high pressure elevation in the egl1 mice is likely due to ciliary body atrophy. Aqueous humor is produced by the epithelium of the ciliary body and drained primarily through the conventional outflow pathway consisting of the trabecular meshwork (TM), Schlemm’s canal, the scleral collector channels, and aqueous veins, sequentially. It has been recognized that increased aqueous humor outflow resistance is associated with elevated IOP in glaucoma [43,44]. In addition, studies in humans and monkeys have shown that aqueous outflow facility (the reciprocal of aqueous humor outflow resistance) naturally declines with aging, even in healthy eyes [45,46]. Thus, we measured the AH outflow facility in young and aged animals and assessed the correlation between IOP and AH outflow facility. There was a negative trend of correlation between IOP and AH outflow facility, suggesting a role played by declined outflow facility in IOP elevation in the egl1 mice. However, we did not detect a statistically significant correlation between IOP and facility.
Pattern ERG is a well-accepted standard for assessing RGC function. It allows non-invasive and longitudinal evaluation of RGC function. It detects RGC functional loss prior to significant morphological damage [47]. Using PERG, we detected RGC functional loss at 2 weeks after IOP elevation when a significant RGC death was undetectable. The results further demonstrate the glaucomatous phenotype in egl1 animals and support the use of PERG as a sensitive tool to monitor the disease progression in the egl1 mouse strain.
The quantification of RGCs showed a mild correlation between RGC loss and IOP exposure. In addition, outer retinal dysfunction has been reported in egl1 mice. At 3 months of age, there is a decreased rod b-wave and a lower cone response, which indicates a possible outer retinal degeneration [27]. A separate study also showed that the deletion of the Pitx2 gene disrupts the development of the retinal pigment epithelium [23]. It is also possible that outer retinal degeneration may in turn affect RGC health within the inner retina and contribute to the decrease of RGC numbers.
Recent studies have shown that glia play an important role in the pathogenesis of glaucoma [48,49,50,51]. Astrocytes, the major glial cell population in the ONH, are considered the mediators of axonal injury in glaucoma. They respond to mechanical compression due to IOP elevation and undergo a number of cellular changes, such as upregulation of GFAP cytoskeleton and neurotrophic or neuroinflammatory factors [49,52]. Similarly, microglia in the ONH become activated and redistributed, express cytokines and other secreted factors, and exert neuroprotective or neurotoxic effects in glaucomatous eyes [51]. In the egl1 animals, we found upregulated GFAP, and Iba-1 expression also peaked at an early stage of the disease, suggesting the activation of astrocytes and infiltration of microglia following glaucomatous insults. This further validates the glaucoma phenotype in the mutant animals. The results also support the use of egl1 mice as an in vivo model to investigate mechanisms of glial activation in glaucoma.
In summary, this study demonstrates that the egl1 mouse strain exhibits key features of early-onset glaucoma and provides an important tool to study glaucomatous neurodegeneration. Additional studies are needed to further characterize glaucomatous neuropathy in egl1 animals.

Author Contributions

Conceptualization, Y.L.; methodology, B.K., S.A.M., J.C.M. and Y.L.; validation, B.K., S.A.M., J.C.M. and Y.L.; formal analysis, B.K., S.A.M., J.C.M. and Y.L.; investigation, B.K., S.A.M., J.C.M. and Y.L.; resources, J.C.M. and Y.L.; data curation, B.K., S.A.M., J.C.M. and Y.L.; writing—original draft preparation, B.K., S.A.M., J.C.M. and Y.L.; writing—review and editing, B.K., S.A.M., J.C.M. and Y.L.; visualization, B.K., S.A.M., J.C.M. and Y.L.; supervision, Y.L.; project administration, Y.L.; funding acquisition, Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Knights Templar Eye Foundation grant number [2021-7], and the APC was funded by Department of Pharmacology and Neuroscience, University of North Texas Health Science Center.

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Animal Care and Use Committee of the University of North Texas Health Science Center (IACUC 2020-0023; date of approval: 26 May 2020).

Acknowledgments

This work was supported by the Knights Templar Eye Foundation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, D.A.; Higginbotham, E.J. Glaucoma and its treatment: A review. Am. J. Health Pharm. 2005, 62, 691–699. [Google Scholar] [CrossRef] [PubMed]
  2. Papadopoulos, M.; Cable, N.; Rahi, J.; Khaw, P.T. The British Infantile and Childhood Glaucoma (BIG) Eye Study. Investig. Ophthalmol. Vis. Sci. 2007, 48, 4100–4106. [Google Scholar] [CrossRef] [PubMed]
  3. Chan, J.Y.Y.; Choy, B.N.; Ng, A.L.; Shum, J.W. Review on the Management of Primary Congenital Glaucoma. J. Curr. Glaucoma Pr. 2015, 9, 92–99. [Google Scholar] [CrossRef] [PubMed]
  4. Anderson, D.R. The development of the trabecular meshwork and its abnormality in primary infantile glaucoma. Trans. Am. Ophthalmol. Soc. 1981, 79, 458–485. [Google Scholar]
  5. Pilat, A.V.; Proudlock, F.A.; Shah, S.; Sheth, V.; Purohit, R.; Abbot, J.; Gottlob, I. Assessment of the anterior segment of patients with primary congenital glaucoma using handheld optical coherence tomography. Eye 2019, 33, 1232–1239. [Google Scholar] [CrossRef]
  6. Reis, L.M.; Tyler, R.C.; Kloss, B.A.V.; Schilter, K.F.; Levin, A.V.; Lowry, R.B.; Zwijnenburg, P.J.G.; Stroh, E.; Broeckel, U.; Murray, J.C.; et al. PITX2 and FOXC1 spectrum of mutations in ocular syndromes. Eur. J. Hum. Genet. 2012, 20, 1224–1233. [Google Scholar] [CrossRef] [Green Version]
  7. Protas, M.E.; Weh, E.; Footz, T.; Kasberger, J.; Baraban, S.C.; Levin, A.V.; Katz, L.J.; Ritch, R.; Walter, M.A.; Semina, E.V.; et al. Mutations of conserved non-coding elements of PITX2 in patients with ocular dysgenesis and developmental glaucoma. Hum. Mol. Genet. 2017, 26, 3630–3638. [Google Scholar] [CrossRef] [Green Version]
  8. Prosser, J. and V. van Heyningen, PAX6 mutations reviewed. Hum. Mutat. 1998, 11, 93–108. [Google Scholar] [CrossRef]
  9. Riise, R.; Storhaug, K.; Brøndum-Nielsen, K. Rieger syndrome is associated with PAX6 deletion. Acta Ophthalmol. Scand. 2001, 79, 201–203. [Google Scholar] [CrossRef]
  10. Khan, A.O.; Aldahmesh, M.A.; Al-Amri, A. HeterozygousFOXC1Mutation (M161K) Associated with Congenital Glaucoma and Aniridia in an Infant and a Milder Phenotype in Her Mother. Ophthalmic Genet. 2008, 29, 67–71. [Google Scholar] [CrossRef]
  11. Sarfarazi, M.; Stoilov, I. Molecular genetics of primary congenital glaucoma. Eye 2000, 14, 422–428. [Google Scholar] [CrossRef]
  12. Piedra, M.; Icardo, J.M.; Albajar, M.; Rodriguez-Rey, J.C.; Ros, M. Pitx2 Participates in the Late Phase of the Pathway Controlling Left-Right Asymmetry. Cell 1998, 94, 319–324. [Google Scholar] [CrossRef] [Green Version]
  13. Ryan, A.K.; Blumberg, B.; Rodriguez-Esteban, C.; Yonei-Tamura, S.; Tamura, K.; Tsukui, T.; De La Peña, J.; Sabbagh, W.; Greenwald, J.; Choe, S.; et al. Pitx2 determines left–right asymmetry of internal organs in vertebrates. Nature 1998, 394, 545–551. [Google Scholar] [CrossRef] [PubMed]
  14. Hjalt, T.A.; Semina, E.V.; Amendt, B.A.; Murray, J.C. The Pitx2 protein in mouse development. Dev. Dyn. 2000, 218, 195–200. [Google Scholar] [CrossRef]
  15. Holmberg, J.; Liu, C.-Y.; Hjalt, T.A. PITX2 Gain-of-Function in Rieger Syndrome Eye Model. Am. J. Pathol. 2004, 165, 1633–1641. [Google Scholar] [CrossRef] [Green Version]
  16. Footz, T.; Idrees, F.; Acharya, M.; Kozlowski, K.; Walter, M.A. Analysis of Mutations of thePITX2Transcription Factor Found in Patients with Axenfeld-Rieger Syndrome. Investig. Ophthalmol. Vis. Sci. 2009, 50, 2599–2606. [Google Scholar] [CrossRef] [PubMed]
  17. Huang, L.; Meng, Y.; Guo, X. Novel PITX2 Mutations including a Mutation Causing an Unusual Ophthalmic Phenotype of Axenfeld-Rieger Syndrome. J. Ophthalmol. 2019, 2019, 5642126. [Google Scholar] [CrossRef] [Green Version]
  18. Markintantova, I.V.; Firsova, N.V.; Smirnova, I.A.; Panova, I.G.; Sukhikh, G.T.; Zinov’eva, R.D.; Mitashov, V.I. Localization of the PITX2 gene expression in human eye cells in the course of prenatal development. Izv. Akad. Nauk. Ser. Biol. 2008, 2, 139–145. [Google Scholar]
  19. Houssaye, G.D.L.; Bieche, I.; Roche, O.; Vieira, V.; Laurendeau, I.; Arbogast, L.; Zeghidi, H.; Rapp, P.; Halimi, P.; Vidaud, M.; et al. Identification of the first intragenic deletion of the PITX2 gene causing an Axenfeld-Rieger Syndrome: Case report. BMC Med. Genet. 2006, 7, 82. [Google Scholar]
  20. Zhang, L.; Peng, Y.; Ouyang, P.; Liang, Y.; Zeng, H.; Wang, N.; Duan, X.; Shi, J. A novel frameshift mutation in the PITX2 gene in a family with Axenfeld-Rieger syndrome using targeted exome sequencing. BMC Med. Genet. 2019, 20, 105. [Google Scholar] [CrossRef]
  21. E Hendee, K.; A Sorokina, E.; Muheisen, S.S.; Reis, L.M.; Tyler, R.C.; Markovic, V.; Cuturilo, G.; A Link, B.; Semina, E.V. PITX2 deficiency and associated human disease: Insights from the zebrafish model. Hum. Mol. Genet. 2018, 27, 1675–1695. [Google Scholar] [CrossRef] [PubMed]
  22. Lin, C.R.; Kioussi, C.; O’Connell, S.; Briata, P.; Szeto, D.; Liu, F.; Izpisúa-Belmonte, J.C.; Rosenfeld, M.G. Pitx2 regulates lung asymmetry, cardiac positioning and pituitary and tooth morphogenesis. Nature 1999, 401, 279–282. [Google Scholar] [CrossRef] [PubMed]
  23. Evans, A.L.; Gage, P. Expression of the homeobox gene Pitx2 in neural crest is required for optic stalk and ocular anterior segment development. Hum. Mol. Genet. 2005, 14, 3347–3359. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, Y.; Semina, E.V. pitx2 Deficiency Results in Abnormal Ocular and Craniofacial Development in Zebrafish. PLoS ONE 2012, 7, e30896. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Chen, L.; Gage, P. HeterozygousPitx2Null Mice Accurately Recapitulate the Ocular Features of Axenfeld-Rieger Syndrome and Congenital Glaucoma. Investig. Ophthalmol. Vis. Sci. 2016, 57, 5023–5030. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Yang, Y.; Li, X.; Wang, J.; Tan, J.; Fitzmaurice, B.; Nishina, P.M.; Sun, K.; Tian, W.; Liu, W.; Liu, X.; et al. A missense mutation in Pitx2 leads to early-onset glaucoma via NRF2-YAP1 axis. Cell Death Dis. 2021, 12, 1017. [Google Scholar] [CrossRef] [PubMed]
  27. Chang, B.; Wang, J.; FitzMaurice, B.; Nishina, P. A new mouse model of early-onset glaucoma. IOVS 2017, 58, 2125. [Google Scholar]
  28. Daniel, S.; Meyer, K.; Clark, A.; Anderson, M.; McDowell, C. Effect of ocular hypertension on the pattern of retinal ganglion cell subtype loss in a mouse model of early-onset glaucoma. Exp. Eye Res. 2019, 185, 107703. [Google Scholar] [CrossRef]
  29. Wang, W.-H.; Millar, J.C.; Pang, I.-H.; Wax, M.B.; Clark, A.F. Noninvasive Measurement of Rodent Intraocular Pressure with a Rebound Tonometer. Investig. Ophthalmol. Vis. Sci. 2005, 46, 4617–4621. [Google Scholar] [CrossRef] [Green Version]
  30. Murru, S.; Hess, S.; Barth, E.; Almajan, E.R.; Schatton, D.; Hermans, S.; Brodesser, S.; Langer, T.; Kloppenburg, P.; Rugarli, E.I. Astrocyte-specific deletion of the mitochondrial m -AAA protease reveals glial contribution to neurodegeneration. Glia 2019, 67, 1526–1541. [Google Scholar] [CrossRef] [Green Version]
  31. Silverman, S.M.; Ma, W.; Wang, X.; Zhao, L.; Wong, W.T. C3- and CR3-dependent microglial clearance protects photoreceptors in retinitis pigmentosa. J. Exp. Med. 2019, 216, 1925–1943. [Google Scholar] [CrossRef] [Green Version]
  32. Manousi, A.; Göttle, P.; Reiche, L.; Cui, Q.-L.; Healy, L.M.; Akkermann, R.; Gruchot, J.; Schira-Heinen, J.; Antel, J.P.; Hartung, H.-P.; et al. Identification of novel myelin repair drugs by modulation of oligodendroglial differentiation competence. EBioMedicine 2021, 65, 103276. [Google Scholar] [CrossRef] [PubMed]
  33. Shepard, A.R.; Millar, J.C.; Pang, I.-H.; Jacobson, N.; Wang, W.H.; Clark, A.F. Adenoviral gene transfer of active human transforming growth factor-{beta}2 elevates intraocular pressure and reduces outflow facility in rodent eyes. Investig. Ophthalmol. Vis. Sci. 2010, 51, 2067–2076. [Google Scholar] [CrossRef] [Green Version]
  34. Millar, J.C.; Phan, T.N.; Pang, I.-H. Assessment of Aqueous Humor Dynamics in the Rodent by Constant Flow Infusion. Programmed Necrosis 2017, 1695, 109–120. [Google Scholar] [CrossRef]
  35. Millar, J.C.; Clark, A.F.; Pang, I.-H. Assessment of Aqueous Humor Dynamics in the Mouse by a Novel Method of Constant-Flow Infusion. Investig. Ophthalmol. Vis. Sci. 2011, 52, 685–694. [Google Scholar] [CrossRef] [PubMed]
  36. Stankowska, D.L.; Millar, J.C.; Kodati, B.; Behera, S.; Chaphalkar, R.M.; Nguyen, T.; Nguyen, K.T.; Krishnamoorthy, R.R.; Ellis, D.Z.; Acharya, S. Nanoencapsulated hybrid compound SA-2 with long-lasting intraocular pressure–lowering activity in rodent eyes. Mol. Vis. 2021, 27, 37–49. [Google Scholar]
  37. Chou, T.-H.; Bohorquez, J.; Toft-Nielsen, J.; Ozdamar, O.; Porciatti, V. Robust Mouse Pattern Electroretinograms Derived Simultaneously From Each Eye Using a Common Snout Electrode. Investig. Ophthalmol. Vis. Sci. 2014, 55, 2469–2475. [Google Scholar] [CrossRef]
  38. Choudhury, S.; Liu, Y.; Clark, A.F.; Pang, I.-H. Caspase-7: A critical mediator of optic nerve injury-induced retinal ganglion cell death. Mol. Neurodegener. 2015, 10, 40. [Google Scholar] [CrossRef] [Green Version]
  39. Maddineni, P.; Kasetti, R.B.; Patel, P.D.; Millar, J.C.; Kiehlbauch, C.; Clark, A.F.; Zode, G.S. CNS axonal degeneration and transport deficits at the optic nerve head precede structural and functional loss of retinal ganglion cells in a mouse model of glaucoma. Mol. Neurodegener. 2020, 15, 48. [Google Scholar] [CrossRef]
  40. Semina, E.V.; Reiter, R.; Leysens, N.J.; Alward, W.L.M.; Small, K.W.; Datson, N.; Siegel-Bartelt, J.; Bierke-Nelson, D.; Bitoun, P.; Zabel, B.U.; et al. Cloning and characterization of a novel bicoid-related homeobox transcription factor gene, RIEG, involved in Rieger syndrome. Nat. Genet. 1996, 14, 392–399. [Google Scholar] [CrossRef]
  41. Vajaranant, T.S.; Nayak, S.; Wilensky, J.T.; Joslin, C.E. Gender and glaucoma: What we know and what we need to know. Curr. Opin. Ophthalmol. 2010, 21, 91–99. [Google Scholar] [CrossRef] [PubMed]
  42. Gupta, P.; Zhao, D.; Guallar, E.; Ko, F.; Boland, M.; Friedman, D.S. Prevalence of Glaucoma in the United States: The 2005–2008 National Health and Nutrition Examination Survey. Investig. Ophthalmol. Vis. Sci. 2016, 57, 2905–2913. [Google Scholar] [CrossRef] [PubMed]
  43. Stamer, W.D.; Acott, T.S. Current understanding of conventional outflow dysfunction in glaucoma. Curr. Opin. Ophthalmol. 2012, 23, 135–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Johnson, M. ‘What controls aqueous humour outflow resistance? Exp. Eye Res. 2006, 82, 545–557. [Google Scholar] [CrossRef] [Green Version]
  45. Croft, M.A. Aging Effects on Accommodation and Outflow Facility Responses to Pilocarpine in Humans. Arch. Ophthalmol. 1996, 114, 586–592. [Google Scholar] [CrossRef]
  46. Croft, M.A.; Lütjen-Drecoll, E.; Kaufman, P.L. Age-related posterior ciliary muscle restriction—A link between trabecular meshwork and optic nerve head pathophysiology. Exp. Eye Res. 2017, 158, 187–189. [Google Scholar] [CrossRef] [Green Version]
  47. Liu, Y.; McDowell, C.M.; Zhang, Z.; Tebow, H.E.; Wordinger, R.J.; Clark, A.F. Monitoring Retinal Morphologic and Functional Changes in Mice Following Optic Nerve Crush. Investig. Ophthalmol. Vis. Sci. 2014, 55, 3766–3774. [Google Scholar] [CrossRef] [Green Version]
  48. Varela, H.J.; Hernandez, M.R. Astrocyte Responses in Human Optic Nerve Head With Primary Open-Angle Glaucoma. J. Glaucoma 1997, 6, 303–313. [Google Scholar] [CrossRef]
  49. Liddelow, S.A.; Guttenplan, K.A.; Clarke, L.E.; Bennett, F.C.; Bohlen, C.J.; Schirmer, L.; Bennett, M.L.; Münch, A.E.; Chung, W.-S.; Peterson, T.C.; et al. Neurotoxic reactive astrocytes are induced by activated microglia. Nature 2017, 541, 481–487. [Google Scholar] [CrossRef]
  50. Neufeld, A.H. Microglia in the optic nerve head and the region of parapapillary chorioretinal atrophy in glaucoma. Arch. Ophthalmol. 1999, 117, 1050–1056. [Google Scholar] [CrossRef] [Green Version]
  51. Zhao, X.; Sun, R.; Luo, X.; Wang, F.; Sun, X. The Interaction between Microglia and Macroglia in Glaucoma. Front. Neurosci. 2021, 15, 610788. [Google Scholar] [CrossRef] [PubMed]
  52. Morgan, J.E. Optic nerve head structure in glaucoma: Astrocytes as mediators of axonal damage. Eye 2000, 14, 437–444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Biomedicines 10 00516 g001 550
Figure 1. Anterior segment morphology in egl1 mice. (A–I) Representative slit lamp image from C57BL/6J (A) and egl1 mice (B–I). (A) Representative slit lamp image showing clear and avascular cornea and centrally located pupil in uniformly shaped iris. (B) Normal cornea from an egl1 mouse. (C–I) Anterior segment lesions in egl1 mice. The egl1 mice developed a variety of anterior segment lesions (indicated by triangles) such as localized faint opacity in paracentral zone of the cornea (C), dense corneal opacity with neovascularization (D,E), iris thinning (D,E) and pupil deviation (E), diffuse opacity covering the entire cornea (F), and iris synechiae (the iris adhesion to the cornea) (G–I). (H) Enlarged view of area indicated by arrow in (G). (J–L) Representative H&E staining images of cross-section of the ciliary body and iridocorneal angle from C57BL/6J (J), egl1 mouse with normal IOP (K) and after 4 weeks of IOP elevation (L). The iridocorneal angle remained open and ciliary body appeared normal triangular in C57BL/6J and the egl1 mice with normal IOP. Anterior synechiae (the iris attached in the iridocorneal angle) and ciliary body atrophy were seen in eyes with elevated IOP. Scale bar = 50 µm.
Figure 1. Anterior segment morphology in egl1 mice. (A–I) Representative slit lamp image from C57BL/6J (A) and egl1 mice (B–I). (A) Representative slit lamp image showing clear and avascular cornea and centrally located pupil in uniformly shaped iris. (B) Normal cornea from an egl1 mouse. (C–I) Anterior segment lesions in egl1 mice. The egl1 mice developed a variety of anterior segment lesions (indicated by triangles) such as localized faint opacity in paracentral zone of the cornea (C), dense corneal opacity with neovascularization (D,E), iris thinning (D,E) and pupil deviation (E), diffuse opacity covering the entire cornea (F), and iris synechiae (the iris adhesion to the cornea) (G–I). (H) Enlarged view of area indicated by arrow in (G). (J–L) Representative H&E staining images of cross-section of the ciliary body and iridocorneal angle from C57BL/6J (J), egl1 mouse with normal IOP (K) and after 4 weeks of IOP elevation (L). The iridocorneal angle remained open and ciliary body appeared normal triangular in C57BL/6J and the egl1 mice with normal IOP. Anterior synechiae (the iris attached in the iridocorneal angle) and ciliary body atrophy were seen in eyes with elevated IOP. Scale bar = 50 µm.
Biomedicines 10 00516 g001
Biomedicines 10 00516 g002 550

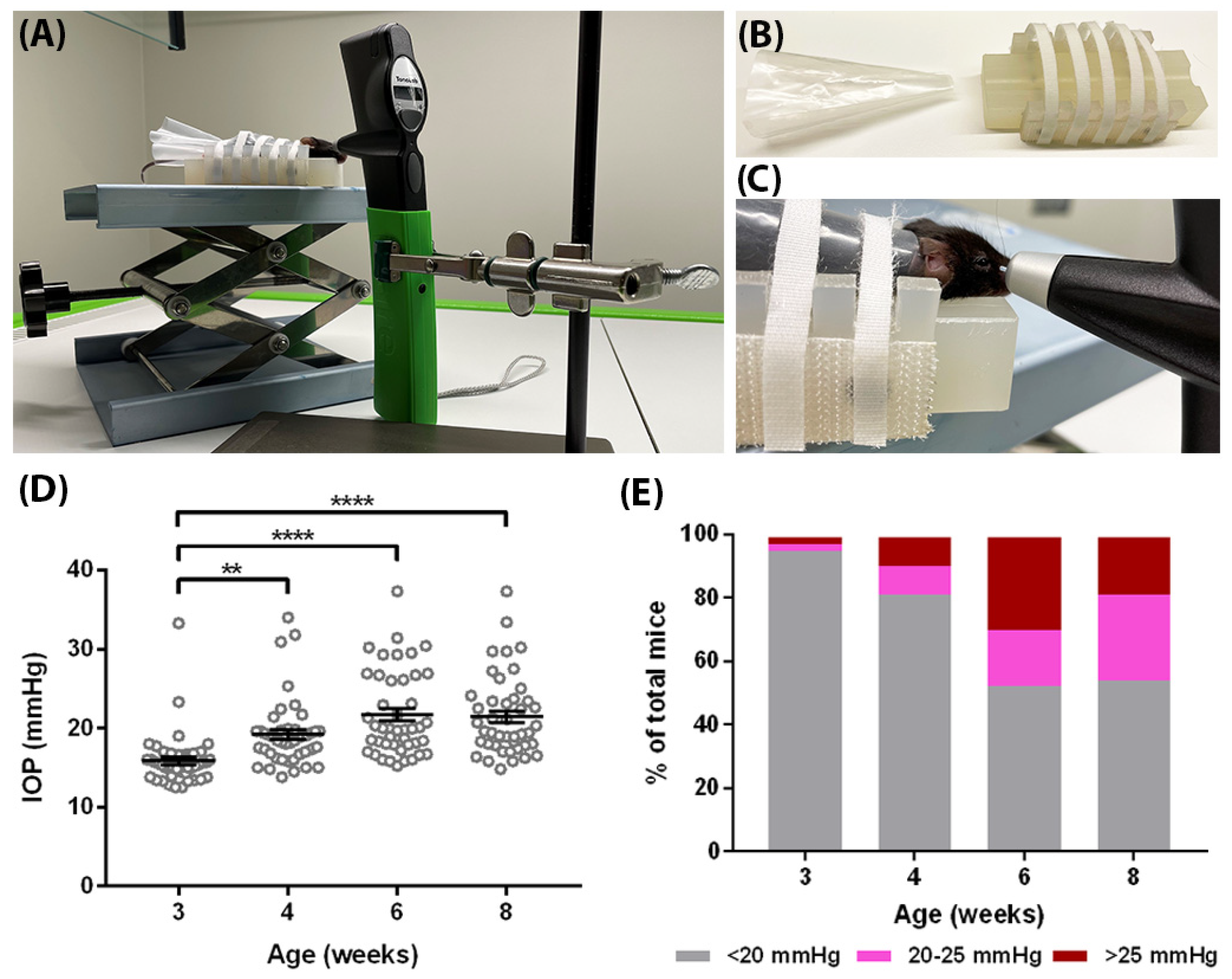

Figure 2. IOP elevation in egl1 mice. (A) Conscious IOP measurement setup. (B) Plastic cone and mouse restrainer for IOP measurement. (C) Close view of conscious IOP measurement. (D) The IOP was monitored in egl1 mice longitudinally. Significant IOP elevation was detected at 4 weeks of age and remained at all ages examined. Data are presented as means ± SEM (n = 44). **: p < 0.01, ****: p < 0.001. (E) The IOP values from each time point were plotted by three ranges, <20 mmHg, 20–25 mmHg, and >25 mmHg. The IOP values demonstrated a wide range in mice of the same age.
Figure 2. IOP elevation in egl1 mice. (A) Conscious IOP measurement setup. (B) Plastic cone and mouse restrainer for IOP measurement. (C) Close view of conscious IOP measurement. (D) The IOP was monitored in egl1 mice longitudinally. Significant IOP elevation was detected at 4 weeks of age and remained at all ages examined. Data are presented as means ± SEM (n = 44). **: p < 0.01, ****: p < 0.001. (E) The IOP values from each time point were plotted by three ranges, <20 mmHg, 20–25 mmHg, and >25 mmHg. The IOP values demonstrated a wide range in mice of the same age.
Biomedicines 10 00516 g002
Biomedicines 10 00516 g003 550

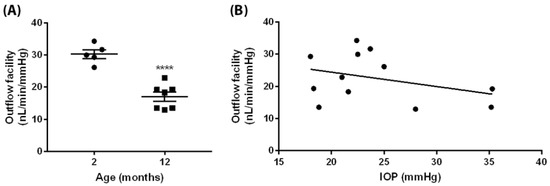

Figure 3. Total aqueous humor outflow facility in young and aged egl1 animals. (A) The aged animals demonstrated significantly lower outflow facility compared to the young animals. Data are presented as means ± SEM (n = 5 and 7 for 2- and 12-months old animals, respectively). ****: p < 0.001. (B) Individual outflow facility was plotted against IOP measurement. The outflow facility and IOP measurement show a trend of negative correlation, but this did not achieve statistical significance.
Figure 3. Total aqueous humor outflow facility in young and aged egl1 animals. (A) The aged animals demonstrated significantly lower outflow facility compared to the young animals. Data are presented as means ± SEM (n = 5 and 7 for 2- and 12-months old animals, respectively). ****: p < 0.001. (B) Individual outflow facility was plotted against IOP measurement. The outflow facility and IOP measurement show a trend of negative correlation, but this did not achieve statistical significance.
Biomedicines 10 00516 g003
Biomedicines 10 00516 g004 550

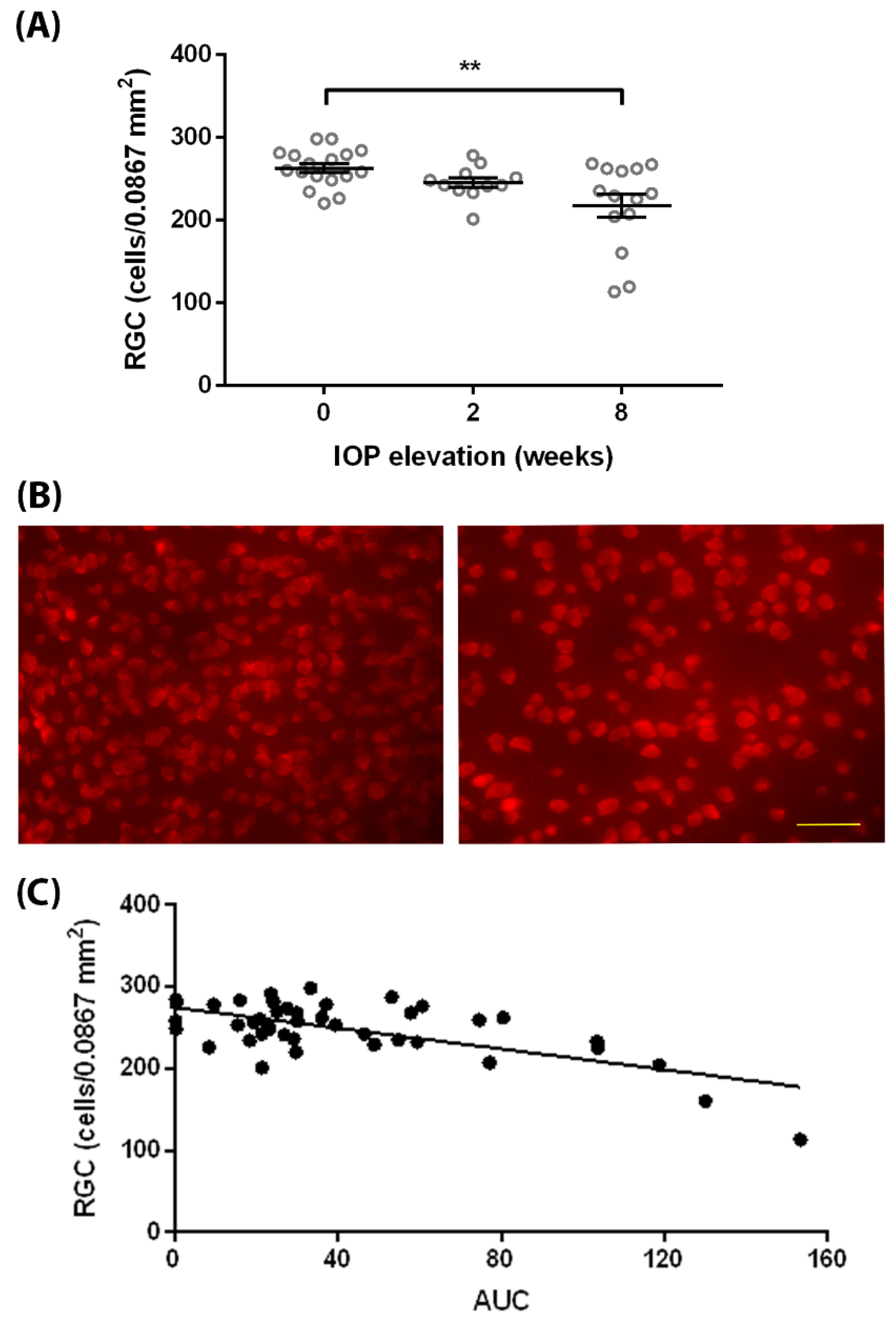

Figure 4. RGC degeneration in egl1 mice. (A) Quantification of RGCs was performed before and at 2 and 8 weeks after IOP elevation. Significant RGC loss was observed after 8 weeks of IOP elevation. Data are presented as means ± SEM (n = 11–17). **: p < 0.01. (B) Representative images show RBPMS (red) immunolabeled retinal whole mounts from mice before (left) and 8 weeks after (right) IOP elevation. The density of RGCs, demonstrated by RBPMS positive cells, decreased after 8 weeks of IOP elevation. Scale bar = 50 µm. (C) Individual RGC count was plotted against IOP exposure described as AUC. There was a moderate negative correlation between RGC counts and IOP exposure. R square: 0.43, p < 0.001.
Figure 4. RGC degeneration in egl1 mice. (A) Quantification of RGCs was performed before and at 2 and 8 weeks after IOP elevation. Significant RGC loss was observed after 8 weeks of IOP elevation. Data are presented as means ± SEM (n = 11–17). **: p < 0.01. (B) Representative images show RBPMS (red) immunolabeled retinal whole mounts from mice before (left) and 8 weeks after (right) IOP elevation. The density of RGCs, demonstrated by RBPMS positive cells, decreased after 8 weeks of IOP elevation. Scale bar = 50 µm. (C) Individual RGC count was plotted against IOP exposure described as AUC. There was a moderate negative correlation between RGC counts and IOP exposure. R square: 0.43, p < 0.001.
Biomedicines 10 00516 g004
Biomedicines 10 00516 g005 550

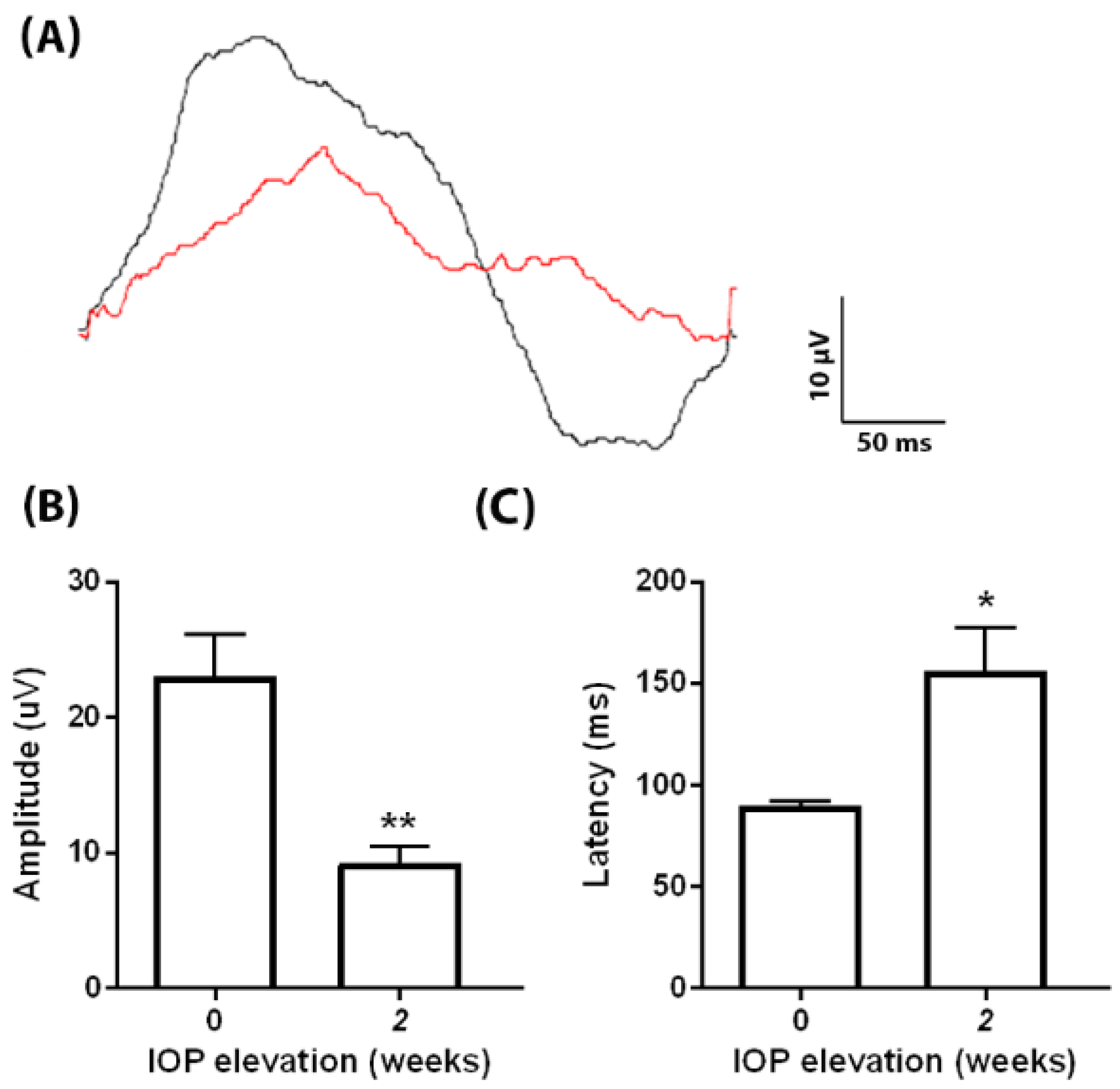

Figure 5. PERG reduction in egl1 mice. (A) Representative PERG waveforms recorded from egl1 mice before (black) and 2 weeks after (red) IOP elevation. IOP elevation decreased and delayed the PERG response. (B,C) Bar graphs show decreased PERG responses (B) and increased PERG latencies (C) after 2 weeks of IOP elevation. Data are presented as means ± SEM (n = 5–6) *: p < 0.05, **: p < 0.01.
Figure 5. PERG reduction in egl1 mice. (A) Representative PERG waveforms recorded from egl1 mice before (black) and 2 weeks after (red) IOP elevation. IOP elevation decreased and delayed the PERG response. (B,C) Bar graphs show decreased PERG responses (B) and increased PERG latencies (C) after 2 weeks of IOP elevation. Data are presented as means ± SEM (n = 5–6) *: p < 0.05, **: p < 0.01.
Biomedicines 10 00516 g005
Biomedicines 10 00516 g006 550
Figure 6. Glaucomatous ONH changes in egl1 mice. Representative immunofluorescence staining images show increased expression of GFAP and Iba-1 and disorganized NF in the egl1 mice. Images were taken in the rectangular boxed area in (A). (B–D) Columns show GFAP (red), Iba-1 (green), and NF (green) staining in C57BL/6J wildtype and egl1 mice with various IOP levels. Nuclei were labeled with DAPI (blue). Scale bars = 50 μm.
Figure 6. Glaucomatous ONH changes in egl1 mice. Representative immunofluorescence staining images show increased expression of GFAP and Iba-1 and disorganized NF in the egl1 mice. Images were taken in the rectangular boxed area in (A). (B–D) Columns show GFAP (red), Iba-1 (green), and NF (green) staining in C57BL/6J wildtype and egl1 mice with various IOP levels. Nuclei were labeled with DAPI (blue). Scale bars = 50 μm.
Biomedicines 10 00516 g006
