Highly Efficient Solution-Processed Bluish-Green Thermally Activated Delayed Fluorescence Compounds Using Di(pyridin-3-yl)methanone as Acceptor

Abstract

Solution-processed devices with thermally activated delayed fluorescence (TADF) compounds have gained great attention due to their low cost and high performance. Here, two solution-processable TADF emitters named ACCz-DPyM and POxCz-DPyM were synthesized by coupled 9,10-dihydro-9,9-dimethylacridine or phenoxazine modified carbazole as donor with di(pyridin-3-yl)methanone as acceptor. Both TADF compounds show same small ΔΕ_ST of 0.04 eV and high PLQY of 66.2% and 58.2%. The devices fabricated by ACCz-DPyM and POxCz-DPyM as emitters show excellent performance as solution-processed with low turn-on voltage of 4.0 and 3.4 V, high luminance of 6209 and 3248 cd m⁻² at 8 V, the maximum current efficiency of 9.9 and 15.9 cd A⁻¹, the maximum external quantum efficiency of 6.6% and 6.5% and low efficiency roll-off. The solution-processed device based on ACCz-DPyM shows bluish-green emission. These results show that ACCz-DPyM and POxCz-DPyM are suitable for solution processing devices.

1. Introduction

Thermally activated delayed fluorescence (TADF) materials have attracted considerable interest from researchers over the past few years due to their ability to utilise triplet state excitons through rapid reverse intersystem crossing (RISC) processes from an excited triplet state (T₁) to a singlet state (S₁), theoretically enabling 100% internal quantum electrons (IQE) [1,2,3,4,5,6,7,8]. Most high-performance TADF-based organic light-emitting diodes (OLEDs) are manufactured by a vacuum deposition process [9,10,11,12,13,14], which requires a complex manufacturing process and is costly. However, a truly low-cost OLED device could be developed by solution processing [15,16,17,18]. In recent investigations, the performance of solution processing devices has also been further developed [19,20,21,22,23], while it is still to be improved compared with that of the vacuum evaporation device at present.

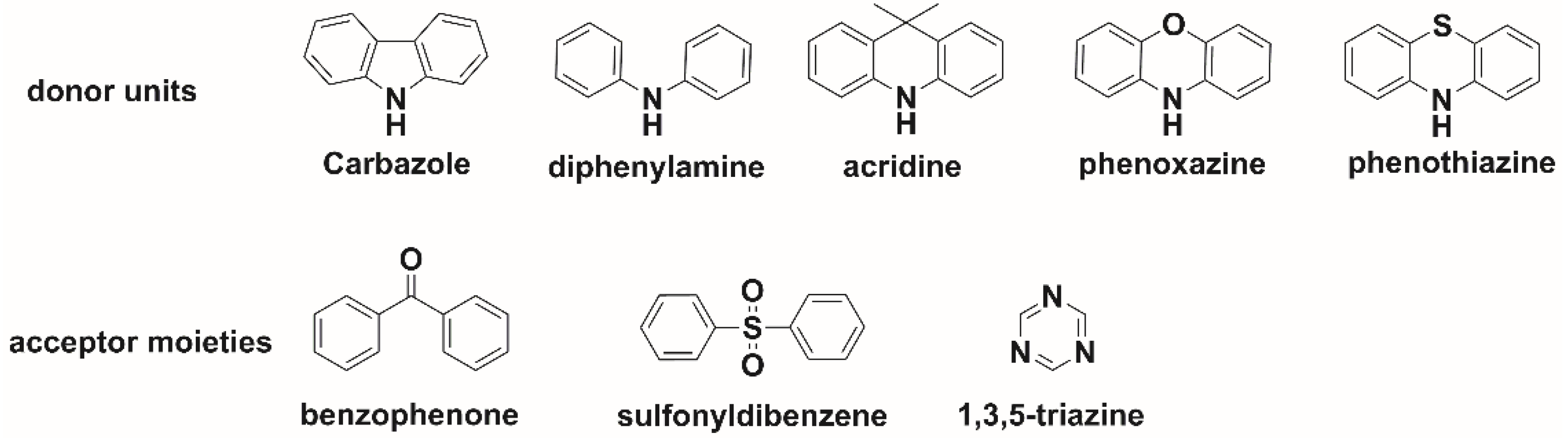

Generally, TADF molecules are mainly concentrated on a twisted donor (D)-acceptor (A) backbone, which can effectively separate the highest occupied molecular orbital (HOMO) from the lowest unoccupied molecular orbital (LUMO) spatially, resulting in a small ΔE_ST [24,25,26,27,28,29]. As shown in Scheme 1, carbazole, diphenylamine, acridine, phenoxazine and phenothiazine are usually selected as donor units, while benzophenone, sulfonyldibenzene and 1,3,5-triazine are usually regarded as acceptor moieties [30,31,32,33]. However, the construction of TADF molecules with a D-A backbone using acridine or phenoxazine-modified carbazole as the donor unit and di(pyridin-3-yl)methanone as the acceptor unit is hardly reported. Moreover, increasing molecular weight can effectively improve the solution processability of TADF materials [31,34]. Hence, in order to obtain suitable solution-processed TADF materials, we designed and synthesized two TADF compounds named ACCz-DPyM and POxCz-DPyM which comprised a central di(pyridin-3-yl) methanone (DPyM) acceptor core coupled with 3,6-bis(9,9-dimethylacridin-10(9H)-yl)-9H-carbazole (ACCz) and 3,6-di(10H-phenoxazin-10-yl)-9H-carbazole (POxCz) as donors. ACCz-DPyM and POxCz-DPyM have a higher molecular weight than the small molecule TADF emitters. The major difference in molecular structure between the two emitters is the 9,10-dihydro-9,9-dimethylacridine of ACCz-DPyM and the phenoxazine of POxCz-DPyM on POxCz. The absence of such a heteroatom in 9,10-dihydro-9,9-dimethylacridine, in contrast to the presence of an oxygen atom in phenolizine, may make the structure of ACCz more molecularly rigid than POxCz. The phenoxazine has stronger electron-donating ability than acridine. Therefore, it could be predicted that the emission spectrum of POxCz-DPyM will be red-shifted compared to ACCz-DPyM. The PL quantum yields (PLQY) of ACCz-DPyM and POxCz-DPyM were 66.2% and 58.2% in film state, respectively. The ACCz-DPyM-based and POxCz-DPyM-based solution-processed devices exhibited the maximum electroluminescence (EL_max) of 510 vs. 560 nm, the maximum current efficiency (CE_max) of 9.9 vs. 15.9 cd A⁻¹, the maximum external quantum efficiency (EQE_max) of 6.6% vs. 6.5%, the maximum luminance (L_max) of 6209 vs. 3248 cd m⁻² at 8 V and CIE coordinates of (0.28, 0.48) and (0.43, 0.51) with relatively low turn-on voltage of 4.0 vs. 3.4 V, respectively. Furthermore, both solution-processed devices have shown low efficiency roll-off.

2. Results and Discussion

2.1. Synthesis and Characterization

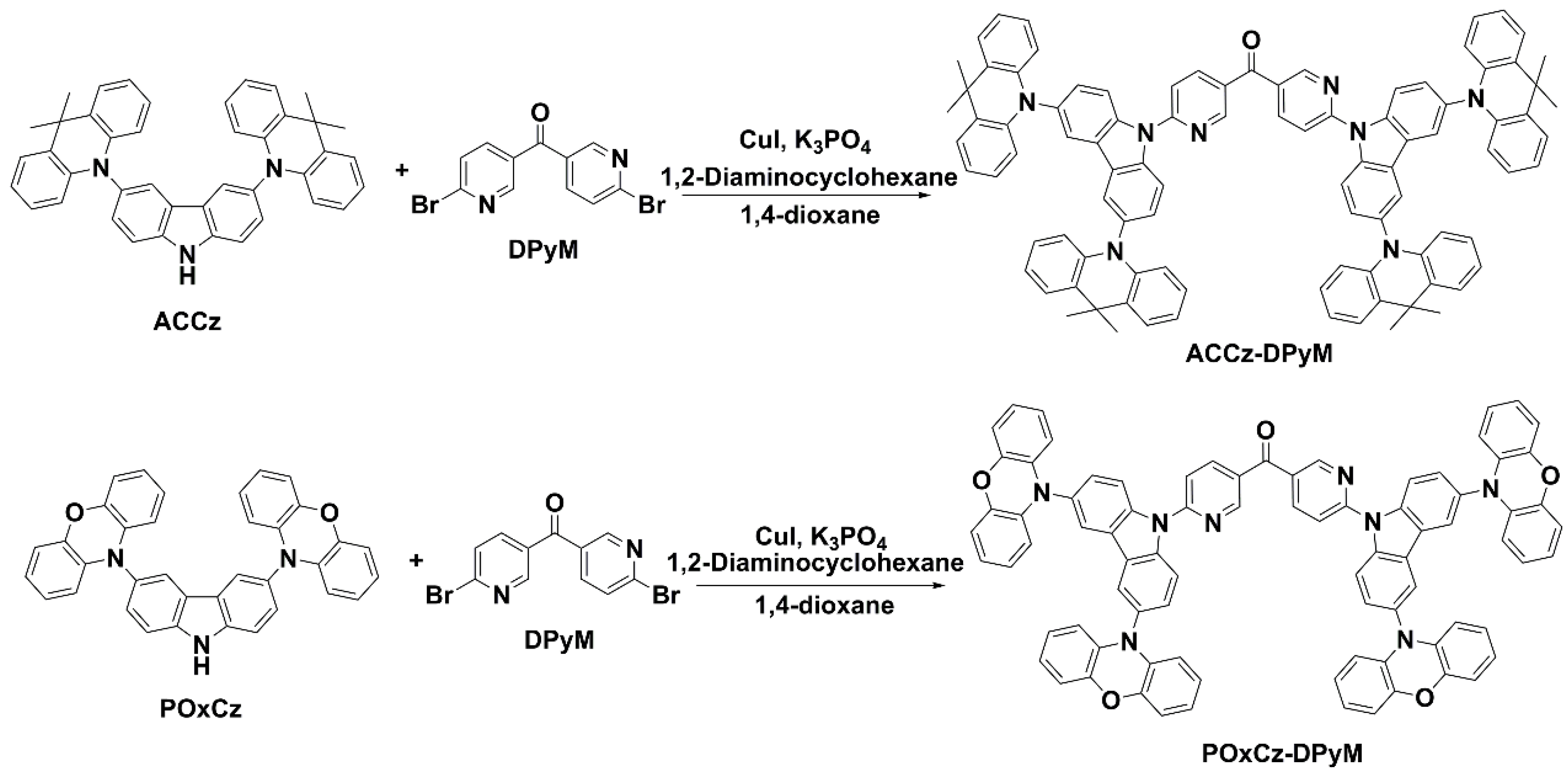

The synthetic lines and molecule structures of the ACCz-DPyM and POxCz-DPyM are illustrated in Scheme 2. The TADF compounds had been successfully synthesized according to the literature methods [35]. The molecule structure of the compounds was determined by ¹H NMR, ¹³C NMR and HRMS.

2.2. Thermal Stability and Film-Forming Properties of ACCz-DPyM and POxCz-DPyM

The thermal gravimetric analyses (TGA) and differential scanning calorimetry (DSC) are tested to research the thermal properties of ACCz-DPyM and POxCz-DPyM. As shown in Figure S1, TGA show that both of these materials have high thermal decomposition temperatures with 434 °C and 527 °C for ACCz-DPyM and POxCz-DPyM, respectively. The DSCs show that the glass transition temperature (T_g) of ACCz-DPyM and POxCz-DPyM are 254 °C and 168 °C, respectively. The results of thermal analysis show that ACCz-DPyM and POxCz-DPyM have good thermal stability, which may attribute to bulky structure. The high thermal stabilities of ACCz-DPyM and POxCz-DPyM contribute to the formation of amorphous films through solution processing. Additionally, in order to research morphology further, it is necessary to investigate the surface morphologies of thin film of the two emitters, which are analysed by atomic force microscopy (AFM), which is shown in Figure S2. The films of ACCz-DPyM and POxCz-DPyM show pinhole-free morphologies, with root mean squares (RMSs) of 0.50 and 0.64 nm. It can be concluded that the bulky structure of the two emitters is beneficial for improving the morphological stability of the films, which is important for the fabrication of highly electronic sol-gel treated OLEDs.

2.3. Electrochemical Properties and Theoretical Calculation

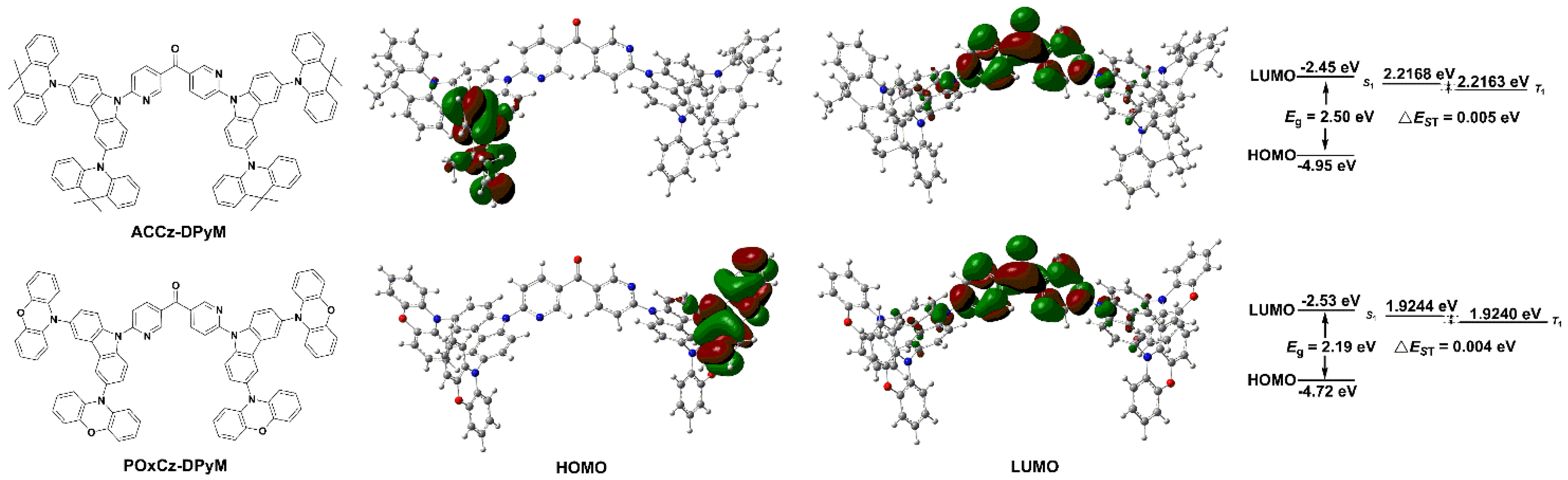

Figure S3 shows cyclic voltammetry (CV) of ACCz-DPyM and POxCz-DPyM. ACCz-DPyM and POxCz-DPyM exhibited quasi-reversible oxidation processes. The oxidation potentials of ACCz-DPyM and POxCz-DPyM are 0.18 and 0.28 V, respectively. According to the equation HOMO = −(4.8 +$E_{ons}^{ox}$), the energy levels corresponding to the HOMO of ACCz-DPyM and POxCz-DPyM are estimated to be −4.98 and −5.08 eV, respectively. The LUMO energy levels of ACCz-DPyM and POxCz-DPyM estimated from the HOMO energy levels and optical bandgaps were −2.20 and −2.51 eV. Additionally, in order to research the structure-property relationships of the compounds, DFT calculations were used to calculate HOMO and LUMO distributions of ACCz-DPyM and POxCz-DPyM. As shown in Figure 1, the HOMO distributions of both emitters are located at the donors, and LUMOs are located at the acceptors, respectively. The HOMO and LUMO distributions of the two target molecules are well separated, which leads to a small ΔE_ST. The calculated HOMO levels of ACCz-DPyM and POxCz-DPyM were −4.95 and −4.72 eV, while the calculated LUMO levels were −2.45 and −2.53 eV for ACCz-DPyM and POxCz-DPyM, respectively; the results of DFT calculation are comparable with experimental data.

2.4. Photophysical Properties

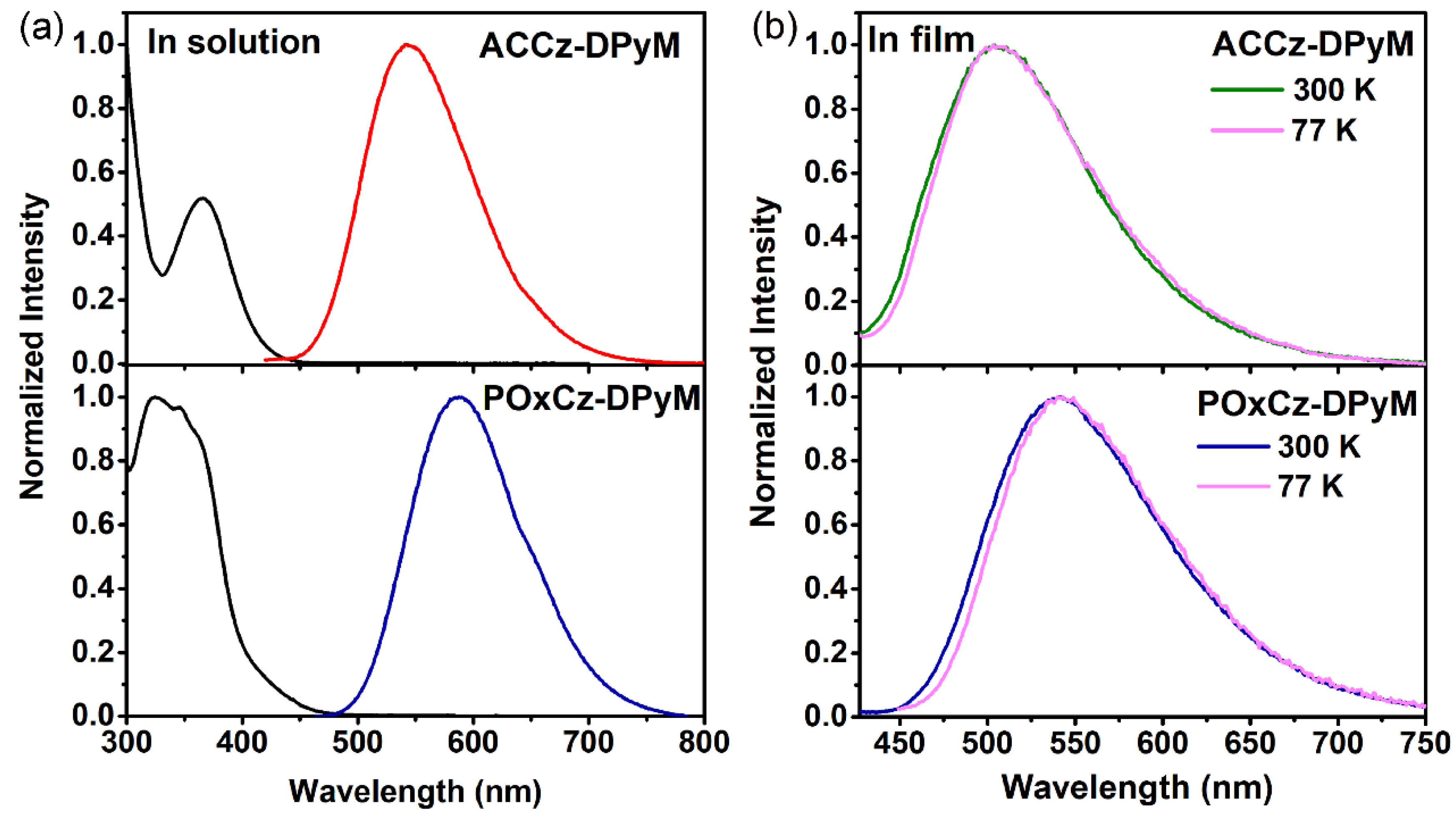

The UV-visible absorption spectra and photoluminescence (PL) spectra of the target compounds ACCz-DPyM and POxCz-DPyM in dilute solution are shown in Figure 2a, and the data are summarized in

Table 1. The test data of ACCz-DPyM and POxCz-DPyM.

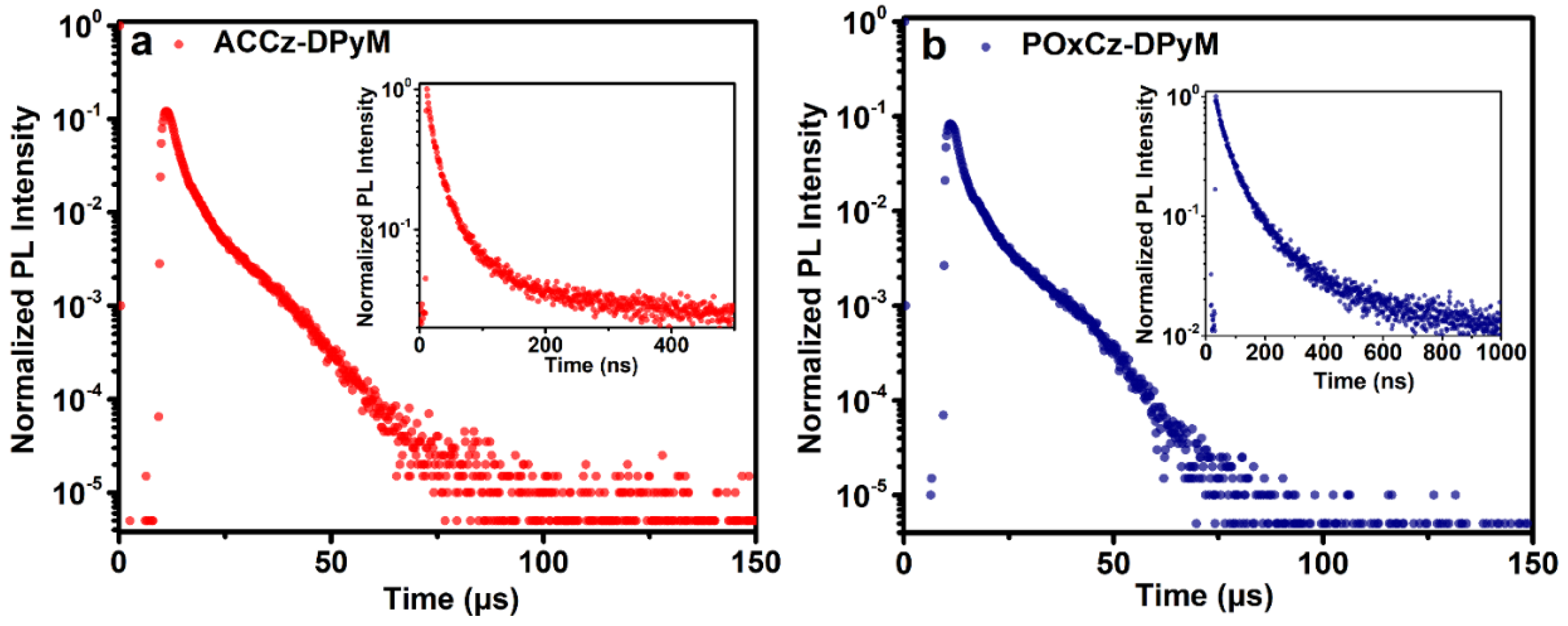

Compound	λabs a (nm)	λPL a/λPL b (nm)	ΦPL b/%	${\mathit{E}}_{\mathit{o}\mathit{n}\mathit{s}}^{\mathit{o}\mathit{x}}$c (V)	HOMO d/HOMO e (eV)	LUMO f/LUMO e (eV)	kRISC g (s−1)	ΔEST h/ΔEST e (eV)	τp/τd i [ns]/[μs]	Td/Tg j (°C)
ACCz-DPyM	366	541/503	66.2	0.18	−4.98/−4.95	−2.20/−2.45	4.5 × 105	0.04/0.005	39.8/7.2	434/254
POxCz-DPyM	321	590/541	58.2	0.28	−5.08/−4.72	−2.51/−2.53	2.9 × 105	0.04/0.004	98.9/8.7	527/168

^a In solution. ^b Film states. ^c Oxidation potential values. ^d HOMO energy levels deduced from the equation of HOMO = −(4.8 + $E_{ons}^{ox}$). ^e Data of calculations. ^f LUMO = HOMO + $E_{opt}^g$. ^g k_RISC: the rate constant for RISC. ^h Subtraction of the onsets of spectra at 300 K and 77 K. ⁱ Obtained in films at 300 K. ^j The heating rate is 10 °C mim⁻¹.

. For the target molecule ACCz-DPyM, the absorption band of 330–450 nm is attributed to intramolecular charge transfer (ICT) transitions between the ACCz moieties as donor and the DPyM unit as acceptor, with the high energy absorption coming from local transitions between the ACCz and DPyM units, while for POxCz-DPyM, the absorption band of 305-500 nm is attributed to ICT and local transitions between the POxCz and DPyM units in dilute solution [29,30]. It is well known that the fundamental principles of TADF molecules are the separation of HOMO–LUMO and the small enough ΔE_ST value [1]. The experimental ΔE_ST of two emitters doped in the mCBP as host material (8 wt%) were determined by the onsets of the fluorescence and phosphorescence spectra at 77 K (delayed 100 µs) (Figure 2b), which were both estimated to 0.04 eV for ACCz-DPyM and POxCz-DPyM. Moreover, Figure 1 shows that the HOMO orbitals of the target molecules ACCz-DPyM and POxCz-DPyM are all located on the ACCz or POxCz moieties without distribution on the acceptor moiety. In contrast, the LUMO orbitals of the target compounds ACCz-DPyM and POxCz-DPyM are located almost on the DPyM unit, with a slight distribution on the donor unit. Hence, the spatial separation of the HOMO and LUMO between the donor and acceptor units in ACCz-DPyM and POxCz-DPyM are beneficial to realize a small ΔE_ST. The theoretical calculations values of ΔE_ST were 0.005 and 0.004 eV for ACCz-DPyM and POxCz-DPyM, respectively. As shown in Figure 3, the transient PL decay experiment of the two doped films shows prompt fluorescence lifetimes of 39.8 ns and 98.9 ns and delayed fluorescence lifetimes of 7.2 μs and 8.7 μs, respectively. The absolute PL quantum efficiency values measured using an integrating sphere for the two doped films are 66.2% and 58.2% for ACCz-DPyM and POxCz-DPyM, respectively.

2.5. Electroluminescence Properties

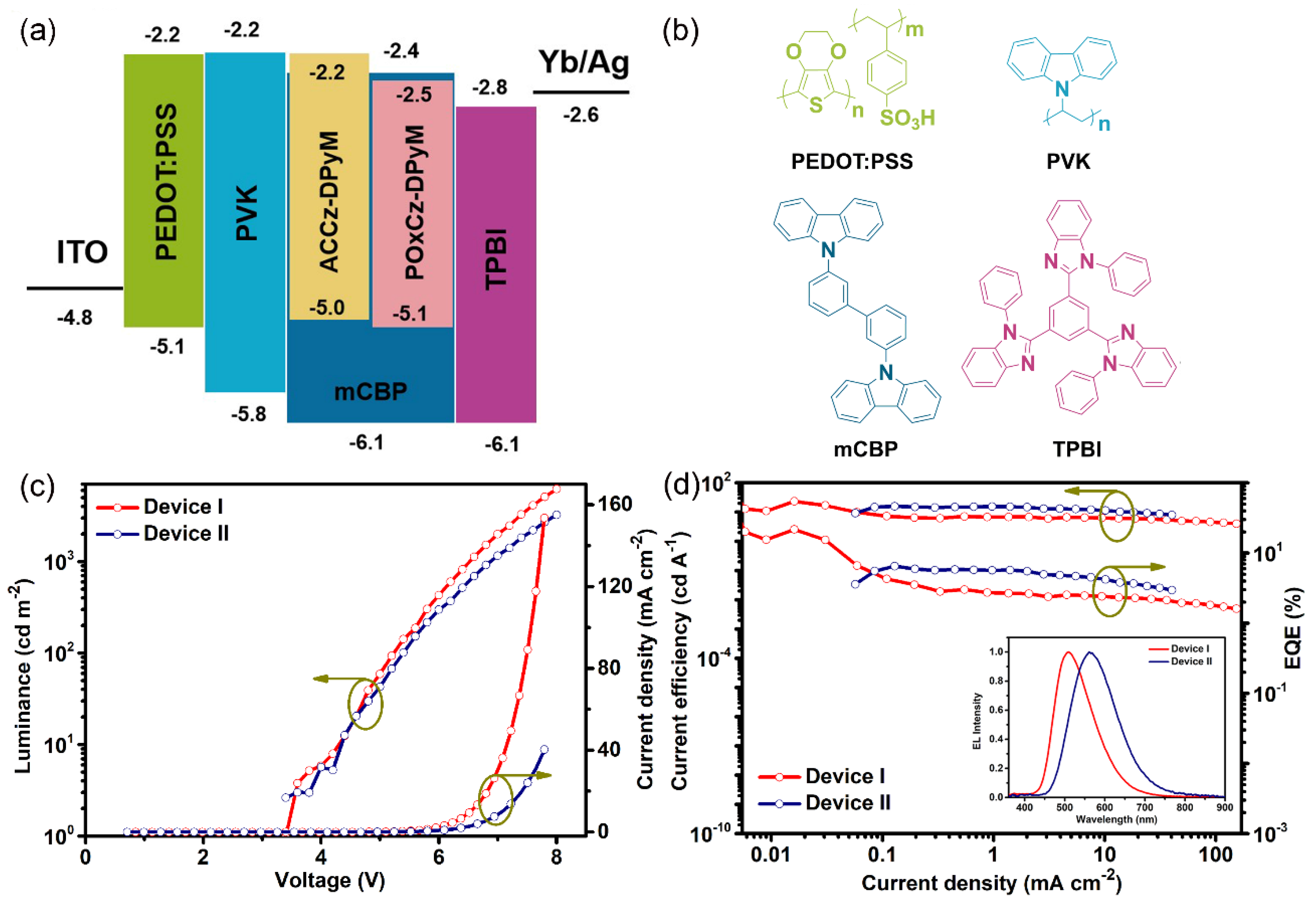

The solution-processed devices were fabricated to research the electroluminescent characteristics of two emitters ACCz-DPyM and POxCz-DPyM. The devices’ structure was the following: ITO/PEDOT:PSS/PVK/mCBP: emitter (8 wt%)/TPBI/Yb/Ag, where PEDOT:PSS and PVK act as the hole-injection and the hole-transporting layer, respectively. TPBI act as the electron-transporting layer. The materials in the emitting layer are ACCz-DPyM and POxCz-DPyM doped in mCBP, respectively. As illustrated in Figure 4d, the electroluminescence spectra of devices come from the luminescence of the emitter without any emission of the host material, which shows that the energy transfer between host and guest materials was completed. Additionally, the devices’ electroluminescence spectra show the maximum peaks at 510 and 560 nm with CIE coordinates of (0.28, 0.48) and (0.43, 0.51), respectively. As shown in Figure 4c,d, both solution-processed devices show a good electroluminescence performance. The devices I and II exhibit relatively low driving voltages with 4.0 and 3.4 V, which recorded at a luminance of 1 cd m⁻². The performance of device I shows the L_max of 6209 cd m⁻² at 8 V, the CE_max of 9.9 cd A⁻¹ and the EQE_max of 6.6%. The device II exhibits the performance with L_max of 3248 cd m⁻², the CE_max of 15.9 cd A⁻¹ and the EQE_max of 6.5%, the corresponding data were summarized in

Table 2. The data for electroluminescence performance of devices.

Device	λELmax (nm)	Von (V)	Lmax (cd m−2)	CEmax (cd A−1)	EQEmax (%)	CIE (x, y)
I	510	4.0	6209	9.9	6.6	0.28, 0.48
II	560	3.4	3248	15.9	6.5	0.43, 0.51

. These results show that both emitters are suitable for solution processing devices. Device I shows a relatively higher electroluminescence performance than that of device II. It could be explained by a better film-forming property of the ACCz-DPyM, which is beneficial to a solution-processed device, and a more molecular rigidity of the ACCz-DPyM than that of POxCz-DPyM, which could suppress the nonradiative transition with higher PLQY [31,33].

3. Conclusions

In conclusion, the ACCz-DPyM and POxCz-DPyM as two novel TADF compounds with ACCz and POxCz as the donor and DPyM as acceptor were synthesized. ACCz-DPyM and POxCz-DPyM have shown high PLQY, small ΔE_ST and excellent performances for solution-processed devices. The ACCz-DPyM-based device has shown a higher performance with driving voltages of 4.0 V, the L_max of 6209 cd m⁻² at 8 V, the CE_max of 9.9 cd A⁻¹ and the EQE_max of 6.6%, which has shown a bluish-green emission. The performance of device II has shown low driving voltages of 3.4 V, L_max of 3248 cd m⁻² at 8 V, the CE_max of 15.9 cd A⁻¹, the EQE_max of 6.5% and the CIE coordinates of (0.43, 0.51). Additionally, both devices had low efficiency roll-off. Due to the better film-forming properties and more molecular rigidity of ACCz for ACCz-DPyM, the ACCz-DPyM-based solution-processed device has shown better performance than that of POxCz-DPyM.

4. Experimental

4.1. General Information

Unless otherwise stated, all commercially available reactants and solvents were used without further purification. NMR spectra including ¹H NMR and ¹³C NMR spectra were measured on Bruker Avance 400 MHz spectrometer. High-resolution mass spectra were obtained on Bruker Daltonics Inc. (Billerica, MA, USA). UV spectra were measured with Mapada UV-1800PC (Shanghai, China). PL spectra were collected on Perkinelmer LS-55 (Waltham, MA, USA). The PLQYs of the materials were collected on Edinburgh FLS 980 (Edinburgh, UK). TGA were determined on Hitachi STA7300 (Tokyo, Japan). DSC was measured with Mettler Toledo. CV were performed on CorrTest electrochemical workstation (Wuhan, China). Platinum wire, platinum plate and an Ag/AgNO₃ electrode as the auxiliary electrode, working electrode and quasi-reference electrode were used in CV system. Ferrocenium/ferrocene act as the external standard.

4.1.1. Synthesis of ACCz-DPyM

ACCz of 209 mg (0.36 mmol), DPyM of 60 mg (0.17 mmol), K3PO4 of 763 mg (3.6 mmol), CuI of 9.2 mg (0.04 mmol) and 1,2-diaminocyclohexane of 6.0 mg (0.05 mmol) and 1,4-dioxane of 3 mL were added into 20 mL flask. Then, the reaction system was stirred at 110 °C for 12 h under Ar atmosphere. After the reaction was completed, solvent was removed under vacuum; the crude product was purified by column chromatography (hexane: ethyl acetate = 8:1) to obtain ACCz-DPyM. Yield: 50%. ¹H NMR (400 MHz, DMSO) δ 9.35 (d, J = 2.0 Hz, 2H), 8.73 (dd, J = 8.4, 2.4 Hz, 2H), 8.47 (d, J = 1.6 Hz, 4H), 8.42 (d, J = 8.8 Hz, 4H), 8.32 (d, J = 8.8 Hz, 2H), 7.56 (dd, J = 8.8, 1.6 Hz, 4H), 7.50 (dd, J = 7.6, 1.2 Hz, 8H), 6.96 (t, J = 7.6 Hz, 8H), 6.89 (t, J = 7.6 Hz, 8H), 6.27 (d, J = 8.4 Hz, 8H), 1.64 (s, 24H). ¹³C NMR (100 MHz, CDCl₃) δ 190.6, 154.7, 151.6, 141.3, 140.2, 138.8, 135.7, 130.3, 130.1, 129.8, 126.8, 126.3, 125.2, 123.5, 120.6, 118.0, 114.4, 114.1, 36.0, 31.3, 29.7. HRMS (APCI) m/z: [M + H]⁺ calcd for C₉₅H₇₅N₈O⁺, 1343.6058; found, 1343.6081.

4.1.2. Synthesis of POxCz-DPyM

The synthesis method was similar to ACCz-DPyM. The synthesis of POxCz-DPyM using POxCz of 191 mg (0.36 mmol), DPyM of 60 mg (0.17 mmol), K₃PO₄ of 763 mg (3.6 mmol), CuI of 9.2 mg (0.04 mmol), 1,2-diaminocyclohexane of 6.0 mg (0.05 mmol) and 1,4-dioxane of 3 mL. Yield: 48%. ¹H NMR (400 MHz, DMSO) δ 9.30 (d, J = 2.4 Hz, 2H), 8.68 (dd, J = 8.4, 2.4 Hz, 2H), 8.49 (d, J = 2.0 Hz, 4H), 8.36 (d, J = 8.8 Hz, 4H), 8.25 (d, J = 8.4 Hz, 2H), 7.59 (dd, J = 8.8, 2.0 Hz, 4H), 6.76 (dd, J = 7.2, 2.0 Hz, 8H), 6.70–6.61 (m, 16H), 5.95 (dd, J = 7.2, 2.0 Hz, 8H). ¹³C NMR (100 MHz, CDCl₃) δ 190.5, 154.5, 151.5, 144.0, 140.2, 138.9, 129.9, 126.7, 123.2, 121.5, 118.0, 115.4, 114.7, 113.4. HRMS (APCI) m/z: [M + H]⁺ calcd for C₈₃H₅₁N₈O₅⁺, 1239.3977; found, 1239.3994.

4.1.3. Device Fabrication and Measurement

Firstly, the ITO substrate treated with UV-ozone were spin coated with PEDOT:PSS layer (40 nm thick) and heated for 15 min at 150 °C. Then, a PVK interlayer (5 nm) was spin coated on the PEDOT:PSS layer, which annealed for 5 min at 110 °C. Then, the emitters were spin coated on PVK layer with coating speed 2500 rad/min and annealing for 5 min at 100 °C. Moreover, TPBi, Yb and silver cathodes were deposited by evaporation. The performance of OLEDs which contained EQE-L-CE and J-V-L curves were researched by Keithley 2400 (Ohio, USA). The electroluminescence spectra and CIE coordinates were collected on PR-788 photometer (New York State, USA).
