Element Selective Probe of the Ultra-Fast Magnetic Response to an Element Selective Excitation in Fe-Ni Compounds Using a Two-Color FEL Source

Abstract

The potential of the two-color mode implemented at the FERMI free-electron laser (FEL) source for pumping and probing selectively different atomic species has been demonstrated by time-resolved scattering experiments with permalloy (FeNi alloy) and NiFe₂O₄ samples. We monitored the ultra-fast demagnetization of Ni induced by the pump FEL pulse, by tuning the linearly-polarized FEL probe pulse to the Ni-3p resonance and measuring the scattered intensity in the transverse magneto-optical Kerr effect geometry. The measurements were performed by varying the intensity of the FEL pump pulse, tuning its wavelength to and off of the Fe-3p resonance, and by spanning the FEL probe pulse delays across the 300–900 fs range. The obtained results have evidenced that for the case of NiFe₂O₄, there is a sensible difference in the magnetic response at the Ni site when the pump pulse causes electronic excitations at the Fe site.

1. Introduction

The most common approach to ultra-fast demagnetization relies on optical-laser based time-resolved magneto-optical Kerr effect (MOKE) studies [1,2]. Modern pulsed X-ray sources, notably free-electron lasers (FEL) and high-harmonic generation sources, have introduced the use of X-rays as a complement to optical lasers. The most common set-up makes use of an optical laser as the pump and of an X-ray beam as the probe, providing element selectivity by fine-tuning the X-ray wavelength to a core resonance [3,4,5,6]. We developed a new scheme where, in a given multi-element magnetic sample, we pump one selected element and probe another element, also selectively, using two FEL pulses of different wavelengths [7]. The interest of this kind of experiment resides in the possibility of associating the pump energy with a specific electronic excitation of one component of a complex system. The combination of an element selective excitation with an element selective probe offers new paths for unraveling the fundamental mechanisms that drive magnetization loss by separately addressing the weight of possible contributions in this complex problem. Important classes of magnetic materials, in this respect, are ferrites [8,9] and transition metal (TM) rare-earth (RE) compounds [10,11,12,13]. Beyond their applicative interest, the (O-mediated) TM-TM coupling in magnetic oxides and the (5d-mediated) 3d-4f coupling in TM-RE compounds make these materials ideal candidates for resonant-pump resonant-probe magnetization dynamics studies. The highly localized 3d and 4f orbitals and the mediated coupling make it plausible that associating the pump energy with a specific electronic excitation can influence the magnetization dynamics profoundly, compared to using a non-resonant pump.

2. Materials and Methods

2.1. Source Design

The conceptual and experimental development of two-color schemes prompted major research efforts at all FEL facilities worldwide [14,15,16,17,18], with the ambition of optimizing wavelength and timing control. In general, two-color sources are constrained by limited wavelength tunability. Recently, a new configuration of the FERMI FEL-1 seeded source [19] was implemented that delivers two time-delayed FEL pulses with different wavelengths, each independently tunable over a broad spectral range. The principle of the two-color double-resonant source was set out in reference [7]. Here we summarize its most relevant features.

The twin-seed layout starts from a common ~780 nm laser source that produces two ultraviolet (UV) pulses along two distinct optical paths. One comprises a third-harmonic generator and a delay-line for adjusting the delay Δt between the two pulses. The other features an optical parametric amplifier (OPA) for adjusting the pulse wavelength over the 230–260 nm range. The former, which has a fixed 261.5 nm wavelength and a FWHM pulse duration t_seed of ~120 fs, serves as a UV seed for producing the Ni-3p resonant FEL pulse. The latter, with t_seed ~150 fs, is used for seeding the Fe-3p resonant FEL emission by setting its wavelength to 255 nm. The two UV seeds are recombined and kept along the same optical path by using a feed-back system based on multiple motorized piezoelectric tip-tilt devices.

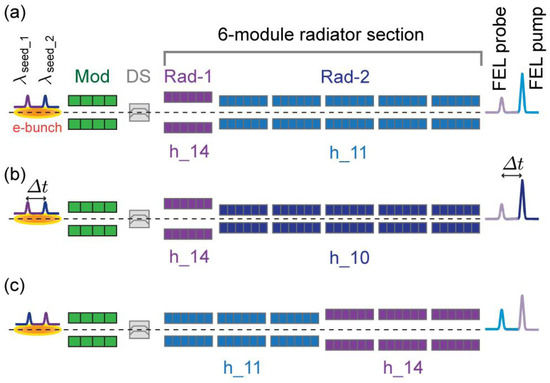

Figure 1 sketches the principle of the two-color resonant FEL mode used in our experiment. The two UV laser seeds are aligned with the electron beam trajectory within the FEL modulator section, where they interact with the electron bunch, stretched in time to ~1 ps length. The wavelength separation between the two seeds is smaller than the bandwidth accepted by the modulator (~3%), but larger than that accepted by the radiator (~0.7%). The FERMI FEL-1 radiator section is composed of six undulator modules. For most of the measurements, five modules (Rad_2 in Figure 1a) are tuned to the 11th harmonic of the 255 nm seed laser, generating a FEL pump pulse at 23.2 nm (53.5 eV), i.e., at the Fe-3p resonance (Figure 1a). By controlling the seed laser intensity via cross-polarizers, the energy per FEL pulse spans the 0 to 10 µJ range, corresponding to a pump fluence (F) of 0–40 mJ·cm⁻² at the sample position. Off-resonance pumping (Figure 1b) is obtained by tuning Rad_2 to the 10th harmonic, corresponding to 25.5 nm (48.6 eV). The remaining radiator module (Rad_1) is tuned to the 14th harmonic of the 261.5 nm seed pulse, resulting in a FEL emission at 18.6 nm (67 eV, Ni-3p resonance), with a maximum energy of ~0.8 µJ per pulse. We also tested a different source scheme with inverted pump and probe wavelengths and an equal distribution of the radiator modules on the Rad_1 and Rad_2 sub-sections (Figure 1c). The delay Δt between the two UV seeds, measured by a cross-correlator, can be adjusted over the 300–900 fs range with negligible (<5 fs) jitter [20,21]. The upper limit is imposed by the electron bunch length of ~1 ps. Cross-talk and instabilities are observed in the double FEL emission below 300 fs separation, hampering the collection of reliable data at shorter delays. The duration t_FEL of each FEL pulse can be conservatively estimated from t_seed by the scaling law t_FEL = t_seed × h^−0.3, h being the radiator harmonic. Therefore the FEL pulses in our experiment are expected to have a 50 to 70 fs duration, for an overall time resolution better than 100 fs.

2.2. Experimental Details

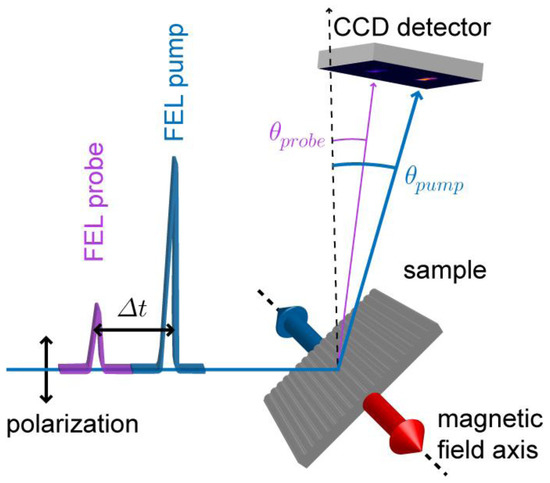

The measurements were performed at the DiProI beamline [22,23] of the FERMI FEL source, using the IRMA (Instrument pour la Réfléctivité MAgnétique) scattering chamber [24]. Figure 2 shows a sketch of the experimental set-up and of the data collection method. After aligning the sample using the two-axis goniometer, the pump-probe results were monitored using a charge-coupled device (CCD) detector. The grating-like structure of the samples separated the pump and probe contributions spatially, allowing us to discriminate the diffracted intensities at the two wavelengths. The diffraction peaks corresponding to the pump and probe FEL wavelengths were collected simultaneously on the CCD. Blanking out one of the FEL beams allowed us to check for cross-talking between them. We confirmed its absence for delays exceeding 300 fs, while interference between the two sources was observed at shorter delays. In order to maximize the magnetic signal, we worked in transverse-MOKE geometry [25,26], setting the incidence angle to 46.5°, i.e., close to the Brewster angle. We used linear vertical polarization of the FEL pulses, taking advantage of the Apple-II undulators in the FERMI radiator [27].

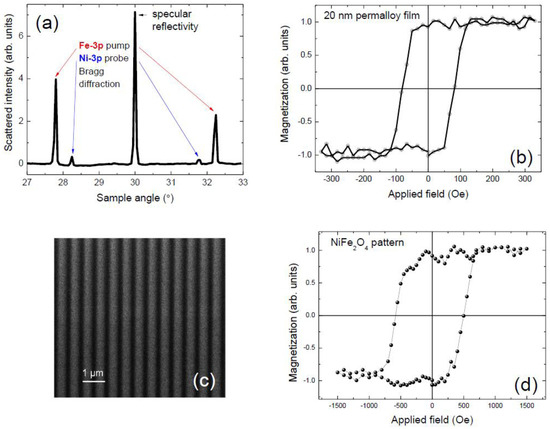

We measured two samples. The first is a 20 nm permalloy (Py) film, deposited on a 605 nm period Si grating and protected by a 3 nm Al capping layer (Figure 3a, FEL data). Its magnetic properties were characterized by MOKE using an optical laser (Figure 3b). The second is a 12.5 nm thick Ni-ferrite (NiFe₂O₄) layer grown epitaxially on MgAl₂O₄(001) [28]. A 100 × 400 µm² area of the layer was ruled by focused ion beam (FIB) etching into a set of ~350 nm wide stripes with a ~600 nm period (Figure 3c). Magnetization curves showed a coercive field of ~500 Oe with >80% remanence (Figure 3d, FEL data). It is worth stressing that the fraction of pump energy absorbed in the Ni-ferrite sample is the same (~78% for the 12.5 nm thick film at 46.5° incidence) for both resonant (22.3 nm) and non-resonant (25.5 nm) pump wavelengths.

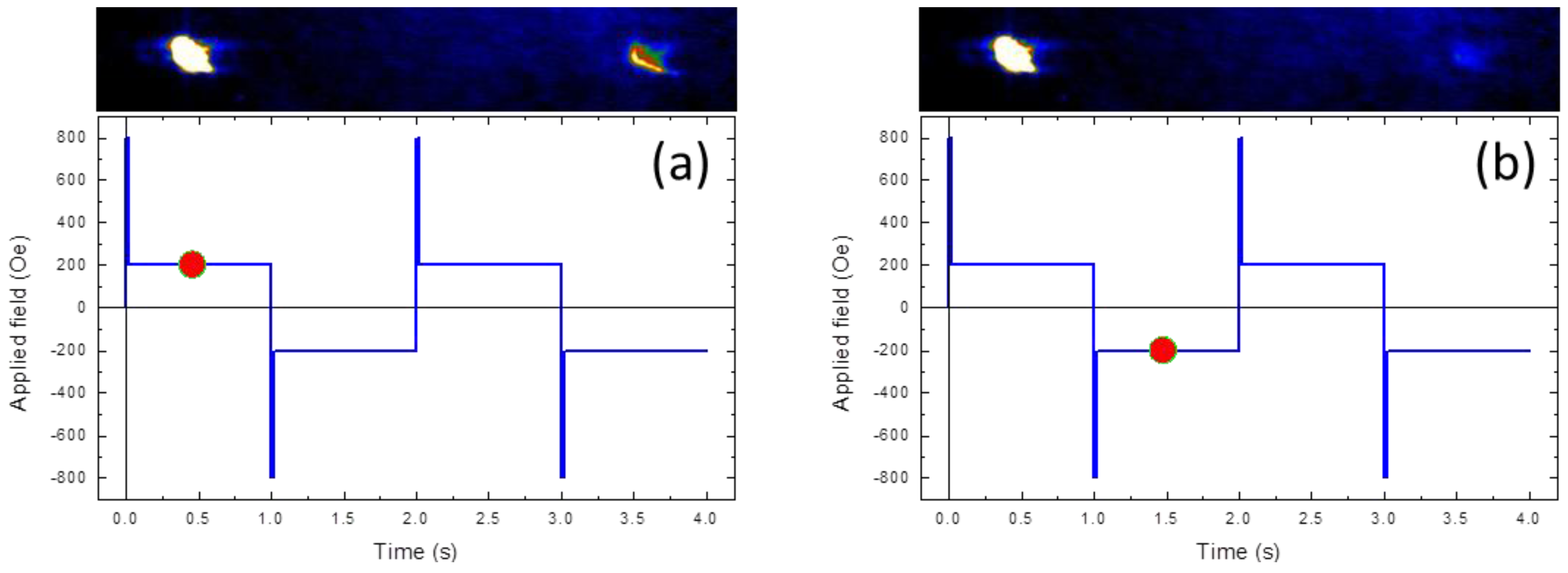

The Ni magnetic signal at different pump-probe delays was measured as a function of the pump fluence F, for both Fe-3p resonant and non-resonant pump wavelengths, using the acquisition procedure sketched in Figure 4.

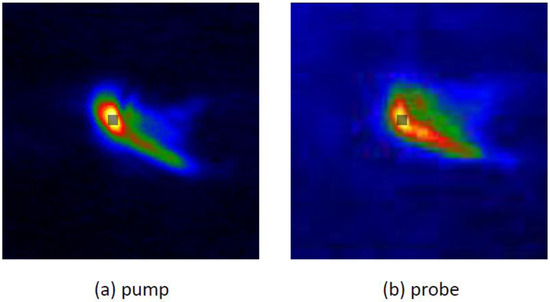

A reliable analysis of the demagnetization in a pump-probe experiment requires the sample to be homogeneously pumped over the probed area. From the images in Figure 4 and Figure 5, it is apparent that this is not the case if one integrates the scattered probe signal over the entire diffraction spot, since both the pump and the probe have an inhomogeneous spatial distribution of the intensity. In order to avoid averaging the probe signal over areas that are pumped differently, the magnetic signal reported in the following corresponds to the probe intensity scattered within a detector portion of 7 × 7 pixels (Figure 5) that measures the homogeneously pumped area.

3. Results

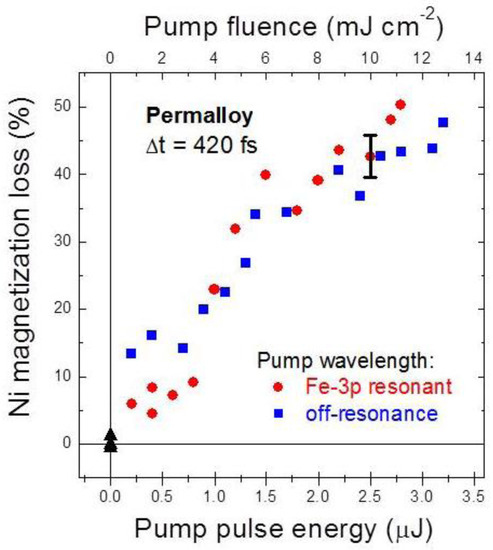

Figure 6 shows the dependence of the Ni magnetic signal on the pump fluence at a probe delay of 420 fs in Py. The pump fluence at the sample (F, top scale in Figure 6, in mJ·cm⁻²) is obtained by correcting the pump energy measured at the exit of the FEL source (bottom scale in Figure 6, in µJ) for the transport line transmission (a factor of 0.4, accounting for six reflections and a 200 nm Al filter), for the focal spot size (~80 µm), and for the angle of incidence (46.5°). The Ni magnetic signal is the asymmetry ratio in the Bragg peak intensity, i.e., the difference between the scattered intensities for opposite signs of the saturation magnetization direction, divided by their sum (see Figure 4). Figure 6 shows the loss in Ni magnetic signal with respect to the static value measured without the pump. The red and blue dots refer to the Fe-3p resonant (23.2 nm) and non-resonant (25.5 nm) pumping, respectively. The results do not evidence any clear dependence on the pump wavelength; both curves show the same trend of the Ni demagnetization with F, attaining a ~50% reduction at 10 mJ·cm⁻².

The same experiment was performed with the NiFe₂O₄ sample. First, we verified that the epitaxial oxide layer on a low thermal conductivity insulating substrate could stand our pump-probe conditions. Then we checked that the chosen 12.5 nm thickness, ensuring homogeneous absorption of the pump energy, provided a convenient magnetic signal in the diffracted intensity. We found that inverting the saturation magnetization direction provides an excellent 80% asymmetry ratio at Ni-3p resonance.

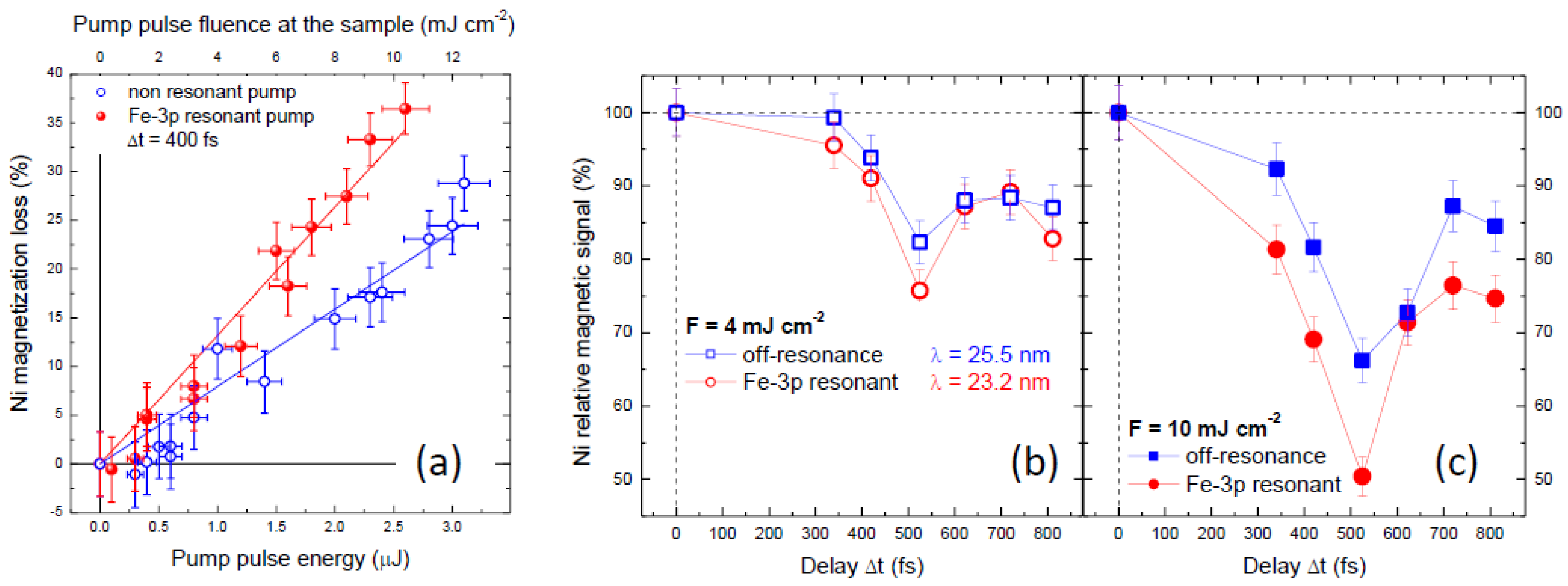

Figure 7a shows the Ni magnetization loss after 400 fs as a function of F. There is a clear difference between the data obtained using a non-resonant (blue dots) and an Fe-3p resonant (red dots) pump pulse, showing the influence of the pump wavelength on the Ni demagnetization. This sensitivity of the Ni-ferrite sample to the Fe-3p resonant and off-resonant pumping is also confirmed by the results obtained as a function of the pump-probe delay reported in Figure 7b,c. Dependence on the pump wavelength is observed already at the lower fluence F = 4 mJ·cm⁻² (Figure 7b), and it becomes much more evident and well beyond experimental uncertainty at F = 10 mJ·cm⁻² (Figure 7c). Figure 7b,c shows that for both F values, the quenching of the Ni magnetization is initially rather slow and reaches a maximum after ~500 fs.

4. Conclusions and Outlook

The observed different demagnetization behavior of the two Fe-Ni compounds under investigation can be qualitatively ascribed to the fundamental differences in their electronic structures. Permalloy is a ferromagnetic metallic alloy where Fe-3d and Ni-3d electrons, which determine the magnetic properties, pertain to strongly hybridized and delocalized orbitals featuring direct exchange. In the ferrimagnetic oxide NiFe₂O₄, the 3d electrons are much more localized onto the respective atomic sites and the exchange is mainly mediated by oxygen. Releasing the pump energy to the ensemble of the 3d electrons (off-resonant pumping) or more selectively to the Fe site via 3p-3d core excitations (Fe-3p resonant pumping) is likely to make a difference in the Ni magnetic response when the 3d electrons are localized and interact via an indirect exchange, as it is the case for the Ni-ferrite. Our results show that the resonant/non-resonant character of the pump affects the degree of magnetization loss but not its delay dependence. Since no experimental or theoretical studies have addressed this kind of problem yet, we are not in a condition of interpreting this result at a more fundamental level.

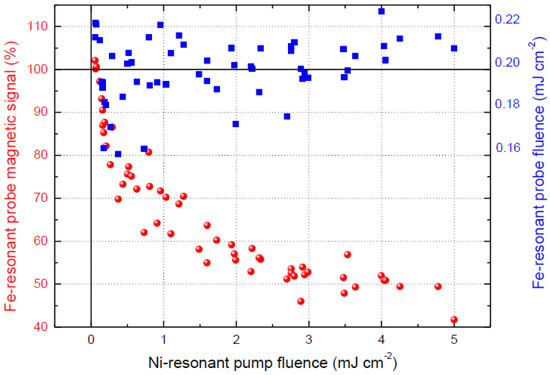

The two-color mode developed at FERMI provides a versatile source of FEL twin-pulses with controlled wavelength tunability and time separation. The use of two optical laser seeds allows for the fast and independent control of the intensity and time separation of the two FEL pulses. Additionally, the inversion of the pump and probe wavelengths can be performed in a reasonable time lapse: the reconfiguration of the radiator modules for probing the Fe magnetic signal while pumping the Ni resonantly (Figure 8) took less than one hour. The red circles in Figure 8 represent the Fe demagnetization in the Ni-ferrite as a function of the Ni-3p resonant pump fluence. The blue circles represent the Fe-3p resonant probe fluence, showing that it is not affected by varying the Ni-resonant pump intensity over the same F range.

Our first results with two magnetic compounds containing Fe and Ni illustrate the potential of the on/off resonance FEL pump-probe experiments. In its present version, the twin-seeded two-color FEL source at FERMI can cover the 3p resonances of Mn, Fe, Co, and Ni, making a wide class of important magnetic materials accessible for time resolved experiments. We stress that this kind of source can find original applications well beyond ultrafast demagnetization studies, in many other fields of condensed matter and of atomic and molecular physics. In general, it enables the excitation of a core resonance on a specific atomic site in a complex system with pulses of selected wavelength, intensity, and polarization, and makes it possible to probe the dynamic response at another atomic site with a second FEL pulse. Such multi-colour time-resolved experiments open unique opportunities for exploring complex relaxation processes, such as sequential multiple ionizations, multi-electron cascades, and charge transfer dynamics.
