Communication

Sensitivity of Hydra vulgaris to Nanosilver for Environmental Applications

by
Arianna Bellingeri
1,*,
Chiara Battocchio
2,
Claudia Faleri
3,
Giuseppe Protano
1,
Iole Venditti
2 and
Ilaria Corsi
1
1
Department of Physical, Earth and Environmental Sciences, University of Siena, 53100 Siena, Italy
2
Department of Sciences, Roma Tre University of Rome, 00146 Rome, Italy
3
Department of Life Sciences, University of Siena, 53100 Siena, Italy
*
Author to whom correspondence should be addressed.
Toxics 2022, 10(11), 695; https://doi.org/10.3390/toxics10110695
Submission received: 12 October 2022 / Revised: 13 November 2022 / Accepted: 16 November 2022 / Published: 17 November 2022
(This article belongs to the Topic Impact of Toxic Elements on Water Quality and Treatment Methods)
Browse Figures
Review Reports Versions Notes

Abstract

:
Nanosilver applications, including sensing and water treatment, have significantly increased in recent years, although safety for humans and the environment is still under debate. Here, we tested the environmental safety of a novel formulation of silver nanoparticles functionalized with citrate and L-cysteine (AgNPcitLcys) on freshwater cnidarian Hydra vulgaris as an emerging ecotoxicological model for the safety of engineered nanomaterials. AgNPcitLcys behavior was characterized by dynamic light scattering (DLS), while Ag release was measured by inductively coupled plasma mass spectrometry (ICP-MS). H. vulgaris (n = 12) subjects were evaluated for morphological aberration after 96 h of exposure and regeneration ability after 96 h and 7 days of exposure, after which the predatory ability was also assessed. The results show a low dissolution of AgNPcitLcys in Hydra medium (max 0.146% of nominal AgNPcitLcys concentration) and highlight a lack of ecotoxicological effects, both on morphology and regeneration, confirming the protective role of the double coating against AgNP biological effects. Predatory ability evaluation suggests a mild impairment of the entangling capacity or of the functionality of the tentacles, as the number of preys killed but not ingested was higher than the controls in all exposed animals. While their long-term sub-lethal effects still need to be further evaluated on H. vulgaris, AgNPcitLcys appears to be a promising tool for environmental applications, for instance, for water treatment and sensing.

1. Introduction

Silver nanoparticles (AgNPs) are widely employed in consumer products, especially for their efficient antimicrobial properties [1]. Their fields of application are growing, and thanks to their unique properties, AgNPs can be used for many different purposes, such as in electronic devices, as anticancer agents, and for water pollution sensing and remediation [2,3]. The environmental application of AgNPs is promising in terms of sensitivity to selected substances but needs careful consideration of the potential risks associated with AgNP release into the environment and the possible release of hazardous Ag ions [4]. The selection of the appropriate coating plays a fundamental role, both in defining AgNP sensitivity to certain substances and in controlling the release of toxic Ag ions [2,5]. Coatings containing reduced sulfur groups, such as thiols, have been demonstrated to successfully reduce the degree of dissolution of AgNPs, thereby lowering their (eco)toxicity [6,7,8,9].
Although having lower genetic complexity, aquatic invertebrate species with adult stem cells (ASCs) have been increasingly promoted in ecotoxicology, as they represent a valuable and reliable tool for understanding fundamental biological processes, the mode of action (MoA) of pollutants, and mechanisms of epigenetic toxicity [10]. Hydra sp. has been recently promoted as a suitable model for ecological risk assessment of legacy and contaminants of emerging concerns (CECs), including engineered nanomaterials (ENMs) [11,12]. They have been considered suitable as a bioindicator for freshwater ecosystems due to having a simple body organization which determines a high level of interaction between cells and the surrounding environment, facilitating permeation of toxic substances and uptake of ENMs [13,14]. Hydra sp. organisms are known for their longevity and ability to regenerate their bodies due to the life-long presence of ASCs [15]. They have been widely used in ENM ecotoxicity assessment at the individual level by investigating changes in morphology (shorter and/or clubbed tentacles or even disappearance), feeding (unable to catch prey), budding (unable to renew cells), and transcriptomics [16,17,18,19,20,21]. Hydra sp. has also been recently used to assess the safety of ENMs for environmental and biomedical applications, including AgNPs [4,22,23,24]. Interestingly, recent findings show that extracts from Hydra sp. basal discs, which contain antimicrobial peptides (AMP) and are involved in innate immune defense, reduce the toxicity of polyvinylpyrrolidone (PVP)-coated AgNPs to bacteria and zebrafish [25,26].
In the present study, the environmental safety of hydrophilic silver nanoparticles (AgNPs) bifunctionalized with citrate (cit) and L-cysteine (Lcys), was analyzed using the freshwater polyp Hydra vulgaris. This work is a follow up of our previous study in which the safety of the same batch of AgNPcitLcys was tested on microalgae and microcrustaceans belonging to freshwater and marine environments upon acute and chronic exposure [9]. The aim of this study was two-fold: firstly, we wanted to deepen the current knowledge of the environmental safety of AgNPcitLcys by adding a new trophic level to those already investigated and for which low/no toxicity was observed upon acute exposure (i.e., microalgae and microcrustaceans). AgNPcitLcys particles were synthesized for environmental applications (for both monitoring and remediation of contaminated waters) as they showed sensitivity to Hg, a known water pollutant. The assessment of AgNPcitLcys environmental safety is, hence, a priority for promoting their safe application by limiting any potential risk towards aquatic organisms. In addition, based on the available literature data on AgNP ecotoxicity and considering their widespread use in consumer products and many other applications including environmental monitoring and remediation [2,3], it is now necessary to further investigate biological targets of the aquatic environment, including new promising ones such as Hydra. This will prevent any unexpected ecotoxicity and support strategies for a more comprehensive eco-design of engineered nanomaterials for environmental applications [27].

2. Materials and Methods

2.1. Nanosilver Characterization

Silver nanoparticles with citrate and L-cysteine capping (AgNPcitLcys) were synthetized by the Department of Sciences, Roma Tre University of Rome, according to the procedure already described in Prosposito et al. [8] and Bellingeri et al. [9]. Briefly, 10 mL of water solution of sodium citrate (0.01 M), 25 mL of water solution of L-Cys (0.002 M), and 2.5 mL of water solution of silver nitrate (0.05 M) were mixed and degassed with Argon for 10 min. Then, 4 mL of water solution of NaBH4 (4 mg/mL) was added to the mix, and after 2 h, the product was recovered and purified by centrifugation (13,000 rpm, 10 min, 2 times with deionized water). The AgNPcitLcys particles, characterized by UV-Vis measurements in distilled water (by using Shimadzu 2401 PC UV-Vis spectrophotometer), showed the typical plasmonic peak at 420 nm due their nanosize. AgNPscitLcys particles were also investigated by synchrotron radiation-induced X-ray photoelectron spectroscopy (SR-XPS), confirming the molecular structure reproducibility and stability towards aging of the nanostructured material [8,28].
AgNPcitLcys aqueous suspensions (50 mg/L) were characterized by Dynamic Light Scattering (DLS) (Zetasizer Nano ZS90, Malvern, combined with the Zetasizer Nano Series software, version 7.02, Particular Sciences, Dublin, Ireland). Hydrodynamic diameter (HDd, nm), polydispersity index (PDI), and surface charge (ζ-potential, mV) were measured in MilliQ water and Hydra medium at 25 °C. The release of Ag from the AgNPcitLcys was assessed at the beginning (1 h) and at the end of the exposure times (96 h and 7 days) in Hydra medium. Ag release was measured at the highest AgNPcitLcys concentration tested (1000 μg/L). The solution was kept under the same conditions of temperature, light, and photoperiod as used for toxicity tests (18 °C, 400 lux, and 16/8 h light/dark photoperiod) and was mixed by manual shaking once a day. An aliquot was taken at each measured time point (1 h, 96 h, and 7 days) and centrifuged (5000× g, 40 min) by using a centrifugal filter device with a 3 kDa cut off (Amicon Ultra-15 mL, Millipore, Burlington, MA, USA). The resulting filtrate was acidified with HNO3 (10%) and analyzed for Ag concentration. As a control, Ag concentrations were also measured in Hydra medium with no addition of AgNPcitLcys. Ag concentrations were determined by inductively coupled plasma-mass spectrometry (ICP-MS) using the Perkin Elmer NexION 350 spectrometer (Waltham, MA, USA). The analytical accuracy was checked by comparing the certified and measured Ag concentration in the standard reference material SRM 1643e (Trace Elements in Water) of the National Institute of Standards and Technology (NIST). The analytical precision was evaluated by means of the percentage relative standard deviation (% RSD) of five replicate analyses of each water sample. The dissolution percentages were calculated as follows: (Agsolution × 100)/AgNPcitLcysconcentration.

2.2. Acute Short-Term Toxicity

The freshwater cnidarian H. vulgaris subjects, kindly provided by Prof. Massimilano Scalici of the Department of Sciences of Roma Tre University of Rome (Italy), were kept under controlled conditions in the laboratory in freshly prepared Hydra medium at 18 °C with a 16/8 h light/dark photoperiod at 400 lux. Hydra medium was prepared by the addition of 1 mL of CaCl22H2O (1 M) and 1 mL of NaHCO3 (1 M) to a final volume of 1 L of MilliQ water (MilliQ). The polyps were fed ad libitum twice a week with newly hatched brine shrimp Artemia franciscana larvae, which were rinsed in MilliQ before being administered to the polyps. Individuals were not fed 4 days prior to the beginning of the test.
Ecotoxicity assays were performed in 24-well polystyrene plates with two polyps in each well in a final volume of 3 mL. Each concentration was performed in 6 replicates, with a total of 12 specimens for each tested concentration. The polyps were exposed to AgNPcitLcys and AgNO3 (as reference) at 0 (CTRL), 10, 100, and 1000 µg/L and 0 (CTRL), 10, 50, and 100 µg Ag/L, respectively. During the test, we ensured that pH values of exposure solutions stayed in the physiological range of 7.8–8, as that of Hydra medium with no AgNPcitLcys. This was facilitated by the fact that AgNPcitLcys were suspended in water with no added surfactants or additives and that the volume of AgNPcitLcys stock solutions added to each exposure well did not exceed 20 µL.
Two ecotoxicity tests were performed: (i) acute exposure at 96 h with morphological assessment of exposed polyps; (ii) acute exposure at 96 h with assessment of regeneration ability according to Wilby [29]. The regeneration assay was prolonged for up to 7 days in order to evaluate a sub-chronic exposure scenario, after which the predation ability of regenerated polyps was evaluated. This test was performed by feeding 1 individual with 10 A. franciscana larvae for 45 min in 10 mL of fresh Hydra medium in a 6-well polystyrene plate. A total of 6 polyps for each exposure concentration were employed for the evaluation of predation ability. At the end of the 45 min, the polyps were transferred and the number of eaten A. franciscana larvae was registered as well as that of dead A. franciscana larvae found at the bottom of the well.

3. Results and Discussion

3.1. AgNPcitLys Behavior in Hydra Medium

The hydrodynamic diameter (HDd) (Table 1) of AgNPcitLcys in MilliQ is consistent with the previous measurements reported in Prosposito et al. [8] and Bellingeri et al. [9], with a mean value of 136 ± 11 nm as measured by intensity and a net negative surface charge (–47.9 mV), as expected based on the surface functionalization with citrate and L-cysteine. The Hydra medium caused a moderate aggregation of AgNPcitLcys with an HDd of 676 ± 10 nm, and an increase in ζ-potential to –18 mV. The presence of salts composing the Hydra medium probably caused a partial shielding of the negative charges of AgNPcitLcys, thereby reducing the electrostatic repulsion and leading to the formation of aggregates. The analysis of Ag release (Table 2) confirmed the low dissolution behavior previously reported for this particular kind of double-coated AgNPs [8,9], with a maximum dissolution percentage of 0.146% of nominal AgNPcitLcys concentration. The release of Ag ions is considered to be the main, but not the only, mechanism of AgNP toxicity towards non-target species. AgNP dissolution can be controlled by selecting the appropriate surface coating molecules, such as those containing reduced sulphur groups, which covalently bind to Ag atoms onto the NP surface, thereby reducing contact with oxidizing agents and consequent Ag dissolution [6,7,8,9].

3.2. Ecotoxicity

For the description of morphological alteration and regeneration capacity, we used the evaluation proposed by Wilby [29], by assigning a score from 1 to 10 based on the observed morphology of the specimens. For the morphological assay, the evaluation was performed every 24 h up to 96 h of exposure, while for the regeneration assay, it was performed after 96 h and after 7 days of exposure.
The exposure of H. vulgaris to AgNPcitLcys up to 1000 µg/L showed minimal consequences for both morphology and regeneration, with the exception of a slight contraction of column and tentacles at 100 and 1000 µg/L (Figure 1, upper row; Figure 2A). In contrast, a dose-dependent reduction in morphological parameters was observed upon AgNO3 exposure, with organisms reaching the tulip shape at the highest concentration tested (100 µg/L) (Figure 1, lower row; Figure 2B). The higher toxicity of AgNO3 compared to AgNPs agrees with previous observations, as the ionic form is more available for biological uptake in short-term exposure, while the effects of AgNP depend on particle dissolution and uptake and usually need longer exposure times to be observed. Compared to available studies on AgNPs ecotoxicity on Hydra (Kang and Park, 2021; Auclair and Gagné, 2022), AgNPcitLcys exhibited lower toxicity, causing only mild morphological alterations (100–1000 µg/L) and no mortality. In the regeneration assay, both AgNPcitLcys- and AgNO3-exposed organisms showed a high regeneration rate, reaching a score of 8 or more after 7 days of exposure, even at the highest concentration tested (Figure 2C,D).
The low acute ecotoxicity of AgNPcitLcys was confirmed for the freshwater cnidarian H. vulgaris, as also previously observed for freshwater and marine water microalgae and microcrustaceans [9]. The low release of Ag ions in Hydra medium, as shown by ICP-MS data, surely played a significant role in the observed reduced ecotoxicity, also based on the morphological effects observed upon exposure to AgNO3, confirming the sensitivity of Hydra to Ag. However, Kang and Park [30] measured high levels of Ag inside Hydra specimens exposed to sulfide-coated AgNPs (Ag2S-NPs), even if the nominal dissolution of AgNPs in the medium was as low as non-detectable (LOD not reported). This was associated with toxicity, both at the morphological and regeneration levels (with EC50 of 0.65 and 0.09 mg/L, respectively). The authors hypothesized the ingestion of Ag2S-NPs followed by dissolution, triggered by the acidic environment of the gastrovascular cavity [30].
Previous findings showed effects upon AgNPcitLcys exposure despite the low dissolution levels [9]. This led to hypothesizing the occurrence of a nano-size-related toxic effect for AgNPcitLcys, especially when considering freshwater species. This hypothesis was supported by the low aggregation of AgNPcitLcys in freshwater media, which could have eased intracellular uptake and consequent dissolution and toxicity. In the current work, as shown by DLS data, AgNPcitLcys do undergo a moderate aggregation when dispersed in Hydra medium (HDd of 676 ± 10 nm), hence making an intracellular uptake less likely to happen. This could explain the almost total absence of toxicity observed for H. vulgaris compared to previously tested freshwater species.
Although Ag levels were not measured in the whole body of Hydra and the possibility of ingestion or intracellular uptake cannot be ruled out, the low ecotoxicity seems to confirm the protective role of the double coating of citrate and L-cysteine in preventing Ag ion release and thus ecotoxicity [8,9].
Among regenerated Hydra from AgNPcitLcys exposure, some appeared to be bending their tentacles towards the mouth, as shown in Figure 3A, a behavior usually observed during feeding. As a consequence of this observation and since no major disruption occurred for regenerated Hydra, a feeding assay was performed in order to check whether the regeneration in a polluted environment could have impaired tentacle functionality. The evaluation of the predation ability (Figure 4) showed a reduction in the number of eaten larvae only for H. vulgaris exposed to AgNO3 at the highest concentration (100 µg/L). Meanwhile, the number of larvae found dead and considered to be the result of a non-successful predatory attempt was higher than in the control group, in all exposed specimens, even if not statistically significant. The exposure of Hydra to both heavy metals and NPs was shown to alter the structure of battery cell complexes (BCCs) [31,32,33] and epithelio-muscular cells that house the cnidocytes and associated neurons in the tentacles, which are responsible for its predating behavior. The impairment of BCCs can affect the feeding behavior of H. vulgaris, which normally consists of the following steps: catching and killing of the prey by cnidocytes-armed tentacles, tentacle bending towards the mouth, mouth opening, and ingestion of the prey [34]. The falling off of caught preys could be caused by a reduced entangling ability of the tentacles following an alteration of BCCS. For AgNPcitLcys exposure, this was particularly emphasized at the lowest tested concentration (10 µg/L) (Figure 4A). Similarly, the freshwater microcrustacean Ceriodaphnia dubia was shown to suffer more from exposure to a lower concentration of AgNPcitLcys (1 µg/L) compared to an intermediate one (10 µg/L) [9]. AgNPs at lower concentrations (µg/L range) are subjected to reduced aggregation but usually undergo enhanced dissolution compared to higher AgNP concentrations (mg/L–g/L range). Moreover, lower aggregation corresponds to an increased number of AgNPs in their nano-size range, potentially able to cross cell membranes and exert a nano-related toxicity, as previously hypothesized for AgNPcitLcys [9]. This interplay of factors is reflected in toxicity results, with a non-linear trend of responses, and could be responsible for the occurrence of stronger toxic effects at lower concentrations.
Furthermore, recent findings [25,26,35,36] have demonstrated that peptides extracted from Hydra basal disks, which are involved in the organism’s defense against bacterial attacks, show a natural ability to counteract AgNP toxicity towards different organisms and cells. Further investigations are thus encouraged to better understand the mechanisms behind such an ability for future biotechnological applications.

4. Conclusions

Silver nanoparticles for environmental applications, with a double coating of citrate and L-cysteine, were evaluated for their ecotoxicity towards the freshwater cnidarian H. vulgaris. The results confirm the low release of Ag ions from AgNPcitLcys and their safety for H. vulgaris up to 1000 µg/L, as previously observed for other freshwater and marine invertebrate model species. These results further support the leading role of surface coating in AgNP environmental safety and highlight the need to focus research efforts on the investigation of the main features involved in AgNP ecotoxicity, in order to allow the production of ecologically safe ENMs for environmental applications.

Author Contributions

Conceptualization, A.B., I.V. and I.C.; methodology, A.B.; formal analysis, A.B., C.F. and G.P.; investigation, A.B., C.F. and G.P.; resources, I.C. and I.V.; data curation, A.B. and I.C.; writing—original draft preparation, A.B., C.B., G.P., I.V. and I.C.; writing—review and editing, A.B., C.B., G.P., I.V. and I.C.; supervision, I.C. and I.V.; project administration, I.C. and I.V.; funding acquisition, I.C. and I.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by Regione Lazio, through Progetto FACS “Gruppi di ricerca 2020”, POR FESR Lazio 2014-2020-Azione 1.2.1 prot. A0375-2020-36521 CUP E85F21002440002.

Institutional Review Board Statement

Ethical review and approval were waived for this study due to the use of freshwater invertebrates not included in the list of animal restrictions.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Massimiliano Scalici and his collaborators at the Department of Sciences of Roma Tre University of Rome for kindly providing Hydra vulgaris specimens.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Tortella, G.; Rubilar, O.; Durán, N.; Diez, M.; Martínez, M.; Parada, J.; Seabra, A. Silver nanoparticles: Toxicity in model organisms as an overview of its hazard for human health and the environment. J. Hazard. Mater. 2020, 390, 121974. [Google Scholar] [CrossRef] [PubMed]
  2. Prosposito, P.; Mochi, F.; Ciotta, E.; Casalboni, M.; De Matteis, F.; Venditti, I.; Fontana, L.; Testa, G.; Fratoddi, I. Hydrophilic silver nanoparticles with tunable optical properties: Application for the detection of heavy metals in water. Beilstein J. Nanotechnol. 2016, 7, 1654–1661. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Syafiuddin, A.; Salim, M.R.; Beng Hong Kueh, A.; Hadibarata, T.; Nur, H. A review of silver nanoparticles: Research trends, global consumption, synthesis, properties, and future challenges. J. Chin. Chem. Soc. 2017, 64, 732–756. [Google Scholar] [CrossRef]
  4. Castro, V.L.; Jonsson, C.M.; Silva, M.S.G.M.; Castanha, R.; Vallim, J.H.; da Silva, L.A.G.; de Oliveira, R.M.D.; Correa, D.S.; Ferreira, M.D. Estimates of AgNP toxicity thresholds in support of environmental safety policies. J. Nanopartic. Res. 2021, 24, 1–20. [Google Scholar] [CrossRef]
  5. Marchioni, M.; Veronesi, G.; Worms, I.; Ling, W.L.; Gallon, T.; Leonard, D.; Gateau, C.; Chevallet, M.; Jouneau, P.-H.; Carlini, L. Safer-by-design biocides made of tri-thiol bridged silver nanoparticle assemblies. Nanoscale Horiz. 2020, 5, 507–513. [Google Scholar] [CrossRef] [Green Version]
  6. Levard, C.; Hotze, E.M.; Colman, B.P.; Dale, A.L.; Truong, L.; Yang, X.; Bone, A.J.; Brown Jr, G.E.; Tanguay, R.L.; Di Giulio, R.T. Sulfidation of silver nanoparticles: Natural antidote to their toxicity. Environ. Sci. Technol. 2013, 47, 13440–13448. [Google Scholar] [CrossRef] [Green Version]
  7. Pem, B.; Pongrac, I.M.; Ulm, L.; Pavičić, I.; Vrček, V.; Jurašin, D.D.; Ljubojević, M.; Krivohlavek, A.; Vrček, I.V. Toxicity and safety study of silver and gold nanoparticles functionalized with cysteine and glutathione. Beilstein J. Nanotechnol. 2019, 10, 1802–1817. [Google Scholar] [CrossRef] [Green Version]
  8. Prosposito, P.; Burratti, L.; Bellingeri, A.; Protano, G.; Faleri, C.; Corsi, I.; Battocchio, C.; Iucci, G.; Tortora, L.; Secchi, V. Bifunctionalized Silver Nanoparticles as Hg2+ Plasmonic Sensor in Water: Synthesis, Characterizations, and Ecosafety. Nanomaterials 2019, 9, 1353. [Google Scholar] [CrossRef] [Green Version]
  9. Bellingeri, A.; Scattoni, M.; Venditti, I.; Battocchio, C.; Protano, G.; Corsi, I. Ecologically based methods for promoting safer nanosilver for environmental applications. J. Hazard. Mater. 2022, 438, 129523. [Google Scholar] [CrossRef]
  10. Rosner, A.; Armengaud, J.; Ballarin, L.; Barnay-Verdier, S.; Cima, F.; Coelho, A.V.; Domart-Coulon, I.; Drobne, D.; Genevière, A.-M.; Kokalj, A.J. Stem cells of aquatic invertebrates as an advanced tool for assessing ecotoxicological impacts. Sci. Total Environ. 2021, 771, 144565. [Google Scholar] [CrossRef]
  11. Blaise, C.; Gagné, F.; Harwood, M.; Quinn, B.; Hanana, H. Ecotoxicity responses of the freshwater cnidarian Hydra attenuata to 11 rare earth elements. Ecotoxicol. Environ. Saf. 2018, 163, 486–491. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Vimalkumar, K.; Sangeetha, S.; Oscar, F.L.; Kay, P.; Pugazhendhi, A. A systematic review on toxicity assessment of persistent emerging pollutants (EPs) and associated microplastics (MPs) in the environment using the Hydra animal model. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2022, 256, 109320. [Google Scholar] [CrossRef] [PubMed]
  13. Quinn, B.; Gagné, F.; Blaise, C. Hydra, a model system for environmental studies. Int. J. Dev. Biol. 2012, 56, 613–625. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Cera, A.; Cesarini, G.; Spani, F.; Scalici, M. Hydra vulgaris assay as environmental assessment tool for ecotoxicology in freshwaters: A review. Mar. Freshw. Res. 2020, 72, 745–753. [Google Scholar] [CrossRef]
  15. Yum, S.; Woo, S.; Lee, A.; Won, H.; Kim, J. Hydra, a candidate for an alternative model in environmental genomics. Mol. Cell. Toxicol. 2014, 10, 339–346. [Google Scholar] [CrossRef]
  16. Blaise, C.; Gagné, F.; Ferard, J.; Eullaffroy, P. Ecotoxicity of selected nano-materials to aquatic organisms. Environ. Toxicol. Int. J. 2008, 23, 591–598. [Google Scholar] [CrossRef]
  17. Malvindi, M.A.; Carbone, L.; Quarta, A.; Tino, A.; Manna, L.; Pellegrino, T.; Tortiglione, C. Rod-shaped nanocrystals elicit neuronal activity in vivo. Small 2008, 4, 1747–1755. [Google Scholar] [CrossRef]
  18. Tortiglione, C. An ancient model organism to test in vivo novel functional nanocrystals. Biomed. Eng. Theory Appl. 2011, 225–252. [Google Scholar] [CrossRef] [Green Version]
  19. Ambrosone, A.; Roopin, M.; Pelaz, B.; Abdelmonem, A.M.; Ackermann, L.-M.; Mattera, L.; Allocca, M.; Tino, A.; Klapper, M.; Parak, W.J. Dissecting common and divergent molecular pathways elicited by CdSe/ZnS quantum dots in freshwater and marine sentinel invertebrates. Nanotoxicology 2017, 11, 289–303. [Google Scholar] [CrossRef]
  20. Côa, F.; Strauss, M.; Clemente, Z.; Neto, L.L.R.; Lopes, J.R.; Alencar, R.S.; Souza Filho, A.G.; Alves, O.L.; Castro, V.L.S.; Barbieri, E. Coating carbon nanotubes with humic acid using an eco-friendly mechanochemical method: Application for Cu (II) ions removal from water and aquatic ecotoxicity. Sci. Total Environ. 2017, 607, 1479–1486. [Google Scholar] [CrossRef]
  21. Venancio, C.; Savuca, A.; Oliveira, M.; Martins, M.; Lopes, I. Polymethylmethacrylate nanoplastics effects on the freshwater cnidarian Hydra viridissima. J. Hazard. Mater. 2021, 402, 123773. [Google Scholar] [CrossRef] [PubMed]
  22. Marchesano, V.; Ambrosone, A.; Bartelmess, J.; Strisciante, F.; Tino, A.; Echegoyen, L.; Tortiglione, C.; Giordani, S. Impact of carbon nano-onions on Hydra vulgaris as a model organism for nanoecotoxicology. Nanomaterials 2015, 5, 1331–1350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Gonçalves, S.P.C.; Strauss, M.; Delite, F.S.; Clemente, Z.; Castro, V.L.; Martinez, D.S.T. Activated carbon from pyrolysed sugarcane bagasse: Silver nanoparticle modification and ecotoxicity assessment. Sci. Total Environ. 2016, 565, 833–840. [Google Scholar] [CrossRef]
  24. Castro, V.L.; Clemente, Z.; Jonsson, C.; Silva, M.; Vallim, J.H.; de Medeiros, A.M.Z.; Martinez, D.S.T. Nanoecotoxicity assessment of graphene oxide and its relationship with humic acid. Environ. Toxicol. Chem. 2018, 37, 1998–2012. [Google Scholar] [CrossRef]
  25. Park, H.-G.; Yeo, M.-K. Comparison of gene expression patterns from zebrafish embryos between pure silver nanomaterial and mixed silver nanomaterial containing cells of Hydra magnipapillata. Mol. Cell. Toxicol. 2015, 11, 307–314. [Google Scholar] [CrossRef]
  26. Kim, S.S.; Lee, J.A.; Yeo, M.-K. Reduction in toxicity of nano-Ag-polyvinyl-pyrrolidone using hydra proteins and peptides during zebrafish embryogenesis. Nanomaterials 2019, 9, 1210. [Google Scholar] [CrossRef] [Green Version]
  27. Corsi, I.; Bellingeri, A.; Eliso, M.C.; Grassi, G.; Liberatori, G.; Murano, C.; Sturba, L.; Vannuccini, M.L.; Bergami, E. Eco-interactions of engineered nanomaterials in the marine environment: Towards an eco-design framework. Nanomaterials 2021, 11, 1903. [Google Scholar] [CrossRef] [PubMed]
  28. Schiesaro, I.; Burratti, L.; Meneghini, C.; Fratoddi, I.; Prosposito, P.; Lim, J.; Scheu, C.; Venditti, I.; Iucci, G.; Battocchio, C. Hydrophilic silver nanoparticles for Hg (II) detection in water: Direct evidence for mercury–silver interaction. J. Phys. Chem. C 2020, 124, 25975–25983. [Google Scholar] [CrossRef]
  29. Wilby, O. The Hydra regeneration assay. In Proceedings of the Workshop Organised by Association Francaise de Teratologie, Royaumont, France, 3 June 1988; pp. 108–124. [Google Scholar]
  30. Kang, J.S.; Park, J.W. Silver Ion Release Accelerated in the Gastrovascular Cavity of Hydra vulgaris Increases the Toxicity of Silver Sulfide Nanoparticles. Environ. Toxicol. Chem. 2021, 40, 1662–1672. [Google Scholar] [CrossRef]
  31. Ambrosone, A.; Scotto di Vettimo, M.R.; Malvindi, M.A.; Roopin, M.; Levy, O.; Marchesano, V.; Pompa, P.P.; Tortiglione, C.; Tino, A. Impact of amorphous SiO2 nanoparticles on a living organism: Morphological, behavioral, and molecular biology implications. Front. Bioeng. Biotechnol. 2014, 2, 37. [Google Scholar] [CrossRef]
  32. Murugadas, A.; Zeeshan, M.; Thamaraiselvi, K.; Ghaskadbi, S.; Akbarsha, M.A. Hydra as a model organism to decipher the toxic effects of copper oxide nanorod: Eco-toxicogenomics approach. Sci. Rep. 2016, 6, 29663. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Zeeshan, M.; Murugadas, A.; Ghaskadbi, S.; Ramaswamy, B.R.; Akbarsha, M.A. Ecotoxicological assessment of cobalt using Hydra model: ROS, oxidative stress, DNA damage, cell cycle arrest, and apoptosis as mechanisms of toxicity. Environ. Pollut. 2017, 224, 54–69. [Google Scholar] [CrossRef] [PubMed]
  34. Ruch, R.; Cook, C. Nematocyst inactivation during feeding in Hydra littoralis. J. Exp. Biol. 1984, 111, 31–42. [Google Scholar] [CrossRef]
  35. Lee, J.A.; Yeo, M.-K.; Kim, S.S. Hydra protein reduces the toxicity of Ag–PVP nanoparticles in a 3D A549 cell line. Mol. Cell. Toxicol. 2020, 16, 73–81. [Google Scholar] [CrossRef]
  36. Park, H.-G.; Yeo, M.-K. Toxic effects against bacteria of silver nanocolloids and silver nanotubes in the presence of hydra cells. Mol. Cell. Toxicol. 2017, 13, 37–47. [Google Scholar] [CrossRef]
Toxics 10 00695 g001 550
Figure 1. Morphology of H. vulgaris exposed to AgNPcitLcys (upper row) and AgNO3 (lower row) for 96 h at 0 (CTRL), 10, 100, and 1000 µg/L and 0 (CTRL), 10, 50, and 100 µg/L, respectively.
Figure 1. Morphology of H. vulgaris exposed to AgNPcitLcys (upper row) and AgNO3 (lower row) for 96 h at 0 (CTRL), 10, 100, and 1000 µg/L and 0 (CTRL), 10, 50, and 100 µg/L, respectively.
Toxics 10 00695 g001
Toxics 10 00695 g002 550

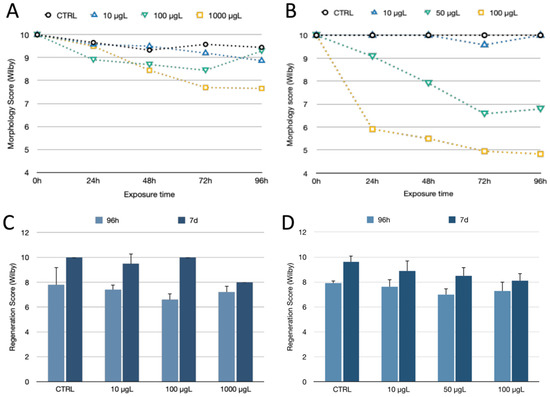

Figure 2. Morphology and regeneration score according to Wilby for H. vulgaris exposed to AgNPcitLcys (A,C) and AgNO3 (B,D) for 96 h (morphology) and 96 h and 7 days (morphology and regeneration) at 0 (CTRL), 10, 100, and 1000 µg/L for AgNPcitLcys and 0 (CTRL), 10, 50, and 100 µg/L for AgNO3. Each data point is the mean value obtained from 12 specimens with standard deviation.
Figure 2. Morphology and regeneration score according to Wilby for H. vulgaris exposed to AgNPcitLcys (A,C) and AgNO3 (B,D) for 96 h (morphology) and 96 h and 7 days (morphology and regeneration) at 0 (CTRL), 10, 100, and 1000 µg/L for AgNPcitLcys and 0 (CTRL), 10, 50, and 100 µg/L for AgNO3. Each data point is the mean value obtained from 12 specimens with standard deviation.
Toxics 10 00695 g002
Toxics 10 00695 g003 550
Figure 3. Regeneration of H. vulgaris columns exposed to AgNPcitLcys (A) and AgNO3 (B) for 7 days at 1000 µg/L and 100 µg/L, respectively.
Figure 3. Regeneration of H. vulgaris columns exposed to AgNPcitLcys (A) and AgNO3 (B) for 7 days at 1000 µg/L and 100 µg/L, respectively.
Toxics 10 00695 g003
Toxics 10 00695 g004 550

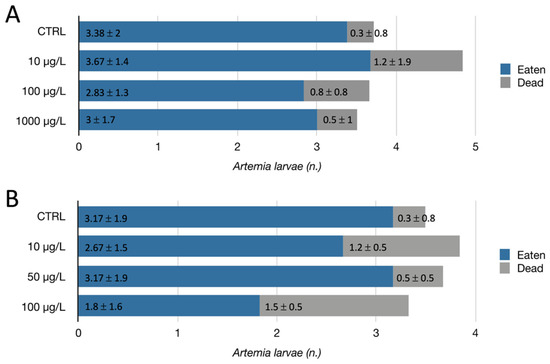

Figure 4. Evaluation of predation ability of H. vulgaris after 7 days of exposure to (A) AgNPcitLcys and (B) AgNO3. The graphs show the average number (± standard deviation) of A. franciscana larvae either eaten (blue) or found dead at the bottom of the well (gray).
Figure 4. Evaluation of predation ability of H. vulgaris after 7 days of exposure to (A) AgNPcitLcys and (B) AgNO3. The graphs show the average number (± standard deviation) of A. franciscana larvae either eaten (blue) or found dead at the bottom of the well (gray).
Toxics 10 00695 g004
Table
Table 1. Average hydrodynamic diameter (HDd, reported in intensity and volume), polydispersity index (PDI), and surface charge (ζ-potential) of AgNPcitLcys as measured by DLS in MilliQ water and Hydra medium at 50 mg/L and 25 °C. Data are shown as mean ± standard deviation.
Table 1. Average hydrodynamic diameter (HDd, reported in intensity and volume), polydispersity index (PDI), and surface charge (ζ-potential) of AgNPcitLcys as measured by DLS in MilliQ water and Hydra medium at 50 mg/L and 25 °C. Data are shown as mean ± standard deviation.
HDd (nm)
Intensity		HDd (nm)
Volume		PDIζ-Potential (mV)
MilliQ136 ± 1114 ± 90.5–47.9
Hydra medium676 ± 101283 ± 1820.28–18.7
Table
Table 2. Reported Ag values (µg/L) as measured by ICP-MS in Hydra medium and Hydra medium with 1000 µg/L AgNPcitLcys after 1 h, 96 h, and 7 days after filtration (3 kDa). Data are shown as mean ± standard deviation and dissolution percentage of nominal AgNPcitLcys.
Table 2. Reported Ag values (µg/L) as measured by ICP-MS in Hydra medium and Hydra medium with 1000 µg/L AgNPcitLcys after 1 h, 96 h, and 7 days after filtration (3 kDa). Data are shown as mean ± standard deviation and dissolution percentage of nominal AgNPcitLcys.
Hydra MediumHydra Medium
+ AgNPcitLCys
1 h		Hydra Medium
+ AgNPcitLCys
96 h		Hydra Medium
+ AgNPcitLCys
7 days
Ag (µg/L)0.23 ± 0.070.41 ± 0.03
(0.041%)		1.42 ± 0.05
(0.142%)		1.69 ± 0.04
(0.169%)
