TiO2-Photocatalyst-Induced Degradation of Dog and Cat Allergens under Wet and Dry Conditions Causes a Loss in Their Allergenicity

by
Ryosuke Matsuura
1,
Arisa Kawamura
1,
Rizo Ota
2,
Takashi Fukushima
3,
Kazuhiro Fujimoto
3,
Masato Kozaki
3,
Misaki Yamashiro
3,
Junichi Somei
3,
Yasunobu Matsumoto
1,4 and
Yoko Aida
1,*
1
Laboratory of Global Infectious Diseases Control Science, Graduate School of Agricultural and Life Sciences, The University of Tokyo, 1-1-1 Yayoi, Bunkyo-ku, Tokyo 113-8657, Japan
2
Inuyama Animal General Medical Center, 29 Oomishita, Haguro, Inuyama 484-0894, Japan
3
Kaltech Corporation, Hirotake Bldg. 3-3-7 Bakuromachi, Chuo-ku, Osaka 541-0059, Japan
4
Laboratory of Global Animal Resource Science, Graduate School of Agricultural and Life Sciences, The University of Tokyo, 1-1-1 Yayoi, Bunkyo-ku, Tokyo 113-8657, Japan
*
Author to whom correspondence should be addressed.
Toxics 2023, 11(8), 718; https://doi.org/10.3390/toxics11080718
Submission received: 19 July 2023 / Revised: 11 August 2023 / Accepted: 19 August 2023 / Published: 21 August 2023
(This article belongs to the Special Issue Allergic Diseases (Asthma, Allergic Rhinitis, Atopic Dermatitis) and Air Pollution)
Browse Figures
Versions Notes

Abstract

:
Allergies to dogs and cats can cause enormous damage to human health and the economy. Dog and cat allergens are mainly found in dog and cat dander and are present in small particles in the air and in carpets in homes with dogs and cats. Cleaning houses and washing pets are the main methods for reducing allergens in homes; however, it is difficult to eliminate them completely. Therefore, we aimed to investigate whether a TiO2 photocatalyst could degrade dog and cat allergens. Under wet conditions, exposure to the TiO2 photocatalyst for 24 h degraded Can f1, which is a major dog allergen extracted from dog dander, by 98.3%, and Fel d1, which is a major cat allergen extracted from cat dander, by 93.6–94.4%. Furthermore, under dry conditions, the TiO2 photocatalyst degraded Can f1 and Fel d1 by 92.8% and 59.2–68.4%, respectively. The TiO2 photocatalyst abolished the binding of dog and cat allergens to human IgE by 104.6% and 108.6%, respectively. The results indicated that the TiO2 photocatalyst degraded dog and cat allergens, causing a loss in their allergenicity. Our results suggest that TiO2 photocatalysis can be useful for removing indoor pet allergens and improving the partnership between humans and pets.

1. Introduction

Allergic diseases such as rhinoconjunctivitis and asthma are associated with human health problems worldwide. Allergic diseases have been classified as asthma, rhinitis, conjunctivitis, dermatitis, urticaria, food hypersensitivity, drug hypersensitivity, insect sting or bite hypersensitivity, and anaphylaxis by the World Allergy Organization based on the mechanisms that initiate and mediate allergic reactions [1]. Allergic diseases cause significant economic losses [2]. For instance, they contribute to the highest financial burden in the USA, with an estimated loss of productivity of USD 593 per employee annually [3]. In addition, the loss of productivity due to rhinitis was estimated to be 2.7 billion EUR annually [4]. Notably, dogs and cats are the most prevalent household pets worldwide and, hence, are the most common source of pet allergens causing allergic diseases, burdening the health sector. Further, the population of pet dogs and cats has also been increasing in Europe [5,6]. Notably, as animal therapy is attracting attention in the field of human medicine, the importance of pet dogs and cats is expected to increase in the future [7]. However, it is estimated that 10–20% of the global population is allergic to dogs and cats, and this proportion is further increasing [2]. In the USA, the cost of caring for acute asthma in dog-allergic patients is estimated to add USD 500 million–1 billion [8]. In addition, allergies to cats are one of the reasons for rehoming pet cats [9]. Therefore, it is important to establish a method for suppressing pet allergens to enhance the bonding between pets and humans.
Seven (Can f1–Can f7) and eight (Fel d1–Fel d8) proteins have been identified as dog and cat allergens, respectively [2]. Dog and cat allergens have been detected in serum, dander (skin and fur), hair, saliva, and urine [2,10]. Additionally, cat allergens have also been detected in the anal and sebaceous glands [2,11]. These allergens are mainly detected on carpets and upholstery, which are a known reservoir of allergens in homes [11,12]. Notably, dog and cat allergens are suspended in the air for a long time [13,14]. Therefore, several methods for reducing allergens have been investigated. The most efficient methods include washing the animals and cleaning rooms. First, washing dogs and cats twice a week significantly reduces allergen levels at home [15]. Second, vacuuming and washing carpets decrease cat allergens [12]. Although these methods can significantly reduce the number of allergens, some allergens still remain. To improve cleaning efficiency, sodium hypochlorite was studied for the degradation of recombinant Fel d1 [16]. However, it is not suitable for reducing airborne allergens because of its toxicity. Finally, hypoallergenic dogs and cats have been investigated to reduce allergic diseases. One approach has been to vaccinate cats to induce neutralizing antibodies against Fel d1 and reduce its secretion [17]. However, there are ethical problems associated with vaccines that have no direct benefit for animals [2]. Dog breeds with little hair loss or long hair, such as Labradors and poodles, are thought to be hypoallergenic breeds that release fewer allergens into the environment [18]. However, floor and airborne allergen levels from these hypoallergenic dog breeds are similar to those of non-hypoallergenic dog breeds [18]. These studies suggest that a novel approach is required to effectively reduce pet allergens in the environment.
Photocatalysts can degrade organic matter while being harmless to human health. Many compounds such as titanium dioxide (TiO2), tungsten trioxide (WO3), iron (III) oxide (Fe2O3), and graphitic carbon nitride (CN) are known to exhibit photocatalysis and are being actively researched [19,20,21,22]. Photocatalysts are excited by light and exhibit strong oxidation–reduction reactions, generating reactive oxygen species (ROS) such as hydroxyl (−OH) and superoxide radicals (O2−) [23]. Hydrogen production via this photocatalytic oxidation–reduction reaction is attracting a great deal of attention in the production of clean energy [24]. Additionally, ROS produced by photocatalysts kill microorganisms, such as Escherichia coli, Bacillus cereus, Enterobacter spp., Porphyromonas gingivalis, Salmonella spp., Vibrio parahaemolyticus, and Legionella pneumophila [25,26,27,28,29,30,31,32,33,34,35,36,37], and inactivate viruses such as influenza, hepatitis C, vesicular stomatitis, enterovirus, herpes, Zika, human coronavirus, bovine coronavirus, human norovirus, murine norovirus, severe acute respiratory syndrome (SARS)-associated coronavirus, bacteriophage, and SARS-CoV2 [19,20,38,39,40,41,42,43,44,45]. In particular, our previous study showed that a TiO2 photocatalyst, which is the most common photocatalyst, inactivates SARS-CoV-2 in aerosols [19], suggesting that it is effective for inactivating organic matter suspended in the air. In addition, photocatalysts can degrade viral proteins and endotoxins, which are the lipopolysaccharides on the outer membrane of Gram-negative bacteria [19,36]. These results suggest that photocatalysts can degrade high-molecular-weight organic matter, such as animal allergens. Moreover, the TiO2 photocatalyst degrades the pollen antigens of Asteraceae, Poaceae, Cupressus, and Platanus [46,47,48]. Interestingly, ovalbumin treated with a TiO2 photocatalyst showed lower allergenicity in mice [49]. To increase the efficiency of this photocatalytic reaction, co-catalysts for accurately controlling charge separation were actively explored [24,50]. Indeed, integration of an MXene in CN can trap the electrons to reduce the energy loss and enlarge the light absorption range of CN, which greatly improves the energy utilization efficiency [22]. Platinum (Pt) is also a known co-catalyst for TiO2 and the formation of a Ti3+ state on the TiO2 surface close to the Pt nanoparticles and a Ptδ+ state on the Pt nanoparticles [51]. Additionally, TiO2 photocatalysts do not harm human health. Although the International Agency for Research on Cancer classified TiO2 as possibly carcinogenic to humans (group 2B), it noted that there was limited evidence of carcinogenicity in experimental animals. Additionally, no increased risks of total cancers, including lung cancer and other causes of death, were found in workers employed in the TiO2 production industry in the USA and Europe [52,53]. These results strongly suggest that there is very little risk from the inhalation of suspended TiO2 particles. Furthermore, the band gap energy and peak photoexcitation wavelength of rutile-type TiO2 have been determined to be 3.05 eV and 406.5 nm, respectively [54]. Rutile-type TiO2 can be excited by a 405 nm light-emitting diode (LED), which is an inexpensive and harmless light source compared to ultraviolet C [19]. Therefore, the use of TiO2 photocatalysts is an attractive choice for reducing the number of allergens in the air, keeping indoor environments cleaner. However, the use of TiO2 photocatalysts to degrade dog and cat allergens has not yet been demonstrated.
In this study, we aimed to investigate whether rutile-type TiO2/PtO2 (hereafter referred to as “TiO2”)-coated glass sheets exerted photocatalytic activity following excitation by light with a wavelength of 405 nm. Furthermore, we aimed to investigate whether TiO2 photocatalysts could degrade dog and cat allergens in wet and dry conditions, respectively. We hypothesized that TiO2 photocatalysts could degrade dog and cat allergens and decrease their allergenicity.

2. Materials and Methods

2.1. Preparation of TiO2-Coated Glass Sheet

TiO2 was coated onto a glass sheet (XU1310010; Osaka Lighting Corp., Osaka, Japan) as follows: A commercial powder of fine (approximately 20 nm) rutile-type TiO2 containing approximately 1% platinum dioxide was dispersed into ion-exchanged water (to improve the photocatalytic reaction) (MPT-623, Ishihara Sangyou Kaisha, Ltd., Osaka, Japan) [55,56], followed by the immersion of a glass sheet in the water. The glass sheet was then air dried at room temperature prior to being calcined in air for 90 min at 400 °C, which did not change the crystal structure of the rutile-type TiO2 [57].

2.2. Transmission Electron Microscope (TEM)

To observe the TiO2 particle, a TEM image was obtained using a Titan™ 80-300 electron microscope (FEI-Company, Hillsboro, OR, USA).

2.3. TiO2 Photocatalyst Treatment

The photocatalytic reaction was performed according to JIS R1752:2020 [58], with minor modifications (Figure 1). Briefly, under wet conditions, filter paper was placed at the bottom of a 10 cm dish and damped with 3 mL of distilled water to preserve moisture (Figure 1A). To avoid direct contact with the filter paper, a cover glass and plastic tube were placed on the filter paper, and a glass sheet (1 cm × 1 cm) coated with TiO2 was placed on top of the cover glass (Figure 1A). In the “TiO2 + Light” group, 100 μL of the sample solution was placed on the TiO2-coated glass sheet, covered by a cover glass (Figure 1A), and the TiO2 photocatalyst was excited by 405 nm LED source irradiation (Figure 1C). Under dry conditions, in the “TiO2 + Light” group, 6 mg of the dry sample was placed on a TiO2-coated glass sheet (Figure 1B), and the TiO2 photocatalyst was excited using LED light (405 nm) source irradiation (Figure 1C). The controls included a dry sample incubated with either a TiO2-coated glass sheet without LED light (“TiO2 in dark” group) or both a glass and LED light (“Glass + Light” group), or a glass without LED light (“Glass in dark” group).

2.4. Methylene Blue Degradation

To investigate the effect of the TiO2 photocatalyst on methylene blue, 100 μL of 12.5 μM methylene blue solution was applied once and adsorbed onto the TiO2-coated glass sheet and then irradiated using 405 nm LED light for 0, 10, 20, 30, 40, 50, and 60 min, as shown in Figure 1A,C. The resulting methylene blue solution was collected at each time point by washing and immersing it in 100 μL of distilled water. Next, the absorbance at 660 nm was measured using an Ensight Perkin Elmer multimode plate reader (Perkin Elmer, Milan, Italy). The rate of methylene blue degradation was calculated from the exponential regression of OD660 versus the photocatalytic reaction time.

2.5. Analysis of the Degradation of Animal Allergens by TiO2 Photocatalyst under Wet and Dry Conditions Using Western Blot

To confirm the degradation of animal allergens by the TiO2 photocatalyst under wet conditions, 12 mg of freeze-dried crude antigen extracted from dog and cat hair coat and epithelium (Institute of Tokyo Environmental Allergy, Tokyo, Japan) was diluted in 1 mL of distilled water, and 100 μL of the sample was treated with the TiO2 photocatalyst for up to 24 h. After the photocatalytic reaction, the sample was collected following the addition of 100 μL of phosphate-buffered saline (PBS) at each time point.
To confirm the degradation of animal allergens by the TiO2 photocatalyst under dry conditions, 6 mg of freeze-dried crude antigen extracted from dog and cat hair coat and epithelium was treated with the TiO2 photocatalyst for up to 24 h. At each time point, the sample was collected by adding 100 μL distilled water.
To confirm whether the TiO2 photocatalyst degraded animal allergens, 15 µL of the above-mentioned collected samples were mixed with 5 µL of sample buffer (0.15 M Tris–HCl, 10% sodium dodecyl sulfate (SDS), 30% glycerol, and 0.5% bromophenol blue) and heated at 100 °C for 5 min. A cat allergen sample under dry conditions was additionally diluted twice to avoid saturation. Thereafter, the 20 µL sample was loaded on a 15% SDS–polyacrylamide gel for electrophoresis using a running buffer containing 0.3% Tris, 0.1% SDS, and 1.44% glycine. Proteins were then transferred onto polyvinylidene difluoride membranes (Millipore, Billerica, MA, USA) using a Trans-Blot Turbo apparatus (Bio-Rad, Hercules, CA, USA). The membranes were blocked with 5% non-fat skim milk and then incubated overnight with anti-Can f1 monoclonal antibodies (Mab; 10D4) (1:500; Indoor Biotechnologies, Charlottesville, VA, USA) and anti-Fel d1 Mab (6F9) (1:100; Indoor Biotechnologies) at 4 °C. After washing with PBS containing 1% TWEEN 20 (Nacalai Tesque Inc., Kyoto, Japan), the membranes were incubated with horseradish-peroxidase-conjugated goat anti-mouse immunoglobulin (Ig) G (1:2000; Jackson ImmunoResearch, West Grove, PA, USA) at room temperature for 30 min. Following treatment with SuperSignal West Pico PLUS Chemiluminescent Substrate (Thermo Fisher Scientific, Waltham, MA, USA), the signals were visualized. Images were acquired using the WSE-6100 LuminoGraph I (ATTO CORPORATION, Tokyo, Japan). The intensity of the bands was analyzed using ImageJ software (National Institutes of Health, Bethesda, MD, USA).

2.6. Allergenicity Detection of Animal Allergens by Enzyme-Linked Immunosorbent Assay (ELISA)

To confirm whether the TiO2 photocatalyst decreased the allergenicity of animal allergens, 100 μL of biotinylated dog and cat dander allergens (Nippon Chemiphar, Tokyo, Japan) were treated with the TiO2 photocatalyst for up to 24 h. Samples were collected by adding 100 μL of PBS at each time point. Allergenicity was then detected by ELISA using a specific IgE control containing human IgE anti-dog and cat allergen by Oriton IgE CHEMIPHAR (Nippon Chemiphar, Tokyo, Japan) according to the manufacturer’s instructions. The intensity of the membrane was analyzed using ImageJ software.

2.7. Statistical Analysis

Statistical comparisons were performed using Student’s t-test and two-way analysis of variance with Dunnett’s test. Statistical significance was set at p < 0.05. All calculations were performed using R software (version 3.6.3; R Foundation for Statistical Computing, Vienna, Austria).

3. Results

3.1. Properties of TiO2 and Degradation of Methylene Blue by TiO2

TEM was used to analyze the TiO2 particle. A particle (approx. 20 nm in size) was observed (Figure 2A). These small particles were assumed to provide sufficient surface area and were expected to have high photocatalytic activity, which was evaluated by the degradation rate of methylene blue. As shown in Figure 2B, methylene blue was degraded in a time-dependent manner. The half-life was 15.4 min (R2 = 0.9993), and the curve flattened at an absorbance close to that of distilled water between 30 and 60 min after the photocatalytic reaction. These results suggest that TiO2 photocatalysts have a strong ability to decompose organic matter. The reaction rates were estimated using the following equation:
r   μ M / min = 0.0107   m e t h y l e n e   b l u e 0.992
where r is the reaction rate, 0.0107 is the reaction rate constant (s−1), [methylene blue] is the concentration of methylene blue, and 0.992 is the order of the reaction. This reaction equation suggests that the degradation reaction was a first-order reaction. Therefore, the degradation of methylene blue depended only on its concentration, suggesting that the amount of titanium dioxide and the illuminance of the excitation light were sufficient for the decomposition of organic matter.

3.2. Dog Allergen Degradation by TiO2 Photocatalyst under Wet Conditions

As shown in Figure 3A, a 17 kDa band was identified as the Can f1 protein, which is the major dog allergen, by Western blot. Notably, this band completely disappeared in the “TiO2 + Light” group after 24 h of the TiO2 photocatalytic reaction. Moreover, the 24 h photocatalytic reaction significantly (p < 0.01) reduced the band intensity of Can f1 by 98.3% (Figure 3B). In the “Glass + Light” group, a faint band of Can f1 was observed; however, its band intensity was only 20.7%. In contrast, no decrease in band signal was detected either in the “TiO2 in dark” or “Glass in dark” groups. These results suggest that dog allergens were degraded by the TiO2 photocatalyst. However, the reduction in allergens due to light alone is thought to have been due to the denaturation of proteins by light and the accompanying heat.
To further confirm whether the photocatalytic reaction actually decomposed Can f1, crude dog antigen was treated with the TiO2 photocatalyst for 0 to 24 h. Figure 3C,D shows that the Can f1 band significantly (p < 0.001) decreased after 1 h in a time-dependent manner and completely disappeared after 6 h of the TiO2 photocatalytic reaction. These results suggest that the TiO2-coated glass sheets could degrade dog allergens under wet conditions.

3.3. Loss of Allergenicity of Dog Allergen by TiO2 Photocatalysis under Wet Conditions

As described above, the photocatalytic degradation of Can f1 was confirmed under wet conditions. However, it remained unclear whether this degradation caused a loss in its allergenicity. Therefore, the reactivity of biotinylated dog allergens to human IgE, which is involved in allergic reactions, was investigated using Capture ELISA (Figure 4). First, 100 μL of biotinylated dog allergen was treated with the TiO2 photocatalyst with or without excitation light for 0 and 24 h, and allergenicity was detected using human IgE. As shown in Figure 4A, the 24 h photocatalytic reaction completely (104.6%) abrogated the allergenicity of the dog dander allergen to human IgE. In contrast, only a 23.1% decrease in the allergenicity of the dog dander allergen to human IgE was observed after 24 h of incubation in the “TiO2 in dark” group. The level of allergenicity between the two groups that were treated with the TiO2 photocatalyst with or without LED showed significant differences (p < 0.001) (Figure 4A). Furthermore, as depicted in Figure 4B, the allergenicity of the dog dander allergen to human IgE significantly (p < 0.001) decreased after 3 h in a time-dependent manner and was undetectable after 12 h of TiO2 photocatalytic treatment. These results suggest that TiO2 photocatalysts induce the degradation of dog allergens, thereby reducing their allergenicity.

3.4. Cat Allergen Degradation by TiO2 Photocatalyst under Wet Conditions

Cat allergies are a major concern for human health. Therefore, the TiO2 photocatalytic effect on cat allergens under wet conditions was investigated. As shown in Figure 5A, two major bands of Fel d1 around 70 kDa (upper band) and 8 kDa (lower band), which were speculated to be a tetramer of Fel d1 and the chain 1 of Fel d1, respectively [11], were detected on the Western blots. Additionally, both bands completely disappeared after 24 h of the TiO2 photocatalytic treatment in the “TiO2 + Light” group. Notably, the 24 h photocatalytic reaction significantly (p < 0.05) reduced the band intensities of Fel d1 upper and lower bands by 93.6 and 94.4%, respectively (Figure 5B). In the “Glass + Light” group, the intensity of the lower band of Fel d1 decreased, whereas that of upper band increased, although non-significantly. This finding was attributed to protein denaturation and heat associated with light, which caused band smearing. In the “TiO2 in dark” group, the intensity of the lower band of Fel d1 also significantly (p < 0.05) decreased, indicating protein adsorption onto the photocatalyst. In contrast, no decrease was detected in the “Glass in dark” group. These results suggest that the cat allergen was degraded by the TiO2 photocatalyst.
To further confirm whether the photocatalytic reaction actually decomposed Fel d1, the crude cat antigen was treated with the TiO2 photocatalyst for 0–24 h. As shown in Figure 5C,D, the upper and lower bands of Fel d1 decreased significantly (p < 0.05 and p < 0.01) after 1 h in a time-dependent manner. These results suggest that the TiO2 photocatalysts could degrade both dog and cat allergens under wet conditions.

3.5. Loss of Allergenicity of Cat Allergen by TiO2 Photocatalysis under Wet Conditions

As described above, the photocatalytic degradation of Fel d1 and Can f1 was confirmed under wet conditions. Next, to confirm the effect of the TiO2 photocatalyst on the allergenicity of cat allergens, the reactivity of the biotinylated cat allergen to human IgE was investigated. First, 100 μL of biotinylated cat allergen was treated with the TiO2 photocatalyst with or without irradiating excitation light for 0 and 24 h, and allergenicity was detected using human IgE. As shown in Figure 6A, the 24 h photocatalytic reaction completely (108.6%) reduced the allergenicity of cat dander allergens to human IgE. In contrast, only 18.7% of the allergenicity of cat dander allergen to human IgE was reduced after 24 h of incubation in the “TiO2 in dark” group. The level of allergenicity between the two groups that were treated by the TiO2 photocatalyst with or without LED light showed significant differences (p < 0.001) (Figure 6A). In addition, the allergenicity of the cat dander allergen to human IgE was significantly decreased by the TiO2 photocatalytic reaction after 3 h in a time-dependent manner and was undetectable after the 12 h TiO2 photocatalytic reaction (Figure 6B). These results suggest that cat allergens were also degraded by the TiO2 photocatalyst, thereby losing their allergenicity.

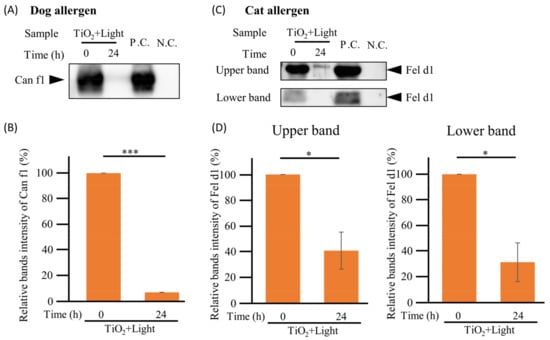

3.6. Cat Allergen Degradation by TiO2 Photocatalyst under Dry Conditions

In the real environment, animal allergens are present in upholstery such as carpets and in the air in a dry state, and cause allergies when inhaled. Therefore, we investigated the TiO2 photocatalytic degradation of animal allergens using 6 mg of freeze-dried crude dog antigens under dry conditions (Figure 1B) via Can f1 detection by Western blot. As shown in Figure 7A, the Can f1 band completely disappeared after 24 h of the TiO2 photocatalytic reaction under both dry and wet conditions. Notably, the 24 h photocatalytic reaction significantly (p < 0.001) reduced the band intensity of Can f1 by 92.8% (Figure 7B). These results suggest that TiO2 photocatalysts could degrade dog allergens via direct contact under dry conditions.
Similarly, we confirmed the TiO2 photocatalyst degradation of cat allergens under dry and wet conditions. The 6 mg of freeze-dried crude cat antigens was subjected to TiO2 photocatalytic reactions for 0 and 24 h (Figure 1B). As shown in Figure 7C, the intensity of the upper bands also decreased after 24 h of the TiO2 photocatalytic reaction under both conditions. Remarkably, the lower band of Fel d1 completely disappeared after 24 h of the TiO2 photocatalytic reaction under dry conditions. Notably, the 24 h photocatalytic reaction significantly (p < 0.05, upper band; p < 0.05, lower band) reduced the band intensity of Fel d1 by 59.2% and 68.4% in the upper and lower bands, respectively (Figure 7B). These results suggest that TiO2 photocatalysts could degrade cat allergens via direct contact under dry conditions.

4. Discussion

Here, we showed the TiO2 photocatalytic effect on dog and cat allergens. Notably, this is the first study to report that a TiO2 photocatalytic reaction for 24 h degraded 98.3% Can f1 and 93.6%–94.4% Fel d1 under wet conditions. Similar to this study, previous studies have confirmed a reduction in ovalbumin levels using Western blot [49]. In addition, morphological changes in pollen grains and chemical changes in the carbon and nitrogen bonds in allergenic pollen extracts by photocatalytic reactions have been reported [46,47,48]. These findings from previous studies strongly support our findings that dog and cat allergens are degraded by TiO2 photocatalysis. Furthermore, we found for the first time that 24 h of the TiO2 photocatalytic reaction degraded 92.8% Can f1 and 59.2–68.4% Fel d1 under dry conditions. In previous studies, only pollen grains were used for the study of photocatalytic degradation of allergens under dry conditions, and morphological changes in pollen grains and changes in the chemical bonds of carbon and nitrogen by photocatalytic reactions were confirmed [47,48]. This is the first study to confirm the direct degradation of allergen proteins under dry conditions. Our results provided evidence that the allergenicity of dog and cat allergens to human IgE decreased by 104.6% and 108.6%, respectively, after 24 h of the TiO2 photocatalytic reaction. Previous studies have shown that photocatalysts reduce the allergenicity of ovalbumin, which supports the results of the present study. This is the first study to clarify the effect of photocatalysts on the binding ability of human IgE to allergens. Conclusively, our findings suggest that TiO2 photocatalysis can reduce dog and cat allergens and promote a more hygienic space.
Our results clearly showed the degradation of Can f1, a major dog allergen, and Fel d1, a major cat allergen, by the TiO2 photocatalyst. Among human adults sensitized to dog allergens, up to 64% are Can f1 IgE-positive [59]. Similarly, up to 96% are Fel d1 IgE-positive among human adults sensitized to cat allergens [60]. Therefore, the effect of photocatalysts on the decomposition of these proteins is important for reducing dog and cat allergens. Additionally, TiO2 photocatalysis abolished the binding of dog and cat allergens in dander to human IgE. Dog dander contains not only Can f1 but also Can f2, Can f3, Can f4, Can f5, and Can f6 [61,62]. Cat dander also contains Fel d1 and Fel d4 [63]. Therefore, TiO2 photocatalysts might degrade not only Can f1 and Fel d1, but also other dog and cat allergens. Further studies are required to investigate whether TiO2 photocatalysts degrade other dog and cat allergens using specific antibodies.
The cat Fel d1 allergen was detected as two major bands at approximately 70 kDa (upper band) and 8 kDa (lower band). Previous reports have shown that various bands were detected in samples collected from different parts of the same individual using the anti-Fel d1 monoclonal antibody (10D4) used in this study. Therefore, multiple bands are characteristic of Fel d1 [64]. Notably, Fel d1 is a glycoprotein consisting of two identical heterodimers, each 18–19 kDa, which eventually form a tetramer [11,65,66]. Each dimer consists of two polypeptide chains, chain 1 and chain 2, having molecular weights of 8 kDa and 10 kDa, respectively [11,67,68]. Therefore, it was considered that the tetramer and chain 1 were detected in this study, and both were successfully degraded by the photocatalytic reaction. This suggests that the TiO2 photocatalyst is capable of degrading Fel d1 at various molecular weights.
The allergen reduction rate under dry conditions was lower than that under wet conditions. previous studies that have reported the decomposition of plastics due to the ROS generated by photocatalysts suggest that the hydration of photocatalysts to generate ROS is important for the decomposition of organic substances by photocatalysts [69,70]. Notably, the photocatalytic degradation of high-density polyethylene is more efficient in the aqueous state than in the solid state [69]. This may explain why photocatalysis under dry conditions was less efficient than under wet conditions in this study. Allergens in carpets are considered dry [12]. Airborne allergens adhere to small particles and float in the air [12,14]. Therefore, the fact that TiO2 photocatalysts can degrade dog and cat allergens under not only wet but also dry conditions strongly indicates the potential of TiO2 photocatalysts for the degradation of allergens, not only in experimental environments but also in actual environments.
It is well known that photocatalysts decompose organic matter and inactivate microorganisms and viruses [19,20,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45]. Photocatalysts can also inactivate viruses in the air [19]. However, to the best of our knowledge, studies on whether photocatalysts can reduce allergens are limited [46,47,48,49]. In this study, we demonstrated for the first time the photocatalytic degradation of dog and cat allergens, which may benefit human health and the economy and reduce the rehoming of pets. However, one of the limitations of this study is that it was conducted in an experimental environment. Allergic rhinitis, bronchitis asthma, and conjunctivitis are particularly common symptoms of animal allergy. Since these are caused by inhalation through the mouth and nose, and via contact with the eyes, airborne allergens are thought to be one of the causes of animal allergy. Therefore, future studies to determine whether allergens in the actual environment can be removed using an air purifier equipped with a TiO2-coated glass sheet are urgently needed. Additionally, although photocatalysts are considered safe, a deeper simultaneous evaluation of their safety among people and pets, especially the inhalation of nanoparticles, will allow photocatalysis to contribute to the creation of more clean, safe, and secure spaces. Finally, we believe that this approach is the first step towards using photocatalysts as a tool to efficiently remove allergens and build a better partnership between humans and pets.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxics11080718/s1, Figures S1–S6: Original image for blots.

Author Contributions

Conceived and designed the experiments: Y.A. and R.M. Conducted and performed the experiments: A.K., R.M. and Y.A. Analyzed the data: R.M., A.K. and Y.A. Supervised this experiment: R.O., Y.M. and Y.A. Contributed reagents/materials/analysis tools: T.F., K.F., M.K., M.Y., J.S. and Y.A. Wrote the paper: R.M. and Y.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a grant-in-aid from Kaltech Corporation (Joint Research).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We would like to thank Kaltech Corporation (https://kaltec.co.jp/en/, accessed on 21 August 2023) for helping the organization of the laboratory. We also are grateful to thank all members of Laboratory of Global Infectious Diseases Control Science, Graduate School of Agricultural and Life Sciences, The University of Tokyo, for their technical assistance, help, and suggestions.

Conflicts of Interest

The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Johansson, S.G.; Bieber, T.; Dahl, R.; Friedmann, P.S.; Lanier, B.Q.; Lockey, R.F.; Motala, C.; Ortega Martell, J.A.; Platts-Mills, T.A.; Ring, J.; et al. Revised nomenclature for allergy for global use: Report of the Nomenclature Review Committee of the World Allergy Organization, October 2003. J. Allergy Clin. Immunol. 2004, 113, 832–836. [Google Scholar] [CrossRef]
  2. Chan, S.K.; Leung, D.Y.M. Dog and Cat Allergies: Current State of Diagnostic Approaches and Challenges. Allergy Asthma Immunol. Res. 2018, 10, 97–105. [Google Scholar] [CrossRef] [PubMed]
  3. Lamb, C.E.; Ratner, P.H.; Johnson, C.E.; Ambegaonkar, A.J.; Joshi, A.V.; Day, D.; Sampson, N.; Eng, B. Economic impact of workplace productivity losses due to allergic rhinitis compared with select medical conditions in the United States from an employer perspective. Curr. Med. Res. Opin. 2006, 22, 1203–1210. [Google Scholar] [CrossRef] [PubMed]
  4. Hellgren, J.; Cervin, A.; Nordling, S.; Bergman, A.; Cardell, L.O. Allergic rhinitis and the common cold—High cost to society. Allergy 2010, 65, 776–783. [Google Scholar] [CrossRef]
  5. Number of Pet Dogs in Europe from 2010 to 2021. Available online: https://www.statista.com/statistics/515579/dog-population-europe/#statisticContainer (accessed on 12 June 2023).
  6. Number of Pet Cats in Europe from 2010 to 2021. Available online: https://www.statista.com/statistics/516041/cat-population-europe-europe/ (accessed on 12 June 2023).
  7. Hooker, S.D.; Freeman, L.H.; Stewart, P. Pet therapy research: A historical review. Holist. Nurs. Pract. 2002, 16, 17–23. [Google Scholar] [CrossRef] [PubMed]
  8. Ownby, D.R. Pet dander and difficult-to-control asthma: The burden of illness. Allergy Asthma Proc. 2010, 31, 381–384. [Google Scholar] [CrossRef] [PubMed]
  9. Sparkes, A.H. Human allergy to cats: A review of the impact on cat ownership and relinquishment. J. Feline Med. Surg. 2022, 24, 43–52. [Google Scholar] [CrossRef] [PubMed]
  10. Martínez, A.; Martínez, J.; Sanz, M.L.; Bartolomé, B.; Palacios, R. Dander is the best epithelial source for dog allergenic extract preparations. Allergy 1994, 49, 664–667. [Google Scholar] [CrossRef]
  11. Bonnet, B.; Messaoudi, K.; Jacomet, F.; Michaud, E.; Fauquert, J.L.; Caillaud, D.; Evrard, B. An update on molecular cat allergens: Fel d 1 and what else? Chapter 1: Fel d 1, the major cat allergen. Allergy Asthma Clin. Immunol. 2018, 14, 14. [Google Scholar] [CrossRef]
  12. Poole, T.B.; King, S.P.; Suphioglu, C. Effectiveness of vacuuming and carpet washing in the removal of the major cat allergen, Fel d 1. Allergy 2020, 75, 2694–2695. [Google Scholar] [CrossRef]
  13. Custovic, A.; Green, R.; Fletcher, A.; Smith, A.; Pickering, C.A.; Chapman, M.D.; Woodcock, A. Aerodynamic properties of the major dog allergen Can f 1: Distribution in homes, concentration, and particle size of allergen in the air. Am. J. Respir. Crit. Care Med. 1997, 155, 94–98. [Google Scholar] [CrossRef]
  14. Custovic, A.; Simpson, A.; Pahdi, H.; Green, R.M.; Chapman, M.D.; Woodcock, A. Distribution, aerodynamic characteristics, and removal of the major cat allergen Fel d 1 in British homes. Thorax 1998, 53, 33–38. [Google Scholar] [CrossRef] [PubMed]
  15. Hodson, T.; Custovic, A.; Simpson, A.; Chapman, M.; Woodcock, A.; Green, R. Washing the dog reduces dog allergen levels, but the dog needs to be washed twice a week. J. Allergy Clin. Immunol. 1999, 103, 581–585. [Google Scholar] [CrossRef]
  16. Matsui, E.; Kagey-Sobotka, A.; Chichester, K.; Eggleston, P.A. Allergic potency of recombinant Fel d 1 is reduced by low concentrations of chlorine bleach. J. Allergy Clin. Immunol. 2003, 111, 396–401. [Google Scholar] [CrossRef] [PubMed]
  17. Thoms, F.; Jennings, G.T.; Maudrich, M.; Vogel, M.; Haas, S.; Zeltins, A.; Hofmann-Lehmann, R.; Riond, B.; Grossmann, J.; Hunziker, P.; et al. Immunization of cats to induce neutralizing antibodies against Fel d 1, the major feline allergen in human subjects. J. Allergy Clin. Immunol. 2019, 144, 193–203. [Google Scholar] [CrossRef]
  18. Vredegoor, D.W.; Willemse, T.; Chapman, M.D.; Heederik, D.J.; Krop, E.J. Can f 1 levels in hair and homes of different dog breeds: Lack of evidence to describe any dog breed as hypoallergenic. J. Allergy Clin. Immunol. 2012, 130, 904–909.e7. [Google Scholar] [CrossRef] [PubMed]
  19. Matsuura, R.; Lo, C.W.; Wada, S.; Somei, J.; Ochiai, H.; Murakami, T.; Saito, N.; Ogawa, T.; Shinjo, A.; Benno, Y.; et al. SARS-CoV-2 Disinfection of Air and Surface Contamination by TiO2 Photocatalyst-Mediated Damage to Viral Morphology, RNA, and Protein. Viruses 2021, 12, 942. [Google Scholar] [CrossRef]
  20. Matsuura, R.; Maeda, K.; Hagiwara, K.; Mori, Y.; Kitamura, T.; Matsumoto, Y.; Aida, Y. WO3 Photocatalyst Containing Copper Inactivates SARS-CoV-2 Pango Lineage A and Omicron BA.2 Variant in Visible Light and in Darkness. Pathogens 2022, 11, 922. [Google Scholar] [CrossRef]
  21. Feng, K.; Gong, J.; Qu, J.; Niu, R. Dual-Mode-Driven Micromotor Based on Foam-like Carbon Nitride and Fe3O4 with Improved Manipulation and Photocatalytic Performance. ACS Appl. Mater. Interfaces 2022, 14, 44271–44281. [Google Scholar] [CrossRef]
  22. Ding, Y.; Feng, K.; He, P.; Liu, N.; Hao, L.; Gong, J.; Niu, R.; Qu, J. A synergistic photothermal and photocatalytic membrane for efficient solar-driven contaminated water treatment. Sustain. Energy Fuels 2021, 5, 5627–5637. [Google Scholar] [CrossRef]
  23. Foster, H.A.; Ditta, I.B.; Varghese, S.; Steele, A. Photocatalytic disinfection using titanium dioxide: Spectrum and mechanism of antimicrobial activity. Appl. Microbiol. Biotechnol. 2011, 90, 1847–1868. [Google Scholar] [CrossRef] [PubMed]
  24. Song, Y.; Ji, K.; Duan, H.; Shao, M. Hydrogen production coupled with water and organic oxidation based on layered double hydroxides. Exploration 2021, 1, 20210050. [Google Scholar] [CrossRef] [PubMed]
  25. Gadgil, D.J.; Shetty Kodialbail, V. Suspended and polycaprolactone immobilized Ag @TiO2/polyaniline nanocomposites for water disinfection and endotoxin degradation by visible and solar light-mediated photocatalysis. Environ. Sci. Pollut. Res. Int. 2021, 28, 12780–12791. [Google Scholar] [CrossRef]
  26. Cho, M.; Choi, Y.; Park, H.; Kim, K.; Woo, G.J.; Park, J. Titanium dioxide/UV photocatalytic disinfection in fresh carrots. J. Food Prot. 2007, 70, 97–101. [Google Scholar] [CrossRef]
  27. Armon, R.; Weltch-Cohen, G.; Bettane, P. Disinfection of Bacillus spp. spores in drinking water by TiO2 photocatalysis as a model for Bacillus anthracis. Waterborne Pathog. 2004, 4, 7–14. [Google Scholar] [CrossRef]
  28. Sreeja, S.; Vidya Shetty, K. Microbial disinfection of water with endotoxin degradation by photocatalysis using Ag@TiO2 core shell nanoparticles. Environ. Sci. Pollut. Res. Int. 2016, 23, 18154–18164. [Google Scholar] [CrossRef]
  29. Ibáñez, J.A.; Litter, M.I.; Pizarro, R.A. Photocatalytic bactericidal effect of TiO2 on Enterobacter cloacae. Comparative study with other Gram (−) bacteria. J. Photochem. Photobiol. A 2003, 157, 81–85. [Google Scholar] [CrossRef]
  30. Yao, K.S.; Wang, D.Y.; Chang, C.Y.; Weng, K.W.; Yang, L.Y.; Lee, S.J.; Cheng, T.C.; Hwang, C.C. Photocatalytic disinfection of phytopathogenic bacteria by dye-sensitized TiO2 thin film activated by visible light. Surf. Coat. Technol. 2007, 202, 1329–1332. [Google Scholar] [CrossRef]
  31. Chun, M.J.; Shim, E.; Kho, E.H.; Park, K.J.; Jung, J.; Kim, J.M.; Kim, B.; Lee, K.H.; Cho, D.L.; Bai, D.H.; et al. Surface modifi-cation of orthodontic wires with photocatalytic titanium oxide for its antiadherent and antibacterial properties. Angle Orthod. 2007, 77, 483–488. [Google Scholar] [CrossRef] [PubMed]
  32. Kim, B.; Kim, D.; Cho, D.; Cho, S. Bactericidal effect of TiO2 photocatalyst on selected food-borne pathogenic bacteria. Chemosphere 2003, 52, 277–281. [Google Scholar] [CrossRef]
  33. Cushnie, T.P.T.; Robertson, P.K.J.; Officer, S.; Pollard, P.M.; McCullagh, C.; Robertson, J.M.C. Variables to be considered when assessing the photocatalytic destruction of bacterial pathogens. Chemosphere 2009, 74, 1374–1378. [Google Scholar] [CrossRef] [PubMed]
  34. Cho, D.L.; Min, H.; Kim, J.H.; Cha, G.S.; Kim, G.S.; Kim, B.H.; Ohk, S.H. Photocatalytic characteristics of TiO2 thin films deposited by PECVD. J. Ind. Eng. Chem. 2007, 13, 434–437. [Google Scholar]
  35. Hara-Kudo, Y.; Segawa, Y.; Kimura, K. Sanitation of seawater effluent from seaweed processing plants using a photo-catalytic TiO2 oxidation. Chemosphere 2006, 62, 149–154. [Google Scholar] [CrossRef] [PubMed]
  36. Matsuura, R.; Kawamura, A.; Matsumoto, Y.; Fukushima, T.; Fujimoto, K.; Ochiai, H.; Somei, J.; Aida, Y. Rutile-TiO2/PtO2 Glass Coatings Disinfects Aquatic Legionella pneumophila via Morphology Change and Endotoxin Degradation under LED Irradiation. Catalysts 2022, 12, 856. [Google Scholar] [CrossRef]
  37. Thomas, C.; Manisekaran, R.; Santoyo-Salazar, J.; Schoefs, B.; Castaneda, H.; Jantrania, A. Graphene oxide decorated TiO2 and BiVO4 nanocatalysts for enhanced visible-light-driven photocatalytic bacterial inactivation. J. Photochem. Photobiol. A Chem. 2021, 418, 113374. [Google Scholar] [CrossRef]
  38. Nakano, R.; Ishiguro, H.; Yao, Y.; Kajioka, J.; Fujishima, A.; Sunada, K.; Minoshima, M.; Hashimoto, K.; Kubota, Y. Photo-catalytic inactivation of influenza virus by titanium dioxide thin film. Photochem. Photobiol. Sci. 2012, 11, 1293–1298. [Google Scholar] [CrossRef] [PubMed]
  39. Kratzel, A.; Todt, D.; V’kovski, P.; Steiner, S.; Gultom, M.; Thao, T.T.N.; Ebert, N.; Holwerda, M.; Steinmann, J.; Niemeyer, D.; et al. Inactivation of Severe Acute Respiratory Syndrome Coronavirus 2 by WHO-Recommended Hand Rub Formulations and Alcohols. Emerg. Infect. Dis. 2020, 26, 1592–1595. [Google Scholar] [CrossRef]
  40. Tong, Y.; Shi, G.; Hu, G.; Hu, X.; Han, L.; Xie, X.; Xu, Y.; Zhang, R.; Sun, J.; Zhong, J. Photo-catalyzed TiO2 inactivates pathogenic viruses by attacking viral genome. Chem. Eng. J. 2021, 414, 128788. [Google Scholar] [CrossRef]
  41. Khaiboullina, S.; Uppal, T.; Dhabarde, N.; Subramanian, V.R.; Verma, S.C. Inactivation of Human Coronavirus by Titania Nanoparticle Coatings and UVC Radiation: Throwing Light on SARS-CoV-2. Viruses 2021, 13, 19. [Google Scholar] [CrossRef]
  42. Yoshizawa, N.; Ishihara, R.; Omiya, D.; Ishitsuka, M.; Hirano, S.; Suzuki, T. Application of a Photocatalyst as an Inactivator of Bovine Coronavirus. Viruses 2020, 12, 1372. [Google Scholar] [CrossRef]
  43. Park, D.; Shahbaz, H.M.; Kim, S.H.; Lee, M.; Lee, W.; Oh, J.W.; Lee, D.U.; Park, J. Inactivation efficiency and mechanism of UV-TiO2 photocatalysis against murine norovirus using a solidified agar matrix. Int. J. Food Microbiol. 2016, 238, 256–264. [Google Scholar] [CrossRef]
  44. Han, W.; Zhang, B.; Cao, W.; Yang, D.; Taira, I.; Okamoto, Y.; Arai, J.I.; Yan, X. The inactivation effect of photocatalytic tita-nium apatite filter on SARS virus. Prog. Biochem. Biophys. 2004, 31, 982–985. [Google Scholar]
  45. Syngouna, V.I.; Chrysikopoulos, C.V. Inactivation of MS2 bacteriophage by titanium dioxide nanoparticles in the presence of quartz sand with and without ambient light. J. Colloid Interface Sci. 2017, 497, 117–125. [Google Scholar] [CrossRef] [PubMed]
  46. Sapiña, M.; Jimenez-Relinque, E.; Roman, E.; Nevshupa, R.; Castellote, M. Unusual photodegradation reactions of Asteraceae and Poaceae grass pollen enzymatic extracts on P25 photocatalyst. Environ. Sci. Pollut. Res. Int. 2021, 28, 24206–24215. [Google Scholar] [CrossRef]
  47. Sapiña, M.; Jimenez-Relinque, E.; Castellote, M. Controlling the levels of airborne pollen: Can heterogeneous photocatalysis help? Environ. Sci. Technol. 2013, 47, 11711–11716. [Google Scholar] [CrossRef] [PubMed]
  48. Sapiña, M.; Jimenez-Relinque, E.; Nevshupa, R.; Roman, E.; Castellote, M. Degradation of pollen on nanofunctionalized photocatalytic materials. J. Chem. Technol. Biotechnol. 2016, 92, 210–216. [Google Scholar] [CrossRef]
  49. Tomonaga, T.; Izumi, H.; Nishida, C.; Kato, K.; Yatera, K.; Kuroda, E.; Morimoto, Y. Suppression of Airway Allergic Reactions by a Photocatalytic Filter Using Mouse Model. Toxics 2022, 10, 40. [Google Scholar] [CrossRef]
  50. Cui, S.S.; Liu, X.; Shi, Y.B.; Ding, M.Y.; Yang, X.F. Construction of atomic-level charge transfer channel in Bi12O17Cl2/MXene heterojunctions for improved visible-light photocatalytic performance. Rare Met. 2022, 41, 2405–2416. [Google Scholar] [CrossRef]
  51. Hojo, H.; Gondo, M.; Yoshizaki, S.; Einaga, H. Atomic and Electronic Structure of Pt/TiO2 Catalysts and Their Relationship to Catalytic Activity. Nano Lett. 2022, 22, 145–150. [Google Scholar] [CrossRef] [PubMed]
  52. Boffetta, P.; Soutar, A.; Cherrie, J.W.; Granath, F.; Andersen, A.; Anttila, A.; Blettner, M.; Gaborieau, V.; Klug, S.J.; Langard, S.; et al. Mortality among workers employed in the titanium dioxide production industry in Europe. Cancer Causes Control 2004, 15, 697–706. [Google Scholar] [CrossRef]
  53. Fryzek, J.P.; Chadda, B.; Marano, D.; White, K.; Schweitzer, S.; McLaughlin, J.K.; Blot, W.J. A cohort mortality study among titanium dioxide manufacturing workers in the United States. J. Occup. Environ. Med. 2003, 45, 400–409. [Google Scholar] [CrossRef] [PubMed]
  54. Fonseca-Cervantes, O.R.; Pérez-Larios, A.; Romero Arellano, V.H.; Sulbaran-Rangel, B.; Guzmán González, C.A. Effects in Band Gap for Photocatalysis in TiO2 Support by Adding Gold and Ruthenium. Processes 2020, 8, 1032. [Google Scholar] [CrossRef]
  55. Ishihara Sangyou Kaisha, Ltd. Safety Data Sheet of MPT-427; Version: 2.0.; Ishihara Sangyou Kaisha, Ltd.: Osaka, Japan, 2021. [Google Scholar]
  56. Photopaque (R) Visible Light Activation Type MPT-623 (Powder) STS-427 (Water Dispesion). Available online: https://www.iskweb.co.jp/eng/products/pdf/MPT-623.pdf (accessed on 22 June 2023).
  57. Kominami, H.; Ohtani, B. Preparation of Photocatalysts. Denki Kagaku Oyobi Kogyo Butsuri Kagaku 1998, 66, 996–1003. [Google Scholar]
  58. JIS R 1752:2020; Fine Ceramics (Advanced Ceramics, Advanced Technical Ceramics)—Test Method for Antibacterial Activity of Photocatalytic Materials and Efficacy under Indoor Lighting Environment. Japanese Standards Association: Tokyo, Japan, 2020.
  59. Ukleja-Sokołowska, N.; Gawrońska-Ukleja, E.; Żbikowska-Gotz, M.; Socha, E.; Lis, K.; Sokołowski, Ł.; Kuźmiński, A.; Bartuzi, Z. Analysis of feline and canine allergen components in patients sensitized to pets. Allergy Asthma Clin. Immunol. 2016, 12, 61. [Google Scholar] [CrossRef] [PubMed]
  60. Van Ree, R.; van Leeuwen, W.A.; Bulder, I.; Bond, J.; Aalberse, R.C. Purified natural and recombinant Fel d 1 and cat albumin in in vitro diagnostics for cat allergy. J. Allergy Clin. Immunol. 1999, 104, 1223–1230. [Google Scholar] [CrossRef]
  61. Polovic, N.; Wadén, K.; Binnmyr, J.; Hamsten, C.; Grönneberg, R.; Palmberg, C.; Milcic-Matic, N.; Bergman, T.; Grönlund, H.; van Hage, M. Dog saliva—An important source of dog allergens. Allergy 2013, 68, 585–592. [Google Scholar] [CrossRef] [PubMed]
  62. Mattsson, L.; Lundgren, T.; Everberg, H.; Larsson, H.; Lidholm, J. Prostatic kallikrein: A new major dog allergen. J. Allergy Clin. Immunol. 2009, 123, 362–368. [Google Scholar] [CrossRef] [PubMed]
  63. Kelly, S.M.; Karsh, J.; Marcelo, J.; Boeckh, D.; Stepner, N.; Santone, B.; Yang, J.; Yang, W.H. Fel d 1 and Fel d 4 levels in cat fur, saliva, and urine. J. Allergy Clin. Immunol. 2018, 142, 1990–1992.e3. [Google Scholar] [CrossRef]
  64. Bienboire-Frosini, C.; Lebrun, R.; Vervloet, D.; Pageat, P.; Ronin, C. Distribution of core fragments from the major cat allergen Fel d 1 is maintained among the main anatomical sites of production. Int. Arch. Allergy Immunol. 2010, 152, 197–206. [Google Scholar] [CrossRef]
  65. Kaiser, L.; Velickovic, T.C.; Badia-Martinez, D.; Adedoyin, J.; Thunberg, S.; Hallén, D.; Berndt, K.; Grönlund, H.; Gafvelin, G.; van Hage, M.; et al. Structural characterization of the tetrameric form of the major cat allergen Fel d 1. J. Mol. Biol. 2007, 370, 714–727. [Google Scholar] [CrossRef]
  66. Duffort, O.; Carreira, J.; Lombardero, M. Monoclonal antibodies against Fel d I and other clinically relevant cat allergens. Immunol. Lett. 1988, 17, 71–77. [Google Scholar] [CrossRef] [PubMed]
  67. Morgenstern, J.P.; Griffith, I.J.; Brauer, A.W.; Rogers, B.L.; Bond, J.F.; Chapman, M.D.; Kuo, M.C. Amino acid sequence of Fel dI, the major allergen of the domestic cat: Protein sequence analysis and cDNA cloning. Proc. Natl. Acad. Sci. USA 1991, 88, 9690–9694. [Google Scholar] [CrossRef] [PubMed]
  68. Griffith, I.J.; Craig, S.; Pollock, J.; Yu, X.B.; Morgenstern, J.P.; Rogers, B.L. Expression and genomic structure of the genes encoding FdI, the major allergen from the domestic cat. Gene 1992, 113, 263–268. [Google Scholar] [CrossRef] [PubMed]
  69. Ariza-Tarazona, M.C.; Villarreal-Chiu, J.F.; Barbieri, V.; Siligardi, C.; Cedillo-González, E.I. New strategy for microplastic degradation: Green photocatalysis using a protein-based porous N-TiO2 semiconductor. Ceram. Int. 2019, 45, 9618–9624. [Google Scholar] [CrossRef]
  70. Mills, A.; Lepre, A.; Elliott, N.; Bhopal, S.; Parkin, I.P.; O’Neill, S.A. Characterisation of the photocatalyst Pilkington Activ™: A reference film photocatalyst? J. Photochem. Photobiol. A Chem. 2003, 160, 213–224. [Google Scholar] [CrossRef]
Toxics 11 00718 g001

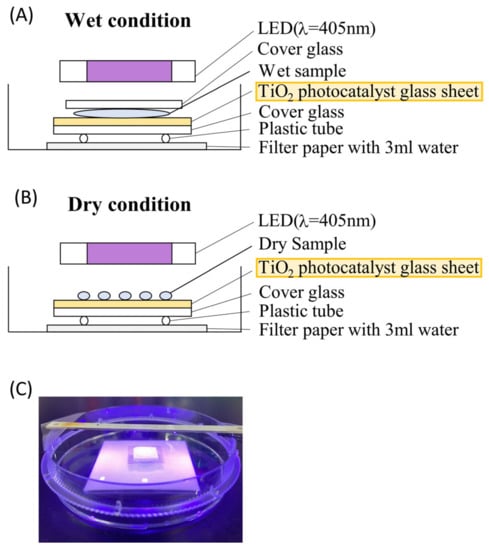

Figure 1. Schematic diagram (A,B) and images (C) of the TiO2 photocatalytic reaction system. (A,B): Wet filter paper was placed in a 10 cm dish to avoid dryness. A TiO2-coated glass sheet (1 cm × 1 cm) and a non-coated glass sheet were placed on a cover glass, which was on the plastic tube that was later placed on the filter paper. (A): To confirm the photocatalytic effect in wet conditions, 100 μL of wet sample solution was placed on the TiO2-coated glass sheet and the non-coated glass sheet and the wet sample was covered with the cover glass. (B): To confirm the photocatalytic effect in dry conditions, 6 mg of freeze-dried allergen was placed on the TiO2-coated glass sheet and the non-coated glass sheet. (C): The TiO2 photocatalyst was excited by LED light (wavelength 405 nm) for up to 24 h. After the photocatalytic reaction, samples were collected by adding either 100 μL PBS or 100 μL water in wet and in dry conditions, respectively.
Figure 1. Schematic diagram (A,B) and images (C) of the TiO2 photocatalytic reaction system. (A,B): Wet filter paper was placed in a 10 cm dish to avoid dryness. A TiO2-coated glass sheet (1 cm × 1 cm) and a non-coated glass sheet were placed on a cover glass, which was on the plastic tube that was later placed on the filter paper. (A): To confirm the photocatalytic effect in wet conditions, 100 μL of wet sample solution was placed on the TiO2-coated glass sheet and the non-coated glass sheet and the wet sample was covered with the cover glass. (B): To confirm the photocatalytic effect in dry conditions, 6 mg of freeze-dried allergen was placed on the TiO2-coated glass sheet and the non-coated glass sheet. (C): The TiO2 photocatalyst was excited by LED light (wavelength 405 nm) for up to 24 h. After the photocatalytic reaction, samples were collected by adding either 100 μL PBS or 100 μL water in wet and in dry conditions, respectively.
Toxics 11 00718 g001
Toxics 11 00718 g002

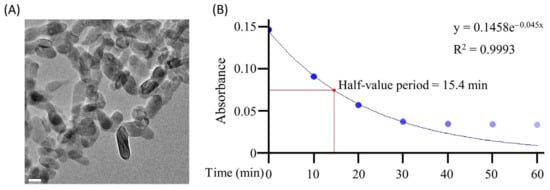

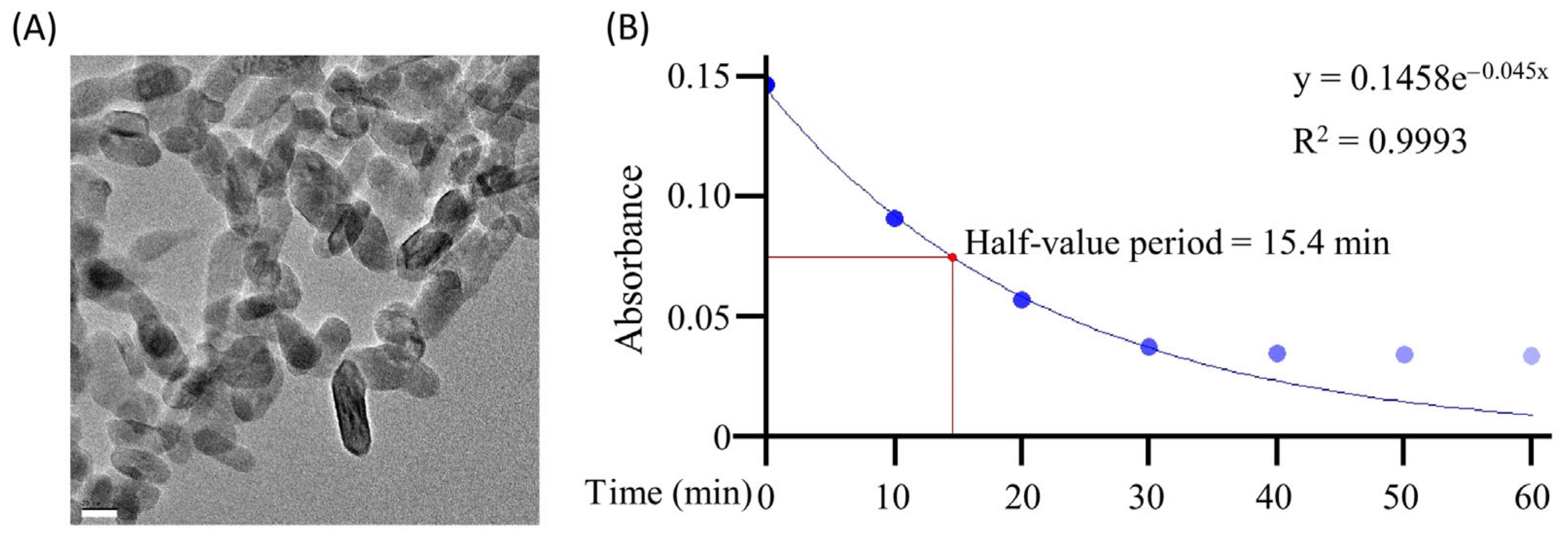

Figure 2. TEM image of the TiO2 particles and methylene blue degradation by the TiO2 photocatalyst. (A): The TEM images show the TiO2 particles. Bar = 20 nm. (B): To confirm the ability of the TiO2 photocatalyst to decompose organic matter, 100 μL of 12.5 μM of methylene bule was treated with the TiO2 photocatalyst. Methylene blue was collected every 10 min, and the absorbance at 660 nm was measured. The degradation speed of methylene blue was calculated using exponential regression analysis, which evaluated methylene blue absorbance and irradiation time from 0 to 60 min before flattening out. R2 indicates the coefficient of determination.
Figure 2. TEM image of the TiO2 particles and methylene blue degradation by the TiO2 photocatalyst. (A): The TEM images show the TiO2 particles. Bar = 20 nm. (B): To confirm the ability of the TiO2 photocatalyst to decompose organic matter, 100 μL of 12.5 μM of methylene bule was treated with the TiO2 photocatalyst. Methylene blue was collected every 10 min, and the absorbance at 660 nm was measured. The degradation speed of methylene blue was calculated using exponential regression analysis, which evaluated methylene blue absorbance and irradiation time from 0 to 60 min before flattening out. R2 indicates the coefficient of determination.
Toxics 11 00718 g002
Toxics 11 00718 g003

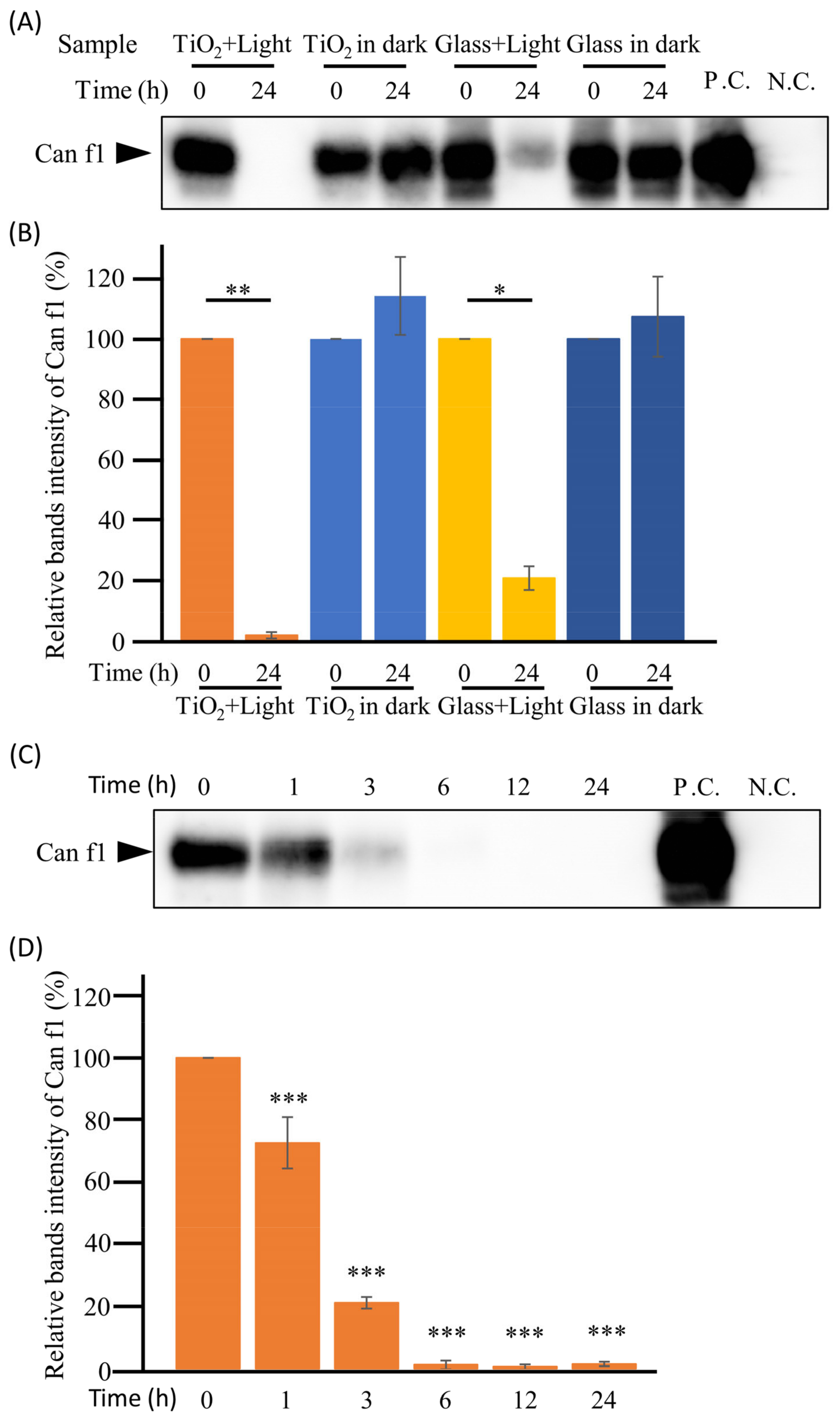

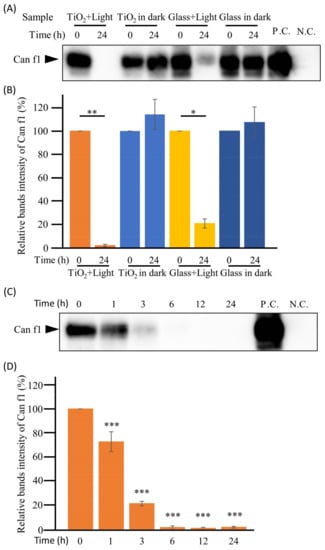

Figure 3. Degradation of dog allergens in wet conditions. (A): To confirm whether the TiO2 photocatalyst degraded dog antigens in wet conditions, 100 μL of crude antigen was extracted from the dog hair coat, and the epithelium (contained 10 μg/mL of Can f1) was treated with TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light” group. As a control, the crude dog antigen was incubated with either the TiO2-coated glass sheet without LED light (“TiO2 in dark” group) or both the glass and LED light (“Glass + Light” group), or the glass without LED light (“Glass in the dark” group). Further, 150 ng of crude Can f1 antigen and PBS were used as positive and negative controls (P.C. and N.C.), respectively. Can f1 was detected by Western blot using anti-Can f1 monoclonal antibody (10D4). The positions of Can f1 are indicated. Full-length blots are shown in Supplementary Figure S1. (B): The intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. (C): To confirm the time dependence of the photocatalytic degradation of dog allergens in wet conditions, 100 μL of crude dog antigen was treated with the TiO2 photocatalyst from 0 to 24 h, and Can f1 was detected by Western blot using anti-Can f1 monoclonal antibody (10D4). The positions of Can f1 are indicated. Full-length blots are shown in Supplementary Figure S2. (D): Intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. Each column and error bar represents the mean ± standard error (SD) of the two replicates. Significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates a significant difference (* p < 0.05; ** p < 0.01; *** p < 0.001).
Figure 3. Degradation of dog allergens in wet conditions. (A): To confirm whether the TiO2 photocatalyst degraded dog antigens in wet conditions, 100 μL of crude antigen was extracted from the dog hair coat, and the epithelium (contained 10 μg/mL of Can f1) was treated with TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light” group. As a control, the crude dog antigen was incubated with either the TiO2-coated glass sheet without LED light (“TiO2 in dark” group) or both the glass and LED light (“Glass + Light” group), or the glass without LED light (“Glass in the dark” group). Further, 150 ng of crude Can f1 antigen and PBS were used as positive and negative controls (P.C. and N.C.), respectively. Can f1 was detected by Western blot using anti-Can f1 monoclonal antibody (10D4). The positions of Can f1 are indicated. Full-length blots are shown in Supplementary Figure S1. (B): The intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. (C): To confirm the time dependence of the photocatalytic degradation of dog allergens in wet conditions, 100 μL of crude dog antigen was treated with the TiO2 photocatalyst from 0 to 24 h, and Can f1 was detected by Western blot using anti-Can f1 monoclonal antibody (10D4). The positions of Can f1 are indicated. Full-length blots are shown in Supplementary Figure S2. (D): Intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. Each column and error bar represents the mean ± standard error (SD) of the two replicates. Significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates a significant difference (* p < 0.05; ** p < 0.01; *** p < 0.001).
Toxics 11 00718 g003
Toxics 11 00718 g004

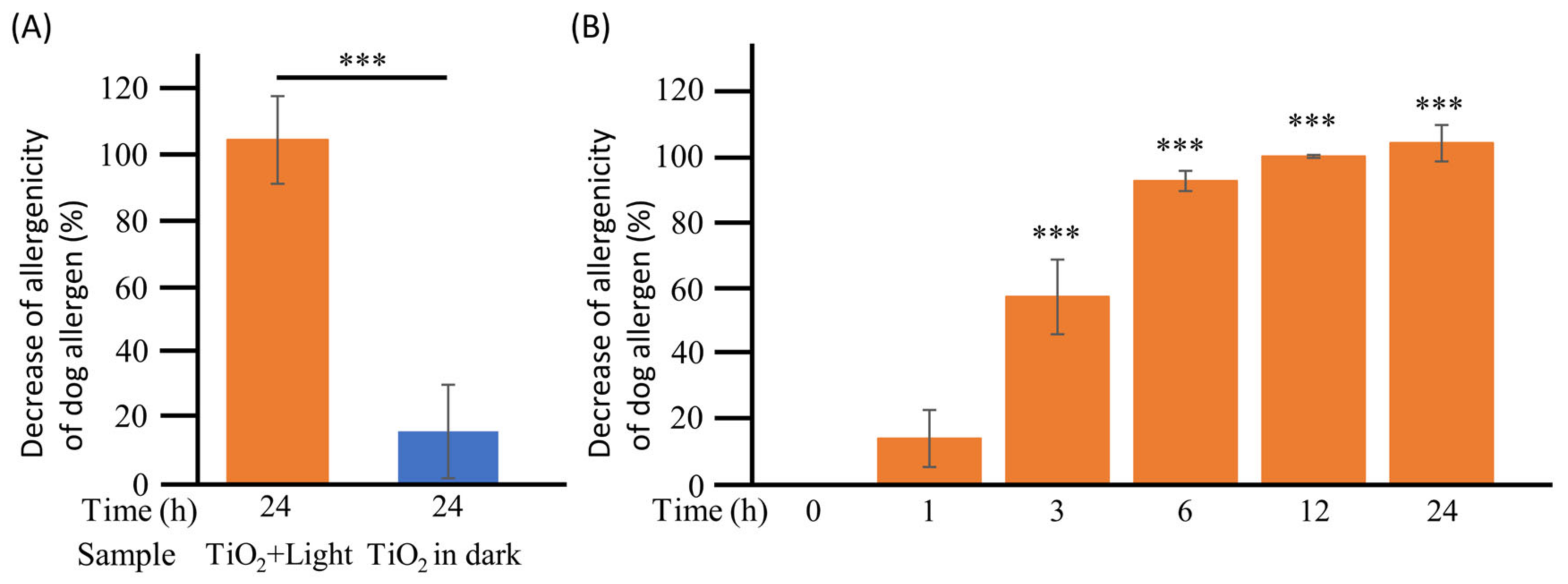

Figure 4. Detection of the allergenicity of the dog allergen in wet conditions. (A): To confirm the allergenicity of the dog allergen in wet conditions, 100 μL of biotinylated dog dander allergen was treated with TiO2 photocatalyst for 0 and 24 h, and its reactivity with human IgE was detected using Capture ELISA in the “TiO2 + Light group”. As a control, dog dander allergens were incubated with the TiO2-coated glass sheet without LED light (“TiO2 in dark” group). (B): To confirm the time dependence of the photocatalytic degradation of animal allergens in wet conditions, 100 μL of biotinylated dog dander allergen was treated with the TiO2 photocatalyst from 0 to 24 h. The dog allergen degradation ratio was calculated using the following equation: Decrease in the allergenicity of dog allergens (%) = (1 − intensity value at each time point/intensity value at 0 h) × 100. Each column and error bar represents the mean ± standard error (SD) of two or three replicates. Significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates a significant difference (*** p < 0.001).
Figure 4. Detection of the allergenicity of the dog allergen in wet conditions. (A): To confirm the allergenicity of the dog allergen in wet conditions, 100 μL of biotinylated dog dander allergen was treated with TiO2 photocatalyst for 0 and 24 h, and its reactivity with human IgE was detected using Capture ELISA in the “TiO2 + Light group”. As a control, dog dander allergens were incubated with the TiO2-coated glass sheet without LED light (“TiO2 in dark” group). (B): To confirm the time dependence of the photocatalytic degradation of animal allergens in wet conditions, 100 μL of biotinylated dog dander allergen was treated with the TiO2 photocatalyst from 0 to 24 h. The dog allergen degradation ratio was calculated using the following equation: Decrease in the allergenicity of dog allergens (%) = (1 − intensity value at each time point/intensity value at 0 h) × 100. Each column and error bar represents the mean ± standard error (SD) of two or three replicates. Significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates a significant difference (*** p < 0.001).
Toxics 11 00718 g004
Toxics 11 00718 g005

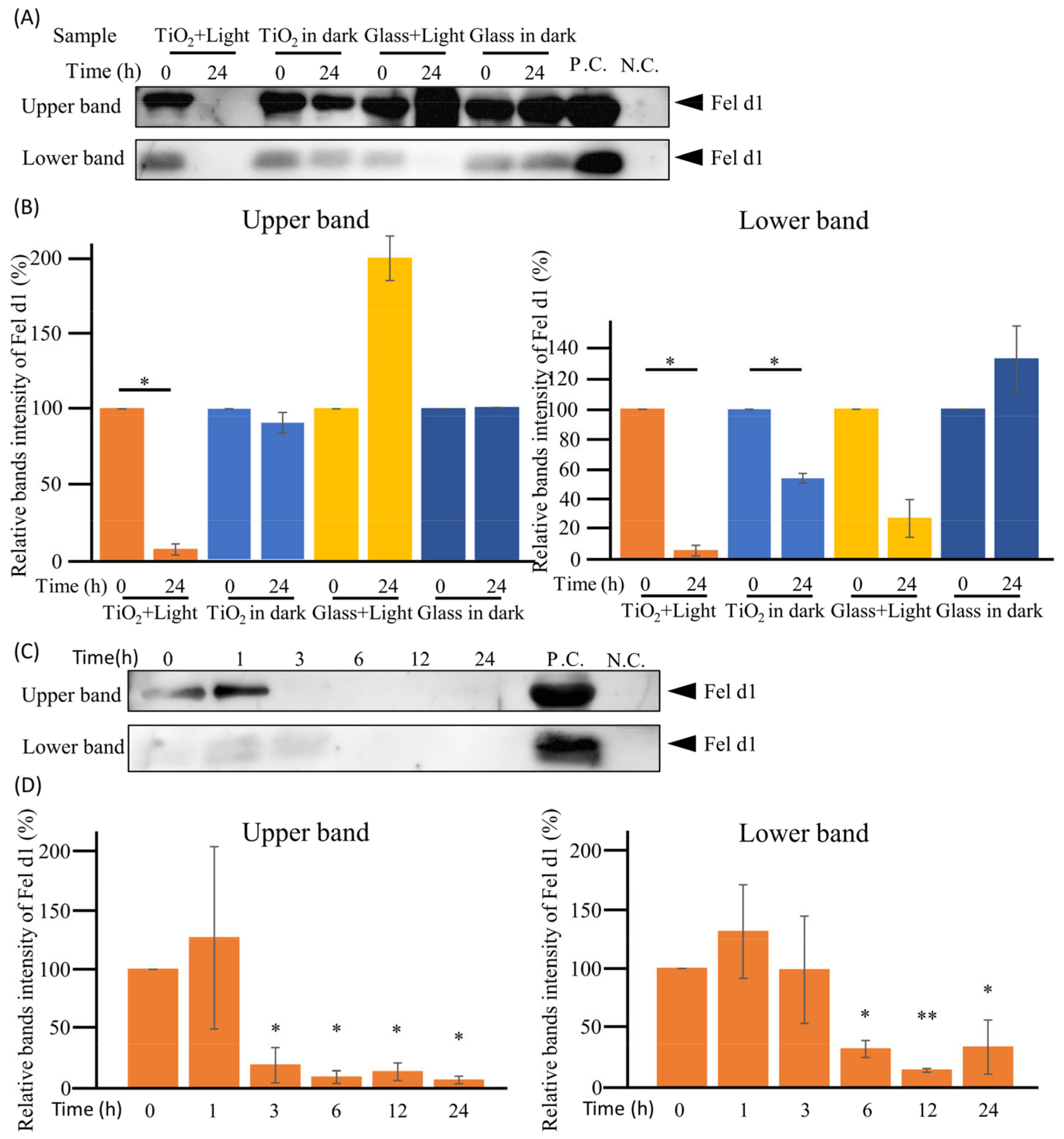

Figure 5. Degradation of cat allergens in wet conditions. (A): To confirm whether the TiO2 photocatalyst degrades cat antigens in wet conditions, 100 μL of crude antigen extracted from the cat hair coat and the epithelium (contained 10 μg/mL of Fel d1) was treated with the TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light group”. As a control, crude cat antigens were incubated with either a TiO2-coated glass sheet without LED light (“TiO2 in dark” group), both a glass and LED light (“Glass + Light” group), or a glass without LED light (“Glass in dark” group). Further, 150 ng of crude Fel d1 antigen and PBS were used as positive and negative controls (P.C. and N.C.), respectively. Fel d1 was detected by Western blot using anti-Fel d1 monoclonal antibody (6F9). Positions of the two Fel d1 bands are indicated. Full-length blots are shown in Supplementary Figure S3. (B): Intensities of the bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. (C): To confirm the time dependence of the photocatalytic degradation of the cat allergens in wet conditions, 100 μL of crude cat antigen was treated with TiO2 photocatalyst from 0 to 24 h. Fel d1 was detected by Western blot using anti-Fel d1 monoclonal antibody (6F9). Full-length blots are shown in Supplementary Figure S4. (D): Intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. Each column and error bar represents the mean ± standard error (SD) of two or three replicates. The significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates significant differences (* p < 0.05; ** p < 0.01).
Figure 5. Degradation of cat allergens in wet conditions. (A): To confirm whether the TiO2 photocatalyst degrades cat antigens in wet conditions, 100 μL of crude antigen extracted from the cat hair coat and the epithelium (contained 10 μg/mL of Fel d1) was treated with the TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light group”. As a control, crude cat antigens were incubated with either a TiO2-coated glass sheet without LED light (“TiO2 in dark” group), both a glass and LED light (“Glass + Light” group), or a glass without LED light (“Glass in dark” group). Further, 150 ng of crude Fel d1 antigen and PBS were used as positive and negative controls (P.C. and N.C.), respectively. Fel d1 was detected by Western blot using anti-Fel d1 monoclonal antibody (6F9). Positions of the two Fel d1 bands are indicated. Full-length blots are shown in Supplementary Figure S3. (B): Intensities of the bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. (C): To confirm the time dependence of the photocatalytic degradation of the cat allergens in wet conditions, 100 μL of crude cat antigen was treated with TiO2 photocatalyst from 0 to 24 h. Fel d1 was detected by Western blot using anti-Fel d1 monoclonal antibody (6F9). Full-length blots are shown in Supplementary Figure S4. (D): Intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the bar diagram. Each column and error bar represents the mean ± standard error (SD) of two or three replicates. The significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates significant differences (* p < 0.05; ** p < 0.01).
Toxics 11 00718 g005
Toxics 11 00718 g006

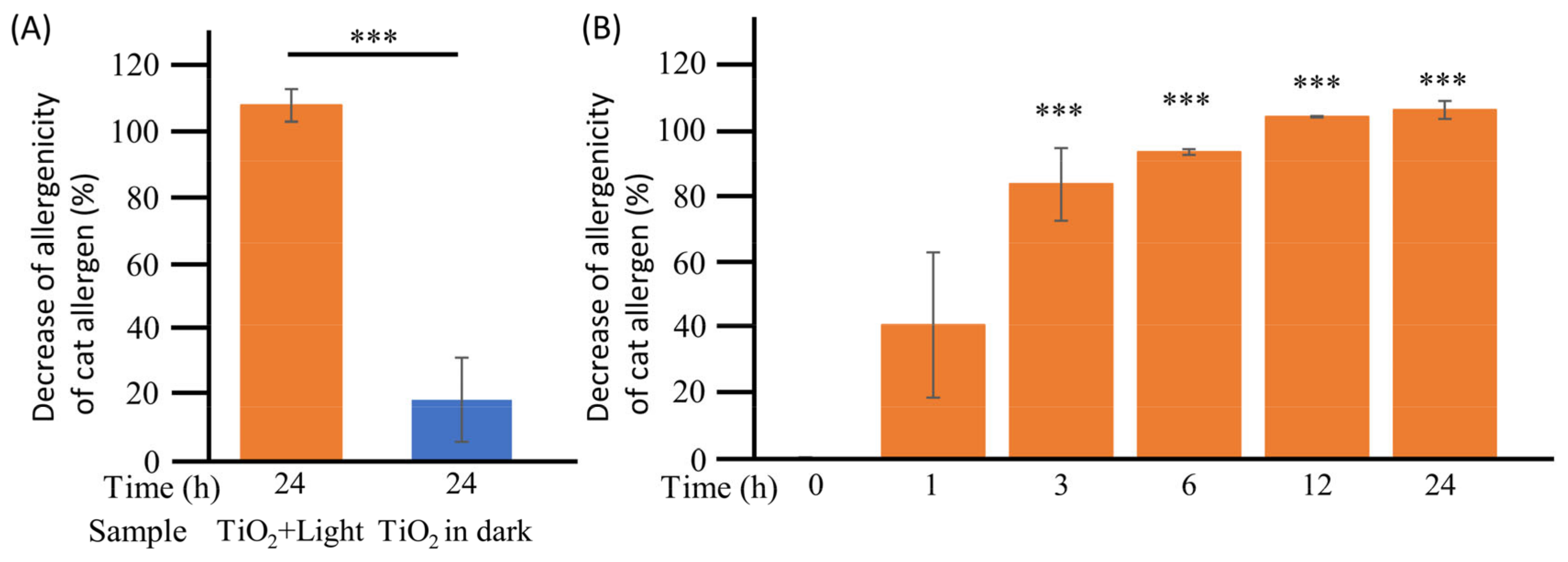

Figure 6. Detection of the allergenicity of the cat allergens in wet conditions. (A): To confirm the allergenicity of the cat allergens in wet conditions, 100 μL of biotinylated cat dander allergen was treated with the TiO2 photocatalyst for 0 and 24 h, and its reactivity with human IgE was detected using Capture ELISA in the “TiO2 + Light group”. As a control, cat dander allergen was incubated with a TiO2-coated glass sheet without LED light (“TiO2 in dark” group). (B): To confirm the time dependence of photocatalytic degradation of the cat allergens in wet conditions, 100 μL of biotinylated cat dander allergen was treated with the TiO2 photocatalyst from 0 to 24 h. The cat allergen degradation ratio was calculated using the following equation: Decrease in the allergenicity of cat allergens (%) = (1 − intensity value at each time point/intensity value at 0 h) × 100. Each column and error bar represents the mean ± standard error (SD) of two or three replicates. Significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates significant differences (*** p < 0.001).
Figure 6. Detection of the allergenicity of the cat allergens in wet conditions. (A): To confirm the allergenicity of the cat allergens in wet conditions, 100 μL of biotinylated cat dander allergen was treated with the TiO2 photocatalyst for 0 and 24 h, and its reactivity with human IgE was detected using Capture ELISA in the “TiO2 + Light group”. As a control, cat dander allergen was incubated with a TiO2-coated glass sheet without LED light (“TiO2 in dark” group). (B): To confirm the time dependence of photocatalytic degradation of the cat allergens in wet conditions, 100 μL of biotinylated cat dander allergen was treated with the TiO2 photocatalyst from 0 to 24 h. The cat allergen degradation ratio was calculated using the following equation: Decrease in the allergenicity of cat allergens (%) = (1 − intensity value at each time point/intensity value at 0 h) × 100. Each column and error bar represents the mean ± standard error (SD) of two or three replicates. Significance between 0 h and other time points was determined using Student’s t-test or one-way analysis of variance followed by Dunnett’s multiple comparisons test. The asterisk indicates significant differences (*** p < 0.001).
Toxics 11 00718 g006
Toxics 11 00718 g007
Figure 7. Degradation of dog and cat allergens in dry conditions. (A): To confirm whether the TiO2 photocatalyst degrades dog antigens in dry conditions, 6 mg of crude antigen extracted from the dog hair coat and the epithelium (contained 5 μg of Can f1) were treated with TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light” group. Further, 150 ng of crude Can f1 antigen and distilled water were used as positive and negative controls (P.C. and N.C.), respectively. The positions of Can f1 are indicated. Can f1 was detected by Western blot using anti-Can f1 monoclonal antibody (10D4). Full-length blots are shown in Supplementary Figure S5. (B): Intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the diagram. (C): To confirm whether the TiO2 photocatalyst degrades cat antigens in dry conditions, 6 mg of crude antigen extracted from the cat hair coat and the epithelium (contained 5 μg of Fel d1) were treated with the TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light” group. Further, 150 ng of crude Fel d1 antigen and distilled water were used as positive and negative controls (P.C. and N.C.), respectively. Fel d1 was detected by Western blot using anti-Fel d1 monoclonal antibody (6F9). The position of the two Fel d1 bands are indicated. Full-length blots are shown in Supplementary Figure S6. (D): Intensities of the bands were analyzed using ImageJ software, and the quantitative results are shown in the diagram. Each column and error bar represents the mean ± standard error (SD) of the three replicates. Significance between 0 and 24 h was determined using Student’s t-test. The asterisk indicates significant differences (* p < 0.05; *** p < 0.001).
Figure 7. Degradation of dog and cat allergens in dry conditions. (A): To confirm whether the TiO2 photocatalyst degrades dog antigens in dry conditions, 6 mg of crude antigen extracted from the dog hair coat and the epithelium (contained 5 μg of Can f1) were treated with TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light” group. Further, 150 ng of crude Can f1 antigen and distilled water were used as positive and negative controls (P.C. and N.C.), respectively. The positions of Can f1 are indicated. Can f1 was detected by Western blot using anti-Can f1 monoclonal antibody (10D4). Full-length blots are shown in Supplementary Figure S5. (B): Intensities of bands were analyzed using ImageJ software, and the quantitative results are shown in the diagram. (C): To confirm whether the TiO2 photocatalyst degrades cat antigens in dry conditions, 6 mg of crude antigen extracted from the cat hair coat and the epithelium (contained 5 μg of Fel d1) were treated with the TiO2 photocatalyst for 0 or 24 h in the “TiO2 + Light” group. Further, 150 ng of crude Fel d1 antigen and distilled water were used as positive and negative controls (P.C. and N.C.), respectively. Fel d1 was detected by Western blot using anti-Fel d1 monoclonal antibody (6F9). The position of the two Fel d1 bands are indicated. Full-length blots are shown in Supplementary Figure S6. (D): Intensities of the bands were analyzed using ImageJ software, and the quantitative results are shown in the diagram. Each column and error bar represents the mean ± standard error (SD) of the three replicates. Significance between 0 and 24 h was determined using Student’s t-test. The asterisk indicates significant differences (* p < 0.05; *** p < 0.001).
Toxics 11 00718 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Matsuura, R.; Kawamura, A.; Ota, R.; Fukushima, T.; Fujimoto, K.; Kozaki, M.; Yamashiro, M.; Somei, J.; Matsumoto, Y.; Aida, Y. TiO2-Photocatalyst-Induced Degradation of Dog and Cat Allergens under Wet and Dry Conditions Causes a Loss in Their Allergenicity. Toxics 2023, 11, 718. https://doi.org/10.3390/toxics11080718

AMA Style

Matsuura R, Kawamura A, Ota R, Fukushima T, Fujimoto K, Kozaki M, Yamashiro M, Somei J, Matsumoto Y, Aida Y. TiO2-Photocatalyst-Induced Degradation of Dog and Cat Allergens under Wet and Dry Conditions Causes a Loss in Their Allergenicity. Toxics. 2023; 11(8):718. https://doi.org/10.3390/toxics11080718

Chicago/Turabian Style

Matsuura, Ryosuke, Arisa Kawamura, Rizo Ota, Takashi Fukushima, Kazuhiro Fujimoto, Masato Kozaki, Misaki Yamashiro, Junichi Somei, Yasunobu Matsumoto, and Yoko Aida. 2023. "TiO2-Photocatalyst-Induced Degradation of Dog and Cat Allergens under Wet and Dry Conditions Causes a Loss in Their Allergenicity" Toxics 11, no. 8: 718. https://doi.org/10.3390/toxics11080718

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
