Changes in the Biology and Susceptibility of Weevil (Cylas formicarius) to the Insecticide Spinetoram as a Response to Cadmium Contamination

by
Jin Xu
1,
An Tang
1,
Jun-Yan Liu
1,
Chang-Long Yao
1,
Ke-Ping Liu
1,
Xiao-Sheng Huang
1 and
Pei-Qiong Shi
2,*
1
Department of Biotechnology, College of Coastal Agricultural Sciences, Guangdong Ocean University, Zhanjiang 524088, China
2
Department of Horticulture, College of Coastal Agricultural Sciences, Guangdong Ocean University, Zhanjiang 524088, China
*
Author to whom correspondence should be addressed.
Toxics 2024, 12(4), 304; https://doi.org/10.3390/toxics12040304
Submission received: 21 March 2024 / Revised: 9 April 2024 / Accepted: 19 April 2024 / Published: 22 April 2024
(This article belongs to the Section Metals and Radioactive Substances)
Browse Figures
Versions Notes

Abstract

:
The sweet potato weevil Cylas formicarius is a notorious underground pest in sweet potato (Ipomoea batatas L.). However, little is known about the effects of cadmium (Cd) stress on weevil biology and resistance to pesticides and biotic agents. Therefore, we fed sweet potato weevils with Cd-contaminated sweet potato and assessed adult food intake and survival and larval developmental duration and mortality rates, as well as resistance to the insecticide spinetoram and susceptibility to the entomopathogenic fungus Beauveria bassiana. With increasing Cd concentration, the number of adult weevil feeding holes, adult survival and life span, and larval developmental duration decreased significantly, whereas larval mortality rates increased significantly. However, at the lowest Cd concentration (30 mg/L), adult feeding was stimulated. Resistance of adult sweet potato weevils to spinetoram increased at low Cd concentration, whereas Cd contamination did not affect sensitivity to B. bassiana. Thus, Cd contamination affected sweet potato weevil biology and resistance, and further studies will investigate weevil Cd accumulation and detoxification mechanisms.

1. Introduction

Heavy metals are defined as metal elements with a density higher than 5 g/cm3, generally categorized as either essential or nonessential [1]. Nonessential heavy metals, such as cadmium (Cd), mercury (Hg), lead (Pb), nickel (Ni), and copper (Cu), are highly reactive and toxic at low concentrations, posing severe risks to many organisms, including plants and insects [2,3]. Heavy metal pollution is distributed globally because of human production activities, including mining, smelting, sewage discharge, and use of metal-containing pesticides and fertilizers [4,5,6]. It is estimated that the annual global emissions of Cd, Pb, and Cu reach approximately 1.0 × 106 tons, 5.0 × 106 tons, and 3.4 × 106 tons, respectively [7]. Cadmium can be easily taken up by agricultural crops due to the relatively good solubility of its salts in water, posing a threat to nearly all organisms [3,8,9,10,11,12]. It is estimated that anthropogenic activities release 3–10 times more Cd into the environment than natural processes [1]. In China, the Cd point exceeding rates was 7.0% [13]; the risk screening value for Cd content in non-paddy field soils (PH ≤ 7.5) was 0.3 mg/kg, and it was 0.6 mg/kg for soils with a PH higher than 7.5 [14]. The Cd content in the soils ranged from 0.25 to 0.3 mg/kg in Guangdong province, which is close to the risk screening value [7].
In soil–plant–insect systems, heavy metal accumulations in soil and plants affect both plants and insects. The effects of heavy metals have been examined in a variety of plants (e.g., rice, maize, soybean, kale), as well as in coleopteran, hemipteran, dipteran, lepidopteran, and orthopteran insects [3,6,15,16,17,18,19,20]. Among hypotheses to explain metal hyperaccumulation in plants, the elemental defense hypothesis is the most widely tested, and it proposes that metals accumulate in plant tissues to defend against insect herbivory [3,21,22,23,24]. Esteves-Aguilar et al. [25] reported that heavy metal exposure increases physical and chemical defenses against herbivores in Wigandia urens Kunth (Boraginaceae), a shrub or small tree. When fed W. urens leaf tissue containing heavy metals, the grasshopper Sphenarium purpurascens Charpentier showed higher mortality in the first two developmental instars and lower body biomass than in grasshoppers fed heavy metal-free leaf tissue. According to Jiang et al. [26], Cd stress increased the resistance of larch (Larix olgensis) seedlings to gypsy moth, with decreases in gypsy moth body weight and detoxification mechanisms associated with changes in contents or activities of protease inhibitors, tannins, and phenolic acids in L. olgensis seedling needles. For insects, heavy metals can be transferred to herbivorous insects through food chains, causing chronic toxicological effects on growth and physiology [27], altering behavior [28], and simplifying the community of plant-associated insects [6,29]. After an initial taste of metal-rich plant materials, the desert locust Schistocerca gregaria develops an aversion and decreases ingestion rates [30], whereas the grass miner Chromatomyia milii reduces feeding and oviposition on heavy metal-exposed plants [31]. In general, compared with control insects, insects exposed to heavy metals have significantly lower egg viability, larval and pupal survivorship, adult emergence, fecundity, and net reproductive rate [17,31,32]. Recently, the combined effects of heavy metals and other factors on insects have also received attention. Previous studies have shown that heavy metal exposure can induce tolerance (a phenomenon known as “cross-tolerance”) or affect susceptibility of organisms to other stressors [7]. Babczynska et al. [2] reported that polypropylene fibers cause an increase in Cd accumulation in larval Spodoptera exigua. Under the combined action of a heavy metal and the pesticide dimethoate, a decrease in grasshopper enzyme activity was particularly notable in areas with low heavy metal concentrations [33]. Heavy metal exposure can also increase insect susceptibility to entomopathogenic microorganisms [27].
Sweet potato (Ipomoea batatas (L.) Lam.) is an important food crop worldwide. Its tuberous root is a staple food as well as an important raw material for alcohol and starch manufacturing and food processing, and its stems and leaves are also now a popular vegetable [34]. Sweet potato can adapt to a variety of extreme environmental conditions, such as lack of soil nutrients, drought, and contaminated soil. Some reports showed that sweet potato easily absorbs and accumulates Cd in roots and shoots when grown in contaminated soil [34,35,36,37,38,39]. Although the adaptability of sweet potato to the environment is relatively strong, yield and quality are adversely affected by diseases and insect pests. The sweet potato weevil Cylas formicarius Fabricius (Coleoptera: Brentidae) is a notorious pest in sweet potato that causes severe damage to tubers during both growth and storage and thus affects the yield and quality of sweet potato [40,41,42].
Donghai Island in Zhanjiang, Guangdong Province, China, is one of the main areas of sweet potato cultivation; the yield loss caused by sweet potato weevil is generally 5% to 20%, up to 30−50% in severe cases [42]. Chemical control and agronomic measures can protect sweet potato from these weevils, but the occurrence of sweet potato weevil in Donghai Island exhibit an upward trend. In addition, there is a hidden danger of heavy metal pollution on this island due to the steel works in the area. As heavy metals have chronic toxicological effects on insects and can induce cross-tolerance, we hypothesized that the fitness of sweet potato weevil C. formicarius may also be affected by heavy metal pollution; therefore, more caution may be necessary in selecting pest prevention and control methods. However, how heavy metal pollution affects sweet potato weevils remains unclear. Therefore, the objectives of this study were (1) to assess the effects of Cd2+ on feeding and survival of sweet potato weevils and (2) to evaluate the influence of Cd2+ exposure on sweet potato weevil resistance to an insecticide and susceptibility to an entomopathogenic fungus.

2. Materials and Methods

2.1. Insects, Sweet Potato and Cadmium Concentrations

The C. formicarius adults (1-day-old) and 2nd instar larvae used in the study were from laboratory stock reared under standard conditions (26 ± 1 °C and 16:8 h light:dark photoperiod) in the Environmental Protection Laboratory, College of Coastal Agricultural Sciences, Guangdong Ocean University, Zhanjiang, China. The original C. formicarius were collected from damaged sweet potatoes in November 2020 from Donghai Island (110°11′−110°21′ E, 20°55′−21°55′ N), Zhanjiang. The tuberous root of sweet potato (I. batatas var. xiguahong) was used as food for rearing C. formicarius, which were commercially available and free of heavy metal contamination. Cadmium chloride (98% CdCl2; Macklin, Shanghai, China) solution was used to prepare five Cd treatment concentrations: 30 mg/L, 60 mg/L, 120 mg/L, 240 mg/L, and 480 mg/L, which were determined by pre-experimental screening. Deionized water was the control.

2.2. Food Intake by Adult Sweet Potato Weevils

Adult sweet potato weevils feeding on sweet potato typically form round feeding holes on the surface of sweet potato tuberous root, so weevil food intake can be assessed by the number of feeding holes. Fresh and clean roots of sweet potato were cut into 1 mm-thick slices, and then 3 cm diameter discs were produced with a hole punch. Sweet potato discs were soaked in the different cadmium chloride solutions for 30 min and then air-dried. After 24 h of starvation, vigorous female and male adult sweet potato weevils (1-day-old) were randomly selected and placed in plastic boxes (diameter: 5 cm; height: 3 cm) to feed on the treated potato discs. Each plastic box was a replicate containing 10 male adults and/or female adults and one disc, and there were six replicates per treatment. To prevent drying and mold from developing, potato discs were kept moist with filter paper soaked in the appropriate treatment concentration, with new filter papers and discs treated by the above method used after 24 h. At 24 and 48 h after feeding, the number of holes was recorded. Feeding holes with a 1 mm diameter were denoted by the number 1, whereas those with a diameter less than 1 mm were denoted by the number 0.5. Large feeding holes (areas larger than 1 mm2) formed by repeated feeding were denoted by the number 2, 3, or 4 according to the size. The recorded numbers were summed as the number of feeding holes under per treatment. Antifeeding rate (%) was calculated using the following formula: Antifeeding rate (%) = (Number of feeding holes (control) − Number of feeding holes(treatment))/(Number of feeding holes (control)). The adult food intake and other experiments are summarized in Figure 1.

2.3. Adult Daily Survival Rate

After 24 h of starvation, vigorous female and male adult (1-day-old) weevils were randomly selected to feed on the treated potato discs. Treatment of potato discs and determination of feeding by adults were the same as those in the section “Food intake by adult sweet potato weevils”, but the numbers of dead females and males were recorded daily until all individuals in a treatment group were dead. There were 60 male and 60 female adults per treatment.

2.4. Larval Survival Rate and Developmental Duration

Fresh and clean sweet potatoes were cut into cubes (length: 1.5 cm; width: 1 cm; height: 3 cm), and a hole was excavated in each cube (approximately 0.5 cm × 0.5 cm × 0.5 cm). The sweet potato cubes were soaked in the different cadmium chloride solutions for 2 h and then air-dried. To simulate the larval growth environment, one 2nd instar weevil larva was placed in the hole of each cube, and the hole was sealed with a piece of sweet potato (1 mm thick and treated with the appropriate cadmium chloride solution) fixed with pins. Pupation and death of sweet potato weevil larvae at different concentrations were recorded every 24 h. There were 10 larvae per replicate, with six replicates per treatment.

2.5. Resistance of Adult Sweet Potato Weevils to Spinetoram and Susceptibility to Beauveria bassiana

To assay the effects of cadmium chloride on pesticide resistance of adult sweet potato weevils, spinetoram 60 SC (60 g/L SC, US Dow AgroSciences Biological Chemistry Company, Indianapolis, IN, USA) was used in this study. The experiment was conducted in two steps. First, to determine the spinetoram LC50 value, spinetoram 60 SC was diluted by 1000, 1500, 2000, 2500, 3000, and 3500 times, the corresponding concentrations were 60 mg/L, 40 mg/L, 30 mg/L, 24 mg/L, 20 mg/L, and 17.14 mg/L, respectively, and deionized water was used as the control. Vigorous adult sweet potato weevils were randomly selected and placed on fresh sweet potato discs (diameter: 3 cm; thickness: 1 mm), which were then treated by dipping in different dilutions of the test formulation for 20 s, followed by and drying on filter paper. Treated adults and sweet potato discs were placed in boxes (diameter: 5 cm; height: 3 cm). The LC50 value was calculated from the number of deaths after 12 h. Second, adult weevils were fed on sweet potato discs soaked in the different cadmium chloride solutions for 30 min. After 3 d, vigorous adults were selected and then treated along with sweet potato discs by dipping for 20 s in the LC50 dilution concentration of the test formulation. There were 10 adults per replicate, with six replicates per treatment. The number of deaths was counted after 12 h.
Beauveria bassiana Bals-1722 strain (GDMCC No: 62530, Guangdong Provincial Microbial Culture Preservation Center, Guangzhou, China) was cultured on potato dextrose agar (PDA) medium under standard conditions (28 °C and 14:10 h light:dark photoperiod). Adult sweet potato weevils were fed on cadmium chloride-treated sweet potato discs for 3 d, and then vigorous adults were treated by dipping in a spore suspension (2.5 × 108 CFU/mL) for 20 s. The control was 0.05% Tween 80. There were 10 adults (gender was randomized) per replicate, with six replicates per treatment. After 4 d, the number of deaths was counted.

2.6. Statistical Analyses

Results are reported as the mean ± standard error of the mean. For all ANOVA analysis of adult food intake, larval developmental duration and mortality, and adult resistance to spinetoram and susceptibility to B. bassiana assays, data were checked for homogeneity by Levene’s test. Multiple comparisons of means were assessed by Tukey’s HSD test at a significance level of α = 0.05. The difference of food intake between males and females at the same times and/or concentrations was analyzed using an independent-samples t-test, at a significance level of α = 0.05. Adult mortality rates were transformed to probits for linear regression analysis and the determination of spinetoram’ LC50 values. The significance of the difference between life span curves (weevils fed on normal food versus weevils fed on metal-supplemented food) was analyzed using a log-rank (Mantel–Cox) statistical test. The log-rank test was performed by GraphPad Prism 9.0.0 (Dotmatics, MA, USA). Probit analysis and other statistical analyses were performed using IBM SPSS Statistics software v.18.0 (IBM, New York, NY, USA).

3. Results

3.1. Food Intake of Adult Sweet Potato Weevils

The number of adult weevil feeding holes on sweet potato discs was significantly affected by Cd concentration (Table 1, Figure 2), with the number decreasing with increasing Cd concentration (p ˂ 0.00001). The antifeeding rates of male and female weevils increased significantly with the increase in Cd concentration. Adult weevil food intake decreased significantly at the highest Cd concentrations (240 and 480 mg/L), with numbers of feeding holes less than 10 and antifeeding rates ranging from 87.64% at 24 h to 93.06% at 48 h (p ˂ 0.00001). Notably, at 48 h, compared with the control, the number of feeding holes increased at the Cd concentration of 30 mg/L, although not significantly. However, the numbers of male and female feeding holes at 30 mg/L were significantly higher than those at 60, 120, 240, and 480 mg/L (p ˂ 0.00001). Similarly, compared with the control, male and female antifeeding rates at 30 mg /L were −15.93% ± 6.81% and −12.35% ± 8.87%, respectively. There were no significant differences in food intake between males and females at the same times and concentrations (p ˃ 0.05).

3.2. Adult and Larval Survival Rates and Larval Developmental Duration

Survival rates of male and female weevils fed on sweet potato discs soaked in different concentrations of cadmium chloride solution after 52 d are shown in Figure 3a,b. The survival curves of males and females were significantly different among Cd treatments (males: χ2 = 194, df = 5, p ˂ 0.0001; females: χ2 = 233.5, df = 5, p ˂ 0.0001). Male survival rates at 52 d were 73.33% ± 3.85% at 0 mg/L, 33.33% ± 5.09% at 30 mg/L, 20% ± 11.55% at 60 mg/L, and 3.33% ± 1.92% at 120 mg/L (Table 2). Female survival rates at 52 d were 80% ± 8.82% at 0 mg/L, 23.33% ± 10.72% at 30 mg/L, 30% ± 11.55% at 60 mg/L, and 13.33% ± 5.09% at 120 mg/L (Table 2). At 240 and 480 mg/L, approximately half of females and males died within 5 to 10 d, and all treated individuals died within 30 to 34 d. Notably, the survival of female adults at 30 mg/L was lower than that at 60 and 120 mg/L (Figure 3b).
The effects of cadmium chloride on weevil larval developmental duration and survival were also determined. Developmental duration decreased significantly with the increase in Cd concentration (p = 0.002, F5,234 = 3.8975), with duration 13.43 ± 0.80 d at 0 mg/L, 11.08 ± 0.57 d at 30 mg/L, 10.8 ± 0.68 d at 60 mg/L, 12.1 ± 0.75 d at 120 mg/L, 10.3 ± 0.81 d at 240 mg/L, and 9.43 ± 0.63 d at 480 mg/L (Figure 4a, Table 3). The corrected mortality rates of weevil larvae increased significantly with the increase in Cd concentration and feeding time (Figure 4b, Table 3). At day 3, the corrected mortality rate was 5.32% ± 4% at 30 mg/L, which increased significantly to 22.68% ± 2.91% at 120 mg/L, 24.31% ± 3.24% at 240 mg/L, and 26.39% ± 2.24% at 480 mg/L (p = 0.0002, F4,25 = 8.2651). At day 7, the corrected mortality was 15.21% ± 6.73% at 30 mg/L, which increased significantly to 36.47% ± 3.88% at 240 mg/L and 60.68% ± 4.37% at 480 mg/L (p ˂ 0.000001, F4,25 = 13.7343).

3.3. Resistance of Adult Sweet Potato Weevils to Spinetoram and Susceptibility to Beauveria bassiana

The susceptibility of adult sweet potato weevils to spinetoram 60 SC is shown in Table 4 and Figure 5a. The corrected mortality of adult sweet potato weevils increased significantly with the increase in concentration of spinetoram (Table 4; p ˂ 0.0001, F5,30 = 37.794). The concentration (μg/mL) that caused 50% mortality (LC50) of adults was 22 mg/L (χ2 = 7.069, p = 0.132). At the spinetoram concentration of LC50, resistance of sweet potato weevils to spinetoram varied with the Cd treatment concentration of the sweet potato discs. The mortality rate at 30 mg/L was significantly lower than that at 0 and 240 mg/L (Figure 5a; p ˂ 0.0001, F3,20 = 17.1769). After feeding on Cd-contaminated sweet potato discs, the sensitivity of sweet potato weevils to B. bassiana was not affected (Figure 5b; p = 0.3628, F3,20 = 1.1247).

4. Discussion

Heavy metal exposure can modify growth and development and alter sensitivity to other biological and abiotic factors in many species [27,43]. Many invertebrates, including insects, are therefore good bio-indicators for assessing the effects of heavy metals [18,44]. In this study, bioassays were used to assess the effects of Cd stress on sweet potato weevil feeding amounts, growth and survival, and susceptibility to the pesticide spinetoram and the entomopathogenic fungus B. bassiana.
When living in contaminated environments or after an initial taste of metal-rich plant materials, insects develop an aversion and decrease ingestion rates [17,28]. In this study, as Cd concentration increased, food intake of adult sweet potato weevils decreased, which is consistent with previous reports. For example, the desert locust S. gregaria prefers leaves and artificial food with low Zn concentrations [30]. The thrip Frankliniella occidentalis decreases feeding when reared on plants exposed to Cd, compared with those fed noncontaminated plants [45]. However, in this study, the cadmium contents in sweet potato chips and weevils were not determined for all treatments, which need to be further clarified in the subsequent studies on Cd accumulation. In addition to appetite, heavy metals have other toxic effects on insects; in severe cases, they have adverse effects on the growth index, development duration, and mortality rate [15,46,47]. Exposure of insects to Cd2+ can delay development [28,32]. Luo et al. [48] reported that Cd in a diet inhibited development of the Asian corn borer Ostrinia furnacalis by extending the duration of larval and pupal stages and decreased the survival rate. In this study, larval mortality rates increased significantly with the increase in Cd concentration and feeding time, whereas the duration of larval development (2nd instar larva to pupa) decreased with increasing Cd concentration. Because the pupal stage can help insects withstand adversity, the accelerated pupation of sweet potato weevils might be an adaptive strategy to overcome Cd toxicity. Whether this strategy requires additional biological costs, such as decreases in pupal weights, eclosion rates, and adult fecundity, needs further study. This may also be related to insect species, as the ability to detox heavy metals varies among different insects [4,49,50]. In this study, for adult weevils, survival rate and life span generally decreased with increasing Cd concentration, which were consistent with the effects of Cd on other insects (e.g., Drosophila melanogaster, moth of cotton bollworm Helicoverpa armigera, Spodoptera litura) [17,51,52]. Adults ate less from sweet potato highly contaminated with Cd2+, which can also reduce survival rates and shorten life spans. The phenomenon of heavy metal toxicity stems from the entirety of insect’s biochemical processes, which usually involve the special immune and enzyme detoxification systems of insects [15,53,54]. Wu et al. [54] reported that Cd exposure decreases both cellular immunity and humoral immunity of gypsy moth larvae (Lymantria dispar); the total hemocyte count and immune activity of hemolymph in gypsy moth larvae exposed to Cd stress were significantly decreased, and signal transduction genes and antimicrobial peptide genes in the Toll, IMD, and JAK/STAT signaling pathways were also significantly decreased in Cd-treated larvae. Insect detoxifying enzymes (e.g., glutathione S-transferases (GSTs), carboxylesterase (CarE), acetylcholinesterase (AChE)) play important roles in detoxifying toxic heavy metals [53]. In adult Drosophila, GstD2 and GstD6 were induced upon Cd exposure, thereby strengthening the defense ability of adult Drosophila against toxic metal exposure [55]. However, dietary Cd inhibited the activities of GST, CarE and P450 in Helicoverpa armigera [51]. In addition, metallothioneins (Mtns) in insects were increased upon exposure to Cd, Pb, and Hg, respectively [55,56]. The detailed mechanisms involved in the responses of sweet potato weevil to Cd exposure are worthy of further study.
Notably, sweet potato treated with the lowest Cd concentration of 30 mg/L stimulated feeding of adult sweet potato weevils after 48 h. However, the probability of female survival was lower in the 30 mg/L treatment than in 60 and 120 mg/L treatments. To explain this result, we hypothesized that females might eat more food at low Cd concentrations because they needed energy to lay eggs or that stimulation of feeding at the low concentration lasted longer in females than in males. Whether the stimulation of feeding is a compensatory response after starvation or an adaptation to low Cd concentration and how long the effect lasts in males and females need further study. Van Ooik and Rantala [16] reported that heavy metal pollution increased immune function in female autumnal moths (Epirrita autumnata) but not in males, and Butovsky [18] reported that accumulation of heavy metals, including Cd, Zn, and Cu, was sex-specific in carabid beetles. Thus, we hypothesized that the survival rate was also related to immune function and Cd accumulation in female and male sweet potato weevils under Cd stress.
Heavy metal exposure can affect susceptibility of organisms to other stressors [57,58]. For example, heavy metal exposure may increase insect susceptibility to entomopathogenic microorganisms [27]. Resistance of larvae of the greater wax moth Galleria mellonella to the fungus B. bassiana decreased when larvae were exposed to Ni at a sublethal level [59]. Similarly, the susceptibility of Drosophila melanogaster to Bacillus subtilis increased in a dose–response fashion with exposure to Pb [60]. In this study, the sensitivity of adult sweet potato weevils to B. bassiana was not affected by Cd contamination, which might be due to differences in insect species and fungal strains. Heavy metal exposure can also affect insect resistance to pesticides. After exposure to dimethoate, grasshoppers (Chorthippus brunneus) collected from industrial areas polluted with heavy metals had different metabolic reactions compared with those collected from unpolluted sites, with activity of detoxification enzymes particularly affected [33]. In the beet armyworm S. exigua, tolerance to the pesticide spinosad increased after long-term selection by Cd [43]. In this study, the resistance of adult sweet potato weevils to spinetoram increased after exposure to a low level of Cd2+, which could contribute to reduced efficiency of pesticide-based plant protection efforts. Tolerance development may involve behavioral resistance, penetration resistance, target resistance, and metabolic resistance [61], but the exact mechanism of cross-tolerance formation is not fully understood; the molecular mechanism of this enhanced tolerance also deserves further study.
Evaluation of the impacts of heavy metal exposure on herbivorous insects is particularly important for assessing eco-toxicological risk in food chains [46]. In addition, the development of insect heavy metal tolerance has probably led to the increase in their tolerance to pesticides [7,43], which may reduce the efficiency of pest chemical control and bring new challenges to pest control in the farmland with heavy metal pollution [46]. In this study, weevil resistance to spinetoram increased after exposure to a low level of Cd2+, but the sensitivity to B. bassiana was not affected by Cd contamination. Microbial control may be more suitable for pest control in heavy metal-polluted areas than chemical control [7]. Admittedly, the cross-tolerance was tested under controlled conditions, which enhances our understanding of the effects of single heavy metal on insects but may not accurately reflect the characteristics of natural communities because heavy metal pollution in the field generally involves a variety of heavy metals, and their impacts on insects are more diversified and complicated [46,56,57]. Therefore, it is more meaningful to combine indoor experiments with field investigations to explore the insect resistance or tolerance under heavy metal exposure.
In summary, when sweet potato weevils were fed Cd-contaminated diets, larval developmental duration and adult feed intake, survival, and life span decreased with increasing Cd concentration. However, weevil resistance to spinetoram increased after exposure to a low level of Cd2+. The findings provide a basis to further explore the effects of heavy metals on weevils. To better understand the effects of heavy metals, we plan to conduct further studies on sweet potato weevil Cd accumulation and detoxification mechanisms using indoor experiments and field investigations.

Author Contributions

Conceptualization, J.X., A.T. and P.-Q.S.; methodology, J.X., J.-Y.L., X.-S.H., C.-L.Y. and K.-P.L.; software, A.T. and J.-Y.L.; validation, J.X., A.T. and C.-L.Y.; data curation, A.T., X.-S.H. and C.-L.Y.; writing—original draft preparation, J.X., A.T. and P.-Q.S.; writing—review and editing, P.-Q.S.; visualization, A.T.; supervision, J.X.; project administration, P.-Q.S.; funding acquisition, P.-Q.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Guangdong Basic and Applied Basic Research Foundation (2019A1515110745), the program for scientific research start-up funds of Guangdong Ocean University (R19025, R19029), and Guangdong Engineering Technology Research Center of Tropical Crops High-efficient Production (C16064).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nowicka, B. Heavy metal–induced stress in eukaryotic algae—Mechanisms of heavy metal toxicity and tolerance with particular emphasis on oxidative stress in exposed cells and the role of antioxidant response. Environ. Sci. Pollut. Res. 2022, 29, 16860–16911. [Google Scholar] [CrossRef] [PubMed]
  2. Babczynska, A.; Gorka, M.; Lis, A.; Tarnawska, M.; Lozowski, B.; Brozek, J.; Rozpedek, K.; Augustyniak, M.; Skowronek, M.; Kafel, A. Joint cadmium and polypropylene microparticle action in cadmium tolerant model insect. Environ. Toxicol. Pharmacol. 2023, 101, 104209. [Google Scholar] [CrossRef]
  3. Gall, J.E.; Boyd, R.S.; Rajakaruna, N. Transfer of heavy metals through terrestrial food webs: A review. Environ. Monit. Assess. 2015, 187, 201. [Google Scholar] [CrossRef]
  4. Butt, A.; Qurat-ul-Ain; Rehman, K.; Khan, M.X.; Hesselberg, T. Bioaccumulation of cadmium, lead, and zinc in agriculture-based insect food chains. Environ. Monit. Assess. 2018, 190, 698. [Google Scholar] [CrossRef] [PubMed]
  5. Kumar, S.; Wang, M.Z.; Liu, Y.H.; Zhu, Z.X.; Fahad, S.; Qayyum, A.; Zhu, G.P. Vanadium stress alters sweet potato (Ipomoea batatas L.) growth, ROS accumulation, antioxidant defense system, stomatal traits, and vanadium uptake. Antioxidants 2022, 11, 2407. [Google Scholar] [CrossRef] [PubMed]
  6. Morales-Silva, T.; Silva, B.C.; Silva, V.H.D.; Faria, L.D.B. Simplification effect of lead soil contamination on the structure and function of a food web of plant-associated insects. Agric. Ecosyst. Environ. 2023, 354, 108570. [Google Scholar] [CrossRef]
  7. Yan, S.C.; Tan, M.T.; Zhang, A.Y.; Jiang, D. The exposure risk of heavy metals to insect pests and their impact on pests occurrence and cross-tolerance to insecticides: A review. Sci. Total Environ. 2024, 916, 170274. [Google Scholar] [CrossRef] [PubMed]
  8. Huang, B.F.; Xin, J.L.; Dai, H.W.; Zhou, W.J.; Peng, L.J. Identification of low-Cd cultivars of sweet potato (Ipomoea batatas (L.) Lam.) after growing on Cd-contaminated soil: Uptake and partitioning to the edible roots. Environ. Sci. Pollut. Res. 2015, 22, 11813–11821. [Google Scholar] [CrossRef] [PubMed]
  9. Grant, C.A.; Clarke, J.M.; Duguid, S.; Chaney, R.L. Selection and breeding of plant cultivars to minimize cadmium accumulation. Sci. Total Environ. 2008, 390, 301–310. [Google Scholar] [CrossRef] [PubMed]
  10. Sterckeman, T.; Thomine, S. Mechanisms of cadmium accumulation in plants. Crit. Rev. Plant Sci. 2020, 39, 322–359. [Google Scholar] [CrossRef]
  11. Singh, S.; Prasad, S.M.; Sharma, S.; Dubey, N.K.; Ramawat, N.; Prasad, R.; Singh, V.P.; Tripathi, D.K.; Chauhan, D.K. Silicon and nitric oxide-mediated mechanisms of cadmium toxicity alleviation in wheat seedlings. Physiol. Plant. 2022, 174, e13065. [Google Scholar] [CrossRef] [PubMed]
  12. Mielcarek, K.; Nowakowski, P.; Puscion-Jakubik, A.; Gromkowska-Kepka, K.J.; Soroczynska, J.; Markiewicz-Zukowska, R.; Naliwajko, S.K.; Grabia, M.; Bielecka, J.; Zmudzi, A.; et al. Arsenic, cadmium, lead and mercury content and health risk assessment of consuming freshwater fish with elements of chemometric analysis. Food Chem. 2022, 379, 132167. [Google Scholar] [CrossRef] [PubMed]
  13. Qin, G.; Niu, Z.; Yu, J.; Li, Z.; Ma, J.; Xiang, P. Soil heavy metal pollution and food safety in China: Effects, sources and removing technology. Chemosphere 2021, 267, 129205. [Google Scholar] [CrossRef] [PubMed]
  14. GB 15618-2018; Soil Environmental Quality Risk Control Standard for Soil Contamination of Agricultural Land. Ministry of Ecology and Environment of the People’s Republic of China: Beijing, China, 2018.
  15. Tan, M.T.; Wu, H.F.; Li, Y.N.; Zhang, A.Y.; Xu, J.S.; Chai, R.S.; Meng, Z.J.; Yan, S.C.; Jiang, D. Cadmium exposure through the food chain reduces the parasitic fitness of Chouioia cunea to Hyphantria cunea pupae: An ecotoxicological risk to pest control. Sci. Total Environ. 2023, 887, 164106. [Google Scholar] [CrossRef]
  16. van Ooik, T.; Rantala, M.J. Local adaptation of an insect herbivore to a heavy metal contaminated environment. Ann. Zool. Fenn. 2010, 47, 215–222. [Google Scholar] [CrossRef]
  17. Bahadorani, S.; Hilliker, A.J. Biological and behavioral effects of heavy metals in Drosophila melanogaster adults and larvae. J. Insect Behav. 2009, 22, 399–411. [Google Scholar] [CrossRef]
  18. Butovsky, R.O. Heavy metals in carabids (Coleoptera, Carabidae). Zookeys 2011, 100, 215–222. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, X.B.; Wu, N.; Ma, Y.; Wang, Z.Q.; Cai, R.J.; Xu, X.Y. Migration and transformation of Cd in pig manure-insect frass (Hermetia illucens)-soil-maize system. Int. J. Environ. Res. Public Health 2023, 20, 60. [Google Scholar] [CrossRef] [PubMed]
  20. Guan, H.R.; Zhang, J.W.; Wang, T.; Xu, J.M.; Liu, X.M. Lowered oral bioaccessibility of cadmium and selenium and associated health risk by co-digestion of rice and vegetables. Sci. Total Environ. 2023, 898, 165489. [Google Scholar] [CrossRef] [PubMed]
  21. Boyd, R.S. Plant defense using toxic inorganic ions: Conceptual models of the defensive enhancement and joint effects hypotheses. Plant Sci. 2012, 195, 88–95. [Google Scholar] [CrossRef] [PubMed]
  22. Putra, R.; Muller, C. Extending the elemental defence hypothesis in the light of plant chemodiversity. New Phytol. 2023, 239, 1545–1555. [Google Scholar] [CrossRef] [PubMed]
  23. Morkunas, I.; Wozniak, A.; Mai, V.C.; Rucinska-Sobkowiak, R.; Jeandet, P. The role of heavy metals in plant response to biotic stress. Molecules 2018, 23, 2320. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, L.L.; Lu, L.L.; Lin, X.Y.; Hu, Y. Cadmium armors the Cd hyperaccumulator Sedum alfredii against aphid attack. Front. Environ. Sci. 2022, 10, 1036708. [Google Scholar] [CrossRef]
  25. Esteves-Aguilar, J.; Mussali-Galante, P.; Valencia-Cuevas, L.; Garcia-Cigarrero, A.A.; Rodriguez, A.; Castrejon-Godinez, M.L.; Tovar-Sanchez, E. Ecotoxicological effects of heavy metal bioaccumulation in two trophic levels. Environ. Sci. Pollut. Res. 2023, 30, 49840–49855. [Google Scholar] [CrossRef] [PubMed]
  26. Jiang, D.; Wang, G.R.; Yan, S.C. The improved resistance against gypsy moth in Larix olgensis seedlings exposed to Cd stress association with elemental and chemical defenses. Pest Manag. Sci. 2020, 76, 1713–1721. [Google Scholar] [CrossRef] [PubMed]
  27. Jiang, D.; Tan, M.T.; Guo, Q.X.; Yan, S.C. Transfer of heavy metal along food chain: A mini-review on insect susceptibility to entomopathogenic microorganisms under heavy metal stress. Pest Manag. Sci. 2021, 77, 1115–1120. [Google Scholar] [CrossRef] [PubMed]
  28. Oliveira, C.S.; Nogara, P.A.; Lima, L.S.; Galiciolli, M.E.A.; Souza, J.V.; Aschner, M.; Rocha, J.B.T. Toxic metals that interact with thiol groups and alteration in insect behavior. Curr. Opin. Insect Sci. 2022, 52, 100923. [Google Scholar] [CrossRef] [PubMed]
  29. Morales-Silva, T.; Silva, B.C.; Faria, L.D.B. Soil contamination with permissible levels of lead negatively affects the community of plant-associated insects: A case of study with kale. Environ. Pollut. 2022, 304, 119143. [Google Scholar] [CrossRef] [PubMed]
  30. Behmer, S.T.; Lloyd, C.M.; Raubenheimer, D.; Stewart-Clark, J.; Knight, J.; Leighton, R.S.; Harper, F.A.; Smith, J.A.C. Metal hyperaccumulation in plants: Mechanisms of defence against insect herbivores. Funct. Ecol. 2005, 19, 55–66. [Google Scholar] [CrossRef]
  31. Scheirs, J.; Vandevyvere, I.; Wollaert, K.; Blust, R.; De Bruyn, L. Plant-mediated effects of heavy metal pollution on host choice of a grass miner. Environ. Pollut. 2006, 143, 138–145. [Google Scholar] [CrossRef] [PubMed]
  32. Mireji, P.O.; Keating, J.; Hassanali, A.; Mbogo, C.M.; Muturi, M.N.; Githure, J.I.; Beier, J.C. Biological cost of tolerance to heavy metals in the mosquito Anopheles gambiae. Med. Vet. Entomol. 2010, 24, 101–107. [Google Scholar] [CrossRef] [PubMed]
  33. Augustyniak, M.; Babczynska, A.; Migula, P.; Wilczek, G.; Laszczyca, P.; Kafel, A.; Augustyniak, M. Joint effects of dimethoate and heavy metals on metabolic responses in a grasshopper (Chorthippus brunneus) from a heavy metals pollution gradient. Comp. Biochem. Physiol. C-Toxicol. Pharmacol. 2005, 141, 412–419. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, F.; Zhou, H.; Gu, J.F.; Liu, C.Y.; Yang, W.J.; Liao, B.H.; Zhou, H. Differences in absorption of cadmium and lead among fourteen sweet potato cultivars and health risk assessment. Ecotoxicol. Environ. Saf. 2020, 203, 111012. [Google Scholar] [CrossRef] [PubMed]
  35. Huang, B.F.; Liao, Q.; Fu, H.L.; Ye, Z.Y.; Mao, Y.X.; Luo, J.M.; Wang, Y.T.; Yuan, H.W.; Xin, J.L. Effect of potassium intake on cadmium transporters and root cell wall biosynthesis in sweet potato. Ecotoxicol. Environ. Saf. 2023, 250, 114501. [Google Scholar] [CrossRef] [PubMed]
  36. Shi, L.; Chen, Z.M.; Hou, Y.A.; Li, J.M.; Shen, Z.G.; Chen, Y.H. The original polyethylene microplastics inhibit the growth of sweet potatoes and increase the safety risk of cadmium. Front. Plant Sci. 2023, 14, 1138281. [Google Scholar] [CrossRef] [PubMed]
  37. Toishimanov, M.; Abilda, Z.; Daurov, D.; Daurova, A.; Zhapar, K.; Sapakhova, Z.; Kanat, R.; Stamgaliyeva, Z.; Zhambakin, K.; Shamekova, M. Phytoremediation properties of sweet potato for soils contaminated by heavy metals in South Kazakhstan. Appl. Sci. 2023, 13, 9589. [Google Scholar] [CrossRef]
  38. Antonious, G.F.; Dennis, S.O.; Unrine, J.M.; Snyder, J.C. Ascorbic acid, beta-carotene, sugars, phenols, and heavy metals in sweet potatoes grown in soil fertilized with municipal sewage sludge. J. Environ. Sci. Health Part B-Pestic. Food Contam. Agric. Wastes 2011, 46, 112–121. [Google Scholar] [CrossRef] [PubMed]
  39. Huang, B.F.; Dai, H.W.; Zhou, W.J.; Peng, L.J.; Li, M.Z.; Wan, R.J.; He, W.T. Characteristics of Cd accumulation and distribution in two sweet potato cultivars. Int. J. Phytoremediation 2019, 21, 391–398. [Google Scholar] [CrossRef] [PubMed]
  40. Baro, Y.; Schuster, C.; Gato, Y.; Marquez, M.E.; Leclerque, A. Characterization, identification and virulence of Metarhizium species from Cuba to control the sweet potato weevil, Cylas formicarius Fabricius (Coleoptera: Brentidae). J. Appl. Microbiol. 2022, 132, 3705–3716. [Google Scholar] [CrossRef] [PubMed]
  41. Liu, X.; Wang, Y.R.; Zhu, H.B.; Mei, G.G.; Liao, Y.Y.; Rao, S.F.; Li, S.Q.; Chen, A.; Liu, H.J.; Zeng, L.T.; et al. Natural allelic variation confers high resistance to sweet potato weevils in sweet potato. Nat. Plants 2022, 8, 1233–1244. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, X.P.; Zhao, Z.H.; Chen, J.Y.; Huang, L.F. The field efficacy test of bifenthrin·thiamethoxam 1% GR application in the control of sweet potato weevil. Chin. J. Trop. Agric. 2023, 43, 67–71. (In Chinese) [Google Scholar]
  43. Augustyniak, M.; Tarnawska, M.; Babczynska, A.; Kafel, A.; Zawisza-Raszka, A.; Adamek, B.; Plachetka-Bozek, A. Cross tolerance in beet armyworm: Long-term selection by cadmium broadens tolerance to other stressors. Ecotoxicology 2017, 26, 1408–1418. [Google Scholar] [CrossRef] [PubMed]
  44. Kheirallah, D.A.M.; El-Samad, L.M.; Mokhamer, E.M.; Abdul-Aziz, K.K.; Toto, N.A.H. DNA damage and oogenesis anomalies in Pimelia latreillei (Coleoptera: Tenebrionidae) induced by heavy metals soil pollution. Toxicol. Ind. Health 2019, 35, 688–702. [Google Scholar] [CrossRef] [PubMed]
  45. Jiang, R.F.; Ma, D.Y.; Zhao, F.J.; McGrath, S.P. Cadmium hyperaccumulation protects Thlaspi caerulescens from leaf feeding damage by thrips (Frankliniella occidentalis). New Phytol. 2005, 167, 805–813. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, M.F.; Chen, J.; Wu, K.X.; Chen, S.R.; Wang, J.W.; Shu, Y.H. Complex Cd-Pb multigenerational exposure improves the growth and food utilization of the cutworm Spodoptera litura. Agronomy 2023, 13, 1207. [Google Scholar] [CrossRef]
  47. Wan, S.J.; Si, H.R.; Wang, X.Z.; Chao, L.; Ma, W.; Sun, S.S.; Tang, B.; Tan, X.L.; Wang, S.G. Regulation of Vicia faba L. response and its effect on Megoura crassicauda reproduction under zinc stress. Int. J. Mol. Sci. 2023, 24, 9659. [Google Scholar] [CrossRef] [PubMed]
  48. Luo, M.; Cao, H.M.; Fan, Y.Y.; Zhou, X.C.; Chen, J.X.; Chung, H.; Wei, H.Y. Bioaccumulation of cadmium affects development, mating behavior, and fecundity in the Asian Corn Borer, Ostrinia furnacalis. Insects 2020, 11, 7. [Google Scholar] [CrossRef] [PubMed]
  49. Vlahovic, M.; Matic, D.; Mutic, J.; Trifkovic, J.; Durdic, S.; Mataruga, V.P. Influence of dietary cadmium exposure on fitness traits and its accumulation (with an overview on trace elements) in Lymantria dispar larvae. Comp. Biochem. Physiol. Part C 2017, 200, 27–33. [Google Scholar] [CrossRef] [PubMed]
  50. Merritt, T.J.S.; Bewick, A.J. Genetic diversity in insect metal tolerance. Front. Genet. 2017, 8, 172. [Google Scholar] [CrossRef] [PubMed]
  51. Zhan, H.X.; Zhang, J.P.; Chen, Z.; Huang, Y.J.; Ruuhola, T.; Yang, S.Y. Effects of Cd2+ exposure on key life history traits and activities of four metabolic enzymes in Helicoverpa armigera (Lepidopteran: Noctuidae). Chem. Ecol. 2017, 33, 325–338. [Google Scholar] [CrossRef]
  52. Yang, Y.; Qi, J.W.; Wang, Z.L.; Zhou, Z.X.; Zhao, C.W.; Dong, X.L.; Li, X.H.; Li, C.R. Evaluating the effects of Cu2+ on the development and reproduction of Spodoptera litura (Lepidoptera: Noctuidae) based on the age-stage, two-sex life table. J. Insect Sci. 2022, 22, 4. [Google Scholar] [CrossRef] [PubMed]
  53. Xu, Z.B.; Zou, X.P.; Zhang, N.; Feng, Q.L.; Zheng, S.C. Detoxification of insecticides, allechemicals and heavy metals by glutathione S transferase SlGSTE1 in the gut of Spodoptera litura. Insect Sci. 2015, 22, 503–511. [Google Scholar] [CrossRef] [PubMed]
  54. Wu, H.F.; Tan, M.T.; Li, Y.N.; Zheng, L.; Xu, J.S.; Jiang, D. The immunotoxicity of Cd exposure to gypsy moth larvae: An integrated analysis of cellular immunity and humoral immunity. Ecotoxicol. Environ. Saf. 2022, 235, 113434. [Google Scholar] [CrossRef] [PubMed]
  55. Fasae, K.D.; Abolaji, A.O. Interactions and toxicity of non-essential heavy metals (Cd, Pb and Hg): Lessons from Drosophila melanogaster. Curr. Opin. Insect Sci. 2022, 51, 100900. [Google Scholar] [CrossRef] [PubMed]
  56. Frat, L.; Chertemps, T.; Pesce, E.; Bozzolan, F.; Dacher, M.; Planelló, R.; Herrero, O.; Llorente, L.; Moers, D.; Siaussat, D. Single and mixed exposure to cadmium and mercury in Drosophila melanogaster: Molecular responses and impact on post-embryonic development. Ecotoxicol. Environ. Saf. 2021, 220, 112377. [Google Scholar] [CrossRef] [PubMed]
  57. Alengebawy, A.; Abdelkhalek, S.T.; Qureshi, S.R.; Wang, M.Q. Heavy metals and pesticides toxicity in agricultural soil and plants: Ecological risks and human health implications. Toxics 2021, 9, 42. [Google Scholar] [CrossRef] [PubMed]
  58. Bueno, E.M.; McIlhenny, C.L.; Chen, Y.H. Cross-protection interactions in insect pests: Implications for pest management in a changing climate. Pest Manag. Sci. 2023, 79, 9–20. [Google Scholar] [CrossRef] [PubMed]
  59. Dubovskiy, I.M.; Grizanova, E.V.; Ershova, N.S.; Rantala, M.J.; Glupov, V.V. The effects of dietary nickel on the detoxification enzymes, innate immunity and resistance to the fungus Beauveria bassiana in the larvae of the greater wax moth Galleria mellonella. Chemosphere 2011, 85, 92–96. [Google Scholar] [CrossRef]
  60. Nanda, K.P.; Kumari, C.; Dubey, M.; Firdaus, H. Chronic lead (Pb) exposure results in diminished hemocyte count and increased susceptibility to bacterial infection in Drosophila melanogaster. Chemosphere 2019, 236, 124349. [Google Scholar] [CrossRef] [PubMed]
  61. Shehzad, M.; Bodlah, I.; Siddiqui, J.A.; Bodlah, M.A.; Fareen, A.G.E.; Islam, W. Recent insights into pesticide resistance mechanisms in Plutella xylostella and possible management strategies. Environ. Sci. Pollut. Res. 2023, 30, 95296–95311. [Google Scholar] [CrossRef]
Toxics 12 00304 g001

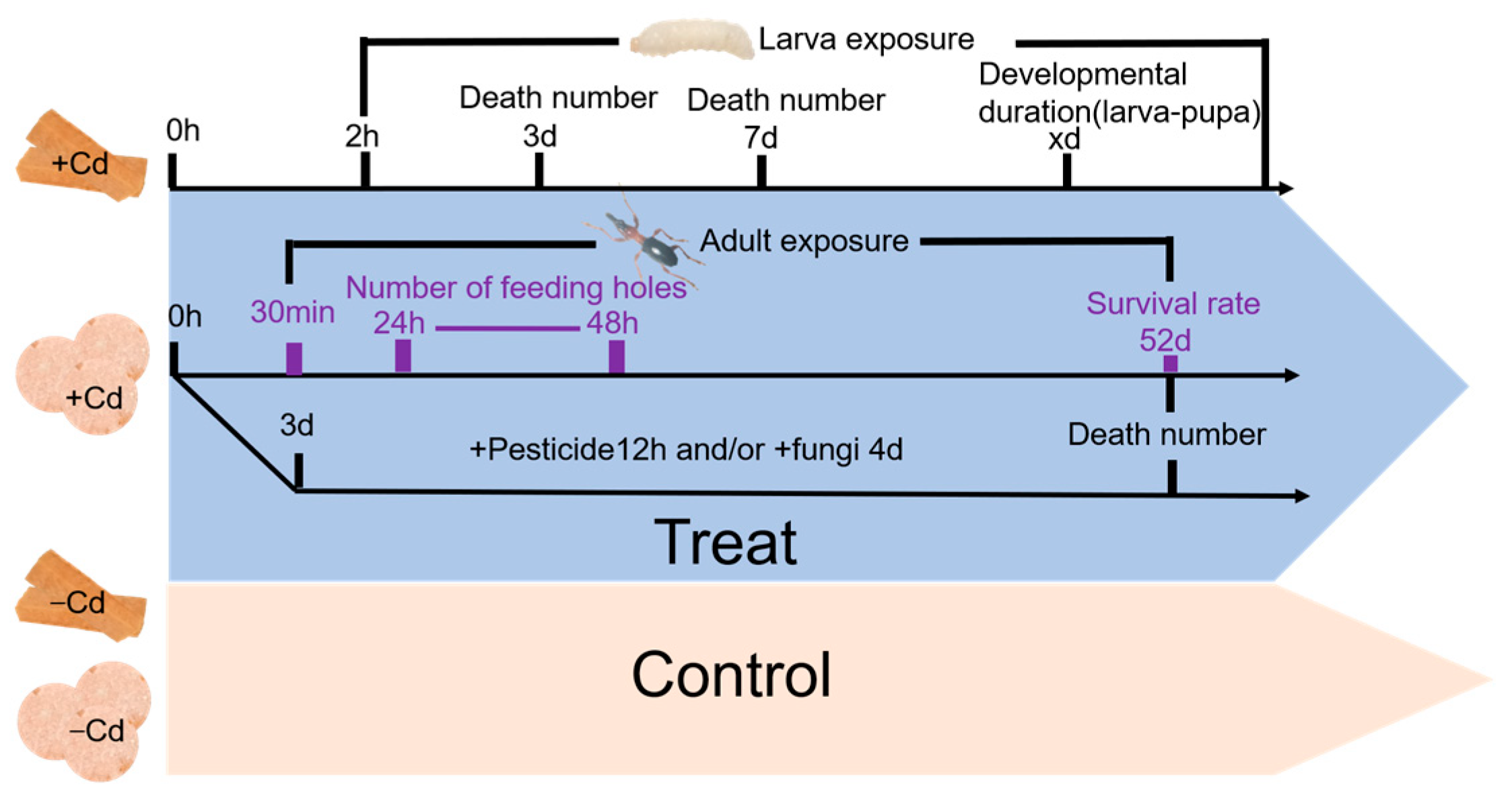

Figure 1. Framework of different experiments in the study.
Figure 1. Framework of different experiments in the study.
Toxics 12 00304 g001
Toxics 12 00304 g002

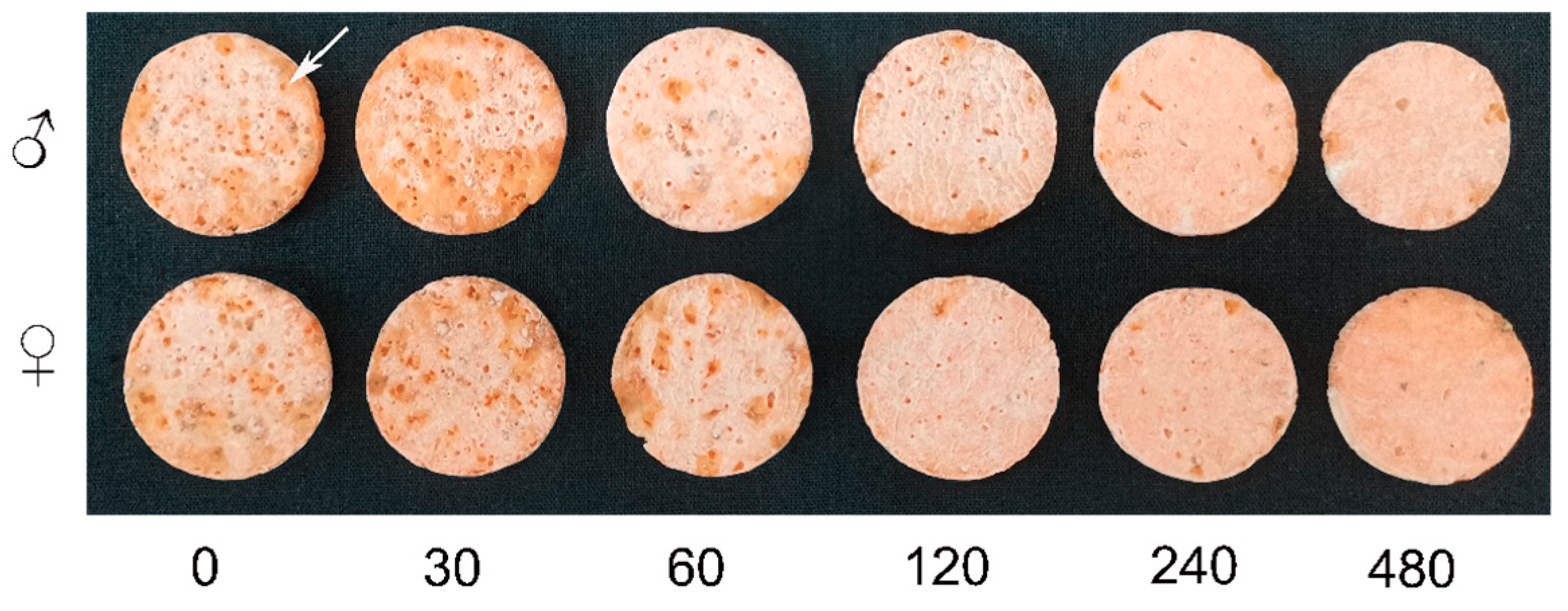

Figure 2. Feeding by adult sweet potato weevils on sweet potato discs treated with different concentrations of cadmium chloride solution (0 to 480 mg/L) at 48 h. The white arrow indicates a feeding hole, sweet potato disc size: 1 mm in thick and 3 cm in diameter.
Figure 2. Feeding by adult sweet potato weevils on sweet potato discs treated with different concentrations of cadmium chloride solution (0 to 480 mg/L) at 48 h. The white arrow indicates a feeding hole, sweet potato disc size: 1 mm in thick and 3 cm in diameter.
Toxics 12 00304 g002
Toxics 12 00304 g003

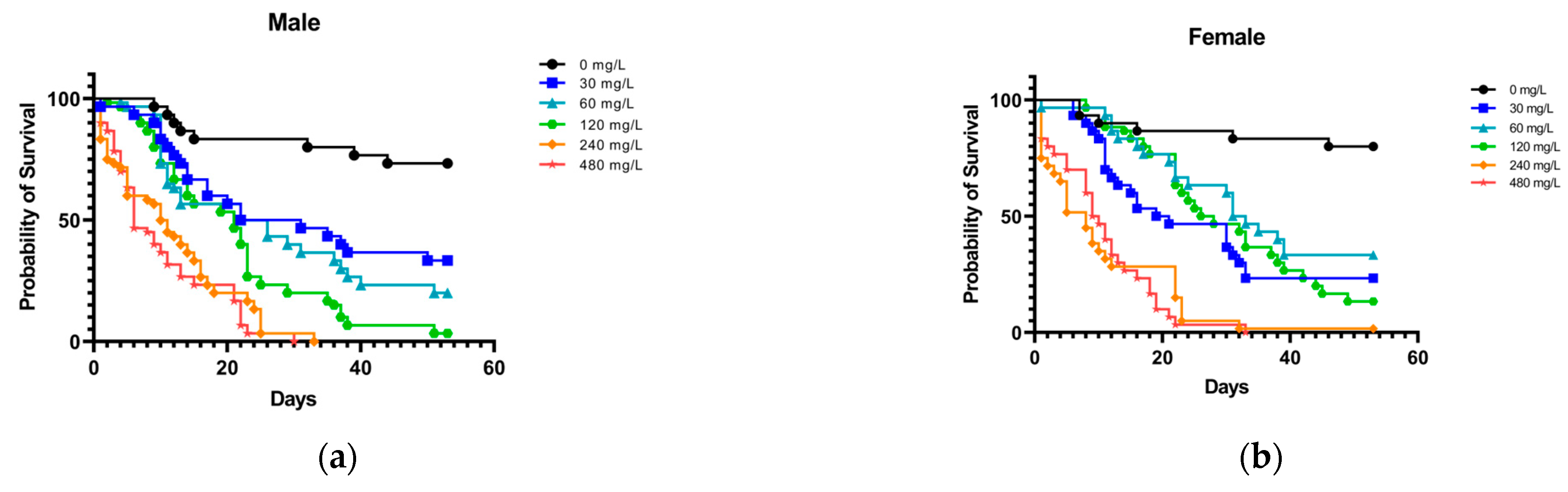

Figure 3. Survival rates of (a) male and (b) female sweet potato weevils fed on sweet potato discs treated with different Cd concentrations (cadmium chloride: 0 to 480 mg/L).
Figure 3. Survival rates of (a) male and (b) female sweet potato weevils fed on sweet potato discs treated with different Cd concentrations (cadmium chloride: 0 to 480 mg/L).
Toxics 12 00304 g003
Toxics 12 00304 g004

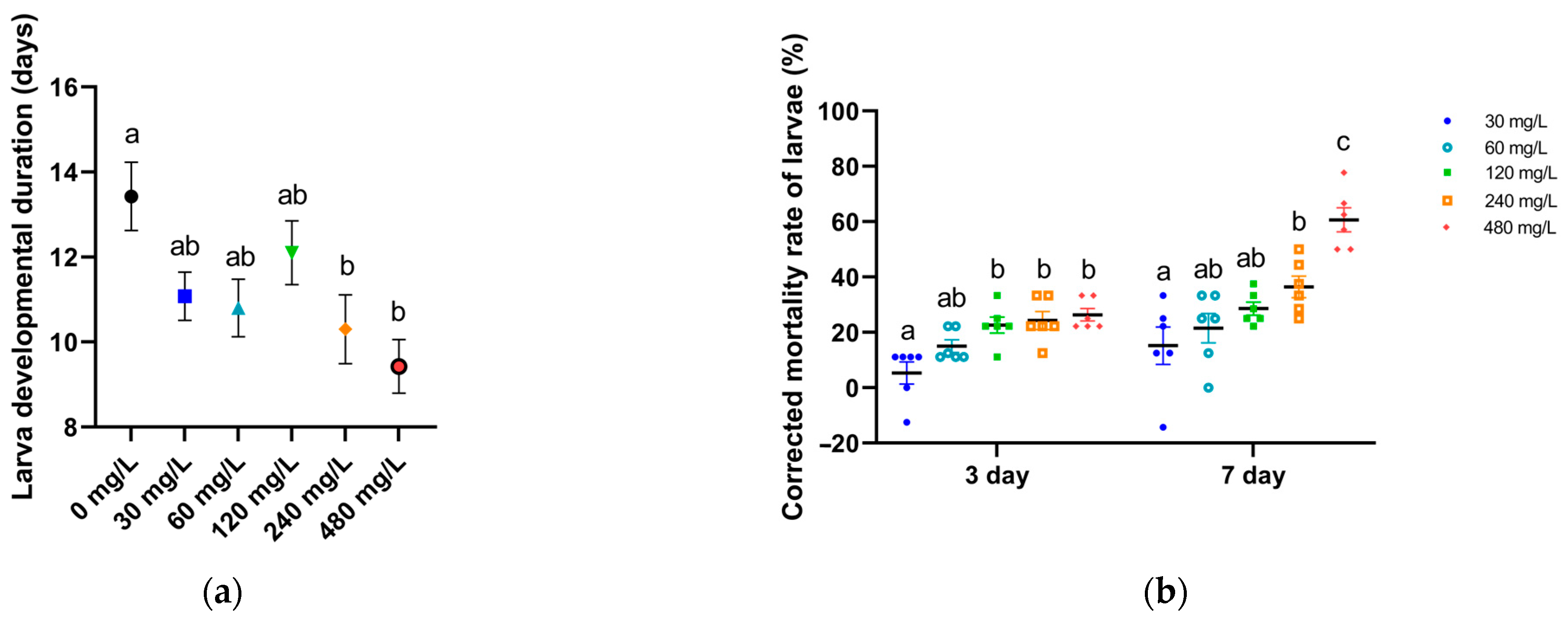

Figure 4. Sweet potato weevil larval (a) developmental duration (mean ± SE) and (b) corrected mortality (mean ± SE, n = 6) after feeding on sweet potato discs soaked in different concentrations of cadmium chloride solution (0 to 480 mg/L). Feeding times: 3 and 7 d. Different lowercase letters denote significant differences among treatments according to Tukey’s HSD.
Figure 4. Sweet potato weevil larval (a) developmental duration (mean ± SE) and (b) corrected mortality (mean ± SE, n = 6) after feeding on sweet potato discs soaked in different concentrations of cadmium chloride solution (0 to 480 mg/L). Feeding times: 3 and 7 d. Different lowercase letters denote significant differences among treatments according to Tukey’s HSD.
Toxics 12 00304 g004
Toxics 12 00304 g005
Figure 5. Adult sweet potato weevil (a) resistance to the insecticide spinetoram and (b) sensitivity (mean ± SE, n = 6) to the entomopathogenic fungus Beauveria bassiana after feeding on Cd-contaminated sweet potato discs. Different lowercase letters denote significant differences according to Tukey’s HSD.
Figure 5. Adult sweet potato weevil (a) resistance to the insecticide spinetoram and (b) sensitivity (mean ± SE, n = 6) to the entomopathogenic fungus Beauveria bassiana after feeding on Cd-contaminated sweet potato discs. Different lowercase letters denote significant differences according to Tukey’s HSD.
Toxics 12 00304 g005
Table 1. Numbers of feeding holes and antifeeding rates of adult sweet potato weevils on sweet potato discs treated with different concentrations of CdCl2.
Table 1. Numbers of feeding holes and antifeeding rates of adult sweet potato weevils on sweet potato discs treated with different concentrations of CdCl2.
Concentration of CdCl2
(mg/L)		24 h48 h
MaleFemaleMaleFemale
Number of Feeding HolesAntifeeding Rate (%)Number of Feeding HolesAntifeeding Rate (%)Number of Feeding HolesAntifeeding Rate (%)Number of Feeding HolesAntifeeding Rate (%)
062.67 ± 5.68 a− −76.83 ± 2.54 a− −71.67 ± 4.67 a− −86 ± 5.34 a− −
3030.08 ± 2.58 b52.00 ± 4.11 b32.17 ± 2.26 b58.13 ± 2.94 c83.08 ± 4.88 a−15.93 ± 6.81 d96.62 ± 7.63 a−12.35 ± 8.87 d
6012.92 ± 2.08 c79.39 ± 3.31 a18.75 ± 2.94 c75.60 ± 3.82 b43.83 ± 5.35 b38.84 ± 7.47 c56.00 ± 5.09 b34.88 ± 5.92 c
1209.67 ± 1.25 c84.58 ± 2.00 a10.5 ± 1.39 cd86.33 ± 1.81 a21.25 ± 2.76 c70.35 ± 3.85 b24.25 ± 2.24 c71.80 ± 2.60 b
2407.00 ± 0.37 c88.83 ± 0.58 a9.33 ± 0.77 d87.85 ± 1.00 a7.67 ± 0.28 bcd89.30 ± 0.39 ab7.17 ± 0.33 c91.18 ± 0.48 ab
4807.50 ± 0.37 c88.03±0.58 a9.5 ± 0.37 d87.64 ± 0.48 a5.33 ± 0.25 d93.06 ± 0.32 a6.00 ± 1.13 c93.02 ± 1.32 a
p˂0.00001˂0.00001˂0.00001˂0.00001˂0.00001˂0.00001˂0.00001˂0.00001
df5.304.255.304.255.304.255.304.25
F63.5435.99182.1229.4479.9886.9679.1281.43
Note: Different lowercase letters within the same column indicate significant differences among treatments based on one-way ANOVA with Tukey’s HSD test at significance level α = 0.05. Feeding times: 24 and 48 h. Values are the mean ± standard error (n = 6). Antifeeding rate (%) was calculated as the ratio of the difference between the feeding holes of control and treatment to the feeding holes of control.
Table 2. Survival rates of male and female weevils fed on sweet potato discs treated with different Cd concentrations (after feeding for 52 days).
Table 2. Survival rates of male and female weevils fed on sweet potato discs treated with different Cd concentrations (after feeding for 52 days).
Concentration of CdCl2
(mg/L)		Male Survival Rates
(%)		Female Survival Rates
(%)
073.33 ± 3.85 a80 ± 8.82 a
3033.33 ± 5.09 b23.33 ± 10.72 b
6020 ± 11.55 bc30 ± 11.55 b
1203.33 ± 1.92 c13.33 ± 5.09 b
2400c0 b
4800 c0 b
Note: Different lowercase letters indicate significant differences among treatments based on one-way ANOVA with Tukey’s HSD test at significance level α = 0.05.
Table 3. Sweet potato weevil larval developmental duration and corrected mortality after feeding on sweet potato discs soaked in different concentrations of cadmium chloride solution.
Table 3. Sweet potato weevil larval developmental duration and corrected mortality after feeding on sweet potato discs soaked in different concentrations of cadmium chloride solution.
Concentration of CdCl2
(mg/L)		Larva Developmental Duration
(d)		Larva Corrected Mortality Rates (%)
Day 3Day 7
013.43 ± 0.8 a————
3011.08 ± 0.57 ab5.32 ± 4 a15.21 ± 6.73 a
6010.8 ± 0.68 ab15.05 ± 2.28 ab21.53 ± 5.32 ab
12012.1 ± 0.75 ab22.68 ± 2.91 b28.60 ± 2.37 ab
24010.3 ± 0.81 b24.31 ± 3.24 b36.47 ± 3.88 b
4809.43 ± 0.63 b26.39 ± 2.24 b60.68 ± 4.37 c
Note: Different lowercase letters indicate significant differences among treatments based on one-way ANOVA with Tukey’s HSD test at significance level α = 0.05.
Table 4. Resistance of adult sweet potato weevils to spinetoram 60 SC.
Table 4. Resistance of adult sweet potato weevils to spinetoram 60 SC.
Concentration of Spinetoram (mg/L)Corrected Mortality Rate (%)Probitχ2p-ValueLC50 (mg/L)95% Confidence Limits (mg/L)
17.1423.3333 ± 4.9441 e−5.4081 + 4.0187 x7.0690.13222.1684217.6107–25.9261
2045.0000 ± 4.2817 d
2460.0000 ± 3.6515 cd
3073.3333 ± 4.2164 bc
4086.6667 ± 4.9441 ab
6091.6667 ± 3.0732 a
Note: Different lowercase letters indicate significant differences among treatments based on one-way ANOVA with Tukey’s HSD test at significance level α = 0.05. Adult mortality rates were transformed to probits for linear regression analysis and the determination of spinetoram’ LC50 values.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xu, J.; Tang, A.; Liu, J.-Y.; Yao, C.-L.; Liu, K.-P.; Huang, X.-S.; Shi, P.-Q. Changes in the Biology and Susceptibility of Weevil (Cylas formicarius) to the Insecticide Spinetoram as a Response to Cadmium Contamination. Toxics 2024, 12, 304. https://doi.org/10.3390/toxics12040304

AMA Style

Xu J, Tang A, Liu J-Y, Yao C-L, Liu K-P, Huang X-S, Shi P-Q. Changes in the Biology and Susceptibility of Weevil (Cylas formicarius) to the Insecticide Spinetoram as a Response to Cadmium Contamination. Toxics. 2024; 12(4):304. https://doi.org/10.3390/toxics12040304

Chicago/Turabian Style

Xu, Jin, An Tang, Jun-Yan Liu, Chang-Long Yao, Ke-Ping Liu, Xiao-Sheng Huang, and Pei-Qiong Shi. 2024. "Changes in the Biology and Susceptibility of Weevil (Cylas formicarius) to the Insecticide Spinetoram as a Response to Cadmium Contamination" Toxics 12, no. 4: 304. https://doi.org/10.3390/toxics12040304

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
