Uncovering the Expansin Gene Family in Pomegranate (Punica granatum L.): Genomic Identification and Expression Analysis

by
Xintong Xu
1,2,
Yuying Wang
1,2,
Xueqing Zhao
1,2 and
Zhaohe Yuan
1,2,*
1
Co-Innovation Center for Sustainable Forestry in Southern China, Nanjing Forestry University, Nanjing 210037, China
2
College of Forestry, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Horticulturae 2023, 9(5), 539; https://doi.org/10.3390/horticulturae9050539
Submission received: 17 March 2023 / Revised: 26 April 2023 / Accepted: 27 April 2023 / Published: 28 April 2023
(This article belongs to the Special Issue Research on Pomegranate Germplasm, Breeding, Genetics and Multiomics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Expansins, which are important components of plant cell walls, act as loosening factors to directly induce turgor-driven cell wall expansion, regulate the growth and development of roots, leaves, fruits, and other plant organs, and function essentially under environmental stresses. In multiple species, many expansin genes (EXPs) have been cloned and functionally validated but little is known in pomegranate. In this study, a total of 33 PgEXPs were screened from the whole genome data of ‘Taishanhong’ pomegranate, belonging to the EXPA(25), EXPB(5), EXLA(1), and EXLB(2) subfamilies. Subsequently, the composition and characteristics were analyzed. Members of the same branch shared similar motif compositions and gene structures, implying they had similar biological functions. According to cis-acting element analysis, PgEXPs contained many light and hormone response elements in promoter regions. Analysis of RNA-seq data and protein interaction network indicated that PgEXP26 had relatively higher transcription levels in all pomegranate tissues and might be involved in pectin lyase protein synthesis, whilst PgEXP5 and PgEXP31 might be involved in the production of enzymes associated with cell wall formation. Quantitative real-time PCR (qRT-PCR) results revealed that PgEXP expression levels in fruit peels varied considerably across fruit developmental phases. PgEXP23 was expressed highly in the later stages of fruit development, suggesting that PgEXP23 was essential in fruit ripening. On the other hand, the PgEXP28 expression level was minimal or non-detected. Our work laid a foundation for further investigation into pomegranate expansin gene functions.

1. Introduction

In plant cells, the cell wall is an essential and distinct structure. It determines cell shape and size, provides mechanical support and stiffness, and is the cell’s first barrier against pathogens [1]. Owing to the importance of cell wall enlargement in plant morphogenesis [2], it is becoming a hot focus to study the mechanism of cell wall extension. Previously, the ‘acid growth phenomenon’ showed that in an acidic environment, the cell wall can be extended without structural changes, and the extending characteristics can be induced or inhibited in a short time [3]. However, the acid growth hypothesis does not address the biochemical essence of cell wall relaxation, for which expansins provide a possible mechanism of action [4].
Expansin, a broad-spectrum protein, not only relaxes and irreversibly stretches cell walls in an acidic environment, but it also enhances cell extensibility. Its function is to regulate intercellular wall component relaxation and increase cell wall flexibility by breaking hydrogen bonds between cellulose microfibers and hemifibers [5]. In land plants, expansins are important regulators of turgor-driven cell wall expansion [6], while the expansin family was a highly ancient and conserved large gene family [7]. The analysis of gene structure and amino acid sequence showed that expansin genes were derived from a common ancestor and could be divided into four subfamilies: EXPA, EXPB, EXLA, and EXLB [8]. Moreover, studies found EXPA and EXPB subfamily genes mostly act upon plant cell wall extension and the processes of growth and development [9,10,11], while there was no proof that EXLA and EXLB were active on the cell wall, they play a major role in controlling plant stomata opening and closing [12,13]. Currently, with the advancement of genome sequencing and analysis technology, the expansin gene family has been comprehensively identified in many plants, including Arabidopsis [14], grape [15], apple [16], cotton [8], kiwi [17], and cannabis [18]. Although their sequence composition, structure –function, and number varied substantially among different species [19], expansin genes widely regulate plant growth, meristem growth, root hair emergence, pollen tube entry into stigma and ovary, fruit ripening, pericarp rupture, and other plant growth and development processes. For example, ZmEXPB13, an endosperm, specifically expressed genes that influenced seed germination [20]. In Arabidopsis, partial silencing of AtEXPA7 led to shorter root hairs, and a point mutation in the rice gene OsEXPA17 resulted in altered root hair emergence [21,22]. The GgEXPA1 gene from gladiolus was shown to be highly expressed during the elongation stage of stamen filament cells [23]. Overexpressing the FaEXP2 gene increased pectin content in the cell walls of transgentic lines while decreasing the expression level of genes encoding cell wall degrading enzymes, resulting in hard fruit or late ripening of fruit [24]. The expression of the expansin gene was significantly decreased in crack-prone longan pericarp, showing the gene plays a crucial role in crack resistance creation [25]. Moreover, expansin genes were involved in salt tolerance and drought resistance [26,27], among other functions.
Pomegranate (Punica granatum L.) is a species of economically important trees that is widely planted worldwide and is native to Central Asia, including Iran, Afghanistan, and the Caucasus [28,29]. It is well known for its vivid red skin and juicy seeds. Furthermore, the fruit peel and juice extracts are rich in antioxidants, such as polyphenols, and have been suggested to have positive effects in cardiovascular, tumors, diabetes, and other diseases [30,31,32,33]. In recent years, scholars have successively assembled several pomegranate genomes, including ‘Taishanhong’ [28], ‘Dabenzi’ [29], and ‘Tunisia’ [34], and acquired high-quality genome maps, offering an essential molecular biological basis for pomegranate genetic improvement. With advancements in molecular biology, we may not only study specific gene family functions bioinformatically but also analyze genes that regulate plant growth and development as well as environmental stress. What is more, these progresses play important roles in revealing the mechanism of development and stress tolerance [35,36]. The research to date on pomegranate expansins (PgEXPs) is still in its early stage. Thus, based on the ‘Taishanhong’ genome, we used bioinformatic approaches to identify members of the pomegranate expansin gene family and analyzed their physicochemical properties, conserved domain, evolutionary relationship, cis-acting element, and tissue organ expression. Our study will lay a foundation for further research on the functions of the expansin gene in pomegranate.

2. Materials and Methods

2.1. Plant Materials

The pomegranate variety for testing was ‘Daqingpitian’, and the sampling location was the Chinese Pomegranate Expo Park (34°77′ N, 117°48′ E) with sloppy management level. We selected three healthy, disease-free and uniformly growing adult fruit-bearing trees, and took a mixed sampling method to collect samples. A total of six different developmental periods (the dates were 25 August, 3 September, 12 September, 21 September, 30 September, and 9 October, designated as P1~P6, respectively) fruit samples were collected, finally.

2.2. Identification and Physicochemical Properties of PgEXP Family Genes

To identify the pomegranate expansin gene family, firstly, the Hidden Markov Model profile of the `EXP domains (PF01357 and PF03330) was obtained from the Pfam database (http://pfam.xfam.org/, accessed on 3 February 2023), The pomegranate genome-wide data (‘Taishanhong’ ASM286412v1) were downloaded from the National Center for Biotechnology Information (NCBI) official website (http://www.ncbi.nlm.nih.gov/, accessed on 3 February 2023). Then, using HMMsearch, we compared sequences with all two conserved domains (E-value ≤ 10−10) in the pomegranate protein database to get the amino acid sequences of the originally screened pomegranate EXPs. Lastly, we removed redundant sequences manually by Excel, the rest were screened for conserved domains using the NCBI CDD (http://www.ncbi.nlm.nih.gov/cdd, accessed on 3 February 2023) and SMART (http://smart.embl-heidelberg.de, accessed on 3 February 2023) to exclude candidate sequences with missing conserved domains.
The physicochemical properties, which include the isoelectric point (pI), molecular weight (MW), and instability index of PgEXP members, were predicted using ExPaSy-Protparam (http://web.expasy.org/protparam/, accessed on 4 February 2023) [37]. Signal peptides were predicted using SignalP 4.1 (http://www.cbs.dtu.dk/services/Signalp/index.php, accessed on 4 February 2023). Subcellular localization prediction was carried out by using Cell-PLoc 2.0 (http://www.csbio.sjtu.edu.cn/bioinf/Cell-PLoc-2/, accessed on 4 February 2023).

2.3. Phylogenetic Analysis

In order to classify PgEXPs based on phylogenic tree, the selected amino acid sequences of EXPs from pomegranate, Arabidopsis, grape, kiwi, and jujube were aligned by MUSCLE in MEGA 11 software with default settings [38], and the compared sequences were also trimmed with MEGA 11.A Maximum Likelihood (ML) in IQTree2 V2.1.3 and was then constructed under the best-fitting model with 1000 bootstrap replicates. EvolView (http://www.evolgenius.info/evolview/, accessed on 6 February 2023) was used to enhance the phylogenetic tree online. The phylogenetic position of PgEXPs in relation to reference EXPs was used to group them. We collected and summarized published records on the EXP family from other plant species to compare the phylogenetic groups of the EXPs in pomegranate and other species.

2.4. Analysis of Conserved Domains, Gene Structure and Protein Conserved Motif

According to the acquired PgEXP protein sequences and gene sequences, we used MUSCLE to compare them as shown by Jalview software. The online program MEME Suit (http://meme-suit.org/, accessed on 8 February 2023) was used to conduct motif analysis. To identify the exon–intron structure of 33 PgEXP genes, their annotation information was taken from pomegranate whole genome gff files and uploaded to the web application GSDS (http://gsds.cbi.pku.edu.cn/, accessed on 8 February 2023). Afterward, TBtools [39] was used to illustrate the phylogenetic tree, conserved motifs, and gene structure of PgEXPs.

2.5. Analysis of Cis-Acting Elements and Protein Interaction Networks

Promoter sequences (1500-bp upstream from the start codon) were extracted from the genome sequence of PgEXPs. Then, the online website PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 8 February 2023) was used to analyze potential cis-acting elements, the findings visualized by TBtools software. To examine gene co-expression patterns, protein patterns with reasonably high specificity from the String (http://cn.string-db.org, accessed on 10 February 2023) were employed, and the model plant Arabidopsis thaliana was chosen as the species parameter.

2.6. RNA-Seq Analysis

To analyze expression patterns of PgEXPs in different pomegranate tissues and organs, the published transcriptome data of six pomegranate varieties (‘Dabenzi’, ‘Tunisia’, ‘Baiyushizi’, ‘Black127’, ‘Nana’, and ‘Wonderful’) were downloaded from NCBI (http://www.ncbi.nlm.nih.gov/, accessed on 10 February 2023), including outer seed coat, inner seed coat, pericarp, flower, root, leaf, and mixed samples of roots, leaf, flower, and fruit as shown in Table 1. Then, the transcriptomic data were calculated and analyzed with Kallisto v0.44.0 software (California, USA) [40], and the resulting values were transformed into Log2(TPM+1) (Table S1) and finally, the expression heatmap was created by TBtools.

2.7. RNA Isolation, Reverse Transcription and Quantitative Real-Time PCR (qRT-PCR)

qRT-PCR was performed to detect the expression of PgEXP genes. Total RNA was isolated from peels by RNA Extraction Kit (FastPure® Plant Total RNA Isolation Kit, Vazyme, Nanjing), and the quality was assessed by electrophoresis and A260/A280. The first-strand cDNA was synthesized from the total RNA by using a cDNA synthesis kit (HiScript III RT SuperMix for qPCR (+gDNA wiper), Vazyme, Nanjing). Specific quantification primers of PgEXPs (Table S2) were designed. Pomegranate PgActin served as an internal reference gene. The PCR system was 20 μL, including 10 μL Taq Pro Universal SYBR qPCR Master Mix (Vazyme, Nanjing), 0.4 μL upstream and downstream primers, 1 μL cDNA template (the concentration was around 200 ng/μL), and 8.2 μL ddH2O. Three biological replicates for each treatment were to be conducted. The PCR reaction protocol was as follows: 95 °C pre-denaturation for 30 s, 95 °C denaturation for 10 s, 60 °C for 30 s, 40 cycles; the melting curve procedure was as follows: 95 °C 15 s, 60 °C for 30 s, 40 cycles. The relative expression level was analyzed by 2−ΔΔCT method [43]. SPSS 23.0 (CA California, USA) and Origin 2018 software (MA Massachusetts, USA) were used to analyze and plotted the data, respectively.

3. Results

3.1. Identification and Physicochemical Properties of PgEXP Family Genes

In this study, 33 potential expansin genes were identified from the ‘Taishanhong’ pomegranate genome. They were named PgEXP1-PgEXP33 in the order of gene ID to assist later investigation (Table S3). The analysis of physicochemical properties revealed that the coding region of PgEXPs ranged from 555 bp (PgEXP5) to 1005 bp (PgEXP31). The PgEXPs protein contained 185 (PgEXP5) to 335 (PgEXP31) amino acids, and the protein molecular mass was between 20495.67 kDa (PgEXP5) and 36742.26 kDa (PgEXP31). The theoretical isoelectric point ranged from 4.55 (PgEXP15) to 9.76 (PgEXP21) with 81.8% having pI values greater than 7, indicating basic, and the rest less than 7, indicating acidic. The PgEXP’s protein instability indices ranged from 18.69 (PgEXP22) to 46.86 (PgEXP7) with 90.9% having good structural stability. The mean hydrophilic values of PgEXPs protein values ranged from −0.450 (PgEXP16) to 0.065 (PgEXP14), apart from PgEXP14, PgEXP29, and PgEXP30 which were hydrophobic proteins, the others were hydrophilic. EXP usually had a signal peptide sequence at N-terminus. The analysis found that all members except PgEXP2, PgEXP5, PgEXP15, PgEXP18, PgEXP22, PgEXP23, and PgEXP33 contained the N-terminal signal peptides, and most signal peptide lengths were around 20 aa. According to the predicted subcellular localization results, all PgEXPs were localized in the cell wall.

3.2. Phylogenetic Analysis

To investigate the phylogenetic relationships, a phylogenetic tree was constructed using the selected protein sequences of EXPs from pomegranate, Arabidopsis, grape, kiwi, and jujube. In the phylogenetic tree (Figure 1), some members of the five species were clustered on one branch, concerning the phylogenetic relationships and naming rules of AtEXPs. PgEXPs were divided into four subfamilies, namely EXPA, EXPB, EXLA, and EXLB. The size of these four subfamilies varies slightly. The EXPA subfamily was the largest subfamily, with 25 members, while the EXLA subfamily had only one member. The EXPB subfamily had five members and the rest belonged to the EXLB subfamily. The analysis of the phylogenetic tree showed that all five species’ EXPs were distributed in four subfamilies, indicating their functions differed. Some genes seemed to diverge early because of their long branches, and they might evolve differently during the long-term phylogeny. Moreover, there were some differences among these five species drawn from the phylogenetic tree, implying that the expansin gene family evolved separately. Through this analysis, we can infer the functions of PgEXPs with high similarity from other species’ genes with verified functions.
To further compare the quantitative distribution of EXPs in different subfamilies, we summarized the number of EXPs of 21 species (Table 2), including monocotyledonous plants, dicotyledonous plants, and a nonvascular plant. The results showed that the EXPA subfamily had the largest number of EXPs in these species except that in corn (Zea mays). The number of EXPA and EXPB subfamilies members was less distinct in monocotyledonous plants, and the EXLB family members were extremely low. In addition, the number of monocotyledons EXPB subfamily members were significantly higher than that in dicots. The total number of EXPs in pomegranate was higher than that in cannabis (Cannabis sativa), ginkgo (Ginkgo biloba), grape (Vitis vinifera), and jujube (Ziziphus zizyphus), lower than that in other species within this table.

3.3. Analysis of Conserved Domains, Gene Structure, and Protein Conserved Motif

To further verify the conserved structure of pomegranate EXPs, align 33 PgEXP protein sequences and then visualize them with Jalview software. As shown in Figure 2, the protein contained two conserved domains and a signal peptide. The conserved domains were both around 100 aa in length. Of these, domain 1 contained an ‘HFD’ structure which was part of the glycoside hydrolase-45 (GH45) protein’s catalytic site. The ‘HFD’ structure was conserved in the EXPA and EXPB subfamilies but mutated to ‘SFV’ and ‘DFI’ in the EXLA and EXLB subfamilies. Except for PgEXP28, other EXPA members characterized the large insertion (α-Insertion) and deletion (α-Deletion). Of the three expansin-like protein sequences, one was classified into the EXLA subfamily based on the presence of a characteristic EXLA extension at the C-terminus with the remaining ones classified into EXLB subfamily. Additionally, PgEXPs had a BOX with the sequence signature ‘GACGYG’ which was missing or mutated in a few members. The variation in conserved sequence features revealed potential functional differences between subfamilies. Other members, with the exception of EXLA, EXLB subfamilies and some EXPA subfamily members (PgEXP5, PgEXP10, and PgEXP23), contained all eight cysteines (Cysteine, C) residues and four conserved tryptophan (tryptophan, W) residues at the hydroxyl terminus. It has been proposed that these sites were located in the expansin’s glycosylation and catalytic regions, respectively, that cysteine might play a role in the formation of disulfide bonds, that HFD and conserved aspartate residues might act via a glycosylation mechanism, and that conserved tryptophan might work in the binding of protein and polysaccharide molecules [53].
A total of 10 conserved motifs were identified by the website MEME Suit (Figure 3a). When each motif was submitted to the Pfam server, it was discovered that motif1, motif4, and motif9 encoded conserved domain 1, motif2, motif3, and motif10 encoded the conserved domain 2. Then, the conserved motif distribution of PgEXPs was constructed (Figure 3b-B). The results showed that each gene contained 4–8 motifs. Furthermore, all members had motif5 and motif6, localized to essentially the same position, implying that they were the functional basis of pomegranate expansin genes. The others, with unknown functions, were distributed throughout the protein. Meanwhile, because of poor conservatism, motif deletions, additions, or substitutions in individual genes occurred.
To better understand the evolution of the expansin gene family in pomegranate, the exon–intron structures of all identified PgEXPs were analyzed. TBtools visualization results (Figure 3b-C) revealed that PgEXPs gene structure was relatively simple with 2–5 exons dividing the gene fragment into introns of varying lengths. The EXPA subfamily had three exon–intron structures: seventeen members had three exons and two introns, five members had two exons and one intron, and three members had four exons and three introns. The reason seemed to be the addition or deletion of introns in the structure. The EXPB subfamily had a very stable intron–exon structure as did the EXLB subfamily which had four exons and three introns. Additionally, the EXLA subfamily gene (PgEXP30) had the most introns and exons with a gene structure of five exons and four introns.

3.4. Analysis of Cis-Acting Elements

The cis-acting elements in the promoter were examined to preferably know the function of PgEXPs and the possible regulatory pathways involved. PgEXPs contained a total of 36 cis-acting elements which were broadly classified into three categories: biotic and abiotic stress responses, plant growth and development, and response elements related to hormone induction (Figure 4). For instance, some PgEXPs promoters contained MYB binding sites involved in drought inducibility (MBS), flavonoid biosynthesis genes regulation (MBSI), and light response (MRE). Besides MRE, PgEXPs promoter regions contained 11 light responsiveness elements, indicating these PgEXPs might be regulated by light. There were also 20 PgEXPs that could respond to plant biotic or abiotic stress. Of these, 13 contained the low-temperature responsiveness element LTR, 15 contained the defense and stress responsiveness element TC-rich repeats, and the rest contained the wound-responsive element WUN-motif. In addition, some PgEXPs contained anaerobic induction responsiveness elements (ARE) and anoxic specific inducibility responsiveness elements (GC-motif), implying they had a function in the oxygen shunt signaling response. Other regulatory elements were involved in zein metabolism regulation (O2-site), seed-specific regulation (RY-element), and palisade mesophyll cells (HD-Zip 1), suggesting PgEXPs related to them might be close to plant growth and development. Furthermore, there were 10 response elements associated with hormone induction. For example, CGTCA-motif and TGACG-motif were both involved in MeJA-responsiveness, but they had different binding sites, CGTCA in the former and TGACG in the latter. All other PgEXPs, except PgEXP3, PgEXP29, and PgEXP11, contained at least one phytohormone-responsive element.

3.5. Analysis of Protein Interaction Networks

The String protein interaction database was used to predict the co-expression of 33 PgEXP (Figure 5A) proteins (Arabidopsis thaliana was chosen as the model species and the AtEXP with the highest similarity was selected). The stronger the contact between the two proteins, the thicker the linkage line. The remaining PgEXPs had no direct contact, indicating that they were not directly controlled. Subsequently, the analysis of the protein interaction network was used to estimate the possible roles of each PgEXP. Among these, PgEXP1, PgEXP3, PgEXP20, and PgEXP26 were found to be identical to EXPA1 (Figure 5B) and were co-expressed with the gibberellin regulatory protein GASA6, the growth regulator At2g22840, and the pectin lyase protein AT5G04310. PgEXP5 and PgEXP31 were identical to EXPA18 (Figure 5C) and co-expressed with lignin synthesis proteins (RHS19, AT1G30870, and AT3G49960) as well as proteins in the cell wall metabolism-related enzymes production pathway (RHS12, XTH14, and AT5G04960).

3.6. Analysis of PgEXPs Gene Expression

To further investigate the gene expression divergence among different tissues, we downloaded RNA-seq data from NCBI for pomegranate (Table 1, Figure 6). Among the 33 PgEXP gene expressions in different tissues, ten genes (PgEXP23, 20, 17, 25, 6, 4, 31, 18, 5, and 22) were not expressed or minimally expressed in various tissues. Four genes showed similar expression patterns, PgEXP33 was expressed at the highest level in the mixed samples of ‘Nana’, PgEXP15 was expressed at the highest level in the inner seed coat of ‘Tunisia’, PgEXP1 was transcribed at the highest level in the pericarp and outer seed coat of ‘Dabenzi’, and PgEXP27 was expressed at the highest level in the inner seed coat of ‘Dabenzi’. There were 10 genes (PgEXP26, 9, 13, 29, 32, 21, 14, 11, 16, and 30) that displayed expression in almost all tissues. Of these, PgEXP26 expression in all tissues was all higher, indicating that it may play a complex function in pomegranate growth and development. Furthermore, we found all genes had low or no expression in two samples which were 5.1–13 mm hermaphrodite and 13.1–25 mm hermaphrodite.

3.7. qRT-PCR

To explore the particular roles of PgEXPs in fruit development, quantitative real-time PCR (qRT-PCR) was used to examine the expression patterns of PgEXPs in pomegranate pericarp. Finally, we chose 24 PgEXP and assessed their expression at 6 periods of ‘Daqingpitian’ pomegranate pericarp (Figure 7). In general, PgEXP1, PgEXP26, PgEXP28, and PgEXP32 expression levels decreased from P1 to P6; of these, PgEXP28 was low or almost not expressed in P2-P6, and expression levels were considerably greater in P1 than in P2–P6. PgEXP23 expression, on the other hand, rose gradually across all periods, peaking in P6. PgEXP23 was found to be more abundant in the later phases of fruit growth as well, suggesting that it was important for fruit ripening. PgEXP3 and PgEXP13 had the highest expression levels at P5, PgEXP15 had the highest expression levels at P2, PgEXP9 had higher expression levels at both P2 and P5, and the expression levels of PgEXPs varied considerably at different phases of fruit development.

4. Discussion

Since cell wall enlargement played a key role in plant morphogenesis, the mechanism of cell wall extension had been a focus of investigation [2]. During turgor-mediated growth, cell wall stress relaxation occurred [54] which involved cell wall-loosening factors, such as EXPs [55]. Expansins might offer a mechanism for cell wall elongation by interfering with the binding of microfibrils to the cell wall [4]. The expansin gene family has been thoroughly discovered in numerous plants [17,18]. Previously, systematic analyses were carried out to identify and characterize expansin families in a variety of models, crop and fruit plant species, such as tomatoes [56], pepper [57], litchi [58], and apple [59]. Studies, subsequently, showed that a close relationship was established between expansins and fruit cracking. Fruit cracking tremendously damages the appearance of the fruit, easily leads to pathogen invasion, greatly reduces marketability, and causes immense economic losses. Currently, pomegranate fresh fruit, seedlings, and processing industry have a great promising future, while fruit cracking is a major cause of fruit loss in pomegranate [60]. Thus, it is considerable and urgent to explore the roles expansins play in pomegranates.
In this work, we first identified 33 pomegranate expansins through genome-wide analysis and then used web-based tools and resources to predict the properties of these proteins, such as isoelectric point and molecular weight. The prediction of subcellular localization showed that all genes localized in the cell wall. These helped us learn more about these genes.
Based on the genes of each ancestor, plant expansins experienced varying degrees of gene duplication and expansion [6]. The dicotyledonous plant expansin gene family, which included Arabidopsis, soybean [61], and watermelon [62], was mostly extended via tandem and segmental replication. According to the established EXPs classification of pomegranate, Arabidopsis, grape, kiwi, and jujube, PgEXPs were divided into four subfamilies, EXPA, EXPB, EXLA, and EXLB. In addition, we found that the large branches of the phylogenetic tree usually contained EXPs of different species, while on some small branches, there were usually only EXPs of the same species, suggesting that EXPs amplification had occurred before the differentiation of these species and after the differentiation of the species, EXPs amplification occurred again. This view was corroborated by the phylogenetic analysis of tobacco [47], soybean [47], and rice [49]. Analysis and comparison of the sizes of expansin subfamilies in 21 species revealed an uneven distribution of each gene subfamily among species. For example, the EXPB subfamily members were significantly more numerous in momocots than that in dicots, with 19 in rice, 15 in wheat, and 48 in maize, while around 10 in dicots (Table 2), it may be due to the greater expansion and retention of gene duplication events in monocots [61].
The architecture of various PgEXP genes varied with minimal variation in the number of exons and a substantial diversity in the length of introns. The analysis of gene structure revealed that PgEXPs had 2–5 exons which was compatible with the number of exons found in grapes [15] and land cotton [63], showing that the pomegranate expansin gene structure was largely conserved. According to the conserved motif analysis, all PgEXPs contained a total of 10 motifs with a similar distribution of motifs within the same subgroup. The high degree of sequence identity and similar gene structure of PgEXPs within each family indicated that the pomegranate expansin family had undergone gene duplication throughout evolution, resulting in multiple copies with a partial or complete overlap in function.
Cis-acting elements offer genes the ability to work in developmental or environmental regulation. Light responsiveness elements were the first class of enriched cis-acting elements in PgEXPs. Of these, G-box was the most abundant light responsiveness element. In PgEXPs promoter regions, several elements associated with plant growth, environmental stress, and hormone induction existed. The results were consistent with the findings of that in cannabis [18] and Panax ginseng [64], indicating the regulatory elements of the EXPs were more conserved across species. For instance, the promoter regions contained many cis-acting elements engaged in seed-specific regulation, zein metabolism regulation, and palisade mesophyll cell differentiation, suggesting that these PgEXPs worked in pomegranate seed germination and leaf development [65]. Additionally, MYB binding sites were found in the promoter regions of 20 PgEXPs. A total of fifteen PgEXPs had binding sites (MBS) implicated in drought-inducibility which might be related to plants’ biotic and abiotic stress. Five PgEXPs had sites (MRE) involved in light responsiveness and there was also one site (MBSI) implicated in the regulation of flavonoid biosynthesis genes. These MYB protein binding sites could be detected in the sour cherry expansin gene family as well [66]. Furthermore, the findings of hormone-inducing cis-acting elements, such as abscisic acid, MeJA, gibberellin, and salicylic acid, implied that PgEXPs might be triggered by a variety of hormone-signaling molecules [67].
The protein interaction network of PgEXPs revealed that some genes had cocations. The prediction results revealed that PgEXP1, PgEXP3, PgEXP20, and PgEXP26 were co-expressed with pectin lyase proteins. Combined with the expression level of these genes, we found that PgEXP26 might be involved in pectin lyase protein production of flower, leaf, pericarp, and mixed tissues. In addition, PgEXP1 expression levels in the inner seed coat of ‘Dabenzi’ and ‘Baiyushizi’ were greater than that in ‘Tunisia’, it might be owing to genotype differences. According to further analysis of the expression pattern of PgEXPs in different tissues, PgEXP30, a member of the EXLA subfamily, was expressed in a higher level in flower, root, and mixed sample than other tissues. In contrast, two members of the EXLB subfamily, PgEXP15 and PgEXP16, were exclusively expressed in ‘Dabenzi’ root tissues, implying that EXLB played a role in pomegranate root growth and development. Furthermore, some genes were not or weakly expressed in all tissues, indicating that they were not engaged in pomegranate growth or stress regulation. Finally, qRT-PCR was used to examine the expression pattern of PgEXPs in pomegranate pericarp. The expression level of PgEXP23 rose consistently with time advancement, indicating that PgEXP23 may play an important role in fruit ripening. PgEXPs expression levels varied considerably across fruit developmental phases, suggesting that PgEXPs genes may have diverse functions.

5. Conclusions

This work was the first comprehensive genome-wide analysis of the pomegranate expansin gene family. We identified 33 PgEXPs from the pomegranate ‘Taishanhong’ genome. Based on a phylogenetic tree of pomegranate, Arabidopsis, grape, kiwi, and jujube expansin genes, pomegranate genes were split into four subfamilies, EXPA (25 members), EXPB (5 members), EXLA (1 member), and EXLB (2 members). Members of subfamilies were highly conserved in motif and gene structure. Analysis of tissue-specific expression patterns of PgEXPs revealed that they may function differently in regulating organ/tissue morphology formation and development. Analysis of promoter cis-acting elements revealed that PgEXPs may respond to development and stress. qRT-PCR results played a role in exploring the function of PgEXP genes in pomegranate. The above analysis added to our knowledge of the expansin gene family in pomegranates and provided insights into the possible functional involvement of pomegranate expansin genes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae9050539/s1, Table S1: Referenced EXPs used to contruct phylogenetic tree, Table S2: Primers for qRT-PCR, Table S3: Basic information of pomegranate gene family, Table S4: The cis-acting elements of PgEXPs.

Author Contributions

Conceptualization, X.X. and Z.Y.; methodology, X.X. and Z.Y.; software, X.X. and Y.W.; visualization, X.X. formal analysis, X.X.; writing—original draft preparation, X.X.; writing—review and editing, Y.W., X.Z. and Z.Y.; supervision, Z.Y.; funding acquisition, X.Z. and Z.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Natural Science Foundation of China (31901341) and the Priority Academic Program Development of Jiangsu High Education Institutions [PAPD].

Data Availability Statement

The data presented in this work are available upon request from the corresponding author and the public pomegranate transcriptomes presented in this work are available in the insert article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, N.; Sun, Y.; Pei, Y.; Zhang, X.; Wang, P.; Li, X.; Li, F.; Hou, Y. A Pectin Methylesterase Inhibitor Enhances Resistance to Verticillium Wilt. Plant Physiol. 2018, 176, 2202–2220. [Google Scholar] [CrossRef] [PubMed]
  2. Lin, C.; Choi, H.-S.; Cho, H.-T. Root hair-specific EXPANSIN A7 is required for root hair elongation in Arabidopsis. Mol. Cells 2011, 31, 393–397. [Google Scholar] [CrossRef] [PubMed]
  3. Rayle, D.L.; Cleland, R. Enhancement of Wall Loosening and Elongation by Acid Solutions. Plant Physiol. 1970, 46, 250–253. [Google Scholar] [CrossRef] [PubMed]
  4. Cosgrove, D.J. Loosening of plant cell walls by expansins. Nature 2000, 407, 321–326. [Google Scholar] [CrossRef]
  5. Feng, X.; Xu, Y.Q.; Peng, L.N.; Yu, X.Y.; Zhao, Q.Q.; Feng, S.S.; Zhao, Z.Y.; Li, F.L.; Hu, B.Z. TaEXPB7-B, a β-expansin gene involved in low-temperature stress and abscisic acid responses, promotes growth and cold resistance in Arabidopsis thaliana. Plant Physiol. 2019, 9, 153004. [Google Scholar] [CrossRef]
  6. Vannerum, K.; Huysman, M.J.; De Rycke, R.; Vuylsteke, M.; Leliaert, F.; Pollier, J.; Lütz-Meindl, U.; Gillard, J.; De Veylder, L.; Goossens, A.; et al. Transcriptional analysis of cell growth and morphogenesis in the unicellular green alga Micrasterias (Streptophyta), with emphasis on the role of expansin. BMC Plant Biol. 2011, 11, 128. [Google Scholar] [CrossRef]
  7. Sampedro, J.; Lee, Y.; Carey, R.E.; DePamphilis, C.; Cosgrove, D.J. Use of genomic history to improve phylogeny and understanding of births and deaths in a gene family. Plant J. 2005, 44, 409–419. [Google Scholar] [CrossRef]
  8. Lv, L.-M.; Zuo, D.-Y.; Wang, X.-F.; Cheng, H.-L.; Zhang, Y.-P.; Wang, Q.-L.; Song, G.-L.; Ma, Z.-Y. Genome-wide identification of the expansin gene family reveals that expansin genes are involved in fibre cell growth in cotton. BMC Plant Biol. 2020, 20, 223. [Google Scholar] [CrossRef]
  9. Gasperini, D.; Greenland, A.; Hedden, P.; Dreos, R.; Harwood, W.; Griffiths, S. Genetic and physiological analysis of Rht8 in bread wheat: An alternative source of semi-dwarfism with a reduced sensitivity to brassinosteroids. J. Exp. Bot. 2012, 63, 4419–4436. [Google Scholar]
  10. Yu, Z.M.; Kang, B.; He, X.W.; Lv, S.L.; Bai, Y.H.; Ding, W.N.; Chen, M.; Cho, H.T.; Wu, P. Root hair-specific expansin modulate root hair elongation in rice. Plant J. 2011, 66, 725–734. [Google Scholar]
  11. Tabuchi, A.; Li, L.-C.; Cosgrove, D.J. Matrix solubilization and cell wall weakening by β-expansin (group-1 allergen) from maize pollen. Plant J. 2011, 68, 546–559. [Google Scholar] [CrossRef]
  12. Han, Z.; Liu, Y.; Deng, X.; Liu, D.; Liu, Y.; Hu, Y.; Yan, Y. Genome-wide identification and expression analysis of expansin gene family in common wheat (Triticum aestivum L.). BMC Genom. 2019, 20, 101. [Google Scholar] [CrossRef]
  13. Ludidi, N.; Heazlewood, J.; Seoighe, C.; Irving, H.; Gehring, C. Expansin-Like Molecules: Novel Functions Derived from Common Domains. J. Mol. Evol. 2002, 54, 587–594. [Google Scholar] [CrossRef]
  14. Sampedro, J.; Carey, R.E.; Cosgrove, D.J. Genome histories clarify evolution of the expansin superfamily: New insights from the poplar genome and pine ESTs. J. Plant Res. 2006, 119, 11–21. [Google Scholar] [CrossRef]
  15. Santo, S.D.; Vannozzi, A.; Tornielli, G.B.; Fasoli, M.; Venturini, L.; Pezzotti, M.; Zenoni, S. Genome-Wide Analysis of the Expansin Gene Superfamily Reveals Grapevine-Specific Structural and Functional Characteristics. PLoS ONE 2013, 8, e62206. [Google Scholar] [CrossRef]
  16. Zhang, S.Z.; Xu, R.R.; Gao, Z.; Chen, C.T.; Jiang, Z.S.; Shu, H.R. A genome-wide analysis of the expansin genes in Malus Domestica. Mol. Genet. Genom. 2014, 289, 225–236. [Google Scholar] [CrossRef]
  17. Li, J.; Yin, P.; Wang, H.R.; An, M.; Li, G.T. Identification of Actinidia Chinensis expansin gene family and expression under different stresses. Mol. Plant Breed. 2021, 1–17. Available online: http://kns.cnki.net/kcms/detail/46.1068.S.20210820.1356.017.html (accessed on 3 February 2023).
  18. Liang, Z.X.; Qi, H.Y.; Xu, H.G. Identification and bioinformatics analysis of hemp expansin gene family. Mol. Plant Breed. 2022, 1–13. Available online: http://kns.cnki.net/kcms/detail/46.1068.S.20220630.1424.006.html (accessed on 3 February 2023).
  19. Li, H.Y.; Shi, Y.; Ding, Y.N.; Xu, J.C. Bioinformatics analysis of expansin gene family in poplar genome. Beijing Linye Daxue Xuebao 2014, 36, 59–67. [Google Scholar]
  20. Zhang, W. Identification of Endosperm-Specific Expression Genes and Functional Analysis of ZmEXPB13 in Maize EXPANSIN Family. Ph.D. Thesis, Anhui Agricultural University, Hefei, China, 2014. [Google Scholar]
  21. Cho, H.-T.; Cosgrove, D.J. Altered expression of expansin modulates leaf growth and pedicel abscission in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2000, 97, 9783–9788. [Google Scholar] [CrossRef]
  22. Won, S.-K.; Choi, S.-B.; Kumari, S.; Cho, M.; Lee, S.H.; Cho, H.-T. Root hair-specific EXPANSIN B genes have been selected for graminaceae root hairs. Mol. Cells 2010, 30, 369–376. [Google Scholar] [CrossRef] [PubMed]
  23. Azeez, A.; Sane, A.P.; Tripathi, S.K.; Bhatnagar, D.; Nath, P. The gladiolus GgEXPA1 is a GA-responsive alpha-expansin gene expressed ubiquitously during expansion of all floral tissues and leaves but repressed during organ senescence. Postharvest Biol. Technol. 2010, 58, 48–56. [Google Scholar] [CrossRef]
  24. Nardi, C.; Villarreal, N.M.; Rossi, F.; Martínez, S.; Martínez, G.A.; Civello, P.M. Overexpression of the carbohydrate binding module of strawberry expansin2 in Arabidopsis thaliana modifies plant growth and cell wall metabolism. Plant Mol. Biol. 2015, 88, 101–117. [Google Scholar] [CrossRef] [PubMed]
  25. Yang, W.H.; Zeng, H.; Zou, M.H.; Lu, C.Z.; Huang, X.M. Progress of research on the relationship between fruit splitting occurrence and pericarp cell wall modification. J. Trop. Crops 2011, 32, 1995–1999. [Google Scholar]
  26. Lu, P.; Kang, M.; Jiang, X.; Dai, F.; Gao, J.; Zhang, C. RhEXPA4, a rose expansin gene, modulates leaf growth and confers drought and salt tolerance to Arabidopsis. Planta 2013, 237, 1547–1559. [Google Scholar] [CrossRef]
  27. Chen, Y.; Zhang, B.; Li, C.; Lei, C.; Kong, C.; Yang, Y.; Gong, M. A comprehensive expression analysis of the expansin gene family in potato (Solanum tuberosum) discloses stress-responsive expansin-like B genes for drought and heat tolerances. PLoS ONE 2019, 14, e0219837. [Google Scholar] [CrossRef]
  28. Yuan, Z.; Fang, Y.; Zhang, T.; Fei, Z.; Han, F.; Liu, C.; Liu, M.; Xiao, W.; Zhang, W.; Wu, S.; et al. The pomegranate (Punica granatum L.) geneme provides insights into fruit quality and ovule developmental biology. Plant Biotechnol. J. 2018, 16, 1363–1374. [Google Scholar] [CrossRef]
  29. Qin, G.; Xu, C.; Ming, R.; Tang, H.; Guyot, R.; Kramer, E.M.; Hu, Y.; Yi, X.; Qi, Y.; Xu, X.; et al. The pomegranate (Punica granatum L.) geneme and the genomics of punicalagin biosynthesis. Plant J. 2017, 91, 1108–1128. [Google Scholar] [CrossRef]
  30. Hassanen, E.I.; Tohamy, A.F.; Issa, M.Y.; Ibrahim, M.A.; Farroh, K.Y.; Hassan, A.M. Pomegranate juice diminishes the mitochondria-dependent cell death and NF-kB signaling pathway induced by copper oxide nanoparticles on liver and kidneys of rats. Int. J. Nanomed. 2019, 14, 8905–8922. [Google Scholar] [CrossRef]
  31. Pirzadeh, M.; Caporaso, N.; Rauf, A.; Shariati, M.A.; Yessimbekov, Z.; Khan, M.U.; Imran, M.; Mubarak, M.S. Pomegranate as a source of bioactive constituents: A review on their characterization, properties and applications. Crit. Rev. Food Sci. Nutr. 2021, 61, 982–999. [Google Scholar] [CrossRef]
  32. Kandylis, P.; Kokkinomagoulos, E. Food Applications and Potential Health Benefits of Pomegranate and its Derivatives. Foods 2020, 9, 122. [Google Scholar] [CrossRef]
  33. Akhtar, S.; Ismail, T.; Fraternale, D.; Sestili, P. Pomegranate peel and peel extracts: Chemistry and food features. Food Chem. 2015, 174, 417–425. [Google Scholar] [CrossRef]
  34. Chen, L.; Zhang, J.; Li, H.; Niu, J.; Xue, H.; Liu, B.; Wang, Q.; Luo, X.; Zhang, F.; Zhao, D.; et al. Transcriptomic Analysis Reveals Candidate Genes for Female Sterility in Pomegranate Flowers. Front. Plant Sci. 2017, 8, 1430. [Google Scholar] [CrossRef]
  35. Yuan, Z.; Yin, Y.; Qu, J.; Zhu, L.; Li, Y. Population Genetic Diversity in Chinese Pomegranate (Punica granatum L.) Cultivars Revealed by Fluorescent-AFLP Markers. J. Genet. Genom. 2007, 34, 1061–1071. [Google Scholar] [CrossRef]
  36. Usha, T.; Goyal, A.K.; Lubna, S.; Prashanth, H.; Mohan, T.M.; Pande, V.; Middha, S.K. Identification of Anti-Cancer Targets of Eco-Friendly Waste Punica granatum Peel by Dual Reverse Virtual Screening and Binding Analysis. Asian Pac. J. Cancer Prev. 2014, 15, 10345–10350. [Google Scholar] [CrossRef]
  37. Artimo, P.; Jonnalagedda, M.; Arnold, K.; Baratin, D.; Csardi, G.; de Castro, E.; Duvaud, S.; Flegel, V.; Fortier, A.; Gasteiger, E.; et al. ExPASy: SIB bioinformatics resource portal. Nucleic Acids Res. 2012, 40, W597–W603. [Google Scholar] [CrossRef]
  38. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  39. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  40. Bray, N.L.; Pimentel, H.; Melsted, P.; Pachter, L. Near-optimal probabilistic RNA-seq quantification. Nat. Biotechnol. 2016, 34, 525–527. [Google Scholar] [CrossRef]
  41. Ophir, R.; Sherman, A.; Rubinstein, M.; Eshed, R.; Schwager, M.S.; Harel-Beja, R.; Bar-Ya’Akov, I.; Holland, D. Single-Nucleotide Polymorphism Markers from De-Novo Assembly of the Pomegranate Transcriptome Reveal Germplasm Genetic Diversity. PLoS ONE 2014, 9, e88998. [Google Scholar] [CrossRef]
  42. Ono, N.N.; Britton, M.T.; Fass, J.N.; Nicolet, C.M.; Lin, D.; Tian, L. Exploring the Transcriptome Landscape of Pomegranate Fruit Peel for Natural Product Biosynthetic Gene and SSR Marker DiscoveryF. J. Integr. Plant Biol. 2011, 53, 800–813. [Google Scholar] [CrossRef] [PubMed]
  43. Livak, K.; Schmittgen, T. Analysis of relative gene expression data using realtime quantitative PCR and the 2-ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  44. Wu, T.; Zeng, N.; Li, W.; Wang, S.L.; Xu, F.S.; Shi, L. Genome-wide identification of the expansin gene family and differences in transcriptional responses to boron deficiency in Brassica napus L. Plant Sci. J. 2021, 39, 59–75. [Google Scholar]
  45. Krishnamurthy, P.; Hong, J.K.; Kim, J.A.; Jeong, M.J.; Lee, Y.H.; Lee, S.I. Genome-wide analysis of the expansin gene superfamily reveals Brassica rapa-specific evolutionary dynamics upon whole genome triplication. Mol. Genet. Genom. 2015, 290, 521–530. [Google Scholar] [CrossRef]
  46. Hao, X.; Li, X.Y.; La, G.X.; Dai, D.D.; Yang, T.G. Identification and bioinformatics analysis of cucumber expansin gene family in cucumber. Fenzi Zhiwu Yuzhong Mol. Plant Breed. 2015, 13, 2280–2289. [Google Scholar]
  47. Ding, A.; Marowa, P.; Kong, Y. Genome-wide identification of the expansin gene family in tobacco (Nicotiana tabacum). Mol. Genet. Genom. 2016, 291, 1891–1907. [Google Scholar] [CrossRef]
  48. Wang, R.X.; Yang, R.X.; Yin, P.; Liu, J.F.; Xu, J.C. Identification and characterization of the expansin gene in Ginkgo biloba. Mol. Plant Breed. 2021, 19, 1741–1749. [Google Scholar]
  49. Shi, Y.; Xu, X.; Li, H.; Xu, Q.; Xu, J. Bioinformatics analysis of the expansin gene family in rice. Hereditas 2014, 36, 809–820. [Google Scholar] [CrossRef]
  50. Lan, Y.C.; Huang, B.; Wei, J.; Jiang, S. Identification and bioinformatic analysis of the expansin gene family in Physcomitrella patens. Guihaia 2020, 40, 854–863. [Google Scholar]
  51. Yang, R.X.; Liu, X.R.; Lan, B.L.; Wang, H.; Liu, X.; Xu, J.C. Genome identification and analysis of the expansin genes family in Salix purpurea. Mol. Plant Breed. 2021, 19, 2538–2549. [Google Scholar]
  52. Hou, L.; Zhang, Z.; Dou, S.; Zhang, Y.; Pang, X.; Li, Y. Genome-wide identification, characterization, and expression analysis of the expansin gene family in Chinese jujube (Ziziphus jujuba Mill.). Planta 2019, 249, 815–829. [Google Scholar] [CrossRef]
  53. Mao, Y. Preliminary Analysis of the Function of CpEXP2 gene of Plum Expansin. Master’s Thesis, Southwest University, Chongqing, China, 2009. [Google Scholar]
  54. Mayorga-Gómez, A.; Nambeesan, S.U. Temporal expression patterns of fruit-specific α- EXPANSINS during cell expansion in bell pepper (Capsicum annuum L.). BMC Plant Biol. 2020, 20, 241. [Google Scholar] [CrossRef]
  55. Minami, A.; Yano, K.; Gamuyao, R.L.; Nagai, K.; Kuroha, T.; Ayano, M.; Nakamori, M.; Koike, M.; Kondo, Y.; Niimi, Y.; et al. Time-Course Transcriptomics Analysis Reveals Key Responses of Submerged Deepwater Rice to Flooding. Plant Physiol. 2018, 176, 3081–3102. [Google Scholar] [CrossRef]
  56. Jiang, F.; Lopez, A.; Jeon, S.; de Freitas, S.T.; Yu, Q.; Wu, Z.; Labavitch, J.M.; Tian, S.; Powell, A.L.T.; Mitcham, E. Disassembly of the fruit cell wall by the ripening-associated polygalacturonase and expansin influences tomato cracking. Hortic. Res. 2019, 6, 17. [Google Scholar] [CrossRef]
  57. Liu, Y.-L.; Chen, S.-Y.; Liu, G.-T.; Jia, X.-Y.; Haq, S.U.; Deng, Z.-J.; Luo, D.-X.; Li, R.; Gong, Z.-H. Morphological, physiochemical, and transcriptome analysis and CaEXP4 identification during pepper (Capsicum annuum L.) fruit cracking. Sci. Hortic. 2022, 297, 110982. [Google Scholar] [CrossRef]
  58. Li, W.C.; Wu, J.Y.; Zhang, H.N.; Shi, S.Y.; Liu, L.Q.; Shu, B.; Liang, Q.Z.; Xie, J.H.; Wei, Y.Z. De Novo assembly and characterization of pericarp transcriptome and identification of candidate genes mediating fruit cracking in Litchi chinensis Sonn. Int. J. Mol. Sci. 2014, 15, 17667–17685. [Google Scholar] [CrossRef]
  59. Kasai, S.; Hayama, H.; Kashimura, Y.; Kudo, S.; Osanai, Y. Relationship between fruit cracking and expression of the expansin gene MdEXPA3 in ‘Fuji’ apples (Malus domestica Borkh.). Sci. Hortic. 2008, 116, 194–198. [Google Scholar] [CrossRef]
  60. Wang, Y.; Guo, L.; Zhao, X.; Zhao, Y.; Hao, Z.; Luo, H.; Yuan, Z. Advances in Mechanisms and Omics Pertaining to Fruit Cracking in Horticultural Plants. Agronomy 2021, 11, 1045. [Google Scholar] [CrossRef]
  61. Zhu, Y.; Wu, N.; Song, W.; Yin, G.; Qin, Y.; Yan, Y.; Hu, Y. Soybean (Glycine max) expansin gene superfamily origins: Segmental and tandem duplication events followed by divergent selection among subfamilies. BMC Plant Biol. 2014, 14, 93. [Google Scholar] [CrossRef]
  62. İncili, Ç.Y.; Arslan, B.; Çelik, E.N.Y.; Ulu, F.; Horuz, E.; Baloglu, M.C.; Çağlıyan, E.; Burcu, G.; Bayarslan, A.U.; Altunoglu, Y.C. Comparative bioinformatics analysis and abiotic stress responses of expansin proteins in Cucurbitaceae members: Watermelon and melon. Protoplasma 2023, 260, 509–527. [Google Scholar] [CrossRef]
  63. Zhang, Q. Characterization and Functional Validation of Land Cotton Expansin Protein Gene Family. Master’s Thesis, Northwest Agriculture and Forestry University, Xianyang, China, 2020. [Google Scholar]
  64. Li, X.J.; Zao, H.L.; Lu, Y.C.; Zhao, Y.; Xiang, G.S.; Fan, W.; Yang, S.C. Identification and bioinformatic analysis of expansin family genes in Panax notoginseng. Mol. Plant Breed. 2021, 19, 6365–6375. [Google Scholar]
  65. Zimmermann, R.; Sakai, H.; Hochholdinger, F. The Gibberellic Acid Stimulated-Like Gene Family in Maize and Its Role in Lateral Root Development. Plant Physiol. 2010, 152, 356–365. [Google Scholar] [CrossRef] [PubMed]
  66. Yoo, S.; Gao, Z.; Cantini, C.; Loescher, W.H.; Nocker, S.V. Fruit ripening in sour cherry: Changes in expression of genes encoding expansins and other cell-wall-modifying enzymes. J. Am. Soc. Hortic. Sci. 2003, 128, 16–22. [Google Scholar] [CrossRef]
  67. Wang, L.; Wang, Z.; Xu, Y.; Joo, S.-H.; Kim, S.-K.; Xue, Z.; Xu, Z.; Wang, Z.; Chong, K. OsGSR1 is involved in crosstalk between gibberellins and brassinosteroids in rice. Plant J. 2009, 57, 498–510. [Google Scholar] [CrossRef]
Horticulturae 09 00539 g001 550

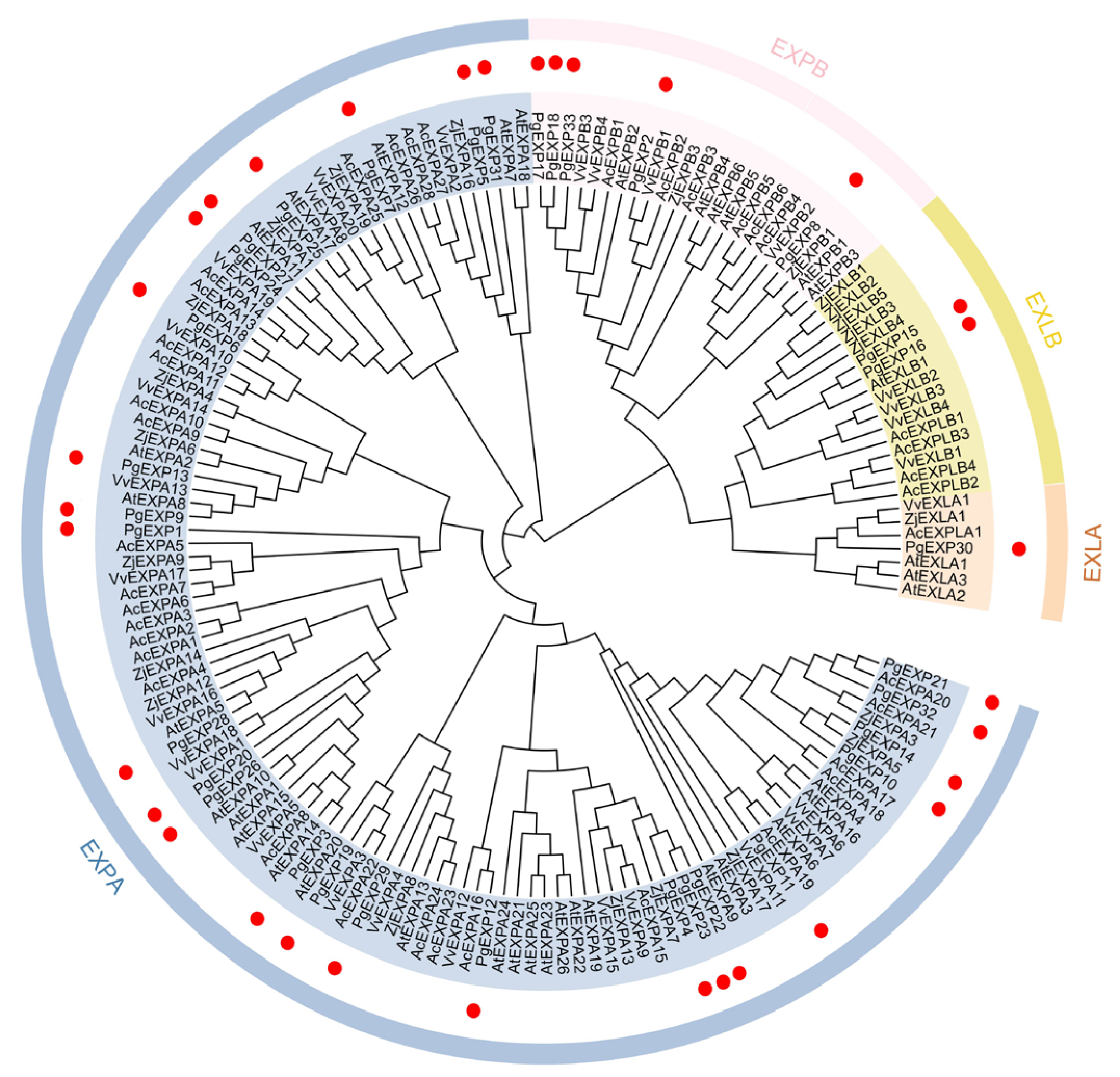

Figure 1. Phylogenetic trees in the expansin gene family in pomegranate, Arabidopsis, grape, kiwi, and jujube. The phylogenetic tree was constructed using the ML method with 1000 bootstrap replicates. The different colors indicated different subfamilies. The red dots represented PgEXPs.
Figure 1. Phylogenetic trees in the expansin gene family in pomegranate, Arabidopsis, grape, kiwi, and jujube. The phylogenetic tree was constructed using the ML method with 1000 bootstrap replicates. The different colors indicated different subfamilies. The red dots represented PgEXPs.
Horticulturae 09 00539 g001
Horticulturae 09 00539 g002 550
Figure 2. Multiple alignments of PgEXPs protein sequencing results. The blue square represented Domain 1. The orange square represented Domain 2. The blue background represented cysteine, and the orange background represented tryptophan.
Figure 2. Multiple alignments of PgEXPs protein sequencing results. The blue square represented Domain 1. The orange square represented Domain 2. The blue background represented cysteine, and the orange background represented tryptophan.
Horticulturae 09 00539 g002
Horticulturae 09 00539 g003 550
Figure 3. (a) PgEXP genes conserved motifs. The vertical coordinate represented the conserved amino acid and the height of the amino acid letter represented the frequency of occurrence. The horizontal coordinate represented the amino acid’s position in the sequence. (b) The PgEXP gene family’s phylogenetic tree (A), conserved motifs (B), and gene structure (C). Protein motifs in PgEXP members: colored boxes depict the various patterns. The results of phylogenetic analysis were used to perform clustering. Exons and introns were indicated by green boxes and black lines in the gene structure.
Figure 3. (a) PgEXP genes conserved motifs. The vertical coordinate represented the conserved amino acid and the height of the amino acid letter represented the frequency of occurrence. The horizontal coordinate represented the amino acid’s position in the sequence. (b) The PgEXP gene family’s phylogenetic tree (A), conserved motifs (B), and gene structure (C). Protein motifs in PgEXP members: colored boxes depict the various patterns. The results of phylogenetic analysis were used to perform clustering. Exons and introns were indicated by green boxes and black lines in the gene structure.
Horticulturae 09 00539 g003
Horticulturae 09 00539 g004 550
Figure 4. Pomegranate PgEXPs promoter predicted cis-acting elements. The numbers represented the number of cis-acting elements. The red line represented the biotic and abiotic related stress in plants. The green line represented plants development and promoter. The blue line represented hormone response related to plants.
Figure 4. Pomegranate PgEXPs promoter predicted cis-acting elements. The numbers represented the number of cis-acting elements. The red line represented the biotic and abiotic related stress in plants. The green line represented plants development and promoter. The blue line represented hormone response related to plants.
Horticulturae 09 00539 g004
Horticulturae 09 00539 g005 550
Figure 5. PgEXP proteins (A), PgEXP1, PgEXP3, PgEXP20, and PgEXP26 protein (B), PgEXP5 and PgEXP31 protein (C) functional interaction network and gene co-expression diagram. XTH5: Probable xyloglucan endotransglucosylase/hydrolase protein 5; BGAL4: Beta-galactosidase 4; AT5G48140: Galacturan 1,4-alpha-galacturonidase; AT5G04310: Pectin lyase-like superfamily protein; AT3G26610: Pectin lyase-like superfamily protein; GASA6: Gibberellin-regulated family protein; PGA4: Galacturan 1,4-alpha-galacturonidase; At4g37740: Growth-regulating factor 2; AT3G09540: Pectin lyase-like superfamily protein; At2g22840: Growth-regulating factor 1; RHS13: Root hair specific 13; PRP3: Arabidopsis thaliana proline-rich protein 3; AT5G04960: Plant invertase/pectin methylesterase inhibitor superfamily; MOP10: Pollen Ole e 1 allergen and extensin family protein; AT1G30870: Peroxidase superfamily protein; AT3G49960: Peroxidase superfamily protein.
Figure 5. PgEXP proteins (A), PgEXP1, PgEXP3, PgEXP20, and PgEXP26 protein (B), PgEXP5 and PgEXP31 protein (C) functional interaction network and gene co-expression diagram. XTH5: Probable xyloglucan endotransglucosylase/hydrolase protein 5; BGAL4: Beta-galactosidase 4; AT5G48140: Galacturan 1,4-alpha-galacturonidase; AT5G04310: Pectin lyase-like superfamily protein; AT3G26610: Pectin lyase-like superfamily protein; GASA6: Gibberellin-regulated family protein; PGA4: Galacturan 1,4-alpha-galacturonidase; At4g37740: Growth-regulating factor 2; AT3G09540: Pectin lyase-like superfamily protein; At2g22840: Growth-regulating factor 1; RHS13: Root hair specific 13; PRP3: Arabidopsis thaliana proline-rich protein 3; AT5G04960: Plant invertase/pectin methylesterase inhibitor superfamily; MOP10: Pollen Ole e 1 allergen and extensin family protein; AT1G30870: Peroxidase superfamily protein; AT3G49960: Peroxidase superfamily protein.
Horticulturae 09 00539 g005
Horticulturae 09 00539 g006 550
Figure 6. Heat map of PgEXP gene expression in pomegranate tissues. DBZ_pericarp: ‘Dabenzi’ Pericarp; DBZ_OSC: ‘Dabenzi’ Outer seed coat; BYSZ_ISC: ‘Baiyushizi’ Inner seed coat; 5.1–13 mm(B): ‘Tunisia’ Bisexual flowers (5.1–13.0 mm); 13.1–25 mm(B): ‘Tunisia’ Bisexual flowers (13.1–25.0 mm); Wonderful: ‘Wonderful’ Pericarp; DBZ_root: ‘Dabenzi’ Root; DBZ_leaf: ‘Dabenzi’ Leaf; DBZ_ISC: ‘Dabenzi’ Inner seed coat; Black127: ‘Black127′ Mix of leaves, flowers, fruit and roots; Nana: ‘Nana’ Mix of leaves, flowers, fruit and roots; TNS_ISC: ‘Tunisia’ Inner seed coat; 3–5 mm(B): ‘Tunisia’ Bisexual flowers (3–5 mm); 3–5 mm(F): ‘Tunisia’ Functional male flowers (3–5 mm); DBZ_flower: ‘Dabenzi’ Flower; 5.1–13 mm(F): ‘Tunisia’ Functional male flowers (5.1–13.0 mm); 13.1–25 mm(F): ‘Tunisia’ Functional male flowers (13.1–25.0 mm).
Figure 6. Heat map of PgEXP gene expression in pomegranate tissues. DBZ_pericarp: ‘Dabenzi’ Pericarp; DBZ_OSC: ‘Dabenzi’ Outer seed coat; BYSZ_ISC: ‘Baiyushizi’ Inner seed coat; 5.1–13 mm(B): ‘Tunisia’ Bisexual flowers (5.1–13.0 mm); 13.1–25 mm(B): ‘Tunisia’ Bisexual flowers (13.1–25.0 mm); Wonderful: ‘Wonderful’ Pericarp; DBZ_root: ‘Dabenzi’ Root; DBZ_leaf: ‘Dabenzi’ Leaf; DBZ_ISC: ‘Dabenzi’ Inner seed coat; Black127: ‘Black127′ Mix of leaves, flowers, fruit and roots; Nana: ‘Nana’ Mix of leaves, flowers, fruit and roots; TNS_ISC: ‘Tunisia’ Inner seed coat; 3–5 mm(B): ‘Tunisia’ Bisexual flowers (3–5 mm); 3–5 mm(F): ‘Tunisia’ Functional male flowers (3–5 mm); DBZ_flower: ‘Dabenzi’ Flower; 5.1–13 mm(F): ‘Tunisia’ Functional male flowers (5.1–13.0 mm); 13.1–25 mm(F): ‘Tunisia’ Functional male flowers (13.1–25.0 mm).
Horticulturae 09 00539 g006
Horticulturae 09 00539 g007 550
Figure 7. The expression patterns of 24 PgEXPs in pomegranate peel at 6 developmental periods obtained by qRT-PCR analysis. The dates were 25 August, 3 September, 12 September, 21 September, 30 September, and 9 October designated as P1~P6, respectively. The data shown represent an average of three independent experiments ± SD. The vertical bars show the standard error. Bars with different letters (a–f) indicate significant differences at p < 0.05 according to Duncan’s test.
Figure 7. The expression patterns of 24 PgEXPs in pomegranate peel at 6 developmental periods obtained by qRT-PCR analysis. The dates were 25 August, 3 September, 12 September, 21 September, 30 September, and 9 October designated as P1~P6, respectively. The data shown represent an average of three independent experiments ± SD. The vertical bars show the standard error. Bars with different letters (a–f) indicate significant differences at p < 0.05 according to Duncan’s test.
Horticulturae 09 00539 g007
Table
Table 1. Pomegranate transcript data.
Table 1. Pomegranate transcript data.
Accession No.CultivarSampleIDReference
SRR5279388DabenziOuter seed coatDabenzi_OSC[29]
SRR5279391DabenziInner seed coatDabenzi_ISC[29]
SRR5279394DabenziPericarpDabenzi_pericarp[29]
SRR5279395DabenziFlowerDabenzi_flower[29]
SRR5279396DabenziRootDabenzi_root[29]
SRR5279397DabenziLeafDabenzi_leaf[29]
SRR5446592TunisiaBisexual flowers (3.0–5.0 mm)3–5 mm(B)[34]
SRR5446595TunisiaBisexual flowers (5.1–13.0 mm)5.1–13 mm(B)[34]
SRR5446598TunisiaBisexual flowers (13.1–25.0 mm)13.1–25 mm(B)[34]
SRR5446601TunisiaFunctional male flowers (3.0–5.0 mm)3–5 mm(F)[34]
SRR5446604TunisiaFunctional male flowers (5.1–13.0 mm)5.1–13 mm(F)[34]
SRR5446607TunisiaFunctional male flowers (13.1–25.0 mm)13.1–25 mm(F)[34]
SRR5678820TunisiaInner seed coatTNS_ISC[29]
SRR5678819BaiyushiziInner seed coatBYSZ_ISC[29]
SRR1054190Black127Mix of leaves, flowers, fruit and rootsBlack127[41]
SRR1055290NanaMix of leaves, flowers, fruit and rootsNana[41]
SRR080723WonderfulPericarpWonderful[42]
Table
Table 2. Sizes of the four expansin subfamilies in different plants species.
Table 2. Sizes of the four expansin subfamilies in different plants species.
SpeciesEXPAEXPBEXLAEXLBTotalReference
Actinidia chinensis2861439[17]
Arabidopsis thaliana2663136[7]
Brassica napus792154109[44]
Brassica rapa3992353[45]
Cannabis sativa1971532[18]
Cucumis sativus2139235[46]
Glycine max49921575[47]
Ginkgo biloba2014328[48]
Gossypium hirsutum671215193[49]
Malus×Domestica3412441[15]
Nicotiana tabacum3663752[47]
Oryza sativa34194158[49]
Physcomitrella patens3206038[50]
Populus2732436[19]
Punica granatum2551233This study
Salix sinopurpurea2632334[51]
Solanum lycopersicum2581438[47]
Triticum aestivum26154045[12]
Vitis vinifera2041429[14]
Zea mays36484088[47]
Ziziphus zizyphus1931730[52]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xu, X.; Wang, Y.; Zhao, X.; Yuan, Z. Uncovering the Expansin Gene Family in Pomegranate (Punica granatum L.): Genomic Identification and Expression Analysis. Horticulturae 2023, 9, 539. https://doi.org/10.3390/horticulturae9050539

AMA Style

Xu X, Wang Y, Zhao X, Yuan Z. Uncovering the Expansin Gene Family in Pomegranate (Punica granatum L.): Genomic Identification and Expression Analysis. Horticulturae. 2023; 9(5):539. https://doi.org/10.3390/horticulturae9050539

Chicago/Turabian Style

Xu, Xintong, Yuying Wang, Xueqing Zhao, and Zhaohe Yuan. 2023. "Uncovering the Expansin Gene Family in Pomegranate (Punica granatum L.): Genomic Identification and Expression Analysis" Horticulturae 9, no. 5: 539. https://doi.org/10.3390/horticulturae9050539

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
