New Photomagnetic Ionic Salts Based on [MoIV(CN)8]4− and [WIV(CN)8]4− Anions †
Abstract
:1. Introduction
2. Results and Discussion
2.1. Synthesis and Characterization
2.2. Crystal Structure Description of the Compounds

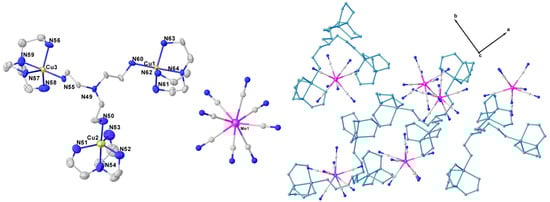

2.2.1. [{Cu(tren)}3(μ-tren)]4[Mo(CN)8]6·45H2O·2CH3OH (1)

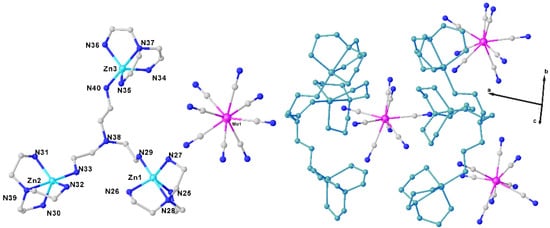

2.2.2. [{Zn(tren)}3(μ-tren)]2[Mo(CN)8]3·18H2O (2)
2.2.3. [{Zn(tren)}3(μ-tren)]2[W(CN)8]3·17H2O (3)
2.3. Magnetic and Photomagnetic Properties

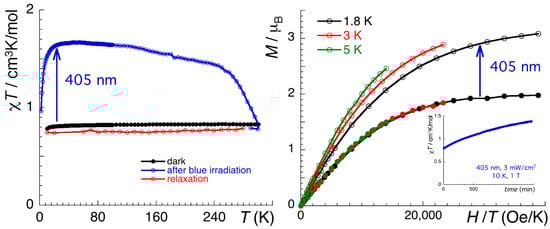

2.3.1. CutrenMo Compound (1)

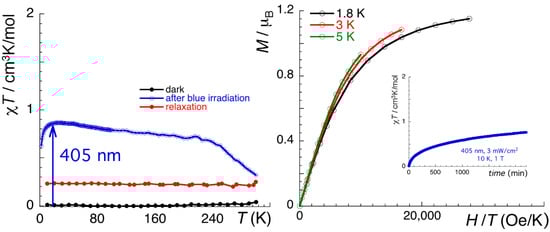

2.3.2. ZntrenMo Compound (2)

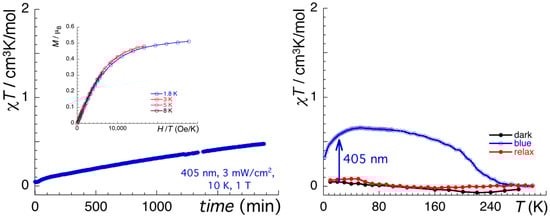

2.3.3. ZntrenW Compound (3)
3. Discussion and Conclusions
4. Materials and Methods
4.1. General Remarks
4.2. Synthesis
4.2.1. Preparation of CutrenMo (1)
4.2.2. Preparation of ZntrenMo (2)
4.2.3. Preparation of ZntrenW (3)
4.3. Physical Measurements
4.3.1. Infrared Spectroscopy
4.3.2. UV-Visible Spectroscopy
4.3.3. Magnetic Measurements
4.3.4. Powder X-ray Diffraction (PXRD)
4.3.5. Elemental Analysis
4.3.6. Single-Crystal X-ray Crystallography
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A
Compound/CCDC Number | 1/2083835 | 2/2083836 | 3/2083837 |
---|---|---|---|
Formula | Mo6Cu12C146H386N112O47 | Mo3Zn6C72H180N56O18 | W3Zn6C72H178N56O17 |
Dcalc./g cm−3 | 1.424 | 1.406 | 1.537 |
μmm−1 | 4.121 | 4.036 | 3.760 |
Formula Weight | 5801.61 | 2798.68 | 3044.39 |
T/K | 130(2) | 130(2) | 150(2) |
Crystal System | monoclinic | monoclinic | monoclinic |
Space Group | P21/c | Cc | Cc |
a/Å | 30.4150(4) | 32.1487(9) | 31.8599(9) |
b/Å | 37.1820(5) | 16.8699(3) | 16.9574(3) |
c/Å | 22.5401(2) | 25.4013(6) | 25.3107(6) |
β/° | 98.0410(10) | 106.487(3) | 106.013(3) |
V/Å3 | 25239.8(5) | 13209.8(6) | 13143.8(6) |
Z | 4 | 4 | 4 |
Z’ | 1 | 1 | 1 |
Wavelength/Å | 1.54184 | 1.54184 | 0.71073 |
Radiation type | CuKa | CuKa | MoKa |
Qmin/° | 2.309 | 2.867 | 1.701 |
Qmax/° | 73.591 | 74.083 | 26.733 |
Measured refl. | 199397 | 46339 | 151852 |
Measured indep. refl. | 49550 | 19947 | 27860 |
Observed indep. refl. | 35018 | 19214 | 22758 |
Rint | 0.0760 | 0.0775 | 0.0796 |
Parameters | 2908 | 1450 | 1438 |
Restraints | 0 | 2 | 20 |
Largest diff. peak (e-.A−3) | 19.876 | 1.7437 | 1.938 |
Deepest diff. hole (e-.A−3) | −2.959 | −1.561 | −1.187 |
GooF (S) | 1.764 | 1.042 | 1.018 |
wR2 (all data) | 0.4624 | 0.2071 | 0.0959 |
wR2 | 0.4298 | 0.2049 | 0.0894 |
R1 (all data) | 0.2056 | 0.0791 | 0.0574 |
R1 | 0.1830 | 0.0769 | 0.0397 |
[{Cu(tren)}3(μ-tren)]12[Mo(CN)8]6·45H2O·2MeOH 1 | ||||||
Mo(CN)8 | Mo1 | Mo2 | Mo3 | Mo4 | Mo5 | Mo6 |
SAPR | 0.218 | 0.254 | 0.535 | 0.230 | 0.652 | 0.321 |
TDD | 2.201 | 2.008 | 1.679 | 1.899 | 1.232 | 1.794 |
JBTPR | 2.821 | 2.284 | 2.252 | 2.660 | 1.971 | 2.360 |
BTPR | 2.220 | 1.709 | 1.649 | 2.077 | 1.384 | 1.738 |
CuN5 | Cu1 | Cu2 | Cu3 | Cu4 | Cu5 | Cu6 |
TBPY | 0.420 | 0.377 | 0.904 | 0.540 | 0.368 | 0.443 |
SPY | 4.269 | 4.425 | 3.226 | 4.175 | 4.805 | 4.970 |
JTBPY | 3.967 | 3.731 | 3.928 | 3.661 | 3.794 | 3.911 |
CuN5 | Cu7 | Cu8 | Cu9 | Cu10 | Cu11 | Cu12 |
TBPY | 0.380 | 0.321 | 2.225 | 0.348 | 0.514 | 0.789 |
SPY | 4.975 | 4.832 | 1.491 | 5.009 | 4.016 | 3.401 |
JTBPY | 3.966 | 3.639 | 4.730 | 3.705 | 4.016 | 3.977 |
[{Zn(tren)}3(μ-tren)]2[Mo(CN)8]3·18H2O 2 | ||||||
Mo(CN)8 | Mo1 | Mo2 | Mo3 | |||
SAPR | 0.232 | 0.590 | 0.836 | |||
TDD | 2.106 | 1.567 | 1.372 | |||
JBTPR | 2.245 | 1.907 | 1.819 | |||
BTPR | 1.663 | 1.422 | 1.111 | |||
ZnN5 | Zn1 | Zn2 | Zn3 | Zn4 | Zn5 | Zn6 |
TBPY | 0.817 | 0.773 | 1.076 | 0.771 | 0.814 | 0.760 |
SPY | 5.582 | 4.987 | 5.149 | 5.715 | 4.698 | 5.558 |
JTBPY | 2.594 | 2.368 | 2.152 | 2.654 | 2.510 | 2.548 |
[{Zn(tren)}3(μ-tren)]2[W(CN)8]3·17H2O 3 | ||||||
W(CN)8 | W1 | W2 | W3 | |||
SAPR | 0.969 | 0.295 | 0.532 | |||
TDD | 1.110 | 1.922 | 1.781 | |||
JBTPR | 1.868 | 2.104 | 1.934 | |||
BTPR | 1.151 | 1.540 | 1.355 | |||
ZnN5 | Zn1 | Zn2 | Zn3 | Zn4 | Zn5 | Zn6 |
TBPY | 0.792 | 0.916 | 0.742 | 0.976 | 0.852 | 0.889 |
SPY | 5.393 | 4.487 | 5.890 | 4.707 | 4.803 | 5.930 |
JTBPY | 2.514 | 2.535 | 2.449 | 2.285 | 2.290 | 2.413 |
