Investigation of Accidents during Storage Caused by Fermentation or Oxidation from SSSR and Fishmeal Using Thermal Analysis and Frank-Kamenetskii Theory

Abstract

In Japan, where soy sauce production and the fishery industries thrive, soy sauce squeezing residue (SSSR) and fishmeal, which are operational byproducts of these sectors, are produced as waste materials for recycling. SSSR and fishmeal have resulted in accidents due to spontaneous ignition and oxygen deprivation, which are believed to have been caused by the heat generated through fermentation or oxidation; consequently, it is desirable to develop measures that prevent such accidents during storage and transportation. In this study, we assessed the hazards associated with the spontaneous ignition and oxygen deprivation of SSSR and fishmeal in storage areas using thermal and gas analysers, focusing on the heat produced by fermentation and oxidation. We also used Frank-Kamenetskii theory to determine the relationship between pile height and the ambient temperatures at which spontaneous ignition and oxygen deprivation occur. Our results suggest that oxygen deficiency may occur in a well-sealed storage facility in which oxygen is consumed by fermentation. For example, the oxygen concentration can drop below critical safety thresholds in the case of SSSR, even when stored below 25 °C, particularly when the moisture content is high. However, when a sufficient amount of oxygen is present and the material is stored in large deposits in a well-insulated facility, fermentation causes the temperature to increase, leading to the oxidation of fatty acid esters and eventually fire; when SSSR or fishmeal is maintained at temperatures near 40 °C, their temperatures can increase to 250 °C within approximately 30 h. Furthermore, the results of this study also demonstrate the need to consider pile height in storage areas in order to prevent accidents due to spontaneous ignition and oxygen deprivation; the critical ambient temperature at which heat accumulates is estimated to be between 20–30 °C, at a bulk density of 0.3 × 10³ kg/m³, and a pile height of 3 m.

1. Introduction

The ‘3Rs’ principle (reduce, reuse, and recycle) of waste management is the basis for a sustainable society in Japan, and techniques for implementing the 3Rs are constantly improving. Waste that is typically difficult to recycle can be effectively utilised as heat energy, in the form of electricity or steam, through incineration. However, even with advances in recycling research, recycled materials can still pose safety hazards during production, distribution, and storage if they are not fully assessed for potential dangers [1,2,3,4].

In Japan, recent years have been marked by widespread efforts to recycle and effectively use waste generated by the industry [5,6,7]. Soy sauce production and the fishery industries thrive in Japan, and soy sauce squeezing residue (SSSR) and fishmeal, which are the operational byproducts of these sectors, are produced as waste and recycling materials. For example, SSSR can be incinerated and reused in the form of thermal energy. Moreover, fishmeal is used as fertiliser as well as in pet food. However, SSSR and fishmeal can spontaneously ignite during storage and transportation. In addition, SSSR causes oxygen deficiency in storage areas due to fermentation, reportedly resulting in the deaths of workers [8]. Therefore, it is desirable to develop measures that prevent accidents resulting from spontaneous ignition and oxygen deprivation during the storage and transportation of SSSR and fishmeal. In this study, we conducted field surveys of storage locations that have been oxygen deficient and where fires have occurred.

To investigate the causes of these phenomena, we collected samples from these storage locations and applied various heat-analysis and gas-analysis methods with the objective of obtaining fundamental data that would inform future fire-prevention and oxygen-deficiency-prevention strategies. Based on the experimental results obtained, we used Frank-Kamenetskii theory [9] to determine the relationship between pile height and the ambient temperature at which spontaneous ignition and oxygen deprivation occur.

Moreover, the aim of this research was to develop an understanding of the circumstances leading to spontaneous-ignition and oxygen-deficiency accidents in storage facilities, and to recommend the safety measures that prevent such occurrences.

2. Experimental

For a variety of reasons, thermal analysis was used to investigate the causes of the accidents described above. With just a small sample of a material (1 g or less), its properties can be studied in order to prevent the occurrence of fire, large quantities of poisonous gas, and smoke. The data obtained through thermal analysis also aids in targeted risk assessment, placing the principal focus on materials that are likely to generate heat when piled.

The relative sensitivities of the thermal-analysis equipment used in this study, the details of which are provided below, are summarised in

Table 1. Working modes and test conditions of the calorimeters employed in this study.

Calorimeter *	Absolute Sensitivity (μW)	Volume of Vessel (mL)	Measureable Temperature Range (°C)	Working Mode
TG-DTA	10–30	0.05	~1000	Heating
C80	2	8	~300	Heating
TAM	0.2	4	~150	Isothermal
SIT	5–10	2	~300	Adiabatic
Wire-mesh cube	Thermocouple dependent	1000	~1000	Isothermal

* Details of the equipment used are provided in Section 2.2, Section 2.3, Section 2.4, Section 2.5 and Section 2.6.

. The relative sensitivities of equipment are given in μW in the table; lower relative sensitivities correspond to a higher detection performance. The relative sensitivity was calculated by energy calibration. The bomb-type calorimeter and gas chromatograph used in this study are excluded, since their sensitivities cannot be expressed in a manner that is consistent with the other equipment.

2.1. Samples

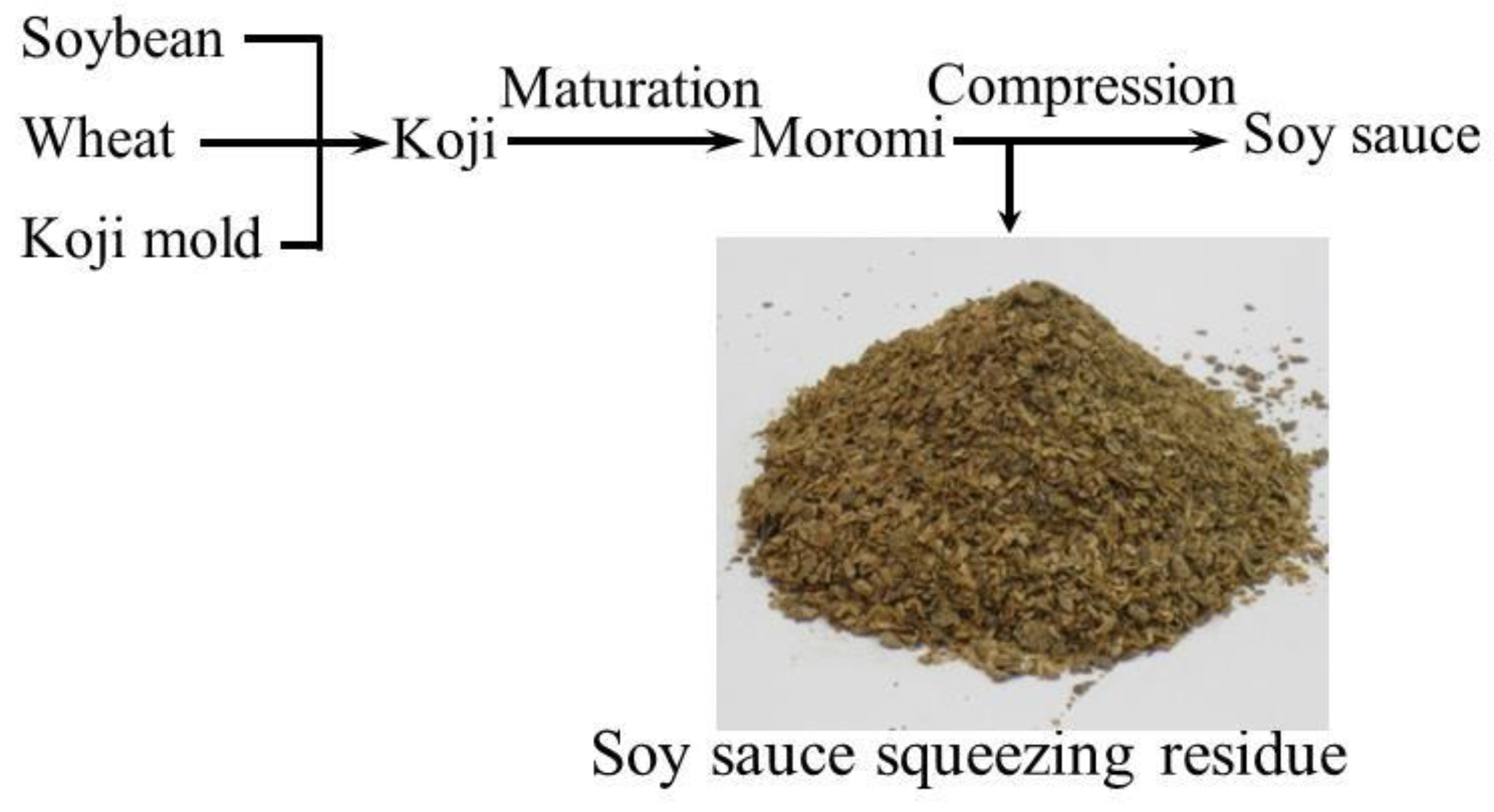

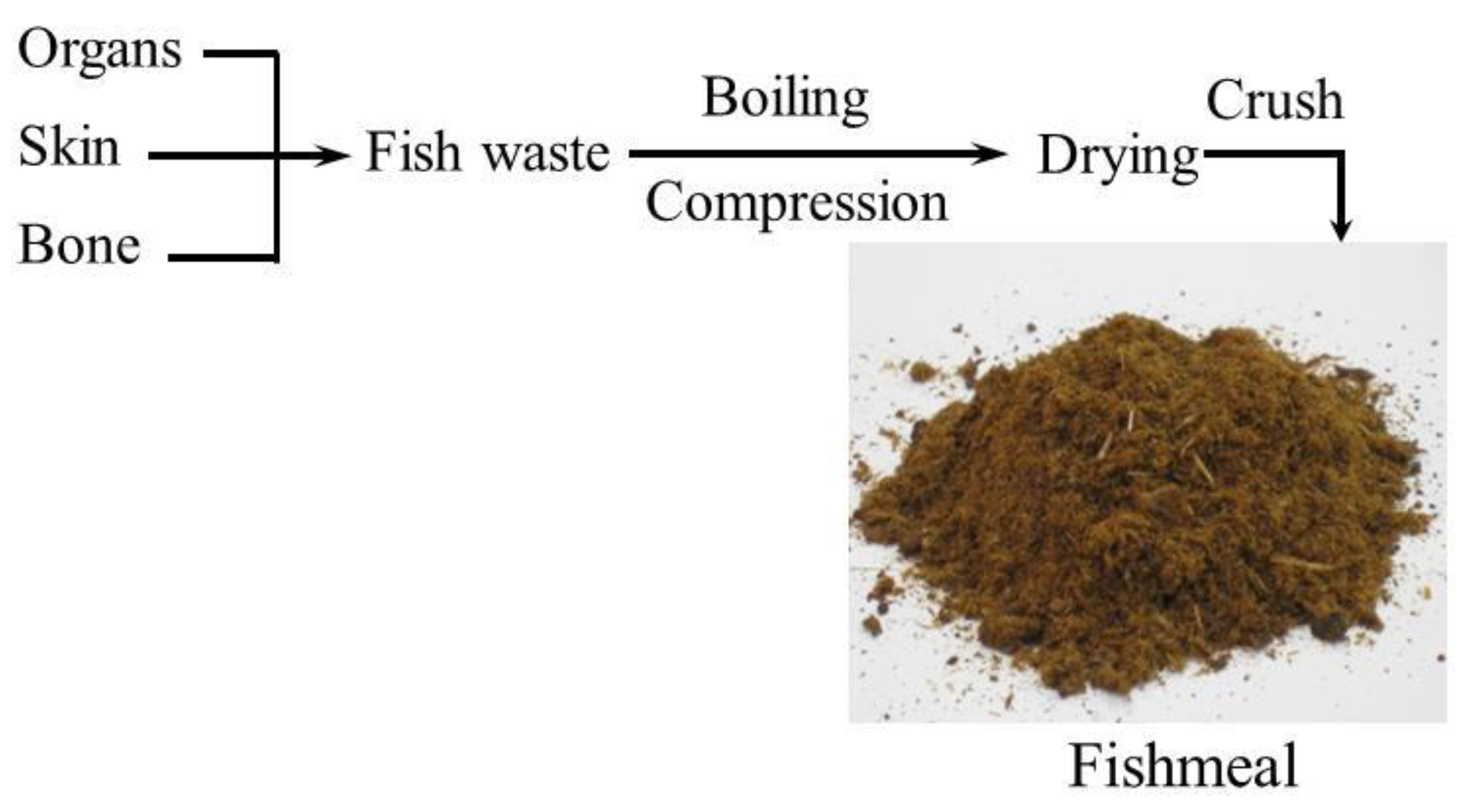

Large amounts of SSSR are produced when moromi (unrefined soy sauce) is compressed to extract the raw soy sauce. SSSR is plate-shaped when produced, but is later finely ground for storage and processing (Figure 1). Fishmeal refers to the crushed powder obtained by boiling residual fish substances during the removal of water and oil from the residue, with subsequent pressing, and eventually drying of the remaining solid with hot air or steam (Figure 2).

For some experiments, distilled water was added to the sample (equal to 20% of the sample mass) in order to examine the effects of additional moisture on fermentation and the thermal properties of the sample. In addition, samples were subjected to a 17-h sterilisation treatment using ethylene oxide gas (EOG) to ascertain the effects of fermentation. EOG is widely used to sterilise medical devices and precision machinery, and kill microorganisms [10]. Moreover, to ascertain the influence of fat and oil, samples was defatted by Soxhlet extraction over a period of 6 h using diethyl ether as solvent.

2.2. Thermogravimetric Differential Thermal Analysis

Thermogravimetric differential thermal analysis (TG-DTA) (Rigaku Thermoplus TG 8120, Rigaku, Tokyo, Japan) was used to study the overall thermal properties of the samples. Each sample (~20 mg) was placed in an open aluminium container (0.05 mL), after which it was heated from room temperature to 600 °C at a rate of 2 °C /min, under a 150 mL/min stream of air.

2.3. Calvet Calorimetry

A Calvet calorimeter (Setaram C80, France) was used for additional thermal experiments. The C80 calorimeter is a highly sensitive twin-type heat-flux calorimeter. It can reduce the effects of the vaporisation of water contained in the sample by using a high-pressure closed vessel (8 mL), and can take measurements from room temperature up to 100 °C, which is a temperature range that cannot easily be examined by TG-DTA. Samples (~1.5 g) in sealed vessels were heated from room temperature to 300 °C at a rate of 0.1 °C/min.

2.4. High-Sensitivity Isothermal Calorimetry

We used a highly sensitive isothermal calorimeter (Thermometric TAM-III, Sweden) to examine in detail the low levels of heat generated through the fermentation and oxidation of fatty acid esters. The TAM calorimeter measures the amount of heat generated by microbial fermentation on the nanoscale. Samples (1.0 g) were placed in sealed containers (4 mL), which were isothermally maintained at 50 °C for 3 d.

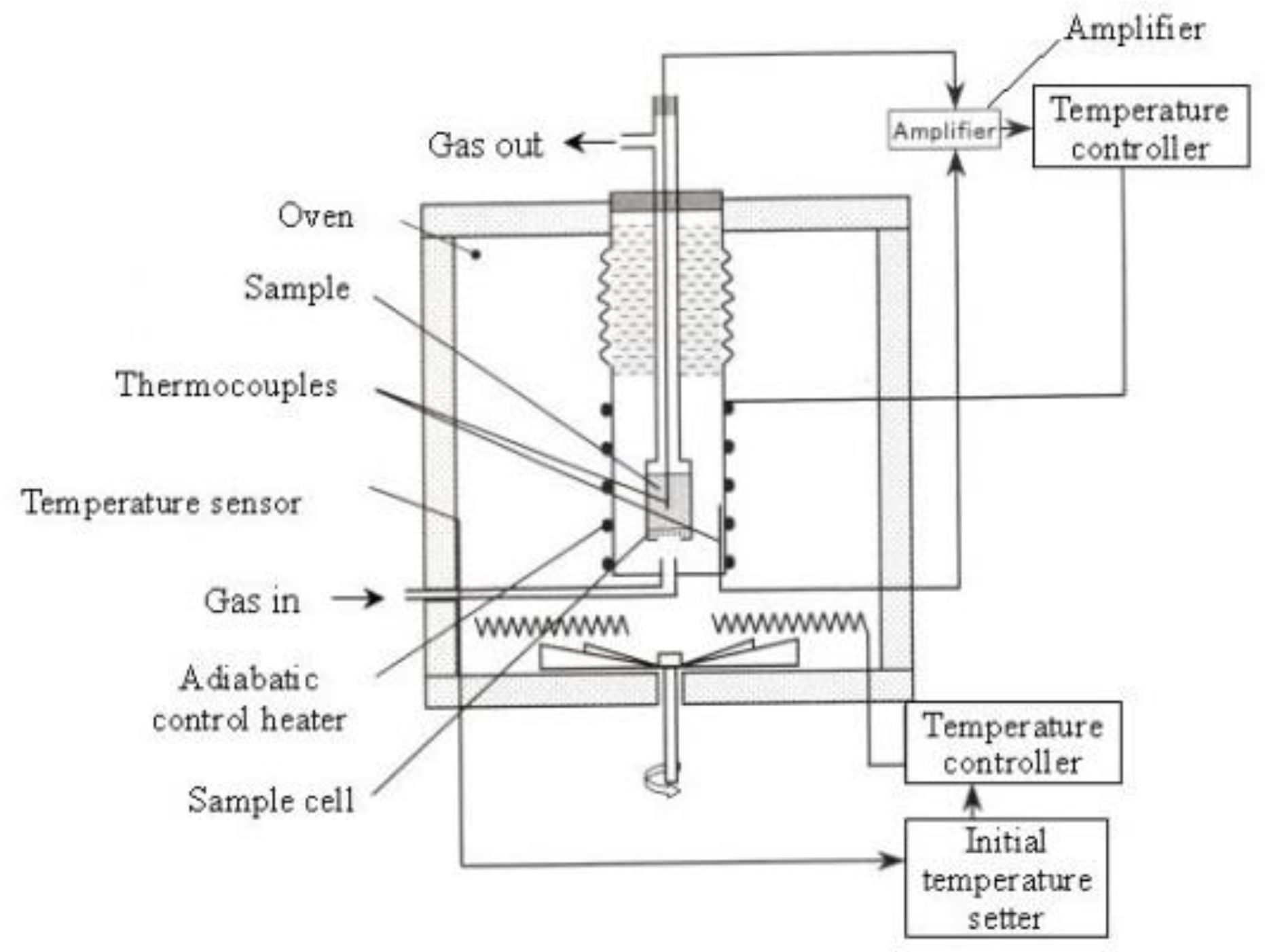

2.5. Spontaneous Ignition Testing (under Adiabatic Conditions)

To consider the transition from self-heating to spontaneous ignition, a more advanced detector is required. We used a spontaneous ignition tester (SIT) (Shimadzu SIT-2, Kyoto, Japan) to test for materials that are susceptible to spontaneous ignition under adiabatic conditions [11], in which heat loss to the surroundings is minimised, and the heat liberated from exothermic reactions is used in the self-heating process. Figure 3 shows a schematic diagram of the device. After setting the oven temperature of the tester, each sample (~1.5 g) was placed in the oven under a 5 mL/min flow of nitrogen to prevent the sample from reacting. Air, at a rate of 2 mL/min, was then introduced, and the temperature was recorded. If no temperature increase was observed after 120 h at the set temperature, the test was considered to be complete.

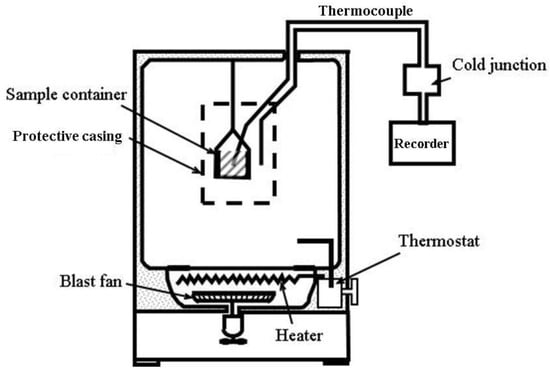

2.6. Wire-Mesh Cube Testing (Isothermal Conditions)

In order to understand the circumstances surrounding spontaneous ignition, wire-mesh cube testing (Figure 4) was performed in accordance with the United Nations Recommendations on the Transport of Dangerous Goods. This test was designed to determine the risk of fire when a solid material retains heat in air at a given temperature [12]. To study combustion behaviour and hazards following the onset of thermal decomposition, a 400-g sample, which is equivalent to approximately 800 times the weight used during spontaneous-ignition testing, was placed in a cubic sample vessel (wire basket) with side lengths of 10 cm, after which it was placed in a constant-temperature bath. The temperature of the central section of the vessel was measured to determine whether or not the temperature increased by over 60 °C within 24 h, compared to the pre-set temperature. Testing was terminated if no temperature increase, from the pre-set ambient temperature, was observed over a 24-h period.

2.7. Bomb-Type Calorimeter

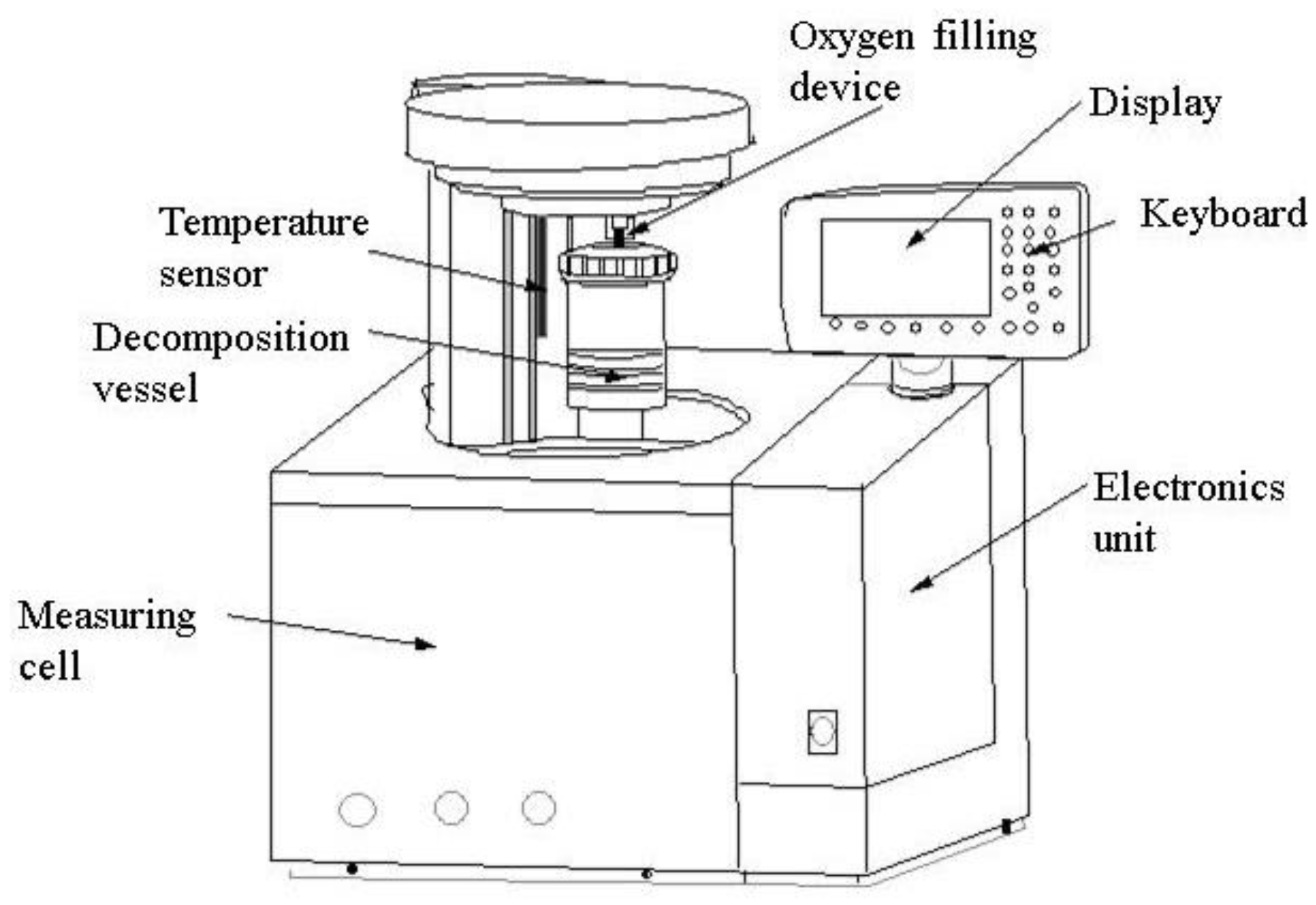

In order to understand the combustion severity and risk of fire in a sample, the heat of combustion was measured using a bomb-type calorimeter (IKA C2000, Germany). The sample (~500 mg) was completely burned inside the bomb cylinder, which was filled with hyperbaric oxygen. The heat generated was completely absorbed by the water in the tank surrounding the cylinder, from which the heat of combustion was measured. A schematic diagram of the C2000 calorimeter is shown in Figure 5.

2.8. Gas Chromatography

To study gas emissions during storage, the sample material (~50 g) was placed in an airtight 1-L glass bottle and placed in a thermostatically controlled oven. The gas produced was collected and examined using a gas chromatograph (Shimadzu, GC-14B, Japan) fitted with a thermal conductivity detector (TCD, 200 °C, 50 mA sensitivity, 20 mL/min Ar carrier gas); a standard gas (CO: 0.0500%, C₂H₆: 0.995%, H₂: 0.097%, CO₂: 0.996%, CH₄: 0.987%) was used for calibration purposes. SHINCARBON-ST (Shinwa Chemical Industries, 2.0 m × 3.0 mm φ, Kyoto, Japan) was used for the column. The column temperature was increased from 40 °C (6 min hold) to 80 °C (12 min hold) and then to 150 °C (10 min hold) at a rate of 40 °C/min. An air cylinder (O₂: 21%, N₂: 79%) was used as the standard gas for the determination of O2 and N2; a TCD (200 °C, 30 mA sensitivity, 20 mL/min Ar carrier gas) and a 30 °C isothermal column temperature were used.

3. Results and Discussion

3.1. Thermogravimetric Differential Thermal Analysis

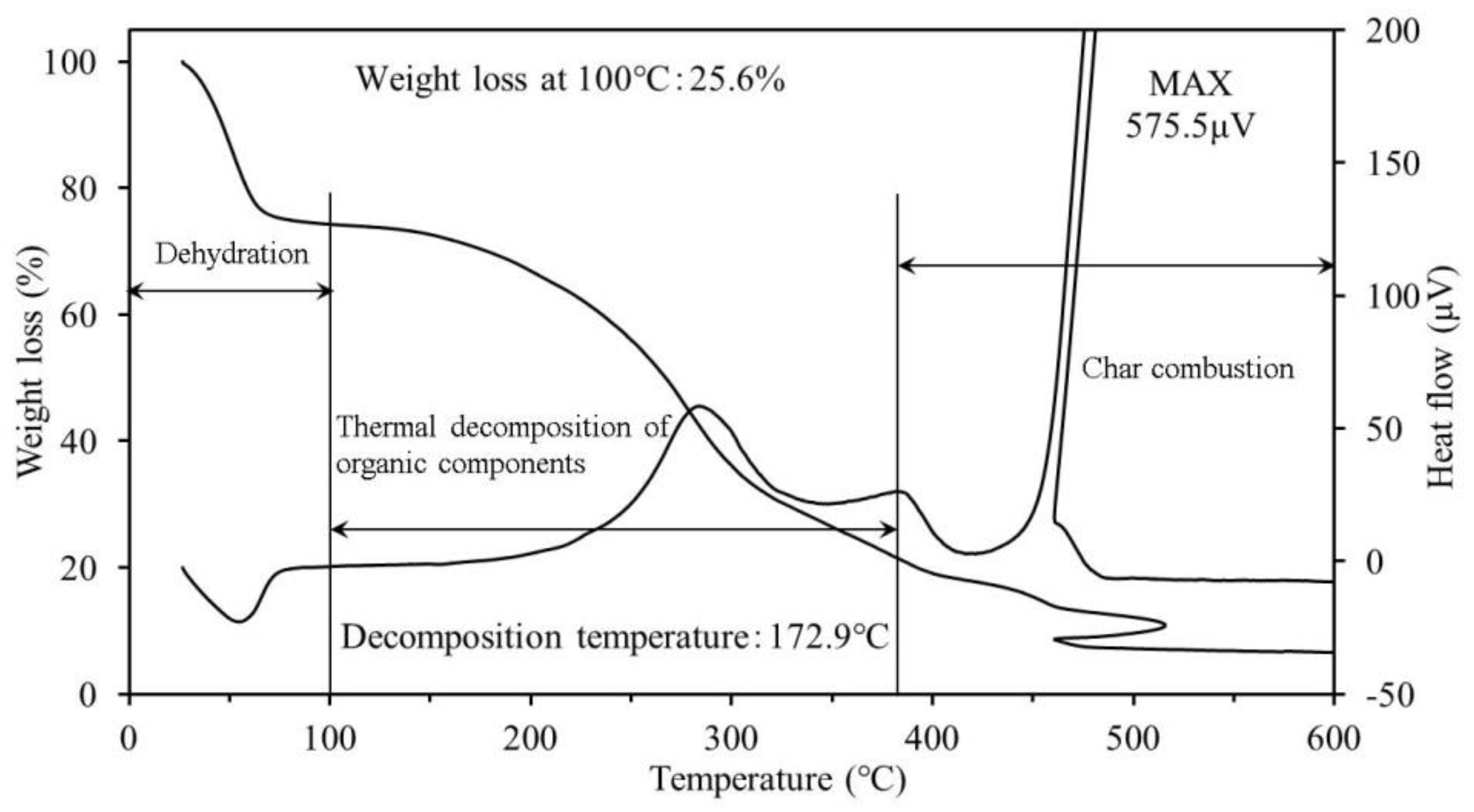

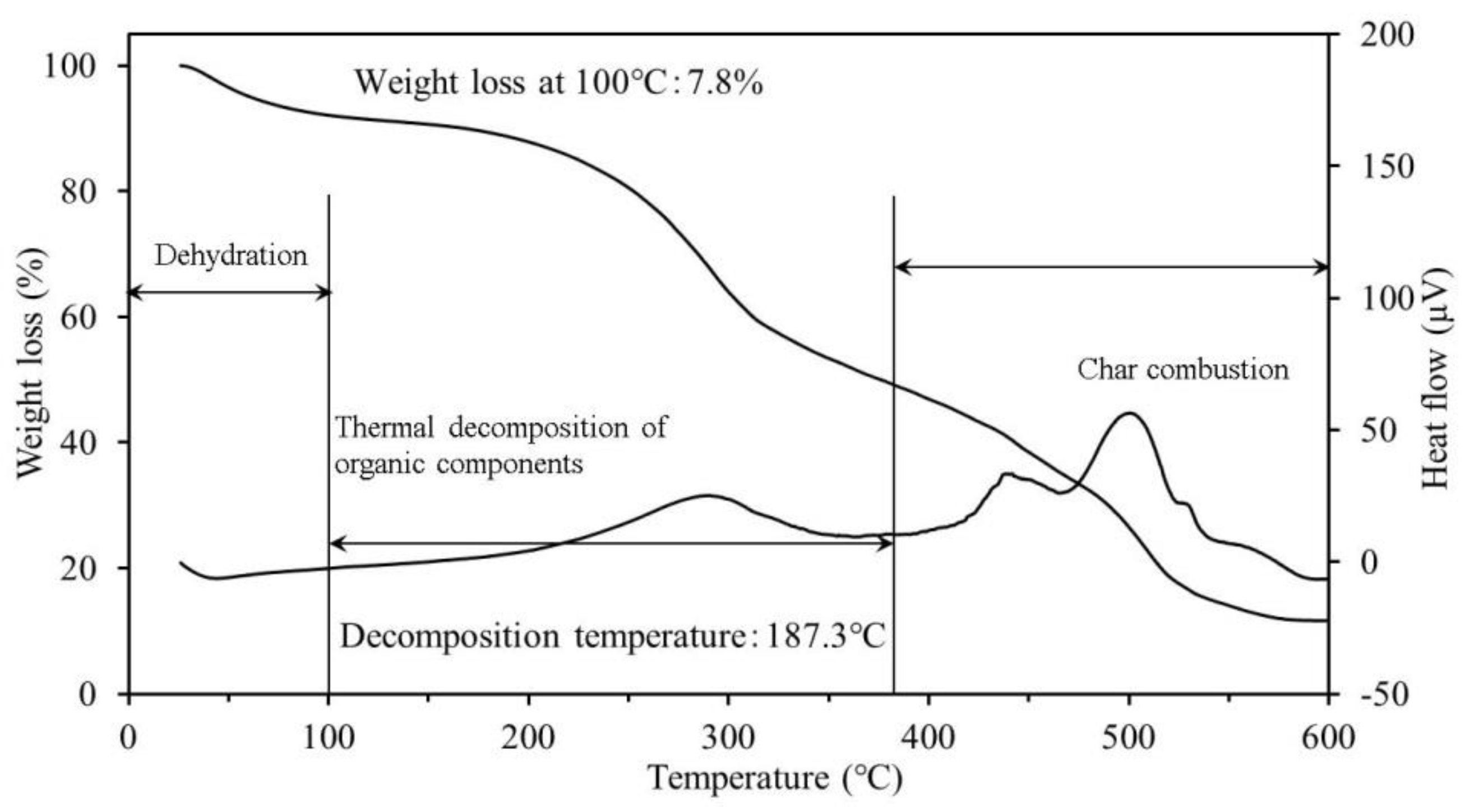

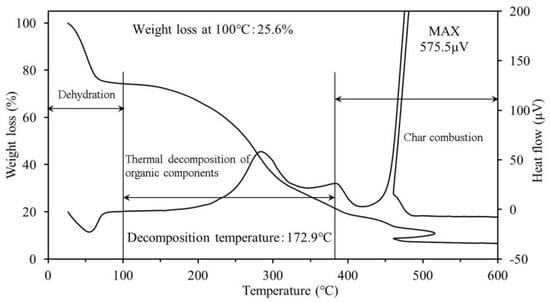

Figure 6 and Figure 7 display TG-DTA traces for SSSR and fishmeal, respectively, recorded at a scan rate of 2 °C/min. The decomposition temperatures correspond to the points at which the DTA traces shift by 0.1 μV (0.01 °C) in the heat-generation direction from the constant baseline.

The downward direction in the DTA trace indicates an endothermic reaction, while the upward direction corresponds to an exothermic reaction. The thermal decompositions of SSSR and fishmeal are divided into three phases. Due to dehydration, a total weight decrease of 26% was observed from room temperature to 100 °C for SSSR, after which organic components decomposed and combusted over the 180 °C to 380 °C range [13,14]. By the end of this phase, a total weight loss of about 70% was observed. The final stage is consistent with the decomposition and combustion of carbide, to leave a residue that weighed only 10% of the original sample weight.

Meanwhile, fishmeal displayed a 7.8% dehydration loss from room temperature to 100 °C. Overall, fishmeal lost mass at a lower rate than SSSR, resulting in a smaller heat generation peak, but in a higher amount of final residue. Shifts that generated heat were observed at 172.9 °C and 187.3 °C for SSSR and fishmeal, respectively. These are, theoretically, the points at which combustion begins [15].

3.2. Calvet Calorimetry

The C80 calorimeter is more sensitive than the TG-DTA system; consequently, a lower scan rate was used. As a result, detailed thermal-behaviour information, including the existence of low levels of heat generated at temperatures ≤100 °C, which are difficult data to obtain by TG-DTA, can be obtained with the C80 calorimeter.

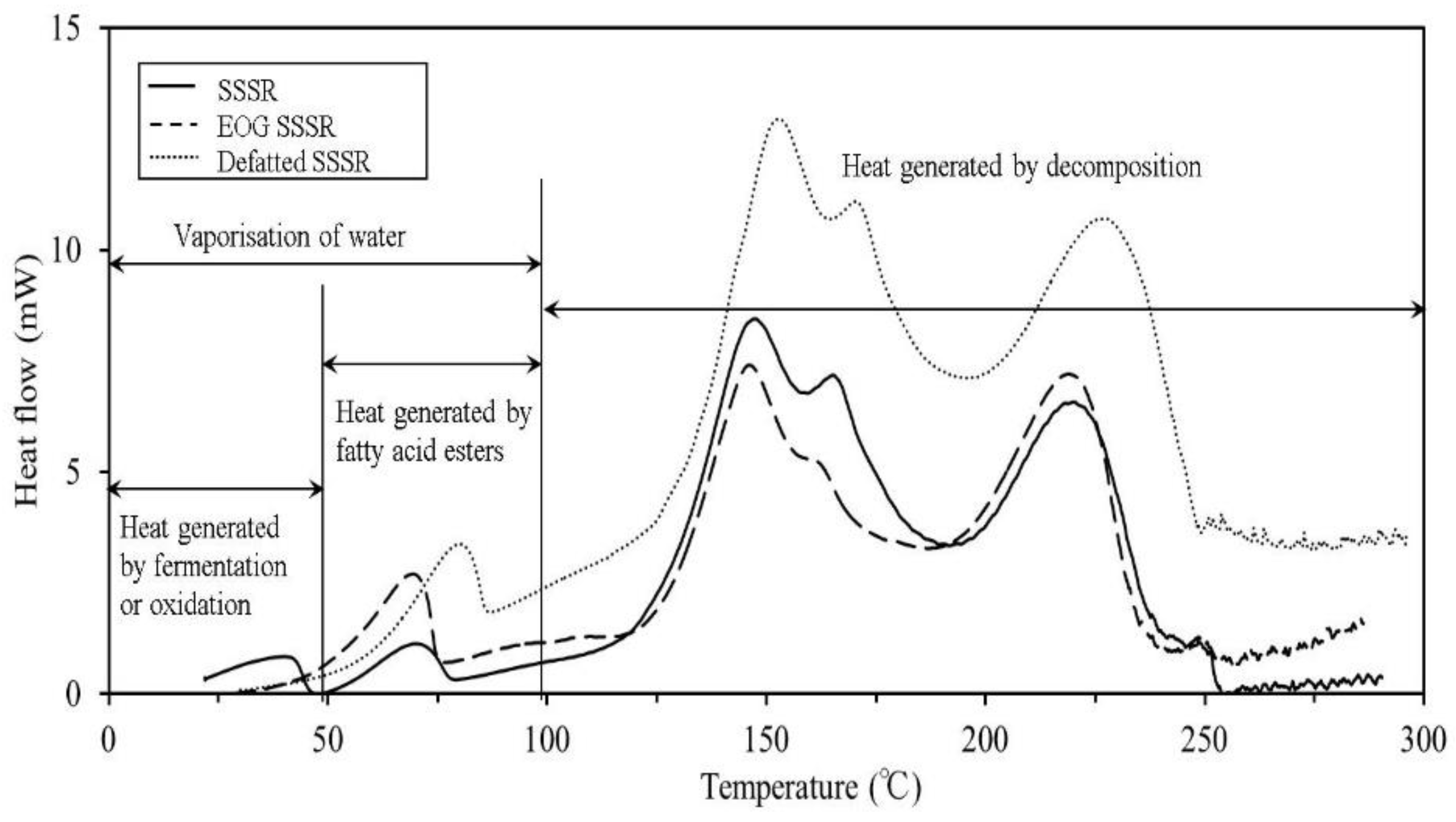

Figure 8 and Figure 9 show C80 calorimetry results at a scan rate of 0.1 °C/min; the heat-generation onset temperatures are summarised in

Table 2. Heat-generation onset temperatures and total heat generated for SSSR (soy sauce squeezing residue) (room temperature to 100 °C).

Sample	Heat-Generation Onset Temperature (°C)
SSSR	27.8
EOG-treated SSSR	53.8
Defatted SSSR	55.1

and

Table 3. Heat-generation onset temperatures and total heat generated for fishmeal (room temperature to 100 °C).

Sample	Heat-Generation Onset Temperature (°C)
Fishmeal	41.2
EOG-treated fishmeal	42.3
Defatted fishmeal	51.3

for SSSR and fishmeal, respectively. The exothermic onset temperature was taken as the temperature at which the rate of generated heat increased to 0.005 mW.

The heat-generation onsets of unprocessed SSSR and fishmeal were below 30 °C. These results show that a fire can be caused through spontaneous ignition when conditions are conducive to heat accumulation, even when the materials are stored at temperatures near room temperature. Furthermore, the likelihood of reaching self-heat-generation temperatures is high when the rate of heat generated by fermentation and oxidation exceeds the rate of heat released externally.

No heat was generated between room temperature and 50 °C for the EOG-treated and sterilised SSSR, and for the SSSR defatted by diethyl ether. We attribute the result obtained for the defatted sample to the diminishment of fermentation microorganisms during the defatting process.

With regards to the EOG-treated and sterilised fishmeal, the heat-generation onset temperature was only slightly higher than that of the untreated fishmeal, and the defatted fishmeal exhibited a heat-generation onset temperature that was higher than those of untreated and EOG-treated fishmeal. By comparing the results from the SSSR and fishmeal at the start of the heat-generation period, we conclude that the heat generated by SSSR is largely the result of microbial fermentation, while the heat generated by fishmeal, although influenced by fermentation, is affected more by the oxidation of fat.

We attribute the heat generated in the 50–100 °C range to the oxidation of residual fat that could not be defatted under the present conditions, and to the oxidation of other components [16]. The heat generated through the oxidation of fatty acid esters was observed over the 80–100 °C temperature range for all of the samples. Above 100 °C, the observed generation of heat is assumed to be caused by decomposition [13,14].

3.3. High-Sensitivity Isothermal Calorimetry

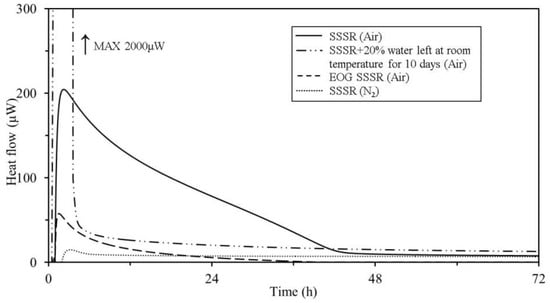

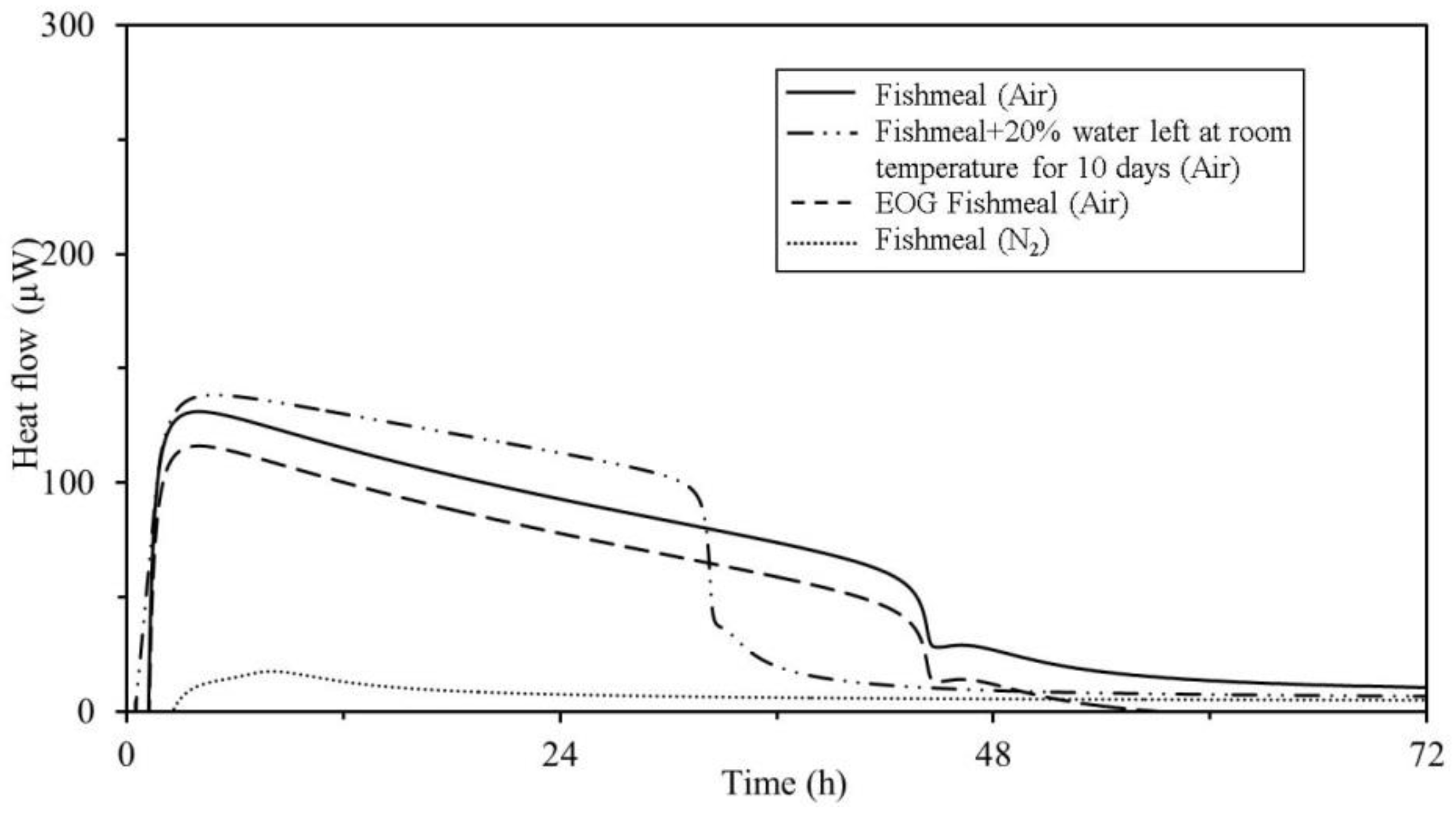

The results from the TAM-calorimetry experiments are shown in Figure 10 and Figure 11 for SSSR and fishmeal, respectively, while

Table 4. Heat generated in SSSR at 50 °C. EOG: ethylene oxide gas.

Sample	Heat Generated (J/g) 0–24 h	Heat Generated (J/g) 24–72 h	Heat Generated (J/g) 0–72 h
SSSR (Air)	11.1	4.2	15.3
SSSR + 20% water left at room temperature for 10 d (Air)	14.4	2.5	16.9
EOG SSSR (Air)	2.6	1.3	3.9
SSSR (N2)	0.7	1.2	1.9

(SSSR) and

Table 5. Heat generated in fishmeal at 50 °C.

Sample	Heat Generated (J/g) 0–24 h	Heat Generated (J/g) 24–72 h	HeatGenerated (J/g) 0–72 h
Fishmeal (Air)	8.2	7	15.2
Fishmeal + 20% water left at room temperature for 10 d (Air)	11.6	5.3	16.9
EOG fishmeal (Air)	10.6	4.9	15.5
Fishmeal (N2)	0.9	1	1.9

(fishmeal) summarise the amounts of heat generation over 0–24 h and 24–72 h time periods, and the combination of the two (i.e., 0–72 h). The TAM-calorimeter holding temperature was set to 50 °C, because microbial activity occurs at approximately this temperature and gradually decreases with increasing temperature [17]. In addition to experiments performed in a limited-air atmosphere, the same experiments were performed in a sealed sample vessel under nitrogen.

The amount of heat generated by microbial fermentation, which is the primary cause of the heat generated, can be increased further through the addition of water to the sample and allowing it to settle for a prolonged period, which increases microbial activity. Accordingly, the experiment was performed by adding approximately 20% water to a 10-g sample and maintaining 1 g of this sample at 25 ± 5 °C for 10 d.

We observed a decrease in the heat generated by the SSSR sample following EOG treatment, but no such change was observed for the fishmeal. No significant heat was generated when the SSSR or the fishmeal were placed in sealed sample vessels under nitrogen.

Hence, we found that oxygen contributes to heat generation in SSSR and fishmeal at temperatures of around 50 °C. We observed that heat was generated in both SSSR and fishmeal in air immediately after the commencement of the experiment, after which it gradually declined. Although the maximum value of the heat generated by SSSR was higher, the difference between the amount of heat generated by SSSR and fishmeal was not significant. When the experiments commenced following the addition of water to the sample and 10 d of settling, a sharp exothermic peak (2000 μW) was observed for SSSR, but not for fishmeal, immediately.

However, this phenomenon was immediately followed by a converging trend ascribed to microbial proliferation resulting from the addition of water to the sample. Hence, the oxygen in the sealed sample vessel was consumed during the early stages of the experiment. Examination of the results of the experiments conducted under nitrogen, and those following EOG treatment, led to the following conclusions: fermentation has a greater effect in SSSR, whereas oxidation has a greater effect in fishmeal, with respect to the heat generated near 50 °C. This observation is consistent with the C80-calorimetry results.

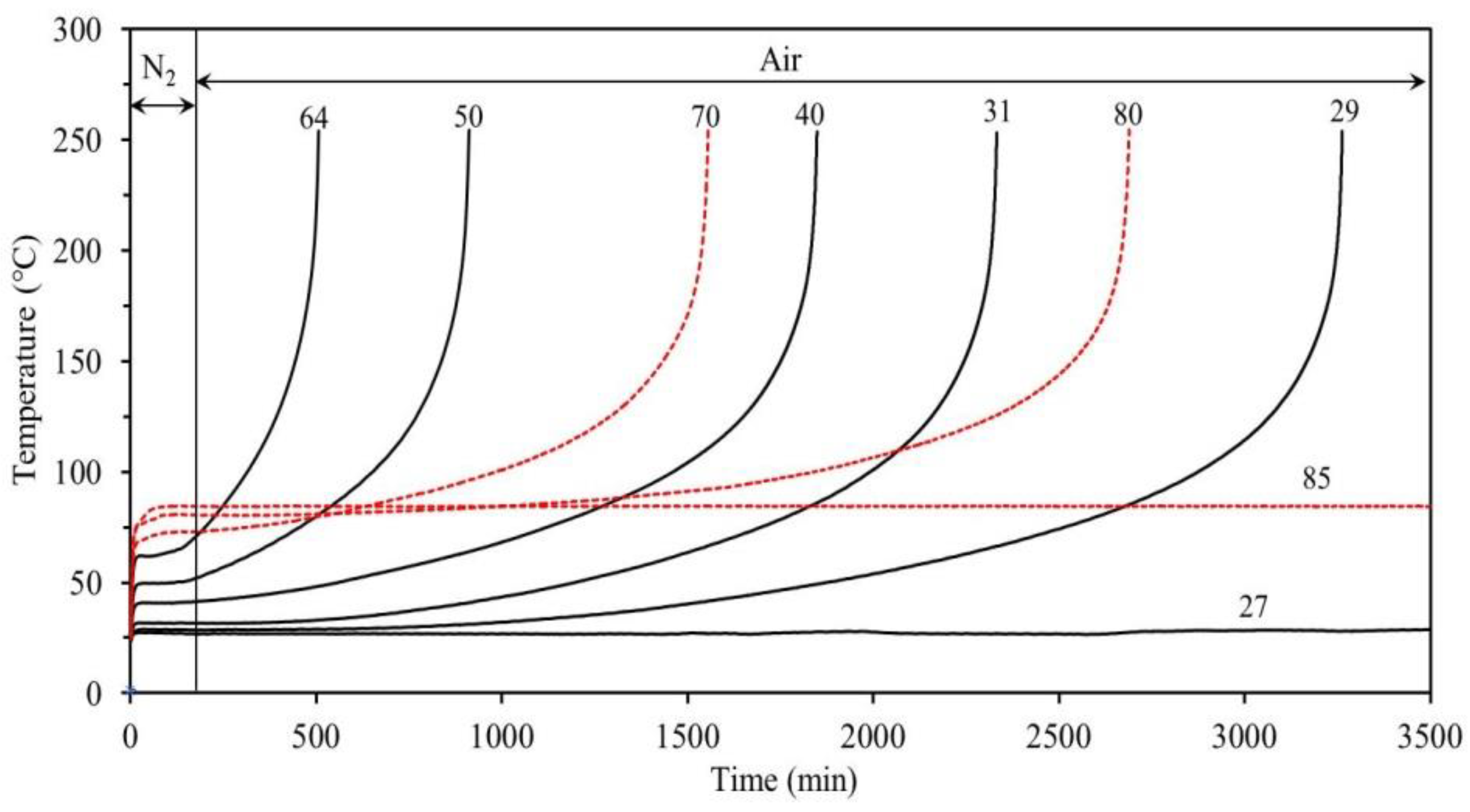

3.4. Spontaneous-Ignition Testing (Under Adiabatic Conditions)

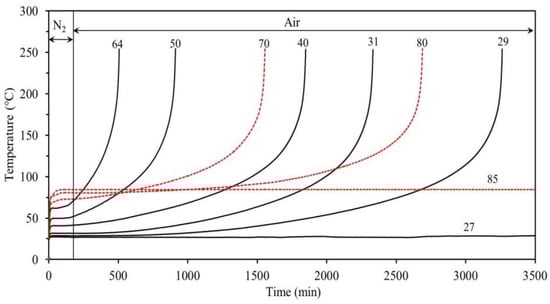

The C80 and TAM-calorimetry results strongly suggest that SSSR and fishmeal generate heat through fermentation and oxidation at approximately 50 °C. To examine whether or not the accumulation of generated heat results in an increase in temperature that eventually causes fire, we used a SIT that is capable of reproducing the adiabatic conditions of high-volume storage [11]. Figure 12 and Figure 13 display SIT curves for SSSR and fishmeal, respectively, at various environmental temperatures between room temperature and 100 °C, while Figure 14 and Figure 15 show the analogous curves for initial temperatures between 100–200 °C. A flat SIT curve is observed when no heat is generated from the sample, but a rise in sample temperature is observed as the sample begins to generate heat.

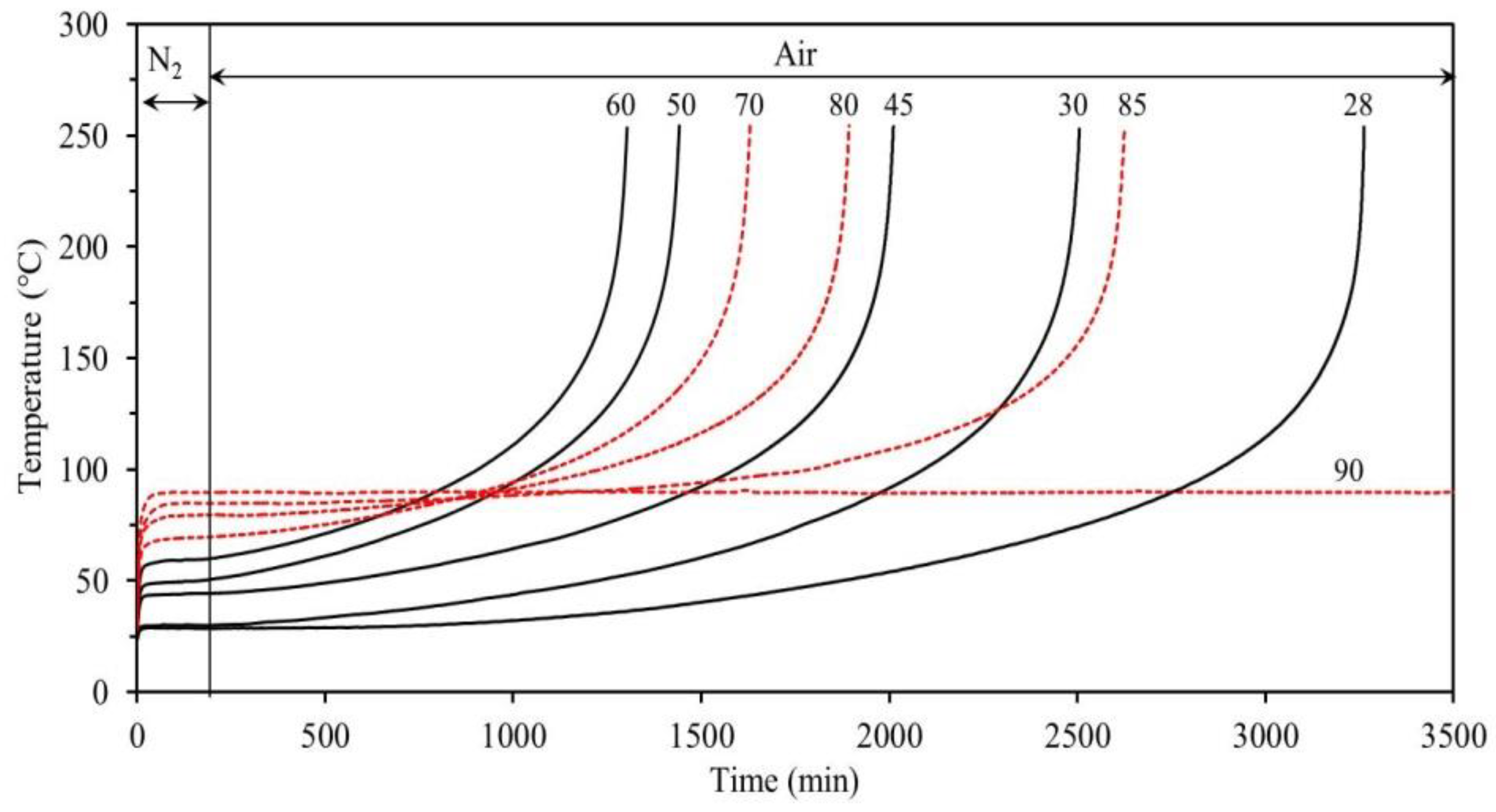

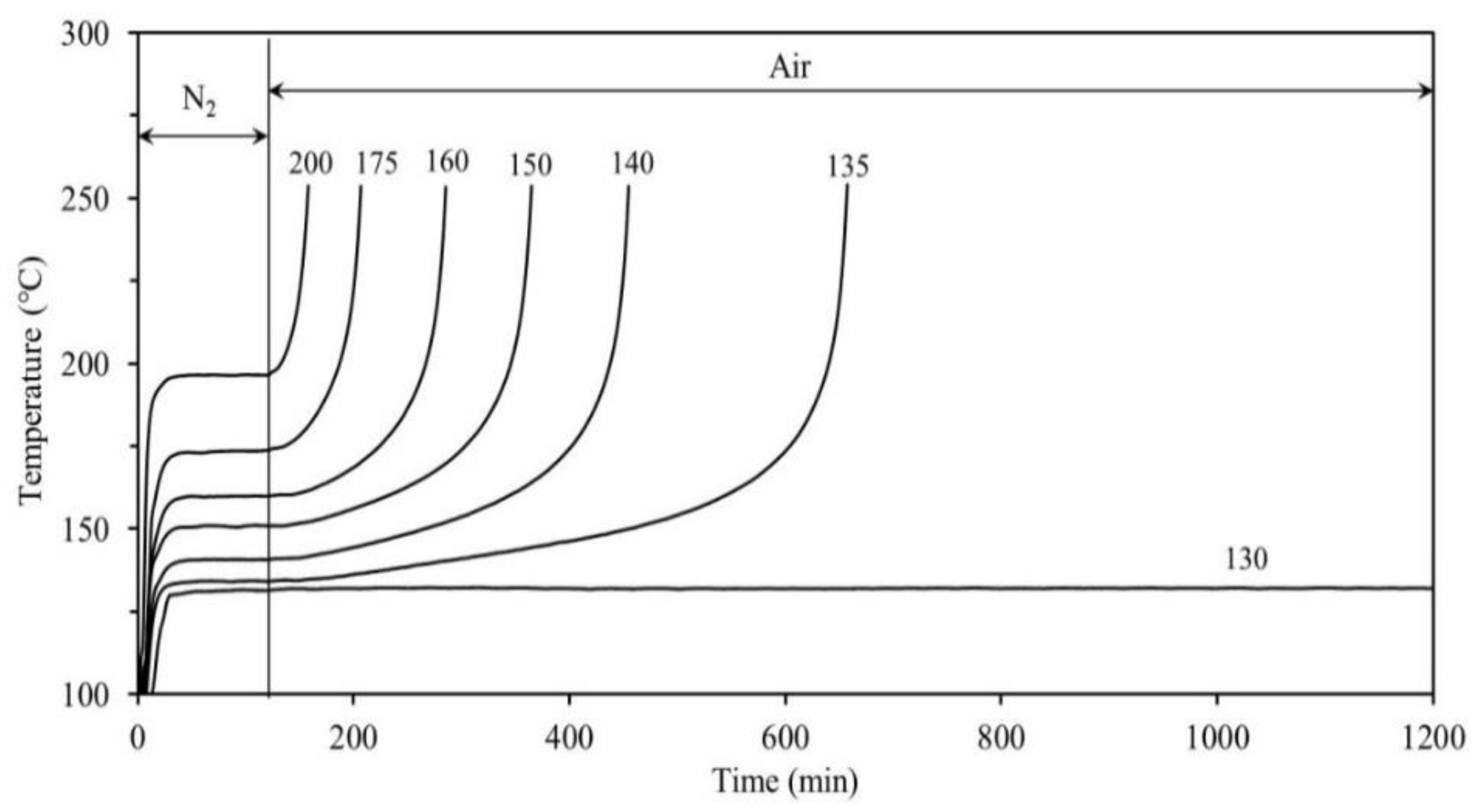

These results reveal that the spontaneous ignition of SSSR or fishmeal depends on the ambient temperature. Under the conditions used in the present study, heat is not generated in the SSSR at ambient temperatures of 27 °C and below. The minimum temperature at which spontaneous ignition was triggered lies between 27–29 °C. Between 29–64 °C, the induction time prior to a decrease in the SSSR temperature decreases as the ambient temperature increases. Conversely, between 65–80 °C, the induction time increases as the ambient temperature increases. Furthermore, between 85–130 °C, the SSSR temperature never rises above the maintained temperature. We believe that the temperature cannot rise within the timeframe of this study due to heat absorption through the evaporation or boiling of water. Moreover, as the ambient temperature is further increased, thermal cracking occurs, and an increase in the SSSR temperature is observed between 135–200 °C.

A comparison of the SSSR and fishmeal results reveals that SSSR requires a shorter time for its temperature to rise following heat generation, even when similar ambient temperatures are maintained. In addition, when either SSSR or fishmeal is maintained at an ambient temperature near 40 °C, its temperature increases to 250 °C within approximately 30 h. Consequently, control of the temperature of industrial waste, such as SSSR and fishmeal, is necessary when large quantities are stored in closed warehouses during summer.

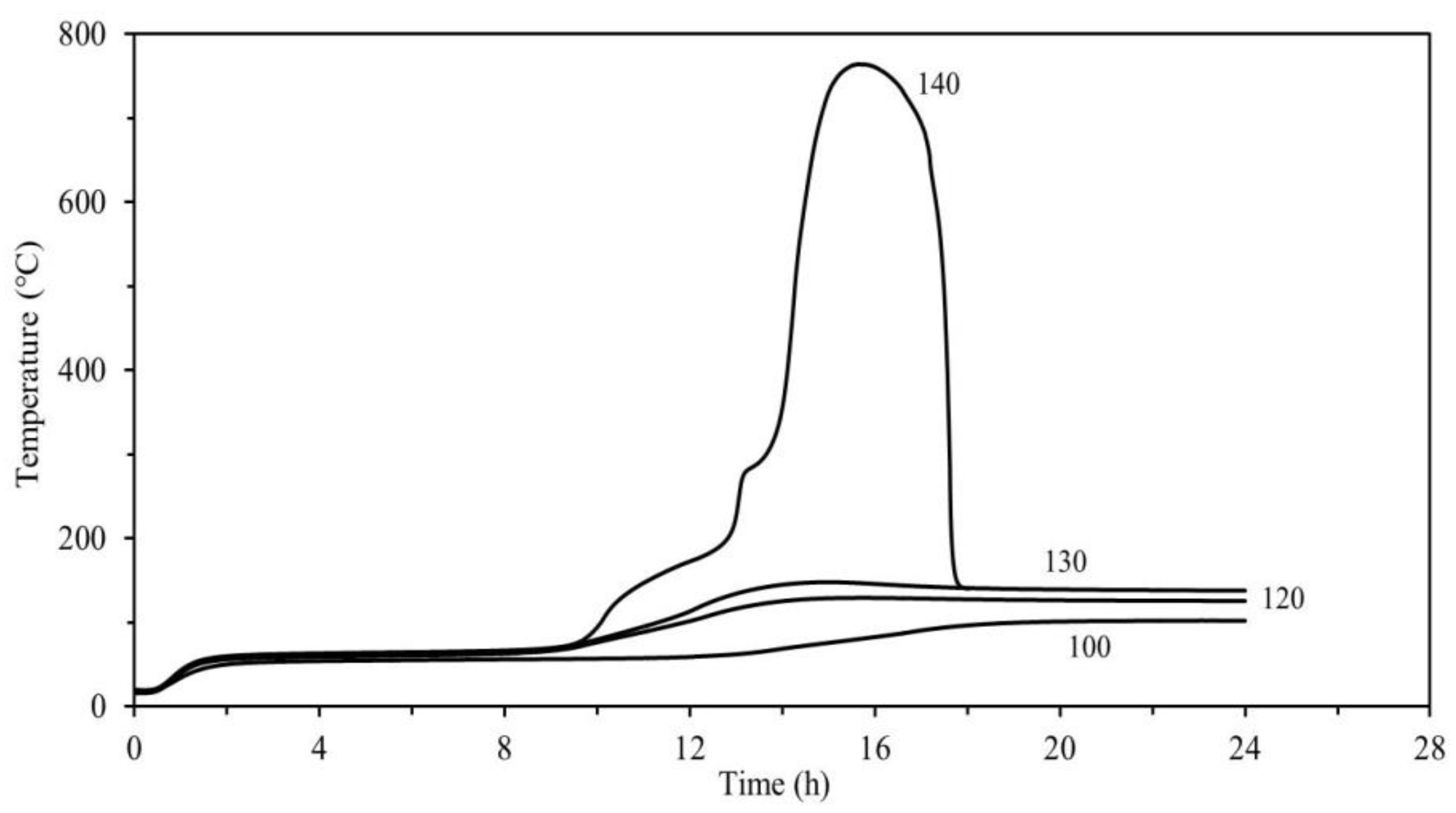

3.5. Wire-Mesh-Cube Testing

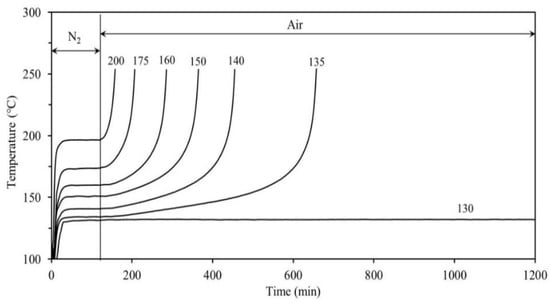

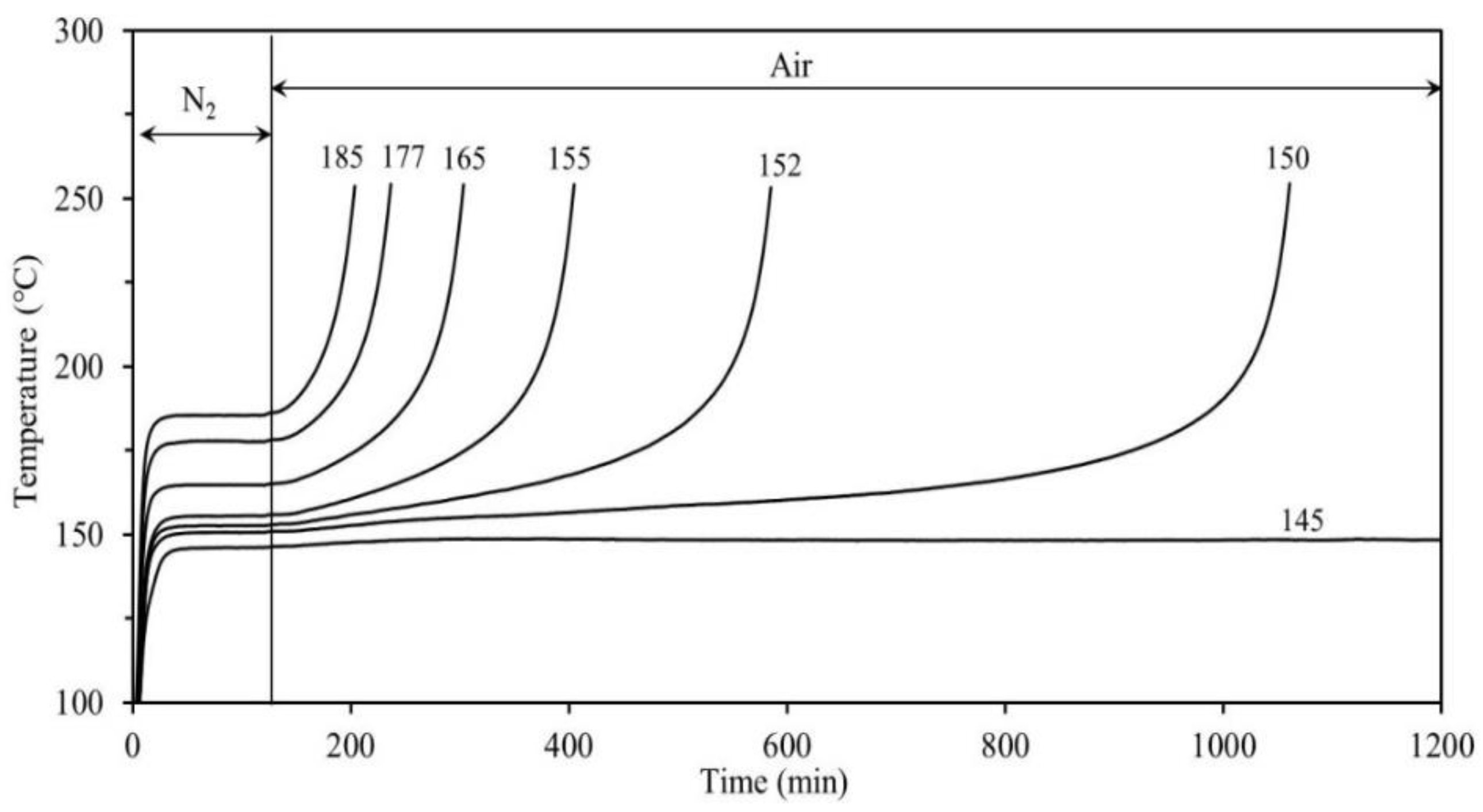

Taking into account the results obtained from the TG-DTA and SIT experiments, we conducted wire-basket testing as prescribed by the United Nations Recommendations for the Transport of Dangerous Goods, in order to study the processes occurring between the onset of thermal decomposition and combustion in greater detail [12].

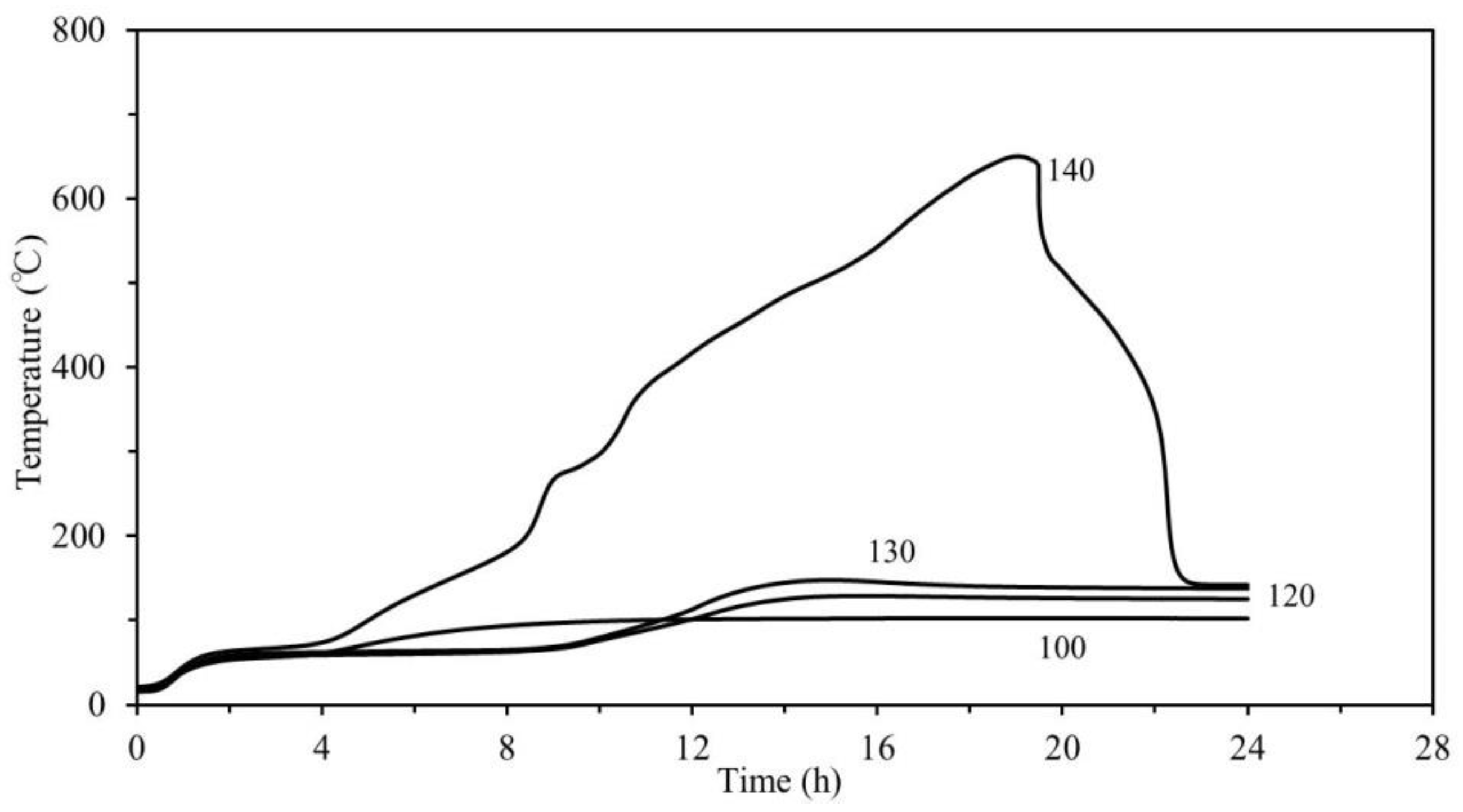

Samples weighing 400 g, which is equivalent to approximately 800 times the weight used during SIT testing, were used in these experiments, the results of which are displayed in Figure 16 and Figure 17 for SSSR and fishmeal, respectively; these traces represent the transitions from thermal decomposition following evaporation to combustion. Since the results reflect the oxidation of organic matter at high temperatures, the heat generated from fermentation at low temperatures is neglected.

Thermal decomposition began at temperatures above 140 °C in both SSSR and fishmeal, which ultimately resulted in combustion. These values were almost identical to those obtained during SIT testing, as shown in Figure 14 and Figure 15 (SSSR: 135 °C; fishmeal: 150 °C).

Possible reasons for the differences between these values and the thermal-decomposition onset temperatures obtained from TG-DTA (SSSR: 172.9 °C; fishmeal: 187.3 °C) include equipment sensitivity, measurement conditions (adiabatic versus non-adiabatic), and differences in sample volume. Moreover, these results, along with the C80-calorimetry results (above 100 °C), indicate that thermal decomposition at these temperatures is likely to be responsible for the initial generation of heat.

There is a risk of combustion when the temperature approaches 140 °C. We observed that the heat generated in fishmeal had an earlier onset compared with that in SSSR at 140 °C. However, the temperature increased rapidly once heat began to be generated in SSSR, ultimately resulting in combustion. Therefore, SSSR carries a greater risk of thermal decomposition leading to combustion than fishmeal.

3.6. Bomb-Type Calorimetry

In order to study the intensity of combustion when fire occurs following the onset of thermal decomposition, we measured heats of combustion using a bomb-type calorimeter.

The heat-of-combustion results obtained using the C2000 calorimeter are listed in

Table 6. Heats of combustion of SSSR.

Run Number	Heat of Combustion (kJ/kg)
	SSSR	Dry SSSR
1	16,690	20,065
2	16,752	20,074
3	16,719	20,003
4	16,728	20,098
5	16,683	20,007
Average	16,714	20,049

and

Table 7. Heats of combustion of fishmeal.

Run Number	Heat of Combustion (kJ/kg)
	Fishmeal	Dry Fishmeal
1	18,660	21,975
2	18,886	21,885
3	19,052	21,996
4	18,893	21,927
5	19,003	21,865
Average	18,899	21,930

for SSSR and fishmeal, respectively. Five experiments were conducted on each of the untreated and dry samples, and average values were obtained. As combustion occurs following evaporation, samples that had been left in a thermostat bath at 25 °C for 10 d, with moisture contents of 5% or less, were tested. The moisture contents of the dry samples were determined by the air-oven method. The average heat of combustion of the untreated SSSR was determined to be 16,714 kJ/kg, while that of the untreated fishmeal was 18,899 kJ/kg. Moreover, the average residual heat of combustion of the dry SSSR was 20,049 kJ/kg, while that of the dry fishmeal was 21,930 kJ/kg. The amount of heat produced by SSSR and fishmeal are higher by 20% and 16%, respectively, as a result of drying. The heat of combustion values of RDF (refuse-derived fuel), sewage-sludge fuel, and wood pellets are 16,800–21,800 kJ/kg, 14,880–23,400 kJ/kg, and 19,700 kJ/kg, respectively; the heats of combustion of SSSR and fishmeal are similar to those of these biomass fuels [18]. Since most of the moisture evaporates during the combustion process following the onset of heat-induced decomposition, the heats obtained after drying are considered to be reasonable reference values.

Moreover, these results, along with those obtained through wire-mesh-cube testing, reveal that the temperature of the SSSR sample rapidly increases following the onset of thermal decomposition, resulting in an increase in the heat of combustion. Therefore, fire is likely to spread more rapidly in SSSR than in fishmeal.

3.7. Gas Chromatography

The thermal-analysis results presented above reveal that fermentation occurs between room temperature and 50 °C. We next considered the effect of temperature on oxygen deficiency. Samples were stored in 1-L glass bottles for 10 d, at temperatures ranging from 5 °C to 50 °C. The effect of fermentation on the gas produced was then investigated by gas chromatography, the results of which are listed in

Table 8. GC data for SSSR stored at various temperatures (5–50 °C).

Sample	Storage Temperature	GC Analysis Results (%)
		O2	N2	H2	CO	CH4	CO2
SSSR	5 °C	18.6	77.4	-	-	-	1.3
EOG SSSR		19.6	77.6	-	-	-	<0.1
SSSR +distilled water20%		12.3	77.8	-	-	-	5.8
SSSR	15 °C	16.2	78.8	-	-	-	2.4
EOG SSSR		19.3	77.4	-	-	-	<0.1
SSSR +distilled water20%		5.3	79.3	-	-	-	15.3
SSSR	25 °C	1.7	79.4	-	-	-	16.1
EOG SSSR		18.9	76.7	-	-	-	0.1
SSSR +distilled water20%		1.7	79.1	-	-	-	18.2
SSSR	30 °C	1.7	81.2	-	-	-	16.6
EOG SSSR		18.9	77.8	-	-	-	0.1
SSSR +distilled water20%		1.5	79.6	-	-	-	18.2
SSSR	40 °C	2.1	79.2	-	-	-	15.3
EOG SSSR		18.4	77.8	-	-	-	0.2
SSSR +distilled water20%		0.9	80.3	-	-	-	16.4
SSSR	50 °C	12.8	80.2	-	-	-	5.6
EOG SSSR		18.6	78.0	-	-	-	0.1
SSSR +distilled water20%		10.2	78.9	-	-	-	7.5

and

Table 9. GC data for fishmeal stored at various temperatures (5–50 °C).

Sample	Storage Temperature	GC Analysis Results (%)
		O2	N2	H2	CO	CH4	CO2
Fishmeal	5 °C	20.4	76.7	-	-	-	<0.1
EOG Fishmeal		20.6	75.2	-	-	-	<0.1
Fishmeal +distilled water20%		19.6	77.1	-	-	-	0.13
Fishmeal	15 °C	20.3	76.8	-	-	-	<0.1
EOG Fishmeal		20.4	77.8	-	-	-	<0.1
Fishmeal +distilled water20%		18.7	77.5	-	-	-	0.6
Fishmeal	25 °C	20.1	77.4	<0.1	<0.1	-	0.5
EOG Fishmeal		19.5	77.7	-	-	-	0.2
Fishmeal +distilled water20%		4.0	83.3	<0.1	<0.1	-	11.6
Fishmeal	30 °C	14.3	81.3	<0.1	<0.1	-	0.9
EOG Fishmeal		19.8	76.5	-	-	-	0.2
Fishmeal +distilled water20%		3.5	82.1	<0.1	<0.1	-	12.3
Fishmeal	40 °C	16.1	79.7	<0.1	<0.1	-	0.6
EOG Fishmeal		20.1	76.8	-	-	-	0.1
Fishmeal +distilled water20%		5.7	80.5	<0.1	0.1	-	10.6
Fishmeal	50 °C	17.2	79.2	<0.1	0.1	-	0.5
EOG Fishmeal		19.2	76.5	-	-	-	0.2
Fishmeal +distilled water20%		6.9	80.2	<0.1	0.2	-	8.5

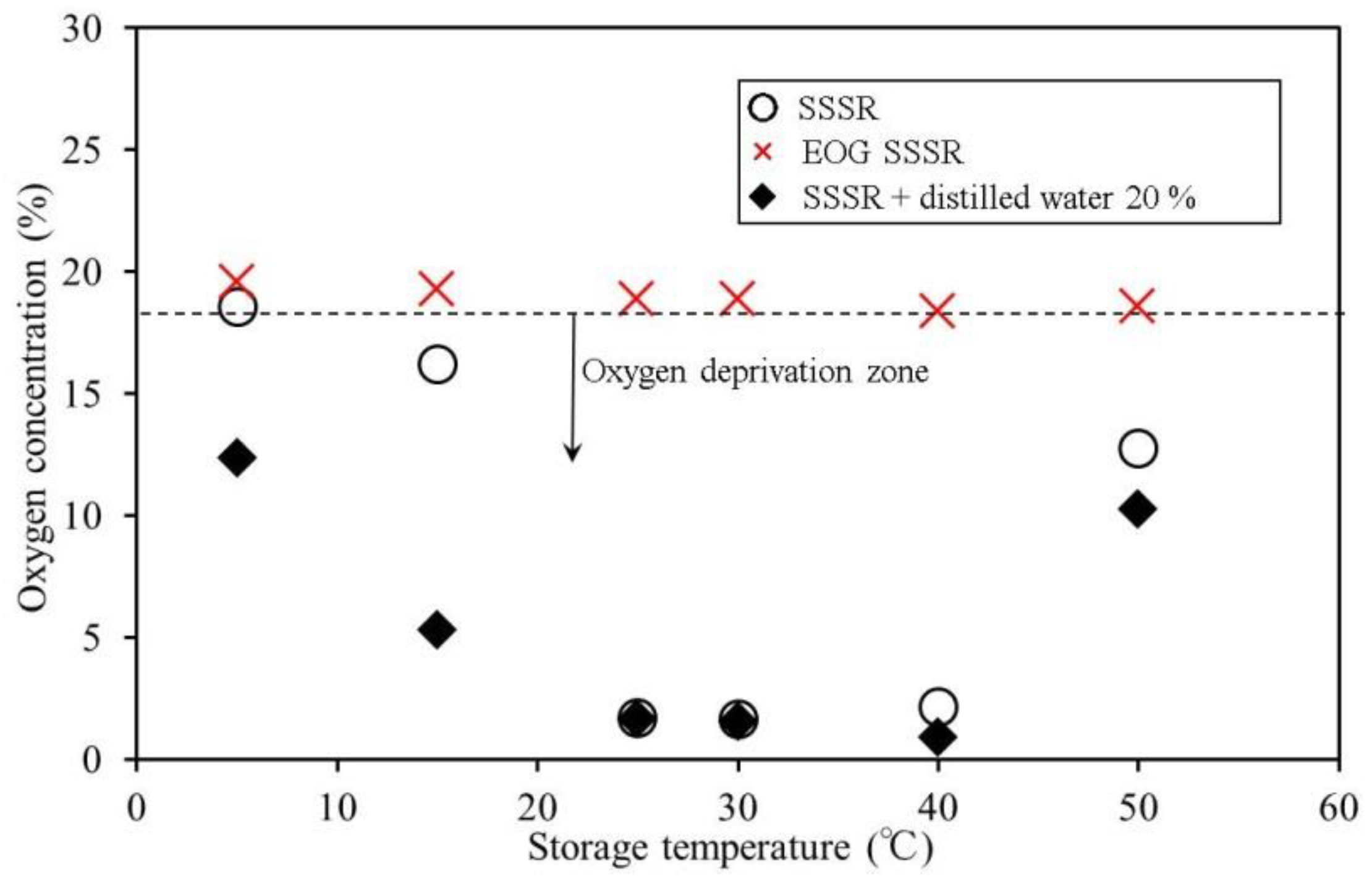

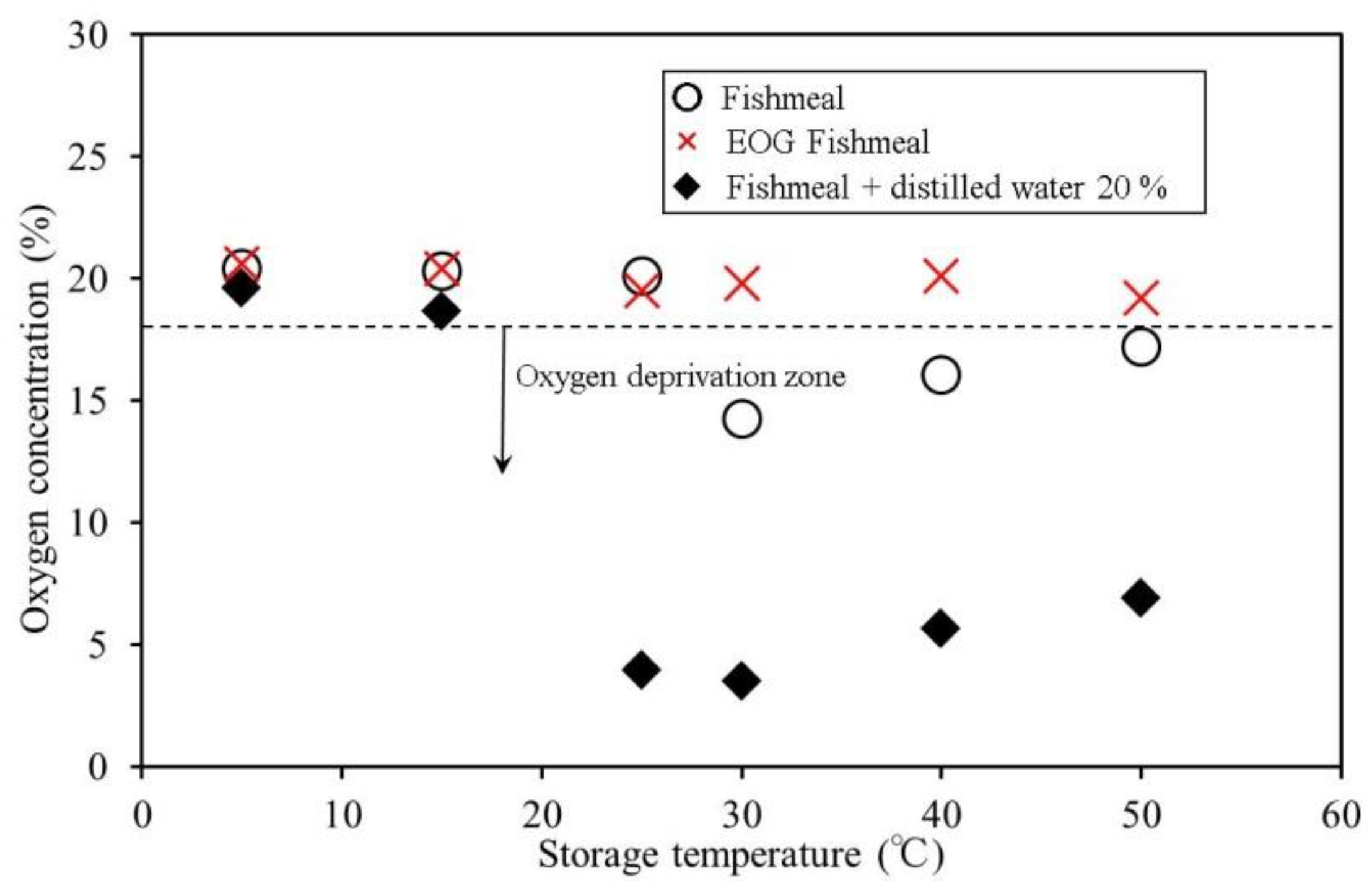

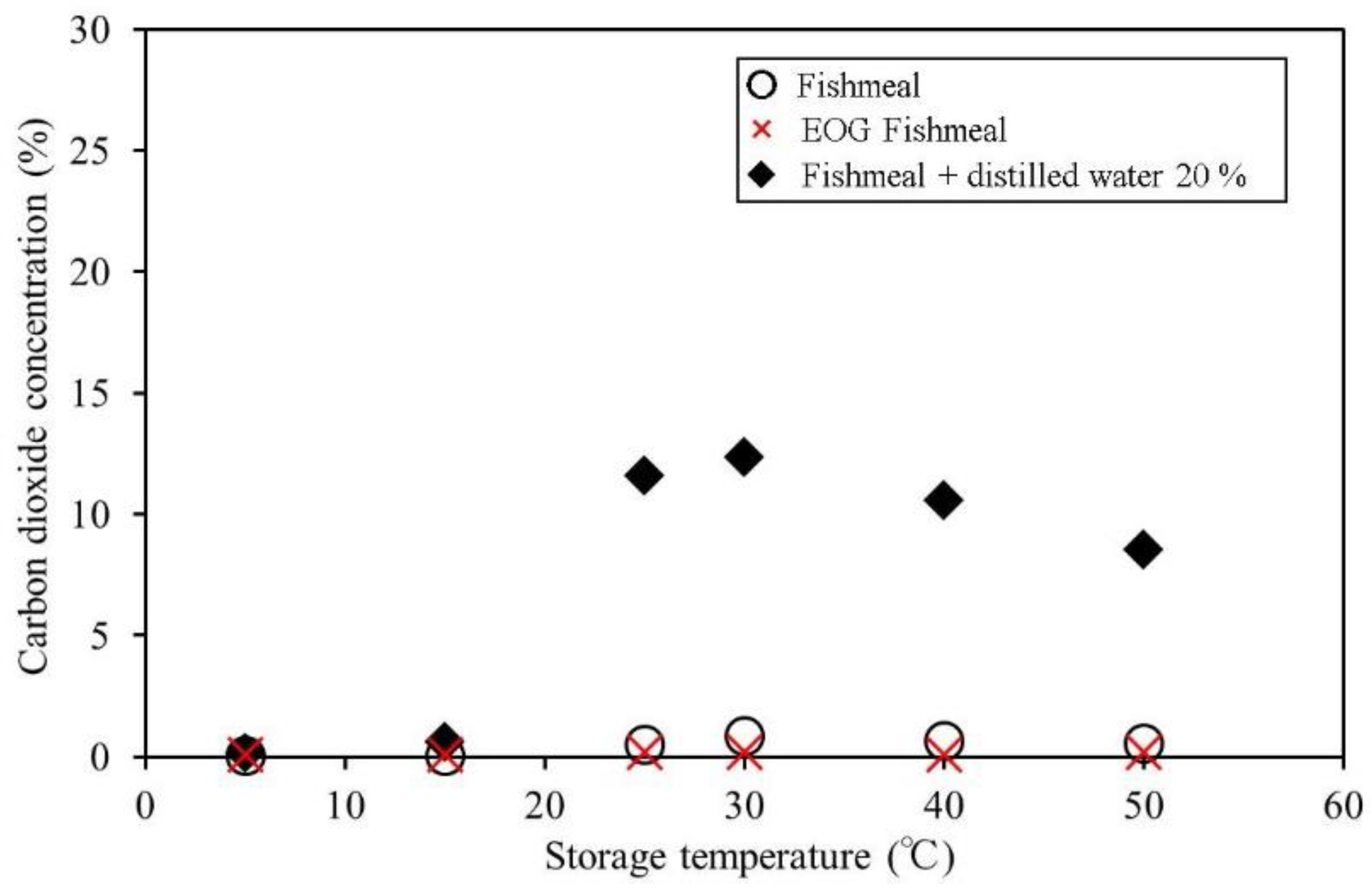

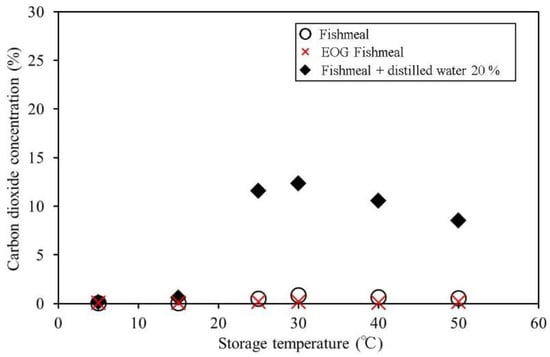

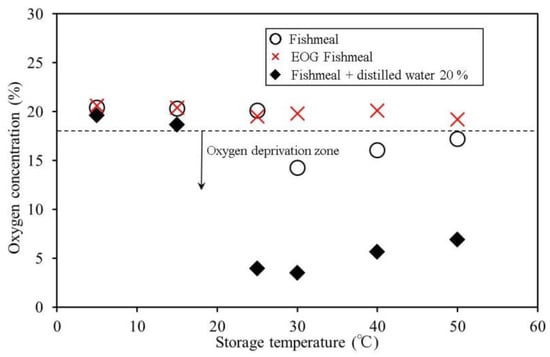

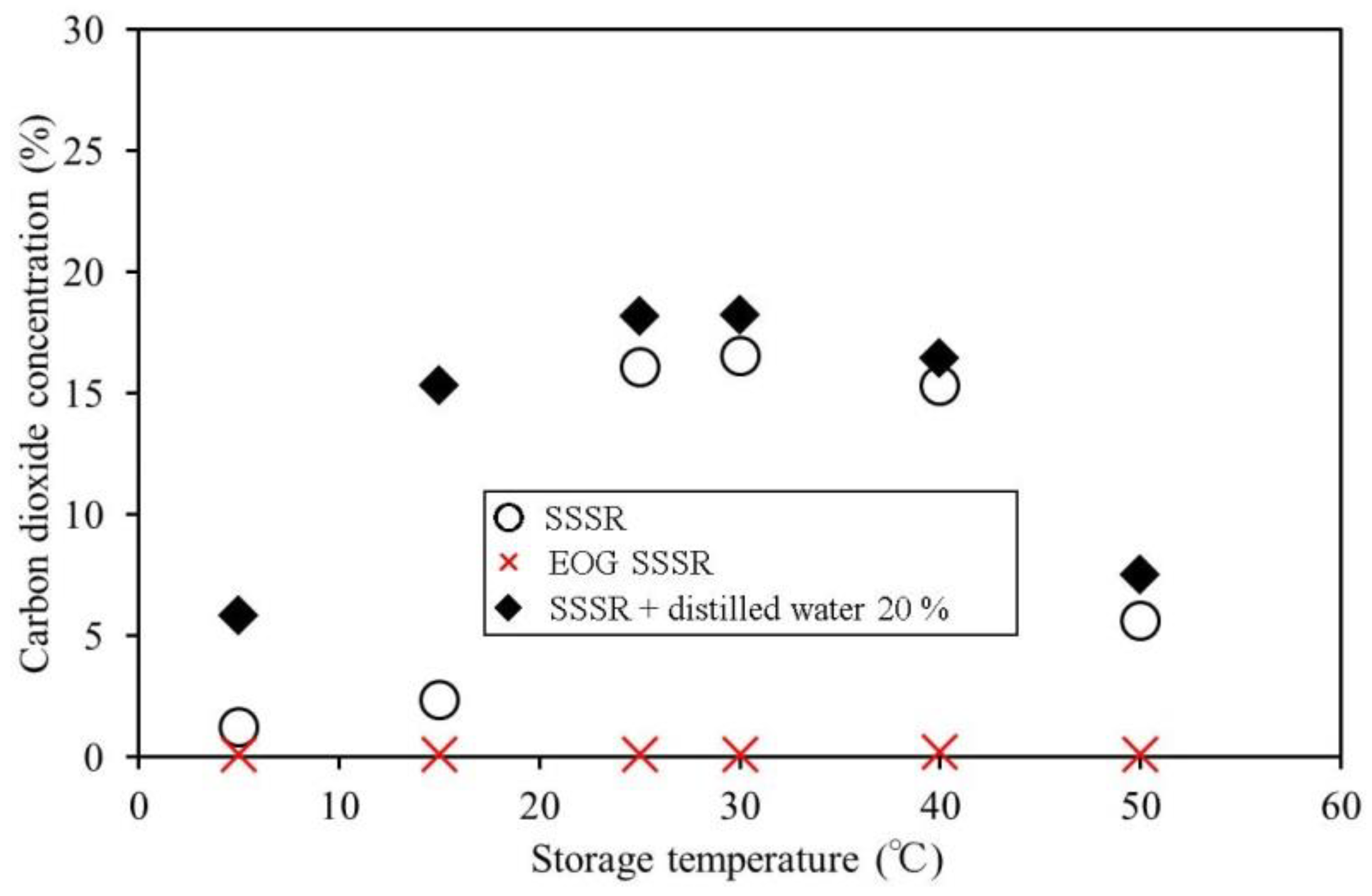

for SSSR and fishmeal, respectively. The oxygen and carbon dioxide concentrations in relation to the holding temperature are summarized in Figure 18, Figure 19, Figure 20 and Figure 21.

Under the conditions used in this study, carbon dioxide accounts for the majority of gas produced during SSSR and fishmeal storage. Aside from carbon dioxide, small amounts of flammable gases, such as carbon monoxide and hydrogen, were also detected from fishmeal. Furthermore, more carbon dioxide was produced when moisture was added to both materials. The amount of carbon dioxide produced increased as the temperature increased in the 5–30 °C range; however, at temperatures above 30 °C, carbon dioxide production was observed to gradually decrease with increasing temperature.

A significant reduction in the amount of generated CO₂ was observed in the EOG-treated sample, and no H₂, CO, or CH₄ was observed. In the case of SSSR, we found that the concentration of oxygen can drop to below critical levels that adversely affect human health, even when stored below 25 °C, especially in samples with high moisture contents. For fishmeal stored below 25 °C, the concentration of oxygen did not decrease to critical levels; however, some sudden drops were observed in fishmeal stored above 25 °C.

When considered alongside the thermal analysis results, fermentation is clearly expected to influence temperature during storage. Therefore, sufficient attention must be paid to humidity and ventilation when storing substances that produce significant amounts of carbon dioxide and decrease oxygen levels, even when stored at low temperatures.

Moreover, based on the thermal and gas analysis results, accidents resulting from oxygen deficiency may occur when a storage facility is well sealed and the amount of oxygen that is circulated is minimal, which results in the consumption of the available oxygen by fermentation, leading to a deficiency of oxygen in the storage facility.

However, fermentation can result in an increase in temperature, leading to the oxidation of fatty acid esters that may subsequently result in a fire when sufficient oxygen is present, and when stored in large deposits in well-insulated facilities. This also applies to storage at temperatures near room temperature.

4. Estimating the Hazards Associated with Spontaneous Ignition and Oxygen Deprivation by Theoretical Means

Methods for estimating the hazards of materials stored in high volumes include calculating their activation energies using a theoretical equation, and determining the relationship between pile height and ambient temperature using Semenov [19] or Frank-Kamenetskii theory [9]. These methods have been used to determine the safety of coal storage areas, among other purposes [20].

In this study, these numerical methods were used to study the hazards of spontaneous ignition and oxygen deprivation associated with SSSR and fishmeal.

4.1. Activation Energy

The data obtained from the SIT experiments were used to calculate activation energies. During the induction period, the temperature increases extremely slowly and in a linear manner over a long time. Since the temperature increases only slightly, and assuming that the heat-generation reaction can be approximated by a zero-order adiabatic process [21], the following equation (Equation (1)) can be established under adiabatic conditions at environmental temperature, T [3].

$$\ln \mathrm{\Delta }t=\frac{E}{R·T}+\ln \left[\frac{\mathrm{\Delta }T·c·\rho }{\mathrm{\Delta }H·A}\right]$$

(1)

Here, Δt (s) is the time required for the temperature of the sample to increase from T (K) to T + ΔT (K); ΔT was obtained from the intersection of the maximum angle of incline and the extension of the holding temperature in each SIT curve; R (J·mol⁻¹·K⁻¹) is the gas constant, and c (J·kg⁻¹·K⁻¹), ρ (kg·m⁻³), and ΔH (J·mol⁻¹) are the specific heat, density, and heat of reaction of the sample, respectively. E (J·mol⁻¹) and A (mol·m⁻³·s⁻¹) are the apparent activation energy and the frequency factor of the rate constant of the specified heat-generation reaction [22].

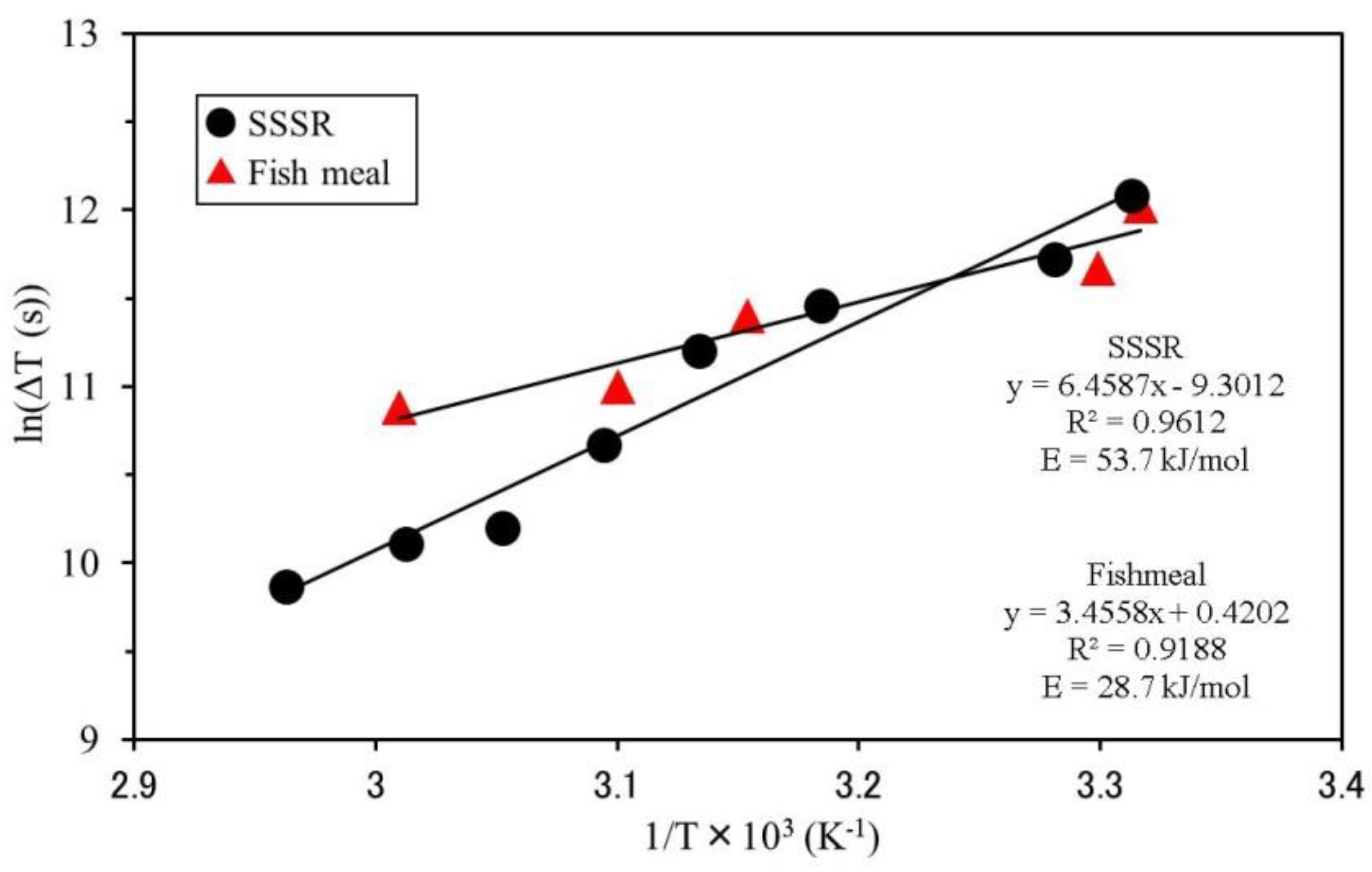

According to Equation (1), ln Δt is linearly related to 1/T (see Figure 22); hence, the slope of this linear relationship, a, and the intercept, b, can be expressed by Equations (2) and (3), respectively.

$$a=\frac{E}{R}$$

(2)

$$b=\ln \left[\frac{\mathrm{\Delta }T·c·\rho }{\mathrm{\Delta }H·A}\right]$$

(3)

Through application of Equation (2), we determined the activation energies for temperatures between room temperature (~25 °C) and approximately 50 °C, which is the temperature range in which, based on thermal and gas analyses, the small amount of heat generated by fermentation and oxidation is estimated to have a potentially high impact on temperature. The results revealed that the activation energy for SSSR was 53.7 kJ/mol, whereas that for fishmeal was 28.7 kJ/mol. Within the temperature range of these calculations, fishmeal exhibited a lower activation energy, indicating that fishmeal requires less energy to stimulate the reaction.

4.2. Relationship between Temperature and Pile Height

SSSR and fishmeal are generally packed in bags that are piled several layers high in cubic formations in warehouses. Knowing that temperature distributions exists in storage, Frank-Kamenetskii theory [9] was used to calculate the relationship between pile height and the temperature at which spontaneous ignition and oxygen deprivation occur.

Regarding the thermal-ignition limit, the Frank-Kamenetskii parameter δc, which is related to the critical ignition temperature of a self-heating ignition process, can be obtained by the following expression:

$${\delta }_c=\frac{\mathrm{\Delta }H·E·r^2·A}{\lambda ·R·T_c^2}\exp [-\frac{E}{R·T_{\mathrm{c}}}]$$

(4)

Equation (4) leads to Equation (5):

$$\ln T_{\mathrm{c}}+\frac{(E/R)}{2T_{\mathrm{c}}}=\ln r+\frac{1}{2}\ln \left[\frac{(\mathrm{\Delta }H·A)(E/R)}{{\delta }_c·\lambda }\right]$$

(5)

and Equation (6) can be derived by substituting Equations (2) and (3) into Equation (5) and eliminating (E/R) and ln (ΔH A):

$$\ln T_{\mathrm{c}}+\frac{a}{2T_{\mathrm{c}}}=\ln r+\frac{1}{2}\left[\ln \right(\frac{a·\mathrm{\Delta }T·c·\rho }{{\delta }_c·\lambda })-b]$$

(6)

In Equation (6), T_c is the critical ambient temperature at which the onset of a reaction is observed, while δc is the previously defined Frank-Kamenetskii parameter (δc = 2.52 for a cube), and the values of a (SSSR: 6.4587, fishmeal: 3.4558) and b (SSSR: 9.3012, fishmeal: 0.4202) were obtained from the activation-energy relationships shown in Figure 22. In addition, ΔT was assumed to be 1 K [23,24], and the parameters listed in

Table 10. SSSR and fishmeal parameters.

Parameter	Units	Value
		SSSR	Fishmeal
Frank-Kamenetskii parameter, δc	Non-dimensional	2.52
Rise in heat, ΔT	K	1
Specific heat capacity, c	J·kg−1·k−1	2.44 × 103	2.63 × 103
Bulk density, ρ	kg·m−3	0.2–0.4
Heat thermal conductivity, λ	J·s−1· m−1·K−1	0.2	0.4

were used in Equation (6).

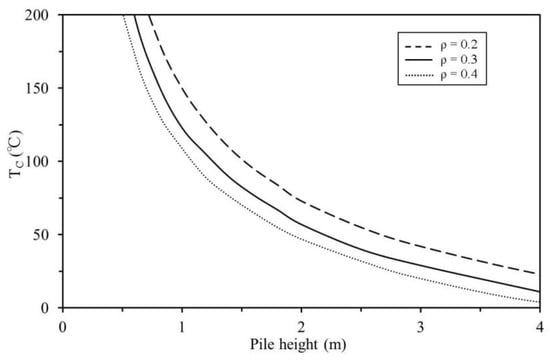

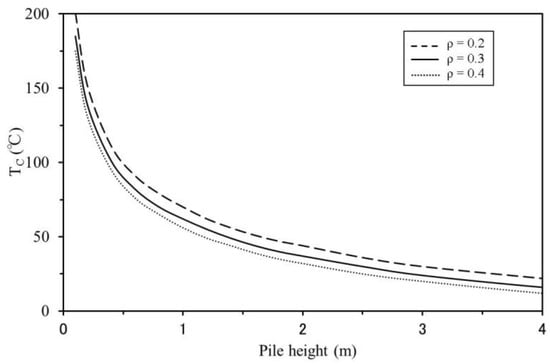

Frank-Kamenetskii theory [9] was used to calculate the critical holding temperature at which the onset of a reaction is observed as a function of pile height; these results are displayed in Figure 23 and Figure 24. We also examined the effect of changes in pile density on the calculated results.

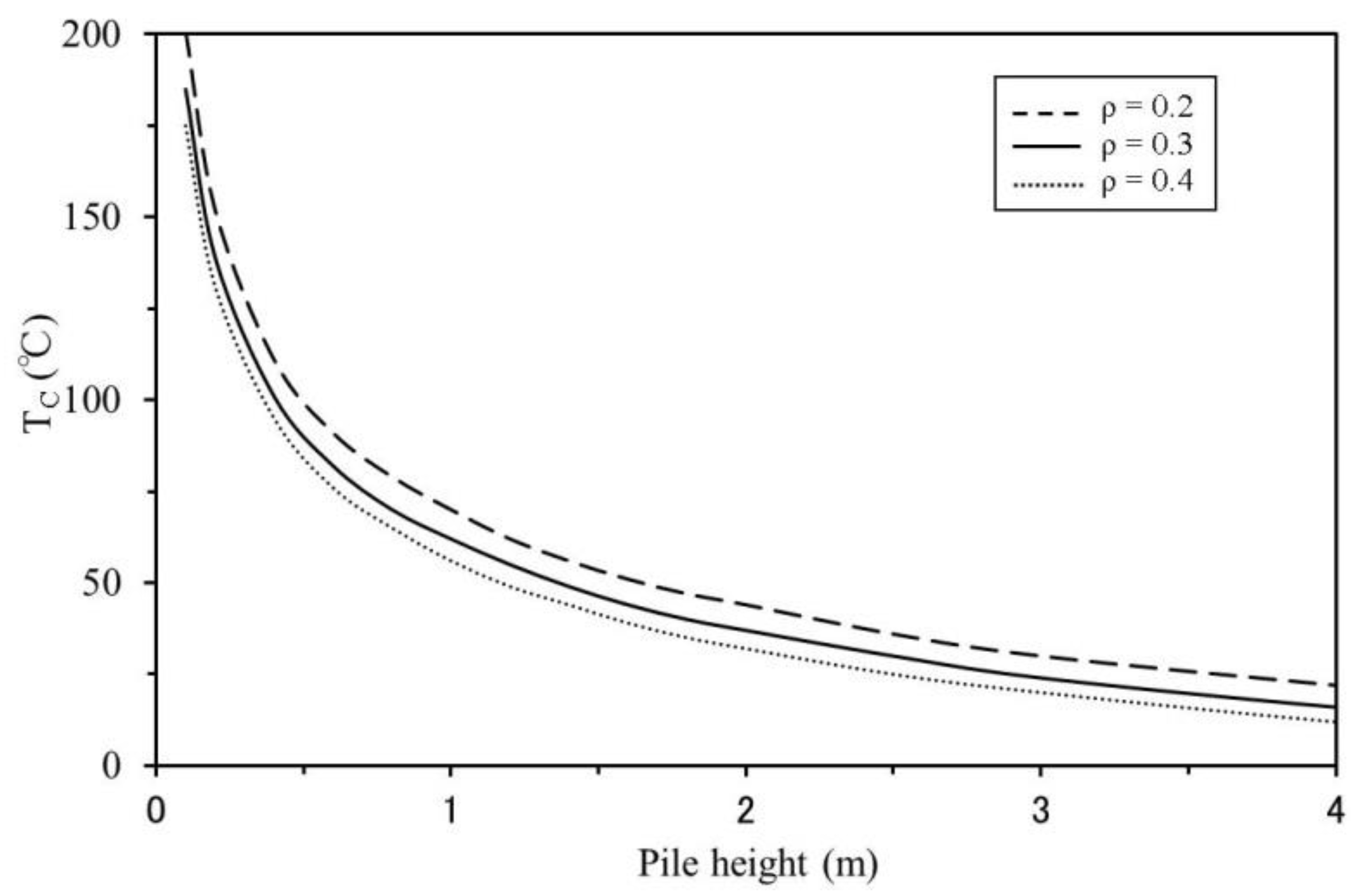

The results reveal that the temperature at which a reaction (heat accumulation and temperature increase) is triggered decreases proportionately with increasing pile height. A comparison of the SSSR and fishmeal data reveal that there is a larger temperature decrease in proportion to increasing pile height in the case of fishmeal compared with SSSR.

Changes in pile density were found to have a greater impact on the relationship between temperature and pile height for fishmeal than SSSR, as shown in Figure 23 and Figure 24. In many instances, SSSR and fishmeal are piled to heights of approximately 3 m or greater in storage areas.

Based on the results of the calculations performed in this study, the critical ambient temperature at which a reaction (heat accumulation and temperature increase) occurs is estimated to be between 20–30 °C, at a bulk density of 0.3 × 10³ kg/m³, and a pile height of 3 m. However, these values are merely estimations, and various factors (e.g., excessive piling, adiabatic conditions, and the volume of outside-air inflow) are likely to affect these values.

The calculated results in this study reveal that sufficient attention should be paid to pile height in order to prevent accidents due to spontaneous ignition and oxygen deprivation in storage areas.

5. Conclusions

Based on the experimental results, the following conclusions are made:

(1)

TG-DTA results reveal that the thermal decomposition of both SSSR and fishmeal occur in three separate phases, but overall, SSSR exhibits a more active heat generation reaction. Moreover, the temperature at which self-heat generation began is about 173 °C in SSSR and 187 °C in fishmeal. Fermentation and oxidation led to an increase in temperature, and once the temperature reached the above-mentioned value, self-heat generation began, leading to fire due to spontaneous ignition.

(2)

The results of the C80 and TAM-calorimetry experiments reveal that fermentation is likely to be involved in generating heat in SSSR; this generation occurs from the commencement of the experiment to a temperature close to 50 °C. As for fishmeal, its fatty acid esters are believed to have a greater impact on the heat generated.

(3)

The results of the SIT-calorimetry experiments reveal that less time is required for the temperature to rise in the SSSR sample compared with fishmeal following heat generation, even when maintained at the same ambient temperature. When SSSR or fishmeal is maintained at ambient temperatures near 40 °C, a temperature increase of up to 250 °C takes place within approximately 30 h. These results indicate that caution should be taken in order to avoid spontaneous ignition, particularly during the summer.

(4)

The wire-mesh-cube-testing and bomb-type calorimetry results reveal that the SSSR temperature rose more sharply following commencement of thermal decomposition, while the observed maximum temperature was also higher than that of fishmeal. Moreover, the heats of combustion of both SSSR and fishmeal were similar to those of existing recycled fuels.

(5)

The GC results reveals that the oxygen concentration can drop below critical safety thresholds in the case of SSSR, even when stored below 25 °C, particularly when the moisture content is high. Although fishmeal stored below 25 °C does not exhibit any decrease in oxygen concentration, some sudden drops were observed when stored above 25 °C.

(6)

Accidents resulting from oxygen deficiency may occur when a storage facility is well sealed and the amount of circulated oxygen is minimal, allowing the oxygen to be consumed by fermentation, and leading to a deficiency of oxygen in the storage facility. However, when sufficient oxygen is present and the material is stored in large deposits in a well-insulated facility, fermentation is likely to cause the temperature to increase, leading to the oxidation of fatty acid esters and a subsequent fire. This also applies to storage temperatures near room temperature.

(7)

Numerical calculations demonstrate that pile height should be considered in order to prevent spontaneous ignition and oxygen deprivation in storage facilities. As a safety measure, workers should be required to carry small gas detectors and, in the case of high storage volumes, the gas concentrations should be recorded when materials are shipped into and out of the storage area. In addition, to prevent accidents due to oxygen deprivation while protecting the health of the workers, the oxygen concentration in the storage area should be monitored with an oximeter that can be read from outside the storage area. Furthermore, the storage area should be ventilated, and its safety verified before entering.
