Analysis of Oil-Injected Twin-Screw Compressor with Multiphase Flow Models

Abstract

Growing demands for energy are motivating researchers to conduct in-depth analysis of positive displacement machines such as oil-injected screw compressors which are frequently used in industrial applications like refrigeration, oil and gas and air compression. The performance of these machines is strongly dependent on the oil injection. Optimisation of oil has a great energy saving potential by both increasing efficiency and reducing other impacts on the environment. Therefore, a three-dimensional, transient computational fluid dynamics study of oil injection in a twin-screw compressor is conducted in this research. This study explores pseudo single-fluid multiphase (SFM) models of VOF (Volume of Fluid) and a mixture for their capability to predict the performance of the oil-injected twin screw compressor and compare this with the experimental values. SCORG^TM (Screw Compressor Rotor Grid Generator) is used to generate numerical grids for unstructured solver Fluent with the special interface developed to facilitate user defined nodal displacement (UDND). The performance predictions with both VOF and mixture models provide accurate values for power consumption and flow rates with low deviation between computational fluid dynamics (CFD) and the experiment at 6000 RPM and 7.0 bar discharge pressure. In addition, the study reflects on differences in predicting oil distribution with VOF, mixture and Eulerian-Eulerian two-fluid models. Overall, this study provides an insight into multiphase flow-modelling techniques available for oil-injected twin-screw compressors comprehensively accounting for the details of oil distribution in the compression chamber and integral compressor performance.

1. Introduction

Twin-screw compressors have been widely used in compression processes due to their advantages such as compact structure, stable operation and high efficiency. They are used in a number of industries such as oil and gas, refrigeration, processing or mining. In many cases, twin-screw compressors have replaced reciprocating compressors [1]. The market for compressors is projected to grow at a compound annual growth rate (CAGR) of 6.62% from 2016–2021, to reach a market size of USD 11.01 billion by 2021 [2]. With this growing pace, more and more researchers and engineers are interested in looking for ways to improve efficiency and reduce the carbon footprint [3].

Oil-injected compressors are popular compared to oil-free compressors as achieving high-pressure ratios within single stage with reduced mechanical elements is possible. Oil is injected for cooling, sealing gaps and lubricating rotors. Excessive amount of oil can lead to frictional and momentum losses [4]. In early years of screw machines, analytical modelling was used to understand the effect of oil injection. In 1986, Singh and Bowman [5] developed a mathematical model to evaluate the effect of oil droplet size. They reported that with 10 times reduction in oil droplet size, specific power could be reduced by 7%. A parametric study on oil injection variants conducted by Stosic et al. [6] concluded that oil mass flow and oil port position had more significant effect on integral performance. These key analytical studies had promised improvements in performance which lead to further experimental research. Peng et al. [7] studied the effect of oil to gas mass ratio at varying rotational speeds and de Paepa et al. [8] studied the effect of cooling effectiveness. Further to this, authors have carried out elaborate experiments to understand the effect of oil flow on compressor performance at varying shaft speeds and discharge pressures [9]. Study has strongly indicated that, for lower discharge pressures (6.5 bar and 8.5 bar), power consumption increased with the increase in oil flow. Meanwhile, at higher discharge pressures (10.5 bar and 12.5 bar) the power consumption decreased with the increase in the oil flow. Hence, an optimal quantity of oil exists for a compressor running at a certain design or operating condition.

There is a growing interest in visualising distribution of oil in the compression chamber because experimental investigations of two-phase flows in a compressor are often difficult and cumbersome. Physical or optical access to measure the chamber pressures or temperatures is limited, which makes it hard to determine internal flow characteristics of the oil phase. Hence, computational fluid dynamics (CFD) provides an excellent insight to visualise flow pattern and oil distribution within compression chamber.

Very little work was done on CFD before the break of 20th Century as reliable grids were not available for complex deforming domains of twin-screw machines. Kovacevic [10,11,12] made a breakthrough in CFD modelling of screw machines by developing a methodology to produce block-structured grids for deforming domains and this was further developed to form single domain-type mesh. This had resulted in better solution accuracy for single phase flow of air in oil free compressor [13,14]. Rane et al. [15] conducted analysis with non-homogenous Eulerian-Eulerian approach which showed distribution of oil as it was expected based on experience. The difference in power predictions were noticed as the mechanical losses were estimated. The highest deviations in power from experimental data around 10% was noticed at 8.0 bar discharge pressure and 6000 RPM. At the same time, the flow predictions were only 2% different.

Further to this, authors conducted investigation using CFD solver Ansys CFX to compare the inhomogeneous Euler-Euler approach, and homogeneous model. The homogeneous approach resulted in lower flow and power predictions than the Eulerian-Eulerian model [16]. However, the calculation time of the homogeneous model was shorter than non-homogeneous model. The only available SFM model which represents homogeneous approach in CFX is comparable to VOF (Volume of Fluid) modelling. However, it is known that the fluid-fluid interphase is better resolved in ANSYS Fluent where additional interface reconstruction algorithms are used when compared to CFX within the VOF approach [17]. This encouraged authors to explore Fluent as a solver which is known for resolving sharper interphase well and reducing smearing problems for fluids with high-density ratios compared to CFX. In Fluent, the interface between two phases is reconstructed for every time step based on calculated volume fraction distributions.

Another solver used for a case study of oil-injected twin-screw compressors is Pumplinx which has only one multiphase flow model available VOF [18]. As presented in this case study, the mass imbalance for both air and oil is as low as 1%, although integral parameters are not compared with experimental data. Another study looks at oil droplet trajectories in terms of diameter size (0.5 μm, 5.0 μm and 50.0 μm), simulation is conducted for a static mesh for single screw compressor domain in Star CCM+ [19]. Although this modelling gives an indication of distributed oil droplets, the effects of rotation or compression cycle are neglected and the results do not always look as expected. Eulerian-Eulerian modelling with Fluent has been explored by Papes et al., but the simulation results have not been validated experimentally nor mass balance was shown [20]. Therefore, further exploration is required with SFM models to obtain a stable and reliable approach towards modelling of oil injection within twin-screw compressors.

In the light of above considerations, SFM models of VOF and mixture are explored in Fluent to check for their stability, calculation speed and more importantly performance predictions. For achieving solution, SCORG^TM is used with UDND to transition the nodes for each time step. Successful running of UDND code in parallel framework is used for the case of oil-injected compressor operating at discharge pressure of 7.0 bar with the male rotor shaft speed of 6000 RPM.

Research questions investigated in this paper are,

• How is Fluent solver customised to solve for oil-injected twin screw compressor?
• Are pseudo-SFM models capable of predicting integral performance comparable to experimental data?
• How is the oil distributed within the compression chamber for various multiphase flow models and what is its effect on integral performance?

2. Multiphase Flow Modelling

Two-phase flow includes all complexities of single-phase flow such as non-linearities, transition to turbulence and instabilities, and additional multiphase characteristics such as motion and deformation of the interface, non-equilibrium effects and momentum interaction between phases. Oil is initially injected as a continuous fluid which is dispersed due to the shear of the incoming rotor lobe leading to the formation of droplets. Smaller droplets leave the compression chamber faster while others coalescence to form the oil lubrication film on the rotors and casing. It would be difficult to capture all these flow regimes that occur in twin-screw machines within one multiphase scheme.

Key challenges faced for modelling of oil-injected flows in a screw compressor are,

i.

Binary fluids with high-density ratios

Air and oil exist with the density ratio of magnitude of approximately 900. Challenges here are attributed largely to the difference in material properties between phases, which can lead to formation of high interfacial forces [21]. Numerical simulations with high density ratios tend to have sharp discontinuities across the interface resulting in instability. Various interpolation schemes are available in Fluent for advection of volume fraction. These are geometric construction, donor-acceptor and compressive scheme. Out of these, a compressive discretisation scheme is useful for blending sudden jump in material properties [17]. Therefore, this scheme is chosen in this study.

ii.

Compressible fluids

Interpolation schemes for volume fraction advection applied to the interphase cells can sometimes result in smearing of density. This smeared density if not treated carefully can affect Pressure-velocity coupling equations as pressure is a function of density. As a result, unphysical pressures can occur in the solution leading to instability for iterative solution of continuity equation. This instability is cautiously controlled by under-relaxation factor of 0.01 for current case.

iii.

Mesh quality

Poor mesh quality can lead to problems in resolving higher volume fraction gradients. Higher aspect ratio, orthogonality and a sudden change in cell sizes can affect conservativeness of pressure-velocity-density balancing and result in abrupt changes in physical properties. This in turn can lead to localised and unphysical increase in pressure and temperature. However, for this study, good-quality mesh was obtained with aspect ratio- 326, expansion factor- 96 and orthogonal angle- 6.9.

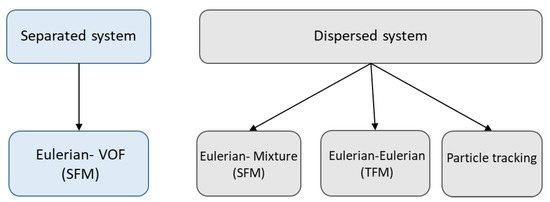

Two key approaches are available in Fluent for modeling multiphase flows known as the separated and dispersed techniques multiphase models (Figure 1). The dispersed model assumes that the complete volume of the second phase is dispersed in droplets of a certain diameter size. The VOF model is representative of the separated approach whereas Eulerian-Eulerian, mixture and particle tracking models are representatives of dispersed models. A full Eulerian-Eulerian approach is computationally expensive and complicated compared to VOF or Mixture models. The other models such as Eulerian-Lagrangian or particle tracking models are suitable for dilute particle loading of oil volume fraction <12%. Such model will track the droplet within a Lagrangian frame. The presence of oil within compressor at the tips and sealing line is more than 12%, therefore the Lagrangian technique is considered as not suitable for modelling this case.

More details about the mentioned multiphase models are given in Section 2.1.

2.1. Governing Equations

The governing equations of the mathematical model describing Eulerian-Eulerian, VOF and mixture models in the section below are adopted from the Fluent theory guide [22].

2.1.1. Eulerian-Eulerian Model

This model in Fluent is known as a TFM (Two Fluid Model). The number of conservation equations depends on the number of phases. In this case, there are two phases, air and oil which have separate governing equations. The model describes multiphase flow as interpenetrating continua incorporating the concept of phasic volume fraction (α_q). Volume fraction here represents the space occupied by each phase.

Volume of phase q, V_q is defined as,

$$V_q={\displaystyle \int }{\alpha }_{q}dV$$

(1)

Continuity equation:

$$\frac{1}{{\rho }_q}(\frac{\partial ({\alpha }_q{\rho }_q)}{\partial t}+\nabla .({\alpha }_q{\rho }_q{\overrightarrow{v}}_q)={\displaystyle \sum }_{p=1}^n(\dot{m_{pq}}-\dot{m_{qp}}))$$

(2)

Momentum equation:

$$\begin{array}{ll}\frac{\partial ({\alpha }_q{\rho }_q{\overrightarrow{v}}_q)}{\partial t}+\nabla .& ({\alpha }_q{\rho }_q{\overrightarrow{v}}_q{\overrightarrow{v}}_q)\\ & =-{\alpha }_q\nabla P+\nabla .\stackrel{=}{{\tau }_q}+{\alpha }_q{\rho }_q\overrightarrow{g}+{\displaystyle \sum _{p=1}^n}({\overrightarrow{R}}_{pq}+\dot{m_{pq}}{\overrightarrow{v}}_{pq}-\dot{m_{qp}}{\overrightarrow{v}}_{qp})\\ & +({\overrightarrow{F}}_q+{\overrightarrow{F}}_{lift,q}+{\overrightarrow{F}}_{vm,q})\end{array}$$

(3)

Transient and convection terms are located on the left-hand side of the equation. Terms on the right-hand side are pressure gradient, stress strain, gravity, interaction between phases, mass transfer, external body, lift and mass forces.

Interphase momentum transfer R_pq can be written as,

$${\displaystyle \sum }_{p=1}^n{\overrightarrow{R}}_{pq}={\displaystyle \sum }_{p=1}^n{K}_{pq}({\overrightarrow{v}}_p-{\overrightarrow{v}}_q)$$

(4)

$${\displaystyle \sum }_{p=1}^n{\overrightarrow{R}}_{pq}={\displaystyle \sum }_{p=1}^n[\frac{{\alpha }_q{\alpha }_p{\rho }_{p}f}{{\tau }_p}({\overrightarrow{v}}_p-{\overrightarrow{v}}_q)]$$

(5)

$$f=\frac{C_{D}Re}{24}$$

(6)

$$C_D=\{\begin{array}{ll}\frac{24(1+0.15R{e}^{0.687})}{Re}& Re\le 1000\\ 0.44& Re>1000\end{array}$$

(7)

$${\tau }_p=\frac{{\rho }_p{d}_p^2}{18{\mu }_q}$$

(8)

In the above set of equations, ρ is density, v is velocity, p is pressure, $\tau$ is shear stress, g is gravity, $\dot{m}$ is mass flow rate, F is drag force, α is volume fraction, $C_D$ is drag coefficient, Re is Reynolds number, S is source term, d_p is diameter of the droplet, µ is viscosity and τ is particle relaxation time. Subscripts p and q indicate first and second phase, respectively.

The interphase momentum transfer term (R_pq) is dependent on the velocity of each phase, phase volume fraction, phase densities and droplet diameter.

Energy equation:

$$\frac{\partial }{\partial t}({\alpha }_q{\rho }_q{h}_q)+\nabla .({\alpha }_q({\rho }_q\overrightarrow{u_q}{h}_q-\delta \nabla T))={\displaystyle \sum }_{p=1}^n(Q_{pq}+\dot{m_{pq}}{h}_{pq}-\dot{m_{qp}}{h}_{qp})+S_q$$

(9)

Here, h, T and δ denote static enthalpy, temperature and thermal conductivity of the phase q. S_q describes external heat sources (momentum, continuity etc.). Q_pq is the interface heat transfer which is a heat transfer coefficient between the phases, interface area and temperature difference.

2.1.2. VOF Model

The VOF model consist of a single set of governing equations. In this model, the phases of gas and oil are treated as immiscible and not interpenetrating. Variables fields and properties in each equation are shared by both phases and are represented by the volume-averaged values (example shown for density in Equation (10)). Variable/property in any given cell is either a pure representative of one of the phases or mixture of both the phases that is represented as an interface.

$${\rho }_{=}{\displaystyle \sum }_{k=1}^n{\alpha }_k{\rho }_k$$

(10)

k represents number of phases.

Continuity:

$$\frac{1}{{\rho }_q}(\frac{\partial ({\alpha }_q{\rho }_q)}{\partial t}+\nabla .({\alpha }_q{\rho }_q\overrightarrow{v})={\displaystyle \sum }_{p=1}^n(\dot{m_{pq}}-\dot{m_{qp}}))$$

(11)

Momentum:

$$\frac{\partial }{\partial t}(\rho \overrightarrow{v})+\nabla .(\rho \overrightarrow{v}\overrightarrow{v})=-\nabla P+\nabla .\left[\mu (\nabla \overrightarrow{v}+\nabla {\overrightarrow{v}}^T)\right]+\rho \overrightarrow{g}+\overrightarrow{F}+{\displaystyle \sum }_{p=1}^n(\dot{m_{pq}}-\dot{m_{qp}})$$

(12)

Unlike Eulerian-Eulerian model, the VOF model does not account for the interphase momentum transfer within momentum equation.

Energy:

$$\frac{\partial }{\partial t}{\displaystyle \sum }_{k=1}^n({\alpha }_k{\rho }_k{h}_k)+\nabla .({\alpha }_k({\rho }_k\overrightarrow{u_k}{h}_k-\delta \nabla T))=S_q$$

(13)

An essential part of VOF model is the interface reconstruction scheme, which attempts to explicitly approximate the location of the interface within a computational cell, based on the volume fraction of the current and surrounding cells. The compressive scheme is based on the algebraic formulation, which is known for its application when the viscosity ratio between two phases is high thus ensuring smoothness of the interface [23]. This interface-capturing technique is used in this study.

2.1.3. Mixture Model

Both mixture and VOF models are single phase models. However, the mixture model differs from the VOF model by,

• Including the additional term for the interphase momentum transfer in the momentum Equation (16).
• Treating the phases to be interpenetrating continua similar to the Eulerian-Eulerian model.

Continuity:

$$\frac{1}{{\rho }_q}(\frac{\partial ({\alpha }_q{\rho }_q)}{\partial t}+\nabla .({\alpha }_q{\rho }_q{\overrightarrow{v}}_m)=-\nabla .({\alpha }_q{\rho }_q{\overrightarrow{v}}_{dr,p})+{\displaystyle \sum }_{p=1}^n(\dot{m_{pq}}-\dot{m_{qp}}))$$

(14)

$${\overrightarrow{v}}_m={\displaystyle \sum }_{k=1}^n\frac{{\alpha }_k{\rho }_k{\overrightarrow{v}}_k}{{\rho }_m}$$

(15)

Momentum:

$$\begin{array}{ll}\frac{\partial }{\partial t}({\rho }_m{\overrightarrow{v}}_m)+\nabla .& ({\rho }_m{\overrightarrow{v}}_m{\overrightarrow{v}}_m)\\ & =-\nabla p+\nabla .[{\mu }_m(\nabla {\overrightarrow{v}}_m+\nabla {\overrightarrow{v}}_m^T)]+{\rho }_m\overrightarrow{g}+\overrightarrow{F}+\nabla .({\displaystyle \sum _{k=1}^n}({\alpha }_k{\rho }_k{\overrightarrow{v}}_{dr,k}{\overrightarrow{v}}_{dr,k}))\\ & +({\displaystyle \sum _{p=1}^n}(\dot{m_{pq}}{\overrightarrow{v}}_{dr,p}-\dot{m_{qp}}{\overrightarrow{v}}_{dr,q})\end{array}$$

(16)

$${\overrightarrow{v}}_{dr,p}={\overrightarrow{v}}_{pq}-{\displaystyle \sum }_{k=1}^n{c}_k{\overrightarrow{v}}_{qk}$$

(17)

$${\overrightarrow{v}}_{pq}=\frac{{\tau }_p}{f_{drag}}\frac{({\rho }_p-{\rho }_m)}{{\rho }_p}\overrightarrow{\alpha }$$

(18)

$${\tau }_p=\frac{{\rho }_p{d}_p^2}{18{\mu }_q}$$

(19)

The velocity of only one phase is solved. For the second phase, the directional velocity (${\overrightarrow{v}}_{dr})$ is used which depends on the slip velocity (${\overrightarrow{v}}_{pq}$) and the concentration of the second phase ($c_k$). The slip velocity depends on the particle relaxation time (τ_p), phase and mixture densities, droplet diameters (d_p) and drag forces (f_drag). In the equations above, the annotation subscript ‘m’ stands for mixture and $\overrightarrow{\alpha }$ is the secondary-phase particle’s acceleration. Slip velocity between the phases is obtained according to Algebraic slip model or Manninen et al. model [24].

The energy equation for the mixture model is the same as in the VOF model (Equation (13)).

2.2. Comparison of Computational Multiphase Flow Models

Which multiphase flow model will be used depends on the dominant flow regime and average cell or grid size. In a twin-screw compressor, oil can exist in the form of film as well as droplets which should ideally be treated with different multiphase models. Therefore, available multiphase models are explored in this study.

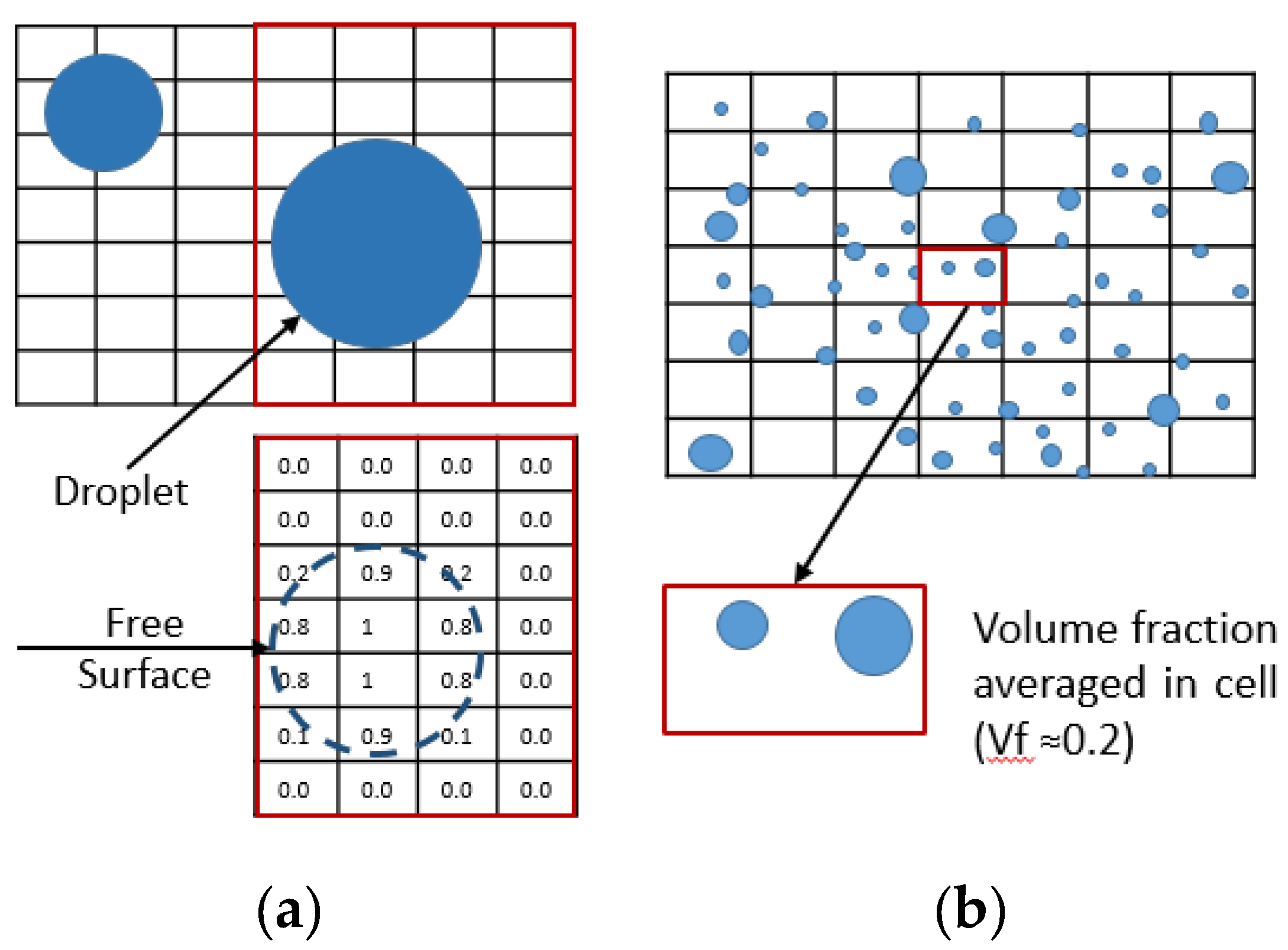

VOF model better resolves average oil droplet size larger than the average cell size in a mesh. Whereas the mixture and Eulerian-Eulerian models are suitable for resolving droplets with size smaller than average cell size (Figure 2). Using the VOF model based on the cell volume fraction and the interface-tracking algorithm, the free surface is obtained. Mixture properties are applied to the cells with partial volume fraction. On the other hand, for the mixture/Eulerian-Eulerian model phase properties are averaged based on volume fraction in a discrete domain and no free surface is obtained.

Differences between the multiphase models described above are summarised in

Table 1. Parameters considered within multiphase flow models.

	Suitability	Continuity Equation (C)	Momentum Equation (M)	Energy Equation (E)	Droplet Dia.	Equations Solved
Eulerian-Eulerian	Strong coupling between phases. Ex: bubble columns, particle suspension and fluidised beds	Solved for each phase	- Separate equation for each phase. - Strong coupling term between phases	- Separate enthalpy equation for each phase. - Additional term for heat exchange	Yes	C-2 M-6 E-2 Total: 10
VOF	Suitable when a clear interface is present between the phases and this interface is of interest. Ex: Stratified or free surface flows	Single equation	- Single equation with properties mass averaged. - No considered for interphase momentum transfer	- Single energy equation shared. - Properties mass averaged in a cell	No	C-1 M-3 E-1 VF-1 Total: 6
Mixture	Suitable for a wide range of dispersed phases and flows. Ex. Droplet laiden flows, sedimentation or cyclone separators	Single equation. Presence of drift & mixture velocities	- Single equation with properties mass averaged. - Additional term on interphase forces and slip velocities	Similar to VOF	Yes	C-1 M-3 E-1 VF-1 Total: 6

In the table above, ‘C’ represents the continuity equation, ‘M’ represents the momentum equation, ‘E’ represents the energy equation and ‘VF’ represents the volume fraction equation.

. The VOF model is generally used for the cases where large deforming interfaces are of interest. Both mixture and Eulerian-Eulerian models are suitable where the interphase forces are of importance. Furthermore, the Eulerian-Eulerian model is suitable when the lift forces are of importance in the flow. The Eulerian-Eulerian model is good fit when the flow regime is unknown and the Mixture model in many cases can be a good replacement for the full Eulerian-Eulerian model as it is computationally cheaper.

3. Case Study

In this case study, the performance of oil-injected air twin-screw compressor was obtained with Fluent using different multiphase modelling techniques. This compressor has a radial suction port and an axial discharge port with an oil injection port on the female side of the rotor. The lobe combination is 4–5 with ‘N’ profile. The compressor operates at 6000 RPM and discharge pressure of 7.0 bar. The rotor center distance is 67.5 mm, the outer diameter of the male rotor is 98.8 mm and the outer diameter of the female rotor is 77.8 mm. The length of the rotors is 153.1 mm with the male rotor wrap angle of 306.6° and volume index of 4.6.

Test measurements for the compressor performance were carried out at City University of London’s oil-injected test rig (ISO 1217:2009—Displacement Compressor-acceptance testing). Discharge pressure is controlled via the check valve; the flow is measured using an orifice plate in the discharge line, a speed encoder on the male rotor shaft, and a torque meter installed between the transmission system and the compressor.

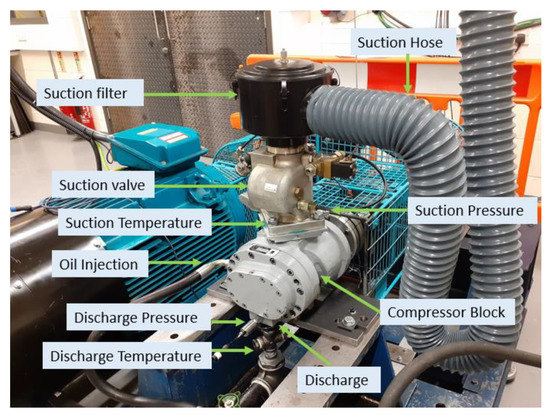

Figure 3 shows the compressor in the test rig. Measurement data acquisition is carried out using CompactRIO. At least 15 readings were taken at the operating condition of 6000 RPM and 7.0 bar, which was later averaged in order to obtain the performance values. Considering the instrumentation error and dependent variables of the integral values of flow rate and power, the measured error propagation for the flow rate and power was estimate to be 4.7% and 2.7%, respectively [9].

3.1. Grids

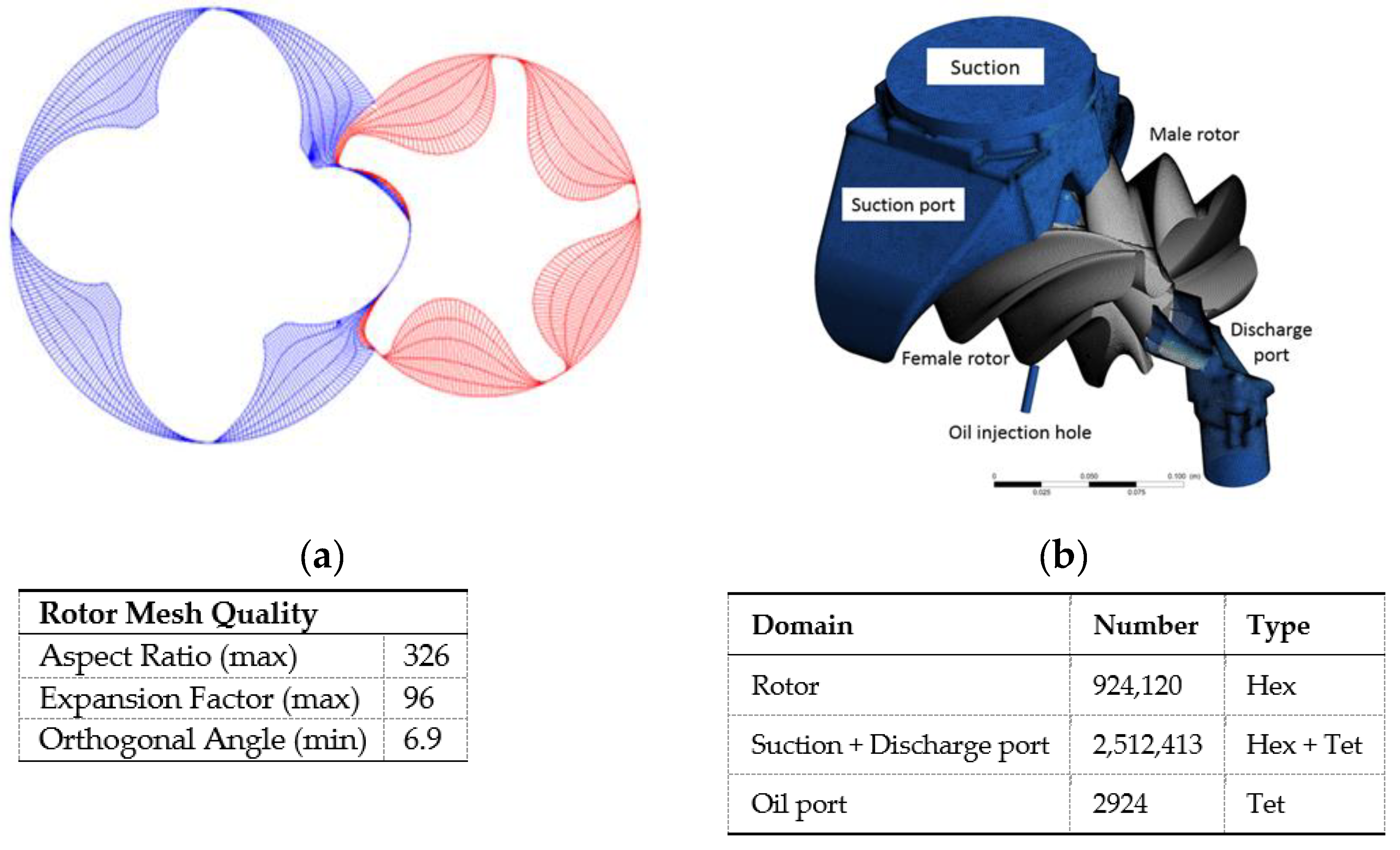

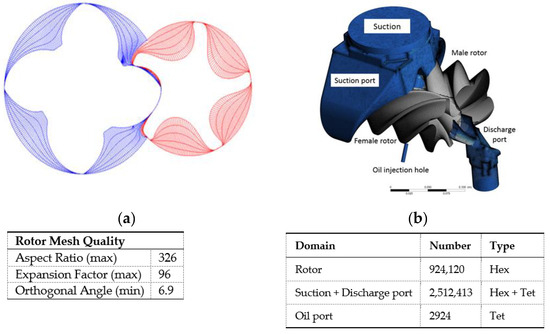

A single-domain mesh was used for calculating performance prediction in this case. The technique used to generate the single domain rotor mesh is based on the algebraic background blocking technique as described in [13]. Figure 4a shows the rotor grid in one transverse cross section. Figure 4b shows the mesh of the complete fluid volume with rotors represented by the first layer of numerical cells on the rotor surface. The nominal interlobe, radial and axial leakage gaps are 50 µm. Oil injection port diameter is 5 mm.

3.2. Interface with Fluent

User-defined functions (UDF) are written and compiled in ‘C’ programing language. Their function is to link meshes generated in SCORG^TM and the Fluent parallel multiprocessor calculation framework. This is based on the integration for sliding vane machines developed by authors [25], and has been extended to the parallel framework for twin-screw machines [26,27,28].

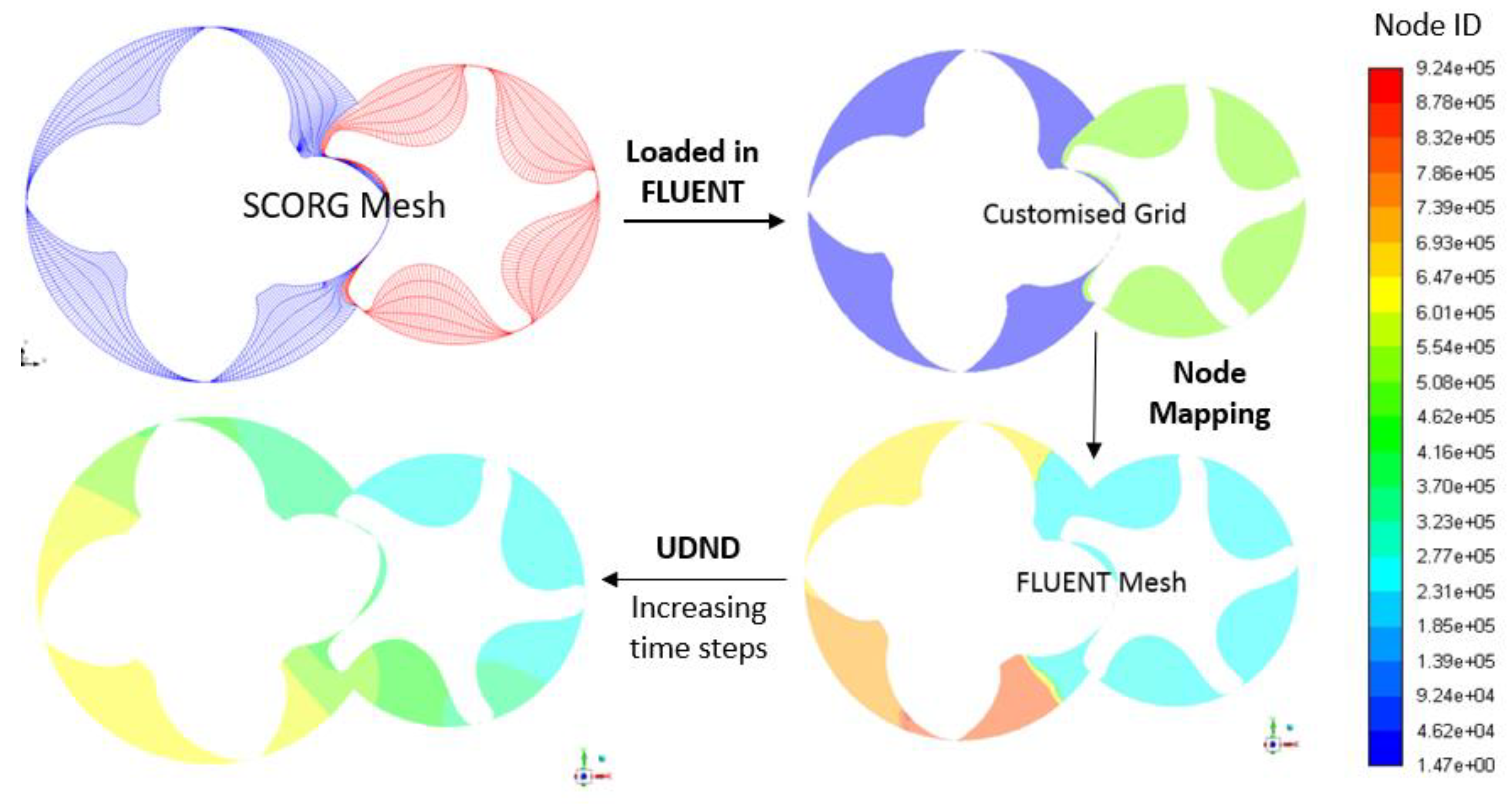

With some unstructured cell-centered solvers like Fluent, the node numbers need to be updated each time the new mesh is loaded in the solver. Figure 5 shows the mesh generated from SCORG^TM for 4–5 lobe combination compressor. This mesh is loaded into Fluent as a customised grid. Mismatch in the cell node numbers occur between the imported mesh and the existing definition in Fluent. Therefore, the node mapping procedure needs to be performed in order to align the nomenclature of nodes. Node mapping is computationally intensive. Since majority of simulations are performed with parallel solver, it is advantageous to perform the node mapping also in the parallel framework using this tailor made UDF. Without parallelisation of node mapping, it is possible that the node numbers would be repeated which can result in error and mismatch of nodal information.

After the node mapping code is executed, the node numbers are aligned between SCORG mesh and mesh in Fluent. Files generated from SCORG contain x, y, z coordinates of each node. With marching time steps, x, y, z positions of the node positions are updated in Fluent mesh resulting in the correct transition of nodes with time. This technique ensures that the cell connectivity and conservation of intrinsic quantities are preserved.

3.3. Numerical Set-Up

Air is simulated as an ideal gas and the injected oil is treated as an incompressible fluid. The properties of these fluids are described in

Table 2. Phase properties.

Phase	Density (kg/m3)	Specific Heat Capacity (J/kg·K)	Dynamic Viscosity (kg/m·s)	Thermal Conductivity (W/m·K)
Air	1.225	1.0044	1.831 × 10−5	2.61 × 10−2
Oil	800	1800.0	0.0088	0.18

. Oil is injected at 65 °C and with pressure of 7.0 bar. Compressor suction or inlet is at atmospheric pressure and 293K while the discharge or outlet is at 7.0 bar.

Table 3. Numerical setup with Fluent.

Criteria	Selection-FLUENT
Turbulence Model	SST (Menter’s Shear Stress Transport) k-omega (Mixture)
Inlet Boundary Condition	Inlet (specified pressure and temperature)
Outlet Boundary Condition	Pressure outlet (with specified pressure and temperature)
Pressure-Velocity Coupling	Coupled (second order upwind)
Gradient	Green-Gauss Node Based
Volume Fraction	Compressive (with phase localised zonal discretisation schemes)
Turbulence Scheme	Second order upwind
Transient Scheme	Second order implicit
Iterations per time step	200
Convergence Criteria	Continuity 0.07, Velocity 0.001, Energy 1 × 10−6, Turbulence 0.001, Volume Fraction 0.001
Relaxation parameters	0.01

shows the numerical setup with both VOF and mixture models in Fluent. For first 270 time steps of the simulation, solver relaxation for continuity equation is set as 0.005 and this is gradually increased to 0.01. To ensure convergence of the case, the cyclic repeatability of the chamber pressure, suction and discharge flow rates were observed for every male rotor rotation at various points. The solution is regarded converged if these values are repeated over three consecutive interlobe rotations.

As mentioned in Section 2.1.3, the Mixture model drag forces are required to account for slip between the phases. Drag forces depend on the droplet diameter and drag coefficient (C_D). Droplet diameter (dp) is assumed to be of 50 µm.

$$C_D=\{\begin{array}{ll}\frac{24}{Re(1+0.15R{e}^{0.687})}& Re\le 1000\\ 0.44& Re>1000\end{array}$$

(20)

$$Re=\frac{\rho v{d}_p}{({\mu }_L+0.3{\mu }_T)}$$

(21)

Drag coefficient in the mixture model is calculated based on the model of Bannari et al. (Equation (20)) [29]. Here, Reynolds number (Re) depends both on laminar (${\mu }_L$) and turbulent viscosity $({\mu }_T)$ of the fluid. ρ and v are density and viscosity of fluid in the region.

For stability reasons and better initialisation of the case, both discharge pressure and oil injection pressures are gradually increased until the full values are reached. The discharge pressure and oil injection pressure are ramped up across 270 time steps. The case was solved for 990 time steps observing cyclic repetitions in the pressure and flow rates.

4. Results and Discussions

Using developed interface with Fluent and the numerical setup explained in Section 3, this oil-injected compressor is calculated with VOF and the mixture models. The 3D analysis provides pressure, oil and temperature distribution within the compression chamber. Integral parameter prediction for both models are assessed and compared with the test data.

4.1. Pressure Distribution

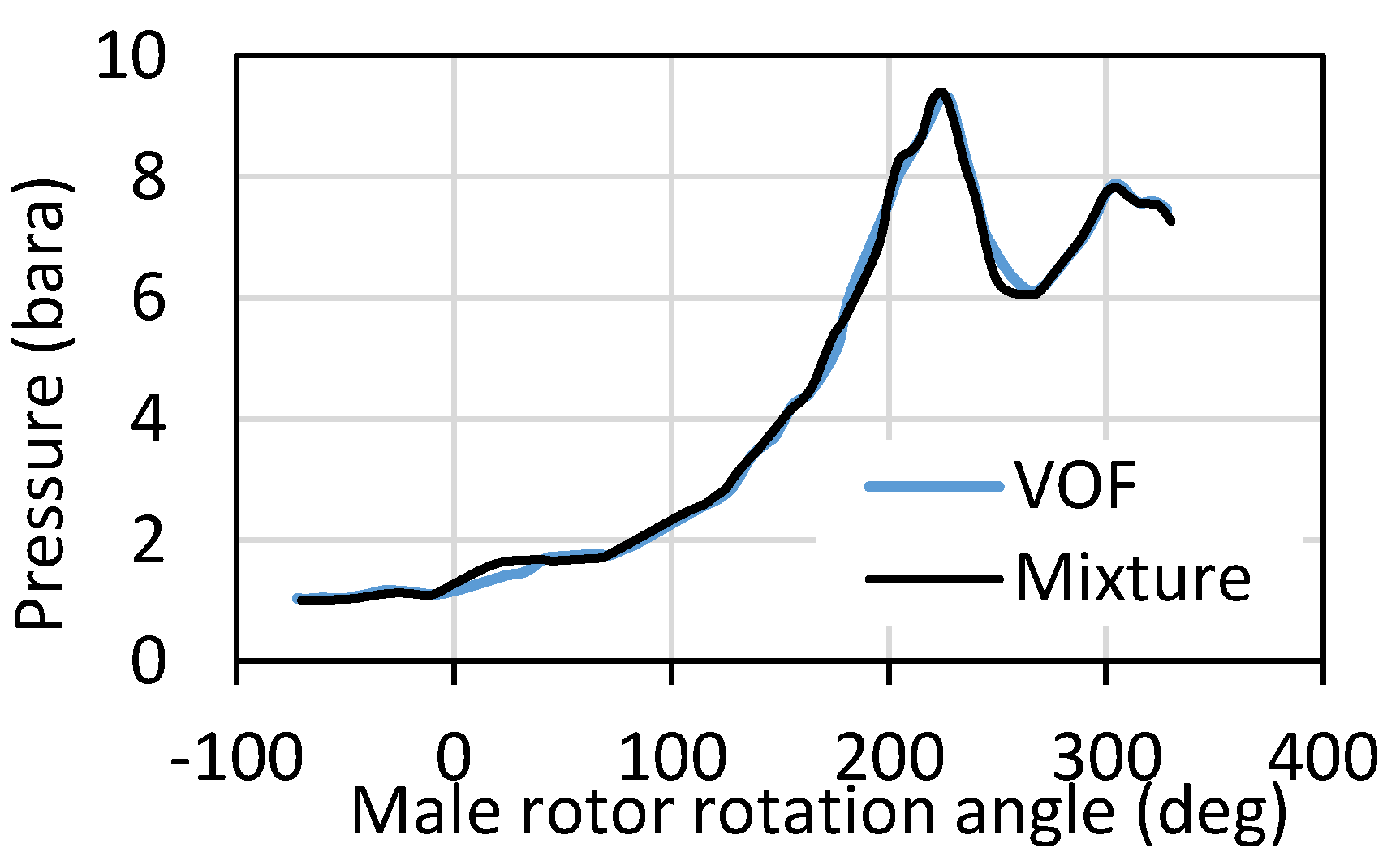

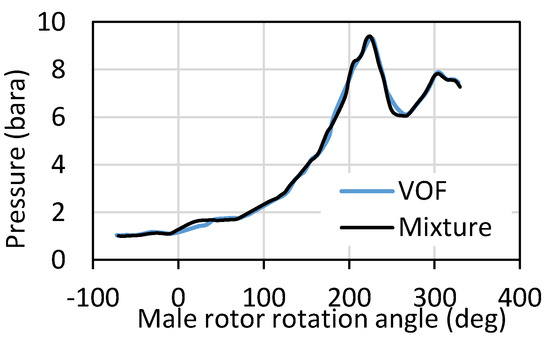

Figure 6 shows variation of pressure in the compression chamber as function of the angle of the male rotor rotation. Oil is injected at 67°. At 7.0 bar pressure and 6000 RPM, the peak pressure reaches around 9.0 bar just before the discharge port opens at 260°. Once the port is open, pressure drops in the discharge port to the outlet pressure of 7.0 bar. Some pulsations are noticed which are similar for both of the models. The mixture model achieves slightly higher peak pressure, 0.08 bar higher than the VOF model. This difference is very small compared to the order of magnitude of the peak pressure.

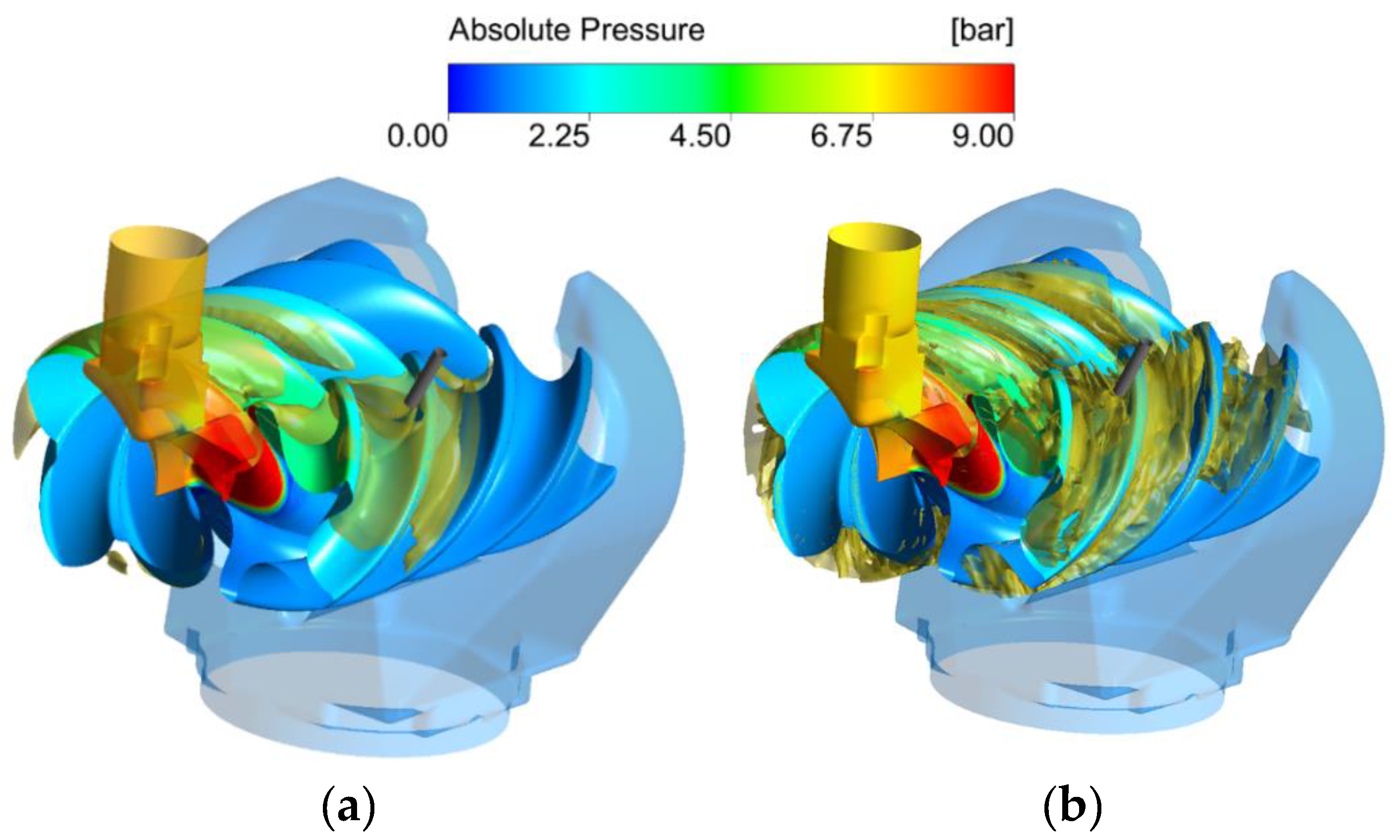

The distribution of pressure on rotors as well as on the port surfaces and the oil iso-volume fraction of 0.035 is shown in Figure 7 for both models. The pressure distribution on surfaces is similar to both models. From the same figure, the distribution of oil is different for VOF and mixture models which is further discussed in the next section.

4.2. Oil Distribution

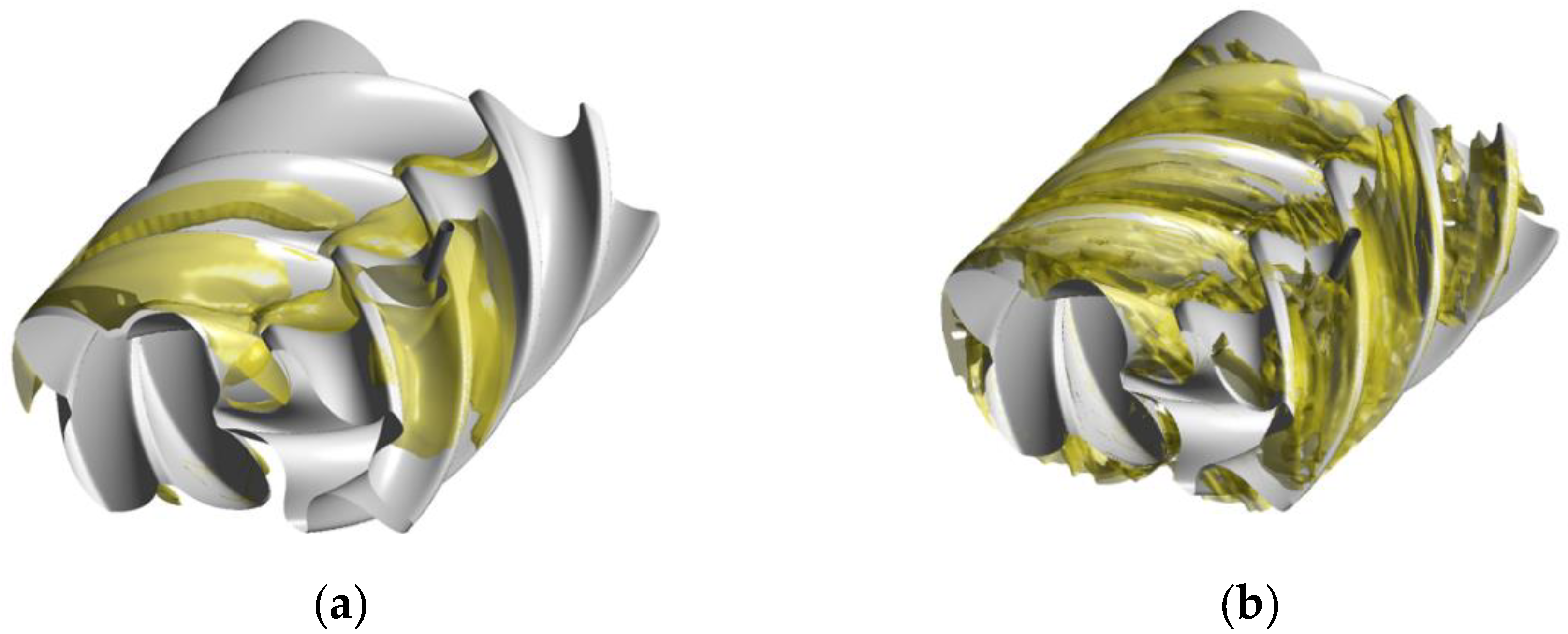

To clearly distinguish between the oil distribution in VOF and mixture models, the rotor surface is coloured uniformly with the iso-surface of oil volume fraction 0.035 coloured in yellow (Figure 8). In addition, Figure 9 shows the variation of the mass flow of injected oil in the compression chamber with the male rotor angle. The amount of oil injected is very similar for both models. However, the distribution of oil within the compression chamber is different for two models. With the VOF model, distribution of oil volume fraction is changing smoothly from one to another region and the oil volume fraction near the suction port is lower than 0.035.

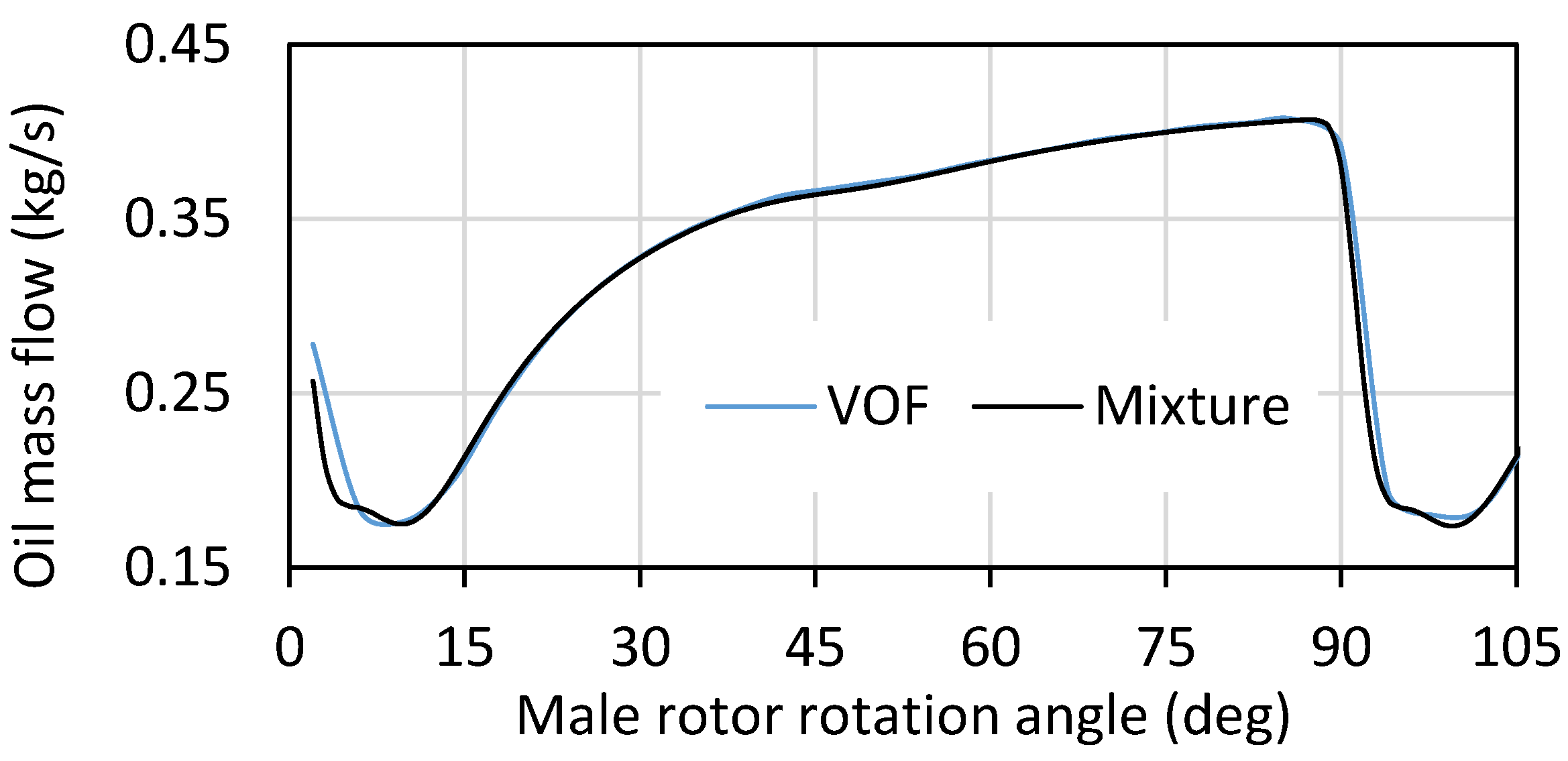

Oil distribution study is further focused on the oil volume fraction distribution on the male rotor surface. Figure 10 shows the distribution of oil on the surface obtained from the mixture and VOF models as well as the Eulerian–Eulerian model. The Eulerian–Eulerian model has not been used for comparison of integral values because this model was previously solved with CFX with the same geometry and similar boundary conditions. The difference was in the male rotor shaft speed of 6572 RPM. The Eulerian-Eulerian model could not be solved with Fluent due to stability reasons which will be further investigated in the separate research work. The slight variation in the male rotor speed between CFX and Fluent will quantitively effect the amount of oil, but it will not affect significantly oil distribution characteristics with various multiphase flow model pattern. Therefore, it is reasonable to assume that this approach will still give good qualitative comparison of different multiphase models.

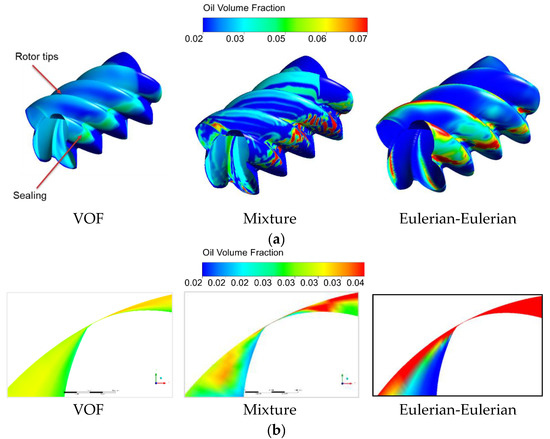

Figure 10 shows the comparison of oil distribution with three different multiphase models. The VOF model shows smooth transition in oil concentration on the rotor surface as it treats both phases as non-interpenetrating continua (Section 2.2). Relatively higher oil volume fraction is observed at rotor tips and along the sealing line. With the mixture model, strips of oil volume fraction are observed on the rotor tips and higher oil volume fraction of pitted oil are appearing along the sealing line. Clearly, with the mixture model, higher volume fraction of oil is observed at the sealing line than in the VOF model but the distribution is not smooth and continuous. This is because the phases are interpenetrating; in addition, the oil phase experiences slip, which is highly dependent on drag forces. However, with Eulerian-Eulerian model, substantially higher content of oil is observed on the rotor tips with the clear gradient surrounding the tip region. The Eulerian-Eulerian solves velocities of each phase individually and couples them through the interphase momentum transfer term (Equation (4)). In this way, it is expected that the Eulerian-Eulerian model represents the oil distribution better than the mixture model where slip is more of an empirical term, or VOF with no consideration of slip or drag at all.

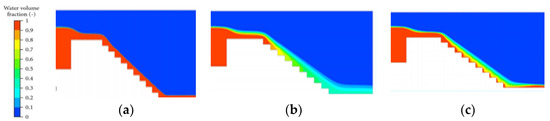

Comparing this case with the water flow (in air) over the stepped spill ways taken from literature [30]. With three different multiphase models, a similar distribution of second phase is observed, as shown in Figure 11.VOF has a clear interface with none of the two phases mixing with each other, the mixture model is able to predict mixing of two phases, and lastly the Eulerian-Eulerian model better resolves for velocities leading to saturation of water on steps. When compared with experiments, it was reported that the Eulerian-Eulerian model best matched experimental visualisation, the mixture model showing most of the flow features and VOF being least comparable to experimental visualisation.

4.3. Temperature Distribution

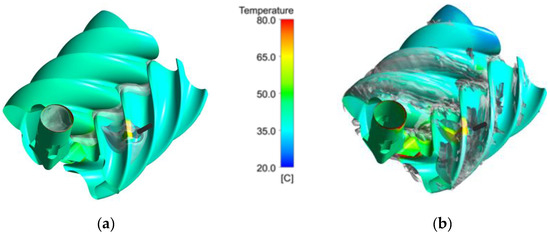

With built-in Vi of 4.6, the adiabatic discharge temperature of air without oil will be around 420 K. Injecting oil cools the gas substantially. Figure 12 shows variation in the discharge temperature with both VOF and mixture models. Similar prediction of the discharge temperature is observed for both models. Therefore, Figure 13 shows similar temperature distribution on the rotor and discharge port surfaces.

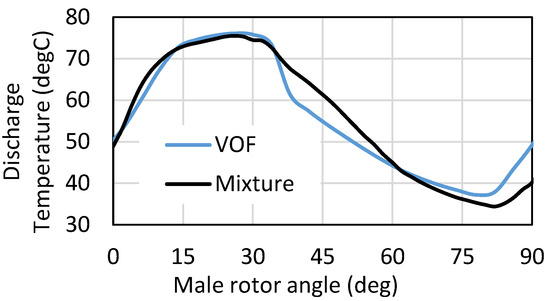

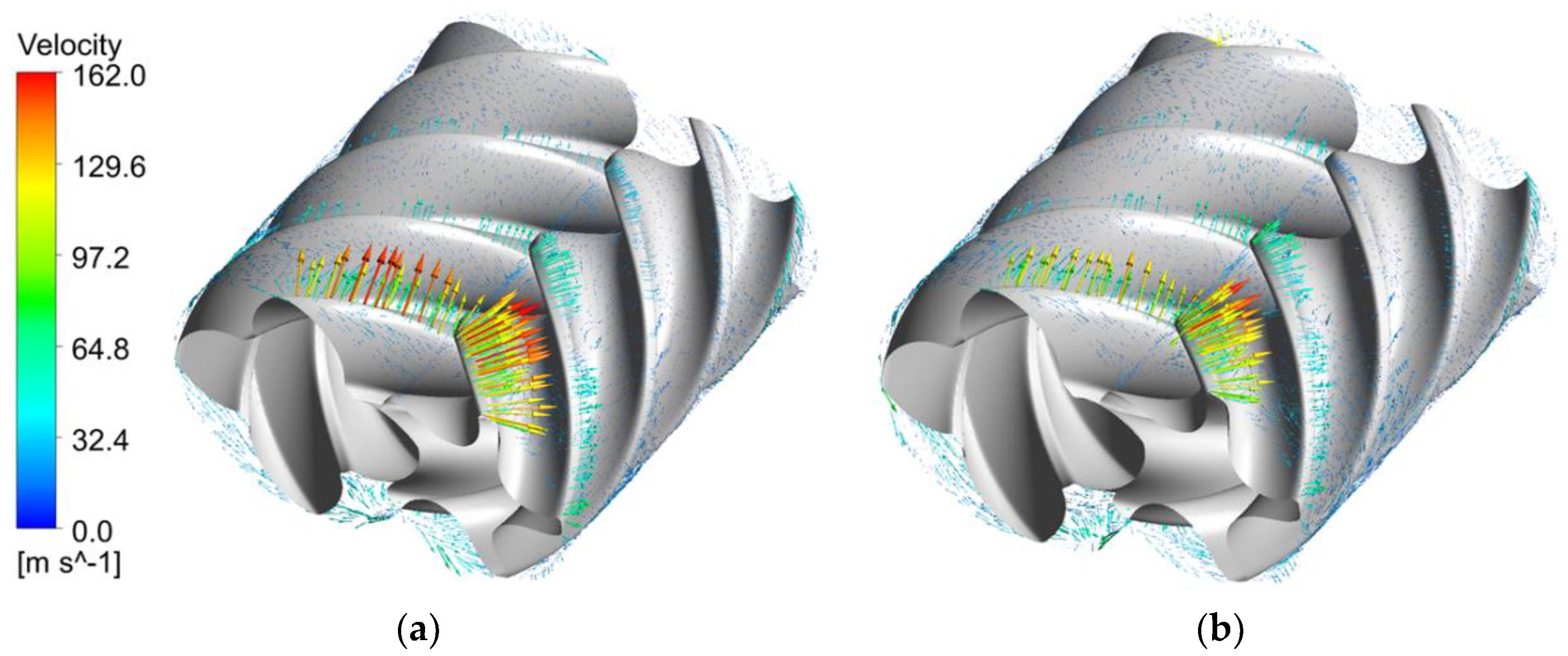

Both VOF and mixture models are single phase models where cell temperatures are based on the phase volume fraction averaged in a cell, similar to other properties like density and viscosity. Distribution of the oil volume fraction based on the phase velocities plays a role in energy distribution. From one region to another, the change in oil volume fraction and temperature are observed with both investigated models. The effects of oil on the temperature field are higher in the mixture model than in VOF.

4.4. Overall Performance with Measurements

Table 4. Integral performance results with various models.

Serial No.		Air Flow	Power	Air Flow Error	Power Error	Specific Power Error	Mass Imbalance Error
		(kg/s)	(kW)	(%)	(%)	(%)	(%)
1	Expt.	0.0706	18.434
2	VOF	0.0682	17.387	−3.46	5.68	2.30	9.54
3	Mixture	0.0713	17.595	0.88	4.55	4.39	0.10

shows comparison of calculated flow rate and power with the experimentally obtained data along with the mass imbalance error. Both models are capable of predicting overall values of flow and power close to measured data with a good mass balance.

Performance of a helical screw compressor is influenced by the internal gas leakage. Typical leakages are through the axial, radial and interlobe gaps. According to the leakage areas, radial leakage will be higher compared to other forms of leakages. Therefore, Figure 14 shows velocity vectors through the radial gaps. Overall, growth in the magnitude of velocity vectors increase consecutively from one pressure chamber to another depending on the difference in pressure ratios between the chambers. Oil has an important tendency to seal leakage gaps. Higher oil volume fraction is observed in the rotor tips with the mixture model compared to VOF. This oil seals the radial leakage gaps. Hence, relatively higher radial leakages velocities are observed with VOF compared to the mixture model. Due to these effects, flow predictions with the mixture model are as close as 0.88% and with VOF model the difference is 3.46% when compared to experimental value.

Overall, power is slightly better predicted at 4.55% error percentage with the mixture model than VOF at 5.68% (Table 4). Using a chamber model from SCORG at the same operating conditions, it was noticed that indicated power is 83% of total power. This estimate is applied for comparison with the experiment.

Also, it can be noticed that the percentage of mass imbalance is higher with VOF model at 9.54% leading to higher error in flow prediction at 3.46%.

Lastly, it is witnessed that SFM models take less clock time per timestep when compared with the Eulerian–Eulerian model solved in CFX (

Table 5. Comparison of calculation time per time step.

Parameter	VOF (Fluent)	Mixture (Fluent)	Eulerian–Eulerian (CFX)
Iterations per time step	2.00 × 102	2.00 × 102	5.00 ×100
Calculation time per time step per core (mins)	40.5	42	50.5
Time improvement (%) (compared to Eulerian-Eulerian)	24.7	20.2

). The mixture model takes slightly longer compared to VOF as it solves additional terms related to slip and drag forces. However, there is further scope for improving the solver time. A concluding remark is that SFM models are computationally economical.

5. Conclusions

A typical oil-injected twin-screw compressor was modelled in Fluent using the numerical mesh generated by SCORG^TM and newly developed interface which used the UDND technique. The interface was integrated in the UDF code in a parallel framework to transition the mesh with the marching time steps. The achieved set-up is used to solve for a test case with rotor shaft speed of 6000 RPM and 7.0 bar pressure with mixture and VOF models.

Key conclusions from this study are:

• Both mixture and VOF models are capable of predicting overall performance of the flow and power close to measured values. The mixture model predicts flow with 0.9% and power with 4.5% error compared with measured values. The VOF model predicts flow with 3.5% and power with 5.7% error compared with measured values.
• Pseudo single-phase models are computationally economical, and on average a 22% improvement in time was observed with pseudo-single fluid models compared to the Eulerian–Eulerian TFM model.
• This study shows a good comparison of oil distribution within the compression chamber, which differs between mixture and VOF models. With the VOF model, smooth distribution of oil volume fraction was observed due to the air and oil phases being treated as non-interpenetrating. With the mixture model, the distribution of oil phase was different since the phases are penetrating and the slip between phases is included. However, the Eulerian–Eulerian model which was originally solved in CFX still shows distribution closer to expected reality.
• With the mixture model there is flexibility and opportunity for further improvements in terms of customised empirical model for interphase drag and slip forces which can lead to more realistic oil distribution. The mixture model can be a good replacement for the full Eulerian–Eulerian models as it is computationally more efficient, but further investigation into better interphase modelling forces will be required.
