Application of Digital Image Correlation in Structural Health Monitoring of Bridge Infrastructures: A Review

by
Mohammed Abbas Mousa
1,2,
Mustafasanie M. Yussof
1,*,
Ufuoma Joseph Udi
1,
Fadzli Mohamed Nazri
1,
Mohd Khairul Kamarudin
3,
Gerard A. R. Parke
4,
Lateef N. Assi
5 and
Seyed Ali Ghahari
6
1
Department of Civil Engineering, Engineering Campus, Universiti Sains Malaysia, Nibong Tebal 14300, Malaysia
2
Department of Roads and Transportation, University of Al-Qadisiyah, Al Diwaniyah 58002, Iraq
3
Faculty of Civil Engineering, Universiti Teknologi MARA, Shah Alam 40450, Malaysia
4
Department of Civil and Environmental Engineering, University of Surrey, Surrey GU2 7XH, UK
5
Department of Civil Engineering, Mazaya University College, Nasiriyah 64001, Iraq
6
Department of Civil Engineering, Purdue University, West Lafayette, IN 47907, USA
*
Author to whom correspondence should be addressed.
Infrastructures 2021, 6(12), 176; https://doi.org/10.3390/infrastructures6120176
Submission received: 24 October 2021 / Revised: 7 December 2021 / Accepted: 8 December 2021 / Published: 13 December 2021
(This article belongs to the Special Issue Resilient and Smart Transport Infrastructure for Connected and Autonomous Vehicles)
Browse Figures
Review Reports Versions Notes

Abstract

:
A vision-based approach has been employed in Structural Health Monitoring (SHM) of bridge infrastructure. The approach has many advantages: non-contact, non-destructive, long-distance, high precision, immunity from electromagnetic interference, and multiple-target monitoring. This review aims to summarise the vision- and Digital Image Correlation (DIC)-based SHM methods for bridge infrastructure because of their strategic significance and security concerns. Four different bridge types were studied: concrete, suspension, masonry, and steel bridge. DIC applications in SHM have recently garnered attention in aiding to assess the bridges’ structural response mechanisms under loading. Different non-destructive diagnostics methods for SHM in civil infrastructure have been used; however, vision-based techniques like DIC were only developed over the last two decades, intending to facilitate damage detection in bridge systems with prompt and accurate data for efficient and sustainable operation of the bridge structure throughout its service life. Research works reviewed in this article demonstrated the DIC capability to detect damage such as cracks, spalling, and structural parameters such as deformation, strains, vibration, deflection, and rotation. In addition, the reviewed works indicated that the DIC as an efficient and reliable technique could provide sustainable monitoring solutions for different bridge infrastructures.

1. Introduction

It is common knowledge that civil structures, including bridges, start to deteriorate after being constructed and used. Maintaining efficient and secure structures like bridges for everyday use is essential for the well-being of everyone. Evaluating and ascertaining the state of ageing bridge infrastructure is paramount in verifying structural reliability, ensuring long-term functionality, and deducing when structural components should be repaired or replaced. Tracking and deducing structural reliability and ascertaining the level of deterioration in civil infrastructure is commonly described as Structural Health Monitoring (SHM). Structural health monitoring of civil structures comprises defining, by measured parameters, the area and extent of deterioration in civil infrastructure when this occurs. Structural health monitoring entails observing the identified structure over a given period, extracting susceptible damaged properties to deduce its present state of health, and estimating the long-term condition of the structure [1]. Structural health monitoring performs a critical function in deterring severe damage, improving structural safety, and minimising maintenance-related downtime and cost.
Structural health monitoring is frequently performed in tandem with yet another directly associated discipline, namely Non-Destructive Evaluation (NDE). These techniques comprise certain assessment procedures used to evaluate the state of a specified structure without compromising the functionality of the structure [2]. Both SHM and NDE techniques enable timely identification and evaluation of infrastructural deterioration, ensuring the system continually meets life safety demands.
Because individual visual examination methods depend on the inspector’s judgment, which is labor-intensive and subject to variations, it makes computerised surveillance devices extremely desirable. Contact-based devices are often utilised to track the number of infrastructure components. Previously, the standard trend was to collect and disseminate information from a host of devices embedded in the targeted system [3]. Such approaches, including both static and dynamic assessment, have grown markedly. Contact-based devices, which include transducers [4,5,6], strain gauges [7,8], inclinometers [9,10], accelerators [11] and extensometers [12], are often utilised for SHM applications. Other alternatives are fibre optic sensors, which have been demonstrated as credible options to traditional sensors because of their versatility, scalability, and Electro-Magnetic Interference (EMI) [13,14,15,16]. However, such sensors can be quite challenging to execute, requiring cabling and power; they are also expensive and are typically not flexible for several infrastructural components when they are installed. Several researchers have suggested using a Wireless Sensor Network (WSN) to address these issues [17,18].
Nonetheless, it seems that these sensors are usually not sufficiently robust to be mounted or installed on the targeted structural component and conduct assessments throughout the service life of the infrastructure, which can be years or decades depending upon its construction and when defects are much more likely to be present. Besides, some of these sensors may supply data only at discrete points [19]. Subsequent technological advancements further produced ample NDE techniques for evaluating various engineering applications. Radiography [20], radioactive computerised tomography [21], radar [22], infrared thermography [23], ultrasonic arrays and acoustic imaging systems [24], and Acoustic Emission (AE) [25] have already been applied for both SHM and NDE, each having its strengths and limitations. The recent development of camera capabilities, vision sensors, and image analysis algorithms enabled the latest innovations of non-contact tracking techniques. Photogrammetry and vision-based methods utilise image tracking with optical devices to detect the precise location of points and features and utilise this information to analyse their movement across various periods or phases. Vision-based methods have proven to be an efficient and effective strategy for non-contact analysis and structural deformation extractions, full-field displacement, geometry profiles, and strain in civil applications [26,27,28,29].

2. Digital Image Correlation

Digital Image Correlation (DIC) is a vision-based technique that utilises image detection and mapping technology to precisely measure variations of images in 2D and 3D. DIC is commonly used in many fields of science and engineering. It is frequently employed to analyse full-field displacement and strain, crack propagation, identifying material deflections, damage emergence, and progression in structural systems. DIC can be employed for routine or long-term surveillance with photographs of the targeted system taken at varying times. Images from the different periods can be examined optically with software, and the deformations can be measured from the data [30]. Many vision-based algorithms have been suggested, which include edge detector [31], thresholding [32], segmentation [33], and filter-based algorithms [34]. These techniques have been utilized in assessing damage in wood samples [35,36,37], bridge and concrete surfaces [38,39,40], pavement [34,41,42], and steel [43,44,45]. Other applications of DIC include biomechanical applications [46], biological tissues and biomaterials [47,48,49], aerospace [50,51], computer vision [52], medical applications [53], industrial and automotive applications [54]. In contrast to other traditional Non-Destructive Techniques (NDT) measuring methods and specific visual methods like radioactive computerised tomography, which are otherwise costlier and quite challenging to employ beyond the laboratory environment because they entail detailed setup and low vibrational surroundings, DIC is economically feasible and easier to grasp. DIC is more quantifiable and precise than the traditional measuring techniques [55]. In addition, DIC employs traditional electronic imagery, which could be utilised with civil construction methods to produce sufficiently precise assessments of component systems in conventional outdoor surroundings. Furthermore, no specialised illumination is needed, and in certain instances, DIC can function without any peculiar surface prepping due to the targeted system existing layer having adequate photographic texture.

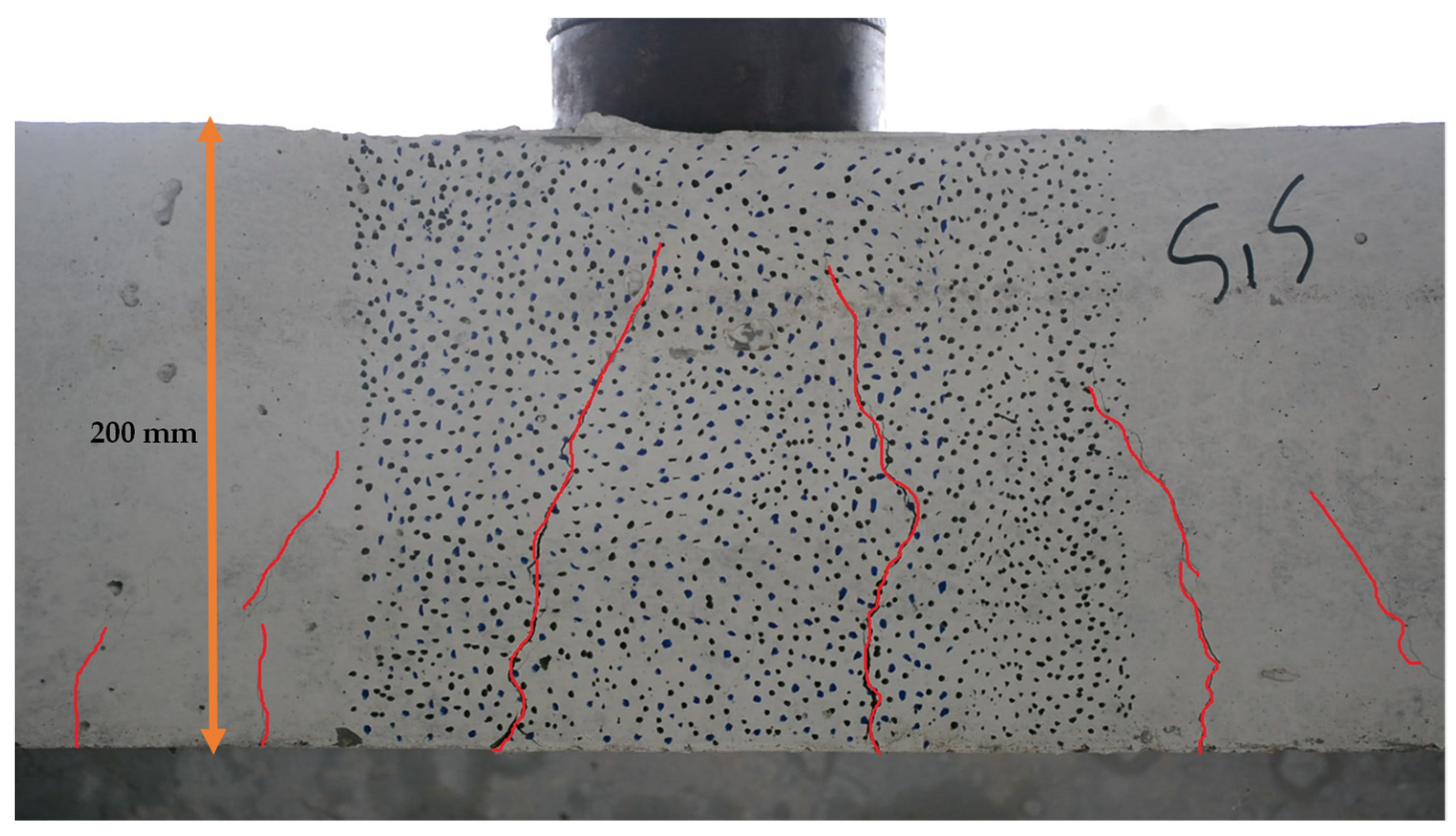

The Digital Image Correlation (DIC) basic concept compares the captured images at varying levels of deformation of a targeted system and analyses them using correlation-based matching algorithms. This technique can be used to calculate material deformation by monitoring a neighbourhood of pixels grey-level and creating full-field deformations in 2D and 3D strain charts and vector fields. Photographs are obtainable across a broad spectrum of sources ranging from high-speed video recorders and portable commercial cameras to the traditional Charge-Coupled Device (CCD). Any structural differences can be accurately contrasted with the captured photographs, and thus, unforeseen changes that could induce irregularities would be effortlessly detected. An illustration of the application of DIC is the calculation of crack width and crack detection. If a targeted component were to undertake load crack checks like in the reinforced concrete beam shown in Figure 1, the position of the major vertical crack would be quickly identified. Nonetheless, there could be several minor cracks that are not easily visible to the naked eye. As illustrated in Figure 2, utilising a marker pen enables the identification of such cracks, although a time-consuming process and in a disorderly manner.

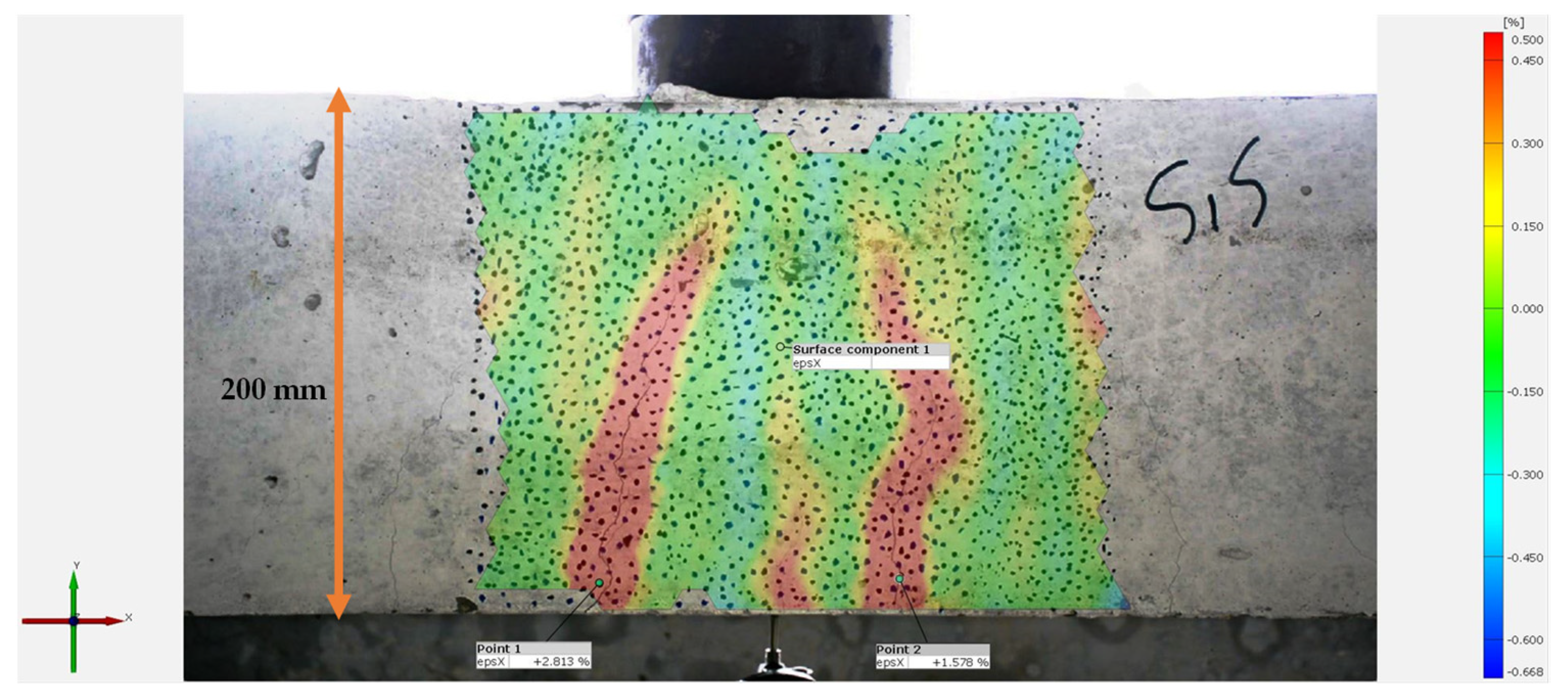

By employing DIC, as illustrated in Figure 3, the total actual size and number of cracks can be identified, inside the speckled zone, from a single captured photograph before cracking emerged and another captured afterwards. This technique provides advantages in detecting cracks, which may develop in a non-contact manner. Furthermore, it offers valuable data about where crack propagation detectors can be attached and proffer precise calculations of cracks, including instances where crack edges are poorly defined [56].
The practice of employing cross-correlation in quantifying changes in data algorithms has long been discovered and has been applied to electronic imagery since the 1970s [57,58]. The earliest studies, the foundation, and framework in DIC methods in mechanics were inspired by researchers in the 1980s [59,60,61]. Subset-based DIC techniques such as 2D and 3D concepts were developed during this period and, since then, have not experienced drastic alterations until recently. Due to the advancement of computer computational capabilities, a new global finite element-based approach for the DIC correlation algorithm has been developed [62,63,64]. New DIC trends that are hybrid-based, as well as machine learning and artificial intelligence-centred approaches, have emerged [65,66,67].

2.1. Two-Dimensional Digital Image Correlation

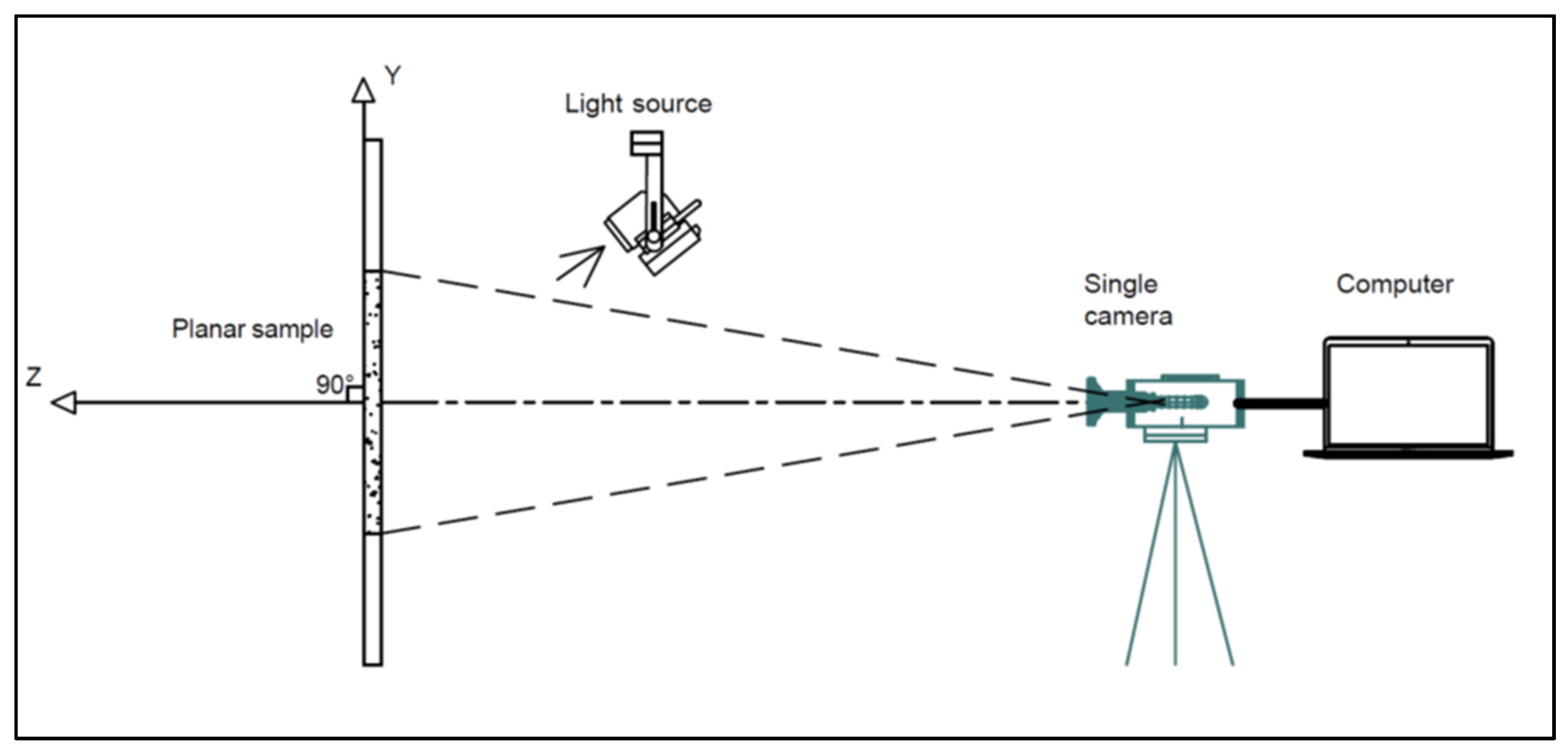

Using 2D-DIC techniques that require a sole digital device remains restricted to calculating the deformation of planar or flat systems. By contrasting photographs of the targeted system captured at multiple periods or at varying levels of deformation via the subset-based or finite element method, the material displacements in strain charts and vector fields could be explicitly extracted [68]. Two-dimensional DIC (see Figure 4) techniques do not apply in situations where the targeted system has a curved surface or, in instances whereupon loading, 3D deformation emerges [69].
Like any other technique, the DIC techniques have limitations related to either machines or humans. These limitations can be summarised by (1) optical distortion for various reasons, (2) distance change between the lens and the observed surface, which can be caused by horizontal or vertical camera tilting, specimen tilting or both, (3) out of plane local bulging of the specimen, and (4) as it is a vision-based technique, DIC is only able to measure deformations and strains at the surface of the specimen.
There are several errors produced by the 2D-DIC technique, the most common one being the cosine error produced by either camera or specimen tilting, leading to the measurement of deformations that are higher or less than the actual deformation. This error can be treated by calculating the tilting angle, then emerging into a particular equation to calculate the error percentage. Other errors can occur, such as gross displacement, produced by either camera or specimen gross movement while testing. This error can be treated by adding or subtracting the produced deformation by the movement, which can easily be detected by observing the deformation or strain curves. However, such a process sometimes becomes tedious when dealing with complicated or large structures; therefore, a 3D-DIC technique can overcome such difficulties.

2.2. Three-Dimensional Digital Image Correlation

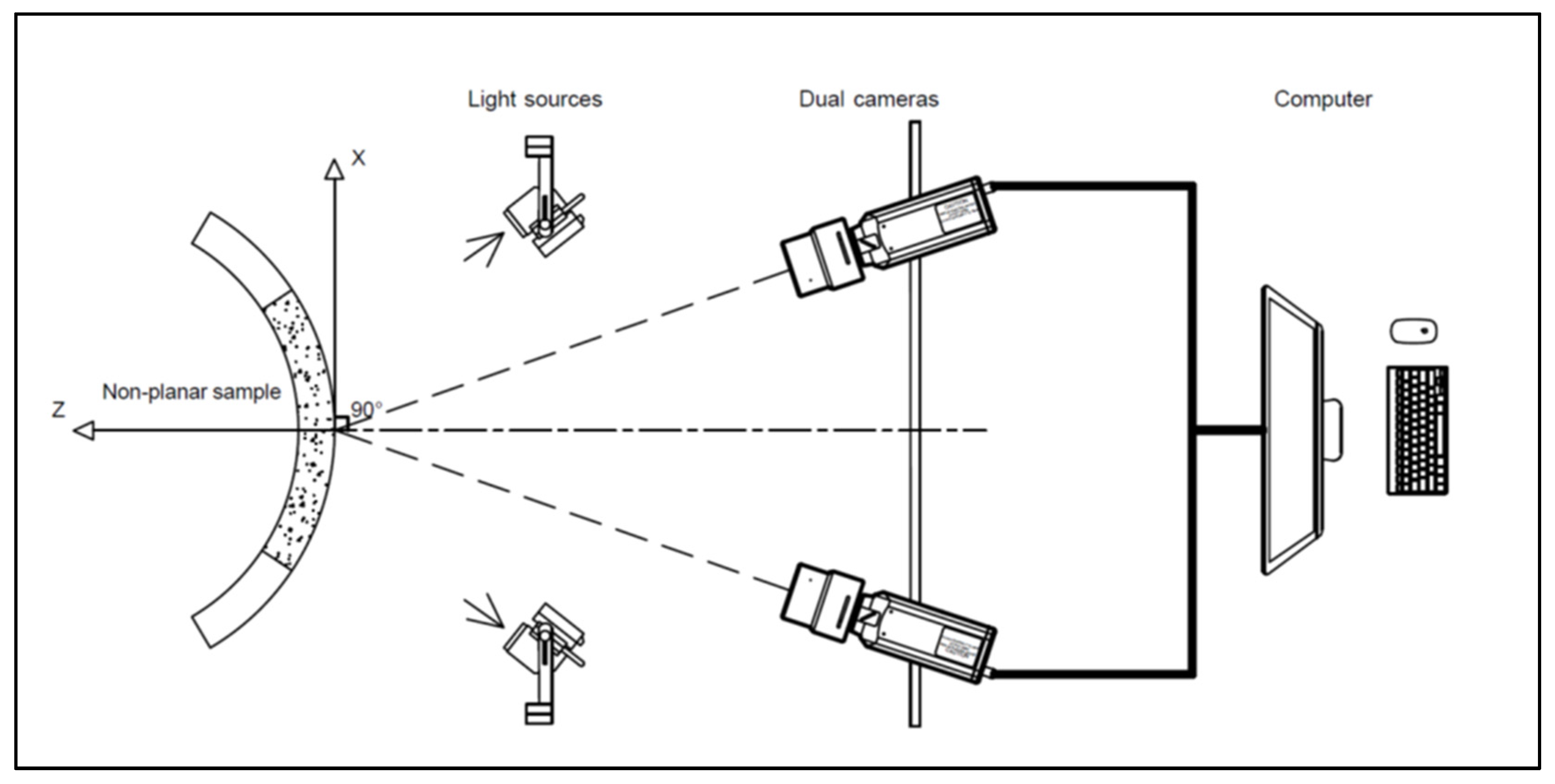

A 3D-DIC approach was later devised to address this obvious limitation of the 2D-DIC technique by employing two synchronised digital cameras, as shown in Figure 5 [63]. A 3D-DIC would then precisely quantify 3D deformation in a vector field of both curved and planer surfaces on the premise of the binocular stereo-vision concept, enabling a versatile and effective technique in practical applications. To execute the 3D-DIC technique, the configuration of the binoculars will be performed first to find out both constitutive and supervenient boundary conditions of the synchronised digital cameras. Three-dimensional deformations at measured levels could then be reproduced based on configured metrics discrepancy charts measured with DIC algorithms [70].
Following the trail developed by early scholars and accelerating the technological prowess of advanced virtual devices, recent research endeavours have been devoted to implementing increasingly reliable, more sustainable, and rigorous DIC methods. Besides the typical imagery devices, diverse and innovative imagery and video devices, as well as equipment such as Scanning Electron Microscopes (SEM) [71], high-speed and ultra-high-speed cameras [72], infrared cameras [73], x-ray cameras [74,75,76,77], advanced video extensometers [78], high accuracy video extensometers [79], drones and Unmanned Aerial Vehicles (UAVs) [28], have all been newly proposed to measure real-time deformations and high-precision strain computation at different temporal and geometrical scales for the categorisation and resolution of irregularities induced by previously employed conventional equipment.
Furthermore, significant progress has been achieved in several areas of 2D- and 3D-DIC, such as the optimisation of speckle patterns that serve as quality evaluation criteria and transmitter of deformation data on tested specimens [80,81,82,83]. Other advancements and insights were dedicated to the correlation algorithms, including Finite Element Method (FEM)-based. The new correlation algorithms precisely compute discontinuous displacements detected in objects bearing cracks and ascertain a similarity or disparity index between a referenced test object and its deformed counterpart [84,85]. Moreover, numerous attempts have been made to further improve the reliability of the traditional subset methods in broadening DIC preview to increasingly demanding surroundings such as high-temperature or outdoor surroundings [86] and greater comprehension of fracture properties, as well as a clearer understanding of fracture dynamics at various levels of deformation [87]. The method of synchronising two ultra-high-speed cameras in addressing growing requirements of deformation computation in 3D full-field high-speed has also been devised and extensively studied [88]. Supported by a specially built light-dividing appliance, the one-camera 3D-DIC method has been developed [89]. The suggested technique negates the demand for two accurate synchronised cameras. Further, the technique significantly minimises hardware expenditure. In addition, the multi-camera 3D-DIC method capable of capturing the test object’s surface photographs from multiple angles by employing multiple cameras has garnered much interest in recent years [90]. Moreover, there has been a well-established and widely acceptable standardised technique in camera calibration for achieving top-notch stereo-vision and, thus, accurate 3D computation [91].

2.3. Digital Volume Correlation Method

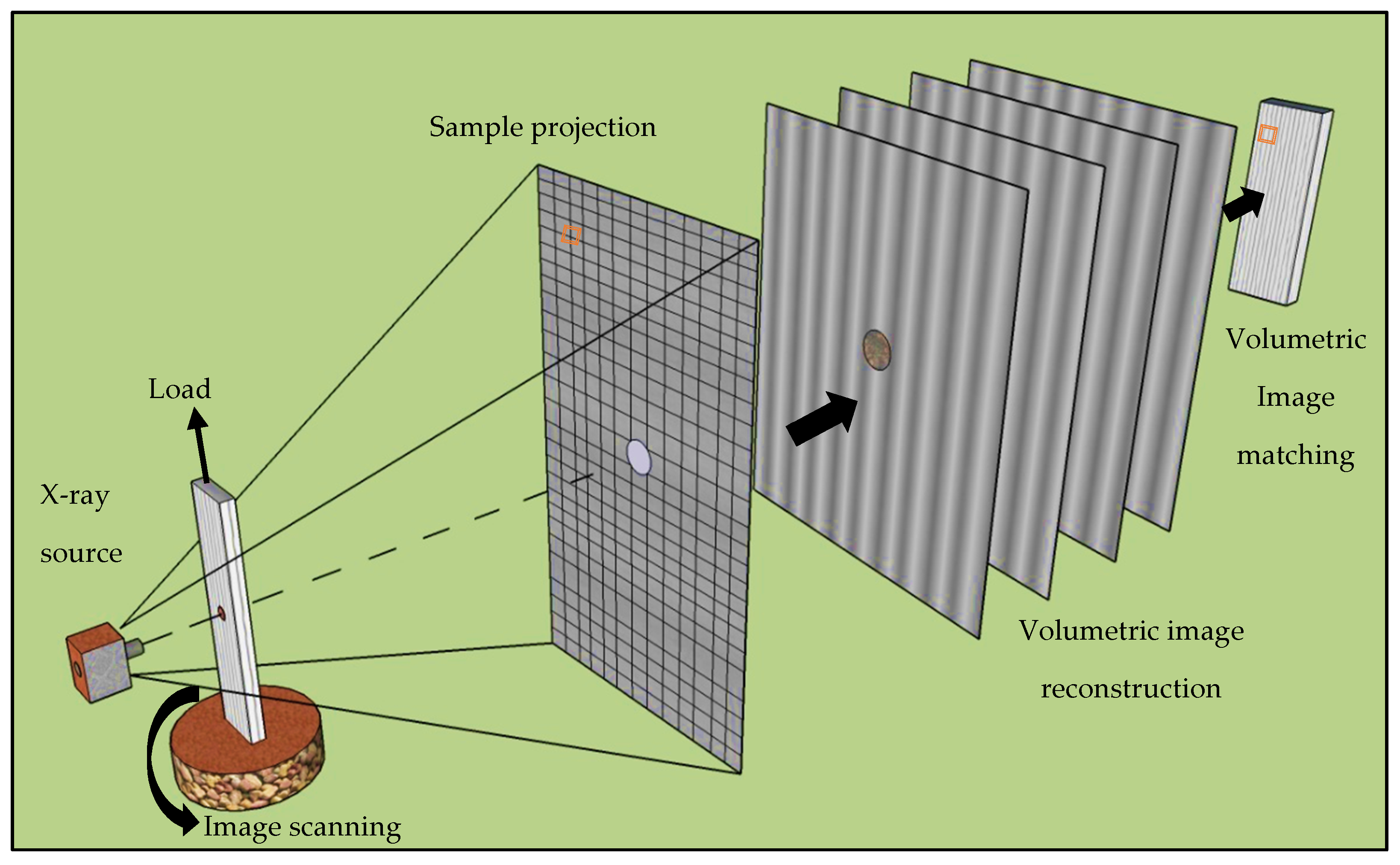

A 3D expansion of the 2D-DIC technique, the Digital Volume Correlation (DVC), has also been a recent development of DIC. The DVC technique (see Figure 6) emerged as an effective medium in measuring intrinsic deformations of opaque components like wood [92], bony and skeletal specimens [93] and rock [75] as a result of comparing volumetric photographs obtained from 3D photographic devices. The DVC technique was firstly introduced by Bay et al. in 1999 as a tool to find a continuum-level deformation in trabecular materials such as bones [74]. The applications of DVC are mainly used for a high level of accuracy measurements, such as micro-strains produced in biological specimens such as bones. The DVC also has some limitations, such as the limitation of the continuum approach to measuring local strains in foam materials at high levels of strains [74]. This error can be remedied by adding rotation and strain parameters in order to obtain more accurate measurements of the local effects.

3. Structural Health Monitoring Using DIC in Bridge Structures

An essential approach to long-term civil infrastructural cost-effective management is to employ minimal-cost monitoring methods that could be easily implemented and sufficiently precise. The Digital Image Correlation (DIC) satisfies these requirements. As a result of their immense sizes, DIC provides an ideal solution to the traditional sensors for civil, structural monitoring because they enable assessments to be carried out without any interference with the system functionalities and could access locations that are challenging to reach without the use of special machinery, like scaffolds and trucks. During the last two decades, many researchers realised the efficiency and versatility of the vision-based and DIC techniques for various SHM applications. Because of their strategic significance and security concerns, bridges are the mostly surveyed civil engineering systems. Following is a state-of-the-art review of the latest SHM application using the DIC technique for multiple bridge infrastructures. A summary of the recent DIC applications in SHM of bridge structures is presented in Table 1.

3.1. Concrete Bridges

Concrete bridges are divided into several types: Arch, Reinforced Slab, Beam and Slab, Box Girder, Integral, and Cable-Stayed Bridges [94]. One of the earliest works conducted by Lee and Shinozuka in 2006 was applied to a concrete bridge with steel box girders, which will be later described in the steel bridge section [95]. In a study, a 2D-DIC technique was employed by Yoneyama and Ueda in 2012 in tracking the variance of a bridge girder’s vertical deflection by proposing a method for correction of camera movement influence [96]. In the experimental study, a heavyweight was mounted on a bridge. A single electronic camera captured photographs before and after the deformation of the girder surface, as shown in Figure 7. The findings revealed that the DIC-recorded deflections agreed with those observed with the Linear Variable Differential Transformer (LVDT), suggesting the proposed technique could eliminate the influence of camera motion [96].
Using the 2D-DIC technique, Feng et al., in 2015, extracted displacements in real-time from video images by devising an advanced prototype pairing algorithm called up-sampled cross-correlation using Fourier transform [97]. The results showed that by merely altering the up-sampling parameter, improved imagery resolution of less than 1 mm could be accomplished effortlessly. The field test carried out on a railway and pedestrian bridge showed that the displacements measured by the single camera agreed with measured displacements obtained from the high-performance laser sensors. The vision-based technique gives significant advantages such as efficiency in extracting structural displacements from a single measurement at any point, besides its ease of deployment and low cost [97].
In a similar study, Pan et al. in 2016, proposed an off-axis 2D-DIC technique by employing an inverse Gauss-Newton compositional algorithm for real-time vertical displacement measurement of a rail bridge girder with the aid of an advanced video deflectometer [55]. The experimental outcomes indicated that the proposed method could detect planar displacement due to the pin-hole digital camera model used for measuring the in-field bridge deflection and provides attractive benefits such as targetless and truly remote sensing and visualisation of measurements in real-time [55].
A three-dimensional DIC was also utilised by Nonis et al. in 2013 to examine a concrete bridge consistently to detect invisible cracks, assess spalling, and evaluate the deformation of the bridge [98]. The experimental results indicated that the photographic analysis aligned with that conducted while utilising fibre optic strain gages across three and four-point bending tests performed on a concrete beam [98]. The same bridge was surveyed by Reagan et al. in 2017, using 3D-DIC for nearly a year [30]. The authors suggested a new technique incorporating the utilisation of 3D-DIC and an Unmanned Aerial Vehicle (UAV), which will conduct health monitoring of bridges utilising the non-contact, optical-based assessment method. The authors revealed the effectiveness of this technique in identifying structural alterations and tracking the dynamic activities of expansion joints and hairline cracks over time [30].
Winkler and Hendy, in 2017, utilised DIC to monitor and assess a single-span simply supported Warton bridge constructed in 1937 [99]. The DIC was implemented on the bridge as a part of the fatigue assessment strategy by running three-car trains over the bridge deck and measuring deflection. The DIC is comprised of a single camera mounted on a tripod at 30 m from the bridge, with a sampling frequency of 30 Hz and a resolution of 1/50th of a pixel. Using the DIC showed a cost-effective and easy-to-implement approach for strain measurement and structural performance monitoring of the Warton Road concrete bridge [99].
Recently, a new approach has emerged based on an off-axis DIC video deflectometer as a robust yet straightforward contactless vision-based technique, proposed by Tian et al. in 2021 [100]. The new approach was intended to measure a full-field deflection over many points, utilising the “straight-line fitting scheme”. Furthermore, the suggested approach uses reliability-guided processing and a quick initial parameter estimate procedure for real-time and accurate image-matching analysis. The proposed technique was applied to both an indoor cantilever and a high-speed railway concrete bridge to demonstrate the technique’s effectiveness and practicality for SHM applications. It was found that the accuracy of the proposed approach mainly depends on multiple factors such as the field of view, camera resolution and sampling, measurement distance, concrete surface texture, and environmental conditions [100].

3.2. Suspension Bridges

Using DIC, monitoring hanger cables is another common application for civil infrastructures, especially cable-stayed bridges. Ji et al., in 2008, were among the earliest researchers who envisioned the use of combined 2D- and 3D-DIC techniques to observe vibrations of cables holding a pedestrian bridge utilising optical sensors [101]. Utilising a single commercially accessible camera device with no camera calibration prior to testing is required; the suggested approach studied a series of photographs taken from a vibrating wire and computed the intensity of optical variance of a targeted area of reference to determine the wire displacement. The experimental findings indicate that the approach could precisely quantify cable vibration and pipe motion. Furthermore, this optical flow approach allows for simple implementation by circumventing the necessity of appending a target on the cable [101].
Kim and Kim employed Digital Image Correlation (DIC) in 2013 to create a photo correction algorithm to examine photographs obtained with an electronic photo device to measure the dynamic characteristics of the bridge’s hanger cables stress by calculating the dynamic behaviour of the Gwangans’ bridge hanger cables [102]. In both stress and modal frequencies, the laboratory results gathered while utilising the DIC technique and those obtained while utilising the accelerometer-based technique were distinguished by a discrepancy of ±0.5% [102].
A novel “optico-acoustic” approach was presented by Vanniamparambil et al. in 2013 to detect breaking in seven-wire steel cable strands [103]. The newly implemented method combined three Non-Destructive Techniques (NDT), consisting of the Acoustic Emission (AE), Guided Ultrasonic Waves (GUW), and the emerging vision-based Digital Image Correlation (DIC). The integration of these NDT techniques simultaneously was intended to enable cross-correlation and validation of the damage detection, initiation, and progression of the steel wire. The applied approach showed a remarkable reduction of the uncertainties associated with each technique due to the concurrent use of these techniques [103]. The execution of these techniques for wire damage detection shows the effectiveness of using DIC for SHM systems, especially when combined with other heterogeneous sensing modes like the “optico-acoustic” approach.
Du et al., in 2020, investigated the dynamic response of stay cable Guanhe bridge by using two measurement techniques, Digital Image Correlation (DIC) and Digital Image Processing (DIP), together with the use of the traditional accelerometer [104]. Two laboratory experiments, including single and multipoint cable force measurement, were performed and compared with the accelerometer and the numerical simulation to assess the validity of digital image methods. The findings of the experiments showed only a 5% relative deviation between the DIC values and the accelerometer measurements. It has been concluded that DIC use for cable-stayed bridges provides more sustainable and efficient approaches than traditional contact-based techniques [104].
A new tool using an Unmanned Aerial Vehicle (UAV) was recently proposed to monitor Nansha suspension bridges cables by Tian et al. in 2021 [105]. The technique was employed to capture the cables’ vibration images, extract the dynamic characteristics and analyse them using image analysis. The proposed image analysis technique was established based on two aspects, namely (1) the Line Segment Detector (LSD) and (2) frequency difference. The line segment was applied to detect the edges of the cable from the images to extract the dynamic displacement of the cable by proposing a line match algorithm. To circumvent the difficulties of extracting the fundamental frequency from the UAV-obtained video, the frequency difference of neighbouring higher modal frequencies detected from the relative cable displacements was used for force calculation in the cable. The new suggested LSD technique provides a robust approach for the dynamic displacement of suspension bridge cables compared to the traditional image correlation-based algorithms. The proposed system calculated results agree well with those obtained by the accelerometer and fixed camera [105].

3.3. Masonry Arch Bridges

Masonry arch bridges comprise around 40% of the bridge infrastructure stock in Europe alone, while most of them have exceeded 100 years of service [106]. Most old masonry bridges assessment and maintenance conditions rely heavily on visual inspection to identify the deterioration and structural behaviour changing during their working life [106]. In addition, the field inspection of masonry bridge structures using the DIC is very rare [107]. Koltsida et al., in 2013, used 2D-DIC at the field to monitor a four-span railway masonry arch bridge under normal traffic conditions [106]. The study was implemented to determine the DIC efficacy for bridge monitoring and assess the bridge structural and service conditions. The DIC setup comprised a single camera placed at a 10 m distance from the observed service. The first and the second span were monitored with the camera when a 45 tonnes per bogie train passed over the bridge. The horizontal and the vertical displacement versus the train locations were calculated, in pixel units, using the MatchID-2D DIC software [108]. The DIC technique proved to be suitable for crack and displacement measurements. In addition, the behaviour changes under loading were easily measured on small-scale specimens, and the results were beneficial for identifying the crack location [106].
A case study of masonry viaduct bridge multipoint dynamic displacement measurements in Leeds, UK, was performed by Acikgoz et al. in 2018, using 2D-DIC [109]. The researcher addressed the limitations related to the DIC technique by surveying and identifying the errors that affect the field DIC measurements. The study also discussed the minimisation and mitigation techniques during the setup (acquisition) and after (post-processing). Among those addressed errors related to the setup (video acquisition) are the camera movement, lens distortion, light exposure, and environmental conditions. On the other hand, errors related to the structural behaviour were identified by the out-of-plane rigid body movement and rotation. Lastly, the errors related to the video processing (post-processing) depend on the target surface quality (pattern quality), target size, and distance from the camera. An arch span of 7.7 m, 2.1 m height, and 8 m width, having a half-meter thick barrel, was investigated in this study. The bridge is designed to carry two tracks of 25-ton axels trains at a 55 km/h speed. The field setup comprises two commercial cameras with a resolution of 2 MP and a sensor size of 12 × 6 mm at a 50 Hz frame rate. The video processing of the DIC was implemented using the Imetrum software. It has been concluded that quantifying errors produced by the out-of-plane movement using a simple geometry technique with the aid of the pin-hole imaging model will provide helpful information about the out-of-plane effects on the in-plane DIC measurements [109,110].
Recently, Dhanasekar et al., in 2019, investigated the serviceability (deflection and strain) of two old masonry arch bridges in Australia using DIC [107]. Three key sections were selected on the arch bridge to be monitored, namely, quarter, support, and crown. The bridge was monitored under the axle load of two different passenger and freight trains. Three independent cameras of 2.35 MP situated at a 4 m distance from the surface were used to capture digital images of each section for two days. An Istra4D commercial software was used for the DIC analysis and acquisition at 0.02-s intervals [111]. The acquired parameters using the DIC were the deflection, radial, and tangential (axial) strains. In addition, a numerical finite element model was also established to validate the field DIC measurements. Results from the DIC technique show its suitability for field testing, despite the bridges’ low deflection and strains values. In addition, a maximum difference of 14.5% was identified between the numerical and corresponding field measurements for the case of tangential strain at the compressive region of the quarter section [107].

3.4. Steel Bridges

Steel bridges are broadly used all around the world in multiple structural forms. Steel bridges are preferred over other concrete or masonry bridges due to their high material strength, ductility, and ease of fabrication and construction. One of the earliest works conducted by Lee and Shinozuka in 2006 was applied to a concrete bridge with steel box girders [95]. The vision-based system was proposed to assess the dynamic displacement of the bridge’s girders in real-time. The technique was implemented by employing a telescopic appliance with a video camera, a method for image processing requiring a targeted identification algorithm. The experimental results indicated that the recommended model could quantify displacements with accuracy, which was less than a three percent deviation in peak value compared to when utilising the Linear Variable Differential Transformer (LVDT). The key distinction between this study and prior research is the utilisation of consumer-grade cameras with no specifically designed optical modules and the omission of an offline specialised transceiver extraction algorithm [95].
Peddle et al., in 2011, employed DIC to calculate the deflection of a three-span steel girder bridge in Vernon, Massachusetts, US [112]. The bridge length is 47 m built with six steel girders designed to carry a 20 cm concrete deck. The camera setup used for DIC was configured at a sampling rate of 1 Hz, used in conjunction with LVDT having a sampling rate of 50 Hz. The load was applied by three axles truck to apply a force of 320 kN to stimulate the bridge response under traffic load. Results from the load test show an excellent agreement between the DIC and the LVDT.
In addition, the study also deployed the DIC technique for deflection measurement of the concrete bridge supported by steel beams while retrofitting in Gilford, New Hampshire, US. The retrofitting process included removing all the beams and installing FRP strips on the lower face of the bridge. Speckled steel L-shaped tabs were glued to the lower concrete surface to allow the camera to measure deflection at any point on the bridge. A 120 kN empty truck was used to apply the load on the bridge. It was realised that the truck’s weight was not sufficient to generate a noticeable amount of deflection, which was only 0.06 mm. The results also showed that the DIC data at small displacement did not agree well with the LVDT data. The variation of the deflection values between the DIC and LVDT could be attributed to using a small focal length lens of 35 mm during the acquisition and can be mitigated with a larger lens. Nevertheless, DIC still offers more convenient and fast installation techniques for SHM [112].
Winkler and Hendy, in 2017, discussed the implementation of DIC for field monitoring of fatigue-sensitive steelworks details of the London’s Dockland railway bridge [113]. The bridge consisted of a two-span of 11.7 and 12.7 m. Each span has seventeen longitudinal steel girders. The DIC setup comprised a camera with a sampling rate between 20–40 Hz, with a resolution of 2% of a pixel. The DIC camera was used to observe a critical section (detail connection) and placed at 0.3 m from the surface. Results from the DIC revealed that high strains were concentrated at the notch detail corner, suggesting that it must be further examined for fatigue cracking. Finally, the field observation demonstrates that using DIC for SHM will facilitate the installation, avoid the disruption of stakeholders, and make no change to the structure’s appearance [113].
Recently, Wang et al., in 2019, have investigated the feasibility of pressure-activated tape as a new patterning scheme for coated and bare steel structures [114]. This study utilised a commercial 3MTM pressure-activated adhesive tape with an electronic designed, printed pattern on two steel bridges in Delaware and Indiana, US. The tape has a customised length, 1.5 m width, and has an eight-year durability warranty. The tape application to the structure comprised three steps: surface cleaning, loose coating removing, and tape adherence with bare hands. Besides, the DIC setup was used to monitor the upper chord repairing of the Delaware River bridge. Next, the experimental works include measuring the longitudinal and transverse elastic strains for coated and bare steel specimens.
Moreover, the DIC was utilised with strain gauges, extensometers, and DIC with conventional paint patterning. Results from DIC measurements report lower strain values for the tape specimens compared to the conventional spray pattern. The low strain values could be attributed to the fact that the tape is composed of multiple layers made of different material properties as DIC measures the surface strains; this will measure the strain of the outer layer of the tape and not the real steel strain. Nevertheless, a strain match was observed after a specified length, which is later considered as the “development length” of the adhesive tape. After the development length had been quantified, the measured strain of the steel was correctly predicted as 0.11%. The study recommended checking the conditions of the coating before the use of the tape to avoid any bonding complications while measuring [114].
Table
Table 1. Summary of the recent DIC applications in bridge structures’ Structural Health Monitoring (SHM).
Table 1. Summary of the recent DIC applications in bridge structures’ Structural Health Monitoring (SHM).
Bridge Type.DescriptionLocation (Year)Authors and Reference
ConcreteConcrete bridge with a steel box girderSouth Korea (2006)Lee and Shinozuka, 2006 [95]
Concrete girder bridgeJapan (2012)Yoneyama and Ueda, 2012 [96]
Three full-scale concrete bridgesUnited States (2013, 2017)Nonis et al., 2013 [98]
Reagan et al., 2017 [30]
Railway and pedestrian concrete bridgeUnited States (2015)Feng et al., 2015 [97]
Rail bridge girderChina (2016)Pan et al., 2016 [55]
Concrete bridge deckUnited Kingdom (2017)Winkler and Hendy, 2017 [99]
A high-speed railway concrete bridgeChina (2021)Tian et al., 2021 [100]
SuspensionCable-stayed pedestrian bridgeHong Kong (2008)Ji et al., 2008 [101]
Suspension bridge hanger cablesSouth Korea (2013)Kim and Kim, 2013 [102]
Seven-wires steel cable strandsUnited States (2013)Vanniamparambil et al., 2013 [103]
Cable-stayed bridge modelChina (2020)Du et al., 2020 [104]
A long-span suspension bridgeChina (2021)Tian et al., 2021 [105]
MasonryFour-span old masonry railway arch bridge.United Kingdom (2013)Koltsida et al., 2013 [106]
Masonry viaduct bridgeUnited Kingdom (2018)Acikgoz et al., 2018 [109]
Two old masonry railway arch bridgesAustralia (2019)Dhanasekar et al., 2019 [107]
SteelConcrete bridge with a steel box girderSouth Korea (2006)Lee and Shinozuka, 2006 [95]
Three-span steel girder bridge and concrete bridge supported by steel beamsUnited States (2011)Peddle et al., 2011 [112]
Fatigue-sensitive steelworks details of a railway bridgeUnited Kingdom (2017)Winkler and Hendy, 2017 [113]
Two steel bridges (coated and bare steel structures)United States (2019)Wang et al., 2019 [114]

4. Conclusions

This paper focuses on developing and applying vision-based methods, mainly 2D and 3D-Digital Image Correlation (DIC), for full-field deformation measurement in the Structural Health Monitoring (SHM) of bridge structures. There were four bridge types: concrete, suspension, masonry, and steel bridges, respectively.
The current review demonstrates the DIC potential for SHM applications at multiple bridges at various spans and building materials under different testing and environmental conditions. The bridge sections monitored with the DIC ranged from a few centimetres to multiple meters. Consequently, the versatility of the DIC technique stems from its ability to pair with other modern techniques and tools such as drones, smartphones, and robots. In addition, the non-contact and full-field features of the DIC provided alternative solutions for various situations where traditional monitoring devices cannot be applied. The field applications proved the DIC reliability by comparing the calculated displacements and strains with the conventional point-wise metrological tools, such as the Linear Variable Differential Transformer (LVDT), strain gauges, and numerical simulation. Results variation between the DIC and other techniques were observed and associated with their causing sources. Among the primary sources of data variation are the illuminating light flickering effect, camera stabilisation, and speckle pattern quality. Further, the influence of the DIC fundamental parameters such as camera resolution, camera distance, and acquisition rate on the quality of the measured data were described. Previous works showed that the image quality, sharpness (no-vibration), and speckle pattern contrast play an essential role in the quality of the captured data with the DIC.
Furthermore, the tracing of advances made over the last three decades in DIC, such as the improvement of digital cameras, smartphones, and computational algorithms, contributed to making the DIC a robust and well-established technique. It has been widely regarded as a transformative discovery for full-field deformation computation in static testing and dynamic investigations. Finally, due to the rapid advancement of optical instrumentation, such as high-definition video recorders and unmanned autonomous devices for capturing images and matching algorithms (including FEM software) for analysing the captured images in full-field 2D and 3D, the DIC technique will arguably remain the most effective and versatile tool for deformation measurement in the coming years.

Author Contributions

Conceptualisation, M.M.Y. and U.J.U.; methodology, M.M.Y., U.J.U., M.A.M., F.M.N. and M.K.K.; validation, F.M.N., M.M.Y., L.N.A. and M.A.M.; formal analysis, M.M.Y.; investigation, M.K.K. and M.A.M.; resources, M.M.Y.; data curation, L.N.A.; writing—original draft preparation, M.M.Y.; writing—review and editing, M.A.M.; visualisation, M.A.M., F.M.N. and M.K.K.; supervision, G.A.R.P.; project administration, M.M.Y.; funding acquisition, M.M.Y., L.N.A. and S.A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research is funded by the Ministry of Higher Education Malaysia under the Fundamental Research Grant Scheme, grant number 203/PAWAM/6071408.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors express their acknowledgements to the Ministry of Higher Education Malaysia for their Fundamental Research Grant Scheme.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zinno, R.; Artese, S.; Clausi, G.; Magarò, F.; Meduri, S.; Miceli, A.; Venneri, A. Structural Health Monitoring (SHM). In The Internet of Things for Smart Urban Ecosystems; Springer International Publishing: Cham, Switzerland, 2019; pp. 225–249. [Google Scholar] [CrossRef]
  2. Shull, P.J. Nondestructive Evaluation: Theory, Techniques, and Applications; CRC Press: Boca Raton, FL, USA, 2016; ISBN 9780203911068. [Google Scholar]
  3. Giurgiutiu, V. Embedded non-destructive evaluation for structural health monitoring, damage detection, and failure prevention. Shock. Vib. Dig. 2005, 37, 83–105. [Google Scholar] [CrossRef]
  4. Bhalla, S.; Soh, C.K. Structural health monitoring by piezo–impedance transducers. II: Applications. J. Aerosp. Eng. 2004, 17, 166–175. [Google Scholar] [CrossRef]
  5. Song, G.; Gu, H.; Mo, Y.; Hsu, T.; Dhonde, H. Concrete structural health monitoring using embedded piezoceramic transducers. Smart Mater. Struct. 2007, 16, 959–968. [Google Scholar] [CrossRef] [Green Version]
  6. Song, G.; Olmi, C.; Gu, H. An overheight vehicle–bridge collision monitoring system using piezoelectric transducers. Smart Mater. Struct. 2007, 16, 462–468. [Google Scholar] [CrossRef]
  7. Betz, D.; Thursby, G.; Culshaw, B.; Staszewski, W. Advanced layout of a fiber Bragg grating strain gauge rosette. J. Light. Technol. 2006, 24, 1019–1026. [Google Scholar] [CrossRef]
  8. De Freitas, S.T.; Kolstein, H.; Bijlaard, F. Structural monitoring of a strengthened orthotropic steel bridge deck using strain data. Struct. Health Monit. 2012, 11, 558–576. [Google Scholar] [CrossRef]
  9. Vurpillot, S.; Krueger, G.; Benouaich, D.; Clément, D.; Inaudi, D. Vertical deflection of a pre-stressed concrete bridge obtained using deformation sensors and inclinometer measurements. ACI Struct. J. 1998, 95, 518–526. [Google Scholar] [CrossRef]
  10. Burdet, O.; Zanella, J.-L. Automatic Monitoring of Bridges Using Electronic Inclinometers. 2011, Volume 16, pp. 1574–1581. Available online: https://ur.booksc.eu/book/59370113/94ec25 (accessed on 7 December 2021). [CrossRef] [Green Version]
  11. Li, X.; Ge, L.; Ambikairajah, E.; Rizos, C.; Tamura, Y.; Yoshida, A. Full-scale structural monitoring using an integrated GPS and accelerometer system. GPS Solut. 2006, 10, 233–247. [Google Scholar] [CrossRef]
  12. Sony, S.; LaVenture, S.; Sadhu, A. A literature review of next-generation smart sensing technology in structural health monitoring. Struct. Control. Health Monit. 2019, 26, e2321. [Google Scholar] [CrossRef]
  13. Lau, K.T.; Chan, C.C.; Zhou, L.-M.; Jin, W. Strain monitoring in composite-strengthened concrete structures using optical fibre sensors. Compos. Part B Eng. 2001, 32, 33–45. [Google Scholar] [CrossRef]
  14. Chung, W.; Kang, D. Full-scale test of a concrete box girder using FBG sensing system. Eng. Struct. 2008, 30, 643–652. [Google Scholar] [CrossRef]
  15. Taheri, S. A review on five key sensors for monitoring of concrete structures. Constr. Build. Mater. 2019, 204, 492–509. [Google Scholar] [CrossRef]
  16. Ye, X.W.; Su, Y.H.; Han, J.P. Structural health monitoring of civil infrastructure using optical fiber sensing technology: A comprehensive review. Sci. World J. 2014, 1–11. [Google Scholar] [CrossRef] [Green Version]
  17. Das, S.; Saha, P. A review of some advanced sensors used for health diagnosis of civil engineering structures. Measurement 2018, 129, 68–90. [Google Scholar] [CrossRef]
  18. Sabato, A.; Niezrecki, C.; Fortino, G. Wireless MEMS-based accelerometer sensor boards for structural vibration monitoring: A review. IEEE Sens. J. 2016, 17, 226–235. [Google Scholar] [CrossRef]
  19. Ragam, P.; Sahebraoji, N.D. Application of MEMS-based accelerometer wireless sensor systems for monitoring of blast-induced ground vibration and structural health: A review. IET Wirel. Sens. Syst. 2019, 9, 103–109. [Google Scholar] [CrossRef]
  20. Udod, V.A.; Van, Y.; Osipov, S.; Chakhlov, S.V.; Usachev, E.Y.; Lebedev, M.B.; Temnik, A.K. State-of-the art and development prospects of digital radiography systems for nondestructive testing, evaluation, and inspection of objects: A review. Russ. J. Nondestruct. Test. 2016, 52, 492–503. [Google Scholar] [CrossRef]
  21. Vásárhelyi, L.; Kónya, Z.; Kukovecz, Á.; Vajtai, R. Microcomputed Tomography–Based Characterisation of Advanced Materials: A Review. Mater. Today Adv. 2020, 8, 100084. [Google Scholar] [CrossRef]
  22. Bennett, P.J. Vibration Monitoring and Live Load Tests of Civil Infrastructure with Interferometric Radar. In Proceedings of the 9th International Workshop on Structural Health Monitoring, IWSHM 2013, Stanford University, Stanford, CA, USA, 10–12 September 2013. [Google Scholar]
  23. Hellstein, P.; Szwedo, M. 3D thermography in non-destructive testing of composite structures. Meas. Sci. Technol. 2016, 27, 124006. [Google Scholar] [CrossRef]
  24. Gholizadeh, S. A review of non-destructive testing methods of composite materials. Procedia Struct. Integr. 2016, 1, 50–57. [Google Scholar] [CrossRef] [Green Version]
  25. Dwivedi, S.K.; Vishwakarma, M.; Soni, A. Advances and researches on non destructive testing: A review. Mater. Today Proc. 2018, 5, 3690–3698. [Google Scholar] [CrossRef]
  26. Wang, N.; Ri, K.; Liu, H.; Zhao, X. Structural displacement monitoring using smartphone camera and digital image correlation. IEEE Sens. J. 2018, 18, 4664–4672. [Google Scholar] [CrossRef]
  27. Winkler, J.; Hansen, M.D. Innovative long-term monitoring of the great belt bridge expansion joint using digital image correlation. Struct. Eng. Int. 2018, 28, 347–352. [Google Scholar] [CrossRef]
  28. Reagan, D.; Sabato, A.; Niezrecki, C. Feasibility of using digital image correlation for unmanned aerial vehicle structural health monitoring of bridges. Struct. Health Monit. 2017, 17, 1056–1072. [Google Scholar] [CrossRef]
  29. Khuc, T.; Catbas, F.N. Completely contactless structural health monitoring of real-life structures using cameras and computer vision. Struct. Control. Health Monit. 2017, 24, e1852. [Google Scholar] [CrossRef]
  30. Reagan, D.; Sabato, A.; Niezrecki, C. Unmanned aerial vehicle acquisition of three-dimensional digital image correlation measurements for structural health monitoring of bridges. In Nondestructive Characterisation and Monitoring of Advanced Materials, Aerospace, and Civil Infrastructure 2017; International Society for Optics and Photonics: Bellingham, DA, USA, 2017; Volume 10169, p. 1016909. [Google Scholar]
  31. Cha, Y.-J.; Choi, W.; Büyüköztürk, O. Deep learning-based crack damage detection using convolutional neural networks. Comput. Civ. Infrastruct. Eng. 2017, 32, 361–378. [Google Scholar] [CrossRef]
  32. Kim, E.; Jang, W.J.; Kim, W.; Park, J.; Lee, M.K.; Park, S.-H.K.; Choi, K.C. Suppressed instability of a-IGZO thin-film transistors under negative bias illumination stress using the distributed BRAGG reflectors. IEEE Trans. Electron. Devices 2016, 63, 1066–1071. [Google Scholar] [CrossRef]
  33. Lyasheva, S.; Tregubov, V.; Shleymovich, M. Detection and Recognition of Pavement Cracks Based on Computer Vi-sion Technology. In Proceedings of the 2019 International Conference on Industrial Engineering, Applications and Manufacturing, ICIEAM 2019, Sochi, Russia, 25–29 March 2019. [Google Scholar]
  34. Xie, X.; Xia, Y.; Liu, B.; Li, K.; Wang, T. The multichannel integration active contour framework for crack detection. Int. J. Adv. Robot. Syst. 2019, 16, 1–13. [Google Scholar] [CrossRef]
  35. Guo, H.; Wang, X.; Liu, C.; Zhou, Y. Research on defect extraction of particleboard surface images based on gray level co-occurrence matrix and hierarchical clustering. Linye Kexue/Sci. Silvae Sin. 2018, 54, 111–120. [Google Scholar] [CrossRef]
  36. Oliveira, J.; Xavier, J.; Pereira, F.; Morais, J.; de Moura, M. Direct evaluation of mixed mode I+II cohesive laws of wood by coupling MMB test with DIC. Materials 2021, 14, 374. [Google Scholar] [CrossRef] [PubMed]
  37. Bakir, K.; Aydemir, D.; Bardak, T. Dimensional stability and deformation analysis under mechanical loading of recycled PET-wood laminated composites with digital image correlation. J. Clean. Prod. 2020, 280, 124472. [Google Scholar] [CrossRef]
  38. Ngeljaratan, L.; Moustafa, M.A. System Identification of Large-Scale Bridge Model Using Digital Image Correlation from Monochrome and Color Cameras. In Proceedings of the 12th International Workshop on Structural Health Monitoring, Stanford, CA, USA, 10–12 September 2019; DEStech Publications: Pennsylvania, PA, USA, 2019; Volume 2019. [Google Scholar]
  39. Dai, S.; Liu, X.; Nawnit, K. Experimental Study on the Fracture Process Zone Characteristics in Concrete Utilizing DIC and AE Methods. Appl. Sci. 2019, 9, 1346. [Google Scholar] [CrossRef] [Green Version]
  40. Li, G.; Zhao, X.; Du, K.; Ru, F.; Zhang, Y. Recognition and evaluation of bridge cracks with modified active contour model and greedy search-based support vector machine. Autom. Constr. 2017, 78, 51–61. [Google Scholar] [CrossRef]
  41. Oliveira, H.; Correia, P.L. Road surface crack detection: Improved segmentation with pixel-based refinement. In Proceedings of the 2017 25th European Signal Processing Conference (EUSIPCO), Kos, Greece, 28 August–2 September 2017. [Google Scholar] [CrossRef] [Green Version]
  42. Grygierek, M.; Grzesik, B.; Rokitowski, P.; Rusin, T. Usage of digital image correlation in assessment of behavior of block element pavement structure. IOP Conf. Ser. Mater. Sci. Eng. 2018, 356, 012024. [Google Scholar] [CrossRef]
  43. Kong, X.; Li, J. Vision-based fatigue crack detection of steel structures using video feature tracking. Comput. Civ. Infrastruct. Eng. 2018, 33, 783–799. [Google Scholar] [CrossRef]
  44. Taher, S.A.; Li, J.; Collins, W.; Bennett, C. UAV-Based Non-Contact Fatigue Crack Monitoring of Steel Structures. In Proceedings of the Structural Health Monitoring 2019: Enabling Intelligent Life-Cycle Health Management for Industry Internet of Things (IIOT), Stanford, CA, USA, 10–12 September 2019; 2019; Volume 2, pp. 3188–3194. Available online: https://www.researchgate.net/publication/337301925_UAV-Based_Non-Contact_Fatigue_Crack_Monitoring_of_Steel_Structures (accessed on 7 December 2021).
  45. Al-Salih, H.; Juno, M.; Collins, W.; Bennett, C.; Li, J. Application of a digital image correlation bridge inspection methodology on geometrically complex bifurcated distortion-induced fatigue cracking. Fatigue Fract. Eng. Mater. Struct. 2021, 44, 3186–3201. [Google Scholar] [CrossRef]
  46. Palanca, M.; Tozzi, G.; Cristofolini, L. The use of digital image correlation in the biomechanical area: A review. Int. Biomech. 2016, 3, 1–21. [Google Scholar] [CrossRef]
  47. Zhou, B.; Ravindran, S.; Ferdous, J.; Kidane, A.; Sutton, M.A.; Shazly, T. Using digital image correlation to characterise local strains on vascular tissue specimens. J. Vis. Exp. 2016, e53625. [Google Scholar] [CrossRef] [Green Version]
  48. Chen, B.; Genovese, K.; Pan, B. In vivo panoramic human skin shape and deformation measurement using mirror-assisted multi-view digital image correlation. J. Mech. Behav. Biomed. Mater. 2020, 110, 103936. [Google Scholar] [CrossRef]
  49. Cabrera, I.A.; Martin, J.C.; Fong, S.T.; Nguyen, K.H.M.; Bourgin, V.D.; Zhao, W.-Y.; Lawson, K.J.; Wong, K.A.; Bagheri, P.; Hill, P.J.; et al. Seeing the Big Picture: Improving the prosthetic design cycle using 360° 3D digital image correlation. J. Mater. Res. Tehnol. 2020, 1–13, in press. [Google Scholar] [CrossRef]
  50. Lundstrom, T.; Baqersad, J.; Niezrecki, C. Monitoring the dynamics of a helicopter main rotor with high-speed stereophotogrammetry. Exp. Tech. 2016, 40, 907–919. [Google Scholar] [CrossRef]
  51. Janeliukstis, R.; Chen, X. Review of digital image correlation application to large-scale composite structure testing. Compos. Struct. 2021, 271, 114143. [Google Scholar] [CrossRef]
  52. Wang, Z.; Kieu, H.; Nguyen, H.; Le, M. Digital image correlation in experimental mechanics and image registration in computer vision: Similarities, differences and complements. Opt. Lasers Eng. 2015, 65, 18–27. [Google Scholar] [CrossRef]
  53. Okada, D.R.; Blankstein, R. Digital image processing for medical applications. Perspect. Biol. Med. 2009, 52, 617–623. [Google Scholar] [CrossRef]
  54. Sciammarella, C.A.; Sciammarella, F.M. Digital image correlation (DIC). In Experimental Mechanics of Solids; John Wiley & Sons: Hoboken, NJ, USA, 2012; pp. 607–629. [Google Scholar]
  55. Pan, B.; Tian, L.; Song, X. Real-time, non-contact and targetless measurement of vertical deflection of bridges using off-axis digital image correlation. NDT E Int. 2016, 79, 73–80. [Google Scholar] [CrossRef]
  56. McCormick, N.; Lord, J. Digital image correlation. Mater. Today 2010, 13, 52–54. [Google Scholar] [CrossRef]
  57. Anuta, P.E. Spatial registration of multispectral and multitemporal digital imagery using fast fourier transform techniques. IEEE Trans. Geosci. Electron. 1970, 8, 353–368. [Google Scholar] [CrossRef]
  58. Keating Terrence, J.; Wolf, P.R.; Scarpace, F.L. Improved method of digital image correlation. Photogramm. Eng. Remote Sens. 1975, 41, 993–1002. [Google Scholar]
  59. Chu, T.; Ranson, W.F.; Sutton, M.A. Applications of digital-image-correlation techniques to experimental mechanics. Exp. Mech. 1985, 25, 232–244. [Google Scholar] [CrossRef]
  60. Bruck, H.; McNeill, S.R.; Sutton, M.A.; Peters, W.H. Digital image correlation using Newton-Raphson method of partial differential correction. Exp. Mech. 1989, 29, 261–267. [Google Scholar] [CrossRef]
  61. Peters, W.H.; Ranson, W.F. Digital imaging techniques in experimental stress analysis. Opt. Eng. 1982, 21, 427–431. [Google Scholar] [CrossRef]
  62. Wang, B.; Pan, B. Subset-based local vs. finite element-based global digital image correlation: A comparison study. Theor. Appl. Mech. Lett. 2016, 6, 200–208. [Google Scholar] [CrossRef] [Green Version]
  63. Piekarczuk, A.; Malesa, M.; Kujawinska, M.; Malowany, K. Application of hybrid FEM-DIC method for assessment of low cost building structures. Exp. Mech. 2012, 52, 1297–1311. [Google Scholar] [CrossRef] [Green Version]
  64. Gerbig, D.; Bower, A.; Savic, V.; Hector, L.G. Coupling digital image correlation and finite element analysis to determine constitutive parameters in necking tensile specimens. Int. J. Solids Struct. 2016, 97–98, 496–509. [Google Scholar] [CrossRef]
  65. Fang, F.; Li, L.; Gu, Y.; Zhu, H.; Lim, J.-H. A novel hybrid approach for crack detection. Pattern Recognit. 2020, 107, 107474. [Google Scholar] [CrossRef]
  66. Boukhtache, S.; Abdelouahab, K.; Berry, F.; Blaysat, B.; Grédiac, M.; Sur, F. When deep learning meets digital image correlation. Opt. Lasers Eng. 2020, 136, 106308. [Google Scholar] [CrossRef]
  67. Cinar, A.; Barhli, S.; Hollis, D.; Flansbjer, M.; Tomlinson, R.; Marrow, T.; Mostafavi, M. An autonomous surface discontinuity detection and quantification method by digital image correlation and phase congruency. Opt. Lasers Eng. 2017, 96, 94–106. [Google Scholar] [CrossRef]
  68. Sutton, M.A.; Orteu, J.-J.; Schreier, H.W. Image Correlation for Shape, Motion and Deformation Measurements; Springer: Boston, MA, USA, 2009; ISBN 978-0-387-78746-6. [Google Scholar]
  69. Pan, B. Digital image correlation for surface deformation measurement: Historical developments, recent advances and future goals. Meas. Sci. Technol. 2018, 29, 082001. [Google Scholar] [CrossRef]
  70. Luo, P.F.; Chao, Y.J.; Sutton, M.A.; Peters, W.H. Accurate measurement of three-dimensional deformations in deformable and rigid bodies using computer vision. Exp. Mech. 1993, 33, 123–132. [Google Scholar] [CrossRef]
  71. Sutton, M.A.; Li, N.; Garcia, D.; Cornille, N.; Orteu, J.J.; McNeill, S.R.; Schreier, H.W.; Li, X. Metrology in a scanning electron microscope: Theoretical developments and experimental validation. Meas. Sci. Technol. 2006, 17, 2613–2622. [Google Scholar] [CrossRef] [Green Version]
  72. Siebert, T.; Becker, T.; Spiltthof, K.; Neumann, I.; Krupka, R. High-speed digital image correlation: Error estimations and applications. Opt. Eng. 2007, 46, 051004. [Google Scholar] [CrossRef]
  73. Orteu, J.-J.; Rotrou, Y.; Sentenac, T.; Robert, L. An innovative method for 3-D shape, strain and temperature full-field measurement using a single type of camera: Principle and preliminary results. Exp. Mech. 2007, 48, 163–179. [Google Scholar] [CrossRef] [Green Version]
  74. Bay, B.; Smith, T.S.; Fyhrie, D.P.; Saad, M. Digital volume correlation: Three-dimensional strain mapping using X-ray tomography. Exp. Mech. 1999, 39, 217–226. [Google Scholar] [CrossRef]
  75. Lenoir, N.; Bornert, M.; Desrues, J.; Bésuelle, P.; Viggiani, G. Volumetric digital image correlation applied to X-ray microtomography images from triaxial compression tests on argillaceous rock. Strain 2007, 43, 193–205. [Google Scholar] [CrossRef]
  76. Louis, L.; Wong, T.F.; Baud, P. X-Ray Imaging of compactant strain localisation in sandstone. Adv. X-ray Tomogr. Geomater. 2010, 118, 193. [Google Scholar]
  77. Hanke, R.; Fuchs, T.; Salamon, M.; Zabler, S. X-Ray microtomography for materials characterisation. In Materials Characterization Using Nondestructive Evaluation (NDE) Methods; Elsevier: Amsterdam, The Netherlands, 2016; pp. 45–79. ISBN 9780081000571. [Google Scholar]
  78. Pan, B.; Tian, L. Advanced video extensometer for non-contact, real-time, high-accuracy strain measurement. Opt. Express 2016, 24, 19082–19093. [Google Scholar] [CrossRef]
  79. Tian, L.; Yu, L.; Pan, B. Accuracy enhancement of a video extensometer by real-time error compensation. Opt. Lasers Eng. 2018, 110, 272–278. [Google Scholar] [CrossRef]
  80. Hua, T.; Xie, H.; Wang, S.; Hu, Z.; Chen, P.; Zhang, Q. Evaluation of the quality of a speckle pattern in the digital image correlation method by mean subset fluctuation. Opt. Laser Technol. 2011, 43, 9–13. [Google Scholar] [CrossRef]
  81. Zhang, J.; Sweedy, A.; Gitzhofer, F.; Baroud, G. A novel method for repeatedly generating speckle patterns used in digital image correlation. Opt. Lasers Eng. 2018, 100, 259–266. [Google Scholar] [CrossRef]
  82. Forsström, A.; Bossuyt, S.; Scotti, G.; Hänninen, H. Quantifying the effectiveness of patterning, test conditions, and DIC parameters for characterisation of plastic strain localisation. Exp. Mech. 2020, 60, 3–12. [Google Scholar] [CrossRef] [Green Version]
  83. Dong, Y.; Pan, B. A review of speckle pattern fabrication and assessment for digital image correlation. Exp. Mech. 2017, 57, 1161–1181. [Google Scholar] [CrossRef]
  84. Liu, X.-Y.; Tan, Q.-C.; Xiong, L.; Liu, G.-D.; Liu, J.-Y.; Yang, X.; Wang, C.-Y. Performance of iterative gradient-based algorithms with different intensity change models in digital image correlation. Opt. Laser Technol. 2012, 44, 1060–1067. [Google Scholar] [CrossRef]
  85. Hild, F.; Roux, S. Comparison of local and global approaches to digital image correlation. Exp. Mech. 2012, 52, 1503–1519. [Google Scholar] [CrossRef]
  86. Novak, M.D.; Zok, F.W. High-temperature materials testing with full-field strain measurement: Experimental design and practice. Rev. Sci. Instrum. 2011, 82, 115101. [Google Scholar] [CrossRef]
  87. Khokhlov, M.; Fischer, A.; Rittel, D. Multi-scale stereo-photogrammetry system for fractographic analysis using scanning electron microscopy. Exp. Mech. 2011, 52, 975–991. [Google Scholar] [CrossRef]
  88. Beberniss, T.J.; Ehrhardt, D.A. High-speed 3D digital image correlation vibration measurement: Recent advancements and noted limitations. Mech. Syst. Signal Process. 2017, 86, 35–48. [Google Scholar] [CrossRef]
  89. Wu, L.; Yin, Y.; Zhang, Q.; Fang, D.; Zhang, R.; Zhu, J.; Xie, H. Bi-prism-based single-lens three dimensional digital image correlation system with a long working distance: Methodology and application in extreme high temperature deformation test. Sci. China Ser. E Technol. Sci. 2017, 61, 37–50. [Google Scholar] [CrossRef]
  90. Wang, Y.; Lava, P.; Coppieters, S.; Houtte, P.V.; Debruyne, D. Application of a Multi-Camera Stereo DIC Set-up to Assess Strain Fields in an Erichsen Test: Methodology and Validation. Strain 2013, 49, 190–198. [Google Scholar] [CrossRef]
  91. Zhang, Z.; Matsushita, Y.; Ma, Y. Camera Calibration with Lens Distortion from Low-Rank Textures. In Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition, Colorado Springs, CO, USA, 20–25 June 2011. [Google Scholar]
  92. Forsberg, F.; Mooser, R.; Arnold, M.; Hack, E.; Wyss, P. 3D Micro-Scale Deformations of Wood in Bending: Synchrotron Radiation ΜCT Data Analysed with Digital Volume Correlation. J. Struct. Biol. 2008, 164, 255–262. [Google Scholar] [CrossRef]
  93. Roberts, B.C.; Perilli, E.; Reynolds, K.J. Application of the Digital Volume Correlation Technique for the Measurement of Displacement and Strain Fields in Bone: A Literature Review. J. Biomech. 2014, 47, 923–934. [Google Scholar] [CrossRef]
  94. Concrete Bridge Development Group. Available online: https://www.cbdg.org.uk/types-of-bridges.asp (accessed on 13 September 2021).
  95. Lee, J.J.; Shinozuka, M. A Vision-Based System for Remote Sensing of Bridge Displacement. NDT E Int. 2006, 39, 425–431. [Google Scholar] [CrossRef]
  96. Yoneyama, S.; Ueda, H. Bridge Deflection Measurement Using Digital Image Correlation with Camera Movement Correction. Mater. Trans. 2012, 53, 285–290. [Google Scholar] [CrossRef] [Green Version]
  97. Feng, D.; Feng, M.Q.; Ozer, E.; Fukuda, Y. A Vision-Based Sensor for Noncontact Structural Displacement Measurement. Sensors 2015, 15, 16557–16575. [Google Scholar] [CrossRef]
  98. Nonis, C.; Niezrecki, C.; Yu, T.-Y.; Ahmed, S.; Su, C.-F.; Schmidt, T. Structural Health Monitoring of Bridges Using Digital Image Correlation. In Proceedings of the Health Monitoring of Structural and Biological Systems, San Diego, CA, USA, 17 April 2013; Volume 8695. [Google Scholar]
  99. Winkler, J.; Hendy, C. Improved Structural Health Monitoring of the DLR Warton Road Bridge Using Digital Image Correlation. In Proceedings of the SMAR 2017, Zürich, Switzerland, 13–17 September 2017. [Google Scholar]
  100. Tian, L.; Zhao, J.; Pan, B.; Wang, Z. Full-Field Bridge Deflection Monitoring with off-Axis Digital Image Correlation. Sensors 2021, 21, 5058. [Google Scholar] [CrossRef]
  101. Ji, Y.F.; Chang, C.C. Nontarget Image-Based Technique for Small Cable Vibration Measurement. J. Bridge Eng. 2008, 13, 34–42. [Google Scholar] [CrossRef]
  102. Kim, S.W.; Kim, N.S. Dynamic Characteristics of Suspension Bridge Hanger Cables Using Digital Image Processing. NDT E Int. 2013, 59, 25–33. [Google Scholar] [CrossRef]
  103. Vanniamparambil, P.A.; Khan, F.; Hazeli, K.; Cuadra, J.; Schwartz, E.; Kontsos, A.; Bartoli, I. Novel Optico-Acoustic Nondestructive Testing for Wire Break Detection in Cables. Struct. Control Health Monit. 2013, 20, 1339–1350. [Google Scholar] [CrossRef]
  104. Du, W.; Lei, D.; Bai, P.; Zhu, F.; Huang, Z. Dynamic Measurement of Stay-Cable Force Using Digital Image Techniques. Meas. J. Int. Meas. Confed. 2020, 151, 107211. [Google Scholar] [CrossRef]
  105. Tian, Y.; Zhang, C.; Jiang, S.; Zhang, J.; Duan, W. Noncontact Cable Force Estimation with Unmanned Aerial Vehicle and Computer Vision. Comput.-Aided Civ. Infrastruct. Eng. 2021, 36, 73–88. [Google Scholar] [CrossRef]
  106. Koltsida, I.S.; Tomor, A.K.; Booth, C.A. The Use of Digital Image Correlation Technique for Monitoring Masonry Arch Bridges. Paper Presented at 7th International Conference on Arch Bridges, Split, Croatia, 4–6 October 2013; 2013; Volume 13, pp. 681–690. Available online: https://uwe-repository.worktribe.com/output/926944 (accessed on 7 December 2021).
  107. Dhanasekar, M.; Prasad, P.; Dorji, J.; Zahra, T. Serviceability Assessment of Masonry Arch Bridges Using Digital Image Correlation. J. Bridge Eng. 2019, 24, 04018120. [Google Scholar] [CrossRef] [Green Version]
  108. Metrology beyond Colors MatchID 2D. Available online: http://www.matchidmbc.be/ (accessed on 20 October 2020).
  109. Acikgoz, S.; DeJong, M.J.; Soga, K. Sensing Dynamic Displacements in Masonry Rail Bridges Using 2D Digital Image Correlation. Struct. Control Health Monit. 2018, 25, 1–24. [Google Scholar] [CrossRef] [Green Version]
  110. Mousa, M.A.; Yussof, M.M. A Simple Two-Dimensional Digital Image Correlation Model for out of Plane Displacement Using Smartphone Camera. J. Eng. Sci. Technol. 2021, 16, 10–17. [Google Scholar]
  111. Nova Instruments Istra. 4D Software Manual Q-400 System; Dantec Dynamics: Hovedstaden, Denmark, 2016. [Google Scholar]
  112. Peddle, J.; Goudreau, A.; Carlson, E.; Santini-Bell, E. Bridge Displacement Measurement through Digital Image Correlation. Bridge Struct. 2011, 7, 165–173. [Google Scholar] [CrossRef]
  113. Winkler, J.; Hendy, C. Improved Structural Health Monitoring of London’s Docklands Light Railway Bridges Using Digital Image Correlation. Struct. Eng. Int. J. Int. Assoc. Bridge Struct. Eng. 2017, 27, 435–440. [Google Scholar] [CrossRef]
  114. Wang, Y.; Tumbeva, M.D.; Thrall, A.P.; Zoli, T.P. Pressure-Activated Adhesive Tape Pattern for Monitoring the Structural Condition of Steel Bridges via Digital Image Correlation. Struct. Control Health Monit. 2019, 26, 1–14. [Google Scholar] [CrossRef]
Infrastructures 06 00176 g001 550
Figure 1. A reinforced concrete beam after load testing revealed two major vertical cracks within the speckled region, and no noticeable minor cracks (images by Mohammed Mousa).
Figure 1. A reinforced concrete beam after load testing revealed two major vertical cracks within the speckled region, and no noticeable minor cracks (images by Mohammed Mousa).
Infrastructures 06 00176 g001
Infrastructures 06 00176 g002 550
Figure 2. Marker pen identifying minor cracks which are not detectable by the human eye (images by Mohammed Mousa).
Figure 2. Marker pen identifying minor cracks which are not detectable by the human eye (images by Mohammed Mousa).
Infrastructures 06 00176 g002
Infrastructures 06 00176 g003 550
Figure 3. Digital Image Correlation (DIC) deformation map reveals barely visible cracks by the naked eye; notice the third crack between the two major cracks not identified by the marker method (images by Mohammed Mousa).
Figure 3. Digital Image Correlation (DIC) deformation map reveals barely visible cracks by the naked eye; notice the third crack between the two major cracks not identified by the marker method (images by Mohammed Mousa).
Infrastructures 06 00176 g003
Infrastructures 06 00176 g004 550
Figure 4. 2D-DIC planar surface deformation measurement, side view.
Figure 4. 2D-DIC planar surface deformation measurement, side view.
Infrastructures 06 00176 g004
Infrastructures 06 00176 g005 550
Figure 5. 3D-DIC curved surface deformation measurement, top view.
Figure 5. 3D-DIC curved surface deformation measurement, top view.
Infrastructures 06 00176 g005
Infrastructures 06 00176 g006 550
Figure 6. Digital Volume Correlation (DVC) dog-bone 360° surface deformation measurement, isometric view.
Figure 6. Digital Volume Correlation (DVC) dog-bone 360° surface deformation measurement, isometric view.
Infrastructures 06 00176 g006
Infrastructures 06 00176 g007 550

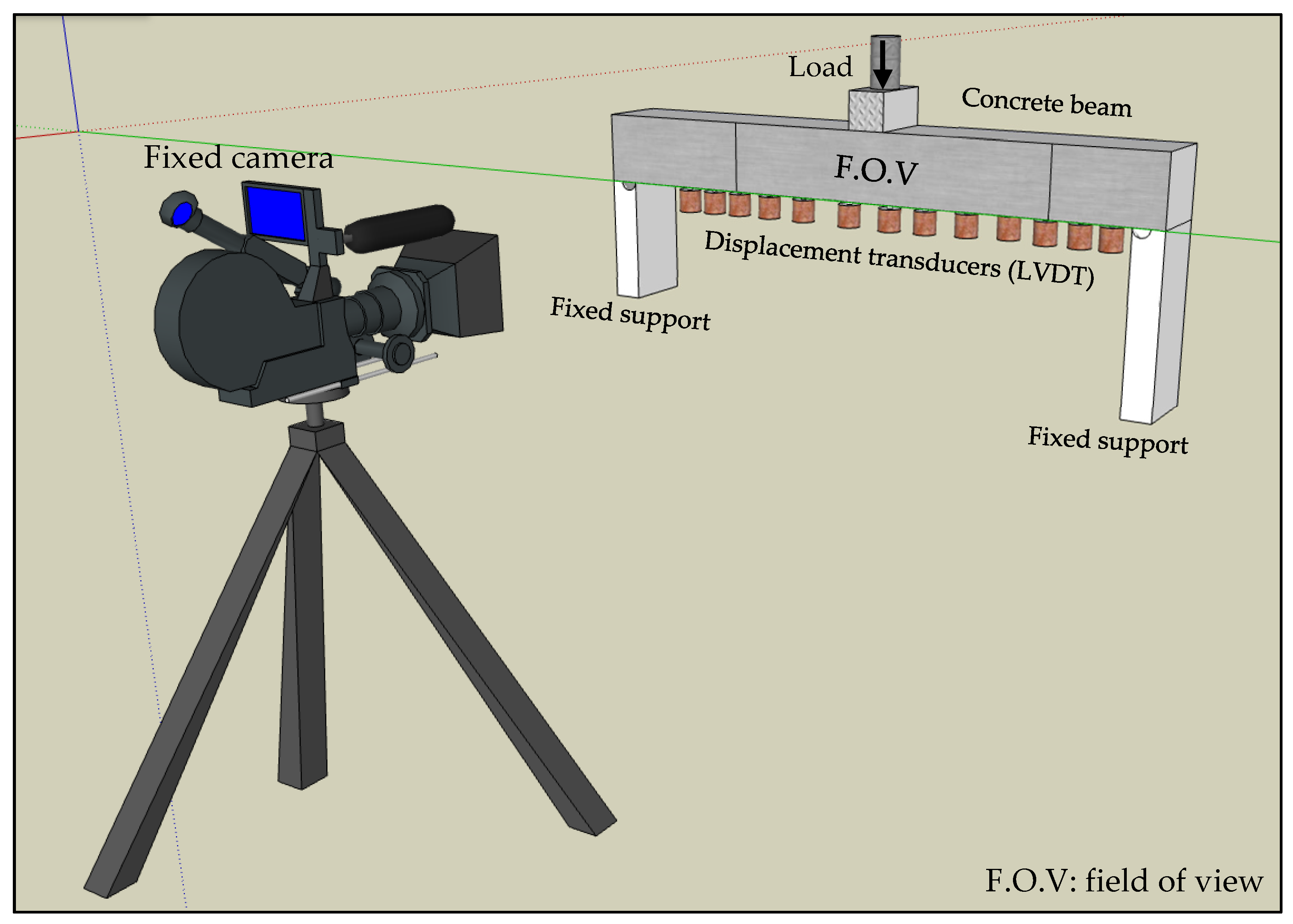

Figure 7. Concrete bridge girder experimental setup using 2D-DIC [96].
Figure 7. Concrete bridge girder experimental setup using 2D-DIC [96].
Infrastructures 06 00176 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mousa, M.A.; Yussof, M.M.; Udi, U.J.; Nazri, F.M.; Kamarudin, M.K.; Parke, G.A.R.; Assi, L.N.; Ghahari, S.A. Application of Digital Image Correlation in Structural Health Monitoring of Bridge Infrastructures: A Review. Infrastructures 2021, 6, 176. https://doi.org/10.3390/infrastructures6120176

AMA Style

Mousa MA, Yussof MM, Udi UJ, Nazri FM, Kamarudin MK, Parke GAR, Assi LN, Ghahari SA. Application of Digital Image Correlation in Structural Health Monitoring of Bridge Infrastructures: A Review. Infrastructures. 2021; 6(12):176. https://doi.org/10.3390/infrastructures6120176

Chicago/Turabian Style

Mousa, Mohammed Abbas, Mustafasanie M. Yussof, Ufuoma Joseph Udi, Fadzli Mohamed Nazri, Mohd Khairul Kamarudin, Gerard A. R. Parke, Lateef N. Assi, and Seyed Ali Ghahari. 2021. "Application of Digital Image Correlation in Structural Health Monitoring of Bridge Infrastructures: A Review" Infrastructures 6, no. 12: 176. https://doi.org/10.3390/infrastructures6120176

Article Metrics

Back to TopTop
