Detection of the Xanthi Chryso-like Virus in New Geographical Area and a Novel Arthropod Carrier

by
Marko Jankovic
1,†,
Valentina Cirkovic
2,†,
Gorana Stamenkovic
3,
Ana Loncar
4,
Marija Todorovic
1,
Maja Stanojevic
1 and
Marina Siljic
1,*
1
Faculty of Medicine, Institute of Microbiology and Immunology, Department of Virology, University of Belgrade, 1 Dr Subotića Starijeg Street, 11000 Belgrade, Serbia
2
Group for Medical Entomology, Centre of Excellence for Food and Vector Borne Zoonoses, Institute for Medical Research, University of Belgrade, 11000 Belgrade, Serbia
3
Department for Genetic Research, Institute for Biological Research “Siniša Stanković”—National Institute of Republic of Serbia, University of Belgrade, 11000 Belgrade, Serbia
4
Institute for Biocides and Medical Ecology, 11000 Belgrade, Serbia
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Trop. Med. Infect. Dis. 2023, 8(4), 225; https://doi.org/10.3390/tropicalmed8040225
Submission received: 8 February 2023 / Revised: 8 April 2023 / Accepted: 11 April 2023 / Published: 13 April 2023
(This article belongs to the Special Issue Emerging Topics in Arbovirus Vectors)
Browse Figures
Review Reports Versions Notes

Abstract

:
Here, we report on a serendipitous finding of a chryso-like virus associated with Culex pipiens mosquitos in the course of study aimed to detect and characterize West Nile virus (WNV) circulating in mosquitos in Serbia, Southern Europe. Upon initial detection of unexpected product in a PCR protocol for partial WNV NS5 gene amplification, further confirmation and identification was obtained through additional PCR and Sanger sequencing experiments. Bioinformatic and phylogenetic analysis identified the obtained sequences as Xanthi chryso-like virus (XCLV). The finding is particular for the fact that it associates XCLV with a new potential vector species and documents a novel geographical area of its distribution.

1. Introduction

Mosquitoes are ubiquitous insects known to harbor a large variety of RNA viruses with a significant impact on human health. Increasing use of next-generation sequencing provided insight into mosquito virome, potentiating their role as vectors of human arboviruses and highlighting a panoply of the viral species pertaining to vertebrates, invertebrates, plants, fungi, protozoa. A rich viral community of mosquito virome may facilitate genetic and other interactions (such as recombinations, reassortments) among diverse viral populations, consequences of which are difficult to predict and possibly give rise to new and emerging agents of disease [1].
Viruses infecting fungi have been described in many fungal species, including medically important ones such as Aspergillus fumigatus [2,3,4,5,6]. For some of these fungal viruses, they are hypothesized to be directly and/or indirectly favorable to humans in that they interfere with fungal physiology, such as the mycoviruses of Alternaria alternata and the pervasive rice blast fungus Magnaporthe oryzae [7,8,9,10]. In addition, a possible role for fungal viruses as agents of biological pest control has been suggested [11]. Chrysoviruses are among the recognized mycopathogens so far shown to be associated with mosquitoes [12,13].
Chrysoviridae are small, multipartite, double-stranded RNA (dsRNA) viruses with three to seven dsRNA segments, comprising from 8.9 to 16 kb of genomic material [12]. They are pathogens of ascomycetous or basidiomycetous fungi, plants, and possibly insects. Interestingly, a chrysovirus was recently detected in a 1000-year-old ancient maize cob, as the oldest confirmed plant virus [14]. Viruses associated with this family are known to impinge on fungi, infecting humans and plants [7,8]. Recently, Konstantinidis et al. reported on the finding of an unclassified chrysoviral agent, in Greece, in Uranotaenia unguiculata and Culex modestus mosquitoes [13]. Outside the four protein coding segments and similarity to Hubei chryso-like virus 1, little is thus far known about its host spectrum or pathogenesis.
Serbia is known to be endemic for arthropod-borne pathogens [15]. A number of arboviruses is known to circulate in Serbia, e.g., Crimean–Congo hemorrhagic fever virus (CCHFV), West Nile virus (WNV), tickborne encephalitis (TBE) virus, and Usutu virus (USUV) [16,17,18]. Recently, a metagenomic study of arthropod viromes performed on arthropods collected from Belgrade, Serbia, yielded 21 viruses pertaining to 11 families, with 11 of them characterized as novel species [19]. Here, we report on a fortuitous discovery of an unclassified Xanthi chryso-like virus (XCLV) in Serbia, within a study targeting WNV detection.

2. Materials and Methods

2.1. Samples Collection and Study Area

The analyzed mosquitoes were collected within the scope of a routine WNV environmental screening program, regularly implemented by the Institute for Biocides and Medical Ecology, Belgrade, Serbia (IBME). Insect sampling was carried out on multiple sites in the north of Serbia during the period 2018 to 2020, concomitant to the time of the largest human epidemic of WNV infections in Southeast Europe up to that point (www.ecdc.europa.eu, accessed on 15 April 2022).
Field sample collection was performed using specialized BG Sentinel® (Type 1 and Type 2) mosquito traps, which contain dry ice (CO2 in solid state, in the form of pellets) as an attractant, placed in a well-insulated container (volume 3 L). Upon setting the trap, CO2 is released, which attracts female mosquitoes. During trap collection, live mosquito specimens were separated from dead ones in situ. Living specimens were stored in a portable refrigerator for sample transport and were momentarily frozen on dry ice (−80 °C). Once frozen, the mosquitoes were counted, sorted, and transferred into corresponding labeled (date, location, city) sample tubes upon a preliminary identification at the genus level. These were stored on dry ice and taken back to the IBME where the mosquitoes were pooled in groups of approximately 50 individuals and subsequently homogenized prior to RNA extraction.

2.2. Nucleic Acid Extraction and qPCR

A total of 200 mosquito pools was submitted to nucleic acid extraction performed by Ribo-Sorb Nucleic acid extraction kit for the isolation and purification of RNA/DNA (REF K-2-1, Sacace Biotechnologies, Como, Italy, https://www.sacace.com/dna-rna-purification.htm, accessed on 15 April 2022). During the extraction and subsequent PCR, internal standards as well as positive and negative controls aimed to monitor the purification, amplification, and detection processes were used. Viral RNA was eluted in 30 µL of RNAse free H2O. Firstly, all isolated RNA was analyzed for the presence of WNV via real-time PCR kit for the qualitative detection of WNV RNA, according to the commercial PCR test protocol (V53-50FRT, Sacace Biotechnologies, Como, Italy, https://www.sacace.com/dangerous-infections.htm#s6, accessed on 15 April 2022). Extracted RNA of mosquito pools found positive by real-time PCR was used for further in-depth molecular and phylogenetic characterization.

2.3. Conventional PCR and DNA Sequencing

Initial PCR amplification was performed according to the nested PCR protocol for the WNV NS5 gene. In the first round of amplification (outer PCR), isolated RNA was subjected to one-step RT PCR, with the degenerate primers covering partial WNV NS5 gene: 20 pmol of 1NS5F and 1NS5R primer pair, in the total volume of 25 µL, according to the manufacturer’s instructions (Takara Bio Inc., Shiga, Japan, https://www.takarabio.com/products/mrna-and-cdna-synthesis/cdna-synthesis-kits/primescript-cdna-synthesis-kits/primescript-one-step-kit, accessed on 15 April 2022). The second PCR round (inner PCR) was conducted using the DreamTaq Hot Start PCR Master Mix (Thermo Fisher Scientific, Waltham, MA, USA), with 50 μL reaction mix contained 5 μL DNA product from the first-round reaction and 20 pmol each of sense 2NS5F and antisense 2NS5R primer. Of note, both rounds of nested PCR, included degenerate primers that were previously constructed and described for the NS5 gene of WNV [20].
Conventional agarose gel electrophoresis was used to analyze all PCR products, initially revealing bands of two different length, 1019 bp and 832 bp.
In the process of detailed identification of the obtained amplified products, we designed XCLV-specific primers on the basis of the sole XCLV sequence existing in the public databases at the time of study (accession no. MW520404 [13]). These sets of primers (Xanthi_out_F, Xanthi_out_R, Xanthi_inn_F, Xanthi_inn_R) amplified a 735 bp product of the P3 putative protease gene of XCLV.
Universal primers for the 16S mitochondrial ribosome subunit were used in confirmation of mosquito species along with virus-specific primers. Final confirmation of insect species was performed by PCR detection of 16S RNA (one-step RT-PCR Takara Bio Inc., Shiga, Japan), using universal 16S primers [21]. The list and description of all primers used in this research are given in Table 1.
The obtained PCR products were firstly purified with a MinElute Purification Kit (Qiagen, Hilden, Germany) kit, using the manufacturer’s instructions, and further directly sequenced using BigDye Version 3.0 Dye Terminator Cycle Sequencing Kit (Applied Biosystems, Foster City, CA, USA) on an ABI 3730 automated capillary sequencer. Results were analyzed with the Sequencing analysis software v.5.2 and assembled with SeqScape software v2.5 (Applied Biosystem, Waltham, MA, USA). Sequence identification was performed through NCBI nucleotide BLAST analysis (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 15 April 2022).
All XCLV sequences generated during the course of this research were deposited in NCBI GenBank database.

2.4. Phylogenetic Analysis

Phylogenetic analysis was performed on the XCLV 735 bp P3 gene sequences alongside genetically related chryso-like virus (CLV) sequences. Considering the fact that prior to this study a single P3 putative protease gene XCLV sequence was available in the GenBank database (accessed October 2022), we also included CLV sequences of the corresponding genomic region, based on NCBI nucleotide BLAST search, optimized for somewhat similar sequences. Sequence alignment was performed by MAFFT 7 software (https://mafft.cbrc.jp/alignment/server/, accessed on 15 April 2022) and manually inspected (sequences included in the phylogenetic analysis are presented in the Supplementary Table S1). Prior to further phylogenetic analysis, alignment was screened for recombination using algorithms as implemented in the Recombination Detection Program 4 (RDP4) (http://web.cbio.uct.ac.za/~darren/rdp.html, accessed on 15 April 2022) [22]. The jModeltest 2.1.10 software statistically selected General Time Reversible (GTR) evolutionary model, with the gamma distributed rate across sites and proportion of invariable sites, as the best fitting substitution model using all 88 proposed models (https://mybiosoftware.com/jmodeltest-phylogenetic-model-averaging.html, accessed on 15 April 2022) [23]. The MEGA X software package was used to conduct phylogenetic analysis by maximum likelihood (ML) method selected and nucleotide substitution model with 1000 bootstrap replicates (https://www.megasoftware.net/, accessed on 15 April 2022) [24]. Phylogenetic tree topology was further confirmed by Bayesian phylogenetic analyses implemented in MrBayes software v3.2.7 (https://nbisweden.github.io/MrBayes/download.html, accessed on 15 April 2022) [25]. Phylogenetic trees were visualized using the FigTree program v 1.4.4 (http://tree.bio.ed.ac.uk/software/figtree/, accessed on 15 April 2022) [26].

3. Results

In 4/200 (2%) of studied mosquito pools, the obtained PCR product with WNV NS5 gene-specific primers was shorter than expected: 832 bp instead of 1019 bp, as expected for WNV partial polymerase gene. BLAST analysis revealed the highest similarity of the obtained 832 bp product to XCLV P3 putative protease gene, with the single existing XCLV sequence in the GenBank database (accession no. MW520404). Of note, the results and analysis of the obtained WNV sequences are presented elsewhere (Todorovic et al., submitted). Identification of XCLV sequences was further confirmed with a separate, additional PCR amplification experiment by XCLV specific primers for 735 bp partial P3 putative protease gene, where BLAST analysis of the obtained sequences again indicated the highest similarity to XCLV (accession no. MW520404) and Soufli chryso-like virus (accession no. MW520403) with 96.38% and 89.2%, respectively. The highest similarity at the protein level was observed with P3 putative protease of XCLV (accession no. QRD99897) and P3 putative protease of Soufli chryso-like virus (accession no. QRD99896), with 96.99% and 95.31%, respectively. The newly obtained XCLV sequences were submitted to the NCBI GenBank with accession nos. OP700407, OP700408, OP700409, and OM141591.
A topographical distribution of mosquito collection sites where XCLV was identified is shown in Figure 1. All three XCLV-positive sampling sites were found within suitable natural environments, providing favorable conditions for the survival of mosquitoes. All XCLV-positive mosquito pools were identified as Cx. pipiens, based on BLAST identification upon 16S RNA sequences.
XCLV-positive pools were collected in 2020 in the capital city of Belgrade and Sombor and Apatin municipalities in the Northern Serbian province of Vojvodina. The geographical position relative to the site of initial XCLV detection in Greece is depicted in Figure 1.
The final alignment for phylogenetic analysis comprised 15 viral sequences (5 XCLV and 10 CLV sequences) of the P3 protease gene, which is the total number of sequences of the relevant region available in the GenBank database at the time of analysis (accessed October 2022). Potential recombination events were not detected in the studied alignment. Average nucleotide distance of all analyzed nucleotide sequences was 0.55 (0.0–0.92, SD = 0.34), with amino acid divergence of 0.12%. Comparative analysis of XCLV sequences from Serbia revealed a nucleotide distance of 0.02, while the average nucleotide distance between XCLV sequences from Serbia and Greece was 0.07 (0.06–0.08).
The general topology of the phylogenetic tree for the studied dataset showed the existence of two separate clades with high bootstrap support, matching to the territory of the sequence origin (Figure 2). The first clade consisted of seven Hubei chryso-like virus sequences, of which five are from Australia and two from USA, collected in 2015 and 2017, respectively. The second tree clade included four XCLV sequences from Serbia (collected in 2020) together with XCLV and Soufli chryso-like virus from Greece (collected in 2020 and 2018), indicating the existence of evolutionary relatedness of the XCLV isolated from different countries from the Balkans. The tree was midpoint-rooted (Figure 2).

4. Discussion

Here, we report on a serendipitous detection of the uncommon XCLV associated with Cx. pipiens mosquitos collected in Serbia, Southern Europe. The finding is particular in the fact that it associates XCLV with a new potential carrier species and documents a novel geographical area of its distribution.
As vectors of infectious agents, mosquitoes are hematophagous arthropods of great public health importance. The investigation of mosquito viromes can yield a veritable flood of genomic data, with the focus often placed on agents of public health importance. We draw attention to the detection of a member of Chrysoviridae mycoviruses, a group of mosquito-borne viruses not known to infect humans, yet of tentative implications for the health of man, via their effect on fungi as primary hosts [8].
Up to now, in the literature, there was only a single report of XCLV detection described in an isolate from mainland Greece by Konstantinidis et al. [13] in Uranotaenia unguiculata (and possibly Cx. modestus) mosquitoes. Here, we present the detection of XCLV sequences in Cx. pipiens, implying a new potential arthropod host for this chrysovirus. The site of detection in the north of Serbia is both environmentally distinct and topographically distant (approximately 600 km) from the location of the primary XCLV findings.
In Serbia, the most comprehensive investigation of the viromes of multiple species of arthropods, sampled mostly in the capital city of Belgrade, was performed during 2016, based on Illumina MiSeq sequencing [19]. Captured arthropods represented nine species, and most of them were hematophagous, including mosquitoes, ticks, bedbugs, fleas, etc. Identified viruses represent a variety of RNA virus taxa with +ssRNA, −ssRNA, and dsRNA genome and are specific to invertebrates, vertebrates, or even to fungi and plants. Regarding mosquitoes, a great heterogeneity of viral sequences has been identified, such as those that fell within the families and order of Bunyavirales, Picornavirales, Mononegavirales, Narnaviridae, Virgaviridae, Reoviridae, and Luteoviridae. The research emphasizes the very common occurrence of some viral infections in the studied hematophagous arthropods captured in Serbia. However, identification of nine tentative novel viral species indicated the need for further molecular investigation of mosquitoes in order to detect and characterize new viral species [19].
Mosquitoes in this study were predominantly trapped in the northern and, to a lesser extent, eastern parts of Serbia. Three of the largest rivers in the country (Danube, Sava, and Tisa) pass through this area; moreover, large areas are covered by swampy terrain, which is mostly suitable for the breeding of mosquitoes. Considering the fact that some viruses (such as WNV) are maintained in an enzootic cycle [27] between birds as natural hosts and mosquitoes of the genus Culex (family Culicidae), as primary competent vectors, the diversity of birds may prove very important. Serbia is very rich in habitats and bird species, of which many are important for local and international conservation. Among them, Vojvodina’s nature reserves are some of the most studied and best known to the public. In this northern province of Serbia, from the 19th century until now, 312 species of birds have been recorded, which represents 42% of all bird species in Europe. In addition, 196 bird species nest in Vojvodina today, which represents 82% of Serbia’s birds (www.birdwatchserbia.com, accessed on 15 April 2022).
The Chrysoviridae family comprises two genera, Alphachrysovirus and Betachrysovirus, currently including 20 and 11 viral species, respectively, and with a growing number of unclassified, chryso-like viruses. XCLV has only recently been described, with a single report in the literature of metagenomic XCLV nucleic acid detection in mosquitos, by Konstantinidis et al. [13], namely, in Uranotaenia unguiculata and Cx. modestus mosquito species. In the last decade, the metagenomic approach to virome identification has greatly expanded our knowledge of viral diversity and placed arthropods in the central role driving viral evolution [28,29]. Here, we present the detection of XCLV sequences in Cx. pipiens, implying a newly described potential arthropod carrier for this chrysovirus. Notably, sole detection of viral genetic material does not allow to discriminate the true link between a vector and a carrier, that is, whether the mosquito is a biological or mechanical vector for XCLV, or the virus is merely “hitchhiking” the fungal, plant, or other associated material. Hence, we use the term “potential carrier” throughout to underscore this. It is worthwhile noting, however, that a wider areal presence/dispersion of a viral agent, all the while associated with an arthropod, may well insinuate at a vector–pathogen association.
The site of detection in the north of Serbia is both environmentally distinct and topographically distant (approximately 600 km) from the location of the primary XCLV finding in Xanthi, regional unit of East Macedonia and Thrace, northeastern Greece. Phylogenetic analysis of the included chryso-like viruses further confirmed BLAST identification of newly obtained XCLV sequences, based on highly supported clustering with Soufli chryso-like and Xanthi chryso-like viruses. General tree topology suggested the existence of clusters matching the viral species and territory of sequence origin. In this regard, one of the clusters was composed of Hubei chryso-like sequences originating from Australia and USA, and the other one contained Soufli chryso-like and Xanthi chryso-like virus sequences from Serbia and Greece, whereas the third cluster comprised Shuangao chryso-like viral sequences from Australia. Unfortunately, an in-depth phylogenetic analysis of XCLV sequences was not possible, given the small number of five available sequences in public databases. The full extent of the XCLV distribution, be it geographical or vectorial, is yet to be elucidated. The addition of new XCLV sequences will aid in mapping the presence of this virus.
Since the first definitive description of mycoviruses some 60 years ago, it has been recognized that these viruses are ubiquitous in all major groups of filamentous fungi [1]. Chrysoviridae are considered to be involved in impairing phenotypes of the rice blast fungus Magnaporthe oryzae [8], the most destructive pathogen of rice worldwide [9]. Magnaporthe oryzae chrysovirus 1 strains A (McCV1-A) and B (McCV1-B) were the first reported mycoviruses causing reduced pigmentation, changed colony morphology, and weakened growth, all signs of hypovirulence in the host fungus [9]. This trait may possibly be exploited to impart a useful effect on industrial plant life.
Intriguingly, chrysoviruses were found to impinge on human fungal pathogens as well. Notably, the product of the McCV1-A was suggested as a protein candidate for a pharmaceutical agent against Cryptococcus neoformans disease [7]. Moreover, the Alternaria alternata chrysovirus 1 (AaCV1) modulates the pathogenicity of its namesake fungal host, A. alternata [9]. Alternaria is known to cause opportunistic infections in immunocompromised humans [30], so the impaired growth caused by the AaCV1 might prove advantageous against the disease. The Aspergillus fumigatus chrysovirus (AfuCV) has also been identified in the eponymous Aspergillus fumigatus fungus [6]. Mycoviruses have also been suggested as epigenetic factors inducing alterations in the pathogenicity of plant-infecting fungi [9]. In recent research by Ejmal et al. [31] the authors observed the Aspergillus thermomutatus chrysovirus 1 to exert a reduction in the number of conidia from a clinical isolate of the titular fungal pathogen at 20 °C, suggesting the possible use of the virus as a biological control agent [11]. Finally, mycoviruses have been hypothesized as tentative therapeutic agents in fungal diseases of humans as well [10].
The genus Culex comprises more than 760 taxa, some of which are the most significant vectors of human diseases. Environmental changes influence their geography, heralding changes in their habitat. Our findings of the XCLV associated with the Culex arthropod imply their possible role as XCLV carriers, hinting at a larger distribution of mycoviruses in general throughout insect reservoirs and geographic areas alike. We speculate that, besides research oriented towards screening of arthropods for actual or potential human pathogens, an interesting alternative approach might be to search for arthropod-borne microorganisms with adverse effect on their other-than-human hosts (e.g., fungi) and thus of potential beneficial impact on human health and/or in industry. In this regard, it might be of relevance for future research to investigate if XCLV possesses mycopathogenic properties. Metagenomic approach has undoubtedly shifted the paradigm of viral research. Besides characterization of viromes of a number of diverse hematophagous and other arthropods, these methods, coupled with downstream phylogenetic and bioinformatics approach, allow to assess evolutionary and ecological links on a much larger scale [32,33,34]. Furthermore, our results underscore the limitations of Sanger sequencing of classical PCR products in fully depicting virome content and discerning mixed-virus infections, thus pointing to the relevance of the next-generation sequencing (NGS) approach. Namely, most molecular assays target only a limited number of already known pathogens using specific primers or probes, while metagenomic approaches characterize all DNA or RNA present in a sample, enabling the analysis of an entire genome. In recent decades, the application of the metagenomic approach together with bioinformatics has become a powerful tool for rapid detection, identification, and analysis of novel viruses, including those potentially infectious to humans. The viromes of some hematophagous arthropods have been well characterized using metagenomic methods [32,33], and lots of novel arthropod-specific and vertebrate viruses have been identified. Nevertheless, the Sanger sequencing approach still provides a valuable resource for monitoring and discovery of novel viral species, especially in smaller-scale studies and if used in concert with NGS methods.
We must concede to a certain possible drawback of our study. Namely, we did not perform testing regarding whether or not the XCLV sequence has been integrated into the genome of the Cx. pipiens mosquito. It is a well-known fact that viral sequences may be found embedded in arthropod genetic material [35,36]. We were unable to inquire for the presence of mosquito nucleic acids, as the samples we worked with were already RNA extracts of mosquito pools. Hence, as no DNA was available for detailed studies, this effectively precluded any possibility of testing for integrated viral DNA. In a previous work that analyzed the presence of arthropod-associated viral pathogens on the territory of Serbia, an NGS approach was utilized [19]. Herein, Stanojevic and coworkers identified 11 novel viral species. Moreover, the authors described chrysoviruses (mycopathogens) from the sequence dataset obtained from mosquitos; as in our work, again, the samples were not screened for integrated nucleic acids. Indeed, mosquitos have a considerable diversity of viruses, and the majority of these may not be associated with vertebrate organisms. Unlike in our study, the research by Shi and colleagues [37], which endeavored to characterize the total transcriptome of mosquito pools, elaborates on new viral species therein described as “unlikely to represent endogenous viral elements (EVEs)”. We wish to note that all of the sequences involved in our study are also present in the mentioned study [37]. Hence, the fact that we did not assay for this contingency may perhaps further obscure the role the mosquito may, or may not, play as a potential carrier. Although we did not perform PCR on DNA extract to exclude the possibility of these viruses being endogenous viral elements (EVEs), these viruses are not likely to be EVEs as they are present as complete genomes or CDSs without any interruptions. Additional in-depth molecular analysis of possible integration events by XCLV, and chrysoviruses in general, will elucidate this dilemma. However, our work supports the fact that the viromes of various hematophagous arthropods are still poorly understood, especially in countries such as Serbia, which is known to be an endemic region for arthropod-borne pathogens [15,19]. Moreover, virome analysis is also important in birds and other vertebrates, given the fact that these animals are part of the lifecycle of a number of arthropod-related viruses.

5. Conclusions

Our work broadens the arthropod-related horizon of XCLV circulation across ecosystems of the Balkans. The topographical/evolutionary divergence among the mosquito viromes calls for site-to-site field sampling and next-generation sequencing procedures in order to precisely map an exchange of viruses between species distributed over diverse ecologies and expand our understanding of potentially useful pathogens. This research will hopefully encourage a new approach to sequencing of the arthropod virome, with a special focus on microorganisms advantageous to humans and the environment.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/tropicalmed8040225/s1, Table S1: List of Accession numbers of sequences used in the study.

Author Contributions

Conceptualization, M.J., V.C. and M.S. (Marina Siljic); methodology, V.C. and A.L.; software, V.C. and M.S. (Marina Siljic); investigation, M.J., V.C. and M.S. (Marina Siljic); resources, M.S. (Maja Stanojevic) and G.S.; data curation, V.C., M.T. and A.L.; writing—original draft preparation, M.J., V.C. and M.T.; writing—review and editing, M.S. (Maja Stanojevic) and G.S.; supervision, M.S. (Marina Siljic) and M.S. (Maja Stanojevic). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science, Technological Development and Innovation (MSTDI) of the Republic of Serbia (Grant No. 451-03-47/2023-01/ 200007 and Grant No. 451-03-47/2023-01/ 200110) and the Science Fund of the Republic of Serbia (SFRS), Program for excellent projects of young researchers (PROMIS), grant number 6059147, IN-DEPTH. The SFRS and MSTDI as the funding sources had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All sequenced data are submitted to the NCBI GenBank. All other data that support the findings of this study are in the manuscript or are available from the corresponding author upon reasonable request.

Acknowledgments

We would like to acknowledge Nenad Savic for the graphical editing of Figure 1 and Figure 2.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Kim, J.M.; Jung, J.E.; Park, J.A.; Park, S.M.; Cha, B.J.; Kim, D.H. Biological function of a novel chrysovirus, CnV1-BS122, in the Korean Cryphonectria nitschkei BS122 strain. J. Biosci. Bioeng. 2013, 115, 1–3. [Google Scholar] [CrossRef] [PubMed]
  2. Bao, X.; Roossinck, M.J. Multiplexed interactions: Viruses of endophytic fungi. Adv. Virus Res. 2013, 86, 37–58. [Google Scholar] [CrossRef] [PubMed]
  3. Ghabrial, S.A.; Dunn, S.E.; Li, H.; Xie, J.; Baker, T.S. Viruses of Helminthosporium (Cochlioblus) victoriae. Adv. Virus Res. 2013, 86, 289–325. [Google Scholar] [CrossRef] [PubMed]
  4. Dawe, A.L.; Nuss, D.L. Hypovirus molecular biology: From Koch’s postulates to host self-recognition genes that restrict virus transmission. Adv. Virus Res. 2013, 86, 109–147. [Google Scholar] [CrossRef]
  5. Hillman, B.I.; Cai, G. The family narnaviridae: Simplest of RNA viruses. Adv. Virus Res. 2013, 86, 149–176. [Google Scholar] [CrossRef]
  6. Jamal, A.; Bignell, E.M.; Coutts, R. Complete nucleotide sequences of four dsRNAs associated with a new chrysovirus infecting Aspergillus fumigatus. Virus Res. 2010, 153, 64–70. [Google Scholar] [CrossRef]
  7. Urayama, S.; Fukuhara, T.; Moriyama, H.; Toh-E, A.; Kawamoto, S. Heterologous expression of a gene of Magnaporthe oryzae chrysovirus 1 strain A disrupts growth of the human pathogenic fungus Cryptococcus neoformans. Microbiol. Immunol. 2014, 58, 294–302. [Google Scholar] [CrossRef]
  8. Urayama, S.; Sakoda, H.; Takai, R.; Katoh, Y.; Minh Le, T.; Fukuhara, T.; Arie, T.; Teraoka, T.; Moriyama, H. A dsRNA mycovirus, Magnaporthe oryzae chrysovirus 1-B, suppresses vegetative growth and development of the rice blast fungus. Virology 2014, 448, 265–273. [Google Scholar] [CrossRef] [Green Version]
  9. Moriyama, H.; Urayama, S.I.; Higashiura, T.; Le, T.M.; Komatsu, K. Chrysoviruses in Magnaporthe oryzae. Viruses 2018, 10, 697. [Google Scholar] [CrossRef] [Green Version]
  10. Van de Sande, W.W.; Lo-Ten-Foe, J.R.; van Belkum, A.; Netea, M.G.; Kullberg, B.J.; Vonk, A.G. Mycoviruses: Future therapeutic agents of invasive fungal infections in humans? Eur. J. Clin. Microbiol. Infect. Dis. 2010, 29, 755–763. [Google Scholar] [CrossRef] [Green Version]
  11. García-Pedrajas, M.D.; Cañizares, M.C.; Sarmiento-Villamil, J.L.; Jacquat, A.G.; Dambolena, J.S. Mycoviruses in Biological Control: From Basic Research to Field Implementation. Phytopathology 2019, 109, 1828–1839. [Google Scholar] [CrossRef] [PubMed]
  12. International Committee on Taxonomy of Viruses. Chrysoviridae. Available online: https://talk.ictvonline.org/ictv-reports/ictv_online_report/dsrna-viruses/w/chrysoviridae (accessed on 23 February 2022).
  13. Konstantinidis, K.; Dovrolis, N.; Kouvela, A.; Kassela, K.; Freitas, M.G.R.; Nearchou, A.; de Courcy, W.M.; Veletza, S.; Karakasiliotis, I. Defining virus-carrier networks that shape the composition of the mosquito core virome of a local ecosystem. Virus Evol. 2022, 8, veac036. [Google Scholar] [CrossRef] [PubMed]
  14. Peyambari, M.; Warner, S.; Stoler, N.; Rainer, D.; Roossinck, M.J. A 1000-Year-Old RNA Virus. J. Virol. 2018, 93, e01188-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Li, K.; Stanojević, M.; Stamenković, G.; Ilić, B.; Paunović, M.; Lu, M.; Pešić, B.; Đurić Maslovara, I.; Siljic, M.; Cirkovic, V.; et al. Insight into diversity of bacteria belonging to the order Rickettsiales in 9 arthropods species collected in Serbia. Sci. Rep. 2019, 9, 18680. [Google Scholar] [CrossRef] [Green Version]
  16. Petrović, T.; Šekler, M.; Petrić, D.; Vidanović, D.; Potkonjak, A.; Hrnjaković Cvjetković, I.; Savić, S.; Debeljak, Z.; Lazić, G.; Ignjatović Ćupina, A.; et al. Flaviviruses at the territory of Serbia—Present situation and challenges. Arch. Vet. Med. 2019, 11, 53–70. [Google Scholar] [CrossRef]
  17. Gligic, A.; Stamatovic, I.; Stojanovic, R.; Obradovic, M.; Boskovic, R. The first isolation of the Crimean hemorraghic fever virus in Yugoslavia. Vojn. Pregl. 1977, 34, 318–321. [Google Scholar]
  18. Popovic, N.; Miloševic, B.; Uroševic, A.; Poluga, J.; Lavadinovic, L.; Nedelijkovic, J.; Jevtovic, D.; Dulovic, O. Outbreak of west nile virus infection among humans in Serbia, august to october 2012. Eur. Surveill. 2013, 18, 20613. [Google Scholar] [CrossRef] [Green Version]
  19. Stanojević, M.; Li, K.; Stamenković, G.; Ilić, B.; Paunović, M.; Pešić, B.; Maslovara, I.Đ.; Šiljić, M.; Ćirković, V.; Zhang, Y. Depicting the RNA Virome of Hematophagous Arthropods from Belgrade, Serbia. Viruses 2020, 12, 975. [Google Scholar] [CrossRef] [PubMed]
  20. Vázquez, A.; Sánchez-Seco, M.P.; Palacios, G.; Molero, F.; Reyes, N.; Ruiz, S.; Aranda, C.; Marqués, E.; Escosa, R.; Moreno, J.; et al. Novel flaviviruses detected in different species of mosquitoes in Spain. Vector Borne Zoonotic Dis. 2012, 12, 223–229. [Google Scholar] [CrossRef] [Green Version]
  21. Veith, M.; Kosuch, J.; Vences, M. Climatic oscillations triggered post-Messinian speciation of Western Palearctic brown frogs (Amphibia, Ranidae). Mol. Phylogenet. Evol. 2003, 26, 310–327. [Google Scholar] [CrossRef]
  22. Martin, D.P.; Murrell, B.; Golden, M.; Khoosal, A.; Muhire, B. RDP4: Detection and analysis of recombination patterns in virus genomes. Virus Evol. 2015, 1, vev003. [Google Scholar] [CrossRef] [Green Version]
  23. Posada, D. jModelTest: Phylogenetic model averaging. Mol. Biol. Evol. 2008, 25, 1253–1256. [Google Scholar] [CrossRef]
  24. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef] [PubMed]
  25. Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MRBAYES 3.2: Efficient Bayesian phylogenetic inference and model selection across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [Green Version]
  26. Rambaut, A.; Drummond, A.J. Molecular evolution, phylogenetics and epidemiology. FigTree v1.3.1: Tree Figure Drawing Tool. 2009. Available online: http://tree.bio.ed.ac.uk/software/figtree/ (accessed on 15 April 2022).
  27. Habarugira, G.; Suen, W.W.; Hobson-Peters, J.; Hall, R.A.; Bielefeldt-Ohmann, H. West Nile Virus: An Update on Pathobiology, Epidemiology, Diagnostics, Control and “One Health” Implications. Pathogens 2020, 9, 589. [Google Scholar] [CrossRef] [PubMed]
  28. Wu, H.; Pang, R.; Cheng, T.; Xue, L.; Zeng, H.; Lei, T.; Chen, M.; Wu, S.; Ding, Y.; Zhang, J.; et al. Abundant and Diverse RNA Viruses in Insects Revealed by RNA-Seq Analysis: Ecological and Evolutionary Implications. mSystems 2020, 5, e00039-20. [Google Scholar] [CrossRef]
  29. Shi, M.; Lin, X.D.; Chen, X.; Tian, J.H.; Chen, L.J.; Li, K.; Wang, W.; Eden, J.S.; Shen, J.J.; Liu, L.; et al. The evolutionary history of vertebrate RNA viruses. Nature 2018, 556, 197–202. [Google Scholar] [CrossRef] [PubMed]
  30. Fernandes, C.; Mota, M.; Barros, L.; Dias, M.I.; Ferreira, I.C.F.R.; Piedade, A.P.; Casadevall, A.; Gonçalves, T. Pyomelanin Synthesis in Alternaria alternata Inhibits DHN-Melanin Synthesis and Decreases Cell Wall Chitin Content and Thickness. Front. Microbiol. 2021, 12, 691433. [Google Scholar] [CrossRef]
  31. Ejmal, M.A.; Holland, D.J.; MacDiarmid, R.M.; Pearson, M.N. A novel chrysovirus from a clinical isolate of Aspergillus thermomutatus affects sporulation. PLoS ONE 2018, 13, e0209443. [Google Scholar] [CrossRef]
  32. Atoni, E.; Wang, Y.; Karungu, S.; Waruhiu, C.; Zohaib, A.; Obanda, V.; Agwanda, B.; Mutua, M.; Xia, H.; Yuan, Z. Metagenomic virome analysis of culex mosquitoes from Kenya and China. Viruses 2018, 10, 30. [Google Scholar] [CrossRef] [Green Version]
  33. Harvey, E.; Rose, K.; Eden, J.S.; Lo, N.; Abeyasuriya, T.; Shi, M.; Doggett, S.L.; Holmes, E.C. Extensive diversity of RNA viruses in Australian ticks. J. Virol. 2019, 93, e01358-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Zhang, Y.Z.; Chen, Y.M.; Wang, W.; Qin, X.C.; Holmes, E.C. Expanding the RNA Virosphere by Unbiased Metagenomics. Annu. Rev. Virol. 2019, 6, 119–139. [Google Scholar] [CrossRef] [PubMed]
  35. Suzuki, Y.; Baidaliuk, A.; Miesen, P.; Frangeul, L.; Crist, A.B.; Merkling, S.H.; Fontaine, A.; Lequime, S.; Moltini-Conclois, I.; Blanc, H.; et al. Non-retroviral Endogenous Viral Element Limits Cognate Virus Replication in Aedes aegypti Ovaries. Curr. Biol. 2020, 30, 3495–3506.e6. [Google Scholar] [CrossRef] [PubMed]
  36. Gilbert, C.; Belliardo, C. The diversity of endogenous viral elements in insects. Curr. Opin. Insect Sci. 2022, 49, 48–55. [Google Scholar] [CrossRef]
  37. Shi, M.; Neville, P.; Nicholson, J.; Eden, J.S.; Imrie, A.; Holmes, E.C. High-Resolution Metatranscriptomics Reveals the Ecological Dynamics of Mosquito-Associated RNA Viruses in Western Australia. J. Virol. 2017, 91, e00680-17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Tropicalmed 08 00225 g001 550
Figure 1. Map of the north of Serbia (left) with red pins indicating mosquito-sampling sites where the Xanthi chryso-like virus (XCLV) was detected (GPS coordinates of the sites are 44°85′07″ N, 20°46′97″ E; 45°76′29″ N, 19°08′47″ E; 45°66′58″ N, 18°97′98″ E). Area marked in blue (right) designates the geographic area where XCLV was first described by Konstantinidis and coworkers [13].
Figure 1. Map of the north of Serbia (left) with red pins indicating mosquito-sampling sites where the Xanthi chryso-like virus (XCLV) was detected (GPS coordinates of the sites are 44°85′07″ N, 20°46′97″ E; 45°76′29″ N, 19°08′47″ E; 45°66′58″ N, 18°97′98″ E). Area marked in blue (right) designates the geographic area where XCLV was first described by Konstantinidis and coworkers [13].
Tropicalmed 08 00225 g001
Tropicalmed 08 00225 g002 550

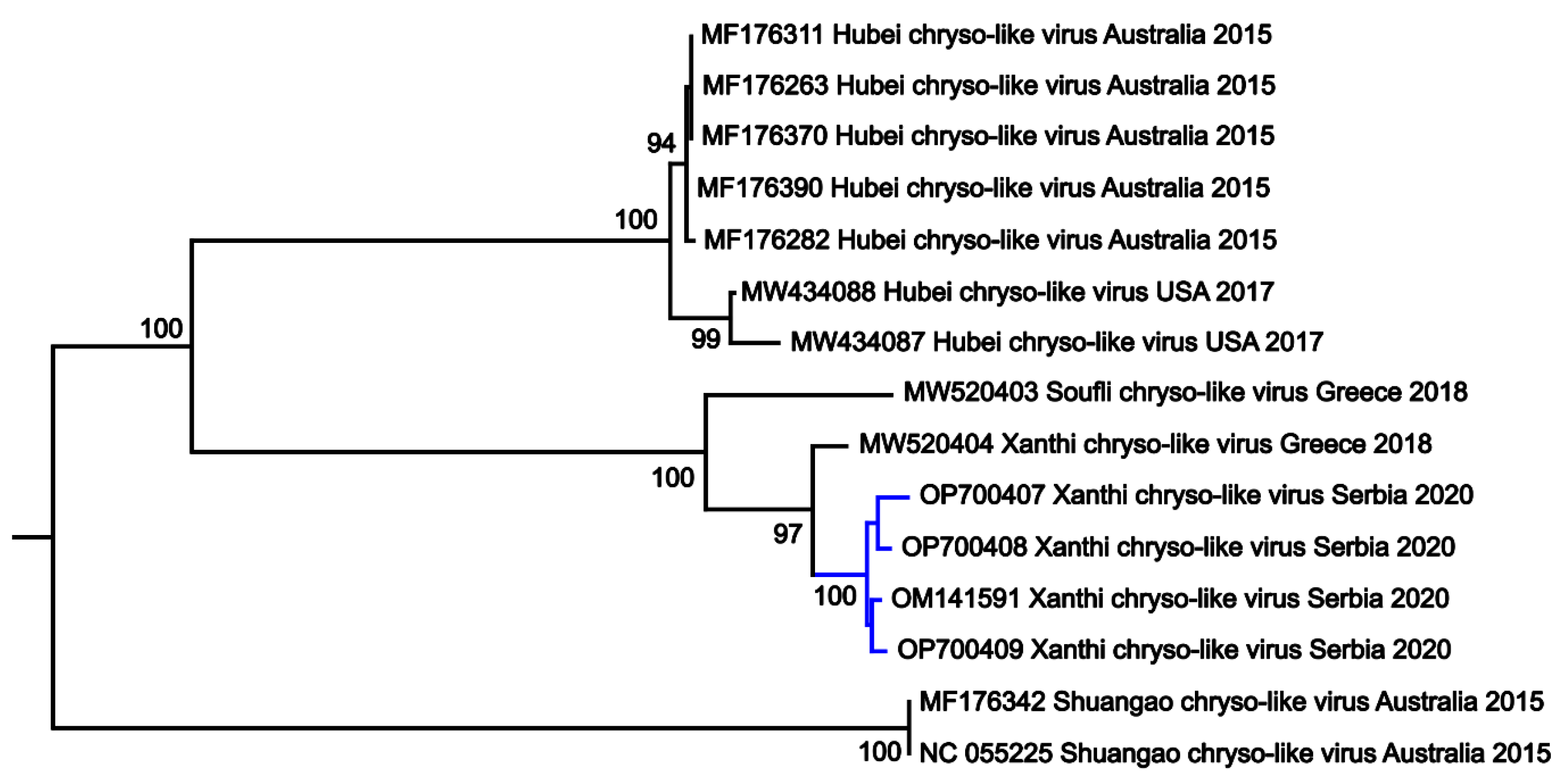

Figure 2. Maximum likelihood phylogenetic tree generated by MEGA X software, based on 735 nt of 15 chryso-like viruses. Bootstrap values > 65% are shown in the tree nodes. Sequences are indicated by GenBank accession number, name of the virus, country, and year of isolation. Newly detected sequences from Serbia are labeled in blue.
Figure 2. Maximum likelihood phylogenetic tree generated by MEGA X software, based on 735 nt of 15 chryso-like viruses. Bootstrap values > 65% are shown in the tree nodes. Sequences are indicated by GenBank accession number, name of the virus, country, and year of isolation. Newly detected sequences from Serbia are labeled in blue.
Tropicalmed 08 00225 g002
Table
Table 1. List of primers used in the study.
Table 1. List of primers used in the study.
TargetPrimer NamePrimer Sequence (5′-3′)Annealing Temperature (°C)Primer Position in Genome (nt)/Expected Product Length (bp)Reference
16S rRNA16 SarCGCCTGTTTATCAAAAACAT60837-1416/579[21]
16 SBR OiRCCGGTCTGAACTCAGATCACGT
WNV NS5 gene1NS5FGCATCTAYAWCAYNATGGG509035-10146[20]
1NS5RCCANACNYNRTTCCANAC
2NS5FGCNATNTGGTWYATGTGG509103-10122/1019
2NS5RTRTCTTCNGTNGTCATCC
XCLVXanthi_out_FTGCGGTGTGACAT522108-2904Designed in this study *
Xanthi_out_RAATATTACCAGCTT
Xanthi_inn_FTTACTTGTGCAGGTACT522141-2876/735
Xanthi_inn_RGGGCAGATCTAATTCCA
* The primer position on the 3rd segment of the XCLV genome was designed according to the sequence MW520404 from the NCBI database; WNV: West Nile virus; XCLV: Xanthi chryso-like virus.
