Exploring Shear Wave Velocity—N_SPT Correlations for Geotechnical Site Characterization: A Review

Abstract

Shear wave velocity (V_s) is a critical parameter in geophysical investigations, micro-zonation research, and site classification. In instances where conducting direct tests at specific locations is challenging due to equipment unavailability, limited space, or initial instrumentation costs, it becomes essential to estimate V_s directly, using empirical correlations for effective site characterization. The present review paper explores the correlations of V_s with the standard penetration test (SPT) for geotechnical site characterization. V_s, a critical parameter in geotechnical and seismic engineering, is integral to a wide range of projects, including foundation design and seismic hazard assessment. The current paper provides a detailed analysis of the key findings, implications for geotechnical engineering practice, and future research needs in this area. It emphasizes the importance of site-specific calibration, the impact of geological background, depth-dependent behavior, data quality control, and the integration of V_s data with other geophysical methods. The review underlines the continuous monitoring of V_s values due to potential changes over time. Addressing these insights and gaps in research contributes to the accuracy and safety of geotechnical projects, particularly in seismic-prone regions.

1. Introduction

The accurate characterization of geotechnical properties at a construction site is a fundamental prerequisite for ensuring the stability and safety of underground geotechnical engineering projects. Several factors influence how destructive an earthquake can be, including its depth, magnitude, fault type, distance from the seismic source to the site, groundwater level, and local site conditions. The type of soil beneath a structure affects the behavior of ground movements during an earthquake between the depth of the bedrock and the surface. This is known as the local site effect [1]. The key characteristics of intense ground shaking, such as amplitude, frequency content, and duration, are significantly impacted by local site conditions. The degree of their influence is closely tied to the material properties of the subsurface [2]. Since earthquakes are difficult to predict, conducting a site-specific seismic hazard analysis is a practical approach in earthquake engineering [3]. One of the most crucial parameters for assessing the earthquake risk at a site is the shear wave velocity (V_s) specific to that location. The V_s value for the upper 30 m of soil is employed to estimate various dynamic properties of the soil [4,5,6]. Site-specific V_s characteristics provides insights into how the site is expected to respond during seismic shaking. V_s reflects the dynamic mechanical properties of subsurface materials and is instrumental in the assessment of soil and rock behavior under various load and environmental conditions [7]. According to Rajabi et al. [8], shear waves, also known as secondary or S-waves, are seismic waves that propagate through the earth’s subsurface material, causing particles’ movement to be perpendicular to the direction of wave propagation, as shown in Figure 1. Unlike compressional waves (P-waves), shear waves do not change the volume of the material but instead induce shear deformation (refer to Figure 1). It is a crucial parameter because it provides insights into the stiffness of geological formations [9]. It quantifies how quickly shear waves travel through the subsurface, which is directly related to the material’s resistance to the dynamic shearing and deformation.

The proper determination of V_s can enhance our understanding of site-specific geotechnical challenges and contribute to the design and construction of resilient infrastructures. In recent years, the use of the standard penetration test (SPT) has been a common practice for assessing subsurface conditions and providing valuable data for geotechnical analysis. However, researchers and practitioners have increasingly recognized that SPT results alone may not always yield the most accurate representation of subsurface conditions, particularly in heterogeneous geological settings. This recognition has led to the exploration of alternative methods and correlations to refine the estimation of V_s [10].

The implementation of correlations in estimating V_s, particularly with respect to the SPT, is essential in geotechnical engineering. However, errors can occur due to factors influencing the choice of the correlation, such as the geological conditions, soil or rock type, and location, potentially leading to misleading estimations.

This paper focuses on the investigation of shear wave velocity correlations with the number of blows of the standard penetration test (N_SPT) for geotechnical site characterization. The N_SPT incorporates both dynamic and static measurements during soil penetration, providing a more comprehensive insight into the geotechnical properties of the subsurface. By examining the correlation between N_SPT results and V_s, this study aims to provide a critical discussion on the reliability of the former studies in estimating V_s by correlation, especially in regions where geological complexities pose significant challenges to traditional testing methods.

2. Significance of V_s in Geotechnical Engineering

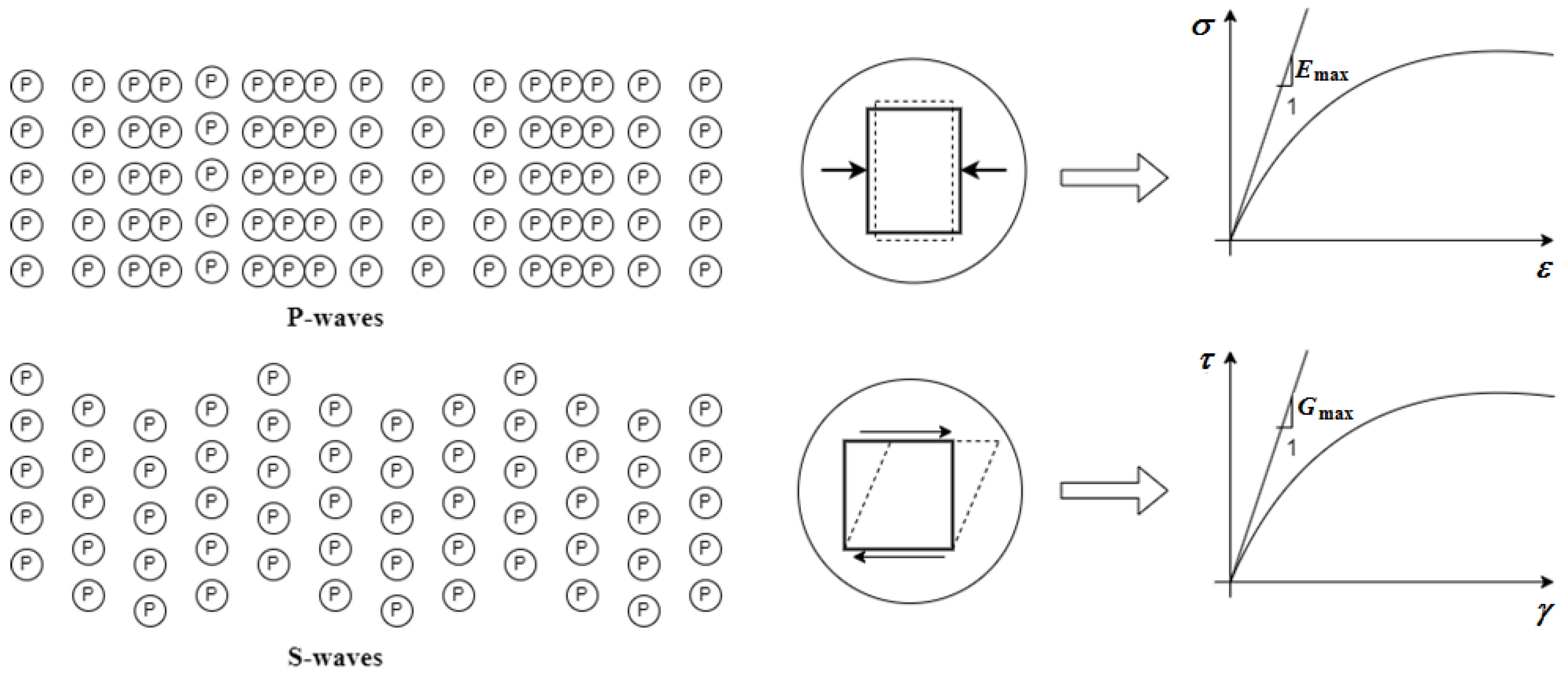

V_s is incredibly important in geotechnical engineering because it has a central role in various aspects of the field [11]. The S-wave exclusively induces shear deformation (as shown in Figure 1), which is a key factor for understanding the elastic strength and stiffness of soil and rock layers below the surface, essentially providing a direct assessment of the material’s rigidity and stiffness. This information is crucial for designing structures like foundations and retaining walls [12,13,14]. Additionally, V_s is essential for predicting how a site will respond during earthquakes, helping engineers design buildings that can withstand seismic activity. It also helps in designing foundations that can handle dynamic loads, such as those from wind, waves, and earthquakes [15]. Moreover, V_s is a cornerstone in assessing seismic hazards such as soil liquefaction [16]. It greatly contributes to evaluating earthquake risks, planning land use, creating building codes, and reducing risks [17]. Engineers rely on V_s data to make informed decisions about improving the ground, analyzing slope stability, planning tunnels and excavations, and assessing environmental impacts [18,19,20,21]. This ensures the safety and stability of various civil engineering projects, especially when dealing with seismic events and dynamic loads.

3. Role of N_SPT in V_s Determination

The N_SPT plays a significant role in V_s studies within geotechnical engineering. This test involves driving a standardized sampler into the ground and recording the number of blows required for it to penetrate a specific depth [22]. By driving a standardized sampler into the ground and recording penetration depths, N_SPT provides critical subsurface insights, allowing engineers to characterize soil and geological conditions [23]. The collected data are often taken at multiple depths, facilitating the creation of depth profiles that reveal variations in V_s with depth. Additionally, empirical correlations established between N_SPT values and V_s enable estimations of V_s in situations where direct measurements may be challenging or costly [1]. This information proves to be indispensable in regard to foundation design, aiding engineers in assessing material stiffness and the capacity to withstand dynamic loads, particularly during seismic events, thus ensuring the safety and stability of diverse civil engineering projects [24]. Furthermore, N_SPT data contribute significantly to seismic hazard assessments [25], as they offer valuable subsurface information that, when coupled with V_s data, help engineers evaluate a site’s vulnerability to seismic events and rule the design of earthquake-resistant structures, ultimately enhancing risk mitigation strategies and land-use planning within geotechnical engineering.

Field and laboratory V_s measurements are commonly employed alongside other in situ tests such as the N_SPT and cone penetration resistance (q_c) by Cone Penetration Test (CPT), as well as laboratory measurements like effective confining pressure (σ′) and void ratio (e) [26]. The V_s measurements are employed to create various correlations that can be incorporated into engineering research to harness the extensive data and expertise gathered by researchers [27]. While V_s values are generally preferred over estimates, correlations with penetration resistance can provide valuable and cost-effective insights in specific scenarios [28,29,30,31,32]:

• When constructing regional seismic hazard maps for site classification, using the average shear wave velocity down to a depth of 30 m (V_s30), the inclusion of correlations with penetration measurements can enhance the V_s values, especially because the range of V_s30 values within each class is quite extensive.
• To offer validation for measured V_s values in scenarios demanding high accuracy in deposit response calculations, such as in studies related to liquefaction, it is advisable to confirm the consistency between geophysical and geotechnical measurements.
• As a preliminary tool for pinpointing areas where geophysical measurements would provide the most significant advantages.
• For initial assessments and rough estimations in low-risk projects where the expenses associated with comprehensive V_s testing are not warranted, either during feasibility studies or for the final design calculations.
• The V_s profile derived from correlations can serve as an initial input for commencing the inversion process in Rayleigh wave testing.

Recognizing their importance, it is important to mention that the reliability of numerous correlations used in engineering has been questioned. These correlations often overlook crucial factors that can significantly influence V_s values, such as variations in soil type, particle characteristics, geological age, and the initial fabric of the soil. For instance, both empirical findings and theoretical considerations have demonstrated that V_s is primarily influenced by e and σ′. One of the widely utilized empirical formulas for estimating (σ′ and e) pairs is the one originally introduced by Hardin and Richart [33], and Hardin and Black [17]:

$$V_s=A{F}_e{({\sigma }^{\prime })}^B$$

(1)

where F_e represents a function based on the void ratio, and A and B are constants specific to the material. The stress exponent, denoted as B, ranges from 0.22 to 0.29, with many researchers endorsing a practical value of 0.25 [34]. However, classical contact mechanics solutions, based on the Hertz–Mindlin contact theory, predict a lower value for B at 0.16 [35]. This discrepancy arises from the assumption in these solutions that soil particles are smooth and behave like elastic spheres. When considering contacts involving rough surfaces, adjustments to the theory yield higher values of exponent B that better match the experimental findings [36]. The influence of effective stress is frequently eliminated by applying an overburden correction factor, as demonstrated in various studies (e.g., [37]). In essence, V_s is regularly adjusted to account for the vertical effective stress (σ_v′), as observed in investigations aimed at assessing the liquefaction potential (e.g., [16,38]):

$$V_{s1}=V_s({\frac{Pa}{{{\sigma }_v}^{\prime }})}^{0.25}$$

(2)

where V_s1 represents the stress-normalized shear wave velocity, and Pa denotes normal atmospheric pressure in units consistent with σ_v′ (for instance, Pa ≈ 100 kPa if σ_v′ is measured in kPa). The term $({\frac{Pa}{{{\sigma }^{\prime }}_v})}^{0.25}$ is considered as a stress correction (C_vs) [16]. By substituting Equation (1) into Equation (2), the normalized shear wave velocity, V_s1, becomes as follows:

$$V_{s1}=A{F}_e{{(\sigma }^{\prime })}^B({\frac{Pa}{{{\sigma }^{\prime }}_v})}^{0.25}$$

(3)

When B is equal to 0.25, Pa is 100 kPa, and σ_v′ = σ′(3/(1 + 2K₀)), with K₀ representing the coefficient of earth pressure at rest, the expression for V_s1 can be formulated as follows:

$$V_{s1}=A{F}_e[{\frac{100}{{3/(1+2K}_0)}]}^{0.25}$$

(4)

These empirical relationships do not incorporate any function that considers particle characteristics, which encompass factors such as particle size, shape, gradation, and mineral composition. Additionally, these relationships do not establish any particle-size restrictions for the applicability of the proposed formula. Some researchers have made efforts to outline the key characteristics of various well-established correlations between V_s and parameters like N_SPT, q_c, relative density, mean grain size (D₅₀), and e [32]. This effort aims to aid readers in assessing the suitability of these correlations for practical applications in geotechnical engineering.

4. Measurement of V_s

V_s is determined for geomaterials by using laboratory tests or field (i.e., in situ) tests. The laboratory techniques are subdivided into the binder element test and resonant column test. The binder element test was developed by Shirley [39] and then Shirley and Hampton [40] to determine the shear velocity of the laboratory specimen scale of geomaterial at a very low shear strain <10⁻⁶ [41]. The shear velocity, as determined in this case, is based on two parameters, namely the wave traveling time and the specimen length. The boundary condition of length is the location of the pulser and the receiver transmitters, and the wave traveling time is defined as the first observed deflection in the time–amplitude graph [42]. However, many factors could affect the estimation of the traveling time, such as the moisture content [43], grain size [44], wave reflection [45], etc. Therefore, the frequency domain and cross-correlation are developed to reduce the uncertainties regarding the traveling time definition [46,47,48,49]. However, the outcomes of these techniques proved obvious deviations of V_s values following the soil type [50].

The resonant column test can be subclassified into several techniques depending on the specimen–setup–boundary condition and the vibration mode. The most popular setups are the fixed–free end and free–free end resonant column to measure both the longitudinal and torsional specimen vibration, as developed by Wilson [51] and Hardin and Richart [33], respectively. Drnevich, in 1985 [52], combined the resonant column and torsional shear into one device to identify the elastic characteristic of geomaterial with a strain range of 10⁻⁶–10⁻¹. The wave velocity is determined using the resonant frequency domain and the coefficient of damping. The above laboratory methods are considered to be nondestructive tests dealing with elastic or elastic–plastic wave propagation. They are followed by many researches utilizing these techniques to characterize the elastic properties of soils [53,54,55,56,57] and rocks [58,59,60,61].

On the other hand, the in situ tests are either a surface geophysical technique or a combination of geotechnical investigation techniques with the geophysical technique for the subsurface. The surface seismic techniques are conducted at or near the ground level to investigate the subsurface characteristics indirectly depending on the reflected or refracted waves from the ground. Meanwhile, the subsurface involved in penetrating the ground to a specific depth is to be investigated using one of the geotechnical underground investigation methods, such as the borehole or the cone penetrometer test with attached seismic source and receiver. The seismic refraction is a geophysical method that depends on the Rayleigh surface waves, using the Spectral Analysis of Surface Waves (SASW) technique [62]. The shear velocity computed by the analysis of the refracted wave received depends on three parameters: travel times and the detector’s and the source’s locations [63].

The downhole logging test is widely used in the deep exploration of oil and minerals; it was developed by Schlumberger Educational Services, Texas [64]. The acoustic or sonic wave collected in this method by a group of receivers attached to an acoustic borehole logging probes moved down the borehole to be investigated, with the sonic wave source up the receiver by a specific distance [65,66]. The analysis of the received waves is carried out using the slowness travel time [67] or the frequency domain, using the Fast Fourier Transform (FFT) logarithm [68]. The cross-hole seismic test is relatively similar to that elaborated in the downhole logging test. However, in this test, the number of boreholes must be at least two or more to determine the V_s across the distance between the boreholes [69], where one of the boreholes contains the wave transmitter and the others works as wave receiver boreholes, as elaborated by standard D4428/D4428M-07 (2014) [70]. The V_s is calculated with the equation below:

$$V_s=SR/t_s$$

(5)

where SR is the distance between the source and receiver boreholes or between the two receiver boreholes, and t_s is the travel time of shear waves [71]. For a further assessment, the surface wave could be estimated as well by adopting the SASW or the Multichannel Analysis of Surface Waves (MASW) techniques [72,73]. The Seismic Cone Penetrometer Test (SCPT) is one of the common tests in geotechnical investigation to predict the elastic properties of geomaterial [74]. In this test, the cone penetration test is developed by adding a wave receiver inside the cone to determine the V_s at different depths generated by a wave source at the ground surface [75,76]. Since V_s is determined by defining the travel time of the wave, the attenuation of wave propagation may cause a huge dissipation in the shear wave. Therefore, the cross-correlation procedure can assist in identifying the traveling time [77]. However, using two arrays of seismic cones is a benefit to overcoming the issue of wave attenuation and determining the average V_s at an interval depth based on the following equation [78]:

$$V_s=(L_2 -L_1)/(T_2-T_1)$$

(6)

where L₂ and L₁ are the calculated distances between the source and the deeper and shallower receiver, respectively. Meanwhile, T₂ and T₁ are the shear velocity wave travel time from the source to the deeper and shallower receiver, respectively.

Table 1. A summary of laboratory and in situ tests to determine the Vs corresponding to the analysis method.

Test Type		Name	Analysis Method
Laboratory		Bender element	First arrival, frequency domain and cross-correlation
		Torsional resonant column test	Frequency domain by Fast Fourier Transformation (FFT)
In situ	Surface	Seismic refraction	Travel time analysis
		Seismic reflection	Reflection analysis by frequency domain and in time domain
	Subsurface	Downhole logging	First arrival, frequency domain
		Cross-hole seismic test	Travel time and amplitude analysis
		Seismic Cone Penetrometer Test (SCPT)	Travel time analysis, cross-correlation analysis

presents a summary of laboratory and field tests to determine the V_s.

5. V_s-N_SPT Correlations

Obtaining V_s data at all intervals and in every borehole can be challenging due to various factors, such as financial constraints, noisy worksites, or a lack of expertise [79]. Consequently, a widely adopted approach for predicting V_s involves using correlations with other soil-related variables. These correlations were established based on factors like the N_SPT, depth (z), soil type (st), geological age, and overburden pressure, as identified in a number of research studies. Numerous variables can influence the N_SPT significantly. Among the most critical variables to consider are the type of hammer, the borehole diameter, the rod length, and the energy imparted to the tube with each hammer blow [80]. Correlations with the V_s are crucial in geotechnical engineering and seismic analysis, linking the V_s with other geotechnical or seismic parameters [81]. These correlations are essential for assessing soil and rock behavior during seismic events. N_SPT-based empirical correlations, specifically, establish relationships between the SPT results and V_s. These empirical correlations are developed through statistical analysis, allowing engineers to estimate V_s based on N_SPT values, often using data collected at various depths in a soil profile [82]. N_SPT consistently exhibits the strongest correlation with the V_s when compared to other variables. These correlations are typically expressed in the form of V_s = aN^b, where ‘a’ and ‘b’ represent coefficients specific to the site. Due to the increasing popularity of N_SPT in soil studies and the ease of collecting N_SPT data in most locations, these types of correlations are widely used. Several studies, such as the ones from Ghazi et al. [83] and Gautam [84], developed correlations between this geophysical variable and other physically determined soil parameters. Jafari, Shafiei, and Razmkhah [79] conducted a comprehensive assessment of the statistical relationship between the V_s and N_SPT. The majority of the studies they analyzed, except for Lee [24], specifically addressed the relationship between the uncorrected N_SPT and V_s across different soil types, including both sand and clay soils. These empirical correlations were typically developed for regions with similar lithological characteristics, taking into account regional variations in soil types and qualities resulting from diverse geological settings and ongoing geomorphic events. The scope of these correlations was primarily limited to equivalent geomorphic locations and soil attributes. Consequently, it remains essential to establish correlations between V_s and geotechnical characteristics by using data specific to particular locations, irrespective of the various proposed empirical relationships. Daag et al. [85] established an equation between the V_s and N_SPT through the application of a nonlinear regression approach. They developed equations linking these two variables within the Metro Manila region of the Philippines, utilizing 265 sets of N_SPT values corresponding to V_s data. The researchers assessed the accuracy of their models by using the R² statistic, yielding values within a range from 0.73 to 0.79. Hossain et al. [86] employed an indirect approach to develop a relationship between V_s and N_SPT, considering 13 different cities with varying soil components, including sand, clay, and silt. The study introduced an innovative technique for combining all the collected data and determining main correlations, specifically focusing on the Dinajpur city in Bangladesh. The study’s assessment was conducted through the determination of R² values, which ranged from 0.04416 to 0.6134 for all soil types, 0.0593 to 0.668 for sand, 0.5911 to 0.7149 for clay, and 0.5547 to 0.6794 for silt. Naik et al. [87] developed an equation between N_SPT and V_s, using seismic downhole methods on 120 datasets across 12 different locations in Kanpur. Their findings indicated that the proposed correlation exhibited a strong performance, with a remarkable 95% of the data showing an error margin of only 10% of the scaled percentage error. The study evaluated the results in terms of R², which yielded values of approximately 0.898 and 0.927 for various soil types and clay, respectively. Hence, in this context, various researchers have proposed numerous correlations, which are summarized in

Table 2. Relationships between V_s and N_SPT based on the previous works (note: N ≡ N_SPT).

No.	Reference	All Soil (m/s)	Sand (m/s)	Clay (m/s)
1	[85]	56.82 N0.4861	45.07 N0.5534	70.26 N0.4220
2	[88]	99.5 N0.345	100.3 N0.338	94.4 N0.379
3	[79]		19 N0.85
4	[89]		77.1 N0.355
5	[90]		107.2 N0.34
6	[91]		95 N0.30
7	[87]	78.46 N0.390		81.18N0.377
8	[92]	72 N0.4
9	[93]	95.64 N0.301	100.53 N0.265
10	[94]	58 N0.39	73 N0.33	44 N0.48
11	[95]	82.6 N0.430	79 N0.434
12	[96]	90 N0.309	90.8 N0.319
13	[79]	121 N0.27	80 N0.33
14	[97]	68.3 N0.292
15	[98]	22 N0.85
16	[99]	19 N0.6
17	[99]	51.5 N0.516
18	[100]		123.4 N0.29	184.2 N0.17
19	[101]	107.6 N0.36
20	[102]		162 N0.17	165.7 N0.19
21	[103]	121 N0.27
22	[104]	76 N0.33
23	[24]		157 N0.49	14 N0.31
24	[105]		125 N0.3
25	[106]	116.1 (N + 0.3185)0.202
26	[107]	5.3 N + 13	5.1N0.27 + 152
27	[108]		100 N0.29
28	[109]		56 N0.5
29	[110]	97 N0.314
30	[111]	61 N0.5
31	[112]		80 N0.333	100 N0.333
32	[113]	85 N0.348	88 N0.34	94 N0.34
33	[114]	91 N0.337
34	[115]	90 N0.341
35	[116]	92 N0.329
36	[117]	82 N0.39	59 N0.47
37	[118]		87 N0.87
38	[119]	92.1 N0.33
39	[120]	85 N0.31
40	[104]	76 N0.33
41	[121]		32 N0.5
42	[99]	N0.6

.

The validation of these correlations involves field investigations where both N_SPT data and direct measurements of V_s are collected at specific sites [122]. These data are used to test the accuracy of the correlations by comparing predicted V_s values with measured V_s values. Zhang et al., in 2022 [123], stated that, while correlations offer cost-efficiency and rapid estimations of V_s, they also show limitations such as site-specific limitations, the range of applicable depths, and their dependence on soil types. Consequently, engineers usually use correlations as valuable tools, alongside site-specific investigations and direct measurements, to ensure accuracy in geotechnical assessments and project design.

6. Geotechnical Applications

The prediction of the geotechnical engineering of V_s has a variety of applications throughout the construction and infrastructure development process. By assisting engineers and geologists in understanding subsurface conditions, soil behavior, and seismic risks, this predictive capability eventually contributes to the safety and stability of structures [124]. It is essential to estimate the V_s while describing the characteristics of subsurface materials. Geotechnical engineers can categorize different types of soil and rock, gauge the stiffness of the soil, and recognize potential geohazards by measuring V_s values at various depths [125]. Poulos, in 2016 [126], stated that the accurate predictions of V_s are significant for engineers to adapt foundation designs to specific soil conditions, ensuring the stability of structures and infrastructure during site selection and foundation design processes. Predicting V_s, for instance, helps in determining the proper depth for deep foundations (such as piles or caissons) or the necessity for ground improvement procedures in places with soft or liquefiable soils, such as coastal zones [127]. Thus, when identifying the possibility of soil liquefaction during seismic occurrences, the V_s is a critical factor. Liquefaction is the temporary loss of strength of saturated soils, which can result in structural damage and the deterioration of foundations. Engineers may recognize liquefaction-prone regions by using predicted V_s profiles and then take mitigation steps to improve soil stability [128]. These steps might include ground densification or the installation of reinforcement. Therefore, it is important to predict V_s profiles in order to comprehend how seismic waves would travel through the subsurface. In areas with a high level of seismic activity, this information is essential for estimating the magnitude of ground vibrations and informing seismic design standards and building codes [129]. In order to customize rehabilitation procedures to specific soil conditions at various locations, Liu et al., in 2022 [130], emphasized the critical role of accurately predicting the V_s, as it is essential for assessing infrastructure resilience and facilitating modifications and reinforcements of older structures to meet current seismic safety standards. Also, Fang et al., in 2023 [131], emphasized that predicting V_s profiles is the key for tunnel lining design, excavation method selection, and overall ground stability estimation, reducing the probability of ground settlement and other geotechnical difficulties in tunneling and underground construction projects.

Table 3. Examples of the dependency of geotechnical applications on V_s prediction.

No.	Geotechnical Application	Vs Role
1	Bridge design	Engineers evaluate the soil conditions at bridge piers by using estimated Vs values while building the foundations for bridges. The proper foundation type, depth, and design parameters could be determined using this information to guarantee the stability and safety of the bridge under a variety of loading circumstances, including seismic events [132].
2	Tunnel construction	Fang et al., in 2023 [131], stated that predicting Vs is crucial for tunnel lining construction, assessing tunneling project ground stability, avoiding subsidence, and optimizing excavation techniques to prevent tunnel collapses by providing insights into the geological conditions along the tunnel route.
3	Designing for earthquake hazard	Krinitzsky, in 1995 [133], stated that predicting Vs is a key for seismic hazard assessments, influencing earthquake hazard zoning, construction standards, and earthquake-resistant structure design in seismically active regions by helping determine ground motion predictions.
4	Dam safety	Ebrahimi et al., in 2022 [134], emphasized that engineers rely on accurate Vs data to assess dam stability, ensuring the development of safe and reliable dams capable of withstanding both typical loading and potential seismic events by examining foundational conditions.
5	Construction of underground utilities and pipelines	Chaudhuri and Choudhury, in 2023 [135], emphasized the importance of predicting Vs in the design of buried pipes and subsurface utilities, as it is essential for ensuring foundation stability and resilience against ground movements such as settlement or seismic activity in these structures.
6	Slope stability analysis	Yang et al., in 2023 [136], demonstrated that the prediction of Vs in geotechnical engineering is instrumental in assessing slope stability, allowing engineers to mitigate landslides and slope failures through a comprehensive understanding of subsurface conditions and soil shear strength in both natural and manmade slopes.
7	Landfill design	Valencia-González et al., in 2022 [137], emphasized that predicting Vs is crucial for evaluating the geotechnical properties of landfill liners and foundations to secure the environmentally safe containment of waste during landfill construction.
8	Coastal engineering	Munirwansyah et al., in 2020 [138], highlighted that the prediction of Vs is a key for the evaluation of the stability of coastal protective structures, including seawalls, revetments, and piers, thereby enabling engineers to design coastal defenses capable of withstanding waves and storm surge.
9	Mine planning	According to Allawi and Al-Jawad, in 2022 [124], the prediction of Vs in mining operations informs mining engineers about the geomechanical characteristics of surrounding rock, facilitating the design of secure and efficient mine slopes and tunnels.

summarizes examples illustrating the dependency of geotechnical applications on V_s prediction.

7. Challenges and Uncertainties

Challenges in N_SPT-based V_s predictions arise from factors like soil variability, instrumentation quality, and depth limitations. These uncertainties can be addressed through site-specific analysis, high-quality equipment, and validation with other methods to improve reliability in geotechnical and seismic assessments.

7.1. Sources of Error in N_SPT-Based Vs Predictions

The measurement of V_s through the test of standard penetration is a valuable geotechnical tool, but it faces various challenges and uncertainties that can impact the accuracy of V_s estimates. Soil heterogeneity, characterized by variations in soil types, compaction, and layering across a site, can introduce substantial errors in N_SPT-derived V_s measurements, thereby compromising the accuracy of V_s estimations. Instrumentation quality and calibration discrepancies in N_SPT equipment can vary, potentially impacting the dependability of V_s measurements and introducing errors through calibration issues, sensor errors, or improper equipment use [139]. The depth to which V_s is measured in N_SPT, primarily focusing on upper soil layers, may not accurately represent deeper strata, potentially introducing errors in geotechnical designs, particularly in cases where deep-seated soil conditions are important [140]. Tunusluoglu, in 2023 [141], stated that empirical correlations used for converting N_SPT data to V_s introduce uncertainty, as they are often based on local or regional data and may not be universally applicable across diverse geological situations. Inaccurate V_s profiles can result from insufficient spacing and depth of N_SPT investigations, while the presence of varying soil layers and interfaces may introduce errors through shear wave reflection or refraction in V_s measurements [142]. Verstraeten et al., in 2008 [143], discussed that environmental conditions, such as soil moisture content, temperature, and groundwater levels, can affect the propagation of shear waves, introducing uncertainties into V_s measurements. Nejad et al., in 2017 [144], demonstrated that the restrictions on the depth to which shear waves can propagate in N_SPT testing, often dictated by the rod’s length, might require the adoption of more advanced geophysical techniques to obtain deeper V_s information, which can potentially introduce errors during the transition from N_SPT to these methods. Al-Jeznawi et al., in 2023 [82], highlighted that site-specific geological factors, such as the presence of unconsolidated sediments, bedrock, or faults, can create complex subsurface conditions that make it challenging to assess V_s accurately through N_SPT testing. Furthermore, variability in data inversion techniques for N_SPT data to derive V_s profiles can affect the quality of the results, with errors potentially arising from inappropriate model assumptions or insufficient data processing [145].

7.2. Data Interpretation Challenges of Vs in Terms of N_SPT

Interpreting V_s through the SPT data involves various challenges and uncertainties affecting the reliability of the results [146]. One significant challenge is the dependence on empirical correlations for V_s estimation, which may not be commonly applicable and can introduce errors, especially when applied beyond their original region of development. Soil behavior can be highly variable even within a single geological formation, making it essential to account for local geological situation and soil property variations during interpretation [141]. Furthermore, the influence of soil types on V_s estimations must be carefully considered, as different soil types exhibit different responses to SPT testing. Paoletti, in 2012 [147], emphasized the significance of sampling depth, especially in heterogeneous soil profiles where deeper sampling may be essential for accurate characterization of deeper strata, while also highlighting the potential introduction of uncertainties in the interpretation of SPT results due to factors like hammer energy and borehole condition. Ensuring data quality is a key, given that imprecisions in data collection, such as miscounts or equipment errors, have the potential to undermine the reliability of V_s estimates [140]. Additionally, interpreting V_s values is further complicated by the depth-dependent characteristics of soil; dynamic effects from the SPT hammer impact; and geological complexity, particularly in areas with faults, rock layers, or mixed soil types [88]. Therefore, the integration of data from multiple SPT tests, carried out at different site locations, frequently presents challenges that require thorough consideration and interpretation.

8. Case Studies

V_s derived from the N_SPT has found extensive applications in geotechnical and seismic engineering [141]. Real-world case studies demonstrate the invaluable role of N_SPT-derived V_s in various scenarios. For instance, in seismic-prone regions like California, comprehending and characterizing subsurface V_s profiles is a key for earthquake engineering and hazard assessment [148]. The latter has stated that the seismic performance of structures and sites exposed to earthquakes is complicatedly linked to these V_s profiles. Thus, to ensure the resilience of buildings and infrastructure in California, engineers usually employ N_SPT-derived V_s values. These data are fundamental for evaluating the dynamic response of the ground during seismic events, including the propagation of seismic waves through soil and their interaction with structures. Several case studies demonstrate the practical use of N_SPT-derived V_s values, involving evaluations at a variety of sites, including urban areas, fault zones, and regions with different geological characteristics.

Idriss and Boulanger, in 2006 [149], explored the varying roles of liquefaction correlations based on different testing methods, such as SPT, CPT, and V_s. For instance, fluctuating the relative density (D_r) of a clean sand from 30% to 80% is expected to result in a considerable increase in N_SPT, estimated to be approximately 7.1 times higher, and a substantial rise in CPT tip resistance, approximately 3.3 times higher, as indicated by Equations (7) and (8), respectively. According to the available correlations, the same change in D_r was expected to impact V_s, increasing it by a factor of about 1.4.

$$D_r=\sqrt{\frac{{(N_1)}_{60}}{40}}$$

(7)

$$D_r=0.478 {(q_{CIN})}^{0.264}-1.063$$

(8)

where q_CIN is q_C/Pa, as suggested by Robertson and Wride in 1997 [150]; q_C is the cone tip resistance; and Pa is the atmospheric pressure.

As an illustration, Seed, in 1970 [151], proposed that the parameter K_2max would equal 34 and 64 for a D_r of 30% and 80%, respectively. This results in V_s values that differ by a factor of approximately the square root of 64 divided by 34, which is about 1.37. The authors stated that it is possible that this range could be somewhat greater in the case of soils with a significant gravel content. Consequently, there is an ongoing requirement for a more comprehensive understanding of correlations based on V_s and an evaluation of their precision in comparison to correlations based on SPT and CPT data.

Other case studies highlighted the practical application of V_s data derived from the N_SPT in ensuring the stability, safety, and long-term performance of critical structures (tall buildings and bridges). This was comprehensively discussed by Yeung and Kitch [152], and Tomlinson and Woodward [153]. Ensuring the resilience of critical infrastructure, such as pipelines and lifelines, was addressed by Seed in 1970 [151], Whitman and Liao in 1985 [154], and Kramer in 1996 [2], who considered one of the primary concerns in earthquake-prone areas, namely the potential for ground shaking to damage or disrupt critical infrastructure. Pipelines that transport water, gas, or petroleum, as well as lifelines like power distribution systems, communication networks, and transportation routes, are exclusively susceptible.

A number of case studies have highlighted the wide range of applications of V_s obtained through the N_SPT in practical settings. N_SPT-derived V_s values offer important information on subsurface conditions and soil behavior, significantly impacting the fields of geotechnical and seismic engineering. These applications lead to enhanced safety and resilience in construction practices.

Practically, predicting the V_s from SPT tests should include the significance of site-specific calibration to account for varying geological conditions, the crucial role of geological background in V_s predictions, the depth-dependent behavior of soil and the need for comprehensive depth profiles, the direct relationship between data quality and reliable V_s estimations, the value of integrating N_SPT-derived V_s with other geophysical methods, and the importance of continuous monitoring due to potential V_s changes over time, all contributing to the precision and reliability of V_s predictions.

9. Conclusions

This review paper provides a comprehensive overview of V_s-N_SPT correlations, highlighting their essential role in geotechnical and seismic engineering applications. The key findings underscore the significance of site-specific calibration, geological background, depth-dependent behavior, data quality, and integration with other geophysical methods in ensuring the accuracy of V_s predictions. Continuous monitoring is emphasized to account for potential changes in V_s values over time. The implications for geotechnical engineering practice necessitate the need for systematic calibration, data quality assurance, and an integrated approach to V_s estimations. In geotechnical engineering, addressing uncertainties in V_s estimation is crucial for project safety and success. This involves site-specific investigations, data quality control, advanced techniques, considering various factors, accounting for depth-dependent behavior, and minimizing errors. Risk assessments and professional guidance are essential for reliable geotechnical projects, even in unpredictable subsurface conditions. The current review identifies research gaps in the development of stronger correlations, the improvement of depth-dependent models, and the exploration of innovative techniques, providing a roadmap for advancing V_s prediction methods in the field.
