Proceeding Paper

Crystal Structure of 2-(Ethoxymethylene)malononitrile and DFT Evaluation of the C-H···N≡C Close Contacts Energy †

by
Vyacheslav S. Grinev
1,2,*,
Ilya A. Demeshko
1,
Anna E. Sklyar
1 and
Alevtina Yu. Yegorova
1
1
Institute of Chemistry, N.G. Chernyshevsky Saratov National Research State University, 83 Ulitsa Astrakhanskaya, 410012 Saratov, Russia
2
Institute of Biochemistry and Physiology of Plants and Microorganisms—Subdivision of the Federal State Budgetary Research Institution Saratov Federal Scientific Centre of the Russian Academy of Sciences (IBPPM RAS), 13 Prospekt Entuziastov, 410049 Saratov, Russia
*
Author to whom correspondence should be addressed.
Presented at the 27th International Electronic Conference on Synthetic Organic Chemistry, 15–30 November 2023; Available online: https://ecsoc-27.sciforum.net/.
Chem. Proc. 2023, 14(1), 10; https://doi.org/10.3390/ecsoc-27-16052
Published: 15 November 2023

Abstract

:
2-(Ethoxymethylene)malononitrile (1) is a very convenient building block for the construction of various heterocycles and it is assumed to be an intermediate in different three-component reactions. Here, we present the results of XRD of (1) demonstrating the linkage of the co-oriented molecules in crystal via C-H···N≡C non-covalent interactions. To evaluate the energy of such interactions, we conducted DFT simulations. The molecules of (1) are linked into infinite chains via C-H···N≡C close contacts with a distance of 2.494 Å. When performing theoretical measurements of the energy of H···N non-covalent interactions by DFT, it was determined by the M06-2X functional, equal to −1.20 kcal/mol, meaning weak attraction.

1. Introduction

As a part of our current study on functionalized analogs of azophenine, we recently synthesized 2-(ethoxymethylene)malononitrile (1) to clarify its crystal structure. This compound was reported for the first time in 1922 [1]. This simply built compound is a very convenient building block for the construction of various heterocycles [2,3], as well as for the introduction of the methane group into the nucleophile-containing structures, leaving one or two nitrile groups intact for further transformations. Also, this compound is assumed to be an intermediate in different three-component reactions [4]. There are, in the literature, a few mentions about the crystal structures of structurally related compounds with nitrile groups, namely, ethyl (E)-2-cyano-3-(thiophen-2-yl)acrylate [5] and (E)-ethyl-2-cyano-3-(furan-2-yl)acrylate [6]. To the best of our knowledge, there is no information about the crystal structure of (1).
In this study, we present the results of X-ray diffraction of the titled compound, which demonstrates in crystal a discrete molecular disorder and the linkage of the co-oriented molecules via C-H···N≡C non-covalent interactions. To evaluate the energy of such interactions, we conducted DFT simulations.

2. Materials and Methods

2.1. Physical Measurements

The FTIR transmission spectrum was collected in a KBr pellet with a FSM-1201 Fourier spectrometer (Infraspek, Russia) in the 4000–400 cm−1 range. The 1H (400 MHz) and 13C NMR (100 MHz) spectra in acetone-d6 were recorded with a Varian (Agilent) 400 spectrometer (Agilent Technologies, Santa Clara, California, USA), and the internal standard was TMS. Chemical shifts (δ) were reported in ppm. Elemental analysis was performed with a CHNS analyzer “Elementar Vario MICRO cube” (Elementar Analysensysteme GmbH, Hanau, Germany). The melting point was determined by a Stuart™ SMP10 melting point apparatus (Cole-Parmer, Beacon Road, Stone, Staffordshire, ST15 OSA, UK). The progress of the reaction and the purity of the synthesized compound were monitored by TLC on ALUGRAM® SIL G UV254 plates (MACHEREY-NAGEL GmbH & Co. KG, Düren, Germany), and a hexane-ethyl acetate–acetone (2:2:1) mixture was the eluent.

2.2. Synthesis, Characterization, and Crystallization

The 2-(ethoxymethylene)malononitrile (1) was obtained by the procedure described in [7] (Scheme 1).
A mixture of 0.5 g (7.6 mmol) of malononitrile, 1.87 mL (11.4 mmol) of triethoxymethane, and 1.77 mL of acetic anhydride (18.9 mmol) were heated at 150 °C for 20 min in a sealed-vessel reactor (SVR), Monowave 50 (Anton Paar, Austria). After being cooled, the reaction mixture was concentrated under reduced pressure to a minimum volume. The formed crystals were separated, washed with cold ethanol, and dried in vacuo. A suitable single crystal was chosen for the XRD study. The yield was 0.7 g (76%), mp 67.5–68.5 °C; FTIR, cm−1 3443, 3212, 3033, 3006, 2944, 2905, 2434, 2228, 1956, 1887, 1763, 1611, 1552, 1472, 1449, 1397, 1373, 1317, 1259, 1219, 1154, 1107, 1009, 984, 883, 811, 792, 592, and 542. The 1H NMR (400 MHz, acetone) δ was 8.25 (s, 1H), 4.55 (q, J = 7.2 Hz, 2H), and 1.42 (t, J = 7.1 Hz, 3H). The 13C NMR (100 MHz, acetone-d6) δ was 177.06, 112.50, 110.48, 75.07, 64.65, and 14.49. Analyzed and calculated for C6H6N2O, %: C, 59.01; H, 4.95; N, 22.94. The following was found: C, 59.08; H, 4.97; N, 22.96.
A suitable single crystal of (1) was obtained by slowly cooling its hot glacial acetic acid solution. The crystal was washed with cooled n-hexane and dried in vacuo. The dimensions of the crystal were 0.55 × 0.40 × 0.35 mm3.

2.3. Crystal Structure Determinations and Refinement

An X-ray diffraction study of (1) was performed with an Xcalibur Ruby diffractometer (MoKα radiation, graphite monochromator, multi-scan) at 295 K. The empirical absorption correction was introduced by a multi-scan method using the SCALE3 ABSPACK algorithm [8]. The structure was solved with the olex2.solve program [9] and refined by the full-matrix least-squares method in the anisotropic approximation for all non-hydrogen atoms with the SHELXL program [10]. The hydrogen atoms were positioned geometrically and refined using a riding model with Uiso(H) = 1.5Ueq(C) for methyl groups and Uiso(H) = 1.2Ueq(C) for other moieties, and with C–H distances of 0.93 Å (CH), 0.96 Å (CH3), or 0.97 Å (CH2).
The crystal data, data collection, and structure refinement details are summarized in Table S1 (see Supplementary Materials). The packing diagram and parameters of non-covalent interactions were obtained using Olex2 software [11].

2.4. DFT Calculations

All density functional theory calculations were carried out with the Gaussian 09 [12] program using the high-performance computing cluster of the National Research Saratov State University. The coordinates from the X-ray data were used as the initial and full geometry optimizations of monomers and dimers (Figure 1), which were modeled using B3LYP [13,14], CAM-B3LYP [15], M06-2X [16], MPWB95 [17], WB97XD [18], B97—D3 [19] functionals, and the 6-311++G(d,p) basis set. The nature of stationary points found was confirmed by Hessian analysis by the absence of imaginary frequencies. The total energy gains were calculated as a difference between the energy of the dimer and the doubled energy of the corresponding monomer (Table 1).

3. Results and Discussion

3.1. Crystal Structure Analysis

The content of the asymmetric unit of (1), along with the atom labeling scheme, is shown in Figure 2. This structure has been deposited in the Cambridge Crystallographic Data Centre with deposition number CCDC 2180335. These data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/ accessed on 13 September 2023 (or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge, CB2 1EZ, UK; Fax: +44 1223 336033).
Compound (1) crystallizes with Z = 2 in the monoclinic crystal system, space group P 21/m. The main part of the molecule of (1) demonstrates perfect planarity (atoms in the (NC)2C=CH‒O fragment lie in the same plane orthogonal to [010]) with the RMSD of 0.000 Å, except for the ethyl fragment). The C5-C6 atoms of the ethyl group present a discrete disorder due to the existence of two conformations of the ethyl moiety that overlay in the same crystallographic site. This disorder is modeled using two positions for the C5 and C6 atoms with equal occupancy values of 0.5 and total s.o.f. of 1.0. The split fragment is observed as a consequence of two ethyl moieties on the two opposite sides of the mirror plane that contains the main part of the molecule of (1). It is very similar to the crystal of ethyl (E)-2-cyano-3-(thiophen2-yl)acrylate, described by Castro Agudelo et al. [20].

3.2. Packing Features of (1)

The unit cell of (1) with a volume of 348.0 Å3 contains a pair of molecules oriented antiparallel to each other and parallel to the a-axis (Figure 3). The package demonstrates C-H···N≡C close contacts with a H···N distance of 2.494 Å, giving infinite chains of co-oriented molecules parallel to the a-axis and flat- parallel layers co-planar to the ac plane. Also, there are weak (Et)H···N≡C in plane close contacts of 2.855 Å.
In crystal, there are two intermolecular interplanar hydrogen bonds between molecules of neighboring layers. The O···H contacts are between the oxygen atom of the molecule and the hydrogen atoms of the CH2 and CH3 groups in the disordered ethyl group of the molecule of neighboring layers. The geometric parameters of hydrogen bonds are presented in Table 1.

3.3. Hirshfeld Surface Analysis

Hirshfeld surface analysis [21] of the studied crystal allows us to visualize the intermolecular interactions to prove the presence of weakly pronounced contacts. The Hirshfeld surface diagram, dnorm, with transparency (Figure 3b) indicates (in red) locations of the strongest intermolecular contacts.
The N···H/H···N contacts with the portion of 43.5% of all contacts in the crystal of (1) demonstrate their significance for the stabilization of the lattice. The O···H/H···O contacts, mostly, are represented by intermolecular weak hydrogen bonds of the oxygen atom of one molecule and protons of the ethyl moiety of the neighboring molecule. The portion of such contacts are 8.3%. The contribution of the H···H intermolecular interactions in crystals of (1) amount to only 17.6%, reflecting a repulsion of protons of ethyl groups.
In the crystal of (1), the molecules in the package are connected to each other by intermolecular intra- (weak (Et)H···N≡C in plane close contacts) and interplanar (O···H(Et) contacts) non-covalent interactions, including hydrogen-bond-like C-H···N≡C contacts prevailing over the repulsive forces of H···H contacts between hydrogen atoms in ethyl groups.

3.4. Theoretical Evaluation of the Close Contact Energy

For the evaluation of the energetics of close contacts in the crystals of (1), DFT calculations were performed on the monomers and dimers. The models of the monomers and dimers were built using the coordinates from X-ray data (Figure 1).
The choice of the appropriate functional in DFT is crucial for better prediction accuracy. Many popular hybrid functionals like B3LYP describe more accurately the geometry of the single molecule but are almost useless in the modeling systems consisting of molecules connected by non-covalent interactions. In addition, the dimer as the system of a pair of identical molecules with two strongly pronounced hydrogen bonds is relatively simple to model, even by functionals, which have no dispersion corrections. So, we have chosen some functionals, namely, B3LYP, CAM-B3LYP, M06-2X, MPWB95, WB97XD, and B97-D3, used frequently for modeling non-covalent interacted systems with the 6-311++G(d,p) basis set. A criterion of the accurate prediction of the model was the reproduction of geometry of the close contacts as well as the general disposition of molecules in contrast to the X-ray data. The obtained results are summarized in Table 2.
All of the functionals used gave very similar results in describing the geometry of monomers and dimers of (1), except for the B3LYP and CAM-B3LYP methods, which returned abnormally huge energy values (not shown in Table 2). The M06-2X functional gave the closest values of geometric data in contrast to all of the applied functionals. This allows us to consider the energy calculated by the M06-2X functional as the closest to the experimental one. Other functionals have given energies, either overestimated or underestimated, which can lead to distorted energy values. The obtained energy value of −1.20 kcal/mol confirms that in the crystal of compound (1), the connection between the molecules occurs due to H···N non-covalent interactions, which may be defined as weak hydrogen bonds.

4. Conclusions

The unit cell of the single crystal of compound (1), which is a relatively simple non-cyclic organic compound, consists of “head to tail” ordered molecules. Ethyl substituent demonstrates a disorder with equal occupancy values of 0.5. The molecules of (1) are linked into infinite chains of co-oriented molecules parallel to the a-axis via C-H···N≡C close contacts with a distance of 2.494 Å. When performing theoretical measurements of the energy of H···N non-covalent interactions by DFT, it was determined that the M06-2X functional most accurately determined the energy of the non-covalent intermolecular bond, which is equal to −1.20 kcal/mol. According to the energy value magnitude, one can state that the interaction is a weak hydrogen bond. There are also weak interplanar intermolecular hydrogen bonds >O···H- between the oxygen atom and the ethyl moiety.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ecsoc-27-16052/s1, Table S1: Experimental details of the X-ray diffraction analysis.

Author Contributions

Conceptualization, V.S.G.; methodology, V.S.G. and A.Y.Y.; software, V.S.G.; validation, V.S.G., I.A.D., A.E.S. and A.Y.Y.; formal analysis, I.A.D. and A.E.S.; investigation, I.A.D. and A.E.S.; resources, V.S.G. and A.Y.Y.; writing—original draft preparation, V.S.G. and I.A.D.; writing—review and editing, A.E.S.; supervision, V.S.G. and A.Y.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Russian Science Foundation (grant no. 22-23-00171 to V.S. Grinev).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available on request.

Acknowledgments

The authors thank Maksim V. Dmitriev for his help with the correct description of the crystal structure and the disordering.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Diels, O.; Gärtner, H.; Kaack, R. Über Versuche zur Darstellung des Carbonylcyanids und eine Methode zur Gewinnung ungesättigter Amino-Säuren. Berichte Der Dtsch. Chem. Ges. (A B Ser.) 1922, 55, 3439–3448. [Google Scholar] [CrossRef]
  2. Ochiai, M.; Yamamoto, S.; Suefuji, T.; Chen, D. Stereoselective synthesis of (Z)-enethiols and their derivatives: Vinylic SN2 reaction of (E)-alkenyl (phenyl)-λ3-iodanes with thioamides. Org. Lett. 2001, 3, 2753–2756. [Google Scholar] [CrossRef] [PubMed]
  3. Konakahara, T.; Sugama, N.; Yamada, A.; Kakehi, A.; Sakai, N. Cyclization reaction of N-silyl-1-azaallyl anions with Michael acceptors as a new synthetic method of 2,3,5,6-tetra- and 2,3,6-trisubstituted pyridines. Heterocycles 2001, 55, 313–322. [Google Scholar] [CrossRef]
  4. Osipov, A.K.; Anis’kov A., A.; Yegorova, A.Y. Synthesis and configuration of (arylamino) methylidene-3H-furan-2-ones. Russ. J. Org. Chem. 2017, 53, 210–214. [Google Scholar] [CrossRef]
  5. Al-Refai, M.; Ali, B.F.; Said, A.B.; Geyer, A.; Marsch, M.; Harms, K. Synthesis, characterization, crystal structure and supramolecularity of ethyl (E)-2-cyano-3-(3-methylthiophen-2-yl) acrylate and a new polymorph of ethyl (E)-2-cyano-3-(thiophen-2-yl) acrylate. Acta Crystallogr. Sect. E Crystallogr. Commun. 2019, 75, 1357–1361. [Google Scholar] [CrossRef] [PubMed]
  6. Kalkhambkar, R.G.; Gayathri, D.; Gupta, V.K.; Kant, R.; Jeong, Y.T. (E)-Ethyl 2-cyano-3-(furan-2-yl) acrylate. Acta Crystallogr. Sect. E: Struct. Rep. Online 2012, 68, 1482. [Google Scholar] [CrossRef] [PubMed]
  7. Ding, R.; He, Y.; Xu, J.; Liu, H.; Wang, X.; Feng, M.; Qi, C.; Zhang, J.; Peng, C. Preparation and bioevaluation of 99mTc nitrido radiopharmaceuticals with pyrazolo [1,5-a]pyrimidine as tumor imaging agents. Med. Chem. Res. 2012, 21, 523–530. [Google Scholar] [CrossRef]
  8. CrysAlisPro, Agilent Technologies, Version 1.171.37.33 (Release 27-03-2014 CrysAlis171.NET). Available online: https://www.scirp.org/reference/referencespapers?referenceid=1770037 (accessed on 13 September 2023).
  9. Bourhis, L.J.; Dolomanov, O.V.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H.J. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment—Olex2 dissected. Appl. Crystallogr. 2015, A71, 59–75. [Google Scholar] [CrossRef]
  10. Scheldrick, G.M. SHELXT-Integrated space-group and crystals-structure determination. Acta Crystallogr. Sect. A Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  11. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H.J. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339. [Google Scholar] [CrossRef]
  12. Frisch, M.; Trucks, G.; Schlegel, H.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.; et al. Gaussian 09, Rev. C.01; Gaussian, Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  13. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1998, 38, 3098–3100. [Google Scholar] [CrossRef] [PubMed]
  14. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed]
  15. Yanai, T.; Tew, D.P.; Handy, N.C. A new hybrid exchange–correlation functional using the Coulomb-attenuating method (CAM-B3LYP). Chem. Phys. Lett. 2004, 393, 51–57. [Google Scholar] [CrossRef]
  16. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, noncovalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06-class functionals and 12 other functionals. Theor. Chem. Acc. 2008, 120, 215–241. [Google Scholar] [CrossRef]
  17. Zhao, Y.; Truhlar, D.G. Hybrid Meta Density Functional Theory Methods for Thermochemistry, Thermochemical Kinetics, and Noncovalent Interactions:  The MPW1B95 and MPWB1K Models and Comparative Assessments for Hydrogen Bonding and van der Waals Interactions. J. Phys. Chem. 2004, 108, 6908–6918. [Google Scholar] [CrossRef]
  18. Remya, K.; Suresh, C.H. Which density functional is close to CCSD accuracy to describe geometry and interaction energy of small noncovalent dimers? A benchmark study using Gaussian09. J. Comput. Chem. 2013, 34, 1341–1353. [Google Scholar] [CrossRef] [PubMed]
  19. Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comput. Chem. 2006, 27, 1787–1799. [Google Scholar] [CrossRef] [PubMed]
  20. Castro Agudelo, B.; Cárdenas, J.C.; Macías, M.A.; Ochoa-Puentes, C.; Sierra, C.A. Crystal structure of ethyl (E)-2-cyano-3-(thiophen-2-yl) acrylate: Two conformers forming a discrete disorder. Acta Crystallogr. Sect. E Crystallogr. Commun. 2017, 73, 1287–1289. [Google Scholar] [CrossRef] [PubMed]
  21. Hirshfeld, H.L. Bonded-atom fragments for describing molecular charge denseties. Theor. Chim. Acta 1977, 44, 129–138. [Google Scholar] [CrossRef]

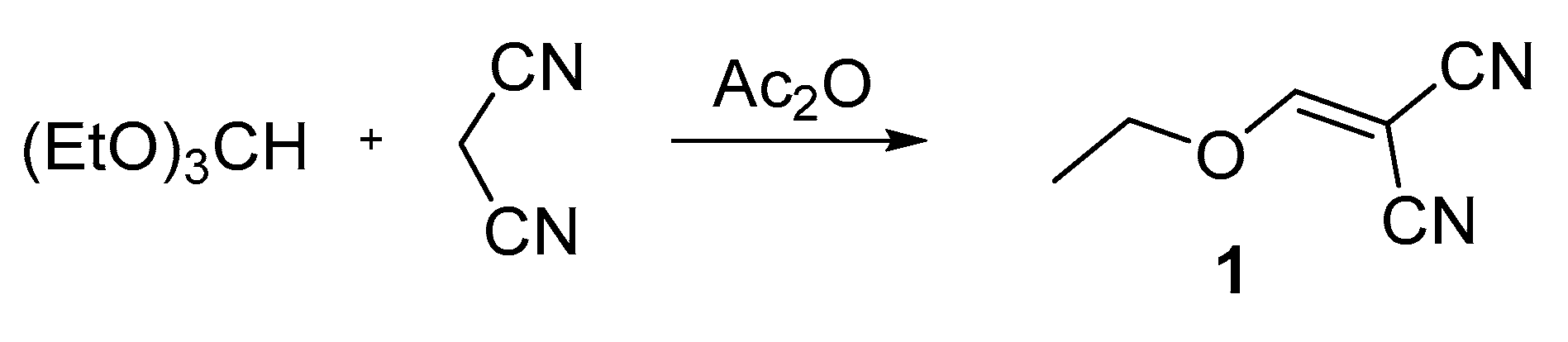

Scheme 1. Synthesis of the titled compound (1).
Scheme 1. Synthesis of the titled compound (1).
Chemproc 14 00010 sch001

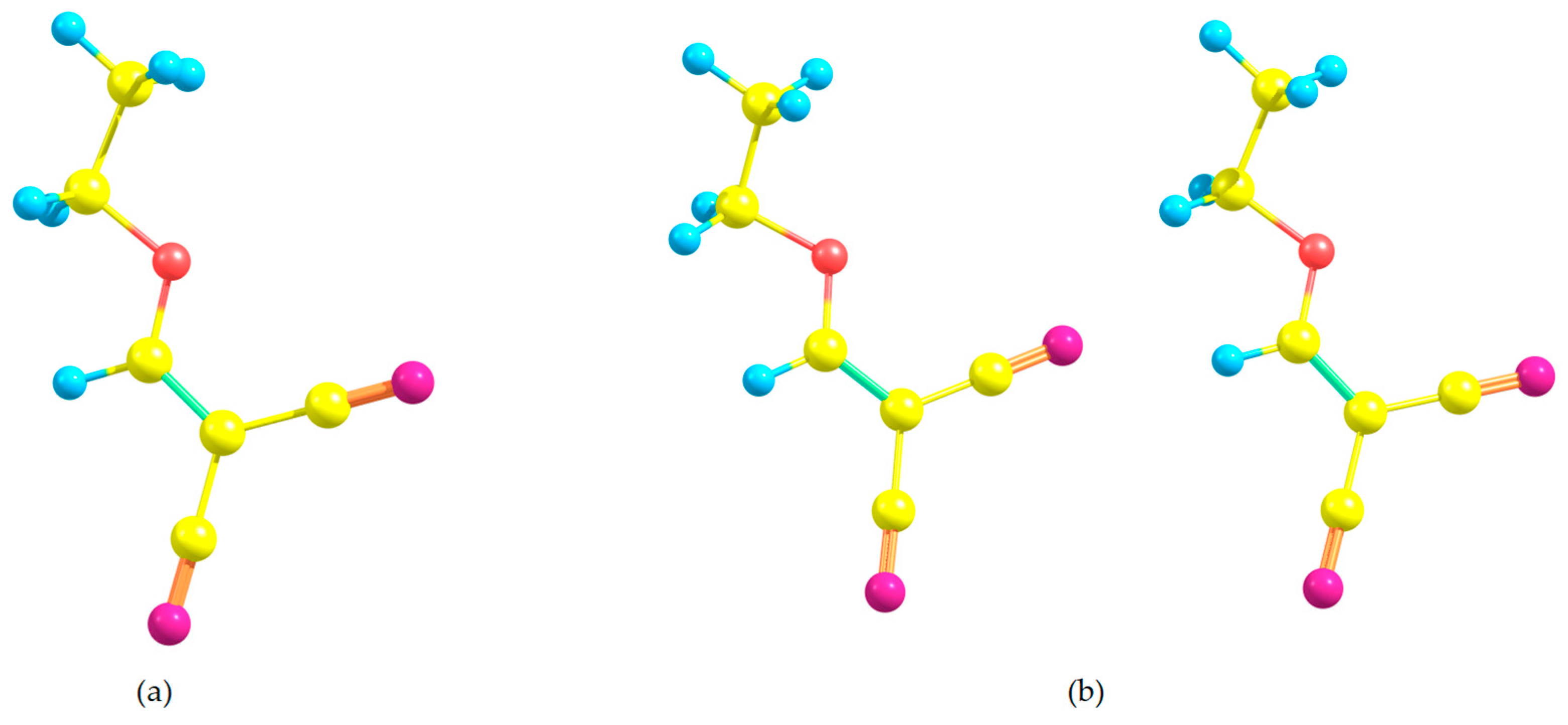

Figure 1. A diagram showing the models used in the calculation of the energy of C-H···N≡C close contacts in the crystals of (1): (a) monomer, (b) dimer.
Figure 1. A diagram showing the models used in the calculation of the energy of C-H···N≡C close contacts in the crystals of (1): (a) monomer, (b) dimer.
Chemproc 14 00010 g001

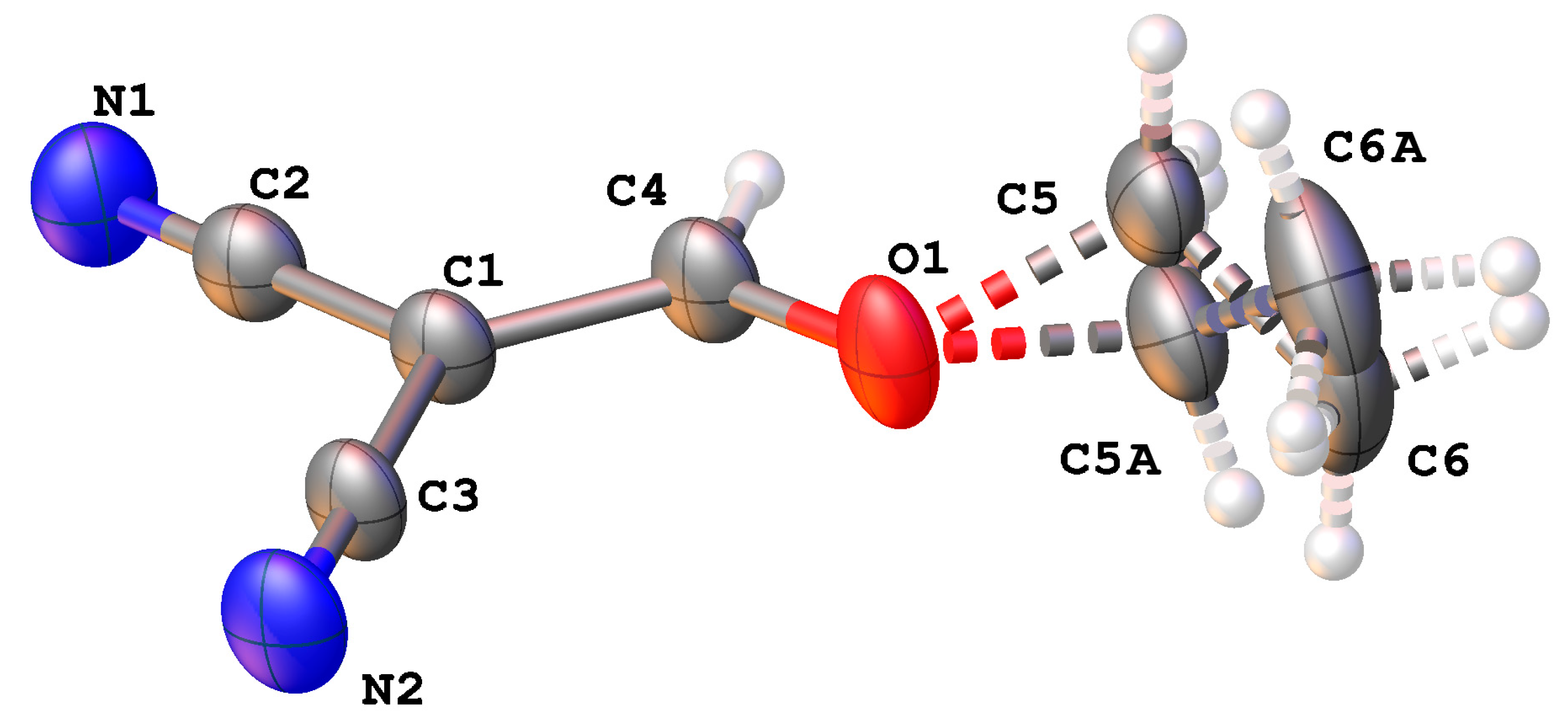

Figure 2. The geometry of (1) with atom labeling in the asymmetric unit. The disordered part is shown with dashed bonds. Displacement ellipsoids are drawn at the 50% probability level. Symmetry code used to generate equivalent atoms: (A) x, 1/2 ‒ y, z.
Figure 2. The geometry of (1) with atom labeling in the asymmetric unit. The disordered part is shown with dashed bonds. Displacement ellipsoids are drawn at the 50% probability level. Symmetry code used to generate equivalent atoms: (A) x, 1/2 ‒ y, z.
Chemproc 14 00010 g002
Figure 3. Extended packing diagram of molecules of (1), showing close C-H···N≡C contacts (blue dots). Dashed bonds show a disorder of ethyl groups (a). Hirshfeld surface diagram with a fragment of the extended packaging diagram of molecules of (1) showing non-covalent close contacts (b).
Figure 3. Extended packing diagram of molecules of (1), showing close C-H···N≡C contacts (blue dots). Dashed bonds show a disorder of ethyl groups (a). Hirshfeld surface diagram with a fragment of the extended packaging diagram of molecules of (1) showing non-covalent close contacts (b).
Chemproc 14 00010 g003
Table 1. Geometric parameters of the intermolecular hydrogen bonds in the crystal of (1).
Table 1. Geometric parameters of the intermolecular hydrogen bonds in the crystal of (1).
MoietyH···O, ÅD···A, ÅD—H···A, °
CH23.2943.424126.5
CH32.7613.949127.0
Table 2. Geometric parameters of the close contacts and the calculated energy.
Table 2. Geometric parameters of the close contacts and the calculated energy.
MethodH···N, ÅD···A, ÅD—H···A, °E (kcal/mol)
XRD2.4943.423176.22-
M06-2X2.4243.472176.23−1.20
MPWB952.5613.611160.52−0.36
B97-D32.4233.483163.65−1.27
WB97XD2.3853.439162.61−1.53
