Effect of Molecular Architecture of Surface-Active Organosilicon Macromers on Their Colloidal Properties in Relation to Heterophasic Radical Polymerization of Styrene and Methyl Methacrylate

by
Valeriy Borisovich Gostenin
1,*,
Anton Mikhailovich Shulgin
1,
Irina Sergeevna Shikhovtseva
1,2,
Alexandra Alexandrovna Kalinina
2,
Inessa Alexandrovna Gritskova
1 and
Vitaliy Pavlovich Zubov
1
1
M.V. Lomonosov Institute of Fine Chemical Technologies, MIREA—Russian Technological University, 78 prosp. Vernadskogo, 119571 Moscow, Russia
2
Enikolopov Institute of Synthetic Polymeric Materials, Russian Academy of Sciences, 70 Profsoyuznaya St., 117393 Moscow, Russia
*
Author to whom correspondence should be addressed.
Physchem 2024, 4(1), 78-90; https://doi.org/10.3390/physchem4010006
Submission received: 16 December 2022 / Revised: 11 May 2023 / Accepted: 19 February 2024 / Published: 23 February 2024
(This article belongs to the Section Surface Science)
Browse Figures
Versions Notes

Abstract

:
The effects of the molecular architecture of water-insoluble organosilicon polymerizable surfactant macromers (SAMs) on their colloidal-chemical characteristics and on their efficiency in heterophase radical polymerization of styrene and methyl methacrylate were studied. It was shown that despite considerable differences in the structure of three synthesized oligomers (linear α,ω-dipropylmethacrylatepolydimethylsiloxane with a number of repeated siloxane units n = 20—l-SAM; branched γ-methacryloxypropyl containing dimethylsiloxane oligomer—b-SAM; and “spherical” oligo-(γ-methacryloxypropyl)silsesquioxane—s-SAM), the colloidal-chemical characteristics (interfacial tension, layer thickness, adsorption, etc.) were rather similar. In particular, they all form “thick” multimolecular adsorption layers on the toluene–water interphase. All three SAMs were shown to act as effective colloidal stabilizers in heterophase radical polymerization of styrene and methyl methacrylate, which resulted in one-step preparation of large (0.5–1.5 µm) polymer particles with narrow particle size distribution. The obtained results are consistent with the published data on the use of water-insoluble polymerizable oligomers of various chemical structures on the heterophase radical polymerization. The use of these colloidal stabilizers may be considered as an effective way to obtain stable suspensions with large particles and narrow particle size distribution.

1. Introduction

Polymer suspensions are valuable materials in many areas such as applied physics, building technology, non-woven materials, calibrating particles, adhesives, material for bio-medical applications, etc. [1,2,3,4,5,6]. For example, the polymer suspensions with an average diameter of the particles of 30 nm are used in electron microscopic observation of fine materials both as a marker and as a standard to indicate the absolute size [7]. The potential of the use of the dispersion in any of the areas is determined not only by the chemical nature of the particles but by their dimensions, the particle size distribution and their colloidal stability. For the particles formed via heterophase radical polymerization, those parameters are created in the course of their synthesis and controlled by the nature of the monomer, initiator and surfactant and by the mechanism of the particle formation.
For a number of application areas, the particles are required to be rather large (~1 µm) with narrow particle size distribution and definite surface chemistry (functionality). The majority of the described techniques for synthesis of large polymer particles are based on the application of water-soluble surfactants and seed polymerization. They are lengthy, multistage and poorly reproducible [8,9,10,11,12,13,14]. Moreover, they are not ecologically friendly because the waste water contains the remains of the used surfactants.
One of the examples is the use of large polymer particles whose surface is modified with bioligands, such as proteins and specific antibodies, which are used for passive agglutination immunodiagnostic assays [15,16]. The function of these assays is based on the immunochemical reaction between an antigen and antibodies yielding an ‘antigen-antibody’ complex [17]. The reaction in which this complex is formed is highly immunospecific and results on the formation of network agglomerates, which can be detected by various methods, for example, by spectrophotometry, turbidimetry, nephelometry, laser self-correlation spectroscopy, etc. These methods may require use of special expensive equipment for the detection of ‘antigen-antibody’ complexes. However, when antigens (or antibodies) are bound to a polymeric carrier, the complexes can be detected even by the naked eye as crowding of agglomerates of the carrier particles.
The first communication on successful use of polyvinyltoluene and polystyrene microspheres with a narrow particle size distribution in the diagnosis of rheumatoid arthritis was published in 1956 [18]. It was reported that the interaction of antigens present in the blood serum of a patient with gamma-globulin adsorbed on the microsphere surface of a suspension resulted in the agglutination of the polymeric particles affording large agglomerates, easily discernible by the naked eye. Later, publications appeared [19,20] dealing with the use of polystyrene and poly(methyl methacrylate) suspension particles as protein carriers for preparing diagnostic test-systems for other types of diseases.
However, the use of particles of polymeric suspensions in the development of immunodiagnostic tests has been limited by irreproducibility of the results of analysis, which is caused, as has been suggested by Yen et al. [20], by the fact that on slight variations in the conditions (pH, ionic strength of the medium, temperature, etc.), the protein adsorbed on the surface of particles is desorbed to the aqueous phase; this lowers the sensitivity of the tests and leads to nonspecific reactions with other biological objects.
Polymeric suspensions containing particles with surface functional groups capable of forming covalent bonds with bioligands have proved to be free of these drawbacks. Polymeric suspensions based on copolymers of methyl methacrylate (MMA), 2-hydroxyethyl methacrylate, acrylic and methacrylic (MAA) acids, acrylamide, vinylpyridine, etc., have been synthesized and used successfully for developing immunodiagnostic tests [12].
Considerable progress in control of the synthesis of polymer suspensions by means of heterophase radical polymerization was attained by using polymerizing surface-active macromers (SAMs) [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36]. The preparation and properties of SAMs were first described in the works of Bistline et al. [37]. The authors synthesized sodium salts of allyl esters of α-sulfopolymethic and α-sulfostearic acids. It was shown that the obtained compounds had surface-active properties—they significantly reduced the surface tension at the interface between an aqueous SAM solution/air and an aqueous SAM solution/hydrocarbon.
The work [38] describes the synthesis of SAMs classified by the authors according to the nature of the vinyl group. Monomers based on styrene, vinyl phenyl ketone and acrylamide were obtained. These compounds were used as copolymerizable emulsifiers in the emulsion copolymerization of butadiene with styrene. Coatings made from the resulting latexes improved cohesion and water resistance compared to coatings made from latex polymers made using conventional emulsifiers.
Another example is heterophase radical polymerization of styrene and butyl acrylate in the presence of anionic SAM (dodecyl ester of potassium salt of methylcinnamic.) [39]. The rate of polymerization and the colloidal stabilities of the reaction system and of the resulting polystyrene latex were noticeably better than in the presence of traditional non-polymerizable anionic surfactants even at the lower surfactant concentrations. The surface tension of the reaction system reached the value of the pure water at 70% styrene conversion, which indicates the practical absence of the surfactant in the aqueous phase. It was explained with the fact that the surfactant copolymerizes with the forming polystyrene presumable at the early stages of formation of the polymer–monomer particles. Similar behavior was shown when using cationic SAM (N-dodecyl-2-methyl-5-vinylpyridinium bromide).
However, despite a number of obvious positive effects, the use of water-soluble surfactants as a way to manufacture polymeric suspensions with required particle size and particle size distribution displayed some limitations. The technique did not provide manufacturing of the particles larger than 1.5 µm, and the particle size distribution was rather wide (in one lot, the diameter of particles varied nearly twice) and further improvement of the particle parameters required complex multistep procedures.
In refs [40,41], it was shown that the use of water-insoluble oligomeric surfactants of various chemical structures (hydrocarbon and organosilicon) enables to synthesize such dispersions via one-step heterophase radical polymerization. The mechanism of the effect was based on the assumption that the surface-active oligomers being incompatible with the forming polymer are pushed onto the interface of the monomer droplet with water and build their “thick” and strong adsorption layer, which provides stability of the system in the whole course of polymerization. Polymerization of monomers in the presence of water-insoluble surfactants is a specific type of heterophase polymerization process because the formation of a surfactant adsorption layer on the surface of monomer droplets occurs via its migration from the monomer phase. As a result, in contrast to the polymerization of monomers in the presence of water-soluble surfactants, polymer–monomer particles retain a narrow particle size distribution from the beginning of polymerization to complete conversion of the monomer, and the diameters of polymer particles increase with increasing surfactant and monomer concentration.
Of particular interest are water-insoluble silicone surfactants consisting of a polydimethylsiloxane skeleton linked to one or more polar groups [42,43,44,45]. Silicone surfactants are characterized by the following properties:
  • − The ability to reduce surface tension to a value of 20 mN/m compared to 30 mN/m for typical hydrocarbon surfactants, which is associated with structural features of the siloxane chain;
  • − Exhibit surface-active properties, both in aqueous and non-aqueous media;
  • − The ability to form helical structures with outwardly oriented alkyl groups due to the high flexibility of the siloxane chain and the tendency of weak Si-O dipoles to intramolecular compensation [46].
The stability of the suspensions is additionally supported if the surface-active oligomer contains reactive double bonds (SAM), which could be copolymerized with the main monomer [47,48,49,50,51].
This approach also solves the ecological safety problem, i.e., no surfactant remains in the waste water after the completion of the reaction.
However, the structural parameters of the above-mentioned adsorption layers related to the polymerization kinetics and the parameters of the resulting polymer suspensions in their connection to the molecular structure of the used SAMs are not fully understood.
In this work, in order to investigate this problem, we synthesize three organosilicon oligomers containing the same polymerizable (methacrylic) groups but with different molecular architectures: linear α,ω-dipropylmethacrylatepolydimethylsiloxane (l-SAM), branched γ-methacryloxypropyl containing dimethylsiloxane oligomer (b-SAM) and polycyclic “spherical” oligo-(γ-methacryloxypropyl)silsesquioxane (s-SAM) (Figure 1).
The paper describes the properties of the synthesized SAMs, their efficiency in the heterophase radical polymerization of styrene and methyl methacrylate and the characteristics of the polymer dispersions obtained by the reactions.

2. Experimental Section

2.1. Materials

Allyl methacrylate and methyl methacrylate were purchased from Acros Organics. Pyridine and polydimethylsiloxane hydride were purchased from Penta-91, Moscow, Russia. CT-175 sulfonic acid resin was purchased from Purolite, Llantrisant, Great Britain. Octamethylcyclotetrasiloxane, methyl tert-butyl ether, toluene, trifluoroacetic acid and sodium sulfate were purchased from Chimmed, Moscow, Russia. Potassium persulfate, styrene, γ-methacryloxypropyltrimethoxysilane, Karsted’s catalyst and trimethylchlorosilane were purchased from Sigma-Aldrich, St. Louis, MA, USA. Styrene was purified from the stabilizer with a 5% aqueous solution of sodium hydroxide, washed with water until neutral pH, dried over calcium chloride and distilled twice in vacuum. Methyl methacrylate was purified from stabilizers by distillation at normal pressure in the presence of 0.2 wt.% hydroquinone. All other reagents were used as received.

2.2. Syntheses

All syntheses were carried out in an argon atmosphere.
Synthesis of α,ω-dipropylmethacrylatepolydimethylsiloxane with the number of repeating siloxane units n = 20 (l-SAM)
Synthesis of α,ω-dipropylmethacrylatepolydimethylsiloxane with the number of repeating siloxane units n = 20 (l-SAM) was carried out according to the procedure given in [40]. The reaction scheme, synthesis procedure and 1H NMR spectrum are given in Supplementary Materials (Figure S1).
The 1H NMR (400.13 MHz, CDCl3): d, ppm; −0.05–0.2 (m, CH3, 3H); 0.45–0.68 (m, CH2, 2H); 1.6–1.8 (m, CH2, 2H); 1.87–2.03 (m, CH3, 3H); 4.0–4.22 (m, CH2, 2H); 5.45–5.68 (m, CH2 = C, 1H); and 6.03–6.22 (m, CH2 = C, 1H).
Synthesis of branched γ-methacryloxypropyl containing dimethylsiloxane oligomer (b-SAM)
A total of 0.4 g of the catalyst (CT-175 sulfonic acid resin) was added to a mixture of 16.7 g of octamethylcyclotetrasiloxane (D4) and 3.5 g of γ-methacryloxypropyltrimethoxysilane. The reaction was carried out at T = 65 °C for 15 h. Then, the temperature was raised to 145 °C and held for 3 h in order to get rid of the catalyst (decomposed), and then, the low-boiling components were distilled off. The structure of the obtained compound was confirmed by the data of 1H NMR spectroscopy (Figure S2).
The 1H NMR (400.13 MHz, CDCl3): d, ppm; 0.1–0.2 (s, SiCH3, 3H); 0.65–0.85 (s, SiCH2CH2, 1,89H); 1.6–1.8 (s, CH2CH2CH2, 2,07H); 1.87–2.03 (s, C-CH3, 3,03H); 3.45–3.55 (m, O-CH3, 0,17H); 4.0–4.22 (s, O-CH2CH2, 2H); 5.45–5.68 (s, C-C=CH2, 1H); and 6.03–6.22 (s, C-C=CH2, 1H).
Synthesis of oligo-(γ-methacryloxypropyl)silsesquioxane (s-SAM).
A total of 5 g (0.020 mol) of γ-methacryloxypropyltrimethoxysilane and 22.8 g (0.20 mol) of trifluoroacetic acid were stirred at 120 °C for 2 h; after which, methyl tert-butyl ether was added and washed with 10% sodium sulfate solution in water and distilled water until neutral pH. The resulting solution was kept for 12 h over sodium sulfate, filtered out. The resulting solution was added to a mixture of 3.3 g (0.03 mol) of trimethylchlorosilane and 2.4 g (0.03 mol) of pyridine, the reaction mass was refluxed, then washed with water until neutral pH and kept for 12 h over sodium sulfate. The target product was isolated by distillation of the volatiles on a rotary evaporator, followed by evacuation at 50 °C/1 mm Hg. The yield of the product, a colorless viscous liquid, was 88%. The structure of the obtained compound was confirmed by the data of 1H NMR spectroscopy (Figure S3).
The 1H NMR (400.13 MHz, CDCl3): d, ppm; 0.1–0.2 (s, SiCH3, 2,5H); 0.65–0.85 (s, SiCH2CH2, 1,89H); 1.6–1.8 (s, CH2CH2CH2, 2,07H); 1.87–2.03 (s, C-CH3, 3,03H); 3.45–3.55 (m, O-CH3, 0,17H); 4.0–4.22 (s, O-CH2CH2, 2H); 5.45–5.68 (s, C-C=CH2, 1H); and 6.03–6.22 (s, C-C=CH2, 1H).

2.3. Characterization

Particle size distribution of the polymer suspension was measured using a photon analyzer “Zetasizer Nano ZS” (Malvern Instruments Ltd, Malvern, Great Britain). The 1H NMR spectra were recorded on a Bruker WP250 SY spectrometer, and the solvent was CDCl3. The spectra were processed on a computer using the ACDLABS program. The colloidal-chemical properties of organosilicon SAMs (surface and interfacial tension) were studied by tensiometry using a semi-automatic digital tensiometer “K9” (KRŰSS company, Hamburg, Germany). Kinetic studies of the polymerization of vinyl monomers in the presence of SAMs were carried out by the dilatometric method. For polymerization experiments, we chose the volume ratio of the SAM monomer solution–water equal to 1:9, potassium persulphate concentration 1 mass% (in the monomer) and polymerization temperature was 80 ± 0.5 °C. SAM concentration varied from 1 to 1.5 mass% (in the monomer). The morphology of the microparticles was studied using a scanning electron microscope (SEM) “Versa 3D DualBeam” (FEI, Hillsboro, USA) in high vacuum mode. Separation of the copolymer into different fractions was carried out on a preparative high-performance liquid chromatography unit with an automatic dispenser and fraction collector “LC-20” (Shimadzu, Kyoto, Japan). Programming and registration of chromatograms were carried out using proprietary Shimadzu software (LabSolutions LCGC).

3. Results

Colloidal Characteristics of Organosilicon Surface-Active Polymerizable Oligomers

Series of samples were prepared to measure the interfacial tension at the interface toluene solution of SAM/water. The first sample was a toluene solution, and the subsequent samples were an SAM solution in toluene with am SAM concentration in the range from 0.25 to 1.0 wt.%. Isotherms of interfacial tension were plotted against the surfactant concentration in the toluene solution. These data were used to calculate the surface activity (G, mJ·m/mol), the maximum Gibs adsorption (Hmax, mol/m2), the area occupied by the surfactant molecule (S0, m2) and the thickness of the interfacial layer formed by surfactant molecules (δ, m).
The isotherms of the interfacial tension at the interface toluene solution of SAM/water are shown in Figure 2. The character of the isotherms is similar to the isotherms obtained by measuring the interfacial tension of typical hydrocarbon surfactants.
As can be seen from Figure 2 and Table 1, all three organosilicon SAMs are surface-active, and despite significant differences in molecular architecture (linear, branched and “spherical”), they have similar colloidal-chemical characteristics. It is worth mentioning that values of the surface activity and maximum adsorption increase in the series l-SAM < b-SAM < s-SAM. It is also noteworthy that the measured adsorption layer thicknesses vary in order l-SAM > b-SAM > s-SAM; however, for all three SAMs, the layer thickness is >10 nm, which significantly differs from water-soluble surfactants (~2–5 nm) [52] and exceeds the contour length not only of the spherical and branched SAM, but also of the linear SAM. This indicates the polymolecular nature of adsorption, i.e., the tendency to form “thick” adsorption layers at the oil–water interface. This structure of the adsorption layers can probably explain the relatively small differences in the colloidal-chemical characteristics of these SAMs as well as the similarity of the colloidal-chemical characteristics as compared to some other water-insoluble oligomers (dimeric, comb-type, etc.) [40,53].
The polymerization was carried out under the following conditions: the monomer/water volume ratio was 1/9, respectively; the concentration of potassium persulfate (PSP) used as initiator was 1 wt.% per monomer; the temperature was 80 ± 0.5 °C; and the SAM concentration was varied from 1 to 1.5 wt.% per monomer, which corresponds to the concentration of saturated interfacial layer in the studied toluene–water model system.
The conversion–time curves of kinetics of polymerization of styrene and methyl methacrylate in presence of SAMs are shown in Figure 3a and Figure 3b, respectively.
It can be seen that the kinetic curves are S-shaped, which is typical for heterophase radical polymerization of styrene and methyl methacrylate. The initial section of the kinetic curves is characterized by a low reaction rate and, according to the literature, is called the induction period [10,40,49]. Then, the rate of polymerization grows and changes to constant up to high monomer conversions (70–80%)—a constant rate section. At last, the rate slows down. The intersection of the extrapolation of the constant rate section with a line parallel to the abscissa axis corresponding to 100% conversion (Figure 3a, point A) and similar intersection points on other kinetic curves not shown in Figure 3b are taken in this work as the time of the polymerization completion.
Figure 4 shows the values of the induction periods, the constant rates and the total conversion times for styrene and methyl methacrylate polymerization in the presence of the SAMs studied. For styrene, although the values of the constant rates were almost the same, the duration of the induction periods decreased consistently in order s-SAM > b-SAM > l-SAM.
Approximately the same results are noticed in the polymerization of methyl methacrylate. The induction periods decrease in the same order. However, the values of the constant rates decrease markedly in the series l-SAM > b-SAM > s-SAM.
As it was shown in [46], stability of the adsorption layer on the interphase monomer droplet—water is additionally increased if the forming polymer is incompatible with the surface-active oligomers (organosilicon macromers of various structures)—is shown. Incompatibility of organosilicon oligomers of different structures with polystyrene and poly(methyl methacrylate) was shown experimentally in [54]. Therefore, this factor also additionally contributes to the high stability of the adsorption layers in the studied systems. In fact, 1 wt.% used SAM per monomer was sufficient for providing high stability of the reaction system without coagulum.
And finally, the one more factor facilitating stability of the adsorption layers and formation of strong shell on the polymer–monomer particles is copolymerization of the surfactants (SAMs) with the main monomers. In order to prove that the comonomer enters into a copolymerization reaction, the following experiment was carried out. The product of the styrene polymerization in the presence of SAM was separated by preparative chromatography into three fractions: low molecular weight, medium molecular weight and high molecular weight. All fractions were characterized by NMR spectroscopy. The molar mass of the SAM was about 1000 g/mol, and the molar mass of the resulting copolymer was over 30,000 g/mol. The presence of the SAM was observed in the high molecular weight fraction (Supplementary Materials, Figure S4), which suggests that the SAM was chemically bonded to the polymer.
This reaction also provides binding of the surfactant and makes the process ecologically benign, without contamination of the waste water. The absence of the residual surfactant is confirmed with the value of the surface tension of the aqueous phase after the completion of polymerization (σ = 72 mJ/m2) equal to the value of pure water.
From Figure 3a,b and Figure 4, one can see that all three SAMs act as effective (good) colloidal stabilizers of heterophase radical polymerization providing by 1.5–2 high values and prolonged period of the constant polymerization rates as compared to polymerization of those monomers in presence of hydrocarbon and other water-soluble surfactants [42,43]. The efficiency of those SAMs is rather similar but increases in the order s-SAM < b-SAM < l-SAM, despite the fact that the values of the interfacial tension and of the surface activity are decreased in the that order. But, at the same time, the series of the polymerization efficiency of the SAMs corresponds to the values in the series of the adsorption layer thickness (see Table 1). This fact indicates that the flexible molecule of l-SAM builds up the better protecting adsorption layer than more rigid b-SAM and s-SAM.
The duration of the constant rate section up to high conversion values (~80%) additionally indicates the formation of strong interfacial adsorption layers from the early stages of polymerization. In heterophase polymerization, the rate of polymerization is proportional to the number of particles. A constant polymerization rate indicates that the process proceeds with a constant number of stable particles, i.e., there are no processes of flocculation and coalescence of particles. The systematic increase in the constant rates during the polymerization of MMA requires a separate study, but it can be assumed that the differences in the constant rates is related to the structure of the formed layers and differences in the compatibility of SAMs with the formed polymer.
It should be noted that the suspensions obtained are stable during storage for three months and in weak electrolyte solutions.
These data support the hypothesis that polymerizable oligomers are involved in the stabilization of the surface layers of polymer–monomer particles.
The characteristics (average particle diameter and particle size distribution) of polystyrene and poly(methyl methacrylate) suspensions obtained in the presence of the studied SAMs were evaluated by photon correlation spectroscopy. Particle distribution histograms of polymer suspensions obtained in the presence of l-SAM, b-SAM and s-SAM are shown in Figure 5A,B. Figure 6 shows scanning electron microscopic photographs of polystyrene dispersions obtained in the presence of 1 wt.% SAMs. These results illustrate the data presented in Table 2 indicating a narrow size distribution of the spherical particle.
The results shown in Figure 5A,B and Table 2 show that the use of all three SAMs allows the synthesis of large polymeric (polystyrene and poly(methyl methacrylate)) particles with a narrow size distribution (dw/dn ~ 1.01–1.05) via one-step synthesis. It means that in each of the polymer suspensions, about 90% of the particles have diameters differing within some 10%. As an example, the numerical data of the distribution of the diameters of the polystyrene particles obtained in the presence of l-SAM measured by the photon correlation spectroscopy are given in Table S1 in the Supplementary Materials. In all cases, these particles have sizes approximately an order of magnitude larger than those obtained in the presence of hydrocarbon surfactants in the same conditions [41].

4. Conclusions

Thus, the results obtained in this work confirm the assumption that the use of water-insoluble and incompatible with the forming polymer colloidal stabilizers of oil–water emulsions leads to the formation of strong adsorption layers at the interface with the aqueous phase and, thus, provides a one-stage production of large polymer particles with a narrow size distribution via the radical heterophase polymerization in these systems. The high thickness of these multimolecular adsorption layers leads to a leveling effect of the chemical structure and molecular architecture of the surfactants on their measurable colloidal-chemical characteristics. This conjecture may provide a plausible explanation to the experimental facts that the use of few other oligomers with quite different molecular structures [40,41], which are water-insoluble and polymer-incompatible as colloidal stabilizers in heterophase radical polymerization, enables to produce polymer dispersions with large (~1 mcm) particles and narrow particle size distribution via one-step simple process. The use of polymerizable surfactants additionally strengthens the outer shell of the resulting particles. A wide choice of the surfactants in these syntheses allows to vary the surface properties of the resulting polymer particles, which may be very useful for the further application of thus-obtained dispersions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/physchem4010006/s1, Figure S1: 1H NMR spectrum of α, ω - dipropyl methacrylate polydimethylsiloxane (n = 20); Figure S2: 1H NMR spectrum of branched γ -methacryloxypropyl containing dimethylsiloxane oligomer; Figure S3: 1H NMR spectrum of oligo-(γ-methacryloxypropyl)silsesquioxane; Figure S4: 1H NMR spectrum of high molecular weight fraction of the styrene polymerization product in the presence of SAM; Table S1: The numerical data of the distribution of the diameters of the polystyrene particles obtained in the presence of l-SAM.

Author Contributions

Conceptualization, I.A.G., V.P.Z. and V.B.G.; methodology, V.P.Z., I.A.G., A.A.K. and V.B.G.; software, A.M.S., I.S.S. and A.A.K.; formal analysis, A.M.S., I.S.S. and A.A.K.; investigation, A.M.S., I.S.S. and V.B.G.; resources, V.B.G. and I.A.G.; data curation, V.B.G., V.P.Z. and I.A.G.; writing—original draft preparation, V.B.G.; writing—review and editing, I.A.G., V.P.Z., A.A.K. and V.B.G.; visualization, V.B.G. and I.S.S.; supervision, I.A.G., V.P.Z. and A.A.K.; project administration, I.A.G., V.P.Z. and A.A.K.; funding acquisition, I.A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Higher Education of the Russian Federation grant number 075-15-2020-794.

Data Availability Statement

The data presented in this study are available in the article.

Acknowledgments

We acknowledge funding from the Ministry of Science and Higher Education of the Russian Federation (agreement no. 075-15-2020-794).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yamamoto, Y.; Okada, D.; Kushida, S.; Ngara, Z.; Oki, O. Fabrication of Polymer Microspheres for Optical Resonator and Laser Applications. J. Vis. Exp. 2017, 124, e55934. [Google Scholar]
  2. Adebayo, G.; Krasheninnikova, I.; Kaminsky, V. The synthesis of polymer suspension with narrow particle size distribution for immunochemical investigations. Colloid Polym. Sci. 1998, 276, 1068–1077. [Google Scholar]
  3. Chenglin, Y.; Shaoyi, Z.; Webb, K.; Zhihong, N. Anisotropic Self-Assembly of Hairy Inorganic Nanoparticles. Acc. Chem. Res. 2017, 50, 12–21. [Google Scholar]
  4. Dickstein, J. Relationship of chemical structure to application of speciality monomers. J. Amer. Chem. Soc. Polym. Prepr. 1986, 27, 427–438. [Google Scholar]
  5. Green, B.; Sheetz, D.; Filer, T. In situ polymerization of surface-active agents on latex particles. J. Coll. Interface Sci. 1970, 32, 90–95. [Google Scholar] [CrossRef]
  6. Dicke, H.; Heitz, W. Synthesis and characterization of surface-active azogroup-containing polyacrylamides. Macromol. Chem. Rapid Commun. 1981, 2, 83–89. [Google Scholar] [CrossRef]
  7. Kawaguchi, H. Functional polymer microspheres. Prog. Polym. Sci. 2000, 25, 1171–1210. [Google Scholar] [CrossRef]
  8. Müller, H.; Heldmann, C.; Momper, B. A new way of synthesis for bimodal polymer suspensions with polymeric stabilisers. In Aqueous Polymer Dispersions; Progress in Colloid and Polymer, Science; Tauer, K., Ed.; Springer: Berlin/Heidelberg, Germany, 2004; Volume 124, pp. 143–148. [Google Scholar]
  9. Okubo, M.; Takekoh, R.; Sugano, H. Production of micron-sized, monodispersed, multilayered composite polymer particles by multistep seeded dispersion polymerization. Colloid Polym. Sci. 2000, 278, 559–564. [Google Scholar] [CrossRef]
  10. Hawkett, B.; Napper, D.; Gilbert, R. Seeded emulsion polymerization of styrene. J. Chem. Soc. Faraday Trans. 1 Phys. Chem. Condens. Phases 1980, 76, 1323–1343. [Google Scholar] [CrossRef]
  11. Fitch, R.; Kasargod, P. Synthesis and characterization of latices containing chemically reactive groups at the surface. J. Am. Chem. Soc. Polym. Prepr. 1978, 19, 872–880. [Google Scholar]
  12. Saidat, B.; Lenz, R. Preparation of esters of styrene sulfonic acid and their emulsion copolymerization with isoprene. J. Polym. Sci. Polym. Chem. Ed. 1980, 18, 3273–3287. [Google Scholar] [CrossRef]
  13. Ito, K.; Yokoyama, S.; Arakawa, E. Poly(ethylene oxide) macromers. 5. Dodecyloxypolyethylene glycol methacrylate as an amphiphilic macromonomer for dispersion polymerization. Polym. Bull. 1986, 16, 345–349. [Google Scholar] [CrossRef]
  14. Raffa, P.; Wever, D.; Picchioni, F.; Broekhuis, A. Polymeric surfactants: Synthesis, properties, and links to applications. Chem. Rew. 2015, 115, 8504–8563. [Google Scholar] [CrossRef] [PubMed]
  15. Prokopov, N.; Gritskova, I.; Cherkasov, V.; Chalykh, A. Synthesis of monodisperse functional polymeric microspheres for immunoassay. Russ. Chem. Rev. 1996, 65, 167–180. [Google Scholar] [CrossRef]
  16. Bernard, A.; Lauwerys, R. Latex Immunoassay of Urinary Albumin. J. Clin. Chem. Clin. Biochem. 1983, 21, 25–30. [Google Scholar] [CrossRef] [PubMed]
  17. Elinov, N. Chemical Microbiology; Vysshaya Shkola: Moscow, Russia, 1984. [Google Scholar]
  18. Plotz, C.; Singer, J. The latex fixation test I. Application to the serologic diagnosis of rheumatoid arthritis. Am. J. Med. 1956, 21, 888–892. [Google Scholar] [PubMed]
  19. Singer, J.; Oreskes, I.; Hutterer, F.; Ernst, J. Mechanism of Particulate Carrier Reactions. V. ADSORPTION OF HUMAN GAMMA GLOBULIN TO 0.2 MICRON DIAMETER LATEX PARTICLES AND THEIR AGGLUTINATION BY RHEUMATOID FACTOR. Ann. Rheum. Dis. Nov. 1963, 22, 424–428. [Google Scholar] [CrossRef]
  20. Rembaum, A.; Yen, S.; Molday, R. Synthesis and Reactions of Hydrophilic Functional Microspheres for Immunological Studies. J. Macromol. Sci. Part A-Chem. Pure Appl. Chem. 1979, 13, 603–632. [Google Scholar] [CrossRef]
  21. Chang, H.-S.; Chen, S.-A. Kinetics and mechanism of emulsifier-free emulsion polymerization. II. Styrene / water soluble comonomer (sodium mathallyl sulfonate) system. J. Polym. Sci. Polym. Chem. Ed. 1988, 26, 1207–1229. [Google Scholar] [CrossRef]
  22. Guillaume, J.; Pichot, C.; Guillot, J. Emulsifier-free emulsion copolymerization of styrene and butyl acrylate. II. Kinetic studies in the presence of ionogenic comonomers. J. Polym. Sci. Polym. Chem. Ed. 1988, 26, 1937–1959. [Google Scholar] [CrossRef]
  23. Guyot, A.; Tauer, K. Reactive surfactants in emulsion polymerization. Adv. Polym. Sci. 1994, 111, 44–65. [Google Scholar]
  24. Guyot, A.; Tauer, K.; Asua, J.; Van Es, S.; Gauthier, C.; Hellgren, A.; Sherrington, D.; Montoya-Goni, A.; Sjoberg, M.; Sindt, O.; et al. Reactive surfactants in heterophase polymerization. Acta Polym. B 1999, 50, 57–66. [Google Scholar] [CrossRef]
  25. Rodionova, R.; Volkov, V.; Grishko, N.I.; Lyazina, V.S. Study of the emulsion polymerization of styrene with a copolymerizable emulsifier. Colloid J. 1975, 37, 1202–1206. [Google Scholar]
  26. Torstensson, M.; Ranby, B.; Hult, A. Monomeric surfactant for surface modification of polymers. Macromolecules 1990, 23, 126–132. [Google Scholar] [CrossRef]
  27. Urquiola, M.; Dimonie, V.; Sudol, E.; El-Aasser, M. Emulsion polymerization of vinyl acetate using a polymerizable surfactant. I. Kinetic studies; II. Polymerization mechanism. J. Polym. Sci. Polym. Chem. Ed. 1992, 30, 2619–2629. [Google Scholar] [CrossRef]
  28. Watanabe, S.; Ozaki, H.; Mitsuhashi, K.; Nakahama, S.; Yamaguchi, K. Emulsion polymerization of styrene using phospholipids with polymerizable chain as an emulsifier. Macromol. Chem. 1992, 193, 2781–2792. [Google Scholar] [CrossRef]
  29. Thenoz, F.; Soula, O.; Guyot, A. Reactive surfactants in heterophase polymerization. XXV. Core-shell latices stabilized with a mixture of maleic anionic and styrenic nonionic surfactants. J. Polym. Sci. Part A Polym. Chem. 1999, 37, 2251–2262. [Google Scholar] [CrossRef]
  30. Sindt, O.; Gauthier, C.; Hamaide, T.; Guyot, A. Reactive surfactants in heterophase polymerization. XVI. Emulsion copolymerization of styrene-butyl acrylate-acrylic acid in the presence of simple maleate reactive surfactants. J. Appl. Sci. 2000, 77, 2768–2776. [Google Scholar] [CrossRef]
  31. Soula, O.; Guyot, A.; Williams, N.; Grade, J.; Blease, T. Styrenic surfmer in emulsion copolymerization of acrylic monomers. II. Copolymerization and film properties. J. Polym. Sci. Part A Polym. Chem. 1999, 37, 4205–4217. [Google Scholar] [CrossRef]
  32. Montoya-Gooi, A.; Sherrington, D. Reactive surfactants in heterophase polymerization. XXIII. Synthesis and characterization of novel dialkil maleate cationic surfmers. Polymer 1999, 40, 1067. [Google Scholar]
  33. Asua, J.; Schoonbrood, H. Reactive surfactants in heterophase polymerization. Acta Polym. 1998, 49, 671–686. [Google Scholar] [CrossRef]
  34. Tauer, K.; Goebel, K.; Kosmella, S.; Stähler, K.; Neelsen, J. Emulsion polymerization in the presence of polymerizable emulsifiers and surface active initiators. Makromol. Chem. Macromol. Symp. 1990, 31, 107–121. [Google Scholar] [CrossRef]
  35. Voronov, S.; Kiselev, E.; Tokarev, V.; Puchin, V. Polymeric surfactants containing peroxy groups. Colloid J. 1980, 42, 452–457. [Google Scholar]
  36. Dicke, H.; Heitz, W. Surface-active azogroup-containing polymers and their use in emulsion polymerization. Colloid Polym. Sci. 1981, 260, 3–8. [Google Scholar] [CrossRef]
  37. Bistline, R.G., Jr.; Stirton, A.J.; Weil, J.K.; Port, W.S. Synthetic detergents from animal fats. VI. Polymerizable esters of alpha-sulfonated fatty acids. J. Am. Oil Chem. Soc. 1956, 33, 44–45. [Google Scholar] [CrossRef]
  38. Freedman, H.; Mason, J.; Medalia, A. Polysoaps. II. The preparation of vinyl soaps. J. Org. Chem. 1958, 23, 76–82. [Google Scholar] [CrossRef]
  39. Malyukova, Y.; Naumova, S.; Gritskova, I.; Bondarev, A.; Zubov, V. Emulsion polymerization of vinyl and diene monomers with surfactant comonomers. Polym. Sci. USSR 1991, 33, 1361–1367. [Google Scholar] [CrossRef]
  40. Gostenin, V.; Zubov, V.; Gritskova, I.; Shikhovtseva, I. One-step synthesis of polymer dispersions with large narrow size distribution particles via heterophase polymerization in presence of surface active water-insoluble organosilicon macromers. Polym. Int. 2021, 71, 656–661. [Google Scholar] [CrossRef]
  41. Ezhova, A.; Gritskova, I.; Gusev, S.; Milenin, S.; Gorodov, V.; Muzafarov, A.; Lazov, M.; Chvalun, S. Organosilicon Comb-Shaped Surfactants for the Synthesis of Polymer Suspensions with a Narrow Particle Size Distribution. Polym. Sci. Ser. B 2021, 63, 174–182. [Google Scholar] [CrossRef]
  42. Gritskova, I.A.; Gusev, S.A.; Gomzyak, V.I.; Skopintsev, I.V.; Anokhin, E.V.; Khaddazh, M.; Tsarkova, M.S.; Levachev, S.M. Synthesis of polymer suspensions in the presence of organosilicon surfactants of various nature. Plast. Massy 2022, 1, 20–24. (In Russian) [Google Scholar] [CrossRef]
  43. Huang, Y.; Guo, M.; Tan, J.; Feng, S. Impact of Molecular Architecture on Surface Properties and Aqueous Stabilities of Silicone-Based Carboxylate Surfactants. Langmuir 2020, 36, 2023–2029. [Google Scholar] [CrossRef]
  44. Kim, M.; Linstadt, R.T.H.; Ando, K.A.; Ahn, J. Gemini-mediated self-disinfecting surfaces to address the contact transmission of infectious diseases. Langmuir 2022, 38, 2162–2173. [Google Scholar] [CrossRef]
  45. Goncharova, I.K.; Silaeva, K.P.; Arzumanyan, A.V.; Anisimov, A.A.; Milenin, S.A.; Novikov, R.A.; Solyev, P.N.; Tkachev, Y.V.; Volodin, A.D.; Korlyukov, A.A.; et al. Aerobic Co-/N-Hydroxysuccinimide-Catalyzed Oxidation of p-Tolylsiloxanes to p-Carboxyphenylsiloxanes: Synthesis of Functionalized Siloxanes as Promising Building Blocks for Siloxane-Based Materials. J. Am. Chem. Soc. 2019, 141, 2143–2151. [Google Scholar] [CrossRef]
  46. Rodionova, R.; Volkov, V. Colloidal-chemical properties of polystyrene-ethoxyalkyl-alkyl maleate latexes. Colloid J. 1978, 40, 508–512. [Google Scholar]
  47. Tomita, K.; Ono, T. Synthesis of polyaspartate macromonomer having a vinyl end group and application to dispersion copolymerization of styrene. Colloid Polym. Sci. 2009, 287, 109–113. [Google Scholar] [CrossRef]
  48. Farías-Cepeda, L.; Herrera-Ordonez, J.; Saldívar-Guerra, E. On the kinetics and particle size polydispersity of the styrene emulsion polymerization using aerosol MA80 and sodium dodecyl sulfate as surfactants. Colloid Polym. Sci. 2010, 288, 1401–1409. [Google Scholar] [CrossRef]
  49. Bunio, P.; Zielińska, K.; Chlebicki, J. Preparation of polymeric nanoparticles using a new polymerizable surfactant. Cent. Eur. J. Phys. 2011, 9, 570–575. [Google Scholar] [CrossRef]
  50. Crespy, D.; Musyanovych, A.; Landfester, K. Synthesis of polymer particles and nanocapsules stabilized with PEO/PPO containing polymerizable surfactants in miniemulsion. Colloid Polym. Sci. 2006, 284, 780–787. [Google Scholar] [CrossRef]
  51. Pyrasch, M.; Tieke, B. Copolymerization of styrene and reactive surfactants in a microemulsion: Control of copolymer composition by addition of nonreactive surfactant. Colloid Polym. Sci. 2000, 278, 375–379. [Google Scholar] [CrossRef]
  52. Gritskova, I.; Andreeva, A.; Kluzin, E.; Sackevich, O.; Basireva, L. Effect of the Nature of a Polymeric Stabilizer on the Rheological Properties of Interphase Adsorption Layers. Russ. J. Phys. Chem. A 2020, 94, 1391–1397. [Google Scholar] [CrossRef]
  53. Ezhova, A.A.; Gritskova, I.A.; Chalykh, A.E.; Levachev, S.M.; Shragin, D.I.; Chvalun, S.N.; Malakhova, Y.N.; Muzafarov, A.M. Behavior of organosilicon surfactants in Langmuir films on water surface. Polym. Sci. Ser. A 2019, 61, 125–133. [Google Scholar] [CrossRef]
  54. Izmailova, V.N.; Gritskova, I.A.; Levachev, S.M.; Bulatova, T.V.; Kapustina, A.A.; Nuss, P.V. Two-dimensional rheological characteristics of poly(dimethylsiloxane) at the interface of two immiscible liquids. Polym. Sci. 2001, 43, 1251–1255. [Google Scholar]
Physchem 04 00006 g001

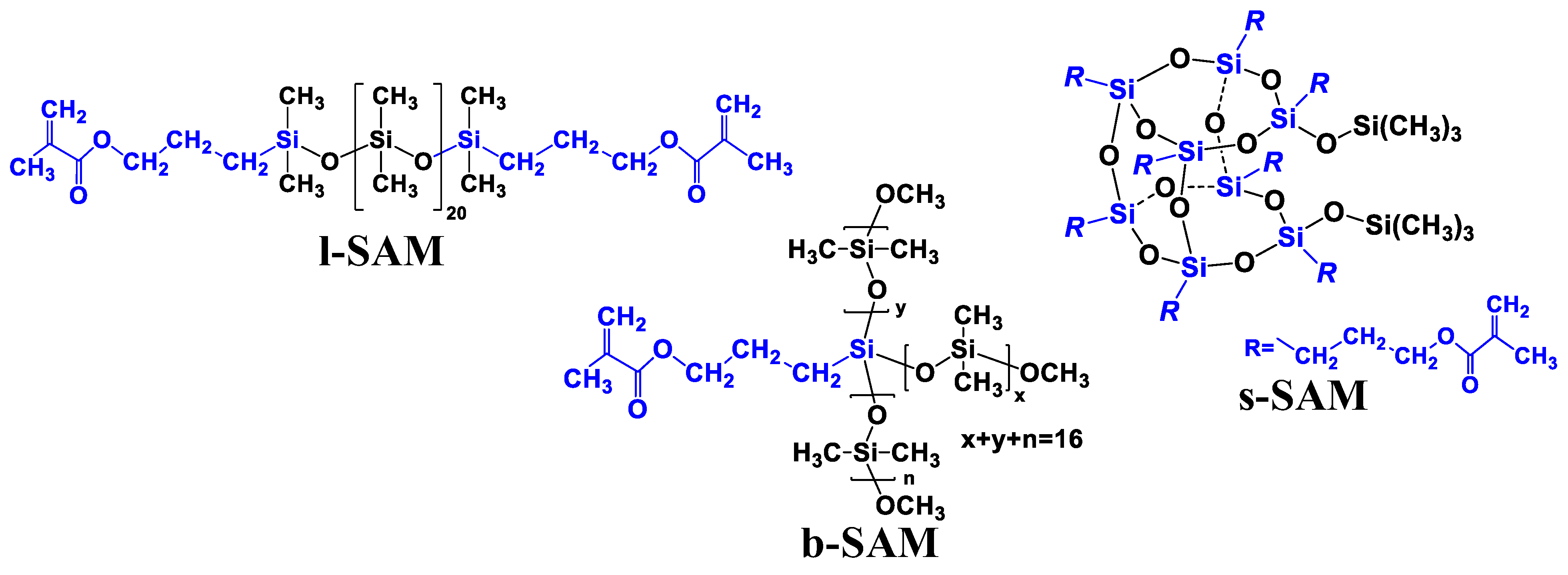

Figure 1. Structure of the studied compounds.
Figure 1. Structure of the studied compounds.
Physchem 04 00006 g001
Physchem 04 00006 g002

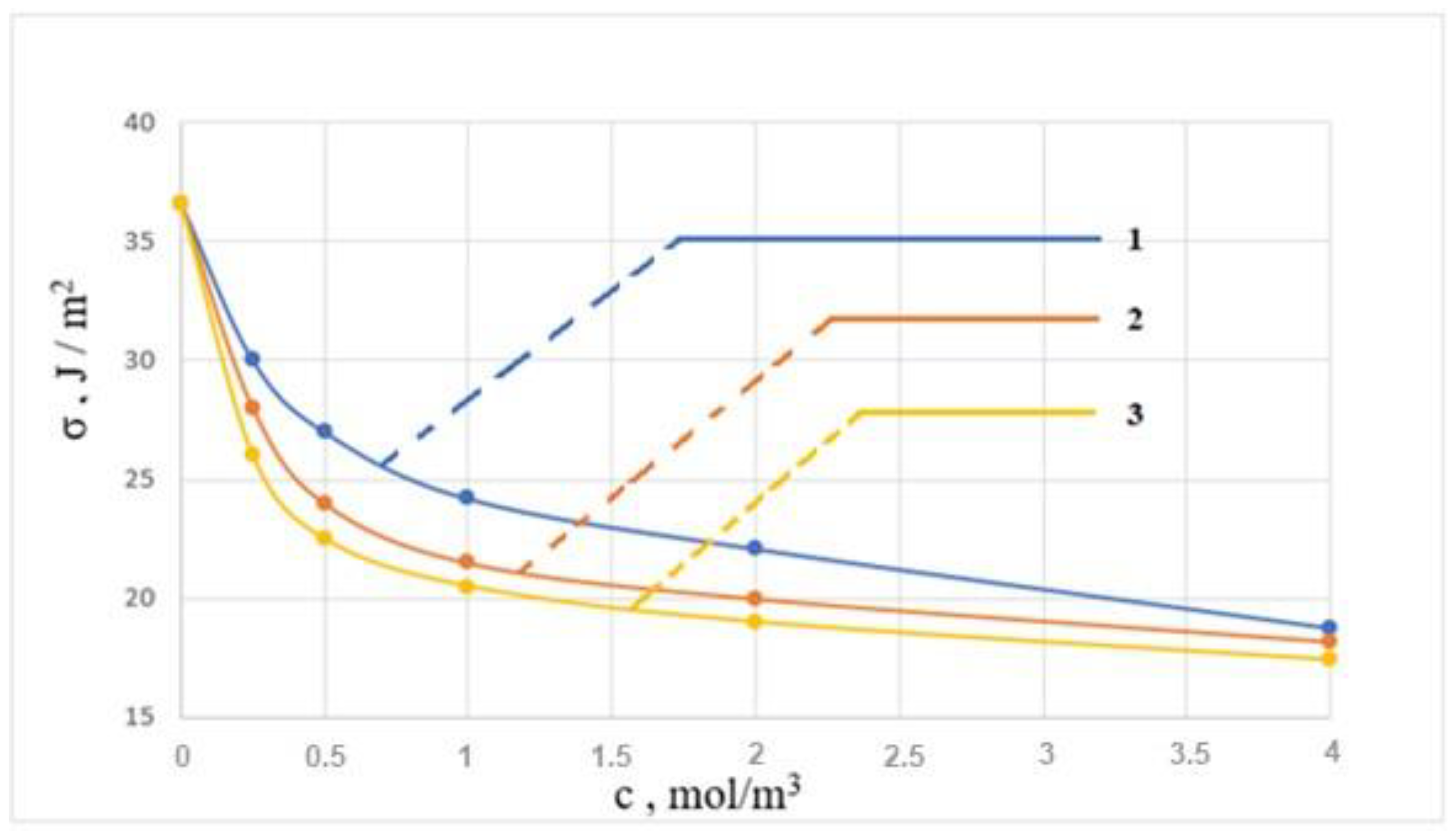

Figure 2. Interfacial tension at the border toluene solution of the organosilicon oligomers/water: 1—toluene solution of l-SAM/water; 2—toluene solution of b-SAM/water; and 3—toluene solution of s-SAM/water.
Figure 2. Interfacial tension at the border toluene solution of the organosilicon oligomers/water: 1—toluene solution of l-SAM/water; 2—toluene solution of b-SAM/water; and 3—toluene solution of s-SAM/water.
Physchem 04 00006 g002
Physchem 04 00006 g003

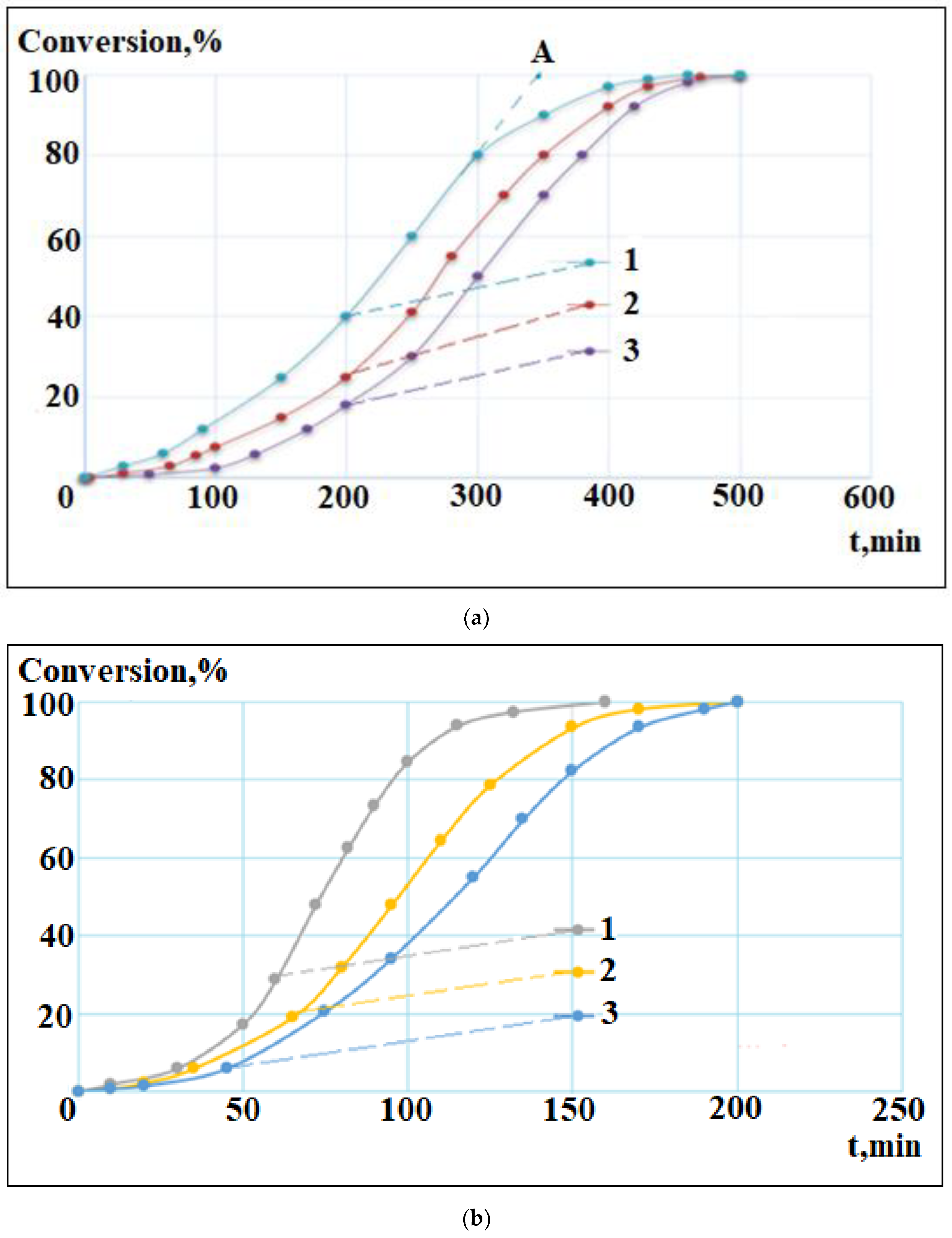

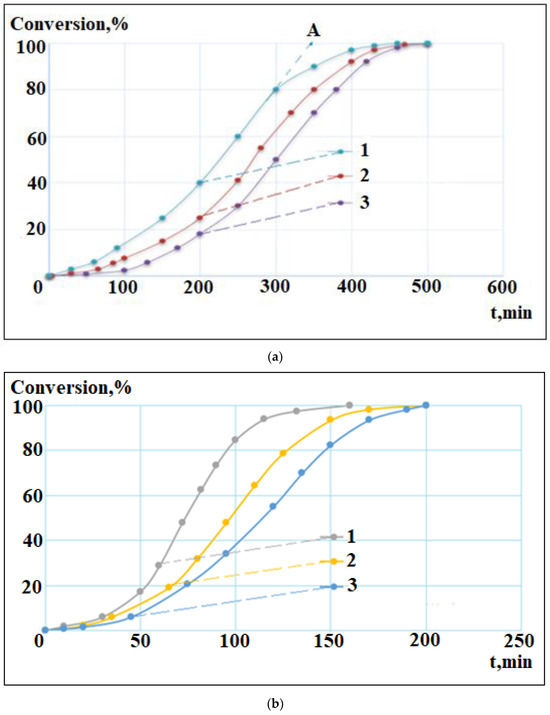

Figure 3. (a) Conversion–time curves of styrene polymerization with (1) 1 wt.% l-SAM; (2) 1 wt.% b-SAM; and (3) 1 wt% s-SAM; p.A—the intersection of the extrapolation of the constant rate section with a line parallel to the abscissa axis corresponding to 100% conversion (b) Conversion–time curves of methyl methacrylate polymerization with (1) 1 wt.% l-SAM; (2) 1 wt.% b-SAM; and (3) 1 wt.% s-SAM.
Figure 3. (a) Conversion–time curves of styrene polymerization with (1) 1 wt.% l-SAM; (2) 1 wt.% b-SAM; and (3) 1 wt% s-SAM; p.A—the intersection of the extrapolation of the constant rate section with a line parallel to the abscissa axis corresponding to 100% conversion (b) Conversion–time curves of methyl methacrylate polymerization with (1) 1 wt.% l-SAM; (2) 1 wt.% b-SAM; and (3) 1 wt.% s-SAM.
Physchem 04 00006 g003
Physchem 04 00006 g004

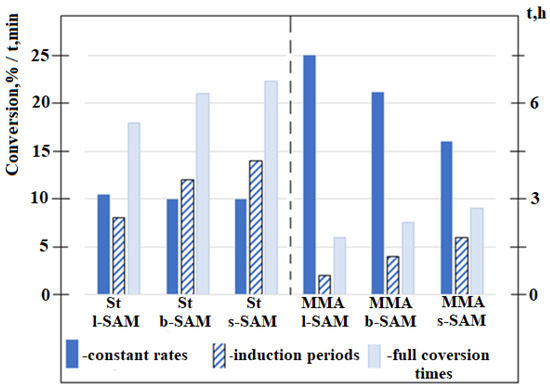

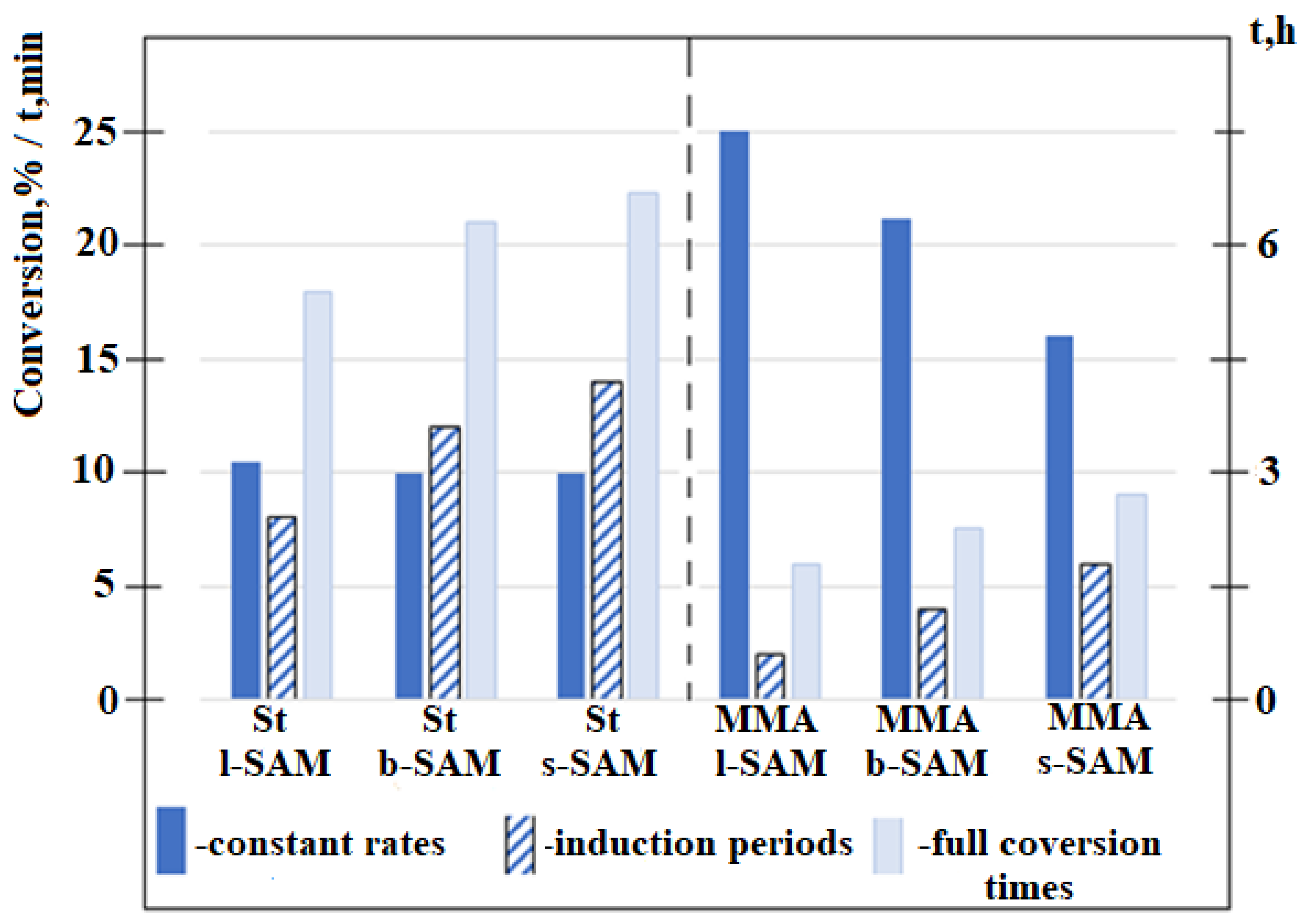

Figure 4. The values of the induction periods of the constant polymerization rates and of the full conversion times for polymerization of styrene (left) and methyl methacrylate (right) in the presence of the SAMs.
Figure 4. The values of the induction periods of the constant polymerization rates and of the full conversion times for polymerization of styrene (left) and methyl methacrylate (right) in the presence of the SAMs.
Physchem 04 00006 g004
Physchem 04 00006 g005

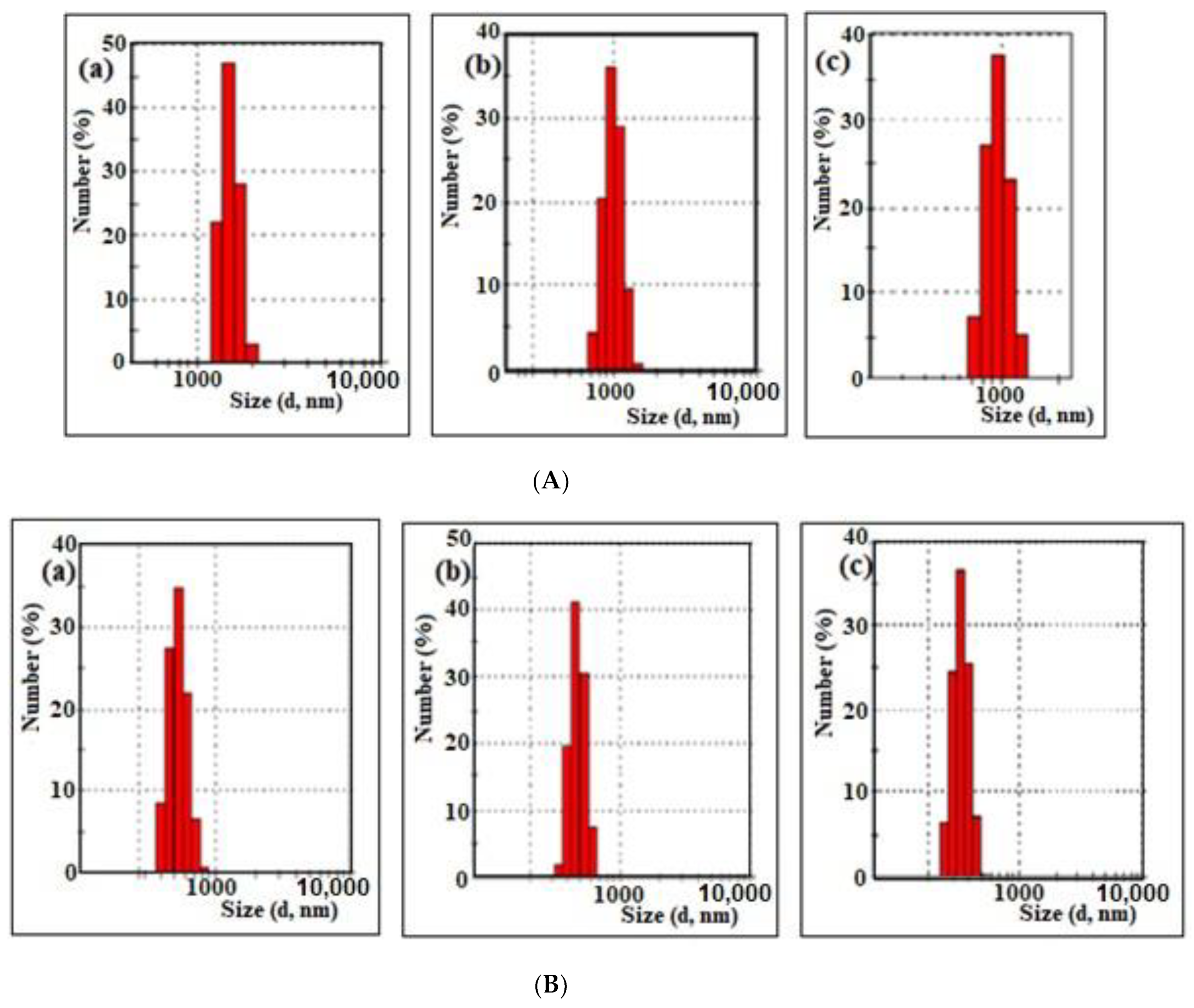

Figure 5. (A) Histograms of the size distribution of polystyrene particles (by number) obtained in the presence of l-SAM (a), b-SAM (b) and s-SAM (c). (B) Histograms of the size distribution of poly(methyl methacrylate) particles (by number) obtained in the presence of l-SAM (a), b-SAM (b) and s-SAM (c).
Figure 5. (A) Histograms of the size distribution of polystyrene particles (by number) obtained in the presence of l-SAM (a), b-SAM (b) and s-SAM (c). (B) Histograms of the size distribution of poly(methyl methacrylate) particles (by number) obtained in the presence of l-SAM (a), b-SAM (b) and s-SAM (c).
Physchem 04 00006 g005
Physchem 04 00006 g006
Figure 6. Scanning electron microscope photographs of the polystyrene particles, obtained in the presence of s-SAM (1), b-SAM (2) and l-SAM (3).
Figure 6. Scanning electron microscope photographs of the polystyrene particles, obtained in the presence of s-SAM (1), b-SAM (2) and l-SAM (3).
Physchem 04 00006 g006
Table 1. Colloidal-chemical characteristics of l-SAM, b-SAM and s-SAM.
Table 1. Colloidal-chemical characteristics of l-SAM, b-SAM and s-SAM.
Substanceσ12, min
mJ/m2		Area Occupied by mol.
S0·1020 m2		Layer Thickness,
δ·109 m		Surface
Activity
G,
mJ·m/mol		Adsorption
Hmax·106, mol/m2
l-SAM18.7 (±0.1)23.014.11.77.2
b-SAM18.2 (±0.1)22.311.61.817.4
s-SAM17.4 (±0.1)21.410.11.897.8
Table 2. Characteristics of polymer suspensions obtained in the presence of surface-active macromers.
Table 2. Characteristics of polymer suspensions obtained in the presence of surface-active macromers.
SAM/MonomerSAM, %dav, nmdw/dn
l-SAM/St116001.01
l-SAM/MMA15301.03
b-SAM/St111001.05
b-SAM/MMA14901.02
s-SAM/St19701.04
s-SAM/MMA1.54301.02
dav—average particle diameter by size, and dw/dn—polydispersity index (dw—weight average particle diameter, and dn—number average particle diameter).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gostenin, V.B.; Shulgin, A.M.; Shikhovtseva, I.S.; Kalinina, A.A.; Gritskova, I.A.; Zubov, V.P. Effect of Molecular Architecture of Surface-Active Organosilicon Macromers on Their Colloidal Properties in Relation to Heterophasic Radical Polymerization of Styrene and Methyl Methacrylate. Physchem 2024, 4, 78-90. https://doi.org/10.3390/physchem4010006

AMA Style

Gostenin VB, Shulgin AM, Shikhovtseva IS, Kalinina AA, Gritskova IA, Zubov VP. Effect of Molecular Architecture of Surface-Active Organosilicon Macromers on Their Colloidal Properties in Relation to Heterophasic Radical Polymerization of Styrene and Methyl Methacrylate. Physchem. 2024; 4(1):78-90. https://doi.org/10.3390/physchem4010006

Chicago/Turabian Style

Gostenin, Valeriy Borisovich, Anton Mikhailovich Shulgin, Irina Sergeevna Shikhovtseva, Alexandra Alexandrovna Kalinina, Inessa Alexandrovna Gritskova, and Vitaliy Pavlovich Zubov. 2024. "Effect of Molecular Architecture of Surface-Active Organosilicon Macromers on Their Colloidal Properties in Relation to Heterophasic Radical Polymerization of Styrene and Methyl Methacrylate" Physchem 4, no. 1: 78-90. https://doi.org/10.3390/physchem4010006

Article Metrics

Back to TopTop
