Impact of Zn Nanoparticles Synthesized via Green and Chemical Approach on Okra (Abelmoschus esculentus L.) Growth under Salt Stress

Abstract

The study investigated the green and chemical approaches for the preparation of Zn nanoparticles and their effect on the growth of okra plants under saline conditions. The leaf extract of Sorghum bicolor L. was used for the green synthesis of zinc nanoparticles (Zn-GNPs). Zinc nanoparticles (Zn-NPs) were also produced by the co-precipitation method (Zn-CNPs). The synthesized NPs were characterized by UV-visible spectroscopy, X-ray diffraction (XRD) and Fourier-transform infrared spectroscopy (FTIR) and were applied foliarly in the range of 0.1%, 0.2%, 0.3% on okra plants. A marked increase in the shoot and root fresh and dry weight (g) and chlorophyll contents were observed under normal and saline conditions. An increase in antioxidant activity was observed under saline conditions. However, the foliar application of 0.3% Zn-GNPs was helpful in the regulation of the antioxidant defense system under a saline environment. Based on the results, it can be concluded that the use of Zn-GNPs is the most promising eco-friendly approach in mitigating salinity stress.

1. Introduction

Salt stress exerts drastic effects on plants in terms of decreasing productivity [1]. Physiological processes affected by the salinity stress include modification of mineral nutrition, ion balance, water status, photosynthetic efficiency and stomatal behavior. Salinity affects plant growth by affecting its physiology both at cellular as well as whole plant level through ionic and osmotic stress. A high concentration of salts in the root zone also affects the water availability or water potential due to very little water available to the plants [2]. The reduction of the water inside the plant leads to osmotic stress in plants. It also creates an imbalance in the uptake of useful ions like K⁺, Ca²⁺ and Mg²⁺ and replaces it with the uptake of toxic ions like Na⁺ and Cl⁻. Various physiological processes affected by the salt stress include membrane permeability, membrane instability from Ca²⁺ and K⁺ displacement by Na⁺, increase in respiration rate and ion toxicity, mineral distribution, decrease efficiency of photosynthesis and changes in plant growth. Decreased photosynthesis leads to the closure of the stomata, reduction in the CO₂ assimilation inside the plant cells, reduction in the leaf area and green pigments [3].

Salinity stress results in the production of reactive oxygen species (ROS), like O⁻², H₂O₂, and OH, which affects DNA, RNA and proteins, also damage meristem activity and destruct chlorophyll [4]. To alleviate the harmful impact of salinity stress, organic fertilizers are mostly used [5]. Nanotechnology is a discipline dealing with materials and systems, including their structures and components with modified and improved characteristics, and opens up a wide range of opportunities in fields like medicine, pharmaceuticals, electronics, engineering and agriculture [6]. It has numerous benefits and uses and provides green and efficient alternatives for the management of plant productions. Nanotechnology helps plants to tolerate biotic and abiotic stresses, reduce environmental pollution by the use of nanoparticles (NPs) in an agricultural field. The NPs are particles with a size of less than 100 nm in at least one dimension. The green synthesis approach of producing nanoparticles from plants is economical and environmentally friendly [7]. The modern trend is the use of nanoparticles as nanofertilizer to help minimize the usage of toxic, harsh and expensive chemicals used commonly for plant growth [8]. The green approach of NPs synthesis depends upon the plant source and the organic compounds present in the plants [6]. The plants secrete some of the important phytochemicals that act as both cappings or stabilizing and reducing agents, which are provided separately in case of synthesis through chemical and physical methods [9]. The effect of the nanoparticles depend upon the concentration, pH and temperature [6].

Sorghum bicolor L. is a source of functional and nutraceutical components due to the high antioxidant activity provided by phenolic acids, condensed tannins and anthocyanins, which can induce phase II detoxifying enzymes and inhibit the proliferation of carcinoma cell [10]. Due to the high drought and salt tolerance of sorghum, it can prove to be a beneficial crop in the future as water resources are limited and the world population continues to rise [11].

Abelmoschus esculentus L. (Okra) belongs to the family Malvaceae is an annual herbaceous plant grown in tropical and subtropical regions mostly. It is a source of vitamins, minerals, fats and carbohydrates [3]. Despite the high nutritional value and consumer demand, it is the yield per hectare. It is very low due to salinity [4]. The present investigation was carried out to evaluate the effect of Zn nanoparticles synthesized via green and chemical methods on the morphological and physiological behavior of okra seedlings under saline conditions.

2. Materials and Methods

The leaves of Sorghum bicolor L. were washed with distilled water three times. Dried homogeneous 10 g leaves censored into many sections were soaked in 90 mL of distilled water. The leaves were kept boiling at 90 °C for 20 min; the extract was collected and stored at 4 °C [12].

2.1. Preparation of Zn NPs (Green Synthesis Approach)

Zinc nanoparticles were prepared by adding 20 mL of the filtrate in 80 mL of 1 mM ZnSO₄·7 H₂O solution. The solution was then sonicated for about 60 °C for 1 h. A change in the color to yellow indicated the formation of zinc nanoparticles (Zn-GNPs) [13].

2.2. Preparation of Zn NPs (Chemical Synthesis; Co-precipitation Method)

For the chemical synthesis of Zn nanoparticles, 0.1 M of ZnSO₄·7 H₂O solution was added in 0.2 M NaOH solution. The solution was placed in a beaker over a hot plate at 55 °C and 750 rpm. The solution was mixed for about 20 min. The appearance of a white milky solution indicated the formation of Zn nanoparticles (Zn-CNPs) [14].

2.3. Characterization

The diameter of zinc nanoparticles (Zn NPs) was calculated by using the X-ray diffraction by Scherrer’s equation

t = k λ/B cosθ,

(1)

where, K = (0.92), t = crystal size, λ = (1.5418Å).

X-ray diffraction technique was used to analyze the structure and particle size of synthesized nanoparticles both via green and chemical approaches.

2.4. Fourier Transform Infrared Spectroscopy (FTIR)

The chemical nature of zinc nanoparticles was observed by the Fourier-transform infrared spectroscopy technique (FTIR RX1-PerkinElmer) in the wavelength range 4000–400 cm⁻¹ [13].

2.5. Seed Material and Germination

Okra seeds for sowing were obtained from the Ayub Agricultural Research Institute, Faisalabad. Seeds were sterilized with 15% sodium hypochlorite for 15 min and washed thoroughly with distilled water. Ten seeds of okra were sown in plastic pots containing 8 kg of soil (soil properties—

Table 1. Soil properties.

Soil Characteristics
Soil texture	Sandy Loam	Cl-(meq/L)	2.22
ECe (dS m−1)	0.40	Ca+ Mg (meq/L)	4.1
pH	7.01	Na+ (ppm)	2.71
Organic matter (%)	0.27	Soluble K+ (ppm)	21
Saturation (%)	36	Total N (%)	0.061
CO32− (meq/L)	Nil	Available P (ppm)	8.21
HCO3− (meq/L)	2.74	Zn (ppm)	1.2

), placed in a wirehouse at the experimental station of Government College University Faisalabad, Pakistan. The required level of salinity (10 dSm⁻¹) was obtained after two weeks of sowing by supplying NaCl solution to the soil.

Exogenous foliar application of Zn-GNPs and Zn-CNPs were applied on 45-day-old okra plants at 0.1%, 0.2% and 0.3% concentration. The collected data were statistically analyzed by Statistix version 8.1. Microsoft Excel-2007 was used to assess mean and standard errors; the difference of means was calculated at a 5% probability level by the least significant difference (LSD) test.

Three plants from each plot were harvested 15 days after NPs application for the determination of plant growth, antioxidants and MDA contents. Plants were oven-dried for 72 h for dry weight.

2.6. Pigment Analysis

The method of [15] was used for the extraction of chlorophyll contents and was calculated using the formula [16]. By using the following formulae, Chla (chlorophyll), Chlb, and carotenoid contents were calculated

$$\mathrm{Chla}= \left(12.7 \left(\mathrm{OD} 663\right)-2.69 \left(\mathrm{OD} 645\right)\right)\times \frac{\mathrm{V}}{1000}\times \mathrm{W}$$

(2)

$$\mathrm{Chlb}= \left(22.9 \left(\mathrm{OD} 645\right)-4.68\left(\mathrm{OD} 663\right)\right)\times \frac{\mathrm{V}}{1000}\times \mathrm{W}$$

(3)

Carotenoid (g mL⁻¹) = Acar/Em × 100

(4)

where Acar = OD 480 + 0.114(OD 663) − 0.68 (OD 645), Em × 100 = 2500, OD = optical density, V = sample extract volume and W = sample weight.

2.7. Antioxidant Enzymes

Leaves were homogenized in 50 mM phosphate buffer 7.8 pH and centrifuged at 15,000× g for 20 min (4 °C). For determining enzyme activity, the supernatant was used. Superoxide dismutase (SOD), catalase (CAT) and peroxidase (POD) were analyzed by using a spectrophotometer.

2.8. Catalase (CAT)

The activity of CAT was determined in 3 mL 7.0 pH phosphate buffer (50 mM) having 5.9 mM H₂O₂ and enzyme extract (0.1 mL) as reported by [17]. The activity of CAT enzyme measured at 240 nm absorbance past each 20 s. Every unit of activity is a change of 0.01 unit min⁻¹.

2.9. Peroxidase (POD)

Peroxidase is the peroxidation as an electron donor of hydrogen peroxide and guaiacol [17]. Add 50 mM, phosphate buffer (pH 5), 20 mM of guaiacol, H₂O₂ (40 mM) and 0.1 mL enzyme extract. Enhanced absorbance at 470 nm by tetra guaiacol formed measured after each 20 s. A single enzyme unit was responsible for enhancing the OD value of 0.01 min⁻¹.

2.10. Superoxide Dismutase Activity

SOD activity [18] (Giannopolitis and Ries, 1977) was measured as the inhibition-reduction of nitroblue tetrazolium (NBT) by xanthine oxidase. Absorbance was measured by UV-visible (IRMECO U2020) spectrophotometer at 560 nm. A single unit activity exhibited 50% photochemical inhibition of NBT.

2.11. Statistical Analysis

The data regarding physico-biochemical attributes was analyzed by the software program Statistix version 8.1. Microsoft Excel-2007 was used to evaluate mean and standard errors; the difference of means was calculated at a 5% probability level by least significant difference (LSD) tests.

3. Results

3.1. Characterization

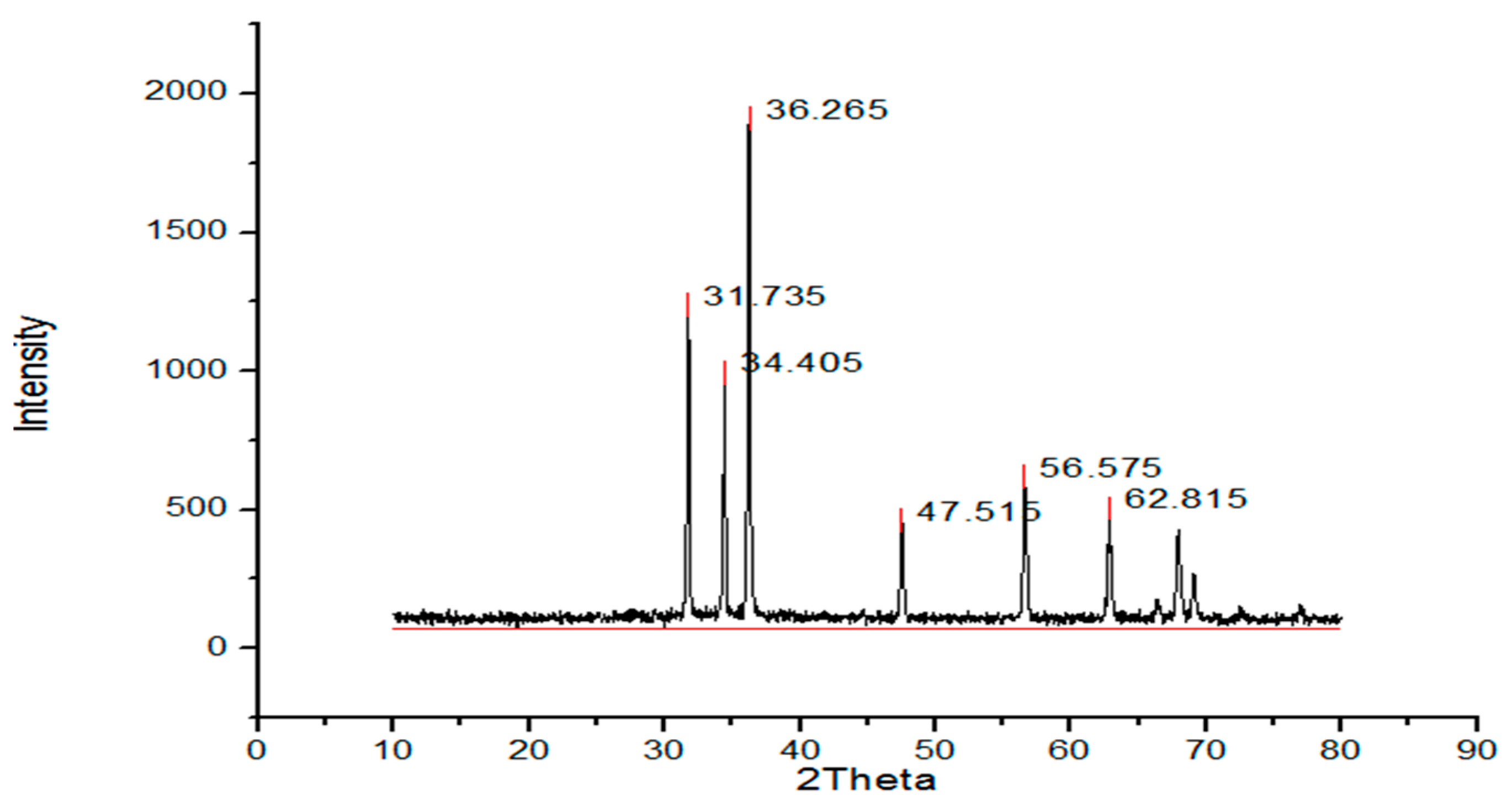

The structure and the size of the nanoparticles obtained from the powder XRD diffraction technique. The XRD shows the noticeable peaks at 2 ϴ (36.2, 31.7, 62.8, 34.4, 56.6, 47.5, 67.9 and 69.1 for sample A and peaks for sample B are 36.2, 31.7, 34.4, 47.5, 56.5, 62.8. Peaks (Figure 1) confirmed the crystalline structure of the ZnO nanoparticles. Sharp and clear peaks shown by the samples indicate the formation of the crystalline structure of the nanoparticles.

Scherrer equation was used to find out the crystalline size of the nanoparticles

$$\mathrm{D}=\frac{\mathrm{k}\mathsf{\lambda }}{\mathsf{\beta }\mathrm{Cos}\mathsf{\theta }}$$

(5)

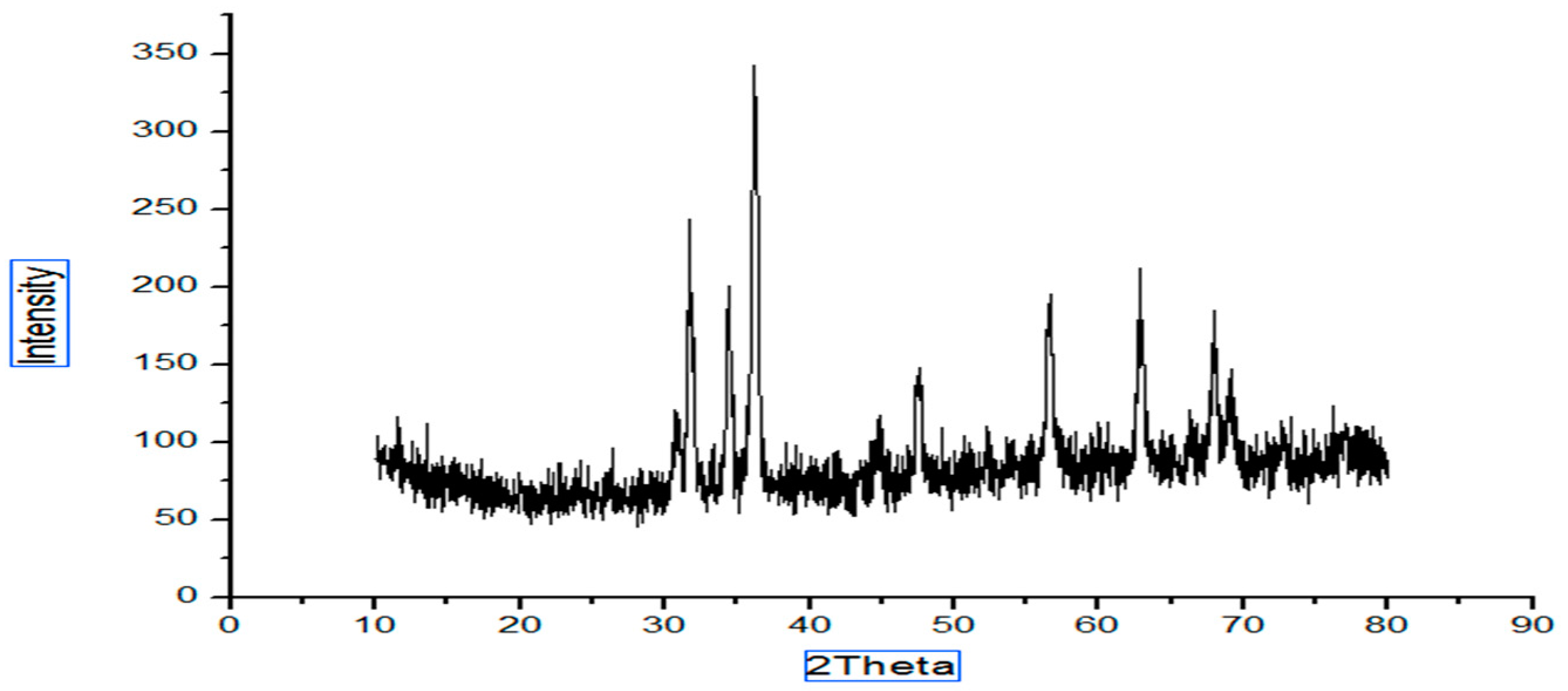

where D is the crystalline size, λ is the wavelength, β is the full-width half-maximum (FWHM) of the ZnO, and θ is the diffraction angle. The calculated size of the prepared ZnO nanoparticles via the green approach (Figure 1) appeared to be 17 nm, and the particle size of the chemically synthesized nanoparticles was 40 nm (Figure 2).

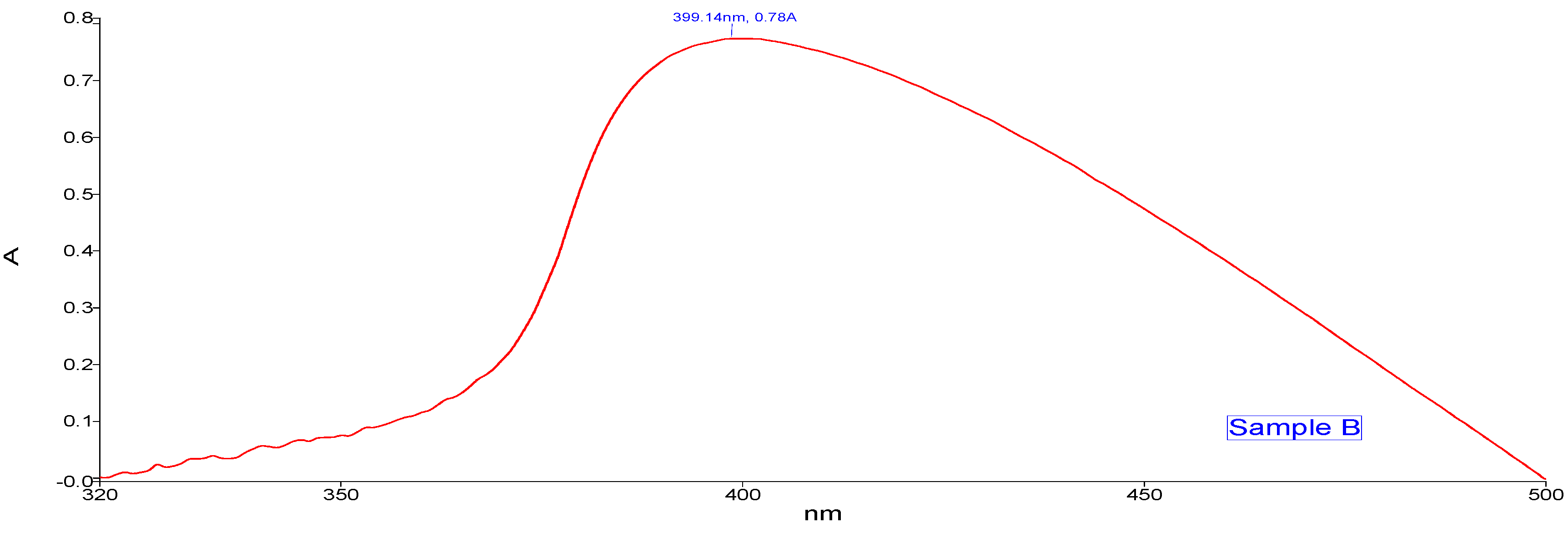

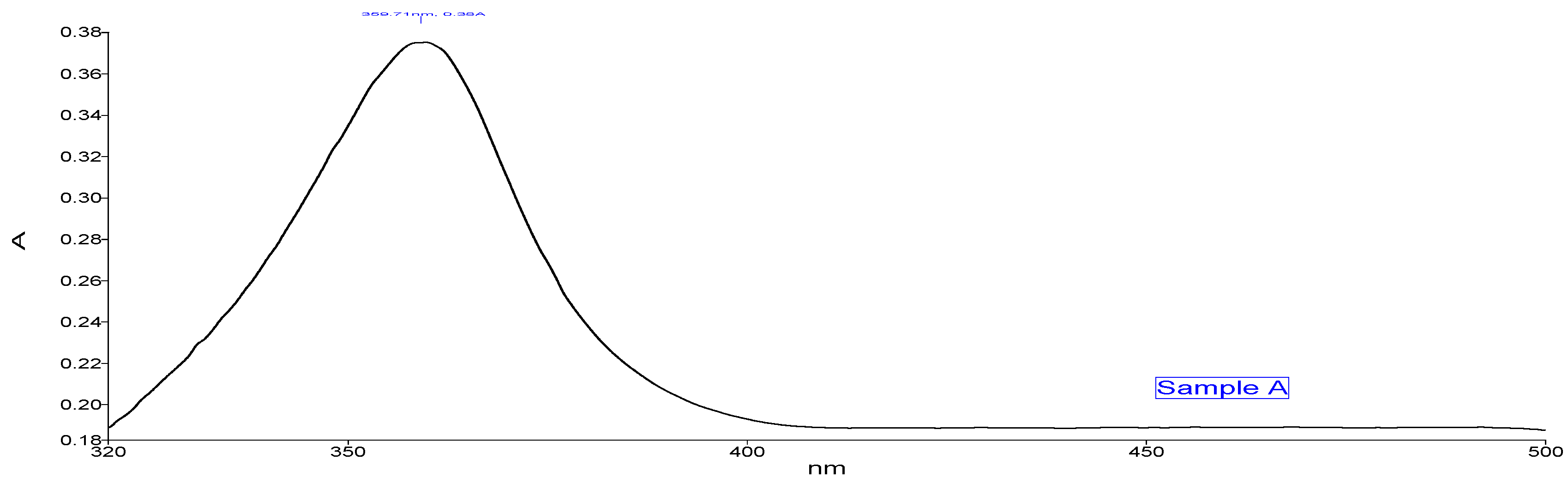

The absorption peak shown by Sample A (Figure 3) Zn- GNPs was 359.71 nm. Whereas the absorption peak of Sample B (Figure 4) shown by Zn-CNPs was 399.14 nm. The absorption peak shown by the nanoparticles is basically the intrinsic bandgap absorption of Zn nanoparticles, which is due to the transition of electrons from valance to conduction band. The bandgap energy of the ZnO NPs is calculated by using the following formula,

$$\mathrm{E}=\frac{\mathrm{hc}}{\mathsf{\lambda }}$$

(6)

where h is the plank’s constant h = 6.626 × 10–34 Js, c is the velocity of light 3 × 108 m/s, and λ is 359.71 nm for sample A and 399.14 nm for sample B. The bandgap energy for sample A is 3.4 eV, and for sample B is 3.1 eV.

3.2. FTIR (Green Approach)

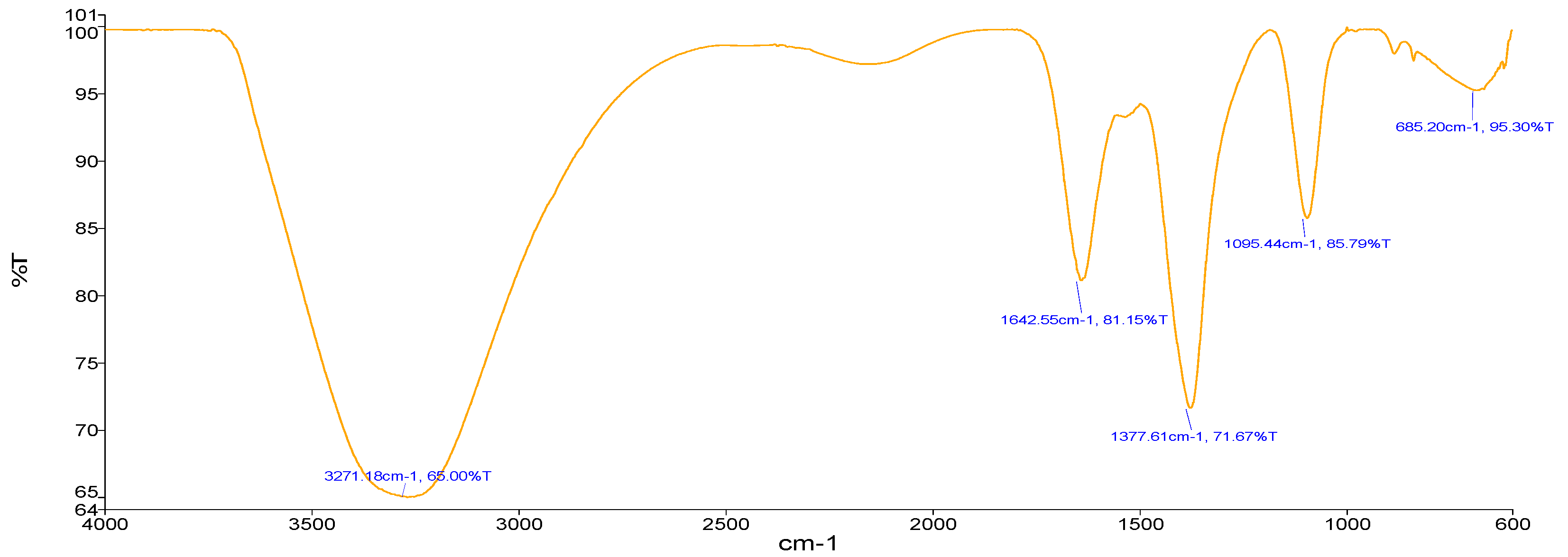

Sample A (Zn-GNPs) (Figure 5) using Sorghum bicolor leaf extract showed an absorption band at 3271.18 cm⁻¹ representing O-H stretching of alcohol. The absorption peak located at 1642.55 cm⁻¹ represents the C=C bonding of alkene. Stretching vibrations at 1377.61 cm⁻¹ showed the C-H stretching of the methyl group.

The stretching at 1095.44 cm⁻¹ showed vibrations of C-O bonding of polysaccharides. The stretching at 685.20 cm⁻¹ showed C-Cl strong bond.

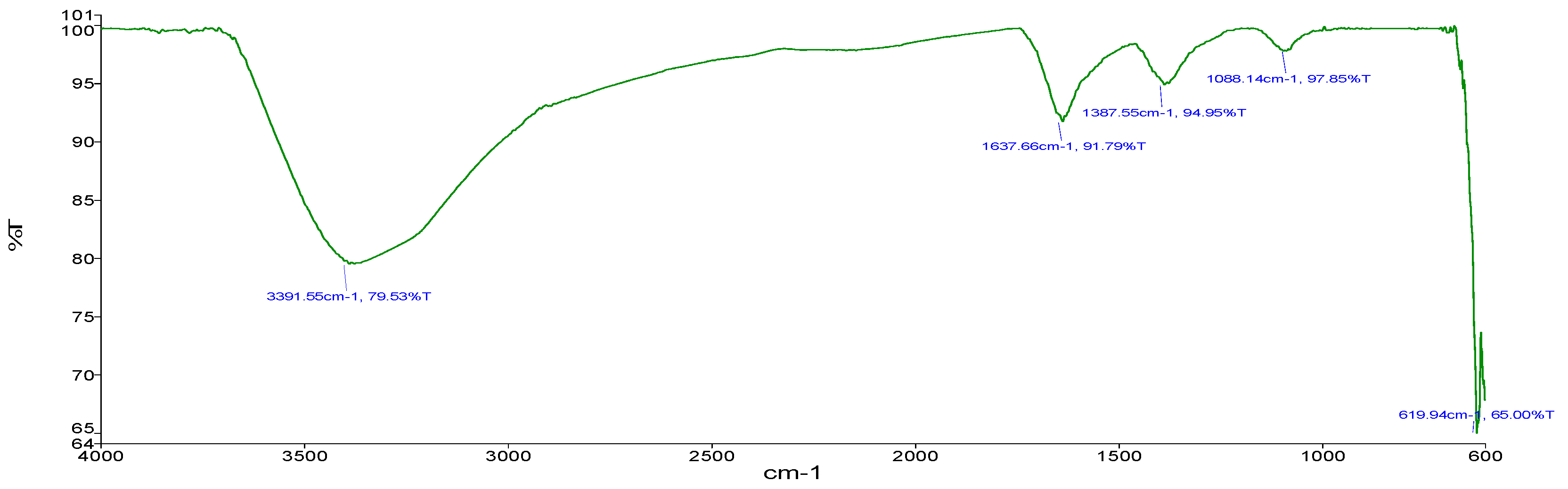

For sample B (Zn-CNPs), the following stretching was obtained. The stretching obtained at 3391.55 cm⁻¹ (Figure 6) showed O-H bonding as observed by Eleumali et al. [19]. Stretching at 1637.66 cm⁻¹ showed C=C alkene bonding. The stretching at 1387.55 cm⁻¹ showed C-H methyl bonding. Stretching at 1088.14 cm⁻¹ showed bonds of polysaccharides. The stretching at 619.9 cm⁻¹ showed C-Cl bonding.

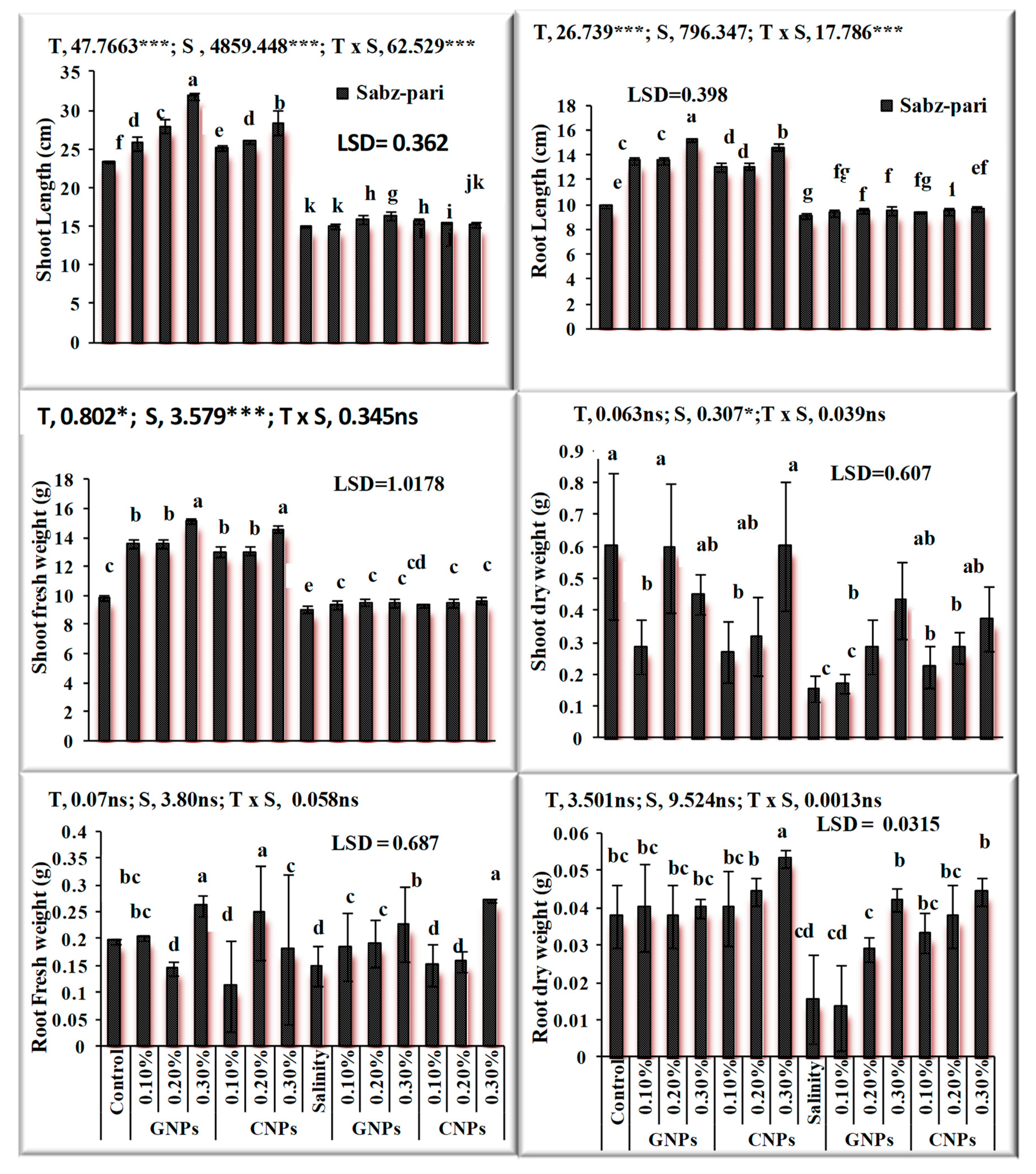

After the characterization of NPs, the response of foliar application of nanoparticles under saline and non-saline conditions on the growth of okra plants was evaluated. The application of NPs exerted a positive influence on growth traits. Salinity significantly decreased growth attributes and chlorophyll contents (Figure 7 and Figure 8) in okra plants. Application of 0.3% Zn-GNPs and 0.2% Zn-CNPs exerted a positive influence on the shoot length of okra. Significant differences were observed in root length, shoot fresh and dry weight and chlorophyll contents. Maximum Chla was noted by an exogenous spray of 0.3% followed by 0.2% Zn-GNPs and Zn-CNPs. A 32% reduction in Chlb contents under salinity stress conditions was observed in okra plants. However, foliarly applied NPs prevented damage caused by stress on chlorophyll contents. A maximum increase in Chlb contents was observed at 0.3%, followed by 0.2% Zn-GNPs and Zn-CNPs under saline conditions. However, foliar application of NPs at 0.3% showed a more positive effect in minimizing the harmful effect of salinity on Chla, Chlb and carotenoids in okra plants. An enhancement in antioxidant activities was recorded under salinity stressed okra plants. Zinc Nps prepared from Sorghum bicolor leaf extract at a concentration of 0.3% under salinity stress maintained the catalase enzyme activity at 12.68 unit min⁻¹ in okra plants. The enzymatic antioxidants in okra plants revealed maximum activity under salinity stress alone and helped in mitigating stress at 0.3% followed by 0.2% Zn-GNPs and Zn-CNPs.

4. Discussion

Sorghum bicolor leaf extract was used for the preparation of eco-friendly Zn-GNPs as the biomolecules in the leaf extract are effective in stabilizing the Zn NPs [6]. A yellow color appearance in extract color with ZnSO₄ solution confirmed the formation of Zn-GNPs [13]. However, the appearance of a white milky solution indicated the formation of Zn nanoparticles prepared through the co-precipitation method [14].

By using XRD analysis, the formation of Zn-GNPs and Zn-CNPs was determined to have an average size of 17 nm and 40 nm. The various functional groups for synthesized nanoparticles were detected by FT-IR spectroscopy analysis. The optical properties of the samples were investigated by measuring the UV-visible spectroscopy [20]. The main peaks showed primary and secondary amides, and amines, proteins, alcohols, aromatic hydrocarbons, aldehydes, ketones and carboxylic acids, as well as stretching and bending vibrations, proved that all these are connected with Zn-NPs [9]. The exogenous foliar application of Sorghum bicolor leaf extract-mediated Zn-GNPs increased the physicochemical attributes in okra plants.

Salinity stress reduced the growth of okra plants, leading to stunted plant growth. A decrease in the growth of roots was observed under salinity stress; it is due to a reduction in water use efficiency, leaf water potential and transpiration rate under salt stress. A reduction in chlorophyll contents was observed underwater stress. The reduction is attributed to a stress-induced decrease in the photosynthetic apparatus of plants, as reported by Zafar et al. [1]. It is reported by Kaya et al. [21] that plants under stress conditions close their stomata to retain the amount of water in the leaves, which leads ultimately decreases the number of photosynthetic products.

An increase in growth by foliar application of Zn NPs may be attributed to the crucial role of zinc on the biological and metabolism activity of plants such as stimulating enzymes activities, cell elongation and enlargement, nitrogen metabolism, photosynthetic pigments, maintaining the membranes structural stability of the plant cells and accumulation of the phospholipids [22,23]. The Zn NPs possess the ability to penetrate the plant cell through the natural nanopores (stomata) in the leaves and improve plant metabolic activities and consequently results in higher plant production. The foliar supply of Zn NPs releases the Zn ion slowly and helps to avoid toxicity by sudden uptake of Zn by plants at a high concentration [24].

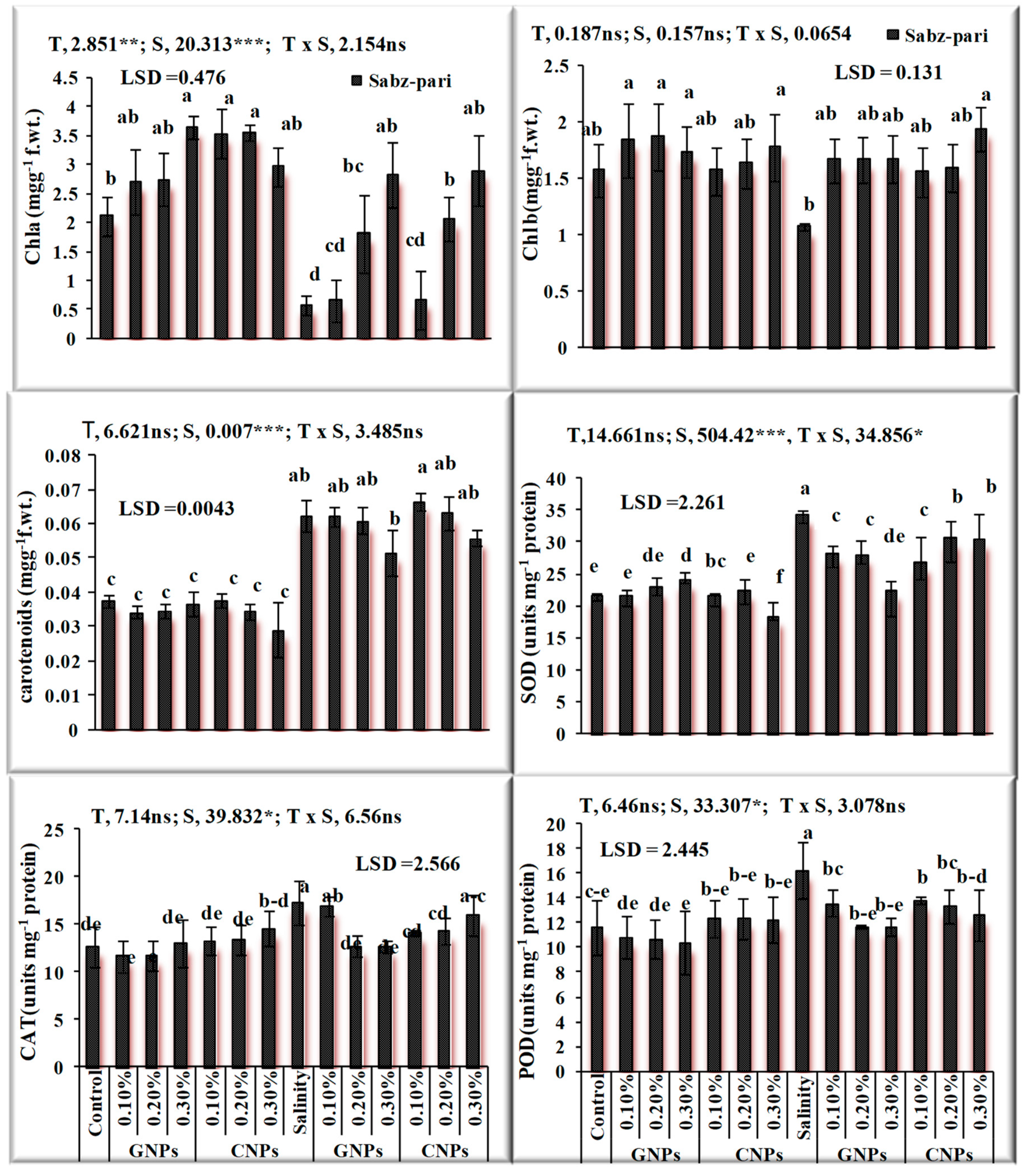

A decrease in chlorophyll contents under salt stress may be due to membrane deterioration [25]. Stress changes the size and number of chloroplasts, damage and injure the grana and thylakoids [26]. Our findings demonstrate that under salt stress, foliar application of NPs enhance the contents of chlorophyll a, b and improved carotenoid contents. The prior study by Venkatachalam et al. [27] revealed similar results on the cotton plant (Gossypium hirsutum L.). Nanoparticles (NPs) improve the functioning efficiency of photosynthetic systems [28]. Zn is a vital component for the development of protochlorophyllide and improves the chloroplast functioning and helps in repairs of photosystem II [29]. An enhancement in carotenoid contents may be related to the response of plants to oxidative damage [30]. The antioxidant enzymes CAT, POD and SOD, scavenge ROS- in plants and supply protection and defense to plant cells from the oxidative stress of reactive free radicals [31]. An increase in the antioxidant enzyme activities and antioxidant metabolism is one of the crucial ways to improve salinity tolerance in plants [32]. In the present work, our findings confirm that the applications of Zn GNPs and Zn CNPs improved the activities of SOD, POD and CAT in okra plants under salinity stress compared with the control plants. The application of Zn-NPs improved the values of antioxidant enzymes, and the results are in agreement with the findings of Rizwan et al. [33] on maize (Zea mays L.). Metal NPs inhibit ROS formation by improving the antioxidant activity of the plant cells [34]. The increase in catalase activity in plants treated with Zn-NPs suggests that NPs can effectively modify the enzyme activity.

5. Conclusions

It can be concluded from the study that exogenous spray of NPs significantly ameliorates the harmful effect of stress; however, the application of Zn-GNPs being an eco-friendly approach was more effective in mitigating stress.
