Silaphenolates and Silaphenylthiolates: Two Unexplored Unsaturated Silicon Compound Classes Influenced by Aromaticity

Abstract

Monosilicon analogs of phenolates and phenylthiolates are studied by quantum chemical calculations. Three different silaphenolates and three different silaphenylthiolates are possible; the ortho-, meta-, and para-isomers. For the silaphenolates, the meta-isomer is the thermodynamically most stable, regardless if the substituent R at Si is H, t-Bu or SiMe₃. However, with R = H and SiMe₃ the energy differences between the three isomers are small, whereas with R = t-Bu the meta-isomer is ~5 kcal/mol more stable than the ortho-isomer. For the silaphenylthiolates the ortho-isomer is of lowest energy, although with R = H the ortho- and meta-isomers are isoenergetic. The calculated nucleus independent chemical shifts (NICS) indicate that the silaphenolates and silaphenylthiolates are influenced by aromaticity, but they are less aromatic than the parent silabenzene. The geometries and charge distributions suggest that all silaphenolates and silaphenylthiolates to substantial degrees are described by resonance structures with an exocyclic C=O double bond and a silapentadienyl anionic segment. Indeed, they resemble the all-carbon phenolate and phenylthiolate. Silaphenylthiolates are less bond alternate and have slightly more negative NICS values than analogous silaphenolates, suggesting that this compound class is a bit more aromatic. Dimerization of the silaphenolates and silaphenylthiolates is hampered due to intramolecular Coulomb repulsion in the dimers, and silaphenolates with a moderately bulky SiMe₃ group as substituent at Si should prefer the monomeric form.

1. Introduction

Aromatic compounds with one or several silicon atoms in the aromatic ring have been investigated extensively during the last decades, and have recently been reviewed [1,2,3]. These silaaromatic compounds have a high aptitude for dimerization and very bulky substituents are needed to hinder this process [4]. The intriguing silaaromatic compounds of Tokitoh and co-workers, with just one large 2,4,6-tris[bis(trimethylsilyl)methyl]phenyl (Tbt) substituent, are especially notable [2,4,5,6].

In the context of unsaturated silicon compounds it is noteworthy that compounds with isolated Si=C double bonds, the so-called silenes [7,8,9,10,11,12], have a reduced tendency for dimerization when the Si=C bond is influenced by reverse Si=C bond polarity, i.e., an Si^δ−=C^δ+ bond polarity rather than the natural Si^δ+=C^δ− bond polarity [13,14]. Influence of reverse Si=C bond polarization can be induced by π-electron donating substituents at the C terminus and/or by σ-electron donating substituents at the Si terminus (Scheme 1) [13,15]. It has also been found that reverse polarization leads to a lower reaction rate for the addition of water and alcohols to silenes [7,16,17,18]. With regard to substituted silabenzenes we earlier found through quantum chemical calculations that reverse Si=C bond polarization could reduce their tendency for dimerization [19].

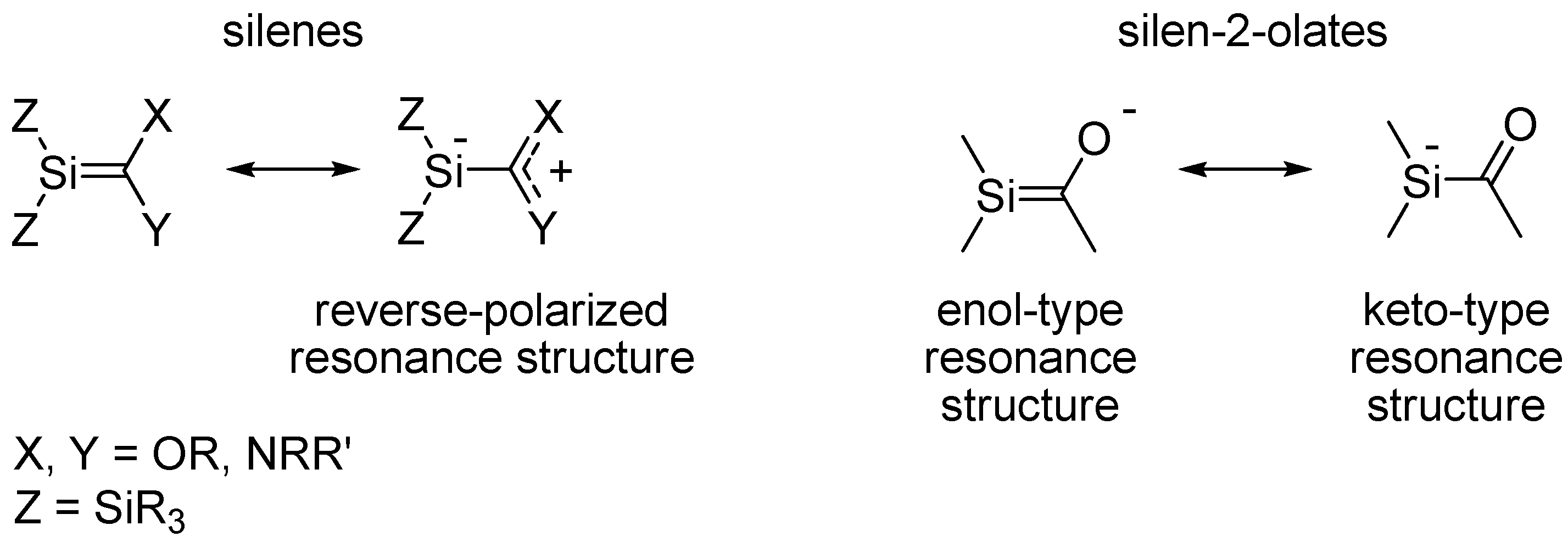

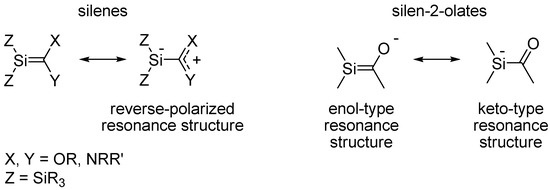

Scheme 1. Resonance structures of silenes and silenolates.

Scheme 1. Resonance structures of silenes and silenolates.

Some years ago we formed potassium 1,1-bis(trimethylsilyl)-2-tert-butylsilen-2-olate [20], a species which according to X-ray crystallography and computational studies is best described as an acyl substituted silyl anion with the negative charge at Si (Scheme 1). Moreover, this silenolate was stable at ambient temperatures for periods of months. Through quantum chemical computations we also noted significant differences between potassium and lithium silenolates [21], the latter being a compound class which earlier was examined independently by Apeloig, Bravo-Zhivotovskii and co-workers, and by Ishikawa, Ohshita and co-workers [22,23]. The recent X-ray crystal structures of two lithium silenolates by the group of Apeloig and Bravo-Zhivotovskii confirm the large structural differences between lithium and potassium silenolates [24]. In short, the lithium silenolates have a large influence of the enol-type resonance structure whereas potassium silenolates are dominated by the keto-type resonance structure (Scheme 1).

Silaphenolates, the focus of the study reported herein, can be viewed as combinations of a silabenzene and a silenolate, and they constitute a class of compounds which hitherto has not been explored (Scheme 2). They should be categorized as unsaturated silicon compounds tentatively stabilized by aromaticity in case the negative charge primarily resides at the oxygen atom (resonance structure I, Scheme 3). However, the negative charge may also primarily be delocalized in the silapentadienyl moiety of the ring (resonance structure II). Thirdly, the ortho- and para-silaphenolates may be influenced by reverse polarization if the negative charge is extensively localized onto the silicon atom (resonance structure III). Regardless of how the negative charge is distributed, their dimerization should be hampered because of Coulomb repulsion in the dianionic dimer. Less bulky substituents may thus be required for these species to be isolable as monomers when compared to silabenzenes and other neutral silaaromatic compounds.

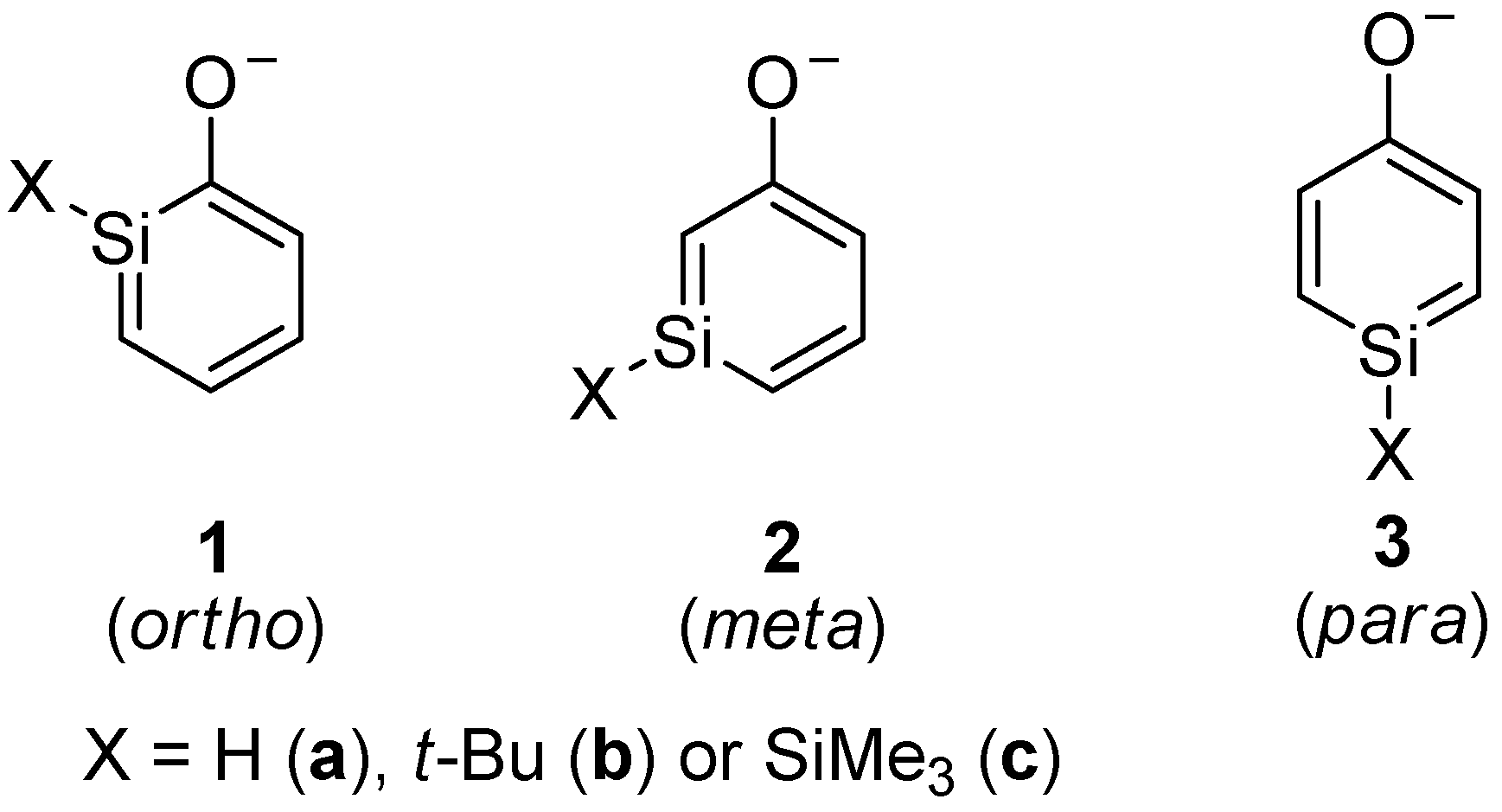

Scheme 2. Isomers of silaphenolates.

Scheme 2. Isomers of silaphenolates.

Scheme 3. Resonance structures of ortho-silaphenolate.

Scheme 3. Resonance structures of ortho-silaphenolate.

We have now explored silaphenolates as well as silaphenylthiolates through quantum chemical calculations. The calculations were carried out with four different methods so as to obtain a span in the method variations, thus allowing for conclusions that are made on computationally broader grounds. The properties examined include relative isomer energies, atomic charges, geometries, nucleus independent chemical shifts (NICSs), as well as dimerization energies. A question is to what extent the silaphenolates and silaphenylthiolates can be described as aromatic species? Moreover, will their dimerizations be hampered when compared to silabenzenes? In the ortho- and para-silaphenolates and -silaphenylthiolates, respectively, the negative charge can be localized to the silicon atom of the ring, thus leading to a decrease in the partial positive charge at this atom normally found for a Si atom in a neutral silaaromatic compound. This reverse polarization effect is not possible in the corresponding meta-isomers. However, will such reverse polarization effects be influential?

In addition to a study of the properties of the different isomers, we have also examined how substitution at Si changes the character of the various silaphenolates and silaphenylthiolates when compared to the model species with R = H. In this regard we have selected trimethylsilyl and tert-butyl groups as realistic and moderately bulky substituents. The hope is that our computational results can provide guidelines for later synthetic efforts as we explore which of the species studied herein have the highest possibilities to represent stable, monomeric and aromatic silaphenolates and silaphenyl-thiolates.

2. Computational Methods

Geometry optimizations of the silaphenolate and silaphenylthiolate monomers were first performed at the M062X/6-311G(d) hybrid meta density functional theory level [25,26,27]. Frequency calculations were also carried out at this level of computation in order to ensure that the structures discussed herein correspond to minima on the potential energy surface. Single-point energy calculations were subsequently made at M062X/6-311+G(d) level.

Additional geometry optimizations were performed at B3LYP/6-311G(d) [28,29], MP2/6-311G(d) and CCSD/6-311G(d) levels in order to examine the method variation in the calculated geometries. Results from the CCSD computations serve as benchmarks for the three inexpensive methods.

Atomic charges were calculated through natural population analysis (NPA) at all four levels of computation. NMR chemical shift calculations were performed with the gauge including atomic orbitals (GIAO) method at GIAO/M062X/6-311+G(d)//M062X/6-311G(d) level [30].

We also examined a few of the silaphenolate dimers, both without and with complexation by potassium ions solvated by THF molecules. These calculations were mainly performed at M062X/6-31G(d) level as M062X previously has been shown to be a good method to deal with nonbonded dispersive interactions [26]. However, in order to allow for comparisons with earlier computed data of silabenzene dimers we also carried out calculations of the silaphenolate dimers at B3LYP/6-31G(d) level.

All calculations were done with the Gaussian09 program package [31].

3. Results and Discussion

We first present and discuss the properties of silaphenolates and thereafter those of silaphenylthiolates. For each compound class we discuss the properties in the following order: relative isomer energies, geometries, charge distributions, NICS values, and dimerization energies.

3.1. Relative Energies of Silaphenolates

The energies of the ortho-isomers are taken as reference level for the relative energies. The calculations of the three isomers of the unsubstituted silaphenolates (1a, 2a and 3a) indicate that the M062X method is the inexpensive method which provides the best agreement in energies with the CCSD method (Table 1). For the three unsubstituted silaphenolates the meta-isomer 2a is of lowest relative energy, whereas the para-isomer 3a is of highest. The energy difference between the ortho- and para-isomers is, however, smaller than between the ortho- and meta-isomers.

Among the silaphenolates with substituents at Si, the meta-isomers are again the most stable isomers and the para-isomers are the least (Table 1). However, with R = SiMe₃ (1c–3c) the three isomers are nearly isoenergetic, whereas with R = t-Bu (1b-3b) the energy difference between the ortho- and meta-isomers at B3LYP and MP2 (but not M062X) levels is smaller than between the ortho- and para-isomers, i.e., opposite to the case when R = H. In conclusion, it is clear that the substituent at Si has an effect on the relative thermodynamic stabilities of various silaphenolates.

Table 1. Calculated relative energies of silaphenolates 1a–3c^a.

Compound	Erel				H298	DG298
	M062X	B3LYP	MP2	CCSD	M062X	M062X
1a	0.0, 0.0	0.0	0.0	0.0	0.0	0.0
1b	0.0, 0.0	0.0	0.0	-	0.0	0.0
1c	0.0, 0.0	0.0	0.0	-	0.0	0.0
2a	−5.8, −5.8	−4.1	−4.4	−7.0	−5.7	−5.2
2b	−4.3, −5.0	−2.8	−1.3	-	−4.7	−2.1
2c	−1.1, −2.2	0.0	0.4	-	−0.7	−3.2
3a	1.1, 1.4	1.8	1.9	0.9	0.8	2.1
3b	5.5, 4.8	5.3	5.8	-	4.6	6.2
3c	0.6, 0.5	0.7	1.8	-	0.6	−0.1

^a Values in normal print obtained from geometry optimizations at the corresponding levels using the 6-311G(d) basis set, and values in italics obtained from single-point energy calculations using the 6-311+G(d) basis set.

Table 1. Calculated relative energies of silaphenolates 1a–3c^a.

Compound	Erel				H298	DG298
	M062X	B3LYP	MP2	CCSD	M062X	M062X
1a	0.0, 0.0	0.0	0.0	0.0	0.0	0.0
1b	0.0, 0.0	0.0	0.0	-	0.0	0.0
1c	0.0, 0.0	0.0	0.0	-	0.0	0.0
2a	−5.8, −5.8	−4.1	−4.4	−7.0	−5.7	−5.2
2b	−4.3, −5.0	−2.8	−1.3	-	−4.7	−2.1
2c	−1.1, −2.2	0.0	0.4	-	−0.7	−3.2
3a	1.1, 1.4	1.8	1.9	0.9	0.8	2.1
3b	5.5, 4.8	5.3	5.8	-	4.6	6.2
3c	0.6, 0.5	0.7	1.8	-	0.6	−0.1

^a Values in normal print obtained from geometry optimizations at the corresponding levels using the 6-311G(d) basis set, and values in italics obtained from single-point energy calculations using the 6-311+G(d) basis set.

3.2. Geometries of Silaphenolates

A comparison of the bond length data of the parent silaphenolates 1a–3a obtained by the three inexpensive methods with those of CCSD reveal that B3LYP performs best overall [mean absolute deviations (MADs) of 0.006 (M062X), 0.004 (B3LYP), and 0.006 Å (MP2), respectively]. However, the three methods perform variously well for the three silaphenolates. MP2 has the smallest MAD for the ortho-silaphenolate (0.002 Å) but the largest for the para-silaphenolate (0.009 Å). With M062X the MADs for the three parent silaphenolate isomers are constant at 0.006–0.007 Å, while with B3LYP they are 0.004, 0.005, and 0.003 Å for 1a, 2a, and 3a, respectively. The finding on the slightly better quality of the B3LYP geometries versus the M062X geometries agrees with an earlier finding reported by Zhao and Truhlar [26].

The SiC bond lengths of the three silaphenolates should be compared to those of the parent silabenzene (1.764–1.771 Å, Figure 1). Clearly, there are distinct differences in the SiC bond lengths of 1a, 2a and 3a. The ortho-isomer 1a has the longest SiC bond (the SiC(O) bond is nearly an Si–C single bond), and this bond would (tentatively) be the most markedly influenced by reverse polarization. As can be expected, the meta-silaphenolate 2a reveals no influence of reverse polarizartion, and both SiC bonds are short (nearly Si=C double bonds). The para-isomer 3a has SiC bond lengths which are only modestly elongated when compared to those of the parent silabenzene. Here, it should be noted that all three silaphenolates are planar at M062X, B3LYP, and MP2 levels (no frequency calculations performed at CCSD level), despite that the SiC(O) bond length of the ortho-isomer suggests substantial influence of reverse polarization.

However, not only the SiC bonds are essential. It is important to note that the variations in the CO bond lengths among the three parent silaphenolate isomers 1a–3a are only modest, a finding which is not in line with a variation in the extent of reverse polarization among the silaphenolates. e.g., at CCSD level the variation between the three isomers is merely 0.014 Å (1.252–1.266 Å), and in the all-carbon phenolate the CO bond is 1.260 Å long, i.e., in the middle of the bond length range of the silaphenolates. When regarding the alternation in the CC bond lengths of the ring, the alternation is largest in the meta-isomer and smallest in the ortho-isomer (0.088 and 0.050 Å, respectively). It is notable that the longest CC bonds in the meta-isomer are the two CC bonds flanking the CO bond. In the all-carbon phenolate the CC bond length alternation is 0.060 Å, well within the ranges of the silaphenolates, and when judged from the geometries one may conclude that there are close similarities between these species.

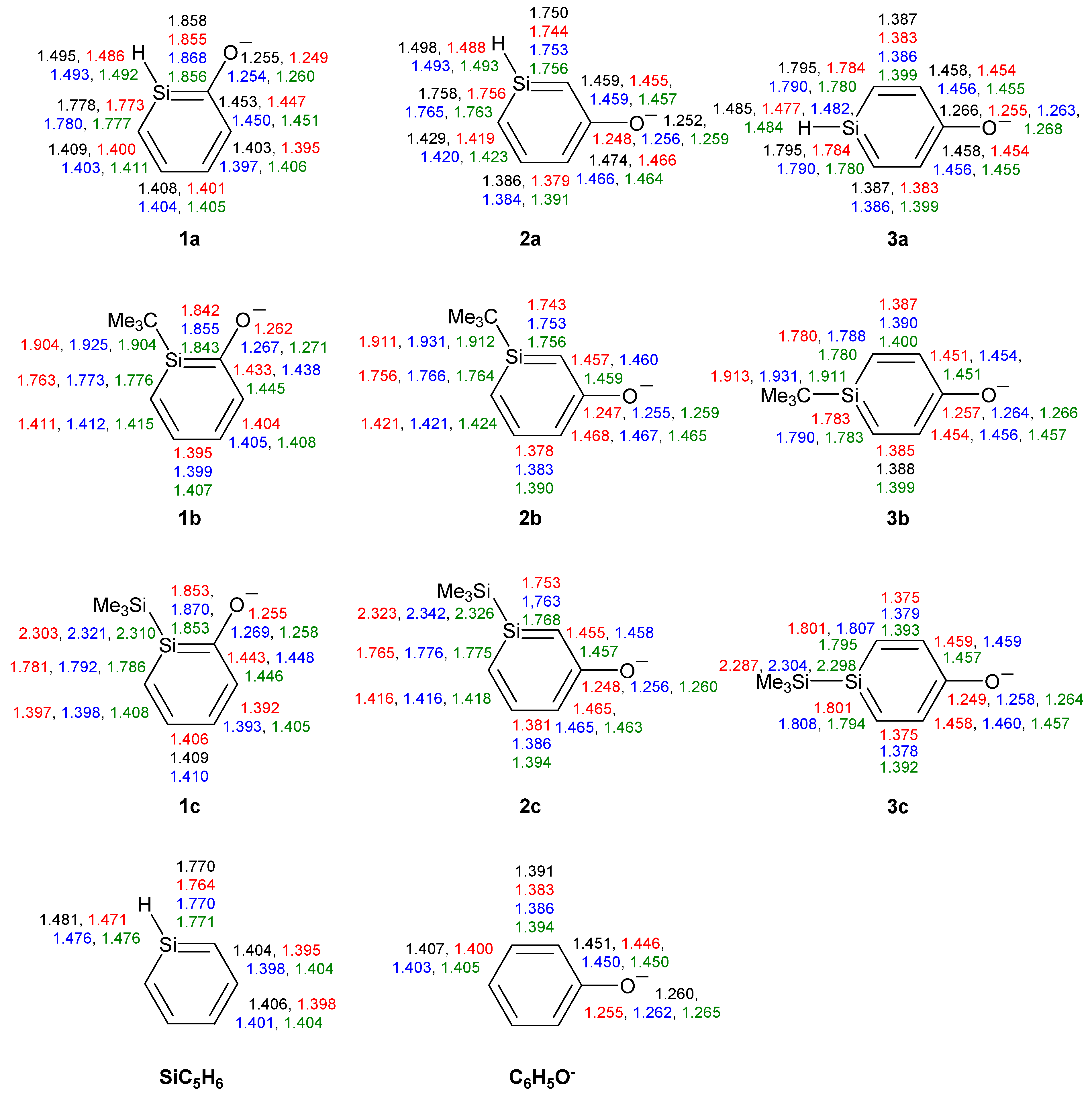

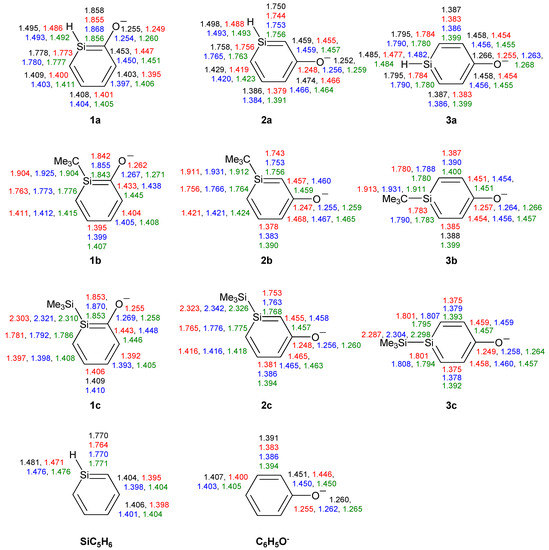

Figure 1. Bond lengths (Å) of silaphenolates 1a–3c, silabenzene SiC₅H₆ and all-carbon phenolate C₆H₅O⁻ calculated at the CCSD/6-311G(d) (black), M062X/6-311G(d) (red), B3LYP/6-311G(d) (blue), and MP2/6-311G(d) (green) levels. All sums of valence angles at Si (Σα(Si)) equal 360.0°.

Figure 1. Bond lengths (Å) of silaphenolates 1a–3c, silabenzene SiC₅H₆ and all-carbon phenolate C₆H₅O⁻ calculated at the CCSD/6-311G(d) (black), M062X/6-311G(d) (red), B3LYP/6-311G(d) (blue), and MP2/6-311G(d) (green) levels. All sums of valence angles at Si (Σα(Si)) equal 360.0°.

With regard to the substituted ortho-silaphenolates, they are also planar, like 1a. When changing the substituent at Si there is a slight SiC bond length reduction with R = t-Bu (1b), but with R = SiMe₃ (1c) there is an opposite trend toward elongations of these bonds. The CO bond displays very slight elongations both when R = t-Bu and SiMe₃. The changes in CC bond lengths are small, yet, one can note that the CC bond length alternation decreases when going from 1a to 1b (from 0.053 to 0.039 Å at B3LYP level). Still, when regarding the three ortho-silaphenolates one can observe that the CO bond essentially corresponds to a modestly elongated C=O double bond, whereas the ring CC and SiC bonds flanking the CO bond tend towards single bonds. The remaining four bonds of the ring are intermediate between single and double bonds in length, and the best description of the ortho-silaphenolates should be in terms of resonance structure II (Scheme 3).

For the meta-silaphenolates the change from R = H (2a) to R = t-Bu (2b) leads to no significant bond length changes, neither in the SiC, CC, nor CO bonds. However, the change to R = SiMe₃ (2c) leads to a slight elongation of the SiC bonds, while the CC and CO bonds remain at similar lengths. When compared to the ortho-silaphenolates, the three meta-silaphenolates often have short CO bonds and elongated CC bonds flanking the CO bonds, whereas the other CC and the SiC bonds of the ring are shortened. One can thus conclude that also the three meta-silaphenolates are described to a fair extent by a resonance structure with a silapentadienyl anionic segment and a C=O double bond, similar as the ortho-silaphenolates.

Finally, the two substituted para-silaphenolates are planar as well, and for these one observes that the SiC bond lengths of 3b resemble those of 3a, whereas slight bond elongations are found for 3c. Yet, all three para-silaphenolates still have SiC bonds which resemble those of silabenzene, i.e., they are intermediate between single and double bond lengths. For 3c the CO bond is somewhat shorter than for 3a and 3b, indicating that this species is more influenced by quinoidal (reverse polarized) resonance structures than the others. This falls in line with the longer SiC bonds of 3c. The CC bond lengths also reflect influence of such a quinoid resonance structure.

We further investigated the geometries of ortho-silaphenolates 1a and 1c coordinated by THF-solvated potassium ions. In our computations the potassium ion was coordinated by five THF molecules since we earlier observed in a computational study that potassium silenolates, initially coordinated by a larger number of THF molecules, preferred hexacoordination (the silenolate plus five THF molecules) as additional THF solvent molecules drifted away from the first solvation shell [21].

From the computations we find that both species coordinate to K⁺ via their anionic oxygen atoms, and that the K-Si distances are very long as seen in Figure 2. Importantly, at both B3LYP and M062X levels, and for both 1a and 1c, one can note significant CO bond elongations upon K⁺(THF)₅ complexation. One can also observe substantial SiC(O) bond length reductions, while the SiC(H) bonds are only modestly shortened. Thus, the SiC(O) bonds become more intermediate between SiC single and double bonds, even though they still are longer than in the parent silabenzene. With regard to the CC bond length variation it is reduced upon K⁺(THF)₅ complexation (0.051 vs. 0.029 Å in bare vs. complexed 1a, and 0.050 vs. 0.031 Å in bare vs. complexed 1c at B3LYP/6-311G(d) level). Clearly, complexation of the potassium ion to both 1a and 1c influences the electronic structure of the silaphenolates so that the silaaromatic resonance structure I (Scheme 3) with the negative charge placed at the O atom increases in importance.

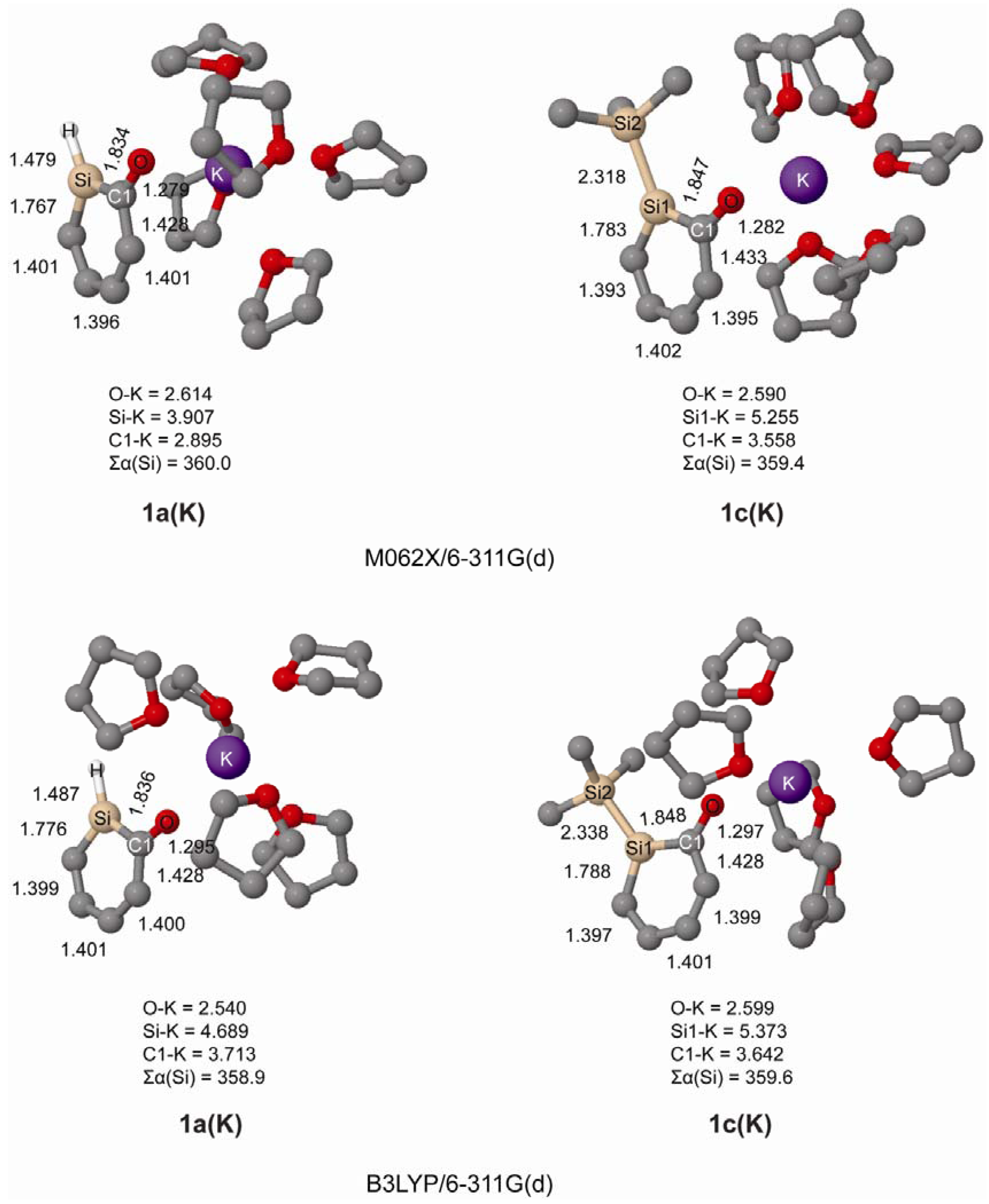

Figure 2. Geometries of K⁺(THF)₅ solvated silaphenolates 1a(K) and 1c(K) calculated at M062X/6-311G(d) (top) and B3LYP/6-311G(d) (bottom) levels of computation. Bond lengths in Å and sum of valence angles (Σα(Si)) in degree. Hydrogen atoms omitted for clarity.

Figure 2. Geometries of K⁺(THF)₅ solvated silaphenolates 1a(K) and 1c(K) calculated at M062X/6-311G(d) (top) and B3LYP/6-311G(d) (bottom) levels of computation. Bond lengths in Å and sum of valence angles (Σα(Si)) in degree. Hydrogen atoms omitted for clarity.

3.3. Charge Distributions in Silaphenolates

A comparison of the atomic charges calculated with M062X, B3LYP, and MP2 with those from CCSD shows that the two DFT methods give the best agreement with the CCSD results. Whereas the atomic charge at Si calculated by natural population analysis varies extensively among the three parent silaphenolates with 1a and 1c having the lowest positive charge, there is a very modest variation in the charge at oxygen (Table 2). For example, at M062X level it varies in the range −0.743 to −0.762 e for 1a–1c, and the charge at O of the all-carbon phenolate is −0.771 e. When considering all nine silaphenolates the variation in the charge at O at M062X level is found within the small range −0.733 to −0.779 e, and similar modest variations are found also at the other computational levels. The charge distributions therefore indicate that the silaphenolates are very similar to the all-carbon phenolates. Indeed, the variation in charge at Si between the three isomers should be related to the positions taken by the Si atom in a pentadienyl fragment for which negative charge localizes at positions 1, 3 and 5.

Table 2. Calculated Si and O atomic charges and NICS values of silaphenolates 1a–3c^a.

Compound	q(Si)				q(O)				NICS(1)zz
	M062X	B3LYP	MP2	CCSD	M062X	B3LYP	MP2	CCSD
1a	0.787	0.758	0.838	0.792	−0.743	−0.723	−0.700	−0.726	−18.5
1b	1.215	1.190	1.200	-	−0.779	−0.755	−0.729	-	−13.3
1c	0.600	0.592	0.636	-	−0.759	−0.725	−0.713	-	−16.5
2a	1.131	1.100	1.084	1.139	−0.753	−0.738	−0.710	−0.732	−18.8
2b	1.486	1.441	1.415	-	−0.748	−0.736	−0.706	-	−11.8
2c	0.926	0.896	0.838	-	−0.751	−0.736	−0.709	-	−16.5
3a	0.777	0.782	0.858	0.776	−0.762	−0.744	−0.726	−0.742	−16.6
3b	1.158	1.150	1.190	-	−0.770	−0.751	−0.729	-	−13.3
3c	0.565	0.584	0.638	-	−0.733	−0.719	−0.697	-	−14.7
SiC5H6	1.168	1.156	1.140	1.158	-	-	-	-	−24.3
C6H5O-	-	-	-	-	−0.784	−0.768	−0.745	−0.771	−18.9

^a Atomic charges calculated by natural population analysis (NPA) at the four different levels, and nucleus independent chemical shifts (NICS) at GIAO/M062X/6-311+G(d)//M062X/6-311G(d) level.

Table 2. Calculated Si and O atomic charges and NICS values of silaphenolates 1a–3c^a.

Compound	q(Si)				q(O)				NICS(1)zz
	M062X	B3LYP	MP2	CCSD	M062X	B3LYP	MP2	CCSD
1a	0.787	0.758	0.838	0.792	−0.743	−0.723	−0.700	−0.726	−18.5
1b	1.215	1.190	1.200	-	−0.779	−0.755	−0.729	-	−13.3
1c	0.600	0.592	0.636	-	−0.759	−0.725	−0.713	-	−16.5
2a	1.131	1.100	1.084	1.139	−0.753	−0.738	−0.710	−0.732	−18.8
2b	1.486	1.441	1.415	-	−0.748	−0.736	−0.706	-	−11.8
2c	0.926	0.896	0.838	-	−0.751	−0.736	−0.709	-	−16.5
3a	0.777	0.782	0.858	0.776	−0.762	−0.744	−0.726	−0.742	−16.6
3b	1.158	1.150	1.190	-	−0.770	−0.751	−0.729	-	−13.3
3c	0.565	0.584	0.638	-	−0.733	−0.719	−0.697	-	−14.7
SiC5H6	1.168	1.156	1.140	1.158	-	-	-	-	−24.3
C6H5O-	-	-	-	-	−0.784	−0.768	−0.745	−0.771	−18.9

^a Atomic charges calculated by natural population analysis (NPA) at the four different levels, and nucleus independent chemical shifts (NICS) at GIAO/M062X/6-311+G(d)//M062X/6-311G(d) level.

Further strong indications that the silaphenolates are closely related to the all-carbon phenolate comes from the natural orbital occupancy of the 2pπ(O) natural atomic orbitals (NAOs) in the four species (Table 3). At CCSD level the occupancies of the 2pπ(O) NAOs in 1a, 1b and 1c are 1.56, 1.55 and 1.55 e, respectively, and in the all-carbon phenolate it is 1.60 e. Clearly, the O atom does not participate significantly different in the p-conjugation in the ortho-, meta-, para-silaphenolates and the all-carbon phenolate. Instead, the differences in charge at Si are related to variations in the charge distribution within the silapentadienyl anionic segment, rather than to differences in the extent of reverse polarization exerted by the O atom.

Table 3. The natural atomic orbital occupancy of the 2pπ atomic orbital of the oxygen atom of silaphenolates 1a–3a and the parent all-carbon phenolate ^a.

Compound	Natural atomic orbital occupancy [2pπ(O)]
	M062X	B3LYP	MP2	CCSD
1a	1.58	1.57	1.55	1.56
2a	1.58	1.57	1.54	1.55
3a	1.58	1.57	1.56	1.55
C6H5O-	1.61	1.60	1.58	1.60

^a From calculations using the 6-311G(d) valence triple-zeta basis set.

Table 3. The natural atomic orbital occupancy of the 2pπ atomic orbital of the oxygen atom of silaphenolates 1a–3a and the parent all-carbon phenolate ^a.

Compound	Natural atomic orbital occupancy [2pπ(O)]
	M062X	B3LYP	MP2	CCSD
1a	1.58	1.57	1.55	1.56
2a	1.58	1.57	1.54	1.55
3a	1.58	1.57	1.56	1.55
C6H5O-	1.61	1.60	1.58	1.60

^a From calculations using the 6-311G(d) valence triple-zeta basis set.

As can be expected for the substituted silaphenolates, the t-Bu group increases the positive charge at Si while the SiMe₃ group reduces it. Silaphenolate 3c has the least positive Si atom, closely followed by 1c. For this reason they should be less prone to dimerize, and are good targets for synthesis.

3.4. Nucleus Independent Chemical Shifts of Silaphenolates

The nucleus independent chemical shift (NICS) index is nowadays one of the most commonly used computational tools for estimation of the aromaticity of a (mono)cyclic compound [32,33]. Several different refinements of the NICS index have been developed since the introduction of the index in 1996 by Schleyer and co-workers. The most sophisticated NICS(0)_πzz version, based on only the contributions of the zz (perpendicular) tensor components of the π-MO’s, gives the best results, although the quality of the more readily available NICS(1)_zz data (1 Å above the ring center) is also very high [34]. Herein, we have used the latter method.

The NICS(1)_zz values of benzene and the parent silabenzene are −30.2 and −24.3 ppm, respectively. We use the latter value as a benchmark that represents the maximal degree of aromaticity that a silaphenolate may display, i.e., an indicator on the importance of resonance structure I, Scheme 3. As seen in Table 2 all uncomplexed silaphenolates have NICS(1)_zz values that suggest significant influence of aromaticity. Yet, they are less aromatic than the parent silabenzene, in line with an influence of resonance structures described by exocyclic C=O double bonds and silapentadienyl anionic segments (Scheme 3). Further support for this conclusion comes from the NICS(1)_zz value of the all-carbon phenolate (−18.9 ppm) which is very close to those of the three parent silaphenolates (−18.5 (1a), −18.8 (2a), and −16.6 ppm (3a), respectively).

However, the substituents at Si also influence the degree of aromaticity. Regardless of isomer, the silaphenolates with a t-Bu substituent at Si (1b–3b) are less aromatic than the corresponding isomers with R = H and R = SiMe₃ substitution (1a–3a and 1c–3c, respectively). For the ortho- and para-isomers, a SiMe₃ substituent at Si also leads to a slightly reduced aromaticity.

3.5. ¹³C and ²⁹Si NMR Chemical Shifts of Silaphenolates

As seen in Table 4, the ²⁹Si-NMR chemical shifts are influenced by two factors; (i) the position of the Si atom in the ring (ortho, meta, vs. para); and (ii) the substituent at the Si atom (R = H, t-Bu vs. SiMe₃). The δ²⁹Si values are calculated to have the most positive values for the meta-silaphenolates (2a–2c), whereas the ²⁹Si shifts of the para-silaphenolates (3a–3c) are only slightly more downfield than those of the corresponding ortho-silaphenolates (1a–1c). There is also a clear dependence of the ²⁹Si shifts on the substituent R at silicon, with the electron withdrawing t-Bu substituent (1b–3b) giving the most downfield shifted δ²⁹Si values while R = H (1a–3a) giving the least. With regard to the ¹³C-NMR chemical shifts the carbon atom bonded to the oxygen atom is calculated to values in the range 196–242 ppm whereas the other C atoms have resonances in the range 89–165 ppm. The ¹³C-NMR chemical shifts of the C atoms next to the Si atom display some dependence on the substituent, however, the shift variation is smaller for the other C atoms in the ring.

Table 4. The ¹³C and ²⁹Si-NMR chemical shifts of silaphenolates 1a–3c^a.

Silaphenolate	Si1	C2	C3	C4	C5	C6
1a	64.0	229.7	151.9	138.7	132.7	155.1
2a	91.5	123.9	208.4	141.3	160.5	101.7
3a	2.0	154.4	160.3	198.2	160.3	154.4
1b	126.9	224.5	150.9	136.9	129.7	136.7
2b	147.1	109.7	209.5	138.1	159.9	88.8
3b	73.2	141.4	157.5	196.2	155.6	141.4
1c	81.7	242.4	150.2	142.4	134.1	165.5
2c	111.5	134.9	207.1	143.8	161.4	110.7
3c	17.3	163.8	161.4	200.7	160.7	165.7

^a Chemical shifts calculated at GIAO/M062X/6-311+G(d)//M062X/6-311G(d) level.

Table 4. The ¹³C and ²⁹Si-NMR chemical shifts of silaphenolates 1a–3c^a.

Silaphenolate	Si1	C2	C3	C4	C5	C6
1a	64.0	229.7	151.9	138.7	132.7	155.1
2a	91.5	123.9	208.4	141.3	160.5	101.7
3a	2.0	154.4	160.3	198.2	160.3	154.4
1b	126.9	224.5	150.9	136.9	129.7	136.7
2b	147.1	109.7	209.5	138.1	159.9	88.8
3b	73.2	141.4	157.5	196.2	155.6	141.4
1c	81.7	242.4	150.2	142.4	134.1	165.5
2c	111.5	134.9	207.1	143.8	161.4	110.7
3c	17.3	163.8	161.4	200.7	160.7	165.7

^a Chemical shifts calculated at GIAO/M062X/6-311+G(d)//M062X/6-311G(d) level.

3.6. Dimerization Aptitudes of Silaphenolates

We also regarded dimerization of the bare (uncomplexed) silaphenolates, as well as silaphenolates complexed by K⁺(THF)₅. However, it should be noted that far from all dimers were examined, and therefore, this part of the study mainly provides trends. We studied the dimers of 1a–3a and 1c–3c, where the latter species were particularly included as it was found in earlier studies of silenes that silyl groups at Si increase the stability by reducing the partial positive charge at Si [15].

Several different types of dimers can form. First, there are regular [4+2] and [2+2] cycloadducts that exclusively involve the silabenzene rings and in which the sp² hybridized Si atoms of the silaphenolates have been transformed into sp³ hybridized Si atoms. In addition, for silaphenolates there exist dimers in which the anionic oxygen atoms bind to the silicon atoms forming strong SiO bonds, and these latter dimer types seem to be of lowest relative energies. Furthermore, the dimers can have head-to-head (Si atoms on same side in the new cycle formed) or head-to-tail (Si atoms placed diagonally in the new cycle) configurations. Finally, the dimers of the ortho- and meta-silaphenolates can exist as either endo- or exo-isomers. As noted above, the relative bond strengths in the dimers influence their relative stabilities, but variations in Coulomb repulsion are also important.

When regarding dimers of the unsubstituted silaphenolates (Figure 3 and Figure 4, and Table 5) one can note that for 1a the dimers with two Si-O bonds (D1a-I and D1a-II) are more stable than two separate monomers at M062X level, but less stable at B3LYP level. As M062X is an improved functional which is suitable to describe dispersive intramolecular interactions [26], the dimer energies from this method is likely of better quality than those of B3LYP. Other dimers of 1a (D1a-III–D1a-VI, Figure 4) are, however, less stable than two monomers, both at M062X and B3LYP levels. Besides the strong Si-O bonds, the D1a-I and D1a-II dimers have their two pentadienyl anionic segments as distant from each other as possible, whereas the corresponding distances are smaller in D1a-III–D1a-VI.

The increased impact of the intramolecular Coulomb repulsion also becomes apparent through a comparison of the dimers of 1a with those of 2a and 3a as the repulsion in the latter species is so extensive that they are more stable as monomers. The dimer in which Si-O bonds are formed (D2a-I and D2a-II, Figure 3) are ~10 kcal/mol less stable than two separate monomers at M062X level, and the [4+2], [2+2] cycloadducts and other dimer types (D2a-III–D2a-VI) are 13–41 kcal/mol less stable (Figure 4). A similar situation applies to the D3a dimers (Table 5, Figure 3 and Figure 4). At B3LYP level, two monomers are more stable than the dimers by 26 kcal/mol and upwards. This should be compared with computational results for the 1-Tbt-silabenzene synthesized by Tokitoh and co-workers [5]. They found this silabenzene to be 10.5 kcal/mol more stable as two monomers than as dimer at B3LYP/6-31G(d) level. From a comparison with the dimerization of this species one can conclude that even the parent meta- and para-silaphenolates should be stable species.

When comparing the geometries of the parent silaphenolate dimers (Figure 3) one finds that in the D2a-II and D3a dimers, the Si-O bonds are slightly longer than in D1a-I, D1a-II and D2a-II. The C-O bonds are also somewhat longer in D3a than in the other dimers. Both of these structural features should reflect generally larger intramolecular Coulomb repulsion in the dianionic D2a-II and D3a.

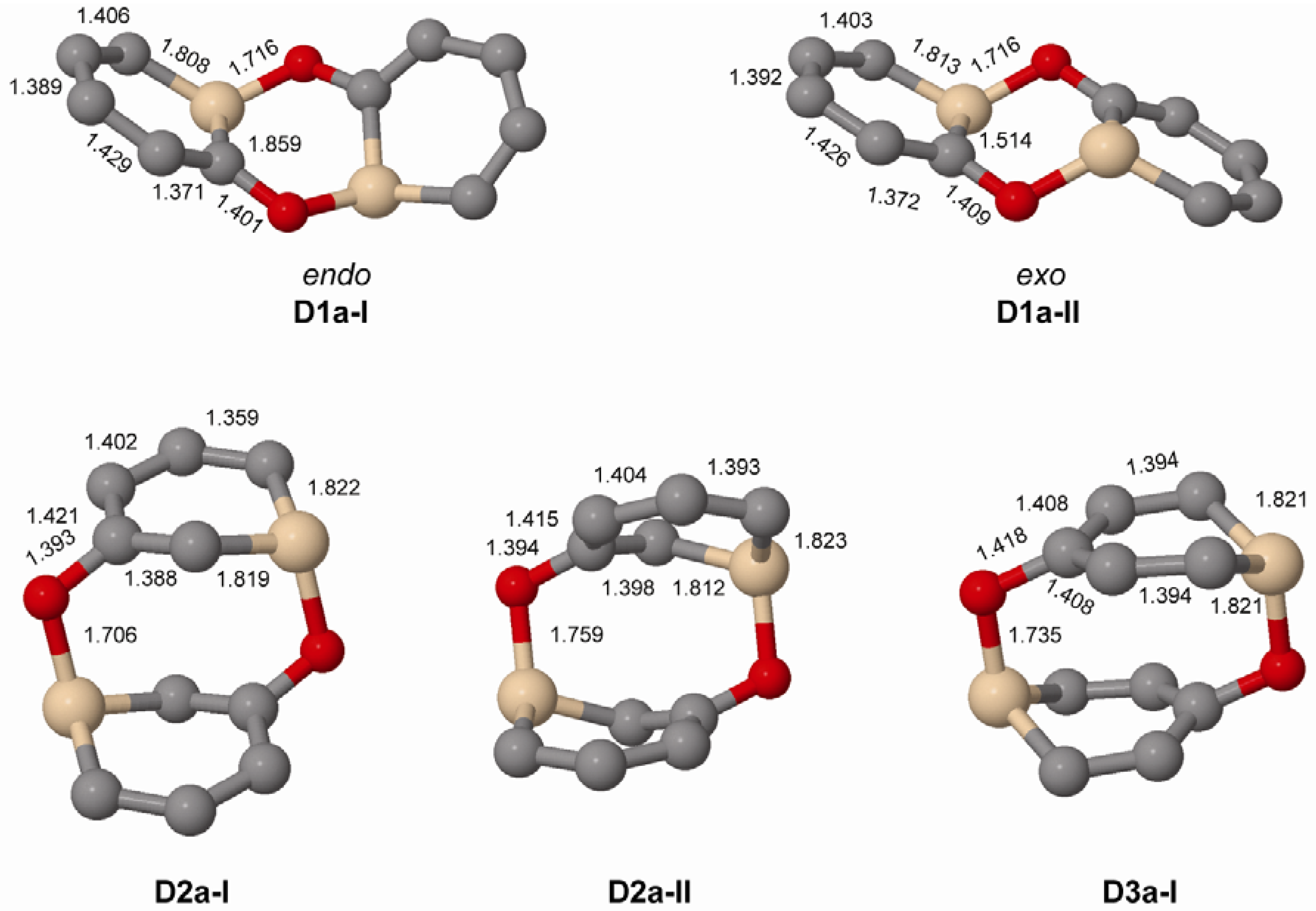

Figure 3. Geometries of the Si-O bonded dimers of 1a–3a (C₂ symmetry) calculated at M062X/6-31G(d) level. Hydrogen atoms omitted for clarity. Bond lengths given in Å.

Figure 3. Geometries of the Si-O bonded dimers of 1a–3a (C₂ symmetry) calculated at M062X/6-31G(d) level. Hydrogen atoms omitted for clarity. Bond lengths given in Å.

When changing the Si substituent of the ortho-silaphenolate from R = H to R = SiMe₃ the endo-dimer D1c-I is slightly destabilized when compared to D1a-I whereas the exo-dimer D1c-II is not destabilized over D1a-II (Table 5). This finding can be rationalized by the steric congestion between the two SiMe₃ groups that occurs in D1c-I but not in D1c-II (Figure 5). Clearly, more substantial steric bulk than provided by a SiMe₃ group needs to be exercised by the substituent at Si in order to destabilize the D1c-II dimer to the extent that it becomes less stable than two monomers.

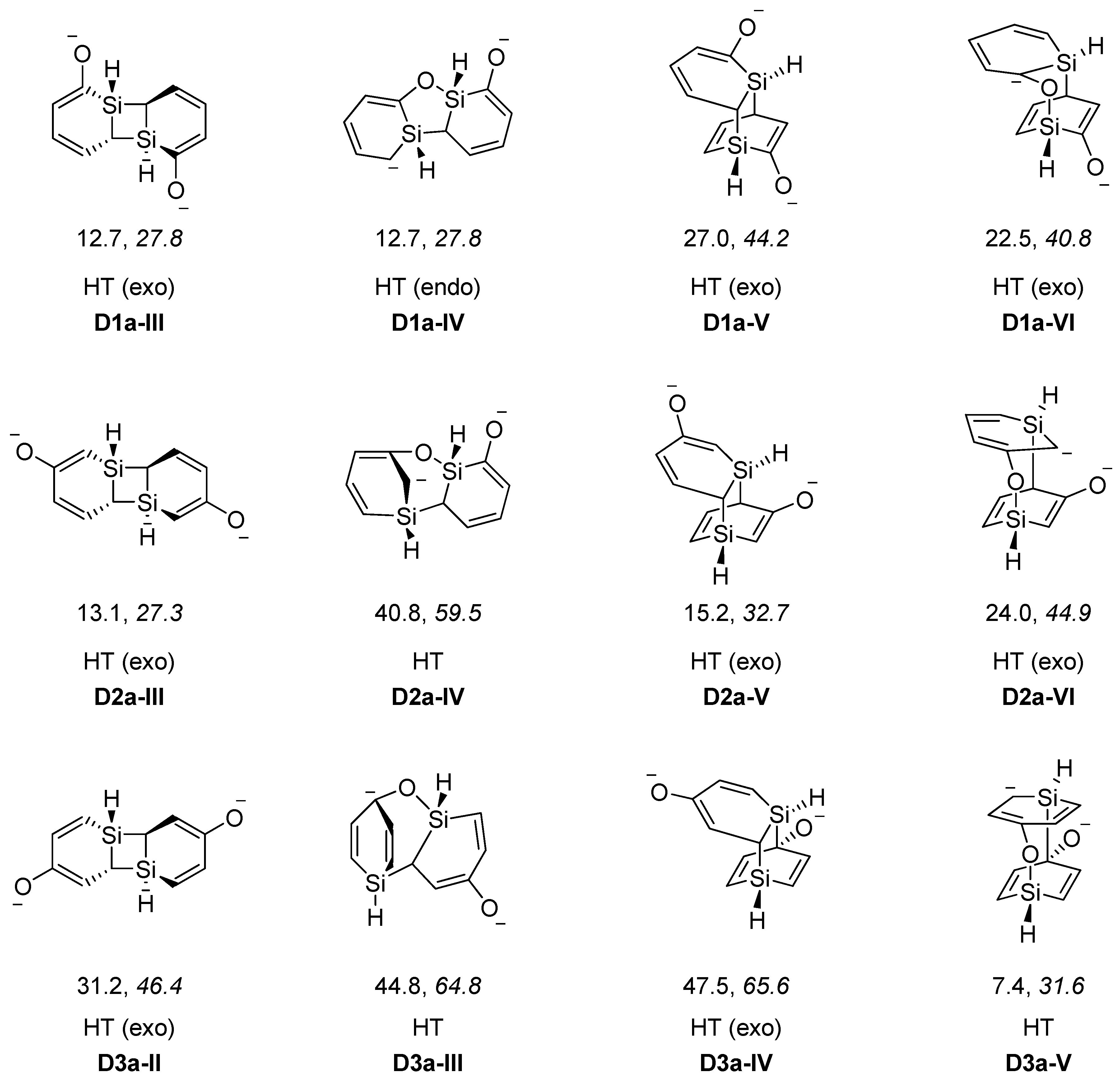

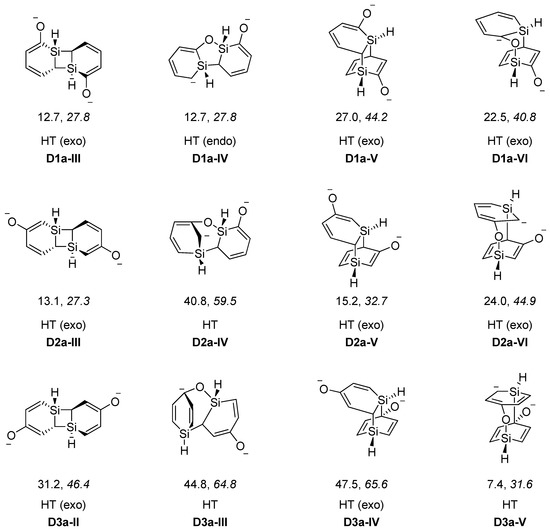

Figure 4. Low-energy [2+2], [4+2] and other dimers of silaphenolates (1a–3a) calculated at the M062X/6-311G(d)//M062X/6-31G(d) (normal) and B3LYP/6-31G(d) (italics) levels. Dimerization energies in kcal/mol. From left to right the dimers are; [2+2], [2+3], [4+2], and [4+3] cycloadducts, where the [2+2] and [4+2] cycloadducts involve only Si-C bond formation whereas the [2+3] and [4+3] cycloadducts involve also Si–O bond formation.

Figure 4. Low-energy [2+2], [4+2] and other dimers of silaphenolates (1a–3a) calculated at the M062X/6-311G(d)//M062X/6-31G(d) (normal) and B3LYP/6-31G(d) (italics) levels. Dimerization energies in kcal/mol. From left to right the dimers are; [2+2], [2+3], [4+2], and [4+3] cycloadducts, where the [2+2] and [4+2] cycloadducts involve only Si-C bond formation whereas the [2+3] and [4+3] cycloadducts involve also Si–O bond formation.

Table 5. Reaction energies (kcal/mol) for formation of dimers of silaphenolates calculated at the M062X/6-311G(d)//M062X/6-31G(d) (normal) and B3LYP/6-31G(d) (italics) levels ^a.

Dimers of 1a–3a		Dimers of 1c–3c		Dimers of 1a(K) b		Dimers of 1c(K) b
Compound	Edim	Compound	Edim	Compound	Edim	Compound	Edim
D1a-I	−9.1, 8.0	D1c-I	−4.1, 16.4	D1a(K)-I	−8.3	D1c(K)-I	1.3
D1a-II	−10.9, 7.0	D1c-II	−11.7, 13.9	D1a(K)-II	−16.5	D1c(K)-II	0.6
D2a-I	8.7, 29.7	D2c-I	3.3, 26.9
D2a-II	10.5, 31.3	D2c-II	6.3, 29.0
D3a-I	7.4, 31.6	D3c-I	13.3, 39.3

^a For optimized geometries see Figure 3; ^b Here (K) symbolizes coordination of a K⁺(THF)₅ moiety to a silaphenolate monomer.

Table 5. Reaction energies (kcal/mol) for formation of dimers of silaphenolates calculated at the M062X/6-311G(d)//M062X/6-31G(d) (normal) and B3LYP/6-31G(d) (italics) levels ^a.

Dimers of 1a–3a		Dimers of 1c–3c		Dimers of 1a(K) b		Dimers of 1c(K) b
Compound	Edim	Compound	Edim	Compound	Edim	Compound	Edim
D1a-I	−9.1, 8.0	D1c-I	−4.1, 16.4	D1a(K)-I	−8.3	D1c(K)-I	1.3
D1a-II	−10.9, 7.0	D1c-II	−11.7, 13.9	D1a(K)-II	−16.5	D1c(K)-II	0.6
D2a-I	8.7, 29.7	D2c-I	3.3, 26.9
D2a-II	10.5, 31.3	D2c-II	6.3, 29.0
D3a-I	7.4, 31.6	D3c-I	13.3, 39.3

^a For optimized geometries see Figure 3; ^b Here (K) symbolizes coordination of a K⁺(THF)₅ moiety to a silaphenolate monomer.

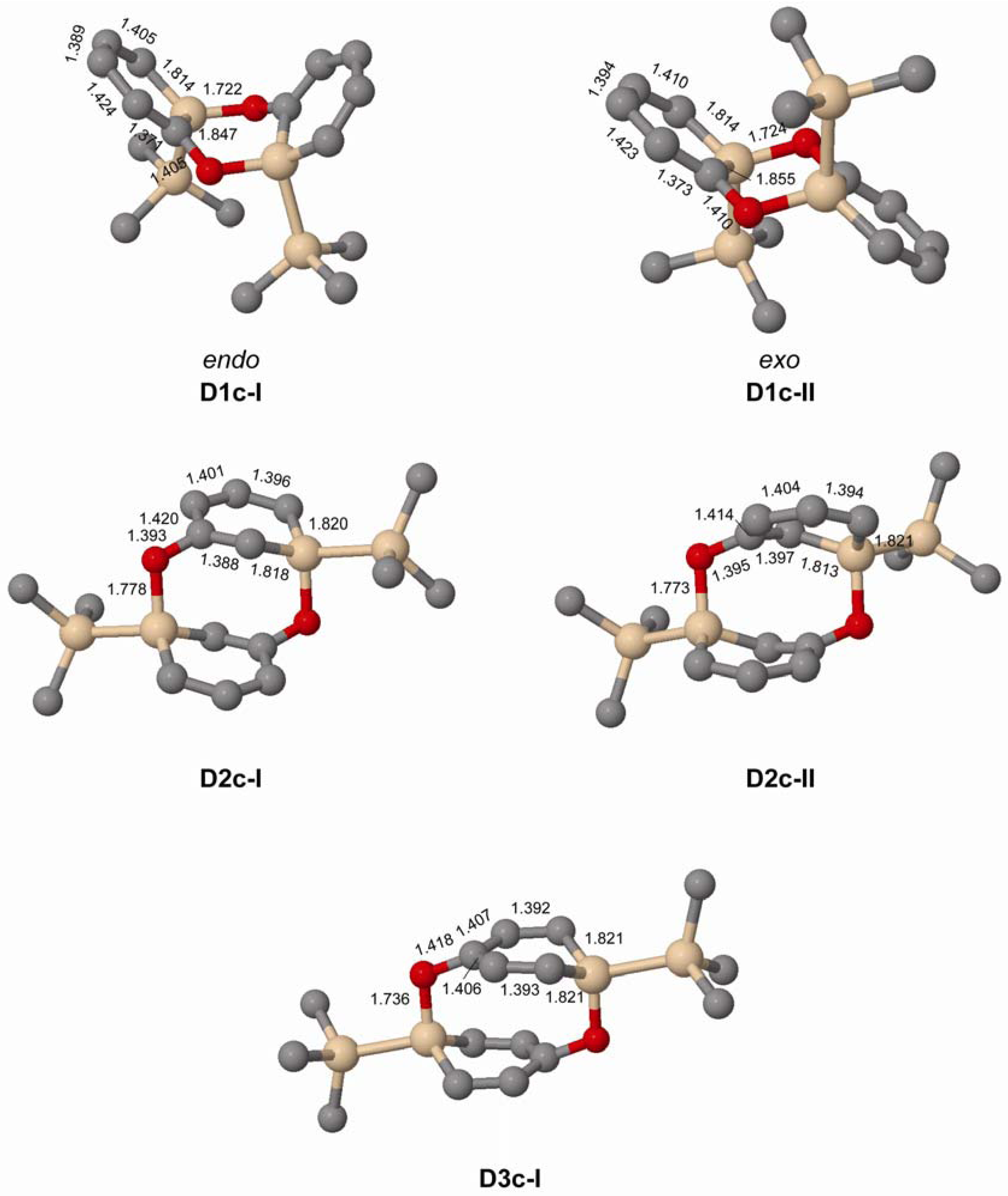

Figure 5. Geometries of doubly Si-O bonded dimers of 1c–3c (C₂ symmetric) calculated at the M062X/6-31G(d) level. Distances in Å. Hydrogen atoms omitted for clarity.

Figure 5. Geometries of doubly Si-O bonded dimers of 1c–3c (C₂ symmetric) calculated at the M062X/6-31G(d) level. Distances in Å. Hydrogen atoms omitted for clarity.

In experiments the silaphenolate will be complexed by a solvated counterion, and through computations of K⁺(THF)₅ complexed silaphenolate dimer of 1a and 1c we find that this also affects the dimerization aptitude (Table 5 and Figure 6). The dimerization energy of D1a(K)-II is larger than that of D1a-II, yet, for both of the dimers of 1c with Si–O bonds (D1c(K)-I and D1c(K)-II) one notes smaller dimerization energies than for the corresponding uncomplexed silaphenolates. For the particular solvent configurations studied here the two D1c(K) dimers are slightly less stable than two monomers. However, a very large number of other solvent configurations exist, and it is not unlikely that a few of these will lead to lower energies than the ones discussed herein.

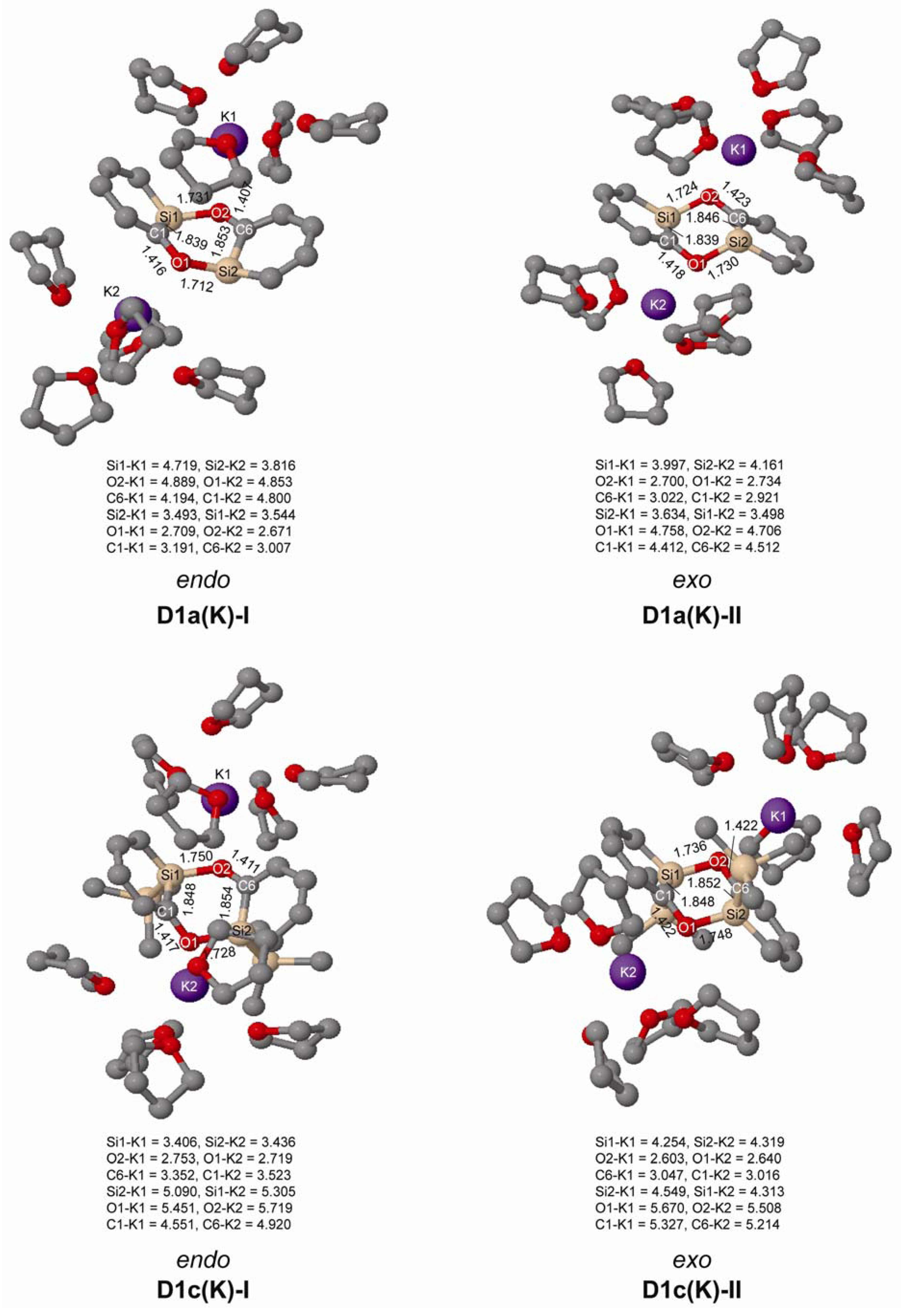

Figure 6. Geometries of the doubly Si-O bonded of 1a(K) and 1c(K) dimers solvated by K⁺(THF)₅ calculated at M062X/6-31G(d) level. Distances in Å. Hydrogen atoms omitted for clarity.

Figure 6. Geometries of the doubly Si-O bonded of 1a(K) and 1c(K) dimers solvated by K⁺(THF)₅ calculated at M062X/6-31G(d) level. Distances in Å. Hydrogen atoms omitted for clarity.

3.7. Silaphenylthiolates

Silaphenylthiolates 4a–6c, which are analogous to silaphenylthiolates 1a–3c, were examined as well (Scheme 4). With regard to the parent silaphenylthiolates 4a–6a, the ortho- and meta-isomers are isoenergetic, whereas the para-isomer is of higher energy (Table 6). For these species one can note that the method variation is smaller than for the silaphenolates. With a SiMe₃ or t-Bu substituent at Si, the ortho-isomer is the most stable isomer whereas the meta-isomers are the second most and the para-isomers the least stable ones.

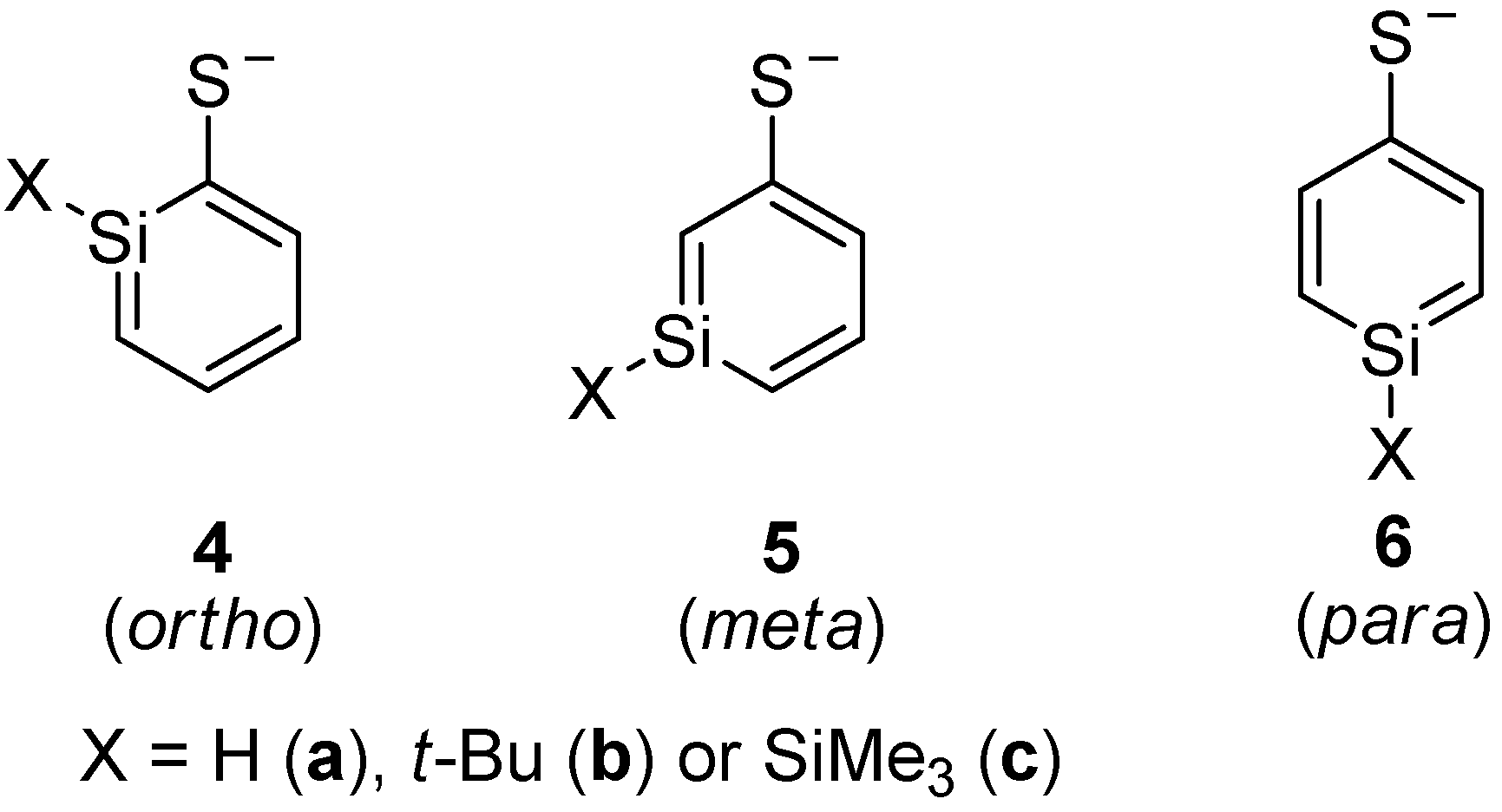

Scheme 4. Isomers of silaphenylthiolates.

Scheme 4. Isomers of silaphenylthiolates.

Table 6. Calculated relative energies (kcal/mol) of silaphenylthiolates 4a–6c^a.

Compound	Erel				H298	DG298
	M062X	B3LYP	MP2	CCSD	M062X	M062X
4a	0.0, 0.0	0.0	0.0	0.0	0.0	0.0
4b	0.0, 0.0	0.0	0.0	-	0.0	0.0
4c	0.0, 0.0	0.0	0.0	-	0.0	0.0
5a	0.3, 0.1	0.6	0.8	-0.4	0.3	0.5
5b	3.1, 3.1	2.1	4.1	-	2.8	4.0
5c	4.8, 4.6	3.4	5.1	-	3.9	4.7
6a	3.7, 3.7	3.5	3.4	3.2	4.0	4.2
6b	8.0, 8.2	6.3	7.6	-	7.3	7.8
6c	5.7, 6.0	3.5	5.3	-	5.6	2.6

^a Values in normal print obtained from geometry optimizations at the corresponding levels with the 6-311G(d) basis set, and values in italics obtained from single-point energy calculations using the 6-311+G(d) basis set at the corresponding level.

Table 6. Calculated relative energies (kcal/mol) of silaphenylthiolates 4a–6c^a.

Compound	Erel				H298	DG298
	M062X	B3LYP	MP2	CCSD	M062X	M062X
4a	0.0, 0.0	0.0	0.0	0.0	0.0	0.0
4b	0.0, 0.0	0.0	0.0	-	0.0	0.0
4c	0.0, 0.0	0.0	0.0	-	0.0	0.0
5a	0.3, 0.1	0.6	0.8	-0.4	0.3	0.5
5b	3.1, 3.1	2.1	4.1	-	2.8	4.0
5c	4.8, 4.6	3.4	5.1	-	3.9	4.7
6a	3.7, 3.7	3.5	3.4	3.2	4.0	4.2
6b	8.0, 8.2	6.3	7.6	-	7.3	7.8
6c	5.7, 6.0	3.5	5.3	-	5.6	2.6

^a Values in normal print obtained from geometry optimizations at the corresponding levels with the 6-311G(d) basis set, and values in italics obtained from single-point energy calculations using the 6-311+G(d) basis set at the corresponding level.

Among the three ortho-silaphenolthiolates 4a–4c one sees much less SiC(S) bond elongation than SiC(O) bond elongations among the corresponding 1a–1c (Figure 7). The other bond lengths of the rings are very similar to those of the parent silabenzene. With regard to the meta- and para-silaphenylthiolates one can observe similar bond length variations as in the corresponding silaphenolates, yet, the variations are significantly smaller. Also, the CS bond lengths of 4a–6c show a very small variation and resemble that of the parent phenylthiolate. Indeed, all phenylthiolates display CS bong lengths which are close to those of regular C(sp²)-S and C(Ar)-S single bonds as typical C(sp³)-S, C(sp²)-S, and C(Ar)-S single bond lengths are 1.817, 1.751, and 1.773 Å, respectively, while the normal C(sp²)=S double bond length is 1.599 Å [35]. This suggests that silaromatic resonance structures of type I (Scheme 3) contribute much to the electronic structures of silaphenylthiolates.

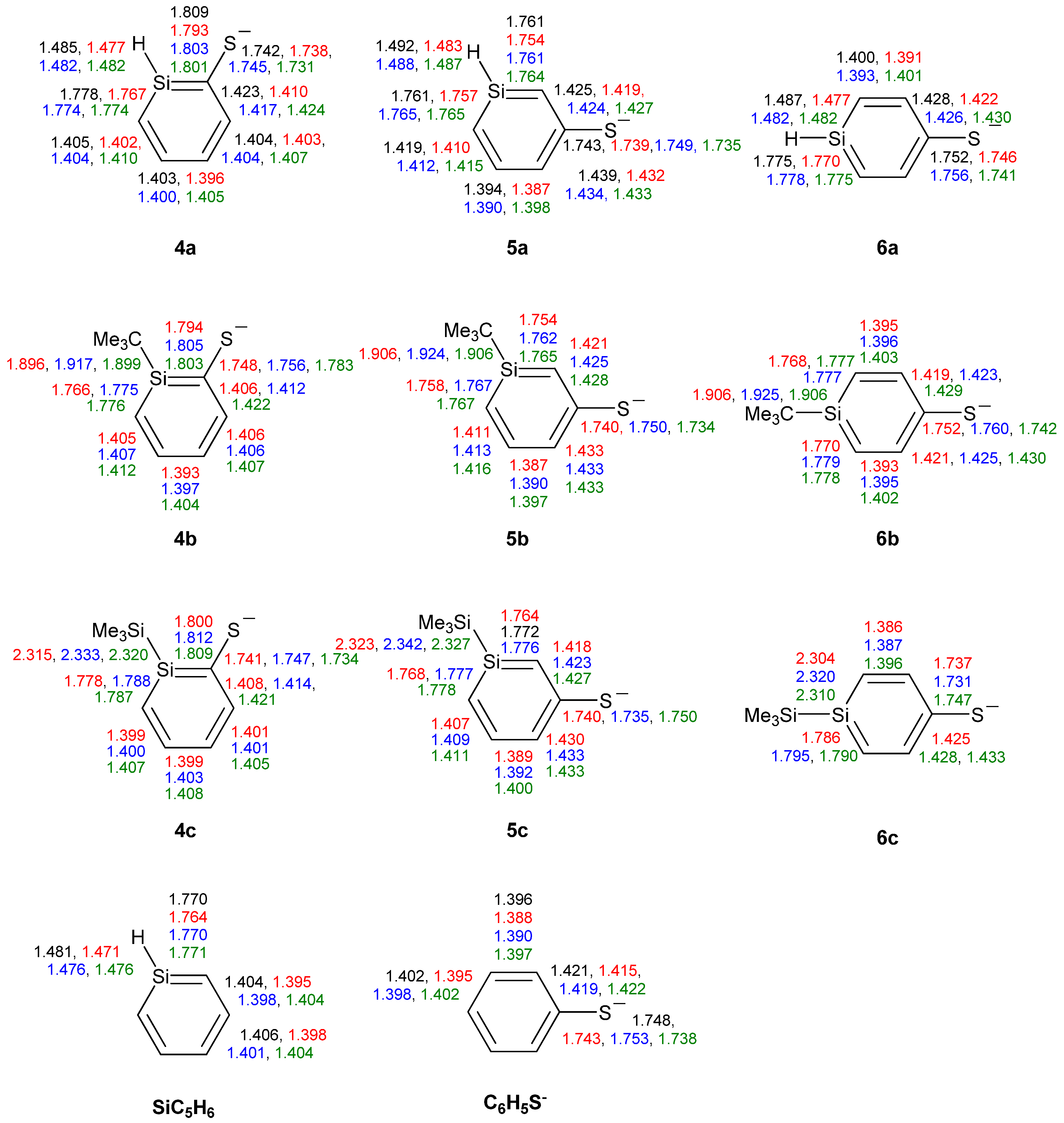

Figure 7. Bond lengths (Å) of silaphenylthiolates 4a–6c, parent silabenzene, and phenylthiolate C₆H₅S^- calculated at CCSD/6-311G(d) (black), M062X/6-311G(d) (red), B3LYP/6-311G(d) (blue), and MP2/6-311G(d) (green) levels. All sums of valence angles at Si (Σα(Si)) equal 360.0°.

Figure 7. Bond lengths (Å) of silaphenylthiolates 4a–6c, parent silabenzene, and phenylthiolate C₆H₅S^- calculated at CCSD/6-311G(d) (black), M062X/6-311G(d) (red), B3LYP/6-311G(d) (blue), and MP2/6-311G(d) (green) levels. All sums of valence angles at Si (Σα(Si)) equal 360.0°.

When compared to the silaphenolates, the silaphenylthiolates have a less polarized charge distribution (Table 7). In general, the charge at S is less negative and the charge at Si is less positive than at the O and Si atoms in the corresponding silaphenolates. However, this lowered negative charge at S is predominantly due to differences between O and S in the strengths of inductive electron withdrawal. The natural atomic orbital occupancies of the 3pπ(S) NAOs in silaphenylthiolates 4a, 5a, and 6a are higher than in the 2pπ(O) NAOs of the analogous silaphenolates (Table 3 and Table 8). This finding again thus suggests larger contribution of silaaromatic resonance structures of type I (Scheme 3) in the silaphenylthiolates than in the silaphenolates. This observation also agrees with the NICS(1)_zz values which on average are a little bit more negative in 4a–6c than in 1a–3c (Table 2 and Table 7).

Table 7. Calculated Si and S atomic charges (e) and NICS values (ppm) of silaphenolates 4a–6c^a.

Compound	q(Si)				q(S)				NICS(1)zz
	M062X	B3LYP	MP2	CCSD	M062X	B3LYP	MP2	CCSD
4a	1.092	1.072	1.078	1.095	−0.490	−0.475	−0.480	−0.498	−18.0
4b	1.467	1.433	1.409	-	−0.514	−0.501	−0.494	-	−15.5
4c	0.881	0.860	0.845	-	−0.495	−0.476	−0.478	-	−18.0
5a	1.123	1.103	1.078	1.127	−0.506	−0.499	−0.500	−0.507	−18.5
5b	1.478	1.442	1.403	-	−0.502	−0.498	−0.497	-	−14.0
5c	0.909	0.890	0.834	-	−0.505	−0.499	−0.500	-	−17.7
6a	0.943	0.926	0.955	0.957	−0.529	−0.514	−0.524	−0.535	−17.3
6b	1.314	1.285	1.275	-	−0.545	−0.531	−0.533	-	−15.1
6c	0.715	0.706	0.722	-	−0.498	−0.473	−0.482	-	−17.0
SiC5H6	1.168	1.156	1.140	1.158	-	-	-	-	−24.3
C6H5S-	-	-	-	-	−0.546	−0.540	−0.542	−0.549	−21.5

^a Atomic charges calculated by natural population analysis (NPA) at the four different levels, and nucleus independent chemical shifts (NICS) at GIAO/M062X/6-311+G(d)//M062X/6-311G(d) level.

Table 7. Calculated Si and S atomic charges (e) and NICS values (ppm) of silaphenolates 4a–6c^a.

Compound	q(Si)				q(S)				NICS(1)zz
	M062X	B3LYP	MP2	CCSD	M062X	B3LYP	MP2	CCSD
4a	1.092	1.072	1.078	1.095	−0.490	−0.475	−0.480	−0.498	−18.0
4b	1.467	1.433	1.409	-	−0.514	−0.501	−0.494	-	−15.5
4c	0.881	0.860	0.845	-	−0.495	−0.476	−0.478	-	−18.0
5a	1.123	1.103	1.078	1.127	−0.506	−0.499	−0.500	−0.507	−18.5
5b	1.478	1.442	1.403	-	−0.502	−0.498	−0.497	-	−14.0
5c	0.909	0.890	0.834	-	−0.505	−0.499	−0.500	-	−17.7
6a	0.943	0.926	0.955	0.957	−0.529	−0.514	−0.524	−0.535	−17.3
6b	1.314	1.285	1.275	-	−0.545	−0.531	−0.533	-	−15.1
6c	0.715	0.706	0.722	-	−0.498	−0.473	−0.482	-	−17.0
SiC5H6	1.168	1.156	1.140	1.158	-	-	-	-	−24.3
C6H5S-	-	-	-	-	−0.546	−0.540	−0.542	−0.549	−21.5

^a Atomic charges calculated by natural population analysis (NPA) at the four different levels, and nucleus independent chemical shifts (NICS) at GIAO/M062X/6-311+G(d)//M062X/6-311G(d) level.

Table 8. The natural atomic orbital occupancy of the 3pπ atomic orbital of the sulfur atom of silaphenylthiolates 4a–6a and the parent all-carbon phenylthiolate ^a.

Compound	Natural atomic orbital occupancy [3pπ(S)]
	M062X	B3LYP	MP2	CCSD
4a	1.73	1.71	1.70	1.72
5a	1.72	1.71	1.69	1.71
6a	1.74	1.72	1.72	1.73
C6H5S-	1.76	1.74	1.74	1.75

^a From calculations using the 6-311G(d) valence triple-zeta basis set.

Table 8. The natural atomic orbital occupancy of the 3pπ atomic orbital of the sulfur atom of silaphenylthiolates 4a–6a and the parent all-carbon phenylthiolate ^a.

Compound	Natural atomic orbital occupancy [3pπ(S)]
	M062X	B3LYP	MP2	CCSD
4a	1.73	1.71	1.70	1.72
5a	1.72	1.71	1.69	1.71
6a	1.74	1.72	1.72	1.73
C6H5S-	1.76	1.74	1.74	1.75

^a From calculations using the 6-311G(d) valence triple-zeta basis set.

The silaphenylthiolates may also have a tendency to dimerize, however, at this time we refrained from investigating this process. Since the Si–S bond is weaker than the Si–O bond, and as the silaphenylthiolates overall are slightly more aromatic, one may conclude that they potentially have dimerization aptitudes which resemble those of silabenzenes. It is therefore likely that the substituents at the Si atom need to be bulkier than for the silaphenolates.

4. Conclusions

Silaphenolates and silaphenylthiolates are organosilicon species with sp² hybridized silicon atoms and they are all extensively influenced by aromaticity, although not as extensively as the parent silabenzene according to nucleus independent chemical shift (NICS) data. Their dimerization aptitude is clearly hampered by extensive Coulomb repulsion in the dimer; whereas dimerization of the parent ortho-silaphenolate is still exothermic dimerization of the parent meta- and para-silaphenolates are endothermic. Also, the dimerization of ortho-silaphenolates can be turned endothermic through moderate bulk at Si exerted by, for example, a SiMe₃ group.

To conclude, the silaphenolates, and possibly also silaphenylthiolates, should be interesting targets for synthesis as they could constitute novel (small) compound classes influenced by silaaromaticity.
