The Reaction Mechanism of Claisen Rearrangement Obtained by Transition State Spectroscopy and Single Direct-Dynamics Trajectory

Abstract

Chemical bond breaking and formation during chemical reactions can be observed using “transition state spectroscopy”. Comparing the measurement result of the transition state spectroscopy with the simulation result of single direct-dynamics trajectory, we have elucidated the reaction dynamics of Claisen rearrangement of allyl vinyl ether. Observed the reaction of the neat sample liquid, we have estimated the time constants of transformation from straight-chain structure to aromatic-like six-membered ring structure forming the C¹-C⁶ bond. The result clarifies that the reaction proceeds via three steps taking longer time than expected from the gas phase calculation. This finding provides new hypothesis and discussions, helping the development of the field of reaction mechanism analysis.

1. Introduction

Phenomena which are too fast to be directly observed by our eye, can be visualized by observing them using strobe lights. The use of such stroboscopic method to observe ultrafast chemical bond breaking and formation in chemical reactions has been a long-awaited dream for chemists. Lord G. Porter was awarded Nobel Prize in Chemistry for his contribution to the technique of flash photolysis [1].

After the first report of laser oscillation in 1960 [2], laser pulses have been used as strobe lights and its time duration has been kept trying to be shortened as short as attosecond order [3,4,5]. In the field of ultrafast optical measurement, the shorted pulse of femtosecond strobe light enabled us to observe electronic and vibration spectra in transition states of photoreactions. Zewail, who was awarded the Nobel Prize in Chemistry for his pioneering work on femtosecond time-resolved spectroscopy [6], has proposed “transition state spectroscopy” as a study of transition state realizing the chemists dream to observe chemical bond breaking and formation. Generally, heavy atom—hydrogen stretching vibrational modes (3000–3800 cm⁻¹) have a period of 11–9 fs, and carbonyl stretching vibrational mode and C=C bond stretching vibrational mode (1600–1750 cm⁻¹) show the vibration in a period of 21–19 fs. Therefore, using laser pulses whose duration is much shorter than the vibration periods, molecular motion in those vibrational modes can be time-resolved observing the modulation of transition probability of the corresponding wavelength in real-time. It means that molecular structure changes in photoreactions can be observed by measuring the real-time amplitudes of molecular vibrations from which time-dependent frequencies are calculated [7,8,9]. In addition, we have previously reported [8,9,10,11] that when the pump photon energy is lower than the minimum electronic transition energy, molecular vibrational modes of the electronic ground state are excited via an induced Raman process, which triggers the reaction in the electronic ground state without converting photon energy to thermal energy. As a result, thermally allowed reactions also can be observed by measuring the real-time amplitudes of molecular vibrations, from which time-dependent frequencies are calculated. In this work, a visible 5-fs laser pulse, which is much shorter than those vibration periods, was used to observe molecular structure changes in thermally allowed Claisen rearrangements, including their transition states.

2. Results and Discussions

2.1. Transition State Spectroscopy of the Claisen Rearrangement of Allyl Vinyl Ether

We have performed pump-probe measurement of neat liquid of allyl vinyl ether (AVE). Measured time-resolved absorption change traces were analyzed by time-frequency analysis [12] using a Blackmann window function of 400 fs FWHM. The result is shown in Figure 1a [10], whose x-axis and y-axis correspond to reaction time after 5 fs pulse irradiation and time dependent molecular vibration frequency, respectively. In the spectrogram, the molecular vibrational modes appear immediately after the 5 fs pulses irradiation being assigned to those of AVE; C-O-C symmetric stretching vibrational mode (ν_{s C–O–C}) of the ether group (900 cm⁻¹), C-H deformation vibrational modes (δ_C–H) of the allyl and the vinyl groups (1290 cm⁻¹ and 1320 cm⁻¹, respectively), C–H₂ deformation vibrational mode (δ_C–H2) of the methylene group (1500 cm⁻¹) and C=C stretching vibrational modes (ν_C=C) of the allyl and the vinyl groups (1650 cm⁻¹). These molecular vibrational modes agree well with the Raman data of AVE (Figure 1b).

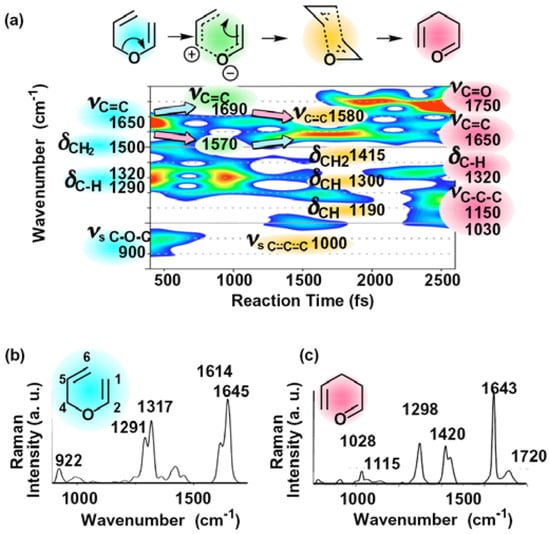

Figure 1. (a) Spectrogram of a Claisen rearrangement induced by visible 5 fs pulses [10]; (b) Raman spectrum of AVE; (c) Raman spectrum of allyl acetaldehyde.

Figure 1. (a) Spectrogram of a Claisen rearrangement induced by visible 5 fs pulses [10]; (b) Raman spectrum of AVE; (c) Raman spectrum of allyl acetaldehyde.

The CH₂ deformation vibrational mode of the methylene group and the C–O–C symmetric stretching vibrational mode of the ether group disappear at about 800 fs delay. It implies that the C⁴-O bond is weakened or broken in the first step of the reaction. The wavenumber shifts of the C=C bonds stretching modes also suggest that the C⁴-O bond is weakened. Just after the 5 fs pulses irradiation, the C=C bond stretching vibrational mode of the vinyl and that of the allyl groups appear around 1650 cm⁻¹. Then, the C⁴-O bond weakening causes the electronic density of the allyl and the vinyl groups to decrease and increase, respectively. Therefore, the C=C bond stretching vibrational mode observed at 1650 cm⁻¹ was separated into a red-shifted mode toward 1570 cm⁻¹ and in a blue-shifted mode toward 1690 cm⁻¹.

After the C⁴-O bond weakening, electrons transfer from the vinyl group to the allyl group to form a weak C¹-C⁶ bond, which causes an increase and decrease of the electronic density of the allyl and the vinyl groups, respectively. Thus, the C⁵=C⁶ bonds stretching vibrational mode of the allyl group is blue-shifted from 1570 to 1580 cm⁻¹, and the C¹=C² bonds stretching vibrational mode of the vinyl group is red-shifted from 1690 to 1580 cm⁻¹. In addition, the electron transfer from the vinyl group to the allyl group makes the C=C bonds of both of the allyl and the vinyl groups equivalent having the same wavenumber of 1580 cm⁻¹ around 1500 fs delay, which implies that aromatic-like C=C bonds are formed. This result shows that the generated intermediate has an aromatic-like six-membered structure. Finally, C⁴-O bond breaking and C¹-C⁶ bond formation proceed simultaneously to generate allyl acetaldehyde being observed in appearance of molecular vibrational modes around 2,000 fs delay. The frequencies of the new modes at 1030, 1150 and 1750 cm⁻¹ agree well with the Raman data of allyl acetaldehyde (Figure 1c), which can be assigned to the C-C-C symmetric stretching vibrational mode (ν_{s C–C–C}), the C–C–C asymmetric stretching vibrational mode (ν_{as C–C–C}), and the C=O stretching vibrational mode (ν_C=O), respectively.

In addition, the initial phases of the observed molecular vibrational modes appeared immediately after the 5 fs pulses irradiation (900, 1320, and 1650 cm⁻¹) are close to sine-like within ±0.21 radian (Figure 2). Therefore, this result conforms that the observed molecular vibrational modes are associated with the wavepacket in the ground state.

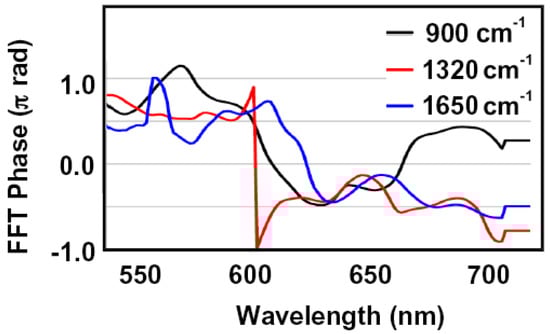

Figure 2. Fourier initial phase spectra of 900 cm⁻¹ (black line), 1320 cm⁻¹ (red line), and 1650 cm⁻¹ (blue line) modes.

Figure 2. Fourier initial phase spectra of 900 cm⁻¹ (black line), 1320 cm⁻¹ (red line), and 1650 cm⁻¹ (blue line) modes.

[3,3]-Sigmatropic rearrangements of allyl aryl ethers were reported by Claisen in 1912 [13], which has been followed by broad variations of the Claisen rearrangements as below. After the first report of [3,3]-sigmatropic rearrangements of allyl vinyl ether in 1938 by Schuler and Murphy [14] and its first kinetic study [15], the [3,3]-sigmatropic rearrangement of allyl vinyl ether has been widely studied as a most simple model of the Claisen rearrangement in kinetic isotope effect measurements in experiments and reaction mechanism analysis in theoretical calculations [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]. In the transition state of the Claisen rearrangement, substitution and solvent were reported to affect the competing processes of C⁴-O bond breaking and C¹-C⁶ bond formation, resulting in changes of the detailed structure of the transition states [32]. In general, three possible mechanisms have been suggested for the Claisen rearrangement mechanism of allyl vinyl ether [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]. In the first mechanism, the reaction proceeds in a synchronous concerted pathway via an aromatic-like transition state. The second possible mechanism proposes an asynchronous stepwise pathway via a bis-allyl like transition state, in which C⁴-O bond breaking takes place in the first step of the reaction. The third possible mechanism indicates an asynchronous stepwise pathway via a 1-4-diyl-like transition state, in which C¹-C⁶ bond formation takes place in the first step of the reaction. In this work, we have observed intermediates and transition states which indicate a new possible mechanism for the Claisen rearrangement. The mechanism is described by a three-step pathway. At first, the C⁴-O bond is weakened to generate a bis-allyl-like intermediate. Next, the formation of a weak C¹-C⁶ bond results in the generation of an aromatic-like six-membered intermediate. Finally, C⁴-O bond breaking and C¹-C⁶ bond formation occur simultaneously to generate allyl acetaldehyde (Figure 3). This resembles the transiton state reported in the Claisen rearrangement of alkoxy allyl enol ether [33].

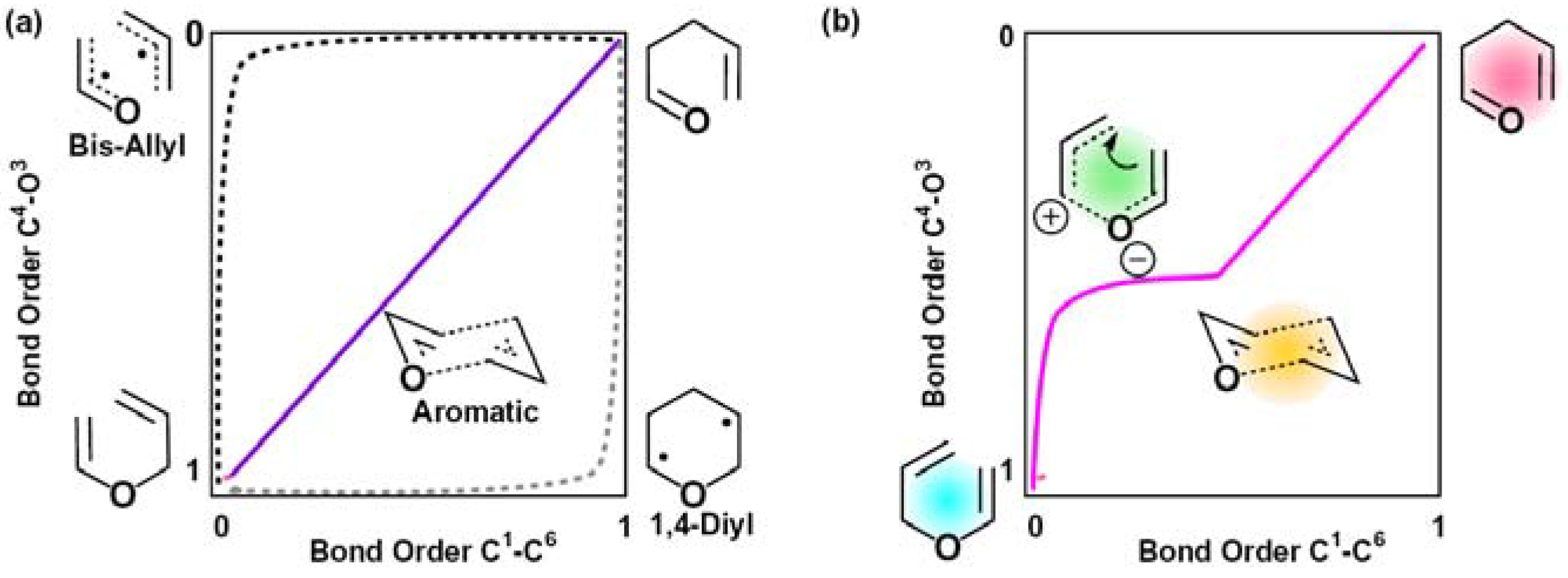

Figure 3. Transition-state profile for the Claisen rearrangement. (a) Purple curve: a synchronous concerted pathway reaction via an aromatic-like TS. Black curve: a stepwise pathway reaction via a bis-allyl like TS. Gray curve: a stepwise pathway reaction via a 1-4-diyl like TS; (b) Red curve: this work.

Figure 3. Transition-state profile for the Claisen rearrangement. (a) Purple curve: a synchronous concerted pathway reaction via an aromatic-like TS. Black curve: a stepwise pathway reaction via a bis-allyl like TS. Gray curve: a stepwise pathway reaction via a 1-4-diyl like TS; (b) Red curve: this work.

In any general thermally activated reaction, the reactant spends a substantial part of the total reaction time waiting for the very rare circumstance to get sufficient energy in the reaction coordinate. Once it does, the rest of the reaction is very fast. In other words, the reaction does not progress along the reaction coordinate at constant speed. However, the calculated spectrogram in Figure 1 showed that the reaction progressed in a different way as follows. The first step of the reaction (generation of a bis-allyl-like intermediate) proceeds in 800–1,000 fs. The second step generates an aromatic-like six-membered intermediate in 300–500 fs. The final step of the three-step pathway finishes in several tens to several hundreds femtoseconds. The observed reaction timescale was confirmed by theoretical calculation of single direct-dynamics trajectory.

2.2. Single Direct-Dynamics Trajectory

Molecular dynamics of the Claisen rearrangement of AVE was simulated by dynamic reaction coordinate (DRC) calculations with large kinetic energy equally assigned to all degrees of freedom of the molecule in an isolated condition. The calculations were performed with GAMESS 2009 program package [34]. Trajectories were computed at the B3LYP/6-311G+(d,p) level of theory. Excess kinetic energy of 8–12 kcal/mol was provided for each freedom degree in the calculation. Several trajectory calculations with different directions of initial velocities generated randomly were carried out. A bow-like structured AVE obtained in the intrinsic reaction coordinate (IRC) calculation was used as an initial structure of the DRC calculation (Figure 4).

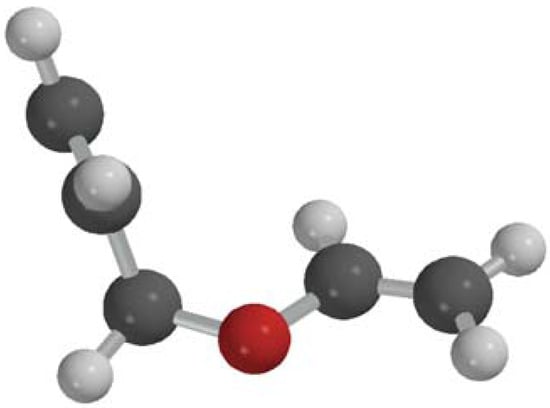

Figure 4. Bow-like structured AVE obtained in the IRC calculation.

Figure 4. Bow-like structured AVE obtained in the IRC calculation.

Figure 5 summarizes typical time evolutions of length of bonds that dissociates (C⁴-O) and forms (C¹-C⁶) in the Claisen rearrangement. A successful trajectory which underwent the Claisen rearrangement was observed in a calculation with the initial kinetic energy of 10 kcal/mol (Figure 5b). Dissociation of C⁴-O bond and decrease of distance between C¹ and C⁶ lead to the aromatic-like six membered structure around 320 fs after large elongation and recovery of the dissociating bond length at 200 fs.

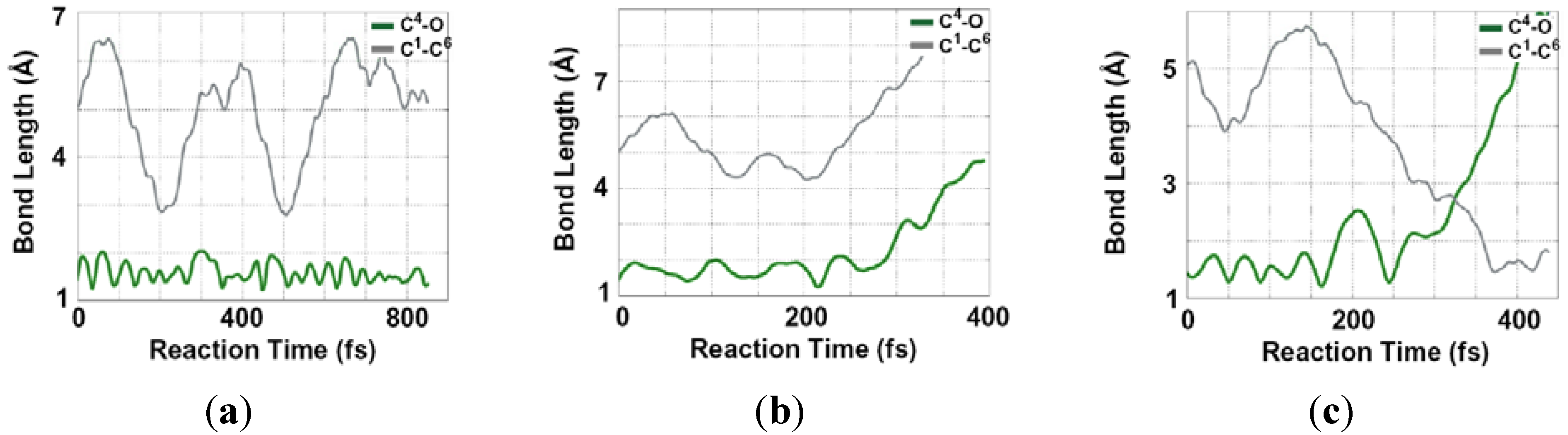

Figure 5. Bond length changes of C⁴-O bond (green curve) and C¹-C⁶ bond (gray curve) observed in the DRC trajectories with initial kinetic energies of (a) 8 kcal/mol, (b) 10 kcal/mol, and (c) 12 kcal/mol.

Figure 5. Bond length changes of C⁴-O bond (green curve) and C¹-C⁶ bond (gray curve) observed in the DRC trajectories with initial kinetic energies of (a) 8 kcal/mol, (b) 10 kcal/mol, and (c) 12 kcal/mol.

Time evolutions of bond lengths of C¹=C² and C⁵=C⁶ in the reactive trajectory (Figure 6) indicate that the first structure of the trajectory calculation shown in Figure 4 corresponds to the structure in the 800–1,000 fs time region of the spectrogram. Those bond lengths are observed to be distinctly different, ~1.35 and ~1.42Å, respectively, during 0 fs to 200 fs, which agree with C=C stretching modes appearing at 1690 and 1570 cm⁻¹ around 1,000 fs after photo-excitation in the spectrogram.

After the initial phase, those bond lengths in the trajectory become almost identical when C⁴-O bond starts to break and the aromatic-like six-membered structure forms during 200 fs to 320 fs. This behavior is consistent with merge of the two C=C stretching bands to a single band of the aromatic-like six-membered structure appearing at 1580 cm⁻¹ around 1,500 fs delay in the spectrogram.

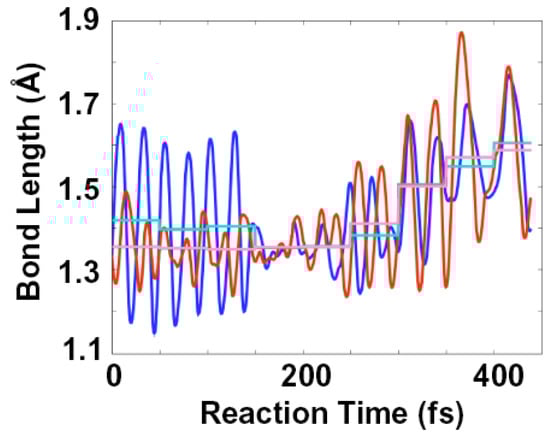

Figure 6. Time evolutions of bond lengths of C¹=C² (blue curve) and C⁵=C⁶ (red curve) in the trajectory with initial kinetic energy of 10 kcal/mol. Means in 50 fs periods are also indicated (light blue and pink lines, respectively).

Figure 6. Time evolutions of bond lengths of C¹=C² (blue curve) and C⁵=C⁶ (red curve) in the trajectory with initial kinetic energy of 10 kcal/mol. Means in 50 fs periods are also indicated (light blue and pink lines, respectively).

In the reactive trajectory, the product is generated within ~150 fs after the formation of the aromatic-like six-membered structure. The time constant is half of that observed in the spectrogram. The discrepancy arises presumably due to the isolated condition of the trajectory calculation which lacks interaction with surrounding molecules. Molecular friction caused by the interaction with surrounding molecules in neat solvent used in the experiment could slow the product formation.

In the case of the initial kinetic energy of 8 kcal/mol, the C⁴-O bond did not dissociate and in turn the Claisen rearrangement was not observed (Figure 5a). Although C¹ and C⁶ atoms approached closely during the trajectory, thermal elongation of C⁴–O bond was not enough to initiate the rearrangement. On the other hand, when the initial kinetic energy of 12 kcal/mol was supplied, the larger excess energy led to fragmentation, i.e., C⁴-O bond dissociation without bond formation between C¹ and C⁶ atoms (Figure 5c). However, the fragmentation would be strongly suppressed in neat solvent due to caging effect. Furthermore, an NMR measurement confirmed that the product was pure allyl acetaldehyde, whereas such fragmentations are expected to generate various product species. We therefore conclude that the rearrangement proceeds through the aromatic-like six membered structure as observed in the trajectory with the initial kinetic energy of 10 kcal/mol.

3. Experimental

3.1. Visible 5-fs Laser System

The ultrashort pulse laser [35] and ultrafast spectroscopy system used in the measurement is described elsewhere [36] and it is briefly summarized in the following. The output pulse from a Ti:sapphire regenerative amplifier (Spectra Physics Spitfire) with 100 fs duration, centered at 790 nm, and 5 kHz repetition rate was separated by a beam splitter in two pulses. One of the two pulses was focused into a β-BaB₂O₄ (BBO) crystal (0.4 mm-thick, θ = 29°) to generate second harmonic (SH) pulse, which was used as a pump pulse in the following optical parametric amplification. The other pulse of the separated two pulses was focused in a 2mm-thick sapphire plate to generate femtosecond white light broadening spectral bandwidth by third order nonlinear effect of self phase modulation. The white light pulse was amplified in a non-collinear optical parametric amplifier (NOPA) pumped by the SH pulse. In the NOPA, the angle between the SH pump pulse and the white light seed pulse was set to be 3.7 degrees in the non-linear crystal (type-I BBO crystal, 1 mm-thick, θ = 31.5°) to satisfy the phase matching condition in broad visible spectral region, which results in broadband amplification of the white light seed pulse. A prism pair and a chirped mirror pair were used to compensate material dispersion compressing the pulse duration as short as 5 fs to be used for pump-probe measurement. The pulse duration can be compressed more as short as 3.9 fs inserting an additional chirp compressor made of a diffraction grating and a deformable mirror.

3.2. “The Reaction in the Electronic Ground State”, Triggered by the Visible 5-fs Pulse

Most organic compounds have absorption bands in the ultraviolet region, therefore the visible 5 fs pulse with broad bandwidth of 525–725 nm does not excite their electronic states by single photon excitation, but induces their molecular vibration via stimulated Raman process with Λ-type interaction in the ground state or V-type interaction in the excited state [37]. The 5 fs pulse has a bandwidth of 5200 cm⁻¹, which can excite high energy vibration bands as high as in the case of thermal excitation at 7,500 K. Meanwhile, being different from the standard thermal reaction, certain vibration modes are selectively excited by selection rule and cross section of the stimulated Raman process. Activated vibration modes have high vibration quantum number comparable with that of thermal excitation at 7,500 K, while other vibration modes keep the low vibration quantum number of that at room temperature. This direct excitation of vibration modes and its relaxation and transfer to other modes in several hundred femtoseconds [38] will excite vibration modes on the reaction pathway. Thus, this impulsive excitation by the visible 5 fs pulse triggers “the reaction in the electronic ground state”, which is different from that induced by electronic state excitation under photo irradiation conditions.

4. Conclusions

In conclusion, the Claisen rearrangement of allyl vinyl ether was triggered by a new scheme exciting the sample by visible 5 fs pulses whose photon energy is much lower than the absorption band of the sample. Observing the molecular vibration frequency changes in the reaction, including its transition states, elucidated the reaction mechanism of the Claisen rearrangement in the new scheme. The time constants of transformation from straight-chain structure to aromatic-like six-membered ring structure forming the C¹-C⁶ bond were estimated from the observed dynamics of the molecular vibration modes. It was compared with the molecular dynamics simulated by dynamic reaction coordinate calculations with large kinetic energy. The result clarifies that the reaction proceeds via three steps showing agreement between the observed molecular vibration frequency change and that predicted in the dynamic reaction coordinate calculations. This finding provides a new hypothesis and discussions, helping the development of the field of reaction mechanism analysis.
