Direct 2,3-O-Isopropylidenation of α-D-Mannopyranosides and the Preparation of 3,6-Branched Mannose Trisaccharides

by
Rui Jiang
,
Guanghui Zong
,
Xiaomei Liang
,
Shuhui Jin
,
Jianjun Zhang
* and
Daoquan Wang
Department of Applied Chemistry, China Agricultural University, Beijing 100193, China
*
Author to whom correspondence should be addressed.
Molecules 2014, 19(5), 6683-6693; https://doi.org/10.3390/molecules19056683
Submission received: 31 March 2014 / Revised: 9 May 2014 / Accepted: 19 May 2014 / Published: 22 May 2014
(This article belongs to the Special Issue Oligosaccharides and Glyco-Conjugates)
Browse Figures
Versions Notes

Abstract

:
A highly efficient, regioselective method for the direct 2,3-O-isopropylidenation of α-d-mannopyranosides is reported. Treatment of various α-d-mannopyranosides with 0.12 equiv of the TsOH·H2O and 2-methoxypropene at 70 °C gave 2,3-O-isopropylidene-α-d-mannopyranosides directly in 80%~90% yields. Based on this method, a 3,6-branched α-d-mannosyl trisaccharide was prepared in 50.4% total yield using p-nitrophenyl 2,3-O-isopropylidene-α-d-mannopyranoside as the starting material.

Graphical Abstract

1. Introduction

Many carbohydrates isolated from natural products were found to be involved in a wide range of biological processes. Further investigation of the structure-activity relationships of these carbohydrates normally is often restricted, since the isolated compounds can’t meet the purity and quantity needs of pharmacologists. Thus, the synthesis of structurally complex carbohydrates via chemical methods has become very important, and various kinds of suitably functionalized monosaccharide building blocks are basic requirements in the synthesis of oligosaccharides [1,2,3,4].
The isopropylidene moiety is one of the frequently used protecting groups in oligosaccharide synthesis for the temporary protection of hydroxyl groups. 2,3-O-Isopropylidene-α-d-manno-pyranosides are important building blocks in the synthesis of mannose-containing derivatives [5,6,7], and many methods have been reported for the preparation of these compounds. In 1977, Evans [8] disclosed that by the reaction of methyl α-d-mannopyranoside with 2,2-dimethoxypropane in the presence of sulfuric acid for 48 h, methyl 2,3-O-isopropylidene-α-d-mannopyranoside was obtained in 56% yield. Obviously, this reaction is time-consuming and the yield is only barely acceptable. In most cases, 2,3-O-isopropylidene-α-d-mannopyranosides are prepared in two steps from α-d-manno- pyranosides: 2,3:4,6-di-O-isopropylidenation of mannopyranosides followed by selectively removal of 4,6-O-isopropylidene groups in the presence of acids. The reported acids including aq. HCl [9], 60% aq. AcOH [10], aq. H2SO4 [11], Zn(NO3)2·6H2O [12], BiCl3 [13]. To better control the selectivity and efficiency of the hydrolysis, Dowex H+ ion-exchange resin [14], FeCl3·6H2O on silica [15], NaHSO4 on silica [16] and HClO4 on silica [17] were also used in some cases. Nevertheless, many of these methods suffer from the use of corrosive materials, rigorous reaction conditions and incompatibility with various other protecting groups. Some of the acids used in the reaction are strongly acidic and the selectivity was compromised, leading to decreased yields of the desired products. Here we wish to report a direct and regioselective 2,3-O-isopropylidenation of α-d-mannopyranosides method, and its application in the synthesis of mannose oligosaccharide exemplified by the efficient preparation of a 3,6-branched α-d-mannosyl trisaccharide.

2. Results and Discussion

As shown in Scheme 1, reaction of the known p-methoxyphenyl α-d-mannopyranoside [18] (1a, 1 mmol) with 2-methoxypropene (1.05 mmol) in anhydrous N,N-dimethylformamide containing a trace of p-toluenesulfonic acid (0.02 mmol) at room temperature occurs preferentially at the primary hydroxyl group, to give p-methoxyphenyl 4,6-O-isopropylidene-α-d-mannopyranoside (2a) [19]. The reaction was terminated at the end of the reaction (2 h) by addition of triethylamine to neutralize the p-toluene-sulfonic acid. Incidentally, we discovered that after extension of the reaction time to 10 h or more without neutralizing the p-toluenesulfonic acid, a new by-product 3a was formed in 20%~30% yields. The by-product 3a was purified and it was confirmed to be p-methoxyphenyl 2,3-O-isopropylidene-α-d-mannopyranoside, judging from its 1H-NMR and 13C-NMR spectrum identical to the published ones [5]. Obviously, rearrangement of the p-methoxyphenyl 4,6-O-isopropylidene-α-d-mannopyranoside to p-methoxyphenyl 2,3-O-isopropylidene-α-d-mannopyranoside took place during the course of the reaction. It is important to note that, after a series of experiments, the efficiency of the rearrangement was found to depend on the amount of acid added and the reaction temperature, and the isolated yields of 3a were greatly improved under the optimized reaction conditions, and finally, reaction of compound 1a with 2-methoxypropene (1.05 equiv) in anhydrous N,N-dimethylformamide containing 0.1 equiv of p-toluene-sulfonic acid at 70 °C for 4 h, gave 3a in 93% yield.
Molecules 19 06683 g001 550

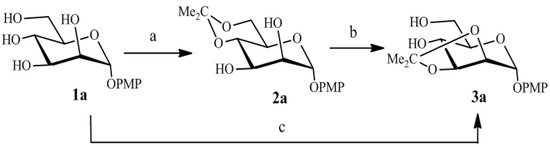

Scheme 1. Synthesis of 2a and 3a.
Scheme 1. Synthesis of 2a and 3a.
Molecules 19 06683 g001
Reagents and Conditions: (a) 2-methoxypropene, TsOH·H2O, DMF, r.t., 2 h, 94%; (b) r.t., 10 h, 28%; (c) 2-methoxypropene, TsOH·H2O, DMF, r.t. then 70 °C, 4 h, 93%.
A number of suitably functionalized mannose intermediates 1b [20], 1c [6], 1d [7], 1e [21], 1f [22] and 1g [23] were prepared from the commercially available d-mannose, using earlier reported reaction conditions. With the optimized reaction conditions in hand, α-d-mannopyranosides 1b~1f were used as substrates to investigate the general applicability of the method for the direct synthesis of 2,3-O-isopropylidene-α-d-mannopyranosides 3b~3f. Though the reaction conditions are slightly different for each substrate, we were delighted to find that good to excellent yields (85%~93%) of the corresponding 2,3-O-isopropylidene-α-d-mannopyranoside derivatives were obtained in all cases, and the structure were confirmed by their NMR data (Table 1).
Table
Table 1. Synthesis of 2,3-O-isopropylidene-α-d-mannopyranosides derivatives. Molecules 19 06683 i001
Table 1. Synthesis of 2,3-O-isopropylidene-α-d-mannopyranosides derivatives. Molecules 19 06683 i001
EntryReactionRTsOH (equiv)T(°C)Time(h)Yield (%)Ref. *
11a Molecules 19 06683 i002 3a Molecules 19 06683 i0030.170493[5]
21b Molecules 19 06683 i002 3b Molecules 19 06683 i0050.3501.589-
31c Molecules 19 06683 i002 3c Molecules 19 06683 i0070.170291[6]
41d Molecules 19 06683 i002 3d Molecules 19 06683 i0090.3703.592[7]
51e Molecules 19 06683 i002 3e Molecules 19 06683 i0110.5504.585[21]
61f Molecules 19 06683 i002 3f Molecules 19 06683 i0130.170288[22]
71g Molecules 19 06683 i002 3g Molecules 19 06683 i0150.370290[23]
* Refs. of known products.
The above synthesized 2,3-O-isopropylidene-α-d-mannopyranosides are useful building blocks for the preparation of mannose-containing oligosaccharides and glycoconjugates. As an example, a 3,6-branched mannose trisaccharide (10, Scheme 2), the core structure of N-linked glycan mannose oligosaccharides, was synthesized efficiently. N-linked glycan mannose oligosaccharides play a vital role in fundamental biological processes including cell differentiation, malignant transformation, human CD2 adhesion function and HIV infection, and the 3,6-branched mannosyl trisaccharide is reported to be the much better ligand of mannose-specific binding proteins than mono- and linear oligomannosides [24,25,26,27]. Due to their biological importance, 3,6-branched mannosides have become the synthetic focus of many research groups [28,29,30,31] and the development of new synthetic strategies for their efficient construction is of continue interest.
Several synthetic methods have already been reported for 3,6-branched mannose trisaccharides [32,33,34,35,36,37,38,39,40,41]. In 1991, Kaur and Hindsgaul [34] revealed a fifteen-step method for the synthesis of 3,6-branched trisaccharide from commercial available starting materials, but many of these steps involved time-consuming and delicate protecting group manipulations to synthesize 2,4-diprotected mannosides for the subsequent glycosylation. Later, Hindsgaul [35] and Bencomo [37] reported a general approach based on random glycosylation for octyl- and 5-azido-3-oxapentyl-α-d-mannopyranosides, respectively. They used acetobromosugars as the glycosyl donor and mercury (II) cyanide and mercury (III) bromide as the catalysts. In 2000, Kobayashi [38] examined a similar but more convenient glycosylation of p-nitrophenyl a-d-mannopyranoside using per-O-acetyl-a-d-mannopyranosyl imidate as the donor. The reaction gave a desired 3,6-branched trisaccharide in 42% yield as the major product, together with di-, tri- and tetrasaccharide byproducts. Orthoester chemistry is an efficient method for the synthesis of these 3,6-branched trisaccharides [32,36,40,41,42]. Arnarp and Lonngren [42] described in 1978 a slightly more circuitous route that starts with stannylated benzyl a-d-mannopyranoside, the 3,6-branched mannotrioside was obtained in good yield via a protection-deprotection sequence that circumvents the orthoester rearrangement. In 1993, Oscarson [36], and in 2005, Backinowsky [40] and Mukhopadhyay [41] used orthoester chemistry to provide direct access to a 2,4-diprotected mannoside acceptor for the subsequent glycosylation with a mannoside donor. This approach was more convenient and efficient and the desired 3,6-branched mannotrioside was obtained in satisfactory yield. In this paper we describe a linear synthesis of the target 3,6-branched mannotrioside (10) using p-nitrophenyl 2,3-O-isopropylidene-α-d-mannopyranoside (3g) as the mannoside acceptor and 2,3,4,6-tetra-O-benzoyl-α-d-mannopyranoside trichloroacetimidate (4) as the donor. The 3,6-branched α-d-mannosyl trisaccharide (10) was obtained in 50.4% total yield (Scheme 2).
Molecules 19 06683 g002 550

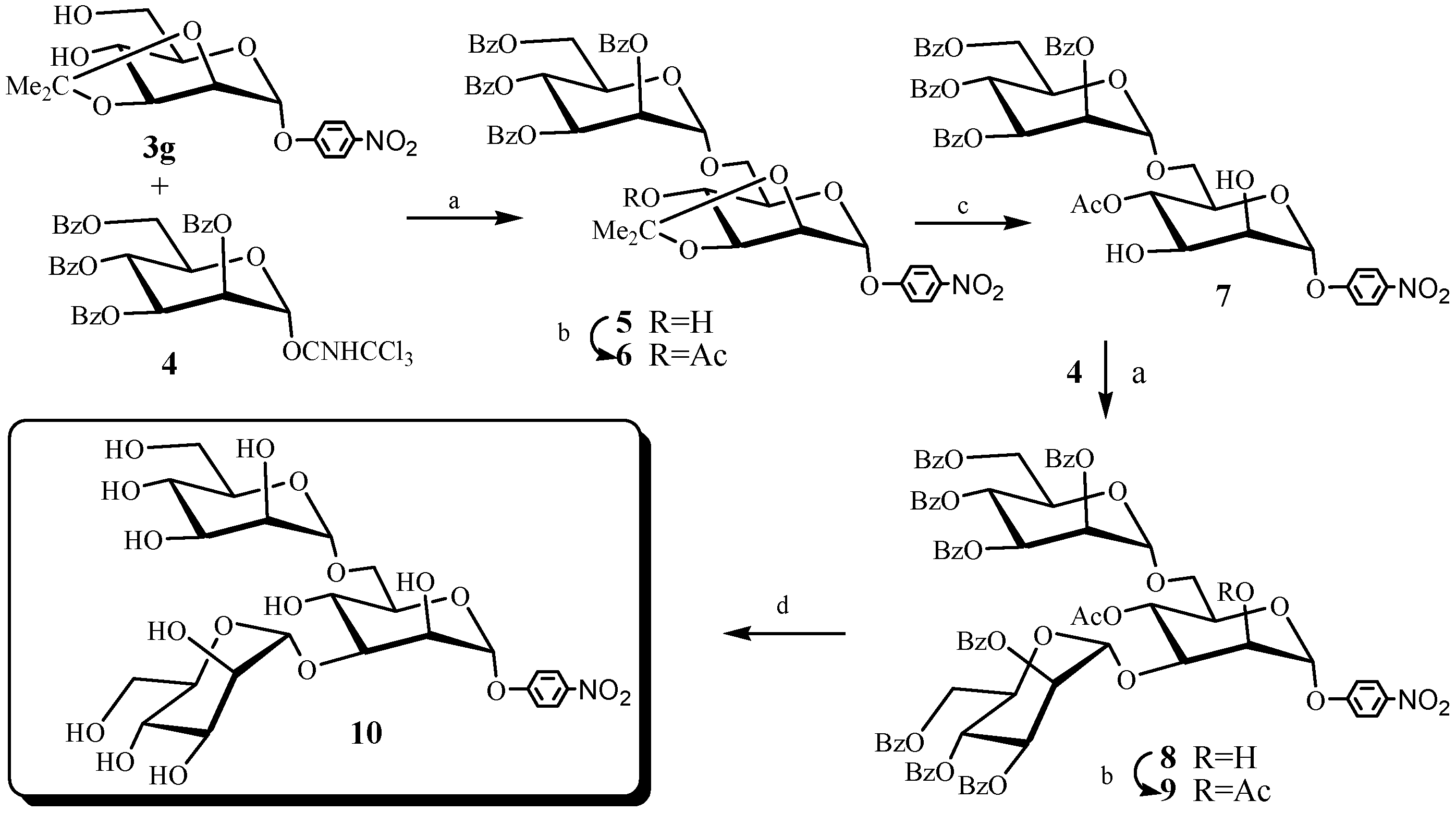

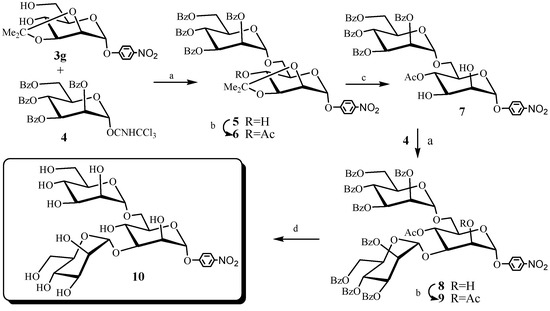

Scheme 2. Synthesis of 3,6-branched α-d-mannose trisaccharide 10.
Scheme 2. Synthesis of 3,6-branched α-d-mannose trisaccharide 10.
Molecules 19 06683 g002
Reagents and conditions: (a) TMSOTf, CH2Cl2, −15 °C to rt, 2 h, 92% for 5, 86% for 8; (b) Py, Ac2O, 96% for 6, 95% for 9; (c) 70% AcOH, 70 °C, 2 h, 91%; (d) satd NH3-MeOH, rt, 120 h, 73%.

3. Experimental Section

3.1. General Methods

Optical rotations were determined with a Perkin–Elmer model 241-MC automatic polarimeter for soln in a 1-dm, jacketed cell. 1H and 13C-NMR spectra were recorded with Bruker DPX300 and Bruker AVANCE600 spectrometers in CDCl3 or D2O solns. Internal references: TMS (δ 0.000 ppm for 1H), CDCl3 (δ 77.00 ppm for 13C), HOD (δ 4.700 for 1H). High-resolution mass spectra (HRMS) was performed by the Peking University. Thin-layer chromatography (TLC) was performed on silica gel HF with detection by charring with 30% (v/v) H2SO4 in MeOH or by UV detection. Column chromatography was conducted by elution of a column of silica gel (200–300 mesh) with EtOAc/petroleum ether (bp 60–90 °C) as the eluent. Solns were concd at a temperature < 60 °C under diminished pressure.

3.2. Chemical Synthesis: Representative Procedure for the Synthesis of 2,3-O-Isopropylidene-α-d-mannopyranosides 3a~3f

To a solution of compound 1a~1g (2 mmol) in anhydrous DMF (20 mL) was added TsOH·H2O (0.2~1 mmol) and 2-methoxypropene (0.2 mL, 2.1 mmol) under N2 atmosphere. The mixture was stirred at rt for 1 h and then for another 1~4 h at 50~70 °C, at the end of which time TLC (EtOAc) indicated that the reaction was complete. The reaction mixture was neutralized with Et3N, and then concentrated under reduced pressure to remove DMF, the residue was dissolved in CH2Cl2 (50 mL), and washed with water (20 mL), then the organic phase was dried over Na2SO4. Evaporation and purification by flash column chromatography afforded compounds 3a~3g.
p-Methoxyphenyl 2,3-O-isopropylidene-α-D-mannopyranoside (3a): (0.6 g, 93%). Molecules 19 06683 i016 +69.7° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3) δ 7.00–6.82 (2m, 4H, Ar-H ), 5.67 (s, 1H, H-1), 4.38 (d, J2,3 = 5.7 Hz, 1H, H-2), 4.32 (m, 1H, H-3), 3.84–3.78 (m, 7H, H-4, H-5, H-6, OCH3), 2.82 (d, J = 3.9 Hz, 1H, 4-OH), 2.04 (m, 1H, 6-OH), 1.56, 1.41 (2s, 6H, Me2C). 13C-NMR (75 MHz, CDCl3): δ 155.1, 149.7, 117.8, 114.6, 109.8, 96.4, 78.5, 75.6, 70.2, 69.0, 61.8, 55.5, 27.9, 26.1. HRMS for C16H26NO7 (M+NH4)+ 344.17038. Found: 344.17035.
Isopropylthio 2,3-O-isopropylidene-α-d-mannopyranoside (3b): (0.49 g, 89%). Molecules 19 06683 i016 +128.7° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3) δ 5.63 (s, 1H, H-1), 4.18 (d, J2,3 = 5.5 Hz, 1H, H-2), 4.11 (m, 1H, H-3), 4.01 (m, 1H, H-5), 3.88–3.77 (m, 3H, H-4, H-6), 3.10 (m, 1H, SCH(CH3)2), 2.89 (d, J = 4.0 Hz, 1H, OH), 2.16 (m, 1H, OH), 1.54, 1.36 (2s, 6H, Me2C). 1.35 (d, J = 4.8 Hz, 3H, CH(CH3)2), 1.30 (d, J = 6.9 Hz, 3H, CH(CH3)2). HRMS for C12H26SNO5 (M+NH4)+ 296.15262. Found: 296.15259.
Allyl 2,3-O-isopropylidene-α-D-mannopyranoside (3c): (0.47 g, 91%). Molecules 19 06683 i016 +68.2° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3) δ 5.96–5.85 (m, 1H, OCH2CHCH2), 5.33–5.19 (m, 2H, CH2CHCH2O), 4.89 (d, J1,2 = 1.2 Hz, 1H, H-1), 4.21–3.68 (m, 8H, H-2, H-3, H-4, H-5, H-6, CH2CHCH2O), 2.63–2.57 (m, 2H, 2OH), 1.53,1.43 (2s, 6H, Me2C). HRMS for C12H21O6 (M+H)+ 261.13326. Found: 261.13321.
Benzyl 2,3-O-isopropylidene-α-d-mannopyranoside (3d): (0.57 g, 92%). Molecules 19 06683 i016 +77.0° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3) δ 7.40–7.26 (m, 5H, ArH), 5.12 (s, 1H, H-1), 4.74 (d, J = 11.7 Hz, 1H, OCH2Ph), 4.54 (d, J = 11.7 Hz, 1H, OCH2Ph), 4.20–4.16 (m, 2H), 3.85–3.83 (m, 2H), 3.78–3.66 (m, 2H), 3.30–2.88 (s, 1H, OH), 2.35 (s, 1H, OH), 1.52, 1.34 (2s, 6H, Me2C). HRMS for C16H26NO6 (M+NH4)+ 328.17546. Found: 328.17548.
Ethyl 2,3-O-isopropylidene-1-thio-α-d-mannopyranoside (3e): (0.44 g, 85%). Molecules 19 06683 i016 +136.8° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3) δ 5.58 (s, 1H, H-1), 4.19 (m, 1H, H-2), 4.14 (m, 1H, H-3), 3.99–3.93 (m, 1H, H-5), 3.88–3.77 (m, 3H, H-4, H-6), 2.74–2.49 (m, 3H, SCH2, OH), 2.07 (t, J = 6.5 Hz, 1H, OH), 1.54 (s, 3H, Me2C), 1.40–1.25 (m, 6H, SCH2CH3, Me2C). HRMS for C11H24SNO5 (M+NH4)+ 282.13697. Found: 282.13696.
Phenyl 2,3-O-isopropylidene-1-thio-α-d-mannopyranoside (3f): (0.55 g, 88%). Molecules 19 06683 i016 +197.8° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3) δ 7.50–7.26 (m, 5H, ArH), 5.81 (s, 1H, H-1), 4.35 (d, J2,3 = 5.5 Hz, 1H, H-2), 4.18 (dd, J2,3 = 5.5 Hz, J3,4 = 7.5 Hz, 1H, H-3), 4.08–4.02 (m, 1H, H-5), 3.83–3.70 (m, H-4, H-6), 2.92 (d, J = 4.0 Hz, OH), 1.95 (t, 1H, J = 6.3 Hz, OH), 1.54,1.38 (2s, 6H, Me2C). HRMS for C15H24SNO5 (M+NH4)+ 330.13697. Found: 330.13699.
p-Nitrophenyl 2,3-O-isopropylidene-α-d-mannopyranoside (3g): (0.61 g, 90%). Molecules 19 06683 i016 +94.8° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3) δ ppm 8.25–8.20 (m, 2H, Ar-H), 7.18–7.13 (m, 2H, Ar-H), 5.90 (s, 1H, H-1), 4.38 (d, J2,3 = 5.7 Hz, 1H, H-2), 4.32 (dd, J2,3 = 5.7 Hz, J3,4 = 7.3 Hz, 1H, H-3), 3.88–3.78 (m, 3H, H-4, 2 × H-6), 3.67–3.62 (m, 1H, H-5), 2.96 (d, 1H, J = 4.0 Hz, OH), 2.05 (d, 1H, J = 3.6 Hz, OH), 1.58, 1.42 (2s, 6H, 2 × C-CH3). HRMS for C15H23NO8 (M+NH4)+ 359.1449. Found: 359.14481.
4-Nitrophenyl 2,3,4,6-tetra-O-benzoyl-α-d-mannopyranosyl-(1→6)-2,3-O-isopropylidene-α-d-mannopyranoside (5): To a cooled (−15 °C) solution of 3g (1.5 g, 4.4 mmol) and 4 (3.4 g, 4.6 mmol) in anhydrous, redistilled CH2Cl2 (80 mL) was added 4 Å molecular sieves (2 g) and the mixture was stirred under a N2 atmosphere for 30 min. Then TMSOTf (16 μL 0.09 mmol, diluted with 10 mL redistilled CH2Cl2) was added to the mixture dropwise. The reaction mixture was stirred for another 2 h, during which time the mixture was allowed to gradually warm to ambient temperature. TLC (petroleum ether–EtOAc 2:1) indicated that the reaction was complete. Then the reaction mixture was quenched with Et3N (2 drops) and filtrated. The filtrate was evaporated in vacuo to give a residue, which was purified by silica gel column chromatography (petroleum ether–EtOAc 3:1) to give disaccharide 5 (3.7g, 92%) as a white foam. Molecules 19 06683 i016 −62.6° (c 0.5 CHCl3). 1H-NMR (300 MHz, CDCl3): δ 8.31–7.23 (m, 24H, Bz-H, Ar-H), 6.07 (t, J3,4 = J4,5 = 10.0 Hz, 1H, H-4'), 5.94 (s, 1H, H-1'), 5.74 (dd, J2,3 = 3.3 Hz, J3,4 = 10.0 Hz, 1H, H-3'), 5.56 (dd, J1,2 = 1.7 Hz, J2,3 = 3.3 Hz, 1H, H-2'), 5.10 (d, 1H, J1,2 = 1.7 Hz, H-1), 4.74–4.68 (m, 1H), 4.50–4.41 (m, 3H), 4.34 (m, 1H, H-4), 4.01 (m, 1H), 3.91–3.82 (m, 3H), 2.68 (s, 1H, OH), 1.60, 1.43 (2s, 6H, 2 × C-CH3). 13C-NMR (75 MHz, CDCl3): δ 166.2, 165.6, 165.2(2) (4 × COPh), 160.6 (CNO2), 142.9, 133.4, 133.1, 133.0, 129.8, 129.7, 129.6, 129.2, 129.0, 128.9, 128.5, 128.4, 128.3, 128.2, 126.0, 116.2, 110.3, 97.6, 95.7 (2 × C-1), 78.5, 75.3, 70.3, 70.0, 69.6, 69.2, 68.9, 67.1, 66.7, 62.9, 28.0, 26.3 (2 × C-CH3). HRMS for C49H49N2O17 (M+NH4)+ 937.30257. Found: 937.30133.
4-Nitrophenyl 2,3,4,6-tetra-O-benzoyl-α-d-mannopyranosyl-(1→6)-4-O-acetyl-2,3-O-isopropylidene-α-d-mannopyranoside (6): To a solution of 5 (3.6 g, 4 mmol) in pyridine (30 mL) was added Ac2O (3.7 mL, 40 mmol). The reaction mixture was stirred at rt for 12 h, at the end of which time TLC (petroleum ether–EtOAc 2:1) indicated that the reaction was complete. The reaction mixture was concentrated, and then the residue was purified by flash column chromatography on a silica gel column (petroleum ether–EtOAc 3:1) to give compound 6 (3.6 g, 96%) as a foamy solid. Molecules 19 06683 i016 −53.3° (c 0.3 CHCl3). 1H-NMR (300 MHz, CDCl3): δ 8.29 (d, J = 9.1 Hz, 2H, Bz-H), 8.10, 7.80 (2d, J = 7.4 Hz, 4H, C6H4NO2 ), 7.58–7.24 (m, 14H, Bz-H ), 6.05 (t, J3,4 = J4,5 = 10.0 Hz, 1H, H-4'), 5.95 (s, 1H, H-1'), 5.65 (dd, J2,3 = 3.3 Hz, J3,4 = 10.0 Hz, 1H, H-3'), 5.46 (m, 1H, H-2'), 5.10 (t, J3,4 = J4,5 = 10.3 Hz, 1H, H-4), 5.01 (s, 1H, H-1), 4.73 (d, J3,4 = 10.3 Hz, 1H, H-3), 4.49–4.40 (m, 4H), 4.05–3.88 (m, 2H), 3.53 (m, 1H), 2.21 (s, 3H, CH3CO), 1.60, 1.42 (2s, 6H, 2 × C-CH3). 13C-NMR (75 MHz, CDCl3): δ 169.7 (COCH3), 166.1, 165.6, 165.2, 165.1 (4 × COPh), 160.4(CNO2), 143.1, 133.4, 133.1, 133.0, 129.8, 129.7, 129.6, 129.1, 129.0, 128.9, 128.5, 128.4, 128.2, 126.0, 116.1, 110.6, 97.3, 95.4 (2 × C-1), 77.1, 75.4, 75.1, 70.2, 69.5, 69.3, 69.0, 68.3, 66.9, 66.8, 62.9, 27.5, 26.3(2 × C-CH3), 20.8 (COCH3). HRMS for C51H51N2O18 (M+NH4)+ 979.31314. Found: 979.31201.
4-Nitrophenyl 2,3,4,6-tetra-O-benzoyl-α-d-mannopyranosyl-(1→6)-4-O-acetyl-α-d-mannopyranoside (7): Compound 6 (3.5 g, 3.6 mmol) was dissolved in 70% AcOH (60 mL) and stirred for 2 h at 70 °C, at the end of which time TLC (petroleum ether–EtOAc 1:1) indicated completion of the reaction. The mixture was concd. under diminished pressure and then coevaporated with toluene (3 × 10 mL). The residue was passed through a short silica-gel column with petroleum ether–EtOAc 3:1 as the eluent to give 7 (3.1 g, 91%) as a white solid. Molecules 19 06683 i016 –14.4° (c 1.0 CHCl3). 1H-NMR (300 MHz, CDCl3): δ 8.31-7.23 (m, 24H, Bz-H, Ar-H), 6.05 (t, J3,4 = J4,5 = 10.1Hz, 1H, H-4'), 5.81 (d, J2,3= 3.2 Hz, J3,4 = 10.1 Hz, 1H, H-3'), 5.77 (d, J1,2 = 1.6 Hz, 1H, H-1'), 5.65 (dd, J1,2 = 1.6 Hz, J2,3 = 3.2 Hz, 1H, H-2'), 5.32 (t, J3,4 = J4,5 =9.6 Hz, 1H, H-4), 5.13 (d, J1,2 = 1.6 Hz, 1H, H-1'), 4.73–4.69 (m, 1H, H-3), 4.50–4.43 (m, 2H), 4.27–4.20 (m, 2H), 3.99–3.91 (m, 2H), 3.64 (d, 1H, J 9.5 Hz, OH), 3.36–3.30 (m, 2H, H-6, OH), 2.17 (s, 3H, COCH3). 13C-NMR (75 MHz, CDCl3): δ 171.3 (COCH3), 166.1, 165.6, 165.5, 165.4 (4 × COPh), 160.6(CNO2), 142.9, 133.5, 133.4, 133.2, 133.1, 129.8, 129.7, 129.6, 129.1, 129.0, 128.8, 128.6, 128.5, 128.4, 128.2, 126.0, 116.2, 97.73, 97.70 (2 × C-1), 77.2, 70.4, 70.3, 70.1, 69.9, 69.8, 69.3, 69.1, 66.8, 66.6, 62.8, 20.8 (COCH3). HRMS for C48H47N2O18 (M+NH4)+ 939.28184. Found: 939.28088.
4-Nitrophenyl 2,3,4,6-tetra-O-benzoyl-α-d-mannopyranosyl-(1→6)-[2,3,4,6-tetra-O-benzoyl-α-d- mannopyranosyl-(1→3)]-4-O-acetyl-α-d-mannopyranoside (8): Glycosylation between disaccharide acceptor 7 (2.8 g, 3 mmol) and monosaccharide donor 4 (2.4 g, 3.1 mmol) was accomplished by following the same procedure as described above for the preparation of ditrasaccharide 5. After purification, trisaccharide 8 (3.9 g, 86%) was afforded as a white foamy solid. Molecules 19 06683 i016 –27.2° (c 0.3 CHCl3). 1H-NMR (300 MHz, CDCl3): δ 8.30–7.16 (m, 44H, Bz-H, Ar-H), 6.09 (t, J3,4 = J4,5 = 10.1 Hz, 2H, H-4', H-4''), 5.93 (dd, J2,3 = 3.3 Hz, J3,4 = 10.1 Hz, 1H, H-3'), 5.80 (dd, J2,3 = 3.3 Hz, J3,4 = 10.1 Hz, 1H, H-3''), 5.63–5.51 (m, 4H, H-2', H-2'', H-1', H-4), 5.42 (s, 1H, H-1''), 5.10 (d, J1,2 = 1.6 Hz, 1H, H-1), 4.77–4.63 (m, 4H), 4.52–4.44 (m, 3H), 4.35 (dd, J2,3 = 3.1 Hz, J3,4 = 9.5 Hz, 1H, H-3), 4.0 (d, J = 8.8 Hz, 2H, 2H-6), 3.61 (d, J = 8.8 Hz, 1H, H-6), 3.06 (d, J = 4.9 Hz, 1H, OH), 2.27 (s, 3H, COCH3). 13C NMR (75 MHz, CDCl3): δ 170.3 (COCH3), 166.2, 166.1, 165.6(2), 165.4, 165.3(2), 165.0 (8 × COPh), 160.3 (CNO2), 143.0, 133.6, 133.4, 133.3, 133.0, 129.8, 129.75, 129.7, 129.6, 129.56, 129.50, 129.1, 129.0, 128.99, 128.91, 128.8, 128.7, 128.6, 128.5, 128.4, 128.3, 128.28, 128.22, 128.1, 125.9, 116.2, 99.6, 97.6, 97.5 (3 × C-1), 79.0, 77.2, 70.8, 70.6, 70.3, 69.8, 69.7, 69.6, 69.4, 69.0, 67.1, 67.0, 66.7, 63.4, 62.8, 20.7 (COCH3). HRMS for C82H69NO27Na (M+Na)+ 1522.39508. Found: 1522.39463.
4-Nitrophenyl 2,3,4,6-tetra-O-benzoyl-α-d-mannopyranosyl-(1→6)-[2,3,4,6-tetra-O-benzoyl-α-d-mannopyranosyl-(1→3)]-2,4-di-O-acetyl-α-d-mannopyranoside (9): To a solution of 8 (105 mg, 0.07 mmol) in pyridine (2 mL) was added Ac2O (1 mL). The reaction mixture was stirred at rt for 12 h, at the end of which time TLC (petroleum ether–EtOAc 2:1) indicated that the reaction was complete. The reaction mixture was concentrated, and then the residue was purified by flash column chromatography on a silica gel column (petroleum ether–EtOAc 3:1) to give compound 9 (102 mg, 95%) as a yellow syrup. 1H-NMR (300 MHz, CDCl3): δ 8.30–7.16 (m, 44H, Bz-H, Ar-H), 6.16, 6.11 (2t, J3,4 = J4,5 =9.9 Hz, 2H, H-4', H-4''), 5.83 (dd, J2,3 = 3.3 Hz, J3,4 =9.9 Hz, 1H, H-3'), 5.80 (dd, J2,3 = 3.3 Hz, J3,4 = 9.9 Hz, 1H, H-3''), 5.70 (d, J1,2 = 1.6 Hz, 1H, H-1'), 5.65 (dd, J1,2 =1.6 Hz, J2,3 = 3.3 Hz, 1H, H-2'), 5.58 (dd, J1,2 = 1.6 Hz, J2,3 = 3.3 Hz, 1H, H-2'') 5.53 (m, 2H, H-2'', H-4), 5.44 (d, J1,2 = 1.6 Hz, 1H, H-1''), 5.07 (d, J1,2 = 1.5 Hz, 1H, H-1) 4.71–4.48 (m, 7H), 4.05–4.00 (m, 2H), 3.61 (d, J = 8.8 Hz, 1H, H-6), 2.36 (s, 3H, COCH3), 2.28 (s, 3H, COCH3). 13C-NMR (75 MHz, CDCl3): δ 170.6, 170.0 (2 × COCH3), 166.2, 166.1, 165.6, 165.5, 165.4, 165.3, 165.2(2) (8 × COPh), 160.0 (CNO2), 143.3, 133.6, 133.5, 133.4, 133.2, 133.1, 132.9, 129.8, 129.7, 129.5, 129.2, 129.1, 129.0, 128.98, 128.95, 128.6, 128.57, 128.52, 128.4, 128.36, 128.31, 128.2, 126.0, 116.4, 99.1, 97.6, 95.7 (3 × C-1), 77.2, 74.2, 70.8, 70.7, 70.3, 70.2, 69.9, 69.7, 69.2, 69.1, 67.7, 66.8, 66.7, 66.6, 62.9, 62.8, 20.7, 20.8 (2 × COCH3). HRMS for C84H71NO28Na (M+Na)+ 1564.40562. Found: 1564.40820.
4-Nitrophenyl α-d-mannopyranosyl-(1→6)-[α-d-mannopyranosyl-(1→3)]-α-d-mannopyranoside (10): Compound 8 (3.2 g, 2.1 mmol) was dissolved in satd NH3-MeOH (120 mL). After 120 h at rt, the reaction mixture was concentrated to a total volume of about 5 mL, then warm acetone (50 mL, 50 °C) was added to the mixture under vigorous stirring, and a white solid precipitate from the solution, after kept at 0 °C for 24 h, target compound 10 was collected after filtration (973 mg, 73%) as white solid. Molecules 19 06683 i016 +54.2° (c 0.1 DMSO). 1H-NMR (300 MHz, D2O): δ 8.20 (d, J = 9.2 Hz, 2H, Ar-H), 7.20 (d, J = 9.2 Hz, 2H, Ar-H), 5.69 (s, 1H, H-1), 5.13 (s, 1H, H-1'), 4.30 (m, 1H, H-2), 4.11 (dd, J2,3 = 3.2 Hz, J3,4 = 9.3 Hz, 1H, H-3), 4.04 (m, 1H, H-2'), 3.90–3.80 (m, 5H), 3.78–3.74 (m, 3H), 3.68 (m, 2H), 3.64–3.61 (m, 2H), 3.57–3.54 (m, 2H). 13C-NMR (75 MHz, D2O): δ 160.6 (CNO2), 142.4, 126.1(2), 116.9(2) (4 × Ar-C), 102.4, 98.9, 97.6 (3 × C-1), 77.9, 73.2, 72.6, 71.9, 70.6, 70.4, 70.1, 69.9, 69.2, 66.8, 66.7, 65.8. 65.2, 61.0, 60.9. HRMS for C24H35NO18Na (M+Na)+ 648.1752. Found: 648.1754.

4. Conclusions

In summary, a highly efficient and regioselective procedure with a simple work-up which is applicable on a large-scale has been developed for the direct synthesis of the 2,3-O-isopropylidene-α-d-mannopyranoside derivatives from α-d-mannopyranosides. The high selectivity, high isolated yields, and widely application of the reaction highlight the usefulness of the method as a practical orthogonal protecting strategy in carbohydrate synthesis. The synthetic utility of this novel process was demonstrated through the successfully synthesis of a 3,6-branched α-d-mannosyl trisaccharide. It is noteworthy that overall yield of the whole synthesis is 50.4% from the corresponding mannoside, and the procedure is suitable for large scale preparation of the target trisaccharide.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/19/5/6683/s1.

Acknowledgments

This work was partially supported by the NSFC (21172257), the National 863 Program (2011AA10A206) and the National S&T Pillar Program (2012BAK25B03-01, 2010CB126105) of China.

Author Contributions

Main text paragraph Rui Jiang was in charge of all the synthesis experiments and wrote the manuscript; Guanghui Zong provided help in the synthesis experiments; 1H and 13C-NMR spectra were texted by Xiaomei Liang; Jianjun Zhang provided guidance and suggestions for all the experiments and he also provided proper suggestions when wrote and revised the manuscript; Shuhui Jin and Daoquan Wang provided guidance and suggestions in the synthesis experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, C.C.; Lee, J.C.; Luo, S.Y.; Kulkarni, S.S.; Huang, Y.W.; Lee, C.C.; Chang, K.L.; Hung, S.C. Regioselective one-pot protection of carbohydrates. Nature 2007, 446, 896–899. [Google Scholar]
  2. Seeberger, P.H.; Werz, D.B. Synthesis and medical applications of oligosaccharides. Nature 2007, 446, 1046–1051. [Google Scholar]
  3. Guo, J.; Ye, X.S. Protecting groups in carbohydrate chemistry: Influence on stereoselectivity of glycosylations. Molecules 2010, 15, 7235–7265. [Google Scholar]
  4. Bertozzi, C.R.; Kiessling, L.L. Chemical glycobiology. Science 2001, 291, 2357–2364. [Google Scholar]
  5. Liu, C.; Skogman, F.; Cai, Y.; Lowary, T.L. Synthesis of the ‘primer–adaptor’ trisaccharide moiety of Escherichia coli O8, O9, and O9a lipopolysaccharide. Carbohydr. Res. 2007, 342, 2818–2825. [Google Scholar]
  6. Gigg, J.; Gigg, R.; Payne, S.; Conant, R. Synthesis of propyl 4-O-(3,6-di-O-methyl-β-d-glucopyranosyl)-2,3-di-O-methyl-α-d-rhamnopyranoside. Carbohydr.Res 1985, 141, 91–97. [Google Scholar]
  7. Chung, S.K.; Moon, S.H. Synthesis and biological activities of (4,6-di-O-phosphonato-β-d-mannopyranosyl)-methylphosphonate as an analogue of 1l-myo-inositol 1,4,5-trisphosphate. Carbohydr. Res. 1994, 260, 39–50. [Google Scholar]
  8. Evans, M.E.; Parrish, F.W. Monomolar acetalations of methyl α-d-mannosides-synthesis of methyl α-d-talopyranoside. Carbohydr. Res. 1977, 54, 105–114. [Google Scholar]
  9. Fleet, G.W.; Smith, P.W. Enantiospecific syntheses of deoxymannojirimycin, fagomine and 2r, 5r-dihydroxymethyl-3r, 4r-dihydroxypyrrolidine from d-glucose. Tetrahedron Lett. 1985, 26, 1469–1472. [Google Scholar]
  10. Yadav, J.; Chander, M.C.; Reddy, K.K. Stereoselective synthesis of 10(S), 11(R), 12(R)-trihydroxyeicosa-5(Z), 8(Z), 14(Z)-trienoic acid from d-mannose. Tetrahedron Lett. 1992, 33, 135–138. [Google Scholar]
  11. Manna, S.; Viala, J.; Yadagiri, P.; Falck, J. Synthesis of 12(S), 20-, 12(S), 19(R)-, and 12(S), 19(S)-dihydroxyeicosa-cis-5,8,14-trans-10-tetraenoic acids, metabolites of 12(S)-hete. Tetrahedron Lett 1986, 27, 2679–2682. [Google Scholar]
  12. Vijayasaradhi, S.; Singh, J.; Aidhen, I.S. An Efficient, Selective Hydrolysis of Terminal Isopropylidene Acetal Protection by Zn (NO3)2 6H2O in Acetonitrile. Synlett 2000, 1, 110–112. [Google Scholar]
  13. Swamy, N.R.; Venkateswarlu, Y. A mild and efficient method for chemoselective deprotection of acetonides by bismuth (III) trichloride. Tetrahedron Lett. 2002, 43, 7549–7552. [Google Scholar]
  14. Ki, H.P.; Yong, J.Y.; Sang, G.L. Efficient cleavage of terminal acetonide group: Chirospecific synthesis of 2, 5-dideoxy-2, 5-imino-d-mannitol. Tetrahedron Lett. 1994, 35, 9737–9740. [Google Scholar]
  15. Kim, K.S.; Song, Y.H.; Lee, B.H.; Hahn, C.S. Efficient and selective cleavage of acetals and ketals using ferric chloride adsorbed on silica gel. J. Org. Chem. 1986, 51, 404–407. [Google Scholar]
  16. Mahender, G.; Ramu, R.; Ramesh, C.; Das, B. A simple and facile chemo-and regioselective deprotection of acetonides using silica supported sodium hydrogen sulfate as a heterogeneous catalyst. Chem. Lett. 2003, 8, 734–735. [Google Scholar]
  17. Agarwal, A.; Vankar, Y.D. Selective deprotection of terminal isopropylidene acetals and trityl ethers using HClO4 supported on silica gel. Carbohydr. Res. 2005, 340, 1661–1667. [Google Scholar]
  18. Fauré, R.; Shiao, T.C.; Damerval, S.; Roy, R. Practical synthesis of valuable d-rhamnoside building blocks for oligosaccharide synthesis. Tetrahedron Lett. 2007, 48, 2385–2388. [Google Scholar]
  19. Zong, G.; Yu, N.; Xu, Y.; Zhang, J.; Wang, D.; Liang, X. Synthesis of a mannose hexasaccharide related to the cell wall mannan of candida dubliniensis and trychophyton mentagrophytes. Synthesis 2010, 10, 1666–1672. [Google Scholar]
  20. Cheng, L.; Chen, Q.; Liu, J.; Du, Y. Synthesis of a fluorescence-labeled K30 antigen repeating unit using click chemistry. Carbohydr. Res. 2007, 342, 975–981. [Google Scholar]
  21. Zegelaar-Jaarsveld, K.; Duynstee, H.I.; van der Marel, G.A.; van Boom, J.H. Iodonium ion-assisted synthesis of tetrameric fragments corresponding to the cell wall phenolic glycolipids of Mycobacterium kansasii serovars II and IV. Tetrahedron 1996, 52, 3575–3592. [Google Scholar]
  22. Lemanski, G.; Ziegler, T. Intramolecular mannosylations of glucose derivatives via prearranged glycosides. Helv. Chim. Acta 2000, 83, 2655–2675. [Google Scholar]
  23. Rana, S.S.; Barlow, J.J.; Matta, K.L. Synthetic studies in carbohydrates. Part XVIII. Synthesis of p-nitrophenyl 6-O-(2-acetamido-2-deoxy-β-d-glucopyranosyl)-α-d-mannopyranoside. Carbohydr. Res. 1981, 96, 79–85. [Google Scholar]
  24. Sparrow, L.G.; Lawrence, M.C.; Gorman, J.J.; Strike, P.M.; Robinson, C.P.; McKern, N.M.; Ward, C.W. N-linked glycans of the human insulin receptor and their distribution over the crystal structure. Proteins: Struct. Funct. Bioinform. 2008, 71, 426–439. [Google Scholar]
  25. De Leoz, M.L.A.; Young, L.J.T.; An, H.J.; Kronewitter, S.R.; Kim, J.; Miyamoto, S.; Borowsky, A.D.; Chew, H.K.; Lebrilla, C.B. High-mannose glycans are elevated during breast cancer progression. Mol. Cell. Proteomics 2011, 10, 1–9. [Google Scholar]
  26. Moremen, K.W.; Tiemeyer, M.; Nairn, A.V. Vertebrate protein glycosylation: Diversity, synthesis and function. Nat. Rev. Mol. Cell Bio. 2012, 13, 448–462. [Google Scholar]
  27. Nairn, A.V.; Aoki, K.; dela Rosa, M.; Porterfield, M.; Lim, J.M.; Kulik, M.; Pierce, J.M.; Wells, L.; Dalton, S.; Tiemeyer, M.; et al. Regulation of glycan structures in murine embryonic stem cells. combined transcript profiling of glycan-related genes and glycan structural analysis. J. Biol. Chem. 2012, 287, 37835–37856. [Google Scholar]
  28. Zhang, J.J.; Kong, F.Z. Efficient and practical syntheses of mannose tri-, tetra-, penta-, hexa-, hepta-, and octasaccharides existing in N-glycans. Tetrahedron: Asymmetry 2002, 13, 243–252. [Google Scholar]
  29. Zhang, J.J.; Kong, F.Z. A facile large scale synthesis of the core mannose pentasaccharide of N-linked glycoprotein and its isomer. Acta Chim. Sinica 2002, 1, 150–156. [Google Scholar]
  30. Mikkelsen, L.M.; Krintel, S.L.; Jiménez-Barbero, J.; Skrydstrup, T. Application of the anomeric samarium route for the convergent synthesis of the C-linked trisaccharide α-d-Man-(1→ 3)-[α-d-man-(1→ 6)]-d-man and the disaccharides α-d-man-(1→ 3)-d-man and α-d-man-(1→ 6)-d-man. J. Org. Chem. 2002, 67, 6297–6308. [Google Scholar]
  31. Liu, Y.; Chen, G. Chemical synthesis of N-linked glycans carrying both mannose-6-phosphate and glcnac-mannose-6-phosphate motifs. J. Org. Chem. 2011, 76, 8682–8689. [Google Scholar]
  32. Ogawa, T.; Katano, K.; Matsui, M. Regio- and stereo-controlled synthesis of core oligosaccharides of glycopeptides. Carbohydr. Res. 1978, 64, C3–C9. [Google Scholar]
  33. Winnik, F.M.; Brisson, J.R.; Carver, J.P.; Krepinsky, J.J. Syntheses of model oligosaccharides of biological significance. Synthesis of methyl 3,6-di-O-(α-d-mannopyranosyl)-α-d-mannopyranoside and the corresponding mannobiosides. Carbohydr. Res. 1982, 103, 15–28. [Google Scholar]
  34. Kaur, K.J.; Alton, G.; Hindsgaul, O. Use of N-acetylglucosaminyltransferases I and II in the preparative synthesis of oligosaccharides. Carbohydr. Res. 1991, 210, 145–153. [Google Scholar]
  35. Kaur, K.J.; Hindsgaul, O. A simple synthesis of octyl 3,6-di-O-(α-d-mannopyranosyl)-β-d-mannopyranoside and its use as an acceptor for the assay of N-acetylglucosaminyltransferase-I activity. Glycoconjugate J. 1991, 8, 90–94. [Google Scholar]
  36. Oscarson, S.; Tiden, A.K. Synthesis of the octyl and tetradecyl glycosides of 3,6-di-O-α-d-mannopyranose and of 3,4-di-O-α-d-mannopyranosyl-α-d-mannopyranose. A new way for 2,4-di-O-protection of mannopyranosides. Carbohydr. Res. 1993, 247, 323–328. [Google Scholar]
  37. Figueroa-Perez, S.; Verez-Bencomo, V.J. Synthesis of neoglycolipids containing oligosaccharides based on 3,6-branched-α-d-mannopyranosides as the carbohydrate moieties. Carbohydr. Chem. 1998, 17, 851–868. [Google Scholar]
  38. Tanaka, H.; Nishida, Y.; Kobayashi, K. A facile synthesis of a glycoconjugate cationic polymer carrying the 3,6-branched α-d-mannosyl trisaccharide cluster. J. Carbohydr. Chem. 2000, 19, 413–418. [Google Scholar]
  39. Ratner, D.M.; Plante, O.J.; Seeberger, P.H. A linear synthesis of branched high-mannose oligosaccharides from the HIV-1 viral surface envelope glycoprotein gp120. Eur. J. Org. Chem. 2002, 5, 826–833. [Google Scholar]
  40. Abronina, P.I.; Backinowsky, L.V.; Grachev, A.A.; Sedinkin, S.L.; Malysheva, N.N. An easy access to a 3,6-branched mannopentaoside bearing one terminal [1-13C]-labeled d-mannopyranose residue. Russ. Chem. Bull. 2005, 54, 1287–1293. [Google Scholar]
  41. Mukhopadhyay, B.; Maurer, S.V.; Rudolph, N.; van Well, R.M.; Russell, D.A.; Field, R.A. From solution phase to “on-column” chemistry: Trichloroacetimidate-based glycosylation promoted by perchloric acid-silica. J. Org. Chem. 2005, 70, 9059–9062. [Google Scholar]
  42. Arnarp, J.; Lonngren, J. Synthesis of 3,6-di-O-(α-d-mannopyranosyl)-d-mannose. Acta Chem. Scand. Ser. B 1978, B32, 696. [Google Scholar]
  • Sample Availability: Samples of the compounds 1a, 2a, 3a–g, 4–8, 10 are available from the authors.
