Effect of Monomer Dosing Rate in the Preparation of Mesoporous Polystyrene Nanoparticles by Semicontinuous Heterophase Polymerization

Abstract

The semicontinuous heterophase polymerization of styrene in the presence of cross-linking and porogen agents was carried out. Latexes with close to 20% solid content, which contained mesoporous nanoparticles with 28 nm in average diameters, up to 0.5 cm³/g in porosity and 6–8 nm in pore diameters were obtained. By varying the monomer dosing rate over the micellar solution, an unexpected direct dependence of instantaneous conversion on the monomer dosing rate was found. This was ascribed to the higher average number of radicals per particle attained in the polymerization at the higher dosing rate, which in turn would arise from the higher gel percentage in the polymer. It is believed that the cross-linked chains prevent encounters between radicals, delaying the bimolecular termination reactions and allowing the existence of more than one radical inside the particles, which in turn increases the propagation rate.

1. Introduction

The preparation and characterization of porous micro- and nanopolymeric particles is a very attractive and longstanding research topic in view of the actual and potential applications of such particles. Well-established techniques, mainly based on emulsion and suspension polymerization, allow one to prepare in a controlled manner meso- and microporous particles with porosities higher than 1 cm³/g, surface areas in the hundreds of square meters and average diameters ranging from some tenths of micrometers to millimeters [1,2,3,4,5,6]. Recently, this kind of structures has become interesting in the development of drug delivery systems [7,8], catalysts [9,10], enzyme and cell immobilization [11], among others. A common feature of these particles is that their sizes are typically higher than 100 nm in average diameter.

Research on mesoporous polymeric nanoparticles with average diameters smaller than 50 nm has received little attention [12,13,14]. The interesting thing about this kind of nanoparticles is their enhanced area/volume ratio and the increased capacity for avoiding the immunological system, a feature especially useful for drug delivery systems due to the fact that it leads to a longer circulation period in the bloodstream [15]. The reports in the specialized literature on the preparation of such small nanoparticles include the work of Lee and Kim [12], who prepared mesoporous polymeric nanoparticles with average diameters smaller than 50 nm and pores of 2–6 nm in diameter by a sol-emulsion-gel method. More recently, Wu et al. [14] documented the preparation of porous hyperbranched conjugated polymeric nanoparticles with diameters ranging 20–60 nm by miniemulsion polymerization. On the other hand, our group has reported the preparation of mesoporous polymeric nanoparticles by polymerizing styrene in the presence of cross-linking and porogen agents using the so called semicontinuous heterophase polymerization technique [13]. The obtained nanoparticles showed average diameters close to 30 nm, pore diameters in the range 6–8 nm and porosities around 0.40 cm³/g.

Semicontinuous heterophase polymerization is a technique developed by our group [16,17,18] that allows one to obtain polymeric nanoparticles with diameters smaller than 50 nm, solids contents up to 25%–30% and all the surfactant in the latex stabilizing the particles. However, this technique requires one to operate under the so-called monomer-starved conditions during the addition period [19]. Krackeler and Naidus [19] coined this term to explain the smaller particle sizes obtained in the emulsion polymerization of styrene carried out in semicontinuous mode compared to the batch process. These authors resorted to the correlation developed for emulsion polymerization by Smith and Ewart [20] for predicting the number of particles (N_P) for the case-II kinetics, in which N_P is inversely proportional to the volume growth rate of polymer particles during the nucleation period. When the particles are saturated with monomer, they grow at their maximum rate. As a consequence the particle nucleation is minimum. In semicontinuous emulsion polymerization particle monomer saturation is attained by operating at the so-called monomer-flooded conditions. In contrast the operation under monomer-starved conditions, that is to say, when monomer in the particles is below the saturation concentration, slows down the particle growth rate resulting in a larger number of smaller particles. These conditions are achieved by adding the monomer at very slow dosing rates.

As described above, semicontinuous heterophase polymerization operating under monomer starved conditions allows the preparation of mesoporous polymeric nanoparticles having average diameters smaller than 50 nm [13]. As far as we know, ours is the only report on the use of this technique for preparing such particles. With the aim to contribute to the understanding of the mentioned polymerization technique when applied to the preparation of ultrafine mesoporous polymeric nanoparticles, we present here the results of a study on the effect of monomer (styrene and divinylbenzene) dosing rate. This variable was chosen due to the fact it is the one that mainly determines the polymerization kinetics and particle size [21], therefore it would be interesting to investigate how the presence of the cross-linking (divinylbenzene) and porogen (toluene) agents affect the known effect of monomer dosing rate.

2. Results and Discussion

2.1. Polymerization Kinetics

The kinetics of the polymerizations carried out in this study are shown in Figure 1. This figure describes the evolution of instantaneous (x_i) and global conversions (X) as a function of the relative time (t_r). Here, x_i is the fraction of added monomer up to time t that has changed into polymer; X, the fraction of monomer (compared to the total amount to be added) converted to polymer at time t, whereas t_r is the ratio of a given time t divided by the total addition time. The values of x_i and X as a function of t, and consequently, of t_r were calculated by the gravimetric method and using the following equations, obtained from a simple mass balances:

$$x_i(t)=\frac{w_{pol}}{t{F}_0{X}_m}$$

(1)

$$X\left(t\right)=\frac{t{F}_0{x}_i}{M_t}$$

(2)

where w_pol is the amount of polymer produced up to time t, F_o is the organic phase dosing rate, X_m is the monomer concentration in the organic phase and M_t is the total weight of monomers to be added.

In Figure 1 and in the following figures, (a) and (b) correspond to the results of lower and higher organic-phase dosing rate, respectively. Given that in this case toluene is an inert component, it would be also appropriated to say lower and higher monomer dosing rate or simply lower and higher dosing rate hereinafter. The behavior of the x_i curves in Figure 1 is that typically observed in a polymerization carried out in presence of a surfactant at contents higher than its critical micellar concentration by adding the monomer in a semicontinuous fashion to operate under monomer starved conditions [16,17,18]. In a typical behavior x_i values are relatively low during the first stages of polymerization before rising with the reaction time, attaining values higher than 90%–95% under highly monomer starved conditions. In our case it should be noted that the higher x_i values correspond to the polymerization carried out at the higher value of F_o. Taking into account that the only difference between the two polymerizations is F_o, this result contravenes the expected behavior in polymerizations performed under monomer starved conditions. In accordance with the literature the inverse relationship between x_i and monomer dosing rate, while maintaining unchanged the rest of variables, is the very well-known fact [16,17,18,21]. When the monomer dosing rate decreases the monomer concentration inside particles decreases, which leads to a reduction in the propagation rate, resulting in a diminution in the particle volumetric growth. The result is an increase in the particle number density (N_p). The increase in the number of places in which the monomer consumption is carried out, that is to say, the particles, overwhelms the drop in the monomer concentration in the particles, leading to an increase in x_i. The use of a porogen and a crosslinking agent in this study could be the origin of the unexpected relationship between x_i and F_o. In the following, an explanation for this unexpected finding will be provided.

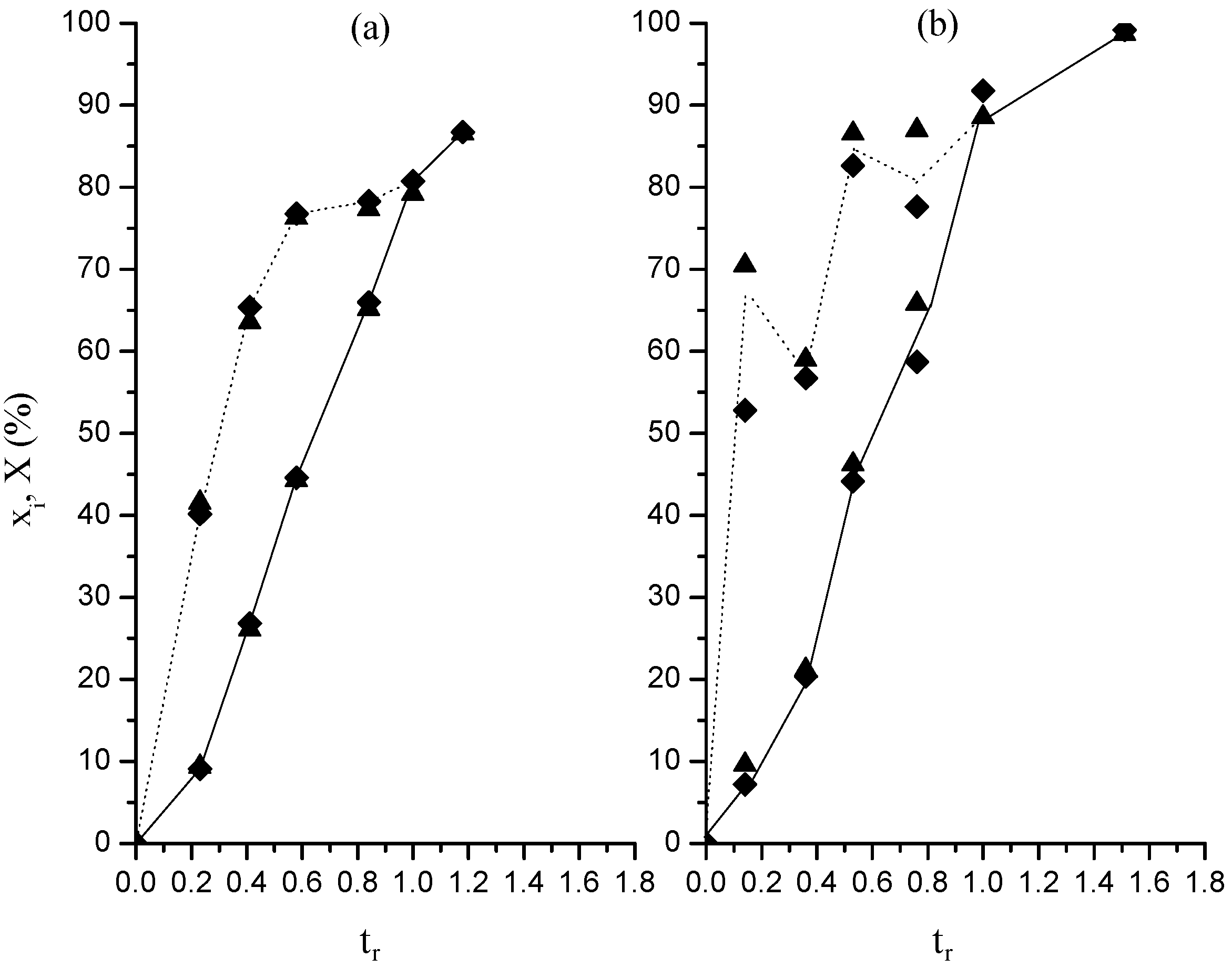

Figure 1. Evolution of instantaneous, x_i (----) and global, X (―) conversions with relative time in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Figure 1. Evolution of instantaneous, x_i (----) and global, X (―) conversions with relative time in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

2.2. Particle Size and Number Density of Particles

Figure 2 and Figure 3 show the change of number-average particle diameter (D_n) and N_p with X, respectively. Figure 4 includes micrographs from final latexes prepared using both dosing rates. To estimate N_p the following equation was used:

$$N_p=\frac{6C_p}{\pi {\rho }_{part}{D}_n^3}$$

(3)

where C_p is polymer concentration in g/mL water and ρ_part is the density of porous particle in g/mL. This density was calculated using the following equation, developed by considering 1 gram hypothetical porous particle (P) with porosity (ϕ) in cm³/g:

$${\rho }_{part}=\frac{P}{P\varphi +\frac{P}{{\rho }_p}}=\frac{1}{\varphi +\frac{1}{{\rho }_p}}$$

(4)

In this equation ρ_p is the polymer density, for which all the polymer is considered as polystyrene with a density of 1.05 g/mL [22]. Figure 2 depicts a very similar D_n behavior for both polymerizations, with slightly larger sizes for the polymerization carried out at the higher dosing rate up to 60%–65% global conversion. However, the final D_n value was close to 28 nm in both cases. The absence of dependence of final particle size on monomer dosing rate in this study contrasts with the known direct relationship between both these variables in semicontinuous heterophase polymerization under monomer starved conditions [16,17,18,21].

The evolution of N_p shown in Figure 3 is also similar for both polymerizations, with higher values up to 60%–66% global conversion for the polymerizations carried out at the lower dosing rate, though the difference between both polymerizations is more pronounced than that in Figure 2 as a consequence of the dependence of N_p on D_n⁻³ (Equation (3)). However, in the last part of the polymerizations, the values of N_p for both polymerizations show a slight decrease, which is more evident in the polymerization at the lower dosing rate in such way that the final N_p values are higher for the higher dosing rate. This fact suggests the occurrence of a certain degree of particle coalescence at the end of the polymerizations.

Figure 2. Number average diameter measured by STEM as a function of global conversion in polymerizations at F_o 0.05 (a) and 0.15 (b) g/min. Runs M (♦); runs MR (▲).

Figure 2. Number average diameter measured by STEM as a function of global conversion in polymerizations at F_o 0.05 (a) and 0.15 (b) g/min. Runs M (♦); runs MR (▲).

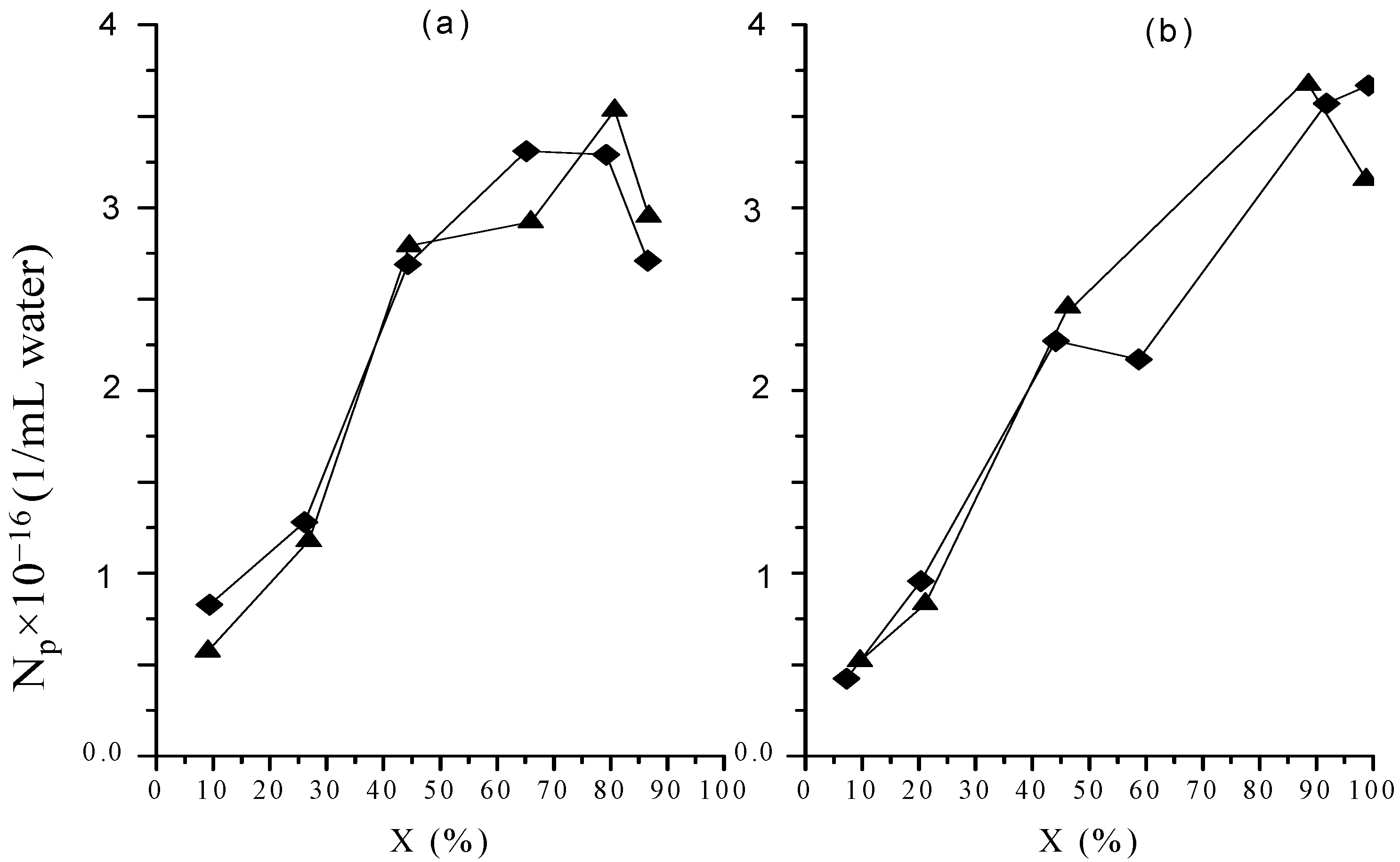

Figure 3. Particle number density as a function of global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic dosing rate. Runs M (♦); runs MR (▲).

Figure 3. Particle number density as a function of global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic dosing rate. Runs M (♦); runs MR (▲).

Figure 4. Representative micrographs from samples of final latexes in polymerizations at 0.05 g/min (a); 0.15 g/min (b) in organic phase dosing rate.

Figure 4. Representative micrographs from samples of final latexes in polymerizations at 0.05 g/min (a); 0.15 g/min (b) in organic phase dosing rate.

2.3. Gel Percentage

Figure 5 depicts how the gel percentage of polymer in the nanoparticles evolves with the polymerization, showing a continued increase for both cases. Gel percentage is defined as the polymer fraction which turns non-solvent soluble as a result of the cross-linking between polymer chains.

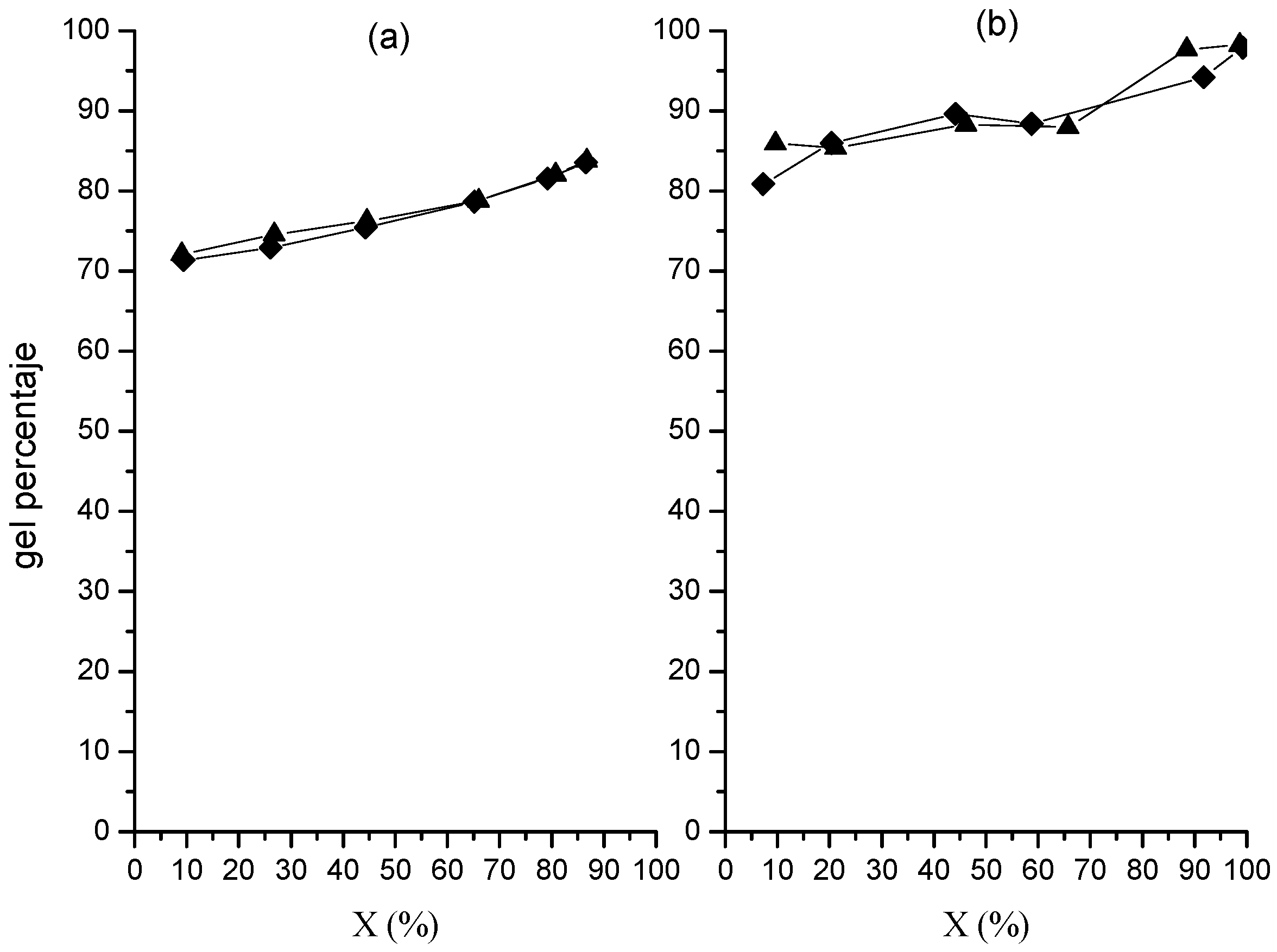

Figure 5. Variation of gel percentage in polymer in nanoparticles with global conversion from polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Figure 5. Variation of gel percentage in polymer in nanoparticles with global conversion from polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Here, the larger values correspond to the run at higher dosing rate, with 80%–85% at the initial part of the polymerization and around 98% at the end of it. In contrast, the other polymerization shows values ranging 70% to 84% in the same interval. The continued increase in gel percentage could be explained as a result of an increase in the chain number inside the particles as the polymerization progresses, which would increase the number of cross-linking points. Furthermore, the direct dependence of the gel percentage on the dosing rate would also arise from a possible increase in the polymer concentration in the particles.

2.4. Porosity and Pore Diameter

Porosity and average pore diameter (d_p) values as a function of global conversion are shown in Figure 6 and Figure 7, respectively.

Figure 6. Evolution of nanoparticles porosity with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Figure 6. Evolution of nanoparticles porosity with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

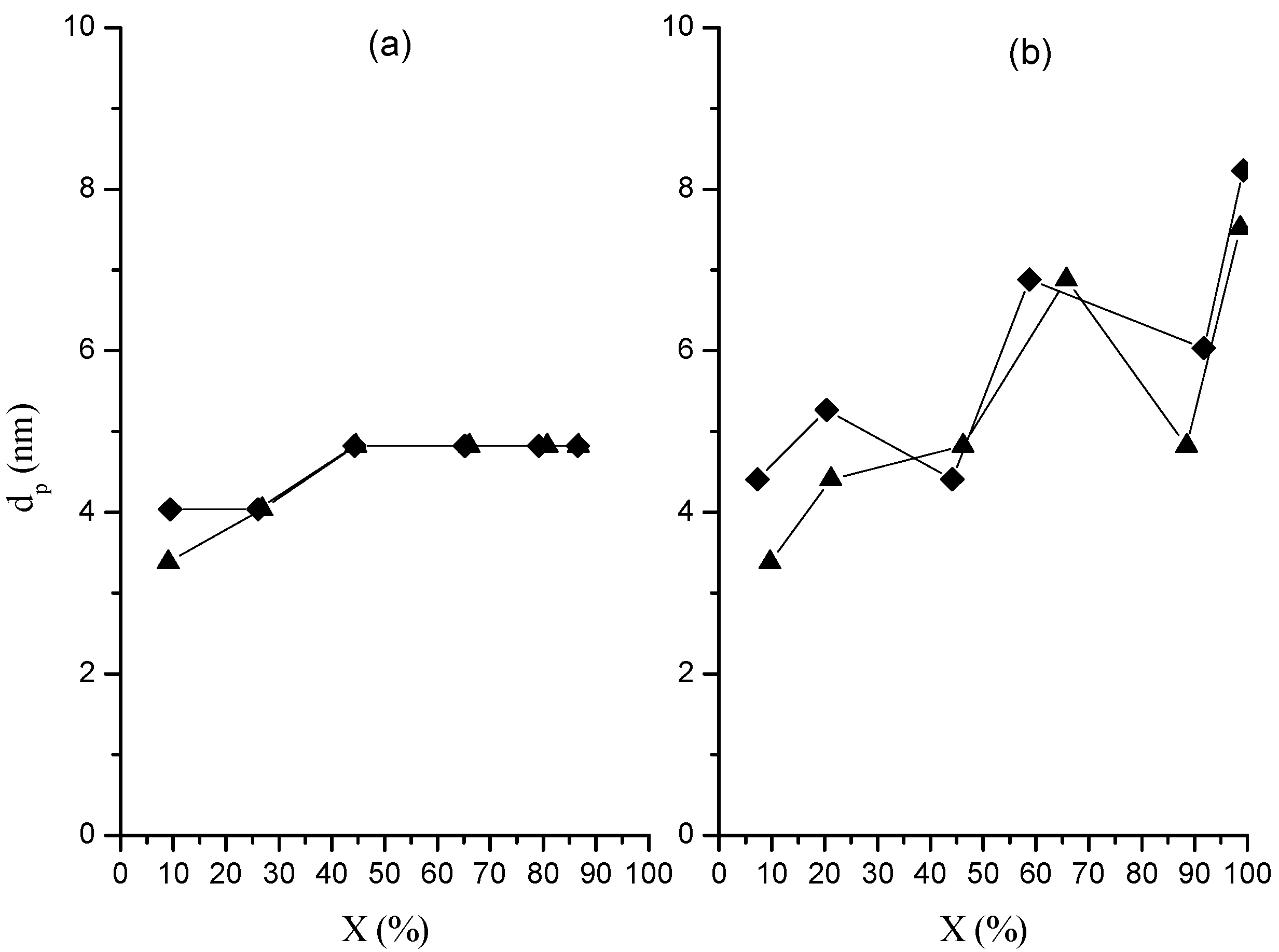

Figure 7. Change of pore diameter in nanoparticles with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Figure 7. Change of pore diameter in nanoparticles with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Irrespective of the dosing rate both variables show a continued increase with conversion, with slightly larger values in porosity (ca. 0.5 cm³/g) and d_p (8 nm) for the polymerization at higher dosing rate. The relatively low porosity and pore diameters values obtained in this study were similar to those obtained in our previous work in which similar polymerization conditions were employed [13]. On the other hand, the porosity increase with conversion could be explained as a result of the increase in the gel percentage also as the polymerization evolves. This would cause that toluene not be absorbed by the cross-linked chains, which would lead to a phase separation (macrosyneresis) with the continuous phase composed of toluene, unreacted monomers and the dissolved polymer [23]. Furthermore, as the cross-linking increases the chains form compact nanospheres whose number rises with global conversion, resulting in an increment in the number of voids between nanospheres and finally, in an increase in the porosity after toluene evaporation.

2.5. Surface Tension

Figure 8 shows the variation of latex surface tension (γ) with t_r. The behavior of γ in both polymerizations is similar, that is, values close to 35 mN/m up to t_r ≈ 0.8, followed by an increase up to ≈ 45 mN/m at t_r = 1, attaining a value close to 55 mN/m at the end of the polymerization.

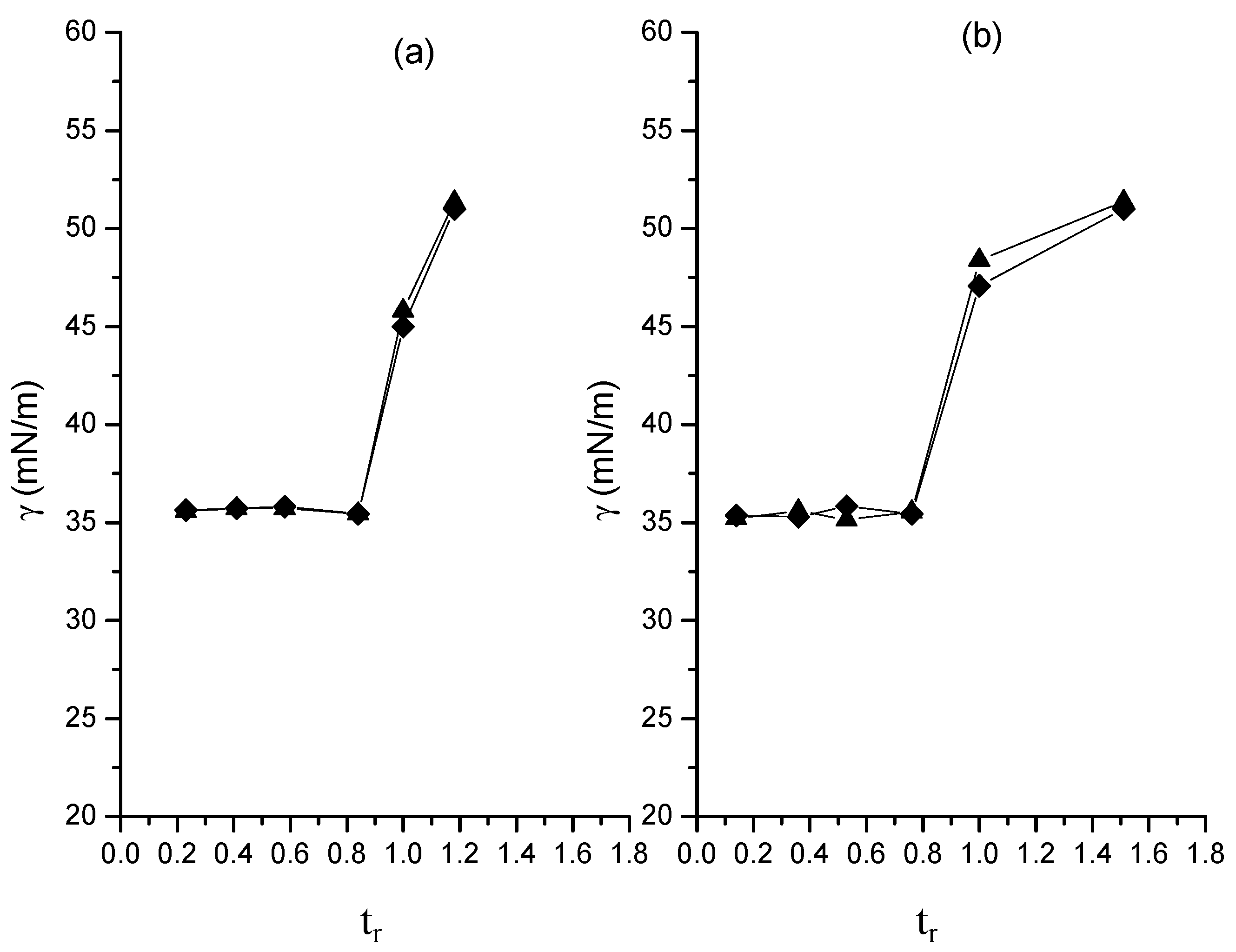

Figure 8. Surface tension of latexes as a function of relative time in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic dosing rate. Runs M (♦); runs MR (▲).

Figure 8. Surface tension of latexes as a function of relative time in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic dosing rate. Runs M (♦); runs MR (▲).

The γ value close to 35 mN/m suggests the presence of micelles [24] up to at least t_r ≈ 0.8, while the higher values indicate that micelles have disappeared and all surfactant in the latex is on the nanoparticles’ surface. In accordance with Figure 3, particle nucleation occurs up to approximately 80% in global conversion for the polymerizations at lower dosing rate and up to 90%, for the other one. Undoubtedly, the presence of micelles up to at least t_r ≈ 0.8, which corresponds to 60%–65% global conversion, is the determinant factor for the particle formation. Therefore, it would be interesting to know why particle formation occurs at higher conversions. In fact, according to Figure 8, the disappearance of micelles not necessarily takes place at t_r ≈ 0.8 for both polymerizations, but this event occurs in a point between t_r≈ 0.8 and t_r = 1, so most probably the micelles are present up to near t_r = 1, allowing the particle formation up to that point. To explain why particle coalescence occurs at the end of the polymerizations the surface coverage ratio, r, defined as the total surface of particles that the available surfactant would cover forming a saturated monolayer divided by the total surface area of the particles at t_r = 1was calculated. For this task data from the recipe and the values of D_n, N_p, X, density of the porous particle and the area per SDS molecule in a saturated monolayer on particle surface (0.5 nm²/molecule) [25] were used. The r values for M5 and M5R were 0.56 and 0.54, respectively, for the polymerizations carried out at the higher dosing rate, while the polymerizations at the lower dosing rate showed the same value of 0.55 for M5 and M5R runs. The magnitude of these r values indicates that the particles are covered by a layer of surfactant with approximately half of the number of molecules required for saturation. This implies a certain degree of particle instability, which would result in the particle coalescence observed at the end of the polymerization. The low r values and the fact that they are practically the same for both dosing rates could also explain why a smaller particle size at the lower dosing rate was not achieved. What probably occurs is that a value close to 0.55 is the lowest value that r can achieve under the conditions at which the polymerizations were carried out and since smaller particle sizes require lower r values, an average particle close to 28 nm is the minimum particle size that can be attained. In fact, the r values for the particles obtained at the end of the polymerizations increase up to 0.6–0.7, which would result from particles that coalesce trying to reduce the area to volume ratio and thereby increase their stability.

2.6. Monomer Concentrations in Particles

St and DVB concentrations in the particles along the course of the polymerizations were calculated as follows: from the recipe, phase-organic dosing rate and conversion data at a given time, the amounts of toluene, St and DVB in the latex were known. The analysis by GC gave the St/DVB weight ratio in the particles, which with the amounts mentioned above, allowed to know the composition of the organic phase in the latex. Then, the assumption that the composition of the mixture of toluene, St and DVB swelling particles and micelles was the same was made. The partitioning of this mixture between particles and micelles was estimated from the polymer/surfactant weight ratio, since this datum, along that of the total surfactant in the recipe, allowed to know the surfactant available to form micelles and from here the number of micelles and its content of organic phase. In this calculation an aggregation number of 60 [26] and a molecular surface coverage for SDS micelles of 0.5 nm²/molecule [25] were taken. With the partitioning results, the particle composition was known and St and DVB concentrations were calculated under the assumption of additive volumes of the components and discarding the volume of the cross-linked polymer from the total volume available for carrying out the propagation reactions. Table 1 and Table 2 summarize the results achieved and Figure 9 shows the variation of total monomers concentration in the particles during the polymerizations.

Table 1. Most important data used in the estimation of monomer concentration in particles.

Organic Phase Dosing Rate (g/min)	tr	Sulfur Content in Polymer-Surfactant Mixture (%)		Available Surfactant in the Latex for Forming Micelles (g)		Toluene and Residual Monomer in Micelles (g)		Residual Monomers in Particles(g)				Total Polymer in Particles (g)		Total Non-Cross-Linked Polymer in Particles (g)
								St		DVB
0.05		M	MR	M	MR	M	MR	M	MR	M	MR	M	MR	M	MR
	0.23	3.71	NA	3.42	NA	1.64	NA	2.04	NA	0.32	NA	1.86	2.48	0.66	0.66
	0.41	2.79	NA	2.08	NA	0.99	NA	2.84	NA	0.19	NA	5.15	5.38	1.80	1.67
	0.58	2.65	NA	0.88	NA	0.41	NA	2.84	NA	0.34	NA	11.70	12.20	2.72	2.61
	0.84	1.88	NA	1.00	NA	0.47	NA	3.89	NA	0.55	NA	15.02	16.39	3.55	3.48
	1.00	NR	NR	0.00	0.00	0.00	0.00	4.43	4.78	0.47	0.53	23.22	22.60	3.80	3.63
	1.18	NR	NR	0.00	0.00	0.00	0.00	3.11	3.10	0.27	0.53	25.54	25.04	3.63	3.58
0.15	0.14	4.22	3.90	3.20	2.97	1.53	1.41	0.44	0.20	0.33	0.17	2.29	2.37	0.36	0.35
	0.36	3.92	3.96	1.58	1.33	0.76	0.64	1.02	1.69	2.49	1.17	6.66	6.55	0.72	0.79
	0.53	2.71	NA	0.55	NA	0.26	NA	2.17	NA	0.20	NA	11.09	10.97	1.21	1.43
	0.76	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	16.64	16.37	1.75	1.97
	1.00	NR	NR	0.00	0.00	0.00	0.00	1.26	1.67	0.83	1.25	20.58	20.19	1.35	0.52
	1.51	NR	NR	0.00	0.00	0.00	0.00	0.09	0.13	0.11	0.19	22.10	22.06	0.54	0.44

NA-not available; NR-not required, since from γ values it is known that all the surfactant is on the particles.

Table 1. Most important data used in the estimation of monomer concentration in particles.

Organic Phase Dosing Rate (g/min)	tr	Sulfur Content in Polymer-Surfactant Mixture (%)		Available Surfactant in the Latex for Forming Micelles (g)		Toluene and Residual Monomer in Micelles (g)		Residual Monomers in Particles(g)				Total Polymer in Particles (g)		Total Non-Cross-Linked Polymer in Particles (g)
								St		DVB
0.05		M	MR	M	MR	M	MR	M	MR	M	MR	M	MR	M	MR
	0.23	3.71	NA	3.42	NA	1.64	NA	2.04	NA	0.32	NA	1.86	2.48	0.66	0.66
	0.41	2.79	NA	2.08	NA	0.99	NA	2.84	NA	0.19	NA	5.15	5.38	1.80	1.67
	0.58	2.65	NA	0.88	NA	0.41	NA	2.84	NA	0.34	NA	11.70	12.20	2.72	2.61
	0.84	1.88	NA	1.00	NA	0.47	NA	3.89	NA	0.55	NA	15.02	16.39	3.55	3.48
	1.00	NR	NR	0.00	0.00	0.00	0.00	4.43	4.78	0.47	0.53	23.22	22.60	3.80	3.63
	1.18	NR	NR	0.00	0.00	0.00	0.00	3.11	3.10	0.27	0.53	25.54	25.04	3.63	3.58
0.15	0.14	4.22	3.90	3.20	2.97	1.53	1.41	0.44	0.20	0.33	0.17	2.29	2.37	0.36	0.35
	0.36	3.92	3.96	1.58	1.33	0.76	0.64	1.02	1.69	2.49	1.17	6.66	6.55	0.72	0.79
	0.53	2.71	NA	0.55	NA	0.26	NA	2.17	NA	0.20	NA	11.09	10.97	1.21	1.43
	0.76	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	16.64	16.37	1.75	1.97
	1.00	NR	NR	0.00	0.00	0.00	0.00	1.26	1.67	0.83	1.25	20.58	20.19	1.35	0.52
	1.51	NR	NR	0.00	0.00	0.00	0.00	0.09	0.13	0.11	0.19	22.10	22.06	0.54	0.44

NA-not available; NR-not required, since from γ values it is known that all the surfactant is on the particles.

Table 2. Monomer concentration in particles along polymerizations as function of organic phase dosing rate.

0.05 g/min					0.15 g/min
tr	St (mol/L)		DVB (mol/L)		tr	St (mol/L)		DVB (mol/L)
	M	MR	M	MR		M	MR	M	MR
0.23	4.12	NA	0.52	NA	0.14	2.32	1.56	1.40	1.08
0.41	3.18	NA	0.17	NA	0.36	1.28	2.14	2.49	1.71
0.58	2.41	NA	0.23	NA	0.53	2.32	NA	0.17	NA
0.84	2.30	NA	0.26	NA	0.76	NA	NA	NA	NA
1.00	2.25	2.39	0.19	0.21	1.00	0.89	1.19	0.47	0.71
1.18	1.74	1.74	0.12	0.15	1.51	0.09	0.12	0.08	0.14

NA-not available.

Table 2. Monomer concentration in particles along polymerizations as function of organic phase dosing rate.

0.05 g/min					0.15 g/min
tr	St (mol/L)		DVB (mol/L)		tr	St (mol/L)		DVB (mol/L)
	M	MR	M	MR		M	MR	M	MR
0.23	4.12	NA	0.52	NA	0.14	2.32	1.56	1.40	1.08
0.41	3.18	NA	0.17	NA	0.36	1.28	2.14	2.49	1.71
0.58	2.41	NA	0.23	NA	0.53	2.32	NA	0.17	NA
0.84	2.30	NA	0.26	NA	0.76	NA	NA	NA	NA
1.00	2.25	2.39	0.19	0.21	1.00	0.89	1.19	0.47	0.71
1.18	1.74	1.74	0.12	0.15	1.51	0.09	0.12	0.08	0.14

NA-not available.

The data in Table 1 and Table 2 show that St concentrations in the particles are consistently higher for the polymerization at both dosing rates. Consequently, the total monomer concentration (Figure 9) is higher for the polymerization at the lower dosing rate practically along all the reaction. This behavior is somewhat expected due to the higher x_i values obtained at the polymerization carried out at the higher dosing rate.

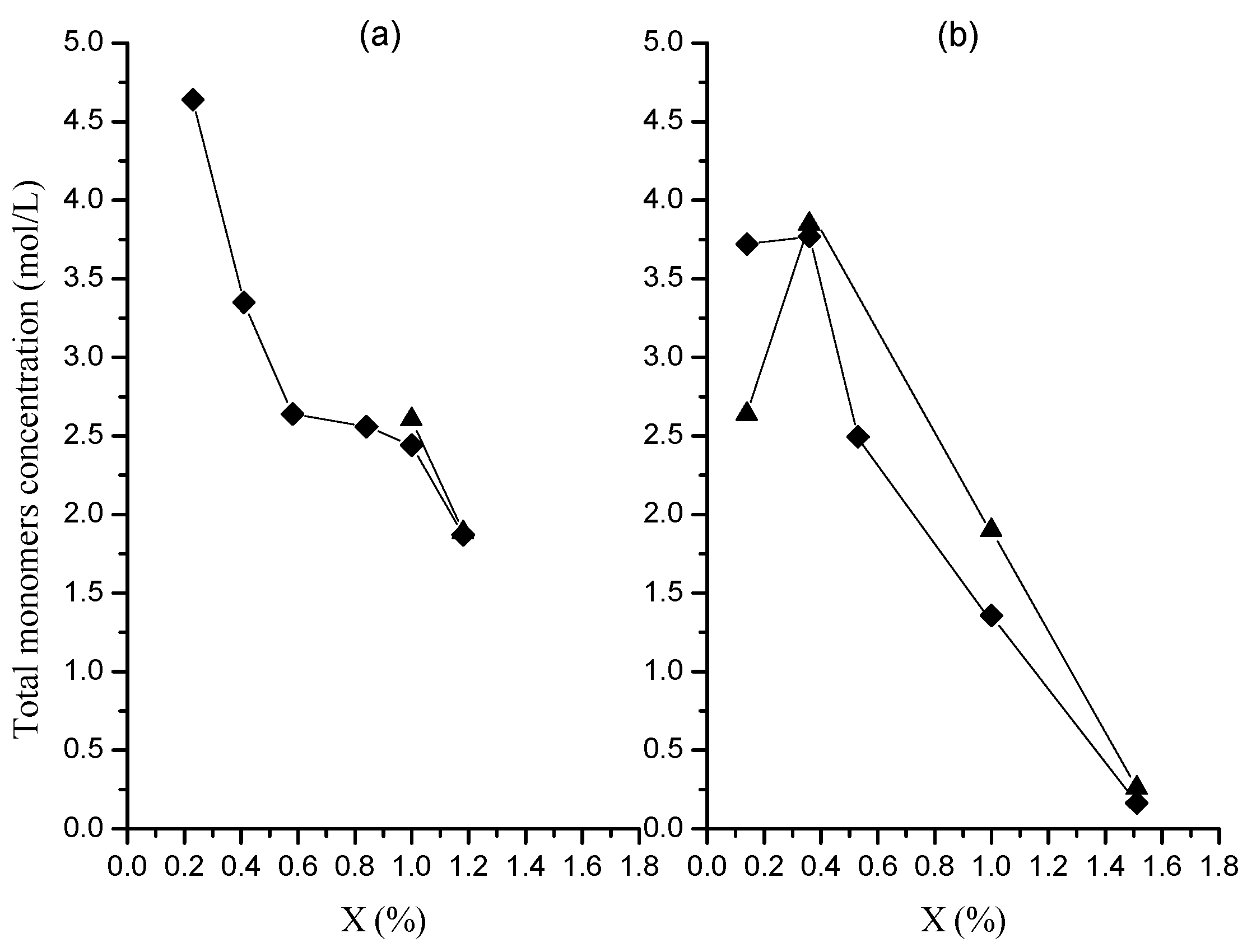

Figure 9. Evolution of total monomers concentration inside nanoparticles with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic dosing rate. Runs M (♦); runs MR (▲).

Figure 9. Evolution of total monomers concentration inside nanoparticles with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic dosing rate. Runs M (♦); runs MR (▲).

2.7. Polymerization Rate and Average Number of Radicals per Particle

The variation of the polymerization rate (R_p) and the average number of radicals per particle (ñ) as the polymerization evolves is shown in Figure 10 and Table 3, respectively. The R_p values (in mol/L water-min) were obtained by fitting X vs. t data to a polynomial equation and evaluating its derivative at some given points along the polymerization using the recipe data. On the other hand, ñ values were calculated from the well-known equation representing the polymerization rate in an emulsion polymerization and which applies in our case:

$$R_p=\frac{k_p\left[M_p\right]N_p\text{ñ}}{N_A}$$

(5)

where k_p is the propagation rate constant and N_A, the Avogadro’s number.

Given that this equation would be used in a copolimerization where St and DVB are monomer 1 and 2, respectively, the terms [M]_p and k_p were redefined, obtaining:

$$R_p= \left(k_{p11}\left[St\right]+k_{p22}\left[DVB\right]+k_{p12}\left[DVB\right]+k_{p21}\left[St\right]\right)\frac{\text{ñ}{N}_p}{N_A}$$

(6)

where k₁₁ and k₂₂ are the homo-propagation rate constants for St and DVB, respectively and k₁₂ and k₂₁, the corresponding cross-propagation rate constants. Despite the fact that DVB is a mixture of m-DVB and p-DVB, to simplify the calculations it was assumed that DVB is only composed of m-DVB. The values taken from literature [27] for k₁₁, k₂₂, k₁₂ and k₂₁ are 480, 456, 1140 and 456 L·mol⁻¹·s⁻¹, respectively. Once all the constants and the rest of the variables in Equation (6) were known, ñ was calculated at different points along the polymerization.

Figure 10. Evolution of polymerization rate with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Figure 10. Evolution of polymerization rate with global conversion in polymerizations at 0.05 (a) and 0.15 (b) g/min in organic phase dosing rate. Runs M (♦); runs MR (▲).

Table 3. Evolution of ñ values along polymerizations.

0.05 g/min			0.15 g/min
tr	Ñ × 104		tr	ñ × 103
	M	MR		M	MR
0.23	6.9	NA	0.14	3.3	3.7
0.41	6.0	NA	0.36	1.8	2.3
0.58	3.4	NA	0.53	1.7	NA
0.84	2.6	NA	0.76	NA	NA
1.00	2.7	2.3	1.00	1.8	1.2
1.18	4.4	3.8	1.51	47.7	33.8

Table 3. Evolution of ñ values along polymerizations.

0.05 g/min			0.15 g/min
tr	Ñ × 104		tr	ñ × 103
	M	MR		M	MR
0.23	6.9	NA	0.14	3.3	3.7
0.41	6.0	NA	0.36	1.8	2.3
0.58	3.4	NA	0.53	1.7	NA
0.84	2.6	NA	0.76	NA	NA
1.00	2.7	2.3	1.00	1.8	1.2
1.18	4.4	3.8	1.51	47.7	33.8

Figure 10 shows that R_p increases at the beginning of the polymerization, remaining almost constant from approximately 20% up to 90% global conversion, with a pronounced increase at the end of the reaction for the polymerization at the higher dosing rate. In contrast, the R_p values at the lower dosing rate are significantly lower and show a slightly decrease as polymerizations evolve. On the other hand, Table 3 reveals that ñ behavior is similar for both polymerizations, that is to say, a decrease from the beginning to the end of the organic phase dosing, followed by an increase at the end of the polymerization. However, the ñ values for the polymerization at higher dosing rate are significantly higher; furthermore, the final increase is also more marked, attaining values around to 3.4 × 10⁻²–4.8 × 10⁻² radicals per particle against 3.8 × 10⁻⁴–4.4× 10⁻⁴ for the polymerization at the other dosing rate.

The above results suggest that the direct dependence of x_i on the organic-phase dosing rate arises from the higher values of ñ in the polymerization at the higher dosing rate, which would lead to an increase in the monomer consumption. This supports the previous explanation given to understand the direct dependence of gel percentage on dosing rate (Figure 5), which said that the probability of cross-linking reactions occurrence was increased due to the increase of the propagation reactions occurrence inside the particles.

The question now emerging is why ñ increases are so high with the increase in the organic-phase dosing rate. The probable cause would be that proposed by Capek [28], who stated that the cross-linked polymer chains would trap the propagating radicals. It is believed that these chains would act as barriers preventing two radicals encounter, thereby retarding the bimolecular termination reactions and consequently, extending the life span of the radicals inside the particles.

3. Experimental Section

3.1. Reagents

St (99%), DVB (99%), sodium dodecylsulfate (SDS) (98.5%) and ammonium persulfate (APS) were from Sigma-Aldrich (Toluca, Edo. Méx., México) Monomers and toluene (99.9%), which were obtained from J.T. Baker (Monterrey, N.L., México), were distilled under reduced pressure and stored at 4 °C. SDS and APS were used as received. Deionized and triple-distilled water was drawn from a Millipore system.

3.2. Polymerizations

The reactions were carried out in a 150 mL jacketed glass reactor equipped with a reflux condenser and mechanical agitation in accordance with the following procedure: the required quantities of water, SDS and APS were charged into the reactor, subjected to 650 rpm agitation and bubbled with argon for 1 h, after which the temperature of the solution was raised to 70 °C and the addition of the organic phase composed of toluene and monomers started at a pre-determined dosing rate using a KD Scientific from Sigma-Aldrich syringe pump. After the end of the organic phase addition the reaction was allowed to proceed for a given time (post-addition period). Due to the large sample amounts required for all characterizations a series of runs were carried out for the two organic phase dosing rates (F_o) studied, that is to say, 0.05 and 0.15 g/min. For a given F_o, the addition period in the polymerization was divided in 5 intervals and the complete polymerization was considered as the interval 6. Then a run (in duplicate) for each interval was carried out, stopping the polymerization and collecting all the latex at the end of each of them. For 0.05 g/min polymerization the intervals 1, 2, 3, 4 and 5 included from the beginning of organic phase addition to t_r equal to 0.23, 0.41, 0.58, 0.84 and 1, respectively. For 0.15 g/min polymerization, t_r values for the same intervals were 0.14, 0.36, 0.53, 0.76 and 1.This way, the amount of latex obtained was enough to make all the required characterizations.

Table 4. Formulations used in the polymerizations at the organic-phase dosing rate of 0.05 g/min.

	M1	M2	M3	M4	M5	M6	M1R	M2R	M3R	M4R	M5R	M6R
Water (g)	90.68	90.65	90.90	90.51	90.58	90.35	90.40	90.60	90.51	90.74	90.66	90.83
SDS (g)	4.75	4.50	4.54	4.58	4.53	4.60	4.50	4.50	4.51	4.57	4.59	4.63
APS (g)	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
Organic Phase (g)	7.60	13.70	19.20	28.40	34.00	34.00	7.70	13.70	19.10	28.30	34.00	34.00
Organic Phase Composition
Toluene (wt. %)	24.92	24.89	24.68	25.02	25.34	24.50	24.95	24.59	25.00	24.94	24.72	24.96
St (wt. %)	60.04	60.37	60.43	59.95	59.65	60.63	60.13	60.48	59.95	59.79	60.44	60.06
DVB (wt. %)	15.04	14.74	14.89	15.03	15.01	14.87	14.93	14.93	15.05	15.27	14.84	14.98

Table 4. Formulations used in the polymerizations at the organic-phase dosing rate of 0.05 g/min.

	M1	M2	M3	M4	M5	M6	M1R	M2R	M3R	M4R	M5R	M6R
Water (g)	90.68	90.65	90.90	90.51	90.58	90.35	90.40	90.60	90.51	90.74	90.66	90.83
SDS (g)	4.75	4.50	4.54	4.58	4.53	4.60	4.50	4.50	4.51	4.57	4.59	4.63
APS (g)	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
Organic Phase (g)	7.60	13.70	19.20	28.40	34.00	34.00	7.70	13.70	19.10	28.30	34.00	34.00
Organic Phase Composition
Toluene (wt. %)	24.92	24.89	24.68	25.02	25.34	24.50	24.95	24.59	25.00	24.94	24.72	24.96
St (wt. %)	60.04	60.37	60.43	59.95	59.65	60.63	60.13	60.48	59.95	59.79	60.44	60.06
DVB (wt. %)	15.04	14.74	14.89	15.03	15.01	14.87	14.93	14.93	15.05	15.27	14.84	14.98

Table 5. Formulations used in the polymerizations at the organic-phase dosing rate of 0.15 g/min.

	M1	M2	M3	M4	M5	M6	M1R	M2R	M3R	M4R	M5R	M6R
Water (g)	90.50	90.51	90.96	90.51	90.50	90.59	90.40	90.60	90.51	90.74	90.66	90.83
SDS (g)	4.52	4.58	4.51	4.51	4.50	4.57	4.50	4.50	4.51	4.57	4.59	4.63
APS (g)	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
Organic Phase (g)	4.70	12.10	18.80	25.80	33.90	34.10	4.69	12.10	18.80	25.10	33.90	33.80
Organic Phase Composition
Toluene (wt. %)	24.92	24.89	24.68	25.02	25.34	24.50	24.95	24.59	25.00	24.94	24.72	24.96
St (wt. %)	60.04	60.37	60.43	59.95	59.65	60.63	60.13	60.48	59.95	59.79	60.44	60.06
DVB (wt. %)	15.04	14.74	14.89	15.03	15.01	14.87	14.93	14.93	15.05	15.27	14.84	14.98

Table 5. Formulations used in the polymerizations at the organic-phase dosing rate of 0.15 g/min.

	M1	M2	M3	M4	M5	M6	M1R	M2R	M3R	M4R	M5R	M6R
Water (g)	90.50	90.51	90.96	90.51	90.50	90.59	90.40	90.60	90.51	90.74	90.66	90.83
SDS (g)	4.52	4.58	4.51	4.51	4.50	4.57	4.50	4.50	4.51	4.57	4.59	4.63
APS (g)	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
Organic Phase (g)	4.70	12.10	18.80	25.80	33.90	34.10	4.69	12.10	18.80	25.10	33.90	33.80
Organic Phase Composition
Toluene (wt. %)	24.92	24.89	24.68	25.02	25.34	24.50	24.95	24.59	25.00	24.94	24.72	24.96
St (wt. %)	60.04	60.37	60.43	59.95	59.65	60.63	60.13	60.48	59.95	59.79	60.44	60.06
DVB (wt. %)	15.04	14.74	14.89	15.03	15.01	14.87	14.93	14.93	15.05	15.27	14.84	14.98

Table 4 and Table 5 include the formulation for all the runs carried out in this study. For both F_o studied, the runs stopped at the end of the intervals 1, 2, 3, 4 and 5 were named as M1, M2, M3, M4 and M5, respectively. The run that includes the complete polymerization was named as M6. The suffix R was used to identify the replicates of the runs.

3.3. Characterization

3.3.1. Particle Size

Determinations of particle size distributions for latexes samples were carried out in a JSM-7401F scanning-transmission electron microscope (STEM, JEOL, México City, México). For the measurements a dilution containing about 2.5 g polymer per liter was prepared, one drop of it was deposited on a copper grid and allowed to dry. The diameters of a number of particles ranging from 500 to 1000 were measured from the set of micrographs to obtain the number-average diameter (D_n), through the following equation:

$$D_n=\frac{{\sum }_i{D}_i}{{\sum }_i{n}_i}=\frac{\sum n_i{D}_i}{n}$$

(7)

3.3.2. Gel Percentage

First, the surfactant was removed from the latex samples by dialysis using porous membranes from Sigma-Aldrich with molar masses larger than 12,000 g/mol in exclusion size. Dialysis was carried out until the electrical conductivity values of the fresh and recovered water used in the daily operation were similar. Then surfactant-free dried polymer (0.05 g) wasplaced in a test tube containing toluene (2.5 g), which was sealed and allowed to stand for 48 h. After that, the mixture was centrifuged for 1 h at room temperature in an Optima XI-100K apparatus (Instrumentos y Equipos Falcón, Monterrey, N.L., México) at 95,000 rpm; then, the supernatant liquid was discarded and the solids was dried to constant weight at 90 °C. The gel content was calculated from the ratio of the weight of the dried solids from centrifugation to that of the original dried polymer.

3.3.3. Porosity and Pore Size

Porosity (ϕ) and pore diameter (d_p) of dried particles from latexes were determined in Quantachrome Autosorb 1 MPR automated surface area and pore size analyzer (CISASA, León, Gto., México) using the Quantachrome software and the density fluctuation theory (DFT) [29].

3.3.4. Surface Tension

This latex property were measured at 25 °C in a Wilhelmy plate tensiometer Sigma 703 from KVS Instruments from Sigma-Aldrich.

3.3.5. Sulfur Content in the Polymer-Surfactant Mixture

The dried solids recovered from the latex were analyzed in an Eltra CS800 induction furnace (Tecanalitic, Saltillo, Coah., México) by the combustion method to determine the sulfur content. Only the samples of those latexes containing micelles were analyzed, for which the results of surface tension measurements were considered. With the data of sulfur content and the molecular weight of the SDS the surfactant/polymer weight ratio was calculated and from here, the total surfactant stabilizing the particles was known.

3.3.6. Styrene/Divinylbenzene Ratio in Particles

The St/DVB weight ratio in the particles along the polymerization was estimated from the particle analysis in a HP6890 gas chromatograph (Agillent Technologies, México City, México) with a FID detector and a G1888 headspace sampler. To prepare the samples, latex (5 g) was centrifuged for 1 h at room temperature in an Optima XI-100K apparatus at 95,000 rpm, after which the particles were recovered and subjected to analysis by gas chromatography (GC). To know the content of St and DVB in the particles the calibration curves for both of monomers were previously plotted.

4. Conclusions

Semicontinuous heterophase polymerization carried out under monomer starved conditions allowed us to prepare latexes containing mesoporous polystyrene nanoparticles with a relatively high solids content (≈20%) and all the formulation surfactant on the particles. The unexpected direct relationship between monomer dosing rate and instantaneous conversion was found to be the major result in this study, however, the absence of particle size dependence on monomer dosing rate also was notable. It was postulated that the reason for the former finding was the higher ñ values attained in the polymerization at the higher dosing rate; this would arise from the higher fraction of cross-linked polymer obtained, whose chains would trap the radicals retarding the bimolecular termination reactions and allowing the existence of more than one radical inside the particles, which in turn would increase the propagation rate. The absence of monomers dosing rate effect on particle size was explained as possibly resulting from the achievement of the minimum particle size that the surfactant in the formulation can stabilize under the set of conditions at which the polymerizations were carried out.
