Probing the Relationship between Anti-Pneumocystis carinii Activity and DNA Binding of Bisamidines by Molecular Dynamics Simulations

by
Teresa Żołek
,
Dorota Maciejewska
*,
Jerzy Żabiński
,
Paweł Kaźmierczak
and
Mateusz Rezler
Department of Organic Chemistry, Faculty of Pharmacy, Medical University of Warsaw, Banacha 1, Warsaw 02 097, Poland
*
Author to whom correspondence should be addressed.
Molecules 2015, 20(4), 5942-5964; https://doi.org/10.3390/molecules20045942
Submission received: 3 March 2015 / Revised: 26 March 2015 / Accepted: 30 March 2015 / Published: 3 April 2015
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
The anti-Pneumocystis carinii activity of 13 synthetic pentamidine analogs was analyzed. The experimental differences in melting points of DNA dodecamer 5'-(CGCGAATTCGCG)2-3' complexes (ΔTm), and in the biological activity measured using ATP bioluminescence assay (IC50) together with the theoretical free energy of DNA-ligand binding estimated by the proposed computational protocol, showed that the experimental activity of the tested pentamidines appeared to be due to the binding to the DNA minor groove with extended AT sequences. The effect of heteroatoms in the aliphatic linker, and the sulfonamide or methoxy substituents on the compound inducing changes in the interactions with the DNA minor groove was examined and was correlated with biological activity. In computational analysis, the explicit solvent approximation with the discrete water molecules was taken into account, and the role of water molecules in the DNA-ligand complexes was defined.

Graphical Abstract

1. Introduction

The antimicrobial activity of aromatic bisamidines is well known, but only pentamidine is clinically used in the treatment of pneumonia caused by the opportunistic fungus Pneumocystis jiroveci, against antimony-resistant leishmaniasis, and initial stage human African trypanosomiasis [1,2,3,4,5,6,7,8,9]. Serious human health problems caused by these diseases in developing countries as well as after the spread of AIDS have stimulated research to find new drugs against them. There are several indications that pentamidine has a wider range of antimicrobial activity [10,11], however its high activity is associated with high toxicity and low bioavailability [12]. Recently we have found that some pentamidine analogs had little to no toxicity [13], and although they are not as quite potent as pentamidine, they hold promise for a decreased side effect within mammalian host.
The exact mechanism by which this drug acts in vivo is still under study and the molecular targets of pentamidine have not been unambiguously identified yet, but it is known that bisamidines accumulate in DNA-containing organelles and interfere with numerous cellular systems including ion channels as well as enzymes and modulate some RNA–protein, DNA–protein, and protein-protein interactions [14,15]. Furthermore, fluorescence microscopy results indicate that adenine-thymine sequences of mitochondrial kinetoplast DNA (kDNA) in trypanosomes are the primary targets for bisamidines which interfere with the replication of kDNA interacting with DNA in a nonintercalative manner in the adenine-thymine rich region (AT-rich) of the minor groove [16].
The molecular modeling studies of pentamidine analogs were reported and the free energies of binding with the DNA minor groove based on structural data obtained by X-ray diffraction measurements of pentamidine-oligonucleotide complexes [17,18,19,20,21] were used as a valuable tool to understand the structure-activity relationship, and for a design of new chemotherapeutics [20,21,22,23,24,25].
Since good correlation was found for many pentamidine analogs [26,27] between DNA binding affinity and stabilization of the DNA helix, estimated by melting temperature (Tm), the design of amidine dications that target the minor groove of DNA has evolved as a productive concept for discovering new potent anti-Pneumocystis agents. Although the AT specific interactions are very informative, predicting the role of structural features that would be optimal for generating the biological effect is still worth the effort.
The investigations of shape complementarity between the minor groove DNA and the ligand are important for the biological activity analysis, but in some cases the DNA minor groove is able to form strong interactions even with compounds lacking the complementary shape. The water-mediated interactions are crucial for this recognition model promoting the flexibility required for the DNA binding [28]. Water molecules act as effective hydrogen bond donors or acceptors, and are able to form hydrogen bond networks. Their presence should be taken into account in the rational drug design process as an important component of biological systems.
In the present paper, the theoretically modeled system was built on the basis of the X-ray crystal structure of a complex between the dodecamer 5'-d(CGCGAATTCGCG)2-3' and pentamidine (RCSD PDB: 1D64.pdb) [17]. To take into account water-mediated interactions the energies of pentamidine analogs complexes with DNA were analyzed in the explicit system wherein the dodecamer, along with its associated 77 “crystal water molecules” were placed in a rectangular box of ~4000 TIP3P [29] waters. The majority of “crystal waters” occur in the first hydration shell of solvation and are involved in hydrogen bonding with the base functional groups, the oxygen atoms of the sugar groups, and the phosphodiester backbone of DNA [30].
To check the movements of DNA complexes during molecular dynamic simulations we tested the evolution of the structure of pentamidine and the DNA dodecamer 5'-(CGCGAATTCGCG)2-3' complex using the root-mean-square deviation (RMSD) analysis (see Supplementary Materials).
Thirteen pentamidine analogs 1–13 were selected to form a set of compounds to be tested (see Table 1 where their structures are presented) for which the in vitro ATP bioluminescent assay evaluating the activity against Pneumocystis carinii was published by us [13]. They are linear bisamidines with different heteroatoms or sulfonyl groups in the linker, and with methoxy groups at the benzene rings.
In the present paper, we examined whether or not the changes in activity (expressed in IC50) can be explained by the interactions with DNA in the AT-rich region of the minor groove. Another parameter which was considered in the investigations was the difference between the melting temperature of free DNA and DNA bonded with the tested compounds, which provides a good measure for ranking the compounds against DNA binding affinities (the values of ΔTm were determined as shown in Experimental Section).
The purpose of this work was not only to provide useful information in order to better understand the DNA-binding properties of the linear bisamidine molecules, but also to find an effective tool for the future selection of bisamidines in pharmaceutical projects by utilizing the unique features of the DNA-bisamidine complexes defined during the theoretical simulations.

2. Results and Discussion

2.1. Relative DNA Binding Affinity: Changes of DNA Melting Temperature Tm

Interactions with nucleic acid have been implicated for many aromatic bisamidines, and the evidence suggests that minor groove binding is at least in part responsible for their biological activity [3,16,17,18,19,20,21,22,23,24,25]. The measured, as indicated in Experimental Section, Tm ± SDTm and ΔTm values for compounds 1–13 are presented in Table 1 next to the chemical formulas shown for clarity. Compounds 1–13 displayed ΔTm values in the range from 5.84 to 0.10 °C reflecting from stronger to much lower affinities to DNA than pentamidine. The highest increase of Tm was observed for compounds 5 and 10, in which the middle CH2 group in the pentamidine molecule was replaced by O (compound 5) or S (compound 10) atoms, and additionally the phenolic O atoms are replaced by N-H groups (compound 5). The compounds with the central methylene group replaced with N-CH3 or sulfonamide substituents did not increase the stability of DNA complexes. The least potent compounds in this series were those substituted with methoxy groups at benzene rings, and were characterized by the smallest values of ΔTm. These observations demonstrated that anti-Pneumocystis activity of the linear pentamidine analogs was associated with their ability to bind to the DNA dodecamer 5'-d(CGCGAATTCGCG)2-3'.
Table
Table 1. The structures of pentamidine analogs 1–13, an increase of melting temperature of the 5'-(CGCGAATTCGCG)2-3' dodecamer complex after complexation (ΔTm), anti-Pnemocystis carinii activities (IC50), and free energies of binding (ΔGbind) of DNA-ligand using MM-PBSA method.
Table 1. The structures of pentamidine analogs 1–13, an increase of melting temperature of the 5'-(CGCGAATTCGCG)2-3' dodecamer complex after complexation (ΔTm), anti-Pnemocystis carinii activities (IC50), and free energies of binding (ΔGbind) of DNA-ligand using MM-PBSA method.
NameChemical Structure(Tm ± SDTm) [°C]ΔTm [°C](IC50 ± SDIC50) [µM]ΔGbind [kcal/mol]
1 Molecules 20 05942 i00156.41 ± 0.233.121.73 ± 0.93−35.5
2 Molecules 20 05942 i00255.41 ± 0.622.123.41 ± 2.00−25.6
3 Molecules 20 05942 i00354.76 ± 0.421.476.26 ± 2.57−20.2
4 Molecules 20 05942 i00454.46 ± 0.221.171.99 ± 1.00−19.9
5 Molecules 20 05942 i00559.13 ± 0.065.841.11 ± 0.21−47.3
6 Molecules 20 05942 i00656.21 ± 0.282.922.13 ± 0.71−26.9
7 Molecules 20 05942 i00755.11 ± 0.831.824.21 ± 3.47−22.0
8 Molecules 20 05942 i00853.39 ± 0.850.1012.99 ± 2.83−10.7
9 Molecules 20 05942 i00955.64 ± 0.722.353.00 ± 0.66−27.2
10 Molecules 20 05942 i01058.11 ± 0.224.831.18 ± 0.09−44.3
11 Molecules 20 05942 i01156.54 ± 0.623.251.33 ± 0.20−39.7
12 Molecules 20 05942 i01255.74 ± 0.722.452.66 ± 1.21−27.3
13 Molecules 20 05942 i01355.16 ± 0.811.874.16 ± 1.13−22.4
PN Molecules 20 05942 i01457.94 ± 0.214.650.51 [31]−42.7

2.2. Relationship between the DNA Free Energy of Binding ΔGbind and ΔTm

The values of computed total free energy of binding (−ΔGbind), determined as shown in Experimental Section (Section 3.5), are presented in Table 1. Free energy values for each component of complexes are given in Table S1 (see Supplementary Materials). A linear correlation was found between the experimental differences of DNA melting temperature (ΔTm) and the theoretically estimated binding free energies of the DNA-bisamidine complexes (−ΔGbind). Figure 1 shows the graphical relationship together with the linear equation fitted to the data: ΔTm = −0.139ΔGbind − 1.382. The correlation coefficient R2 for this equation was high, and was equal to 0.942.
Molecules 20 05942 g001 550
Figure 1. The plot of ΔTm versus theoretically estimated DNA free energy of binding (−ΔGbind).
Figure 1. The plot of ΔTm versus theoretically estimated DNA free energy of binding (−ΔGbind).
Molecules 20 05942 g001
Higher interaction energies were observed for higher melting points differences: the ligands with the lowest ΔTm < 2.5 °C (2, 3, 4, 7, 8, 9, 12 and 13) were represented by ΔGbind values between −19.9 kcal/mol to −27.3 kcal/mol, the ligands with moderate ΔTm values between 3.0 and 3.5 °C (1, 6, and 11) were represented by ΔGbind values in the range from −26.9 kcal/mol to −39.7 kcal/mol, and the ligands with the highest ΔTm (5, 10; ΔTm > 4 °C) have the highest ΔGbind values (~ −44.0 to 47.0 kcal/mol). From the energy and ΔTm analyses it can be seen that small structural modifications had a profound influence on both parameters.
The compounds which weakly interact with DNA (2, 3, 4, 8, 12 and 13) have simultaneously the N atoms replacing the methylene group or the O atoms in the connecting chain and/or two or four methoxy groups at benzene rings. Structurally similar compounds (with the O or N heteroatoms, and N-sulfobenzene substituent in the middle of the linker) but without methoxy groups (1, 6 and 11) interacted quite significantly with DNA. The introduction of aromatic sulfobenzene substituents at a central N atom did not increase the interactions with the DNA fragment (compounds: 7, 9). The most potent compounds 5 and 10 have three heteroatoms in the aliphatic linker: the O or S atoms in the middle and the N or O atoms at the end of aliphatic chains.
The strength of intermolecular interactions of all ligands in the minor groove of DNA dodecamer 5'-d(CGCGAATTCGCG)2-3' reflected well the changes in the melting temperature of DNA, and can be taken into account in order to understand their DNA affinity.

2.3. Relationship between IC50 vs. ΔGbind and ΔTm

The efficiency against P. carinii evaluated in the ATP bioassay for compounds 1–13 prompted us to analyze the relationships between IC50 and DNA interactions obtained from the Tm measurements and MD analysis of ligand-DNA complexes. In the tested series of pentamidine analogs, the activity expressed as log(1/IC50) showed linear correlations with free energy of binding ΔGbind and ΔTm values. Figure 2 and Figure 3 present the results.
Molecules 20 05942 g002 550
Figure 2. The plot of log(1/IC50) versus theoretically estimated DNA free energy of binding (−ΔGbind).
Figure 2. The plot of log(1/IC50) versus theoretically estimated DNA free energy of binding (−ΔGbind).
Molecules 20 05942 g002
The obtained equation for log(1/IC50) vs. (ΔGbind) was log(1/IC50) = −0.029ΔGbind + 4.757 (R2 = 0.790), and for log(1/IC50) vs. ΔTm, was log(1/IC50) = 0.195ΔTm + 5.084 (R2 = 0.728). These correlations (the increase in ΔGbind values in connection with the increase in ΔTm values and the increase of anti-P. carinii activity) supported the importance of the DNA interaction step in the mechanism of biological activity of those closely related pentamidine analogs.
Molecules 20 05942 g003 550
Figure 3. The plot of log(1/IC50) versus ΔTm for the 5'-(CGCGAATTCGCG)2-3' dodecamer-bisamidine complexes.
Figure 3. The plot of log(1/IC50) versus ΔTm for the 5'-(CGCGAATTCGCG)2-3' dodecamer-bisamidine complexes.
Molecules 20 05942 g003
The activity of reference compound-pentamidine PN defined by these models was the high but not the highest. It should be emphasized, that experimental activity is dependent on a drug uptake, but this parameter was not characterized by the models. However, the results of the Tm measurements support the DNA as the biological target of bisamidines, and can explain the correlation of DNA binding with biological activity.

2.4. Evaluation of Theoretical Models

Five compounds were used to evaluate the theoretical models (see Table 2). Three N,N'-alkyl-1, n-diylbis(4-amidinobenzamide) dihydrochlorides TC1–TC3 were used as testing compounds because they include the bisamidine linker. It was interesting to check whether or not the proposed linear correlations could predict the lower anti-P. carinii activities observed for these pentamidine analogs [13].
Table
Table 2. Evaluation of models: testing compounds TC1–TC5; experimental and theoretical parameters: ΔTm, IC50 and ΔGbind.
Table 2. Evaluation of models: testing compounds TC1–TC5; experimental and theoretical parameters: ΔTm, IC50 and ΔGbind.
NameChemical Structure(Tm ± SDTm) [°C]ΔTm [°C](IC50 ± SDIC50) [µM]ΔGbind [kcal/mol]
TC1 Molecules 20 05942 i01555.66 ± 0.222.37 Predicted: 2.312.99 ± 1.76 Predicted: 3.97−26.6
TC2 Molecules 20 05942 i016--3.58 ± 0.02 Predicted: 4.65−21.1
TC3 Molecules 20 05942 i01750.21 ± 0.71−3.08 Predicted: −2.4614.33 ± 0.42 Predicted: 10.757.7
TC4 Molecules 20 05942 i018--4.40 ± 1.39 Predicted: 4.93−19.2
TC5 Molecules 20 05942 i019--3.71 ± 1.19 Predicted: 4.37−23.3
Next two TC4 and TC5 have the additional aromatic ring. Only compounds TC1 and TC3 were soluble enough for the melting temperature measurements, and were used for evaluation of two correlations: ΔTm = f(−ΔGbind) and log(1/IC50) = f(−ΔGbind). The other compounds were used only for evaluation of the correlation log(1/IC50) = f(−ΔGbind). The predicted and experimental IC50 and ΔTm values are given in Table 2. Clearly, both equations derived here have a predictive ability—the experimental and the computed values are close to each other.

2.5. Intermolecular Interactions of Ligands in DNA Minor Groove

To compare the impact of different substituents on anti-P. carinii activities with DNA binding profiles of 1–13, the conformations of the tested bisamidines were analyzed in the A-T region of the dodecanucleotide minor groove in a position closely similar to that observed for pentamidine. Table S2 (see Supplementary Materials) presents the length of intermolecular distances which are responsible for key interaction with the DNA minor groove. Figure 4 shows the overlay of the ligands conformations (blue) on the pentamidine structure (red) to illustrate the position of the ligands within the DNA minor grove with respect to pentamidine. Figure 5 displays the location of the ligands in the DNA dodecamer 5'-d(CGCGAATTCGCG)2-3'.
Molecules 20 05942 g004 550
Figure 4. Illustration of conformational differences between pentamidine and its analogs in the DNA minor groove. Pentamidine is shown in red, and the ligands are shown in blue. (A) compound 1; (B) compound 6; (C) compound 7; (D) compound 9; (E) compound 12; (F) compound 13.
Figure 4. Illustration of conformational differences between pentamidine and its analogs in the DNA minor groove. Pentamidine is shown in red, and the ligands are shown in blue. (A) compound 1; (B) compound 6; (C) compound 7; (D) compound 9; (E) compound 12; (F) compound 13.
Molecules 20 05942 g004
The compounds 1, 4, 6 evidenced the effect of the N and O atoms in the aliphatic linker on the activity against P. carinii. They are quite potent and their IC50s are equal to 1.73, 1.99 and 2.13 µM, respectively. In these compounds, the O atoms at the end of the linker do not interact with DNA (as they do not interact in pentamidine) as well as the N and O atoms in the middle of the joining chain. The NCH3 group of 1, which penetrates deeply into the minor groove of the DNA, interferes in the formation of hydrogen bonding. Only the amidinium groups are involved in the network of intermolecular interactions. In the DNA–compound 1 complex both amidinium groups are involved in seven direct and indirect hydrogen bondings with the DNA bases (adenine 6, adenine 5, adenine 18, cytosine 9), the O4' atom of 2'-deoxyribose molecules, and the O3' atom of phosphate groups.
In addition, water-mediated hydrogen bonds occur with the O2 atom of cytosine 9 and the O3' atom of phosphate groups at thymine 7. Compound 4, in which two O atoms of the pentamidine linker are replaced by the NCH3 groups, interacts with two strands of DNA. We can observe three direct hydrogen bond contacts between the H atoms of amidine groups: the O4' atom of 2'-deoxyribose at adenine 18, the O3' atom of the phosphate group at adenine 6, and with the N3 atom of adenine 17.
In the DNA-compound 6 complex only two strong interactions are present: between the H atoms of the amidinium group and the O4' atom of the 2'-deoxyribose at adenine 18 and the O3' atom of the phosphate group at cytosine 9. Both compounds 1 and 6 occupy the same space in the DNA minor groove as pentamidine (Figure 4A,B).
The overall stability of DNA complexes changes dramatically for pentamidine analogs which have four methoxy groups at the benzene rings (3, 8, 9, and 13). Two methoxy groups at the benzene rings had less pronounced consequence (2, 7, 12). The presence of these groups weakened the interactions between the H atoms of the amidinium groups and DNA atoms or destroyed them (see Supplementary Table S2).
The conformations of compounds 7 and 9 with two or four methoxy groups did not overlay with pentamidine (Figure 4C,D), and did not fit the DNA minor groove (Figure 5A,B). The methoxy groups are located out of DNA curvature causing deformations of the minor groove walls. The sulfonamide substituents hindered the adoption of pentamidine-like conformation by compounds 12 and 13 (Figure 4E,F), and are directed toward the mouth of the groove (Figure 5C,D).
Molecules 20 05942 g005 550
Figure 5. Location of ligands in the minor groove. (A) deformation of DNA by 7; (B) deformation of DNA by 9; (C) deformation of DNA by 12; (D) deformation of DNA by 13; (E) fitted conformation of 5; (F) deformation of DNA by 8.
Figure 5. Location of ligands in the minor groove. (A) deformation of DNA by 7; (B) deformation of DNA by 9; (C) deformation of DNA by 12; (D) deformation of DNA by 13; (E) fitted conformation of 5; (F) deformation of DNA by 8.
Molecules 20 05942 g005
In these DNA complexes, water molecules do not accumulate over the minor groove, which prevents them from the formation of water ribbons. Figure 5E,F present the location of compounds 5 and 8, the best and the worst DNA fitting compounds, respectively.
The representative compounds were selected for a more detailed analysis. Compounds 5 and 10 were chosen as the most potent structures, compound 11 as an example of compounds with the additional aromatic ring, and compound 8 as the least potent structure bearing OCH3 substituents.
The most potent compound is 5 (its IC50 is equal to 1.11 µM) and it also shows the strongest DNA binding affinity. Its amidinium groups form a network of interactions (Supplementary Table S2). The strongest hydrogen bonds are between the O4' atom of 2'-deoxyribose oxygen atoms at adenine 6 and at adenine 18 (2.29, 2.35 Å long, respectively). The next interactions are at cytosine 9 and at cytosine 21 (3.07, 3.05 Å long, respectively). The N3 atoms of adenine 5 and adenine 18 also interact directly with amidinium groups (3.33 and 3.26 Å long, respectively). Moreover, compound 5 creates hydrogen bonds with the O3' atom of the phosphate group at cytosine 21 and at cytosine 9 (2.95 and 3.05 Å long, respectively). The water networks of compound 5 will be discussed later on.
A very potent compound 10 (with IC50 equal to 1.18 µM) also shows strong affinity to DNA. The linker joining benzamidine groups in 10 is engaged in intermolecular interactions. The S atom in the aliphatic chain creates interactions with the O2 atom of thymine 7 (2.95 Å long) allowing for location of compound 10 near the bottom of the DNA minor groove. Additional hydrogen bonds appeared between the phenolic O atoms and the O4' atom of 2'-deoxyribose at thymine 19. The direct hydrogen bonds contacts are also between the H atoms of amidine groups and the O4' atom of 2'-deoxyribose molecules at cytosine 9, adenine 18 and adenine 6 (3.00, 3.04 and 2.79 Å long, respectively) and with the O3' atom of the phosphate group at guanine 10 (3.15 Å long). Both the most potent compounds, 5 and 10, have a concave shape, which allows them to match the curvature of the helical minor groove and slide deeply into the minor groove (Figure 5E).
Compound 11 belongs to the next group of the tested bisamidines which have the N atom with the sulfobenzene substituent in the middle of the aliphatic linker. It is quite potent (IC50 is equal to 1.33 µM) and its potency can be explained in terms of hydrogen bonding interactions with DNA. The ligand 11 occupies a symmetric position along the DNA minor groove. The one amidinium group forms the hydrogen bond with the O4' atom of 2'-deoxyribose molecules at guanine 10 and adenine 6 (3.09 and 3.14 Å long, respectively) and with the O3' atom of the phosphate group at cytosine 9 (2.26 Å long). There are also hydrogen bonds between the O2 atom of cytosine 21 and cytosine 9 (3.08 and 2.97 Å long, respectively).
The least potent compound 8 bearing four methoxy groups interacts with only one strand of DNA. We can detect only one direct hydrogen bond contact between the amidine hydrogen atom and the O3' atom of the phosphate group at cytosine 9 (2.84 Å long). This interaction with a single DNA strand caused the deformations of the minor groove as shown in Figure 5F, and decreased the free energy of binding ΔGbind. The introduction of four methoxy groups at the benzene rings forced a completely extended trans conformation of the aliphatic linker, and prevented the ligand from matching the DNA helix curvature. This can be the explanation of the mode of action of the methoxy groups, which also explains the weakened DNA binding affinity and the reduced activity against P. carinii.

2.6. Hydration at the DNA-Ligand Complexes

To characterize an active role of water molecules in the ligand binding with the minor-groove in the AT-rich binding site, some hydration sites which exhibit long nanosecond-scale residence time were analyzed using an approach proposed in papers [32,33]. This hydration network was observed as running along the length of the DNA dodecamer 5'-d(CGCGAATTCGCG)2-3', and the ligands as moving along the binding site during MD simulations. The average electron densities were generated for the water molecules located within 3.5 Å from any of the DNA atoms. To illustrate this phenomenon, the hydration surfaces were showed (Figure 6) as stereo views for two times frames: 1.5 and 2 ns (Figure 6A) and between 5 and 10 ns (Figure 6B) for the DNA complex of compound 5.
Molecules 20 05942 g006 550
Figure 6. Stereo (cross-eye) views of the hydration surface (water density in red) associated with the movement of compound 5 within the 5'-(CGCGAATTCGCG)2-3' dodecamer. (A) In the time frames between 1.5 and 2 ns MD–there are no direct H-bond contacts between the DNA bases and both amidinium groups; (B) In the time frames between 5 and 10 ns MD–both amidinium groups in ligand make direct H-bond contacts with the DNA bases.
Figure 6. Stereo (cross-eye) views of the hydration surface (water density in red) associated with the movement of compound 5 within the 5'-(CGCGAATTCGCG)2-3' dodecamer. (A) In the time frames between 1.5 and 2 ns MD–there are no direct H-bond contacts between the DNA bases and both amidinium groups; (B) In the time frames between 5 and 10 ns MD–both amidinium groups in ligand make direct H-bond contacts with the DNA bases.
Molecules 20 05942 g006
We can see that in the first time frame the upper amidinium group (in the illustration) directly interacts with the floor of the minor groove through hydrogen bonds, but the bottom amidinium group makes contacts with the minor groove bases through water molecules (Figure 6A). In the second time frame both amidinium groups form water bridges which stretch the molecule and help in the DNA-ligand complex stabilization (Figure 6B).
To show the role of water molecules in the interaction of the ligands with the AATT binding site in detail, seven significantly ordered hydration sites denoted as H1–H7 were selected [32]. Three sites H1, H2 and H3 are located in the proximity of the upper amidinium group. Two sites H4 and H5 are located along the joining chain, and the last two, H6 and H7, are located in the proximity of the bottom amidinium group (see Figure 7A–C and Supplementary Table S2 in Supplementary Materials where those hydration sites are shown for compound 5).
We decided to begin the description of the water network with compound 5 as the most potent substance (Figure 7) which formed all seven hydration sites. We can see the direct hydration site H1 present near the O2 atom of cytosine 9, the N3 atom of guanine 10 and the O4' atom of 2'-deoxyribose. The hydration site H2 is formed with participation of atoms: N3 (adenine 17), N2 (guanine 16) and O4' of 2'-deoxyribose (at adenine 17).
Molecules 20 05942 g007 550
Figure 7. A view of hydration sites for compound 5 in the minor groove (red lines—hydrogen bonds; length [Å]). (A) hydration sites H1–H3; (B) hydration sites H4–H5; (C) hydration sites H6–H7.
Figure 7. A view of hydration sites for compound 5 in the minor groove (red lines—hydrogen bonds; length [Å]). (A) hydration sites H1–H3; (B) hydration sites H4–H5; (C) hydration sites H6–H7.
Molecules 20 05942 g007
When sites H1 and H2 are occupied, the other water molecules form the hydration site H3 interconnecting sites H1 and H2. The hydration sites H4 and H5 are formed by the amine N atoms of the aliphatic chain and are located on one side of the linker. The last two hydration sites H6 and H7 are created thanks to the orientation of the amidinium groups towards the bottom of the minor groove, which makes possible additional contacts with the NH2 amidinium groups. The hydration site H6 is revealed as a water bridge at the N2 atom (guanine 4), whereas the hydration site H7 is present near the O4' atom of 2'-deoxyribose molecules at guanine 22. All the N atoms in compound 5 (two in the aliphatic linker and four in amidinium groups) that are hydrogen-bonded through the water molecules, are the points of water ribbons.
For only slightly less active compound 10 merely five hydration sites H1–H2, H4–H5 and H7 were observed (Figure 8).
Molecules 20 05942 g008 550
Figure 8. A view of five hydration sites for compound 10 in the minor groove (red lines—hydrogen bonds; length [Å]). (A) hydration sites H1–H2; (B) hydration sites H4–H5; (C) hydration site H7.
Figure 8. A view of five hydration sites for compound 10 in the minor groove (red lines—hydrogen bonds; length [Å]). (A) hydration sites H1–H2; (B) hydration sites H4–H5; (C) hydration site H7.
Molecules 20 05942 g008
We could see the direct hydration site H1 present near the O4' atom of 2'-deoxyribose at guanine 10 and the hydration site H2 formed with participation of the N3 atom (adenine 17) and the O4' atom of 2'-deoxyribose at adenine 17. The hydration site H4 is formed by the O4' atom of 2'-deoxyribose molecules at thymine 20, and the hydration site H5 is revealed as a water bridge between the O and S atoms and the O3' of the phosphate group at thymine 7. Both sites are located on opposite sides of the linker. The bottom amidinium group forms only one hydration site H7 between the O3' phosphate group at cytosine 21.
Compound 11 with the additional benzene ring is oriented towards the bottom of the minor groove, which makes it possible to create three hydration sites H2, H4 and H5 (Figure 9).
Molecules 20 05942 g009 550

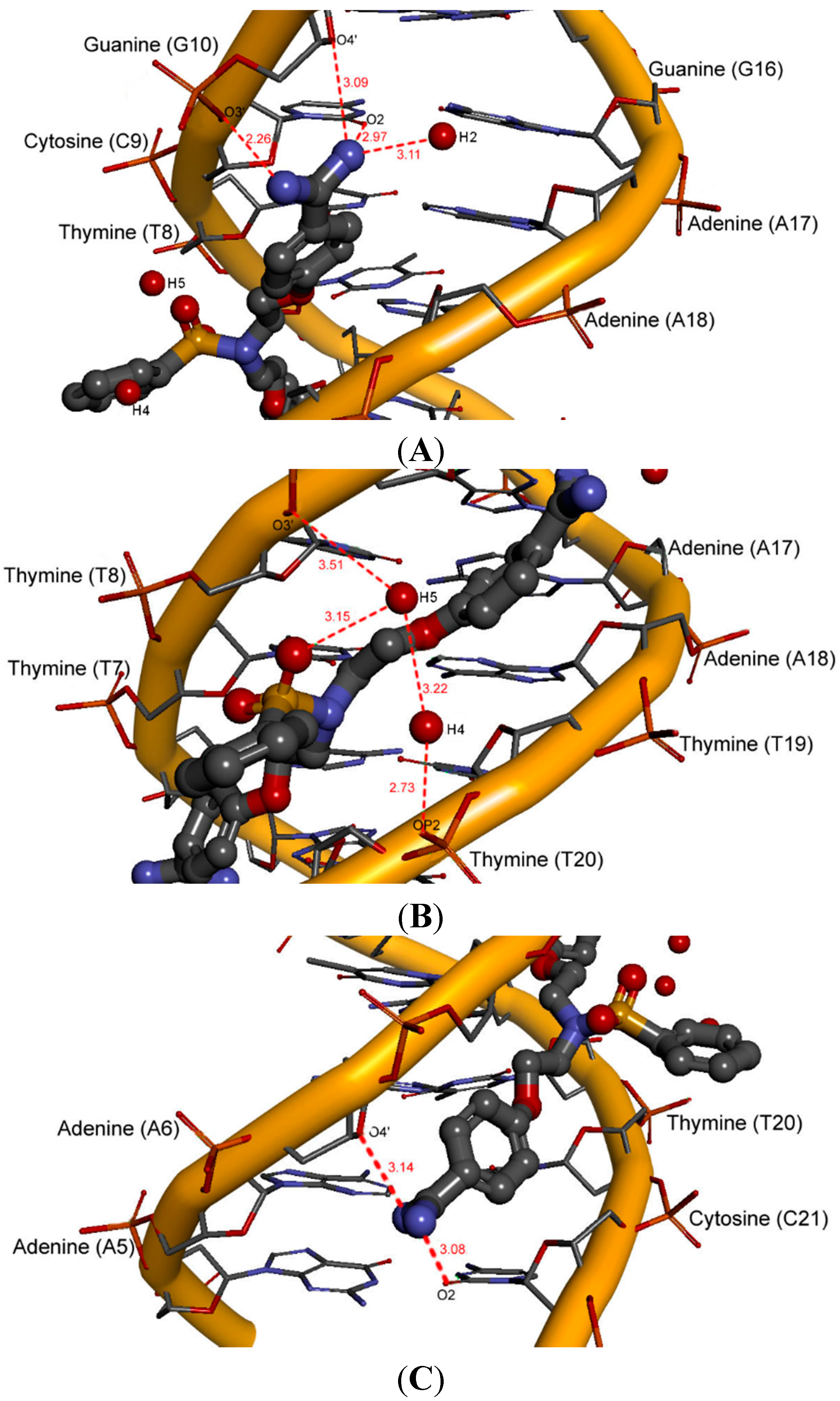

Figure 9. A view of three hydration sites for compound 11 in the minor groove (red lines—hydrogen bonds; length [Å]). (A) hydration site H2; (B) hydration sites H4–H5; (C) lack of hydration sites H6–H7.
Figure 9. A view of three hydration sites for compound 11 in the minor groove (red lines—hydrogen bonds; length [Å]). (A) hydration site H2; (B) hydration sites H4–H5; (C) lack of hydration sites H6–H7.
Molecules 20 05942 g009
The hydration site H2 is present near the amidinium group located between the adenine 17 and guanine 16. The linker of compound 11, located at the bottom of the DNA minor groove, forms direct hydration sites H4 and H5 with participation of the O3' and O2' atoms of the phosphate group at thymine 8 and thymine 20, respectively. The sulfobenzene substituent also takes part in these interactions.
For the least active compound 8 bearing four methoxy groups at benzene rings, only one weak interaction through water molecules and the upper amidinium group was observed (Figure 10). The H2 hydration site is located in the proximity of adenine 17 and guanine 16.
Molecules 20 05942 g010 550
Figure 10. A view of one hydration site for compound 8 in the minor groove (red lines–hydrogen bonds; length [Å]).
Figure 10. A view of one hydration site for compound 8 in the minor groove (red lines–hydrogen bonds; length [Å]).
Molecules 20 05942 g010
The MD studies show that the ligand can form direct and indirect H-bonds with the DNA bases, where water-mediated H-bonds compensate for the lack of curvature of the ligand. The water molecules extend the ligand structure as part of the complex and play an essential role as mediators between the ligand and the DNA surfaces. We can deduce that the most active compounds form more hydration sites than those less active. The additional aromatic ring or the additional methoxy substituent does not allow the formation by water molecules of a continuous array in the minor groove.

3. Experimental Section

Pentamidine (PN) was purchased as isethionate, from Sigma Aldrich. A series of thirteen compounds 1–13 (Table 1) and TC1–TC6 (Table 2) were synthesized in our laboratory [13,34,35]. The lyophilized monomer of dodecanucleotide 5'-(CGCGAATTCGCG)2-3' purified using the HPLC method was purchased in Laboratory of DNA Sequencing and Oligonucleotides Synthesis, Institute of Biochemistry and Biophysics, Polish Academy of Sciences, and kept at −20 °C before the experiments. Double-stranded DNA was prepared by heating monomers to 100 °C and a slow cooling to room temperature. This procedure leads to spontaneous binding of complementary DNA strands into double-stranded helical DNA.

3.1. DNA Melting Point Measurements (Tm)

The Tms of the oligonucleotide complexes were measured using the UV spectrophotometric method [26]. Absorbances were recorded on a SHIMADZU spectrophotometer (Shimadzu Scientific Instruments, Inc., Columbia, MD, USA), model UV-1601 PC. All absorbance measurements were performed in a buffer system consisting of 2 mM sodium phosphate, 60 mM NaCl, 0.1 mM EDTA with the pH adjusted to 7.0. For absorbance measurements, the buffer systems were scanned at 260 nm in 1 cm quartz cuvettes. The registered absorbance was in the range of 0.5–2.5. The thermal melting experiments were carried out by controlling the temperature of the sample cell with a Julabo (JULABO EH-5) circulating bath while monitoring the absorbance at 260 nm. The temperature of the solution was continuously measured using a DS-1820 (Dallas Semiconductors) digital thermometer (Maxim Integrate Inc., San Jose, CA, USA) working with the accuracy of 0.1 °C in the range of 20–80 °C. The heating rate was about 1 °C/min. Before the measurements the cuvette chamber was purged with nitrogen at 12 °C to avoid condensation. All experiments were performed in triplicate. The results of temperature/absorption experiments were analyzed using the procedures written in Matlab 7.0 (Mathworks) as was shown in [27].

3.2. ATP Bioluminescent Assay for Bisamidines

The in vitro ATP bioluminescent assay to evaluate the activity of compounds 1–13 and TC1–TC6 against Pneumocystis carinii was described in [13,36]. The IC50 for each bisamidine was calculated using linear regression of the percent decrease in ATP content vs. the log drug concentrations (GraphPad Software v2 for Science; GraphPad, San Diego, CA, USA). The IC50 values in µM are given in Table 1 and Table 2.

3.3. Computational Methods

Docking studies were performed using Discovery Studio 4.0 visual interface [37]. The X-ray crystal structure of the pentamidine bound to the minor groove of DNA dodecamer 5'-(CGCGAATTCGCG)2-3' was obtained from the RCSB PDB (ID: 1D64.pdb) [17]. The starting conformations of ligands 1–13 and TC1–TC6 were constructed on the basis of X-ray and 13C CP/MAS NMR solid-state derived structures of structurally related compounds [13,34,35] to eliminate some subjectivity associated with generating the three dimensional structures. Then the geometries of ligands were constructed by a manual exchange of appropriate atoms in the pentamidine molecule which was located in the minor groove in the crystallographic complexes 1D64.pdb. The geometries of all ligands were optimized using the density functional theory (DFT) with B3LYP/6-311+G (d,p) hybrid functional implemented in the Gaussian 03 program [38]. The so-called ESP-atomic partial charges on the atoms of bisamidines were computed using the Breneman model [39], reproducing the molecular electrostatic potential. Next, the ligands were put into the minor groove adopting the isohelical conformation similar to that of pentamidine. Then the pentamidine molecule was deleted. The geometries of DNA complexes were analyzed using the molecular dynamics method (MD).

3.4. Molecular Dynamics Simulations

All molecular dynamics simulations were run using the CHARMm force field [40] implemented in the module of Discovery Studio 4.0. All molecular parameters and atomic charges for nucleic acid were taken from a set of charmm27 force field parameters [41,42]. The DNA complexes were surrounded by a periodic box of water molecules described by the TIP3P potential [29]. The periodic box was extended up to a distance of 10 Å from any solute atom. To each complex in a simulated water box additional salt (NaCl) molecules were added to reach a concentration of ~0.15 M, close to physiological conditions [43] using the Solvation module of Discovery Studio 4.0 (sodium chloride molecules were randomly added to the water box).
All energy minimizations and molecular dynamics simulations were performed using the particle mesh Ewald (PME) method [44] for the correct treatment of electrostatic interactions [45]. Furthermore, a dielectric constant of 1 was used, and atom-based non-bonded interactions were truncated beyond 12 Å using a force shift approach [46], which was proven to accurately represent the long-range electrostatic effects in nucleic acids [47]. The non-bonded lists were maintained for pairs within a distance of 14 Å and updated heuristically whenever an atom had moved more than 1 Å since the last update. All simulations in this study were run with weak harmonic restraints (force constant of 2 kcal/(mol Å2)) imposed on the Watson-Crick hydrogen bonds present in the 5' and 3' termini base pairs [48,49,50,51].
The initial minimization process consisted of two cycles of minimization. First, the steepest decent algorithm was applied with 100 steps, and then conjugate gradient algorithm was applied with 10,000 steps to reduce poor intermolecular steric contact (until the RMS gradient of the structure was below 0.01 kcal/(mol Å).
The MD protocol contained a heating step performed for 50 ps with a time step of 1 fs. The system was heated from 50 to 300 K. Prior to the production stage, the system was equilibrated by allowing it to evolve spontaneously for some period of time and integrating the equations of motion until the average temperature and the structure remained stable and the total energy converged. This was facilitated by periodically reassigning velocities appropriate to the desired temperatures, which in this study was 300 K. The total number of steps to perform the dynamics simulation was 500 ps. The Leapfrog Verlet algorithm [52] was used to perform numerical integration of the equations of motion using periodic boundary conditions on an orthorhombic box of TIP3P water. To allow one to keep bonds involving the H atoms at their equilibrium length, the SHAKE algorithm [53] was used. It allows one to use a 2 fs time step for the integration of Newton’s equations. The equilibrated system was taken as the starting structure for the long-term molecular dynamics simulation, called production. The production phase involved the NPT ensemble at a constant pressure while the temperature conditions were maintained via Berendsen algorithms [54] conditions at 300 K. The same conditions as those of the final phase of equilibration were used for the production run of 10 ns, and the coordinates were recorded every 10 ps. Trajectory structures for analysis were saved at 0.2 ps intervals from 10 ns MD simulations. We assumed that hydrogen bonds were present when the donor-acceptor distance was smaller than 3.5 Å.
To examine the stability of the studied complexes in the explicit system, root mean square deviation (RMSD) values were calculated for the pentamidine complex 1D64.pdb and compared with the implicit solvation system where the distance-dependent dielectric constant of ɛ = 4rij [55] was used. The evolutions of the structure during the simulation were calculated for the DNA-backbone atoms, DNA-base atoms and the atoms of pentamidine bound in the minor groove of DNA.

3.5. Binding Free Energy Calculations

Energy analysis was done applying the MD implementation of the MM-PBSA approach (Molecular Mechanics–Poisson Boltzmann with non-polar Surface Area) [56], based on the MD trajectories obtained using explicit solvent molecules.
We calculated the energy difference between the complex and the unbound ligand and DNA from the following formula:
ΔGbind = Gcomplex − GDNA − Gligand
We used 100 snapshots of the solute sampled regularly from the last ns of the MD trajectories, with the water and counter ions stripped away. This method [57] combines the enthalpy or molecular mechanics energies (EMM) that represent the internal energies (bond, angle and dihedral: EBADH) along with van der Waals (EvdW) and electrostatic interactions (Eelec), with the solvation free energies (Gsolv) calculated by the finite difference Poisson-Boltzmann (PB) model for polar solvation (GPB or Gpolar) and the non-polar contribution (Gnon-polar) as a function of the solvent-accessible surface area (SASA). All terms were computed with the Discovery Studio 4.0 program. The conformational entropy (S), was approximated by translational and rotational components calculated at the molecular mechanics level (Equation (2)).
G = EMM + Gsolv − TS
The Gpolar contribution was calculated by applying a cubic lattice with 0.5 Å grid spacing and evaluating all pairwise interactions using an internal dielectric constant of 1 and an outside dielectric of 80. The ΔGnon-polar was determined as a function of the SASA estimated using Equation (3)
ΔGnon-polar = γSASA + b
where γ b and bare empirical constants of 0.00542 kcal/(mol Å2) and 0.92 kcal/mol, respectively, for water.
The selected structures were minimized using conjugate gradients for 10,000 steps after 100 steps of the steepest descents. The Newton-Raphson algorithms were then used for 5000 steps with a distance-dependent dielectric of 1/r2 (with r being the distance between two atoms) and a dielectric constant of 4 for the electrostatic interactions until the RMS gradient of the structure was less than 0.001 kcal/(mol Å).
Binding free energies were determined by means of Equation (1) using snapshots from the last ns generated by the single and separate trajectory approach. The coordinates for GDNA and Gligand were extracted from the Gcomplex trajectory.
The interactions between the ligands and DNA dodecamer 5'-(CGCGAATTCGCG)2-3' were analyzed for the average conformations generated over the last ns of the production simulation. The average structures were subjected to molecular mechanics minimizations to convergence. We have taken into account the findings presented in the papers [51,58] that the hydrogen bond patterns with the minor groove of the DNA monitored during MD simulations were repeated (i.e., they oscillated, and the transition from one type of complex to the other was observed multiple times during simulations).

4. Conclusions

The structure-activity analysis for the synthetic pentamidine analogs based on the proposed theoretical protocol and on the experimental anti-Pneumocystis carinii activities confirmed that the defined shape of molecules (which make possible the fitting to the DNA minor groove) together with amidinium groups and the N, S atoms present in drug molecules (which are able to form H-bonds with nucleic bases), are needed to enhance the potency of the designed chemotherapeutics. Linear correlations formed between the experimental differences of the melting temperature, ΔTm, anti-P. carinii activity, log(1/IC50) and the theoretical free energy of binding DNA-bisamidine complexes, ΔGbind (ΔTm = −0.139ΔGbind − 1.382; R2 = 0.942), and (log(1/IC50) = −0.029ΔGbind + 4.757; R2 = 0.790) have a high predictive ability. Therefore, these models create the basis to help understand the activity of linear pentamidines and supported the importance of the DNA interaction step in the mechanism of biological activity of those closely related pentamidine analogs. The impact of additional functional groups on anti-P. carinii activity can be explained in terms of increased interactions with the DNA minor groove. The results confirmed that in the theoretical analysis of biological models the water molecules should be included in the systems as discrete entities. Water molecules can extend the ligand structures and therefore play an essential role as mediators between the ligands and the DNA surfaces. Pentamidine analogs which were less active did not reveal such favorable interactions with water molecules.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/20/04/5942/s1.

Acknowledgments

The results presented in this work were obtained using the resources of Interdisciplinary Center for Mathematical and Computational Modeling (ICM) Warsaw University (G26-10).

Author Contributions

D.M and T.Ż participated in designing this study, and discussion of the results. T.Ż conducted the molecular modeling and experimental studies. J.Ż, P.K and M.R performed the synthesis of compounds. The manuscript was written and revised by T.Ż and D.M.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tidwell, R.R.; Jones, S.K.; Geratz, J.D.; Ohemeng, K.A.; Cory, M.; Hall, J.E. Analogues of 1,5-bis(4-amidinophenoxy)pentane (pentamidine) in the treatment of experimental Pneumocystis carinii pneumonia. J. Med. Chem. 1990, 33, 1252–1257. [Google Scholar] [CrossRef] [PubMed]
  2. Fishman, J.A. Treatment of infection due to Pneumocystis carinii. Antimicrob. Agents Chemother. 1998, 42, 1309–1314. [Google Scholar] [PubMed]
  3. Ismail, M.A.; Arafa, R.K.; Brun, R.; Wenzler, T.; Miao, Y.; Wilson, W.D.; Bridges, A.; Hall, J.E.; Boykin, D.W. Synthesis, DNA affinity, and antiprotozoal activity of linear dications: Terphenyl diamidines and analogues. J. Med. Chem. 2006, 49, 5324–5332. [Google Scholar] [CrossRef] [PubMed]
  4. Mathis, A.M.; Holman, J.L.; Sturk, L.M.; Ismail, M.A.; Boykin, D.W.; Tidwell, R.R.; Hall, J.E. Acumulation and intracelular distribution of Antitrypasomal diamidine compounds DB75 and DB820 in African Trypanosomes. Antimicrob. Agents Chemother. 2006, 50, 2185–2191. [Google Scholar] [CrossRef] [PubMed]
  5. Brendle, J.J.; Outlaw, A.; Kumar, A.; Boykin, D.W.; Patrick, D.A.; Tidwell, R.R.; Werbovetz, K.A. Antileishmanial activities of several classes of aromatic dications. Antimicrob. Agents Chemother. 2002, 46, 797–807. [Google Scholar] [CrossRef] [PubMed]
  6. Huang, T.L.; Eynde, J.J.V.; Mayence, A.; Collins, M.S.; Cushion, M.T.; Rattendi, D.; Londono, I.; Mazumder, L.; Bacchi, C.J.; Yarlett, N. Synthesis and SAR of alkanediamidine-linked bisbenzamidines with anti-trypanosomal and antipneumocystis activity. Bioorg. Med. Chem. Lett. 2009, 19, 5884–5886. [Google Scholar] [CrossRef] [PubMed]
  7. Croft, S.L.; Barrett, M.P.; Urbina, J.A. Chemotherapy of trypanosomiases and leishmaniasis. Trends Parasit. 2005, 21, 508–512. [Google Scholar] [CrossRef]
  8. Soeiro, M.N.C.; Souza, E.M.D.; Stephens, C.E.; Boykin, D.W. Aromatic diamidines as antiparasitic agents. Expert Opin. Investig. Drugs 2005, 14, 957–972. [Google Scholar] [CrossRef] [PubMed]
  9. Queener, S.F. New drug developments for opportunistic infections in immunosuppressed patients: Pneumocystis carinii. J. Med. Chem. 1995, 38, 4739–4759. [Google Scholar] [CrossRef] [PubMed]
  10. Rolain, J.M.; Fenollar, F.; Raoult, D. In vitro activity of pentamidine against Tropheryma whipplei. Int. J. Antimicrob. Agents 2011, 38, 545–547. [Google Scholar] [CrossRef] [PubMed]
  11. Minnick, M.F.; Hicks, L.D.; Battisti, J.M.; Raghavan, R. Pentamidine inhibits Coxiella burnetti growth and 23S rRNA intron splicing in vitro. Int. J. Antimicrob. Agents 2010, 36, 380–382. [Google Scholar] [CrossRef] [PubMed]
  12. Walzer, P.D.; Perl, D.P.; Krogstad, D.J.; Rawson, P.G.; Schultz, M.G. Pneumocystis carinii pneumonia in the united states. Epidemiologic, diagnostic, and clinical feature. Ann. Intern. Med. 1974, 80, 83–93. [Google Scholar] [CrossRef] [PubMed]
  13. Maciejewska, D.; Żabiński, J.; Kaźmierczak, P.; Rezler, M.; Krassowska-Świebocka, B.; Collins, M.C.; Cushion, M.T. Analogs of pentamidine as potential anti-Pneumocystis chemotherapeutics. Eur. J. Med. Chem. 2012, 48, 164–173. [Google Scholar] [CrossRef]
  14. Daliry, A.; Pires, M.Q.; Silva, C.F.; Pacheco, R.S.; Munde, M.; Stephens, C.E.; Kumar, A.; Ismail, M.A.; Liu, Z.; Farahat, A.A.; et al. The Trypanocidal Activity of Amidine Compounds Does Not Correlate with Their Binding Affinity to Trypanosoma cruzi Kinetoplast DNA. Antimicrob. Agents Chemother. 2011, 55, 4765–4773. [Google Scholar] [CrossRef] [PubMed]
  15. Huang, T.L.; Mayence, A.; Eynde, J.J.V. Some non-conventional biomolecular targets for diamidines. Bioorg. Med. Chem. 2014, 22, 1983–1992. [Google Scholar] [CrossRef] [PubMed]
  16. Wilson, W.D.; Nguyen, B.; Tanious, F.A.; Mathis, A.M.; Hall, J.E.; Stephens, C.E.; Boykin, D.W. Dications that target the DNA minor groove: Compound design and preparation, DNA interactions, cellular distribution and biological activity. Curr. Med. Chem. Anti-Canc. Agents 2005, 5, 389–408. [Google Scholar] [CrossRef]
  17. Edwards, K.J.; Jenkins, T.C.; Neidle, S. Crystal structure of a pentamidine-oligonucleotide complex: Implications for DNA—Binding properties. Biochemistry 1992, 31, 7104–7109. [Google Scholar] [CrossRef] [PubMed]
  18. Jenkins, T.C.; Lane, A.N.; Neidle, S.; Brown, D.G. NMR and modeling studies of the interaction of berenil and pentamidine with d(CGCAAATTTGCG)2. Eur. J. Biochem. 1993, 213, 1175–1184. [Google Scholar] [CrossRef] [PubMed]
  19. Nunn, C.M.; Jenkins, T.C.; Neidle, S. Crystal Structure of γ-Oxapentamidine Complexed with d(CGCGAATTCGCG)2: The Effects of Drug Structural Change on DNA Minor-Groove Recognition. Eur. J. Biochem. 1994, 226, 953–961. [Google Scholar] [CrossRef] [PubMed]
  20. Tidwell, R.R.; Boykin, D.W. DNA and RNA Binders: From Small Molecules to Drugs; Wiley-VCH: New York, NY, USA, 2003; pp. 414–460. [Google Scholar]
  21. Laughton, C.A.; Tanious, F.A.; Nunn, C.M.; Boykin, D.W.; Wilson, W.D.; Neidle, S. A crystalographic and spectroscopic study of the complex between d(CGCGAATTCGCG)2 and 2,5-bis(4-guanylphenyl)furan, an analogue of berenil. Structural orgins of enhanced DNA-binding affinity. Biochemistry 1996, 35, 5655–5661. [Google Scholar] [CrossRef] [PubMed]
  22. Greenidge, P.A.; Jenkins, T.C.; Neidle, S. DNA minor groove recognition properties of pentamidine and its analogs: A molecular modeling study. Mol. Pharmacol. 1993, 43, 982–988. [Google Scholar] [PubMed]
  23. Montanari, C.A.; Tute, M.S.; Beezer, A.E.; Mithcell, J.C. Determination of receptor-bound drug conformations by QSAR using flexible fitting to derive a molecular similarity index. J. Comput. Aided Mol. Des. 1996, 10, 67–73. [Google Scholar] [CrossRef] [PubMed]
  24. Simpson, I.J.; Michael, I.; Kumar, A.; Boykin, D.W.; Neidle, S. DNA minor groove interactions and biological activity of 2,5-bis-[4-(N-alkylamidino)phenyl]furans. Bioorg. Med. Chem. Lett. 2000, 10, 2593–2597. [Google Scholar] [CrossRef] [PubMed]
  25. Oliveira, A.M.D.; Custodio, F.B.; Donnici, C.L.; Montanari, C.A. QSAR and molecular modeling studies of B-DNA recognition of minor groove binders. Eur. J. Med. Chem. 2003, 38, 141–155. [Google Scholar] [CrossRef] [PubMed]
  26. Breslauer, K.J. Methods for obtaining thermodynamic data on oligonucleotide transitions. In Thermodynamic Data for Biochemistry and Biotechnology; Hinz, H.J., Ed.; Springer: New York, NY, USA, 1986; pp. 402–427. [Google Scholar]
  27. Żołek, T.; Maciejewska, D. Theoretical models of pentamidine analogs based on their DNA minor groove complexes. Eur. J. Med. Chem. 2010, 45, 1991–1999. [Google Scholar] [CrossRef]
  28. Nguyen, B.; Lee, M.P.H.; Hamelberg, D.; Joubert, A.; Bailly, C.; Brun, R.; Neidle, S.; Wilson, W.D. Strong binding in DNA minor groove by an aromatic diamidine with a shape that does not math the curvature of the groove. J. Am. Chem. Soc. 2002, 124, 13680–13681. [Google Scholar] [CrossRef] [PubMed]
  29. Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of simple potential functions for the simulation of liquid water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]
  30. Guerri, A.; Simpson, I.J.; Neidle, S. Visualisation of extensive water ribbons and networks in a DNA minor-groove drug complex. Nucleic Acids Res. 1998, 26, 2873–2878. [Google Scholar] [CrossRef] [PubMed]
  31. Cushion, M.T.; Walzer, P.D.; Collins, M.C.; Rebholz, S.; Vanden Eynde, J.J.; Mayence, A.; Huang, T.L. Highly active anti-Pneumocystis carinii compounds in a library of novel piperazine-linked bisbenzamidines and related compounds. Antimicrob. Agents Chemother. 2004, 48, 4209–4209. [Google Scholar] [CrossRef] [PubMed]
  32. Spackova, N.; Cheatham, T.E., III; Ryjacek, F.; Lankas, F.; Meervelt, L.; Hobza, P.; Sponer, J. Molecular dynamics simulations and thermodynamics analysis of DNA-drug complexes. Minor groove binding between 4',6-diamidino-2-phenylidole and DNA duplexes in solution. J. Am. Chem. Soc. 2003, 125, 1759–1769. [Google Scholar] [CrossRef]
  33. Madhumalar, A.; Bansal, M. Structural insights into the effect of hydration and Ions on A-tract DNA: A molecular dynamics study. Biophys. J. 2003, 85, 1805–1816. [Google Scholar] [CrossRef] [PubMed]
  34. Żabiński, J.; Wolska, I.; Maciejewska, D. Comparsion of structure in solid state of new 1,5-bis(4-cyano-2,6-dimethoxyphenoxy)alkanes by means of 13C CP/MAS NMR and X-ray diffraction. J. Mol. Struct. 2007, 883, 74–81. [Google Scholar] [CrossRef]
  35. Maciejewska, D.; Kaźmierczak, P.; Żabiński, J.; Wolska, I.; Popis, S. Pentamidine analogs: Syntheses, structures. In solid state by 13C CP/MAS NMR spectroscopy, and X-ray crystallography and their preliminary biological screening against human cancer. Monatshefte fuer Chemie 2006, 137, 1225–1240. [Google Scholar] [CrossRef]
  36. Cushion, M.T.; Walzer, P.D.; Ashbaugh, A.; Rebholz, S.; Brubaker, R.; Vandes Eynde, J.J.; Mayence, A.; Huang, T.L. In vitro selection and in vivo efficacy of piperazine- and alkanediamide-linked bisbenzamidines against Pneumocystis Pneumonia in mice. Antimicrob. Agents Chemother. 2006, 50, 2337–2343. [Google Scholar] [CrossRef] [PubMed]
  37. Accelrys Software Inc. Discovery Studio Modeling Environment; Release 3.1; Accelrys Software Inc.: San Diego, CA, USA, 2011. [Google Scholar]
  38. Frish, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Zakrzewski, V.G.; Montgomery, J.A.J.; Stratmann, R.E.; Burant, J.C.; et al. Gaussian 03; Revision C.02; Gaussian, Inc.: Pittsburgh, PA, USA, 2009. [Google Scholar]
  39. Breneman, C.M.; Wiberg, K.B. Determing atom-centered monopoles from molecular electrostatic potentials. The need for high sampling in formamide conformational analysis. J. Comput. Chem. 1990, 11, 361–373. [Google Scholar] [CrossRef]
  40. Brooks, B.R.; Bruccoleri, R.E.; Olafson, B.D.; States, D.J.; Swaminathan, S.; Karplus, M. CHARMM: A program for macromolecular energy, minimization, and dynamics calculations. J. Comput. Chem. 1983, 4, 187–217. [Google Scholar] [CrossRef]
  41. Foloppe, N.; MacKerell, A.D., Jr. All-atom empirical force field for nucleic acids: I. Parameter optimization based on small molecule and condensed phase macromolecular target data. J. Comput. Chem. 2000, 21, 86–104. [Google Scholar] [CrossRef]
  42. MacKerell, A.D.J.; Banavali, N.K. All-atom empirical force field for nucleic acids: II. Application to molecular dynamics simulations of DNA and RNA in solution. J. Comput. Chem. 2000, 21, 105–120. [Google Scholar] [CrossRef]
  43. Aqvist, J. Ion-water interaction potentials derived from free energy perturbation simulations. J. Phys. Chem. 1990, 94, 8021–8024. [Google Scholar] [CrossRef]
  44. Essmann, U.; Perera, L.; Brerkowitz, M.L.; Darden, T.; Lee, H.; Pedesen, L.G. A smooth particle mesh Ewald method. J. Chem. Phys. 1995, 103, 8577–8593. [Google Scholar] [CrossRef]
  45. Sagui, C.; Darden, T.A. Molecular dynamics simulations of biomolecules: Long-range electrostatic effects. Annu. Rev. Biophys. Biomol. Struct. 1999, 28, 155–179. [Google Scholar] [CrossRef] [PubMed]
  46. Steinbach, P.J.; Brooks, B.R. New spherical-cutoff methods for long-range forces in macromolecular simulation. J. Comput. Chem. 1994, 15, 667–683. [Google Scholar] [CrossRef]
  47. Norberg, J.; Nilsson, L. On the truncation of long-range electrostatic interactions in DNA. Biophys. J. 2000, 79, 1537–1553. [Google Scholar] [CrossRef] [PubMed]
  48. Trieb, M.; Rauch, C.; Wellenzohn, B.; Wibowo, F.; Loerting, T.; Liedl, K.R. Dynamics of DNA: BI and BII Phosphate Backbone Transitions. J. Phys. Chem. B 2004, 108, 12258–12258. [Google Scholar] [CrossRef]
  49. Lei, H.; Wang, X.; Wu, C. Early stage intercalation of doxorubicin to DNA fragments observed in molecular dynamics binding simulations. J. Mol. Graph. Model. 2012, 38, 279–289. [Google Scholar] [CrossRef] [PubMed]
  50. Dolenc, J.; Oostenbrink, C.; Koller, J.; Gunsteren, W.F. Molecular dynamics simulations and free energy calculations of netropsin and distamycin binding to an AAAAA DNA binding sit. Nucl. Acids Res. 2005, 33, 725–733. [Google Scholar] [CrossRef] [PubMed]
  51. Shen, L.; Johnson, T.L.; Clugston, S.; Huang, H.; Butenhof, K.J.; Stanton, R.V. molecular dynamics simulation and binding energy calculation for estimation of oligonucleotide duplex thermostability in RNA-based therapeutics. J. Chem. Inf. Model 2011, 51, 1957–1965. [Google Scholar] [CrossRef] [PubMed]
  52. Verlet, L. Computer “Experiments” on classical fluids. I. Thermodynamical properties of Lennard-Jones molecules. Phys. Rev. 1967, 159, 98–100. [Google Scholar] [CrossRef]
  53. Ryckaert, J.P.; Ciccotti, G.; Berendsen, H.J.C. Numerical integration of the cartesian equations of motion of a system with constraints: Molecular dynamics of n-alkanes. J. Comput. Phys. 1977, 23, 327–341. [Google Scholar] [CrossRef]
  54. Berendsen, H.J.C.; Postma, J.P.M.; van Gunsteren, W.F.; DiNola, A.; Haak, J.R. Molecular dynamics with coupling to an external bath. J. Chem. Phys. 1984, 81, 3684–3690. [Google Scholar] [CrossRef]
  55. Orozco, M.; Laughton, C.A.; Herzyk, P.; Neidle, S. Molecular- mechanics modelling of drug-DNA structure; the effects of differing dielectric treatment on helix parameters and comparison with a fully solvated structural model. J. Biomol. Struct. Dyn. 1990, 8, 359–373. [Google Scholar] [CrossRef] [PubMed]
  56. Fogolari, F.; Tosatto, S.C.E. Application of MM/PBSA colony free energy to loop decoy discrimination: Towards corelation between energy and root mean square deviation. Protein Sci. 2005, 14, 889–901. [Google Scholar] [CrossRef] [PubMed]
  57. Treesuwan, W.; Wittayanarakul, K.; Anthony, N.G.; Huchet, G.; Alniss, H.; Hannongbua, S.; Khalaf, A.I.; Suckling, C.J.; Parkinson, J.A.; Mackay, S.P. A detailed binding free energy study of 2:1 ligand-DNA complex formation by experiment and simulation. Phys. Chem. Chem. Phys. 2009, 11, 10682–10693. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Nguyen, B.; Hamelberg, D.; Bailly, C.; Colson, P.; Stanek, J.; Brun, R.; Neidle, S.; Wilson, W.D. Characterization of novel DNA minor-groove complex. Biophys. J. 2004, 86, 1028–1041. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not available.

Share and Cite

MDPI and ACS Style

Żołek, T.; Maciejewska, D.; Żabiński, J.; Kaźmierczak, P.; Rezler, M. Probing the Relationship between Anti-Pneumocystis carinii Activity and DNA Binding of Bisamidines by Molecular Dynamics Simulations. Molecules 2015, 20, 5942-5964. https://doi.org/10.3390/molecules20045942

AMA Style

Żołek T, Maciejewska D, Żabiński J, Kaźmierczak P, Rezler M. Probing the Relationship between Anti-Pneumocystis carinii Activity and DNA Binding of Bisamidines by Molecular Dynamics Simulations. Molecules. 2015; 20(4):5942-5964. https://doi.org/10.3390/molecules20045942

Chicago/Turabian Style

Żołek, Teresa, Dorota Maciejewska, Jerzy Żabiński, Paweł Kaźmierczak, and Mateusz Rezler. 2015. "Probing the Relationship between Anti-Pneumocystis carinii Activity and DNA Binding of Bisamidines by Molecular Dynamics Simulations" Molecules 20, no. 4: 5942-5964. https://doi.org/10.3390/molecules20045942

APA Style

Żołek, T., Maciejewska, D., Żabiński, J., Kaźmierczak, P., & Rezler, M. (2015). Probing the Relationship between Anti-Pneumocystis carinii Activity and DNA Binding of Bisamidines by Molecular Dynamics Simulations. Molecules, 20(4), 5942-5964. https://doi.org/10.3390/molecules20045942

Article Metrics

Back to TopTop
